Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Explanation of Symbols
7 Description of Parts
7 Before first use of Your Cordless Vacuum Cleaner
8 Charging the Internal Battery
8 Attaching the Accessories - Fitting the Motorised Floor Tool
9 Changing the Floor Brush
10 Using Your Cordless Vacuum Cleaner

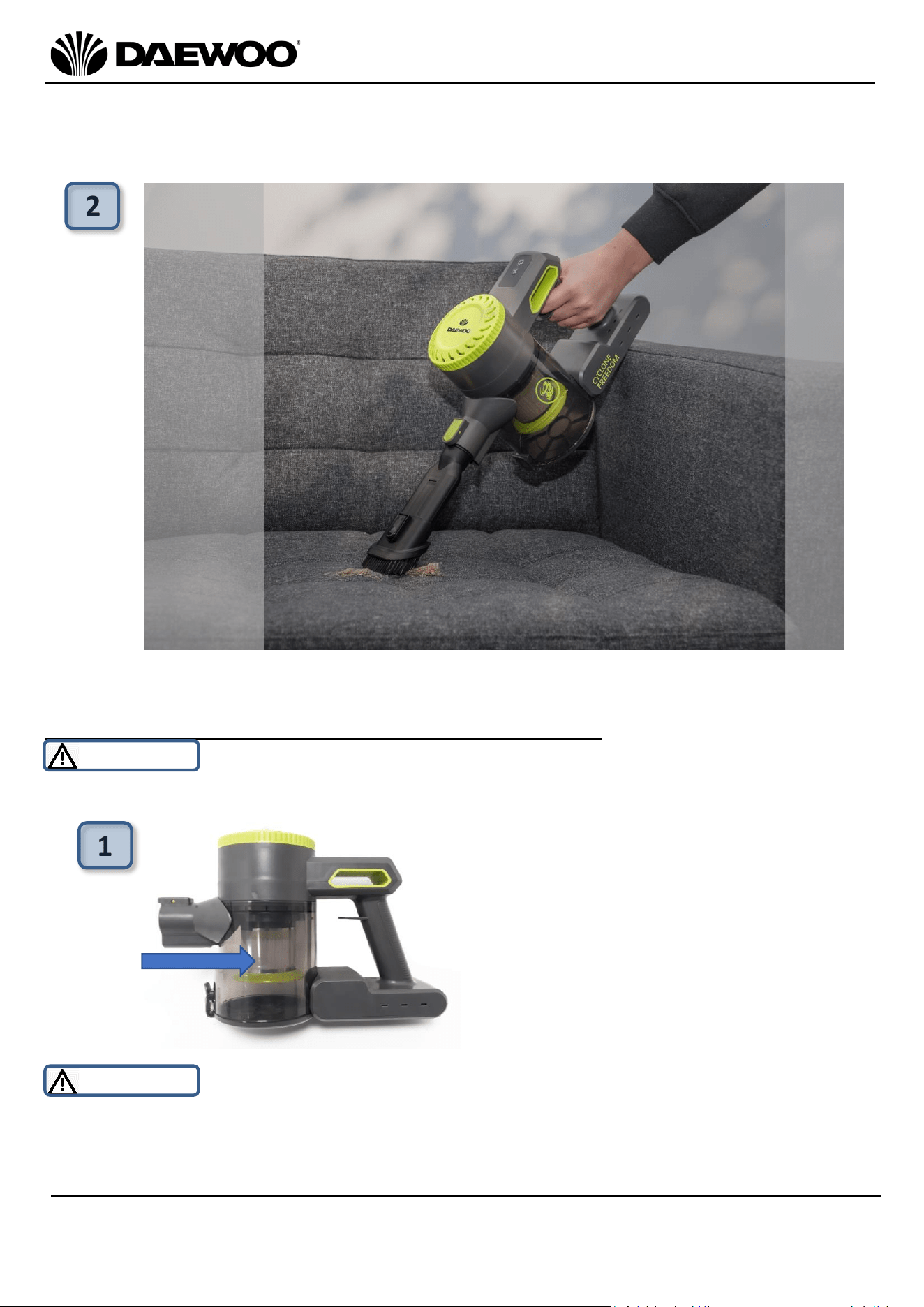

11 Attaching the Accessories - Using the Crevice Tool
12 Emptying and Cleaning Your Cordless Vacuum Cleaner
14 Cleaning and Replacing the Outlet Filter
14 Care and Maintenance of Your Cordless Vacuum Cleaner
14 Recommended Filter Cleaning Intervals

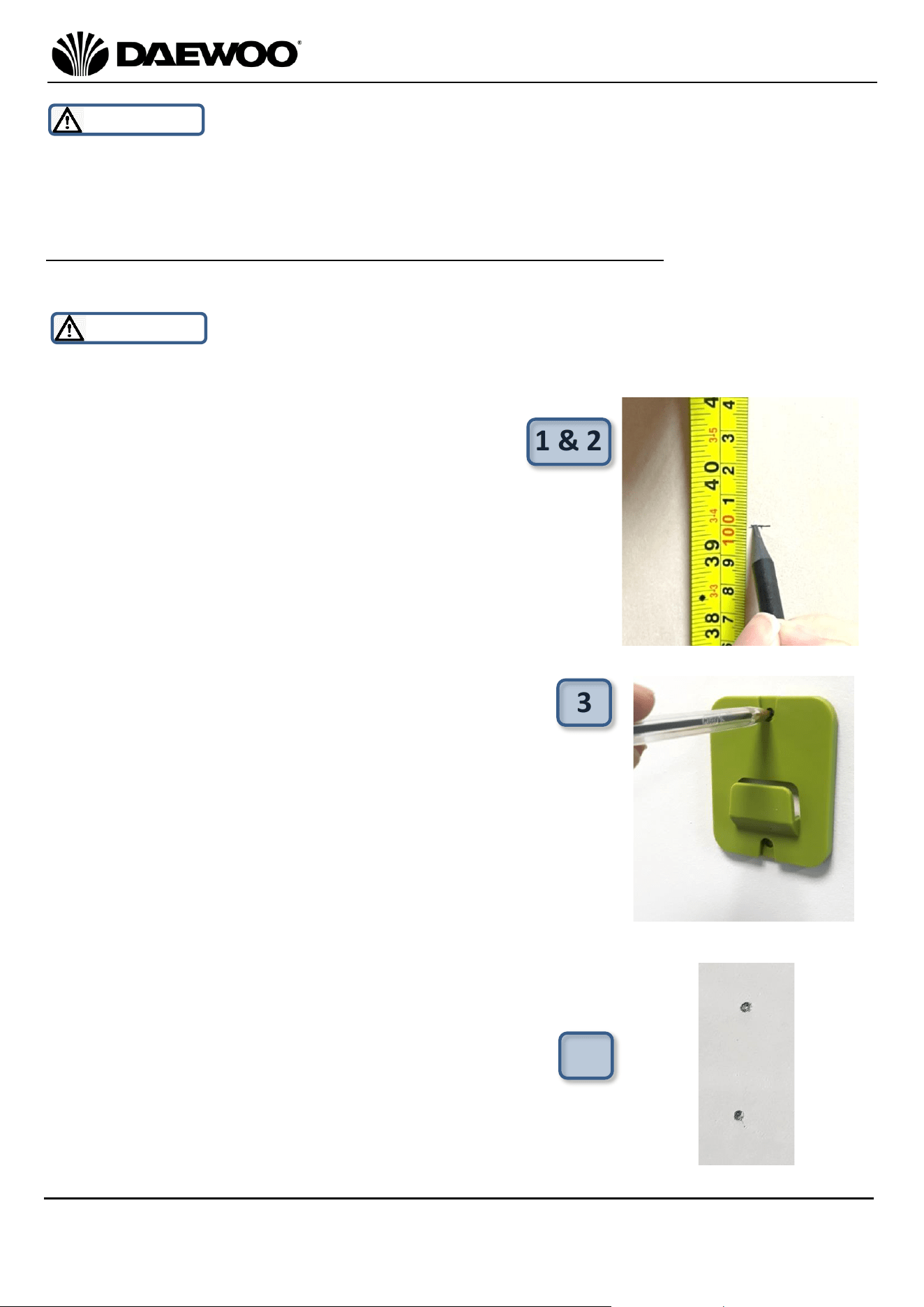

15 Fitting the Wall Bracket for Storage of your Vacuum Cleaner
17 Technical Specification
17 Troubleshooting Guide
18 Customer Support
19 Recycling Information
Back Page Warranty Information
3
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions
should always be followed.
Only use the product as described in this user manual. Any
other use is considered improper and may result in damage
to property or persons.
The manufacturer or vendor cannot be held liable for
damages or injury incurred through improper or incorrect
use.
• Read and familiarise yourself with all operating
instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children
less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to
• ensure no damage is evident. Should there be any signs of
damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified after-sales-
service in order to avoid a hazard
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT pull or carry the Vacuum Cleaner by the electrical
5
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
cord, use the handle provided.
• Ensure fingers and other objects are never placed in any
part of the vacuum cleaner. Clothing or hair may become
trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of
the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and
anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the
air discharged may extinguish gas fires or pilot lights and
may disturb ashes in open fires.
• DO NOT Vacuum water or any other liquids with this
vacuum.
• DO NOT Vacuum hot ashes or lit cigarettes, etc.
• Never use the appliance without the filter in place.
• DO NOT use the Vacuum without the Dust Compartment
fitted.
• DO NOT vacuum any large or broken objects such as glass.
• DO NOT vacuum anything that is burning or smoking such
as cigarettes, matches or hot ashes.
WARNING! The fixing pack contains small items which
should be kept away from young children.
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
This symbol means batteries and rechargeable batteries may
not be disposed of with household waste!
As the end user you are required by law to bring all batteries
and rechargeable batteries to a collection point run by the Local
Authority or to a retailer, so that they can be disposed of in an
environmentally friendly manner.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol identifies voltage and the current rating for direct
current.
WARNING!
This designates a hazard with moderate risk, which may result
in severe injury or damage to the product if not adhered to.
7
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

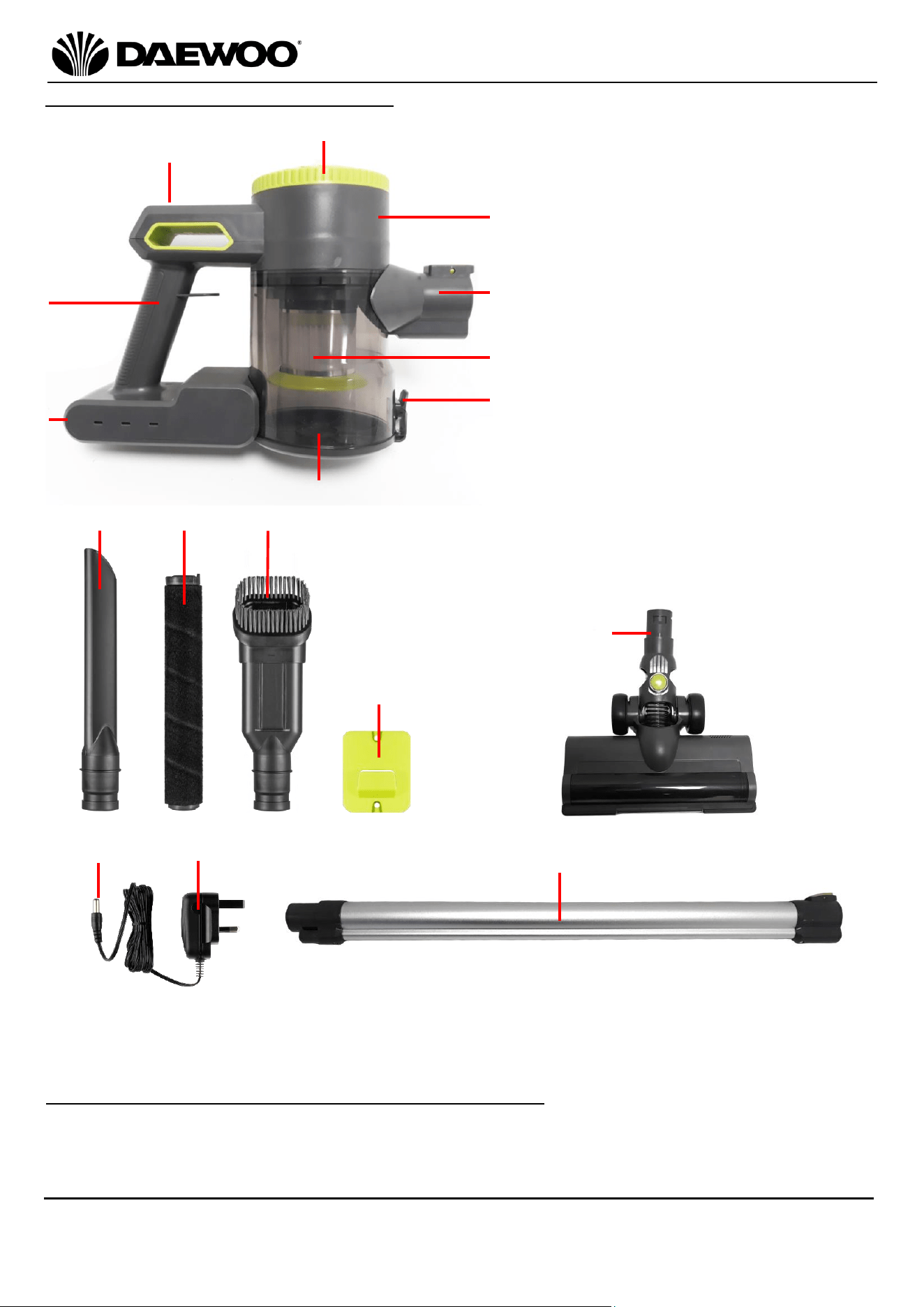

Description of Parts & Accessories
Before first use of your Cordless Vacuum Cleaner
Before use, retain all packaging until all the parts are present against the parts
list – see Description of Parts & Accessories above.
Discard packaging responsibly.
8
1. Handle
2. Charging Port
3. Dust Compartment
4. Dust Release Catch
5. Hepa Filter
6. Air Inlet
7. Motor Unit
8. Air Outlet & Filter
9. Control Panel
10. Crevice Tool
11. Hard Floor Brush
12. Upholstery Tool and Brush
13. Wall Mount Bracket
14. Motorised Floor Tool
15. Small DC Power Plug
16. Mains Charger
17. Aluminium Tube
1
2
3
4
6
9
10
11
14
13
7
16
5
15
17
12
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
Charging the Internal Battery
Ensure that the internal rechargeable battery is fully charged as follows:
1. Insert the Small Power Plug (15) of the Mains Charger (16) into the Charging
Port (2).
2. Plug the Mains Charger (16) into the nearest mains socket.

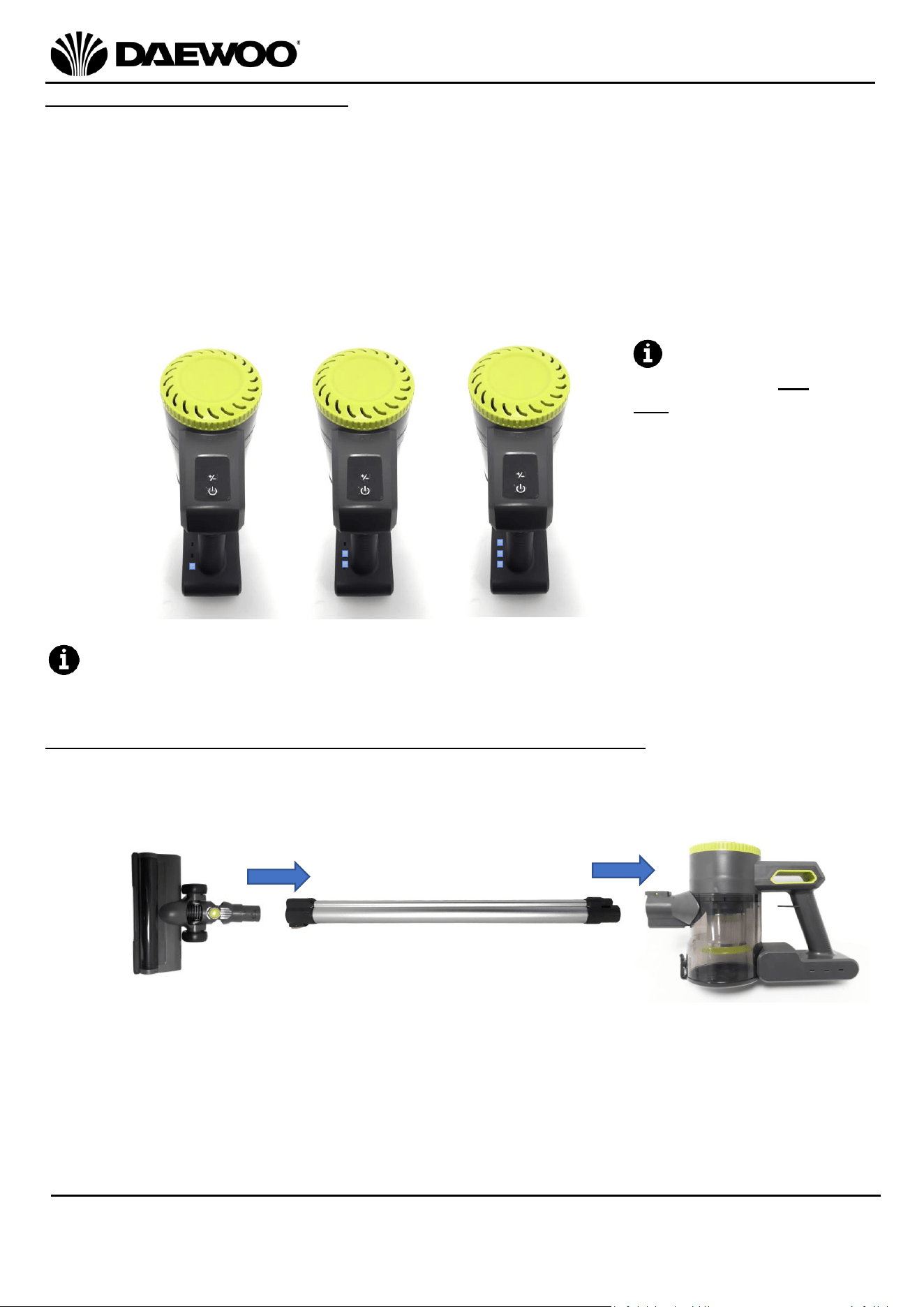

3. The Charging/Battery Indicators will light in the sequence as in a, b, c below to
show the internal battery is charging.
4. Once the battery is fully charged (after approximately 5 hours), the
Charging/Battery Indicators will all light as in ‘c’ below showing that the
internal battery is fully charged and the Mains Charger (16) can be removed.
The Charging/Battery Indicators will go out one at a time during use, when
none of the indicators are illuminated the internal battery will need recharging.
Attaching the Accessories - Fitting the Motorised Floor Tool
CAUTION Ensure that the vacuum cleaner is not connected to the mains charger
before use.
1. Push the Aluminium Tube (17) onto the Air/Dust Inlet (1) until it clicks home
as shown below:
2. Push the Motorised Floor Tool (13) onto the other end of the Aluminium
Tube (17) again until it clicks home.
b.
c.
a.
Please note, the
vacuum cleaner will
not operate whilst
the Mains Charger
(16) is plugged into
the Charging Socket
(2). The Mains
Charger must be
disconnected before
using the vacuum.
9
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Changing the Floor Brush
3

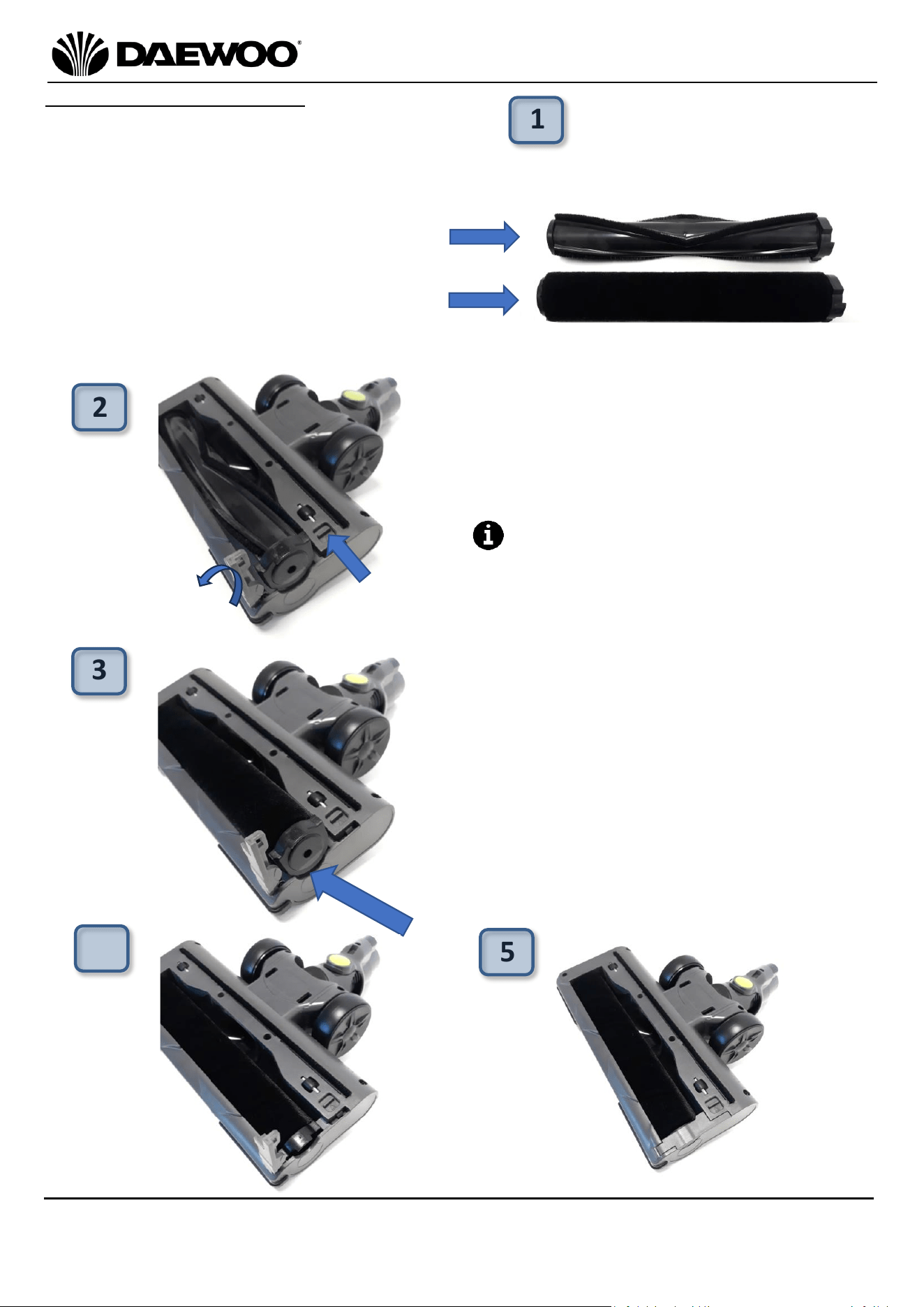

1. Before using the Motorised Floor Tool
(14) the first choose the appropriate
brush type for the floor type being
cleaned:
Select the Carpet Brush for vacuum
cleaning carpets, rugs, etc.
Select the Hard Floor Brush (19) for
cleaning vinyl, laminate, tiled floors,
etc.
1
2. To change the brush type, slide the
locking catch in the direction of the
arrow (left a) on the underside of the
Motorised Floor Tool (14) as shown
left. At the same time lift up the
brush retaining catch (b).
The Carpet Brush (19) is currently
fitted in this example.
3. Lift the brush out of the Motorised
Floor Tool (14) as shown left.
4. Lower the other floor brush into the
Motorised Floor Tool (14) as shown
left. NB the brush may need rotating
back and forth a little in order for it to
mesh at the other end and drop into
place.
5. Finally push the brush retaining clip
back down to hold the brush in place:
2
a
.
b.
c.
4
5
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual

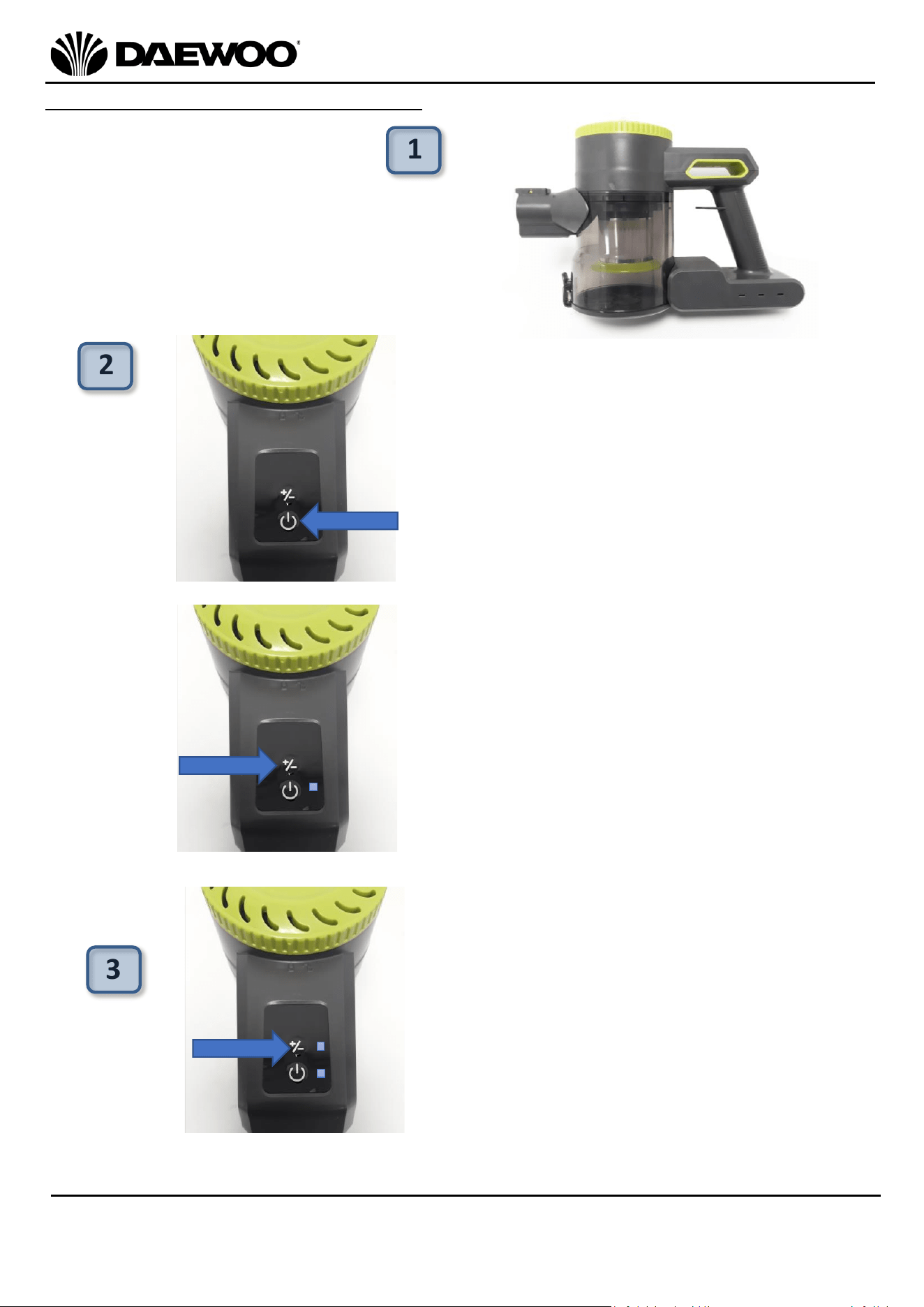

Using Your Cordless Vacuum Cleaner
1. Grasp the vacuum cleaner
firmly by the Handle (1).
1
3
2. Press the On/Off button on the
Control Panel (9 - arrowed right) to
power up the cleaner. Press the button
again to switch off the cleaner.
a. Press power button on the Control
Panel (9) to change the power/suction
level.
A single light on the Control Panel (9)
shows the vacuum is in low power
mode.
b. A second press of the power button
will increase to power/suction level to
high which will be shown by two lights
on the Control Panel (9).
2
a.
b.
11
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Attaching the Accessories - Using the Crevice Tool (10)
1. Attach the Crevice Tool (10) onto the Aluminium Tube (17) to clean edges
and hard to get at areas:

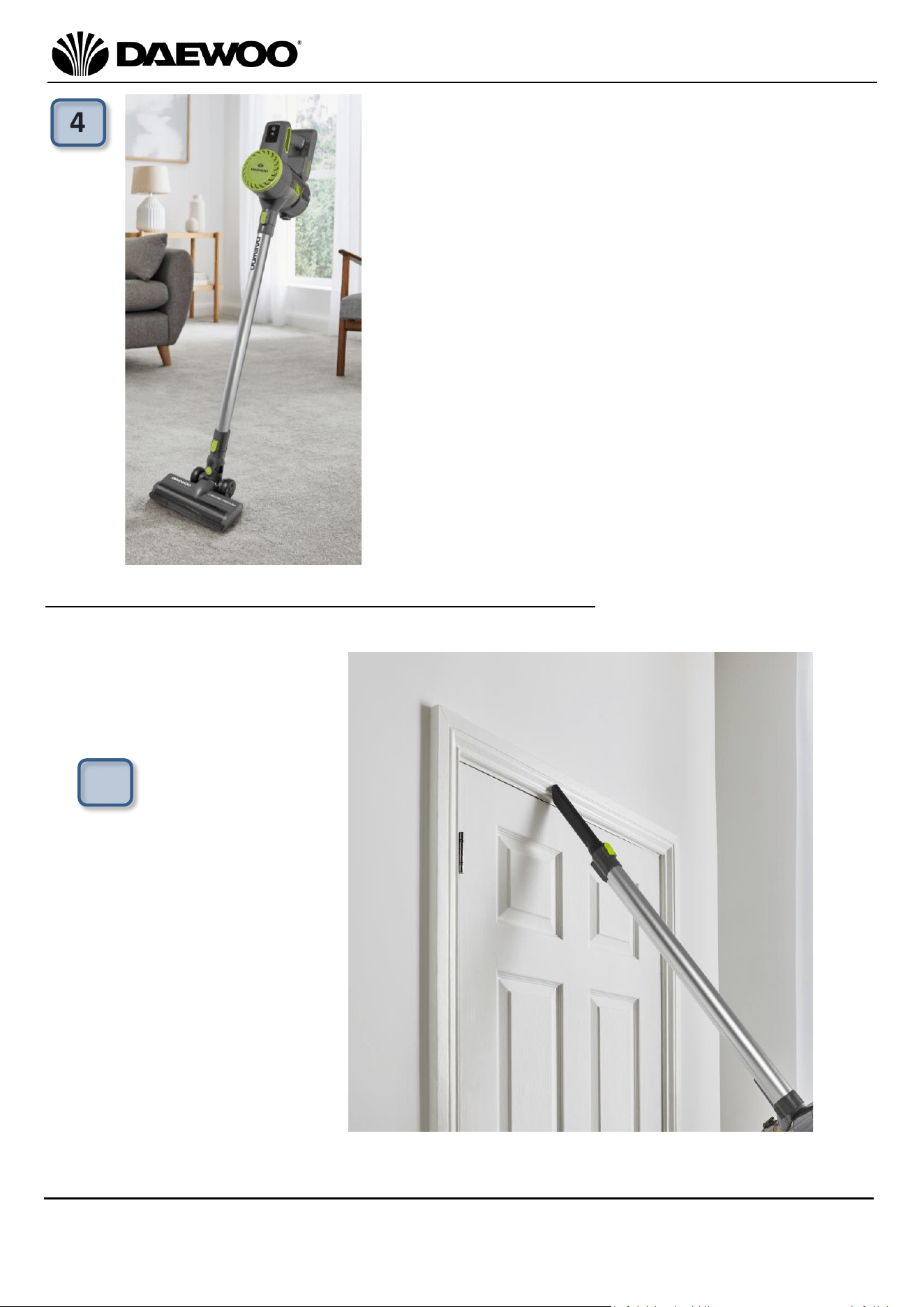

3. Place your foot gently on the Motorised
Floor Tool (14) and pull the cleaner back by
the Handle (1) and start vacuum cleaning.
4
1
12
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
1. Once the Dust compartment (3)
fills to the level shown arrowed
left, it will need emptying and the
filters cleaned.
2. If the Aluminium Tube (17) is not required, attach the Upholstery Tool & Brush
(12) directly to the cleaner, this useful for cleaning soft furnishings, car seats,
stairs, etc.:
Emptying and Cleaning Your Cordless Vacuum Cleaner
WARNING! Always disconnect the cleaner from the mains charger before
cleaning.
WARNING! DO NOT continue to use your vacuum cleaner above the
Maximum Fill level shown arrowed above as permanent damage may occur to the
appliance.
1
2
13
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

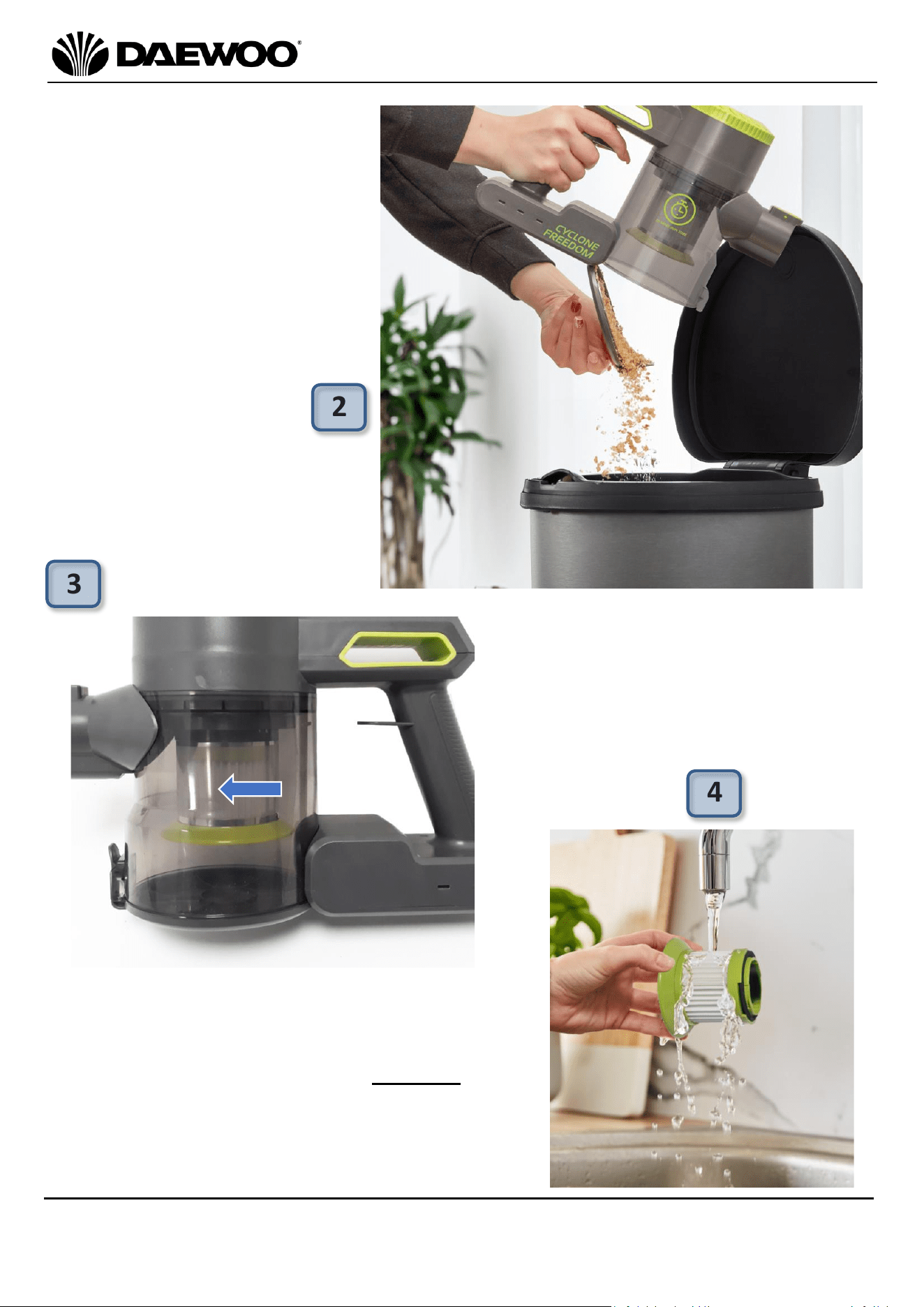

2. To empty the cleaner, hold
the Dust Compartment (3)
over a dust bin and press
the Dust Release Catch (4)
(arrowed right) and the
base of the dust
compartment will swing
open and allow the
collected dust to fall out
into the dust bin.
4. Wash the Hepa Filter (5) in warm
running water until clean. Allow the
filter to dry thoroughly for 24 hours
before reuse.
3. Rotate the Hepa Filter (5)
in direction of the arrow
and remove.
2
4
3
14
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual

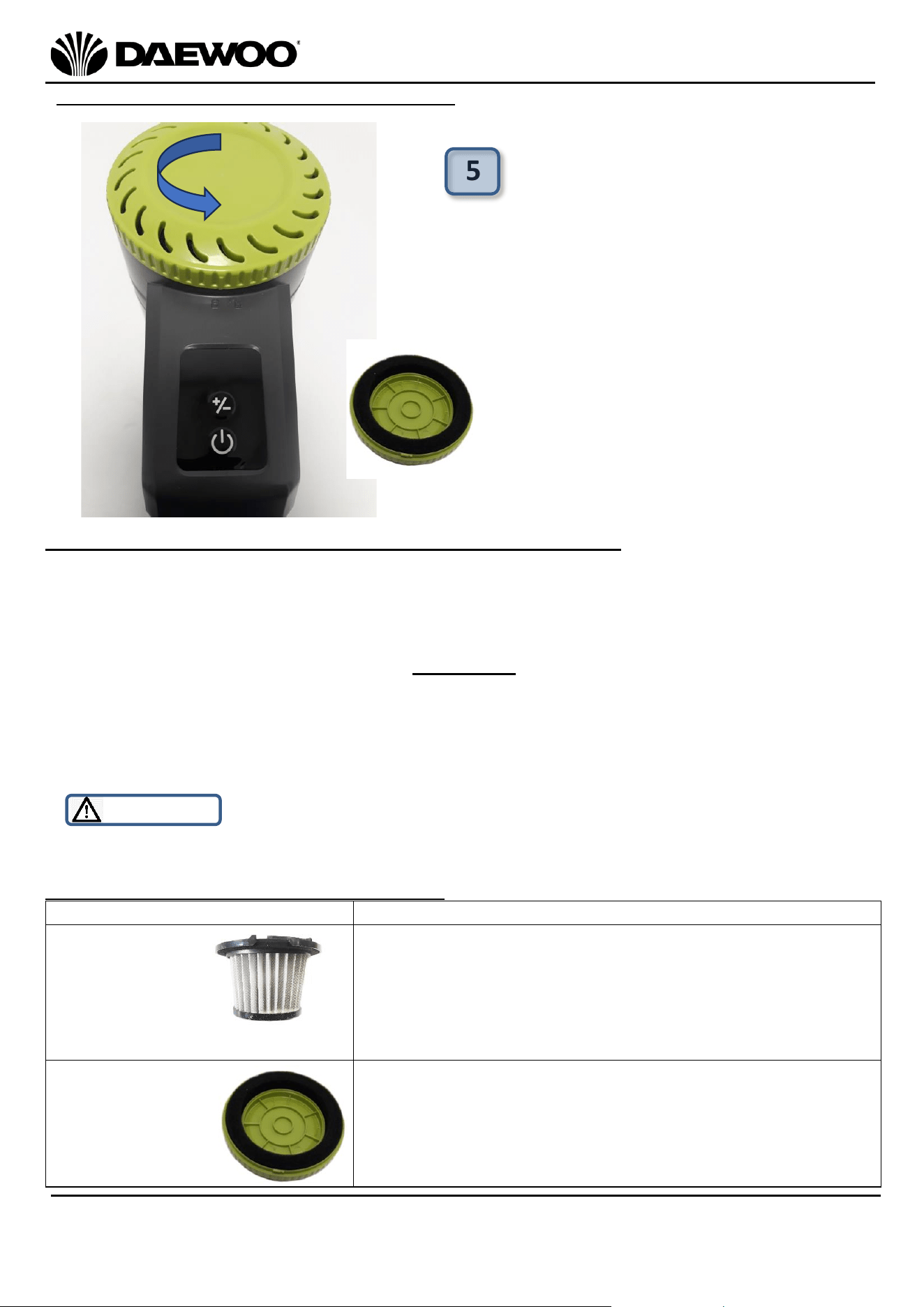

5. Twist off the Air Outlet Filter (8).
Remove the sponge filter and wash
the filter in warm running water
until clean. Allow the filter to dry
thoroughly for 24 hours before
reuse.
To replace the Air Outlet Filter (8),
replace the sponge filter inside the
cover then align the lock and
unlock marks and twist the cover
back on.
Cleaning and Replacing the Outlet Filter
Care and Maintenance of your Cordless Vacuum Cleaner
• Always disconnect the cleaner from the mains charger before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or
abrasive cleaners.
• Do not submerge the cleaner or its charger in water or any other liquids.
• Empty the Dust Compartment (3) as soon as it has reached maximum capacity
(see above).*
• Wash the Hepa Filter (5) and the Air Outlet Filter (8) regularly – see table below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and
reuse.
* WARNING! DO NOT continue to use your vacuum cleaner once the Dust
Compartment (3) is full as permanent damage may occur to the appliance.
Recommended filter Cleaning Intervals
Filter Type
Recommended cleaning period
• Shake
out
debris
when
you
empty
the dust
container.
•
Rinse
under
war
m
water
once
a
month
• Allow to dry thoroughly for 24 hours before use.
• Shake
out
debris
once
a
month
•
Remove the sponge filter from around the edge
of the cover and rinse
under
war
m
water
once
every
3-6
months
• Allow to dry thoroughly for 24 hours before use.
Hepa Filter
5
Air Outlet Filter
15
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING! Ensure the filters are cleaned periodically according to the table
above, failure to clean the filters regularly will severely impair the performance
and permanent damage may occur to the appliance which may invalidate your
warranty.
Fitting the Wall Bracket for Storage of your Vacuum Cleaner
Fit the Wall Bracket (13) to the wall using supplied Wall Plugs and Screws (or
alternative appropriate fixings for the wall) as follows:
WARNING! Be careful whilst drilling the holes, care must be taken not to
damage concealed cables and pipes in the wall. If in doubt obtain the services of a
qualified tradesman to fit the wall bracket.
1. Choose a suitable position to mount your
vacuum cleaner on the wall.
2. Measure 1 metre above the floor and mark the
wall with a pencil as shown right.
3. Hold the Wall Bracket level on the wall in
line with the 1 metre mark made and mark
the position of the two screw holes through
the Wall Bracket using a pencil as shown.
4. Remove the Wall Bracket and using the
marks, drill holes in the wall using a suitable
6mm masonry drill bit (not supplied).
1 & 2
3
4
16
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual

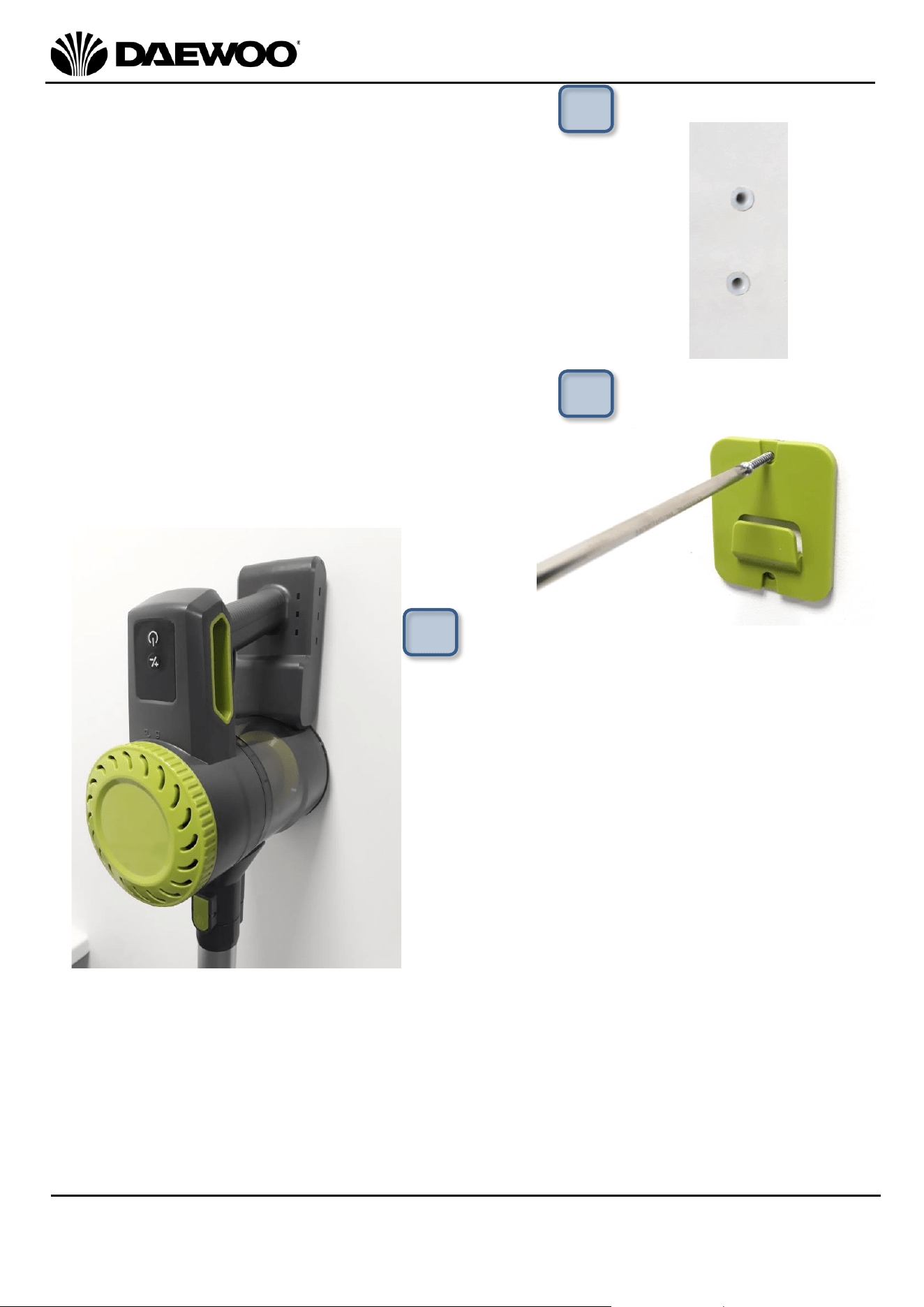

5. After drilling the holes, push the two supplied
Wall Plugs into the holes as shown right:
6. Screw the Wall Bracket to the wall using the
supplied screws:
7. Hang your Vacuum cleaner on the
Wall Bracket as shown left:
5
6
7
17
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Technical Specification
Troubleshooting Guide
Problem
Possible Cause
Possible Solution
Unit fails to turn on.
Internal battery not
charged.
The charger is not
plugged into the
mains socket.
Charge the internal
battery.
Ensure the charger is fully
inserted into the socket
and the socket is switched
on.
Low suction or poor pick-
up.
Dust Compartment is
full.
Filters are clogged.
Low Power Selected
Empty the cylinder.
Check and clean the filters.
Check the Min/Max Power
Button.
The vacuum is making a
“hissing” sound.
The airflow is
restricted
Empty the Dust
Compartment.
Check and clean the filters.
Clear any blockages if
necessary.
Model Number
FLR00185
Mains Charger
Input: AC 100-240V ~ 50/60Hz Output: 27V DC
500mA, 13.5W
Rated Power
140-160W
Battery
22.2V (6x 2000mAh Li-Ion cells)
Dimensions (approx.)
21.5cm (l) x 25cm (w) x 125.5cm (h)
Vacuum (max)
7-10kpa
Noise Level (approx.)
<65dB
Dust Compartment
Capacity
0.8L
Maximum Air Flow
16.7L/S
18
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
19
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
This symbol means batteries and rechargeable batteries may not be
disposed of with household waste!
As the end user you are required by law to bring all batteries and
rechargeable batteries to a collection point run by the Local Authority
or to a retailer, so that they can be disposed of in an environmentally
friendly manner.
20
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cyclone Freedom 22.2V Cordless Vacuum Cleaner
Model No. FLR00185
User Manual
WARRANTY
Thank you for purchasing your Daewoo Vacuum.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester, M32 0TB, UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
