IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed. These instructions should be saved for future
reference:
• Read and familiarise yourself with all operating instructions before
using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check that the unit is
intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with
that of the local network before connecting the appliance to the mains
power supply.
• This appliance can be used by persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8
years when it is energised or cooling down.
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains
supply.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been
used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by a qualified
electrician. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged plug or cord, after a
malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains cable to
• ensure no damage is evident. Should there be any signs of damage the
appliance should not be used.
• If the power cable is damaged, it should only be replaced by the
manufacturer or a suitable qualified after-sales-service in order to
avoid a hazard
• Do not allow the mains cable to hang over sharp edges or come in
contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains supply and
3
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
allow to cool.
• This appliance is intended for household use only and should not be
used for industrial purposes.
• Do not use any accessories or attachments with this appliance other
than those supplied or recommended by supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects into any openings as damage to the appliance
and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• Do not pull or carry the Vacuum Cleaner by the electrical cord, use the
handle provided.
• Ensure fingers and other objects are never placed in any part of the
vacuum cleaner. Clothing or hair may become trapped if the vacuum is
used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of the body
away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and anything else that
may reduce airflow.
• Avoid directing the appliance towards naked flames as the air
discharged may extinguish gas fires or pilot lights and may disturb
ashes in open fires.
• Do not Vacuum water or any other liquids with this vacuum.
• Do not Vacuum hot ashes or lit cigarettes, etc.
• Never use the appliance without the filter in place.
• Do not use the Vacuum with no Dust Tank attached.
• Do not vacuum any large or broken objects such as glass.
• Do not vacuum anything that is burning or smoking such as cigarettes,
matches or hot ashes.
4
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

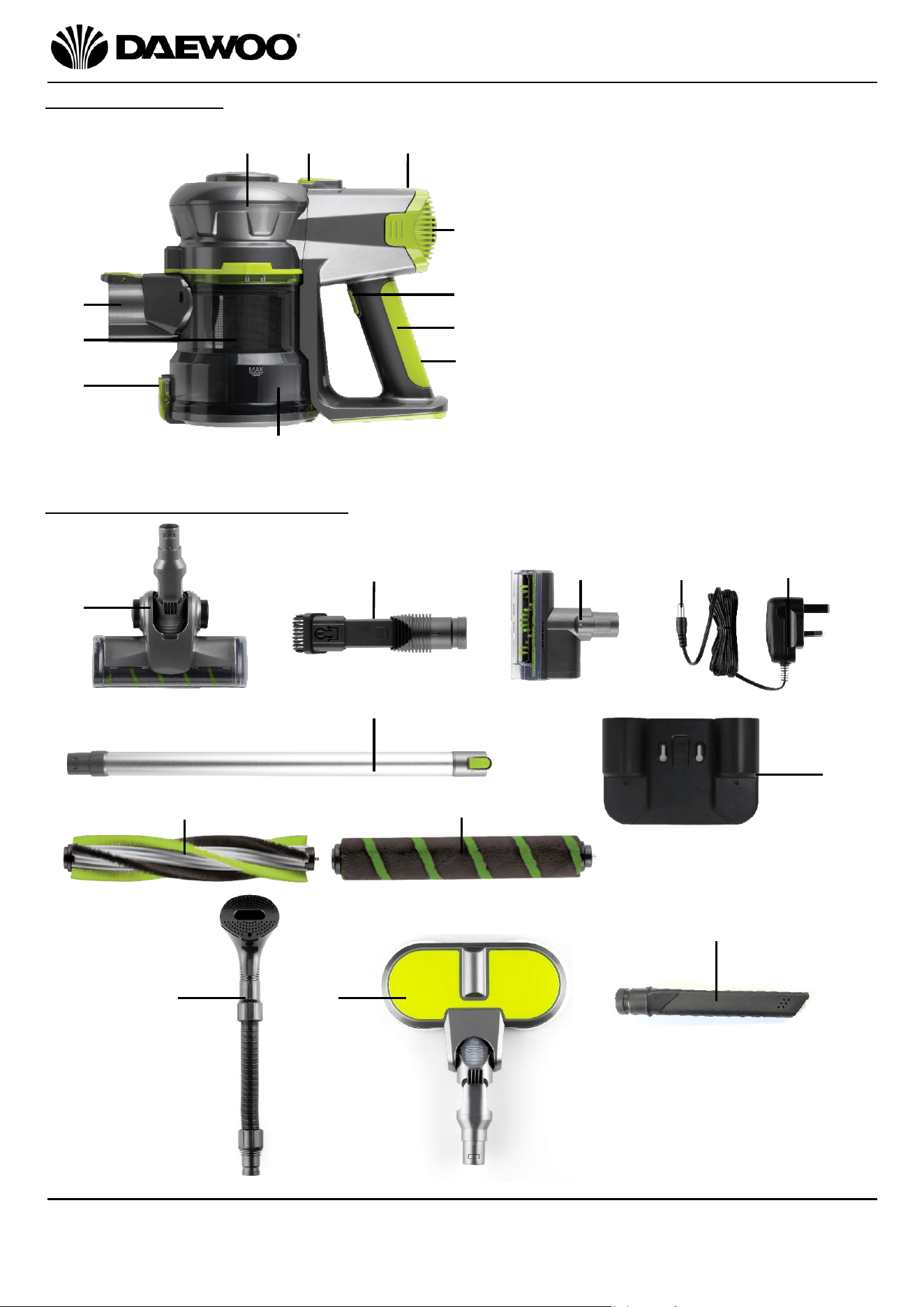

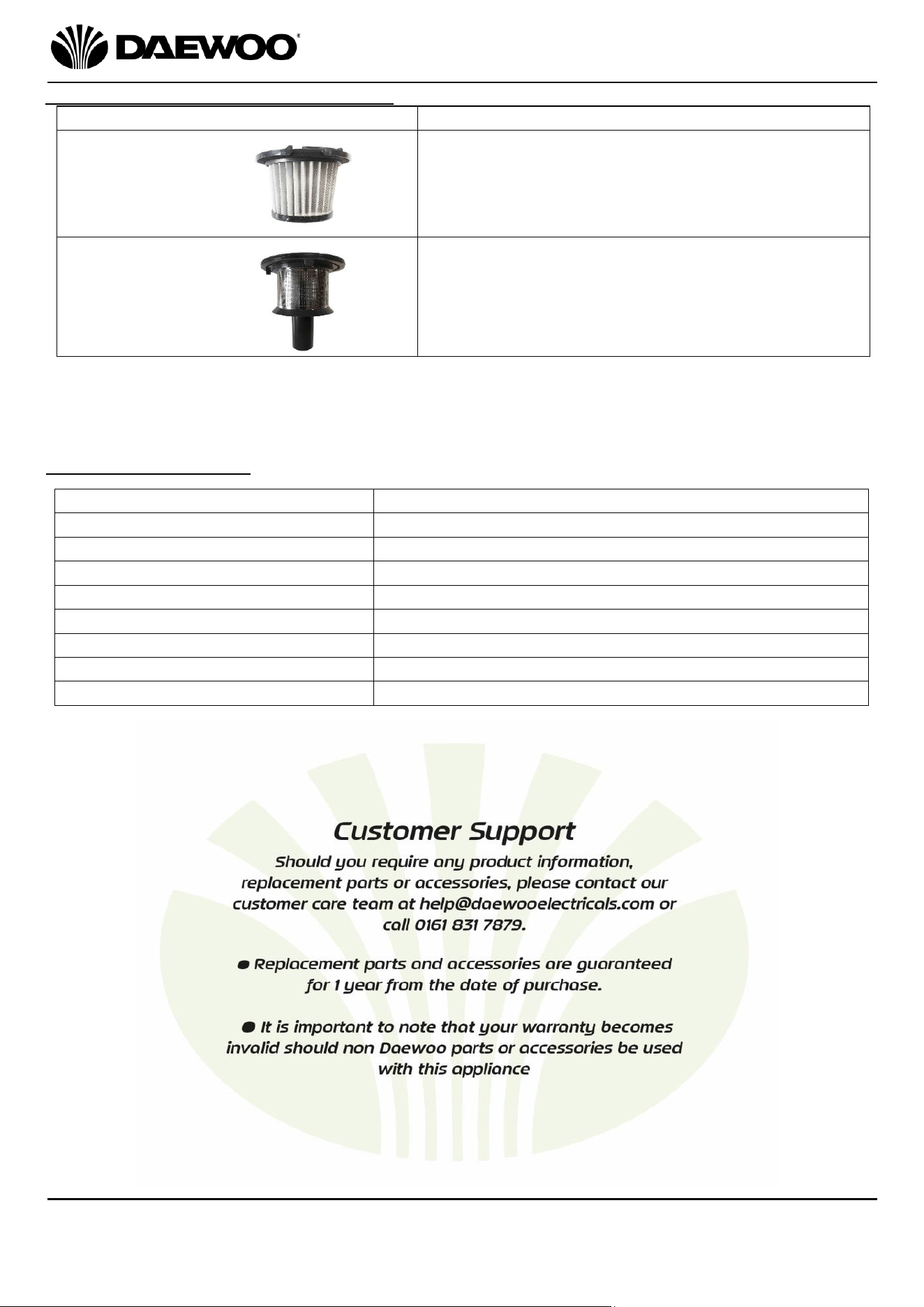

Description of Parts
Description of Parts – Accessories
21
10
1. Air/Dust Inlet
2. Conical Hepa & Cyclonic Filters
3. Dust Release Catch
4. Dust Compartment
5. Charging Socket
6. Handle
7. On/Off Trigger Switch
8. Min/Max Power selector
9. Charging/Battery Indicators
10. Handle Release Catch
11. Motor Housing
12. Motorise Floor Tool
13. Crevice & Upholstery Tool
14. Motorised Stair Tool
15. Mains Charger
16. Small Power Plug
17. Aluminium Tube
18. Wall Mount Bracket
19. Carpet Brush
20. Hard Floor Brush
1
2
3
4
5
6
11
12
13
14
17
7
16
15
9
18
19
20
8
21. Pet Brush Tool
22. Floor Polisher Tool
23. Long Reach Crevice Tool
22
23
5
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

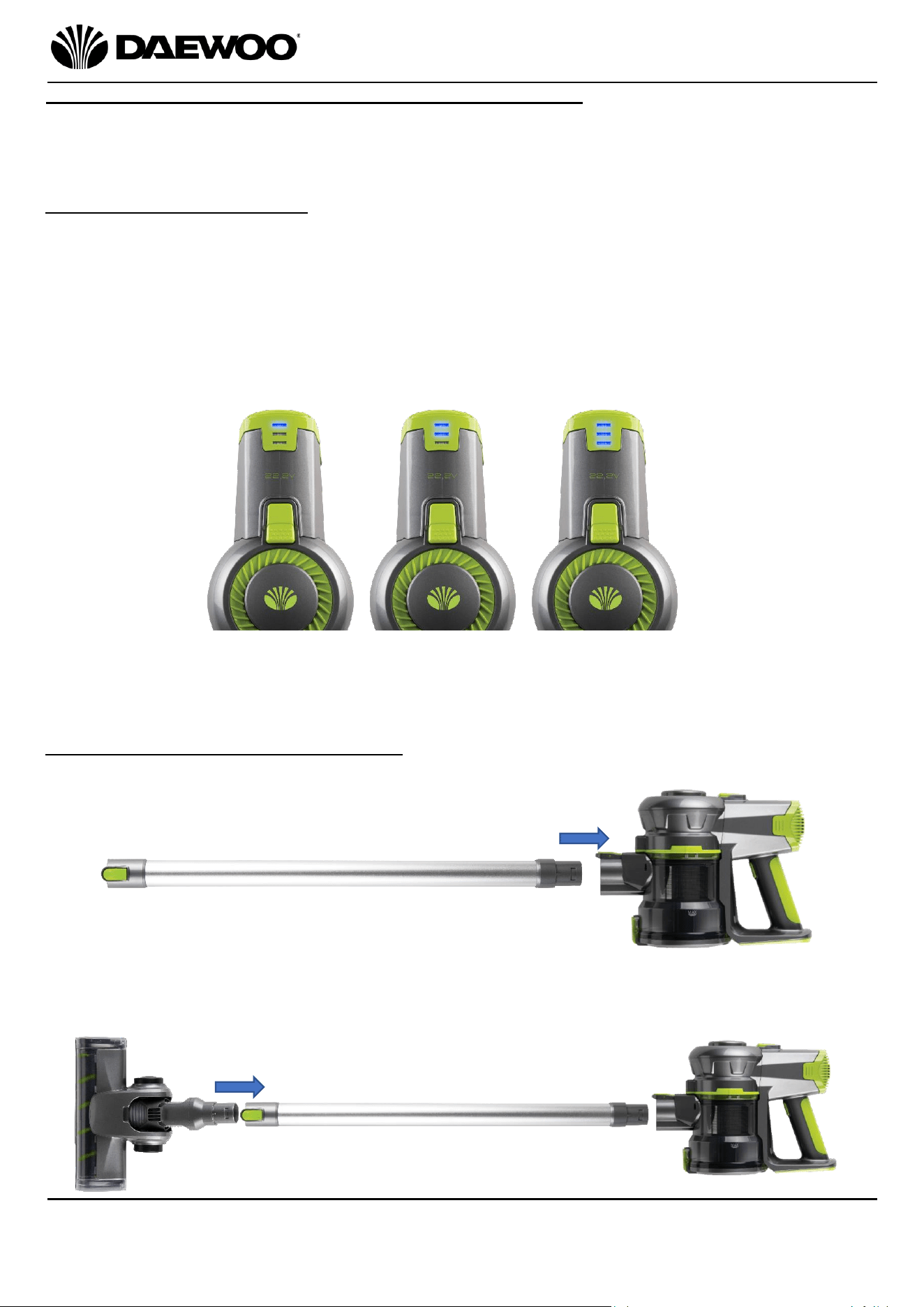

Before the first time you use your Cordless Vacuum Cleaner
Please read these operating instructions thoroughly and keep them in a safe place for future
reference.
Remove all packing materials and discard responsibly.
Charging the internal Battery
Before use, please ensure that the internal rechargeable battery is fully charged as follows:
1. Insert the Small Power Plug (15) of the Mains Charger (16) into the Charging Socket (5).
2. Plug the Mains Charger (16) into the nearest mains socket.
3. The Charging/Battery Indicators (9) will light in the sequence as in a, b, c below to show
the internal battery is charging.
4. Once the battery is fully charged (after approximately 5 hours), the Charging/Battery
Indicators (9) will all light as in ‘c’ below showing that the internal battery is fully charged
and the Mains Charger (16) can be removed.
CAUTION Ensure that the vacuum cleaner is not connected to the mains charger before use.
Attaching the Motorised Floor Tool (12)
1. Push the Aluminium Tube (17) onto the Air/Dust Inlet (1) until it clicks home as shown
below:
2. Push the Motorised Floor Tool (12) onto the other end of the Aluminium Tube (17) again
until it clicks home.
a.
b.
c.
6
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

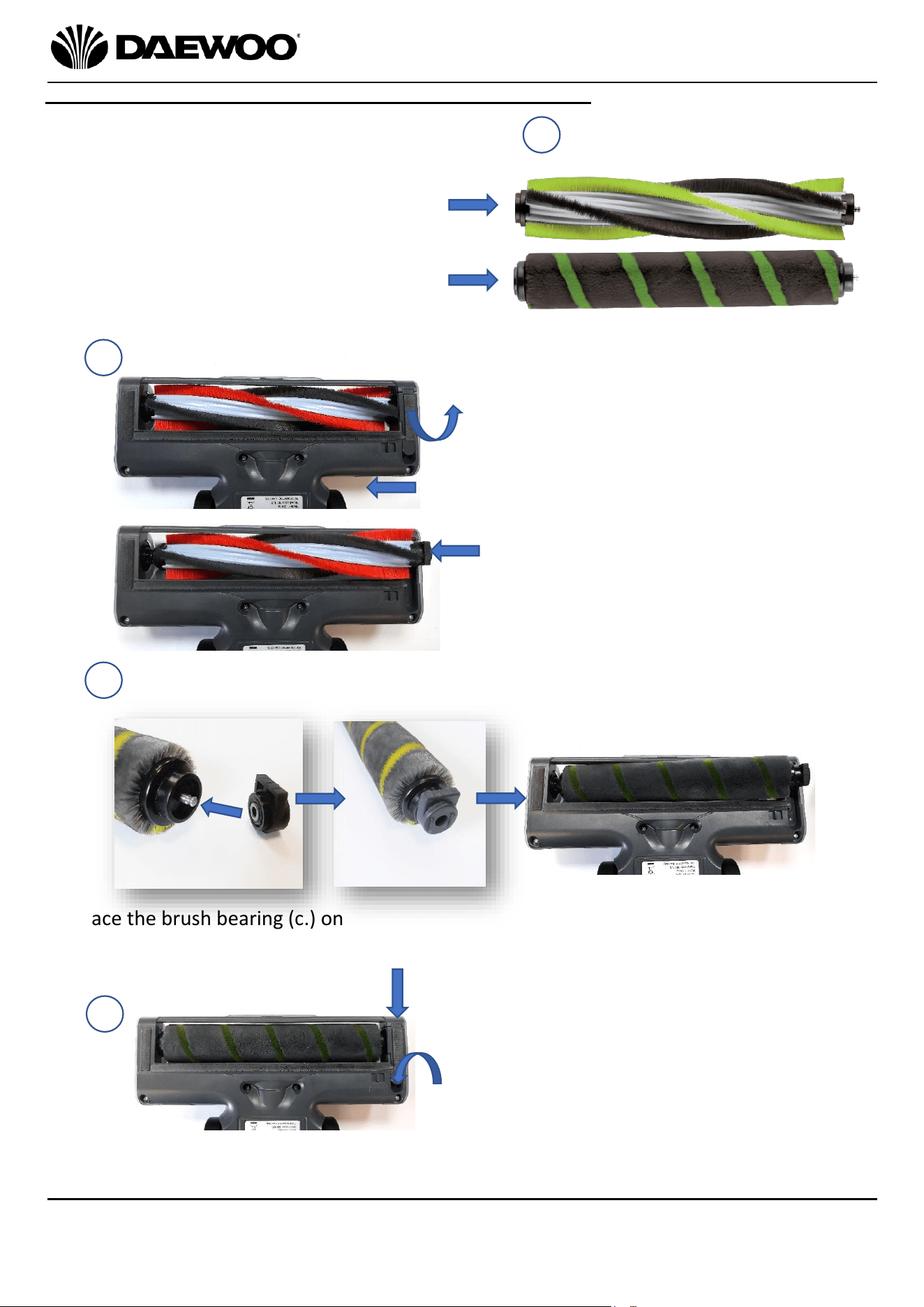

Selecting the Correct Brush for the Motorised Floor Tool (12)
4. Finally, hook the brush bearing retaining
clip at the front edge (d) and push down
into until it clicks into place (e) as shown
left.
The vacuum is now ready to clean hard
floors.
3
c.
1. Before using the Motorised Floor Tool (12)
the first choose the appropriate brush type
for the floor type being cleaned:
Select the Carpet Brush (19) for vacuum
cleaning carpets, rugs, etc.
Select the Hard Floor Brush (20) for
cleaning vinyl, laminate, tiled floors, etc.
1
2. To change the brush attachment, slide
the catch (a) to the left and lift up the
brush bearing retaining clip (b) on the
underside of the Motorised Floor Tool
(12) as shown left.
NB the Carpet Brush (19) is currently
fitted in this example.
Lift out the Carpet Brush (19) and the
brush bearing (c). Remove the brush
bearing from the Carpet Brush (19).
2
a.
b.
3. Place the brush bearing (c.) onto the end of the Hard Floor Brush (20) as shown above
left. Once in place, insert the Hard Floor Brush (20) into the Motorised Floor Tool (12)
as shown above right.
c.
c.
4
c.
d.
e.
7
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

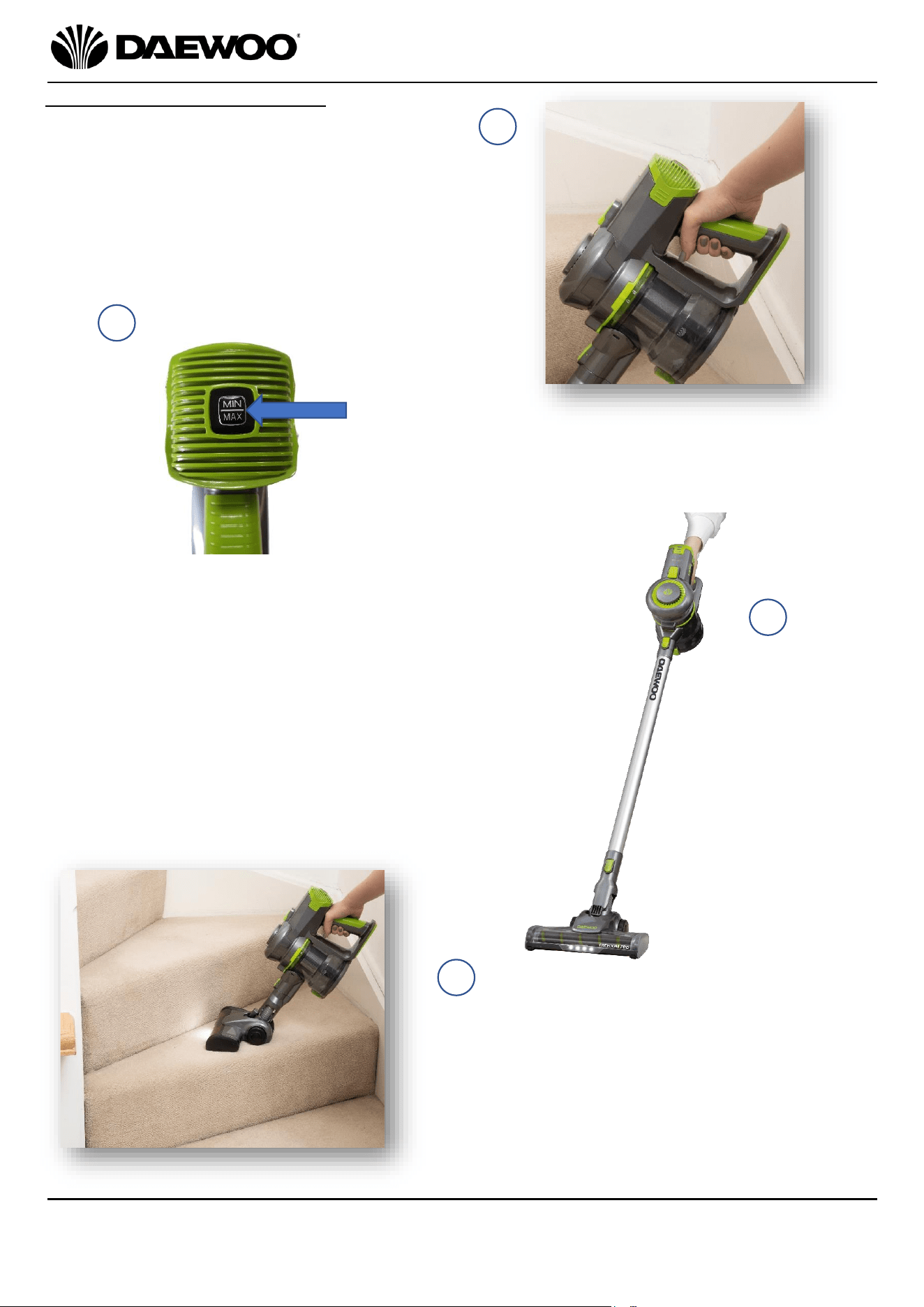

Using the Motorised Floor Tool
4. If the Aluminium Tube (17) is not required,
the Motorised Floor Tool (12) can be
attached directly as shown right for cleaning
hard to get at areas such as stairs, car seats,
etc.
1. Grasp the vacuum cleaner firmly by the
Handle (6) and press the On/off Trigger
Switch (7) to power up the cleaner.
1
3. Place your foot gently on the Motorised Floor
Tool (12) and pull the cleaner back by the
Handle (6) and start vacuum cleaning.
Press the On/off Trigger Switch (7) again at
the end of cleaning to switch the cleaner off.
3
4
2. During use, press the Min/Max Power Button
(8) to select between minimum or maximum
suction power.
2
8
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

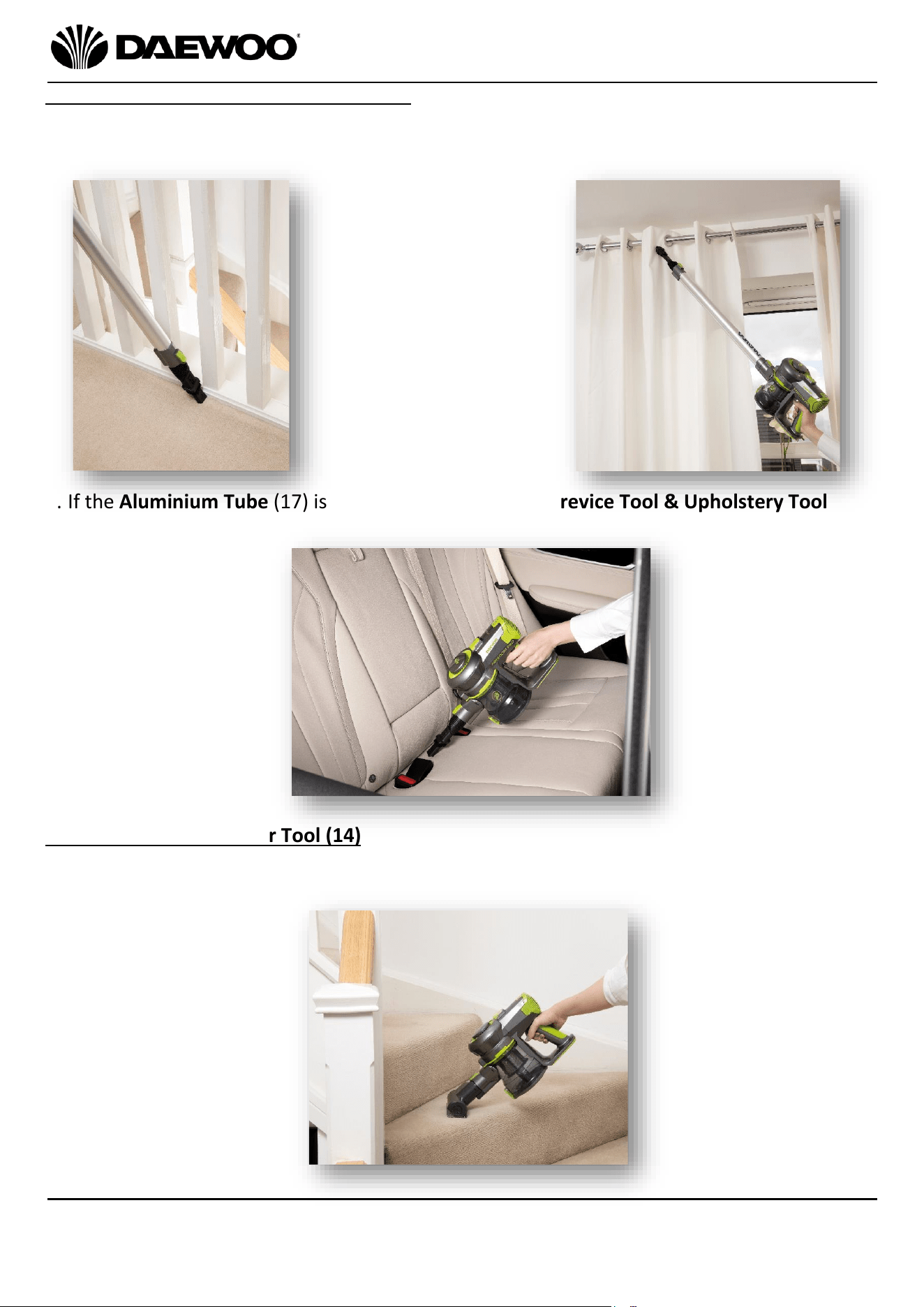

Using the Crevice & Upholstery Tool (13)
1. Attach the Crevice Tool & Upholstery Tool (13) onto the Aluminium Tube (17) to clean
carpet edges and hard to get at areas:
2. If the Aluminium Tube (17) is not required, attach the Crevice Tool & Upholstery Tool
(13) directly to the cleaner, this useful for cleaning soft furnishings, car seats, stairs, etc.:
Using the Motorised Stair Tool (14)
Attach the Motorised Stair Tool (14) to the cleaner, this useful for cleaning the stairs
as below:
Left: Slide the brush back on
the tool to reveal the crevice
tool to clean carpet edges,
etc. Alternatively use the Long
Reach Crevice Tool (23).
Right: Pull the brush down
on the tool to clean curtains,
upholstery, etc.
9
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

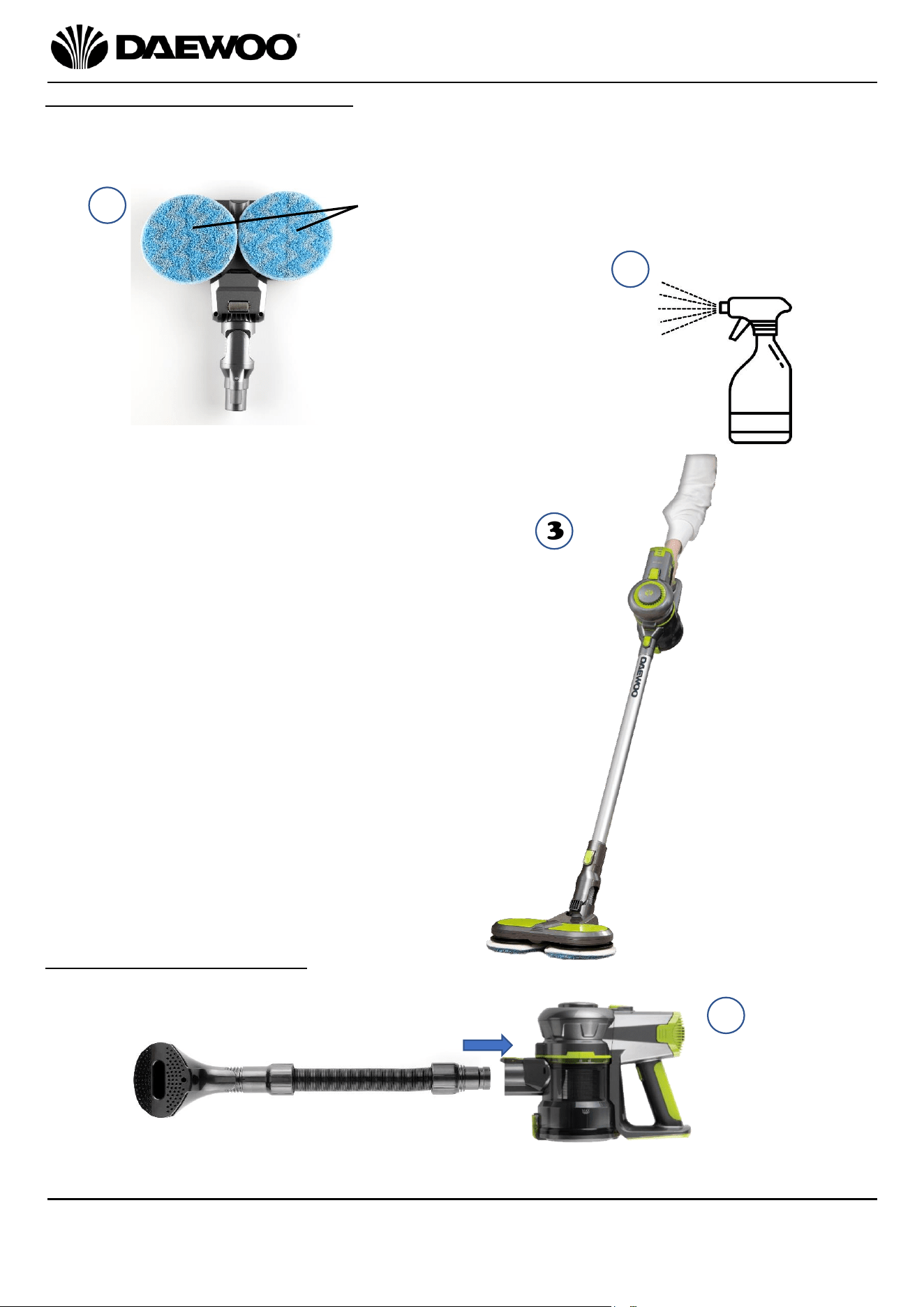

Using the Floor Polishing Tool (22)
1. Before using the Floor Polishing Tool (22), turn the unit upside down and attach the two
polishing pads by pressing them onto the rotating plates as shown below:

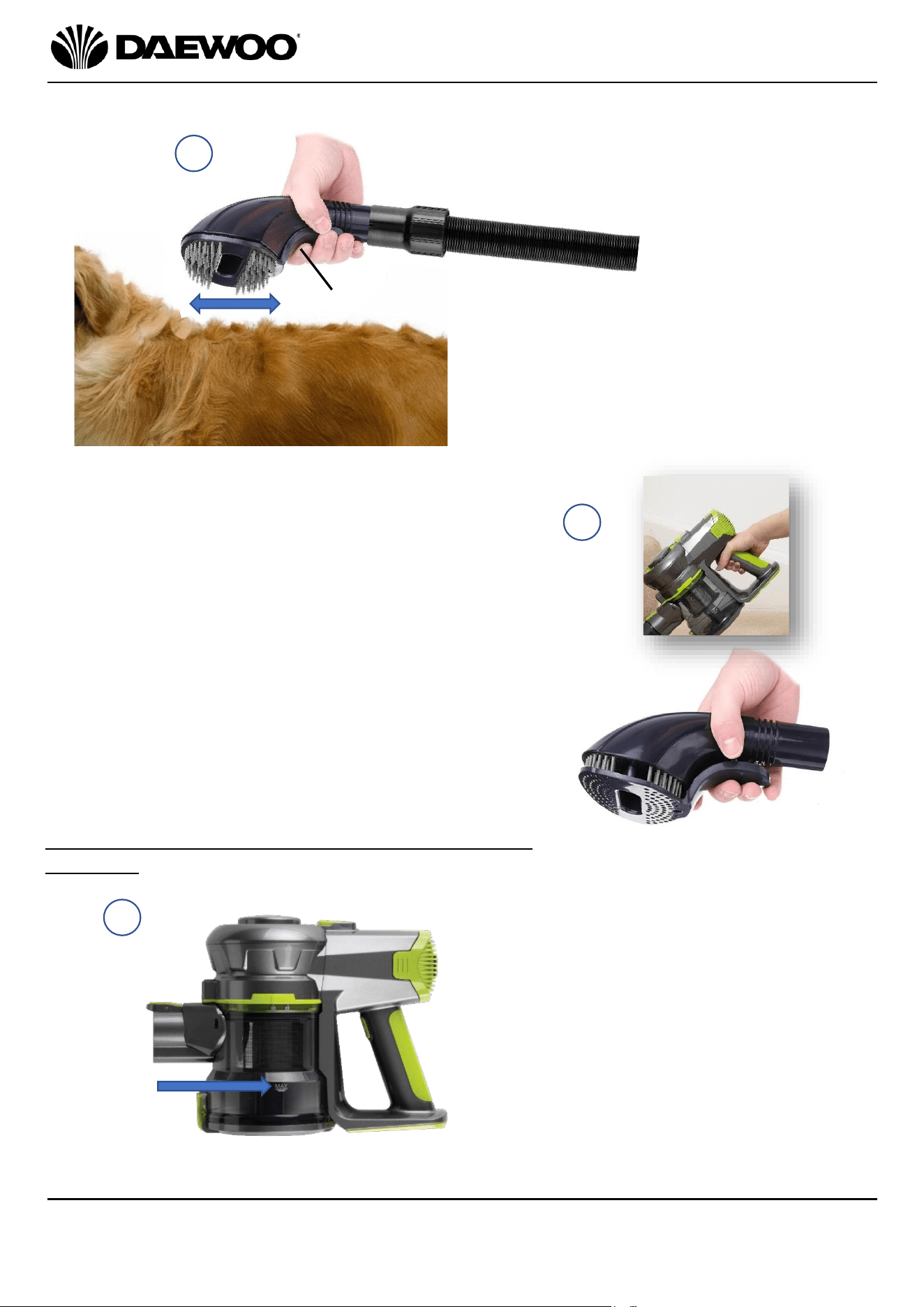

Using the Pet Brush Tool (21)
1. Connect the Pet Brush Tool (21) to the cleaner as shown below:
3
Attach the polishing pads as shown left.
3. Place your foot gently on the Floor Polishing Tool
(12) and pull the cleaner back by the Handle (6)
and start polishing.
Press the On/off Trigger Switch (7) to start the
polishing action, press the switch again at the end
of polishing to switch the cleaner off.
1
2
2. Apply polish to the floor surface.
WARNING do not use the polishing
tool without polish otherwise
damage may occur to the appliance
and/or the floor surface.
1
10
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

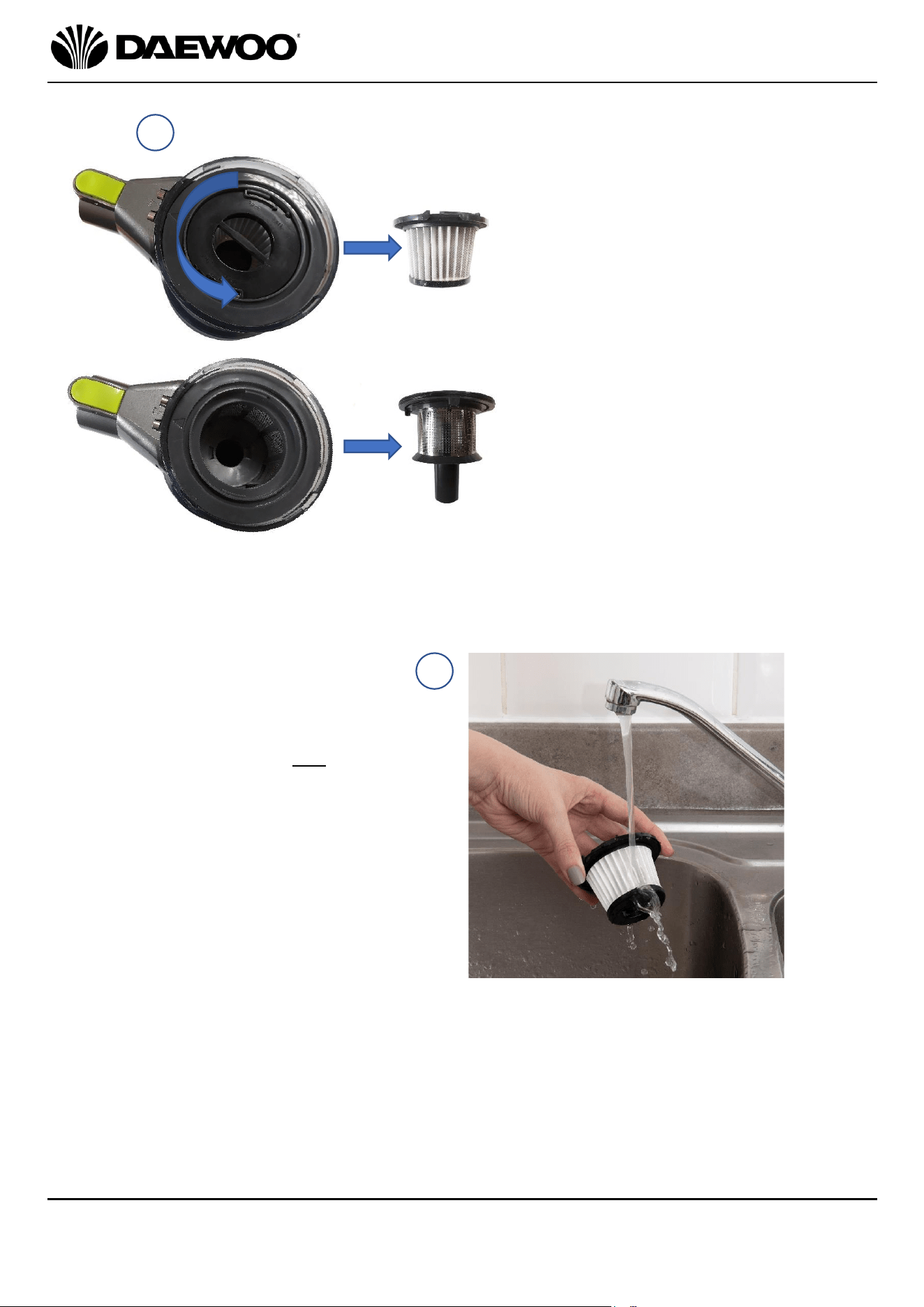

1. Once the dust level reaches the ‘MAX’
mark (arrowed left) on the Dust
compartment (4) it will need emptying
and the filters cleaned.
Emptying and Cleaning Your Cordless Vacuum Cleaner
WARNING Always disconnect the cleaner from the mains charger before cleaning.
1
2. Squeeze the trigger on the Pet Brush Tool (21) to
reveal the brush teeth and brush the pets coat as
shown below:
2
Trigger button
3. Once the brush is full of hair:
a. Press the On/off Trigger Switch (7) to power
up the cleaner.
b. Release the trigger button on the Pet Brush
Tool (21) and the hair will then be removed by
the vacuum:
Repeat the above process to continue grooming
your pet.
3
a.
b.
11
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

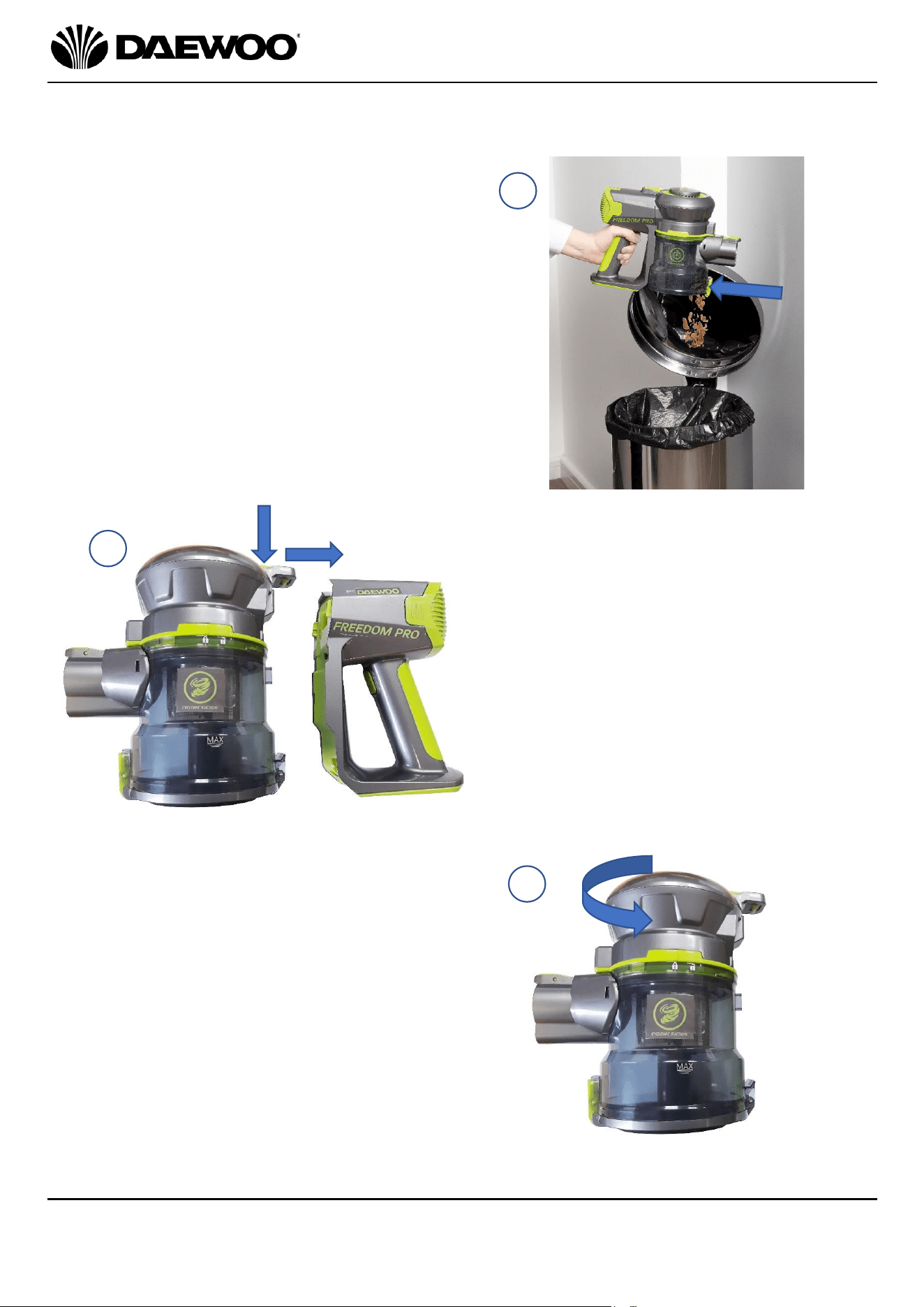

3. Hold the Motor Housing (11) and
press the Handle Release Catch (10)
arrowed left and remove the handle
assembly.
2. To empty the cleaner, hold the Dust Compartment
(4) over a dust bin and press the Dust Release
Catch (3) (arrowed right) and the base of the dust
compartment will swing open and allow the
collected dust to fall out into the dust bin.

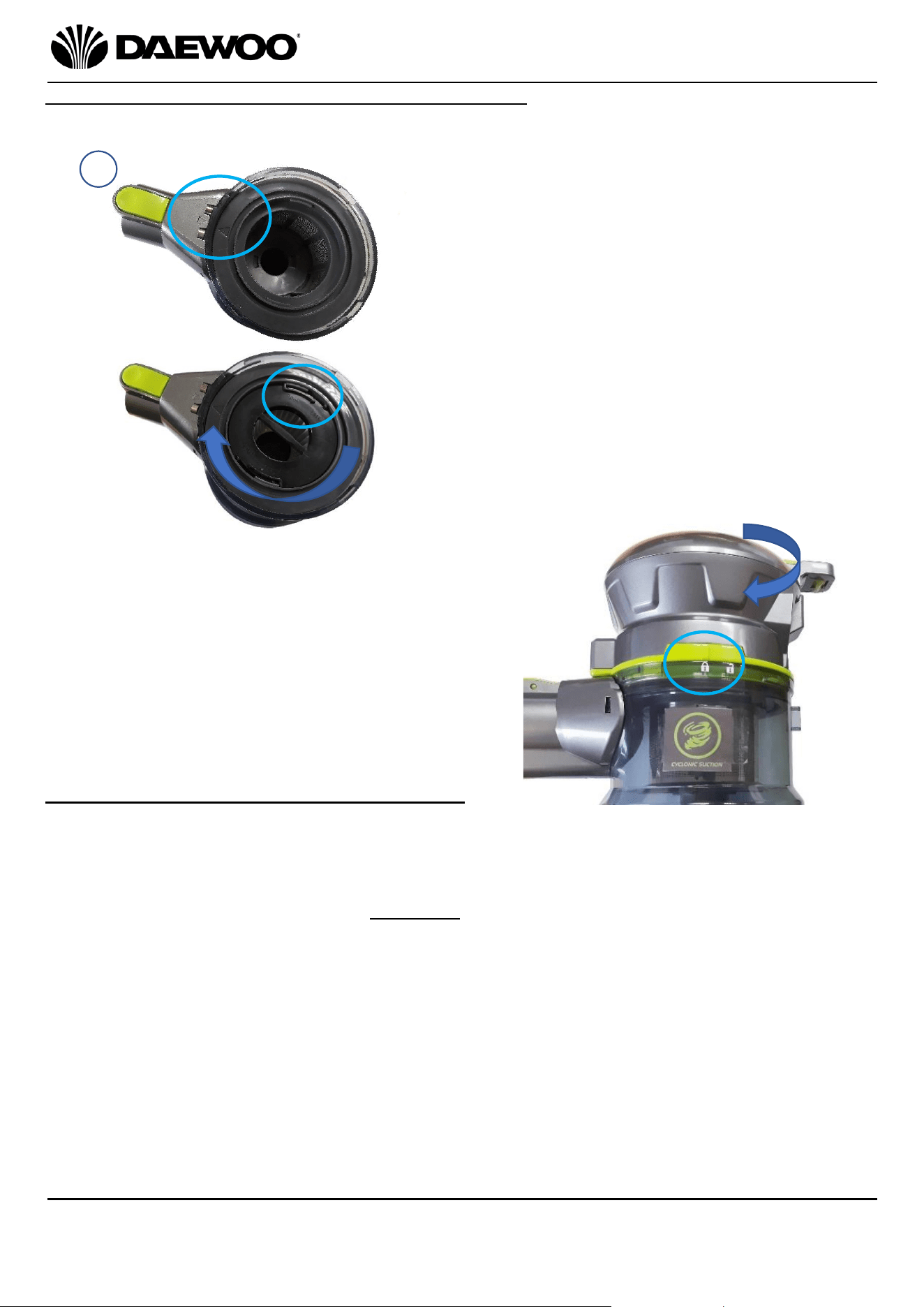

4. Twist the Motor Housing (11) in the
direction of the arrow shown right
and remove.
WARNING do not continue to use your vacuum cleaner once the ‘MAX’ mark has been
reached as permanent damage may occur to the appliance.
2
4
3
12
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
4. Rotate the Conical Hepa Filter
(2) anticlockwise and remove it
from the Dust Compartment (4).
Lift out the Cyclonic Filter (2)
from the Dust Compartment (4).
6. Wash the Conical Hepa and Cyclonic
Filters (2) in warm running water until
clean. Allow the filters to dry thoroughly
for 24 hours before reuse.
6
5
13
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
7. First replace the Cyclonic Filter (2) into
the Dust Compartment (4), ensure that
the two arrows on the cyclonic filter and
the Dust Compartment (4) line up as
shown circled left.
Next replace the Conical Hepa Filter (2)
inside the Cyclonic Filter, rotate the filter
clockwise towards the ‘LOCK’ position as
shown circled left.
8. Finally place the Motor Housing (10) onto the
Dust Compartment (4) and rotate clockwise
until the alignment mark lines up with the
locked symbol as shown circled right.
Replacing the Filters in Your Cordless Vacuum Cleaner
Care and Use of your Cordless Vacuum Cleaner
• Always disconnect the cleaner from the mains charger before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or abrasive
cleaners.
• Do not submerge the cleaner or its charger in water or any other liquids.
• Empty the Dust Compartment (4) as soon as the ‘MAX’ mark has been reached.*
• Wash the Conical Hepa and Cyclonic Filters (2) regularly – see table below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and use.
*WARNING do not continue to use your vacuum cleaner once the ‘MAX’ mark has been
reached as permanent damage may occur to the appliance.
7
14
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Recommended filter cleaning intervals
Filter Type
Recommended cleaning period
WARNING Ensure the filters are cleaned periodically according to the table above, failure to
clean the filters regularly will severely impair the performance and permanent damage may
occur to the appliance and may invalidate your warranty.
Technical Specification
Model Number
FLR00042
Mains Charger
Input: AC 100-240V ~ 50/60Hz Output: 27V DC 500mA
Rated Power
250W
Battery
22.2V 2000mAh Li-Ion (6 cells)
Unpacked Weight (approx.)
2.2 Kgs
Dimensions (approx.)
210mm (l) x 128mm (w) x 290mm (h)
Vacuum (max)
>20kpa
Noise Level (approx.)
72dB
Dust Compartment Capacity
0.8L
• Shake
out
debris
when
you
empty
the dust
container
•
Rinse
under
war
m
water
once
a
month
• Allow to dry thoroughly for 24 hours before reuse.
• Shake
out
debris
once
a
month
•
Rinse
under
war
m
water
once
a month.
• Allow to dry thoroughly for 24 hours before reuse.
Conical Hepa Filter
Cyclonic Filter
15
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Troubleshooting Guide
Problem
Possible Cause
Solution
Unit fails to turn on.
Internal battery not
charged.
The charger is not
plugged into the mains
socket.
Charge the internal battery.
Ensure the charger is fully
inserted into the socket and the
socket is switched on.
Low suction or poor pick-up.
Dust Compartment is
full.
Filters are clogged.
Low Power Selected
Empty the cylinder.
Check and clean the filters.
Press the Min/Max Power
Button (8)
The vacuum is making a
“hissing” sound.
The airflow is restricted
Empty the Dust Compartment.
Check and clean the filters.
Clear any blockages if necessary.
Waste batteries should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
16
Cyclone One 22.2V Cordless Vacuum
FLR00042
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
