READING AND STORING THE USER MANUAL
Before using this product, please read through this
manual carefully paying particular attention to the safety
instructions. Failure to do so may result in personal injury
or damage to the product.
Carefully save this instruction manual for future reference.
Ensure the user manual is included when passing the product on
to any third parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions
should always be followed.
Only use the product as described in this user manual. Any other
use is considered improper and may result in damage to property
or persons.
The manufacturer or vendor cannot be held liable for damages or
injury incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children
less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
4
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
to the mains supply.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by a qualified electrician. Improper repairs may place user
at serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by qualified personnel to avoid a hazard
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT pull or carry the Vacuum Cleaner by the electrical
cord, use the handle provided.
• Ensure fingers and other objects are never placed in any
part of the vacuum cleaner. Clothing or hair may become
5
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of
the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and
anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the
air discharged may extinguish gas fires or pilot lights and
may disturb ashes in open fires.
• DO NOT Vacuum water or any other liquids with this
vacuum.
• DO NOT Vacuum hot ashes or lit cigarettes, etc.
6
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

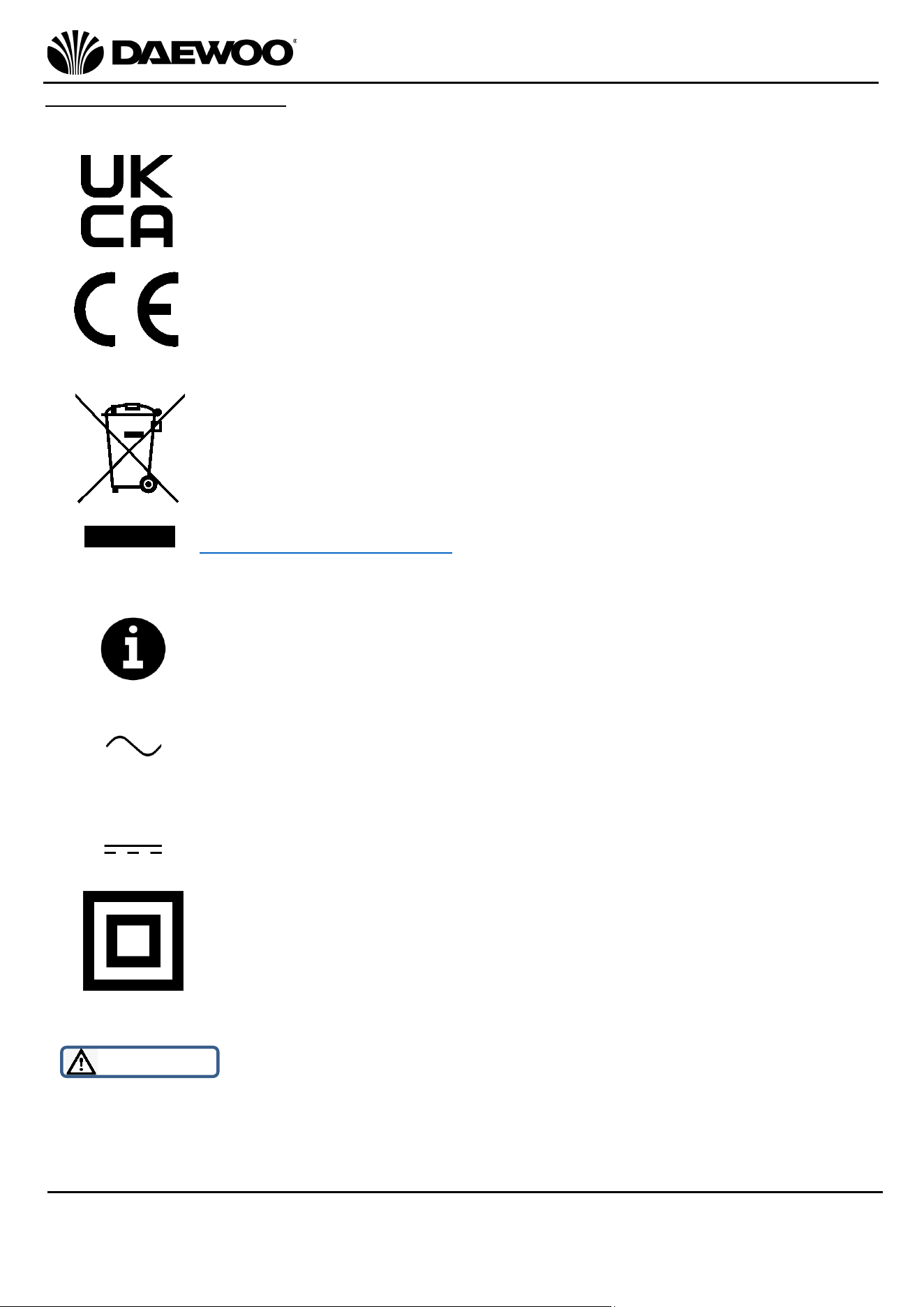

Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol identifies voltage and the current rating for direct
current.
This symbol indicates that the product is double insulated
and therefore does not require an earth connection.
WARNING!
This designates a hazard with moderate risk, which may result
in severe injury or damage to the product if not adhered to.
7
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

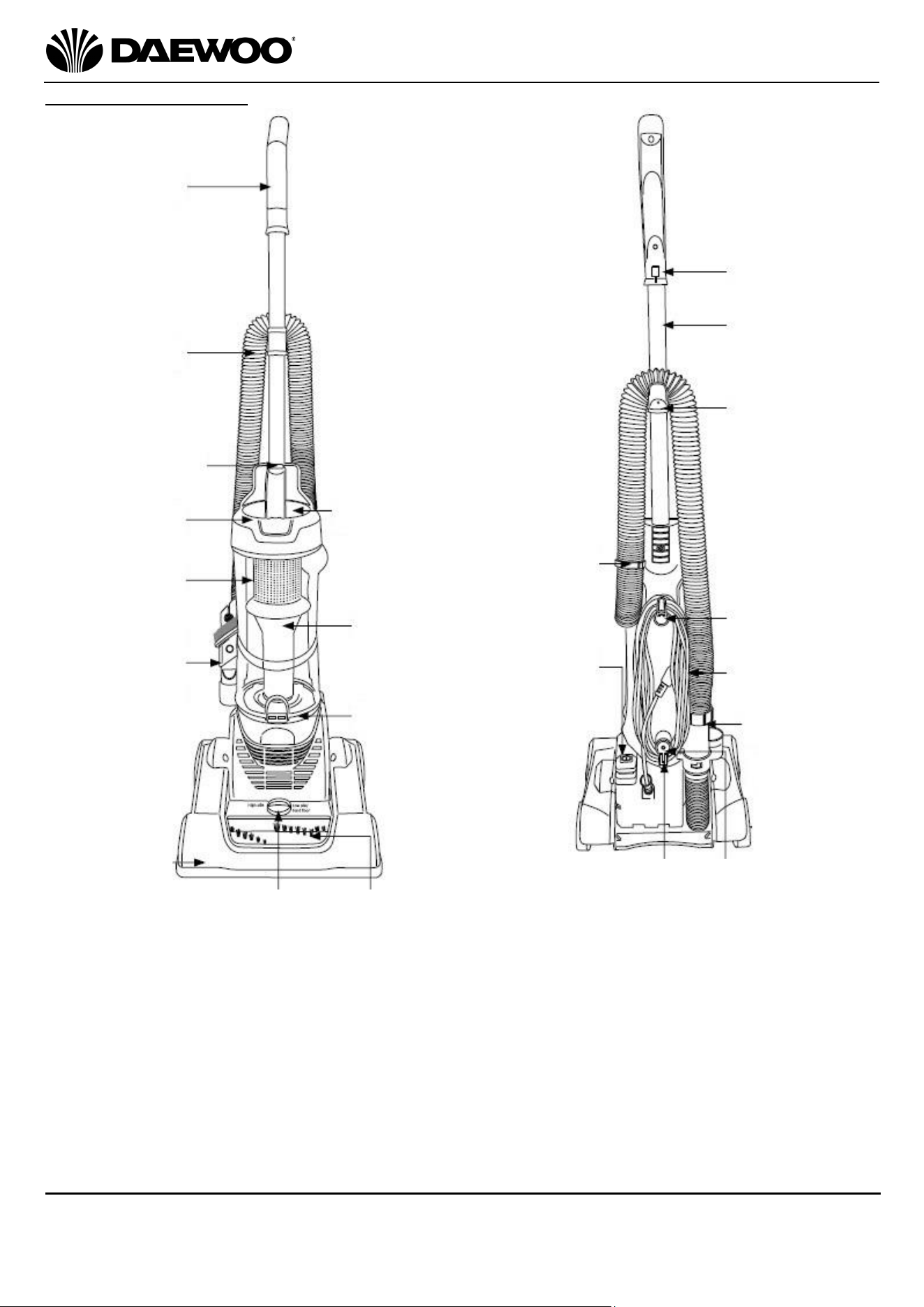

Description of Parts
1. Handle
2. Hose
3. Dust Compartment Release Button
4. Filter Assembly Lid
5. Dust Compartment
6. Crevice & Upholstery Tool
7. Floor Head
8. Floor Brush Height Adjuster
9. Floor Brush
10. Dust Compartment Base
11. Filter Assembly
1
2
3
4
5
6
7
8
9
10
11
12
12. Suction Pressure Release Valve
13. Cable Clip
14. Handle Pole
15. Hose Hook
16. Hose Anti Topple Ring
17. Upper Cable Storage Hook
18. On/Off Button
19. Mains Cable
20. Hose Connector
21. Hose Anti Topple Hook
22. Lower Cable Storage Hook
13
14
15
16
17
18
19
20
21
22
8
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Description of Accessories
Before the first time you use Your Vacuum Cleaner
Remove all packing materials including all labels and discard responsibly.
Ensure that all parts are present – See Description of Parts above and that there
is no damage to any component or the mains cable.
Assembling Your Vacuum Cleaner
A. Insert the Handle Pole (14) into the body of the
Vacuum Cleaner as shown in ‘A’ left.

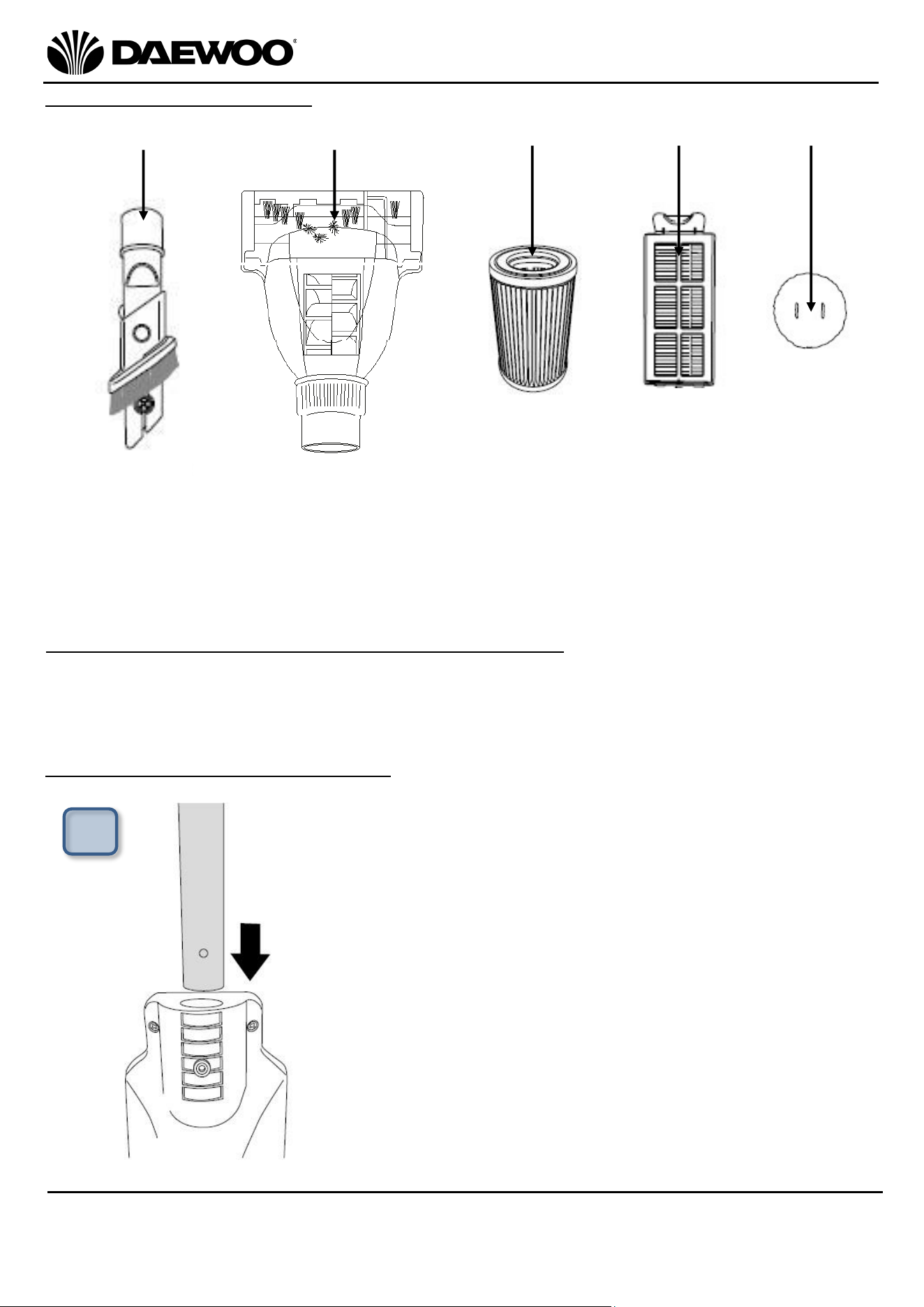

6. Crevice & Upholstery Tool (Stored in the base of the vacuum)
24. Pet Brush
25. HEPA Filter
26. Rectangular HEPA Filter
27. Round Sponge Filter
6
24
A
25
26
27
9
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

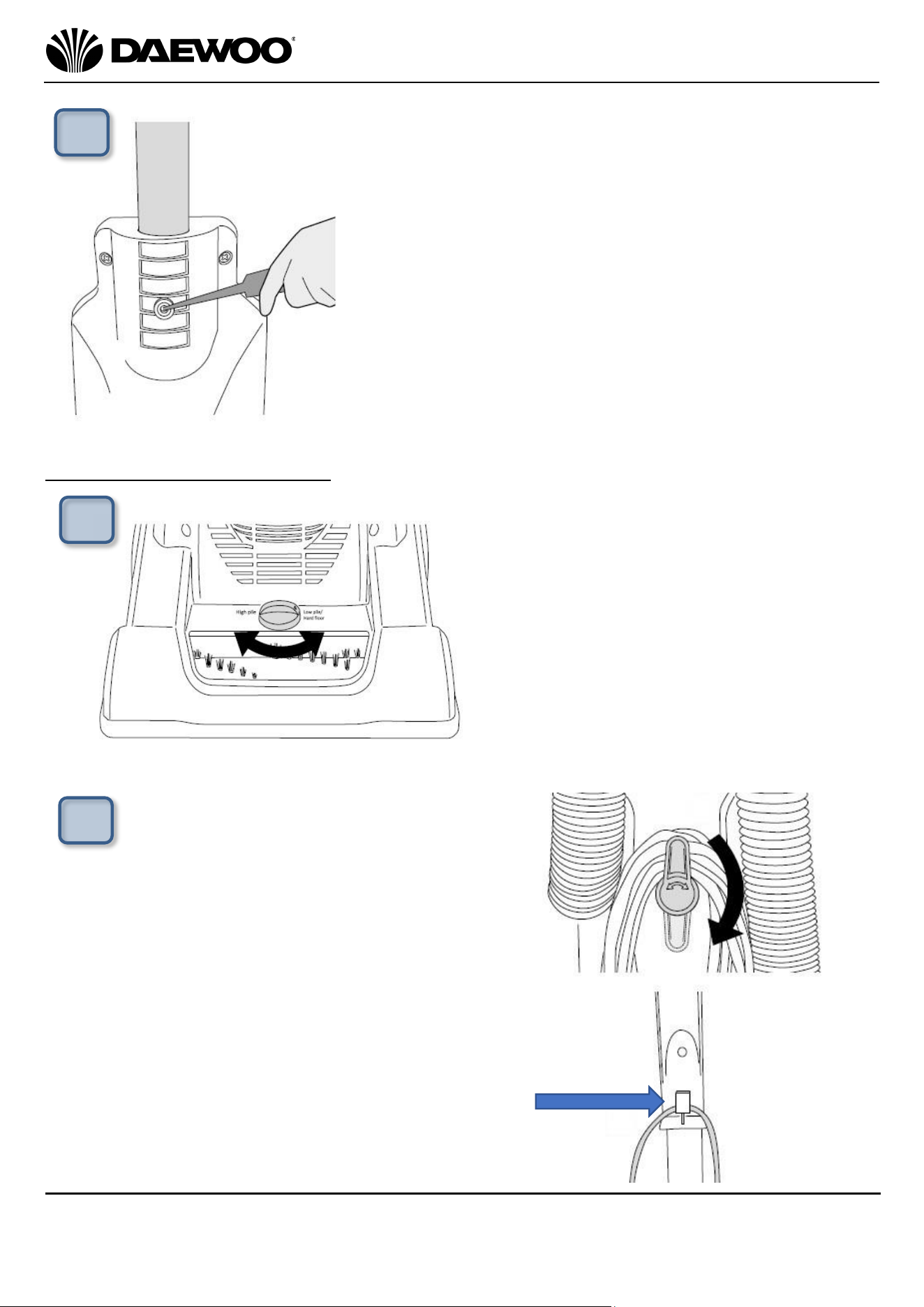

B. Insert the screw supplied into the hole in the
body and tighten using a suitable crosshead
screwdriver (not supplied), take care not to
overtighten.
Using Your Vacuum Cleaner
1. Once you have assembled your
vacuum cleaner, Set the height of the
Floor Head (7) using the Floor Brush
Height Adjuster (8).
Rotate the adjuster clockwise to raise
the floor head for cleaning high pile
carpets, rugs, etc. and anti-clockwise
to lower the floor head for cleaning
hard floors, low pile carpets, etc.
2. Unravel the cable from the Upper &
Lower Storage Hooks (17) & (22).
To do this, simply rotate the Upper Cable
Storage Hook (17) through 180 degrees
and pull the cable away, then unhook
from the Lower Cable Storage Hook (22).
For Easier cable management during use,
hook the Mains Cable (19) over the
Cable Clip (13) – arrowed right.
1
2
B
10
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

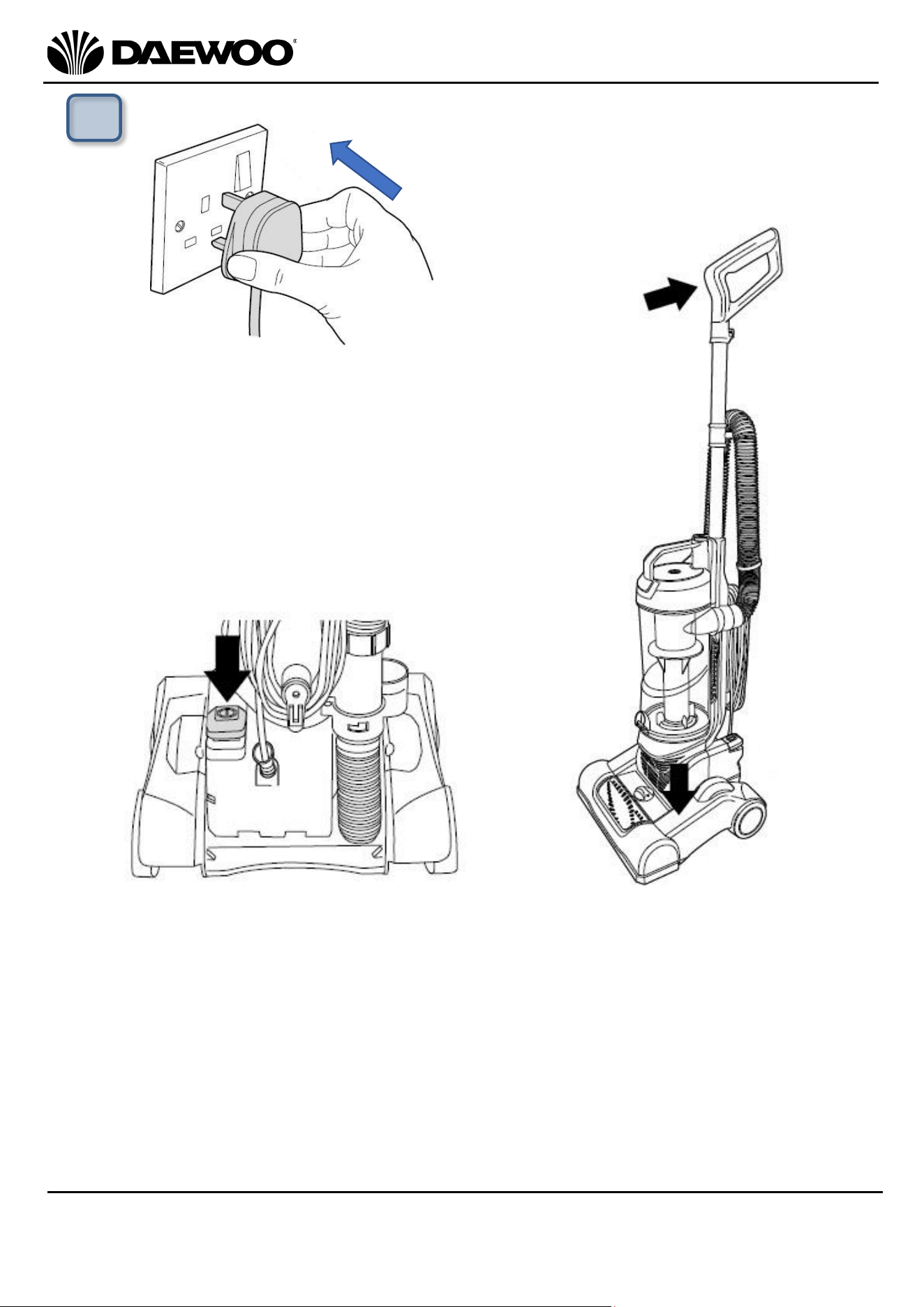

3. Insert the mains plug (with dry hands)
into a suitable socket.
3
3. Place your foot gently on the Floor
Head (7) and pull the cleaner back by
the Handle (1). Press the On/Off
Button (18 - below) with your foot
and begin cleaning.
11
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

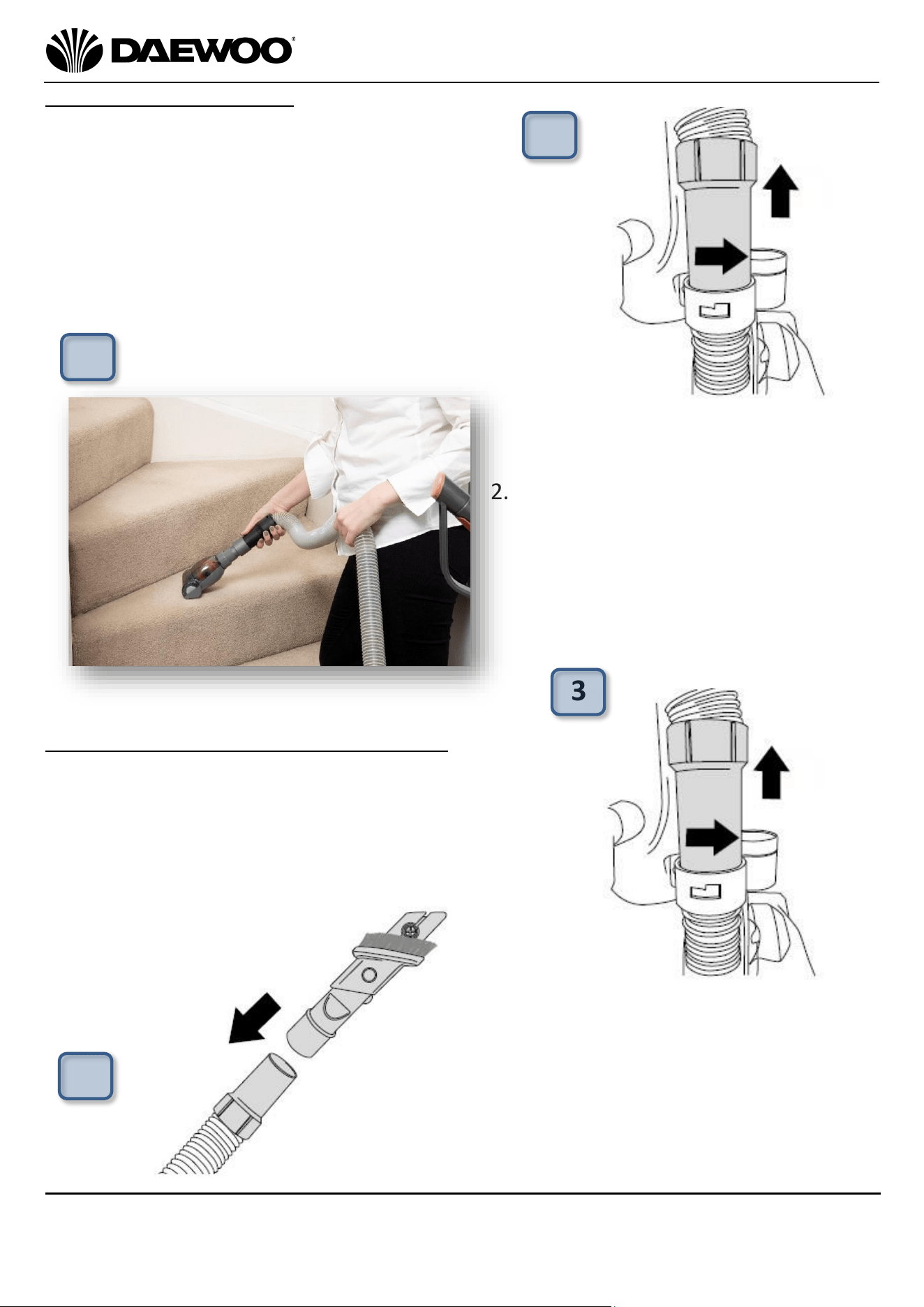

Using the Pet Brush (24)
1. Remove the end of the Hose (2) from the
Hose Connector (20) from the main body of
the vacuum by twisting it anticlockwise and
pulling upwards as shown right:
2. Attach the Pet Brush (24) to the
Hose Connector (2) to clean Pet
hairs off the Stairs, Sofas, Chairs,
Mattresses, Cushions, etc. as
shown left:
Using the Crevice & Upholstery Tool (6)
3. Remove the end of the Hose (2) from the
Hose Connector (20) on the main body of
the vacuum by twisting it anti clockwise and
pulling upwards as shown right:
4. Attach the Crevice & Upholstery Tool
(6) to the Hose Connector (2) to clean
the Carpet Edges, Chairs, Mattresses,
Cushions, etc. as shown left:
1
2
4
3
12
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

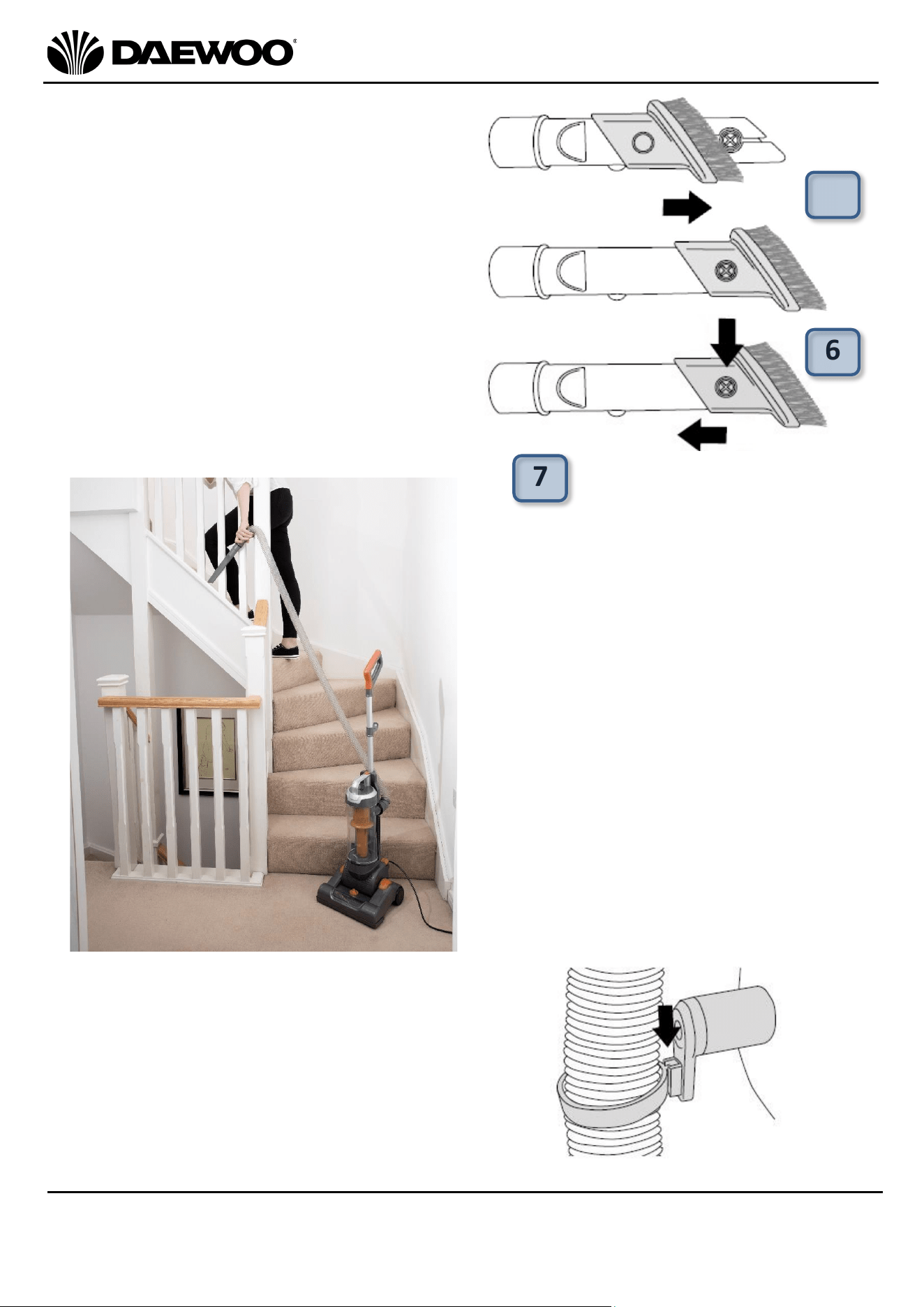

5. Slide the brush forwards on Crevice &
Upholstery Tool (6) until it locks into
place to clean the Carpet Edges, Chairs,
Mattresses, Cushions, etc. as shown left:
6. To retract the brush, press the button at
the brush end of the tool and slide the
brush back as shown left:
7. Whilst cleaning the stairs, always
place the vacuum cleaner at the
bottom of the stairs so it is
always positioned below you and
up against the bottom stair (see
right).
Clean the stairs using the multi
tool attachment or just the hose
as conditions demand.
Note: The brushbar rotates
constantly when the vacuum
cleaner is on.
When upright the wheels will
raise the brushbar from the floor.
To avoid damage to your floor,
ensure the vacuum is upright
when using the hose.
Note: To improve stability of the vacuum
cleaner when using the Hose (2), hook the
hose Anti Topple Ring (16) on the hose onto
the Hose Anti Topple Hook (21), which is on
the lower cable storage hook shown right.
7
5
6
13
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

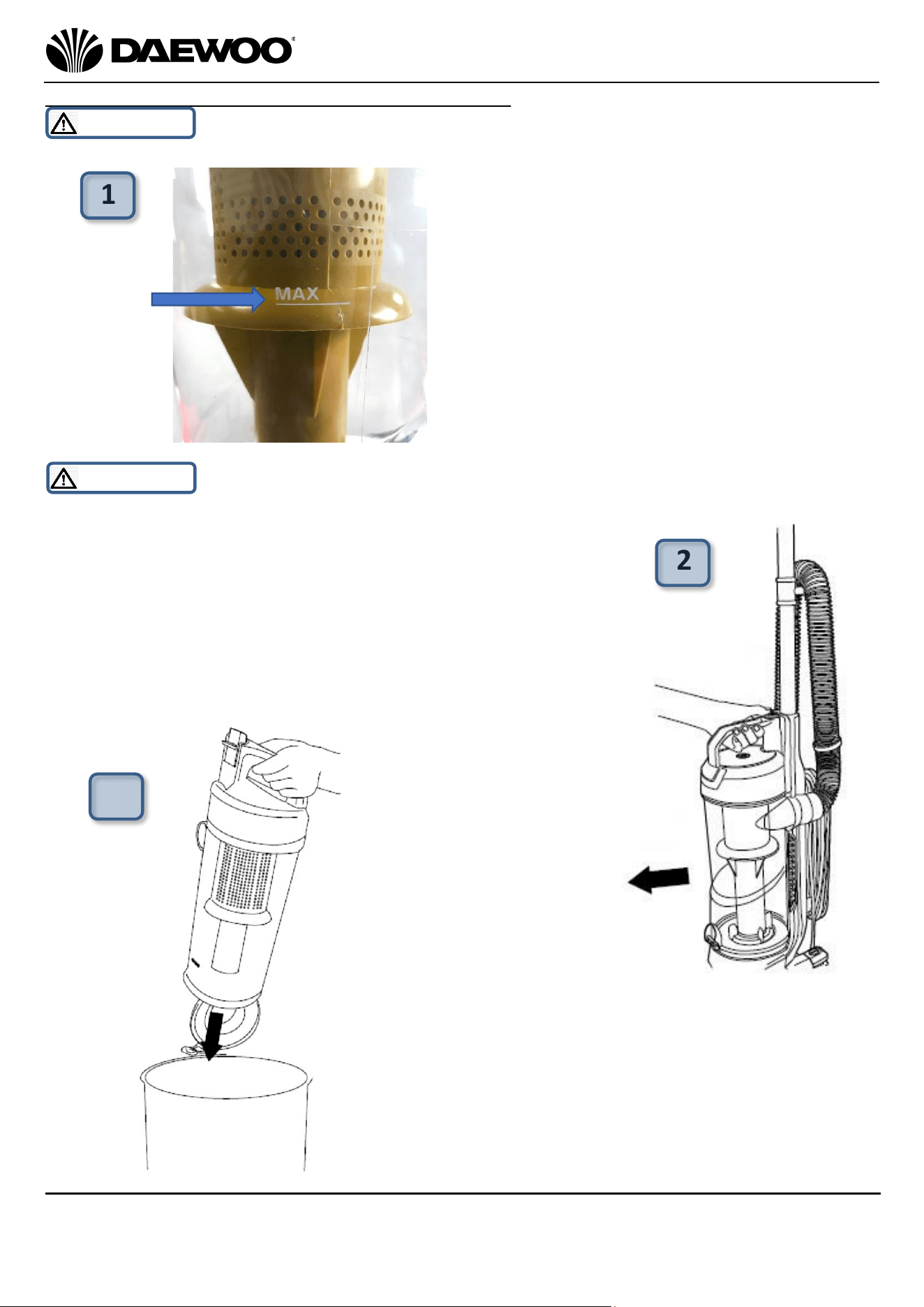

1. Once the dust level reaches the ‘MAX’
mark on the Dust Compartment (5) it
will need emptying and the Filter
Assembly (11) cleaned.
Emptying and Cleaning Your Vacuum Cleaner
WARNING! Always disconnect the cleaner from the mains power supply before
cleaning.
WARNING! DO NOT continue to use your vacuum cleaner once the ‘MAX’
mark has been reached as permanent damage may occur to the appliance.
2. To remove the Dust Compartment (5) from the
main body of the vacuum cleaner, press the Dust
Compartment Release Button (3) at the top of
the Dust Compartment (5) and pull it away from
the cleaner.
3. To empty the Dust Compartment (5), hold it
over a dustbin and release the catch on the
bottom and allow the Dust Compartment Base
(10) to swing open.
Shake the cylinder until all of the dust is
removed from the cylinder.
1
2
3
14
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

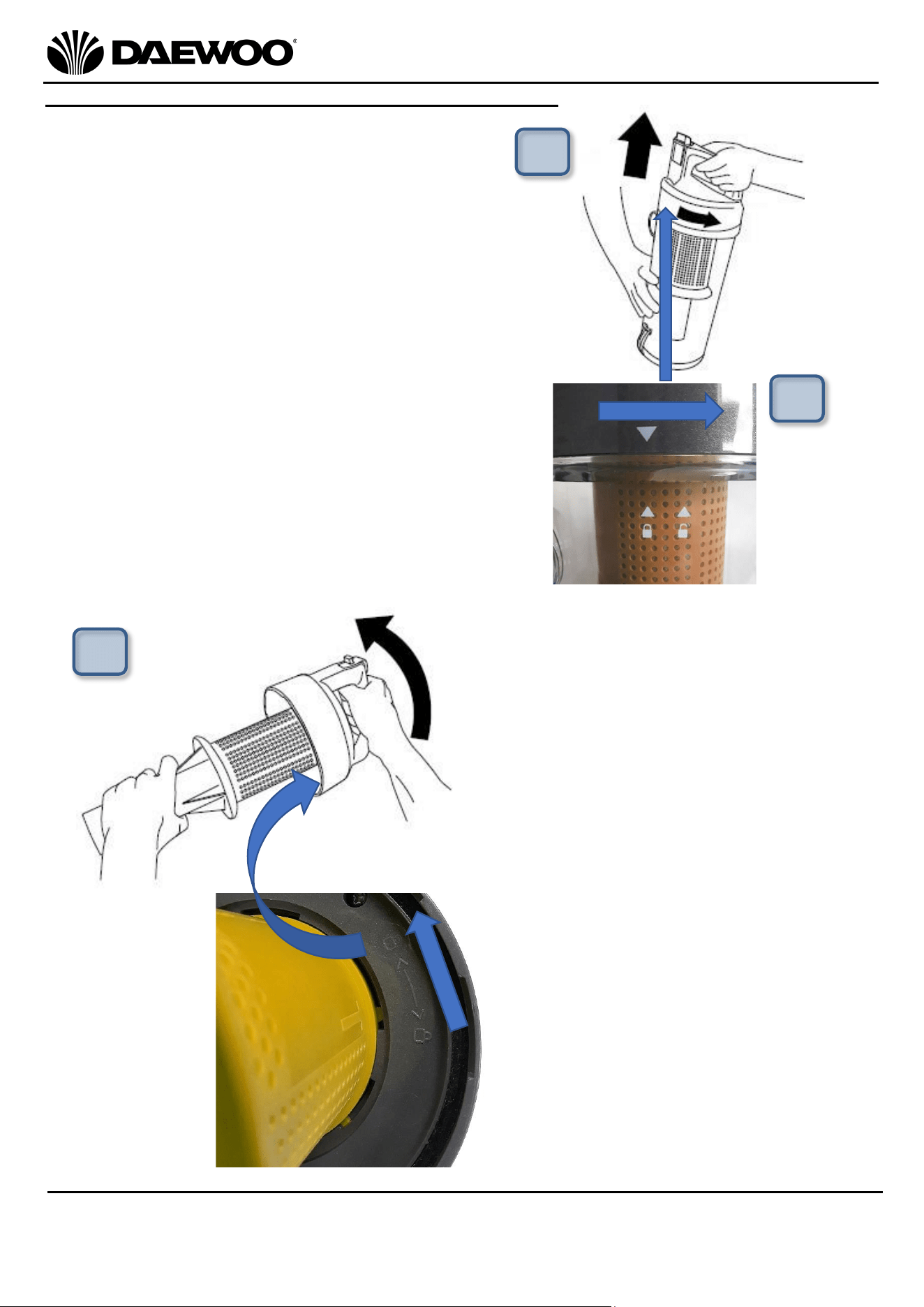

Dismantling and Cleaning the Filter Assembly (11)
1. Remove the Dust Compartment (5) from
the vacuum cleaner as described on the
previous page.
2. Whilst holding the Dust Compartment (5)
rotate the Filter Assembly Lid (4) anti-
clockwise so that the arrow on the lid aligns
with the unlock Pad lock symbol – see inset
lower right.
3. Lift the Filter Assembly Lid (4) and the Filter
Assembly (11) out of the Dust Compartment
(5).
4. Remove the Filter Assembly (11)
from the Filter Assembly Lid (4) by
rotating the lid anticlockwise towards
the unlock Pad lock symbol under the
lid – see inset below.
The HEPA Filter (25) is located inside
the Filter Assembly (11) and can be
simply pulled out.
Inset
Inset
1
2
4
Turn anticlockwise to
unlock the Filter
Assembly (11)
15
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

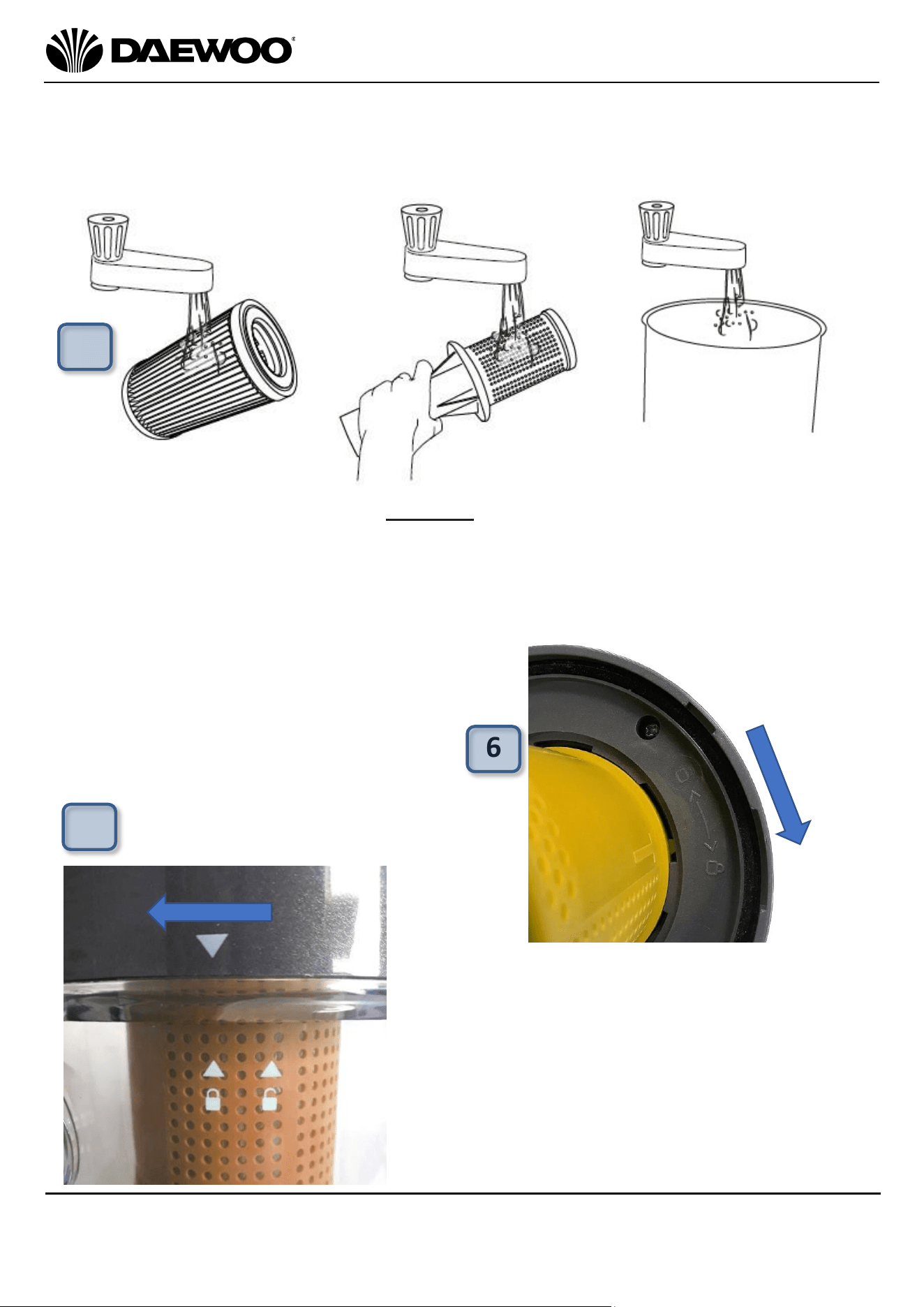

5. Tap the Filter Assembly (11) and HEPA Filter (25) over a dustbin to remove
excess dust and debris.
Rinse the HEPA Filter (25), the Filter Assembly (11) and the Dust Compartment
(5) under warm water until thoroughly clean:
Leave the parts to dry for at least 24 hours before reassembling.
Once all parts are thoroughly dry, reassemble the Dust Compartment (5) in the
reverse order to taking it apart as follows:
6. Replace the HEPA Filter (25) back into the
Filter Assembly (11) and re-attach the
Filter Assembly (11) to the Filter Assembly
Lid (4) by rotating clockwise towards the
Locked Pad lock symbol – see right:
7. Whilst holding the Dust Compartment
(5) replace the Filter Assembly Lid (4) on
top of the Dust Compartment (5) and
rotate the lid clockwise so that the arrow
on the lid aligns with the locked Pad lock
symbol – see left.
Rotate the Filter
Assembly (11)
clockwise to lock it
back in place.
6
5
7
16
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

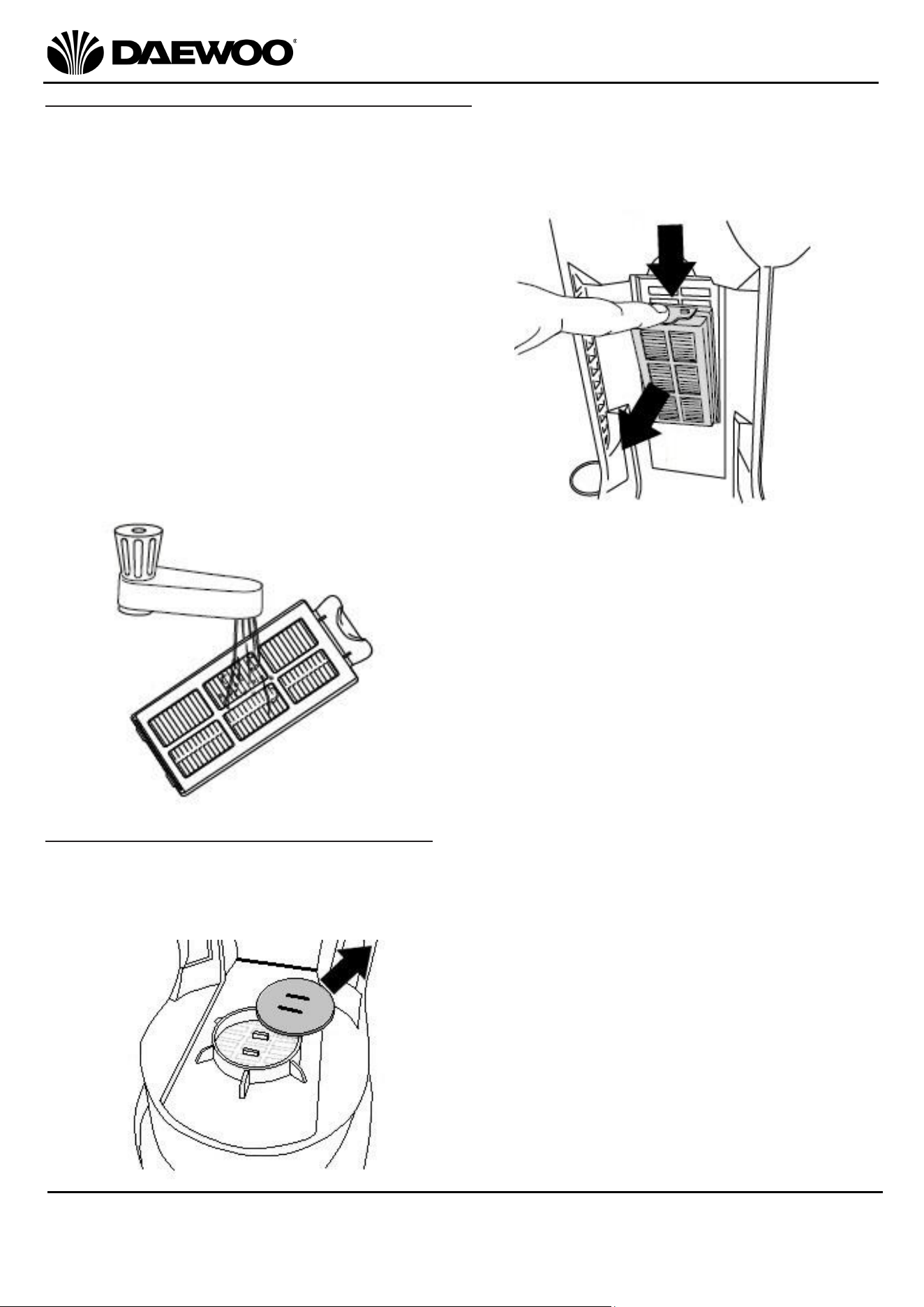

Cleaning the Rectangular HEPA Filter (26)
To access the Rectangular HEPA Filter (26), remove the Dust Compartment (5) as
described above.
The Rectangular HEPA Filter (26) is located in the body of the vacuum cleaner
behind the Dust Compartment (5).
1. To remove the filter from the vacuum
cleaner body, press the catch down at the
top of the filter and pull the filter towards
you.
2. Tap the filter over a dustbin to remove
any excess dust and debris then rinse
under warm water until the water runs
clear.
Leave to dry for 24 hours before
refitting the filter to the vacuum
cleaner.
Cleaning the Round Sponge Filter (27)
To access the Round Sponge Filter (27), remove the Dust Compartment (5) as
described above.
The Round Sponge Filter (27) is located in the base under the Dust Compartment
(5).
Left: With your thumb and
forefinger, pinch the filter and pull it
out towards you.
Tap the filter over a dustbin to remove
any excess dust and debris then rinse
under warm water until the water runs
clear.
Leave to dry for 24 hours before refitting
the filter to the vacuum cleaner.
17
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
DO NOT use your vacuum cleaner without any of the filters fitted as this will
cause permanent damage to the cleaner and may invalidate your warranty.
Care and Use of your Vacuum Cleaner
• Always disconnect the cleaner from the mains power supply before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or
abrasive cleaners.
• Do not submerge the cleaner or its mains cable in water or any other liquids.
• Empty the Dust Compartment (5) as soon as the ‘MAX’ mark has been reached.*
• Wash the Filter Assembly (11) and Rectangular Filter (26) regularly – see above
and the table below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and use.
• After use and wrap the Mains Cable (19) around the cable hooks and store in a
cool, dry place away from direct sunlight.
* WARNING! DO NOT continue to use your vacuum cleaner once the ‘MAX’
mark has been reached as permanent damage may occur to the appliance.

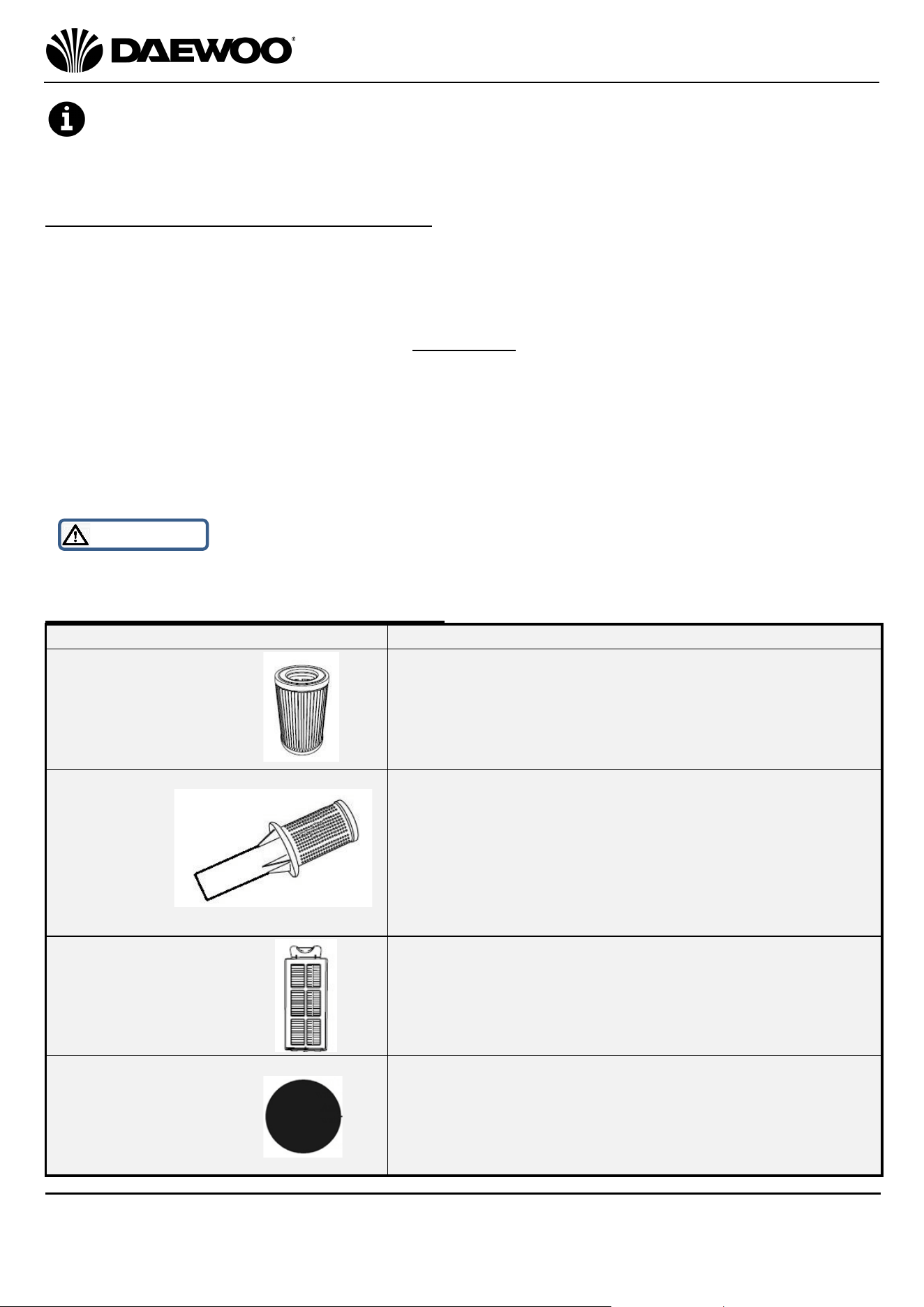

Recommended filter Cleaning Intervals
Filter Type
Recommended cleaning period
• Shake
out
debris
when
you
empty
the dust
compartment
•
Rinse
under
war
m
water
once
a
month
• Allow to dry thoroughly for 24 hours before reuse.
0
• Shake
out
debris
once
a
month
•
Rinse
under
war
m
water
once
a month.
• Allow to dry thoroughly for 24 hours before reuse.
Hepa Filter
Filter
Assembly
Rectangular
HEPA Filter
• Shake
out
debris
once
a
month
•
Rinse the Hepa filter
under
war
m
water
once
every
3-6
months
• Allow to dry thoroughly for 24 hours before reuse.
Round Sponge Filter
•
Occasionally
r
emove
any
dust/debris
as
necessary
.
• The filter should
also
be
rinsed
under
warm water
once a month.
• Allow to dry thoroughly for 24 hours before reuse.
18
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING! Ensure the filters are cleaned periodically according to the table
above, failure to clean the filters regularly will severely impair the performance
and permanent damage may occur to the appliance.

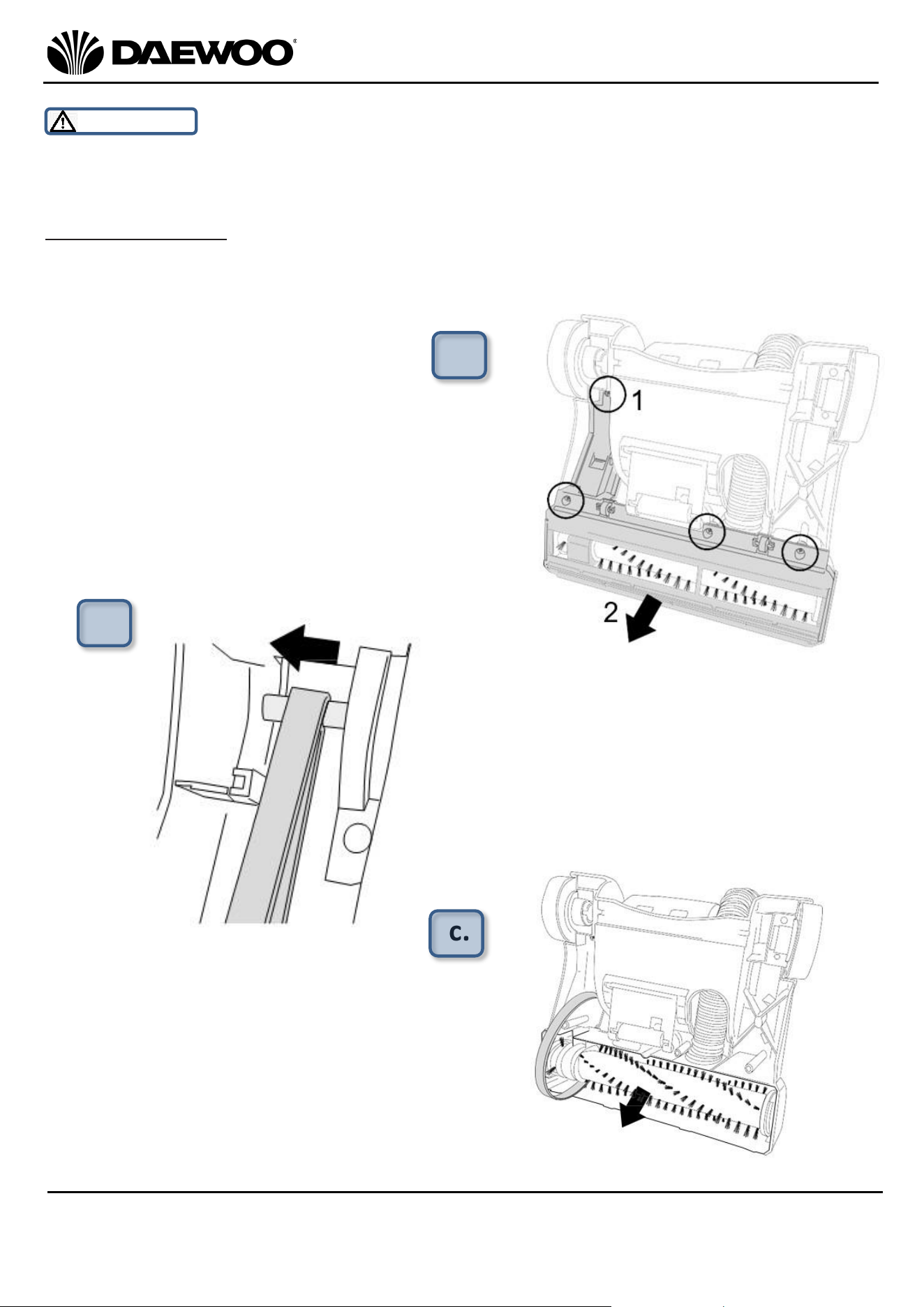

Changing the belt
NOTE: Before starting any maintenance on the belt, ensure the vacuum is
switched off and disconnected from the mains supply.
a. Lay the vacuum on the floor face down so
the base can be accessed.
Remove the four retaining screws circled
right (1) and remove the brush guard (2)
b. Unhook the belt by sliding it off and
away from the motor spindle as shown
left.
c. Remove the brushbar from the vacuum
casing
a.
b.
c.
19
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

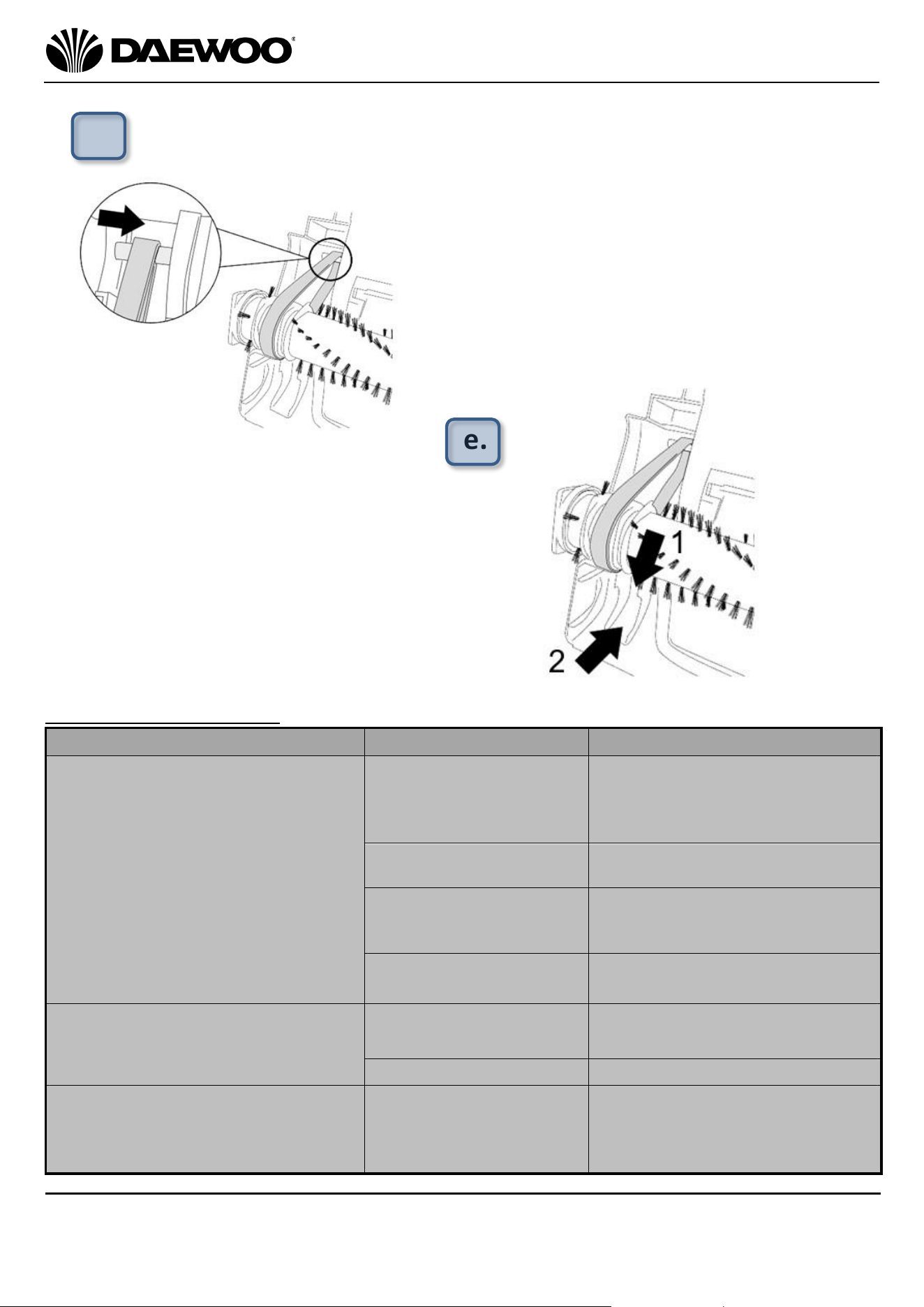

d. Hook the replacement belt over the
motor spindle and over the brushbar.
Ensure the belt sits in the middle section
in between the two grooves on the
brushbar.
e. Pull the brushbar down and back into
the casing. Ensure the flat edge of the
brushbar is facing outwards.
Rotate the brushbar by hand to check
there is free movement.
Troubleshooting Guide
Problem
Possible Cause
Possible Solution
Unit fails to turn on.
The unit may not be
properly plugged in.
Ensure the plug is fully
inserted into the socket and
the socket is switched on.
The fuse in the plug
may have blown
Check fuse by substitution.
The fuse/circuit
breaker may have
tripped.
Check the fuse/circuit breaker
on the mains board, if it has
tripped, reset it.
On/Off Button (18) is
in the off (O) position.
Press the On/Off Button (18).
Low suction or poor pick-up.
Dust Compartment is
full.
Empty the Dust Compartment.
Filters are clogged.
Check and clean the filters.
The vacuum is making a “hissing”
sound.
The airflow is
restricted
Empty the Dust Compartment.
Check and clean the filters.
Check and clear any blockages
if necessary.
d.
e.
20
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Non-Wireable Mains Plug
If your appliance is supplied with a non-wireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Technical Specification
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
Model Number
FLR00153
Supply Voltage
AC 220-240V ~ 50-60Hz
Rated Power
750W (max.)
Protection Class
II
Unpacked Weight (Motor Unit)
5 Kgs (approx.)
Filtration (Dust Compartment)
Hepa, Sponge & Cyclonic Filters
Filtration (Outlet)
Hepa
Dimensions
27cm (d) x 39.5cm (w) x 113cm (h) (approx.)
Vacuum
>12kpa
Max Air Flow
19L/S
Noise Level
≤77dB (approx.)
Dust Compartment Capacity
2.5L
21
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
22
750W Upright Vacuum
Model No. FLR00153
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo Vacuum.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
