3
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this
manual carefully paying particular attention to the safety
instructions. Failure to do so may result in personal injury
or damage to the product.
Carefully save this instruction manual for future reference.
Ensure the user manual is included when passing the product on
to any third parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions
should always be followed.
Only use the product as described in this user manual. Any other
use is considered improper and may result in damage to property
or persons.
The manufacturer or vendor cannot be held liable for damages or
injury incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children
less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
4
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
to the mains supply.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by a qualified electrician. Improper repairs may place user
at serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to
• ensure no damage is evident. Should there be any signs of
damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by the manufacturer or a suitable qualified after-sales-
service in order to avoid a hazard
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT pull or carry the Vacuum Cleaner by the electrical
cord, use the handle provided.
5
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Ensure fingers and other objects are never placed in any
part of the vacuum cleaner. Clothing or hair may become
trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of
the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and
anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the
air discharged may extinguish gas fires or pilot lights and
may disturb ashes in open fires.
• DO NOT Vacuum water or any other liquids with this
vacuum.
• DO NOT Vacuum hot ashes or lit cigarettes, etc.
6
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

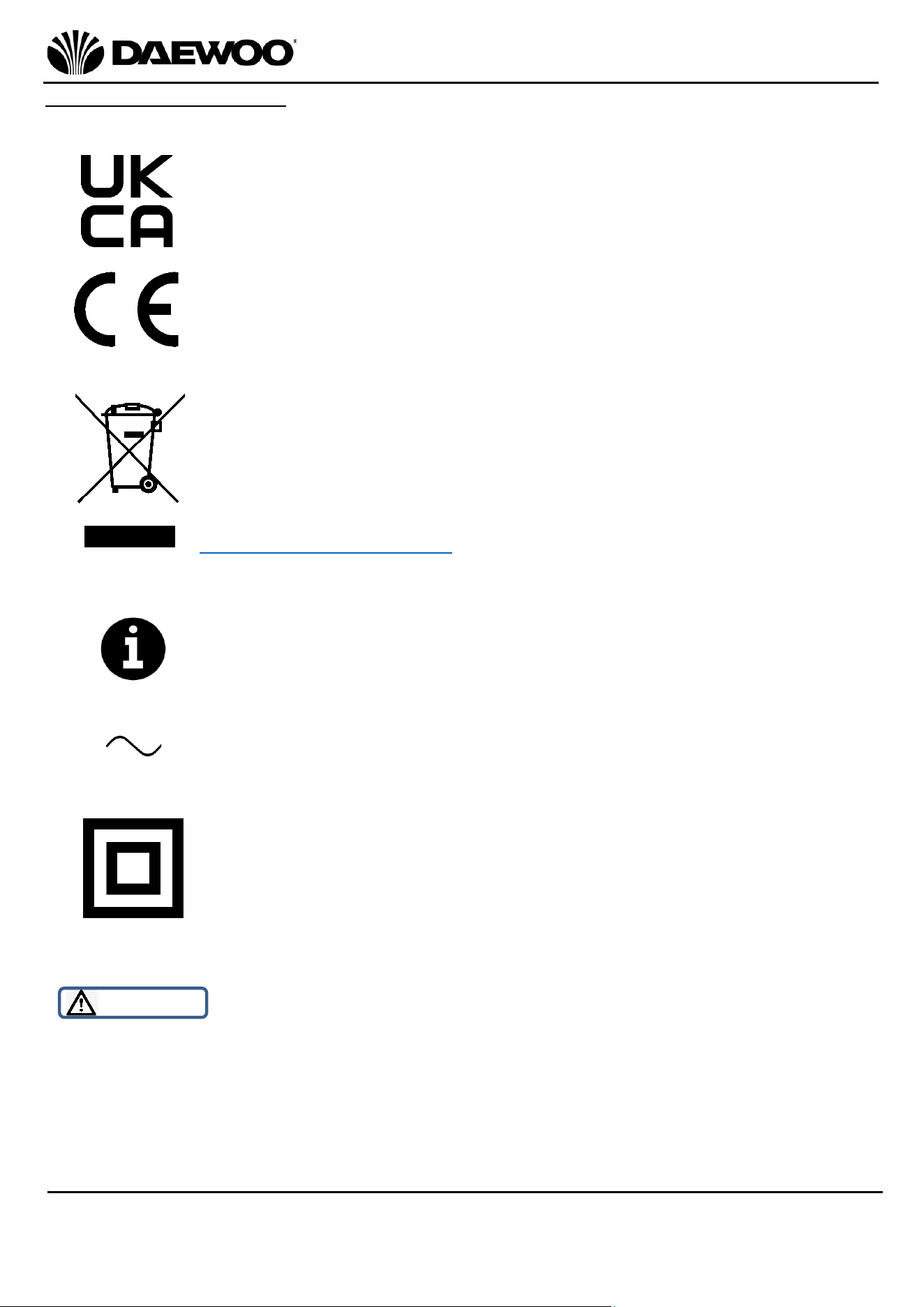

Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the
use of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol indicates that the product is double insulated
and therefore does not require an earth connection.
WARNING!
This designates a hazard with moderate risk, which may result
in severe injury or damage to the product if not adhered to.
7
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

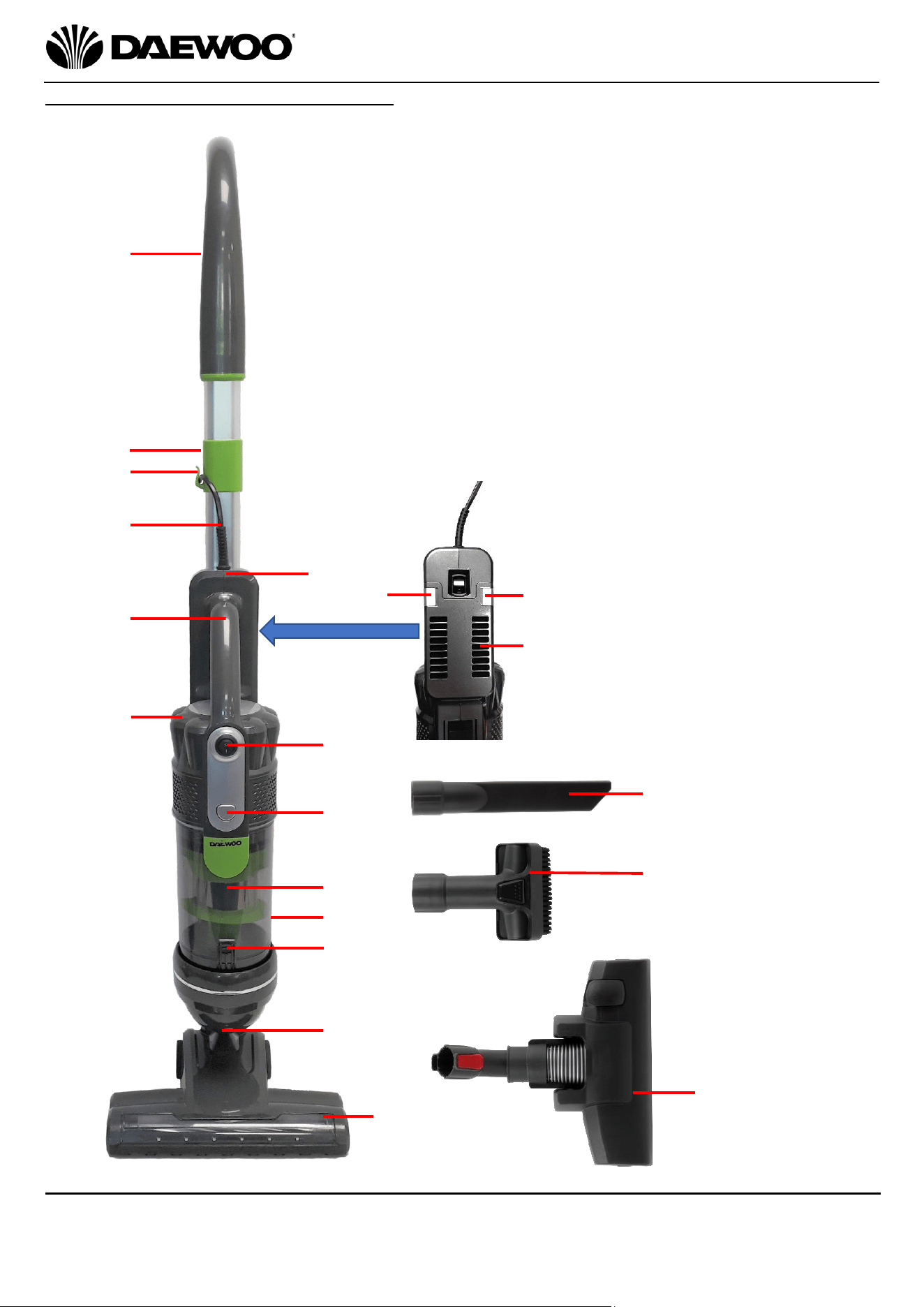

Description of Parts & Accessories
1. Handle
2. Adjustable Cable Tidy (Rear)
3. Cable Hook
4. Mains Cable
5. Motor Unit Handle
6. Motor Unit
7. Motorised Floor Tool
8. Floor Tool Release Button
9. Dust Release Catch
10. Dust Compartment
11. Filter Assembly
12. Dust Compartment Release
Button
13. On/Off Switch
14. Motor Unit Release Button
15. Air Outlet Cover Release Buttons
16. Air Outlet Cover
17. Crevice Tool
18. Upholstery Tool/Brush
19. Non-Motorised Floor Tool
1
2
3
4
5
6
11
10
9
7
12
8
13
16
18
17
15
15
14
19
8
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Assembling Your Vacuum Cleaner

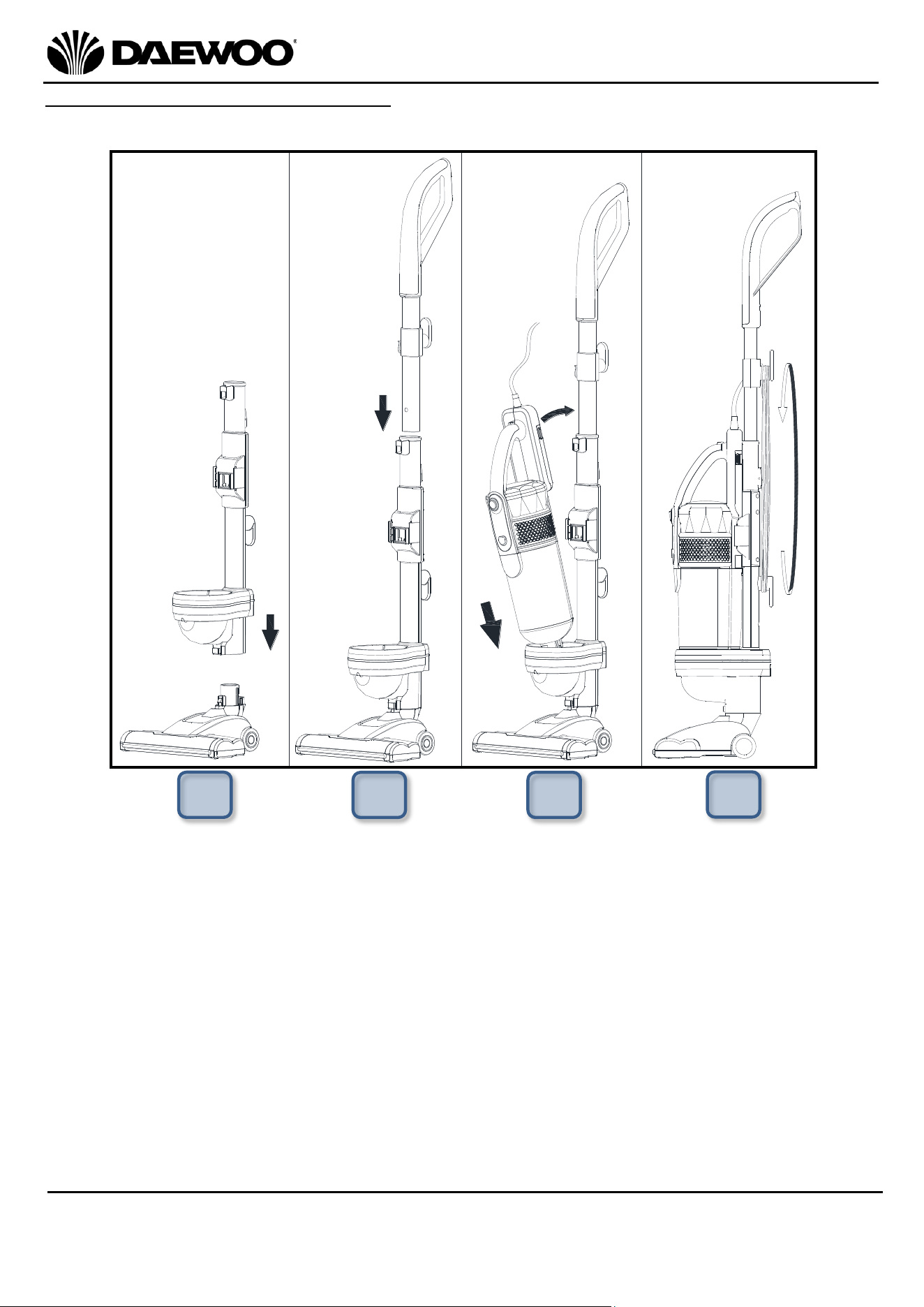

Assemble your vacuum cleaner using the guide below:
A. Insert the main body into the Motorised Floor Tool (7) as shown in ‘A’
above.
B. Insert the Handle section (1) into the top of the main section as shown in
‘B’ above.
C. Attached in the Motor Unit (6) to the main body as shown in ‘C’ above
and push it against the Handle section (1) until it clicks home.
D. Finally wrap the Mains Cable (4) around the cable tidies on the rear of
the unit, the top Adjustable Cable Tidy (2) can be rotated downwards to
help removal of the mains cable before use.
A
B
C
D
9
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Before first use of Your Vacuum Cleaner
Remove all packing materials and discard responsibly.
Ensure that all parts are present – See Description of Parts above and that there
is no damage to any component or the mains cable.
Using Your Vacuum Cleaner

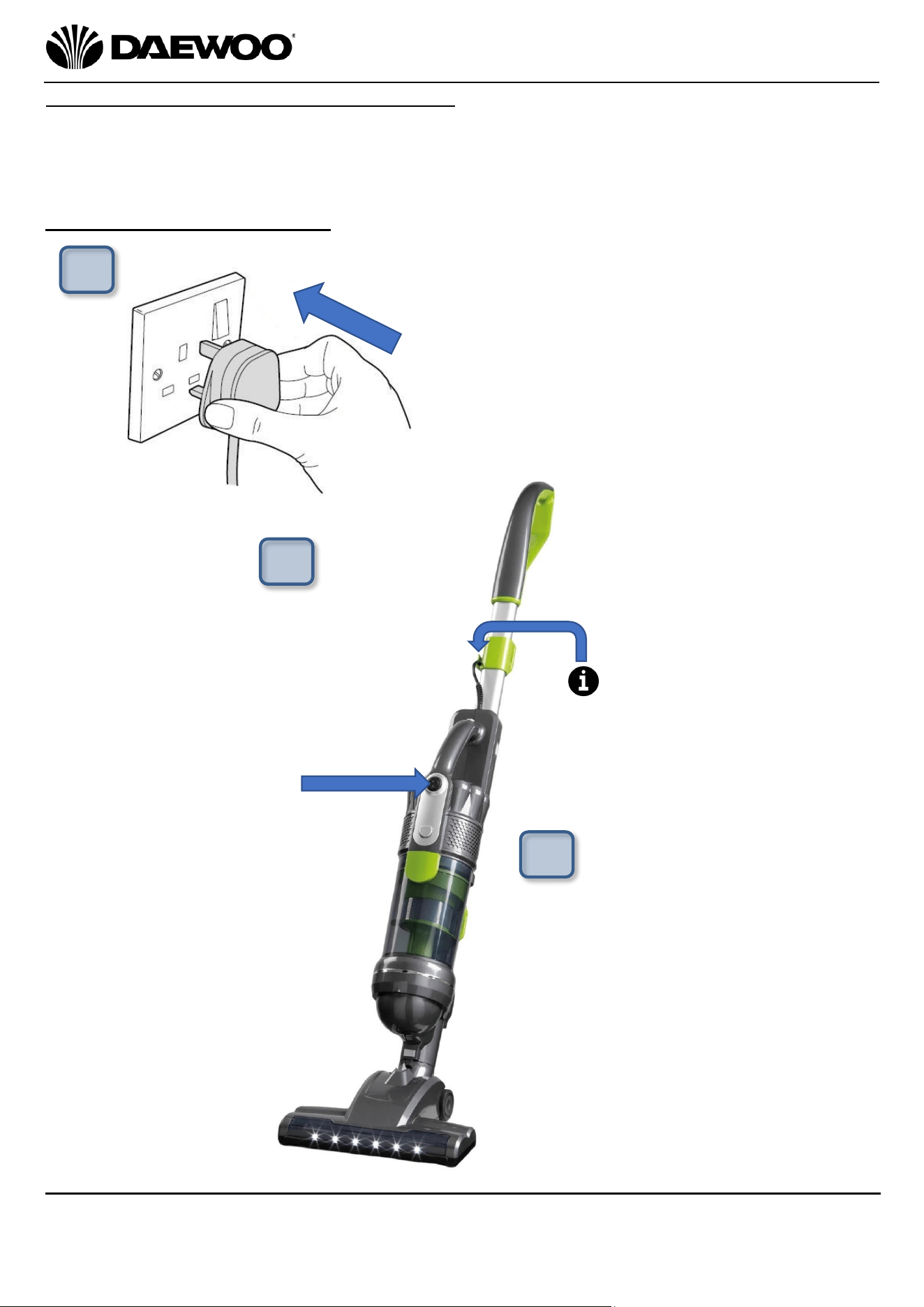

1. Once you have assembled
your vacuum cleaner, fully
unravel the Mains Cable (4)
and insert the mains plug into
the nearest socket.
3. Place your foot gently on the
Motorised Floor Tool (7) and
pull the cleaner back by the
Handle (1) and start vacuum
cleaning.
2. To operate the vacuum
cleaner, grip the vacuum by
the Handle (1) and press the
On/Off Switch (13) at the top
of the Motor Unit (6) to the ‘I’
position as shown arrowed
right.
For ease of use,
hook the Mains Cable (4)
over the Cable Hook (3).
1
2
3
10
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

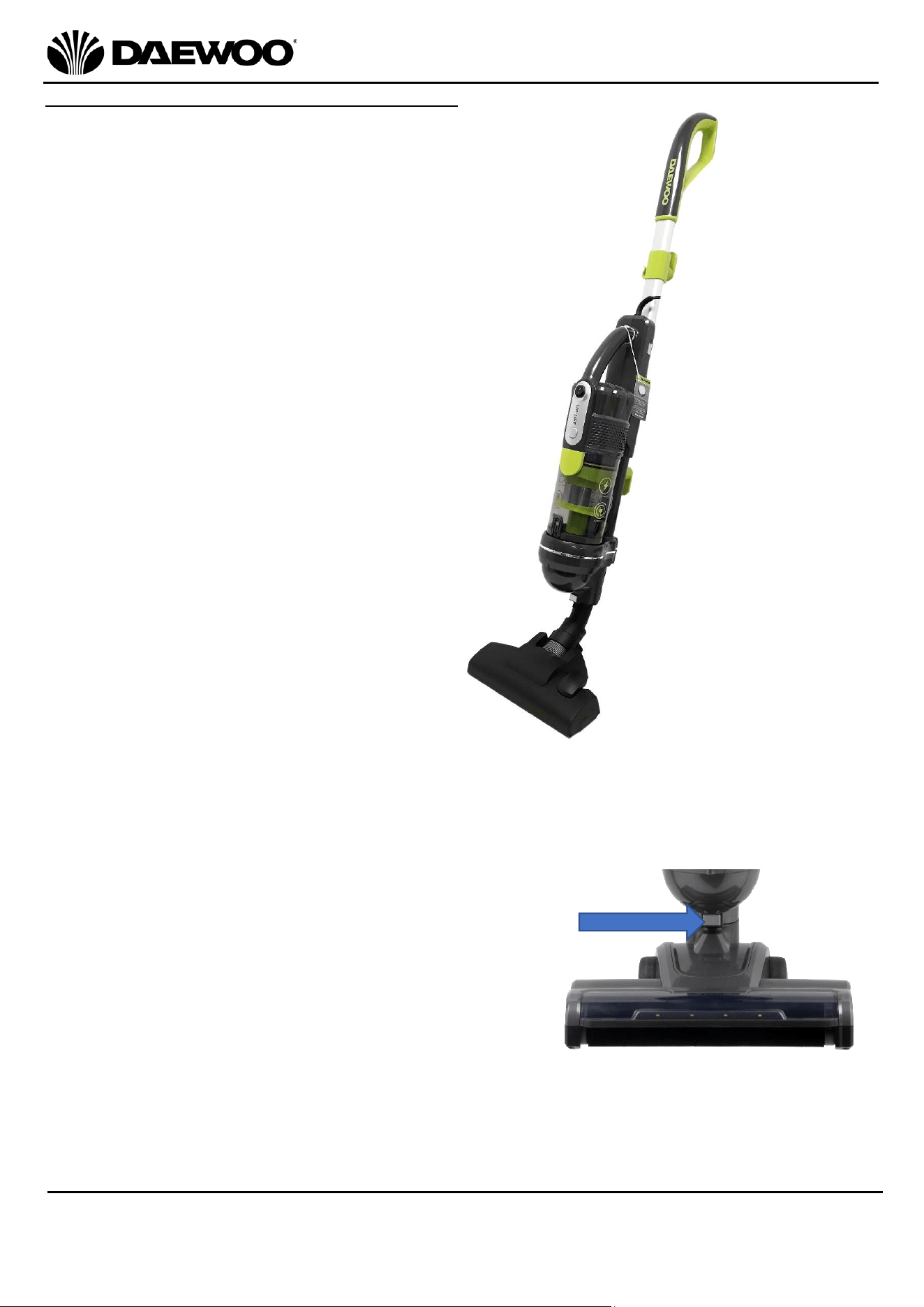

Using the Non Motorised Floor Tool (19)
To remove the Motorised Floor Tool (7) or Non
Motorised Floor Tool (19), press the Floor Tool
Release Button (8) and remove.
4. Right: The Non Motorised
Floor Tool (19) can be fitted as
shown right as an alternative to
the Motorised Floor Tool (7).
11
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

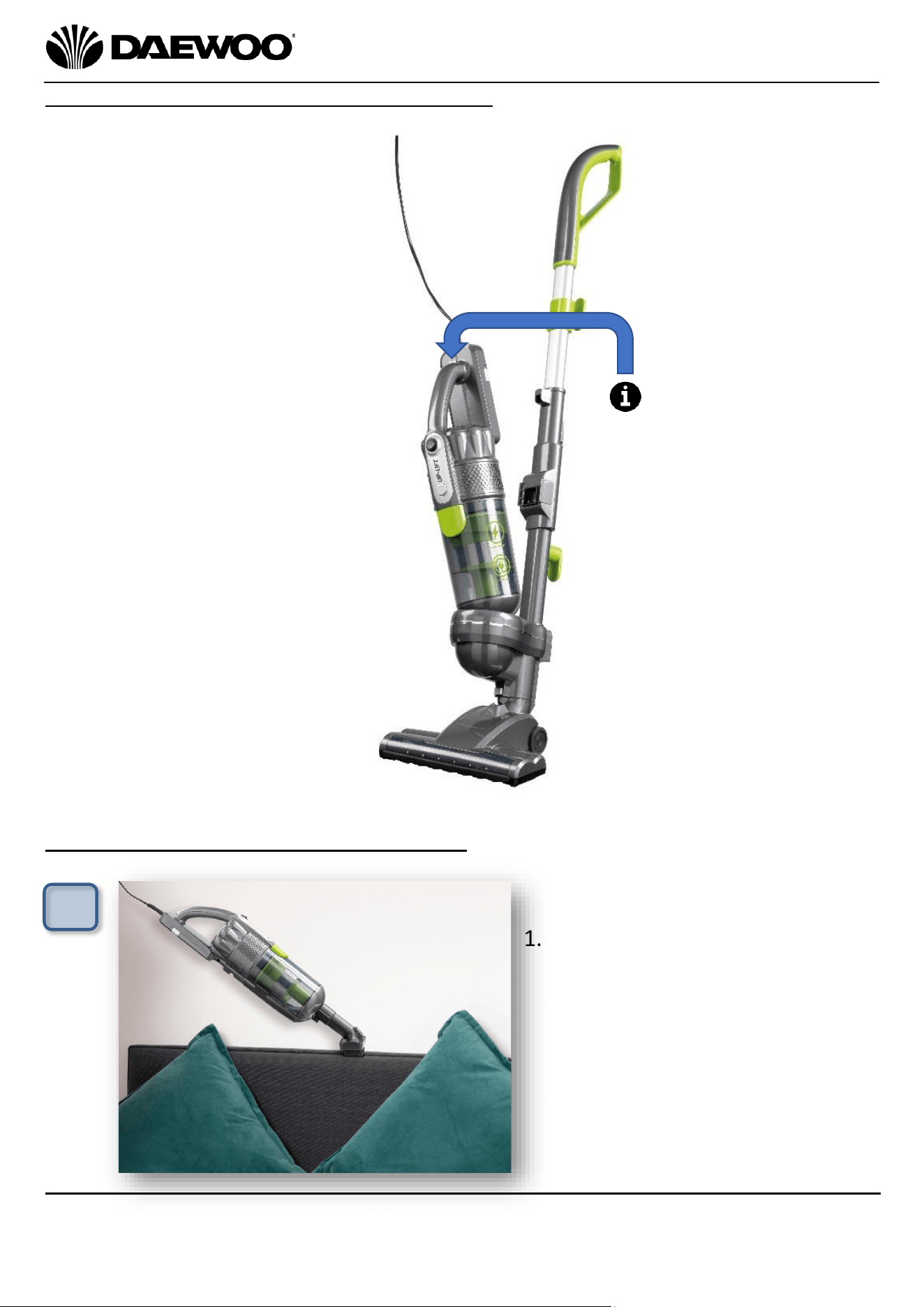

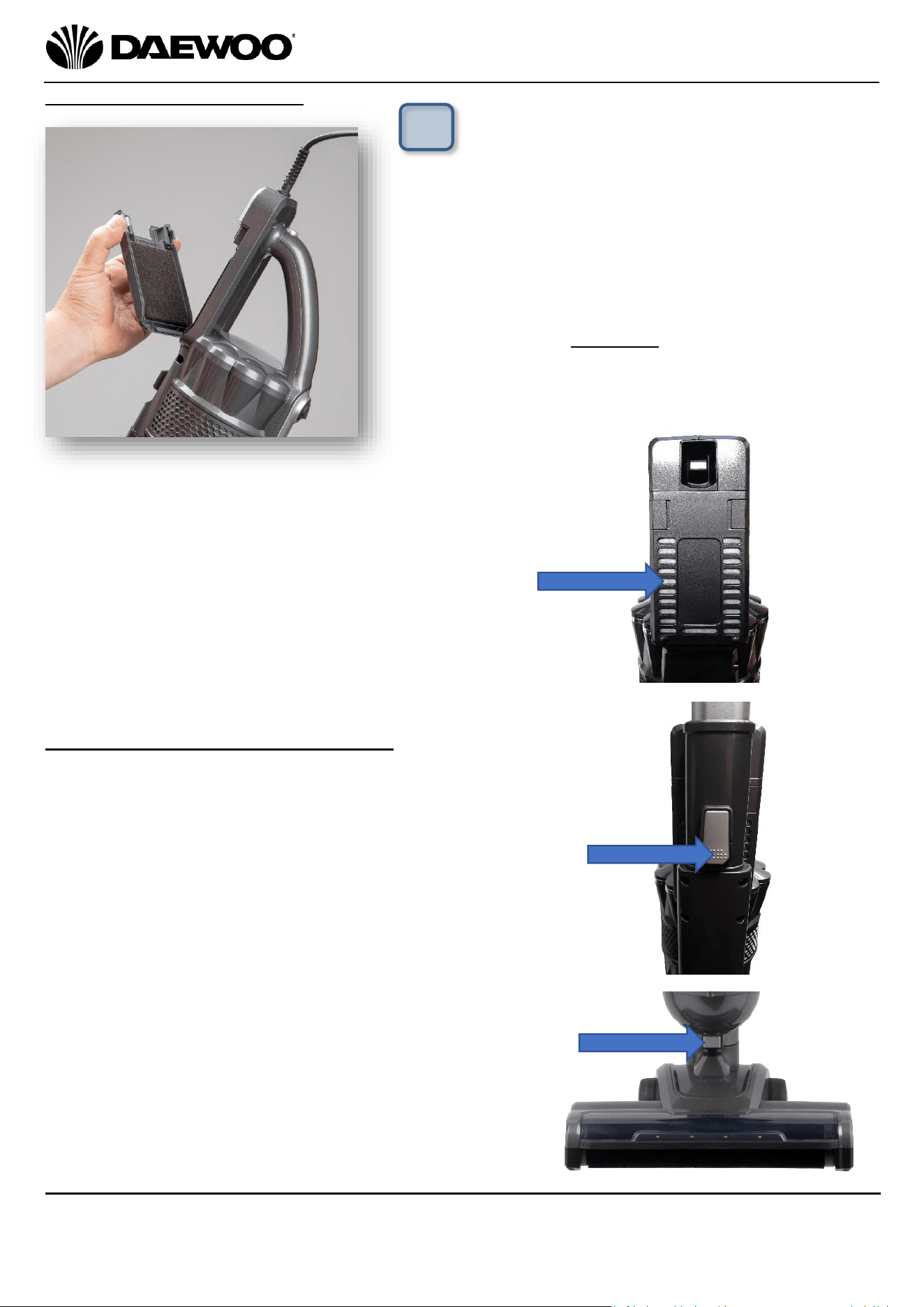

Removing the Motor Unit for Handheld Use
To use your vacuum cleaner
handheld, remove the Motor
Unit (6) by holding the Motor
Unit Handle (5) and pressing the
Motor Unit Release Button (14).
Attaching the Tools to the Motor Unit (6)
1. Attach the Upholstery
Tool/Brush (19) to the Motor
Unit (6) to clean Sofas, Chairs,
Mattresses, Cushions, etc. as
shown left:
Press the Motor
Unit Release Button
(14) to remove the
Motor Unit (6).
1
12
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

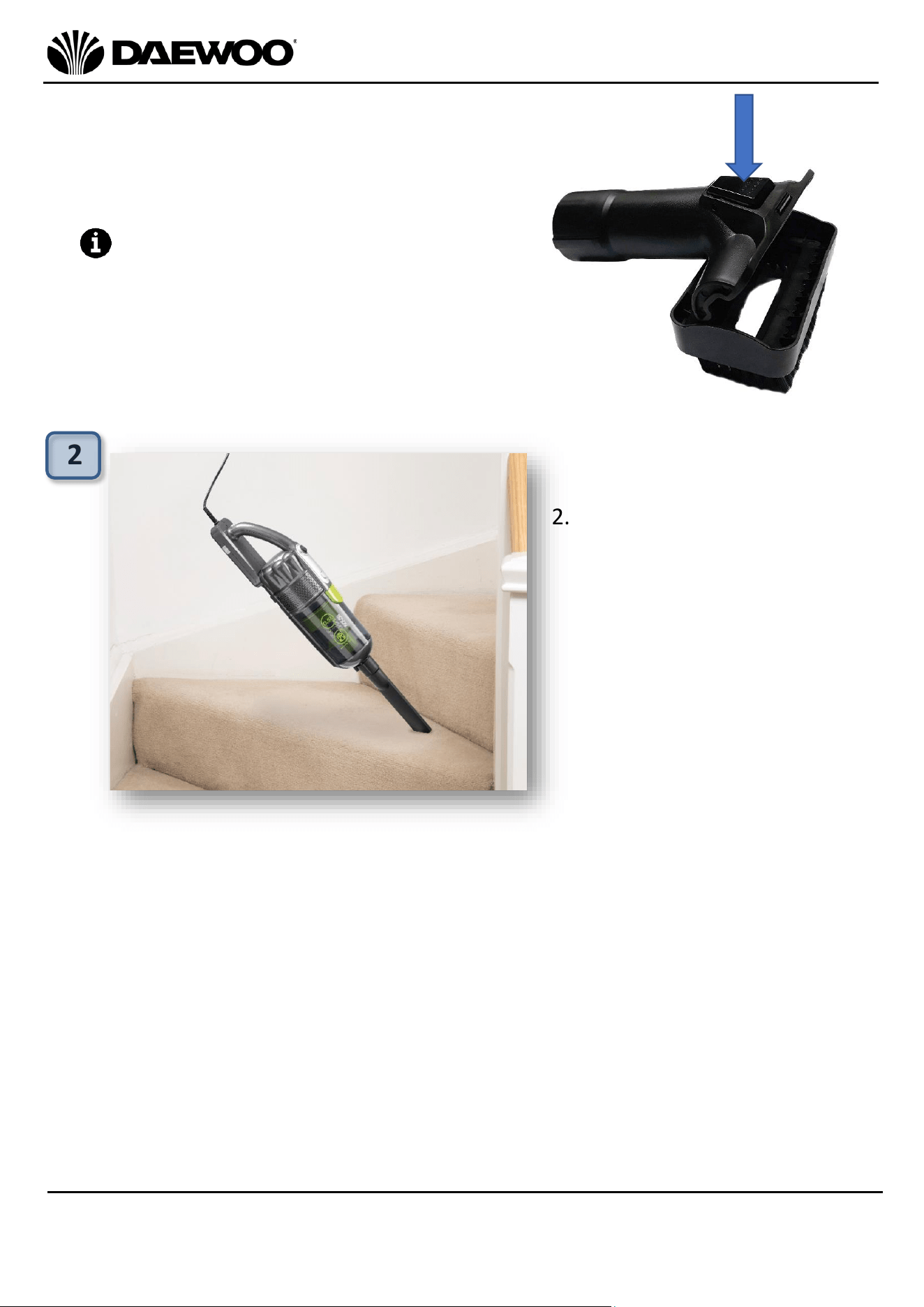

2. Attach the Crevice Tool (17)
to the Motor Unit (6) to
clean carpet edges, stairs
and other hard to reach
areas as shown left:
2
If the brush attachment is not required
on the Upholstery Tool/Brush (19), press the
catch on the top of the tool to release and
remove the brush as shown right:
13
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

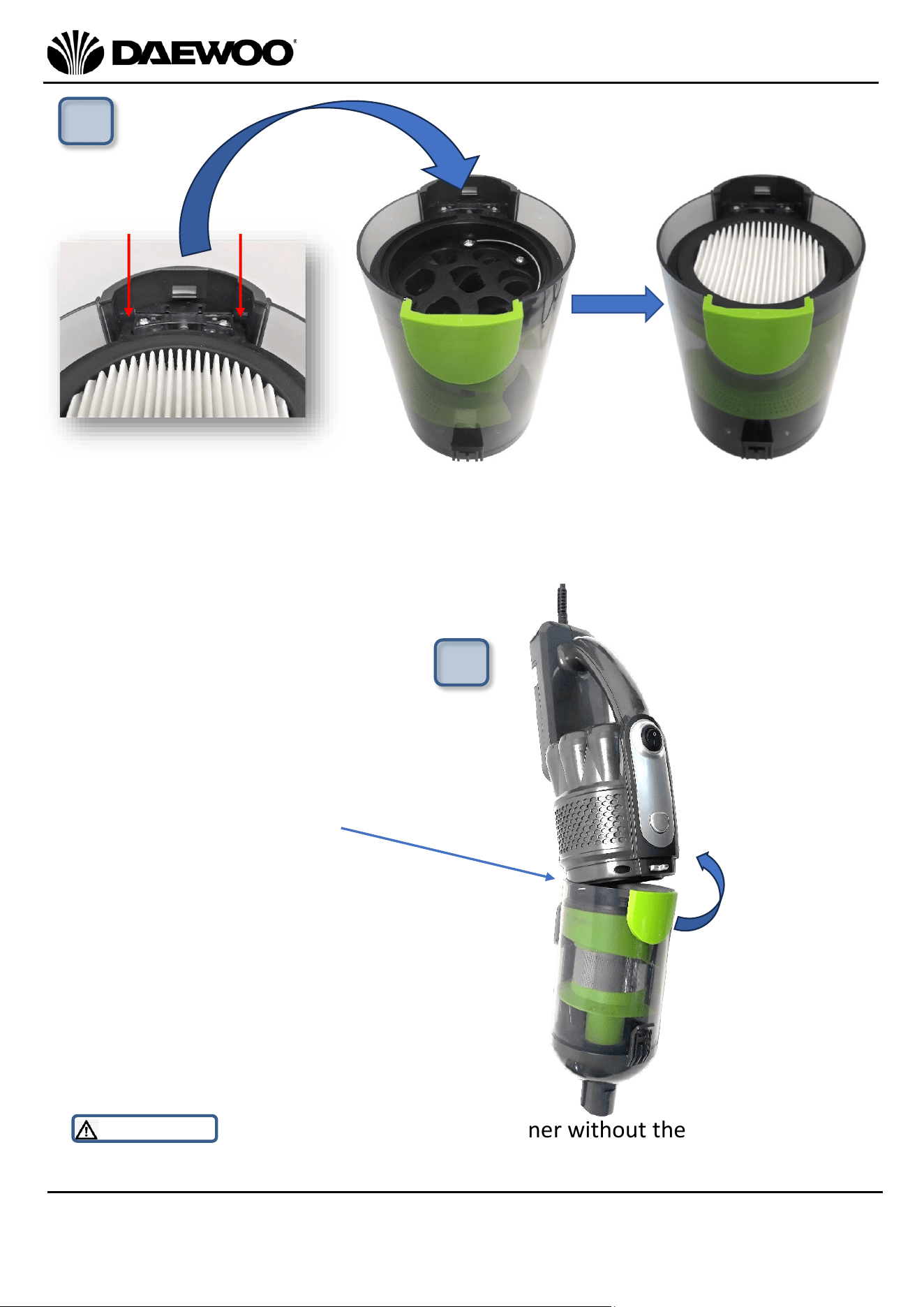

1. Once the dust level reaches the ‘MAX’
mark on the Dust Compartment (10), it
will require emptying and the Filter
Assembly (11) cleaned.
3. Reassemble the vacuum after use and
wrap the Mains Cable (4) around the
cable tidies as shown right and store in a
cool, dry place away from direct sunlight.

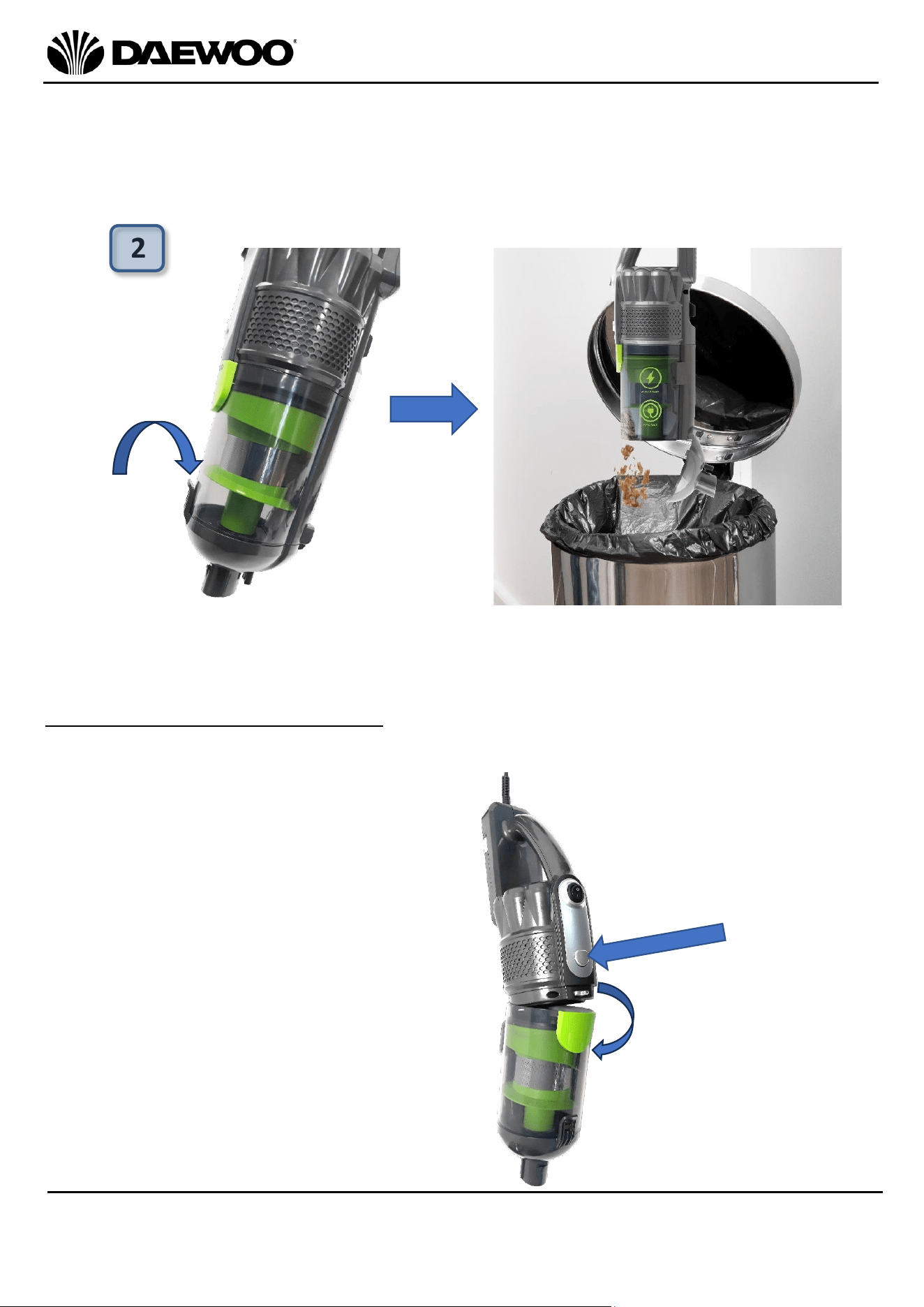

Emptying and Cleaning Your Vacuum Cleaner
WARNING! Always disconnect the cleaner from the mains power supply before
cleaning.
WARNING! DO NOT continue to use the vacuum cleaner once the ‘MAX’ mark
has been reached as permanent damage may occur to the appliance and may also
invalidate your warranty.
MAX
1
3
14
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
2. To empty the cleaner, release the Motor Unit (6) by pressing the Motor Unit
Release Button (14).
Hold the Motor Unit (6) over a waste bin. Prise the Dust Release Catch (9)
downwards to allow the base of the Dust Compartment (10) to swing open and
release the dust into the waste bin. As shown below:
Once all the dust has been emptied, push the base of the Dust Compartment (10)
closed.
Cleaning the Filter Assembly (11)
3. Press the Dust Compartment Release Button (12 - arrowed) to separate the
Dust Compartment (10) from the motor unit as shown below:
2
Right: Support the Dust
Compartment (10) as the
Dust Compartment Release
Button (12) is pressed to
prevent it falling away from
the Motor Unit (6).
15
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

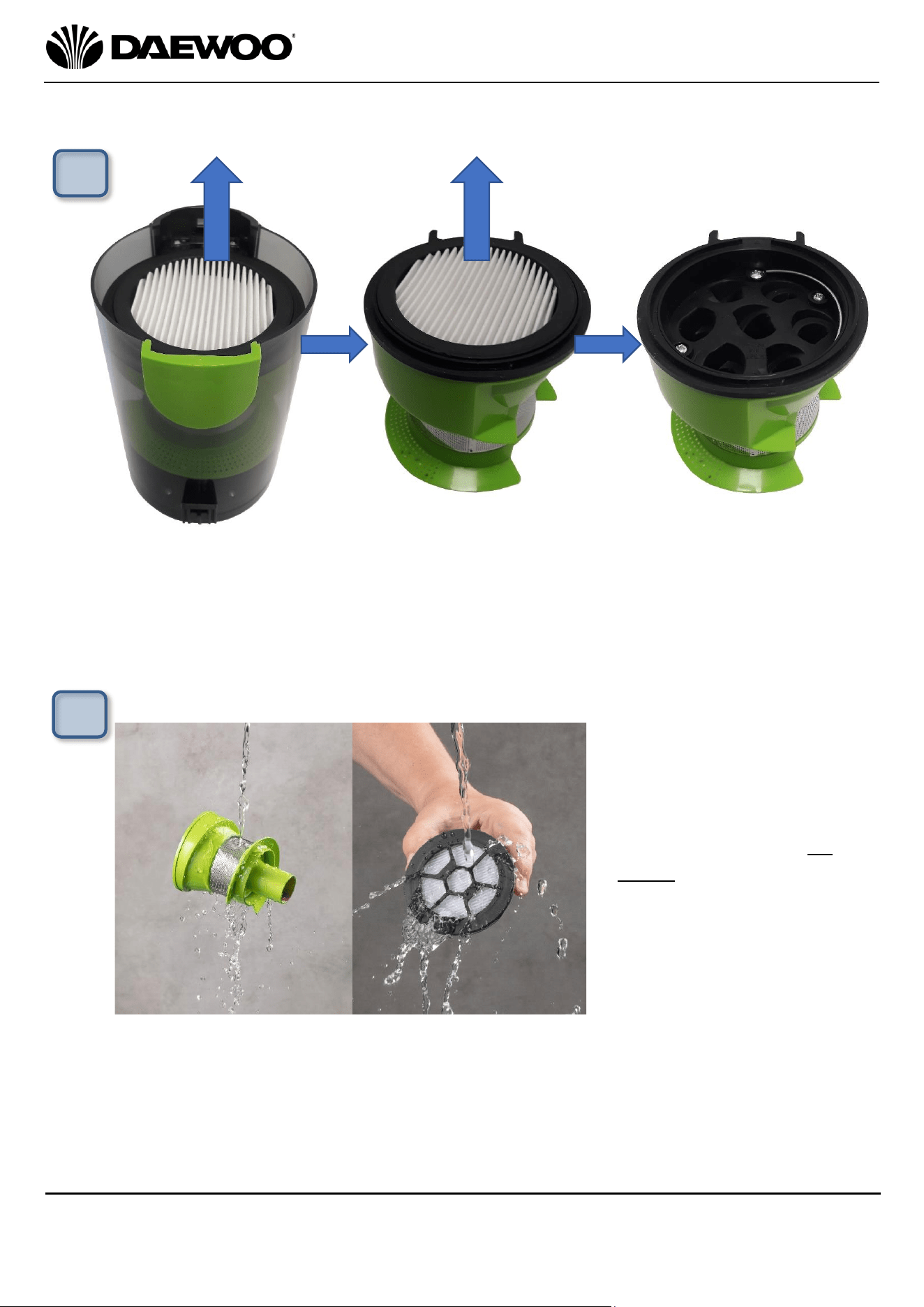

4. Remove the Filter Assembly (11) as shown below:
a. Lift the Filter Assembly (11) out of the Dust Compartment (10).
b. & c. Separate the Hepa Filter from the Cyclonic Filter.
5. Wash the Hepa and
Cyclonic Filters in warm
running water until
clean. Allow the filters to
dry thoroughly for 24
hours before replacing.
The cyclonic filter can be
dismantled further for
deeper cleaning if
desired by removing the
screws. Note the
location of the two
different types of screw
for reassembly.
4
5
a
b
c
16
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6. Reassemble the Filter Assembly (11) as shown above. Ensure that the two lugs
on the Cyclonic Filter (see inset above arrowed) align with the two notches at
the back of the Dust Compartment (10). Replace the Hepa Filter on top of the
Cyclonic Filter.
7. Reattach the Dust
Compartment (10) to the
Motor Unit (6) as shown
below.
Hook the rear of the Dust
Compartment (10) onto the
Motor Unit (6).
Push the two parts together
until the release catch clicks
home.
WARNING! DO NOT use your vacuum cleaner without the filters fitted as this
will cause permanent damage to the cleaner and may invalidate your warranty.
7
6
Inset
17
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Cleaning the Outlet Filter
8. Press the two Air Outlet Cover Release
Buttons (15) and remove the Air Outlet
Cover (16) as shown left:
Remove the outlet filter from inside the Air
Outlet Cover (16) and wash in warm running
water until clean. Allow the filter to dry
thoroughly for 24 hours before replacing.
9. Once dry, replace the outlet filter into the Air
Outlet Cover (16) and push the cover back into
place as above shown right:
Dismantling Your Vacuum Cleaner

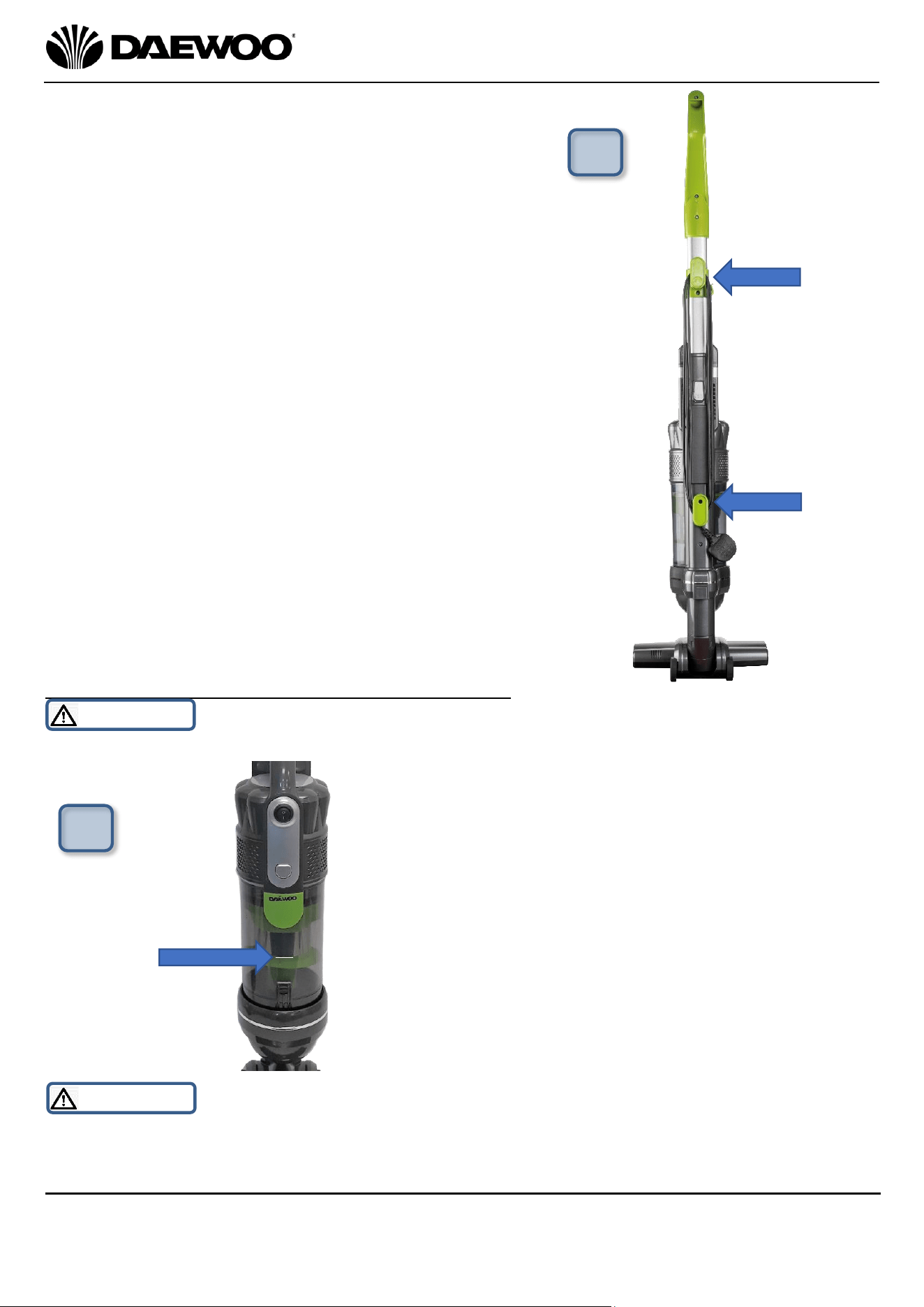

To remove the Handle (1) from the main body press
the Handle release catch on the rear of the vacuum
and remove the Handle (1) as shown right:
To remove the Motorised Floor Tool (7) or Non
Motorised Floor Tool (19), press the Floor Tool
Release Button (8) and remove.
8
18
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Removing and Replacing the Floor Brush

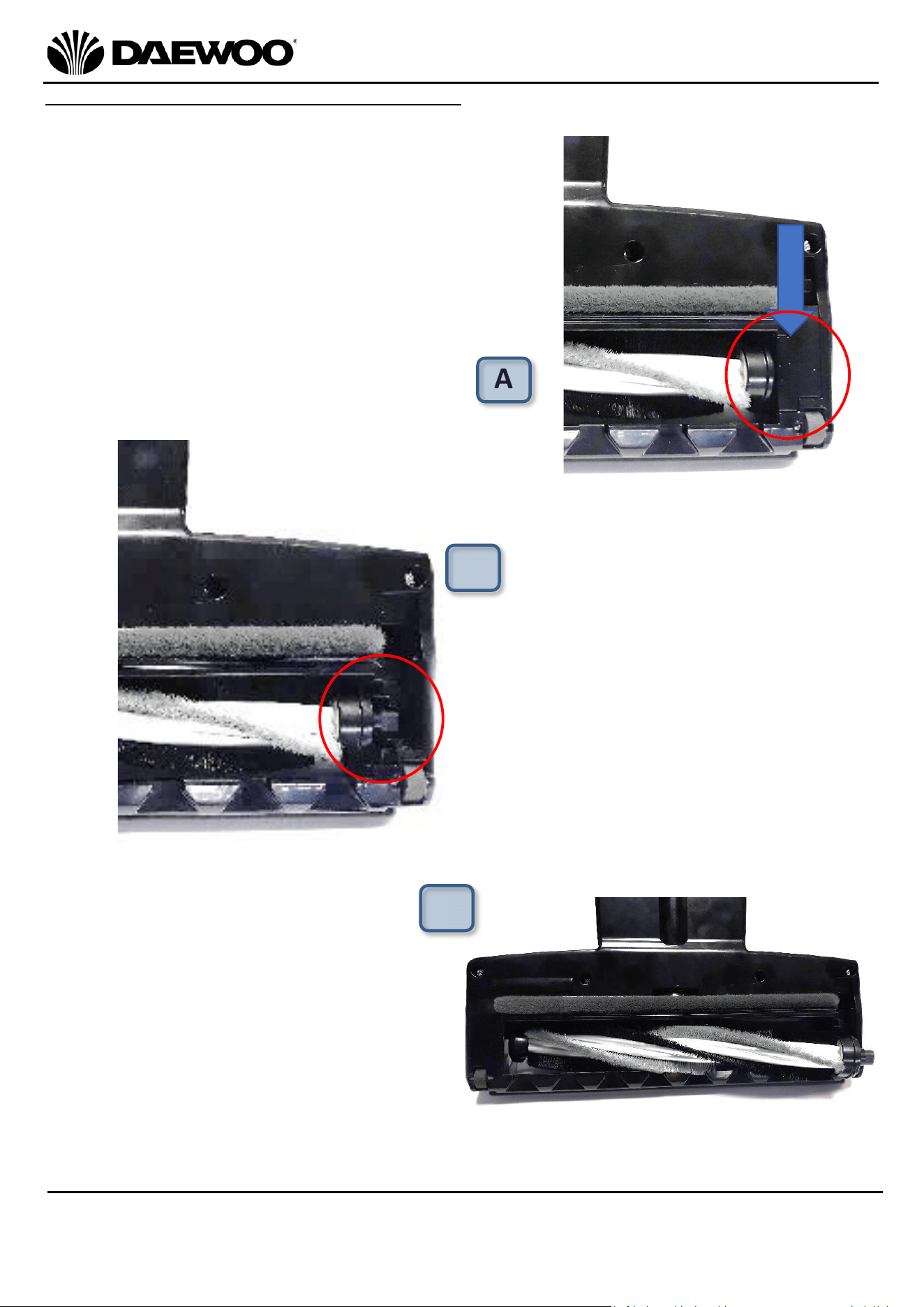

Remove the floor brush from the Motorised Floor Tool (7) using the guide below:
A. Push the retaining clip catch towards the
front of the Motorised Floor Tool (7).
B. Remove the retaining clip.
C. Remove the floor brush from the
Motorised Floor Tool (7) and clean
by removing hairs and fluff, etc.
A
B
C
19
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Follow the reverse of the above procedure to replace the floor brush.

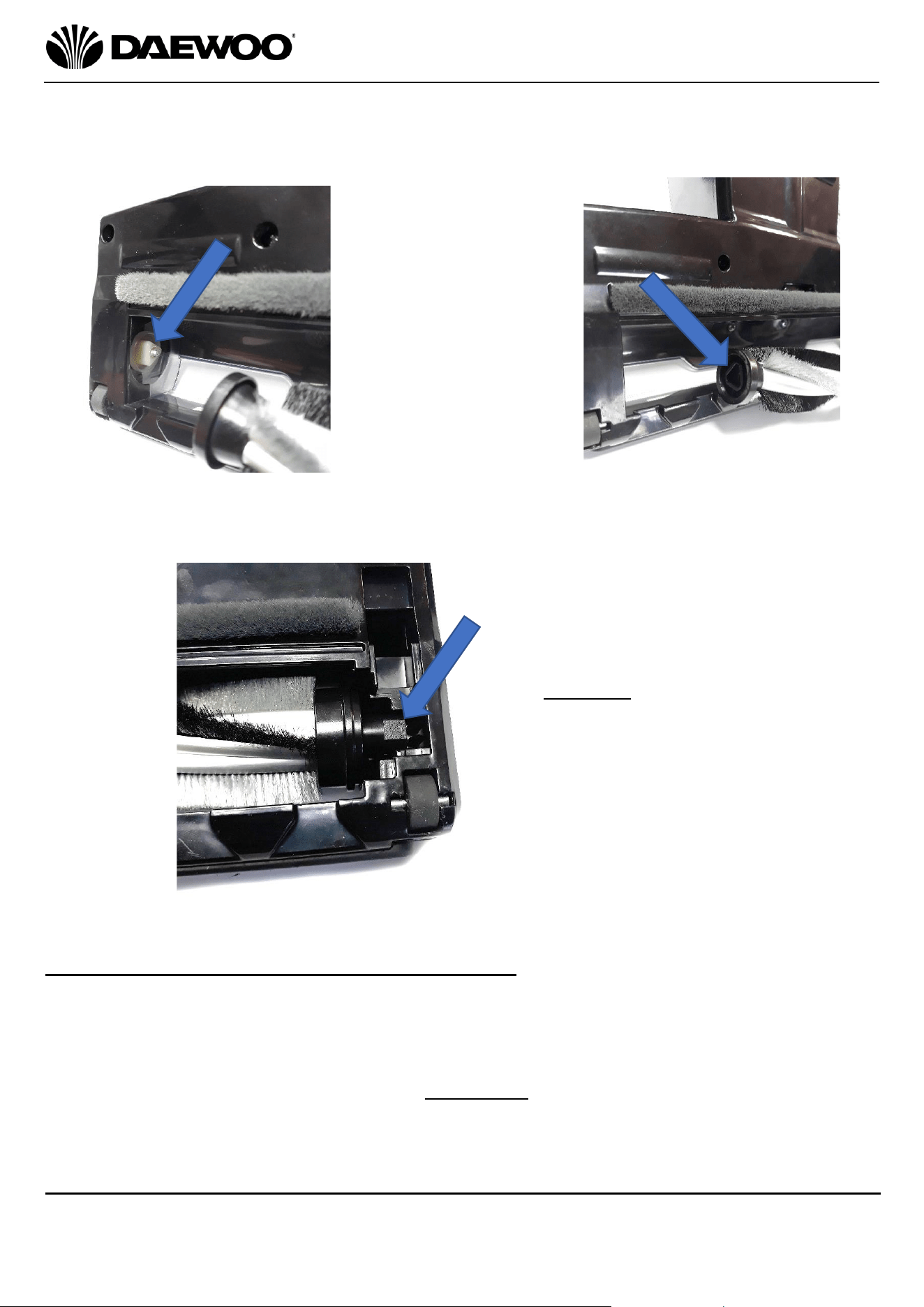

At one end of the floor brush ensure the triangular lug in the Motorised Floor Tool
(7) fits into the triangular recess in the floor brush as below:
Ensure the square lug at the other end of the floor brush sits square in the
Motorised Floor Tool (7) as below before refitting the retaining clip.
Care and Maintenace of Your Vacuum Cleaner
• Always disconnect the cleaner from the mains power supply before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or
abrasive cleaners.
• Do not submerge the cleaner or its mains cable in water or any other liquids.
• Empty the Dust Compartment (10) as soon as the ‘MAX’ mark has been
reached.*
• Wash the Filter Assembly (11) regularly – see above and the table below.
• Allow the filters to thoroughly dry out for 24 hours before reassembly and use.
Whilst replacing the
floor brush, ensure the
triangular lug (shown
arrowed left) in the
Motorised Floor Tool
(7) fits into the
triangular recess in the
floor brush shown
arrowed right.
Left: Whilst replacing
the floor brush, ensure
the square lug at the
other end of the brush
(shown arrowed left)
fits into the recess in
the Motorised Floor
Tool (7). Refit the
retaining clip.
20
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
* WARNING! DO NOT continue to use your vacuum cleaner once the ‘MAX’
mark has been reached as permanent damage may occur to the appliance which
may invalidate your warranty.

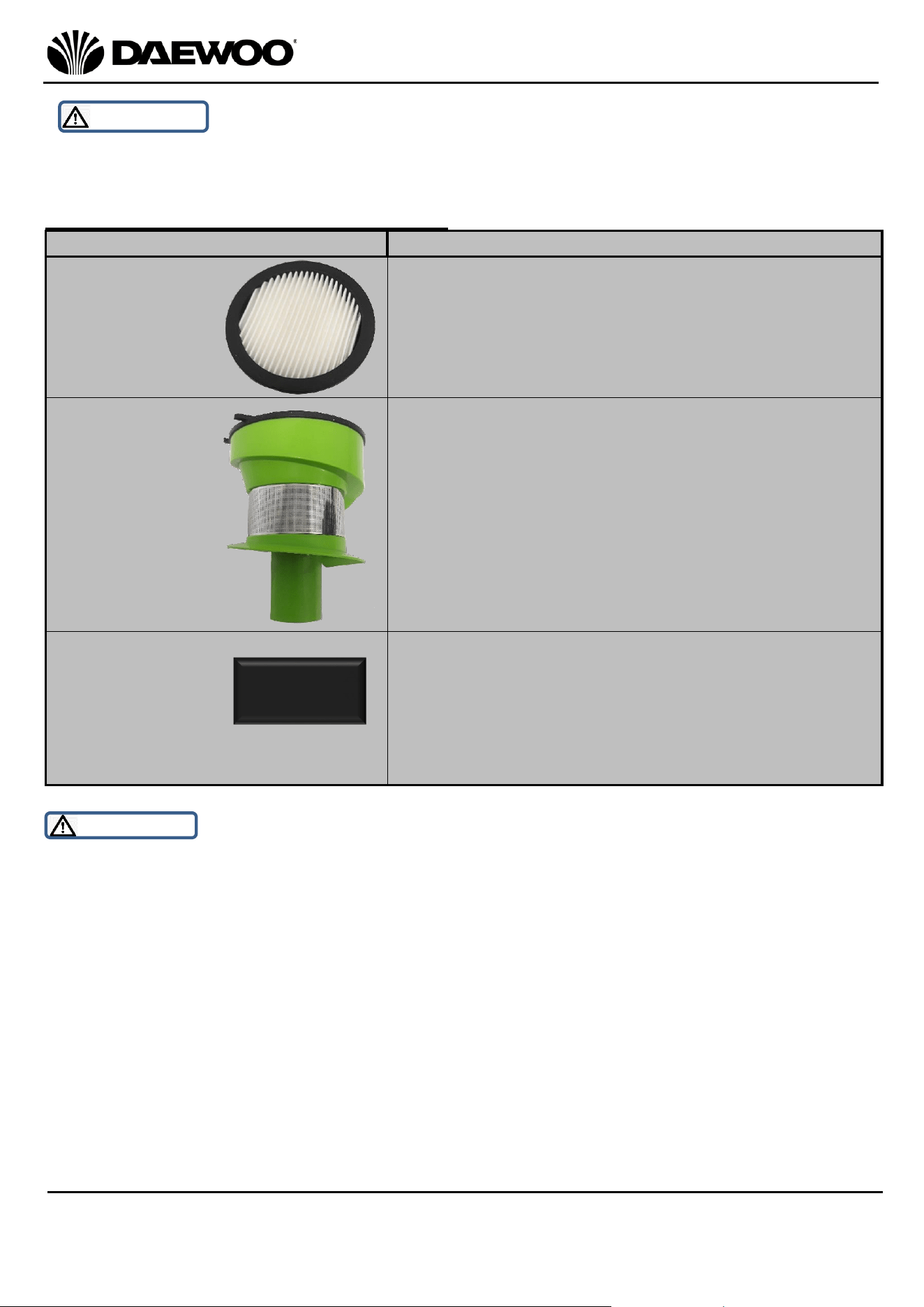

Recommended Filter Cleaning Intervals
Filter Type
Recommended Cleaning Period
WARNING! Ensure the filters are cleaned periodically according to the table
above, failure to clean the filters regularly will severely impair the performance
and permanent damage may occur to the appliance which may invalidate your
warranty.
• Shake
out
debris
when
you
empty
the
dust container.
•
Rinse
under
war
m
water
once
a
month.
• Allow to dry thoroughly for 24 hours
before reuse.
• Shake
out
debris
once
a
month
•
Rinse
under
war
m
water
once
a month.
• Allow to dry thoroughly for 24 hours
before reuse.
Hepa Filter
Cyclonic Filter
Outlet Filter
• Shake
out
debris
once
a
month.
•
Rinse the Hepa filter
under
war
m
water
once
every
3-6
months.
• Allow to dry thoroughly for 24 hours
before reuse.
21
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Troubleshooting Guide
Problem
Possible Cause
Possible Solution
Unit fails to turn on.
The unit may not be
properly plugged in.
Ensure the plug is fully
inserted into the socket
and the socket is switched
on.
The fuse in the plug
may have blown
Check fuse by substitution.
The fuse/circuit
breaker may have
tripped.
Check the fuse/circuit
breaker on the mains
board, if it has tripped,
reset it.
On/Off Switch (12)
is in the off (O)
position.
Press the On/Off Switch
(12) to the I position.
Low suction or poor pick-up.
Dust Compartment
is full.
Empty the Dust
Compartment.
Filters are clogged.
Check and clean the filters.
The vacuum is making a
“hissing” sound.
The airflow is
restricted
Empty the Dust
Compartment. Check and
clean the filters.
Check and clear any
blockages if necessary.
Technical Specification
Model Number
FLR00131
Supply Voltage
AC 220-240V ~ 50/60Hz
Rated Power
600W (max.)
Protection Class
II
Unpacked Weight (Motor Unit)
3.1 Kgs (approx.)
Filtration (Dust Compartment)
Hepa & Cyclonic Filter
Filtration (Outlet)
Hepa
Dimensions
21cm (d) x 26cm (w) x 110cm (h) (approx.)
Vacuum
>16.5kpa
Max Air Flow
16.7L/S
Noise Level
≤78dB (approx.)
Dust Compartment Capacity
0.5L
22
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Non-Rewireable Mains Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
23
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
24
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Notes
25
Tornado Up-Lift Vacuum
Model No. FLR00131
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo Vacuum.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
