6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Model No. FLR00145
User Manual
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Explanation of Symbols
7 Description of Parts
7 Before First Use of Your Ash Vacuum Cleaner
7 Assembling Your Ash Vacuum Cleaner
8 Using Your Ash Vacuum Cleaner
9 Emptying Your Ash Vacuum Cleaner
10 Cleaning and Maintenance of You Ash Vacuum Cleaner
10 Cleaning the Filters
11 Troubleshooting Guide
11 Fitting a New Plug
12 Technical Specification
12 Recycling Information
13 Customer Support
Back Page Warranty Information
3
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this appliance.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• WARNING: In order to avoid overheating, do not cover the
vacuum.
• DO NOT use this vacuum with a programmer, timer,
separate remote-control system or any other device that
switches the vacuum on automatically, since a fire risk
exists if the vacuum is covered or positioned incorrectly.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• Close supervision is required when using this appliance
near children.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
• Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children
without supervision.
• Never leave this appliance within reach of children.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the mains
cable to ensure no damage is evident. Should there be any
signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by the manufacturer or suitable qualified personnel in
order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges or
come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
• DO NOT leave the appliance unattended while switched on
5
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
or connected to the mains power supply.
• Unplug after each use, grasp the plug not the cord.
• It is recommended that for outdoor use the appliance is
plugged into an IP rated socket outlet protected by a
residual current device (RCD) with a fault rating of 30mA ∆
100mS.
• DO NOT use to suck up water.
• DO NOT immerse in water for cleaning.
• The hose should be checked regularly and must not be
used if damaged.
WARNING! DO NOT VACUUM HOT ASHES
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable
provisions of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk to find out your nearest recycling site.
This symbol provides useful additional information on the use of
this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This designates a hazard with moderate risk, which may result
in severe injury or damage to the product if not adhered to.
This symbol indicates that the appliance is electrically double
insulated and therefore does not require an earth connection.
WARNING!
7
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

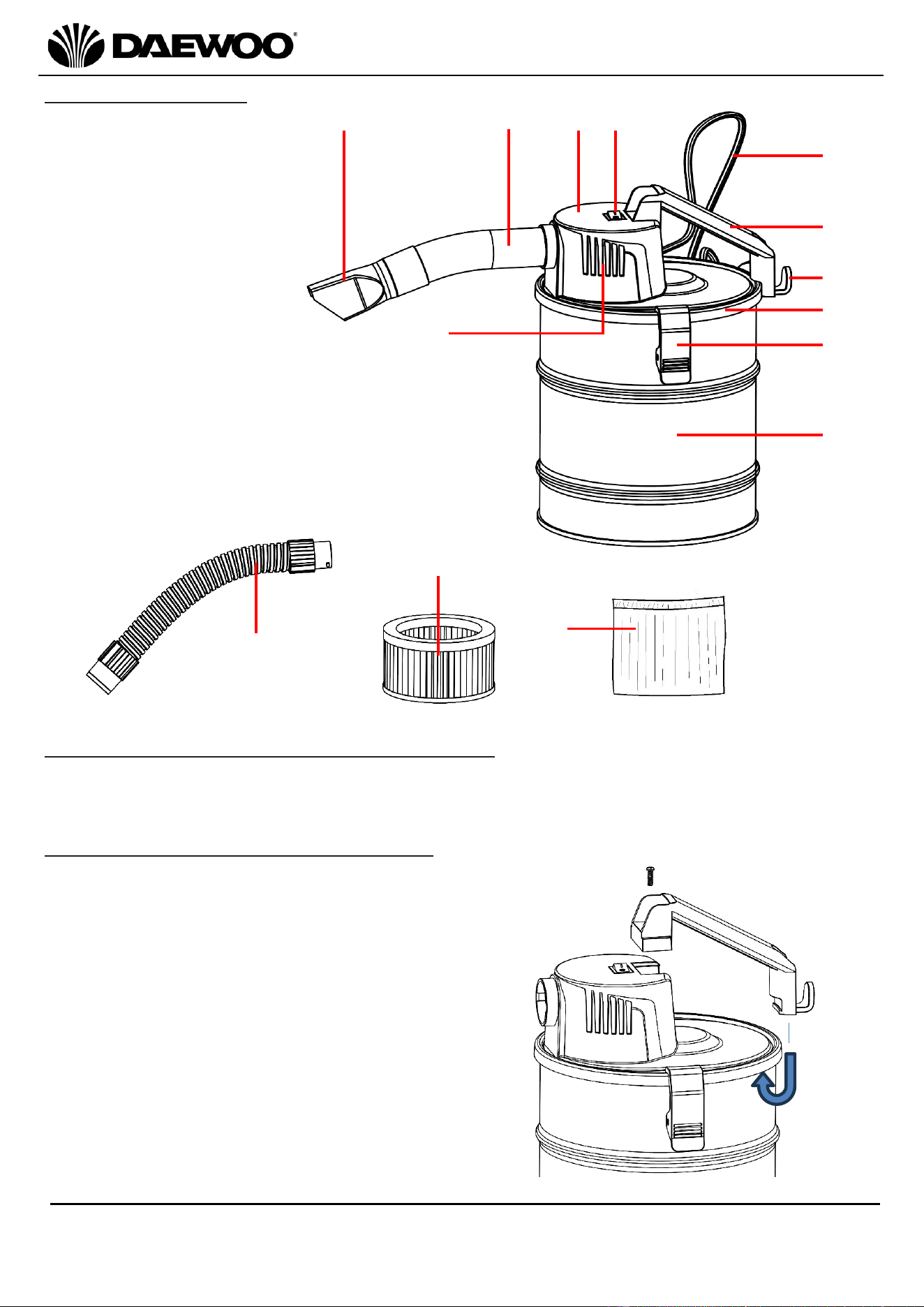

Description of Parts
Before first use of Your Ash Vacuum Cleaner
Remove all packing materials and discard responsibly.
Check that all items are present – see Description of Parts above.
Assembling Your Ash Vacuum Cleaner
1. Hook the base of the Handle (6) onto the
underside edge of the Top Cover (8).
2. Attached the top of the Handle (6) onto
the body of the Motor Unit (3) using the
screw provided and tighten with a
suitable screwdriver (not supplied).
1
2
8
3
4
5
6
7
1. Crevice Tool
2. Metal Tube
3. Motor Unit
4. On/Off Switch
5. Mains Cable
6. Handle
7. Cable Hook
8. Top Cover
9. Locking Clamp(s)
10. Ash Tank
11. Air Outlet
12. Flexible Hose
13. Hepa Filter
14. Filter Bag (fits over the Hepa Filter 13)
9
10
11
12
13
14
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual

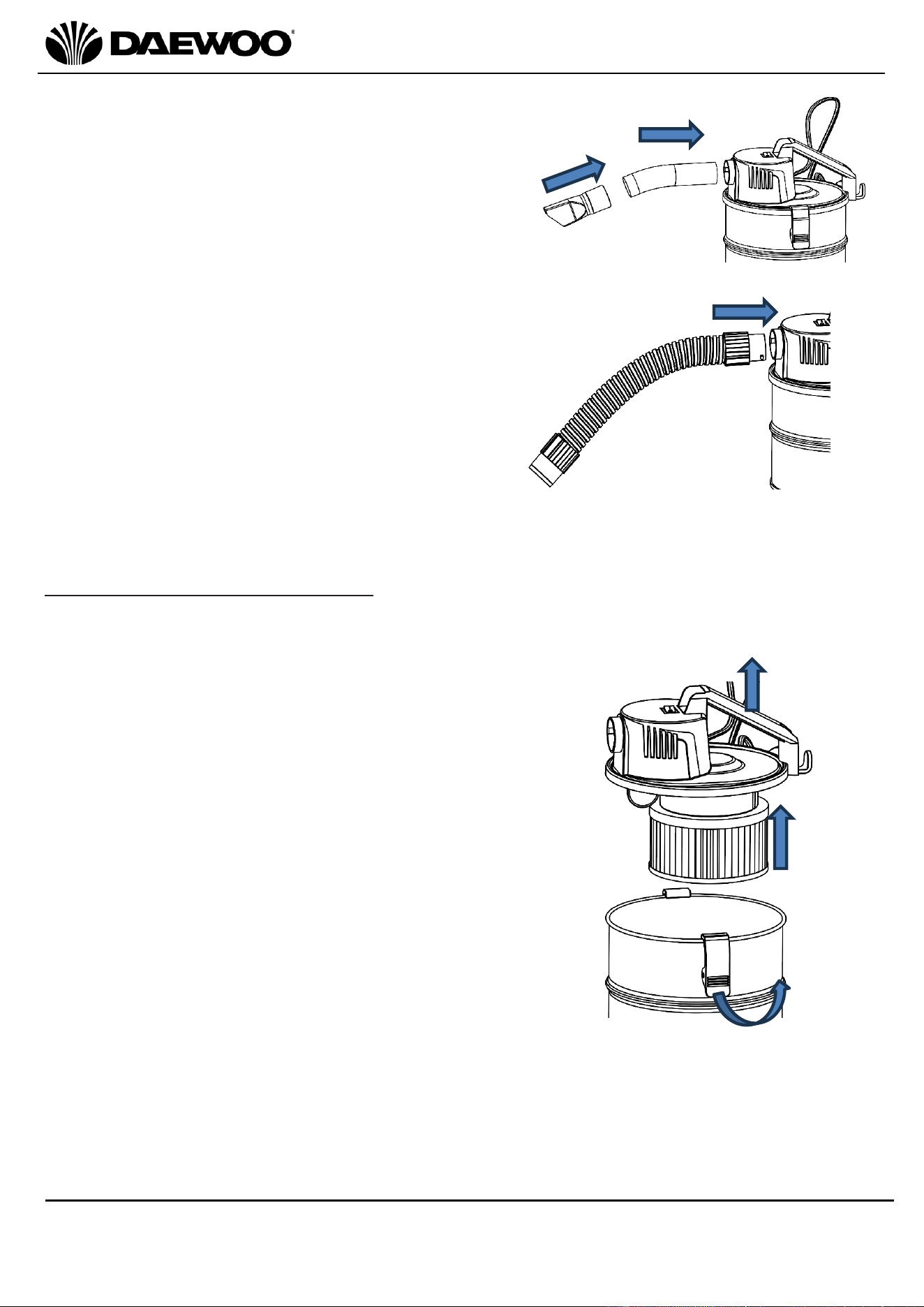

3. Push the Metal Tube (2) into the front of
the Ash Vacuum as shown right and then
push the Crevice Tool (1 – if desired) onto
the end of the Metal Tube (2).
4. If a longer reach is needed, first insert the
Flexible Hose (12) by pushing it into the
inlet and twisting clockwise.
5. Insert the Metal Tube (2) and the Crevice
Tool (1) into the end of the Flexible Hose
(12).
NOTE to remove the Flexible Hose (12), twist
anticlockwise and pull.
Using Your Ash Vacuum Cleaner
1. Before using your Ash Vacuum, ensure
that the filters are in place as follows:
a. Lift up the two Locking Clamps (9) and
allow them to click open and fall away
from the Top Cover (8).
b. Grasp the vacuum by the Handle (6)
and carefully lift the vacuum clear of
the Ash Tank (10) to reveal the filters.

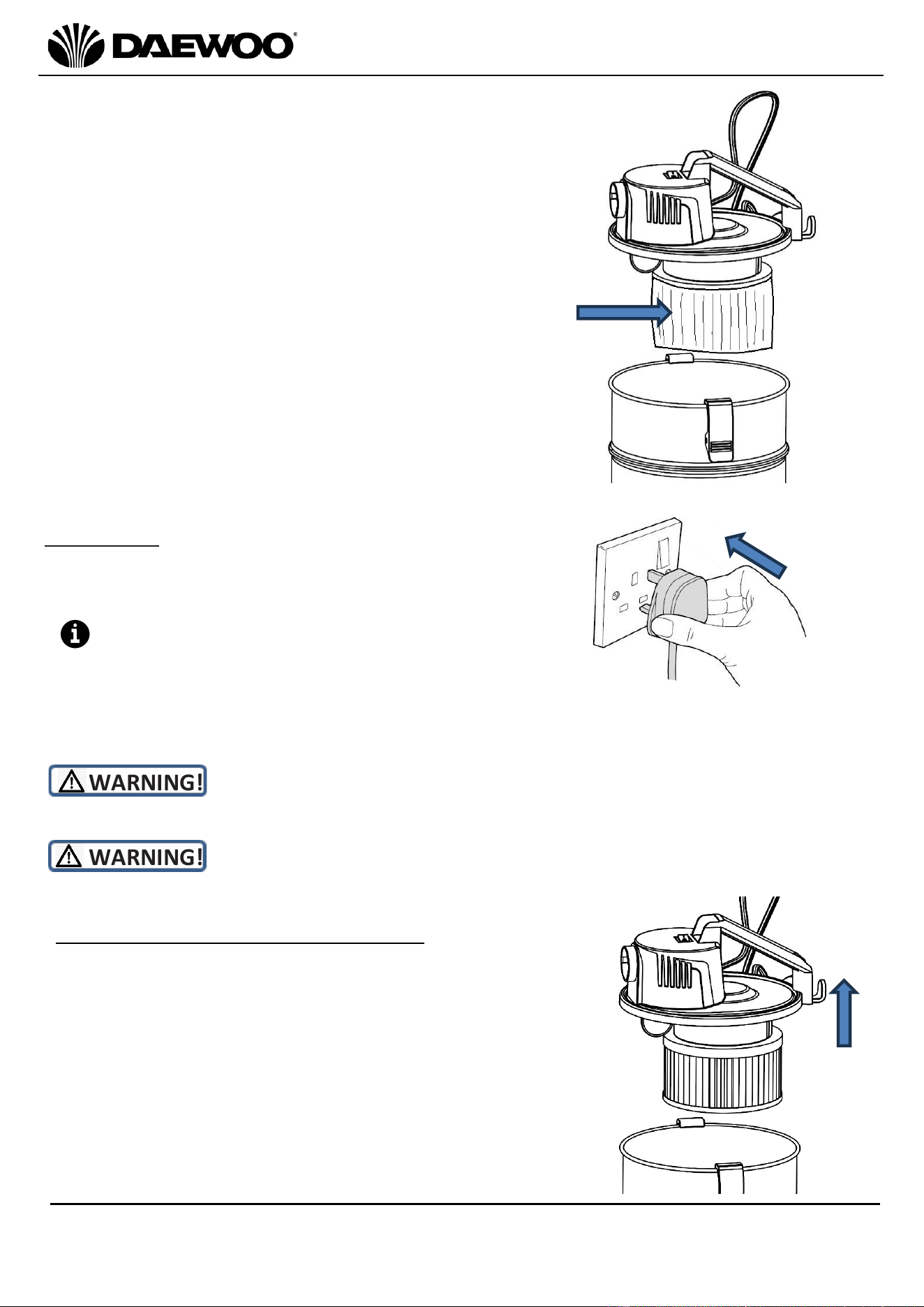

c. Ensure that the Hepa Filter (13) is in
place and it is pushed all the way up in
the direction of the arrow right and no
gap shows at the top of the filter:
9
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
d. Ensure the Filter Bag (14 – arrowed
right) is fitted over the Hepa Filter (13)
Vacuuming
1. Fully unravel the Mains Cable (5) and
insert the mains plug into the nearest
socket.
If using the vacuum outdoors, an I P rated
socket outlet protected by an RCD is
recommended to prevent electric shock.
2. Switch on the vacuum by pressing the On/ Off Switch (4) to the ‘I’ position.
3. Remove ash, dust debris as required.
WARNING! DO NOT attempt to clean debris larger than half the width of the
nozzle as this can cause blockages and overheating of the vacuum.
WARNING! DO NOT vacuum hot ash – allow the ash to cool before
vacuuming.
Emptying Your Ash Vacuum Cleaner
1. Lift up the two Locking Clamps (9) and allow
them to click open and fall away from the
Top Cover (8).
2. Remove the vacuum from the Ash Tank (10).
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
3. Empty the contents of the Ash Tank (10) into the waste bin.
4. Replace the Vacuum on top of the Ash Tank (10) and hook the two Locking
Clamps (9) over the edge of the Top Cover (8) and then pressing clamps
back against the sides of the Ash Tank (10).
Cleaning and Maintenance of Your Ash Vacuum Cleaner
• Always ensure the Ash Vacuum is unplugged and the On/Off Switch (4) is in the
OFF ‘O’ position before storing away or cleaning.
• The outer surfaces of the Ash Vacuum can be wiped with a damp cloth and
dried.
• The inner of the Ash Tank (10) can be cleaned with warm soapy water and
rinsed. Ensure the tank is completely dry before re-attaching to the Motor Unit
(3)
• DO NOT use abrasive cleaning materials or scouring pads to clean any part of
the Ash vacuum as this will damage the surface.
• DO NOT submerge any part of the Ash Vacuum in water or any other liquid.
Cleaning the Filters (13 & 14)
After every 250-300 litres of use it is advised to clean the Filters (13 & 14)
as below:
1. Lift up the two Locking Clamps (9) and allow
them to click open and fall away from the
Top Cover (8).
2. Remove the vacuum from the Ash Tank (10).

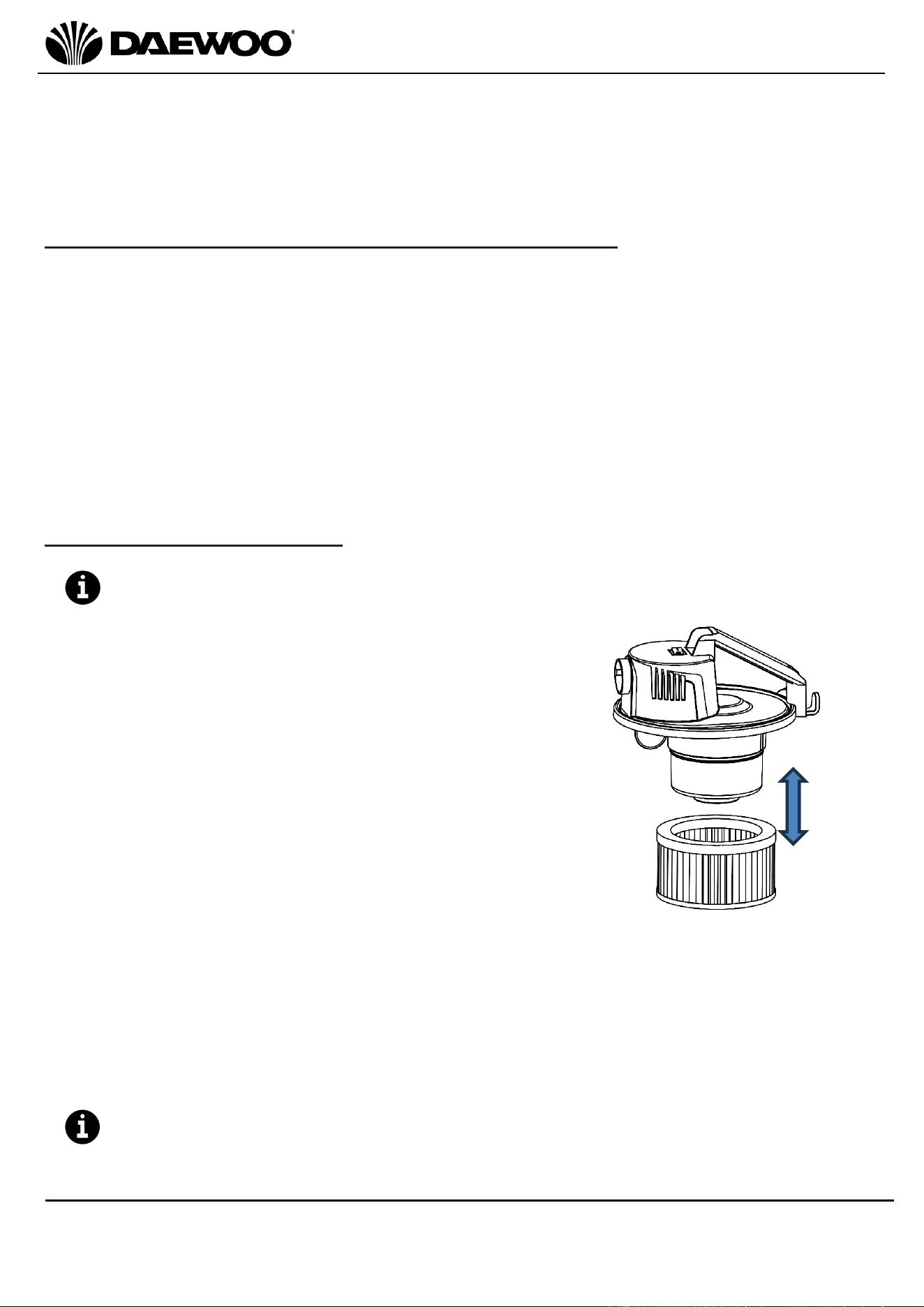

3. Remove the Filter Bag (14) and then pull the
Hepa Filter (13) off the vacuum as shown
right:
1. Clean the Filters (13 & 14) using a vacuum cleaner.
2. Do not immerse the Filters (13 & 14) in water as this will affect the efficiency.
Once clean, replace the Filters (13 & 14) by pushing them back onto the Motor
Unit (3).
3. Replace the Motor Housing (3) onto the Ash Tank (10) and fasten the Locking
Clamps (9).
It is recommended the filters are changed after approximately 500 litres of
use or after 25 times the tank is emptied.
11
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Troubleshooting Guide

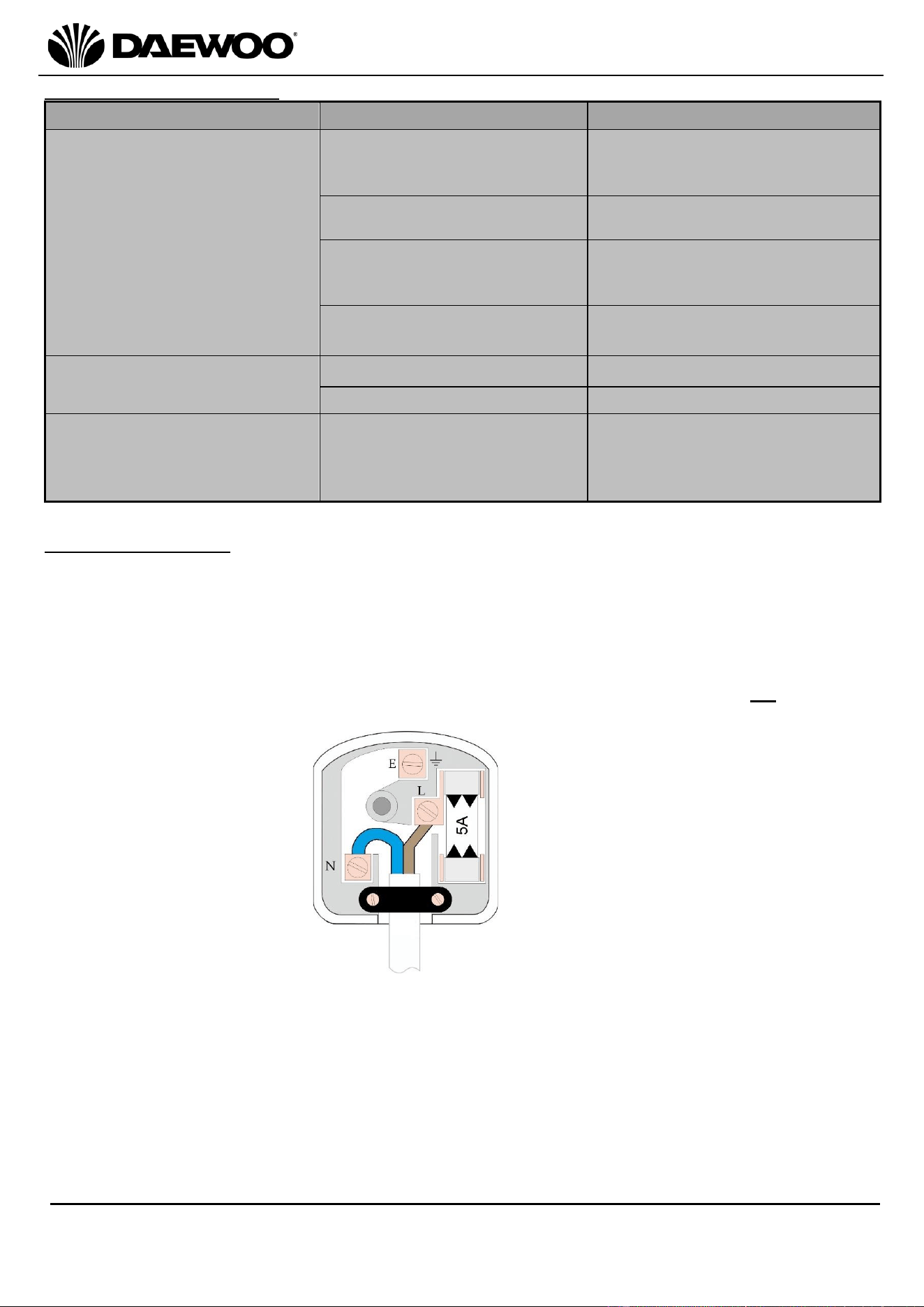

Problem
Possible Cause
Possible Solution
Unit fails to turn on.
The unit may not be
properly plugged in.
Ensure the plug is fully inserted
into the socket and the socket
is switched on.
The fuse in the plug may
have blown
Check fuse by substitution.
The fuse/circuit breaker
may have tripped.
Check the fuse/circuit breaker
on the mains board, if it has
tripped, reset it.
On/Off Switch (4) is in the
off (O) position.
Press the On/Off Switch (4) to
the ‘I’ position.
Low suction or poor pick-up.
Dust Compartment is full.
Empty the Dust Compartment.
Filters are clogged.
Check and clean the filters.
The vacuum is making a
“hissing” sound.
The airflow is restricted
Empty the Dust Compartment.
Check and clean the filters.
Check and clear any blockages
if necessary.
Fitting a new plug
This appliance is fitted with a fused three-pin 13 amp plug to BS 1363. If the plug
has to be removed, it should be cut off and carefully disposed of immediately.
To avoid a possible shock hazard, do not insert the discarded plug into a mains
socket.
The mains lead must be connected as shown below. The wires are coloured with
the following code - Brown wire = Live (L), Blue wire = Neutral (N). NB no
connection must be made to the Earth terminal pin (E) under any circumstances.
• The Blue wire must be connected to the terminal marked N or coloured Black.
• The Brown wire must be connected to the terminal marked L or coloured Red.
• Check that there are no cut or stray strands of wire inside the plug.
• Use a 5 Amp BS 1362 fuse, only use BSI or ASTA approved fuses.
• If you are in any way unsure which plug or fuse to use, always refer to a
qualified electrician.
Connect
Brown to
Live (L)
Connect
Blue to
Neutral
(N)
Ensure the outer sheath is
securely held by the cord clamp
12
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
Technical Specification
Rated Voltage
220-240V AC ~
Rated Frequency
50-60Hz
Rated Power
600W
Tank Capacity
6 Litres
Vacuum Pressure
>16kpa
Model Number
FLR00157
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk to find
your nearest recycling point.
13
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
14
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
6 Litre Ash Vacuum
Model No. FLR00157
User Manual
WARRANTY
Thank you for purchasing your Daewoo Vacuum.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
