12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Steam Mop
User Manual
2
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
6 Explanation of Symbols
7 Description of Parts & Accessories
8 Before First Use of Your Steam Mop
8 Assembling Your Steam Mop
9 Attaching the Microfibre Pad to the Floor Attachment
9 Attaching the Carpet Glider to the Floor Attachment
10 Filling the Water Tank
10 Using Your Steam Mop
11 Using Your Steamer Handheld
12 Table of uses for the Steamer Attachments
13 Cleaning & Maintenance
13 Cleaning the Microfibre Pad
13 Replacement Microfibre Pads
14 Storing Your Steam Mop
14 Plug Wiring Information
14 Technical Specification
15 Recycling Information
15 Customer Support
Back Page Warranty Information
3
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should
always be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating
instructions before using this Steam Mop.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children
less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or
any other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst
connected to the mains supply.
• DO NOT use this appliance outdoors.
4
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
• Repairs to electrical appliances should only be performed
by a qualified electrician. Improper repairs may place
user at serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to
ensure no damage is evident. Should there be any signs
of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by qualified personnel in order to avoid a hazard
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• DO NOT run the mains cable under carpets, rugs, etc.
• The Steam Mop is not to be used if it has been dropped,
if there are visible signs of damage or it is leaking.
• The plug must be removed from the socket outlet before
the reservoir is filled with water.
• The filling aperture must not be opened during use.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to the
appliance and/or electric shock may occur.
5
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT direct steam at people, animals, electrical
appliances or electrical socket outlets.
• Steam must not be directed towards equipment
containing electrical components such as the interior of
ovens.
• DO NOT pull or carry the Steam Mop by the electrical
cord.
• DO NOT use the steam mop in enclosed spaces or spaces
that may contain vapours given off by paint thinners, oil-
based explosive or toxic vapours or flammable dust.
• Ensure that the micro fibre cleaning pad is fitted correctly
before use.
• DO NOT use on leather or wax polished furniture or
floors, synthetic fabrics, velvet or other delicate or steam
sensitive materials.
• DO NOT use on unsealed hard floor surfaces.
Additionally, on surfaces that have been treated with wax
or polish, the sheen may be removed by the action of the
steam. It is always recommended to test an isolated area
of the surface to be cleaned before proceeding. It is also
recommended to check the care instructions from the
floor manufacturer.
• Caution: Always wear suitable shoes when using the
steam mop and when changing accessories, do not wear
slippers or open toed footwear.
• Caution: This Steam Mop emits hot steam to sanitize the
area being cleaned, this means that the cleaning head
and cleaning pad get very hot during use and remain hot
for some time after use.
6
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken
to a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
This symbol provides useful additional information on the use of
this product.
This symbol indicates that the supply uses an alternating current
mains supply.
WARNING! This designates a hazard with moderate risk, which may
result in severe injury or damage to the product if not
adhered to.
7
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

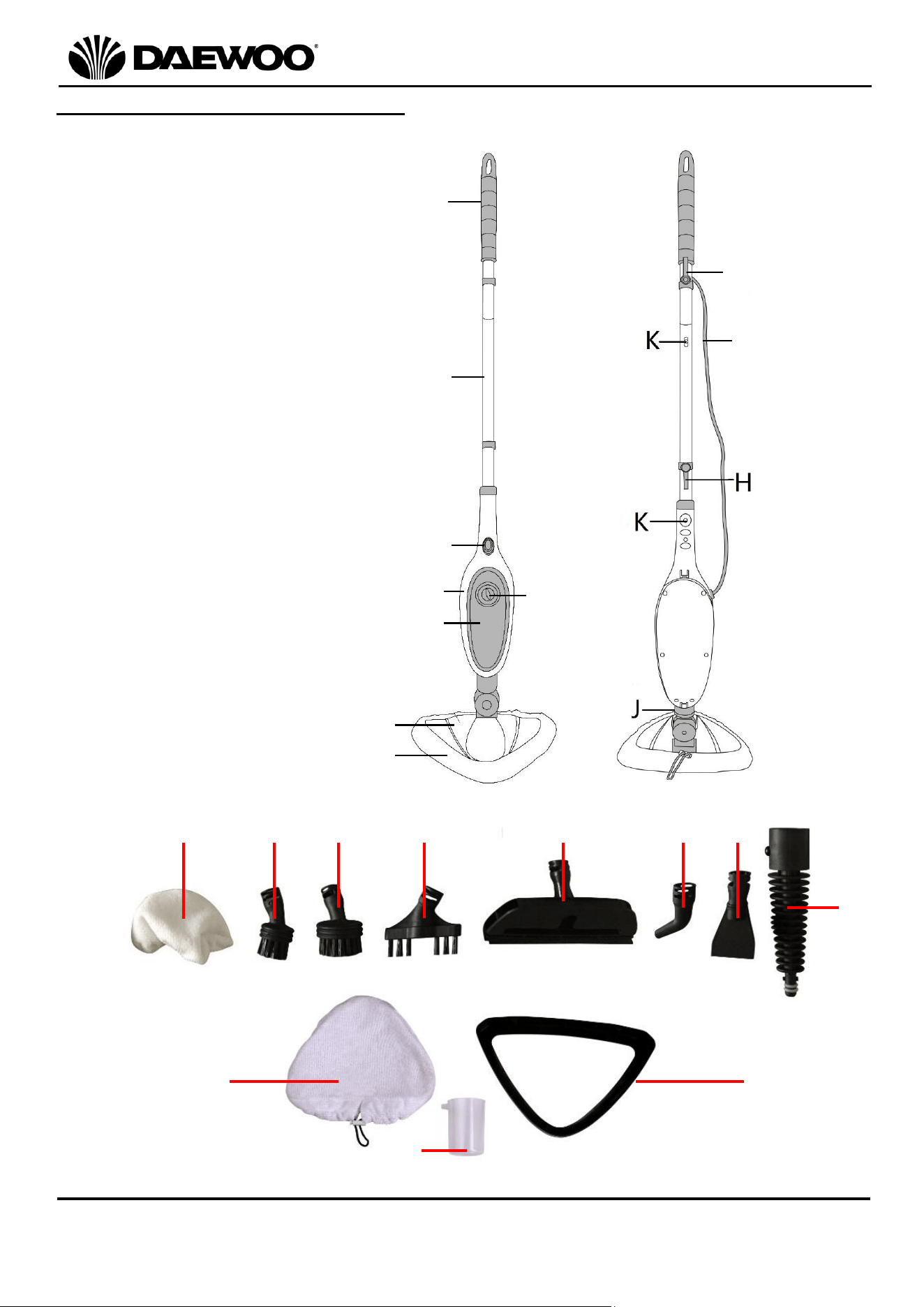

Description of Parts & Accessories
H
A
A. Handle.
B. Pole
C. On/Off Switch.
D. Main Body.
E. Water Tank.
F. Water Tank Filling Spout.
G. Mains Cable.
H. Upper Mains Cable Hooks.
I. Floor Attachment.
J. Floor Attachment Lock Button.
K. Handle Lock Buttons.
L. Microfibre Pad.
M. Carpet Glider.
N. Measuring Cup.
O. Garment Steamer Cloth.
P. Small Round Brush.
Q. Large Round Brush.
R. Grout Cleaning Brush.
S. Window Squeegee/Fabric
Steaming Tool.
T. Angled Nozzle.
U. Scraping Tool.
V. Adaptor.
C
D
E
F
I
B
G
L
O
P
Q
R
S
T
U
V
L
M
N
8
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
Before first use of Your Steam Mop
Remove all packing materials and discard responsibly.
Check that all items are present – see Description of Parts above.

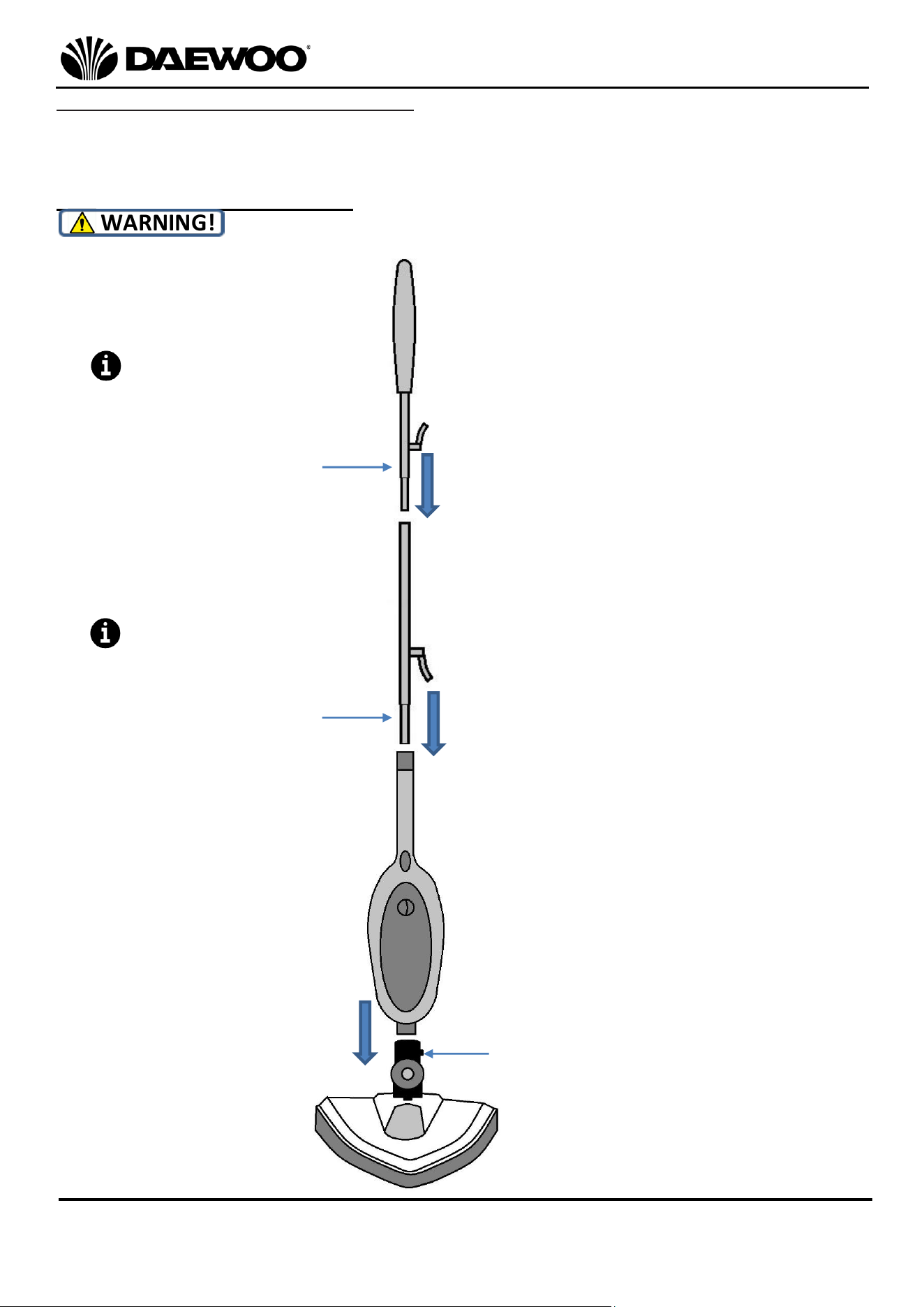

Assembling Your Steam Mop
WARNING! Before assembling the Steam Mop Ensure that the mains plug
is not inserted into the mains socket.
3. To use as a floor mop, push the
Main Body (D) into the Floor
Attachment (I).
NB To remove the Floor
Attachment (I) from the Main
Body (D) press the release button
(J) arrowed left.
The handle can be
released by pressing the
release button (K rear).
1. Push the handle (A) into the top
of the Pole (B) until it clicks into
place.
K
2. Slide the handle (A) and Pole (B)
into the Main Body (D) until
clicks into place.
K
The pole can be
released by pressing the
release button (K rear).
J
9
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

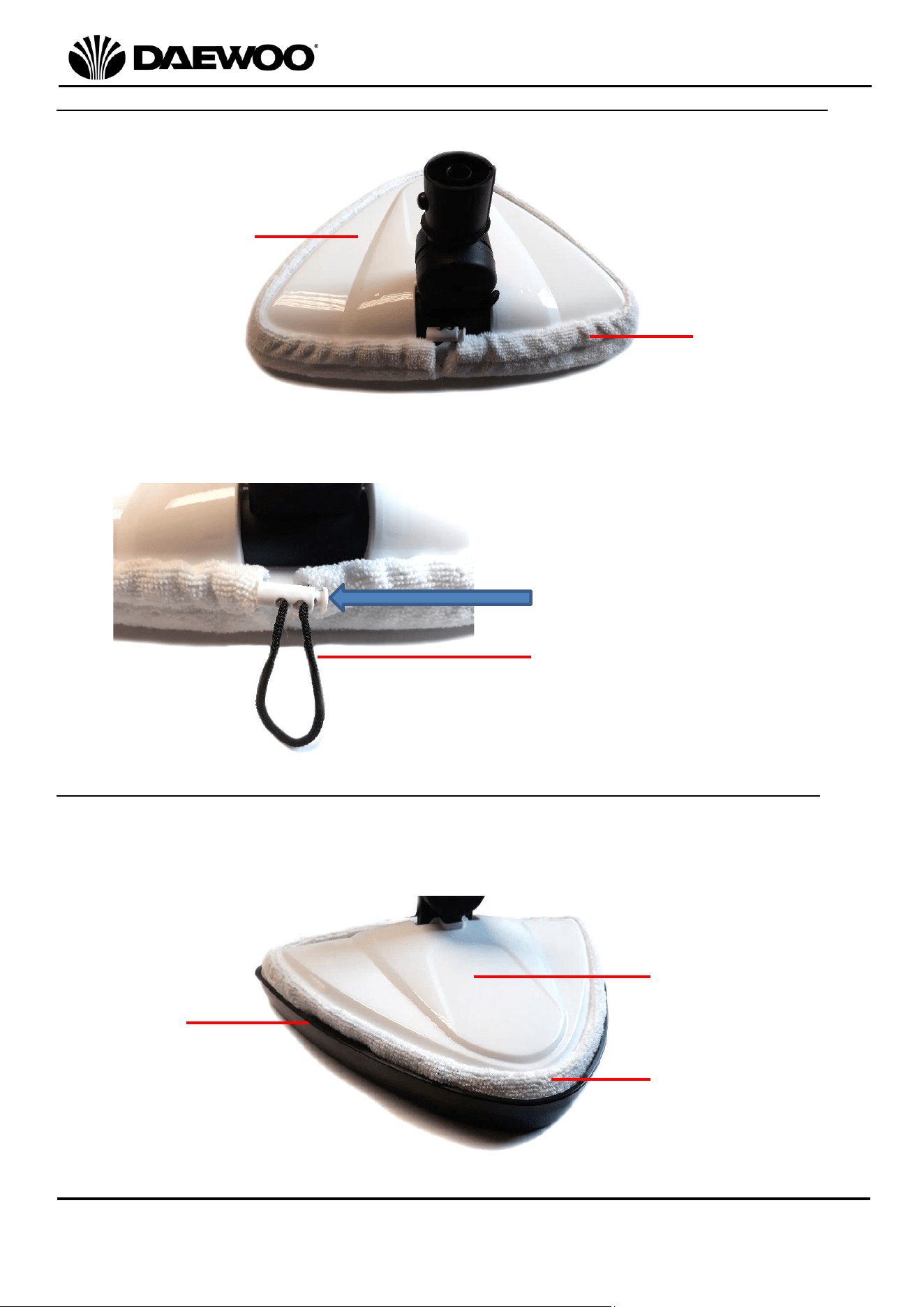

Attaching the Micro Fibre Pad to the Floor Attachment (for cleaning hard floors)
1. Wrap the Microfibre Pad (L) around the Floor Attachment (I) as shown below:
2. Press the button on the cord clamp in and pull the cord until the pad is
securely attached to the floor attachment then release the button on the cord
clamp as below:
Attaching the Carpet Glider to the Floor Attachment (for cleaning Carpets)
1. Attach the Microfibre Pad (L) as shown above.
2. The Carpet Glider (M) can now be clipped into place onto the Floor Attachment
(I) as below:
L
I
Pull the cord until the Micro
Fibre Pad (L) is a snug fit onto
the floor attachment (I).
Press the cord clamp in in
the direction of the arrow
whilst adjusting the cord. Let
the catch go once the pad is
attached.
I
L
M
10
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
Filling the Water Tank
1. Unscrew the bung from the Water Tank Filling Spout (F) and tip the Seam Mop
back at an angle of 45 ֩
2. Fill the Water Tank (E) using the Measuring Cup (N) supplied. Fill the cup to
the 175ml mark in order to completely fill the tank as below left:
3. Replace the bung in the Water Tank Filling Spout (F) as below right – note the
correct full water level:
4. The steam mop is now ready for use.
DO NOT overfill the water tank as this will cause a spillage/leakage. Do not
operate the steam mop with an empty water tank.
Using Your Steam Mop
WARNING! DO NOT touch the Floor Attachment during or just after use
as hot steam is emitted from this product and scalding may occur.
Left: Fill the
water tank
through the
Water Tank
Filling Spout (F)
using the
measuring cup
(N) supplied.
Left: Replace
the bung in
the Water
Tank Filling
Spout (F)
(arrowed).

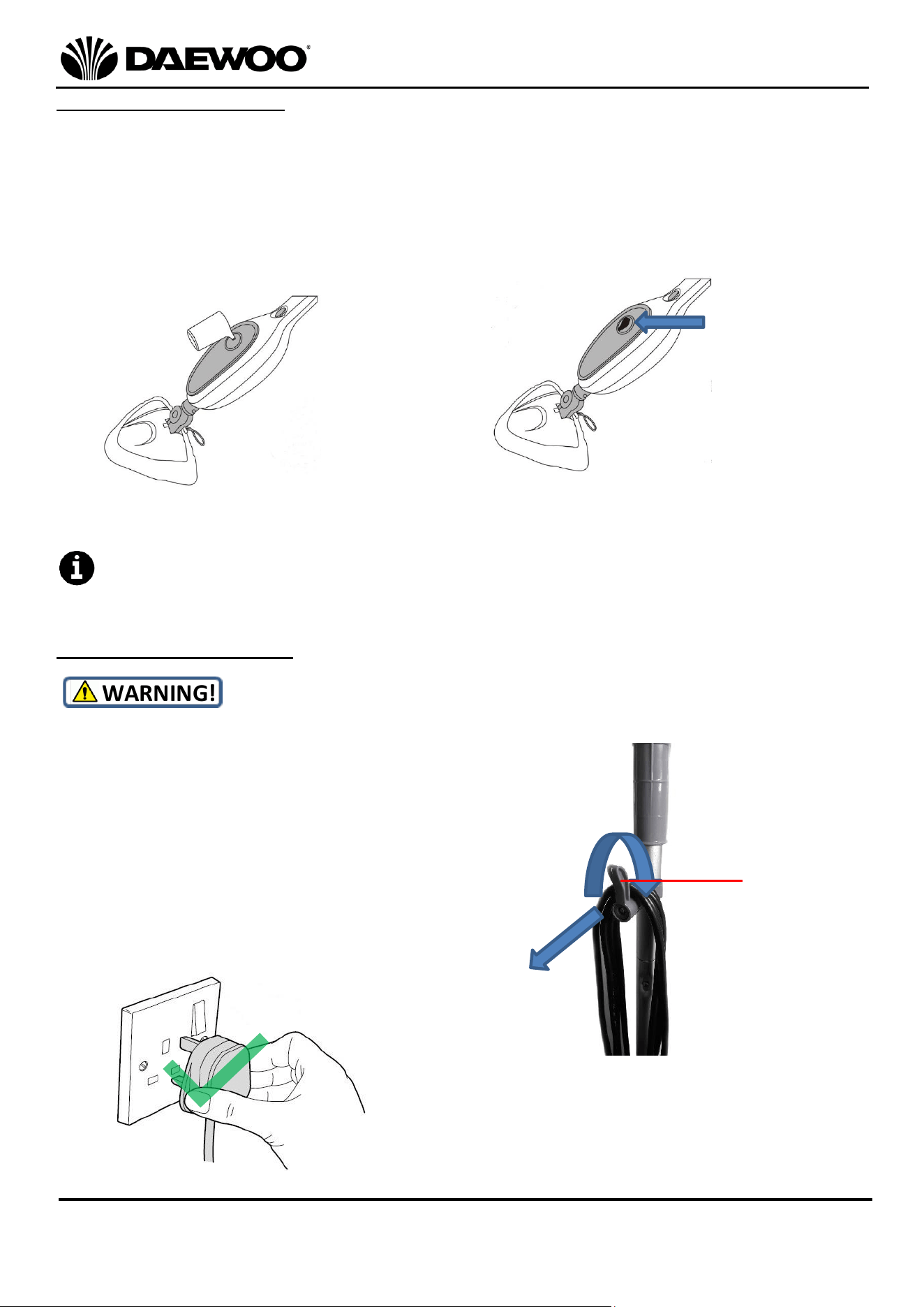

1. Remove the Mains Cable (G) from the
Mains Cable Storage hooks (H) by pulling
the hooks and rotating them
downwards, the mains cable can now be
removed. NB after removing the mains
cable rotate the hooks back to the
vertical position to enable the mains
cable to be replaced later.
H
2. Plug the steam mop into a suitable socket
outlet and switch on (if applicable).
11
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
The Steam Mop is designed to clean many floor surfaces, such as ceramic,
marble, carpet, stone, linoleum, vinyl, parquet and sealed hardwood floors.
Please be aware that some floor types are not suitable for steam cleaning and
extra care is needed:
• The heat and steam action may remove the wax on floor surfaces treated with
wax.
• Do not use on unsealed flooring (e.g., unvarnished, unwaxed, wood floors).
• Do not allow the steam mop to stand on wood or heat sensitive floors for
excessive periods of time as this will cause the wood grain to warp/split and
damage the surface.
• Whilst cleaning vinyl, linoleum or any other heat sensitive floors, use extra
caution a too much heat can melt glue in the flooring.
• Use only on laminated flooring that has been well laid without any gaps or
cracks that would permit the entry of moisture.
• Before cleaning the floor test the steam mop on a small isolated area of
flooring prior to check for any damage.
• The carpet glider should only be used on carpets and rugs. Using the carpet
glider on other floor surfaces may cause streaking and possibly scratches.
• Do not leave the steam mop to stand on carpets as it may cause water marks
and discolouration.

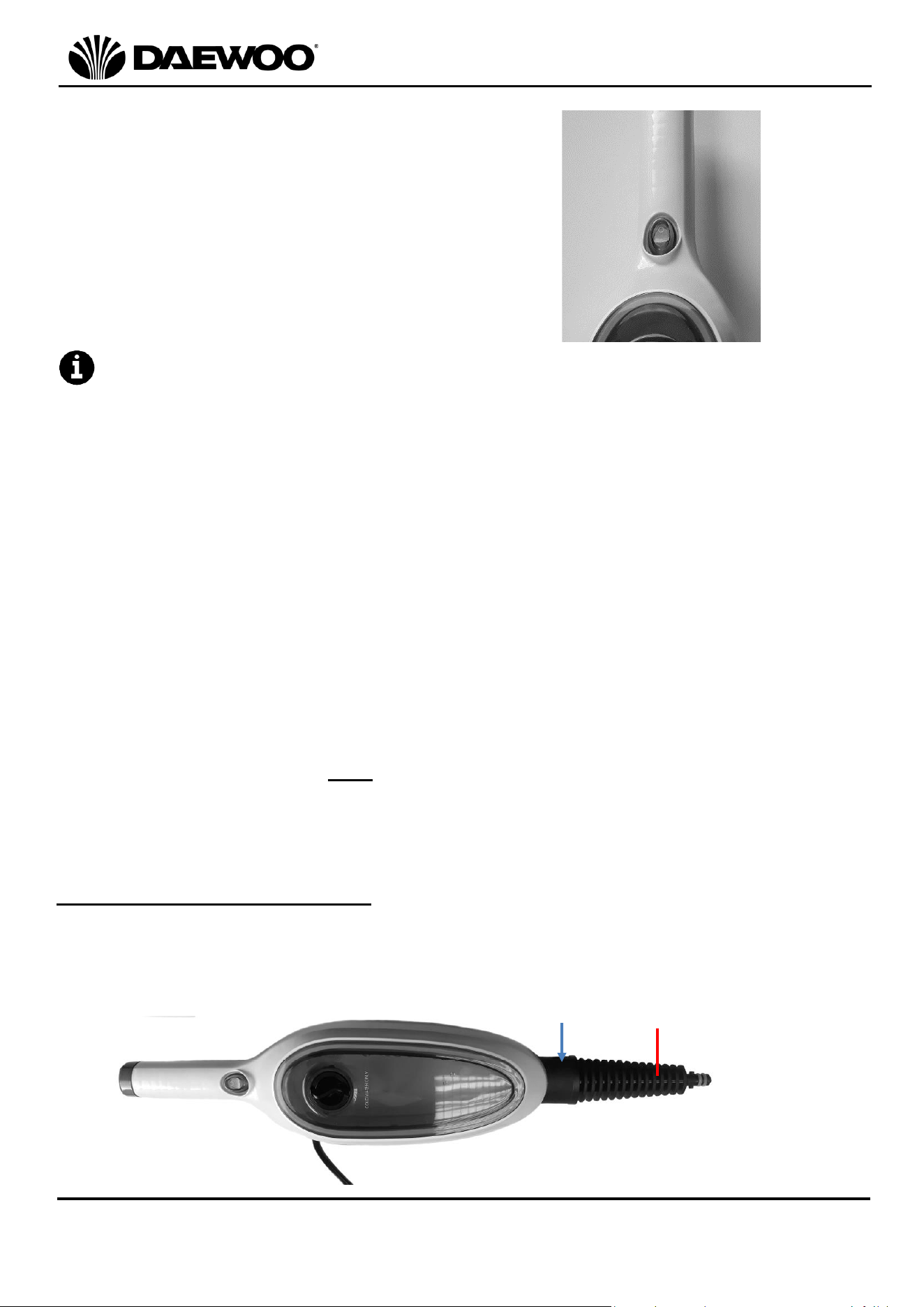

Using Your Steamer Hand held
1. Remove the Handle (A), Pole (B) and Floor Attachment (I) from the Main Body
(D) in order to use the Main Body (D) as a hand-held steamer. Insert the
Adaptor (V) into the outlet of the Main Body (D) of the steamer.
V
NB to release the Adaptor
(V) press button 1 as above.
1
3. Press the On/Off switch (C) to the I
position, the switch will illuminate
RED and the internal pump will run,
after a couple of minutes steam will
exit from the base and the steam
mop is ready for use:
12
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
2. Next, attach one of the below attachments by twisting them onto the end of
the Adaptor (V) above:
WARNING! This Steam cleaner emits hot steam during use, care must be
taken not direct steam at people, animals, electrical appliances or electrical
socket outlets. Do not steam clean equipment containing electrical components
such as the interior of ovens.

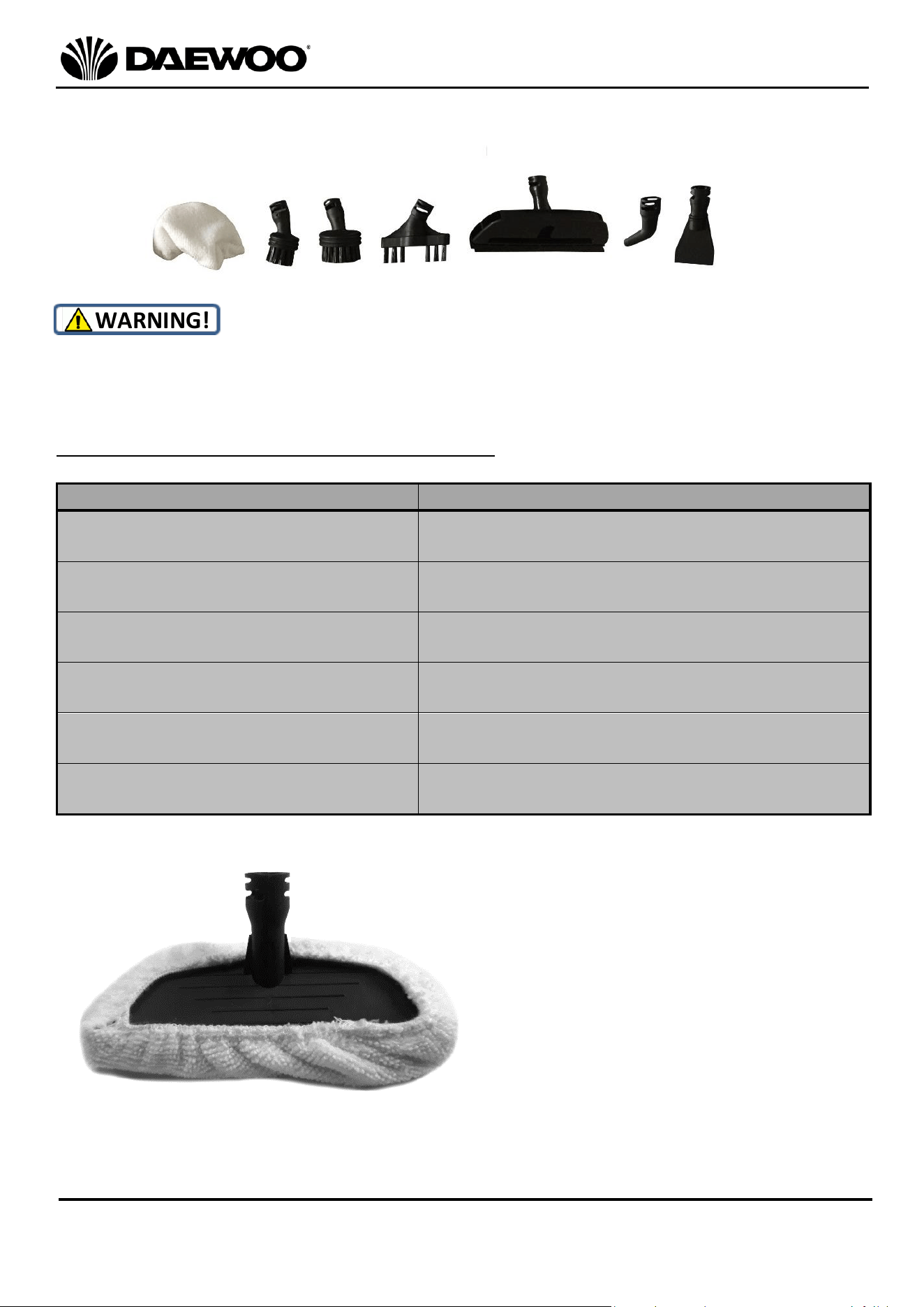

Table of uses for the Steamer Attachments
Attachment
Uses
P. Small Round Brush
Q. Large Round Brush
General purpose cleaning brushes for use
in kitchens, bathrooms. etc.
R. Grout Cleaning Brush
For use on tile grouting or where detailed
cleaning is required.
S. Window Squeegee
This attachment can be used to clean
Windows, Tiles, etc.
T. Angled Nozzle
Cleaning in hard to reach areas such as
around taps and corners.
U. Scraping Tool
Ideal for cleaning flat surfaces such as
worktops.
S. & O. Window Squeegee &
Cleaning Pad
Use this combination to clean and freshen
up fabrics such as upholstery, curtains, etc.
Left: Whilst cleaning fabrics,
use the Window Squeegee (S)
with the Cleaning Cloth (O)
fitted.
T
S
R
Q
P
O
U
13
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

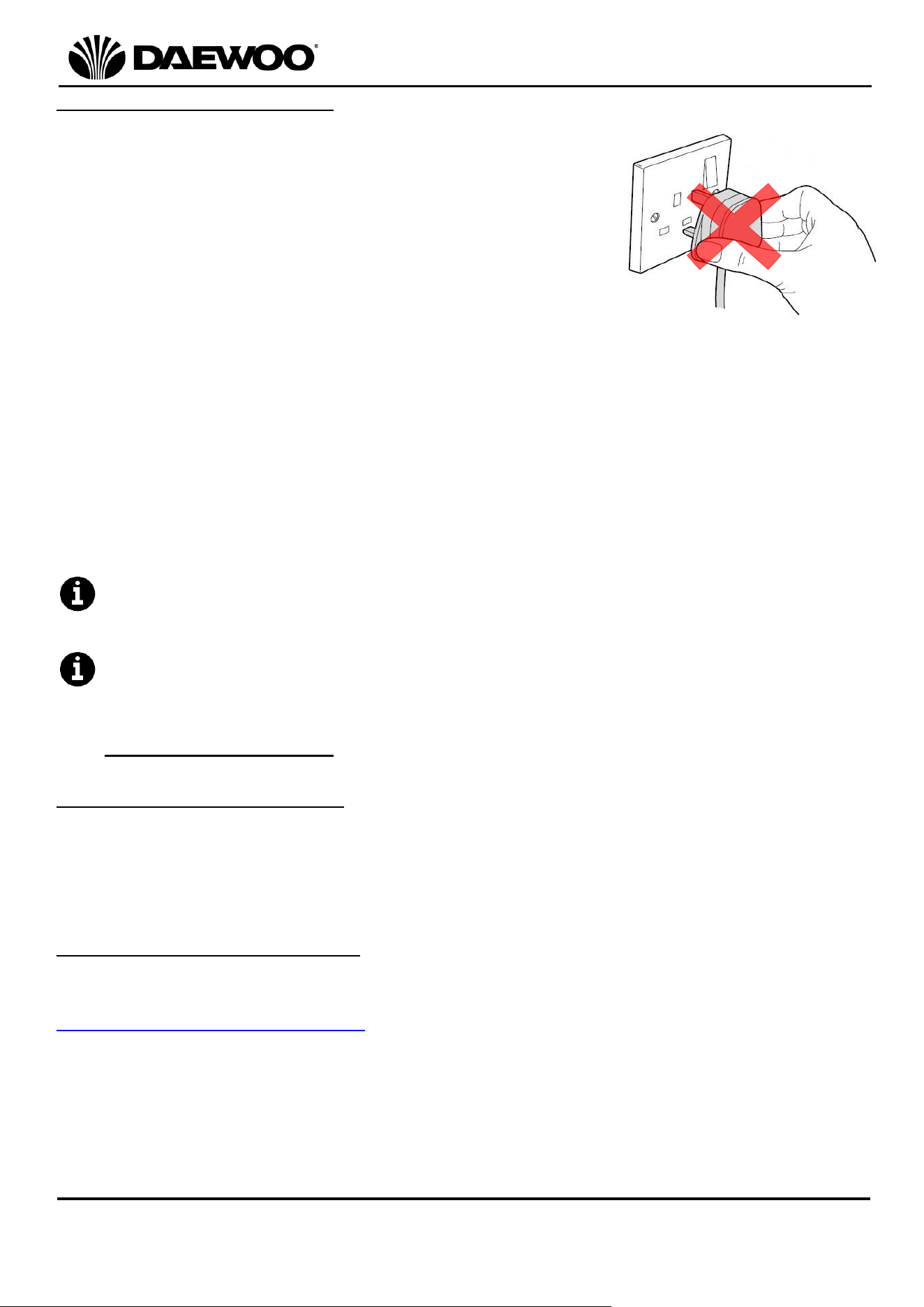

Cleaning and Maintenance
Before cleaning ensure the steam mop is switched off,
disconnected from the mains supply and fully cooled.
• Empty the water tank after every use and before
cleaning.
• Do not immerse the appliance in water.
• If the steam output of your steam mop is reduced or
stops all together, you may need to remove the lime
scale which builds up over time and greatly affects
the steam mop’s performance.
• It is necessary to remove this lime scale; the frequency of removal will depend
on the water hardness and how often the steam mop is used.
1. Prepare a solution of 1/3 white vinegar and 2/3 water and add to the water
tank.
2. Plug the steam mop in, lift it clear of the floor and switch it on. Allow the
mop to steam until the vinegar/water solution is used up.
3. Repeat steps 1 and 2 until there is a normal steam flow.
4. Fill the water tank with clean water and repeat step 2 to clean the tank and
steam nozzles of the vinegar solution.
Perform test cleaning on an isolated area after each lime scale cleaning
before use to ensure no debris is left in the system.
It is recommended that lime scale removal is carried out 20 – 45 times you
use a full tank of water. The harder the water in your area the more frequent
lime scale removal should be done. In areas that have hard water, it is advised
that distilled/demineralised water should be used for optimum performance.
Cleaning the Microfibre Pad
The microfibre pads are machine washable up 60 ֩C, for best results lay flat to dry
naturally.
IMPORTANT: Never use bleach or fabric conditioner when washing the
microfibre pad. Do not Iron or tumble dry.
Replacement Microfibre Pads
Replacement microfibre pads are available by telephoning 0161 831 7879 opt. 3
(9.00am-5.00pm Monday-Thursday, 8.00am – 4.00pm Friday) or contacting
customerservices@esgltd.com
14
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
Storing Your Steam Mop
• After use, switch the steam mop off, disconnect from the mains supply and
allow to cool.
• Empty any residual water from the water tank and clean the external surface
with a clean soft cloth, do not use harsh or abrasive cleaning products.
• Do not store the Steam Mop with a damp Microfibre floor pad attached.
• Place the Steam Mop in a cool, dry place away from direct sunlight.
Non-Wireable Mains Plug
If your appliance is supplied with a non-wireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse
cover missing. If in doubt, consult a qualified electrician.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to
reuse the plug or insert it into a socket outlet as there is a danger of electric
shock.
Technical Specification
Rated Voltage
220-240V AC ~ 50Hz
Rated Power
1300W
Protection Class
I (The Appliance Must Be Earthed)
Model Number
FLR00170
IP Rating
IPX4
Heating Time
20-35 seconds
Steaming Time
12 minutes ±2m

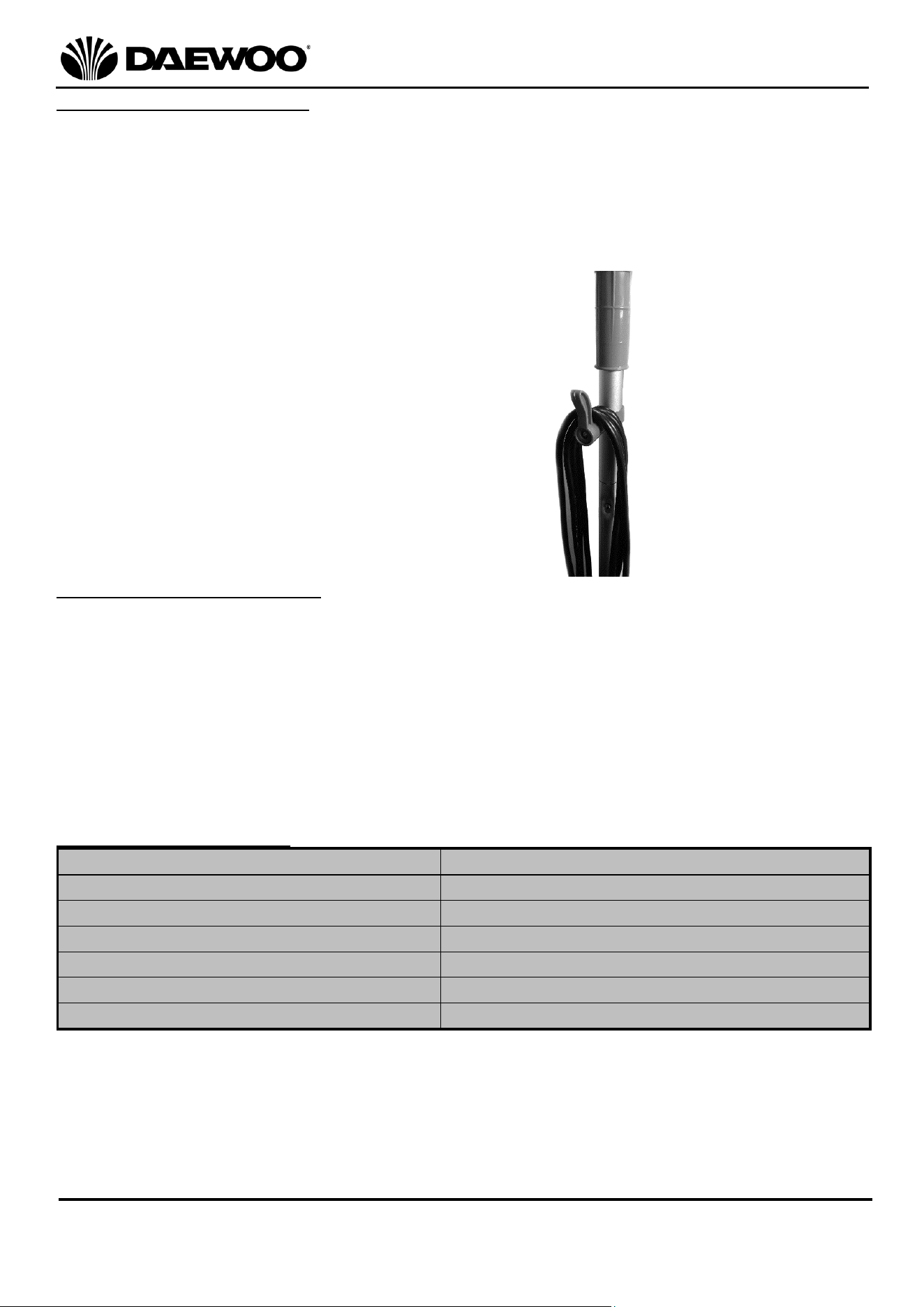

Right: Wrap the mains cable around
the Cable Storage hooks (H) whilst
the appliance is not being used.
15
12 in 1 Steam Mop
Model No. FLR00170
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
16
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
12 in 1 Steam Mop
Model No. FLR00170
User Manual
WARRANTY
Thank you for purchasing your Daewoo Steam Mop.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo product is guaranteed for 1 year from the date of original purchase, with proof
of purchase or receipt. If any defect should occur due to faulty workmanship or material, your
faulty vacuum should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
