Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
2
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Contents
Page No.
2 Contents
3 Reading and Storing the User Manual
3 Important Safety Instructions for Proper Use
5 Before the First Use of Your Vacuum Cleaner
6 Explanation of Symbols
7 Description of Parts – Vacuum Cleaner
7 Description of Parts – Accessories
8 Assembling Your Vacuum Cleaner
8 Attaching the Flexible Hose
8 Attaching the Telescopic Tube and Floor Tool
9 Using Your Vacuum Cleaner
9 Using the Crevice and Upholstery Multi Tool
10 Emptying the Dust Bag
11 Replacing the Dust Bag
12 Cleaning the Internal Filter
12 Cleaning the Rear Air Outlet Filter
13 Care and Maintenance of Your Vacuum
13 Recommended Filter Cleaning Intervals
13 Replacement Dust Bags
13 Technical Specification
14 Plug Wiring Information
14 Troubleshooting Guide
14 Recycling Information
15 Customer Support
Back Page Warranty Information
3
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
Whilst using electrical appliances, basic safety precautions should
always be followed.
• Read and familiarise yourself with all operating
instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check
that the unit is intact and has not suffered any transit
damage.
• Check that the voltage indicated on the data plate
corresponds with that of the local network before
connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children
less than 8 years when it is energised or cooling down.
• DO NOT immerse the appliance or its cord in water or any
other liquids.
• DO NOT leave the appliance unattended during use.
• DO NOT leave the appliance unattended whilst connected
to the mains supply.
• DO NOT use this appliance outdoors.
• It is imperative to unplug the power cord after the
appliance has been used, before it is cleaned and whilst
being repaired.
4
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
• Repairs to electrical appliances should only be performed
by qualified personnel. Improper repairs may place user at
serious risk.
• DO NOT operate this appliance with a damaged plug or
cord, after a malfunction or after being dropped or
damaged in any way.
• Regular, periodic checks should be carried out on the
mains cable to ensure no damage is evident. Should there
be any signs of damage the appliance should not be used.
• If the power cable is damaged, it should only be replaced
by suitable qualified personnel in order to avoid a hazard.
• DO NOT allow the mains cable to hang over sharp edges
or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains
supply and allow to cool.
• This appliance is intended for household use only and
should not be used for industrial purposes.
• DO NOT use any accessories or attachments with this
appliance other than those supplied or recommended by
supplier.
• DO NOT use this appliance for anything other than its
intended use.
• DO NOT push objects into any openings as damage to
the appliance and/or electric shock may occur.
• Unplug after each use. Grasp the plug, not the cord.
• DO NOT pull or carry the Vacuum Cleaner by the electrical
cord, use the handle provided.
• Ensure fingers and other objects are never placed in any
part of the vacuum cleaner. Clothing or hair may
become trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts
of the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and
anything else that may reduce airflow.
5
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
• Avoid directing the appliance towards naked flames as
the air discharged may extinguish gas fires or pilot lights
and may disturb ashes in open fires.
• DO NOT Vacuum water or any other liquids with this
vacuum.
• DO NOT Vacuum hot ashes or lit cigarettes, etc.
• DO NOT use this vacuum without the Dust Bag fitted.
• DO NOT use this vacuum without the Filters fitted.
Before the first use of your Vacuum Cleaner
Remove all packaging materials and discard responsibly.
Check that all parts and accessories are present – see Description of Parts below.
6
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

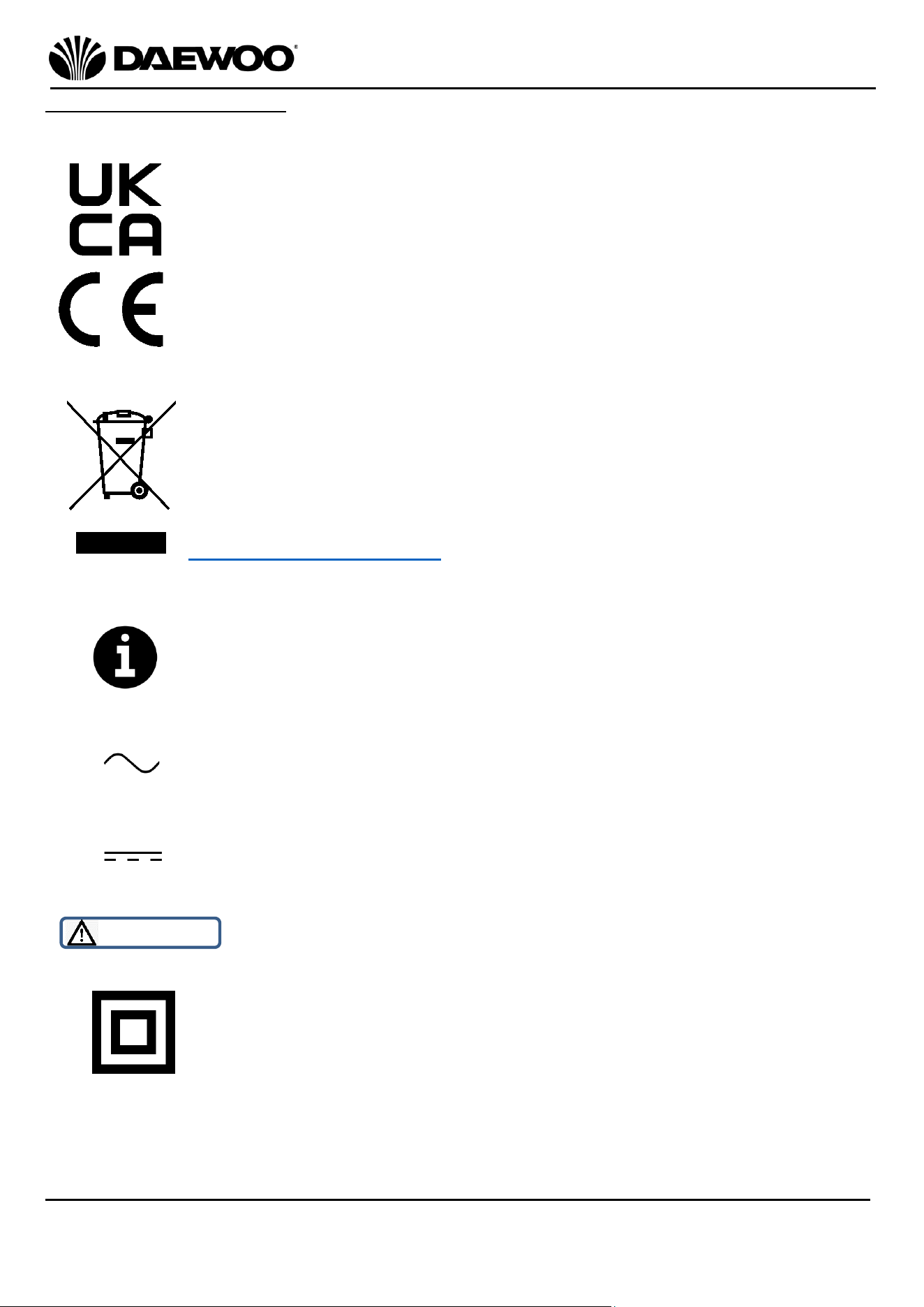

Explanation of Symbols
The following warning symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with
your Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk enter your postcode to find out your
nearest recycling site.
This symbol provides useful additional information on the use
of this product.
This symbol indicates that the supply uses an alternating current
mains supply.
This symbol identifies voltage and the current rating for direct
current.
WARNING!
This symbol indicates that the appliance is electrically double
insulated and therefore does not require an earth connection.
This designates a hazard with moderate risk, which may result
in severe injury or damage to the product if not adhered to.
7
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual

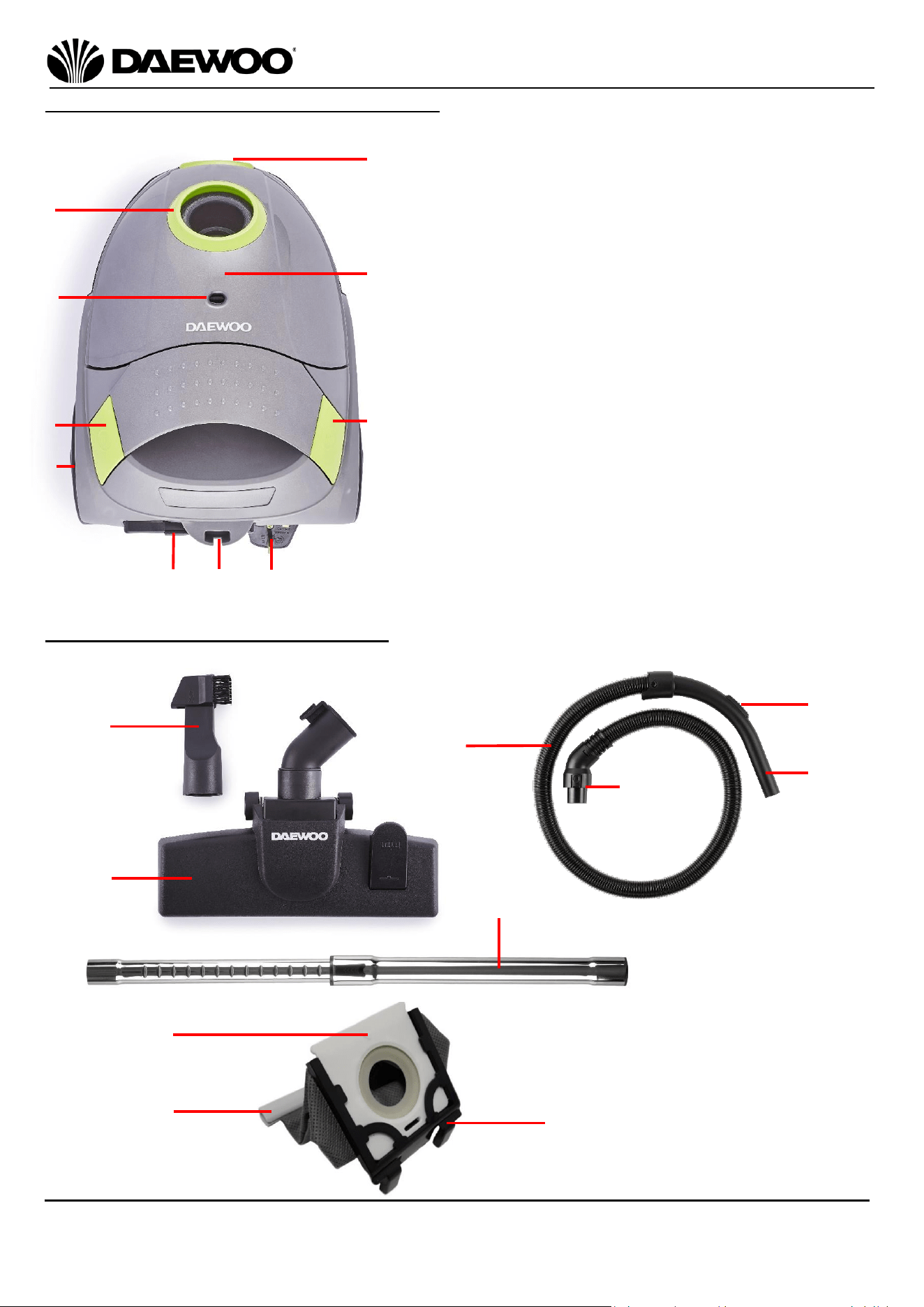

Description of Parts – Vacuum Cleaner
Description of Parts – Accessories
15
6
1. Air Intake
2. Dust Bag Full Indicator
3. On/Off Switch (Foot Operated)
4. Wheel(s)
5. Rear Air Outlet & Filter
6. Tool Rest
7. Mains Cable & Plug
8. Cable Retract button (press to retract
cable)
9. Dust Compartment Cover
10. Dust Compartment Release Catch
11. Floor Tool
12. Crevice & Upholstery Multi Tool
13. Flexible hose
14. Hose connector
15. Air control valve
16. Tool connector
17. Telescopic Tube
18. Dust Bag
19. Sealing Clip
20. Dust Bag Holder
1
3
5
7
4
8
17
11
12
13
16
14
9
2
10
18
19
20
8
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Assembling Your Vacuum Cleaner
CAUTION Ensure that the vacuum cleaner is not connected
to the mains supply before using the attachments.

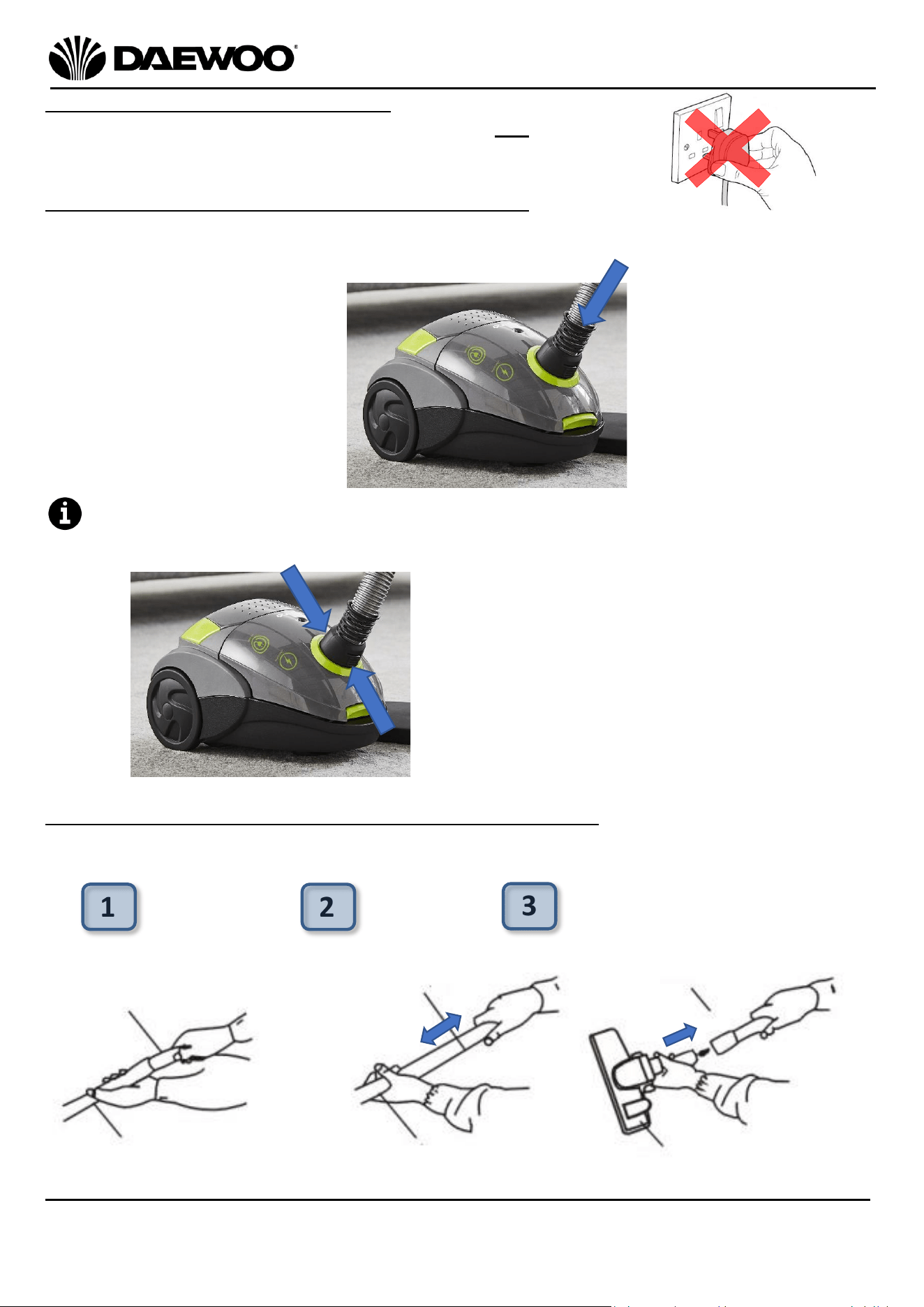

Attaching the Flexible Hose (13) to the Vacuum
Attach the Flexible Hose (13) to the vacuum cleaner by pushing the Hose
Connector (14) into the Air Intake (1) until it clicks home, arrowed below:
To remove the hose, press the catches on either side (arrowed below) of the
Hose Connector (14) and pull the hose out of the Air Intake (1):
Attaching the Telescopic Tube (17) and Floor Tool (11)
1. Push the Telescopic Tube (17) onto the Tool Connector (16) as shown below
left:
1
2
3
Telescopic Tube
Tool Connector
Telescopic Tube
Telescopic Tube
Telescopic Tube
Floor Tool
Left: Removing the
flexible hose from the
vacuum.
Right: Attaching the
flexible hose to the
vacuum
9
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
2. Extend the Telescopic Tube (17) to the
desired length by pushing the catch down
and extending.
3. Attach the Floor Tool (11) to the other
end as shown above.

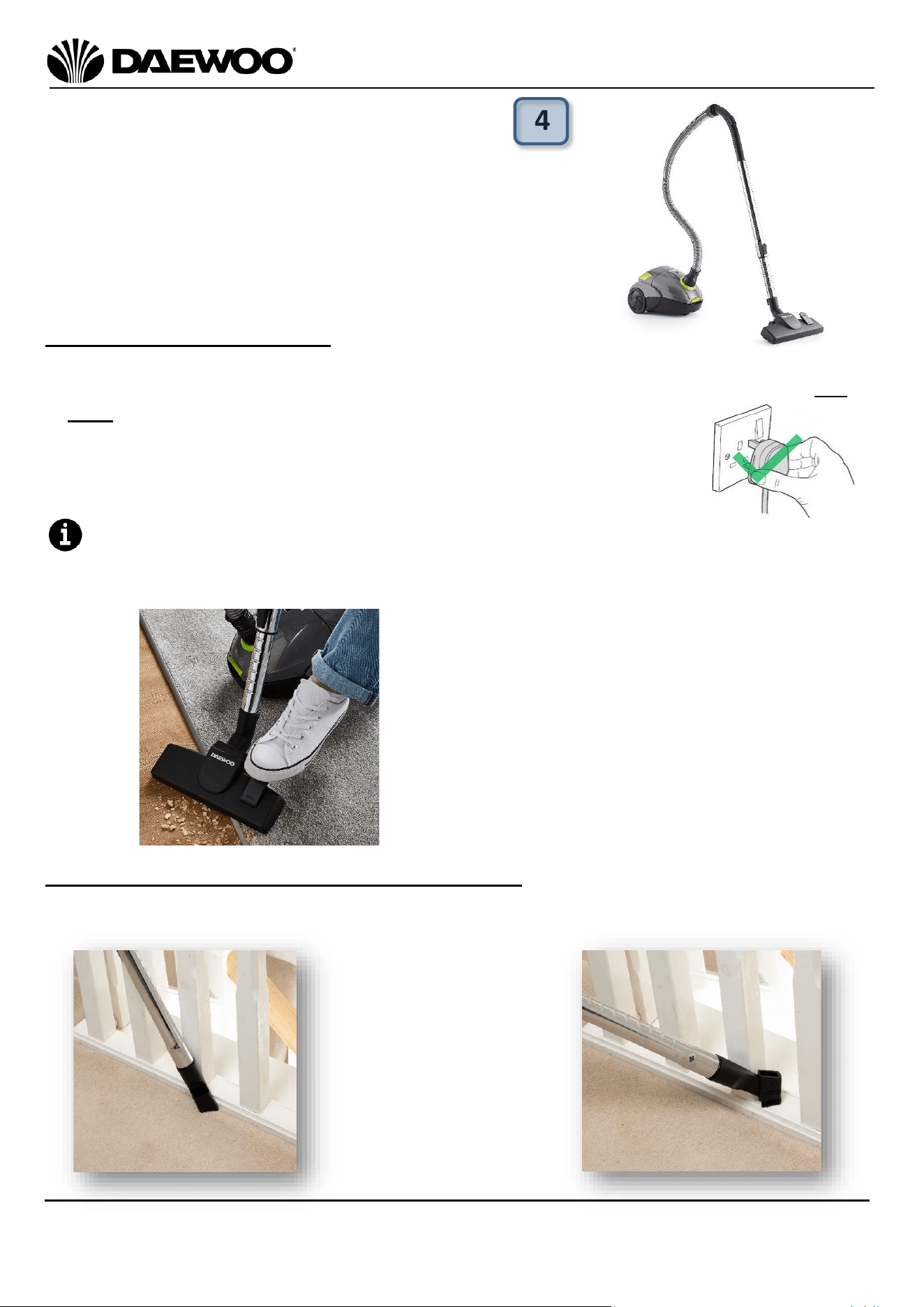

4. The Tool connector (16), Telescopic Tube
(17) and Floor Tool (11) shown attached
to the vacuum:
Using Your Vacuum Cleaner
1. Fully reel the Mains Cable and Plug (7) out of the vacuum cleaner, being careful
not the pull the cable out beyond the red mark but after the yellow mark. DO
NOT use the vacuum without pulling the cable all the way out.
2. Insert the mains plug into the nearest socket.
3. Press the On/Off Switch (3) to power up the vacuum.
Adjust the lever on the Floor Tool (11) according to the type of floor being
cleaned. Push the lever down for use on hard floors (i.e., non carpeted,
laminated, tiled, etc.), pull the lever up for vacuum cleaning carpets:
Using the Crevice & Upholstery Multi Tool (12)
Attach the Crevice & Upholstery Multi Tool (12) onto the Telescopic Tube (17) to
clean carpet edges, upholstered furniture and hard to get at areas:
Left: Adjust the lever on
the Floor Tool for
carpeted or hard floors:
Up for carpets
Down for hard floors
Left: Attached the
Crevice & Upholstery
multi tool to clean
carpet edges.
Right: Fold the brush
down to clean hard
to get at areas and
upholstery.
4
10
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
1. Once the Dust Bag Full Indicator (2 - above)
turns red, the Dust Bag (18) will require
emptying.

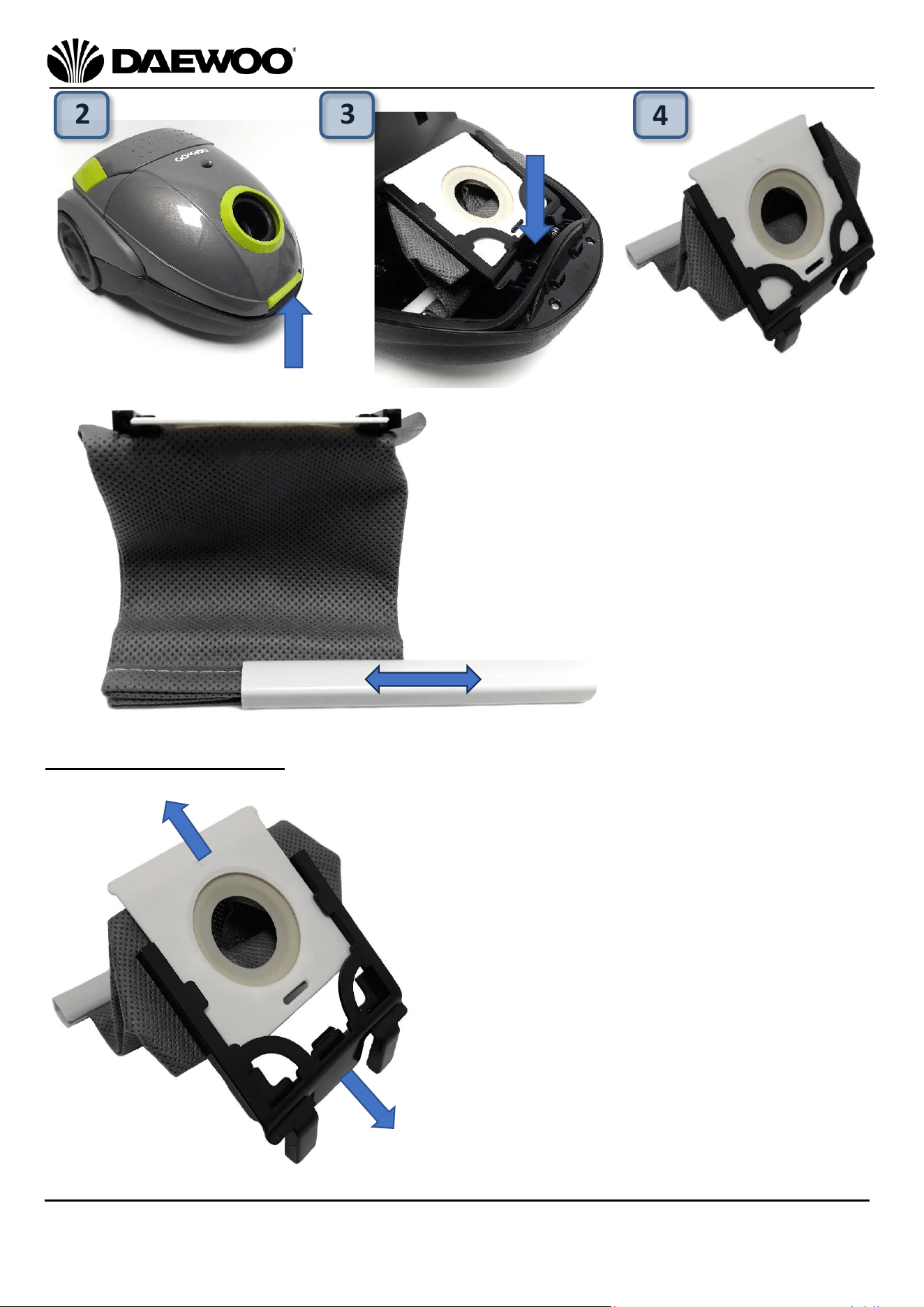

2. To remove the bag, first lift the Dust Compartment Release Catch (10).
3. Lift the Dust Compartment Cover (9) to reveal the Dust Bag (18) and Dust Bag
Holder (20). Press the dust bag holder clip down as shown arrowed:
4. Lift out the Dust Bag Holder (20) and Dust Bag (18) as shown below:
If the Telescopic Tube (17) is not required, the Crevice & Upholstery multi
tool (12) or the Floor tool (11) can be attached directly to the Tool connector
(16) on the end of the flexible hose, this useful whilst cleaning soft furnishings,
stairs, etc. as below:
The vacuum power can be varied using the Air Control Valve (15) on Tool
Connector (16).
Emptying the Dust Bag
WARNING! Always disconnect the cleaner from the
mains power supply before emptying the dust bag or
cleaning the filters.
1

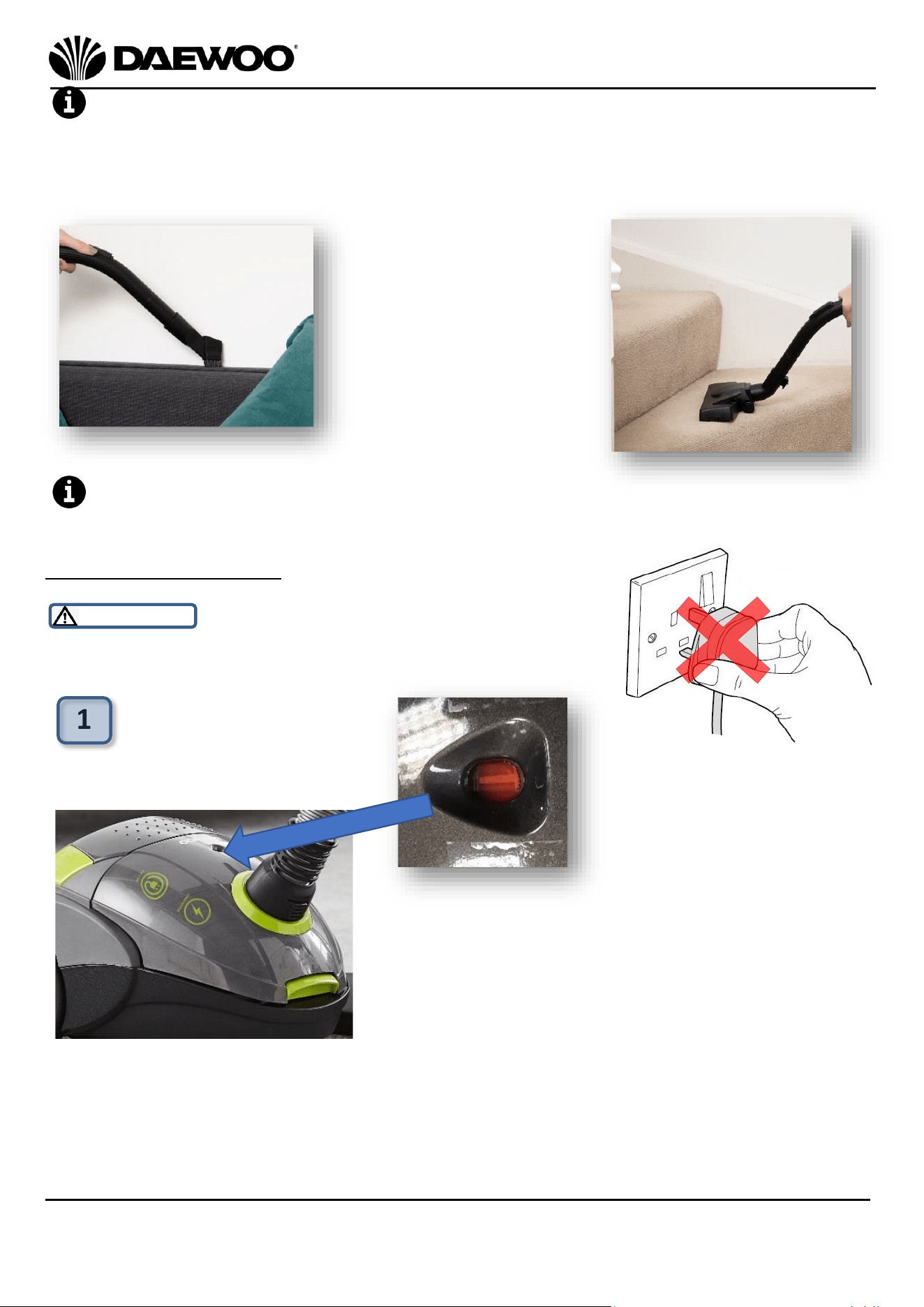

Left: Attached the Crevice
& Upholstery Multi Tool to
the Hose. Use the brush to
clean upholstery.
Right: Attach the Floor
tool to the Hose to clean
the stairs.
11
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
Pull the bag retaining clip outwards as
shown left (a.).
At the same time, slide the front of the
Dust Bag (18) upwards (b.) out of the
Dust Bag Holder (20). Responsibly
dispose of the used dust bag.
Slide the front of the new Dust Bag (18)
into the Dust Bag Holder (20) ensuring
the retaining clip locks into place.
NOTE ensure that the Sealing Clip (19)
from the end of the bag and the Dust
Bag Holder (20) are retained.
Replacing the Dust Bag
2
3
4
b.
a.
Hold the Dust Bag (18) over a dust
bin.
Slide the Sealing Clip (19) off the bag,
open the bag and allow the dirt to
fall into the bin.
Once empty, fold the bag closed and
slide the Sealing Clip (19) back in
place.
12
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING! DO NOT continue to use your vacuum cleaner once the Dust Bag
Full Indicator (2) turns red as permanent damage may occur to the appliance.
Cleaning the Internal Filter

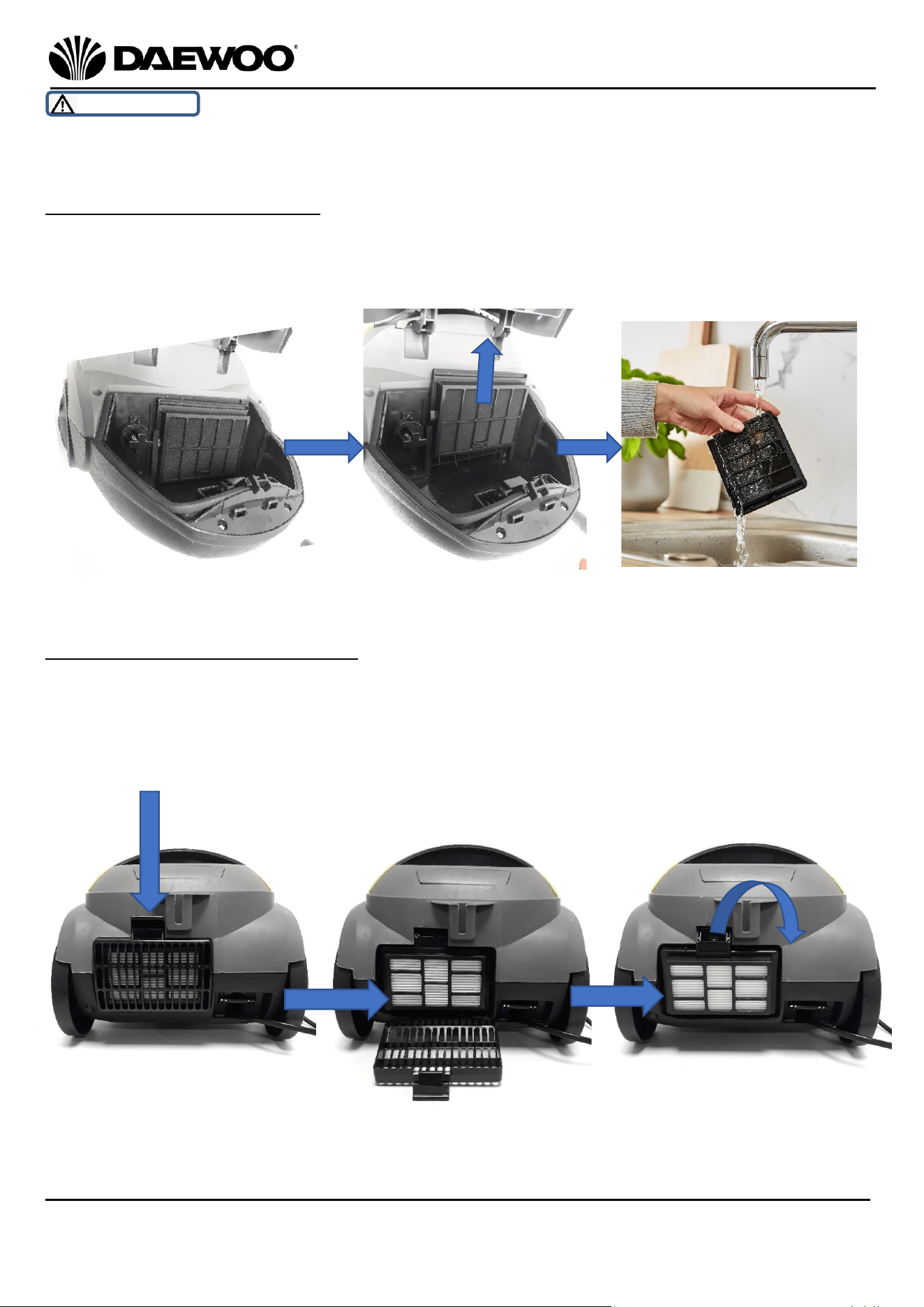

Whilst emptying the dust bag, slide out the dust compartment filter as shown in
a., b. & c. below. Wash the filter in warm running water until clean. Allow the filter
to dry thoroughly for 24 hours before replacing and reuse:
Cleaning the Rear Outlet Filter
Push the latch down on the Rear Air Outlet Filter & Cover (5) and remove as
shown in d, e, & f below. Remove the filter and wash clean in warm running water
ensuring it is thoroughly dry for 24 hours before replacing and reuse:
a.
b.
d.
e.
f.
c.
13
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
Care and Maintenance of Your Vacuum Cleaner
WARNING! Always disconnect the cleaner from the mains power supply
before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or
abrasive cleaners.
• Do not submerge the cleaner in water or any other liquids.
• Empty the dust bag as soon as the dust bag full indicator (2) turns red.*
• Wash the dust compartment and rear air outlet filters regularly – see table
below.
• Allow all the filters to thoroughly dry out for 24 hours before reassembly and
use.
*WARNING! DO NOT continue to use your vacuum cleaner once the dust bag
full indicator (8) turns red as permanent damage may occur to the appliance.
Recommended Cleaning Intervals
Filter Type
Recommended cleaning period

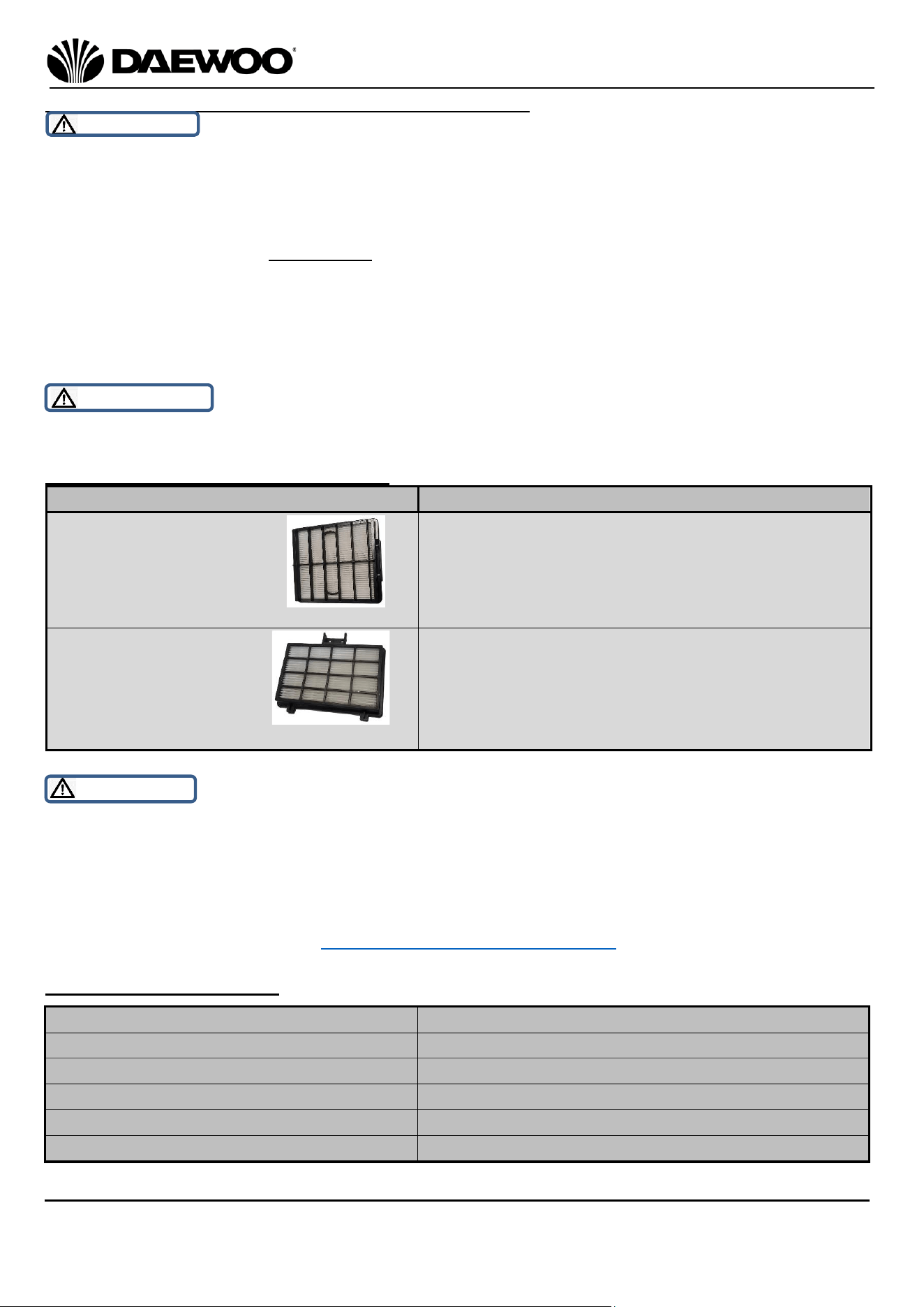

WARNING! Ensure the filters are cleaned periodically according to the table
above, failure to clean the filters regularly will severely impair the performance
and permanent damage may occur to the appliance and may invalidate your
warranty.
Replacement Dust Bags are available by contacting Daewoo Customer Services
on 0161 831 7879 or email help@daewooelectricals.com.
Technical Specification
Model Number
FLR00159
Supply Voltage
AC 220-240V ~ 50/60Hz
Rated Power
700W
Protection Class
II
Unpacked Weight (approx.)
2.6 Kgs
Dust Compartment Capacity
2.0L
• Shake
out
debris
once
a
month
•
Rinse
under
war
m
water
once
every
3-6
months
• Allow to dry thoroughly for 24 hours before
reuse.
Dust Compartment Filter
Rear Outlet Filter
• Shake
out
debris
once
a
month
•
Rinse
under
war
m
water
once
every
3-6
months
• Allow to dry thoroughly for 24 hours before
reuse.
14
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Non-Wireable Mains Plug
If your appliance is supplied with a non-wireable plug fitted to the mains lead
and should the fuse need replacing, you must use an ASTA approved one
(conforming to BS 1362 of the same rating). Never use a plug with the fuse cover
missing. If in doubt, consult a qualified electrician.
If you need to remove the plug – DISCONNECT FROM THE MAINS – and then cut
it off the mains lead and immediately dispose of it safely. Never attempt to reuse
the plug or insert it into a socket outlet as there is a danger of electric shock.
Troubleshooting Guide
Problem
Possible Cause
Possible Solution
Unit fails to turn on.
The unit may not be
properly plugged in. The
fuse may have tripped.
Ensure the plug is fully
inserted into the socket and
the socket is switched on.
Check the fuse on the mains
board, if it has tripped, reset
it.
Low suction or poor
pick-up.
Dust Bag is full.
Filters are clogged.
Blockage in the hose.
Replace Dust Bag. Check and
clean the filters.
Check the hose and clear if
necessary.
The vacuum is making
a “hissing” sound.
The airflow is restricted
Replace Dust Bag. Check and
clean the filters.
Check the hose and clear
any blockages if necessary.
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling facilities.
Dispose of non-recyclable plastics in the appropriate plastics collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk enter
your postcode to find out your nearest recycling site.
15
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
16
Tornado Compact Bagged Vacuum
Model No. FLR00159
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo Vacuum.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo vacuum product is guaranteed for 1 year from the date of original purchase,
with proof of purchase or receipt. If any defect should occur due to faulty workmanship or
material, your faulty vacuum should be returned to the place of purchase, replacement or refund is
at the discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the
requirements contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and
covers the main body and housing). If you do not register your product within 28 days of the
original purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28
days of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
Eurosonic Group Limited
Brightgate House
1 Brightgate Way
Manchester M32 0TB UK
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
