1. Package Contents .............................................................................................................................................................7
2. Operating and Programming ..........................................................................................................................................11
3. Maintenance ....................................................................................................................................................................18
4. Indicator Light ..................................................................................................................................................................26
5. Troubleshooting ...............................................................................................................................................................28
6. Product Specifications ....................................................................................................................................................33
Contents
3
EN
Important Safety Instructions
1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the Appliance
in a safe way and understand the hazards
involved. Children shall not play with the
Appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge. It may become
necessary to place a physical barrier at the
edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the Self-empty Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery
and Self-empty Station provided with the
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments
(below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
4
EN
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a fire.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Self-empty
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners. Do not run Appliance over the
power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Self-empty Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or Self-
empty Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Self-empty Station.
24. Remove the Appliance from the Self-empty
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
26. Please dispose of used batteries according
5
EN
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a fire.
28. When not using the Self-empty Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
yeedi cannot be held liable or responsible for
any damages or injuries caused by improper
use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Self-empty Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH1918 provided with the Appliance.
To satisfy RF exposure requirements, a
separation distance of 20 cm or more should
be maintained between this device and
persons during device operation.
To ensure compliance, operations at closer
than this distance is not recommended. The
antenna used for this transmitter must not
be co-located in conjunction with any other
antenna or transmitter.
6
EN
To disable Wi-Fi module on Robot, power the
robot ON.
Place the robot on the Self-empty Station making
sure the Charging Contacts on Robot and the
Self-empty Station Pins make a connection.
Press and hold the AUTO Mode Button on the
robot for 20 seconds until Robot emits 3 beeps.
To enable Wi-Fi module on Robot, power the
robot OFF and then power ON. The Wi- Fi module
is turned on when Robot is restarted.
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household waste
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
recycle your used device, please use the return
and collection systems or contact the retailer
where the product was purchased. They can safely
recycle this product.
For EU Countries
For EU Declaration of Conformity information, visit
https://www.yeedi.com/support
7
EN
Robot
Instruction Manual Edge Brush
Mopping Pad PlateWashable Mopping Pad

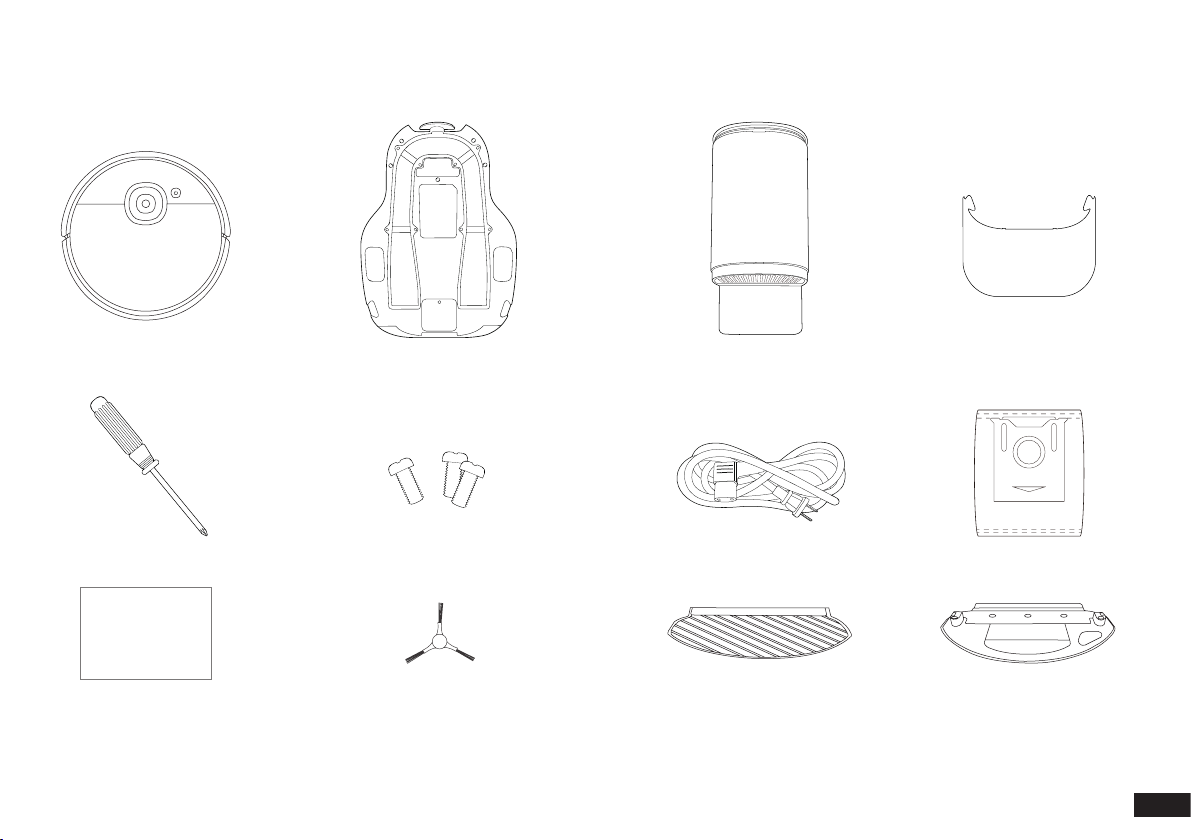

1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
Instruction Manual
Power Cord Dust Bag
Dust Container
Base
Base Socket ScrewsScrew Driver
Ramp Extension
8
EN

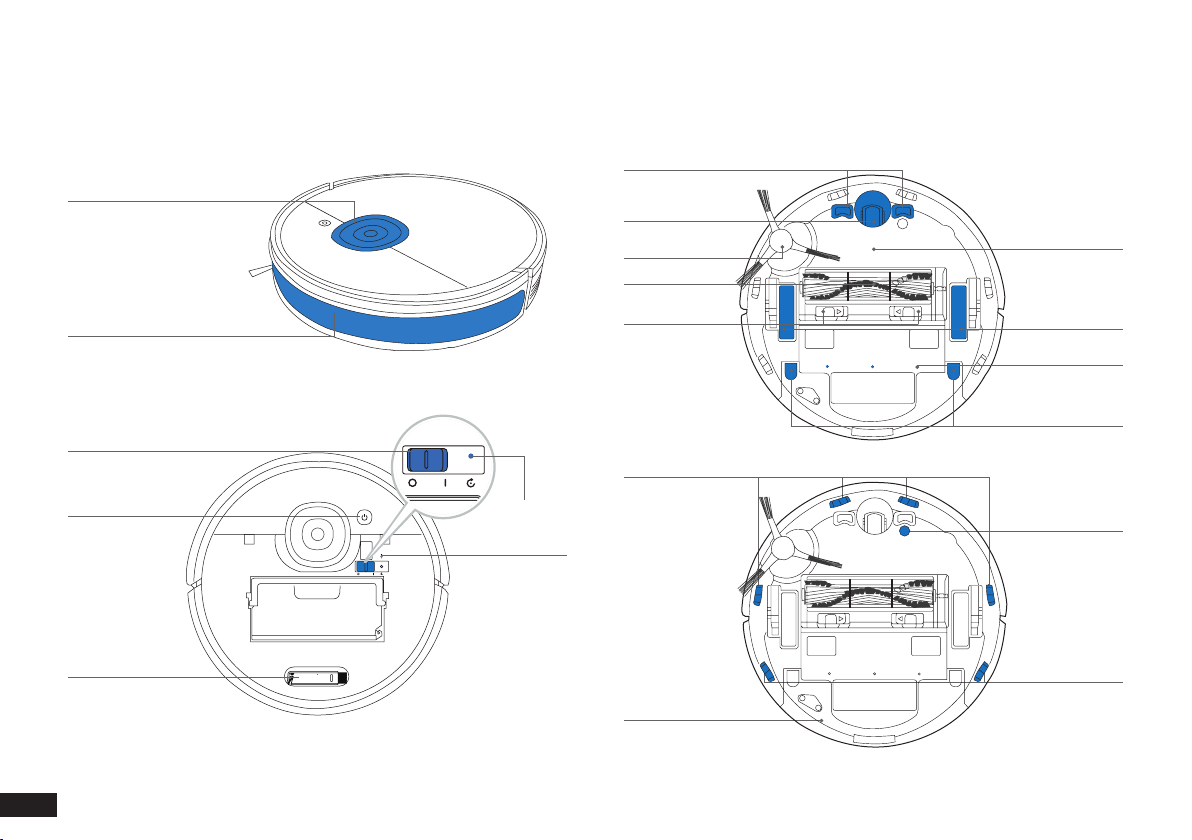

1. Package Contents/1.2 Product Diagram
Anti-Collision Sensors and Bumper
AUTO Mode Button
Multi-function
Cleaning Tool
Robot
Mapping Sensor
Power Switch
Wi-Fi Indicator
RESET Button
Bottom View
Anti-Drop Sensors
Carpet Detection
Sensor
Mopping Pad Plate
Slot
Water Outlet
Driving Wheels
Battery
Charging Contacts
Anti-Drop Sensors
Reservoir
Edge Brush
Universal Wheel
Main Brush
Main Brush
Release Button
9
EN
Reservoir
Water Inlet
Mopping Pad Plate
Reservoir Release Button

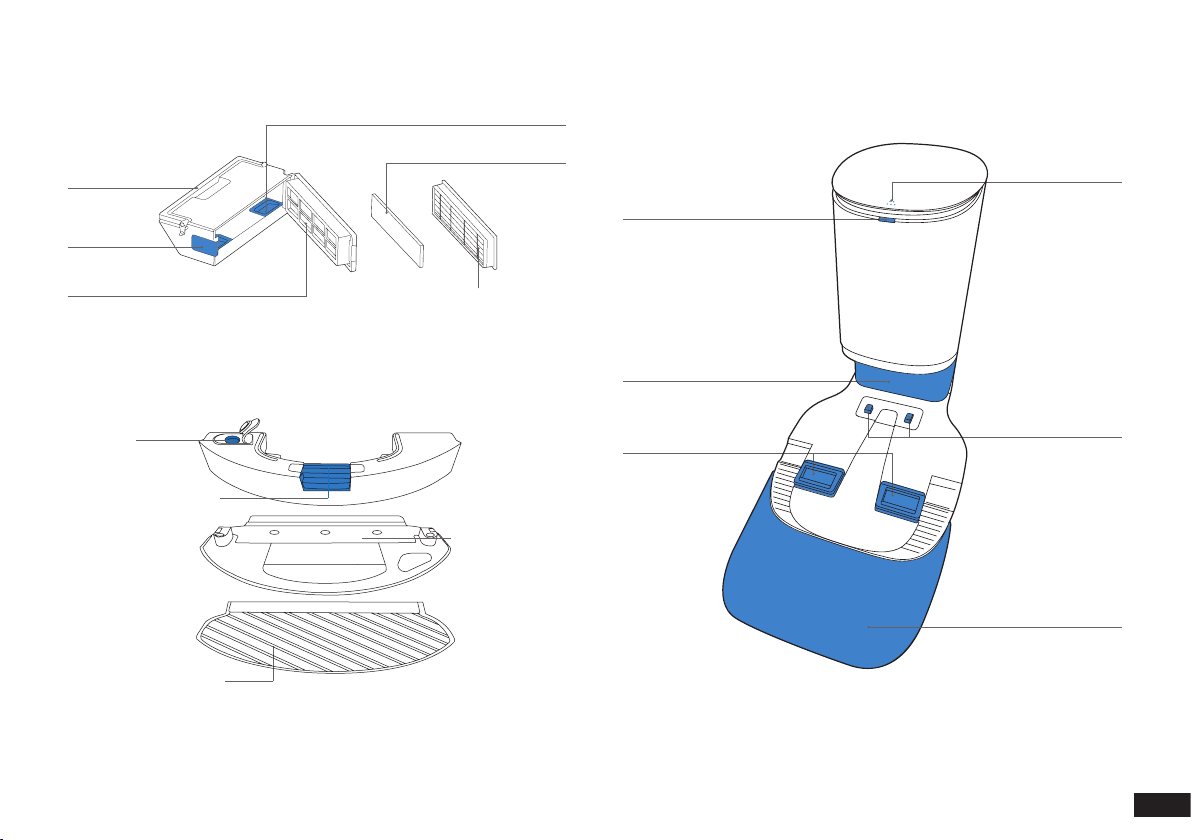

Washable Mopping Pad
Dust Bin
Dust Bin Handle
Release Button
Filter Net
Self-empty Outlet
Sponge Filter
High Efciency Filter
Self-empty Station
Lid Release Button
Indicator Light
Infrared Singnal Emitter
Self-empty Inlet
Self-empty Station Pins
Ramp Extension
10
EN

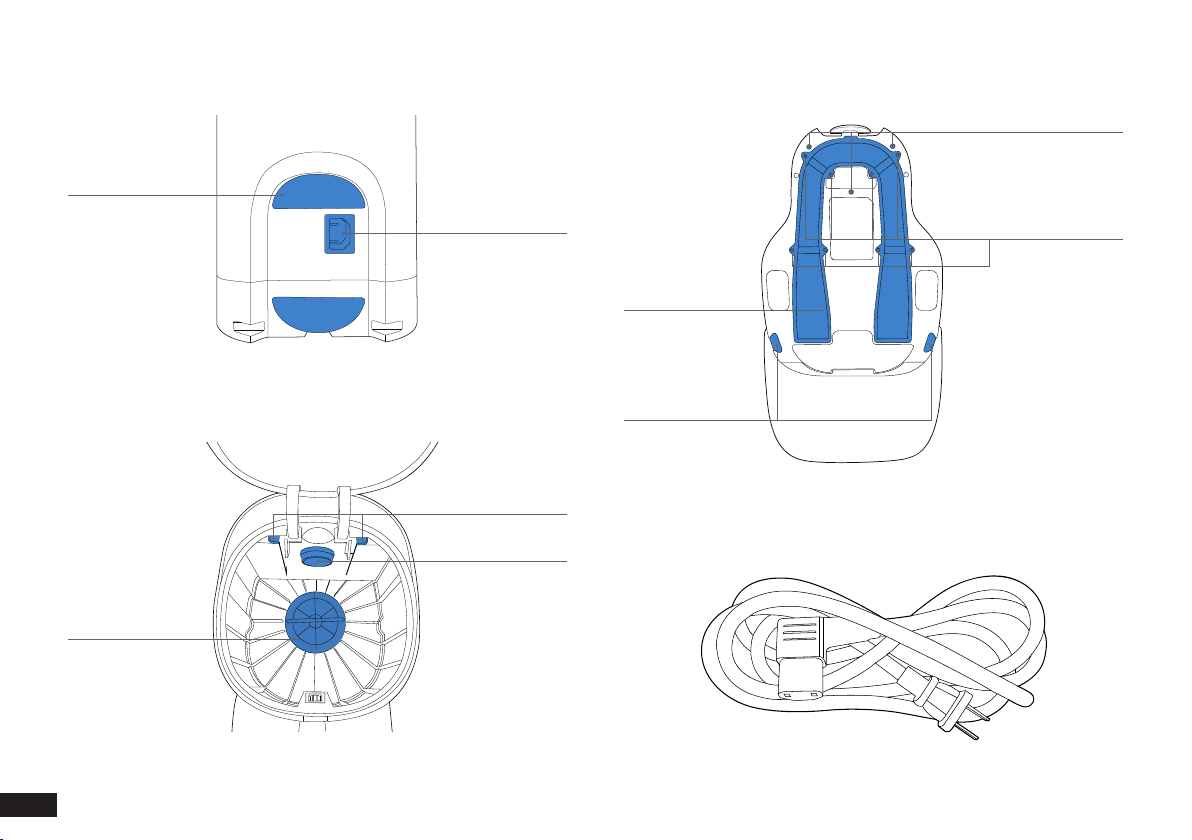

Self-empty Station (Back)
Self-empty Station (Top)
Power Cord Port
Dust Bag Socket
Dust Evacuation Tube
Power Cord Wrap
Blower Cover
Self-empty Station (Bottom)
Power Cord
Base Screw Socket
Dust Evacuation Tube
+ Tube Cover
Ramp Extension Slot
Dust Evacuation Tube
Cover Set Screws
11
EN

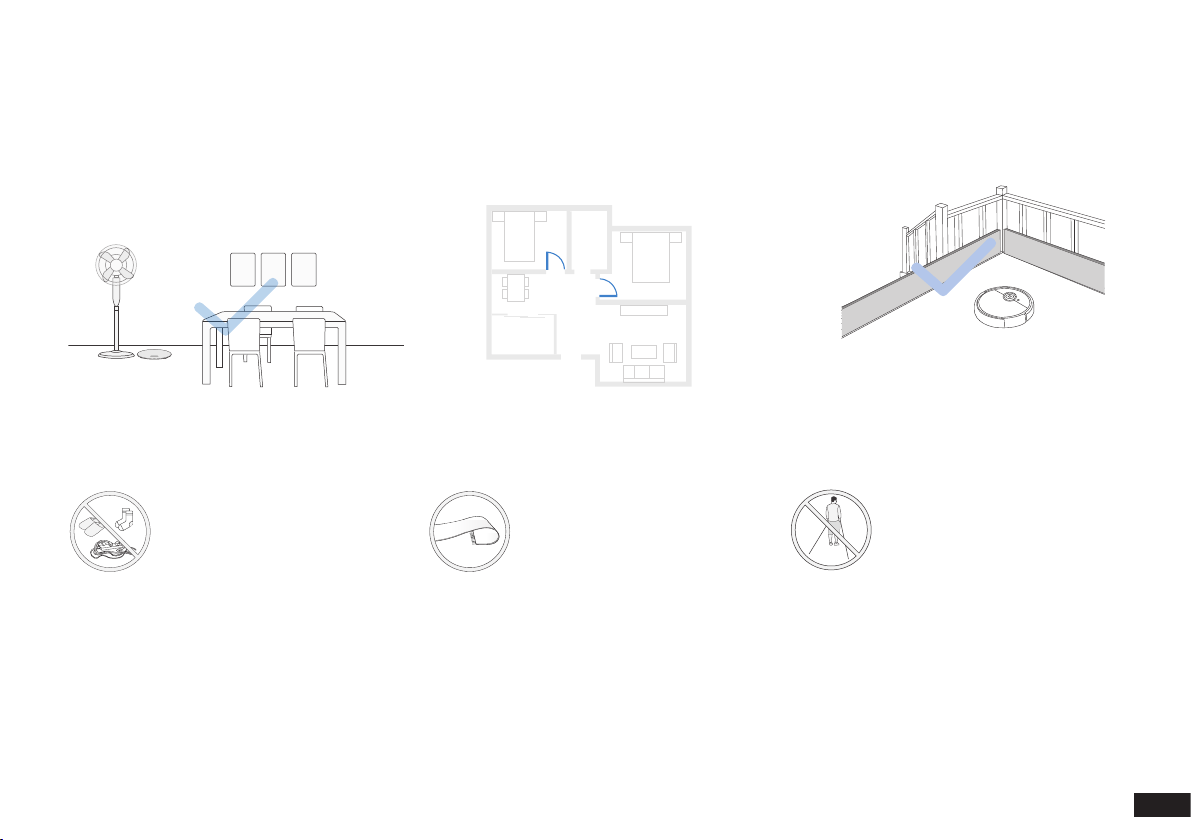

2. Operating and Programming/2.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper place.
During the rst use, make sure each room door is
open to help Robot fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the
unit from falling over the edge.
Put away objects including wires,
cloths and slippers, etc. on the
oor to improve the cleaning
efciency.
Before using the product on a rug
with tasseled edges, please fold
the rug edges under.
Please do not stand in narrow
spaces, such as hallways, and
make sure not to block the
Detection Sensor.
12
EN
2. Operating and Programming/2.2 Preparation
Please remove all protection materials on Robot and Self-empty
Station before use.
1
2

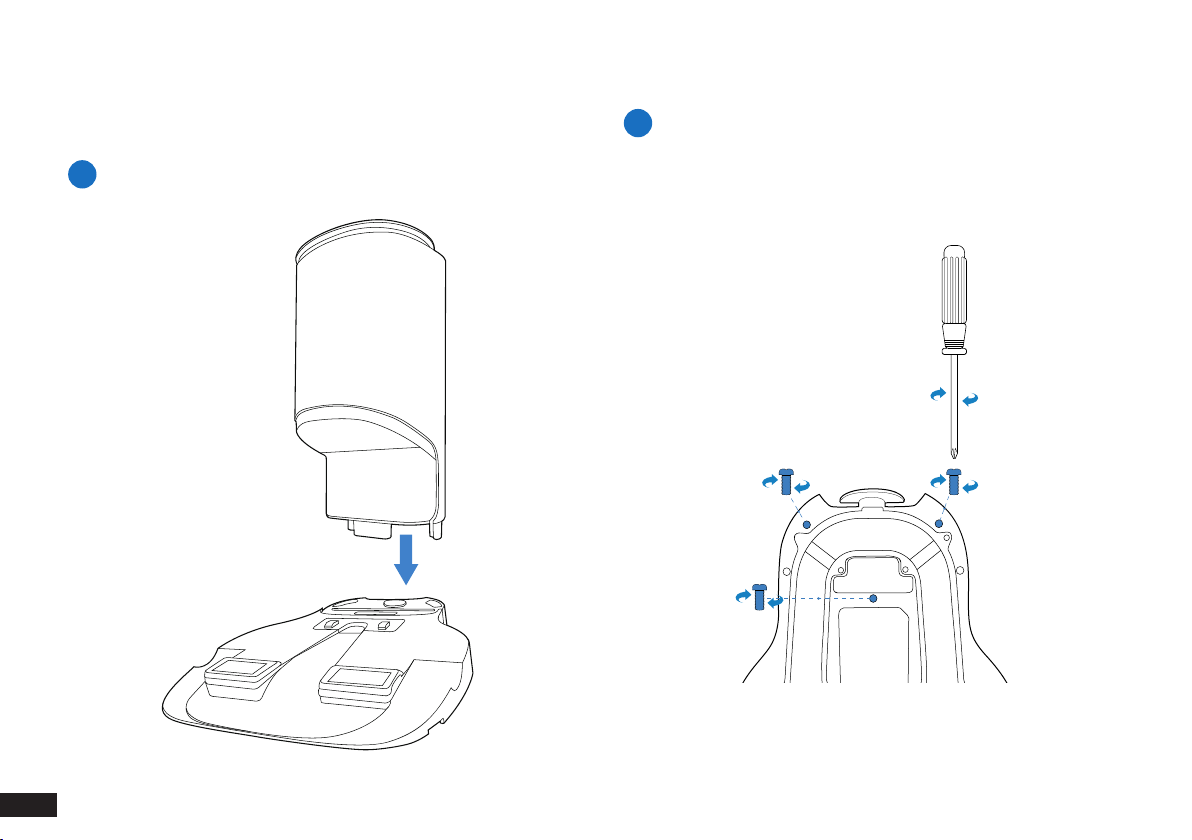

Connect the Dust Container and the Base
Tighten the Base Socket Set Screws
13
EN
3
Assemble Self-empty Station
4
Install the Ramp Extension
5
Self-empty Station Placement
14
EN
6

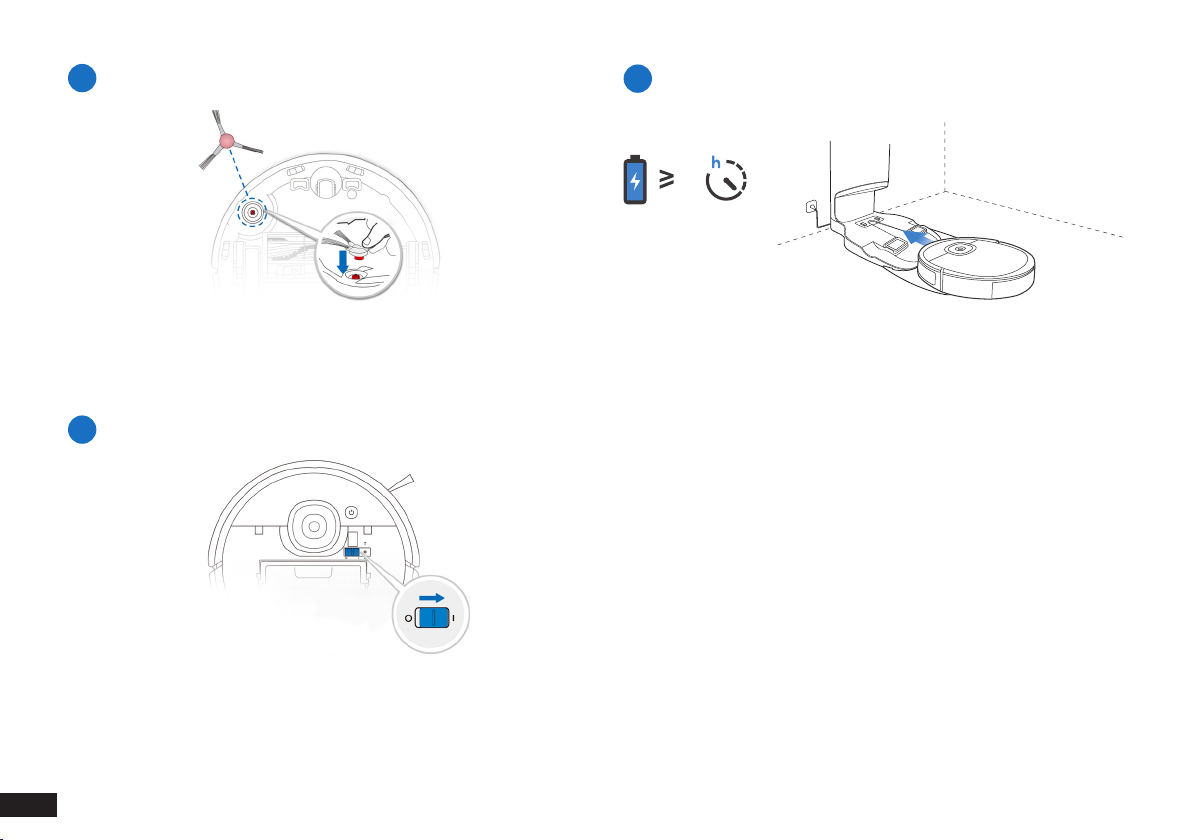

Install Edge Brush
7
Power ON
8
Charge Robot
Note: When Robot completes the cleaning cycle or when the battery
gets low, Robot automatically returns to the Self-empty Station to
recharge itself. Robot can also be sent back to the Self-empty Station
at any time by using the yeedi App or by pressing the AUTO Button on
the robot for 3 seconds.
Empty remaining water from the Reservoir and remove the Mopping
Pad Plate before charging Robot.
6.5
15
EN

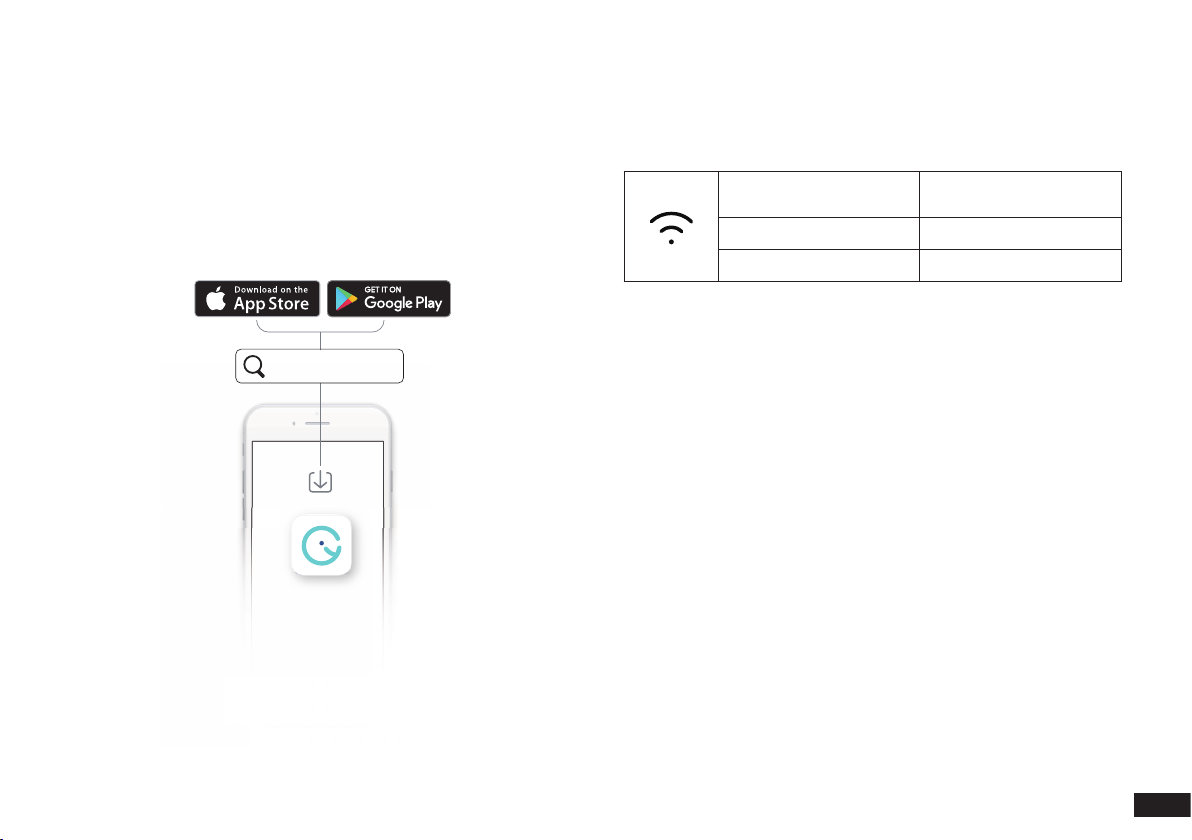

2. Operating and Programming/2.3 yeedi App
To enjoy all available features, it is recommended to control your Robot via the yeedi App.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on Robot is slowly ashing.
Slowly flashing
Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
yeedi
16
EN
2
Pause
3
Wake Up
Note: The robot’s Control Panel stops glowing after the robot is
paused for a few minutes. Press the AUTO Mode Button on Robot to
wake it up.
Press the AUTO button on Robot to wake it up
4
Power OFF
Note: When Robot is not working, it is recommended to keep it
switched ON and charging.
2. Operating and Programming/2.4 Start, Pause, Wake Up, Power Off

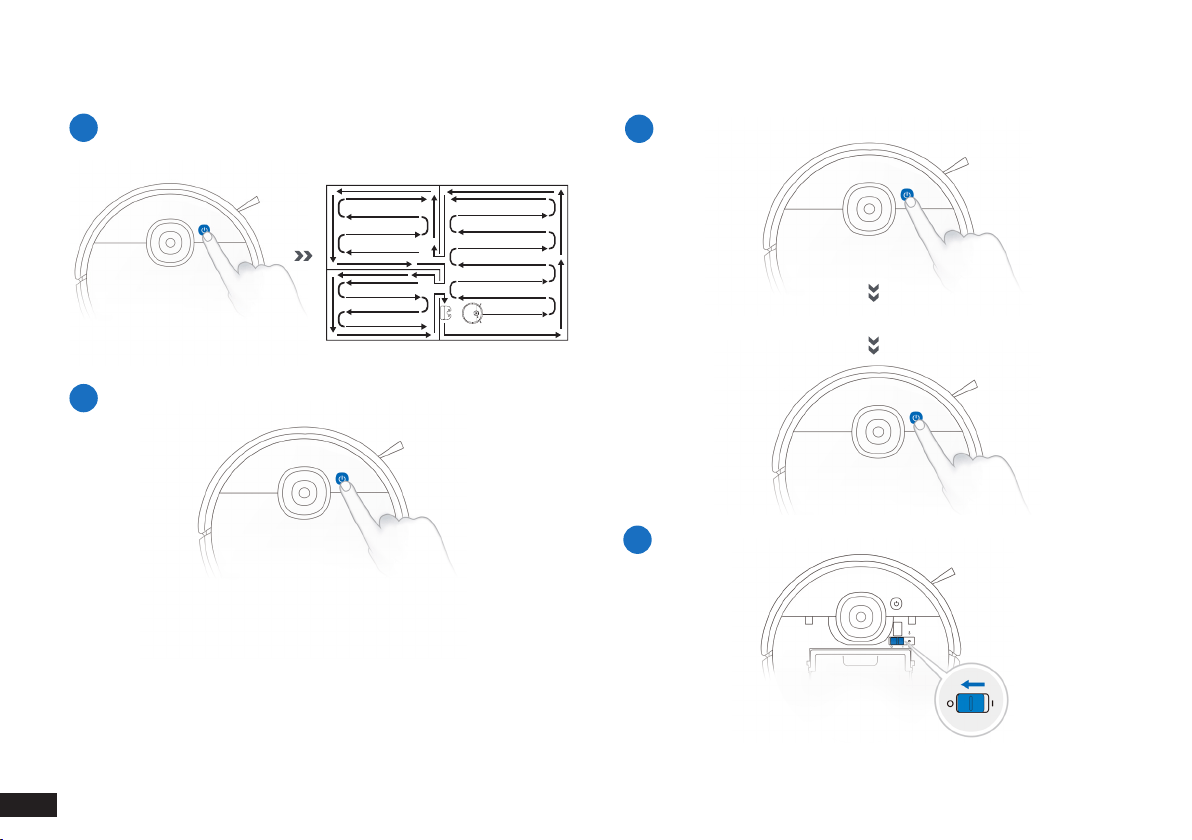

1
Start
17
EN
1
2
Note:
1. To prolong the service life of the reservoir, it is recommended to use puried water or softened water for the mopping system.
2. If you need to clean the carpet, please uninstall the Mopping Pad Plate rst.
3. Empty the reservoir after Robot nishes mopping.
Click

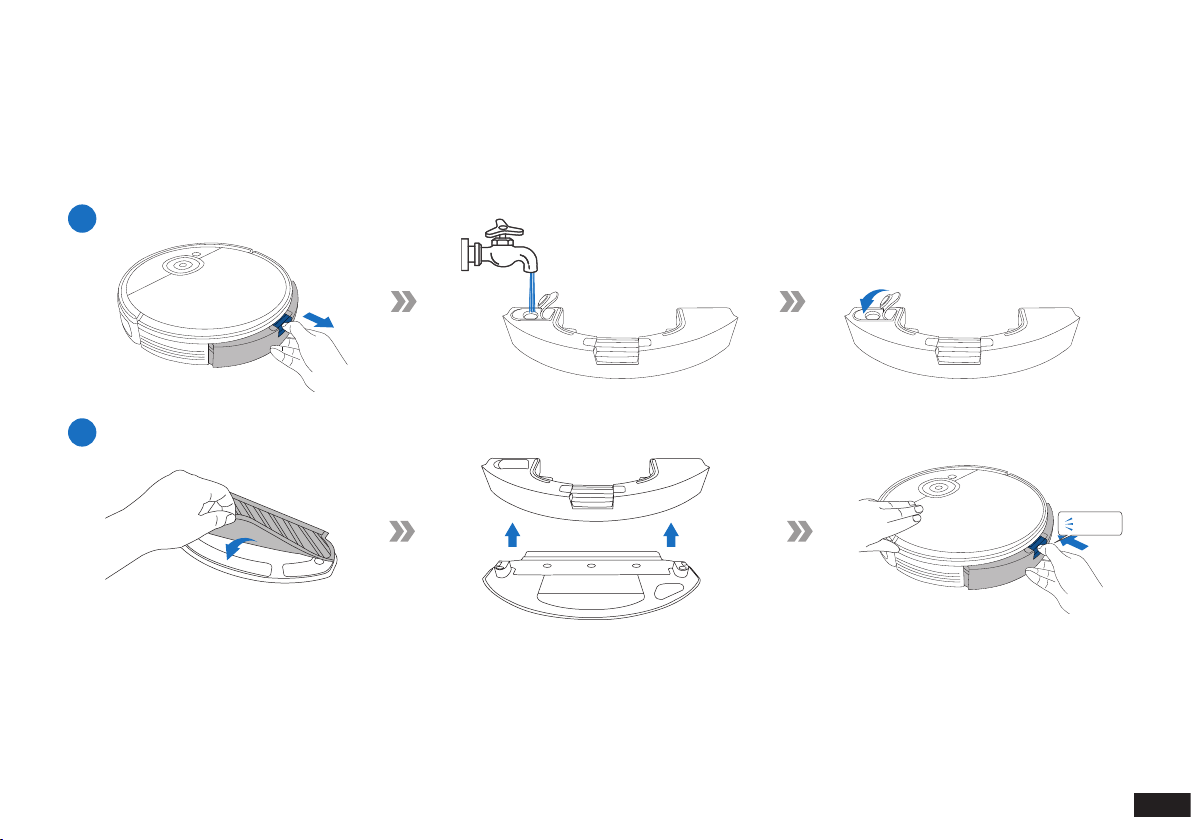

2. Operating and Programming/2.5 Mopping System
18
EN
Before performing cleaning and maintenance tasks on Robot, turn the robot OFF and unplug the Self-empty Station.

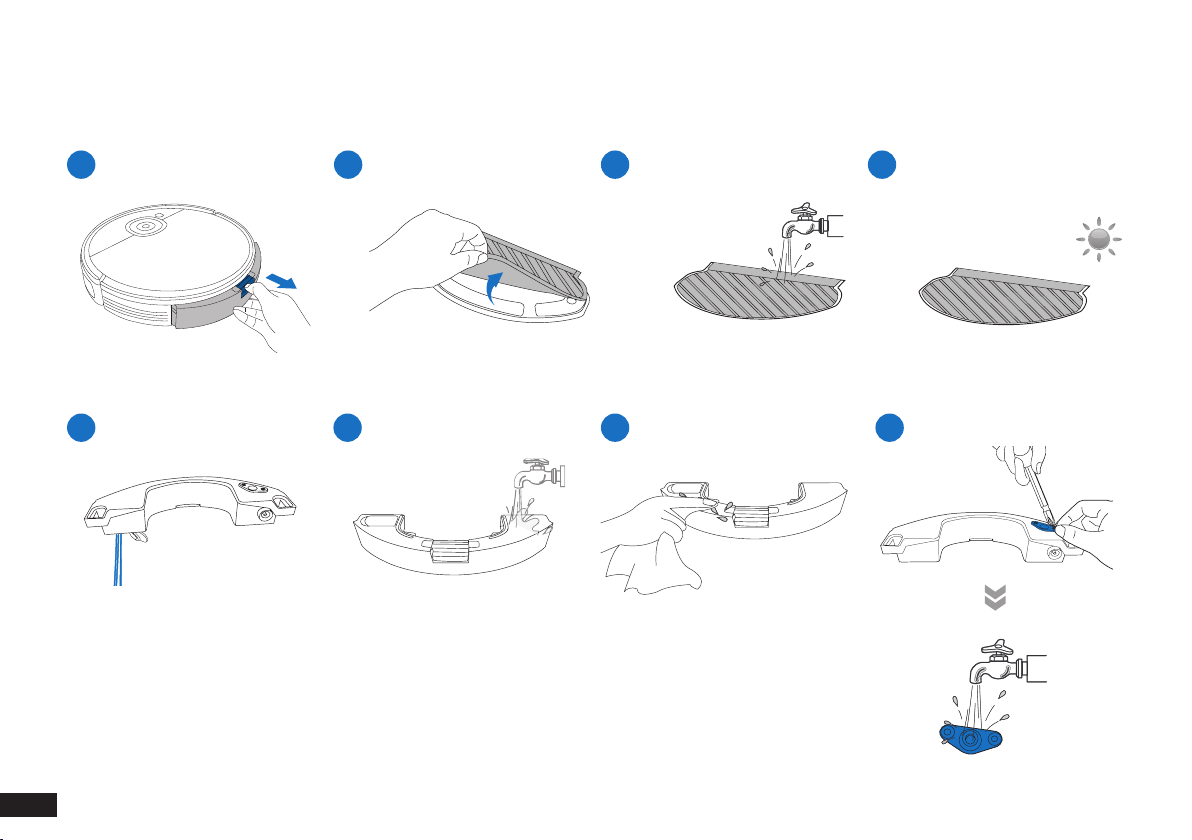

3. Maintenance/3.1 Mopping System
1 42
5
3
7 86
19
EN

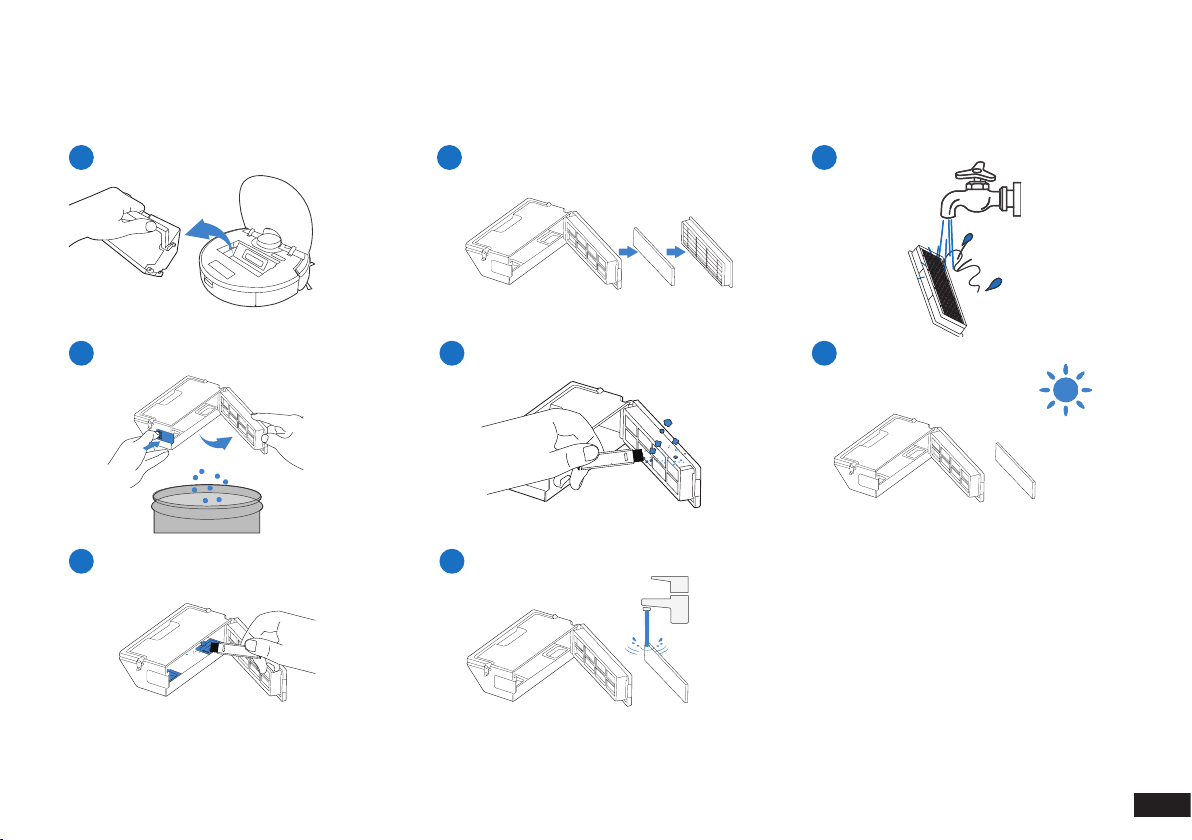

Dust Bin
Note: 1. Please rinse the lter with water as shown above. 2. Do not use nger or brush to clean the lter.
3. Be sure to dry out the lter for at least 24 hours after washing.
3. Maintenance/3.2 Dust Bin and Filters
3 6
41
2 5
7
8
20
EN

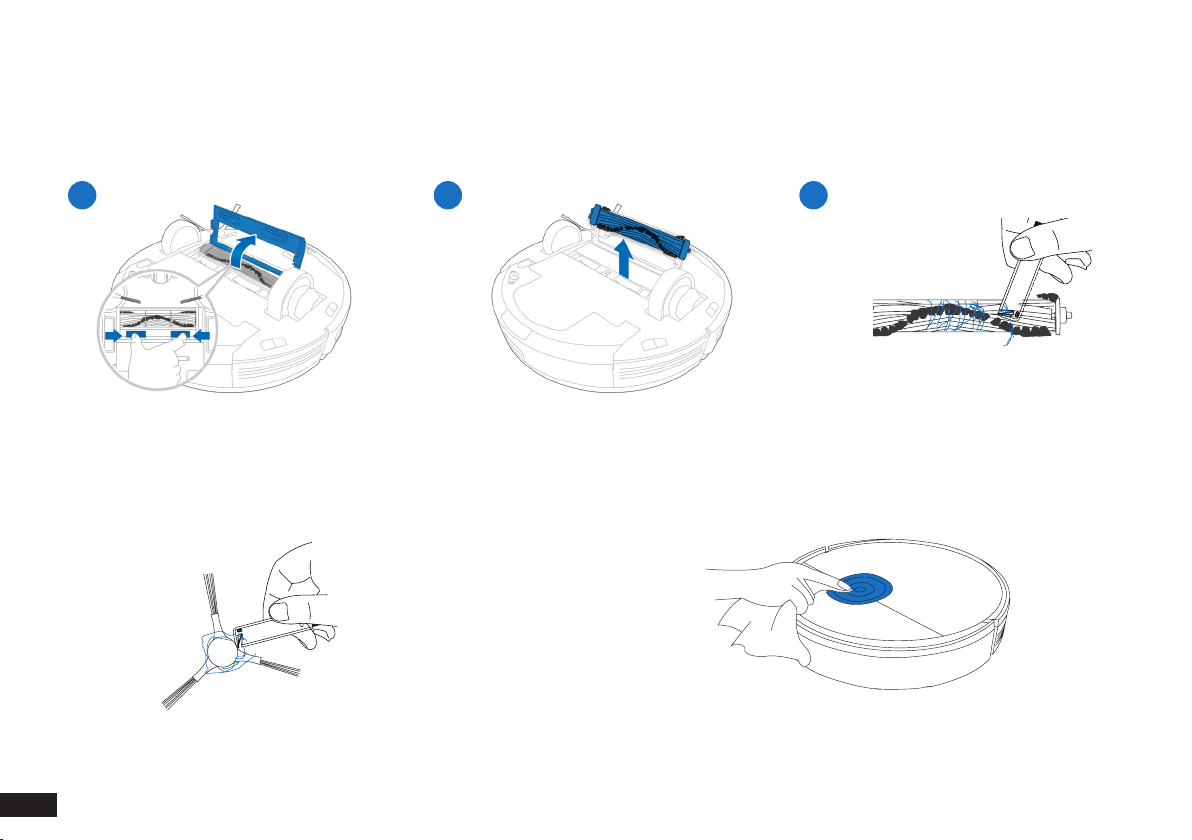

Main Brush
Edge Brush Mapping Sensor
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1 2 3
3. Maintenance/3.3 Main Brush, Edge Brush and Mapping Sensor
21
EN

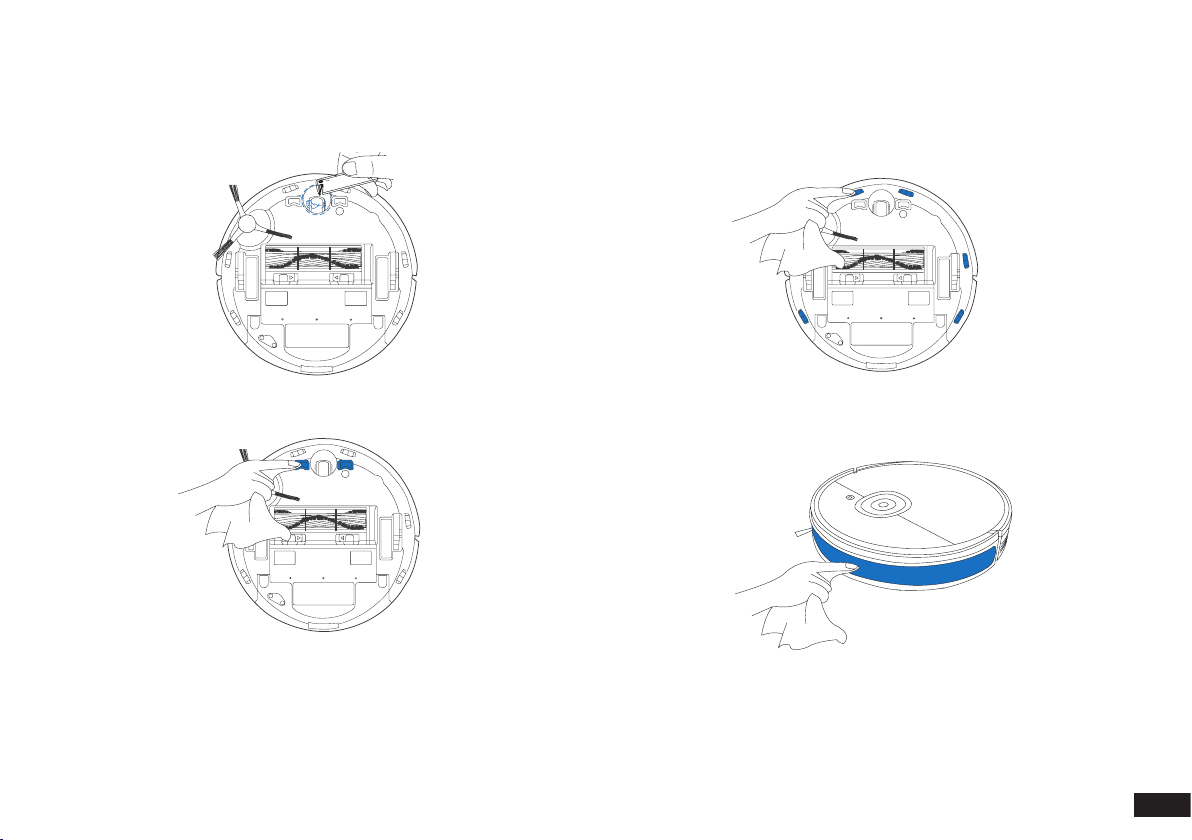

Note: Before cleaning the robot’s Charging Contacts and Self-empty Station Pins, turn the robot OFF and unplug the Self-empty Station.
3. Maintenance/3.4 Other Components
22
EN

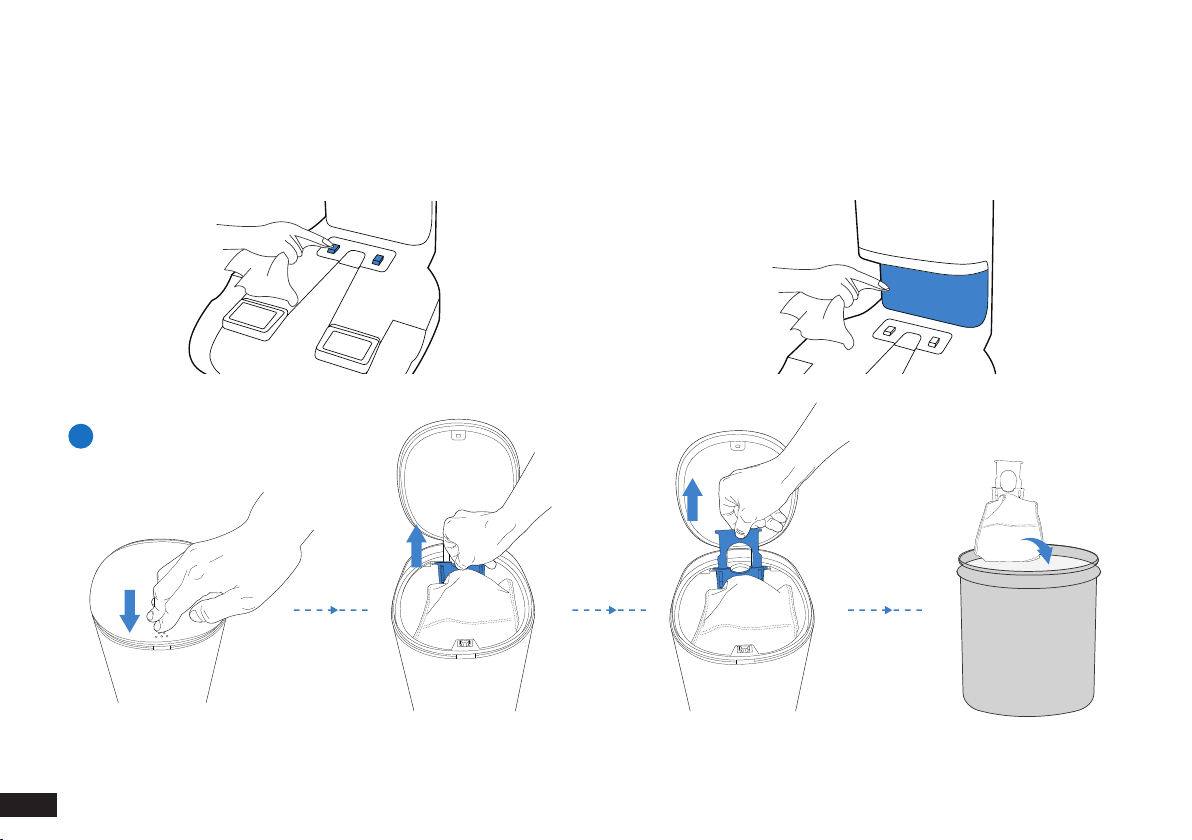

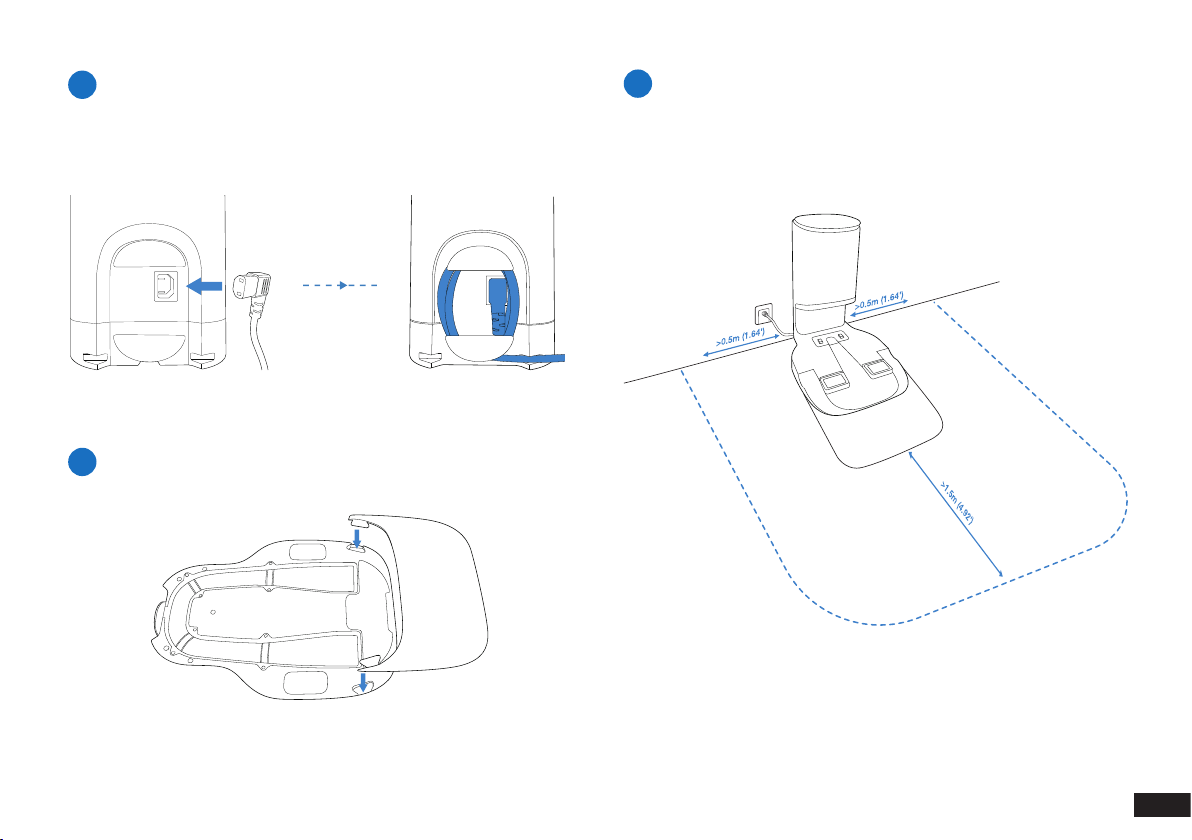

3. Maintenance/3.5 Self-empty Station
Self-empty Station Pins Infrared Signal Emitter
Note: Before performing cleaning and maintenance on Self-empty Station, unplug it rst.
* For a proper maintenance, wipe with a clean dry cloth, and avoid using any detergent or cleaning spray.
Dust Bag
1
* The Dust Bag will be sealed by the handle so the dust will not leak.
Dispose the Dust Bag
23
EN
2 4
3

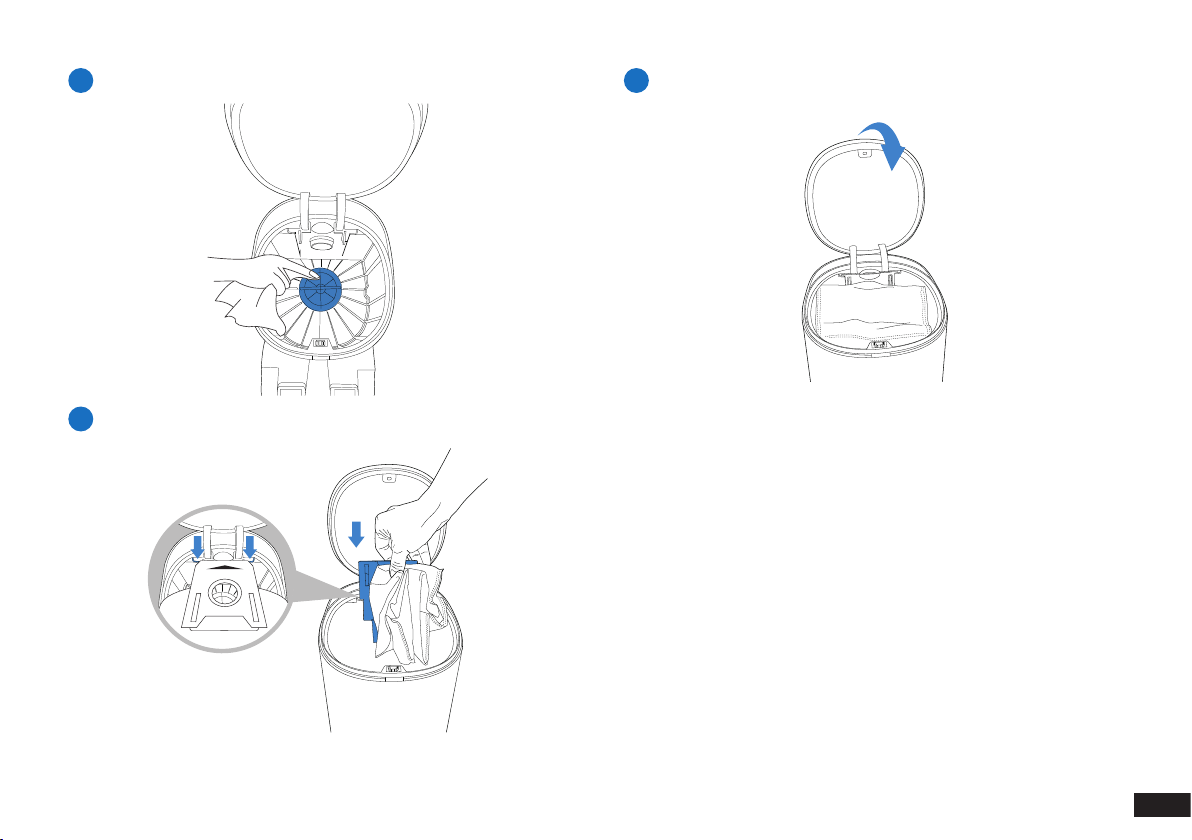

Clean the Blower Cover
Install the Dust Bag
Close the Dust Container Lid
24
EN

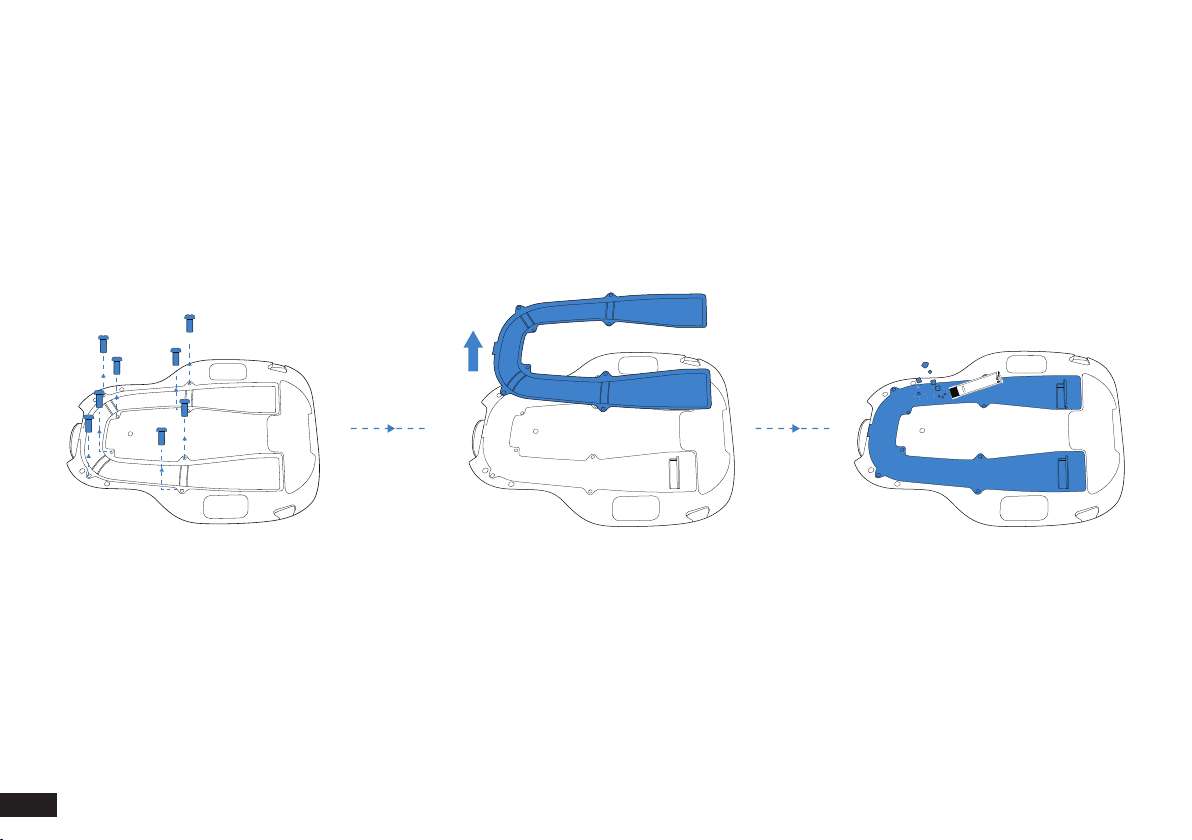

Dust Evacuation Tube
Unscrew the Dust Evacuation
Tube Cover
Uninstall the Dust Evacuation
Tube Cover
Clean the Dust Evacuation Tube
25
EN
To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: yeedi manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Washable Mopping Pad After each use Every 50 washings
Reservoir/Mopping Pad Plate After each use /
Edge Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors Bumper
Mapping Sensor
Charging Contacts
Self-empty Station Pins
Once per week /
3. Maintenance/3.6 Regular Maintenance
26
EN
4. Indicator Light
Robot will tell you something is wrong with an indicator light and voice report. More detailed support is available through the yeedi app
and online website.
Robot
Indicator Light Scenario
AUTO Mode Button glows a solid WHITE.
The robot is cleaning.
The robot is paused while cleaning.
AUTO Mode Button ashes WHITE.
The robot is charging.
The robot is starting.
The robot is relocating.
AUTO Mode Button glows a solid RED. The robot has low battery.
AUTO Mode Button ashes RED. The robot has a problem.
27
EN
Light Effect Status Solutions
Indicator light off
The Self-empty Station is in standby. /
Robot is in Do Not Disturb Mode. /
Glowing a solid WHITE
Robot returns to the Self-empty Station and
starts to self-empty.
/
Robot is self-emptying. /
The Self-empty Station's suction power decreased. Please check the Dust Bag.
Glowing a solid RED
The Dust Bag is not installed. Please install the Dust Bag.
The Self-empty Station failed to self-empty the
dust.
Please check the solution in the App.
The Dust Container Lid is not closed. Please make sure the Dust Container Lid is rmly closed.
The light effect of the Status Indicator on Self-empty Station corresponds to different conditions and solutions. For more support, please refer to
yeedi App or the Troubleshooting Section of this manual.
Self-empty Station
28
EN
No. Malfunction Possible Causes Solutions
1
Robot is not able to connect to
the home Wi-Fi network.
Incorrect home Wi-Fi username or password
entered.
Enter the correct home Wi-Fi username and password.
Robot is not within range of your home Wi-Fi
signal.
Make sure Robot is within range of your home Wi-Fi
signal.
Network setup started before Robot was
ready.
Turn ON Power Switch. Press the RESET Button for 3
seconds. Robot is ready for network setup when it plays
a musical tune and its Wi-Fi Indicator light ashes slowly.
2 Robot is not charging.
Robot is not switched ON. Switch ON Robot.
Robot has not connected to the Self-empty
Station.
Be sure that the robot’s Charging Contacts have
connected to the Self-empty Station Pins.
The Power Cord is not connected to the Self-
empty Station.
Make sure the Power Cord is rmly connected to the
Self-empty Station.
The battery is completely discharged.
Re-activate the battery. Switch ON. Place Robot on the
Self-empty Station by hand, remove after charging for 3
minutes, repeat 3 times; then charge normally.
Make sure the Self-empty Station is
connected to the power supply.
The Self-empty Station is not connected to the power
supply.
5. Troubleshooting/5.1 Troubleshooting
29
EN
No. Malfunction Possible Causes Solutions
3
Robot cannot return to the
Self-empty Station.
The Self-empty Station is not correctly
placed.
Refer to section 2.2 to correctly place the Self-empty
Station.
The Self-empty Station is disconnected or
moved.
Please check if the Self-empty Station is connected to
power. Do not move the Self-empty Station manually.
Robot is working in a dark environment. Make sure to use Robot in a well illuminated environment.
Robot is paused for more than 60 minutes. Avoid pausing Robot for over 60 minutes.
Robot did not start cleaning from the Self-
empty Station.
Make sure Robot starts cleaning from the Self-empty
Station.
The Ramp Extension is not installed.
Please install the Ramp Extension so the robot can return
to charge successfully.
4
Robot returns to the Self-
empty Station before it has
nished cleaning.
Robot is working in a dark environment. Make sure to use Robot in a well illuminated environment.
When the battery gets low, Robot
automatically switches to Return to Charger
Mode and returns to the Self-empty Station
to recharge itself.
This is normal. No solution necessary.
Working time varies according to oor
surface, room complexity and the Cleaning
Mode selected.
This is normal. No solution necessary.
The cleaning area is not tidy.
Remove small objects from the oor and tidy up the
cleaning area before Robot starts cleaning.
5
Robot gets stuck while working
and stops.
Robot is tangled with something on the oor
(electrical wires, curtains, Carpet fringing, etc.).
Robot will try various ways to free itself. If it is
unsuccessful, manually remove the obstacles and restart.
6
Robot makes much noise when
cleaning.
The brushes are tangled, or the dust bin is
stuck.
Clear the debris stuck regularly.
30
EN
No. Malfunction Possible Causes Solutions
7
The water is not coming out of
the Reservoir when Robot is
mopping.
The water inlet lter on the bottom of
Reservoir is clogged.
Unscrew the water inlet on the bottom of Reservoir and
clean the lter.
The Reservoir runs out of water. Add water into the Reservoir.
The water outlets on the bottom of Robot are
clogged.
Check the water outlets on the bottom and clean.
8
The reservoir drops out of
place during cleaning.
The reservoir is not properly installed.
The reservoir is properly installed when it clicks into
place.
9
The robot does not start
emptying after returning to the
Self-empty Station.
The Dust Container Lid is not closed. Close the Dust Container Lid.
The Dust Bag is not installed to the Self-
empty Station.
Install the Dust Bag and close the Dust Container Lid.
Manually move The robot to the Self-empty
Station will not trigger self-emptying.
In order to make sure The robot starts self-empty
successfully, avoid picking up and moving the Self-empty
Station during the cleaning.
The robot returns to the Self-empty Station
running Video Manager in the App.
This is normal.
Do Not Disturb mode is enabled in yeedi
App.
This is normal. Disable Do Not Disturb mode in the App,
or start self-emptying manually.
The Dust Bag is full. Replace the Dust Bag and close the Dust Container Lid.
If the possible causes are excluded, it might
be a component malfunction.
Please contact customer service.
31
EN
No. Malfunction Possible Causes Solutions
10
The robot fails to self-empty
the Dust Bin.
The Dust Bin is not installed.
Please install the Dust Bin with two Self-empty Outlets on
the bottom.
The Dust Bag is full. Replace the Dust Bag and close the Dust Container Lid.
The Self-empty Outlets on the Dust Bin is
stuck by debris.
Uninstall the Dust Bin and clean the debris on the Self-
empty Outlets.
Dust Evacuation Tube is blocked. Clean the Dust Evacuation Tube.
11
There is debris in the Dust
Container.
Fine particles are absorbed inside the Dust
Container through the Dust Bag.
Clean the Dust Container Lid and inner wall.
The Dust Bag is damaged. Check the Dust Bag and replace it.
12
The robot leaks dust or debris
while cleaning.
The Self-empty Outlets are stuck by debris. Uninstall the Dust Bin and clear the debris.
13 The Base is dirty.
Main Brush has debris on it and requires
cleaning.
Clean the Main Brush.
32
EN
5. Troubleshooting/5.2 Wi-Fi Connection
Before Wi-Fi setup, make sure Robot, mobile phone, and Wi-Fi network meet the following requirements.
Robot and Mobile Phone Requirements
• Robot is fully charged and the power switch of Robot is turned on.
• Wi-Fi status light slowly ashes.
• Turn off mobile phone’s cellular data (you can turn it back on after setup).
Wi-Fi Network Requirements
• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
33
EN
6. Product Specifications
Output power of the Wi-Fi module is less than 100mW.
Note: Technical and design specications may be changed for continuous product improvement.
Model DVX34
Rated Input 20V 1A
Self-empty Station Model CH1918
Rated Input(Charging)
For European Union Only 220-240V 50-60Hz 0.3A
For Russia Only 220V 50-60Hz 0.3A
Rated Output 20V 1A
Power (Auto-Disposing) 1000W
Frequency bands 2400-2483.5MHz
Off Mode Power Less than 0.50W
Networked Standby Power Less than 2.00W
