1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the Appliance in a safe way and
understand the hazards involved. Children
shall not play with the Appliance. Cleaning
and user maintenance shall not be made by
children without supervision.(For European
Union countries)
2. Clear the area to be cleaned. Remove
power cords and small objects from the
floor that could entangle the Appliance.
Tuck rug fringe under the rug base, and lift
items such as curtains and tablecloths off
the floor.
3. If there is a drop off in the cleaning area
due to a step or stairs, you should operate
the Appliance to ensure that it can detect
the step without falling over the edge. It
may become necessary to place a physical
barrier at the edge to keep the unit from
falling. Make sure the physical barrier is not
a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply
source voltage matches the power voltage
marked on the Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial
or industrial environments.
7. Use only the original rechargeable battery
and Docking Station provided with the
IMPORTANT SAFETY INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
When using an electrical Appliance, basic precautions should
always be followed, including the following:
WARNING: READ ALL SAFETY WARNINGS
AND INSTRUCTIONS. FAILURE TO FOLLOW
THE WARNINGS AND INSTRUCTIONS MAY
RESULT IN ELECTRIC SHOCK, FIRE OR
SERIOUS INJURY.
READ ALL INSTRUCTIONS BEFORE USING
THIS APPLIANCE
SAVE THESE INSTRUCTIONS
4
EN
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited.
For battery information, please refer to
Specifications section.
8. Do not use without dust bin and/or filters in
place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile
objects.
10. Do not use in extremely hot or cold
environments (below -5˚C/23˚F or above
40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper
or any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas
where they may be present.
16. Do not use Appliance to pick up anything
that is burning or smoking, such as
cigarettes, matches, hot ashes, or anything
that could cause a fire.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
18. Take care not to damage the power cord.
Do not pull on or carry the Appliance or
Docking Station by the power cord, use
the power cord as a handle, close a door
on the power cord, or pull power cord
around sharp edges or corners. Do not
run Appliance over the power cord. Keep
power cord away from hot surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it
is damaged or defective.
21. Do not use with a damaged power cord or
5
EN
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and
discarded according to local laws
and regulations before disposal of the
Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a fire.
28. When not using the Docking Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction
Manual. The manufacturer cannot be held
liable or responsible for any damages or
injuries caused by improper use.
30. The robot contains batteries that are
only replaceable by skilled persons. To
replace the robot’s battery, please contact
Customer Service.
31. If the robot will not be used for a long
time, power OFF the robot for storage and
unplug the Docking Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable
supply unit CH1822 provided with the
Appliance, or CH1918 sold separately as
an accessory.
33. This Appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the Appliance
by a person responsible for their safety.
6
EN
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
To satisfy RF exposure requirements, a separation distance of 20 cm
or more should be maintained between this device and persons during
device operation.
To ensure compliance, operations at closer than this distance is not
recommended. The antenna used for this transmitter must not be co-
located in conjunction with any other antenna or transmitter.
To disable Wi-Fi module on Robot, powerthe robot ON.
Place the robot on the Docking Station making sure the Charging
Contacts on Robot and the Docking Station Pins make a connection.
Press and hold the AUTO Mode Button on the robot for 20 seconds until
Robot emits 3 beeps.
To enable Wi-Fi module on Robot, power the robot OFF and then power
ON. The Wi- Fi module is turned on when Robot is restarted.
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household waste throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can safely
recycle this product.
For EU Countries
For EU Declaration of Conformity information, visit https://www.
yeedi.com/support
Children should be supervised to ensure
that they do not play with the Appliance.
(For Non-European Union countries)
7
EN
Robot Instruction Manual
Edge Brush
Docking Station
Mopping Pad PlateWashable Mopping Pad

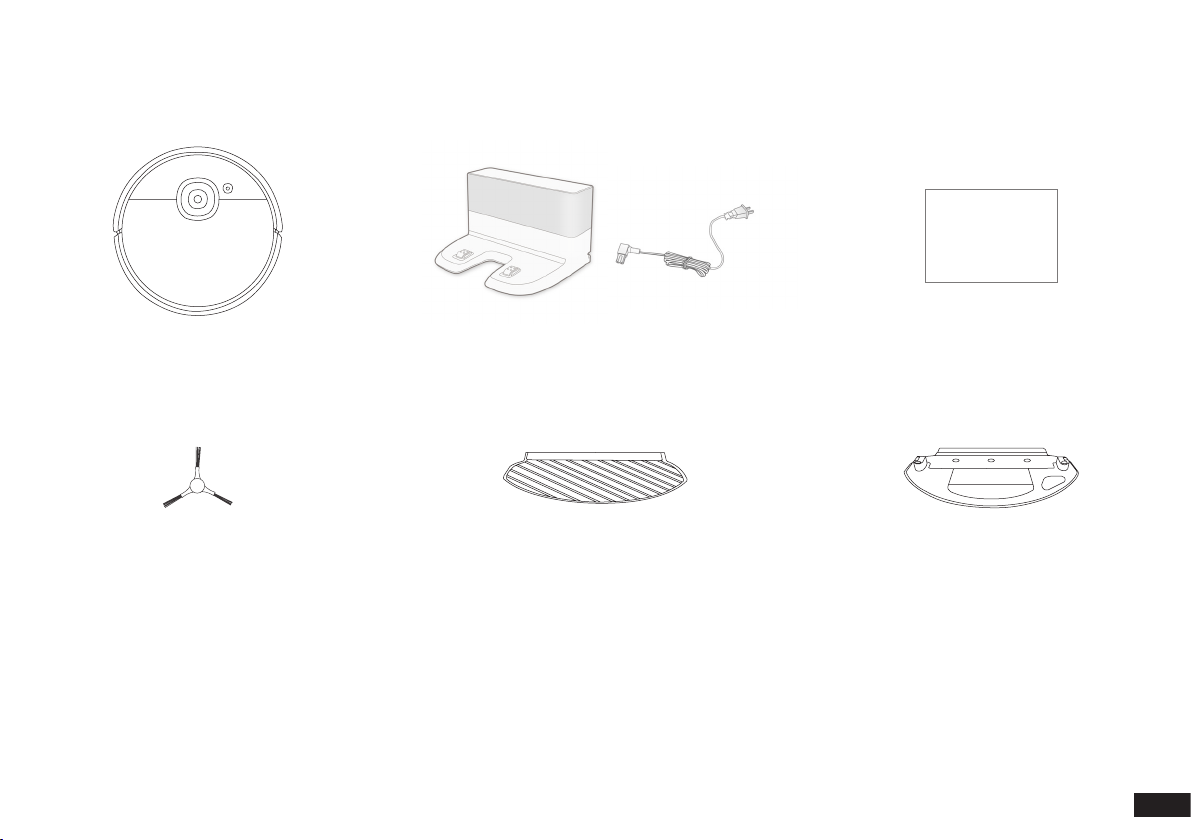

1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
Instruction Manual
8
EN
1. Package Contents/1.2 Product Diagram
Anti-Collision Sensors and Bumper
AUTO Mode
Button
Multi-function
Cleaning Tool
Robot
Mapping Sensor
Bottom View
Power Switch
Wi-Fi Indicator
RESET Button
Anti-Drop Sensors
Carpet Detection
Sensor
Mopping Pad Plate
Slot
Water Outlet
Driving Wheels
Battery
Charging Contacts
Anti-Drop Sensors
Reservoir
Edge Brush
Universal Wheel
Main Brush
Main Brush
Release Button
9
EN
Reservoir
Water Inlet
Mopping Pad Plate
Reservoir Release Button
Washable Mopping Pad
Docking Station
Docking Station Pins
Power Cord
Dust Bin
High Efficiency Filter
Sponge Filter
Filter Net
Dust Bin Handle
Release Button
10
EN
2. Operating and Programming/2.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper place.
During the rst use, make sure each room door is
open to help Robot fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the
unit from falling over the edge.
Put away objects including wires,
cloths and slippers, etc. on the
oor to improve the cleaning
efciency.
Before using the product on a rug
with tasseled edges, please fold
the rug edges under.
Please do not stand in narrow
spaces, such as hallways, and
make sure not to block the
Detection Sensor.
11
EN
Please remove all protection materials on Robot and Docking Station before use.
1
Assemble Docking Station
2
Docking Station Placement
3
Install Edge Brush
4
Power ON
5
Charge Robot
Note: When Robot completes the cleaning cycle or when the battery
gets low, Robot automatically returns to the Docking Station to
recharge itself. Robot can also be sent back to the Docking Station at
any time by using the yeedi App or by pressing the AUTO Button on
the robot for 3 seconds.
Empty remaining water from the Reservoir and remove the Mopping
Pad Plate before charging Robot.
2. Operating and Programming/2.2 Preparation
12
EN

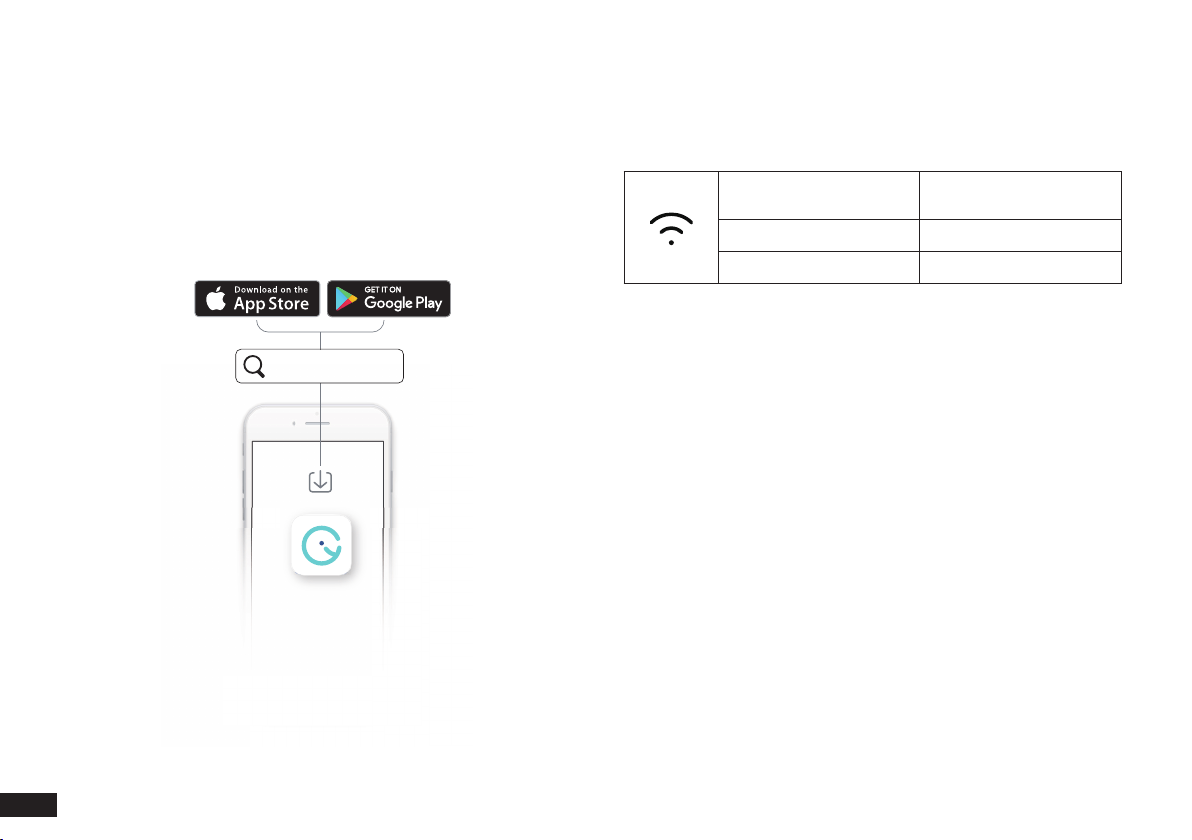

2. Operating and Programming/2.3 yeedi App
To enjoy all available features, it is recommended to control your Robot via the yeedi App.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on Robot is slowly ashing.
Slowly flashing
Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
yeedi
13
EN
2
Pause
3
Wake Up
Note: The robot’s Control Panel stops glowing after the robot is
paused for a few minutes. Press the AUTO Mode Button on Robot to
wake it up.
Press the AUTO button on Robot to wake it up
4
Power OFF
Note: When Robot is not working, it is recommended to keep it
switched ON and charging.
2. Operating and Programming/2.4 Start, Pause, Wake Up, Power Off
1
Start
14
EN
1
2
Note:
1. To prolong the service life of the reservoir, it is recommended to use puried water or softened water for the mopping system.
2. If you need to clean the carpet, please uninstall the Mopping Pad Plate rst.
3. Empty the reservoir after Robot nishes mopping.
Click
2. Operating and Programming/2.5 Mopping System
15
EN
Before performing cleaning and maintenance tasks on Robot, turn the robot OFF and unplug the Docking Station.
3. Maintenance/3.1 Mopping System
1 42
5
3
7 86
16
EN
Note: 1. Please rinse the lter with water as shown above. 2. Do not use nger or brush to clean the lter.
3. Be sure to dry out the lter for at least 24 hours after washing.

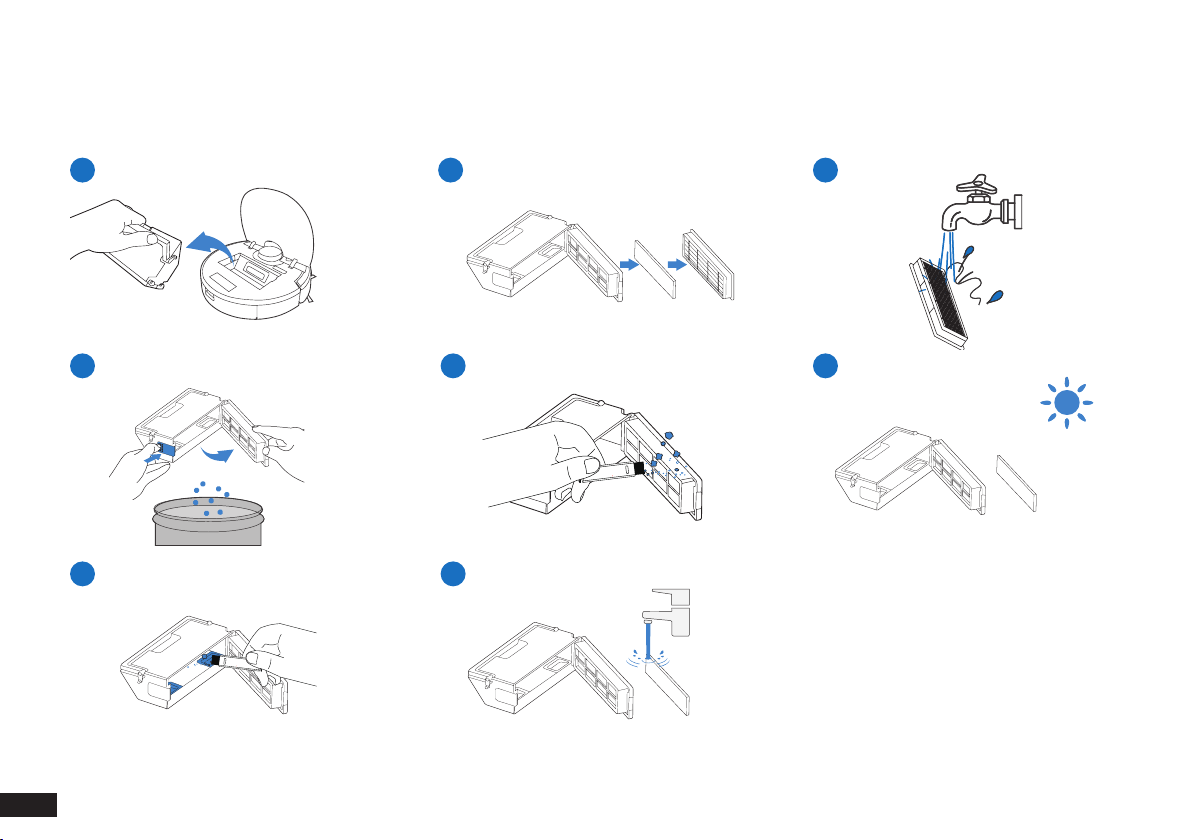

3. Maintenance/3.2 Dust Bin and Filters
Dust Bin
3 6
41
2 5
7
8
17
EN
Main Brush
Edge Brush Mapping Sensor
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1 2 3

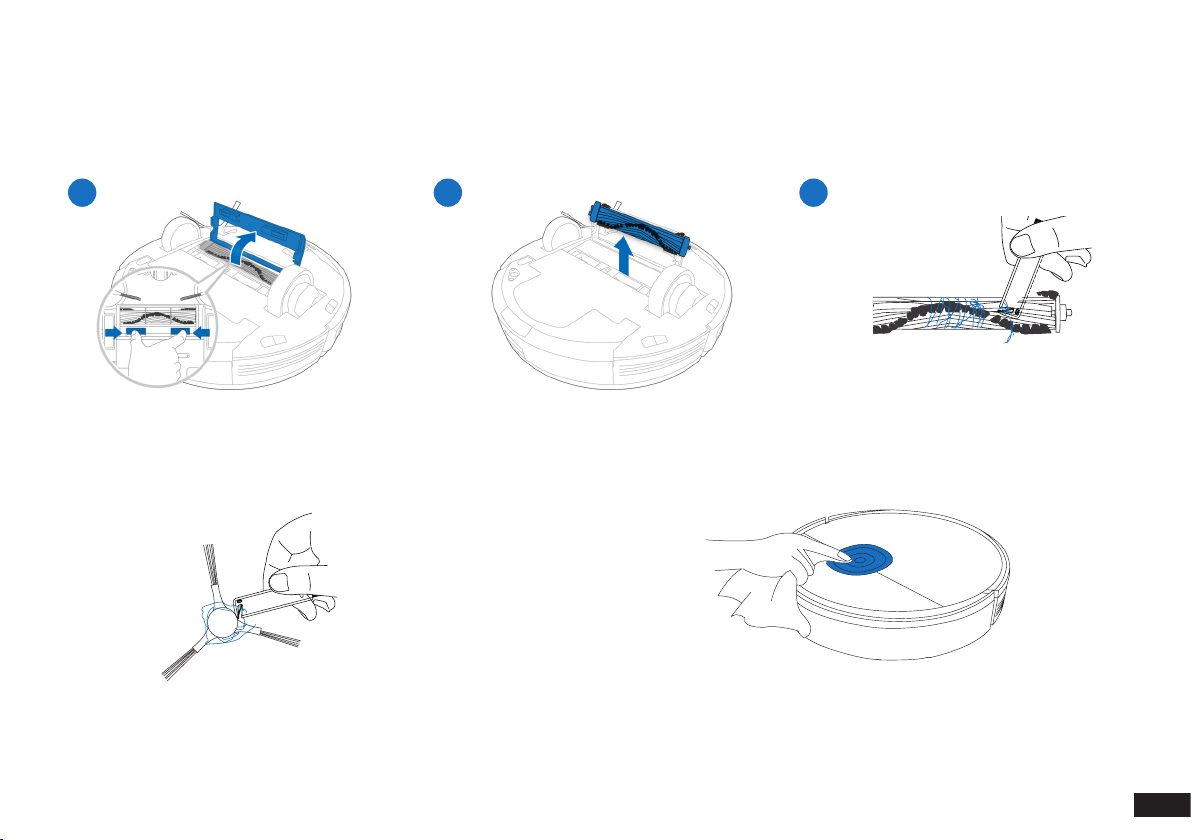

3. Maintenance/3.3 Main Brush, Edge Brush and Mapping Sensor
18
EN
Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.
3. Maintenance/3.4 Other Components
19
EN
To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: yeedi manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Washable Mopping Pad After each use Every 50 washings
Reservoir/Mopping Pad Plate After each use /
Edge Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors Bumper
Mapping Sensor
Charging Contacts
Docking Station Pins
Once per week /
3. Maintenance/3.5 Regular Maintenance
20
EN
4. Indicator Light
Robot will tell you something is wrong with an indicator light and voice report. More detailed support is available through the yeedi app
and online website.
Robot
Indicator Light Scenario
AUTO Mode Button glows a solid WHITE.
The robot is cleaning.
The robot is paused while cleaning.
AUTO Mode Button ashes WHITE.
The robot is charging.
The robot is starting.
The robot is relocating.
AUTO Mode Button glows a solid RED. The robot has low battery.
AUTO Mode Button ashes RED. The robot has a problem.
21
EN
No. Malfunction Possible Causes Solutions
1
Robot is not able to connect to
the home Wi-Fi network.
Incorrect home Wi-Fi username or password
entered.
Enter the correct home Wi-Fi username and password.
Robot is not within range of your home Wi-Fi
signal.
Make sure Robot is within range of your home Wi-Fi
signal.
Network setup started before Robot was
ready.
Turn ON Power Switch. Press the RESET Button for 3
seconds. Robot is ready for network setup when it plays
a musical tune and its Wi-Fi Indicator light ashes slowly.
2 Robot is not charging.
Robot is not switched ON. Switch ON Robot.
Robot has not connected to the Docking
Station.
Be sure that the robot’s Charging Contacts have
connected to the Docking Station Pins.
The Power Cord is not connected to the
Docking Station.
Make sure the Power Cord is rmly connected to the
Docking Station.
The battery is completely discharged.
Re-activate the battery. Switch ON. Place Robot on the
Docking Station by hand, remove after charging for 3
minutes, repeat 3 times; then charge normally.
Make sure the Docking Station is connected
to the power supply.
The Docking Station is not connected to the power
supply.
5. Troubleshooting/5.1 Troubleshooting
22
EN
No. Malfunction Possible Causes Solutions
3
Robot cannot return to the
Docking Station.
The Docking Station is not correctly placed.
Refer to section 2.2 to correctly place the Docking
Station.
The Docking Station is disconnected or
moved.
Please check if the Docking Station is connected to
power. Do not move the Docking Station manually.
Robot is working in a dark environment. Make sure to use Robot in a well illuminated environment.
Robot is paused for more than 60 minutes. Avoid pausing Robot for over 60 minutes.
Robot did not start cleaning from the Docking
Station.
Make sure Robot starts cleaning from the Docking
Station.
4
Robot returns to the Docking
Station before it has nished
cleaning.
Robot is working in a dark environment. Make sure to use Robot in a well illuminated environment.
When the battery gets low, Robot
automatically switches to Return to Charger
Mode and returns to the Docking Station to
recharge itself.
This is normal. No solution necessary.
Working time varies according to oor
surface, room complexity and the Cleaning
Mode selected.
This is normal. No solution necessary.
The cleaning area is not tidy.
Remove small objects from the oor and tidy up the
cleaning area before Robot starts cleaning.
5
Robot gets stuck while working
and stops.
Robot is tangled with something on the oor
(electrical wires, curtains, Carpet fringing, etc.).
Robot will try various ways to free itself. If it is
unsuccessful, manually remove the obstacles and restart.
6
Robot makes much noise when
cleaning.
The brushes are tangled, or the dust bin is
stuck.
Clear the debris stuck regularly.
23
EN
No. Malfunction Possible Causes Solutions
7
The water is not coming out of
the Reservoir when Robot is
mopping.
The water inlet lter on the bottom of
Reservoir is clogged.
Unscrew the water inlet on the bottom of Reservoir and
clean the lter.
The Reservoir runs out of water. Add water into the Reservoir.
The water outlets on the bottom of Robot are
clogged.
Check the water outlets on the bottom and clean.
8
The reservoir drops out of
place during cleaning.
The reservoir is not properly installed.
The reservoir is properly installed when it clicks into
place.
24
EN
5. Troubleshooting/5.2 Wi-Fi Connection
Before Wi-Fi setup, make sure Robot, mobile phone, and Wi-Fi network meet the following requirements.
Robot and Mobile Phone Requirements
• Robot is fully charged and the power switch of Robot is turned on.
• Wi-Fi status light slowly ashes.
• Turn off mobile phone’s cellular data (you can turn it back on after setup).
Wi-Fi Network Requirements
• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.
• WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.
• WEP EAP (Enterprise Authentication Protocol) is not supported.
• Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).
• If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.
25
EN
6. Product Specifications
Model DVX34
Rated Input 20V 1A
Docking Station Model CH1822 CH1918*
Rated Input 100-240V 50-60Hz 0.5A
Rated Input
(Charging)
For European
Union Only
220-240V 50-60Hz 0.3A
For Russia
Only
220V 50-60Hz 0.3A
Rated Output 20V 1A Rated Output 20V 1A
/ Power (Auto-Emptying) 1000W
Frequency bands 2400-2483.5MHz
Off Mode Power Less than 0.50W
Networked Standby Power Less than 2.00W
Output power of the Wi-Fi module is less than 100mW.
Note: Technical and design specications may be changed for continuous product improvement.
* CH1918 is an
Self-empty Station
sold separately that automatically empties your Robot's dustbin.
Explore more accessories at https://www.yeedi.com.
