DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook, available at Lowe's, if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 20.29 lbs.
SAFETY INFORMATION
3
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid-state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing or balancing them, or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to
avoid electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
CAUTION
IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Mounting Plate 1
B Mounting Plate Screw/Washer 4
(preassembled)
C Ring 1
D Motor Housing 1
E Motor Plate Screw 3
(preassembled)
F Fitter Plate 1
DESCRIPTIONPART
QUANTITY
PACKAGE CONTENTS
4
DESCRIPTIONPART
QUANTITY
G LED Light Kit 1
H Shade 1
I Blade 3
J Blade Plate 3
K Fitter Plate Screw 3
(preassembled)
L Remote Pack 1
M Remote Control Receiver 1
A
D
B
F
C
M
L
K
J
I
E
H
G
5
PREPARATION
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
Wire
Connector
Qty. 3
+ 1 extra
AA
Motor
Screw/Washer
Qty. 6
+ 1 extra
BB
INITIAL INSTALLATION

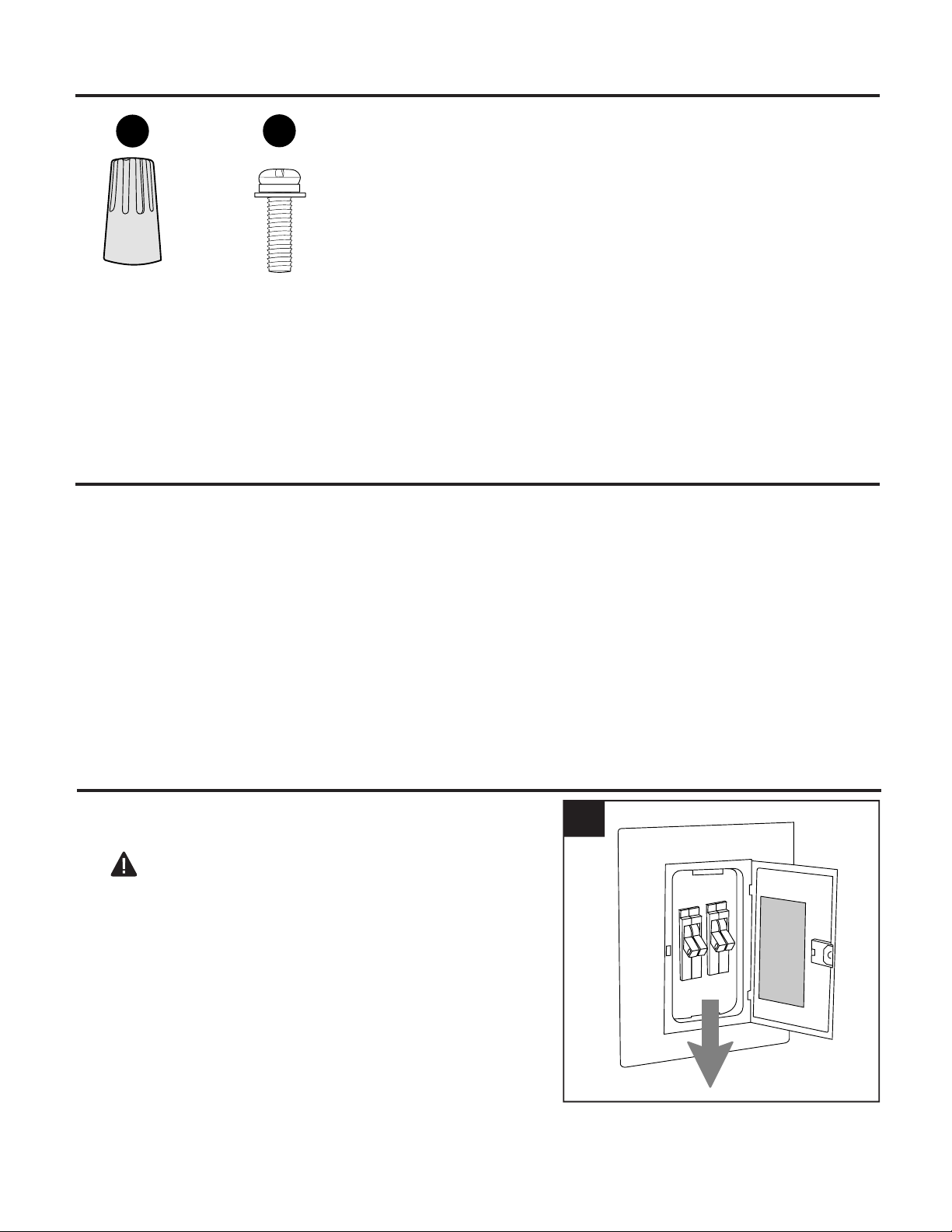

Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
6
INITIAL INSTALLATION

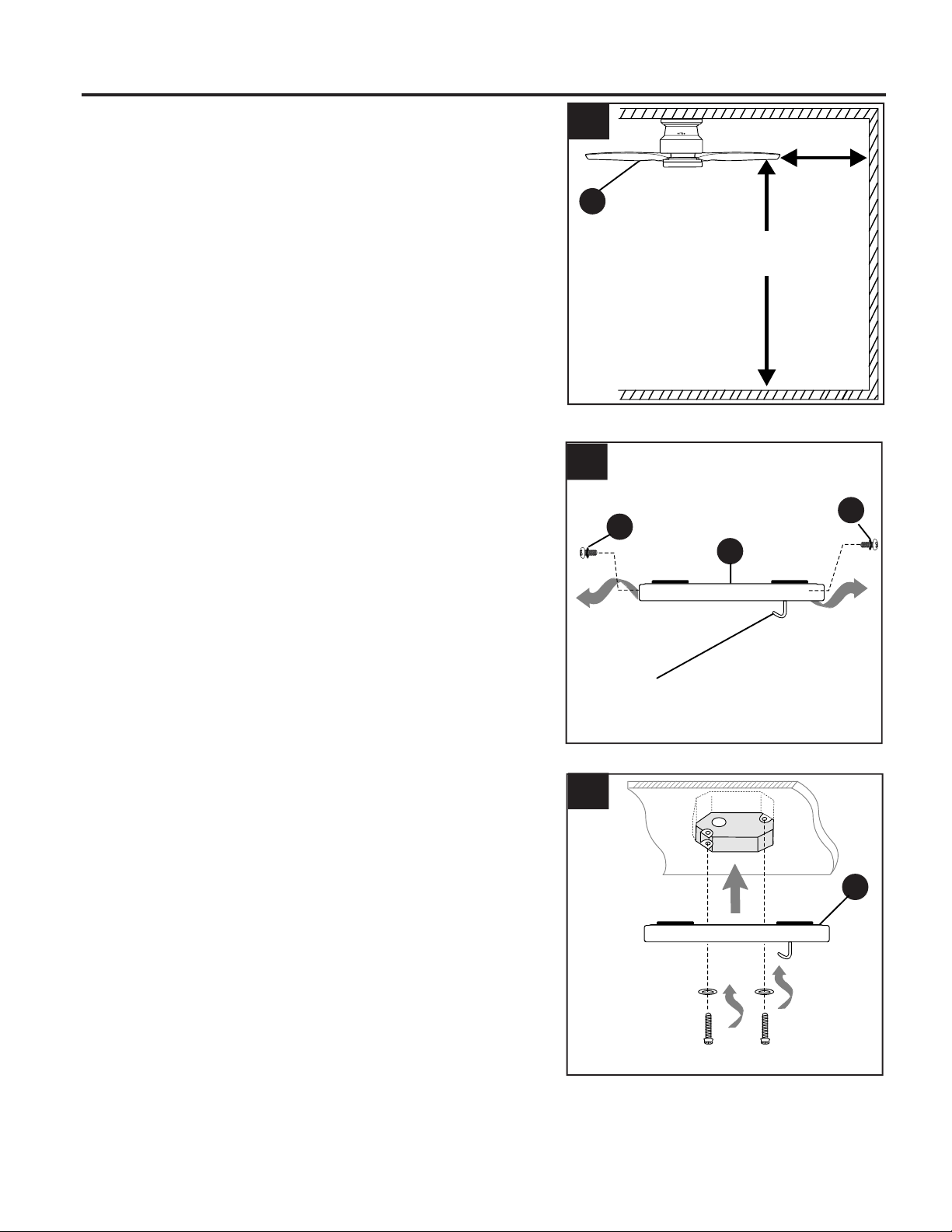

This fan can be mounted as a flushmount on a
regular (no-slope) ceiling only.
Check to make sure blades (I) will be at least
30 inches from any obstruction and at least 7 ft.
above the floor.
2.
Remove mounting plate screw/washer (B) on
outer edge of mounting plate (A) that is closest
to the J-hook. Remove mounting plate
screw/washer (B) on outer edge of mounting
plate (A) directly opposite the one was just
removed. Partially loosen the other two
mounting plate screw/washers (B). Save
mounting plate screw/washers (B) for later use.
3.
Secure mounting plate (A) to outlet box using
screws, spring washers, and flat washers provided
with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting plate (A) as
this will support the fan.
Pull electrical wiring from outlet box through center
hole in the mounting plate (A).
4.
3
J-Hook
A
B
B
A
4
2
7 ft.
min.
30 in.
min.
I
INITIAL INSTALLATION
7

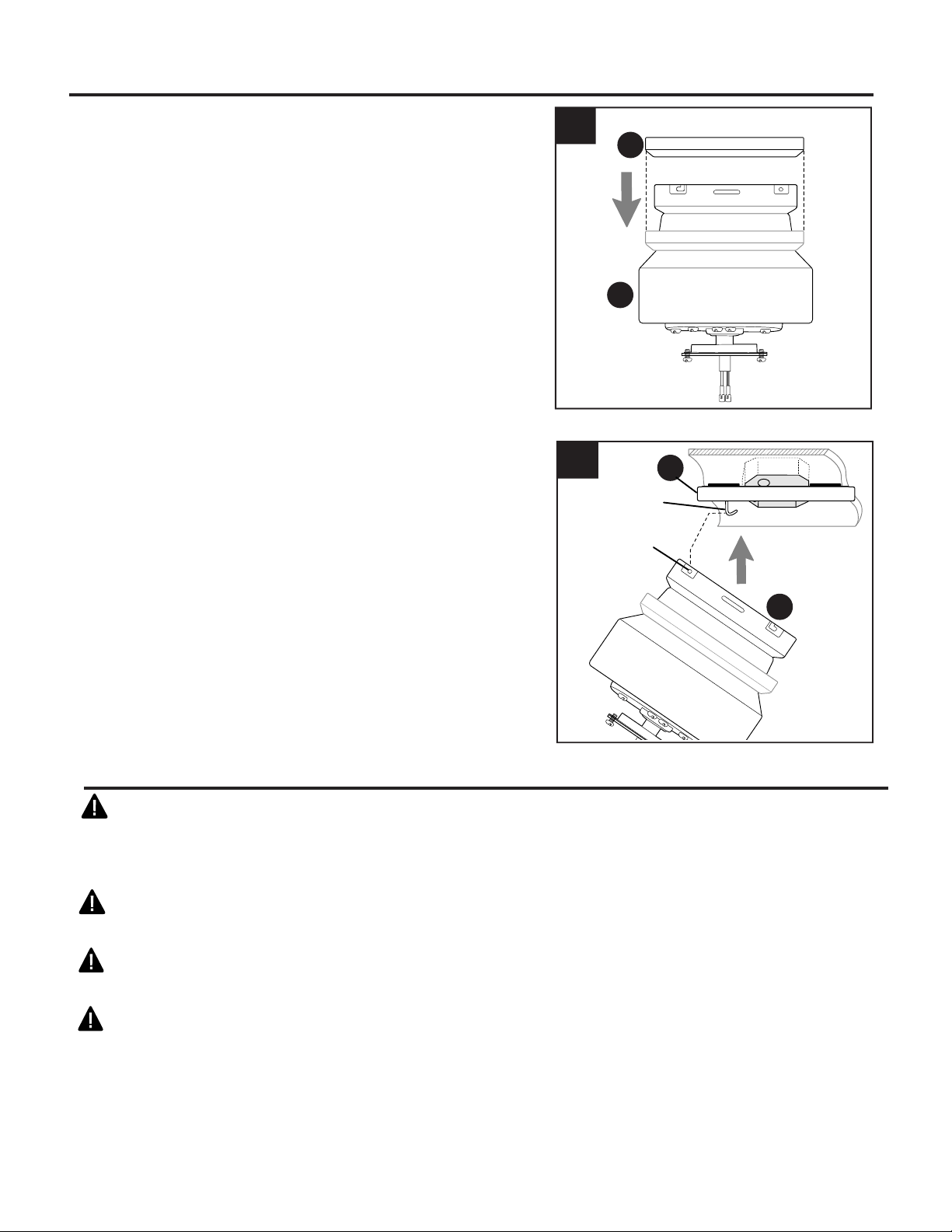

With wider opening facing up, place ring (C)
over top of motor housing (D). Allow ring (C)
to rest on top of motor, proceed to step 6.
5.
Lift motor housing (D) to mounting plate (A). Hang
motor housing (D) on J-hook on underside of
mounting plate (A). [IMPORTANT: Use one of the
non-slotted holes on the rim of the motor housing
to do so.]
This will allow motor housing (D) to hang out of the
way while wiring.
6.
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.
5
D
C
6
Non-slotted
Hole
J-Hook
D
A
8
WIRING
1.
Wire Connector x 3
Hardware Used
AA
Make the necessary wiring connections for
remote control operation as detailed below and
in the figure. For each wire connection, use one
of the wire connectors (AA), (L), making sure to
screw wire connector on in a clockwise
direction.
CAUTION: Assistance from another person is
recommended for this step.
Connect all GROUND (GREEN) wires together
from fan and mounting plate (A) to
BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from
remote control receiver (M) to BLACK supply
wire from ceiling.
Connect WHITE wire (labeled AC IN N) from
remote control receiver (M) to WHITE supply
wire from ceiling.
Connect WHITE wire (labeled TO MOTOR N)
from remote control receiver (M) to WHITE wire
from motor housing (D).
Connect BLACK wire (labeled TO MOTOR L)
from remote control receiver (M) to BLACK wire
from motor housing (D).
Connect BLUE wire (labeled FOR LIGHT) from
remote control receiver (M) to BLUE wire from
motor housing (D).
Wrap electrical tape around each individual wire
connector (AA), (L) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections.
Place green and white connections on opposite
side of box from the black and blue (if applicable)
connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors into outlet box.
2.
2
AA
AA
AA
M
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
9
1
Remove motor housing (D) from J-hook. Gently slide
remote control receiver (M) flat-side up into top of
motor housing (D), pushing wires, wire connectors
and antenna within.
NOTE: The remote control included with this fan
meets the following requirements:
a. Electrical rating: 120V / 60 Hz;
motor amps:1.00 MAX.
b. MAX light watts: 190W (incandescent, CFL
or LED bulbs.)
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
1.
FINAL INSTALLATION

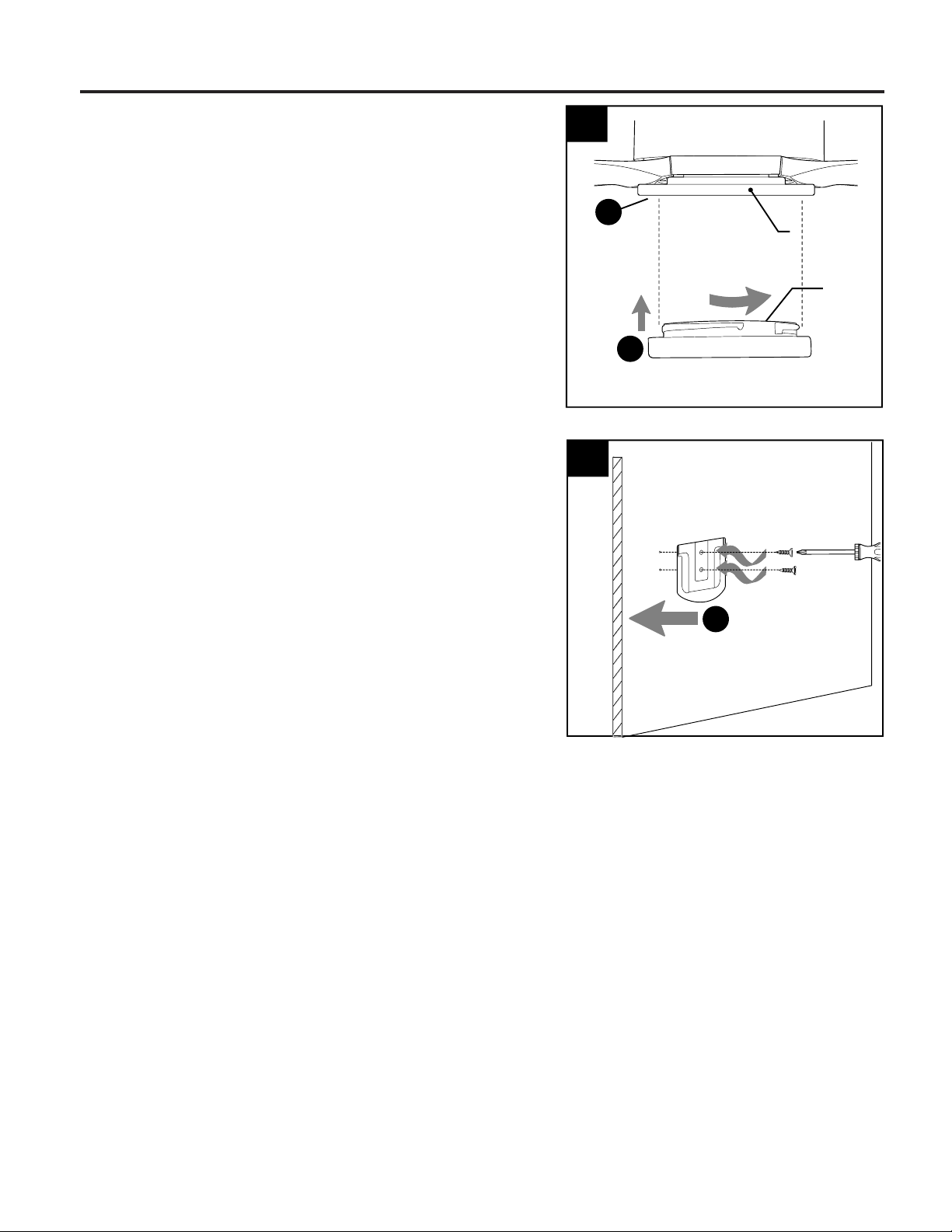

Raise ring (C) and align tabs on ring (C) with
grooves on motor housing (D) until you hear tabs
snap into grooves.
NOTE: Ring (C) should fit flush to ceiling when
done correctly.
Slide motor housing (D) over mounting plate (A),
aligning slotted holes in motor housing (D) with
loosened mounting plate screw/washers (B) in
mounting plate (A). Twist motor housing (D) to lock.
Re-insert the other two mounting plate
screws/washers (B) previously removed (Step 3,
page 6). Tighten all mounting plate screw/washers
(B) securely.
2.
3.
Tab
Grooves
Antenna
D
M
A
2
D
B
3
C
D
CAUTION: To reduce the risk of serious bodily injury,
DO NOT use power tools to assemble the blades (I). If
overtightened, blades (I) may crack and break.
Place one blade plate (J) under blade (I), aligning
holes. Then, insert one motor screw/washer (BB) into
one of the holes at the end of the blade (I), turning until
the motor screw/washer (BB) comes through the other
side of the blade (I). Repeat with the other motor
screw/washer (BB).
Align the protruding ends of the motor screw/washers
(BB) with the corresponding holes on the underside of
the motor housing (D). Tighten both motor screws/
washers (BB).
Repeat for the other two blades (I).
NOTE: Make sure all blades (I) are completely
secure before proceeding.
10
Hardware Used
Blade Screw/Washer
x 6
BB
4.
5.
Remove one motor plate screw (E) from motor
plate on underside of motor housing (D) and
partially loosen the other two motor plate screws
(E). Align slotted holes in fitter plate (F) with
loosened motor plate screws, allowing molex
connections from motor housing (D) to come
through hole in fitter plate (F). Twist fitter plate (F)
to lock. Re-insert the motor plate screw (E) that
was removed and securely tighten all three motor
plate screws (E).
5
FINAL INSTALLATION
4
I
D
J
BB
D
E
E
F
Molex
Connections
11
FINAL INSTALLATION
7.
Connect WHITE wire from LED light kit (G) to
WHITE wire from motor housing (D). Connect BLUE
wire from LED light kit (G) to BLUE or (BLACK) wire
from motor housing (D). Make sure molex
connections snap together securely.
8.
Carefully arrange wiring within the fitter plate (F) to
ensure wires do not get pinched when attaching the
LED light kit (G).
Align slotted holes in LED light kit (G) with loosened
fitter plate screws (K) on fitter plate (F).Twist light
LED light kit (G) to lock. Re-insert fitter plate screw
(K) previously removed and securely tighten all
fitter plate screws (K).
8
6.
Partially loosen two fitter plate screws (K) on the
underside of the fitter plate (F) and remove the
other fitter plate screw (K).
F
K
6
K
D
G
7
WHITE
BLUE (or BLACK)
WHITE
BLUE
D
F
K
G
12
FINAL INSTALLATION
10.
If you wish to use the remote control bracket from
remote pack (L), install screws from remote pack (L)
through bracket and into the desired installation site.
The remote control transmitter from remote pack (L)
rests inside the bracket.
9.
Align slots on shade (H) with protrusions on
underside of fitter plate (F). Turn shade (H)
clockwise until it no longer turns.
NOTE: Pull down gently on shade (H) to make sure
it is secured completely.
9
Slot
Protrusion
H
F
Wall
Bracket
Screws
10
Remote Control
Bracket
L
13
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans.
If this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Remove protective covering from battery in
remote pack (L) and discard protective covering.
Remove battery cover from back of remote
control transmitter in remote pack (L). Install
battery from remote pack (L) with positive (+) end
toward top of remote control transmitter.
Replace battery cover on remote control
transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
1.
(back
side)
1
Battery
Cover
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
Remote
Control
Transmitter
Battery
14
2.
Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the “0”
button on the remote control transmitter for 5 seconds
or until light on the fan blinks twice. Use the remote
control transmitter to test the light and fan functions to
confirm the learning process is complete.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
2
Remote Control Transmitter
OPERATING INSTRUCTIONS
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold
button down to increase or decrease lights. If you
press button in excess of 0.7 seconds, it
becomes a dimmer. The lights vary cyclically in
8 seconds. The light button has an auto resume
function, which keeps the light at the same
brightness as the last time it was turned off.
3.
3
Remote Control Transmitter
4
15
OPERATING INSTRUCTIONS
4a
4b
4c
4c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
4a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
4b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
4.
Use the fan reverse switch, located on the motor
housing (D), to optimize the fan for seasonal
performance. A ceiling fan will allow you to raise
your thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (I) come to a complete stop before manually
activating the reverse switch.
4
D
I
Reverse Switch
CARE AND MAINTENANCE
At least twice each year, check mounting plate screws (E) and then tighten all screws on the fan.
Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish. Clean
blades (I) with a lint-free cloth.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for the light kit for this fan is 18 watts; do not attempt to replace the LEDs.
16
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
1. Reverse switch not engaged.
2. Faulty wire connection.
1. Push switch firmly either left or
right.
2. Turn power off. Loosen motor
housing and check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Motor housing is loose.
4. Fan is new
.
1. Tighten all motor screw/washers (BB).
2. Replace blade (I).
3. Verify mounting plate screw/
washers (B) are secure according
to instructions on page 9.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive
wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
1. Tighten all motor screw/washers
(BB).
2. Switch one blade with a blade
from the opposite side.
3. Verify mounting plate (A) is
secure.
TROUBLESHOOTING
Fan operates but
light fails.
1. Check wires in outlet box and, if
necessary, re-wire according to
instructions on page 8.
2. Make sure wall switch to light is on.
3. Check that molex connections in
LED light kit are connected properly
according to instructions on page 11.
1. Wires in outlet box not wired
properly.
2. Wall switch to light is off.
3. Wires in LED light kit not wired
correctly.
17
LIMITED LIFETIME WARRANTY
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
Printed in China
PWLI2001
REPLACEMENT PARTS LIST
A Mounting Plate
C Ring
F Fitter Plate
H Shade
I Blade
DESCRIPTIONPART
PART #
1596996-A
1596996-C
1596996-F
1596996-H
1596996-I
H
A
F
C
I
For replacement parts, call our customer service department at 1-800-527-1292, 8:30 a.m. - 5 p.m.,
CST, Monday - Friday.
