BARNSTAPLE BAY
CEILING FAN
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0593742
0648637
0648638
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
1
Español p. 20
Lowes.com/harborbreeze
MODEL #RLG52NWZ5C3L
RLG52WW5C3L
RLG52BNK5C3L
AB1613
4007498
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 18.74 lbs.
Safety Information ................................................................................................................2
Package Contents ................................................................................................................4
Hardware Contents
...........................................................................................................................
5
Preparation
...........................................................................................................................
5
Initial Installation ...................................................................................................................
.
5
Downrod-Style Fan Mounting ..............................................................................................
.
7
Closemount-Style Fan Mounting ..........................................................................................9
Wiring ..................................................................................................................................
.
11
Final Installation .................................................................................................................
.
.
13
Operating Instructions ......................................................................................................
.
15
Care and Maintenance ........................................................................................................17
Troubleshooting...................................................................................................................17
Limited Lifetime Warranty ...................................................................................................19
Replacement Parts List ......................................................................................................
.
19
TABLE OF CONTENTS
2
Lowes.com/harborbreeze
SAFETY INFORMATION
SAFETY INFORMATION
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and
use mounting screws provided with the outlet box. Most outlet boxes commonly used
for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this fan
are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blade arms when
installing them, balancing the blades or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use ONLY parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before installation, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
WARNING
3
Lowes.com/harborbreeze
DANGER
CAUTION
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure they are secure.
D
B
F
M
J
I
IMPORTANT: You must use the parts provided
with this fan for proper installation and safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Lock Washer 2
(preassembled)
F Light Kit Fitter 1
G Blade 5
H Blade Arm 5
I Glass Shade 3
J Motor Screw 10
(preassembled) + 1 extra
DESCRIPTIONPART
QUANTITY
PACKAGE CONTENTS
4
Lowes.com/harborbreeze
P
DESCRIPTIONPART
QUANTITY
K Balancing Kit 1
L Pin (preassembled) 1
M Clip (preassembled) 1
N Bulb 3
O Canopy Mounting Screw 4
(preassembled)
P Switch Housing Screw 3
(preassembled)
H
G
A
L
N
K
C
O
E
5
PREPARATION
Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
AA
DD
Pull Chain
Extension
Qty. 2
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list.
If any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
CC
Wire
Connector
Qty. 4
CC
Blade
Screw
Qty. 15
+ 1 extra
Blade
Washer
Qty. 15
+ 1 extra
BB
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
INITIAL INSTALLATION
ON
OFF
ON
OFF
1
6

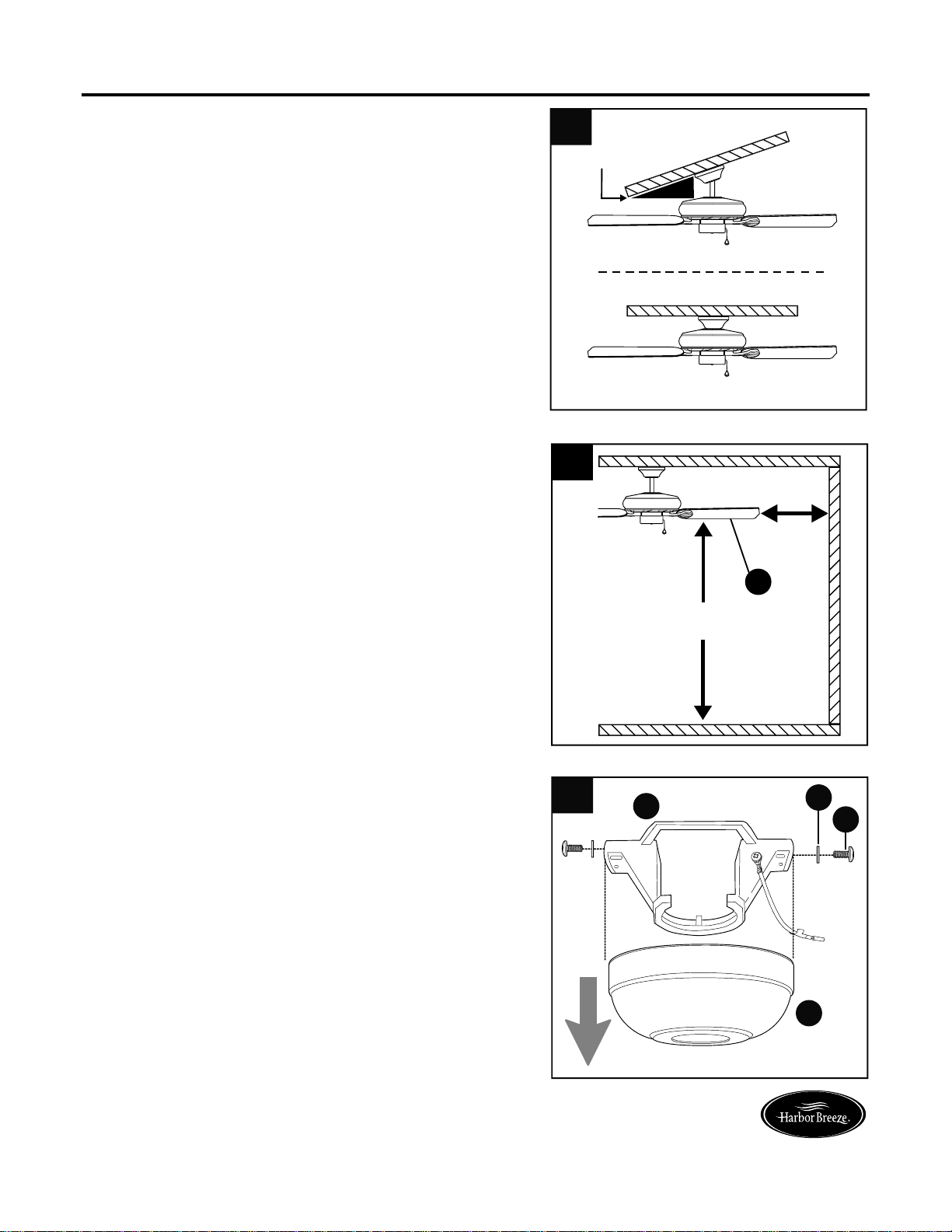

Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod (A)
length to ensure blades (G) will be at least 7 ft.
above the floor.
3.
INITIAL INSTALLATION
Lowes.com/harborbreeze
7 ft.
min.
30 in.
min.
3
G
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
A
B
2
19° max.
4a.
Loosen canopy mounting screws (O) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (C) and lock washers (E).
Save for later use.
Remove mounting bracket (C) from canopy (B).
4a
C
B
O
E
INITIAL INSTALLATION
7
Lowes.com/harborbreeze
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling, and ensure
the ceiling angle is not steeper than 19°.
5.
Remove preassembled motor screws (J) from
underside of motor housing (D). If there are plastic
motor blocks installed with the motor screws (J),
discard the plastic motor blocks.
Note: Make sure to keep loose hardware separate
to avoid confusion during installation.
For DOWNROD-STYLE FAN MOUNTING,
proceed to Step 1 below.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 9.
5
J
D
Open End
Plastic
Motor
Block
4
C
C
ANGLE MOUNTSTANDARD
MOUNT
1
M
D
L
A
Yoke
4b.
4b
DOWNROD-STYLE FAN MOUNTING
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and
nuts in motor housing yoke at top of motor
housing (D).
1.
Set Screw
& Nut
Side View
8
Lowes.com/harborbreeze
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball
on the downrod and measure 8 in. of lead wire,
and then cut the excess wire off with wire
cutters (not included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you
may proceed to Step 6 instead.
4.
2.
Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through
downrod (A).
3.
DOWNROD-STYLE FAN MOUNTING
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (L) and clip (M). Tighten
set screws in motor housing yoke and then
tighten preassembled nuts on the set screws.
Hanging
Ball
4
8 in.
3
A
D
L
M
Yoke
M
L
Set Screw
& Nut
Side View
2
B
A
6.
9
Lowes.com/harborbreeze
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
5.
5
DOWNROD-STYLE FAN MOUNTING
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Continue to WIRING on page 11.
CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom of
canopy (B). NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to remove
the canopy cover by tapping on the canopy cover
from the inside of the canopy (B).
NOTE: The downrod (A) and canopy cover are not
used in this type of installation.
1.
1
Canopy
Cover
B
Slot
Tab
C
A
6
10
Lowes.com/harborbreeze
CLOSEMOUNT-STYLE FAN MOUNTNG
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
Remove every other preassembled screw and lock
washer from top of motor housing (D).
Tab
C
4
2.
B
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
3
B
D
Screw
Washer
2
D
D
Screw
Washer
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge or there is more than one house wire to
connect to the corresponding fan lead wires, consult an electrician for the proper size wire
connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (GREEN or BARE)
wire is present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a
loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full
range dimmer switch to control fan speed.
WIRING
NOTE: This fan is remote control adaptable (remote control not included). Please refer to
instructions provided with the remote control before proceeding with these wiring instructions.
11
Lowes.com/harborbreeze
Choose wiring diagram (Fig. 1a, Fig. 1b or Fig. 1c)
that fits your situation and make appropriate wiring
connections as follows: [IMPORTANT: Use one of the
wire connectors (CC) provided to make each wire
connection, making sure to screw wire connector
(CC) on in a clockwise direction.]
1a. FAN AND LIGHT CONTROLLED BY PULL
CHAINS: Connect BLACK and BLUE wire from fan
to BLACK wire from ceiling. Connect WHITE wire
from fan to WHITE wire from ceiling. Connect
GROUND (GREEN) wires from downrod (A) and
mounting bracket (C) to BARE/GREEN wire from
ceiling.
1.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1a
FAN AND LIGHT CONTROLLED BY PULL CHAINS
120V POWER
FROM CEILING
GREEN
WHITE
BLACK
BLUE
BLACK (POWER)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
WIRING
1c. FAN AND LIGHT CONTROLLED BY TWO
WALL SWITCHES: Connect BLACK wire from fan
to BLACK (or RED) wire from the independent
wall switch for the fan. Connect BLUE wire from
fan to the BLACK (or RED) wire from the other
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect GROUND (GREEN) wires from downrod
(A) and mounting bracket (C) to BARE/GREEN
wire from ceiling.
NOTE: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit. WHITE wire is common for
fan and light kit. GREEN or BARE wire is ground.
12
Lowes.com/harborbreeze
Wrap electrical tape (not included) around each
individual wire connector (CC) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE wire connections on the
opposite side of the outlet box from the BLACK and
BLUE wire connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (CC) into outlet box.
2.
CC
Wire Connector x 4
Hardware Used
CC
CC
2
CC
1b. FAN CONTROLLED BY PULL CHAIN, LIGHT
BY WALL SWITCH: Connect BLACK wire from fan
to BLACK wire from ceiling. Connect BLUE wire
from fan to the BLACK (or RED) wire from the
independent wall switch for the light. Connect
WHITE wire from fan to WHITE wire from ceiling.
Connect GROUND (GREEN) wires from downrod
(A) and mounting bracket (C) to BARE/GREEN wire
from ceiling.
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES
1c
GREEN
WHITE
BLACK
120V POWER
FROM CEILING
BLACK (WALL SWITCH)
BLACK (WALL SWITCH FOR LIGHT)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
1b
WHITE
BLACK
BLUE
120V POWER
FROM CEILING
BLACK (POWER)
BLACK (WALL SWITCH)
WHITE (NEUTRAL)
GROUND/GREEN (BARE)
GREEN
BLUE
13
Lowes.com/harborbreeze
FINAL INSTALLATION
2.
2
Partially insert three blade screws (AA) along with
three blade washers (BB) into holes in blade (G) to
attach blade arm (H) to blade (G). Then, tighten
each blade screw (AA) starting with the one in the
middle.
Repeat Step 2 for remaining blades (G) and blade
arms (H).
Hardware Used
Blade Screw
x 15
AA
Blade Washer
x 15
BB
BB
AA
G
H
Attach blade arms (H) to the bottom of motor
housing (D) with motor screws (J) previously
removed (Step 5, page 7). Tighten motor screws
(J) securely.
Note: Make sure to completely secure each blade
arm (H) before proceeding to the next.
3.
3
D
J
G
H
J
1.
Lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws (O) in mounting bracket
(C). Twist canopy (B) clockwise to lock. Re-insert
the two previously removed canopy mounting
screws (O) and lock washers (E) (Step 4a, page 6)
and tighten all canopy mounting screws (O)
securely.
1
B
D
O
D
B
Downrod
Option
Closemount
Option
O
E
E
14
Lowes.com/harborbreeze
FINAL INSTALLATION
Remove the three preassembled switch housing
screws (P) from light kit fitter (F).
Locate the BLUE (or BLACK) and WHITE wires in
the switch housing preassembled on motor housing
(D) that are labeled FOR LIGHT and remove plastic
from these two wires.
4.
4
D
Switch
Housing
P
F
P
WHITE
BLUE (or BLACK)
5.
Connect WHITE wire from switch housing to WHITE
wire from light kit fitter (F). Connect BLUE (or
BLACK) wire from switch housing to BLACK wire
from light kit fitter (F). Make sure molex connections
are secure.
Align holes in light kit fitter (F) with holes in switch
housing. Note: Make sure to align notch on top edge
of the light kit fitter (F) with the reverse switch on
switch housing for the correct fit.
Re-insert the switch housing screws (P) previously
removed (Step 4 above), then tighten all switch
housing screws (P) with a Phillips screwdriver (not
included).
6
5
Molex
Connections
F
D
Switch
Housing
P
P
Align slots on glass shade (I) with protrusions on the
inside of the shade fitter preassembled on the light
kit fitter (F). Turn glass shade (I) to the right
(clockwise) until it no longer turns.
Repeat with remaining glass shades (I).
NOTE: Pull down gently on each glass shade (I) to
make sure all glass shades (I) are secured
completely.
6.
Shade Fitter
I
F
Notch
15
FINAL INSTALLATION
Lowes.com/harborbreeze
Install bulbs (N).
IMPORTANT: When you need to replace bulbs,
please allow the bulb(s) and glass shade(s) to cool
down before touching them.
7.
7
N
8.
Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to corresponding
fan and light pull chains.
8
DD
Pull Chain x 2
Extension
Hardware Used
DD
OPERATING INSTRUCTIONS
The fan pull chain, located on the switch housing of
motor housing (D), has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is
LOW and four turns the fan OFF.
1.
1
Switch
Housing
D
16
Lowes.com/harborbreeze

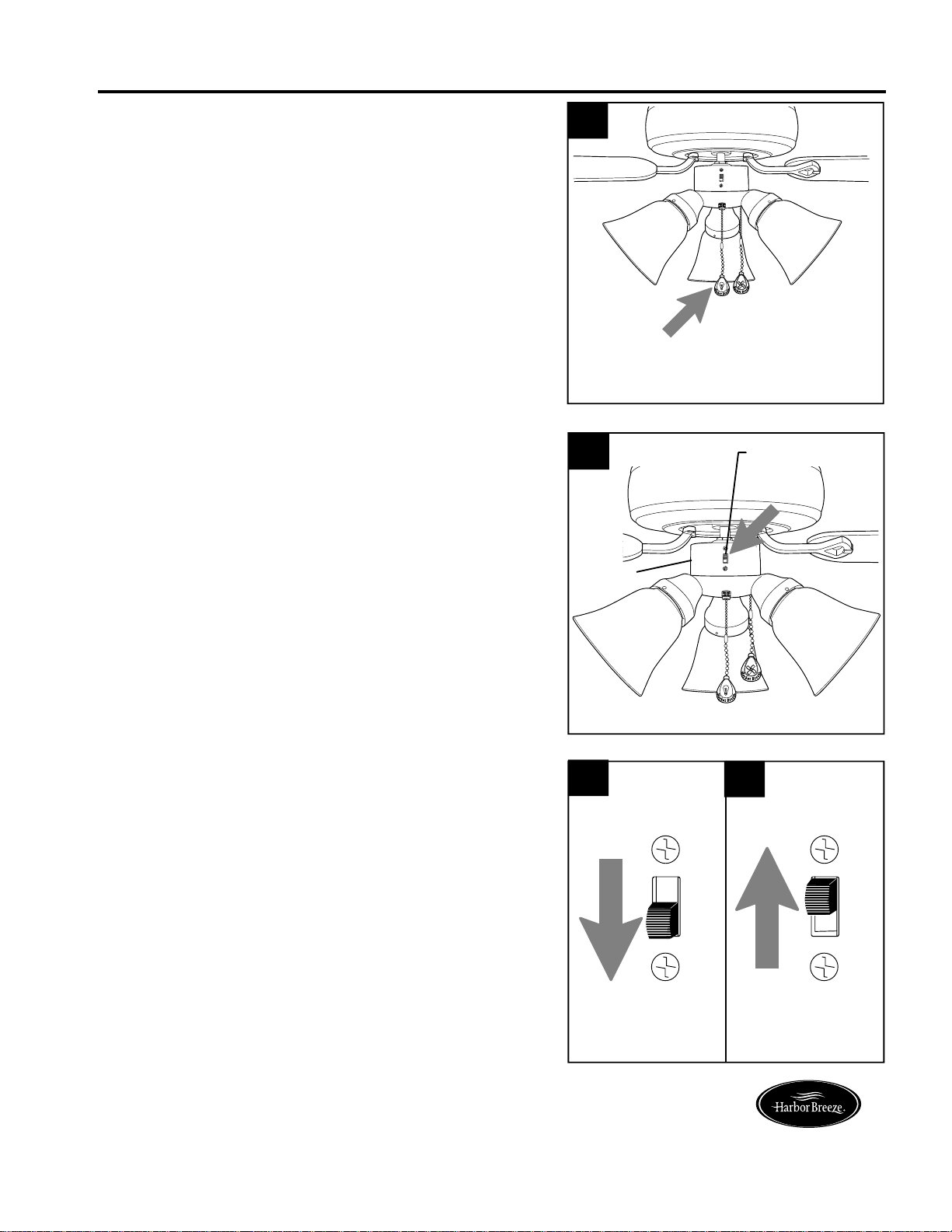

OPERATING INSTRUCTIONS
2.
The light pull chain, located in the middle, is used to
turn the lights ON or OFF.
2
3.
Use the fan reverse switch, located on the
switch housing, to optimize your fan for
seasonal performance. A ceiling fan will allow
you to raise your thermostat setting in summer
and lower your thermostat setting in winter
without feeling a difference in your comfort.
NOTE: Wait for fan to stop before moving the
reverse switch.
3
3A. In warmer weather, setting the reverse
switch in the DOWN position will result in
downward airflow creating a wind chill effect.
3B. In cooler weather, setting the reverse
switch in the UP position will result in upward
airflow that can help move stagnant, hot air off
the ceiling area.
3A
3B
Switch
Housing
Reverse Switch
Lowes.com/harborbreeze
17
OPERATING INSTRUCTIONS
3C. IMPORTANT: Reverse switch must be set
either completely UP or completely DOWN
for fan to function. If the reverse switch is set
in the middle position, fan will not operate.
3C
CARE AND MAINTENANCE
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching
the finish. Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture
polish to wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
Bulb Replacement: Use 60-watt max. candelabra-base incandescent bulbs, 13-watt candelabra-base
CFLs or 6-watt candelabra-base LEDs.
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Full range dimmer switch.
4. Fan is new.
1. Tighten all blade screws.
2. Replace blade.
3. Replace with an approved speed
control device.
4. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
TROUBLESHOOTING
Lowes.com/harborbreeze
18
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Excessive
wobbling.
1. Blades are loose.
2. Blade arms incorrectly attached.
3. Unbalanced blades.
4. Fan not securely mounted.
5. Fan too close to vaulted ceiling.
6. Set screw(s) on motor housing yoke
is (are) not tightened properly.
7. Set screw on hanging ball is not
tightened properly.
1. Tighten all blade screws.
2. Re-install blade arms.
3. Switch one blade with a blade
from the opposite side or use
balancing kit (K).
4. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
5. Use a longer downrod or move
fan to another location.
6. Tighten yoke set screw(s)
securely.
7. Carefully loosen and lower
canopy and verify that set screw
on hanging ball is tightened
securely.
TROUBLESHOOTING
Fan operates but
lights fail.
1. Bulb(s) not installed correctly.
2. Wires in canopy not wired properly.
3. Wall switch to light is off.
4. Wires in light kit fitter not wired
correctly.
5. Light kit is lamped with more than
the allowable 190W, causing the
wattage limiting device to interrupt
the flow of electricity to the light kit.
1. Re-install bulb(s).
2. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 11 - 12.
3. Make sure that wall switch to light
is on.
4. Check that molex connections in
light kit fitter are connected
properly according to instructions
on page 14.
5. Lamp light kit with bulbs that total
no more than 190W.
Lowes.com/harborbreeze
19
LIMITED LIFETIME WARRANTY
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-643-0067) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
KHLI1608
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
A
Downrod
B
Canopy
C
Mounting Bracket
F Light Kit Fitter
G
Blade
H
Blade Arm
0648638-A
0648638-B1
0648638-C1
0648638-F
0648638-G
0648638-H
0593742-A
0593742-B1
0593742-C1
0593742-F
0593742-G
0593742-H
0648637-A
0648637-B1
0648637-C1
0648637-F
0648637-G
0648637-H
PART DESCRIPTION
#0593742 #0648637 #0648638
PART # PART # PART #
A
B
C
H
F
G
Printed in China
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
