FAIRWIND CEILING FAN
ITEM #1145467
1145466
MODEL #FW60BNK3LRS
FW60LW3LRS
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-527-1292, 8:30 a.m. - 5 p.m., CST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
1
Español p. 19
APPROVED FOR USE IN
DAMP LOCATIONS
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage that
might exceed the initial cause for return.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 20.28 lbs.
Safety Information ................................................................................................................2
Package Contents ................................................................................................................4
Hardware Contents
.........................................................................................................................
.
.
5
Preparation
...........................................................................................................................
5
Initial Installation ..................................................................................................................
.
.6
Wiring ....................................................................................................................................9
Final Installation .................................................................................................................
.
.
11
Operating Instructions .....................................................................................................
.
.14
Care and Maintenance ......................................................................................................
.
.16
Troubleshooting...................................................................................................................17
Limited Lifetime Warranty ..................................................................................................
.
.18
Replacement Parts List .......................................................................................................18
TABLE OF CONTENTS
2
SAFETY INFORMATION
DANGER
When using an existing outlet box, make sure the outlet box is securely attached to the building
structure and can support the full weight of the fan. Failure to do this can result in serious injury or
death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after
installation is complete.
To reduce the risk of serious bodily injury, DO NOT use power tools to assemble any part of the
fan, including the blades.
SAFETY INFORMATION
3
WARNING
To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box; do NOT use a
plastic outlet box. Secure the outlet box directly to the building structure. The outlet box and its
support must be able to support the moving weight of the fan (at least 35 lbs.).
To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp
edges.
To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed control
device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock or personal injury, do not bend the blades when
installing or balancing them, or cleaning the fan. Do not insert objects between the rotating fan
blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to
avoid electrical shock.
WARNING
Be sure outlet box is properly grounded and that a ground wire (green or bare) is present.
Before beginning installation, carefully check all screws, bolts and nuts on fan motor assembly to
ensure that they are secured.
Do NOT tamper with or attempt to repair LED component. The light source is designed for this
specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
CAUTION
A
D
B
F
C
M
L
K
J
I

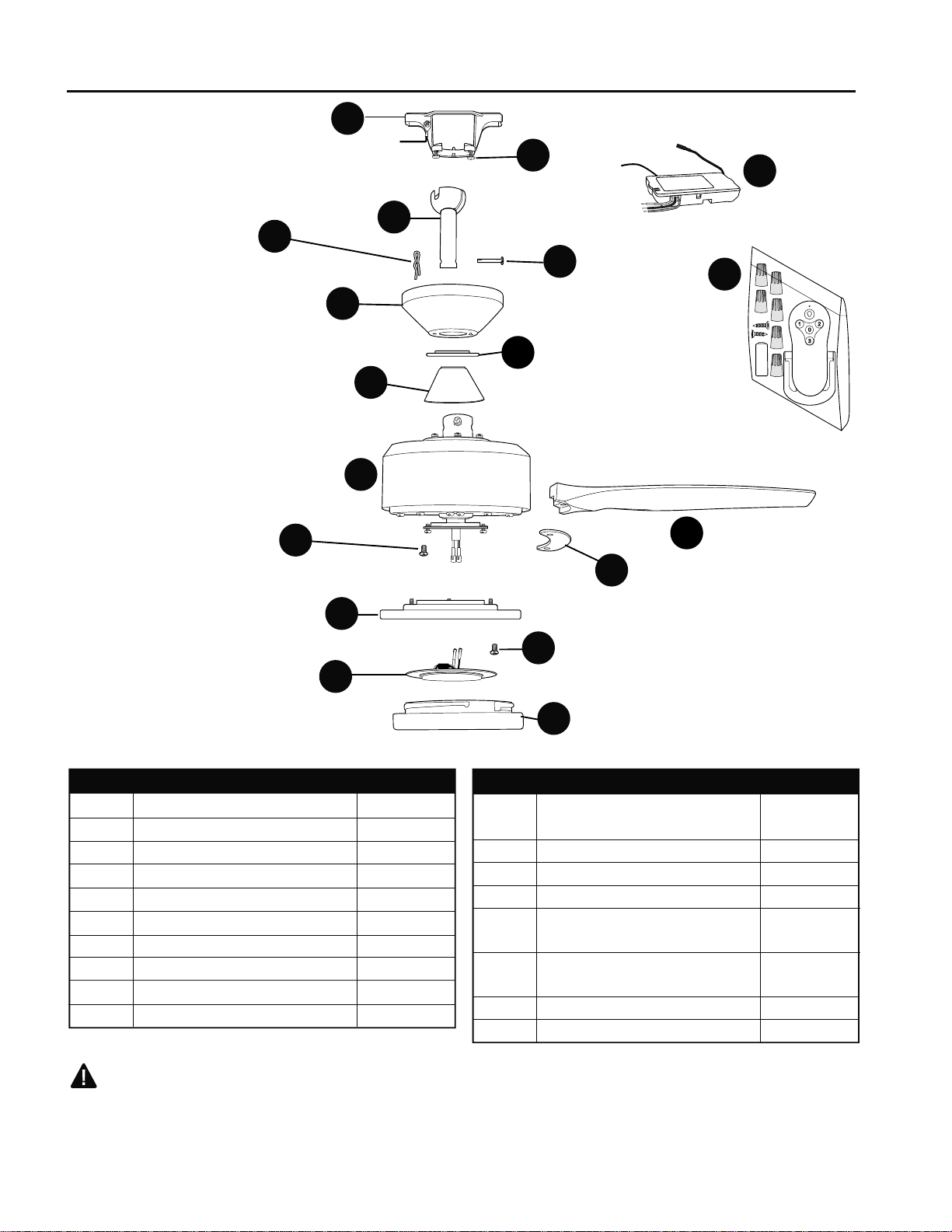

IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Housing 1
E Yoke Cover 1
F Light Kit Fitter 1
G Blade 3
H Canopy Cover 1
I Glass Shade 1
J Blade Plate 3
DESCRIPTIONPART
QUANTITY
PACKAGE CONTENTS
4
E
N
O
DESCRIPTIONPART
QUANTITY
K Canopy Mounting Screw 2
(preassembled)
L Pin (preassembled) 1
M Clip (preassembled) 1
N Fitter Plate 1
O Motor Plate Screw 3
(preassembled)
P Fitter Plate Screw 3
(preassembled)
Q Remote Pack 1
R Remote Control Receiver 1
H
G
P
R
Q
5
PREPARATION
HARDWARE CONTENTS (shown actual size)
Before beginning assembly of product, make sure all parts are present. Place motor on carpet or on
foam to avoid damage to finish. Compare parts with package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to install, operate or assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and Wire
Cutters
Wire
Connector
Qty. 9
AA
Motor
Screw/Washer
Qty. 7
BB
6

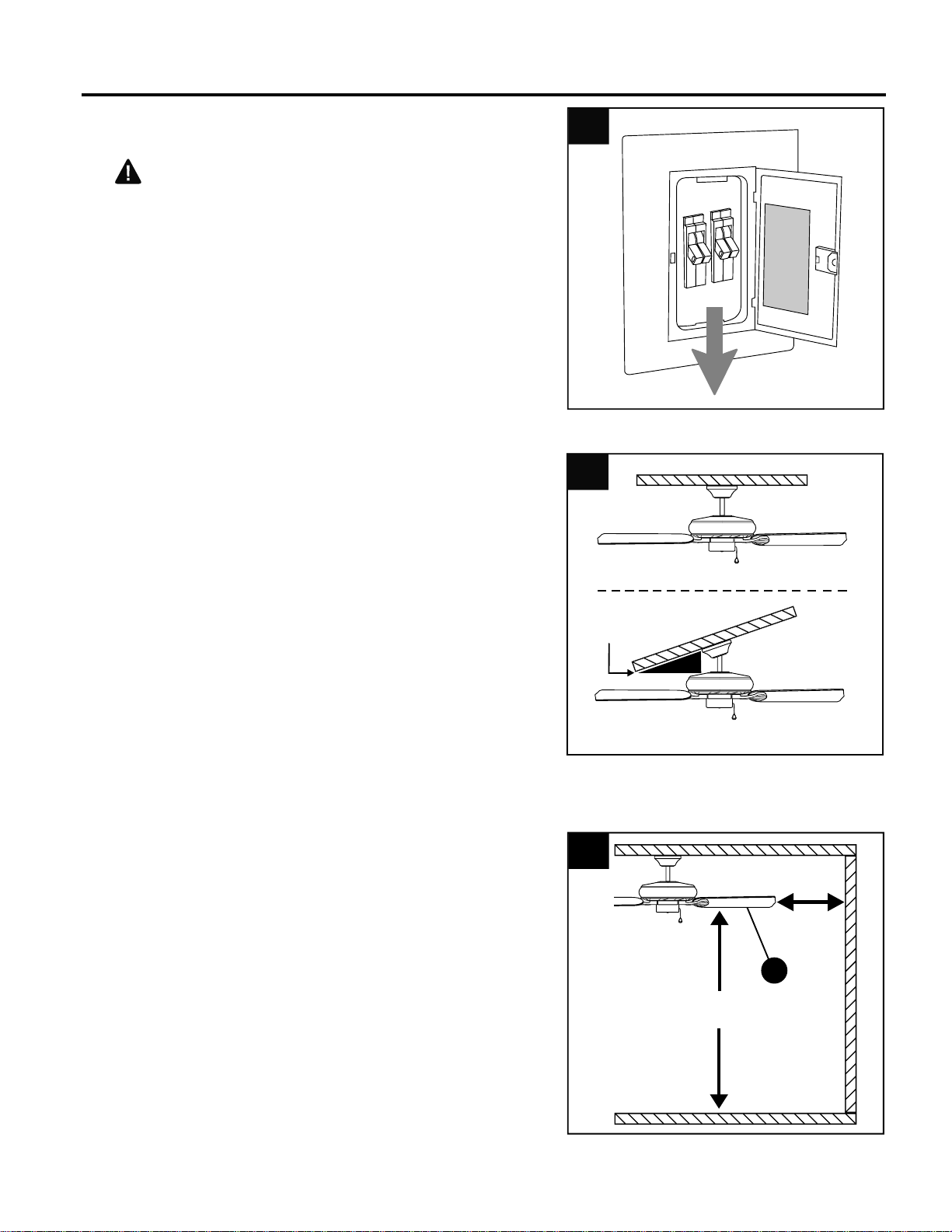

Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod
(A) length to ensure blades (G) will be at least 7 ft.
above the floor.
3.
INITIAL INSTALLATION
2.
Determine mounting method to use.
A. Standard mount
B. Angle mount
Note: Flushmount and closemount options are not
available for this fan.
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. high or higher. For taller
ceilings you may want to use a longer downrod
(not included). Angle-style mounting is best suited
for angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
2
B
A
7 ft.
min.
30 in.
min.
3
G
19° max.
Turn off circuit breakers or fuse and wall switch to
the fan supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
ON
OFF
ON
OFF
1
INITIAL INSTALLATION
7

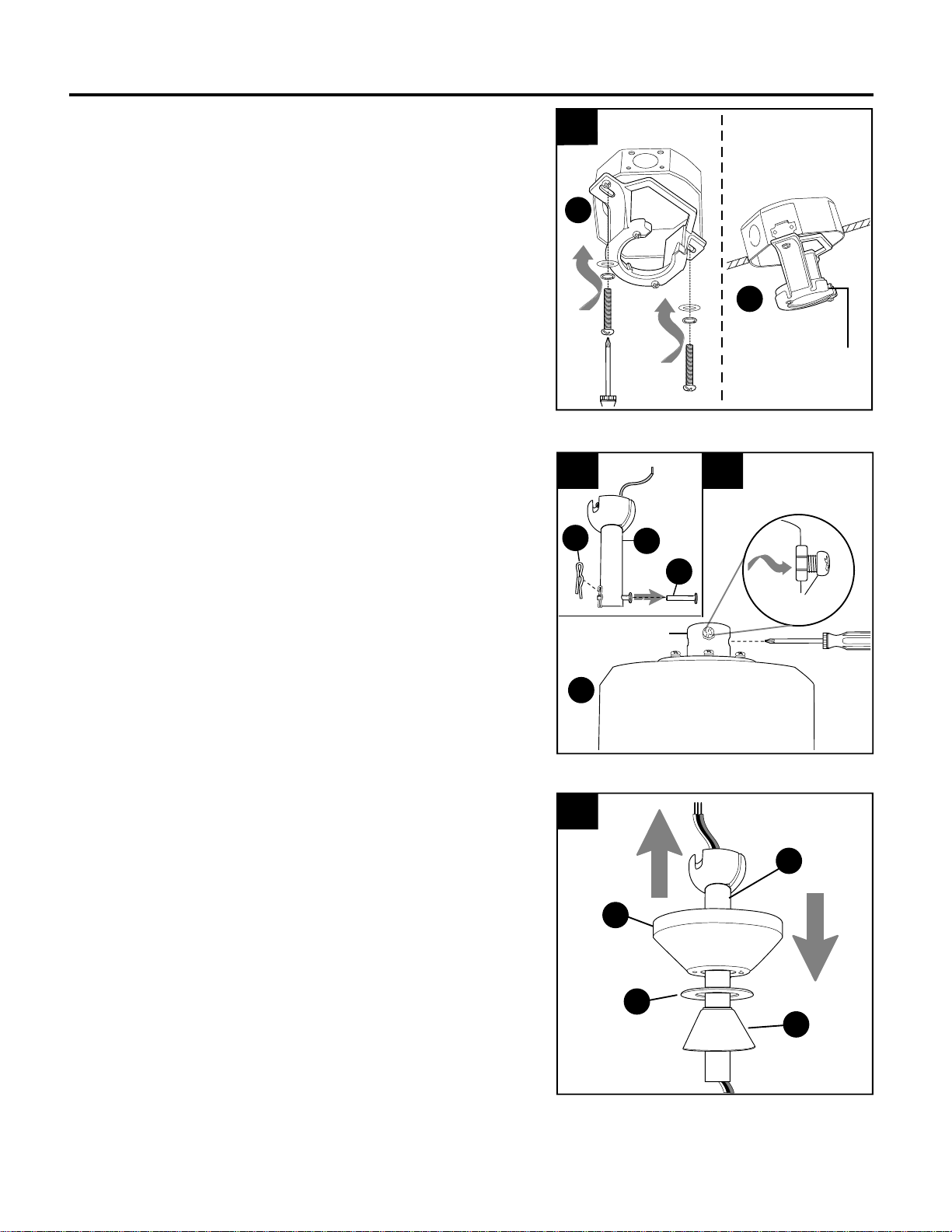

Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws and nuts
in yoke at top of motor housing (D).
5.
5A
M
L
5B
A
Set Screw
Sideview
D
Yoke
6.
Insert downrod (A) through canopy (B), canopy
cover (H) and yoke cover (E). NOTE: Canopy
cover (H) must be turned with the shiny side
toward the motor housing (D).
Then, thread wires from motor housing (D)
through downrod (A).
6
B
E
A
H
4.
Open End
4
C
C
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (C)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (C) is installed facing
the higher point of the ceiling, and ensure the
ceiling angle is not steeper than 19°.
8
INITIAL INSTALLATION

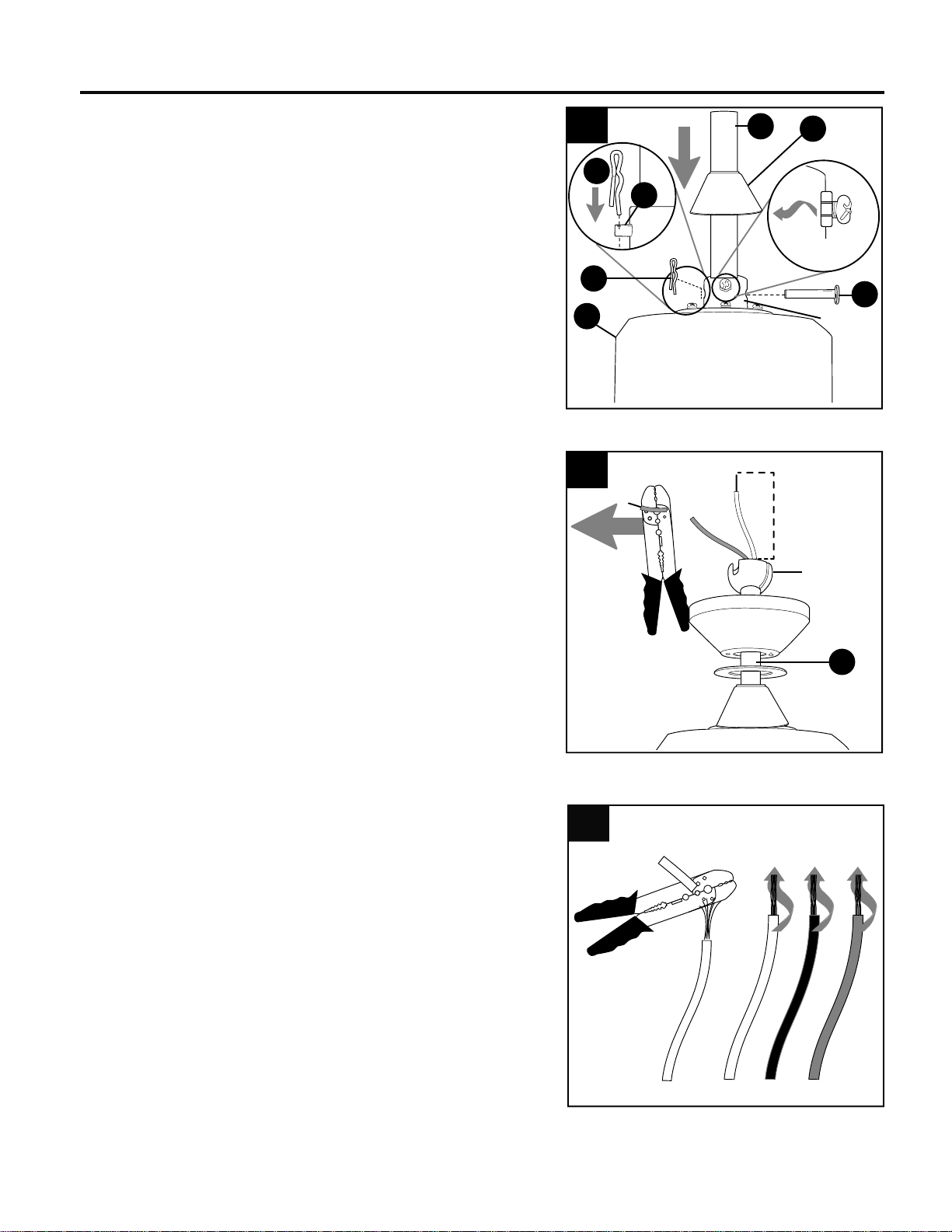

Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify
the wiring. If you decide to cut back the lead
wires, it is suggested you do so in the following
manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the hanging ball
on the downrod (A) and measure 8 in. of lead
wire, then cut the excess wire off with wire cutters
(not included).
NOTE: If you do not cut back the lead wires,
Steps 8 and 9 are not necessary and you may
proceed to Step 10 instead.
8.
7.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (L) and clip (M). Tighten
set screws in motor housing yoke and then tighten
preassembled nuts on the set screws. Then, slide
yoke cover (E) down until it rests on top of motor
housing (D).
Hanging
Ball
8
A
8 in.
7
A
D
E
L
M
Yoke
M
L
Set Screw
and Nut
Sideview
If you decided to cut back the lead wires in Step 8,
strip 1/2 in. of insulation from end of each
wire -- white, black, green and blue (if applicable).
Twist stripped ends of each strand of wire within
the insulation with pliers (not included).
9.
9
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
10.
9
INITIAL INSTALLATION
WIRING
WARNING: To reduce the risk of fire, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure outlet box is properly grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than referred to in the following steps, stop
immediately. A professional electrician is recommended to determine wiring.
WARNING: Using a full range dimmer switch (not included) to control fan speed will cause a loud
humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer
switch to control fan speed.

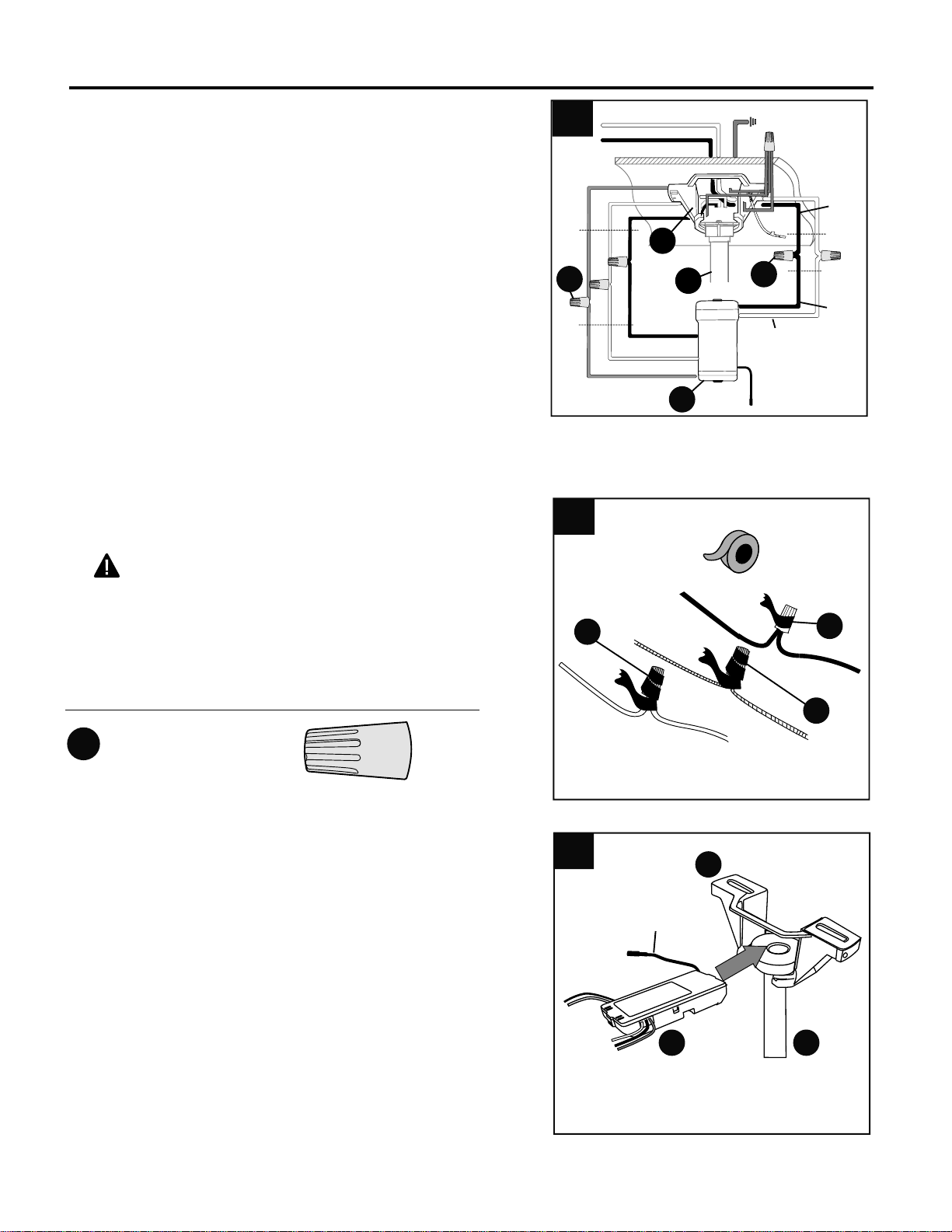

1.
Make the necessary wiring connections for remote
control operation as detailed on the following page
and in Figure 1. For each wire connection, use one
of the wire connectors (AA), making sure to screw
wire connector (AA) on in a clockwise direction.
CAUTION: Assistance from another person is
recommended for this step.
Hardware Used
Wire Connector
x 6
AA
Slot
10
A
C
Tab
10
WIRING
Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
GREEN and WHITE connections on opposite side of
the outlet box from the BLACK and BLUE (if
applicable) connections.
2.
2
Hardware Used
Wire Connector
x 3
AA
AA
AA
AA
3
Gently slide remote control receiver (R) flat-side up
into mounting bracket (C). Turn spliced/taped wires
upward and gently push wires and wire connectors
(CC) into outlet box. Let antenna from remote control
receiver (R) hang to the side.
NOTE: The remote control included with this fan meets
the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.25 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements.
3.
Antenna
A
R
C
(1.)
Connect all GROUND (GREEN) wires from fan (on
downrod (A), if applicable, and mounting bracket (C)) to
BARE/GREEN supply wire from ceiling.
Connect BLACK wire (labeled AC IN L) from remote
control receiver (R) to BLACK supply wire from ceiling.
Connect WHITE wire (labeled AC IN N) from remote
control receiver (R) to WHITE supply wire from ceiling.
Connect WHITE wire (labeled TO MOTOR N) from
remote control receiver (R) to WHITE wire from motor
housing (D).
Connect BLACK wire (labeled TO MOTOR L) from
remote control receiver (R) to BLACK wire from motor
housing (D).
Connect BLUE wire (labeled FOR LIGHT) from remote
control receiver (O) to BLUE wire from motor housing
(D).
R
1
WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
WHITE
AC IN N
WHITE
GROUND (GREEN OR BARE)
GROUND
(GREEN OR BARE)
BLACK
FROM
RECEIVER
FROM
FAN
FROM
RECEIVER
FROM
CEILING
AA
AA
A
C
DANGER: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades (G). If overtightened, blades (G) may crack
and break.
Place one blade plate (J) under blade (G), aligning
holes. Then, insert one motor screw/washer (BB)
into one of the holes at the end of the blade (G),
turning until the motor screw (BB) comes through
the other side of the blade (G). Repeat with the
other motor screw/washer (BB).
Align the protruding ends of the motor
screws/washers (BB) with the corresponding holes
on the underside of the motor housing (D). Tighten
both motor screws/washers (BB).
Repeat Step 2 for the other two blades (G).
DANGER: To reduce the risk of personal
injury, make sure all blades (G) are completely
secure before proceeding.
11
FINAL INSTALLATION
2.
2
G
J
D
BB
Hardware Used
Blade Screw/Washer
x 6
BB

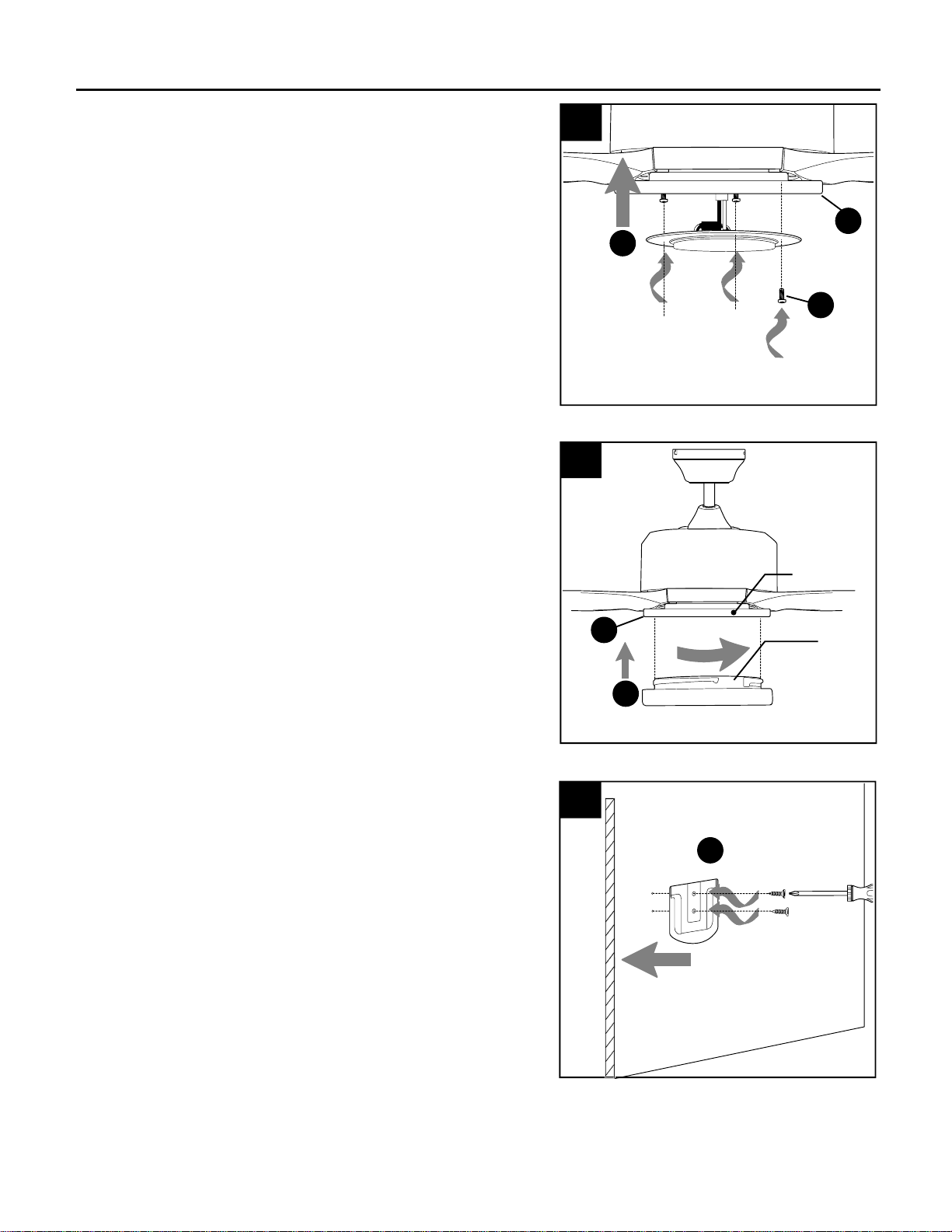

Locate two canopy mounting screws (K) on
underside of mounting bracket (C) and remove
canopy mounting screw (K) closest to the open end
of the mounting bracket (C). Partially loosen the
other canopy mounting screw (K). Lift canopy (B) to
mounting bracket (C). Place rounded part of slotted
hole in canopy (B) over loosened canopy mounting
screw (K) and push up. Twist canopy (B) to lock.
Re-insert canopy mounting screw (K) that was
removed, then tighten both canopy mounting
screws (K).
Use arrows on inside of canopy cover (H) to locate
knobs on center ring of canopy cover (H). Slide
canopy cover (H) up to canopy (B), aligning knobs
on canopy cover (H) with openings in bottom of
canopy (B). Press up gently but firmly on canopy
cover (H) until you hear it snap onto the bottom of
the canopy (B) and then turn canopy cover (H)
clockwise about 1/2 in.
1.
1
K
B
Knobs
H
12
FINAL INSTALLATION
5.

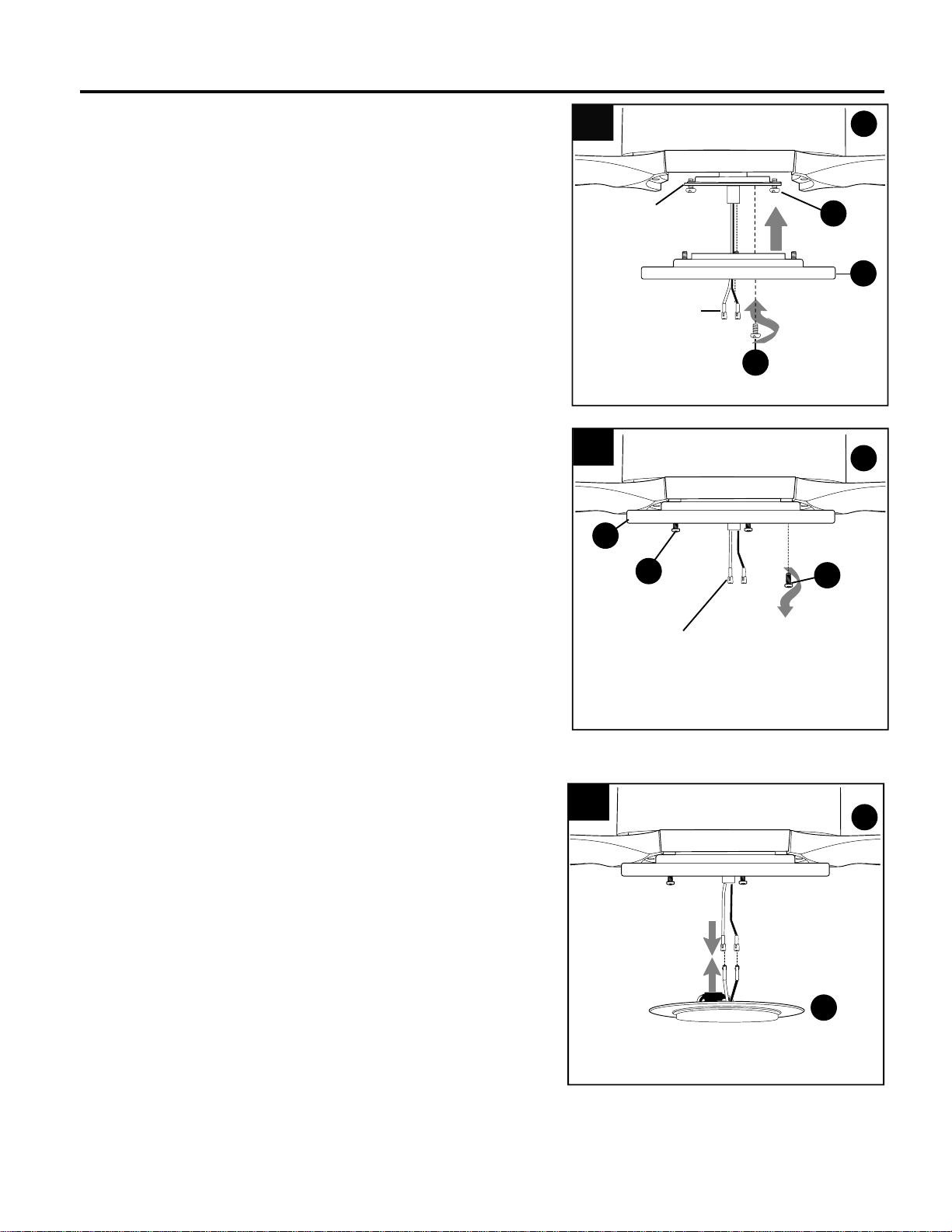

Connect WHITE wire from light kit fitter (F) to
WHITE wire from motor housing (D). Connect
BLACK wire from light kit fitter (F) to BLUE or
(BLACK) wire from motor housing (D). Make sure
molex connections snap together securely.
F
5
WHITE
BLUE (or BLACK)
WHITE
BLACK
D
3.
Partially loosen two motor plate screws (O) in motor
plate on underside of motor housing (D) and
remove the other motor plate screw (O). Align
slotted holes in fitter plate (N) with loosened motor
plate screws (O), allowing molex connections from
motor housing (D) to come through hole in fitter
plate (N). Twist fitter plate (N) to lock. Re-insert the
motor plate screw (O) that was removed and
securely tighten all three motor plate screws (O).
Motor
Plate
Molex
Connections
4.
Partially loosen two fitter plate screws (P) on the
underside of the fitter plate (N) and remove the
other fitter plate screw (P). Locate molex conections
from motor housing (D) and remove plastic that
holds these wires together.
N
P
4
Molex
Connections
P
D
3
I
N
I
O
D
I
O
13
FINAL INSTALLATION
8
Remote Control
Bracket
Wall
8.
If you wish to use the remote control bracket from
remote pack (Q), install screws from remote pack
(Q) through bracket and into the desired installation
site. The remote control transmitter from remote
pack (Q) rests inside the bracket.
Bracket
Screws
Q
6.
Carefully arrange wiring within the fitter plate (N) to
ensure wires do not get pinched when attaching the
light kit fitter (F).
Align slotted holes in light kit fitter (F) with loosened
fitter plate screws (P) on fitter plate (N). Twist light
kit fitter (F) to lock in place. Re-insert the previously
removed fitter plate screw (P) and securely tighten
all fitter plate screws (P).
N
P
6
7.
Align slots on glass shade (I) with protrusions on
underside of fitter plate (N). Turn glass shade (I)
clockwise until it no longer turns.
NOTE: Pull down gently on the glass shade (I) to
make sure it is secured completely.
7
Slot
Protrusion
I
N
F
14
CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other programmable receiver or fan.
OPERATING INSTRUCTIONS
FCC Compliance Notice for Remote Control
Modifications not approved by the party responsible for compliance could void the user's authority
to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Remove protective covering from battery in
remote pack (Q) and discard protective covering.
Remove battery cover from back of remote
control transmitter in remote pack (Q). Install
battery from remote pack (Q) with positive (+)
end toward top of remote control transmitter.
Replace battery cover on remote control
transmitter.
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
1.
(back
side)
1
Battery
Cover
Q
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR
LEAK.” - When disposing of household alkaline batteries, it is best to check with your local and
state recycling or household hazardous waste coordinators concerning the specifics of the
program in your area. You may also locate a recycling center by calling 1-800-8-BATTERY or
1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
Remote
Control
Transmitter
Battery
15
2.

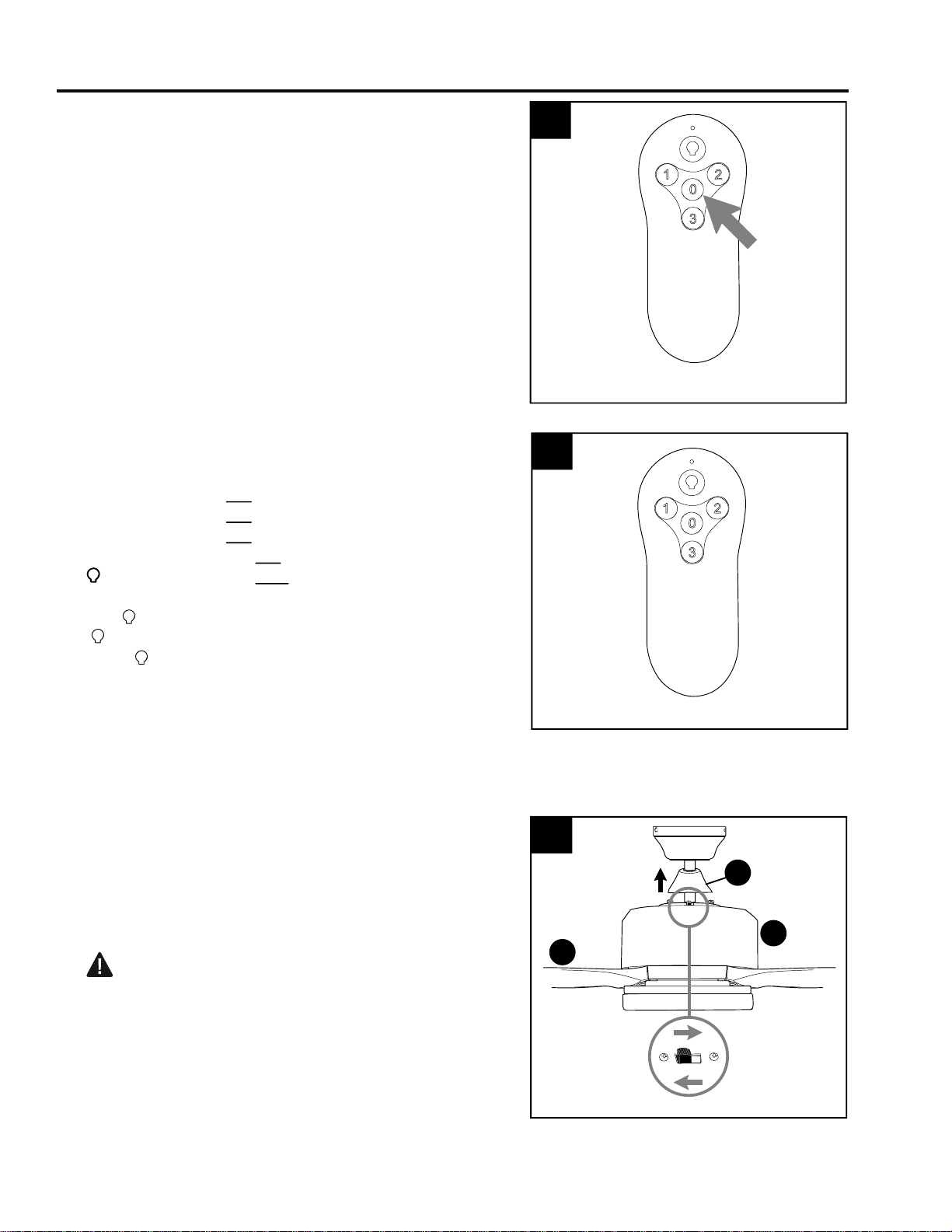

Restore electrical power. Within 30 seconds of
restoring electrical power, press and hold the “0”
button on the remote control transmitter for 5 seconds
or until light on the fan blinks twice. Use the remote
control transmitter to test the light and fan functions to
confirm the learning process is complete.
NOTE: Remove protective covering from front of
remote control transmitter and discard.
IMPORTANT: To prevent damage to remote control
transmitter, remove the battery if not used for long
periods. Store the remote control transmitter away
from excess heat or humidity.
Remote Control Transmitter
OPERATING INSTRUCTIONS
Operation buttons on the panel of the remote control
transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap
button quickly to turn lights off or on. Hold the
button down to increase or decrease lights. If you
press
button in excess of 0.7 seconds, it becomes
a dimmer. The light varies cyclically in 8 seconds.
The light button has an auto resume function, which
keeps the light at the same brightness as the last
time it was turned off.
3.
3
Remote Control Transmitter
4.
Use the fan reverse switch, located on the top of the
motor housing (D) (under the yoke cover (E)), to
optimize the fan for seasonal performance. A ceiling
fan will allow you to raise your thermostat setting in
summer and lower your thermostat setting in winter
without feeling a difference in your comfort.
CAUTION: Turn fan off at wall switch and let
blades (G) come to a complete stop before manually
activating the reverse switch.
4
Reverse Switch
D
E
G
2
16
CARE AND MAINTENANCE
OPERATING INSTRUCTIONS
4a
4b
4c
4c. IMPORTANT: Reverse switch must be set
either completely LEFT or completely RIGHT for
fan to function. If the reverse switch is set in the
middle position, fan will not operate.
4a. In warmer weather, setting the reverse switch
in the LEFT position will result in downward airflow
creating a wind chill effect.
4b. In cooler weather, setting the reverse switch
in the RIGHT position will result in upward airflow
that can help move stagnant, hot air off the ceiling
area.
At least twice each year, lower canopy (B) to check downrod (A) assembly and tighten all screws on
fan. Clean motor housing (D) with only a soft brush or lint-free cloth to avoid scratching the finish.
Clean blades (G) with a lint-free cloth. You may occasionally apply a light coat of furniture polish to
wood blades for added protection.
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
• Total wattage for this fan is 18 watts; do not attempt to replace the LEDs.
17
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move.
1. Reverse switch not engaged.
2. Power is off or fuse is blown.
3. Faulty wire connection.
4. Wires in light kit fitter not wired
correctly.
1. Push switch firmly either up or
down.
2. Turn power on or check fuse.
3. Turn power off. Loosen canopy
and check all connections.
4. Check that molex connections in
light kit fitter are connected
properly according to instructions
on page 12.
Noisy operation.
1. Blades are loose.
2. Cracked blade.
3. Fan is new.
1. Tighten all motor screws/washers.
2. Replace blade.
3. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive
wobbling.
1. Blades are loose.
2. Unbalanced blades.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
5. Set screw(s) on motor housing yoke
is (are) not tightened properly.
6. Set screw on hanging ball is not
tightened properly.
1. Tighten all motor screws/washers.
2. Switch one blade with a blade
from the opposite side.
3. Turn power off. Carefully loosen
canopy and verify that mounting
bracket is secure.
4. Use a longer downrod or move fan
to another location.
5. Tighten yoke set screw(s)
securely.
6. Carefully loosen and lower canopy
and verify that set screw on
hanging ball is tightened securely.
TROUBLESHOOTING
Fan operates but
lights fail (if
applicable).
1. Wires in canopy not wired properly.
2. Wall switch to fan is off.
3. Wires from light kit fitter not wired
correctly.
1. Check wires in canopy and, if
necessary, re-wire according to
instructions on pages 9 and 10.
2. Make sure wall switch to fan is on.
3. Check wires on light kit fitter and,
if necessary, re-wire according to
instructions on page 12.
LIMITED LIFETIME WARRANTY
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during
the limited lifetime warranty. Any service performed by an unauthorized person will render the
warranty invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292) for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
Printed in China
KHLI1806
18
