User Manual Harbor Breeze FW60AGV3LR Fairwind 60-in Gray LED Indoor/Outdoor Residential Ceiling Fan

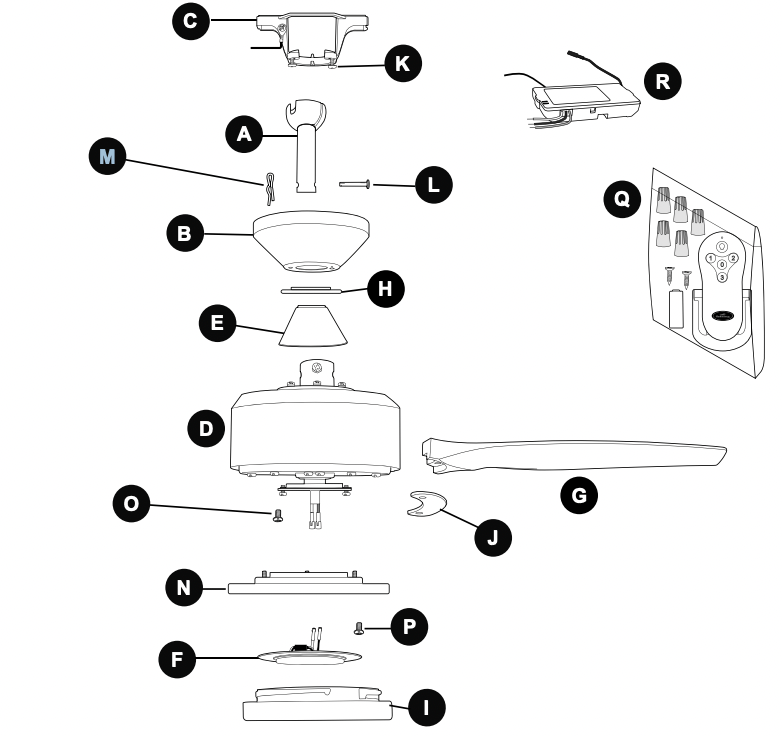

A Downrod

B Canopy

C Mounting Bracket

D Motor Housing

E Yoke Cover

F Light Kit Fitter

G Blade

H Canopy Cover

I Glass Shade

J Blade Plate

K Canopy Mounting Screw (preassembled)

L Pin (preassembled)

M Clip (preassembled)

N Fitter Plate

O Motor Plate Screw (preassembled)

P Fitter Plate Screw (preassembled)

Q Remote Pack

R Remote Control Receiver

1. Turn off circuit breakers or fuse and wall switch to the fan supply line leads.

DANGER: Failure to disconnect power supply prior to installation may result in serious injury or death.

2. Determine mounting method to use.

A. Standard mount

B. Angle mount

Note: Flushmount and closemount options are not available for this fan.

IMPORTANT: If using the angle mount, ensure the ceiling angle is not steeper than 19°.

*Helpful Hint: Downrod-style mounting is best suited for ceilings 8 ft. high or higher. For taller ceilings you may want to use a longer downrod (not included). Angle-style mounting is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance.

3. Check to make sure blades (G) will be at least 30 inches from any obstruction. Check downrod (A) length to ensure blades (G) will be at least 7 ft. above the floor.

4. Secure mounting bracket (C) to outlet box (not STANDARD MOUNT ANGLE MOUNT included) using screws, spring washers and flat washers provided with the outlet box.

*NOTE: It is very important you use the proper hardware when installing the mounting bracket (C) as this will support the fan.

IMPORTANT: If using the angle mount, make sure open end of mounting bracket (C) is installed facing the higher point of the ceiling, and ensure the ceiling angle is not steeper than 19°.

5. Remove pin (L) and clip (M) from downrod (A). Partially loosen preassembled set screws and nuts in yoke at top of motor housing (D).

6. Insert downrod (A) through canopy (B), canopy cover (H) and yoke cover (E). NOTE: Canopy cover (H) must be turned with the shiny side toward the motor housing (D). Then, thread wires from motor housing (D) through downrod (A).

7. Slip downrod (A) into motor housing yoke, align holes and re-install pin (L) and clip (M). Tighten set screws in motor housing yoke and then tighten preassembled nuts on the set screws. Then, slide yoke cover (E) down until it rests on top of motor housing (D).

8. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested you do so in the following manner:

Take the lead wires and make sure you have pulled them all the way through the top of the downrod. Start at the TOP of the hanging ball on the downrod and measure 8 in. of lead wire, then cut the excess wire off with wire cutters (not included).

NOTE: If you do not cut back the lead wires, Steps 8 and 9 are not necessary and you may proceed to Step 10 instead.

9. If you decided to cut back the lead wires in Step 9, strip 1/2 in. of insulation from end of each wire -- white, black, green and blue (if applicable). Twist stripped ends of each strand of wire within the insulation with pliers (not included).

10. Install hanging ball of downrod (A) into opening of mounting bracket (C). Align one of the slots in hanging ball with tab in mounting bracket (C).

DANGER: Failure to align one of the slots in the ball with the tab may result in serious injury or death.

(1.)

Connect all GROUND (GREEN) wires from fan (on downrod (A), if applicable, and mounting bracket (C)) to BARE/GREEN supply wire from ceiling.

Connect BLACK wire (labeled AC IN L) from remote control receiver (R) to BLACK supply wire from ceiling.

Connect WHITE wire (labeled AC IN N) from remote control receiver (R) to WHITE supply wire from ceiling.

Connect WHITE wire (labeled TO MOTOR N) from remote control receiver (R) to WHITE wire from motor housing (D).

Connect BLACK wire (labeled TO MOTOR L) from remote control receiver (R) to BLACK wire from motor housing (D).

Connect BLUE wire (labeled FOR LIGHT) from remote control receiver (O) to BLUE wire from motor housing (D).

2. Wrap electrical tape (not included) around each individual wire connector (AA) down to the wire.

WARNING: Make sure no bare wire or wire strands are visible after making connections. Place GREEN and WHITE connections on opposite side of the outlet box from the BLACK and BLUE (if applicable) connections.

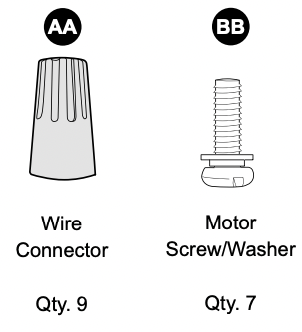

Hardware Used

3. Gently slide remote control receiver (R) flat-side up into mounting bracket (C). Turn spliced/taped wires upward and gently push wires and wire connectors (CC) into outlet box. Let antenna from remote control receiver (R) hang to the side.

NOTE: The remote control included with this fan meets the following requirements:

a. Not for use with solid state fans.

b. Electrical rating: 120V / 60 Hz; motor amps:1.25 MAX.

Should you choose to use a different remote control with this fan, it must also meet these same requirements.

Locate two canopy mounting screws (K) on underside of mounting bracket (C) and remove canopy mounting screw (K) closest to the open end of the mounting bracket (C). Partially loosen the other canopy mounting screw (K). Lift canopy (B) to mounting bracket (C). Place rounded part of slotted hole in canopy (B) over loosened canopy mounting screw (K) and push up. Twist canopy (B) to lock. Re-insert canopy mounting screw (K) that was removed, then tighten both canopy mounting screws (K). Use arrows on inside of canopy cover (H) to locate knobs on center ring of canopy cover (H). Slide canopy cover (H) up to canopy (B), aligning knobs on canopy cover (H) with openings in bottom of canopy (B). Press up gently but firmly on canopy cover (H) until you hear it snap onto the bottom of the canopy (B) and then turn canopy cover (H) clockwise about 1/2 in.

2. DANGER: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades (G). If overtightened, blades (G) may crack and break.

Place one blade plate (J) under blade (G), aligning holes. Then, insert one motor screw/washer (BB) into one of the holes at the end of the blade (G), turning until the motor screw (BB) comes through the other side of the blade (G). Repeat with the other motor screw/washer (BB).

Align the protruding ends of the motor screws/washers (BB) with the corresponding holes on the underside of the motor housing (D). Tighten both motor screws/ washers (BB).

Repeat Step 2 for the other two blades (G).

DANGER: To reduce the risk of personal injury, make sure all blades (G) are completely secure before proceeding.

Hardware Used

3. Partially loosen two motor plate screws (O) in motor plate on underside of motor housing (D) and remove the other motor plate screw (O). Align slotted holes in fitter plate (N) with loosened motor plate screws (O), allowing molex connections from motor housing (D) to come through hole in fitter plate (N). Twist fitter plate (N) to lock. Re-insert the motor plate screw (O) that was removed and securely tighten all three motor plate screws (O).

4. Partially loosen two fitter plate screws (P) on the underside of the fitter plate (N) and remove the other fitter plate screw (P). Locate molex conections from motor housing (D) and remove plastic that holds these wires together.

5. Connect WHITE wire from light kit fitter (F) to WHITE wire from motor housing (D). Connect BLACK wire from light kit fitter (F) to BLUE or (BLACK) wire from motor housing (D). Make sure molex connections snap together securely

6. Carefully arrange wiring within the fitter plate (N) to ensure wires do not get pinched when attaching the light kit fitter (F).

Align slotted holes in light kit fitter (F) with loosened fitter plate screws (P) on fitter plate (N). Twist light kit fitter (F) to lock in place. Re-insert the previously removed fitter plate screw (P) and securely tighten all fitter plate screws (P)

7. Align slots on glass shade (I) with protrusions on underside of fitter plate (N). Turn glass shade (I) clockwise until it no longer turns.

NOTE: Pull down gently on the glass shade (I) to make sure it is secured completely.

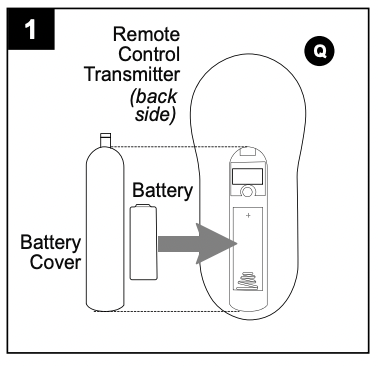

8. If you wish to use the remote control bracket from remote pack (Q), install screws from remote pack (Q) through bracket and into the desired installation site. The remote control transmitter from remote pack (Q) rests inside the bracket.

2. Restore electrical power. Within 30 seconds of restoring electrical power, press and hold the “0” button on the remote control transmitter for 5 seconds or until light on the fan blinks twice. Use the remote control transmitter to test the light and fan functions to confirm the learning process is complete.

3. Operation buttons on the panel of the remote control transmitter:

3 button for fan HIGH speed

2 button for fan MEDIUM speed

1 button for fan LOW speed

0 button to turn fan OFF

button to turn light ON or OFF.

Tap button quickly to turn lights off or on. Hold button down to increase or decrease lights. If you press button in excess of 0.7 seconds, it becomes a dimmer. The lights vary cyclically in 8 seconds. The light button has an auto resume function, which keeps the light at the same brightness as the last time it was turned off.

4. Use the fan reverse switch, located on the top of the motor housing (D) (under the yoke cover (E)), to optimize the fan for seasonal performance. A ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort.

CAUTION: Turn fan off at wall switch and let blades (G) come to a complete stop before manually activating the reverse switch.

4a. In warmer weather, setting the reverse switch in the LEFT position will result in downward airflow creating a wind chill effect.

4b. In cooler weather, setting the reverse switch in the RIGHT position will result in upward airflow that can help move stagnant, hot air off the ceiling area.

4c. IMPORTANT: Reverse switch must be set either completely LEFT or completely RIGHT for fan to function. If the reverse switch is set in the middle position, fan will not operate.

1. Reverse switch not engaged.

2. Power is off or fuse is blown.

3. Faulty wire connection.

4. Wires in light kit fitter not wired correctly

1. Push switch firmly either up or down.

2. Turn power on or check fuse.

3. Turn power off. Loosen canopy and check all connections.

4. Check that molex connections in light kit fitter are connected properly according to instructions on page 12.

1. Blades are loose.

2. Cracked blade.

3. Fan is new.

1. Tighten all motor screws/washers.

2. Replace blade.

3. Allow fan a “break in” period of a few days, especially when running the fan at Medium and High speeds.

1. Blades are loose.

2. Unbalanced blades.

3. Fan not securely mounted.

4. Fan too close to vaulted ceiling.

5. Set screw(s) on motor housing yoke is (are) not tightened properly.

6. Set screw on hanging ball is not tightened properly.

1. Tighten all motor screws/washers.

2. Switch one blade with a blade from the opposite side.

3. Turn power off. Carefully loosen canopy and verify that mounting bracket is secure.

4. Use a longer downrod or move fan to another location.

5. Tighten yoke set screw(s) securely.

6. Carefully loosen and lower canopy and verify that set screw on hanging ball is tightened securely

1. Wires in canopy not wired properly.

2. Wall switch to fan is off.

3. Wires from light kit fitter not wired correctly.

1. Check wires in canopy and, if necessary, re-wire according to instructions on pages 9 - 11.

2. Make sure wall switch to fan is on.

3. Check wires on light kit fitter and, if necessary, re-wire according to instructions on page 12.
