SG25815
ITEM #1024423/1461048/2758997/5737472
MODEL #41125/42073/42241/43389
MERRIMACK II CEILING FAN
Español p. 22
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
LISTED FOR
DAMP LOCATION
HARBOR BREEZE and logo design are trademarks or
registered trademarks of LF, LLC. All rights reserved.
Purchase Date _________________________
Thank you for purchasing this HARBOR BREEZE product.
Questions, problems, or missing parts?
Before returning, contact us at:
888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday or at [email protected].
ATTACH YOUR RECEIPT HERE
2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................17
Care and Maintenance ............................................................18
Troubleshooting ..................................................................18
Limited Lifetime Warranty ..........................................................20

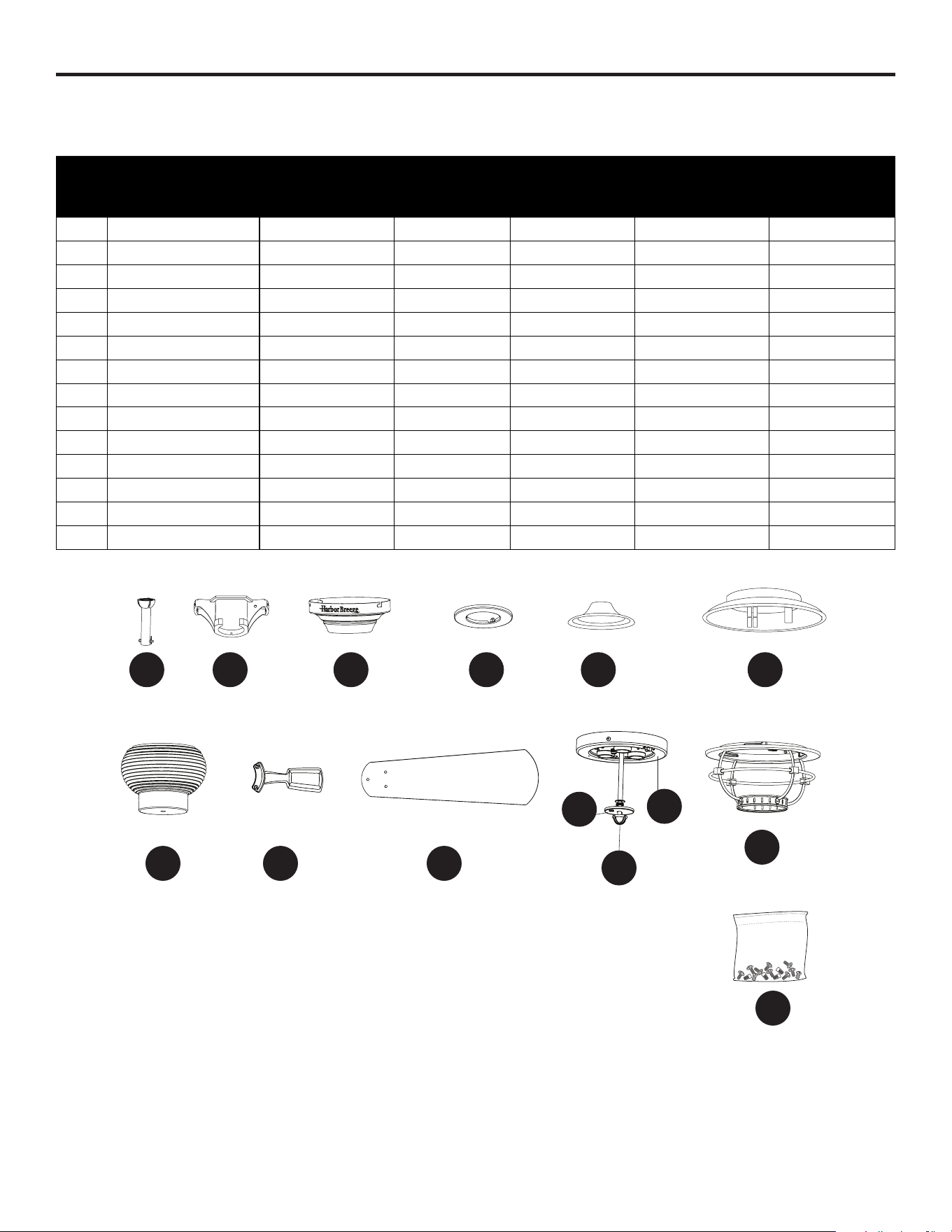

Replacement Parts List ............................................................21
3

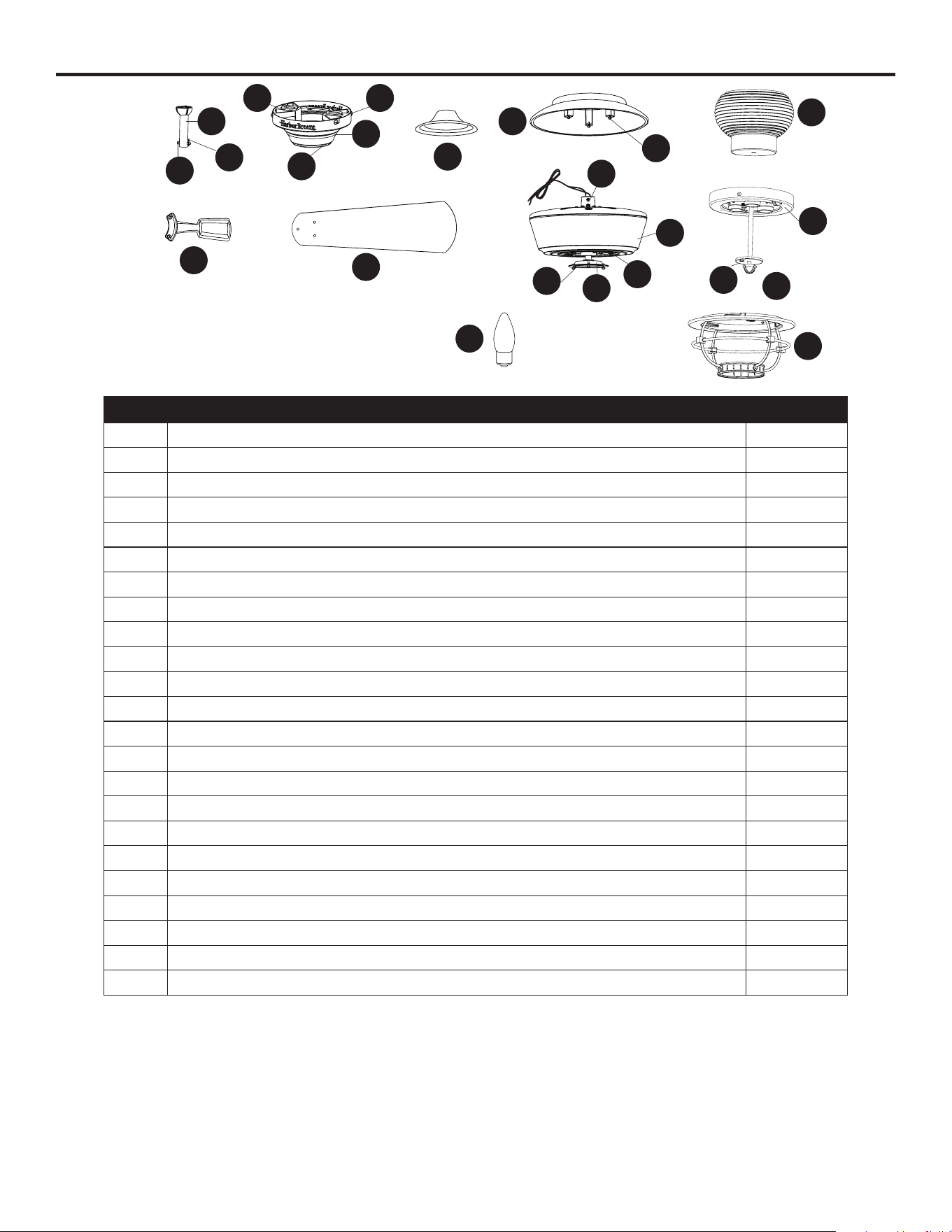

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Yoke Cover 1
H Light Pan 1
I Glass Globe 1
J Blade Arm 5
K Blades 5
L Set Screw (preassembled to Motor Assembly [N]) 2
M Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
N Motor Assembly 1
O Fitter Plate Screw (preassembled to Fitter Plate [P]) 3
P Fitter Plate (preassembled to Motor Assembly [N]) 1
Q Light Kit 1
R Motor Screws (preassembled to Motor Assembly [N]) 10
S Light Pan Screw (preassembled to Light Pan [H]) 3
T Finial Cap (preassembled to Light Kit [Q]) 1
U Finial (preassembled to Light Kit [Q]) 1
V Bulb 3
W Light Frame 1
A
B
C
D
E
F
G
H
N
L
K
J
I
O
P
Q
T
U
V
W
M
S
R
4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3 + 1 extra
Blade Screw
Qty. 15 + 1 extra
Blade Washer
Qty. 15 + 1 extra
Pull Chain Extension
Qty. 2
Motor Screw
1 extra
AA
BB CC DD
XX
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 19.45 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.
6
SAFETY INFORMATION
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway #225
Memphis, TN 38125
888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure all parts are present. Compare all parts with
the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook
7

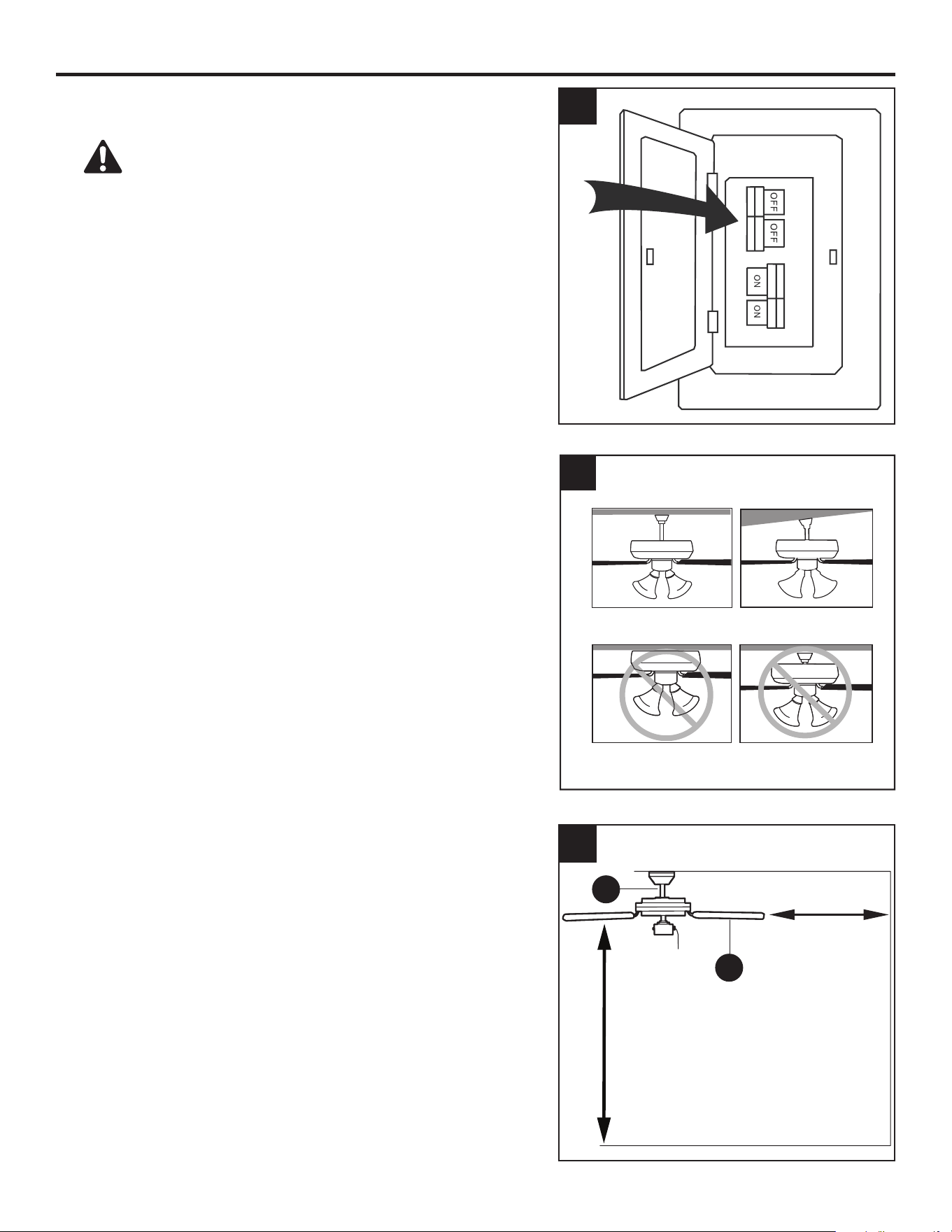

INITIAL INSTALLATION
1. Turn o the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle-style mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance. Note:
If using the angle mount, check to ensure the ceiling
angle is not steeper than 16°.
Closemount-style mounting is not available for this
item.
Flushmount installation is not available for this item.
2
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (K) will be at least 30 in. from
any obstructions. Also check the downrod (A) length
to ensure the blades (K) will be at least 7 ft. above
the oor.
7 ft. min.
30 in. min.
3
A
K
1
8

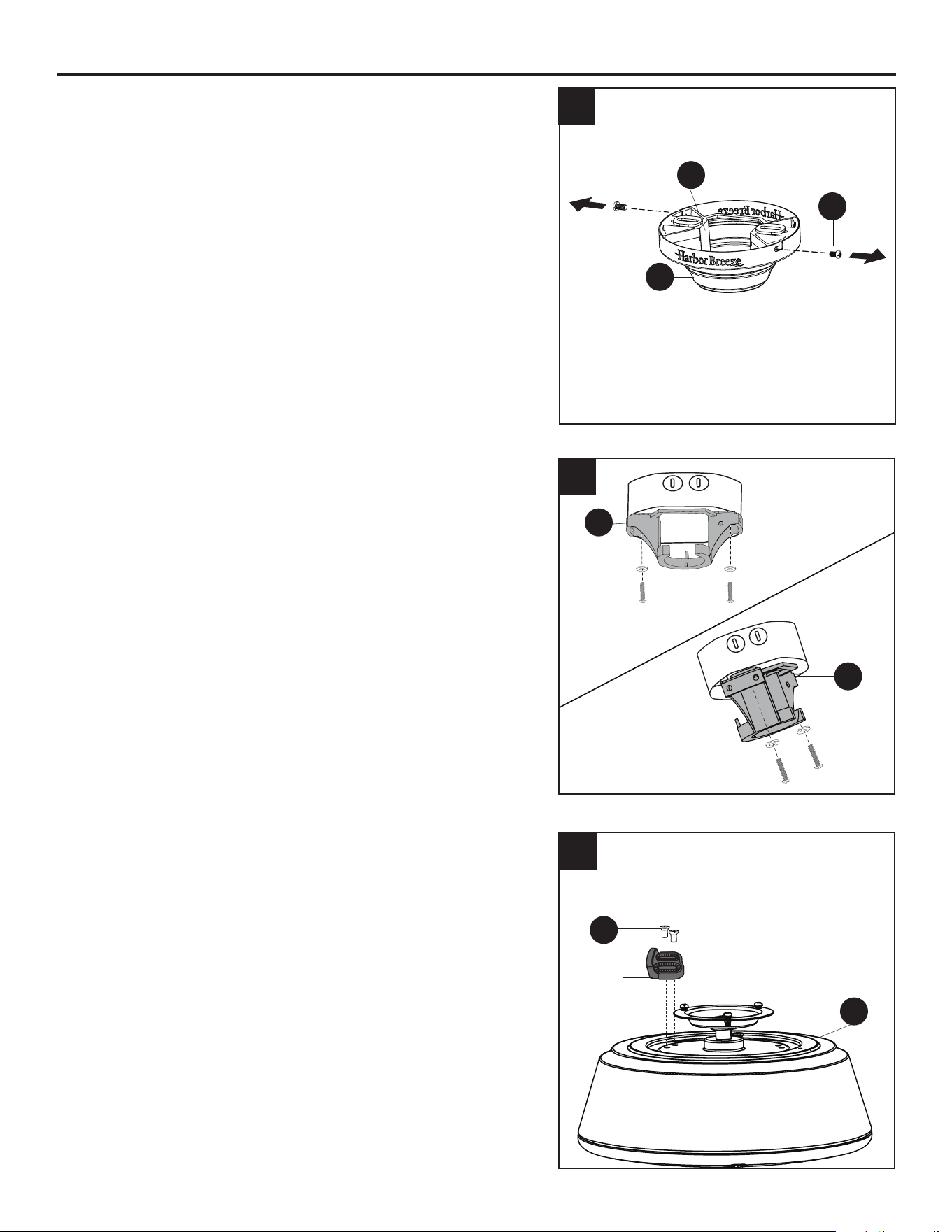

INITIAL INSTALLATION
4. Loosen all four mounting bracket screws (M), then
completely remove the two mounting bracket screws
(M) from the round holes of canopy (E). Set aside for
later use.
Detach mounting bracket (D) from canopy (E).
5. Secure the mounting bracket (D) to the outlet box
using screws and washers provided with the outlet
box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
6. Remove all 10 preassembled motor screws (R) and ve
preassembed motor blocks from the underside of the
motor assembly (N). Discard the motor blocks but keep
the motor screws (R) for later.
E
M
D
4
6
Motor
Block
R
N
5
D
D
Standard
Mounting
Angled
Mounting
9

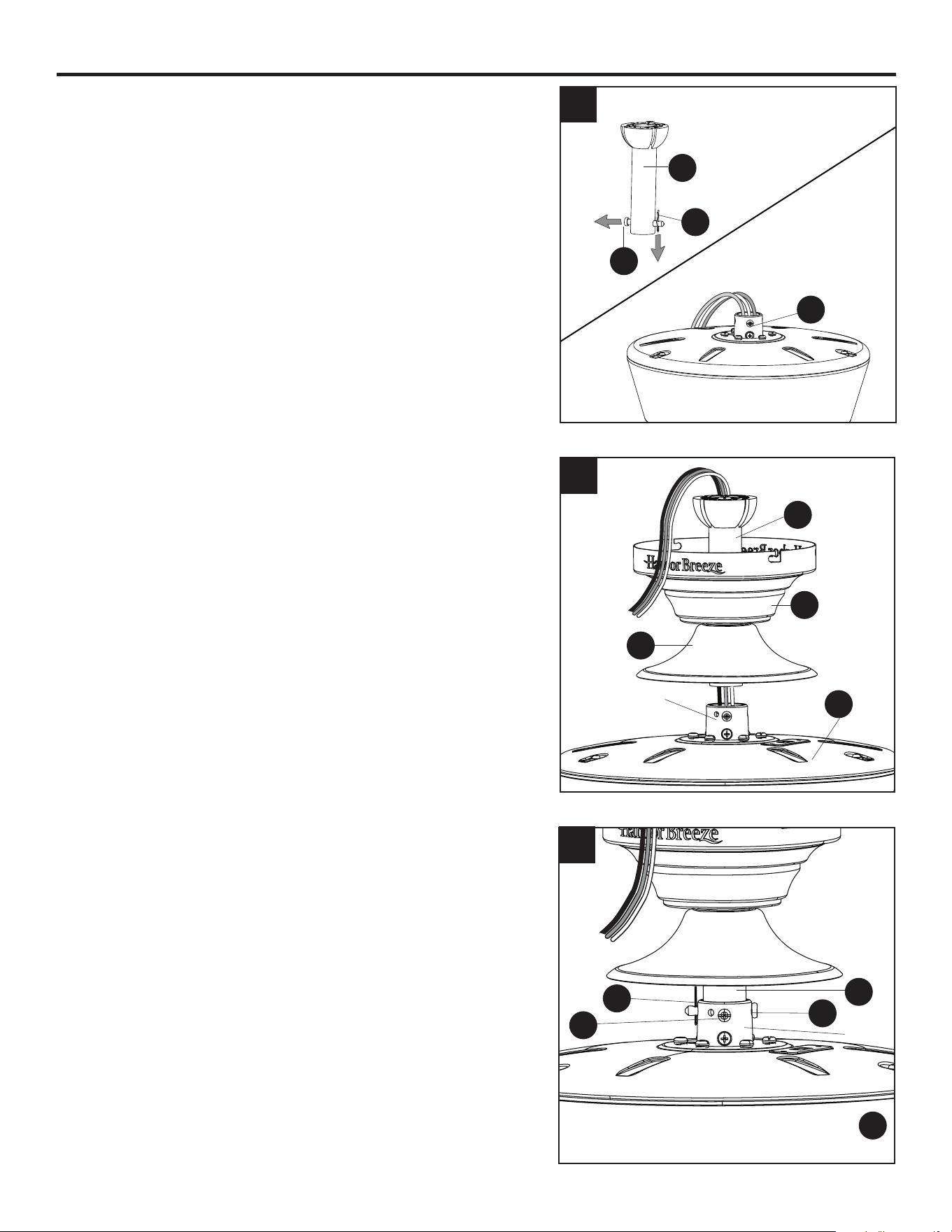

STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod pin (B) and downrod clip (C)
from the downrod (A). Then partially loosen the
set screws (L) in the yoke at the top of the motor
assembly (N).
2. Insert the downrod (A) through the canopy (E) and
yoke cover (G). Feed the wires from the motor
assembly (N) through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (N), align the holes, then re-install the
downrod pin (B) and downrod clip (C). Secure with
set screws (L).
C
B
A
A
G
N
E
2
3
Yoke
B
A
N
C
L
L
Yoke
1
10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

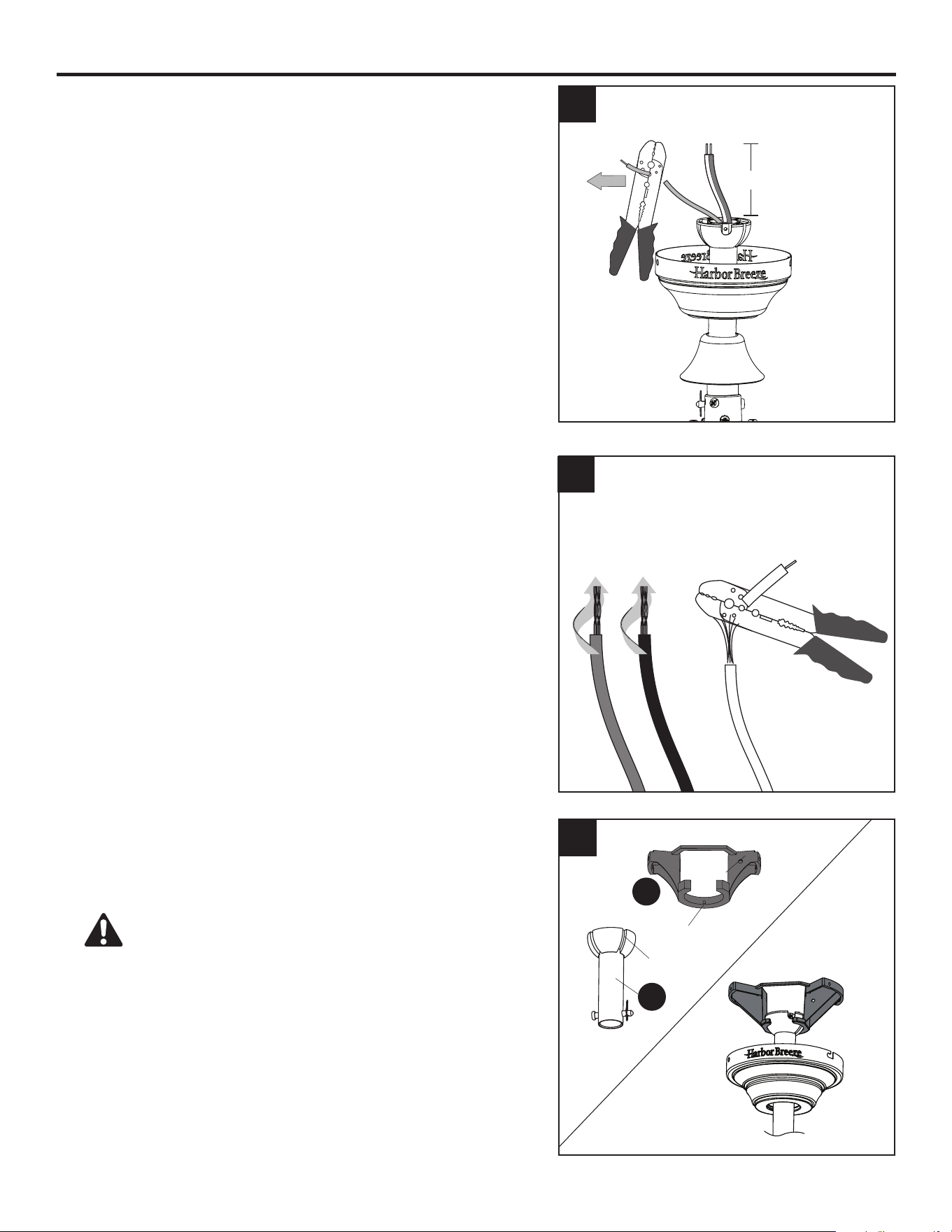

4. Depending on the length of downrod you use, you may
need to cut the lead wires back to simplify the wiring. If
you decide to cut back the lead wires, it is suggested
you do so in the following manner: Take the lead wires
and make sure you have pulled them all the way
through the top of the downrod. Measure 8 inches of
lead wire, then cut the excess wire o with wire cutters
(not included).
5. If you decided to cut back the lead wire in Step 4, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat this step for
black and blue wires.
Note: If you did not cut back the lead wires in Step 4, Step
5 is not necessary and you may proceed to Step 6.
6. Install the ball end of the downrod (A) into the opening of
mounting bracket (D). Align one of the four slots in the
ball with the tab in the mounting bracket (D). Note: The
downrod (A) should not rotate if installed correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may cause
the fan to wobble or fall, which could result in serious
injury or death.
5
4
A
D
Tab
Slot
8 in.
6
11
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires
from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to
connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a Ground (Green or Bare) wire is present.
1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from the downrod (A) and
mounting bracket (D) to the Bare/Green (ground)
supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (hot) supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: If there is a second hot/power wire coming from
the outlet box, connect it to the Blue (light power) fan
wire for separate light and fan control.
Note: The Black wire is hot power for the fan. The
White wire is common for the fan and light kit. The Blue
wire is hot power for light. The Green wire is the ground
wire. If household supply wires are dierent colors than
referred to above, it is recommended a professional
electrician determines the proper wiring.
Hardware Used
AA
Wire Connector x 3
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black and Blue wire connections.
1
2
3
AA
D
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black
Blue
White
Green
12
FINAL INSTALLATION
1. Align the canopy (E) over the loose mounting bracket
screws (M) preassembled on mounting bracket
(D). Place the keyholes of the canopy (E) onto the
mounting bracket screws (M) and rotate the canopy
(E) clockwise.
2. Secure the canopy (E) with the mounting bracket
screws (M) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (M) securely.
3. Partially insert the blade screws (BB) along with the
blade washers (CC) through the blade (K) and into
the blade arm (J). Tighten each blade screw (BB) with
a Phillips screwdriver (not included), starting with the
one in the middle. Repeat this step for the remaining
blades (K) and blade arms (J).
Hardware Used
BB
Blade Screw x 15
Blade Washer x 15
K
CC
BB
J
3
E
M
E
D
M
1
2
CC
13
FINAL INSTALLATION

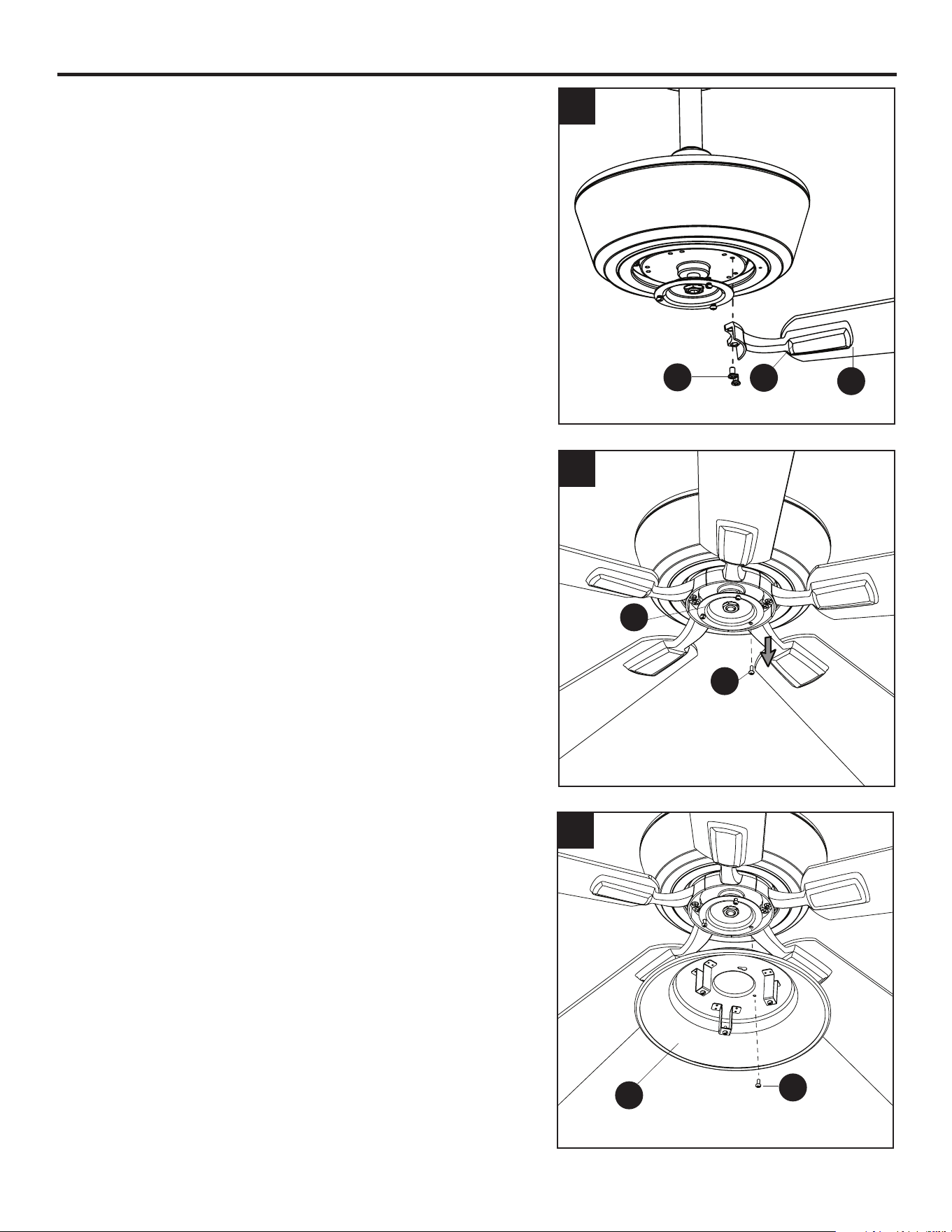

4. Install the blade arm (J) to the underside of the motor
assembly (N) with motor screws (R) previously
removed (Step 6, page 8). Tighten with Phillips
screwdriver (not included).
Repeat for each blade arm (J).
5. Remove one of the three tter plate screws (O)
from the tter plate (P) and save. Loosen but do not
remove the other two tter plate screws (O).
Note: Make sure to keep loose hardware separate to
avoid confusion during installation.
6. Align the two key slots in the light pan (H) with the
loosened tter plate screws (O). Place the light pan
(H) over the two screws and turn the light pan (H)
clockwise. Then tighten the two tter plate screws (O).
Re-install the tter plate screw (O) that was removed
in the previous step and tighten rmly.
4
J
K
R
5
O
P
6
H
O
14
FINAL INSTALLATION
7. Remove one light pan screw (S) from one of the three
brackets below the light pan (H) and save. Loosen but
do not remove the other two screws on the other two
brackets.
8. Connect the 9-pin connector from the tter plate (P) to
the 9-pin connector from the light kit (Q).
9. Align the two key slots in the light kit (Q) with the two
previously loosened light pan screws (S). Place the
light kit (Q) over the two screws and turn the light kit
(Q) clockwise. Re-install the previously removed light
pan screw (S) and tighten all three screws securely.
7
8
9
H
S
Q
S
15
FINAL INSTALLATION

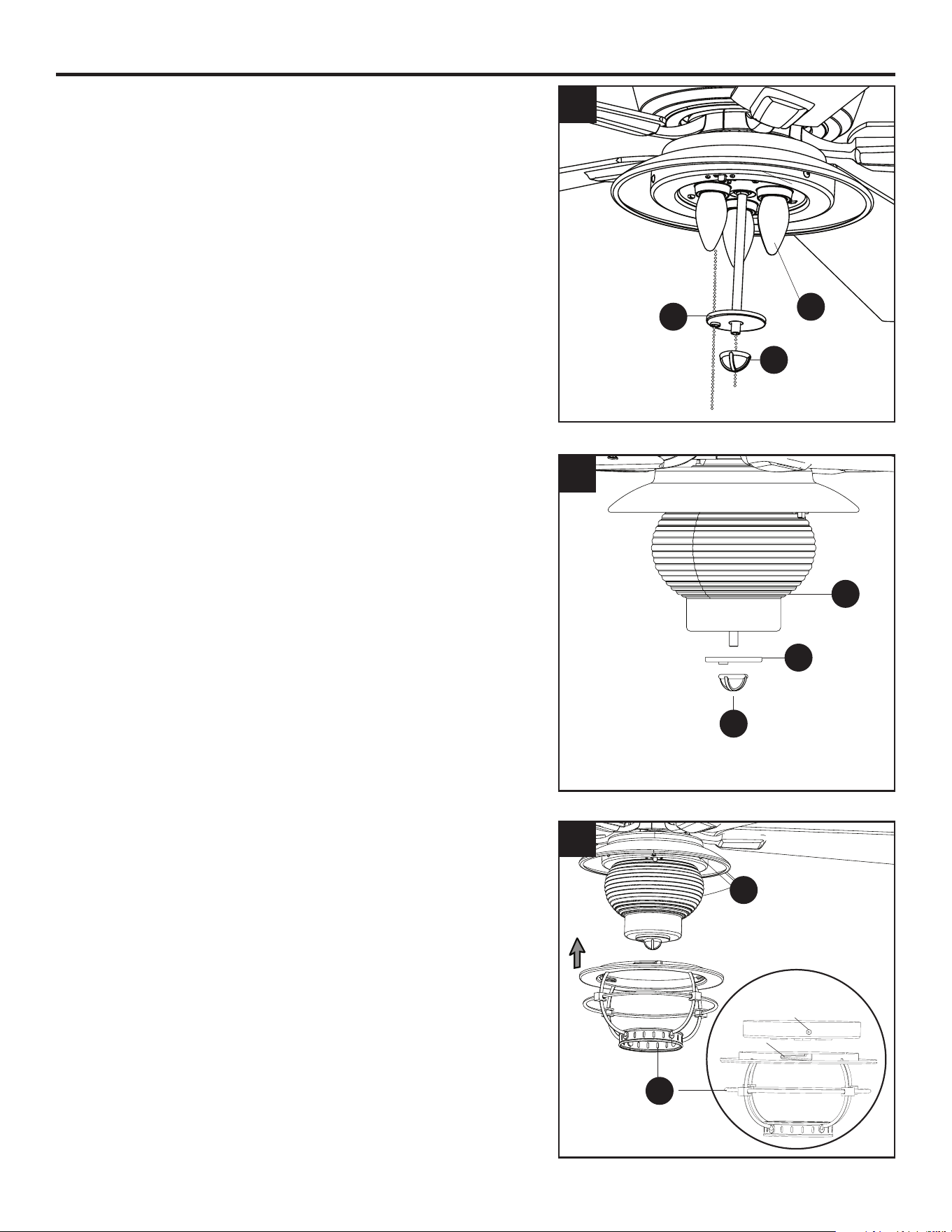

10. Install the bulbs (V) into the sockets on the light kit
(Q). Remove the nial (U) and nial cap (T).
11. Lift the glass globe (I) over the threaded rod on light
kit (Q). Lift the nial cap (T) up until it is ush with the
glass bowl (I) and secure with the nial (U).
12. Align the three grooves on the inside of the light frame
(W) with the three raised bumps on the light kit (Q). Turn
clockwise until it locks into place.
T
U
V
T
U
I
11
12
W
Q
Bump
Groove
10
16
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
FINAL INSTALLATION
13. Attach the pull chain extensions (DD) or custom pull
chain extensions (not included) to the fan and light
pull chains.
Hardware Used
DD
Pull Chain
Extension
x 2
14. Turn on power supply to the fan.
Assembly is complete.
13
14
DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
17
Fig. 1a Fig. 1b
Fig. 1c
OPERATING INSTRUCTIONS
1. Using a ceiling fan will allow you to raise your
thermostat setting in the summer and lower your
thermostat setting in the winter without feeling a
dierence in your comfort.
Note: Wait for the fan to stop before moving the
reverse switch.
1a. In warmer weather, push the reverse switch to
the left to display the sun icon, which will result in
downward airow creating a wind chill eect.
1b. In cooler weather, push the reverse switch to the
right to display the snowake icon, which will result in
upward airow that can help move stagnant, hot air o
the ceiling area.
Important: The reverse switch must be set either
completely to the right or to the left for the fan to
function correctly. If the reverse switch is set in the
middle position, the fan will not operate (Fig. 1c).
2. The fan pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is LOW,
and four turns the fan OFF. The light pull chain turns the
lights ON and OFF.
1
Reverse
Switch
Light Pull ChainFan Pull Chain
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
2
18
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Use 40-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shut o the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does
not move.
1. The reverse switch is not
engaged.
2. The wall switch is turned o.
3. The power is o or the fuse
(breaker) is blown.
4. There is a faulty wire
connection.
1. Firmly push the reverse switch
completely left or right.
2. Make sure the wall switch is turned on.
3. Turn the power on or check the fuse
(breaker).
4. Turn the power o and check all
connections at the ceiling outlet box.
There is
excessive
wobbling.
1. The blades and/or blade arms are
loose.
2. The blades are unbalanced.
3. The fan mounting is not secure.
4. The fan is too close to the vaulted
ceiling.
5. The set screws on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using a
blade balancing kit (sold separately).
3. Turn o the power. Loosen the canopy
and verify that the mounting bracket is
secure to the electrical outlet box. The
bracket must be ush without movement
against the outlet box. Verify the outlet
box is secure.
4. Use a longer downrod (sold separately) or
move the fan to another location.
5. Lift up the yoke cover and tighten the set
screws on the yoke until secure.
19
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not
compatible with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer switch
to control the fan speed.
4. Ensure the outlet box is secured to the
building structure.
5. Ensure the mounting bracket is secured
to the outlet box and that the screws are
tight.
The fan operates
correctly, but the
lights are not
working.
1. The bulbs are not installed
correctly.
2. The light kit wire plugs are
not connected properly.
3. There is a faulty wire
connection.
1. Re-install the bulb(s).
2. Ensure the 9-pin connectors in the light
kit are connected properly.
3. Turn the power o and check all
connections at the ceiling outlet box.
20
LIMITED LIFETIME WARRANTY
Set forth below, the manufacturer warrants the fan motor for this ceiling fan to be free from defects
in workmanship and material for the life of the product. Also, subject to the limitations below, the
manufacturer warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in
whole or in part with glass) to be free from defects in workmanship and material for a period of one
year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser from an authorized dealer, whether such purchaser
purchased the product through a store or contractor. Ceiling fan part defects must be reported within
the rst year from the date of purchase. Parts made in whole or in part with glass and the nishes of
metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by
this warranty. The manufacturer assumes no responsibility whatsoever for fan installation. Any service
performed by a non-licensed electrician will render the warranty invalid.
The manufacturer’s sole responsibility shall be to repair or replace the motor, parts, or product within
the terms stated above. The manufacturer shall not be liable for any loss or damage of any kind,
including any incidental or consequential damages resulting directly or indirectly, from any breach
of warranty, express or implied, or any other failure of this product. Some states do not allow the
exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or
materials within the warranty period associated with the defective part, the manufacturer agrees to
replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable
or superior model.
The manufacturer’s warranties are limited to the written warranties set out in this ceiling fan limited
lifetime warranty. All other express and implied warranties, including, without limitation, the implied
warranty of tness for a particular purpose and the implied warranty of merchantability is disclaimed.
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to
you.
21
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected].
PART DESCRIPTION
1461048
PART #
1024423
PART #
2758997
PART #
5737472
PART #
COVERED
UNDER
WARRANTY
A Downrod 4L000011310 4L000009320 4L000013850 4L000018980 YES - 1 YEAR
D Mounting Bracket 4L000011290 4L000010430 4L000013860 4L000011290 YES - 1 YEAR
E Canopy 4L000011320 4L000009330 4L000013870 4L000018990 YES - 1 YEAR
F Canopy Cover 4L000008290 4L000009340 4L000011080 4L000010400 YES - 1 YEAR
G Yoke Cover 4L000011330 4L000009350 4L000013880 4L000019000 YES - 1 YEAR
H Light Pan 4L000011340 4L000009360 4L000013900 4L000019010 YES - 1 YEAR
I Glass Globe 4L166850001 4L166850001 4L166850001 4L166850001 NO
J Blade Arm 4L073720001 4L073720000 4L073720002 4L073720003 YES - 1 YEAR
K Blade 4L084900002 4L084900001 4L084900003 4L084900004 YES - 1 YEAR
Q Light Kit 4L000011350 4L000009370 4L000013890 4L000019030 YES - 1 YEAR
T Finial Cap 4L000011360 4L000009380 4L000013930 4L000019040 YES - 1 YEAR
U Finial 4L000011370 4L000009390 4L000013940 4L000013380 YES - 1 YEAR
W Light Frame 4L000011380 4L000009400 4L000013910 4L000019020 YES - 1 YEAR
HW Hardware Kit 4L000011390 4L000009410 4L000013920 4L000019050 NO
9475-PB • 061725
J
T
U
Q
W
HW
EDA H
I
F G
K
