For model:
ALD52BNK5L
Installation Guide
PRINTED IN CHINA
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
net weight of fan: 16.31 lb. (7.4 kg)
4007498
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pg. 5
Canopy Assembly. pg. 6
Blade Assembly. pg. 6
Light Kit Assembly. pg. 7
Remote Control Operation. pgs. 7 - 8
Testing Your Fan. pg. 8
Troubleshooting. pg. 9
Parts Replacement. pg. 9
Warranty. pg. 9
page 1
SAFETY TIPS.
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel
before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND
SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code, and
ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are different colors
than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at least
seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should be mounted
so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other upright
structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 35
pounds (16 kilograms). The box must be supported directly by the building structure. Use only CETL or CUL (in
Canada) or ETL or UL (in USA) listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked "Acceptable for
Fan Support of 15.9 kg (35 lb) or less" and use the mounting screws provided with the outlet box. Most outlet boxes
commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are
designed to accept only one 12 gauge house wire and two lead wires from the fan. If your house wire is larger than 12
gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an electrician for the
proper size wire connectors to use.
5. Electrical diagrams are for reference only.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding
conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of electrical shock, fire and to prevent humming noise do not use this fan with any solid
state speed control device or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to
control fan speed will cause a loud humming noise from fan.]
8. Do not operate the reverse switch until the fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after installation. Do not
insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning
the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will
be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than
those provided with this fan will void the warranty.
CAUTION: Do NOT tamper with or attempt to repair LED component of light kit. The light source is designed for this specific
application and should not be serviced by untrained personnel. If any servicing is required, call our customer service
department.
11. Light kit is dimmable to 10% with select dimmers.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible
conditions and situations that may occur. It must be understood that common sense and caution are necessary factors in
the installation and operation of this fan.
page 2

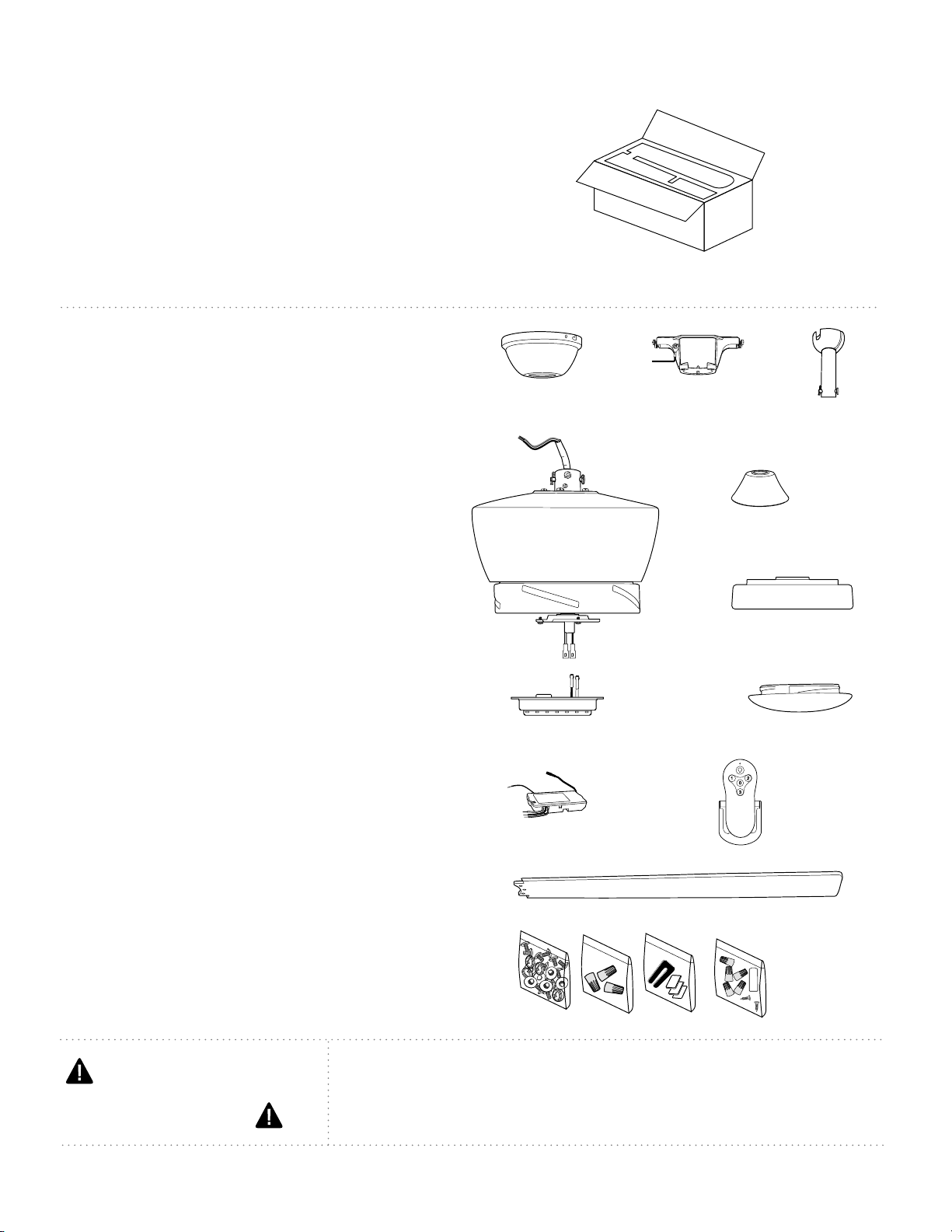

2. Parts Inventory.
1. Unpacking Your Fan.
Carefully open the packaging. Remove items
from Styrofoam inserts. Remove motor housing
and place on carpet or Styrofoam to avoid
damage to finish. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
w/remote
d
h
j
k
l
e
a
b
c
g
f
i
a. canopy. 1 piece
b. hanging bracket. 1 piece
c. downrod and hanging ball (with pin and clip).
1 piece
d. motor housing. 1 piece
e. yoke cover. 1 piece
f. fitter plate. 1 piece
g. LED light kit . 1 piece
h. glass shade. 1 piece
i. remote control receiver. 1 piece
j. remote control transmitter. 1 piece
k. blade. 5 pieces
l. hardware packs
page 3
ON
OFF
ON
OFF
4. Hanging Bracket Installation.
3. Installation Preparation.
blade edge
(76cm)
30
inches
7 feet
(2.13m)
10ft. - 12ft.
10ft. - 12ft.
(3.05m - 3.66m)
(3.05m - 3.66m)
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7ft. (2.13m) from the floor and 30in.
(76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 144 square
feet (13.4 square meters).
This fan can be mounted with a downrod
on a regular (no-slope) or vaulted ceiling. The
hanging length can be extended by purchasing a
longer downrod (0.5in./1.27cm diameter). Other
installation, such as flushmount, is not available
for this fan.
Installation requires these tools:
Phillips screwdriver, flathead screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters, and rated electrical tape.
Vaulted ceiling
angle is not to
exceed 20 degrees.
downrod
installation
flushmount
installation
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to the
OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure and
can support the full weight of the fan. Ensure the outlet box is
clearly marked "Suitable for Fan Support." If not, it must be
replaced with an approved outlet box. Failure to do so can
result in serious injury.
CAUTION: Be sure outlet box is grounded properly and that a
ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original screws,
spring washers and flat washers provided with new or
original outlet box.* If installing on a vaulted ceiling, face
opening of hanging bracket towards high point of ceiling.
Arrange electrical wiring around the back of the hanging
bracket and away from the hanging bracket opening.
*Note: It is very important that you use the proper hardware
when installing the hanging bracket as this will support the
fan.
hanging bracket
spring washers
outlet box screws
flat washers
page 4
set screw hole
set screw
hanging ball
stop pin
A
B
pin
clip
NOTE: The important safety precautions and
instructions appearing in the manual are not meant
to cover all possible conditions and situations that
may occur. It must be understood that common
sense and caution are necessary factors in the
installation and operation of this fan.
5. Fan Assembly.
If you wish to extend the hanging length of
your fan, you must remove the hanging ball
from the downrod provided to use with an
extended downrod (sold separately). [If you wish
to use the downrod provided, please proceed to
instructions following the dotted line below.]
To remove hanging ball, loosen set screw on
hanging ball and remove the pin and clip.
Lower hanging ball and remove stop pin. Slide
hanging ball off the original downrod, A, and
slide it down the longer downrod, B (the top of
the downrod should be noted as having a set
screw hole; use this hole when setting the set
screw). Insert stop pin into top of extended
downrod and raise hanging ball. Be sure stop
pin aligns with slots on the inside of the
hanging ball. Tighten set screw securely.
Tip: To prepare for threading electrical wires
through downrod, apply a small piece of
electrical tape to the ends of the electrical
wires--this will keep the wires together when
threading them through the downrod.
Loosen yoke set screws and nut at top of motor
housing. Remove pin and clip from downrod (if
you have not already done so). Slide downrod
through canopy and yoke cover.
Thread electrical wires through downrod and
pull extra wire slack from the upper end of the
downrod.
Place downrod into the motor housing yoke
and re-insert pin and clip previously removed.
Tighten yoke set screws and nut securely. Lower
yoke cover to motor housing.
WARNING: Failure to tighten set screw
completely could result in the fan becoming
loose and possibly falling.
["Fan Assembly" continued on next page.]
downrod
clip
yoke set screw
pin
motor
housing
electrical wiring
canopy
yoke cover
page 5
5. Fan Assembly. (cont.)
With the hanging bracket secured to the outlet box and
able to support the fan you are now ready to hang your
fan. Grab the fan firmly with two hands. Slide downrod
through opening in hanging bracket and let hanging
ball rest on the hanging bracket. Turn the hanging ball
slot until it lines up with the hanging bracket tab.
WARNING: Failure to align slot in hanging ball with tab
in hanging bracket may result in serious injury or death.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you once you
are set on the ladder.
6. Wiring.
WARNING: Turn off circuit breakers to current
fixture from breaker panel and be sure switch is
turned to the OFF position.
CAUTION: Be sure outlet box is properly grounded
and that a ground wire (GREEN or Bare) is present.
Make sure all electrical connections comply with
Local Codes or Ordinances and the National
Electrical Code. If you are unfamiliar with electrical
wiring or if the house/building wires are different
colors than those referred to in the diagram to the
right, please use a qualified electrician.
Wire the receiver with wire connectors provided
as shown in diagram at right.
Tip: While you are wiring, keep in mind that wires
must not obstruct receiver from sliding into
hanging bracket.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
Insert receiver into hanging bracket (flat side up)
and gently push taped wire connectors into
outlet box. Allow antenna from remote control
receiver to hang out of the hanging bracket.
Modifications not approved by the party responsible for compliance could
void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
hanging ball slot
hanging bracket tab
motor housing
white supply wire
black supply wire
black
black
white
blue
blue
white
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
antenna
from ceiling
receiver
ground
(green or bare)
black
page 6
7. Canopy Assembly.
8. Blade Assembly.
Locate 15 blade attachment screw/washers
in hardware pack. Slide blade through one
of the narrow, rectangular openings on
motor housing, aligning holes in blade
with holes in blade arm (located on the
underside of the motor housing)--refer to
drawing at right. Insert 3 blade attachment
screws/washers with fingers first and then
tighten screws securely with a Phillips
screwdriver. Repeat procedure for each
remaining blade.
Note: Tighten blade attachment screws
twice a year.
blade
motor housing
blade attachment
screws/washers
blade arm
(inside motor
housing)
Temporarily raise canopy to hanging bracket to
determine which 2 screws in hanging bracket align
with slotted holes in canopy, and then lower
canopy and partially loosen these 2 screws. Remove
the other 2 screws/lock washers and set aside.
Now, lift canopy to hanging bracket again, aligning
slotted holes in the canopy with loosened screws in
hanging bracket. Twist canopy to lock. Re-insert the
other 2 screws/washers and secure all screws with
a Phillips screwdriver.
*Remember that antenna for remote control
receiver must rest outside of hanging bracket.
screw
antenna
canopy
hanging bracket
slotted
hole
page 7
9. Light Kit Assembly.
Remove 1 screw from motor plate on underside
of motor housing and partially loosen the other
2 screws. Align slotted holes in fitter plate with
loosened screws in motor plate, allowing molex
plugs from motor housing to come through
hole in middle of fitter plate. Twist fitter plate to
lock. Re-insert screw that was previously
removed and securely tighten all 3 screws with
a Phillips screwdriver. [Refer to diagram 1.]
Remove 3 screws from underside of fitter plate.
Save for later use.
Connect WHITE wire from LED light kit to
WHITE wire from motor housing. Connect
BLACK wire from LED light kit to BLUE (or
BLACK) wire from motor housing. Be sure that
molex connections snap together completely.
Carefully arrange wiring within the back of
LED light kit.
Align holes in
LED light kit
with
holes in fitter plate. Re-insert screws that were
previously removed and tighten all 3 screws
securely. [Refer to diagram 2.]
Locate slots on glass shade and align with
nodules on inside of fitter plate. Gently push up
on glass shade and turn to the RIGHT
(clockwise) until it slides completely into place.
[Refer to diagram 3.] Note: Pull down VERY
GENTLY on glass shade to make sure that glass
shade is secure.
(back side)
Battery Cover
Remote Control
Transmitter
Battery
10. Remote Control Operation.
If you wish to use the remote control bracket, install
screws, included in remote pack, through bracket and
into the desired installation site. The remote control
transmitter rests inside the bracket.
CAUTION: The remote control transmitter can be
programmed to multiple receivers or fans. If this is not
desired, turn wall switch off to any other programmable
receiver or fan.
Remove battery cover from back of remote control
transmitter. Install battery (included) with positive (+)
end toward top of remote control transmitter. Replace
battery cover.
["Remote Control Operation" continued on next
page.]
WARNING: Choking Hazard - Small parts.
Keep battery away from children.
Remote Control
Bracket
Wall
Bracket
Screws
fitter plate
motor housing
molex connections
diagram 1
motor plate
diagram 3
molex connections
diagram 2
fitter plate
LED light kit
fitter plate
motor housing
glass shade
slot
nodule
page 8
CAUTION: “DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.” - When disposing of
household alkaline batteries, it is best to check with your local and state recycling or household hazardous waste
coordinators concerning the specifics of the program in your area. You may also locate a recycling center by calling
1-800-8-BATTERY or 1-877-2-RECYCLE or visit www.epa.gov/epawaste/index.htm or www.earth911.org for more
information.
10. Remote Control Operation. (cont.)
Restore electrical power. Within 30 seconds of restoring the power, press
and hold the "O" button on the remote control transmitter for 5 seconds
or until light on fan blinks twice. Test the light and fan functions to
confirm the learning process is complete.
NOTE: Remove protective covering from front of remote control
transmitter and discard.
IMPORTANT: To prevent damage to transmitter, remove the battery if not
used for long periods. Store the remote control transmitter away from
excess heat or humidity.
Operation buttons on the panel of the remote control transmitter:
3 button for fan HIGH speed
2 button for fan MEDIUM speed
1 button for fan LOW speed
0 button to turn fan OFF
button to turn light ON or OFF
Tap button quickly to turn lights off or on. Hold button down to
increase or decrease lights. If you press button in excess of 0.7 seconds,
it becomes a dimmer. The lights vary cyclically in 8 seconds. The light
button has an auto resume function, which keeps the light at the same
brightness as the last time it was turned off.
11. Testing Your Fan.
It is recommended that you test fan before finalizing
installation. Test fan speeds with the different fan
speed buttons on remote control. Test the light
ON/OFF function with the button on the remote
control. Test dimmer function by holding down the
button for more than 0.7 seconds. If the remote
control operates all of the functions of the fan and
light, battery has been installed correctly (diagram 1).
If fan and/or light does (do) not function, please refer
to "Troubleshooting" section to solve any issues
before contacting Customer Service.
Turn fan completely off before moving the reverse
switch (located on top of motor housing). Set reverse
switch to recirculate air depending on the season:
- LEFT position in summer (diagram 2)
- RIGHT position in winter (diagram 3)
A ceiling fan will allow you to raise your thermostat
setting in summer and lower your thermostat setting
in winter without feeling a difference in your comfort.
Important: Reverse switch must be set either
completely to the LEFT or completely to the RIGHT for
fan to function. If the reverse switch is set in the
middle position (diagram 4), fan will not operate.
diagram 2
diagram 3
diagram 4
reverse switch
motor housing
diagram 1
page 9
Troubleshooting.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in
either direction.
3. Check to be sure fan is wired properly.
4. Verify battery was properly installed in remote
control transmitter.
5. Repeat instructions for remote control
transmitter, Step 10, page 8, first paragraph.
Problem: Light kit not lighting.
Solutions:
1. Check wall switch to fan.
2. Check to be sure wires in canopy are wired
properly.
3.Verify that molex connections in light kit are
connected properly.
4. Verify battery was properly installed in remote
control transmitter.
5. Repeat instructions for remote control
transmitter, Step 10, page 8, first paragraph.
Problem: Fan operates but light fails.
Solutions:
1. Check to be sure wires in canopy are wired
properly.
2.Verify that molex connections in light kit are
connected properly.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit provided in one of the
hardware packs. If no blade balancing kit is
provided, please call Customer Support,
at1-800-527-1292, to request one.
2. Check to be sure set screw(s) on motor housing
yoke is (are) tightened securely.
3. Check to be sure set screw on hanging ball is
tightened securely.
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
Warranty.
Parts Replacement.
LITEX LIFETIME LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship. Contact Litex Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd. We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: LITEX
INDUSTRIES, LTD. will repair the fan, at no charge to the
original purchaser for labor only, if the fan motor fails to
operate satisfactorily when failure results from normal use.
Parts used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
PWLI1707
For parts and information, please refer to
"Parts Inventory" on page 2.
Litex Customer Support:
1-800-527-1292
