Installation Guide
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pg. 5

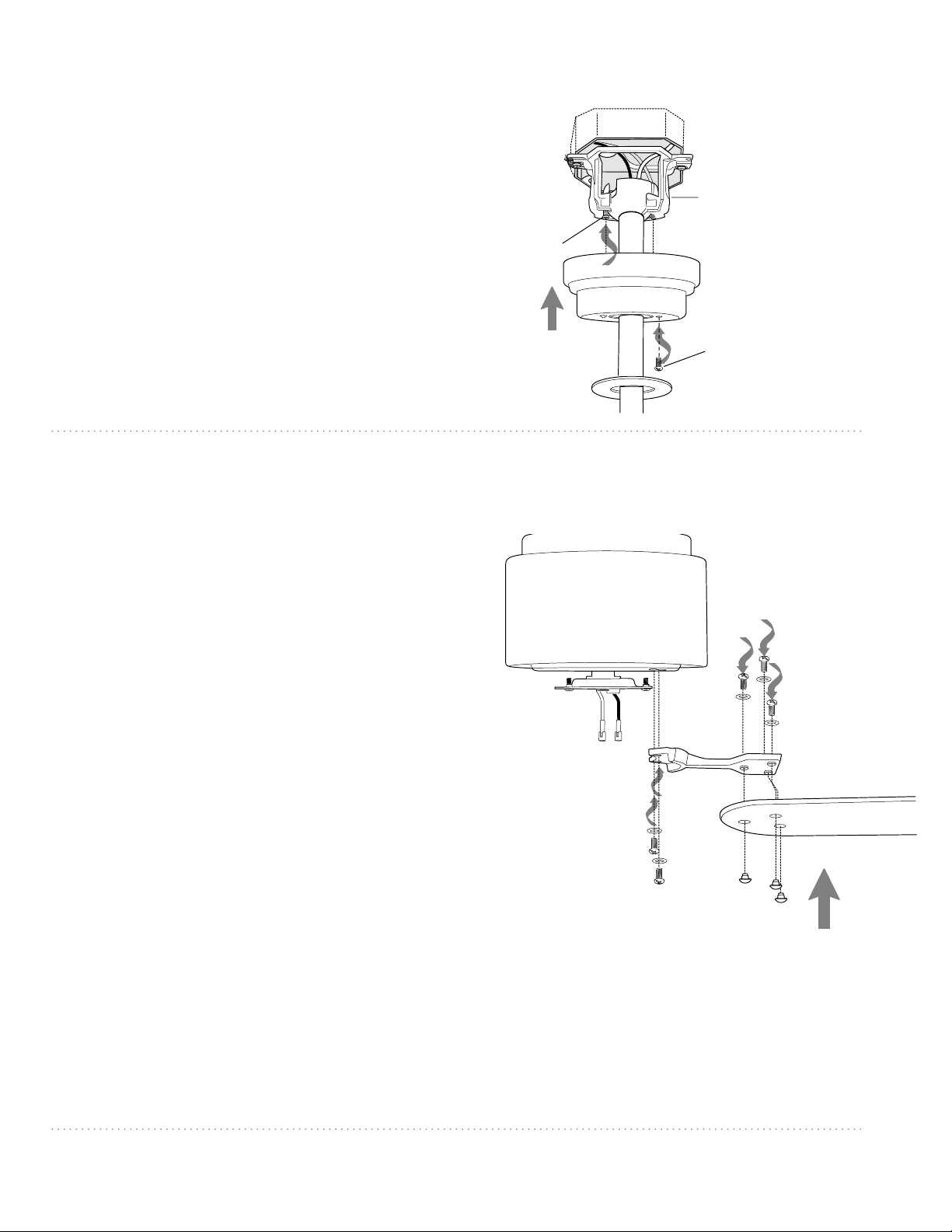

Canopy Assembly. pg. 6
Blade Assembly. pg. 6

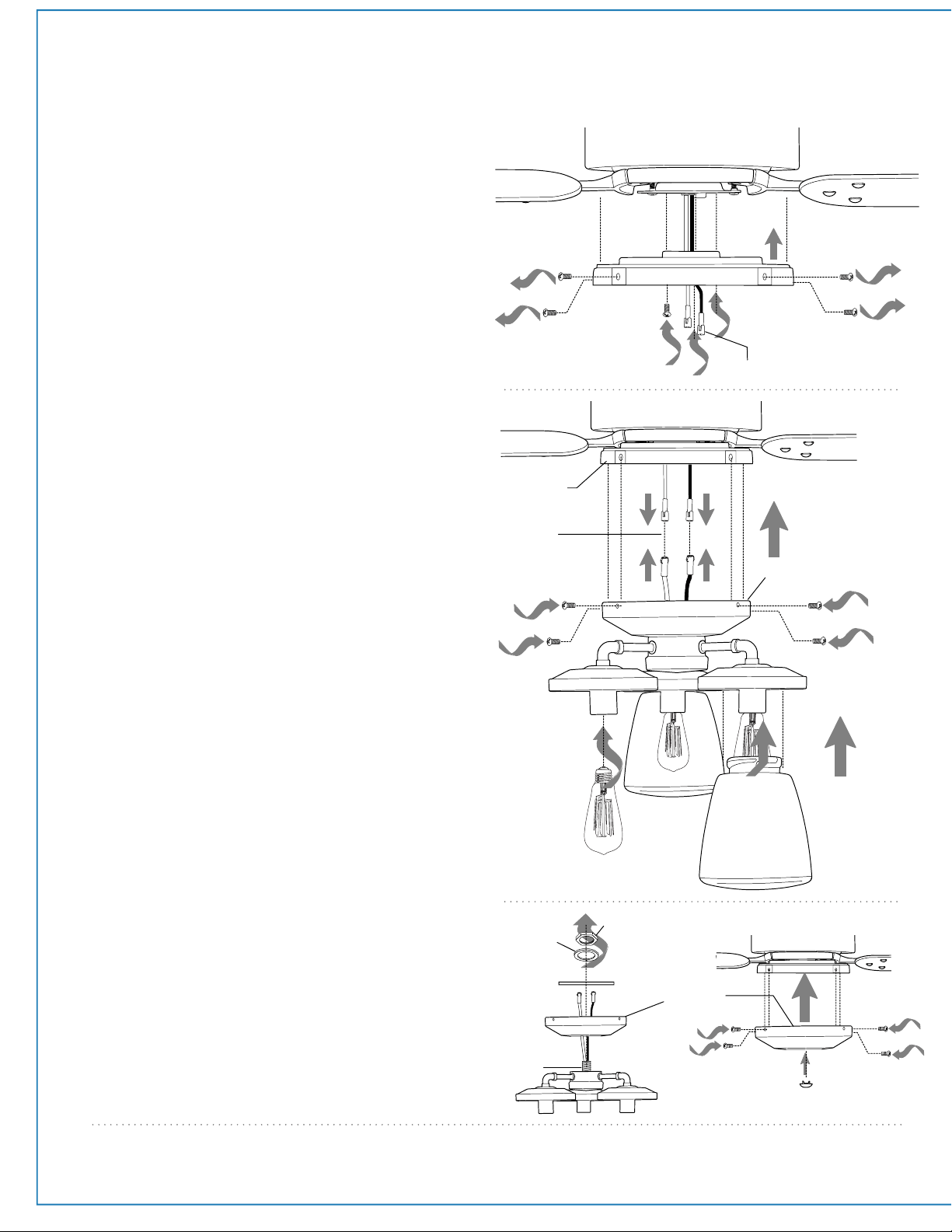

Light Kit Assembly (Optional). pg. 7
Automated Learning Process./

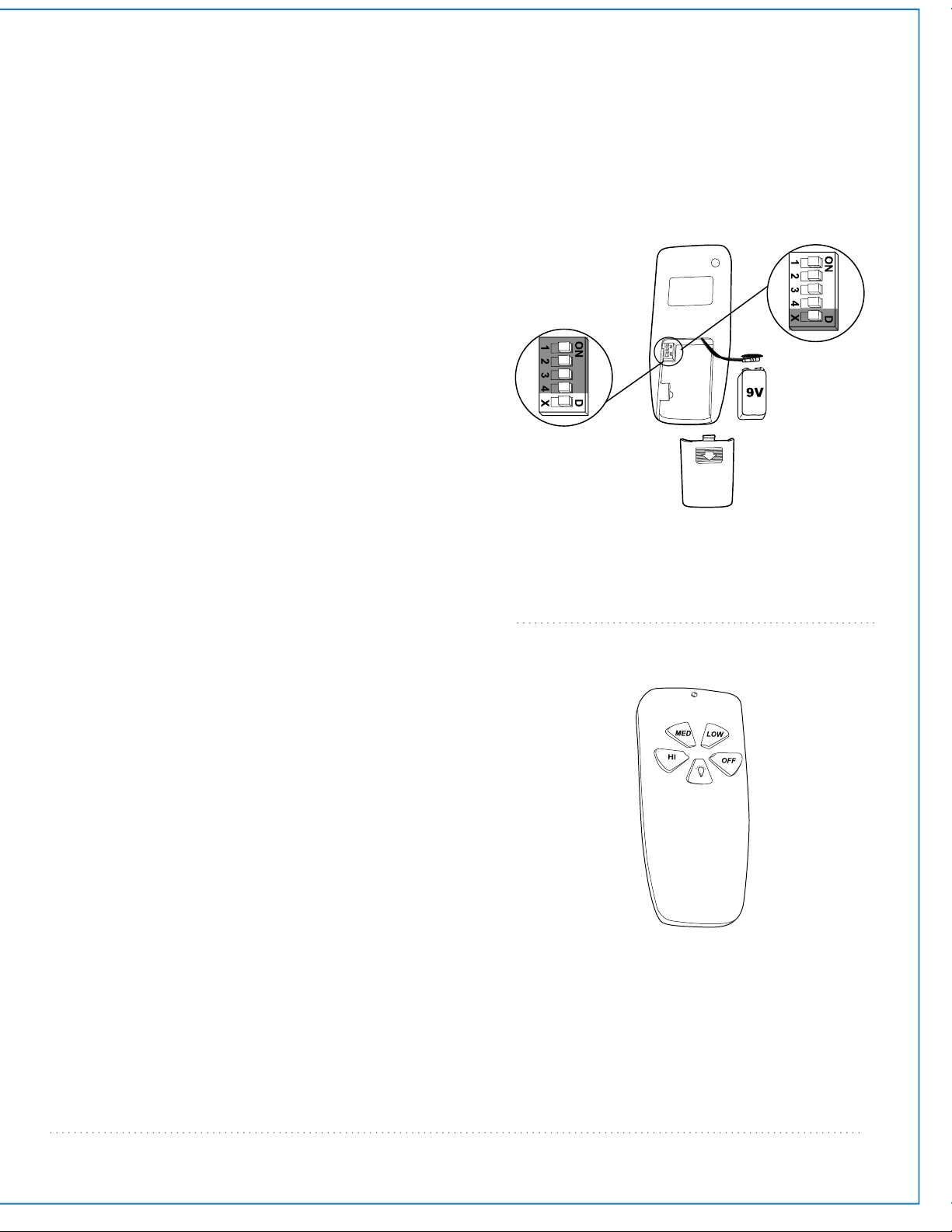

Activating Code. pg. 8

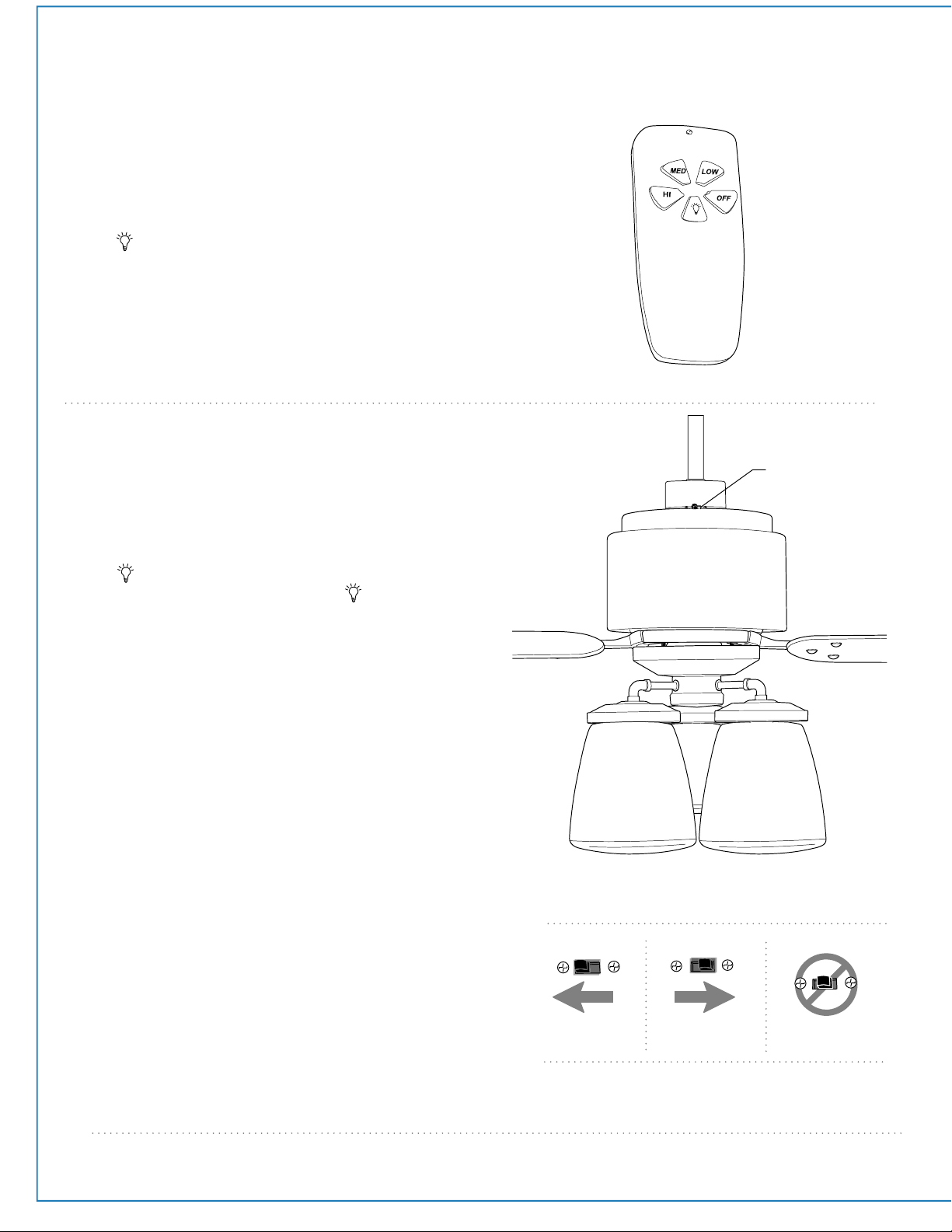

Remote Control Operation. pg. 9
Testing Your Fan. pg. 9
Troubleshooting. pg. 10
Warranty. pg. 10
Parts Replacement. pg. 10
net weight of fan: 21.78 lb (9.9 kg)
PRINTED IN CHINA
READ THESE INSTRUCTIONS
AND SAVE THEM FOR FUTURE USE
E192641
For Model:
COS52OSB5CR
SAFETY TIPS.
page 1
WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit
panel before you begin the fan installation or before servicing the fan or installing accessories.
1. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN
AND SAVE THESE INSTRUCTIONS.
CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.
2. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code, and
ANSI/NFPA 70-1999. If you are unfamiliar with electrical wiring or if the house/building wires are different
colors than those referred to in the instructions, please use a qualified electrician.
3. Make sure you have a location selected for your fan that allows clear space for the blades to rotate, and at
least seven (7) feet (2.13 meters) of clearance between the floor and the fan blade tips. The fan should be
mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other
upright structures.
4. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least
35 pounds (16 kilograms). The outlet box must be supported directly by the building structure. Use only
UL listed outlet boxes marked "FOR FAN SUPPORT."
WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked
"Acceptable for Fan Support of 15.9 kg (35 lb) or less," and use the mounting screws provided with the outlet box.
Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if in doubt.
WARNING: To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this fan are
designed to accept only one12 gauge house wire and two lead wires from the fan. If your house wire is larger than
12 gauge or there is more than one house wire to connect to the corresponding fan lead wires, consult an
electrician for the proper size wire connectors to use.
5. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be UL listed and
marked suitable for use with the model fan you are installing. Switches must be UL general use switches.
Refer to the instructions packaged with the light kits and switches for proper assembly.
6. After installation is complete, check that all connections are absolutely secure.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up
into the outlet box. The wires should be spread apart with the grounded conductor and the
equipment-grounding conductor on opposite sides of the outlet box.
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid state speed control device
or control fan speed with a full range dimmer switch. [Using a full range dimmer switch to control fan speed will
cause a loud humming noise from fan.]
8. Do not operate the reverse switch until fan has come to a complete stop.
9. Do not insert anything between the fan blades while they are rotating.
WARNING: To reduce the risk of personal injury, do not bend the blade arms during assembly or after installation.
Do not insert objects into the path of the blades.
WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or
cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER
than those provided with this fan will void the warranty.
NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all
possible conditions and situations that may occur. It must be understood that common sense and caution are
necessary factors in the installation and operation of this fan.

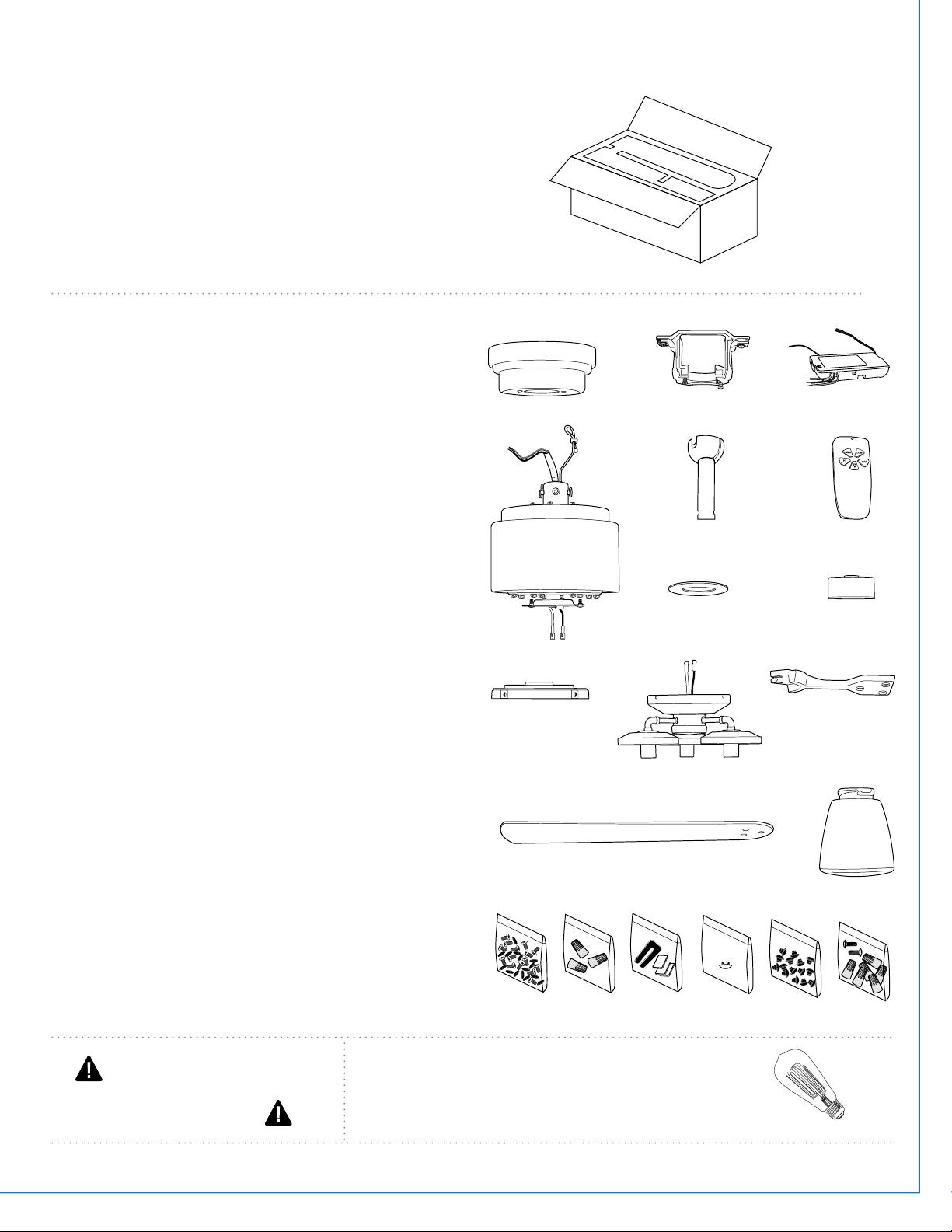

1. Unpacking Your Fan.
2. Parts Inventory.
a. canopy. 1 piece
b. hanging bracket. 1 piece
c. remote control receiver. 1 piece
d. motor housing. 1 piece
e. downrod and hanging ball. 1 piece
f. remote control transmitter. 1 piece
g. canopy cover (in hardware pack). 1 piece
h. yoke cover. 1 piece
i. fitter plate. 1 piece
j. light kit fitter. 1 piece
k. blade arm. 5 pieces
l. blade. 5 pieces
m. glass shade. 3 pieces
n. hardware packs
page 2
IMPORTANT REMINDER: You must
use the parts provided with this fan for
proper installation and safety.
required bulbs:
3 x 40 watt max. candelabra base bulbs
(included)
Carefully open the packaging. Remove items from
Styrofoam inserts. Remove motor housing and
place on carpet or Styrofoam to avoid damage to
finish. *The motor stabilization pieces may be
dicarded at this time. Do not discard fan carton or
Styrofoam inserts should this fan need to be
returned for repairs.
Check against parts inventory that all parts have
been included.
i
abc
j
d
h
ef
g
l
k
n
w/remote
m

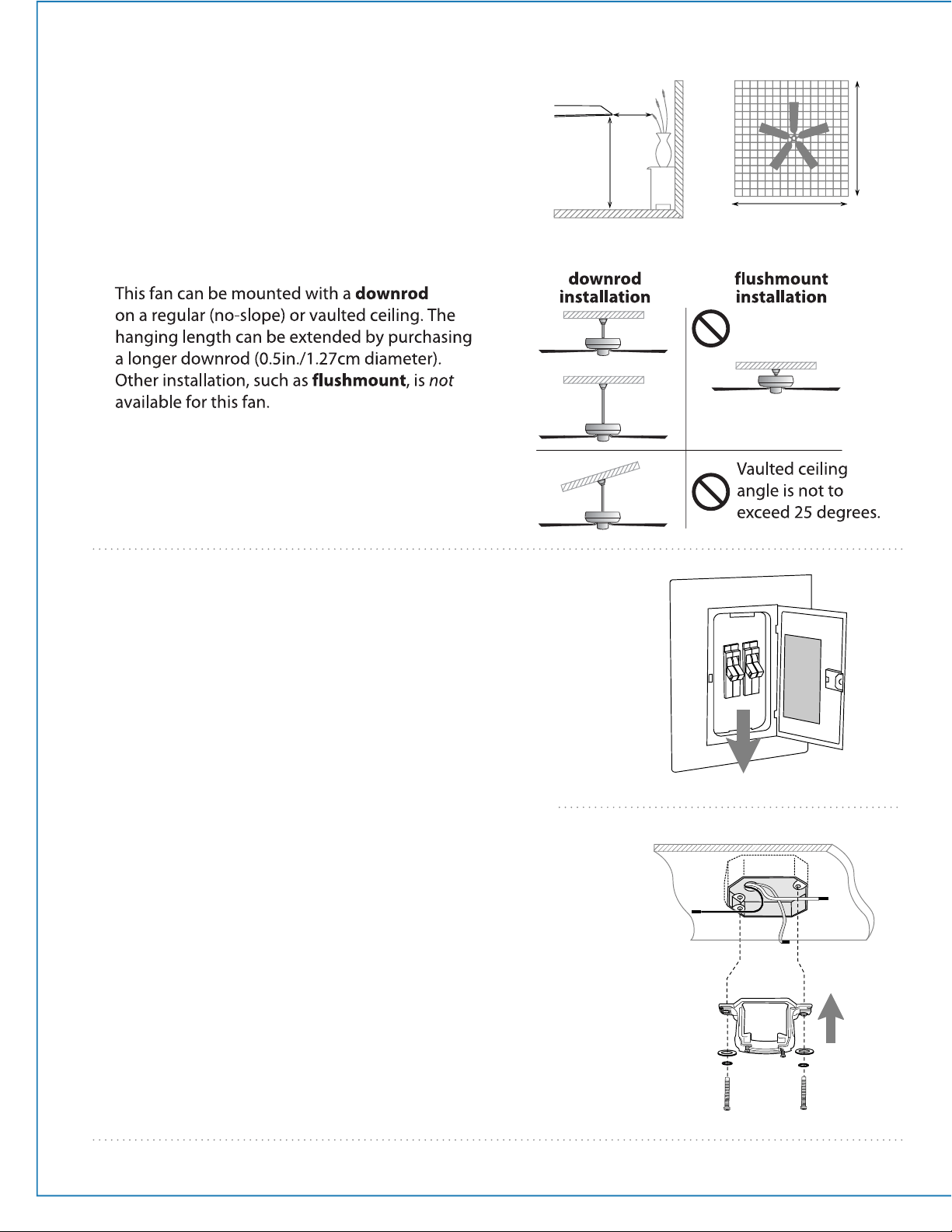

3. Installation Preparation.
To prevent personal injury and damage, ensure
that the hanging location allows the blades a
clearance of 7 feet (2.13m) from the floor and
30in. (76cm) from any wall or obstruction.
This fan is suitable for room sizes up to 400
square feet (37.2 square meters).
Installation requires these tools:
Phillips screwdriver, flat-head screwdriver,
adjustable pliers or wrench, stepladder, wire
cutters and rated electrical tape.
4. Hanging Bracket Installation.
page 3
ON
OFF
ON
OFF
12ft. - 20ft.
12ft. - 20ft.
(3.66m - 6.1m)
(3.66m - 6.1m)
blade edge
7 feet
(2.13m)
(76cm)
30
inches
Turn off circuit breakers to current fixture from breaker
panel and be sure operating light switch is turned to
the OFF position.
WARNING: Failure to disconnect power supply prior to
installation may result in serious injury.
Remove existing fixture.
WARNING: When using an existing outlet box, be sure the
outlet box is securely attached to the building structure
and can support the full weight of the fan. Ensure the
outlet box is clearly marked "Suitable for Fan Support." If
not, it must be replaced with an approved outlet box.
Failure to do so can result in serious injury.
CAUTION: Be sure outlet box is grounded and that a
ground wire (GREEN or bare) is present.
Install hanging bracket to outlet box using original
screws, spring washers and flat washers provided with
new or original outlet box.* Arrange electrical wiring
around the back of the hanging bracket and away from
the bracket opening.
*Note: It is very important that you use the proper
hardware when installing the hanging bracket as this will
support the fan.
hanging bracket
spring washers
outlet box screws
flat washers
NOTE: The important safety precautions and
instructions appearing in the manual are not meant
to cover all possible conditions and situations that
may occur. It must be understood that common
sense and caution are necessary factors in the
installation and operation of this fan.
page 4

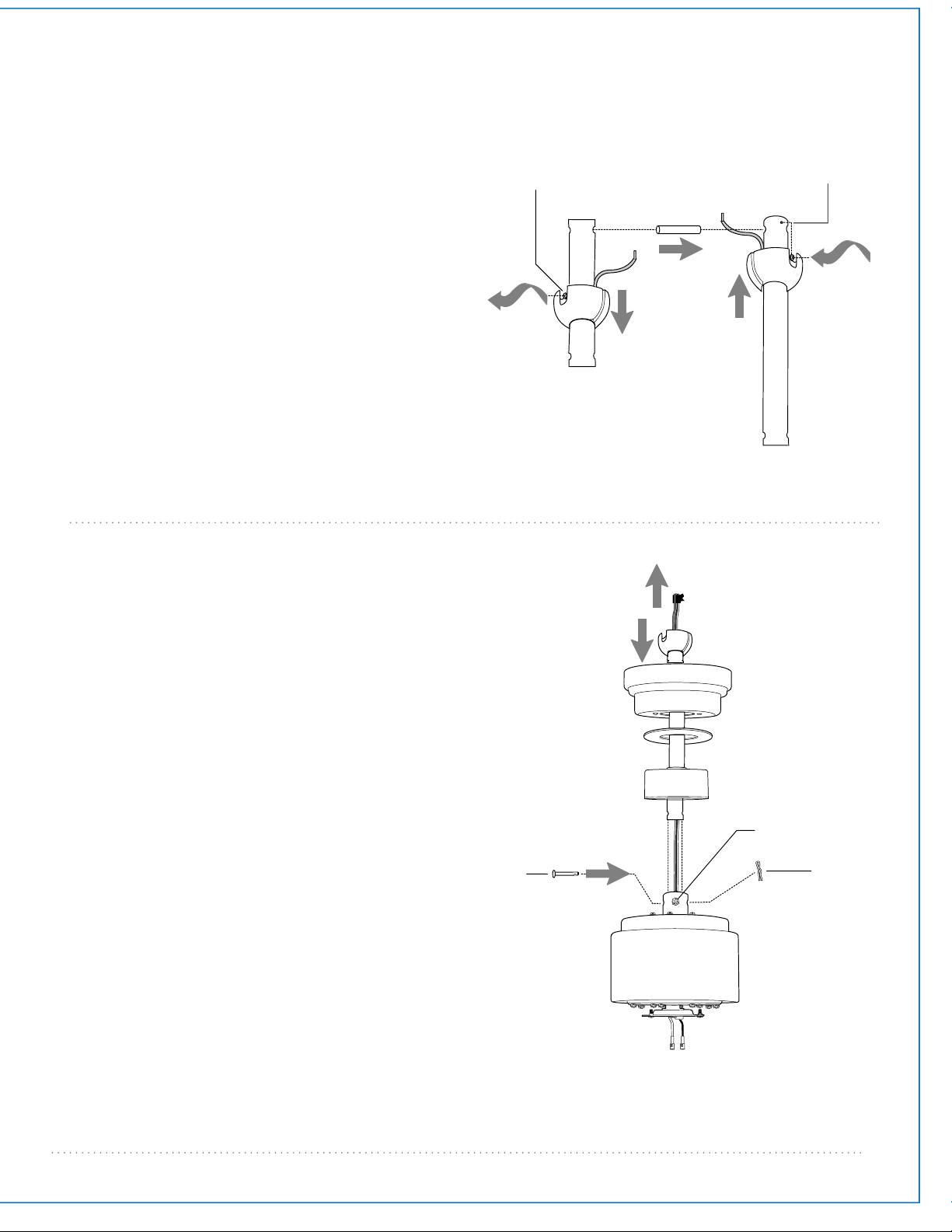

5. Fan Assembly.
If you wish to extend the hanging length of your
fan, you must remove the hanging ball from the
downrod provided to use with an extended
downrod (sold separately). [If you wish to use the
downrod provided, please proceed to instructions
following the dotted line below.]
To remove hanging ball, loosen set screw on
hanging ball. Lower hanging ball and remove
stop pin. Slide hanging ball off the original
downrod, A, and slide it down the longer
downrod, B (the top of the downrod should be
noted as having a set screw hole; use this hole
when setting the set screw). Insert stop pin into
top of extended downrod and raise hanging ball.
Be sure stop pin aligns with slots on the inside of
the hanging ball. Tighten set screw securely.
WARNING: Failure to tighten set screw completely
could result in the fan becoming loose and
possibly falling.
Tip: To prepare for threading electrical wires
through downrod, apply a small piece of electrical
tape to the ends of the electrical wires--this will
keep the wires together when threading them
through the downrod.
Locate canopy cover in hardware pack. Loosen
yoke set screws and nuts at top of motor housing.
Remove pin and clip from motor housing yoke.
Slide downrod through canopy, canopy cover and
yoke cover. [Note: Canopy cover must be turned
with shiny side toward the motor housing.]
Thread electrical wires through downrod and pull
extra wire slack from the upper end of the
downrod.
Place downrod into the motor housing yoke and
re-insert pin and clip that were previously
removed. Tighten yoke set screws and nuts
securely. Lower yoke cover to motor housing.
["Fan Assembly" continued on next page.]
set screw hole
set screw
hanging ball
stop pin
A
B
yoke cover
motor
housing
yoke set screw
downrod
electrical wiring
clip
pin
canopy
canopy cover
5. Fan Assembly. (cont.)
page 5

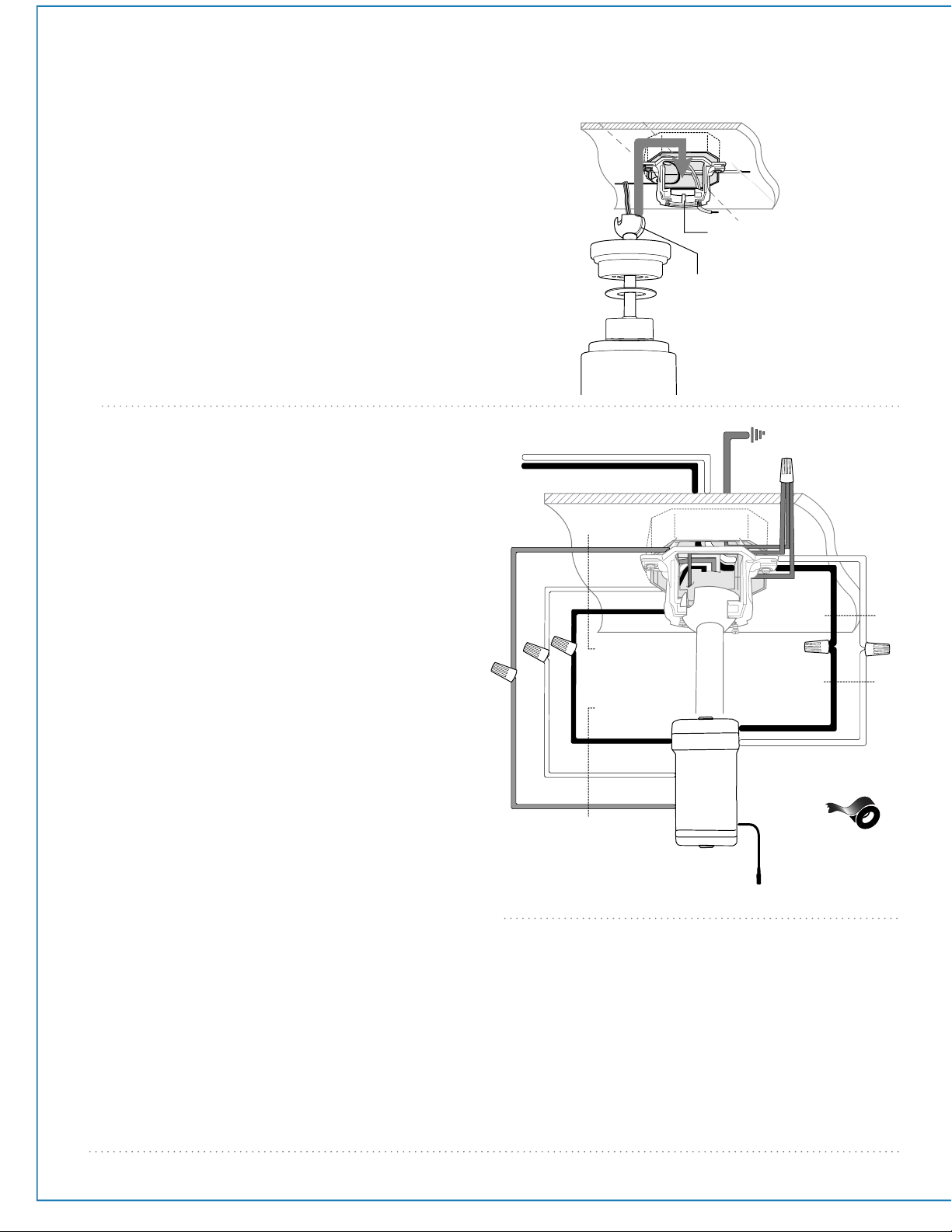

6. Wiring.
ground (green
or bare)
white supply wire
black supply wire
white
black
white
blue
blue
black
from receiver
black
AC IN L
AC IN N
white
white
ground (green
or bare)
from fan
from receiver
antenna
from ceiling
receiver
black
*
(wiring for receiver)
WARNING: Turn off circuit breakers to
current fixture from breaker panel and be
sure switch is turned to the OFF position.
CAUTION: Be sure outlet box is properly
grounded and that a ground wire (GREEN or
Bare) is present.
Make sure all electrical connections comply
with Local Codes or Ordinances and the
National Electrical Code. If you are unfamiliar
with electrical wiring or if the house/building
wires are different colors than those referred to
in the diagram to the right, please use a
qualified electrician.
Wire the RECEIVER with wire connectors
provided as shown in diagram at right.
Tip: While you are wiring, keep in mind that
wires must not obstruct receiver from sliding
into hanging bracket.
* Wrap each wire connector separately with
electrical tape as an extra safety measure.
Insert receiver (flat side up) into hanging
bracket and carefully push taped wire
connectors into outlet box. Allow antenna
from remote control receiver to hang outside
of hanging bracket.
With the hanging bracket secured to the outlet box and
able to support the fan, you are now ready to hang your
fan. Grab the fan firmly with two hands. Slide downrod
through opening in hanging bracket and let hanging ball
rest on the hanging bracket. Turn the hanging ball slot
until it lines up with the hanging bracket tab.
WARNING: Failure to align slot in hanging ball with tab in
hanging bracket may result in serious injury or death.
Tip: Seek the help of another person to hold the
stepladder in place and to help lift the fan up to you
once you are set on the ladder.
Modifications not approved by the party responsible for compliance
could void the user's authority to operate the equipment.
*NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
hanging ball slot
motor housing
hanging bracket tab
page 6
7. Canopy Assembly.
Locate 2 screws on underside of hanging
bracket and remove screw closest to the open
end of the hanging bracket. Partially loosen the
other screw. Lift canopy to hanging bracket.
Place rounded part of slotted hole in canopy
over loosened screw in hanging bracket and
push up. Twist canopy to lock. Re-insert screw
that was removed and then tighten both
screws securely.
Slide canopy cover up to canopy, aligning
rounded part of slotted holes in canopy cover
with screwheads in bottom of canopy. Turn
canopy cover to the right (clockwise) until it
stops.
canopy cover
screw
hanging bracket
screw
canopy
8. Blade Assembly.
motor
housing
blade
decorative
nuts
blade arm
blade attachment
screws and washers
lock washer and
blade arm screw
WARNING: To reduce the risk of serious bodily
injury, DO NOT use power tools to assemble the
blades. If overtightened, blades may crack and
break.
Time Saver: Washers for blade screws can be set
on each blade screw prior to installing blades.
Locate 15 blade attachment screws and washers
and 15 decorative nuts in one of the hardware
packs. Place blade arm on TOPSIDE (ridged side)
of blade, aligning holes in blade arm with holes
in blade. Insert a decorative nut into center hole
from UNDERSIDE (flatside) of blade making sure
to completely insert decorative nut so that the
blade arm can be attached correctly. Insert a
blade attachment screw (along with washer)
from TOPSIDE of blade but do not tighten
completely. Repeat for remaining holes in blade
and then tighten all 3 screws securely with a
Phillips screwdriver. Repeat procedure for
remaining blades.
Remove blade arm screws and lock washers from
underside of fan motor and set aside. [WARNING:
Do NOT remove the 4 screws located on the
outer rim of the underside of the motor
housing--doing so or any attempt at doing so
will void the warranty.] Align blade arm holes
with motor screw holes and attach blade arm
with lock washers and blade arm screws. Before
securing screws permanently, repeat this
procedure with remaining blade arms. Secure all
screws.
Note: Tighten blade arm screws twice a year.
page 7
9. Light Kit Assembly (Optional).
fitter plate
fitter plate
light kit fitter
motor housing
motor housing
motor housing
metal plate
molex connections
glass shade
fitter plate
bulb
molex
connections
lock washer
hex nut
light kit fitter
plastic cap
switch
housing cap
threaded
rod
Remove 1 screw from motor plate on
underside of motor housing and partially
loosen the other 2 screws. Align slotted holes in
center of fitter plate with loosened screws in
motor plate, allowing molex connections from
motor housing to come through hole in middle
of fitter plate. Twist fitter plate to lock. Re-insert
screw that was previously removed and
securely tighten all 3 screws with a Phillips
screwdriver.
Remove 4 screws from outer edge of fitter
plate.
If you wish to use your fan WITH the light kit,
connect WHITE wire from light kit fitter to
WHITE wire from motor housing. Connect
BLACK wire from light kit fitter to BLACK (or
BLUE) wire from motor housing. Be sure that
the molex connections snap together securely.
Carefully arrange wiring within the fitter plate.
Align holes in light kit fitter with holes in fitter
plate. Re-install screws that were previously
removed and then securely tighten all 4 screws.
Install 3 candelabra base 40 watt max. bulbs
(included).
Important: When replacing bulbs, please allow
bulbs and glass shades to cool down before
touching.
Align grooves on glass shade with nodules
inside of shade fitter and push up gently on
glass shade. Twist glass shade completely to the
RIGHT (clockwise) until glass shade no longer
turns. Repeat for each glass shade.
Pull down VERY GENTLY on each glass shade to
make sure that glass shades are secure.
CAUTION: Do NOT overtighten glass shade
as glass may crack or break.
Please proceed to Section 10 on the following
page to complete installation with the light kit.
If you do NOT wish to use the light kit, remove
hex nut, lock washer, metal plate and switch
housing cap from threaded rod at top of light
kit fitter.
Locate plastic cap in one of the hardware packs
and place firmly in hole in middle of switch
housing cap.
Align holes in swich housing cap with holes in
fitter plate. Re-install screws that were
previously removed and then securely tighten
all 4 screws.
page 8
10. Automated Learning Process./Activating Code.
TRANSMITTER
(front)
dimmer
switch
dip
switches
1
TRANSMITTER
(back)
battery
battery
cover
CAUTION: The remote control transmitter can be
programmed to multiple receivers or fans. If this is
not desired, turn wall switch off to any other
programmable receiver or fan.
This remote control transmitter is equipped
with 16 code combinations to prevent possible
interference from or to other remote units such
as garage door openers, car alarms or security
systems. If you find that your fan and light go
on and off without using your remote control,
simply change the combination code in your
remote control (transmitter and wall control).
To set the code, perform these steps:
Remove battery cover from back side of
transmitter.
Use a ballpoint pen or a small screwdriver to
set the code switches 1 through 4 for the
transmitter.
Note: Since this fan comes with incandescent
bulbs, the dimmer switch (labeled D and X) has
been pre-set to the "ON" position (D). If you do
not wish to have dimming capability, please
move the switch to the "OFF" position (X).
Install 9-volt battery (sold seperately) in
transmitter.
IMPORTANT: To prevent damage to
transmitter, remove the battery if not used for
long periods.
Restore electrical power. Within 30 seconds of
turning on the wall control, press and hold the
"OFF" button on the front of the transmitter for
5 seconds or until the lights on the fan blink
twice. Test the fan and light functions to
confirm the learning process is complete--see
Section 12.
Replace the battery cover.
page 9
HI button - turns fan to HIGH speed
MED button - turns fan to MEDIUM speed
LOW button - turns fan to LOW speed
OFF button - turns fan OFF
button - controls LIGHT function; turns light
ON/OFF when tapped quickly. Pressing and
holding button down for more than 0.7 seconds
converts it into a dimmer. Auto resume
capability keeps light at same brightness level
as the last time it was turned off.
11. Remote Control Operation.
12. Testing Your Fan.
It is recommended that you test fan before
finalizing installation. Test fan speeds with the
different fan speed buttons on remote control.
Test the light ON/OFF function with the
button on the remote control. Test dimmer
function by holding down the button for
more than 2 seconds. If the remote control
operates all of the functions of the fan and
light, battery has been installed correctly
(diagram 1). If fan and/or light does not
function, please refer to "Troubleshooting"
section to solve any issues before contacting
Customer Service.
Turn fan completely off before moving the
reverse switch (located on top of motor
housing). Set reverse switch to recirculate air
depending on the season:
- LEFT position in summer (diagram 2)
- RIGHT position in winter (diagram 3)
A ceiling fan will allow you to raise your
thermostat setting in summer and lower your
thermostat setting in winter without feeling a
difference in your comfort.
Important: Reverse switch must be set either
completely to the LEFT or completely to the
RIGHT for fan to function. If the reverse switch
is set in the middle position (diagram 4), fan
will not operate.
diagram 2 diagram 3 diagram 4
diagram 1
reverse switch
page 10
Troubleshooting. Warranty.
Problem: Fan fails to operate.
Solutions:
1. Check wall switch to fan.
2. Verify that reverse switch is set completely in either
direction.
3. Verify that receiver is wired properly.
4. Check to be sure fan is wired properly.
5. Check that red light on remote control transmitter turns
on when a button is pressed indicating that the battery is
good.
6. Learning process between fan and remote control
transmitter may not have been successful and code was
not activated. Turn off power, remove battery cover from
back of transmitter, and repeat instructions in last two
paragraphs of Section 10 (page 8).
Problem: Light kit (optional) not lighting.
Solutions:
1. Check wall switch to fan.
2. Check that bulbs are installed correctly.
3. Check that wires in canopy are wired properly.
4. Learning process between fan and remote control
transmitter may not have been successful and code was
not activated. Turn off power, remove battery cover from
back of transmitter, and repeat instructions in last two
paragraphs of Section 10 (page 8).
Problem: Fan operates but light fails (if applicable).
Solutions:
1. Check that bulbs are installed correctly.
2. Check that wires in canopy are wired properly.
3. Check to be sure molex connections in light kit fitter are
connected properly.
4. Replace defective bulbs with same type of bulb.
Problem: Fan and light fail to operate with remote control.
Solutions:
1. Check battery power to remote control.
2. Learning process between fan and remote control
transmitter may not have been successful and code was
not activated. Turn off power, remove battery cover from
back of transmitter, and repeat instructions in last two
paragraphs of Section 10 (page 8).
Problem: Lighting source (up-light, down-light or both)
not functioning.
Solution:
Wattage Limiting Device has interrupted the flow of
electricity to the light source. Ensure bulbs total no more
than 190W in the light source.
Problem: Fan wobbles.
Solutions:
1. Use the balancing kit in one of the hardware packs. If no
blade balancing kit is provided, please call Customer
Support, 1-800-527-1292, to request one.
2. Check to be sure set screw(s) on motor housing yoke is
(are) tightened securely.
3. Check to be sure set screw on hanging ball is tightened
securely.
Parts Replacement.
WARNING: Failure to disconnect power supply
prior to troubleshooting any wiring issues may
result in serious injury.
For parts and information, please refer to
"Parts Inventory" on page 2.
Litex Customer Support:
1-800-527-1292
LITEX LIFETIME LIMITED WARRANTY:
LITEX INDUSTRIES, LTD. warrants this fan to the original
household purchaser for indoor use under the following
provisions:
1-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will replace or
repair any fan which has faulty performance due to a
defect in material or workmanship. Contact Customer
Service at 1-800-527-1292 to arrange for return of fan.
Return fan, shipping prepaid, to Litex Industries, Ltd. We will
repair or ship you a replacement fan, and we will pay the
return shipping cost.
5-YEAR WARRANTY: LITEX INDUSTRIES, LTD. will repair or
replace, at no charge to the original purchaser, any fan
motor that fails to operate satisfactorily when failure
results from normal use.
RETURN FAN MOTOR ONLY, shipping prepaid, to Litex
Industries. We will repair or ship purchaser a replacement
motor and Litex will pay the return shipping cost.
6-YEAR to LIFETIME LIMITED WARRANTY: LITEX
INDUSTRIES, LTD. will repair the fan, at no charge to the
original purchaser for labor only, if the fan motor fails to
operate satisfactorily when failure results from normal use.
Parts used in the repair will be billed to the purchaser at
prevailing prices at time of repair.
The purchaser shall be responsible for all costs incurred
in the removal, reinstallation and shipping of the product
for repairs.
This warranty does not apply when damage from
mechanical, physical, electrical or water abuse results in
causing the malfunction. Deterioration of finishes or other
parts due to time or exposure to salt air is specifically
exempted under this warranty.
Neither Litex Industries nor the manufacturer will
assume any liability resulting from improper installation or
use of this product. In no case shall the company be liable
for any consequential damages for breach of this, or any
other warranty expressed or implied whatsoever. This
limitation as to consequential damages shall not apply in
states where prohibited.
