12” Grass Trimmer GT1238
3084514
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
MNL_GT1238_V1
Operators Manual
EN p. 2
2
Contents
2
Product Specifications
2
Important Safety Instruction
3-4
Electrical Information 5-7
Symbols 8-9
Know Your Grass Trimmer 10
Assembly 11-13
Operation 14-15
Maintenance 16-17
Troubleshooting
18
Warranty
19
Exploded View
20
Parts List
21
Notes 22
TABLE OF CONTENT
SPECIFICATIONS
12” CORDED GRASS TRIMMER
Type Corded
Voltage
120V~60Hz
Amp 4.2 A
Revolutions Per Minute 10000rpm
Line Size
0.065 inch(1.65mm)
Cutting Swath
12 inch(305mm)
Feed System dual line auto feed
Weight 5.51lbs(2.5Kg)
3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS
• Grass trimmer is designed for cutting grass and similar soft vegetation and for trimming grass
edges in private and hobby garden areas which are not accessible with a grass trimmer.
• The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as
well as in agriculture and forestry.
• This
grass
trimmer is not allowed to be used for cutting or chopping, otherwise, there is a risk of injury:
- Hedges, shrubs and bushes,
- Flowers,
- In terms of composting.
•
This grass trimmer is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, stop using the unit. Take the unit to a qualified service dealer for
inspection and possible repair using identical replacement parts.
• Wear protective glasses or goggles.
• Never allow children or people unfamiliar with the instructions to use the grass trimmer.
• Stop using the grass trimmer while people, especially children, or pets are nearby.
• Only use the grass trimmer in daylight or good artificial light.
• Before using the grass trimmer and after any impact, check for signs of wear or damage and repair
as necessary.
• Never operate the grass trimmer with damaged guards or without the guards in place.
• Keep hands and feet away from the cutting means at all times and especially when switching on
the motor.
• Take care against injury from any device fitted for trimming the filament line length. After extending
new cutter line always return the grass trimmer to its normal operating position before switching on.
• Never fit metal cutting elements.
• Never use replacement parts or accessories not provided or recommended by the manufacturer.
See the Parts List in this manual for identical replacement parts.
• Disconnect the
grass
trimmer from the power supply before checking, cleaning or working on the
grass trimmer and when it is not in use.
• Always ensure that ventilation openings are kept clear of debris.
IMPORTANT!
When using electric gardening appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and personal
injury. For your own safety and bystanders please read these instructions
before operating the grass trimmer. Do not use the grass trimmer without
reading the instruction sheet. Please keep the instructions safe for later use.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
SAVE THESE INSTRUCTIONS
4
ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER
• Do not expose to moisture.
• Use only on AC outlet supply voltage shown on the product rating label.
• Avoid operating your trimmer in wet grass, where feasible.
• Take care in wet grass, you may lose your footing.
• On slopes, be extra careful of your footing and wear nonslip footwear.
• Do not walk backwards when trimming, you could trip. Walk never run.
• Switch off before pushing the trimmer over surfaces other than grass.
• Never pick up or carry a trimmer by the cable.
• Do not lean over the trimmer guard. Objects may be thrown by the trimming line.
• Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.
• To avoid the risk of injury, keep fingers and hands clear of the line cut-off blade on the leading
edge of the guard.
• Don't Force Appliance - It will do the job better and with less likelihood of a risk of injury at the
rate for which it was designed; Don't Overreach - Keep proper footing and balance at all times;
Stay Alert - Watch what you are doing. Use common sense.
Do not operate appliance when you are tired.
MAINTENANCE
• After use, disconnect the machine from the outlet and check for damage.
• When not in use store the machine out of the reach of children.
• Electric powered trimmers should only be repaired by a qualified service dealer using identical
replacement parts.
• Use only identical replacement parts as listed in the Parts List of this manual.
The preparation for use, operation and maintenance of the appliance:
- Read the instructions carefully;
- Be familiar with the controls and proper use of the equipment;
- Before use check the supply and extension cord for signs of damage or ageing;
- If the cord becomes damaged during use, disconnect the cord from the power supply immediately:
DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
- Do not use the grass trimmer (edge trimmer), if the cords are damaged or worn.
- Cutting elements continue to rotate after the motor is switched off;
- Keep extension cords away from cutting elements;
- It is recommended that appliances should be supplied via a residual
current
device (RCD) with a tripping current of not more than 30mA.
WARNING
WARNING
5
ELECTRICAL INFORMATION
DOUBLE INSULATED
This grass trimmer has a plug that looks like the one shown in Fig. 1
The grass trimmer is double insulated to provide a double thickness of insulation between you and
the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor
components with protective insulation.
TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE
TOOL, USE PROPER CIRCUIT PROTECTION. YOUR GRASS TRIMMER IS
WIRED AT THE FACTROY FOR 120 V OPERATION. CONNECT TO A 120 V,
15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR CIRCUIT
BIREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS
WORN, CUT OR DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.
USE ONLY IDENTIFICAL REPLACEMENT PARTS WHEN SERVICING THE
GRASS TRIMMER, TO AVOID INJURY.
WARNING
DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY
PRECAUTIONS WHEN OPERATING THIS GRASS TRIMMER
WARNING
TO AVOID ELECTROCUTION:
1. Use only identical replacement parts when servicing a tool with double
insulation. Servicing should be performed by a qualified technician.
2. Do not use in wet or damp areas or expose to rain.
Fig. 1
CAUTION
ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED.
IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.
WARNING
THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE
TO RAIN OR USE IN DAMP LOCATIONS.
6
ELECTRICAL INFORMATION
GUIDELINES FOR USING EXTENSION CORDS
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry the current your product
will draw. An undersized cord will cause overheating. The table below shows the correct size to
use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier the cord.
GROUNDING INSTRUCTIONS
IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least
resistance for electric current, and reduces the risk of electric shock. This tool is equipped with a
POLARIZED plug. The plug MUST be plugged into a matching grounded extension cord in
accordance with All local codes and ordinances.
DO NOT MODIFY THE PLUG PROVIDED. If it will not fit the properly grounded extension cord,
have the proper outlet installed by a qualified electrician.
Minimum Gauge for Extension Cords (AWG)
(when using 120 V only)
Ampere Rating
More Than
0
6
10
12
Not More Than
6
10
12
16
25’ (7.6 m)
18
18
16
14
50’ (15 m)
16
16
16
12
100’ (30.4 m)
16
14
14
Not Recommended
150’ (45.7 m)
14
12
12
Total Length of Cord in Feet (meters)
WARNING
ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED, THE
EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED WHILE
IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.
7
Make sure your extension cord is properly wired and in good electrical condition. Always replace a
damaged extension cord or have it repaired by a qualified person before use. Keep extension cords
away from sharp objects, excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12
gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the
power line, make sure the switch is in the OFF position and the electric current is identical to that
stamped on the motor nameplate. Running at a lower voltage will damage the motor.
ELECTRICAL INFORMATION
8
Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOLS
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
Safety Alert Symbol Indicates a potential personal injury hazard.
Read The Operator’s Manual
To reduce the risk of injury user must read and
understand operator’s manual before using this product.
Wet Conditions Alert Do not expose to rain or use in damp locations
Eye and Hearing Protection
Always wear eye protection with side shields marked
to comply with ANSI Z87.1, along with hearing protection.
Long Hair
Failure to keep long hair away from the air inlet
could result in personal injury.
Loose Clothing
Failure to keep loose clothing from being drawn
into air intake could result in personal injury.
Keep Bystanders Away Keep all bystanders at least 50 ft. away.
Gloves
Wear non-slip, heavy-duty protective gloves when
handling the grass trimmer.
Safety Footwear
Wear non-slip safety footwear when using this equipment.
Electric Shock
Failure to use in dry conditions and to observe safe
practices can result in electric shock.
9
SYMBOLS
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that may result
in property damage.
WARNING
To avoid serious personal injury, do not attempt to use this product
until you read thoroughly and understand completely the operator’s
manual. If you do not understand the warnings and instructions in
the operator’s manual, do not use this product. Call the Customer
Care Hot Line for assistance at 1-888-331-4569.
The operation of any power tool can result in foreign objects being thrown into your
eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields and, when needed,
a full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses
or standard safety glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
10
KNOW YOUR GRASS TRIMMER

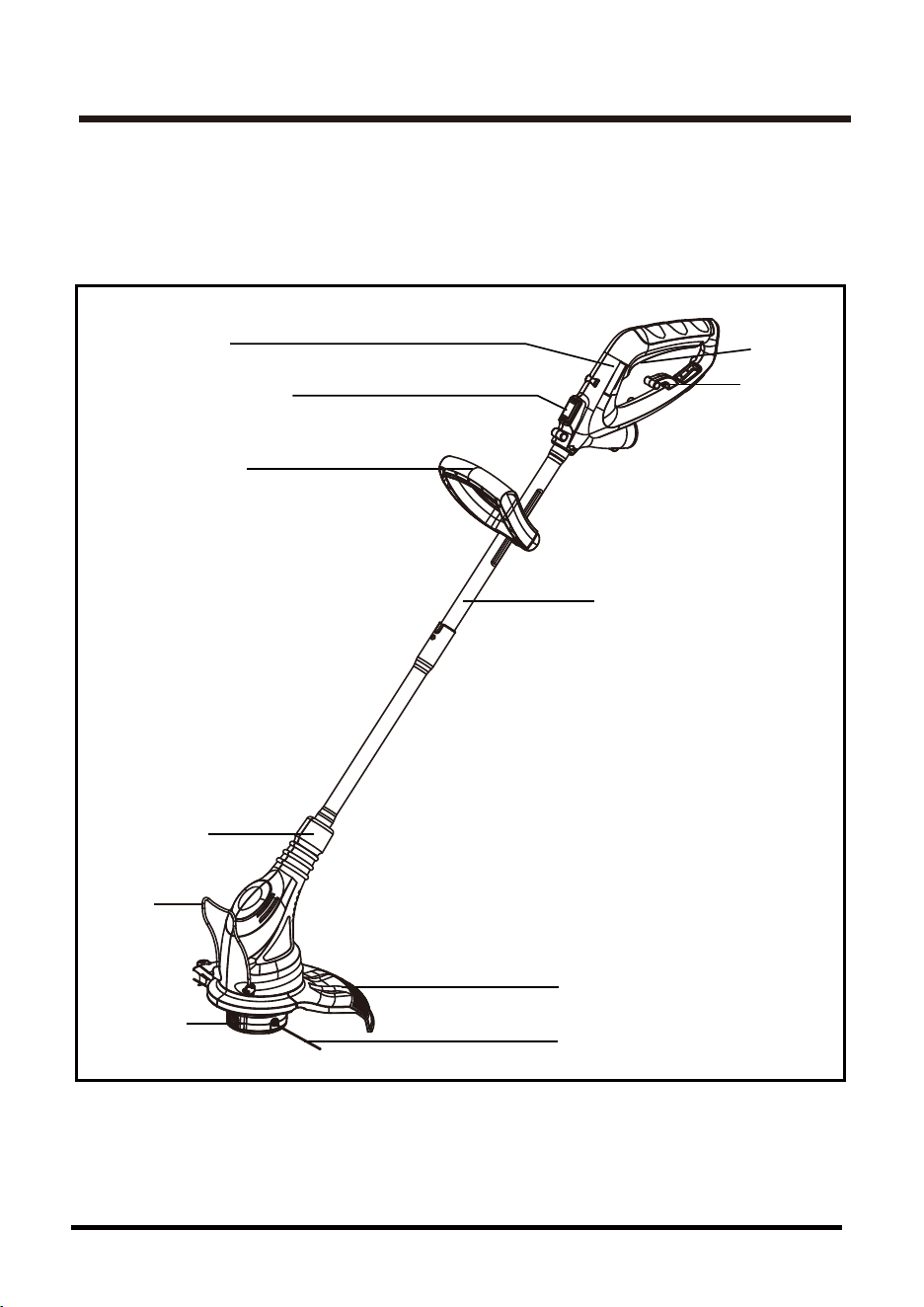

KNOW YOUR GRASS TRIMMER (See Figure 1.)
The safe use of this product requires an understanding of the information on the product and in this
operator’s manual as well as a knowledge of the project you are attempting. Before use of this
product, familiarize yourself with all operating features and safety rules.
Fig.1
Line Spool
Flower
Guard
Power Head
Upper Shaft
Auxiliary Handle
Rotational Lock Button
ON/OFF
Switch
Upper Handle
Trimming Line
Debris Guard
Cord
Retainer
Hook
WARNING
WARNING
11
ASSEMBLY

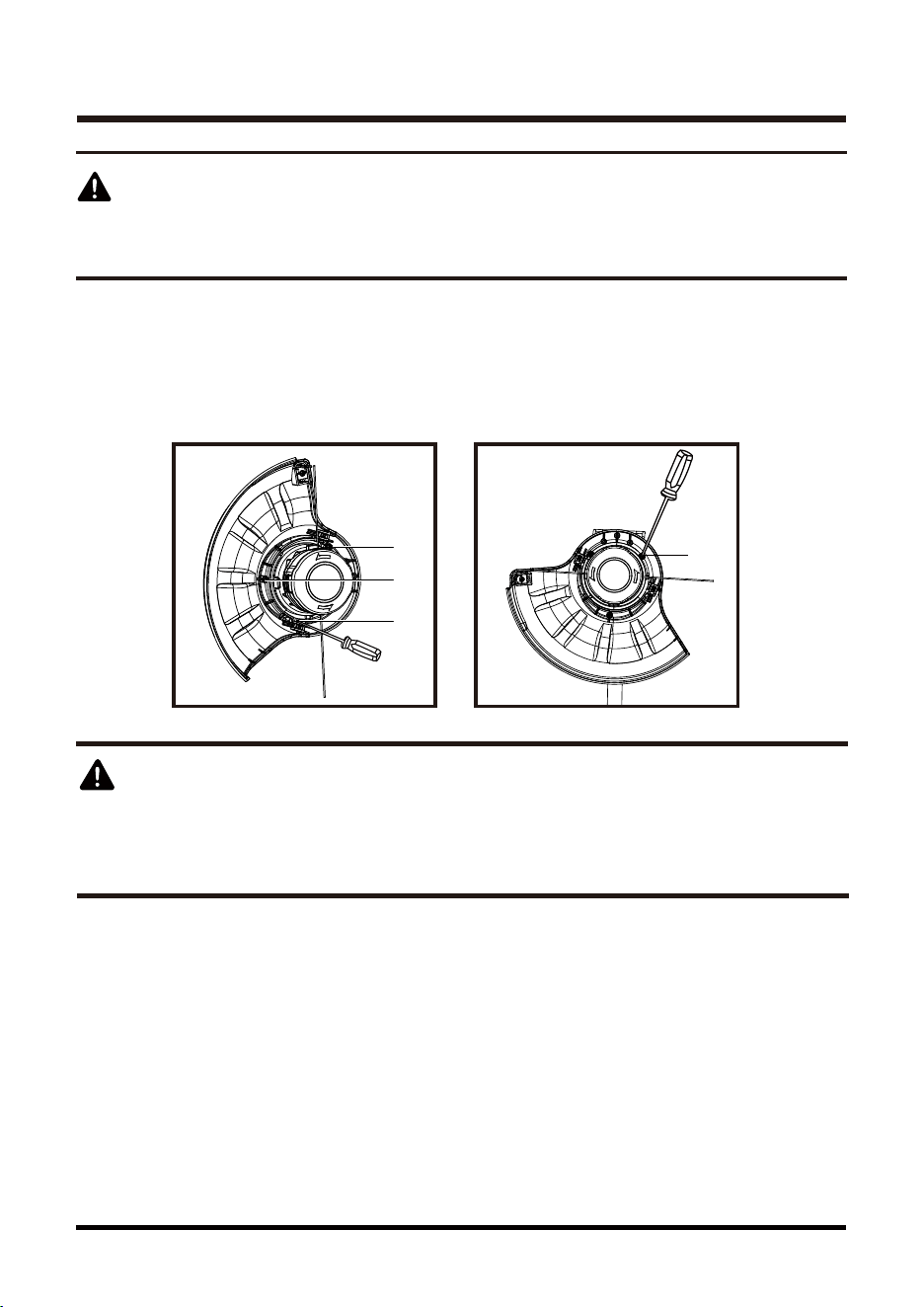

Fitting The Guard (See Figure 2 & Figure 3.)
1. Fit the debris guard with pre-installed screws into the slots on the trimmer housing and line up
the screw hole in the debris guard with the screw hole in the trimmer head.
2. Tighten the pre-installed screws on the debris guard by turning clockwise with a Phillips screwdriver.1\
Before assembly, make sure that the grass trimmer is switched off and
unplugged.
The line cut-off blade on the safety guard is sharp. Avoid contact with the
blade. Failure to avoid contact can result in serious personal injury.
Never use the grass trimmer unless the guard is properly fitted.

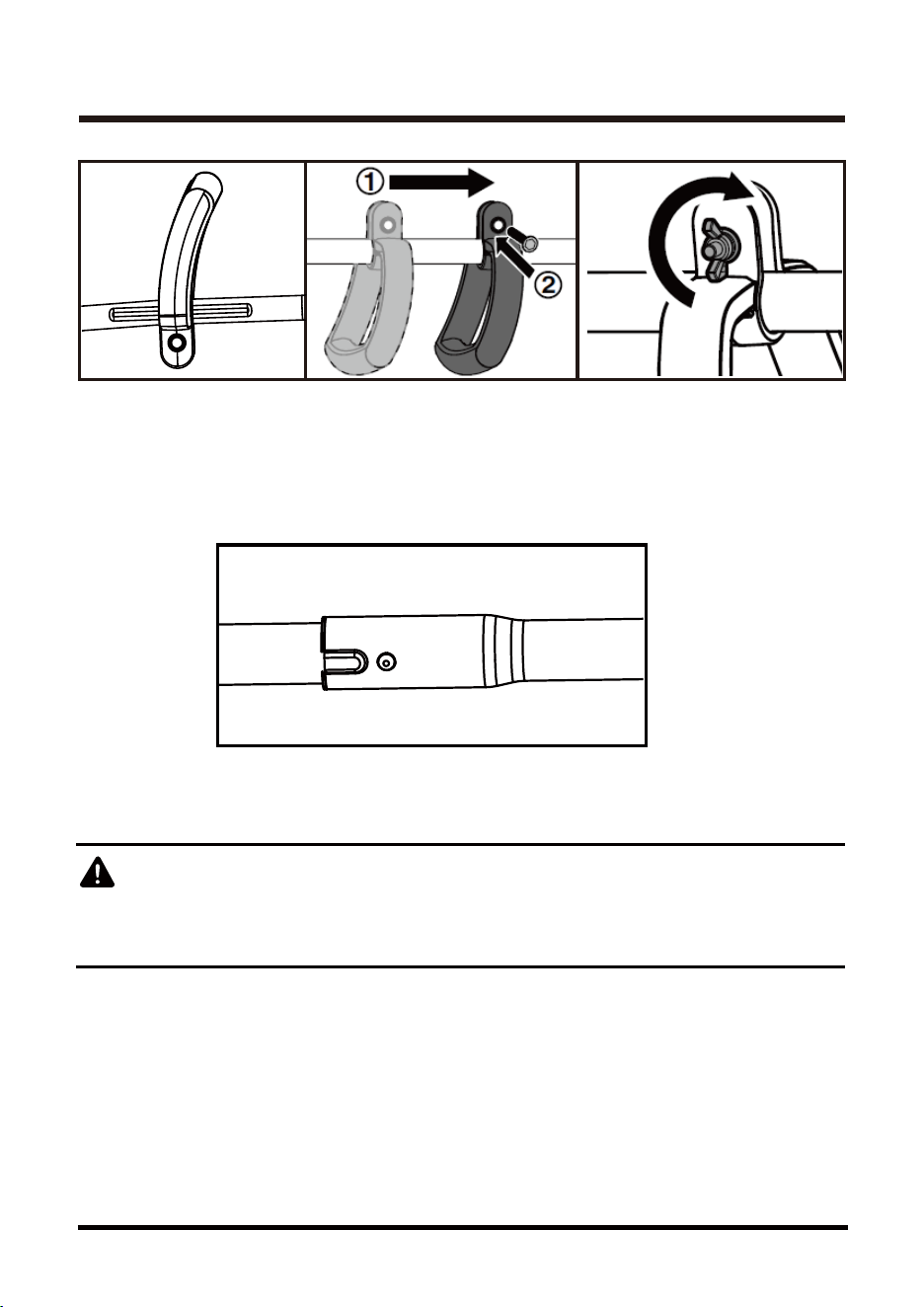

FITTING THE AUXILIARY HANDLE (See Figure 4 & Figure 5.)
Loosen and remove the wing nut from the auxiliary handle.
1. Place the auxiliary handle on the upper shaft. Adjust the handle to mount on the index channel
as shown.
2. Along the index channel, slide the auxiliary handle to the most comfortable position.
3. Insert the bolt in the hole on the auxiliary handle and tighten the wing nut securely.
Fig. 2 Fig. 3
③
Ɨ
Ƙ
ƙ
ASSEMBLY
JOINING THE UPPER SHAFT TO THE MOTOR HEAD (See Figure 6.)

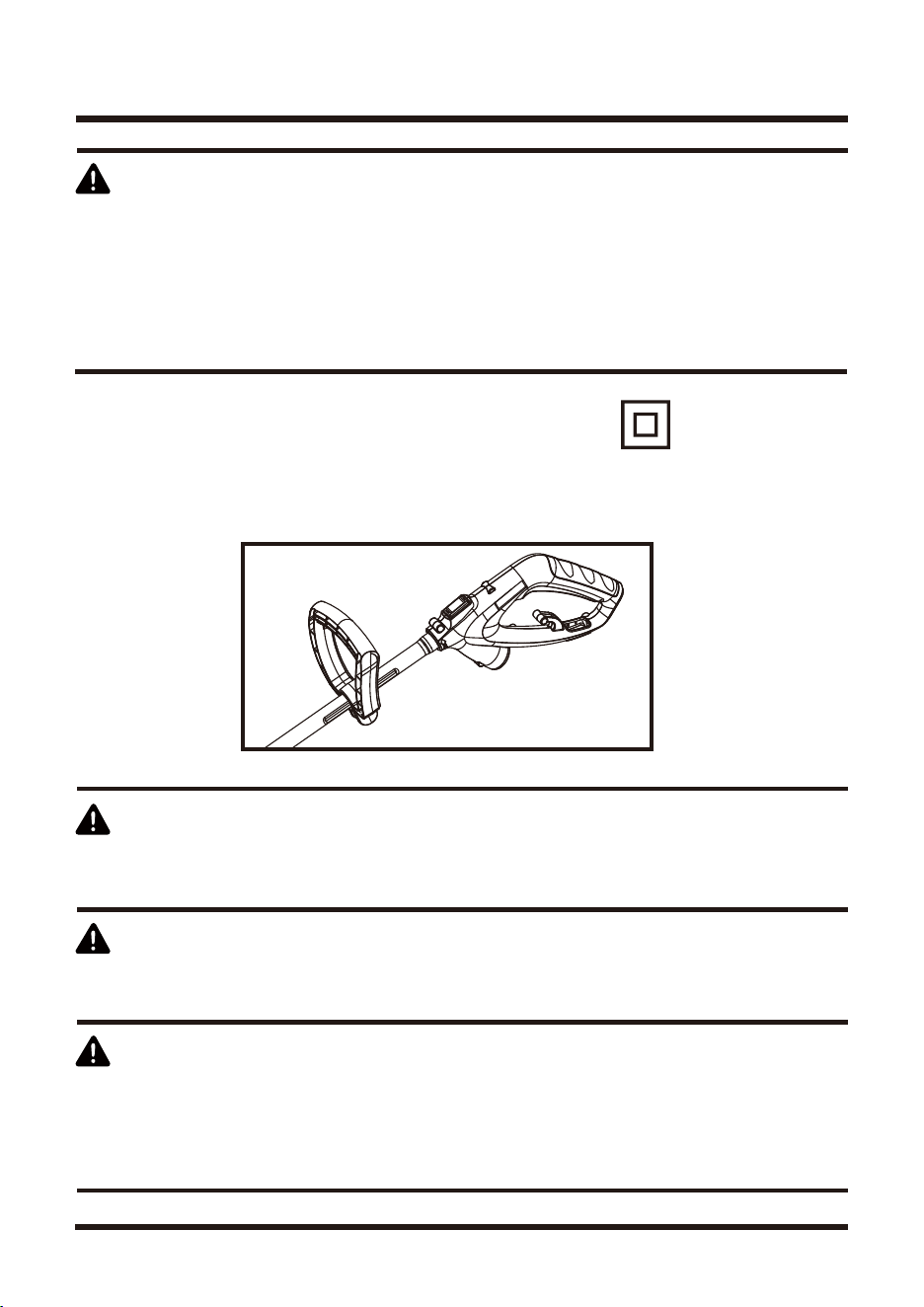

PREPARING THE TRIMMER FOR USE (See Figure 7 & Figure 8.)
1. Align the upper shaft with the lower shaft.
2. Insert upper shaft into the lower shaft and lock pin button into place.
1.Attach the outlet end of an extension cord to the plug on the rear of the grass trimmer.
NOTE: Use only approved outdoor extension cords.
Never adjust the upper handle while the power head is running. Failure
to stop the motor may cause serious personal injury
NOTE:
If the button does not release completely in the positioning hole, the shafts are not locked
into place. Slightly rotate from side to side until the button is locked into place.
WARNING
12
Fig. 4 Fig. 5
Fig. 6
WARNING
If any parts are damaged or missing, do not operate this product until the
parts are replaced. Failure to heed this warning could result in serious
personal injury.
WARNING
Do not connect to power supply until assembly is complete.
Failure to comply could result in accidental starting and possible serious
personal injury.
WARNING
Never attempt to lock the switch trigger in the ON position.
13
Fig.7
Fig.8
ASSEMBLY

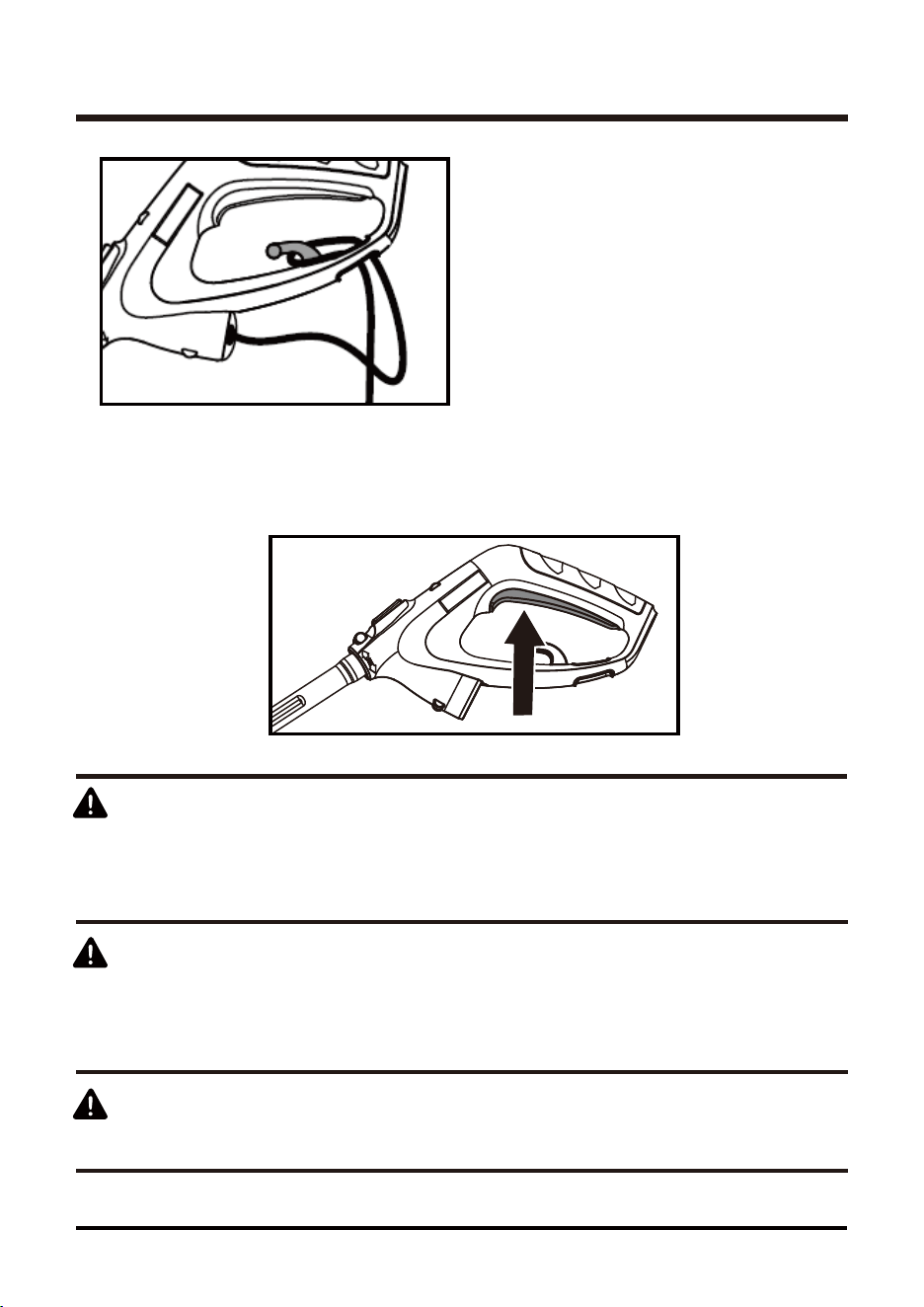

2. Route the extension cord through the slot located on the rear of the grass trimmer housing and
place underneath the cord retainer.
3. To start the grass trimmer, press the switch trigger.
4. To stop the grass trimmer, release the switch trigger.
14
Hint for optimum use
• In order to achieve optimum cutting results, only cut dry grass.
Trimming (See Figure 10.)
• Hold the grass trimmer as shown.
• Gently swing the trimmer from side to side.
• When cutting long grass, work in stages from hard objects and
delicate pants.
• If the grass trimmer starts running slowly, reduce the load.

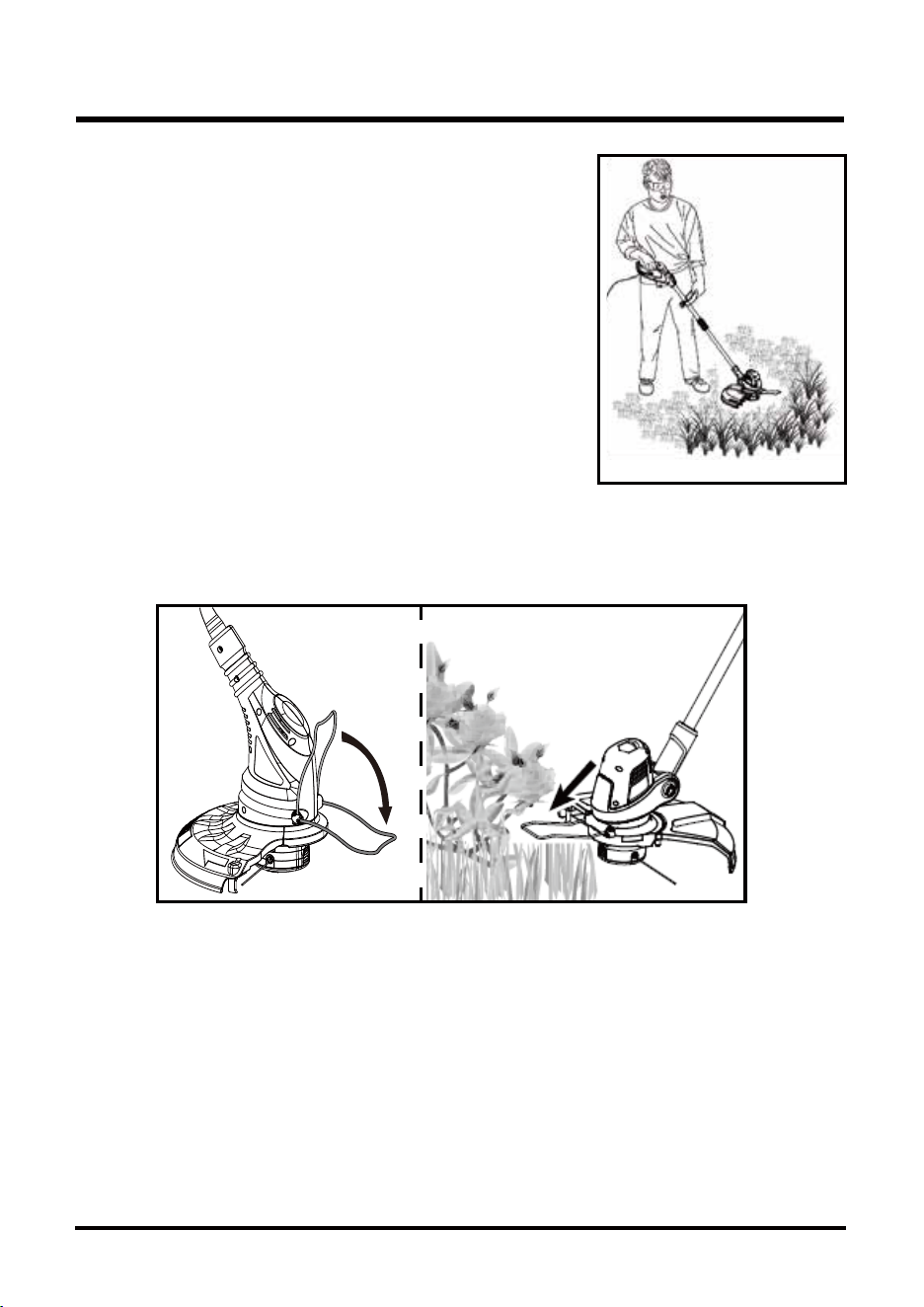

Using the Flower Guard (See Figure 11 &Figure 12.)
• If necessary the flower guard can be swung down until it engages.
Use the flower guard for example, to cut around plants.
Using the Flower Guard (See Figure 11 &Figure 12.)
• If necessary the flower guard can be swung down until it engages.
Use the flower guard for example, to cut around plants.
IF GRASS BECOMES WRAPPED AROUND STRING HEAD SHAFT:
1. Stop trimmer.
2. Unplug the string trimmer.
3. Remove the grass.
Fig.10
OPERATION
Fig.12Fig.11
Ɨ
Ƙ
A
• With the trimmer running, release the switch trigger.
• Wait two seconds, and press the switch trigger.
• It may take up to 10 complete starting and stopping to advance the line.
NOTE: Auto feed function works during the starting and stopping of trimmer.
Strings will extend approximately 3/16 in. with each stop and start of switch
trigger WHILE NOT TRIMMING until the strings reach the length of the grass
deflector blade.
15

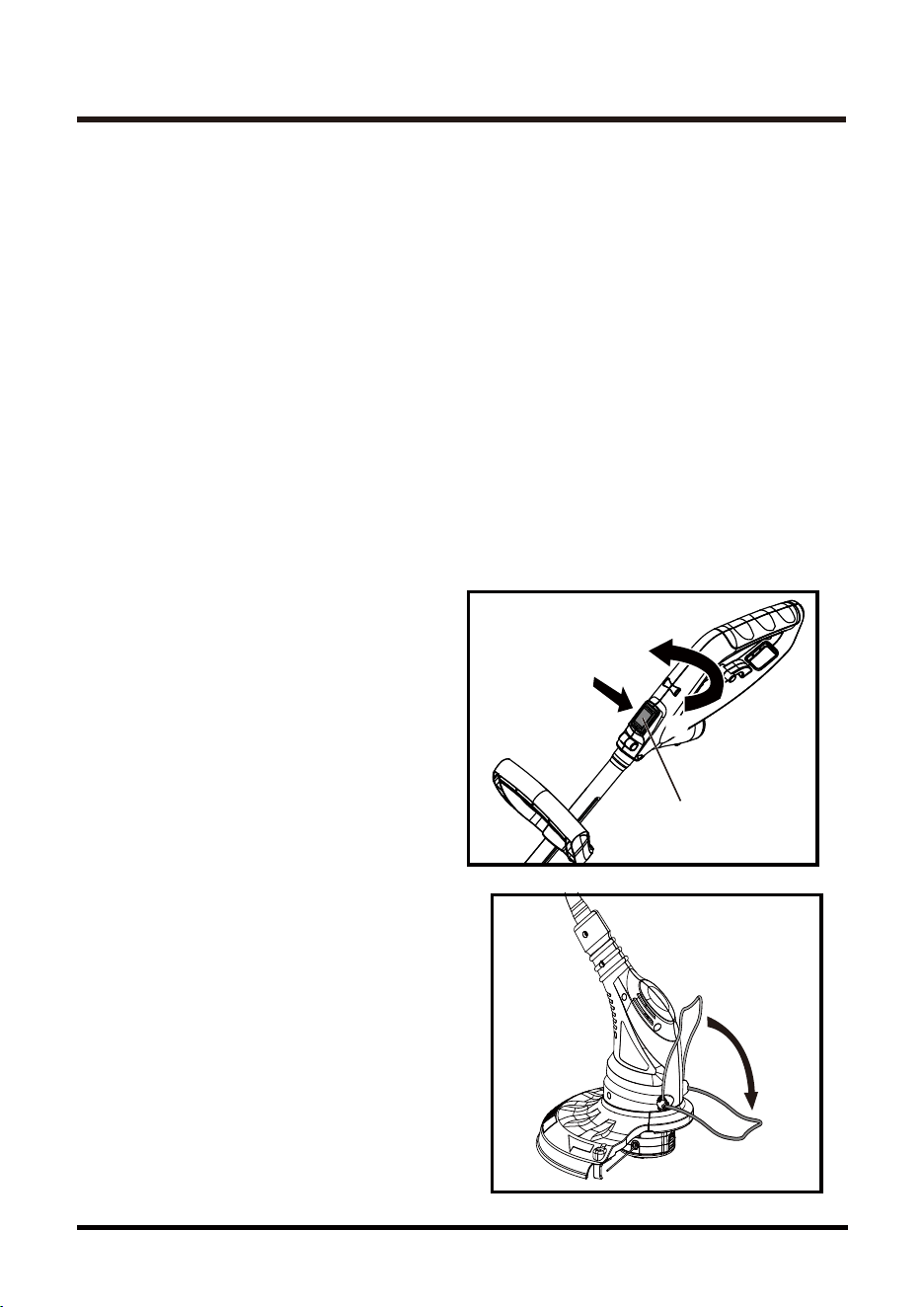

ROTATING MAIN HANDLE FOR EDGING(See Figure 13.)
NOTE:
The best method of edging is performed with the main handle rotated.
1. Unplug the grass trimmer.
2. Press the rotational lock button and rotate
the main handle clockwise.
3. Release button when main handle has been
rotated 180° to the edging position.
4. Rotate auxiliary handle 180° and snap onto
index channel.
EDGING (See Figure 14.)
1. The rotating main handle can be used in
combination with the flower guard for edging
sidewalks and walkways. To use the flower
guard, flip down from its stored position.
OPERATION
Fig.14
Fig.13
ADVANCING STRINGS
NOTE: Trimmer is equipped with an auto-feed head.
Do not bump the head to try to advance the line will damage trimmer and
void warranty.
Your grass trimmer has been designed to operate over a long period of time with a minimum of
maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
MAINTENANCE
• Regularly clean the ventilation slot in your grass trimmer using a soft brush or dry cloth.
• Regularly clean the trimming line and spool using a soft brush or dry cloth.
• Regularly use a blunt scraper to remove grass and dirt from the underneath of the guard.

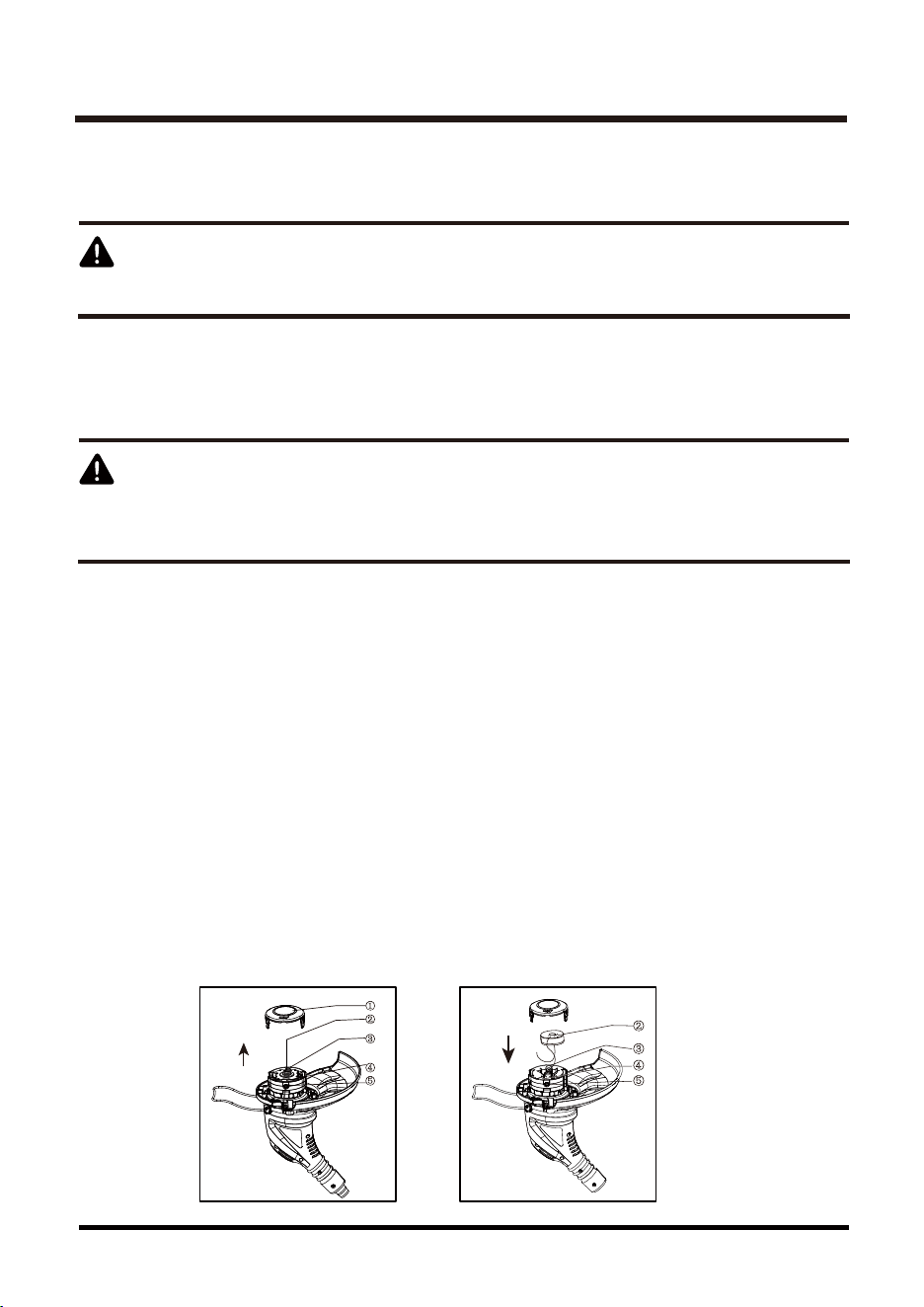

Fitting a new spool of trimming line (See Figure 15 & Figure 16.)
• Unplug the grass trimmer
• Keep the tabs
① depress thumb tabs and remove the spool cover ② from the housing ③ Remove the empty.
spool ④ from the spool cover .
• Remove any dirt and grass from the spool cover and housing
• Taking the new spool and push It into the boss in the spool cover. Rotate the spool slightly until it
is seated.
• Unclip the end of one of the trimming lines and guide the line into one of the eyelets ⑤. The line
should protrude approx. 4 inches from the spool cover.
• Unclip the end of the other trimming line and guide the line into the other eyelet. The line should
produce approx. 4 inches from the spool corner.
• Align the tabs ① on the spool cover with the cut outs ④ in the housing.
• Push the cover onto the housing until it snaps securely into place.
Before proceeding any maintenance, switch off and unplug to tool.
WARNING
When servicing, use only identical replacement parts. Use of any other
parts may create a hazard or cause product damage.
WARNING
16
Fig.15
Fig.16
ĺ
Ļ
ĸ
Ĺ
ĺ
Ļ
ķ
ĸ
Ĺ
MAINTENANCE
Only use the appropriate type of trimming line.
WARNING

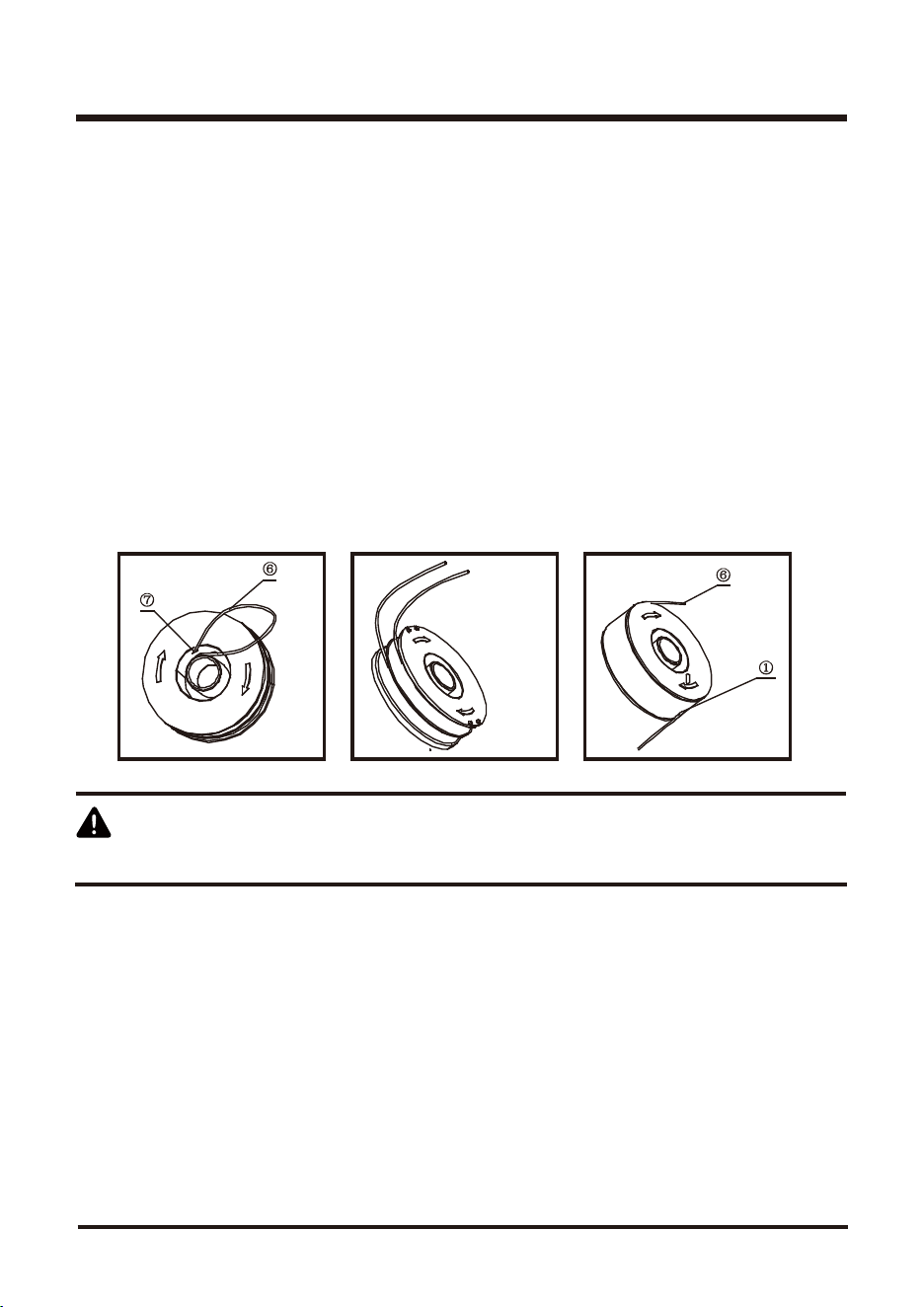

Winding new line onto a spool(See Figure 17 & Figure 18 & Figure 19.)
• Only use .065" replacement line
• You may wind new trimming line onto an empty spool.
• Replacement packs of trimming line are available from dealer.
• Remove the empty spool from the grass trimmer as described above.
• Remove any remaining trimming line from the spool.
• First feed 4 inches of trimming line ⑥ into the two eyelet ⑦ in the upper section of the spool as show
• Wind the trimming line onto the spool in the direction of the arrow. Make sure to wind the line on
neatly and in layers. Do not criss-cross.
• Feed trimming line ⑥ into the two eyelet ⑦ in the upper section of the spool as show
• Finish winding, Produce as described above to fit the spool on the grass trimmer. Do not forget to
release the trimming line from the parking slot.
STORING THE TRIMMER
• Clean all foreign material from the trimmer.
• Store it in a place that is inaccessible to children.
• Keep away from corrosive agents such as garden chemicals and de-icing salts.
NOTE: Use LawnMaster replacement spool; part # RS0101
17
Fig. 17 Fig. 18
Fig. 19
⑦
①
⑥
⑥
Before proceeding, switch off and unplug.
WARNING
Tool runs slowly
• Check that the spool housing can rotate freely. Carefully clean it if necessary.
• Check that the trimming line does not protrude more than 4 inches from the spool housing. If it does,
cut it off so that it just reaches the line trimming blade.
Automatic line feed does not work.
• Keep the tabs depressed and remove the spool cover from the housing.
• Pull the trimming line until it protrudes 4 inches from the housing. If insufficient trimming line is left on
the spool, install a new spool of trimming line as instructed above.
• Align the tabs on the spool cover with the cut outs in the housing.
• Pushing the cover onto the housing until it snaps securely into place.
• If the trimming line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.
• If the automatic line feed still does not work or the spool is jammed, try the following suggestion:
• Carefully clean the spool cover and housing.
• Remove the spool and check if the lever can move freely.
• Remove the spool and unwind the trimming line, then wind it on neatly again as describe above.
Replace the spool as instructed.
18
TROUBLESHOOTING
If your grass trimmer does not seem to operate properly, first consult the
Troubleshooting Table below.
If the solution to your trimmer problem is not found in the Troubleshooting
information, take the trimmer to a qualified service dealer for inspection
and possible repair.
19
WARRANTY
We take pride in producing a high quality, durable product. This Lawnmaster® product carries a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial or rental use, a 30
day limited warranty will apply. Batteries carry a one-year warranty against defects in workmanship
and materials. Batteries must be charged in accordance with the operator's manual directions and
regulations in order to be valid. Warranty does not apply to defects due to direct or indirect abuse,
negligence, misuse, accidents, repairs or alterations and lack of maintenance. Please keep your
receipt/packing list as proof of purchase. This warranty gives you specific legal rights, and you
may have other rights, which vary from state to state. For product service call Customer Service at
(866) 384-8432.
Items not covered by warranty :
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident,
improper maintenance, or alteration;
2. The unit, if it has not been operated and/or maintained in accordance with the owner's manual;
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5. Normal deterioration of the exterior finish due to use or exposure.
Transportation Charges : Transportation charges for the movement of any power equipment unit or
attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement under this warranty unless such
return is requested in writing by LawnMaster.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
20

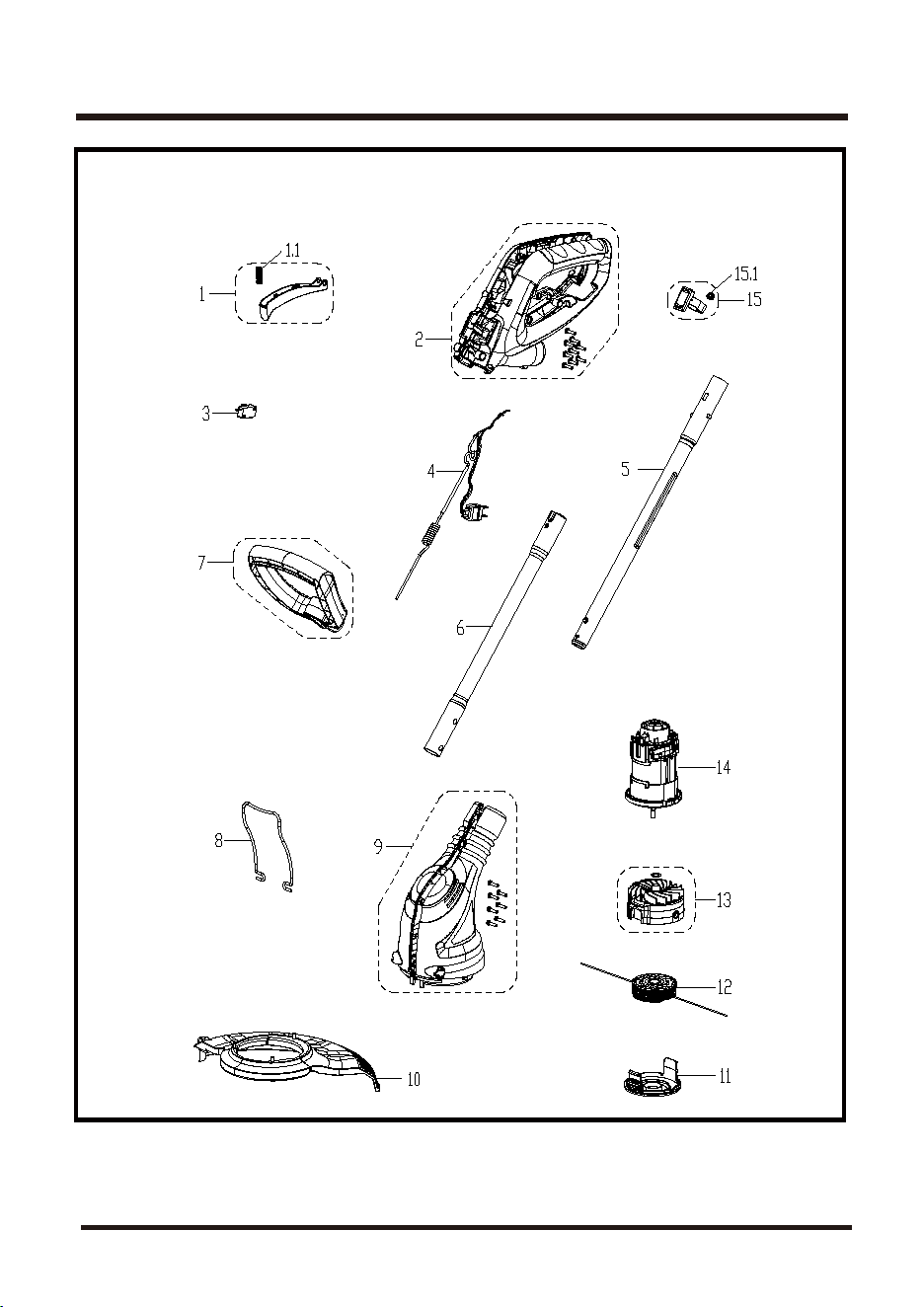

EXPLODED VIEW
GT1238 MANUAL EXPLODED VIEW
21
GT1238 MANUAL PARTS LIST
PARTS LIST
ITEM NO. PART NO. DESCRIPTION
1
1.1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15.1
121020110
221001117
121043101
121013105
121043102
121013115
121013113
121013114
121043104
121043105
121043106
121013106
RS0101
121043107
121043108
121030110
121002106
Switch Trigger Assembly
Compression Spring
Handle Assembly
Micro Switch
Tie Cable Assembly
Upper Extension Tube Assembly
Lower Extension Tube Assembly
Assistant Handle Assembly
Flower Guard
Motor Housing Assembly
Debris Guard Assembly
Spool Cover
Spool (RS0101)
Cutting Head Assembly
Motor Assembly
Telescopic Tubes Locking Button
Compression Spring
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
QTY
22
NOTES
