CLHT4022K_V1
Operators Manual
Read all safety rules and instructions carefully before operating this tool.
Distributed By Cleva North America 601 Regent Park Court Greenville, SC 29607 (866)-384-8432
40V-22"LI-ON CORDLESS HEDGE TRIMMER CLHT4022K
EN p. 2
2
CONTENTS
2
PRODUCT SPECIFICATIONS
2
GENERAL SAFETY RULES 3-5
ELECTRICAL INFORMATION 6
SYMBOLS 7-8
KNOW YOUR CORDLESS HEDGE TRIMMER 9
ASSEMBLY 10-11
OPERATING 11-14
MAINTENANCE 14-15
ENVIRONMENTALLY SAFE BATTERY DISPOSAL 15
WARRANTY POLICY 16

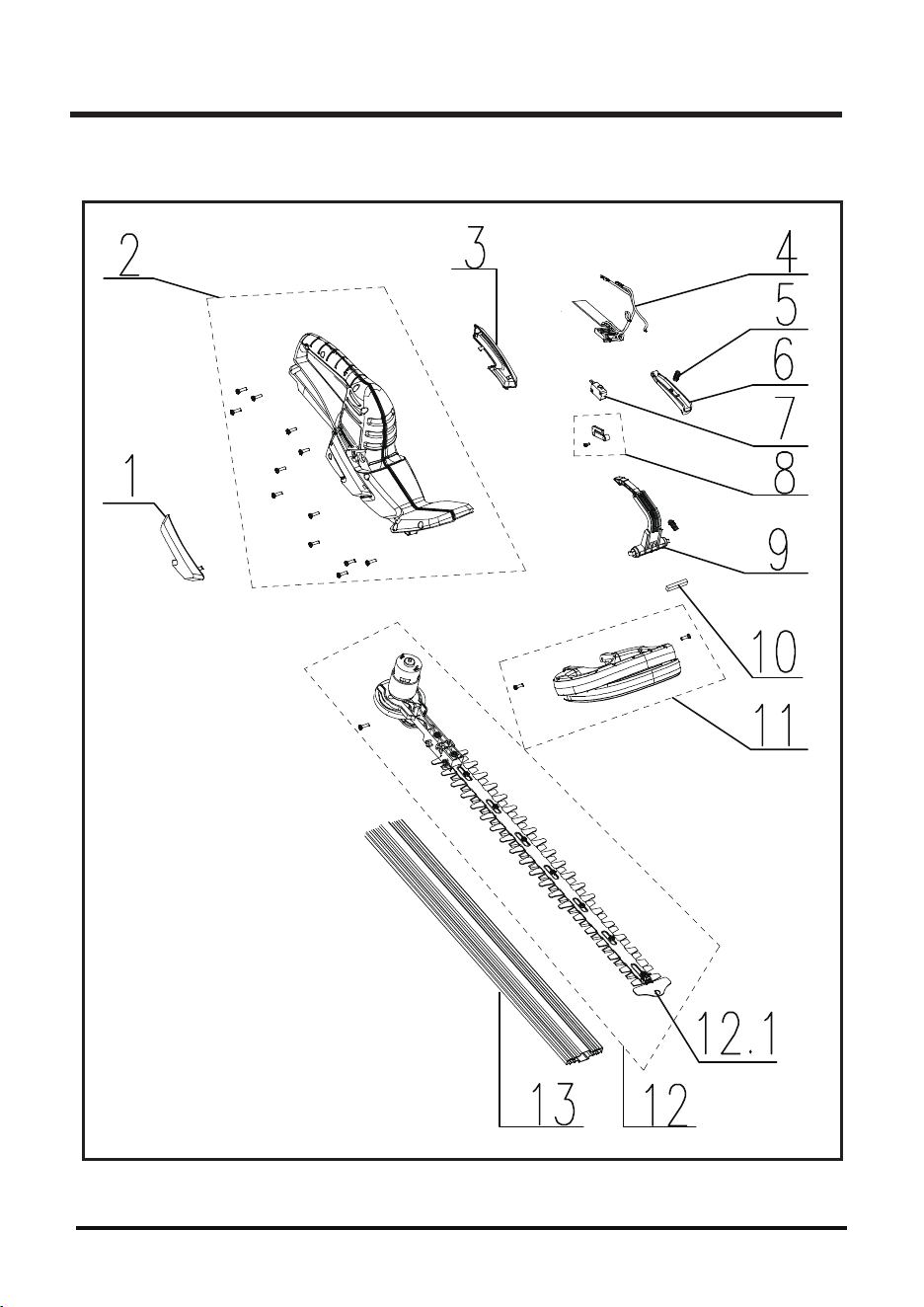

EXPLODED DIAGRAM 17
PARTS LIST
18
NOTES 19
CONTENTS
40V LITHIUM-ION CORDLESS HEDGE TRIMMER
TYPE Cordless, Battery-powered
CUTTING DEVICE Precision Laser Cut Blades
CUTTING CAPACITY 0.75”
BLADE LENGTH 22"
WEIGHT 6 Lbs Without Battery
PRODUCT SPECIFICATIONS
GENERAL SAFETY RULES
3
WARNING
Read and understand all instructions before using this product.
Failure to follow all instructions listed below may result in electric shock, fire,
and / or serious personal injury.
• Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Power tools create sparks which may
ignite the dust or fumes.
• Do not allow children or untrained individuals to use this unit.
• Don’t expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not handle plug or tool with wet hands.
• Never allow children to operate the equipment. Never allow adults to operate
the equipment without proper instruction.
• Always wear safety glasses with side shields. Everyday glasses have only impact
resistant lenses. They are NOT safety glasses. Following this rule will reduce
the risk of eye injury. Use face mask if operation is dusty.
•
Wear eye protection when operating this product. Secure long hair above
shoulder level to prevent entanglement in moving parts.
•
Do not expose to rain, store indoors.
•
Do not operate in poor lighting.
• Use both hands when operating the hedge trimmer. Using one hand could cause
loss of control and result in serious personal injury.
• Keep all parts of your body away from any moving part.
• Keep hair, loose clothing, fingers and all bady parts away from openings and
moving parts.
• Wear heavy long pants, boots, and gloves. Avoid loose garments or jewelry
that could get caught in moving parts of the machine or its motor.
• Do not force tool. Use the correct tool for your application. The correct tool will
do the job better and safer at the rate for which it is designed.
• Do not operate the equipment while barefoot or when wearing sandals or similar
lightweight footwear. Wear protective footwear that will protect your feet and
improve your footing on slippery surfaces.
• Secure long hair so it is above shoulder level to prevent entanglement in any
GENERAL SAFETY RULES
4
moving parts.
• Keep firm footing and balance. Do not overreach. Overreaching can result in
loss of balance.
• Do not allow to be used as a toy. Close attention is necessary when used by
or near children.
• Do not use tool if switch does not turn it on or off. Any tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Keep all bystanders, children, and pets at least 50 ft. away.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When
transporting or storing the hedge trimmer always fit the cutting device cover.
• Do not operate this unit when you are tired, ill, or under the influence of alcohol,
drugs, or medication.
•
Do not operate in poor lighting.
• Keep all parts of the body away from the cutter blade. Do not remove cut
material or hold material to be cut when blades are moving. Make sure the
switch is off when clearing jammed material.
• Keep all parts of your body away from any moving parts and all hot surfaces
of the unit.
• Use only identical manufacturer’s replacement parts and accessories. Use of
any other parts may create a hazard or cause product damage.
• Do not charge battery tool in rain, or damp or wet location. Following this rule
will reduce the risk of electric shock.
• For household use only.
• For household use only.Battery tools do not have to be plugged into an electrical
outlet therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery tool or when changing accessories. Following
this rule will reduce the risk of electric shock, fire, or serious personal injury.
• For household use only.Battery tools do not have to be plugged into an electrical
outlet therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery tool or when Remove or disconnect battery
before servicing, cleaning or removing material from the gardening appliance.
• Store idle appliances - When not in use, the appliance should be stored indoors
in a dry, locked place out of the reach of children.
• Do not dispose of the batteries in a fire. The cell may explode. Check with local
5
possible special disposal instructions.
• Do not open or mutilate the batteries. Released electrolyte is corrosive and may
cause damage to the eyes or skin. It may be toxic if swallowed.
• Do not place battery tooles or their batteries near fire or heat. This will reduce
the risk of explosion and possibly injury.
• Batteries can explode in the presence of a source of ignition, such as a pilot
light. To reduce the risk of serious personal injury, never use any cordless
product in the presence of open flame. An exploded battery can prople debris
and chemicals. If exposed, flush with water immediately.
• Do not crush, drop or damage battery pack. Do not use a battery pack or charger
that has been dropped or received a sharp blow. A damaged battery is subject to
• Exercise care in handling batteries in order not to short the battery with
conducting materials such as rings, bracelets, and keys. The battery or conductor
may overheat and cause burns.
Do not open or mutilate the batteries. Released electrolyte is corrosive and
may cause damage to the eyes or skin. It may be toxic if swallowed.
• For best results, your battery tool should be charged in a location where the
temperature is more than 50°F but less than 100°F. To reduce the risk of
serious personal injury, do not store outside or in vehicles.
• Under extreme usage or temperature conditions, battery leakage may occur.
If liquid comes in contact with your skin, wash immediately with soap and water,
then neutralize with lemon juice or vinegat. If liquid gets into your eyes, flush
them with clean water for at least 10 minutes, then seek immediate medical
attention. Following this rule will reduce the risk of serious personal injury.
ELECTRICAL INFORMATION
6
WARNING (PROPOSITION 65)
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending on how often you do this type of
work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with
approved safety equipment, such as dust masks that are specially designed to fiter out microscopic
partcles.
CHILD SAFETY
Tragic accidents can occur if the operator is not aware of the presence of children.
• Keep children out of the working area and under the watchful care of a
responsible adult.
• Do not allow children under the age of 14 to operate this hedger. Children
who are 14 years of age and older must read and understand the operating
instructions and safety rules in this manual and must be trained and supervised
by a parent.
• Stay alert, and turn the hedger off if a child or any other person enters the
working area.
• Look behind and down for small children before and while cutting backwards.
• Use extreme care when approaching blind corners, doorways, shrubs, trees,
or other objects that may obscure your view of a child who may run into the
path of the hedger.
ELECTRICAL INFORMATION
• If the power supply cord is damaged, it must be replaced only by the manufacturer
or by an authorized service center to avoid risk.
• Maintain tool with care. Keep fan and blade area clean for best and safest
performance. Follow instructions for proper maintenance. Do not attempt to clear
clogs from tool without first removing the battery pack.
• To reduce the risk of electrical shock, do not expose to rain, do not use on wet
surfaces. Store indoors.
• Save these instructions. Refer to them frequently and use them to instruct others
who may use this power tool. If you loan someone this power tool, loan them
these instructions also.
7
On the product, the rating label and within these instructions you will find among others he following
symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries
and damage to property.
SYMBOLS
n
o
DNOITANALPXE/NOITANGISENEMA
SLOBMY
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W
hrs
/min Per Minute
Designates that this tool is in compliance with
Lithium-Ion battery recycling program requirements
Safety Alert Symbol Precautions that involve your safety.
Eye and Head Protection
Gloves
Safety Footwear
Wear non-slip safety footwear when using this equipment.
Wear non-slip, heavy-duty protective gloves when
handling the pole saw and the blade.
Kickback
Electric Shock
No Hands Symbol
Keep Bystanders Away Keep all bystanders at least 50' (15 m) away.
Failure to use in dry conditions and to observe safe
practices can result in electric shock.
DANGER! Beware of kickback.
Risk of Electrocution DANGER! Risk of electrocution!
Failure to keep your hands away from the blade will
No Load Speed
Class II Construction
Lithium-Ion Battery
Recycling
Read the Operator’s Manual
Rational speed, at no load
Double-insulated construction
Hours
Watts Power
Time
Revolutions, strokes, surface speed, orbits etc.,
per minute
Wear eye and head protection when operating this
equipment.
To reduce the risk of injury, user must read and
understand operator’s manual before using this product.
8
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
Service
Servicing requires extreme care and knowledge and should be performed only by a qualified
service technician. When servicing, use only identical replacement parts.
WARNING
To avoid serious personal injury, do not attempt to use this product until you have read this
Owner's Manual thoroughly and understand it completely. If you do not understand the warnings
enilpleHeerf-lloTehtllaC.tcudorpsihtesutonod,launaMs'renwOsihtnisnoitcurtsnidna
for assistance.
WARNING
The operation of any power tool can result in foreign objects being thrown into your
eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields and, when needed, a
full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or
standard safety glasses with side shields. Always use eye protection which is marked
to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOLS
SAVE THESE INSTRUCTIONS
Packing List
Carefully unpack the trimmer and check that it is complete:
● Cordless Hedge Trimmer ● Blade Scabbard
You will need：（items not supplied）
● Suitable personal protective equipment ● Battery pack 40LB4001
● Charger 40LC01-ETL
Know Your Product
This LawnMaster cordless hedge trimmer features laser cut blades made of special-grade steel.
When trimming, slowly cut in a back and forth linear shearing motion. NEVER force the tool, let the tool
do the work. The protective tip at the top of the blade prevent unpleasant kickback reactions when
hitting walls, fences, etc. Operators are protected by the hedge trimmers two-hand safety switch and
quick-stop brake function.
The hand protection guards your hands against twigs and branches. Read the sections below to learn
more about each operating function.
9
KNOW YOUR CORDLESS HEDGE TRIMMER
1. Laser Cut Blades
2. Front Safety Guard
3. Front Handle W / Safety Switch
4. Protective Tip W / Hang Hole
5. Main Handle W / Cushion Grip
6. On/off Switch
7. Rear Handle
8. Rear Safety Guard
9. Blade Scabbard
9
1
2
3
4
5 6
7
8
10
WARNING
DANGER
Unpack
● Unpack all parts and lay them on a flat, stable surface.
● Remove all packing materials and shipping devices if applicable.
● Make sure the delivery contents are complete and free of any damage. If you find that parts are
missing or show damage do not use the product but contact your dealer. Using an incomplete or
damaged product represents a hazard to people and property.
Set Up
Carefully remove the blade scabbard from the cutting blades (Fig. 1).
ASSEMBLY
If the hedge trimmer blade jams or gets caught on an electrical cord or wires, DO NOT TOUCH THE
BLADE FOR ANY REASON! IT CAN BE ELECTRICALLY LIVE AND CAUSE SERIOUS OR
FATAL INJURY! Release or drop the trimmer in the quickest, safest way. If possible, disconnect
the dbattery from the tool. If that is not possible, call an electrician, electrical contractor, or the power
company for assistance. failure to heed this danger warning will cause serious personal injury and
possible death.
Avoid serious injury: The blades coast after turning off. ALWAyS keep both hands on the hedge
trimmer handles to prevent your hand from touching the blade.
• Make sure the hedge trimmer switch is off when clearing jammed material from blades. To avoid
possible accidental start-ups, remove or disconnect the battery before servicing, cleaning, or
removing material from the hedge trimmer.
• DO NOT operate the hedge trimmer when you are tired or your visibility is limited. Do not use
the trimmer at night or in reduced light.
• Keep the handles dry, clean, and free from oil and grease.
• DO NOT use the hedge trimmer if the handle guard is damaged.
Scabbard
Blade
Fig. 1
11
Intended Use
This hedge trimmer CLHT4022K is with rated battery voltage of 40V. This hedge trimmer is charged
with a charger which output is 40V.
The product is intended for trimming hedges, bushes and shrubs. Observe the technical data for
the maximum cutting capacity. Do not cut branches exceeding the stated maximum capacity.
This product is intended for private domestic use only, not for any commercial trade use. It must
not be used for any purposes other than those described.
Starting And Stopping
● Make sure the on/off switch is in its off position.
● Attach the battery pack to the product. Ensure it snaps in place.
● Your product is now ready to be used.
ASSEMBLY
OPERATION
Battery Pack And Charger (NOT INCLUDED)
NOTE: Please consult the instructions for use supplied with battery pack and charger for more details.
Attach / Release
● Align the battery pack (A) to the slots of the battery dock and slide in until it snaps in place (Fig. 2).
● Press the release buttons (both sides) (B) on the battery pack (A) and remove it from the
product (Fig. 3).
Fig. 2 Fig. 3
B
A
A
1
1a
1.
1.
2.
OPERATION
Starting With Two Handed On/Off Switch
● Hold the hedge trimmer with the right hand at the rear handle and with the left hand, squeeze
the safety switch found at the front handle.
● Slowly squeeze the on/off switch to power on trimmer (Fig. 4).
● To turn hedge trimmer off simply releace either of the switched and power to unit will stop.
General Operation
● Check the product, its battery pack and charger as well as accessories for damage before each use.
Do not use the product if it is damaged or shows wear.
● Double check that accessories or application tools are properly fixed.
● Always hold the product by its handles. Keep the handles dry to ensure safe support.
● Ensure that the air vents are always unobstructed and clear. Clean them if necessary with a soft
brush. Blocked air vents may lead to overheating and damage the product.
● Switch the product off immediately if you are disturbed while working by other
people entering the working area. Always let the product come to complete
stop before putting it down.
● Do not overwork yourself. Take regular breaks to ensure you can concentrate
on the work and have full control over the product.
12
Front Handle Safety Switch
Power Switch
Fig. 4
WARNING
To avoid injury and to reduce the risk of electrical shock or fire:
• Replace the battery pack or charger immediately if the battery case or charger cord is damaged.
• Always make sure the hedge trimmer switch is OFF before inserting or removing the battery pack.
• Always make sure the battery pack is removed and the switch turned OFF, before inspecting,
adjusting, or maintaining any other part of the hedge trimmer.
• Read, understand, and follow the Battery Charger instructions.
13
OPERATION
Trimming (See figs. 5-6)
● Cut and remove branches exceeding the cutting capacity of this product using a proper pruner
before operation.
● Move the cutting device lightly through the cutting surface in a sweeping motion following the
shape of the hedge or shrub.
● A slight tilt downwards of the cutting device in the direction of motion is recommended for
optimum cutting performance.
● Do not to rush and do not attempt to cut too much with one stroke of the cutting device.
● First cut both sides from the bottom cutting upwards to the top.
● This will prevent any of the trimmings falling into the path of the area still to be cut (Fig. 5).
● After cutting the sides proceed to the top (Fig. 6).
Fig. 5 Fig. 6
To avoid personal injury:
• Handle the blade with care.
• Do not place your fingers or hand between the notches in the blade or in any position where they
could get pinched or cut.
• Never service the blade or hedge trimmer unless the battery pack is removed.
• Do not use if the blade assembly is damaged or bent.
Take to a qualified person to straighten, replace, or sharpen.
• Always keep both hands on the hedge trimmer handles to prevent your hand from touching the
blade.
IMPORTANT!
Lubricate the blade before and after each use. Ignoring this step will decrease blade life and hamper
operation. (See the Maintenance Section)
WARNING
14
OPERATION
● To store hedge trimmer, remove battery pack from
unit and use the convenient protective tip to hang
your hedge trimmer out of the way until next use
(Fig. 7).
In order to avoid personal injury and the risk of fire and electric shock, remove the battery pack
before adjusting, inspecting, or cleaning the hedge trimmer.
Remove The Battery Pack.
1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach.
2. In particular clean the air vents (5) after every use with a cloth and brush.
3. Remove stubborn dust with high pressure air (max. 3 bar).
Check for any damage and wear. Repair damages in accordance with this instruction manual.
Wear safety gloves when working on the cutting device and close to it! Use appropriate tools to
remove debris e.g. a brush or wooden stick! Never use your bare hands!
MAINTENANCE
WARNING
WARNING
Always wear eye protection when operating or performing any maintenance on this product.
Failure to do so, could result in injury.
WARNING
Fig. 7
Hang Hole
MAINTENANCE
15
CLEANING THE BLADES
● Keep the cutting blades clean and free of debris.
NOTE: Remove battery before performing any maintenance.
● Use a brush or high pressure air (max. 3 bar) to remove debris from the blades.
● With gloves on, clean the product with a dry cloth to remove loose material.
● Apply a small amount of suitable lubricant on the cutting device to retain a good cutting performance.
● Keep the cutting device sharp. Have a worn or damaged cutting device replaced with a new one
of the same type by a qualified specialist.
● Adjustment of the distance between blades is not necessary, as this is predetermined by the
manufacturer.
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
WARNING
If the battery pack cracks or breaks, with or without leaks, do not recharge it and do not use. Dis
pose of it and replace with a new battery pack. DO NOT ATTEMPT TO REPAIR IT!
To avoid injury and risk of fire, explosion, or elecrivc shock, and to avoid damage to the environ ment:
• Cover the battery's terminals with heavy-duty adhesive tape.
• DO NOT attempt to remove or destroy any of the battery pack components.
• DO NOT attempt to open the battery pack.
• If a leak develops, the released electrolytes are corrosive and toxic. DO NOT get the
solution in the eyes or on skin, and do not swallow it.
• DO NOT place these batteries in your regular household trash.
• DO NOT incinerate.
• DO NOT place them where they will become part of any waste landfill or municipal solid
waste stream.
• Take them to a certigied recycling or disposal centre.
16
We take pride in producing a high quality, reliable product. That’s why LawnMaster tools carry a
limited two (2) year warranty against defects in workmanship and materials from date of purchase
under normal household use. If product is to be used for commercial, industrial or rental use, a
thirty (30) day limited warranty will apply. Batteries and chargers carry a limited one (1) year
warranty against defects in workmanship and materials.
Returning Product For Warranty:
•
Dated proof of purchase is required for warranty service.
•
Please register your product on www.lawnmaster.com.
•
Contact Customer Service at (866) 384-8432 to initiate the warranty process.
•
Shipping and processing fees may apply.
Not Covered By Warranty:
•
Any part that has become inoperative due to misuse, negligence, direct/indirect abuse, accidents,
improper maintenance, repairs or alteration;
• Batteries that are not charged in accordance with the operator's manual directions and regulations;
•
Any parts subject to normal wear and tear including but not limited to: the spool of trimmer line,
trimmer head spool cover, mower blade, collection bag, brush cutter blade, pole saw chain and
guide bar;
•
The unit, if it has not been operated and/or maintained in accordance with the operator's manual;
•
Normal wear and tear;
•
Routine maintenance items such as lubricants, blade sharpening;
•
Normal deterioration of the exterior finish due to use or exposure;
•
Any product where serial number/data label is tampered with or removed;
•
Any product purchased from unauthorized retailers.
This warranty gives you specific legal rights, and you may have other rights,
which vary from state to state.
WARRANTY POLICY
EXPLODED VIEW
CLHT4022K EXPLODED VIEW
17
18
ITEM NO. PART NO. DESCRIPTION
PART LIST
CLHT4022K PART LIST
QTY
1
2
3
4
5
6
7
8
9
10
11
12
12.1
13
1
1
1
1
1
1
1
1
1
1
1
1
1
GH60DC.00.03
GH61DC.10.00.X1.01
GH60DC.00.02
GH61DC.40.00
TOTHYY.10.07
GH70DC.00.02
WODQ10.02.20
GH13EP.00.07.X1.01
GH60DC.00.06.W2
GH60DC.00.04
GH60DC.40.10.X1.02
GH61DC.30.10.X1.01
GH60DC.30.14
GH60DC.00.01.F
Right Cover Cap
Motor Housing Assembly
Left Cover Cap
Pcb Board
Spring
Rear Handle
Miro-switch
Press Board
Switch Connector
Felt
Front Handle
Motor Assembly With Blade
Protective Top w/ Hang Hole
Scabbard
NOTES
19
