SMART 15-LEVEL MAGNETIC
RESISTANCE ELLIPTICAL WITH
LONG STRIDE
SF-E323055
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk,
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 cm) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 330 lbs (150 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving
is required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for
commercial use!
2

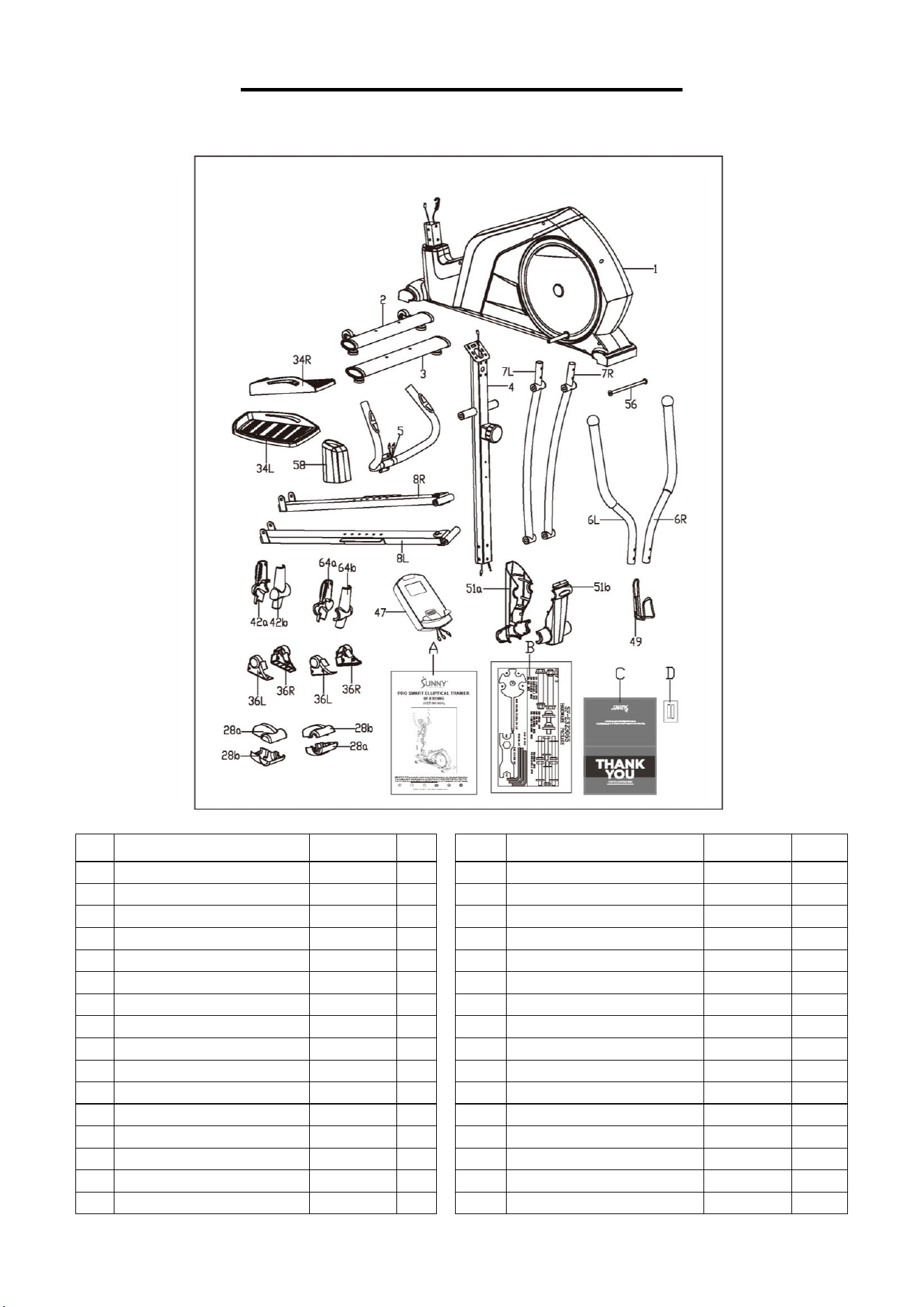

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
36R
Right Pedal Support Cover
2
2
Front Stabilizer
1
42a
Left Swing Bar Cover A
1
3
Rear Stabilizer
1
42b
Left Swing Bar Cover B
1
4
Handlebar Post
1
47
Meter
HR6028
1
5
Armrest
1
49
Bottle Holder
1
6L
Left Handlebar
1
51a
Protective Guard A
1
6R
Right Handlebar
1
51b
Protective Guard B
1
7L
Left Swing Bar
1
56
Long Axle
Φ16X370
1
7R
Right Swing Bar
1
58
Front Tube Cover
1
8L
Left Pedal Support
1
64a
Right Swing Bar Cover A
1
8R
Right Pedal Support
1
64b
Right Swing Bar Cover B
1
28a
Connecting Joint Cover A
2
A
Manual
1
28b
Connecting Joint Cover B
2
B
Hardware Package
1
34L
Left Pedal
1
C
Thank You Card
1
34R
Right Pedal
1
D
Battery
AA
2
36L
Left Pedal Support Cover
2
3

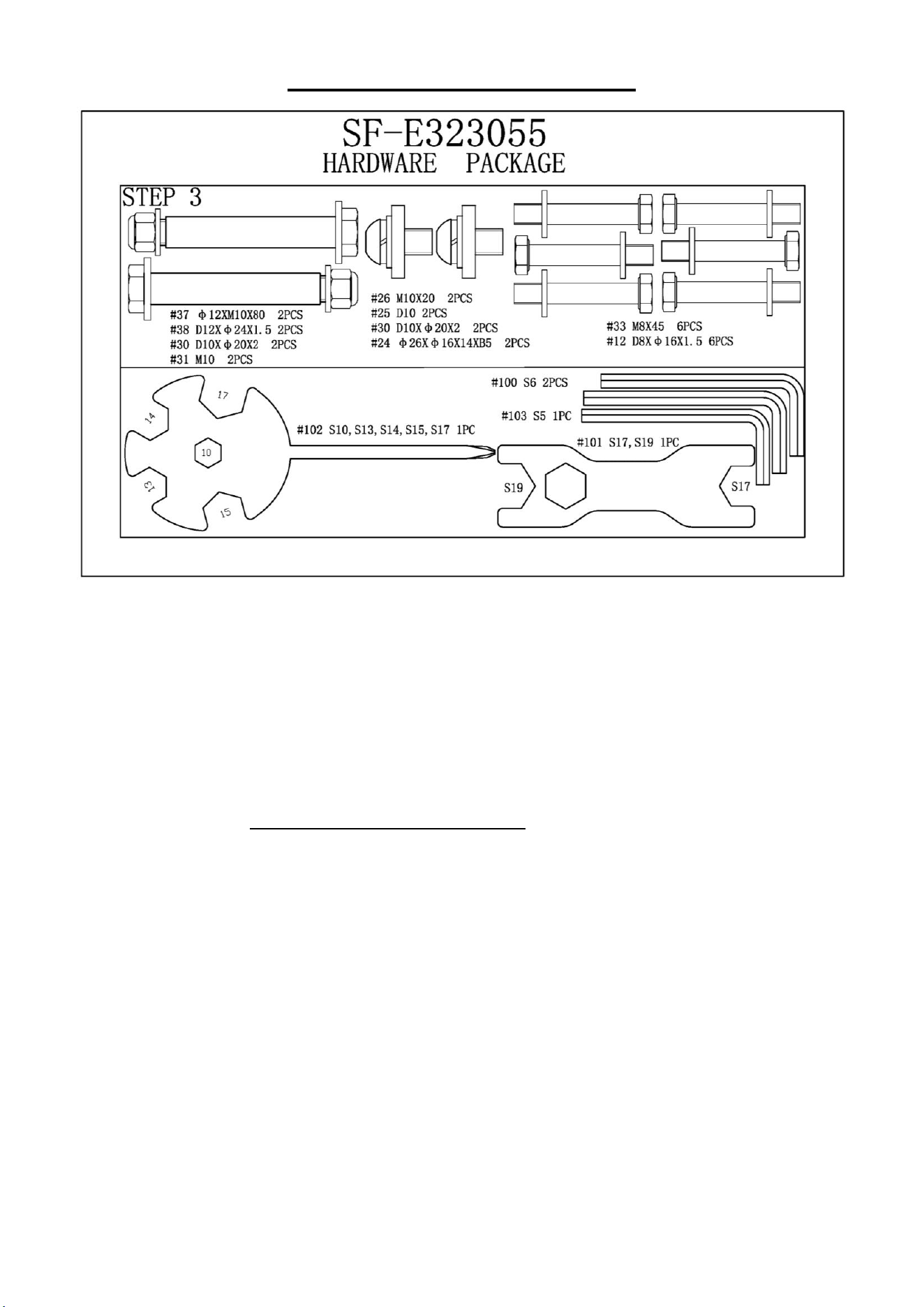

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s)
needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

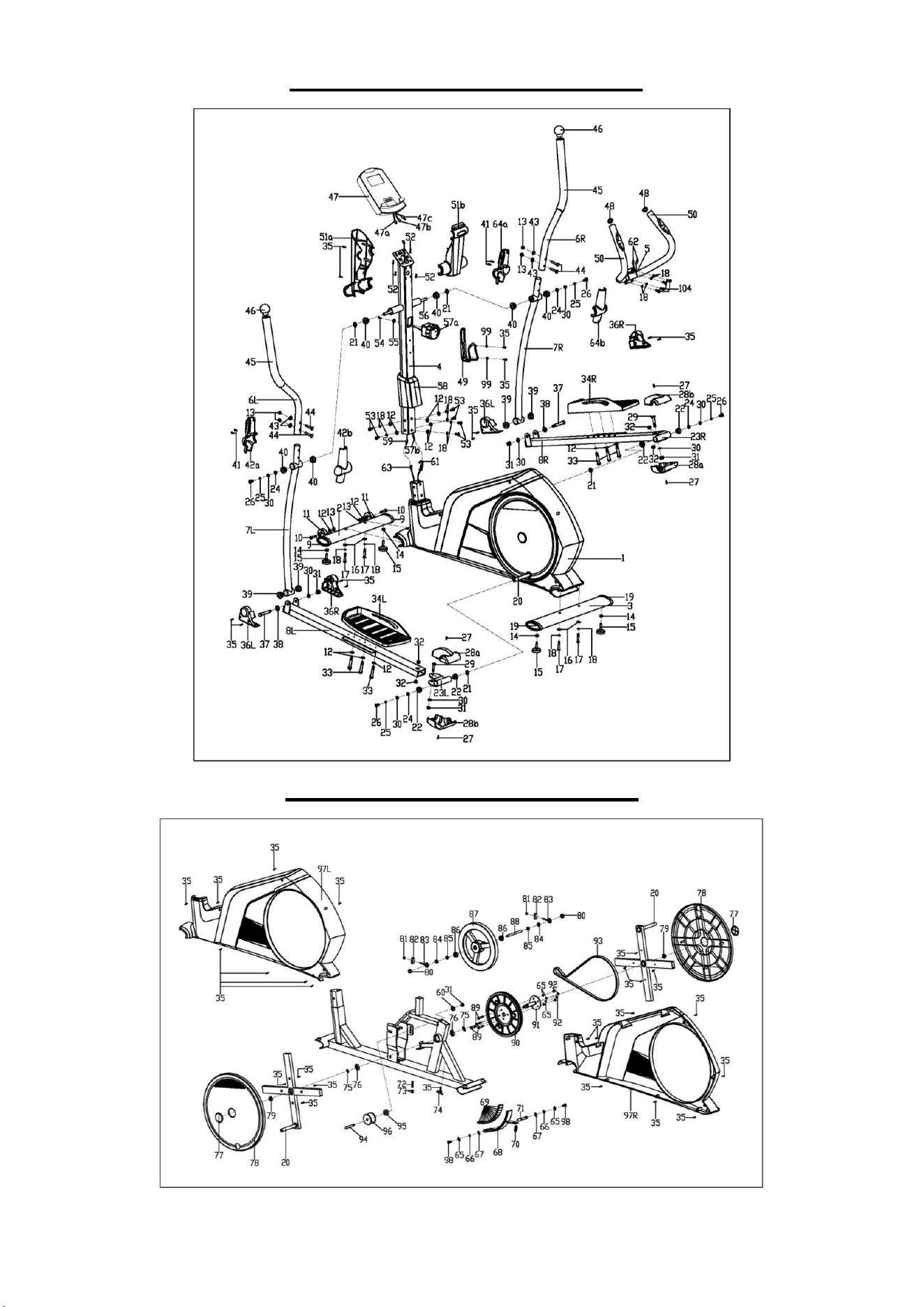

✓ The part number found on the “EXPLODED DIAGRAM” (page 14) and “PARTS LIST”
(pages 12-13)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

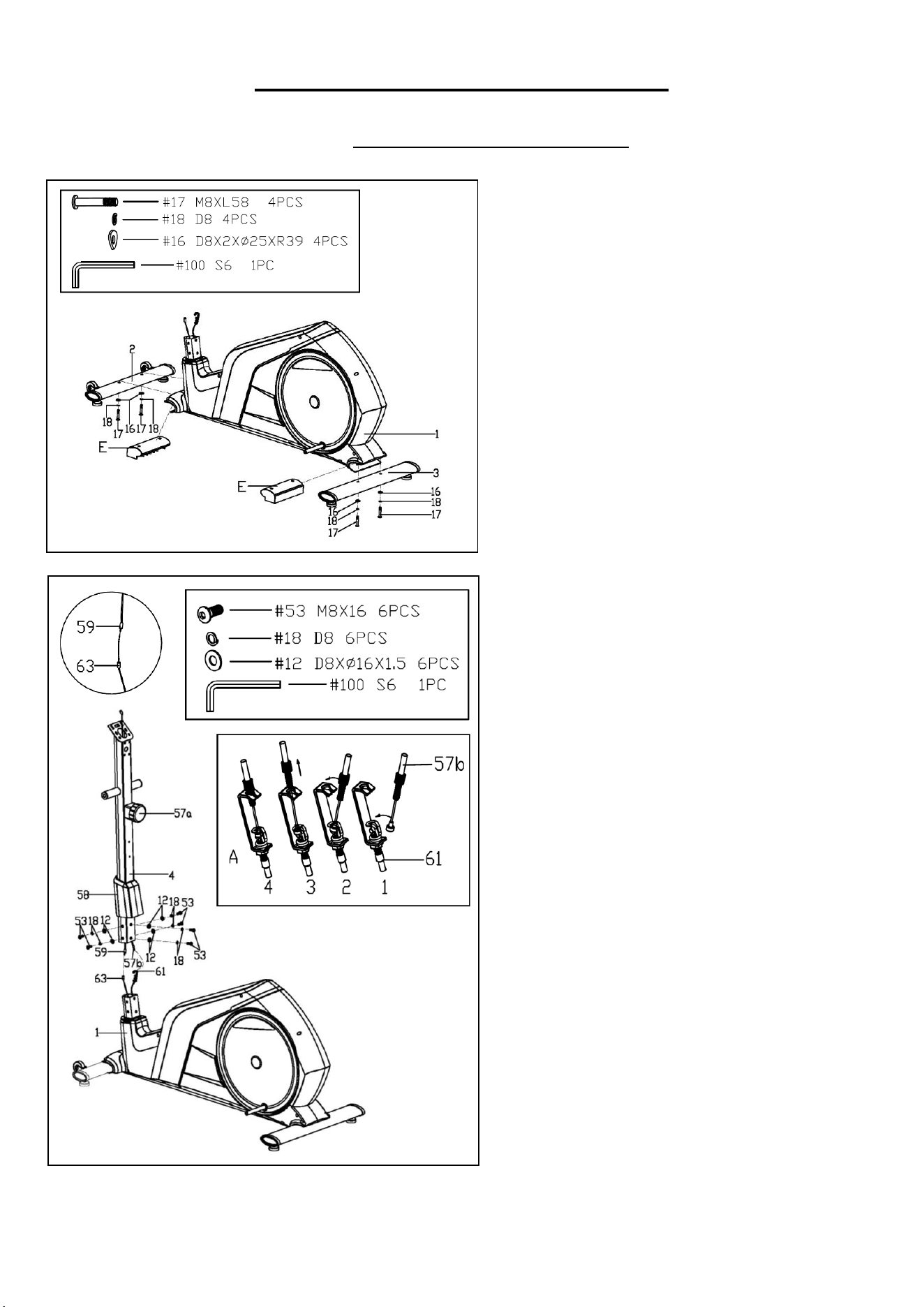

STEP 1:
Remove 4 Allen Bolts (No. 17), 4 Spring
Washers (No. 18), 4 Arc Washers (No. 16) and
2 Plastic Tubes (No. E) from the Main Frame
(No. 1) with Allen Wrench (No. 100).
Attach the Front Stabilizer (No. 2) and Rear
Stabilizer (No. 3) onto the Main Frame (No. 1),
secure with 4 Allen Bolts (No. 17), 4 Spring
Washers (No. 18) and 4 Arc Washers (No. 16)
with Allen Wrench (No. 100).
NOTE: Ensure that all bolts and washers are in
place and partially threaded in before completely
tightening any of them.
STEP 2:
Remove 6 Allen Bolts (No. 53), 6 Spring
Washers (No. 18) and 6 Flat Washers (No. 12)
from the Main Frame (No. 1) with Allen Wrench
(No. 100).
Insert the Front Tube Cover (No. 58) onto the
Handlebar Post (No. 4).
Connect the Sensor Wire (No. 63) with the
Sensor Extension Wire (No. 59), and then
connect Tension Hook (No. 61) with Tension
Cable (No. 57b) as shown in Diagram A.

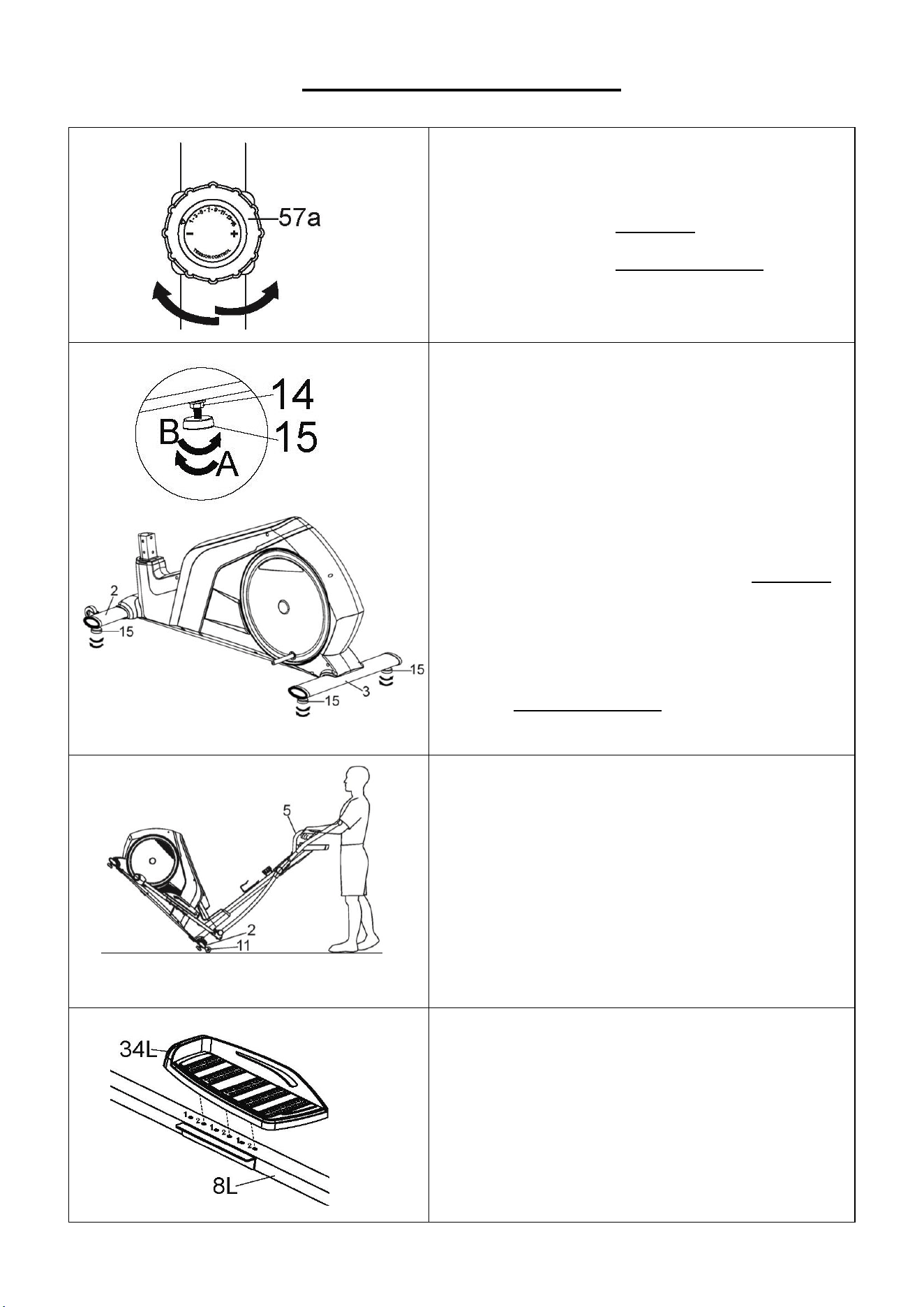

NOTE: Make sure the Tension Controller (No.
57a) is at the lowest level before you connect the
Tension Cable (No. 57b). This ensures the
wires are at their longest point. We recommend
the assistance of a second person to help hold
the Handlebar Post (No. 4). This will make the
connection easier when you are attaching
Tension Hook (No. 61) to Tension Cable (No.
57b).
Insert the Handlebar Post (No. 4) into the post
of the Main Frame (No. 1) with 6 Allen Bolts
(No. 53), 6 Spring Washers (No. 18) and 6 Flat
Washers (No. 12) that were just removed.
Tighten and secure with Allen Wrench (No.
100).
NOTE: Ensure that all bolts and washers are in
place and partially threaded in before completely
tightening any of them.
Slide the Front Tube Cover (No. 58) towards the
Main Frame (No. 1).
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 3:
Remove 2 Wave Washers (No. 21), 2 D-shaped
Washers (No. 24), 2 Flat Washers (No. 30), 2
Spring Washers (No. 25) and 2 Allen Bolts (No.
26) from the Long Axle (No. 56) with 2 Allen
Wrenches (No. 100).
Insert the Long Axle (No. 56) into the Handlebar
Post (No. 4), then put on 2 Wave Washers (No.
21) that were just removed, on both sides of the
Long Axle (No. 56). Attach the Left & Right
Swing Bars (No. 7L & No. 7R) on both sides of
the Long Axle (No. 56) using 2 D-shaped
Washers (No. 24), 2 Flat Washers (No. 30), 2
Spring Washers (No. 25) and 2 Allen Bolts (No.
26) that were just removed. Pre-secure with 2
Allen Wrenches (No. 100).
NOTE: Do not completely tighten the Allen Bolts
(No. 26) yet.
Attach the Left & Right Pedal Supports (No. 8L
& No. 8R) onto 2 Cranks (No. 20) using 2 Wave
Washers (No. 21) which are pre-assembled on
the Cranks (No. 20), 2 D-shaped Washers (No.
24), 2 Flat Washers (No. 30), 2 Spring Washers
(No. 25) and 2 Allen Bolts (No. 26). Pre-secure
with the Allen Wrench (No. 100).
NOTE: Do not completely tighten the Allen Bolts
(No. 26) yet.
Attach the Left & Right Swing Bars (No. 7L &
No. 7R) to the Left & Right Pedal Supports (No.
8L & No. 8R) with 2 Hex Bolts (No. 37), 2 Flat
Washers (No. 38), 2 Flat Washers (No. 30) and
2 Nylon Nuts (No. 31). Tighten and secure with
Spanner (No. 101) and Spanner (No. 102).
Tighten all 4 Allen Bolts (No. 26) tightly now.
Secure the Left & Right Pedals (No. 34L & No.
34R) to the Left & Right Pedal Supports (No. 8L
& No. 8R) respectively with 6 Hex Bolts (No. 33)
and 6 Flat Washers (No. 12) using Spanner (No.
102).
CAUTION:
Both pedals are labeled L and R; L for LEFT and
R for RIGHT.
NOTE: There are 2 positions on the Left & Right
Pedal Supports (No. 8L & No. 8R), numbered 1
and 2, that you can install the Left & Right
Pedals (No. 34L & No. 34R). Adjust the pedal
position to suit your comfort level. Make sure both
Left & Right Pedals (No. 34L & No. 34R) are set
at the same position numbers.
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

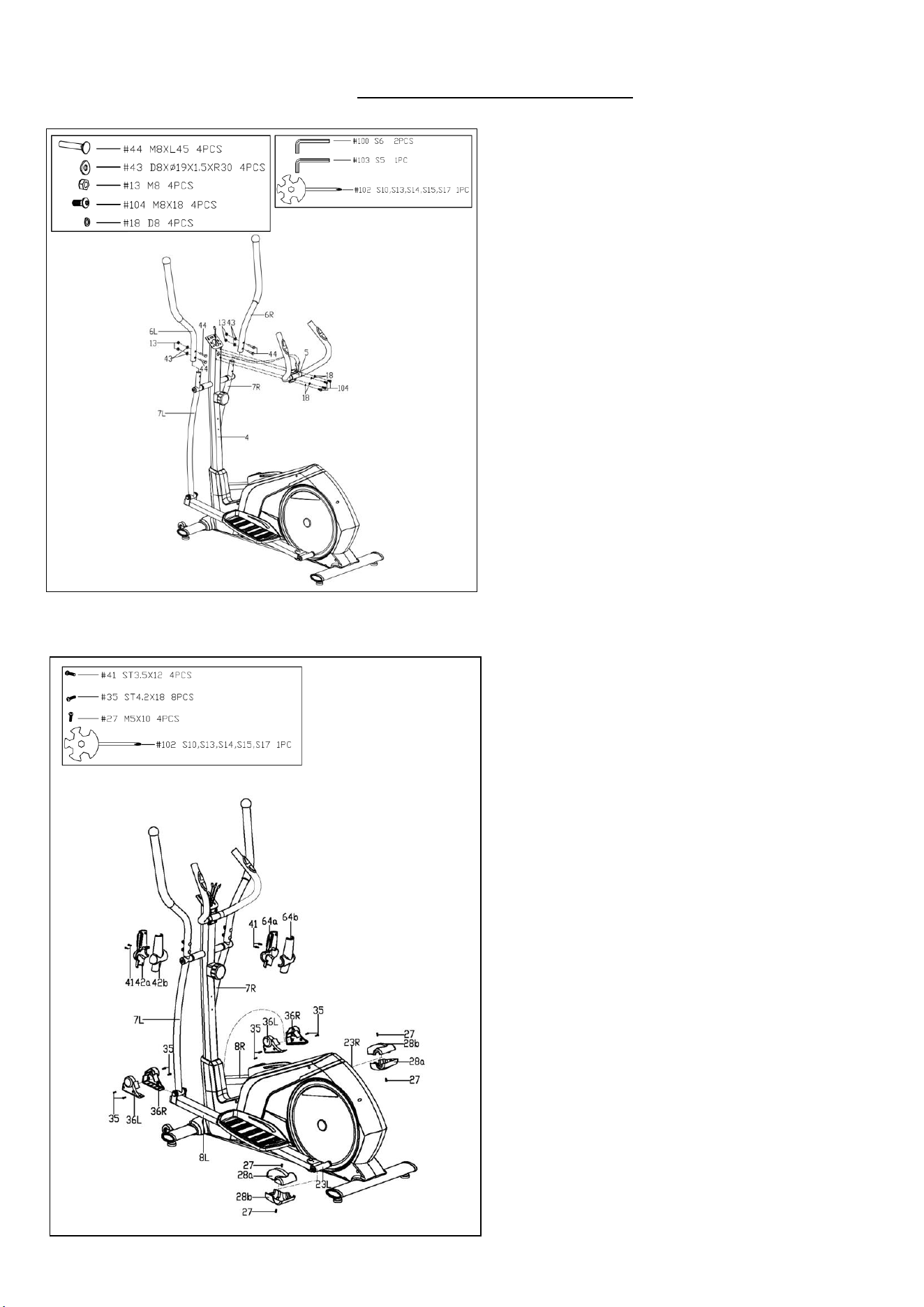

STEP 4:
Remove 4 Carriage Bolts (No. 44), 4 Arc Washers
(No. 43) and 4 Nylon Nuts (No. 13) from the Left &
Right Handlebars (No. 6L & No. 6R) using Spanner
(No. 102). Attach the Left & Right Handlebars (No.
6L & No. 6R) onto the Left & Right Swing Bars (No.
7L & No. 7R) with 4 Carriage Bolts (No. 44), 4 Arc
Washers (No. 43) and 4 Nylon Nuts (No. 13) that
were just removed. Tighten and secure with Spanner
(No. 102).
Remove 4 Allen Bolts (No. 104) and 4 Spring
Washers (No. 18) from the Handlebar Post (No. 4)
using Allen Wrench (No. 103).
Thread the 2 wires on the Armrest (No. 5) from the
hole on the front side of the Handlebar Post (No. 4)
and pull them out from the top of the Handlebar Post
(No. 4).
Attach the Armrest (No. 5) to the Handlebar Post
(No. 4) in place. Secure it with 4 Allen Bolts (No.
104) and 4 Spring Washers (No. 18) that were just
removed using Allen Wrench (No. 103).
NOTE: If the Left & Right Handlebars (No. 6L & No.
6R) rubs against the Armrest (No. 5) during the
workout, please recheck if the Left & Right
Handlebars (No. 6L & No. 6R) is assembled to Left
& Right Swing Bars (No. 7L & No. 7R) according to
the label marked with L or R.
STEP 5:
Remove 4 Screws (No. 41) from the Left Swing Bar
Covers A/B (No. 42a/b) and Right Swing Bar
Covers A/B (No. 64a/b) respectively using Spanner
(No. 102).
Secure Left Swing Bar Covers A/B (No. 42a/b) to
the Left Swing Bar (No. 7L) with 2 Screws (No. 41)
that were just removed using Spanner (No. 102).
Secure Right Swing Bar Covers A/B (No. 64a/b) to
the Right Swing Bar (No. 7R) with 2 Screws (No. 41)
that were just removed using Spanner (No. 102).
Remove 8 Screws (No. 35) from Left & Right Pedal
Supports (No. 8L & No. 8R) using Spanner (No.
102).
Attach 2 pairs of Left & Right Pedal Support Covers
(No. 36L & No. 36R) to the 2 joints of the Left & Right
Swing Bars (No. 7L & No. 7R) and Left & Right
Pedal Supports (No. 8L & No. 8R) respectively with
8 Screws (No. 35) that were just removed using
Spanner (No. 102).
Remove 4 Screws (No. 27) from the Left & Right
Connecting Joints (No. 23L & No. 23R) using
Spanner (No. 102).
Attach 2 pairs of Connecting Joint Covers A/B (No.
28a/b) to the Left & Right Connecting Joints (No.
23L & No. 23R) respectively with 4 Screws (No. 27)
that were just removed using Spanner (No. 102).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

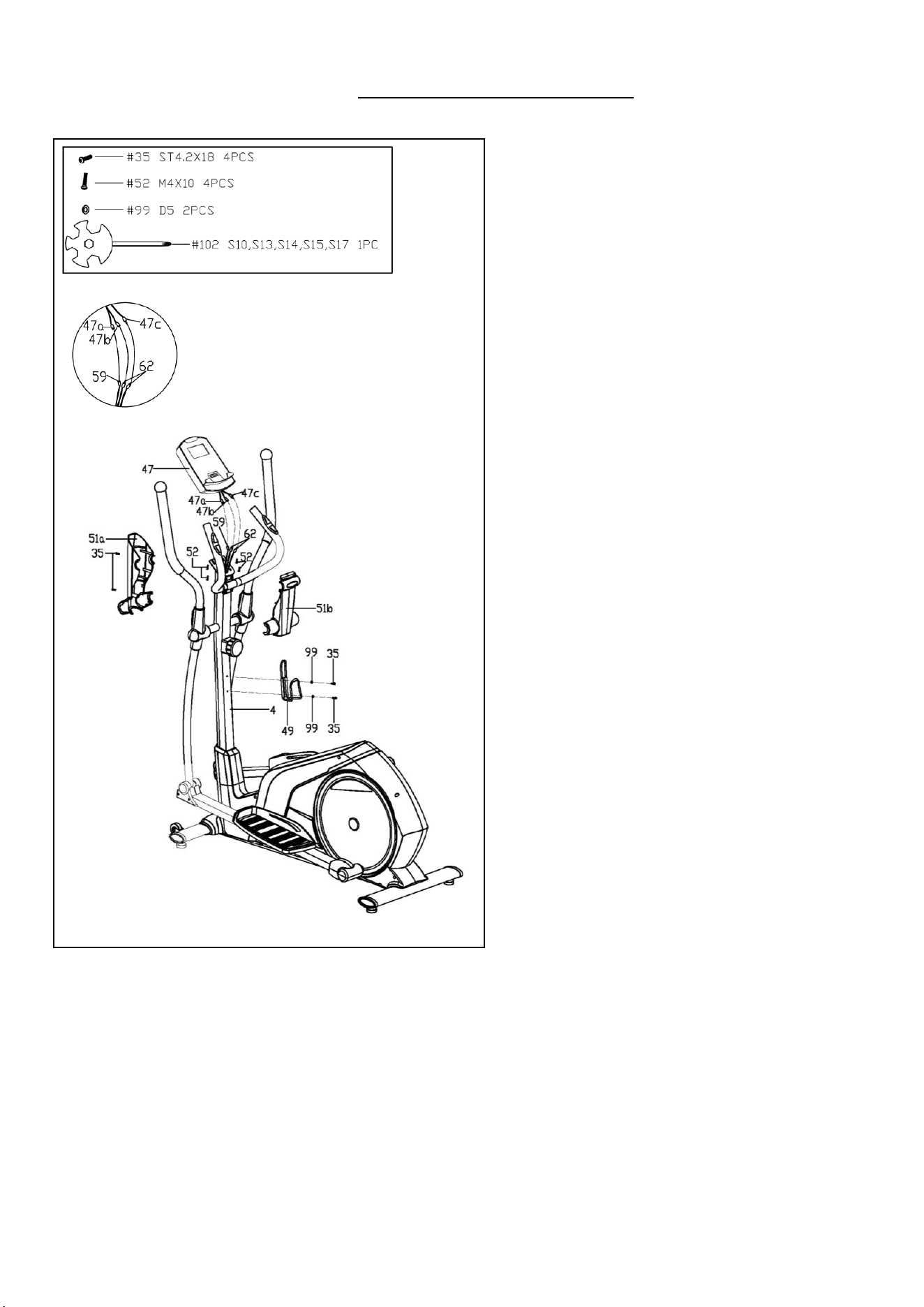

STEP 6:

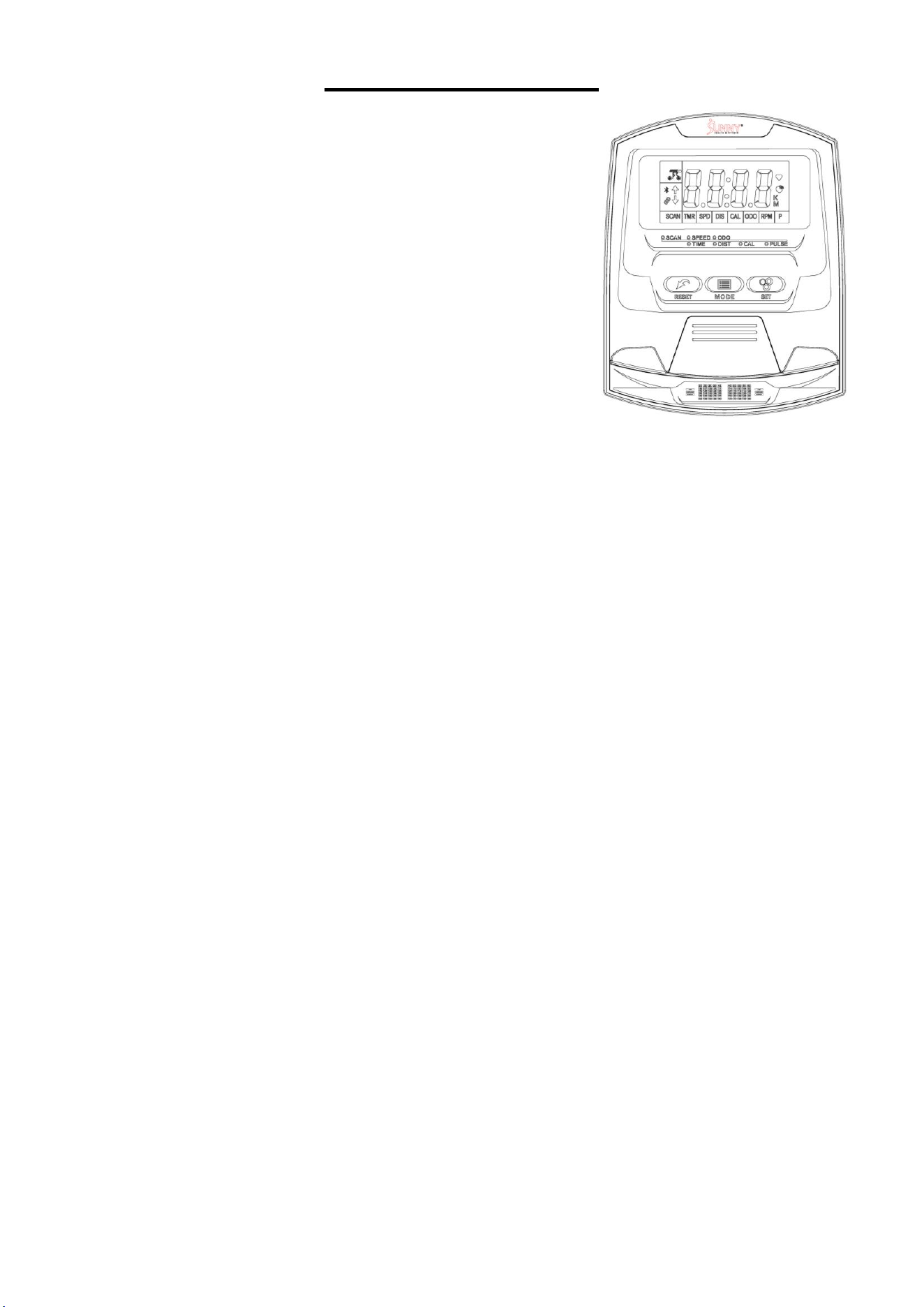

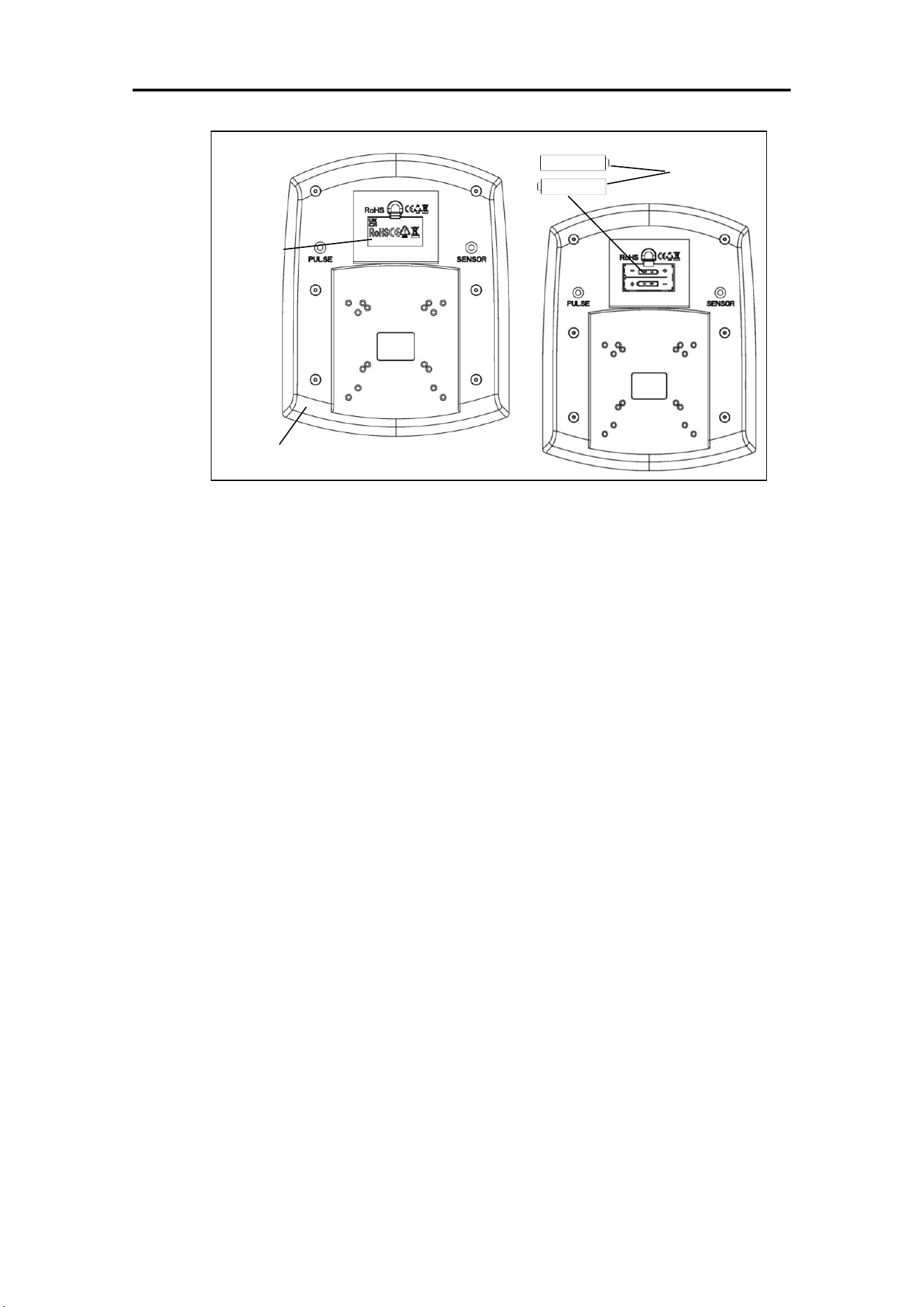

Remove 4 Screws (No. 52) from the Meter
(No. 47) using Spanner (No. 102).
Connect the Sensor Extension Wire (No.
59) with the Meter Wire A (No. 47a).
Connect 2 Pulse Wires (No. 62) to the
Meter Wire B & C (No. 47b & No. 47c).
Attach the Meter (No. 44) to the bracket of
the Handlebar Post (No. 4) using 4 Screws
(No. 52) that were just removed. Tighten and
secure with Spanner (No. 102).
NOTE: To avoid damaging the wires, please
push them into the Handlebar Post (No. 4)
before securing the Meter (No. 47) onto the
bracket.
Remove 2 Screws (No. 35) from the
Protective Guards A/B (No. 51a/b) using
Spanner (No. 102).
Attach the Protective Guards A/B (No.
51a/b) to the Handlebar Post (No. 4) with 2
Screws (No. 35) that were just removed
using Spanner (No. 102).
Remove 2 Screws (No. 35) and 2 Flat
Washers (No. 99) from the Handlebar Post
(No. 4) using Spanner (No. 102).
Attach the Bottle Holder (No. 49) to the
Handlebar Post (No. 4) with 2 Screws (No.
35) and 2 Flat Washers (No. 99) that were
just removed using Spanner (No. 102).
THE ASSEMBLY IS COMPLETE!
8
ADJUSTMENT GUIDE
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Controller (No. 57a) clockwise to increase the
level of resistance. Rotate the Tension
Controller (No. 57a) counter-clockwise to
decrease the level of resistance.
Tension levels are set at Level 1 being the lowest
and Level 15 being the highest.
ADJUSTING THE LEVEL
To achieve smooth and comfortable use, you
must ensure that the elliptical is stable and
secure. If you notice that the elliptical is
unbalanced during use, you should adjust the
Adjustable Pads (No. 15). There are 4
Adjustable Pads (No. 15) located beneath the
Front & Rear Stabilizers (No. 2 & No. 3).
To do so, loosen the Hex Nut (No. 14) on the
Adjustable Pad (No. 15) by turning it clockwise
(direction A). With the Hex Nut (No. 14)
loosened, rotate Adjustable Pad (No. 15) until it
sits level with the surface that the elliptical is on.
When you have finished adjusting the Adjustable
Pad (No. 15), re-tighten the Hex Nut (No. 14) by
turning it counter-clockwise (direction B). If
necessary, repeat this process to adjust the
remaining Adjustable Pads (No. 15).
HOW TO MOVE THE ELLIPTICAL
There are Transportation Wheels (No. 11)
located on the Front Stabilizer (No. 2). Hold the
Armrest (No. 5) and press down the front of the
elliptical off the floor until the Transportation
Wheels (No. 11) touch the ground. Now you can
move the elliptical.
HOW TO ADJUST THE PEDAL
There are 2 positions on the Left & Right Pedal
Supports (No. 8L & No. 8R), numbered 1 and 2, that
you can install the Left & Right Pedals (No. 34L &
No. 34R). Adjust the pedal position to suit your
comfort level. Make sure both Left & Right Pedals
(No. 34L & No. 34R) are set at the same position
numbers.
9
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AA batteries from meter box.
2. Press the buckle of battery cover on the Meter (No. 47), then remove battery cover.
3. Install 2 AA batteries into the battery case on the back of the Meter (No. 47). Pay attention
to the battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 47).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Meter (No. 47), then remove battery
cover.
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the
battery case on the back of the Meter (No. 47). Pay attention to the battery + and – poles
before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 47).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some
batteries may be recycled. When disposing or recycling, do not mix battery types.
Battery
Battery
Cover
47
10
EXERCISE METER
SPECIFICATIONS:
TMR (TIME)……………………….………… 0:00-99:59
SPD (SPEED)..……………………………… 0.0-99.9 ML/H
DIS (DISTANCE)……………………………. 0.00-999.9 ML
CAL (CALORIES)…………………………… 0.0-9999 KCAL
ODO (ODOMETER)………………………… 0.0-9999 ML
P (PULSE) ……........................................... 0-255 BPM
KEY FUNCTIONS:
MODE: Press the key to select and lock on to a particular
function you want.
Press and hold this key for 2 seconds to clear data, except for
ODO (ODOMETER).
Press and hold this key for 6 seconds to disconnect from both
the SunnyFit APP and the heart rate monitor; then the meter
will enter sleep mode.
SET: Press the key to set the target values for TMR (TIME),
DIS (DISTANCE), CAL (CALORIES), P (PULSE).
RESET: Press the key to reset the value to zero.
NOTE: The SET & RESET keys are available only when not exercising and when there is no
APP connection.
OPERATION PROCEDURES:
1. AUTO ON/OFF:
The system turns on when any key is pressed or when it senses an input from the speed
sensor.
In stop mode and Bluetooth is not connected, the meter will shut off automatically and
disconnect the heart rate monitor if there is no activity for 4 minutes.
2. RESET: The meter can be reset by pressing the RESET button or changing the batteries.
3. MODE: To choose to SCAN or LOCK. If you do not want to be in scan mode, press the
MODE key when the pointer is on the function you want.
FUNCTIONS:
1. TMR (TIME): Press the MODE key until the pointer locks onto TMR (TIME). The time since
starting exercise will be shown. In stop mode and Bluetooth is not connected, press the
MODE key to select the TMR (TIME) function, then press the SET key to set a target value.
The meter will count down from the target value during exercise.
2. SPD (SPEED): Press the MODE key until the pointer locks onto SPD (SPEED). The current
speed will be shown.
3. DIS (DISTANCE): Press the MODE key until the pointer locks onto DIS (DISTANCE). The
distance of each workout will be shown. In stop mode and Bluetooth is not connected,
press the MODE key to select the DIS (DISTANCE) function, then press the SET key to set
a target value. The meter will count down from the target value during exercise.
4. CAL (CALORIES): Press the MODE key until the pointer locks onto CAL (CALORIES). The
calories burned since starting exercise will be shown. In stop mode and Bluetooth is not
connected, press the MODE key to select the CAL (CALORIES) function, then press the
SET key to set a target value. The meter will count down from the target value during
exercise.
5. ODO (ODOMETER): Press the MODE key until the pointer locks onto ODO (ODOMETER).
The total accumulated distance will be shown.
6. P (PULSE): Press the MODE key until the pointer locks onto P (PULSE). User’s current
heart rate will be shown in beats per minute. Place the palms of your hands on both pulse
sensors or connect to the SunnyFit Heart Rate Monitor (HR200) and wait 30 seconds for
the most accurate reading.
In stop mode and Bluetooth is not connected, press the MODE key to select the (P) PULSE
function, then press the SET key to set a target value. The meter will display the target
value, even when your palms are on the pulse sensors or connect to the HR200, while in
stop mode. Once you begin the workout, the meter will display the current pulse value. If
your pulse value surpasses the target value, the meter will “Beep“ every 5 seconds.
NOTE: This data is for reference only and cannot be used for medical purposes.
11
7. SCAN: Automatically cycles through functions every 4 seconds.
BATTERY: If meter display is not functioning correctly, please reinstall the batteries.
BLUETOOTH :
1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no
Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE
1. The wireless heart rate icon will flash when the meter is on. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
2. After exercise resumes, the wireless heart rate icon will flash. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
3. When the meter wakes from sleep mode, the wireless heart rate icon will flash. If the heart
rate monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
4. The wireless heart rate icon will flash when the MODE key is pressed. If the heart rate
monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
5. The wireless heart rate icon will stay on when the heart rate monitor is connected.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with
SunnyFit Heart Rate Monitor HR200. HR200 can only connect to the computer when the
wireless heart rate icon is flashing.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5 Mhz
Transmitting Power: 0 dBm
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register
for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session and recorded in your account profile!
Troubleshooting:
•
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
•
If you require additional support, please contact [email protected].
12
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
47
Meter
HR6028
1
2
Front Stabilizer
1
47a
Meter Wire A
1
3
Rear Stabilizer
1
47b
Meter Wire B
1
4
Handlebar Post
1
47c
Meter Wire C
1
5
Armrest
1
48
Round Cap
Φ32X1.5
2
6L
Left Handlebar
1
49
Bottle Holder
1
6R
Right Handlebar
1
50
Foam Grip
Φ24XΦ30X460
2
7L
Left Swing Bar
1
51a
Protective Guard A
1
7R
Right Swing Bar
1
51b
Protective Guard B
1
8L
Left Pedal Support
1
52
Screw
M4X10
4
8R
Right Pedal Support
1
53
Allen Bolt
M8X16
6
9
End Cap
80X40X1.5
2
54
Screw
M5X55
1
10
Allen Bolt
M8X38XL12
2
55
Arc Washer
D5
1
11
Transportation Wheel
Φ50X21
2
56
Long Axle
Φ16X370
1
12
Flat Washer
D8XΦ16X1.5
14
57a
Tension Controller
15 levels
1
13
Nylon Nut
M8
6
57b
Tension Cable
615mm
1
14
Hex Nut
M10
4
58
Front Tube Cover
1
15
Adjustable Pad
M10X30
4
59
Sensor Extension Wire
1100mm
1
16
Arc Washer
D8X2XΦ25XR39
4
60
Flat Washer
D10XΦ20X2 Zinc
1
17
Allen Bolt
M8XL58
4
61
Tension Hook
1600mm
1
18
Spring Washer
D8
14
62
Pulse Wire
800mm
2
19
End Cap
95X40X2
2
63
Sensor Wire
1500mm
1
20
Crank
2
64a
Right Swing Bar Cover A
1
21
Wave Washer
Φ17XΦ23X0.3
4
64b
Right Swing Bar Cover B
1
22
Plastic Bushing
Φ24X16XΦ16.1
4
65
Spring Washer
D6
6
23L
Left Connecting Joint
1
66
Flat Washer
D6
2
23R
Right Connecting Joint
1
67
Axle Stop Ring
D12
2
24
D-shaped Washer
Φ26XΦ16X14XB5
4
68
Magnetic Board
1
25
Spring Washer
D10
4
69
Square Magnet
32X15X8
14
26
Allen Bolt
M10X20
4
70
Spring
Φ1.6XΦ15XL61
1
27
Screw
M5X10
4
71
Magnetic Board Axle
Φ12X59.5XM6X15
1
28a
Connecting Joint Cover A
2
72
Hex Bolt
M5X60
1
28b
Connecting Joint Cover B
2
73
Hex Nut
M5
2
29
Hex Bolt
M10X55
2
74
Sensor Seat
1
30
Flat Washer
D10XΦ20X2 Black
8
75
Axle Stop Ring
D15
2
31
Nylon Nut
M10
5
76
Bearing
6004
2
32
Bushing
Φ18XΦ10X11
4
77
Disc Cap
2
33
Hex Bolt
M8X45
6
78
Disc
2
34L
Left Pedal
1
79
Flange Nut
M10X1.25
2
34R
Right Pedal
1
80
Hex Nut
M10X1.0
2
35
Screw
ST4.2X18
37
81
Hex Nut
M6
2
36L
Left Pedal Support Cover
2
82
Adjusting U Washer
3X30X15
2
36R
Right Pedal Support
Cover
2
83
Adjusting Belt Bolt
M6X50
2
37
Hex Bolt
Φ12XM10X80
2
84
Thin Nut
M10X1.0
2
38
Flat Washer
D12XΦ24X1.5
2
85
Spacer
D10X3
2
39
Axle Bushing
Φ12XΦ32X15
4
86
Bearing
6000
2
40
Bushing
Φ16XΦ31X23
6
87
Flywheel
Φ280
1
41
Screw
ST3.5X12
4
88
Flywheel Axle
M10X1.0X118
1
42a
Left Swing Bar Cover A
1
89
Bolt
M6X15
4
42b
Left Swing Bar Cover B
1
90
Belt Pulley
Φ260
1
43
Arc Washer
D8XΦ19X1.5XR30
4
91
Centre Axle
Φ15X140
1
44
Carriage Bolt
M8XL45
4
92
Nylon Nut
M6
4
45
Foam Grip
Φ31XΦ37X480
2
93
Belt
470
1
46
Round Cap
Φ25X2
2
94
Hex Screw
M10X40
1
13
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
95
Spacer
D10XΦ18X6
1
100
Allen Wrench
S6
2
96
Idler Wheel
Φ43.5X25
1
101
Spanner
S17,S19
1
97L
Left Belt Cover
1
102
Spanner
S10,S13,S14,S15,S17
1
97R
Right Belt Cover
1
103
Allen Wrench
S5
1
98
Hex Screw
M6X16
2
104
Allen Bolt
M8X18
4
99
Flat Washer
D5
2
14
EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2
Version: 2.0
