PRO SMART ELLIPTICAL TRAINER
WITH 15 LEVELS OF MAGNETIC
RESISTANCE
SF-E323050S
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).
1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled,
maintained and used properly. It is your responsibility to ensure that all users of the equipment
are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk,
or prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (60 cm) of free space
all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from the
equipment during exercise, discontinue use of the equipment immediately and do not use
until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kgs).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving
is required.
12. Your product is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only. It is not intended for
commercial use!
2

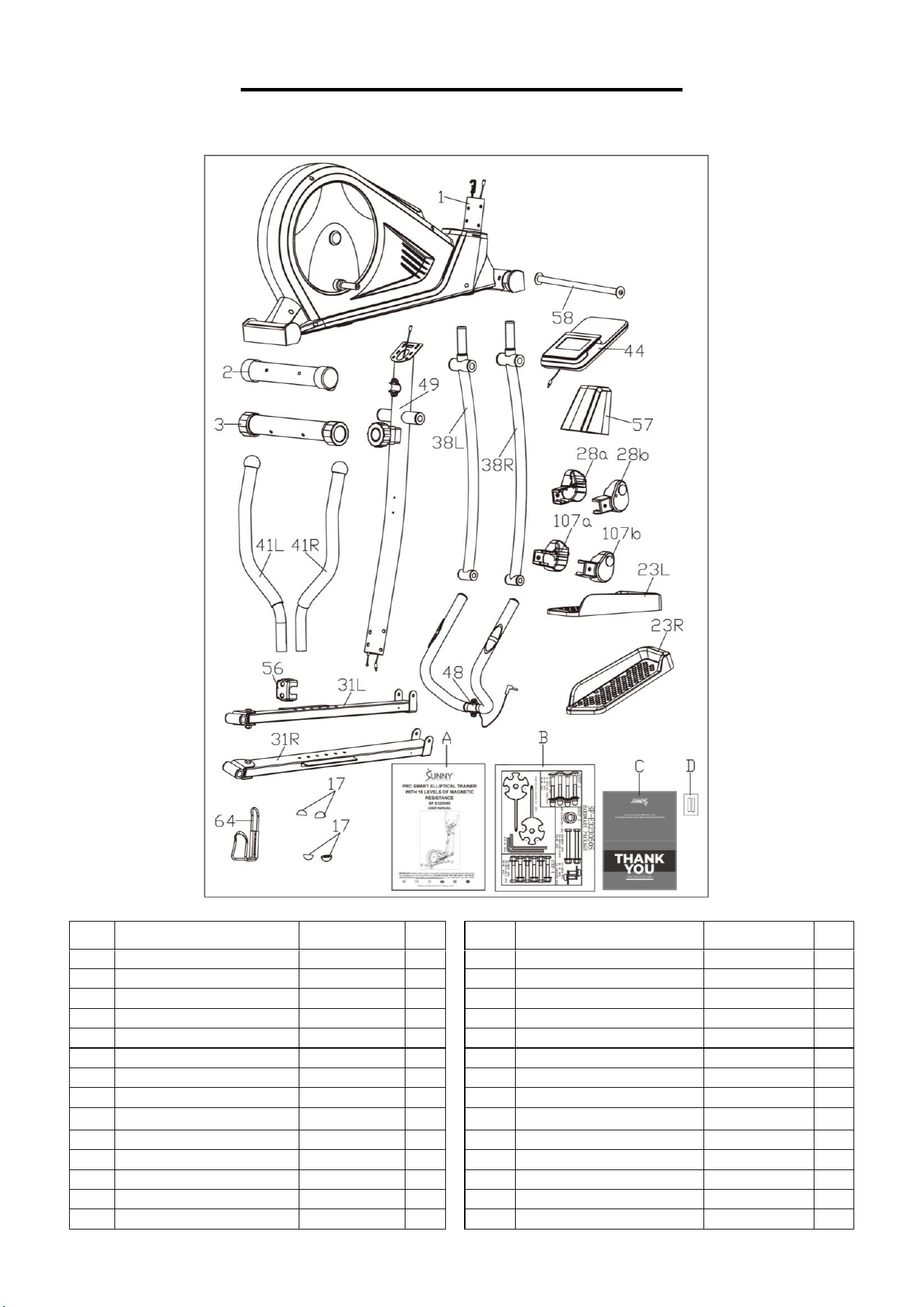

PRE-ASSEMBLY CHECK LIST
Before you start to assemble, please make sure all parts are included.
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
44
Meter
HR6035BSP
1
2
Front Stabilizer
60X1.5X370
1
48
Armrest
1
3
Rear Stabilizer
60X1.5X480
1
49
Handlebar Post
1
17
Nut Cap
S17
4
56
Decorative Cover
1
23L
Left Pedal
1
57
Front Cover
1
23R
Right Pedal
1
58
Long Axle
Φ19X355.5
1
28a
Left Protective Cover A
1
64
Bottle Holder
1
28b
Left Protective Cover B
1
107a
Right Protective Cover A
1
31L
Left Pedal Support Tube
1
107b
Right Protective Cover B
1
31R
Right Pedal Support
Tube
1
A
Manual
1
38L
Left Swing Bar
1
B
Hardware Package
1
38R
Right Swing Bar
1
C
Thank You Card
1
41L
Left Handlebar
1
D
Battery
AAA
2
41R
Right Handlebar
1
S
3

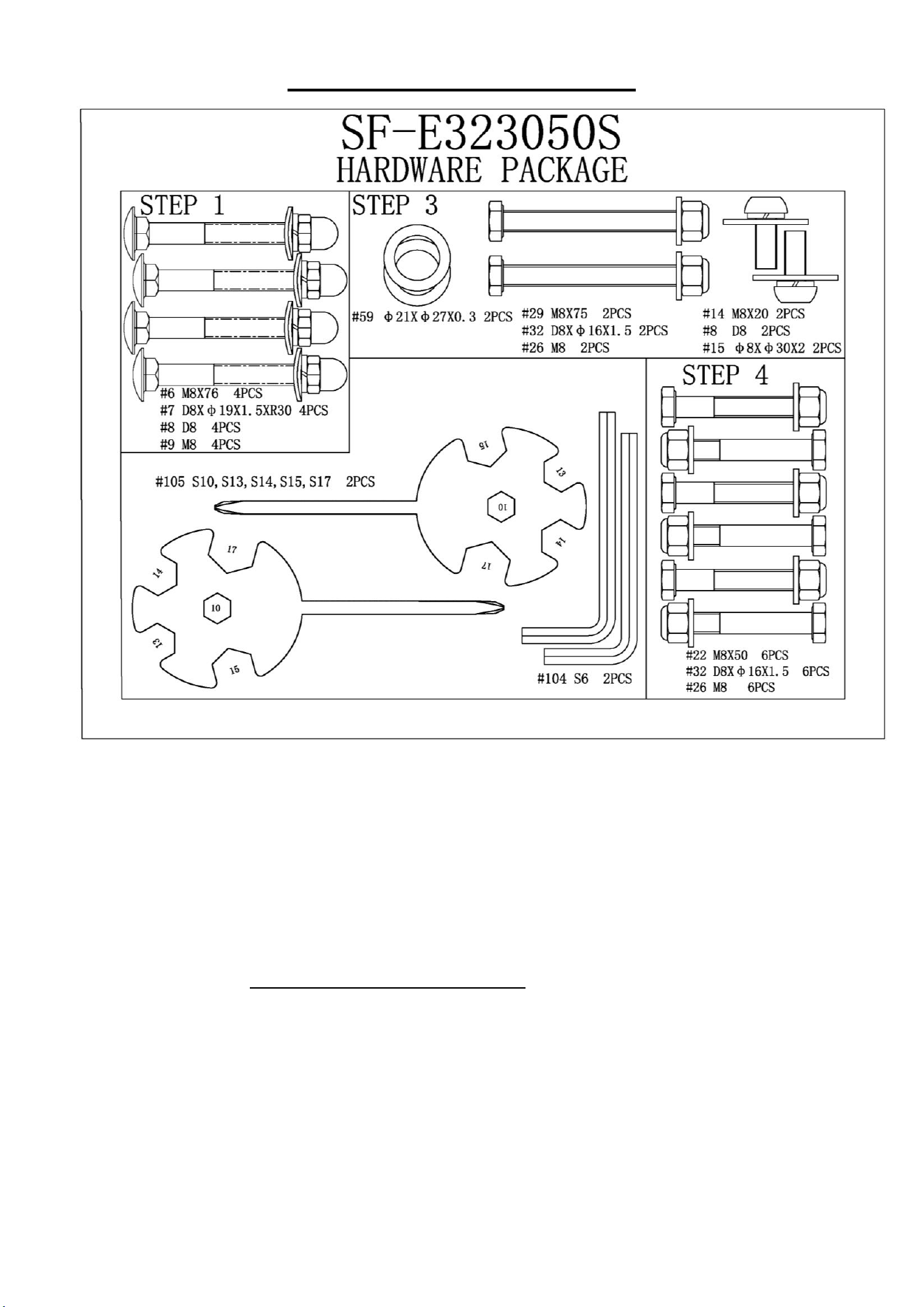

HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s)
needed:
✓ The model number (found on cover of manual)
✓ The product name (found on cover of manual)

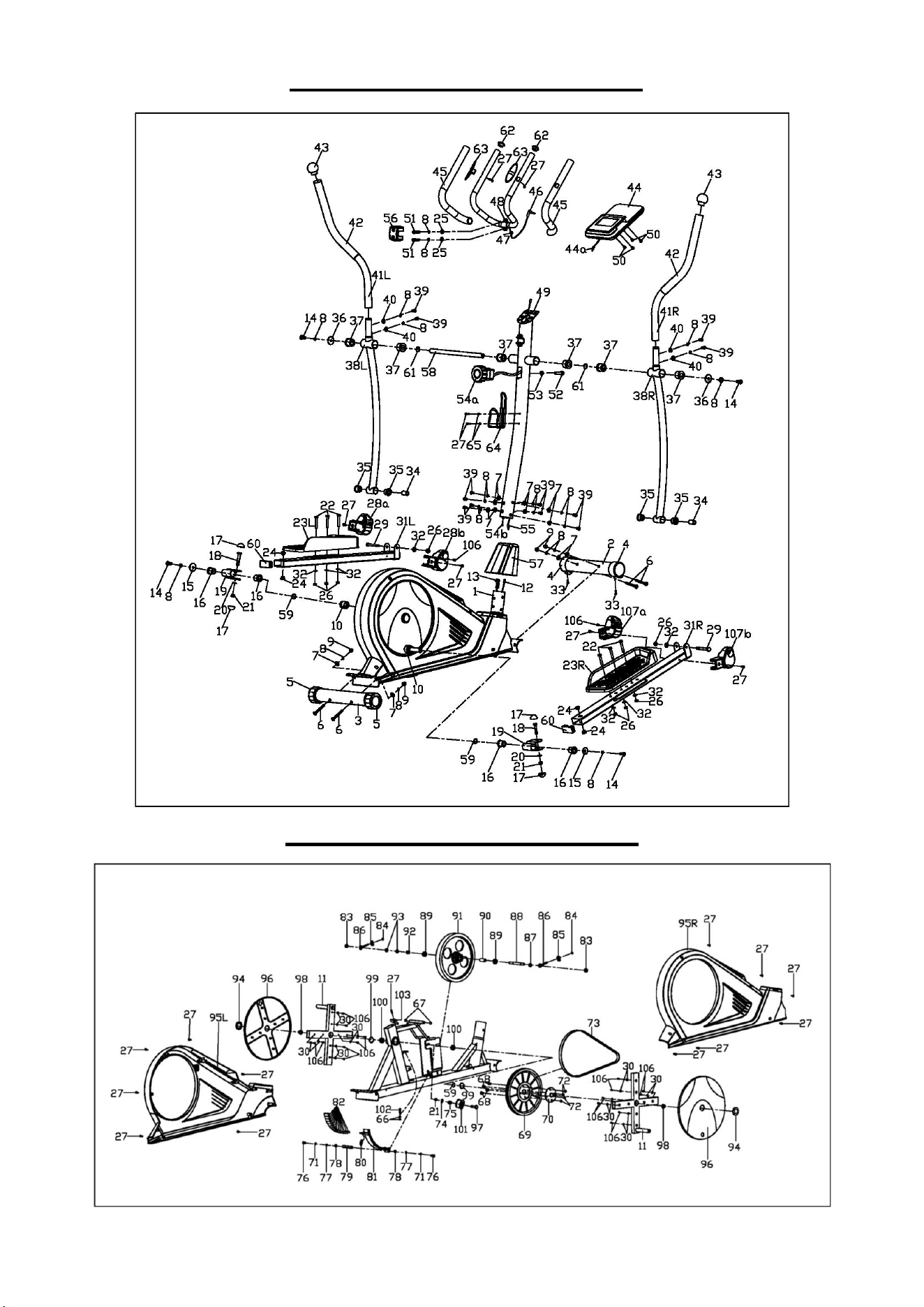

✓ The part number found on the “EXPLODED DIAGRAM” (page 14) and “PARTS LIST”
(pages 12-13)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).
4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

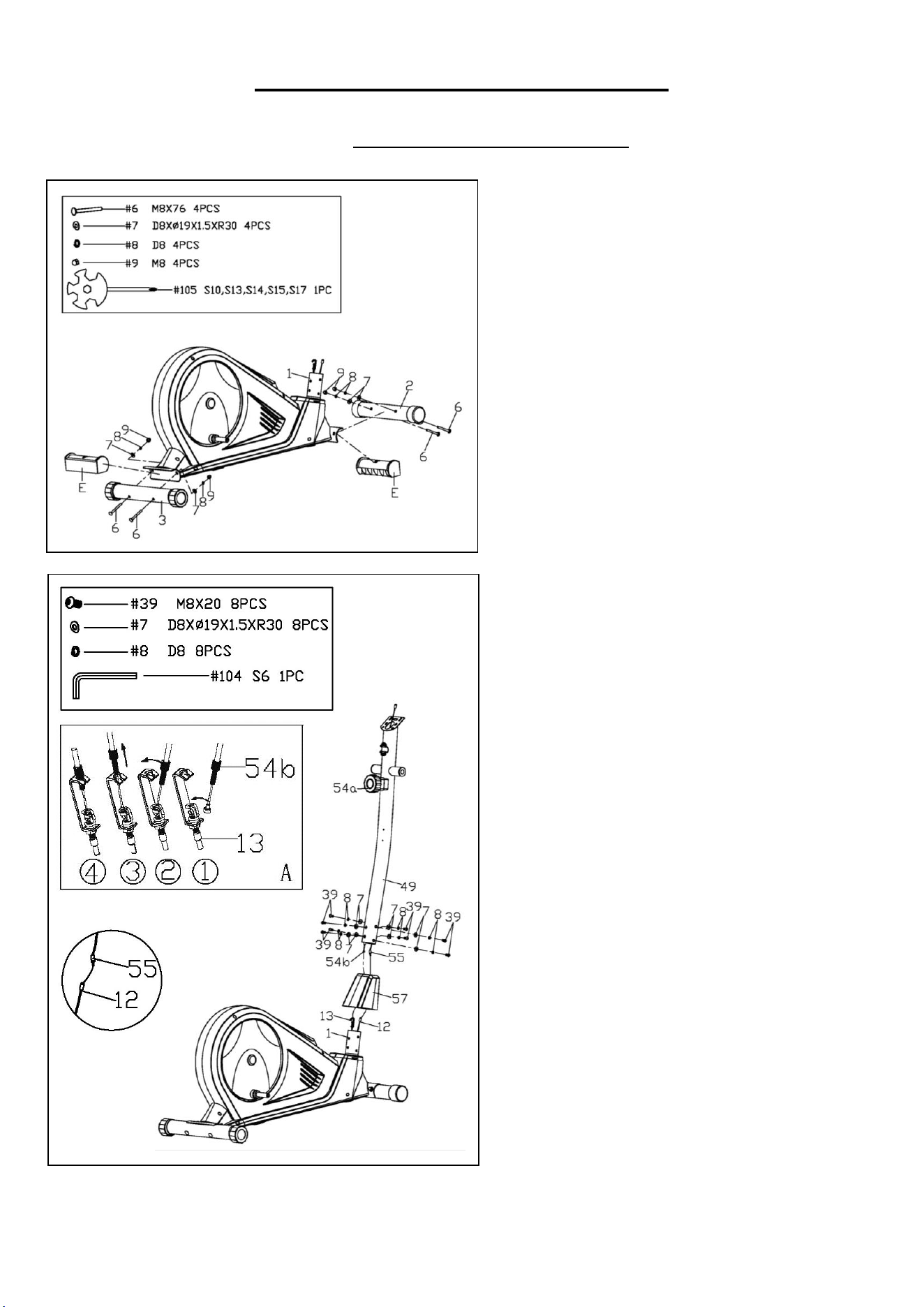

STEP 1:
Remove 2 Plastic Tubes (No. E) from the Main
Frame (No. 1).
Attach the Front Stabilizer (No. 2) and Rear
Stabilizer (No. 3) onto the Main Frame (No. 1),
secure with 4 Carriage Bolts (No. 6), 4 Arc
Washers (No. 7), 4 Spring Washers (No. 8) and
4 Domed Nuts (No. 9) using Spanner (No. 105).
NOTE: Ensure that all bolts and washers are in
place and partially threaded in before completely
tightening any of them.
STEP 2:
Remove 8 Allen Bolts (No. 39), 8 Spring
Washers (No. 8) and 8 Arc Washers (No. 7)
from the Main Frame (No. 1) using Allen
Wrench (No. 104).
Insert the Front Cover (No. 57) onto the
Handlebar Post (No. 49).
Connect the Sensor Wire (No. 12) to the Sensor
Extension Wire (No. 55), and then connect the
Tension Hook (No. 13) to the Tension Cable
(No. 54b) as shown in Diagram A.
NOTE: Make sure the Tension Controller (No.
54a) is at the lowest level before you connect the
Tension Cable (No. 54b). This ensures the
wires are at their longest point. We recommend
the assistance of a second person to help hold
the Handlebar Post (No. 49). This will make the
connection easier when you are attaching the
Tension Hook (No. 13) to the Tension Cable
(No. 54b).
Insert the Handlebar Post (No. 49) onto the post
of the Main Frame (No. 1), secure with 8 Allen
Bolts (No. 39), 8 Spring Washers (No. 8) and 8
Arc Washers (No. 7) that were just removed.
Tighten and secure with Allen Wrench (No.
104).
Attach Front Cover (No. 57) onto Main Frame
(No. 1).
NOTE: Ensure that all bolts and washers are in
place and partially threaded in before completely
tightening any of them.
5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

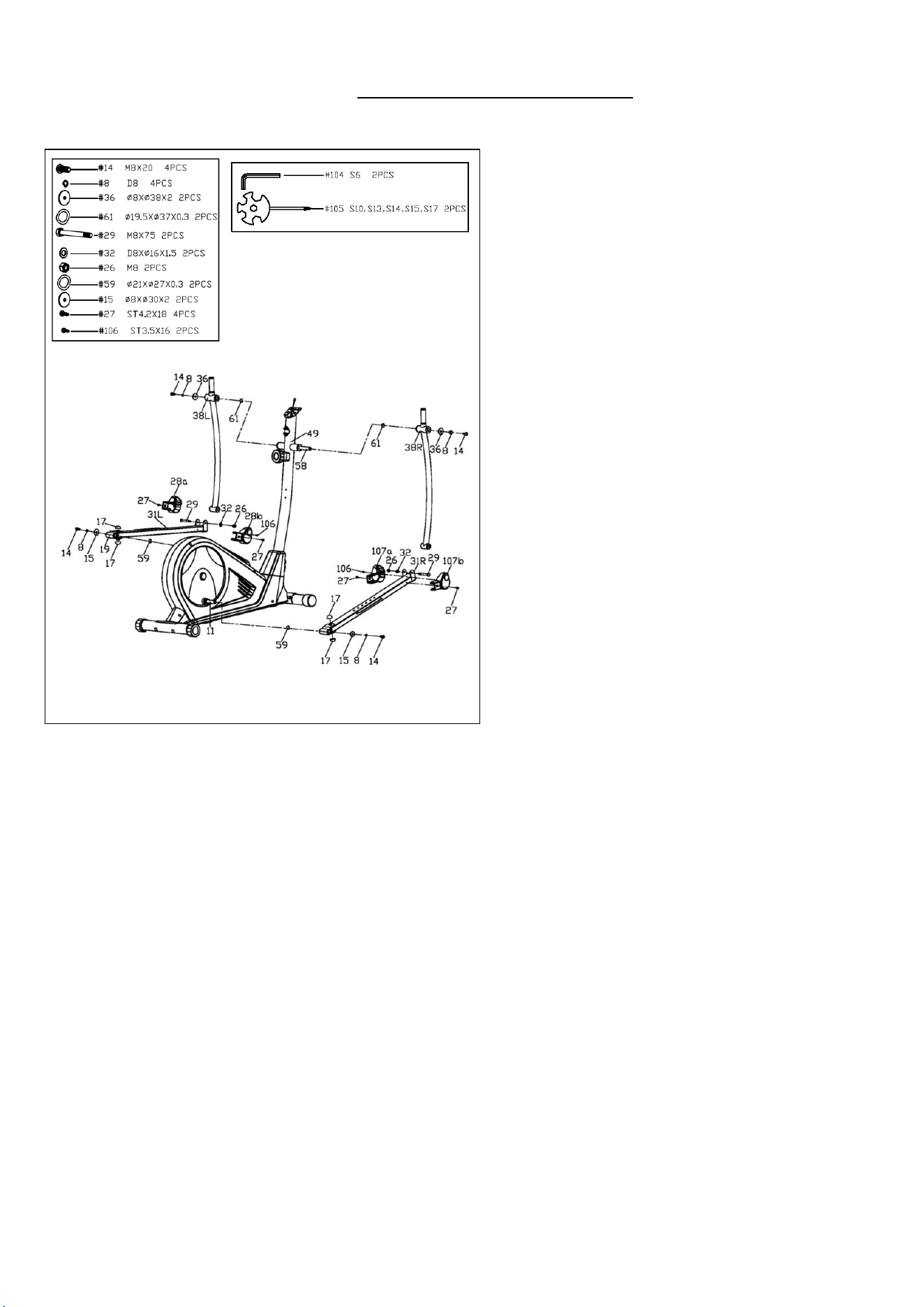

STEP 3:
Remove 2 Wave Washers (No. 61), 2 Flat
Washers (No. 36), 2 Spring Washers (No. 8)
and 2 Allen Bolts (No. 14) from the Long Axle
(No. 58) with 2 Allen Wrenches (No. 104).
Insert the Long Axle (No. 58) into the
Handlebar Post (No. 49), then attach 2 Wave
Washers (No. 61) onto both sides of the Long
Axle (No. 58). Attach the Left & Right Swing
Bars (No. 38L & No. 38R) on both sides of the
Long Axle (No. 58) using, 2 Flat Washers (No.
36), 2 Spring Washers (No. 8) and 2 Allen
Bolts (No. 14) that were just removed.
Pre-secure with 2 Allen Wrenches (No. 104).
NOTE: Do not completely tighten the Allen Bolts
(No. 14) yet.
Put 2 Wave Washers (No. 59) onto both sides of
the Crank (No. 11). Then attach the Left & Right
Pedal Support Tubes (No. 31L & No. 31R) on
both sides of the Crank (No. 11) using 2 Flat
Washers (No. 15), 2 Spring Washers (No. 8)
and 2 Allen Bolts (No. 14). Pre-secure with the
Allen Wrench (No. 104).
NOTE: Do not completely tighten the Allen Bolts
(No. 14) yet.
Attach the Left & Right Swing Bars (No. 38L &
No. 38R) to the Left & Right Pedal Support
Tubes (No. 31L & No. 31R) with 2 Hex Bolts
(No. 29), 2 Flat Washers (No. 32) and 2 Nylon
Nuts (No. 26). Tighten and secure with 2
Spanners (No. 105).
Tighten 4 Allen Bolts (No. 14) tightly now. Then
cover with 4 Nut Caps (No. 17).
Remove 4 Screws (No. 27) from Left & Right
Pedal Support Tubes (No. 31L & No. 31R) and
2 Screws (No. 106) from Left Protective
Covers A & B (No. 28a & No. 28b) and Right
Protective Covers A & B (No. 107a & No.
107b) using Spanner (No. 105).
Attach Left Protective Covers A & B (No. 28a &
No. 28b) and Right Protective Covers A & B
(No. 107a & No. 107b) to the 2 joints of the Left
& Right Swing Bars (No. 38L & No. 38R) and
Left & Right Pedal Support Tubes (No. 31L &
No. 31R) respectively with 4 Screws (No. 27)
and 2 Screws (No. 106) that were just removed
using Spanner (No. 105).
6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

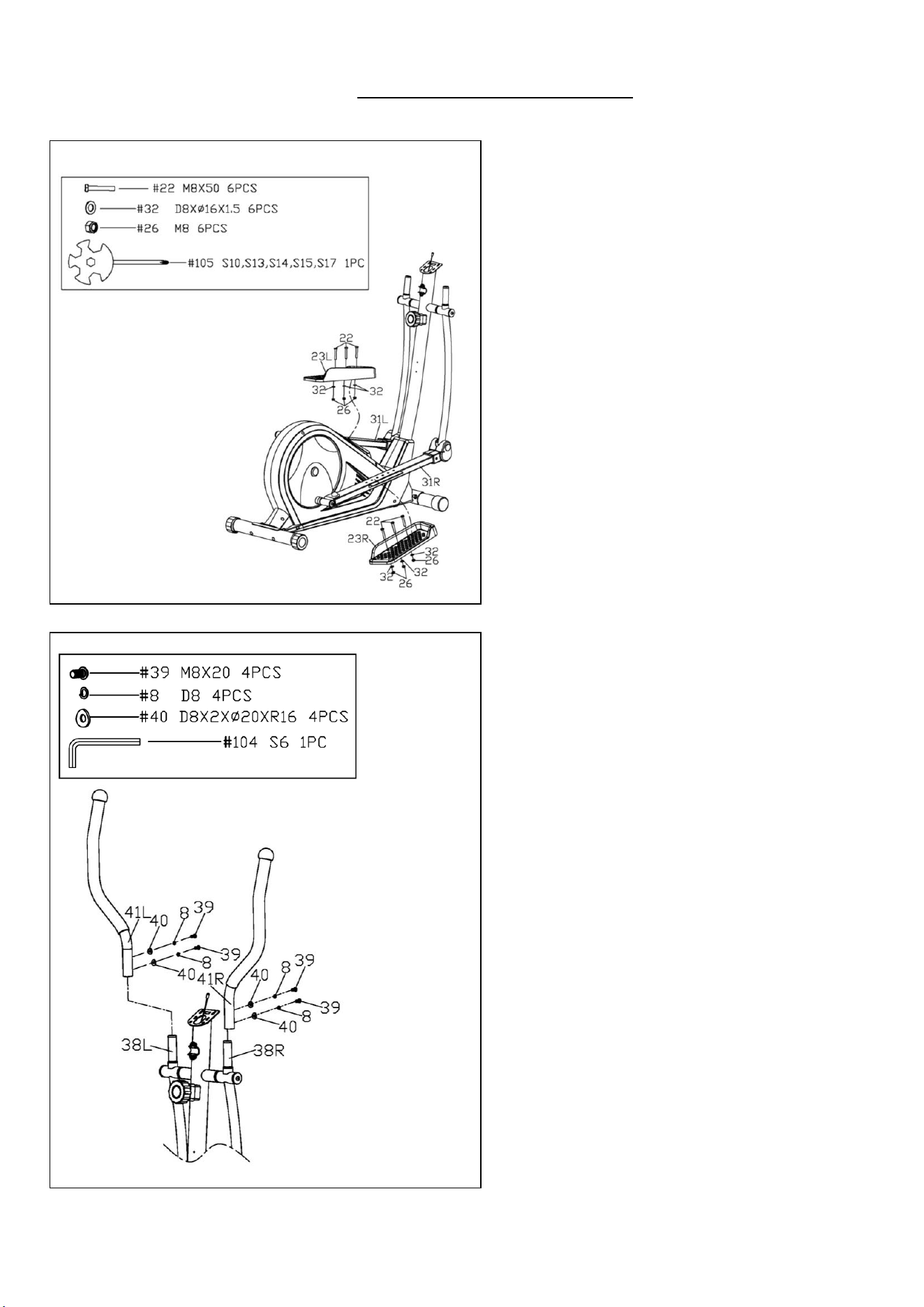

STEP 4:
Secure the Left & Right Pedals (No. 23L &
No. 23R) to the Left & Right Pedal Support
Tubes (No. 31L & No. 31R) respectively with
6 Carriage Bolts (No. 22), 6 Flat Washers
(No. 32) and 6 Nylon Nuts (No. 26) using
Spanner (No. 105).
NOTE: Pedals are labeled L and R; L for
LEFT and R for RIGHT.
NOTE: There are 2 positions on the Left &
Right Pedal Support Tubes (No. 31L & No.
31R), numbered 1 and 2, that you can install
the Left & Right Pedals (No. 23L & No.
23R). Adjust the pedal position to suit your
comfort level. Make sure both Left & Right
Pedals (No. 23L & No. 23R) are set at the
same position numbers.
STEP 5:
Remove 4 Allen Bolts (No. 39), 4 Spring
Washers (No. 8) and 4 Arc Washers (No.
40) from the Left & Right Swing Bars (No.
38L & No. 38R) using Allen Wrench (No.
104). Attach the Left & Right Handlebars
(No. 41L & No. 41R) onto the Left & Right
Swing Bars (No. 38L & No. 38R) with 4
Allen Bolts (No. 39), 4 Spring Washers
(No. 8) and 4 Arc Washers (No. 40) that
were just removed. Tighten and secure with
Allen Wrench (No. 104).
7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).

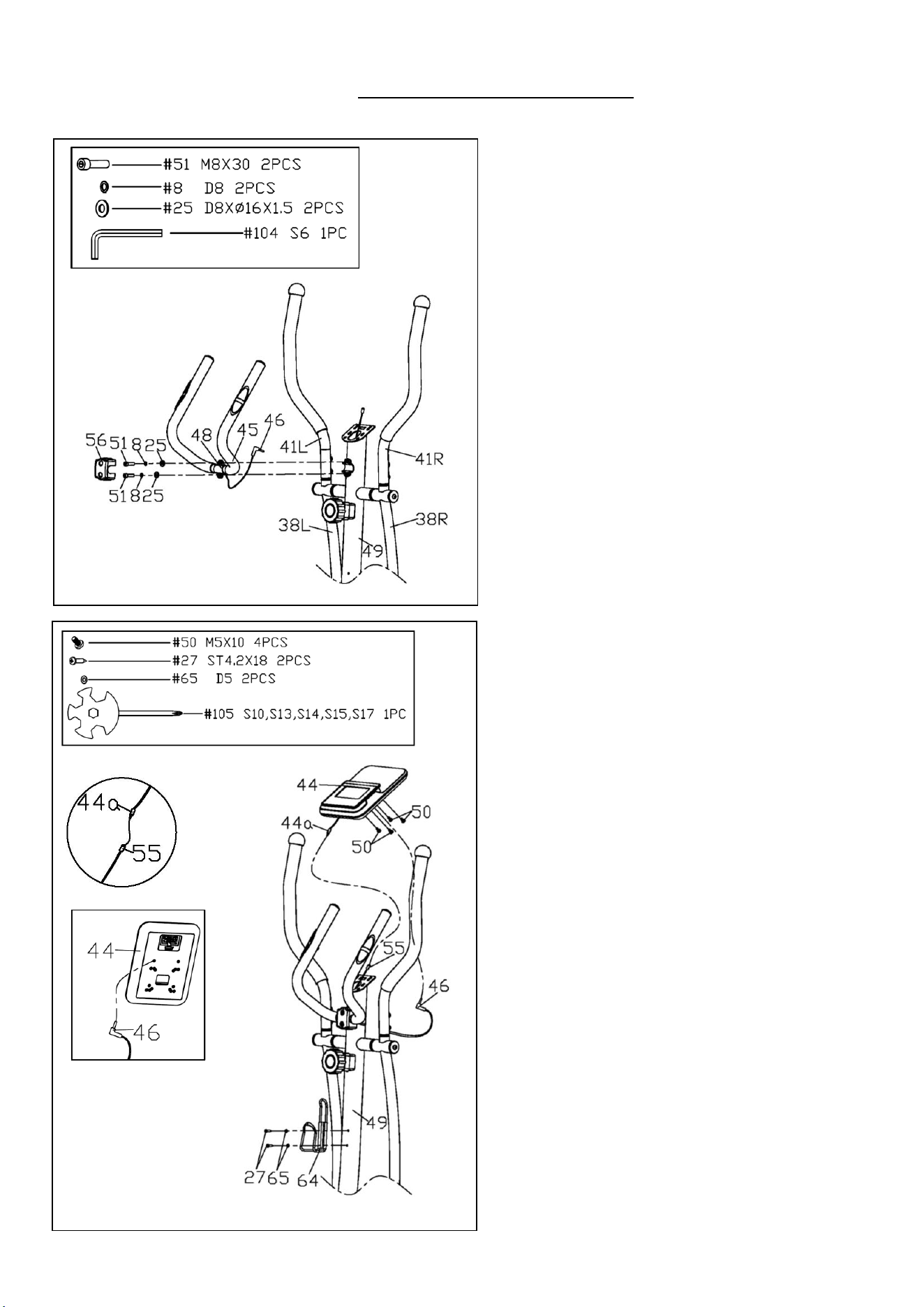

STEP 6:
Remove 2 Bolts (No. 51), 2 Spring Washers
(No. 8) and 2 Flat Washers (No. 25) from the
Handlebar Post (No. 49) using Allen Wrench
(No. 104).
Attach the Armrest (No. 48) to the Handlebar
Post (No. 49) in place. Secure with 2 Bolts (No.
51), 2 Spring Washers (No. 8) and 2 Flat
Washers (No. 25) that were just removed using
Allen Wrench (No. 104).
NOTE: If the Left & Right Handlebars (No. 41L
& No. 41R) assembled in STEP 5 rubs against
the Armrest (No. 48) during the workout, please
recheck if the Left & Right Handlebars (No. 41L
& No. 41R) is assembled to Left & Right Swing
Bars (No. 38L & No. 38R) according to the label
marked with L or R.
Finally attach the Decorative Cover (No. 56) onto
the Armrest (No. 48).
STEP 7:
Remove 4 Screws (No. 50) from the Meter
(No. 44) using Spanner (No. 105).
Plug the Pulse Wire (No. 46) to the jack on
the back of the Meter (No. 44). Then connect
the Sensor Extension Wire (No. 55) to the
Meter Wire (No. 44a).
Attach the Meter (No. 44) to the bracket of
the Handlebar Post (No. 49) using 4 Screws
(No. 50) that were just removed. Tighten and
secure with Spanner (No. 105).
NOTE: To avoid damaging the wires, please
push them into the Handlebar Post (No. 49)
before securing the Meter (No. 44) onto the
bracket.
Remove 2 Screws (No. 27) and 2 Flat
Washers (No. 65) from the Handlebar Post
(No. 49) using Spanner (No. 105). Attach
Bottle Holder (No. 64) to Handlebar Post
(No. 49) with 2 Screws (No. 27) and 2 Flat
Washers (No. 65) that were just removed.
Tighten and secure with Spanner (No. 105).
THE ASSEMBLY IS COMPLETE!
8

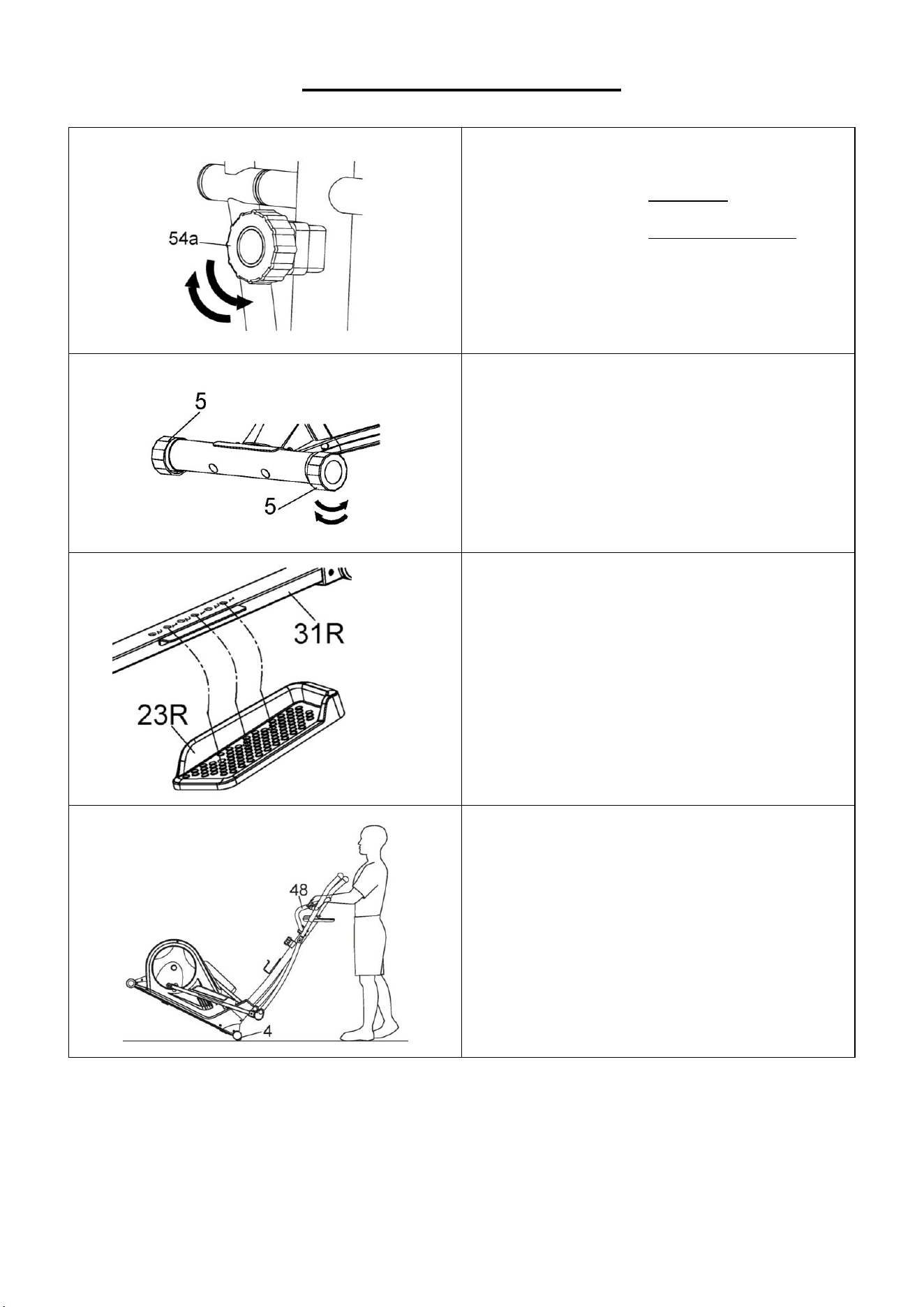

ADJUSTMENT GUIDE
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension
Controller (No. 54a) clockwise to increase
the level of resistance. Rotate the Tension
Controller (No. 54a) counter-clockwise to
decrease the level of resistance.
Tension levels are set at Level 1 being the
lowest and Level 15 being the highest.
ADJUSTING THE LEVEL
If at any point the elliptical feels uneven, you
can adjust the Rear End Caps (No. 5). If the
machine is still wobbly when you use it,
please consider adding an exercise mat
under it.
ADJUSTING THE PEDAL
There are 2 positions on the Left & Right
Pedal Support Tubes (No. 31L & No. 31R),
numbered 1 and 2, that you can install the
Left & Right Pedals (No. 23L & No. 23R).
Adjust the pedal position to suit your comfort
level. Make sure both Left & Right Pedals
(No. 23L & No. 23R) are set at the same
position numbers.
HOW TO MOVE THE ELLIPTICAL
There are transportation wheels located on
the Front End Caps (No. 4). Hold the
Armrest (No. 48) and push down the front of
the elliptical until the transportation wheels
touch the ground. Now you can move the
elliptical.
9

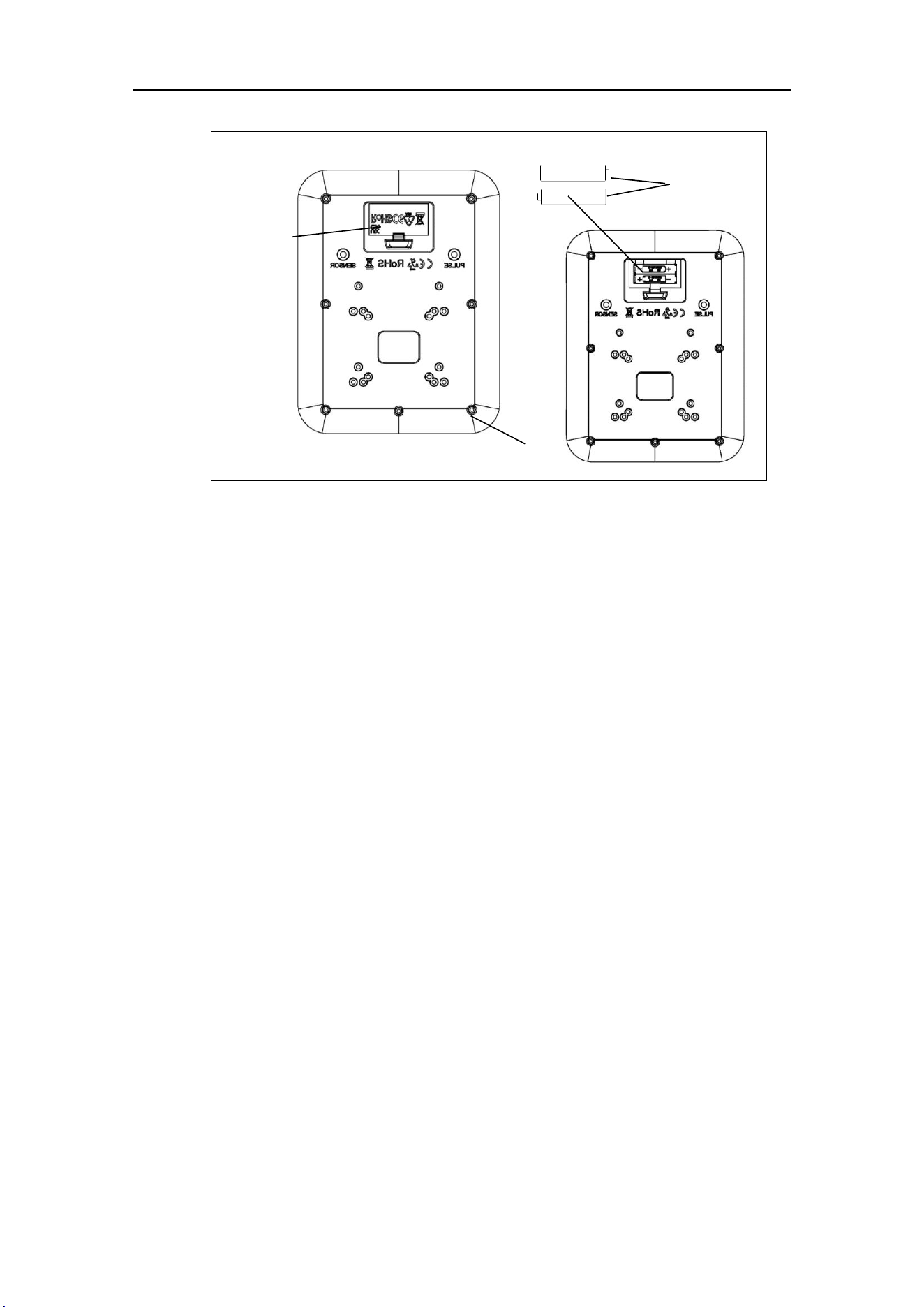

BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AAA batteries from meter box.
2. Press the buckle of battery cover on the Meter (No. 44), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Meter (No. 44). Pay attention
to the battery + and – poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 44).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Meter (No. 44), then remove battery
cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Meter (No. 44). Pay attention to the battery + and – poles
before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Meter
(No. 44).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some
batteries may be recycled. When disposing or recycling, do not mix battery types.
Battery
Cover
Battery
44
10

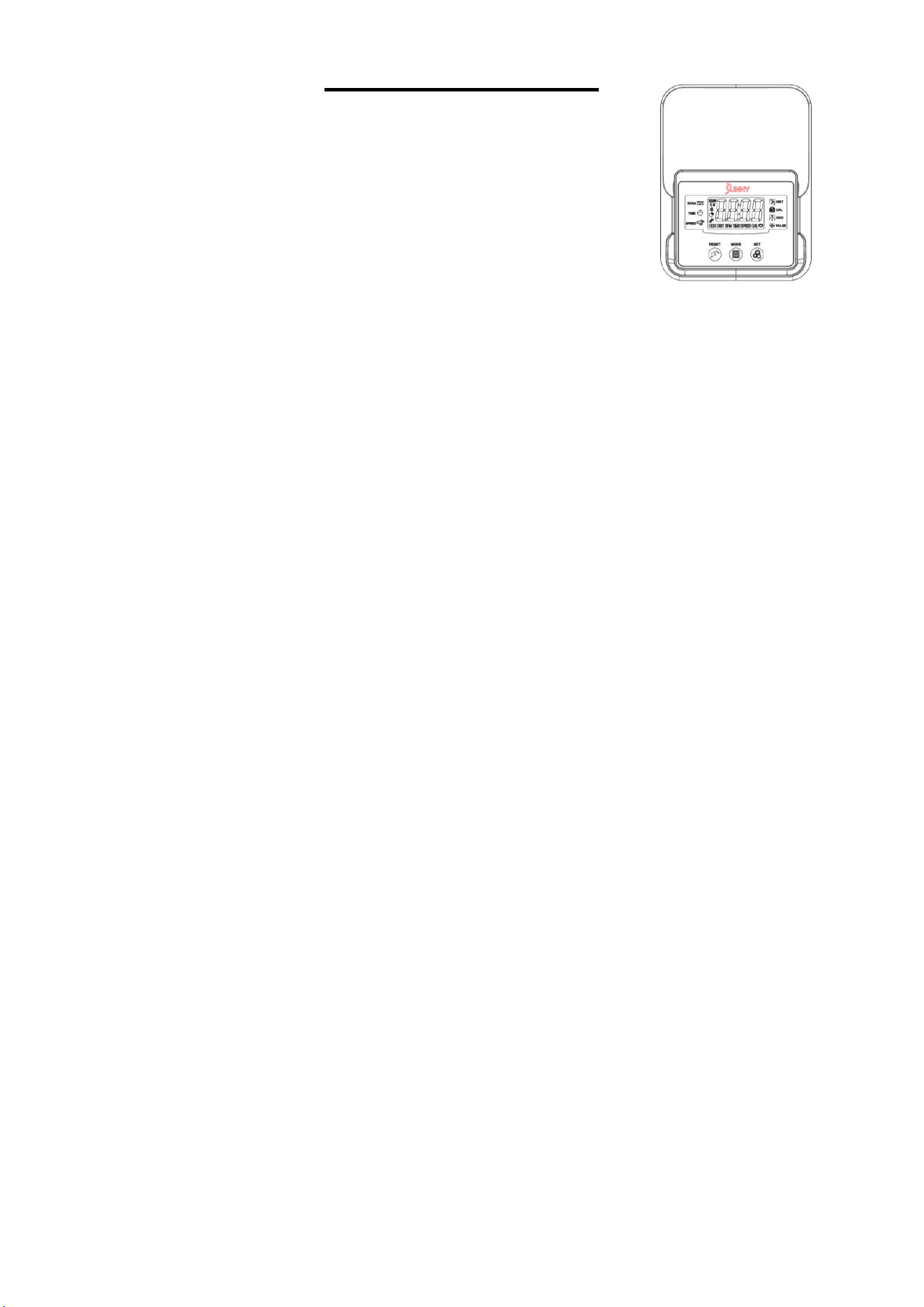

EXERCISE METER
SPECIFICATIONS:
TIME…………………………………..…...0:00-99:59
SPEED..……………………………………0.0-99.9 MPH
DIST (DISTANCE)………………………...0.00-999.9 M (MILES)
CAL (CALORIES)………………………….0.0-9999 KCAL
ODO (ODOMETER)……………………….0.0-9000 M (MILES)
PULSE……...............................................0-255 BPM
KEY FUNCTIONS:
MODE: Press the key to select and lock on to a particular function you want.
Press and hold the key for 2 seconds to clear data, except for ODO (ODOMETER)
when Bluetooth is not connected.
Press and hold the key for 6 seconds to disconnect from both the SunnyFit APP and
the heart rate monitor; then, the meter will enter sleep mode.
SET: Press the key to set the target values for TIME, DIST (DISTANCE), CAL (CALORIES),
PULSE.
RESET: Press the key to reset the value to zero.
NOTE: The SET & RESET keys are available when not exercising and when Bluetooth is not
connected.
OPERATION PROCEDURES:
1. AUTO ON/OFF:
The system turns on when any key is pressed or when it senses an input from the speed
sensor.
In stop mode and Bluetooth is not connected, the meter will shut off automatically and
disconnect the heart rate monitor if there is no activity for 4 minutes.
2. RESET: The unit can be reset by pressing the RESET button or changing the batteries.
3. MODE: To choose to SCAN or LOCK. If you do not want the scan mode, press the MODE
key when the pointer is on the function you want.
FUNCTIONS:
1. TIME: Press the MODE key until the pointer locks onto TIME. The total workout time will be
shown from starting exercise. In stop mode and Bluetooth is not connected, press the
MODE key to select the TIME function, then press the SET key to set a target value. The
meter will count down from the target value during exercise.
2. SPEED: Press the MODE key until the pointer locks onto SPEED. The current speed will be
shown.
3. DIST (DISTANCE): Press the MODE key until the pointer locks onto DIST (DISTANCE).
The distance of each workout will be shown. In stop mode and Bluetooth is not connected,
press the MODE key to select the DIST (DISTANCE) function, then press the SET key to
set a target value. The meter will count down from the target value during exercise.
4. CAL (CALORIES): Press the MODE key until pointer locks onto CAL (CALORIES). The
calories burned will be shown from starting exercise. In stop mode and Bluetooth is not
connected, press the MODE key to select the CAL (CALORIES) function, then press the
SET key to set a target value. The meter will count down from the target value during
exercise.
5. ODO (ODOMETER): Press the MODE key until the pointer locks onto ODO (ODOMETER).
The total accumulated distance will be shown.
6. PULSE: Press the MODE key until the pointer locks onto PULSE. User’s current heart rate
will be shown in beats per minute. Place the palms of your hands on both pulse sensors or
connect to the SunnyFit Heart Rate Monitor (HR200) and wait for 30 seconds for the most
accurate reading.
In stop mode and Bluetooth is not connected, press the MODE key to select the PULSE
function, then press the SET key to set a target value. The meter will display the target
value, even with your palms on the pulse sensors or connect to the HR200, while in stop
mode. Once you begin the workout, the meter will display the current pulse value. If your
pulse value surpasses the target value, the meter will “Beep“ every 5 seconds.
NOTE: This data is for reference only and cannot be used for medical treatment.
7. SCAN: Automatically cycles through functions every 6 seconds.
11
BATTERY: If meter display is not functioning correctly, please reinstall the batteries.
BLUETOOTH :
1. The Bluetooth icon will flash when the meter is on or wakes from sleep mode. If no
Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off.
2. The Bluetooth icon will stay on when it is connected.
WIRELESS HEART RATE
1. The wireless heart rate icon will flash when the meter is on. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
2. After exercise resumes, the wireless heart rate icon will flash. If the heart rate monitor is not
connected within 1 minute, the wireless heart rate icon will turn off.
3. When the meter wakes from sleep mode, the wireless heart rate icon will flash. If the heart
rate monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
4. The wireless heart rate icon will flash when the MODE key is pressed. If the heart rate
monitor is not connected within 1 minute, the wireless heart rate icon will turn off.
5. The wireless heart rate icon will stay on when the heart rate monitor is connected.
NOTE: The heart rate monitor is not included. Wireless heart rate function works with
SunnyFit Heart Rate Monitor HR200. HR200 can only connect to the meter when the wireless
heart rate icon is flashing.
TECHNICAL DATA
Connectivity: Bluetooth LE
Frequency Range: 2400~2483.5 Mhz
Transmitting Power: 0 dBm
APP CONNECTION:
Connect Smart Equipment to SunnyFit App:
1. Scan to download SunnyFit from the app store:
2. Ensure that the Bluetooth function is turned on from your mobile device.
3. If this is your first time using the SunnyFit app, follow the in-app instructions to register
for your free SunnyFit account and log in.
4. Begin any workout activity that matches your smart equipment, then follow the onscreen
prompts to search for and connect to your smart equipment.
5. When connected, your stats and records will be displayed at the end of your
course/session, and recorded in your account profile!
Troubleshooting:
•
If you are having trouble connecting your smart equipment, visit
www.sunnyfit.com/guide or scan the QR code below:
•
If you require additional support, please contact [email protected].
12
PARTS LIST
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Main Frame
1
50
Screw
M5X10
4
2
Front Stabilizer
60X1.5X370
1
51
Bolt
M8X30
2
3
Rear Stabilizer
60X1.5X480
1
52
Screw
M5X55
1
4
Front End Cap
Φ60X1.5
2
53
Arc Washer
D5
1
5
Rear End Cap
Φ60
2
54a
Tension Controller
15 LEVELS
1
6
Carriage Bolt
M8X76
4
54b
Tension Cable
700MM
1
7
Arc Washer
D8XΦ19X1.5XR30
12
55
Sensor Extension Wire
1100MM
1
8
Spring Washer
D8
22
56
Decorative Cover
1
9
Domed Nut
M8
4
57
Front Cover
1
10
Spacer
Φ35XΦ19.1X29
2
58
Long Axle
Φ19X355.5
1
11
Crank
2
59
Wave Washer
Φ21XΦ27X0.3
3
12
Sensor Wire
1400MM
1
60
Square Plug
60X30X1.5
2
13
Tension Hook
1350MM
1
61
Wave Washer
Φ19.5XΦ37X0.3
2
14
Allen Bolt
M8X20
4
62
Round Cap
Φ25X1.5
2
15
Flat Washer
Φ8XΦ30X2
2
63
Pulse Sensor
2
16
Axle Bushing
Φ12XΦ32X15
4
64
Bottle Holder
1
17
Nut Cap
S17
4
65
Flat Washer
D5, BLACK
2
18
Hex Bolt
M10X55
2
66
Hex Nut
M5
2
19
Connecting Joint
2
67
Plug
Φ25X22
2
20
Flat Washer
D10XΦ20X2
2
68
Bolt
M6X14
4
21
Nylon Nut
M10
3
69
Belt Pulley
Φ260
1
22
Carriage Bolt
M8X50
6
70
Centre Axle
Φ20X136
1
23L
Left Pedal
1
71
Spring Washer
D6
2
23R
Right Pedal
1
72
Nylon Nut
M6
4
24
Alloy Bushing
Φ14X12.5XΦ10.1
4
73
Belt
440 PJ6
1
25
Flat Washer
D8XΦ16X1.5
2
74
Spring Washer
D10
1
26
Nylon Nut
M8
8
75
Spacer
Φ10XΦ16X6
1
27
Screw
ST4.2X18
21
76
Hex Screw
M6X15
2
28a
Left Protective Cover A
1
77
Flat Washer
D6
2
28b
Left Protective Cover B
1
78
Axle Stop Ring
D12
2
29
Hex Bolt
M8X75
2
79
Magnetic Board Axle
Φ12XL73XM6X15
1
30
Flat Washer
D5, ZINC
16
80
Spring
Φ1.6XΦ14.5XL61.2
1
31L
Left Pedal Support Tube
1
81
Magnetic Board
1
31R
Right Pedal Support
Tube
1
82
Square Magnet
32X15X8
14
32
Flat Washer
D8XΦ16X1.5
8
83
Hex Nut
M10X1
2
33
Screw
ST3.5X10
2
84
Hex Nut
M6
2
34
Bushing
Φ14XΦ8.5X59.7
2
85
Adjusting U Washer
δ3X50X43
2
35
Axle Bushing
Φ26.8X28
4
86
Adjusting Belt Bolt
M6X36
2
36
Flat Washer
Φ8XΦ38X2
2
87
Thin Nut
M10X1
1
37
Bearing Bushing
Φ38XΦ34XΦ19.2X4
6
88
Flywheel Axle
Φ12X113XM10X1XL22
1
38L
Left Swing Bar
1
89
Bearing
6001z
2
38R
Right Swing Bar
1
90
Flywheel Spacer
D16XD12.2X11.5
1
39
Allen Bolt
M8X20
12
91
Flywheel
Φ270X32
1
40
Arc Washer
D8X2XΦ20XR16
4
92
Spacer
Φ10XΦ16X3
1
41L
Left Handlebar
1
93
Hex Thin Nut
M10X1
2
41R
Right Handlebar
1
94
Plastic Nut
2
42
Grip
Φ31X3X480
2
95L
Left Belt Cover
1
43
Mushroom Cap
Φ32X2
2
95R
Right Belt Cover
1
44
Meter
HR6035BSP
1
96
Disc
2
44a
Meter Wire
100MM
1
97
Hex Bolt
M10X40
1
45
Grip
Φ24XΦ30X480
2
98
Flange Nut
M10X1.25
2
46
Pulse Wire
650MM
1
99
Axle Stop Ring
D20
2
47
Wire Plug
Φ12.5
1
100
Bearing
6904Z
2
48
Armrest
1
101
Idler Wheel
1
49
Handlebar Post
1
102
Hex Bolt
M5X60
1
13
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
103
Sensor Seat
1
106
Screw
ST3.5X16
18
104
Allen Wrench
S6
2
107a
Right Protective Cover
A
1
105
Spanner
S10,S13,S14,S15,S17
2
107b
Right Protective Cover
B
1
14
EXPLODED DIAGRAM 1
EXPLODED DIAGRAM 2
Version: 2.0
