KOKIDO EV32BX/POL/AMZ/US XTROVAC 310 Rechargeable Cordless Pool Vacuum

User Manual - Transcript

• Page 1: USER MANUAL xtrovac 310 Pool Vacuum Cleaner
• Page 2 - English - : ENGLISH Remark Depending on the model you own accessories parts shown in this manual are not necessarily included in every model Productparts in photosdrawings may vary with the model purchased Check the spare parts drawing to understand the parts included in your model purchased SAFETY WARNINGS amp INSTRUCTIONS Information contained in this Instruction Manual will help you operate the item safely protect yourself and others from hazards and prevent damage to the device and other property SAVE THESE INSTRUCTIONS WARNING This is not a TOY Children should be kept out of reach from this pool vacuum and its accessories Never allow children to operate this pool vacuum This appliance is not intended for use by persons with reduced physical sensory mental capabilities or a lack of experience and knowledge unless they are given supervision or instructions concerning the safe use of the appliance and understand the hazards involved by a person responsible for their safety Children must not play with this product Cleaning and maintenance of the pool vacuum must not be carried out by children Make sure the pool vacuum is fully immersed in the pool before initiating operation The minimum water level required to operate the pool vacuum must reach above the power ONOFF switch of the pool vacuum when it is held in a vertical position Operating the pool vacuum when it is not immersed correctly could damage the unit and void the warranty Maximum operating depth in water is 3 meters 10ft Maximum water temperature 5C 41F 35C 95F Detachable supply unit external adaptor For the purpose of recharging the battery only use the charging base and detachable supply unit that provided with this pool vacuum Connect the external adaptor to a power source through a residential current device RCD a ground fault circuit interrupter GFCI If in doubt consult a qualied electrician Do not use this pool vacuum if any damage is detected To prevent damage to the pool vacuum not to leave it outside during freezing weather Replace damaged parts with ones that are certied by the distributor or manufacturer
• Page 3 - English - : ENGLISH Turn o the power disconnect the external adaptor from the power source and unplug the external adaptor from the charging base before detaching the pool vacuum from the charging base Disconnect the pool vacuum from the supply mains and make sure the pool vacuum is OFF prior to carrying out regular maintenance such as cleaning the lter and the charging contact plates Do not attempt to replace the installed rechargeable Liion battery pack DO NOT handle the pool vacuum external adaptor and charging base while it is charging with wet limbs and without shoes Ensure that children do not attempt to access the pool vacuum while it is operating DO NOT use this pool vacuum without an intact lter baglter cage in place as your warranty will be voided as a result Suction entrapment hazard This pool vacuum generates suction Do not allow hair body or any loose parts of your clothing to make contact with the suction hole of the pool vacuum during its operation Never insert body parts clothing or other objects into the openings and moving parts of the pool vacuum DO NOT use this pool vacuum to pick up any toxic substance ammable and combustible liquids ie gasoline in the presence of explosive or ammable fumes Under no circumstances should you attempt to disassemble the pool vacuum and replace the impeller motor and battery by yourself Never insert ngers or any object to touch the impeller The builtin battery must be removed by a skilled technician before it is scrapped This pool vacuum contains a battery that are only to be removed by skilled persons The pool vacuum must be disconnected from the supply mains as the battery is removed For details regarding battery recyclingdisposal refer to the section BATTERY DISPOSAL in this manual and contact your local authorities for more information The battery must be disposed safely in accordance with local ordinances or regulations External adaptor and charging base Never use the external adaptor and charging base for anything other than charging the battery of the pool vacuum that is supplied in the same pack The external adaptor and charging base should not be used outdoors nor should it be exposed to rain humidity and any liquid
• Page 4 - English - : ENGLISH or heat The transformer or external adaptor is to be located outside zone 1 Keep the external adaptor and charging base out of reach of children Never use the external adaptor and charging base if any damage is detected DO NOT handle the external adaptor and charging base with wet hands DO NOT handle the pool vacuum external adaptor and charging base while charging with wet hands and without shoes Keep the external adaptor disconnected from power when it is not in use Never attempt to open the external adaptor and charging base If the supply cord of the external adaptor is damaged the external adaptor must be replaced by the manufacturer or its service agent to prevent hazards of any kind Make sure the pool vacuum and the charging base are completely dry before charging CAUTION This pool vacuum is designed for underwater use only it is not an allpurpose vacuum cleaner DO NOT attempt to use it to clean anything other than your pool spa hot tube Use only original accessories delivered with this product DO NOT use this pool vacuum right after poolshocking It is recommended to leave the pool circulating for at least 2448 hours If you are planning on using the pool vacuum in a saltwater pool make sure all salt are dissolved before deploying the pool vacuum DO NOT use this pool vacuum with another automatic cleanercleaner simultaneously in the pool spa hot tube Avoid picking up hard sharp objects with this product They may damage the pool vacuum and lter Exercise caution when cleaning pool stairs To avoid damages to the external adaptor and charging base do not attempt to carry the pool vacuum by the cord of external adaptor charging base or pull the cord to disconnect it from the power source andcharging base Charge the pool vacuum indoor in a clean dry area with good ventilation and an ambient temperature between 5C 41F and 35C 95F DO NOT leave the pool vacuum charged for over 10 hours If the pool vacuum will not be used for an extended period detach it from the charging base and use a damp cloth to clean and dry the pool vacuum and accessories Make sure to charge the pool vacuum to about 30 to 50 of the battery capacity before it is stored Store in a wellventilated area away from sunlight heat ignition sources pool chemicals and children Never leave the pool vacuum plugged in for longterm storage Recharge the pool vacuum every three months Above warnings and cautions are not intended to incorporate all possible instances for risks and or severe injuries Pool spa hot tube owners should always exercise extra caution and common sense when utilizing the product

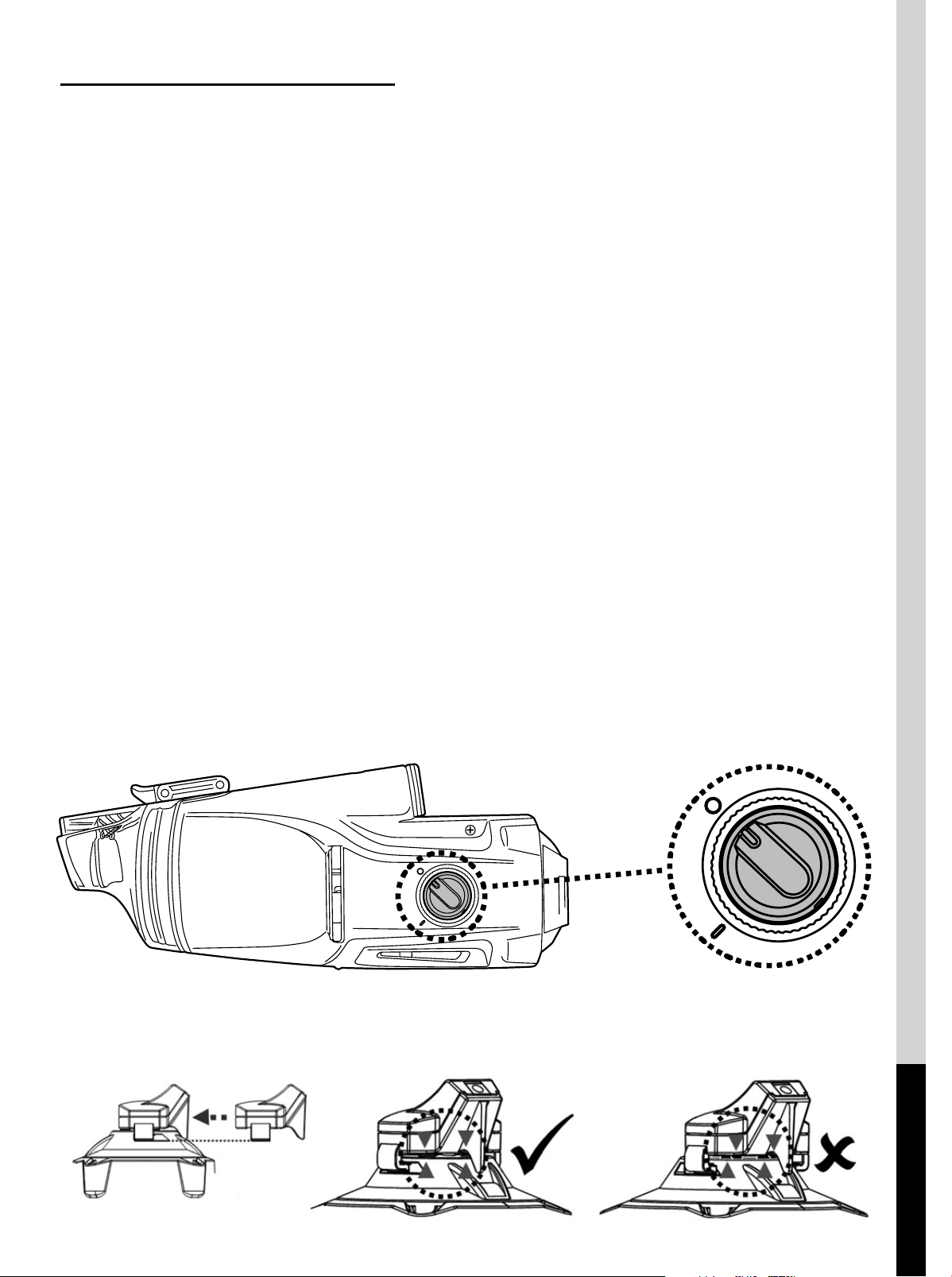

• Page 5 - English - : ENGLISH 1 Place the unit on a at surface Make sure the pool vacuum is o by turning the power ONOFF switch to the OFF position prior to charging 2 Align and slide the hook of the charging base onto the side notch at the bottom of the main body until it stops Make sure their contact plates are properly in contact GETTING STARTED Charging The Battery IMPORTANT NOTE Fully charge the pool vacuum about 6 hrs before using it for the rst time WARNING Use only the original external adaptor and charging base provided Make sure the pool vacuum and the charging contact plates are clean and dry before setup and charging TIPS Use a cotton bud to dry the charging contact plates Charging must be done indoors in a wellventilated area away from sunlight children heat ignition sources and with an ambient temperature between 5C 41F and 35C 95F Never use the external adaptor and charging base if any damage is detected The charging contact plates are waterproof However remnants of water on the contact plates could result in natural occurrence of stains a byproduct of chemical reaction between water and electric currents Otherwise the stains can be removed by light scrubbing with a cotton bud soaked with juice of lemon or vinegar Make sure that the pool vacuum is turned o prior to charging OFF ON

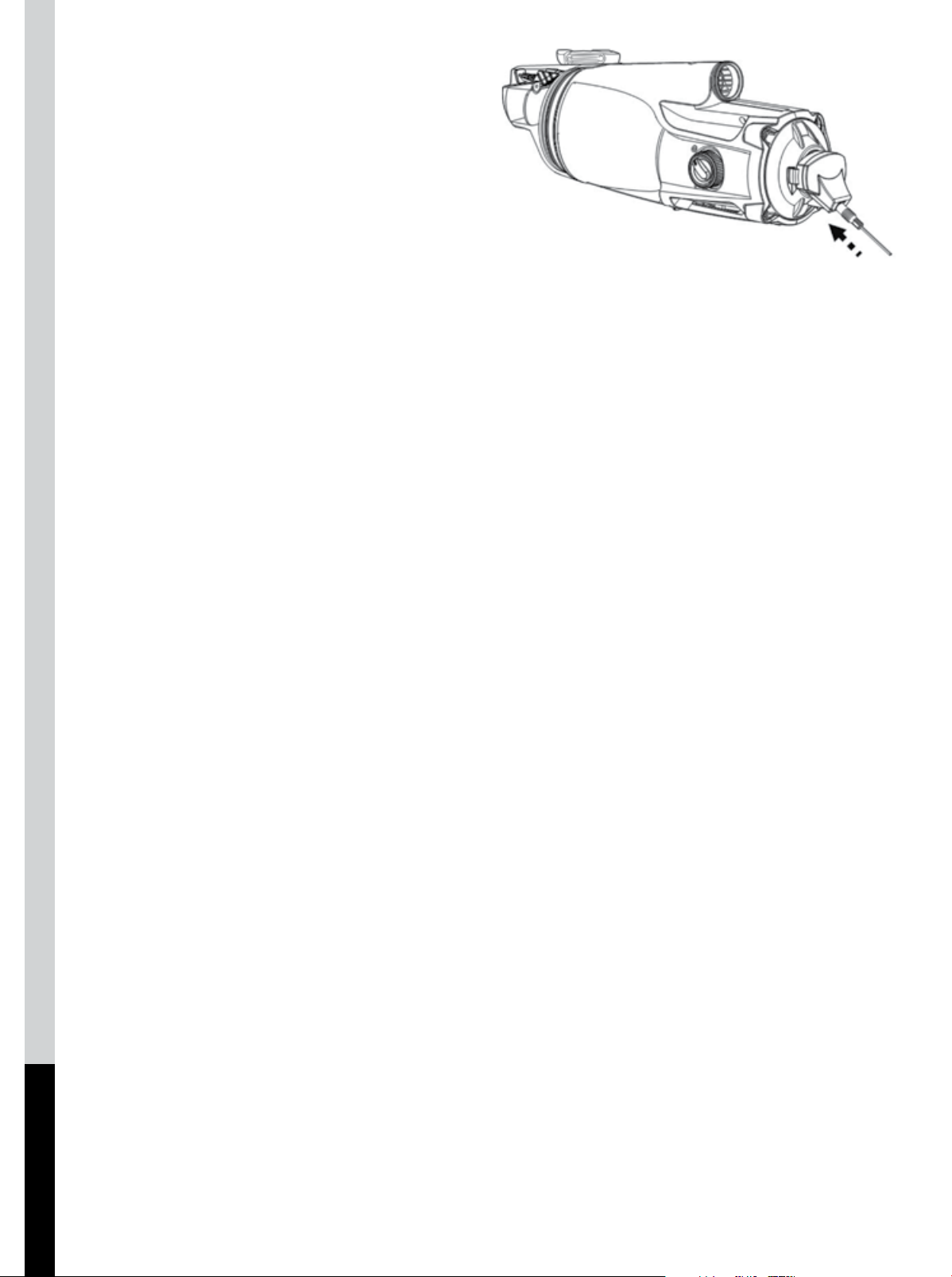

• Page 6 - English - : ENGLISH 3 Plug the jack of the external adaptor into the charging port at the end of the charging base 4 Connect the external adaptor to the power source Once the pool vacuum begins charging the indicator light on the external adaptor will turn red Normally it takes about 46 hours to reach a full charge The indicator light will turn green when the pool vacuum is almost fully charged NOTE if the motor is generating noise ensure OFF is selected on the power switch 5 When charging is complete disconnect the external adaptor from the power source and detach the charging base from the unit and external adaptor Normally the pool vacuum can operate up to 30 minutes on a full charge charged for 46 hours Note Clean the lter baglter cage regularly Excessive debris inside the lter baglter cage increases the burden to the motor operation and shortens the operating duration as a result FACT Rechargeable lithiumIon battery is classied as a consumable item It has a limited life and will gradually lose its capacity to hold a charge Therefore running time of the pool vacuum will gradually reduce through repeated charging and discharging in operation Once the lifespan of the battery reaches its end refer to section BATTERY DISPOSAL for instructions regarding battery disposal NOTE Let the pool vacuum rest for around 30 to 40 minutes before charging it again Immediately disconnect the external adaptor from the power source if you detect any of the following Oensive or unusual odor Excessive heat Deformation cracks leaks Smoke

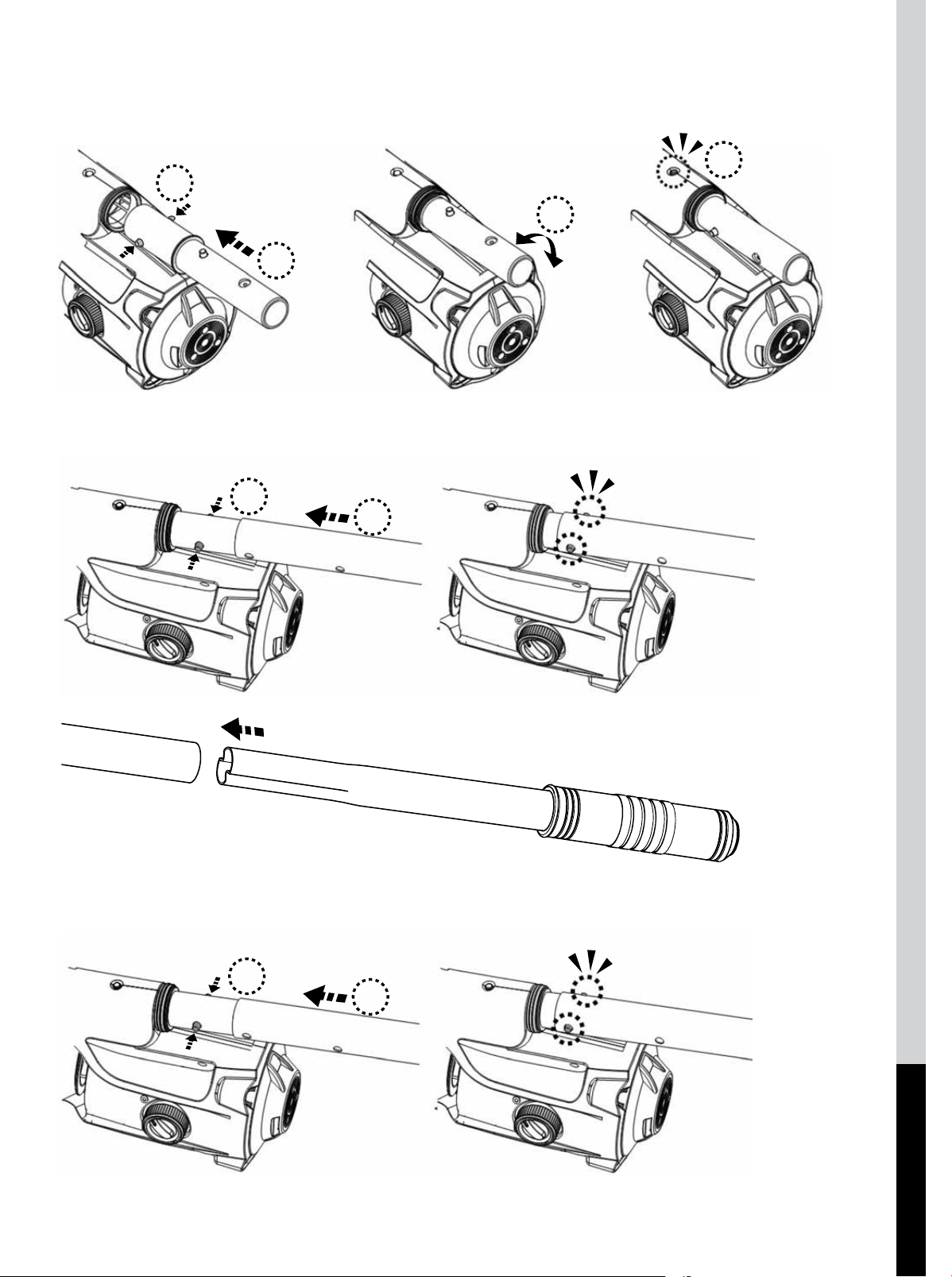

• Page 7 - English - : ENGLISH SetUp Before Use Pole Connector Assembly Pole Assembly Telescopic Pole Not Included Assembly To release the telescopic pole press down the side pins simultaneously and pull out the pole

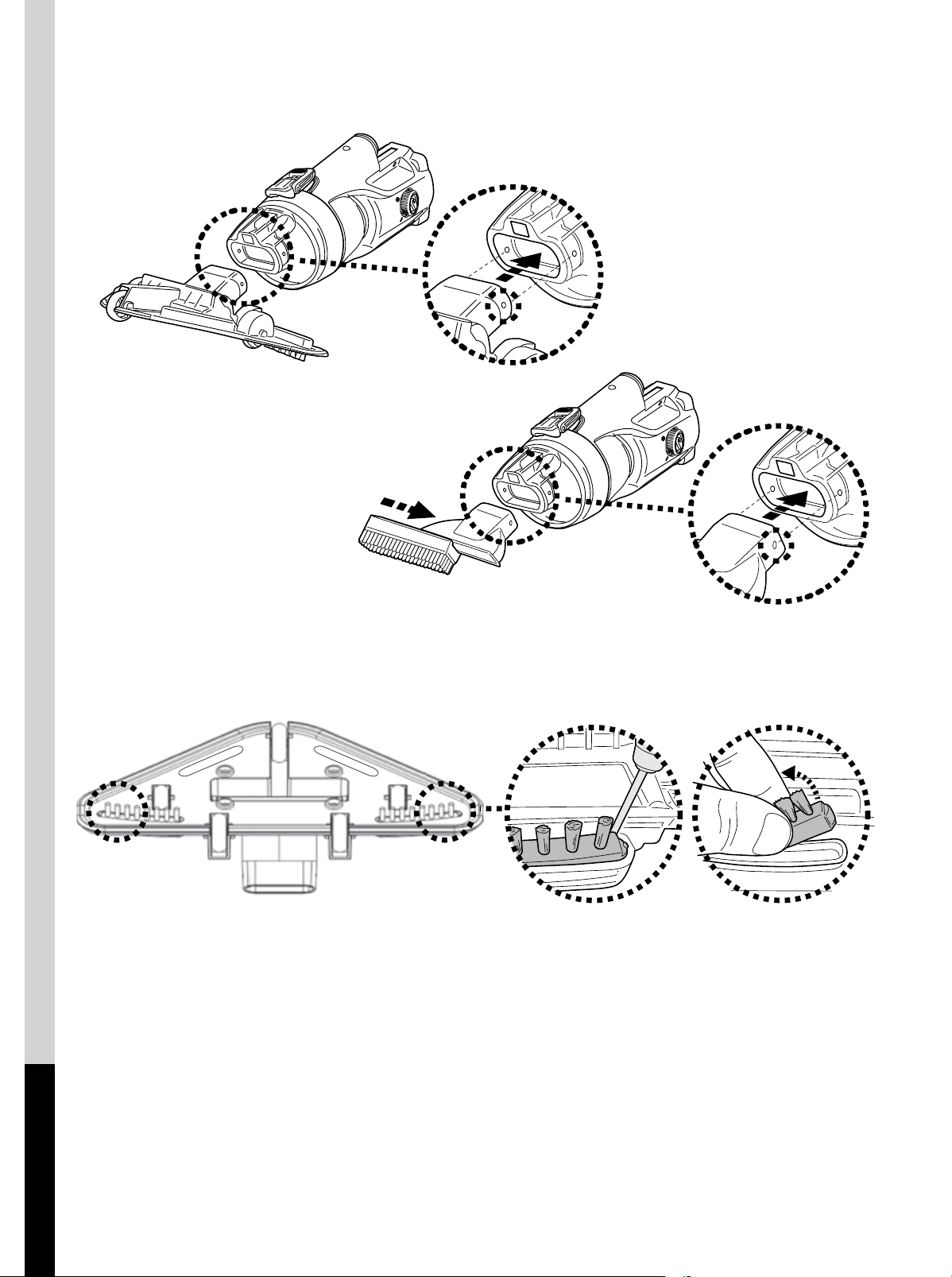

• Page 8 - English - : ENGLISH Pool Preparation If there are stones roots or metal corrosion in contact with the underside of the liner discard them prior to using the pool vacuum If necessary seek assistance from a qualied professional If the liner is brittle damaged or wrinkled contact a qualied professional to perform the necessary repairs or perform a liner replacement prior to using the pool vacuum If you are using a saltwater pool make sure all salt are dissolved before placing the pool vacuum into the water Suction Head Assembly Insert the suction head directly into the suction mouth of the pool vacuum until the side tabs of transparent case will clip in the holes of the suction heads pivot NOTE To replace the brushes on the suction head lift the end and pull it out to make space for a new one WARNING For vinyl liner and breglass poolsspahot tube it is recommended to keep the brushes on the suction head to avoid damaging the poolspahot tube
• Page 9 - English - : ENGLISH OPERATION WARNING Make sure the pool vacuum is o Do not use the pool vacuum if any damage is detected Oil stain could occur due to possible leakage of lubricants applied to the Oring Make sure the pool vacuum is fully immersed in the pool before initiating operation The minimum water level required to operate the pool vacuum must reach above the power ONOFF switch of the pool vacuum when it is held in a vertical position Operating the pool vacuum when it is not immersed correctly could damage the unit and void the warranty DO NOT use the pool vacuum without an intact lter baglter cage in place Using your pool vacuum without an intact lter bag lter cage in place will VOID your warranty DO NOT leave the pool vacuum in the water when it is not in use 1 Bring your pool vacuum to the side of your pool spa hot tube Immerse the pool vacuum in water and turn the power ONOFF switch to the ON position to initiate operation CAUTION Make sure the pool vacuum is always facing downwards when it is placed into the pool spa hot tube Otherwise it may bend the pole connector and damage it during the process 2 To remove the pool vacuum from the pool spa hot tube lift the pool vacuum while pointing it downwards in order to allow water to escape from the outlet valve Water is going to escape via the handle pole connector and draining holes inside the handle chamber on the rear body CAUTION Make sure the pool vacuum is always facing downwards when it is removed from the pool spa hot tube Otherwise the pole connector may be bent and damage the pool vacuum in the process 3 Rinse the pool vacuum with fresh water after every use DO NOT use any detergent

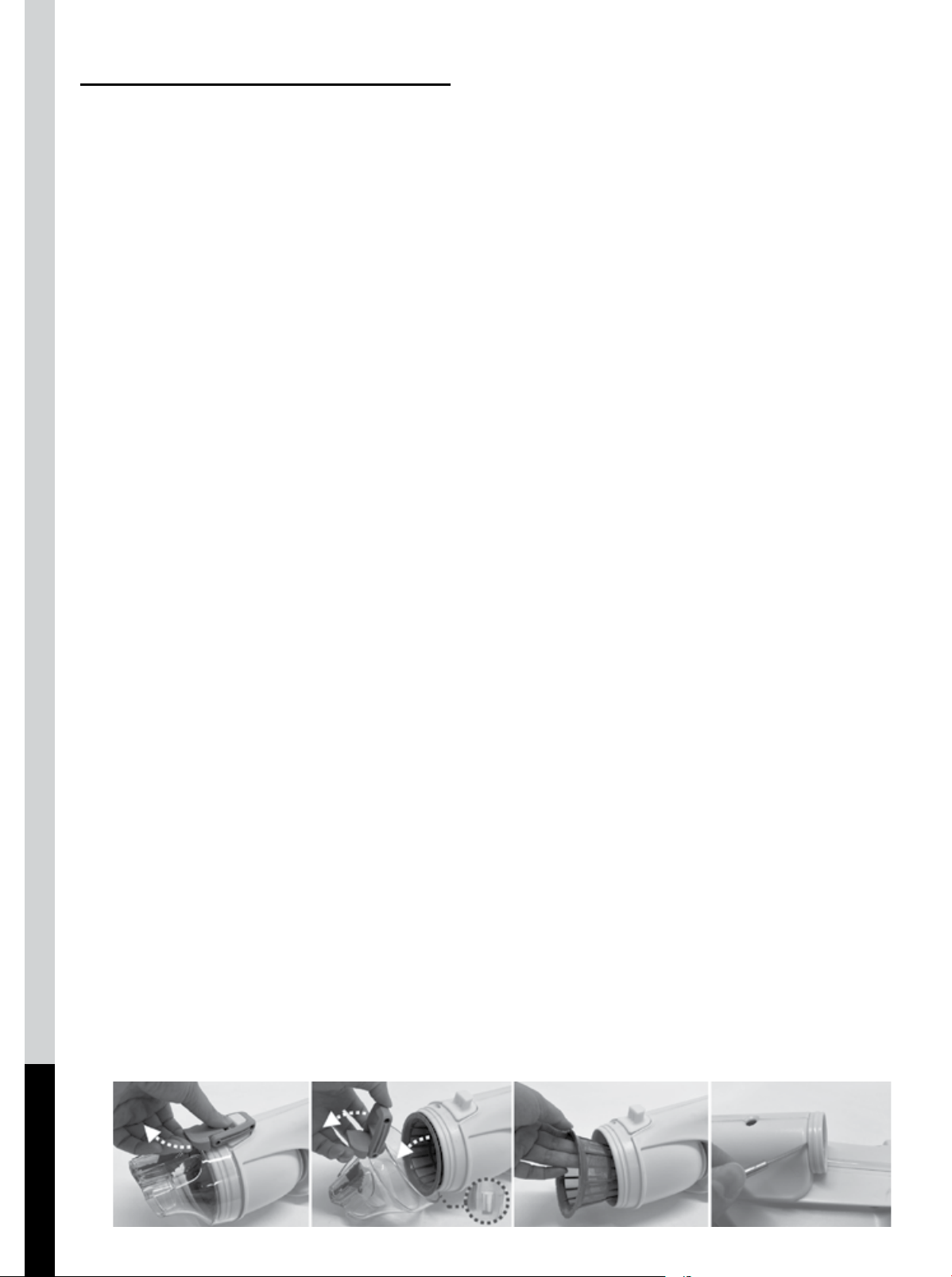

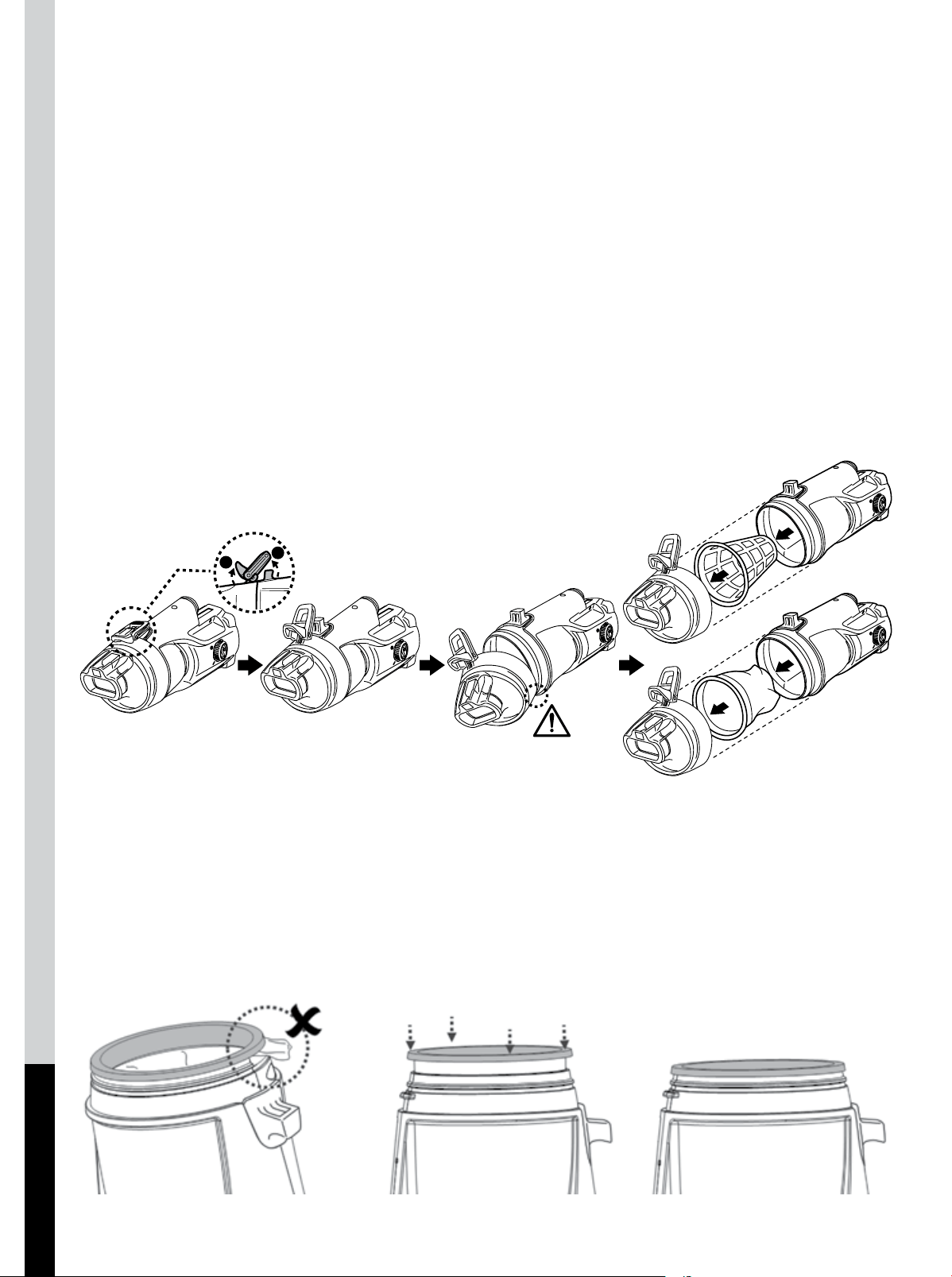

• Page 10 - English - : ENGLISH Emptying The Filter Bag WARNING Using the pool vacuum without a lter baglter cage in place will VOID your warranty In order to maximize the cleaning eciency be sure to clean the lter baglter cage before and after each use CAUTION If the pool vacuum is charging disconnect the external adaptor from the power source and detach the pool vacuum from the charging base Make sure the pool vacuum is OFF Emptying The Filter BagFilter Cage Place the pool vacuum on a stable surface Pry the lever of the latch to disengages the latch bolt from the catch Slide the canister away until the notch on the bottom of canister opening is released from the hook on the bottom of main body Remove the lter baglter cage from the main body CAUTION Replace the damaged lter baglter cage immediately before the next operation Clean out the debris and rinse the lter baglter cage with water If brushing is deemed necessary use only a soft brush to clean the lter baglter cage gently and carefully Reposition the lter baglter cage inside the main body Make sure the lter baglter cage is completely inserted inside the main body Make sure the net is completely inserted inside the main body and does not stick out 1 2

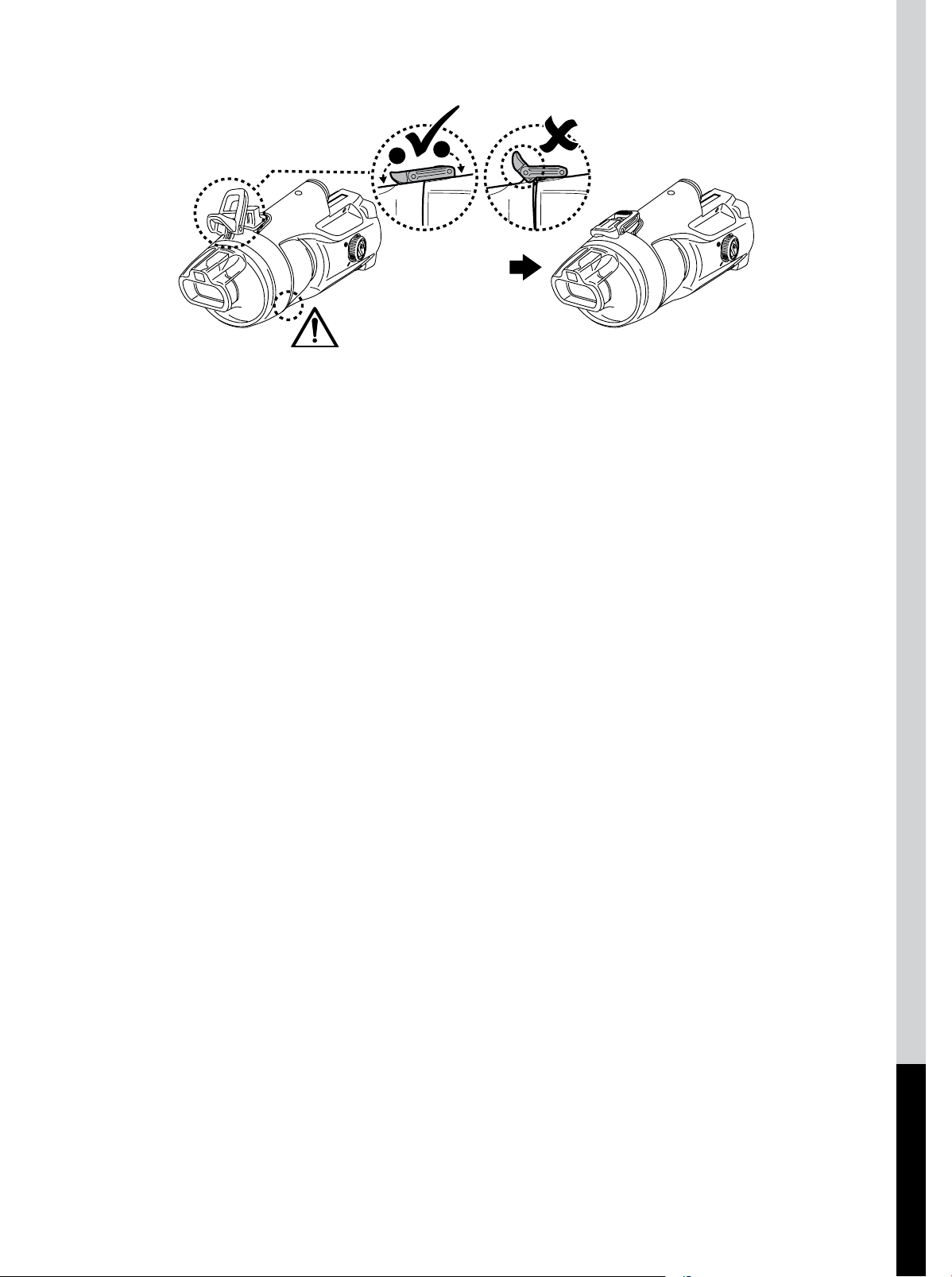

• Page 11 - English - : ENGLISH To reinstall the canister rst align the notch of the canister with the hook on main body and then press the canister onto main body Align the latch bolt to the catch and press down the lever completely to secure the locking Maintenance amp Storage NOTE 1 Be sure to clean and dry the charging contact plates after every use to avoid the forming of stains byproduct of a natural chemical reaction between electric current and water Otherwise the stains can be removed by light scrubbing with a cotton bud soaked with juice of lemon or vinegar 2 Battery discharges on its own during storage Make sure to charge the pool vacuum to about 30 to 50 of the battery capacity before it is stored 3 You must recharge the battery at least once every three months when it is not in use Unplug the external adaptor from socket and then unplug the adapter jack from the charging base Detach accessories from the pool vacuum If necessary rinse the pool vacuum and accessories with fresh water DO NOT use detergent Make sure to drain the water from the unit handle and pole connector Use a damp cloth to clean and dry the pool vacuum and its accessories Store them in a wellventilated area away from the sunlight children heat ignition sources and pool chemicals Ambient temperature for storage should be 10C 25C 50F 77F NOTE A higher temperature may reduce the battery life during storage WARNING Never attempt in any way to disassemble the pool vacuum Under no circumstances should you attempt to disassemble the pool vacuum and replace the impeller motor and battery by yourself CAUTION Excessive heat can damage the battery and reduce its lifespan as a result Consult your dealer regarding battery replacement if the following happens Battery does not charge fully Battery operation time is noticeably reduced Observe and record the run times of the rst few operations on a full charge Use these run times as a reference point for comparison with run times in the future The battery must be removed from the pool vacuum before it is scrapped The pool vacuum must be disconnected from the supply mains when removing the battery The battery is to be disposed safely and according to local ordinances or regulations NOTE Incorrect maintenance may reduce the battery life and aect its capacity as a result
• Page 12 - English - : ENGLISH BATTERY DISPOSAL To be carried out by authorized technician Your pool vacuum battery is a maintenancefree rechargeable lithiumion battery pack which must be disposed properly Recycling is required please contact your local authority for information WARNING Never attempt to disassemble a battery pack Remove all personal items such as rings bracelets necklaces and watches when the battery pack is unwired from the pool vacuum A battery can produce a short circuit current high enough to weld a ring or similar item to metal causing a severe burn in the process Wear complete eye protection gloves and protective clothing when the battery pack is being removed Avoid touching the wires altogether and avoid allowing them to make contact with any metal items which could cause sparking and or short circuit the battery Never smoke or allow a spark or ame in the vicinity of the battery or the pool vacuum Do not expose the battery to re or intense heat as this may result in an explosion CAUTION If a battery leak occurs avoid contact with the leaking uids and place the damaged battery in a plastic bag If leaking uids come in contact with skin and clothing wash immediately with plenty of soap and water If leaking uids come in contact with eyes immediately ush eyes with cool running water for at least 15 minutes and do not rub them Seek medical attention as soon as possible How to remove the battery pack for battery disposal only To be done by authorized technician Recommended tools not included Philips screwdriver and small slot screwdriver 1 Press on the locking button and detach the clear canister from the body Use a small screwdriver to detach the ring from the body It is hard to detach the ring by screwdriver use cutting plier to cut

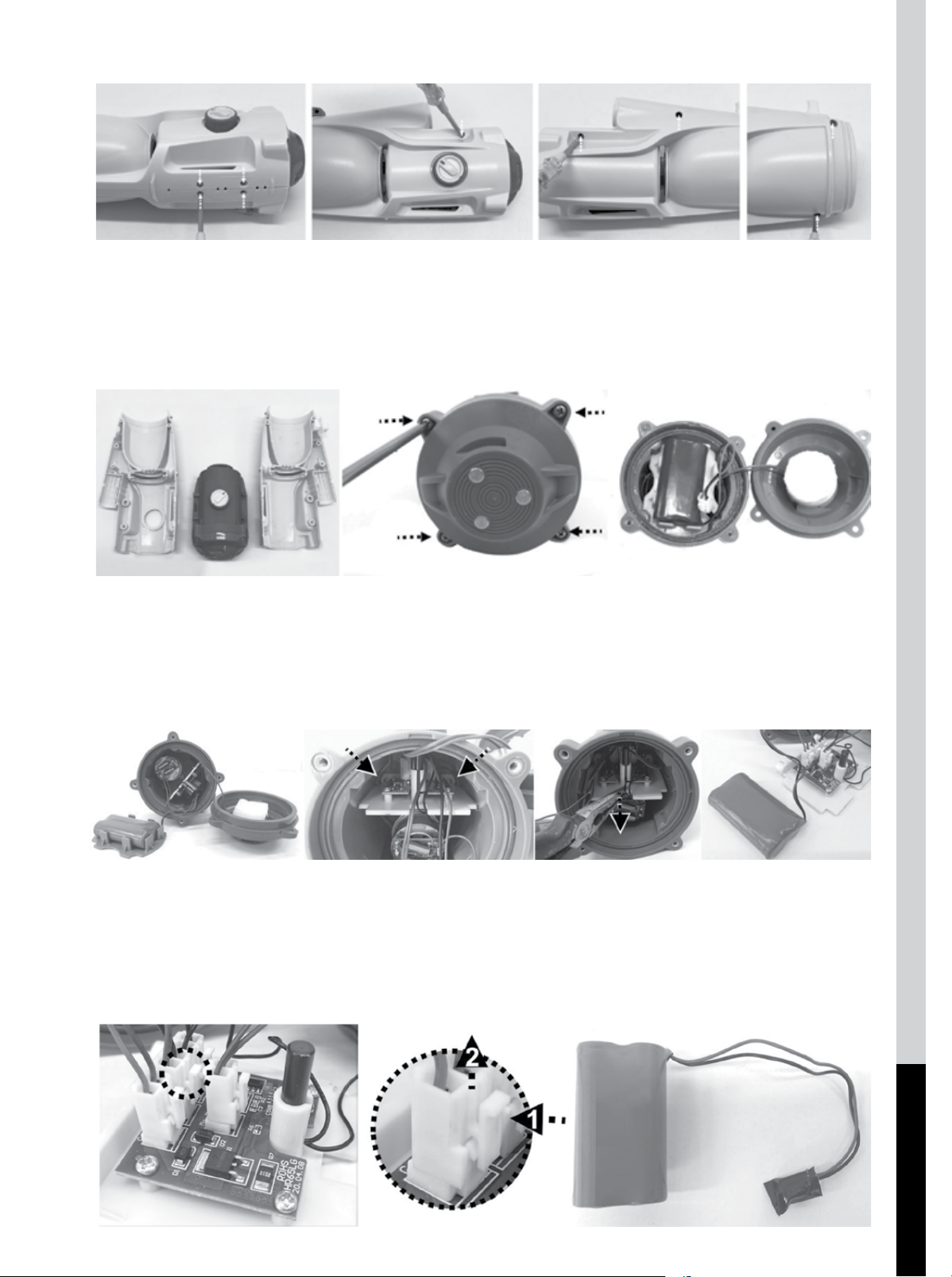

• Page 13 - English - : ENGLISH 2 Use Philips screwdriver to unscrew all the screws on the main body 3 Separate the body in two halves to access the main chamber Use a Philips screwdriver to remove the end cover and access the battery pack 4 Use Philips screwdriver to unscrew screw on the corner of the supporting plate as pointed at Use clamp to catch the plate and pull it out to expose the wire connectors on the PCB 5 Locate the middle connector as indicated press the clip on the connector and pull it out NOTE Wrap the connector immediately with insulating tape in order to avoid short circuit caused by the contact of both wire terminals
• Page 14 - English - : ENGLISH Problem Possible Cause Solution Pool vacuum does not capture debris Battery is running out Charge the battery again Impeller is jammed Power o the pool vacuum and visually check the gap in the middle of the pool vacuum to see if the impeller is jammed by large debris If possible use a small tool to remove the debris carefully If necessary contact your dealer for further instructions WARNING Make sure the pool vacuum is powered o when the unit is being serviced Impeller is broken Contact your dealer for impeller replacement Filter baglter cage is full Clean the lter baglter cage Debris escapes from the lter Suction nozzle ap is broken Suction nozzle ap works like a door to prevent debris from escaping from the lter Contact dealer for replacement part and instructions Filter baglter cage is damaged Replace with a new lter baglter cage Outlet valve comes o Without the outlet valve the pool vacuum might capture debris through this opening Contact dealer for a valve replacement Telescopic pole connector cannot be secured in assembly Side pin on pole connector is broken Replace with a new pole connector Pool vacuum is activated even though the switch indicates its o Presence of magnetic objects nearby has inadvertently switched on the motor Move the magnetic objects or vacuum away from each other Pool vacuum cannot be charged recharged Battery is damaged Contact dealer for battery replacement WARNING DO NOT open the pool vacuum and replace the battery by yourself This could result in severe or fatal injury and the warranty will be voided as a result Charging plates on charging base and pool vacuum are not contacted properly Make sure that the charging base is assembled on the pool vacuum completely and their contact plates are contacted properly External adaptor damaged Contact dealer for replacement WARNING Using the wrong external adaptor will result in damaging the pool vacuum battery and voiding the warranty as a result Pool vacuum does not move smoothly Wheel is jammed Clean out the debris from the wheel Operation time is shorter as expected Battery is not fully charged Charge the pool vacuum for at least 6 hrs NOTE if any stains are found on the charging contact plates remove them by using a cotton bud soaked with lemon juice or vinegar All rights reserved No part of this document may be reproduced or transmitted in any form or by any means electronic mechanical photocopying recording or otherwise without prior written permission of Kokido Development Ltd L24002001 TROUBLESHOOTING SAVE THESE INSTRUCTIONS Support Email supportkokidocom TollFree Voicemail 866 6837672 Download Instruction Manual amp Videos QR Code httpsshopkokidocompagessupportxtrovac310 Manufacturer Kokido Development Limited Unit 1319 Sunbeam Centre 27 Shing Yip Street Kwun Tong Kowloon HK EV32POLAMZ Made in China We reserve the right to change all or part of the features of the articles or contents of this document without prior notice International patents pending
