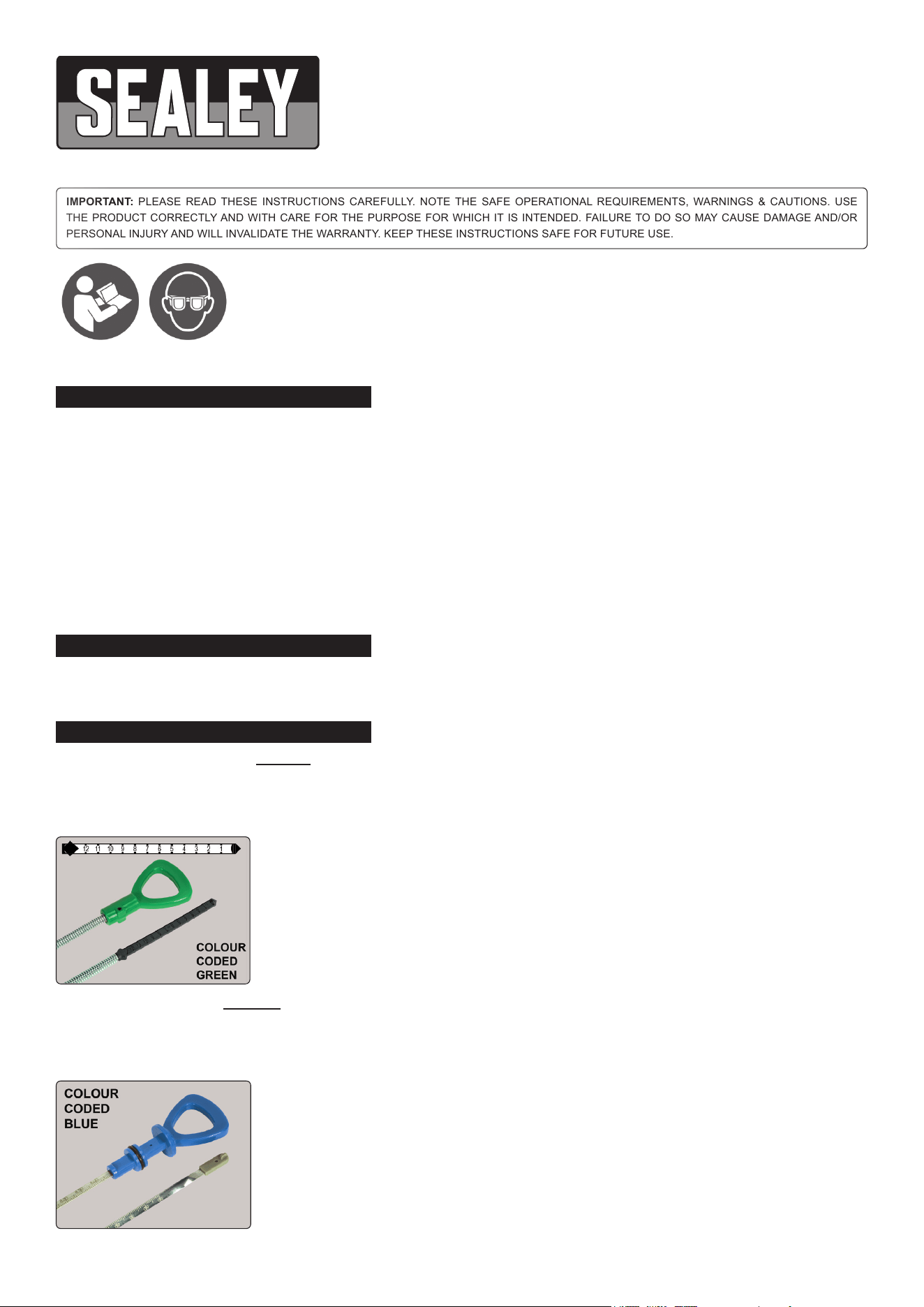

3PC MERCEDES ENGINE & TRANSMISSION
DIPSTICK SET
MODEL NO: VS2000D.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health and Safety, local authority and general workshop practice regulations are adhered to when accessing the
dipstick.
9 Maintain dipstick in good and clean condition for best and safest performance.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. Do not wear jewellery and tie back long hair.
9 Where appropriate, ensure that the vehicle’s bonnet is correctly supported by the ‘stay’ provided before accessing the dipstick.
9 Renew the dipstick if bent or damaged in any way.
8 DO NOT touch hot parts of the vehicles engine or transmission when accessing the dipstick.
8 DO NOT touch live parts within the engine bay when accessing the dipstick.
8 DO NOT smoke or have live flames near the vehicle.
9 Vehicle should be in a well ventilated area.
WARNING! Under or over filling the engine or gearbox oil can cause permanent damage to the vehicle. Always refer to the manufacturer’s
service Instructions, or a proprietary manual, to establish the current procedure and data.
2. INTRODUCTION
Engine and transmission dipsticks for checking oil level. This comprehensive set is compatible with a large selection of vehicles in the Mercedes
range, covering engines from 1988 to 2005 and transmissions from 1996 to 2006. The dipstick is a service tool, therefore must be removed after
the uid has been checked.
3. SPECIFICATION & USE
Mercedes Transmission Dipstick VS920TD (920mm)
(Codes: 716.5, 722.7, 722.8) When lling for the rst time add 5.5 litres, and after oil change add 4.0 litres before starting the engine. Start
engine and wait 2 minutes before checking the level. Selector must be in P or N. Reading when cold - between marks 2 & 4 (30ºC). Final reading
when warm - between marks 8 & 12 (70-80ºC). Perform cold and hot checks with engine running.
Model Codes:168.031/032/033/131/132/133,168.006/007/008/
009/109, 168.035/135, 414.700
Mercedes Engine Dipstick VS930ED (930mm).
For checking the oil level, compatible with a large selection of 1988 to 2005 engines in the Mercedes range. The dipstick is a service tool,
therefore must be removed after the uid has been checked. Length 930mm.
Engine Codes:103, 104, 111, 112,113, 119,120, 137, 271, 272, 604, 605, 606, 611,612, 613, 628, 642, 646, 647, 648.
Refer to up to date technical data to obtain the correct measurement required for the specic engine and model that is being worked on.
Refer to
instruction
manual
Wear eye
protection
Original Language Version
© Jack Sealey Limited

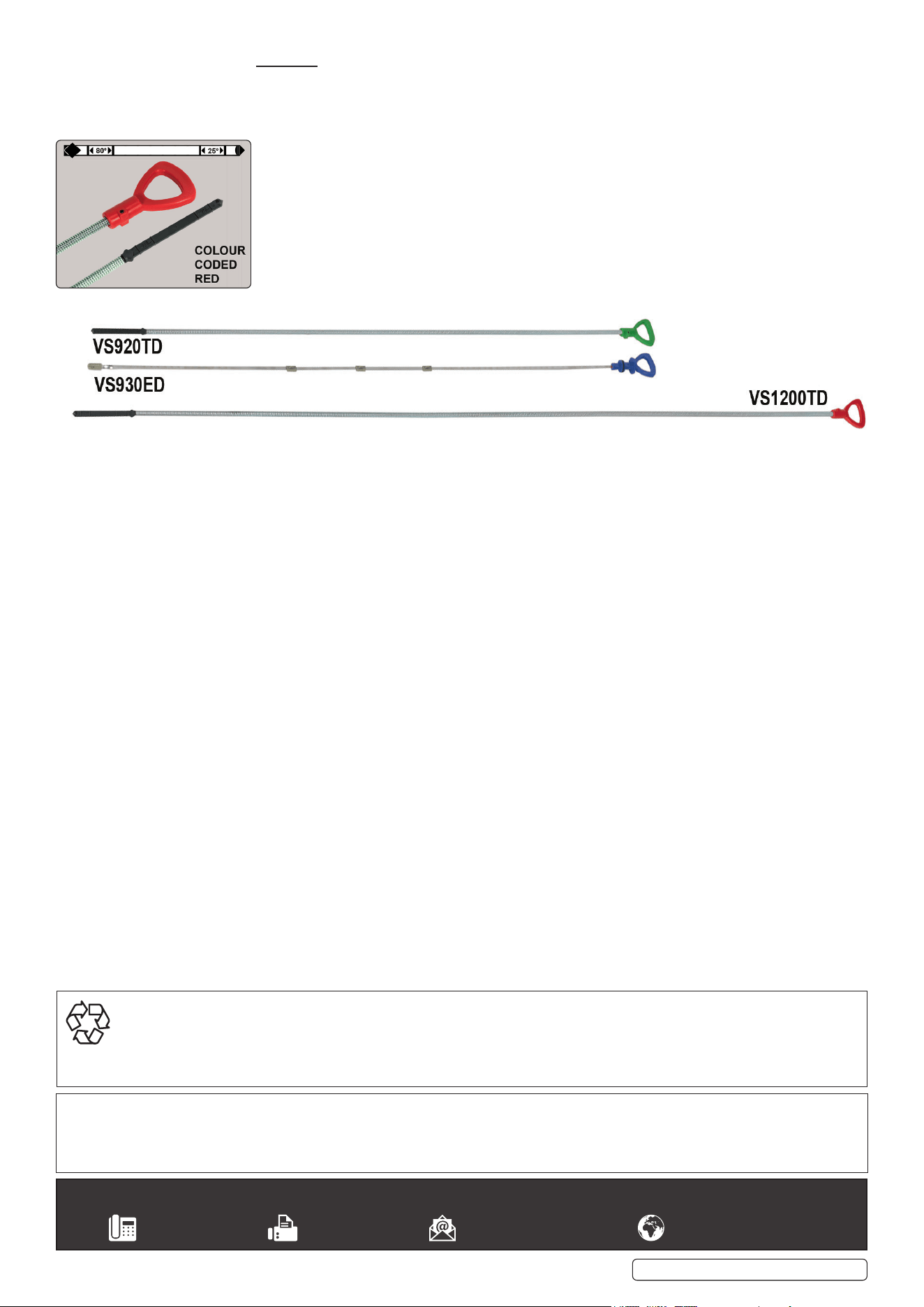

Mercedes Transmission Dipstick VS1200TD (1200mm), (Code: 722.6).
When lling for the rst time or after oil change add 5 litres. Start engine and idle in P, shift through the gears with brakes applied several times then
back to P, waiting 2 minutes before checking the level. Reading when cold - between max and min (25ºC range). Precise checking is done at 80ºC.
Once to temperature the oil level must be between the max and min (80ºC range). Perform cold and hot checks with engine running.
Model Codes: 463.322/323, 129,140, 461.302/331/332/342/345
.
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
VS2000D.V3 Issue:1 01/12/20
