USER MANUAL
DO NOT RETURN THIS PRODUCT TO THE STORE
If you have questions or need assistance, please call customer
service at 855-944-3571.
WGen5300sc
Portable Generator
Gasoline: 5300 Running Watts | 6600 Peak Watts
2 | Westinghouse Outdoor Power Equipment, LLC
INTRODUCTION
WARNING: Operating, servicing, and maintaining
this equipment can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead,
which are known to the State of California to cause
cancer and birth defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust, and wear
gloves or wash your hands frequently when servicing
this equipment. For more information go to www.
P65warnings.ca.gov.
DISCLAIMERS
All information, illustrations, and specications in
this manual were in effect at the time of publishing.
The illustrations used in this manual are intended as
representative reference views only. We reserve the right
to make any specication or design change without notice.
ALL RIGHTS RESERVED
All rights reserved. No reproduction allowed in any form
without written permission from Westinghouse Outdoor
Power Equipment, LLC.
Read this manual before using or performing
maintenance on this product. Failure to follow
the instructions and safety precautions in this
manual can result in serious injury or death.
SAVE THESE INSTRUCTIONS
TABLE OF CONTENTS
INTRODUCTION
DISCLAIMERS .........................................................................2
ALL RIGHTS RESERVED
........................................................2
SPECIFICATIONS
....................................................................3
SAFETY
SAFETY DEFINITIONS............................................................4
SAFETY SYMBOLS
.................................................................4
SAFETY INSTRUCTIONS
.......................................................5
SAFETY LABELS
.................................................................... 7

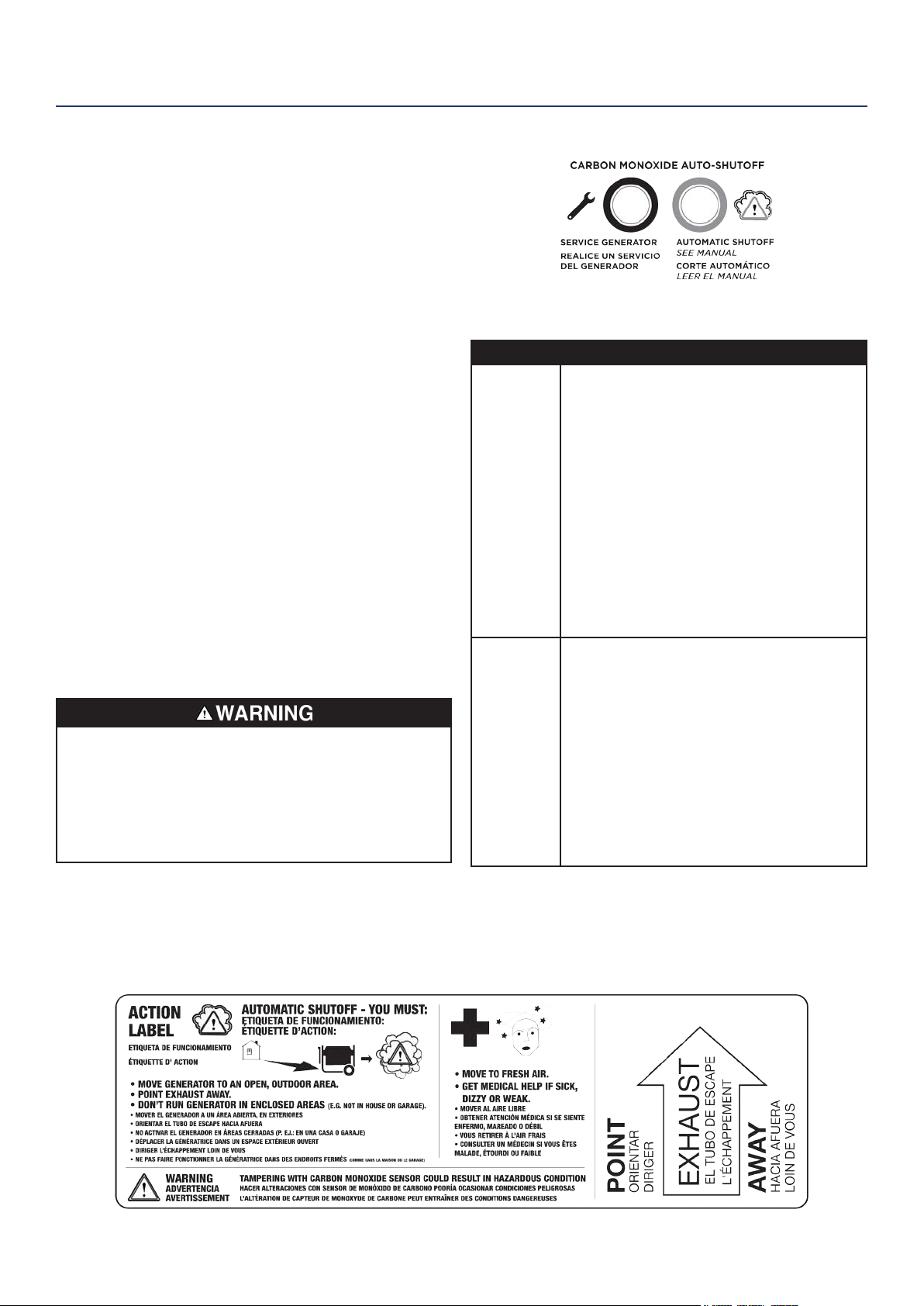

CO SENSOR
............................................................................ 8
CONTROL PANEL CO AUTO-SHUTOFF
................................8
ACTION LABEL
........................................................................8
COMPONENTS
CONTROL PANEL COMPONENTS .........................................9
GENERATOR COMPONENTS
..............................................10
ASSEMBLY
CARTON CONTENTS ...........................................................11
INSTALL FEET AND WHEELS
..............................................11
INITIAL OIL FILL
....................................................................12
FUEL
......................................................................................12
CONNECT THE BATTERY
....................................................13
OPERATION
GENERATOR LOCATION ......................................................14
GROUNDING
.........................................................................14
HIGH ALTITUDE OPERATION
..............................................14

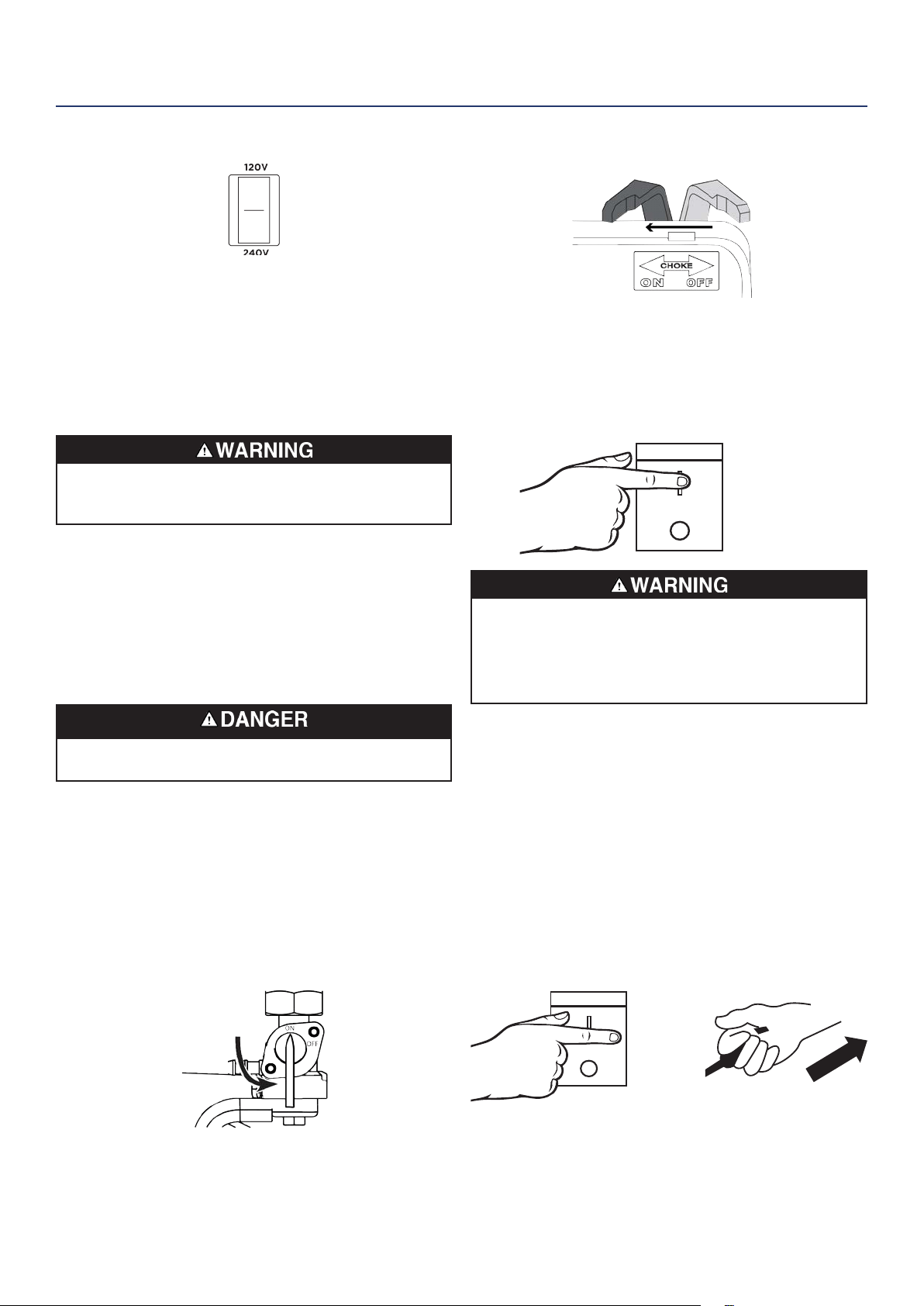

VOLTAGE SELECTOR SWITCH
...........................................15
BEFORE STARTING THE GENERATOR
..............................15
STARTING THE ENGINE
......................................................15
STOPPING THE ENGINE
...................................................... 16
FREQUENCY OF USE
..........................................................16
AC CIRCUIT BREAKERS
......................................................16
GENERATOR CAPACITY
......................................................16
POWER MANAGEMENT
.......................................................17
EXTENSION CORDS
............................................................17
TRANSPORTING
................................................................... 18
MAINTENANCE
MAINTENANCE SCHEDULE ................................................19
MAINTENANCE REMINDERS
..............................................19
MAINTENANCE REPLACEMENT PARTS
............................19
AIR FILTER MAINTENANCE
.................................................19
ENGINE OIL LEVEL CHECK
.................................................20
ENGINE OIL CHANGE
..........................................................20

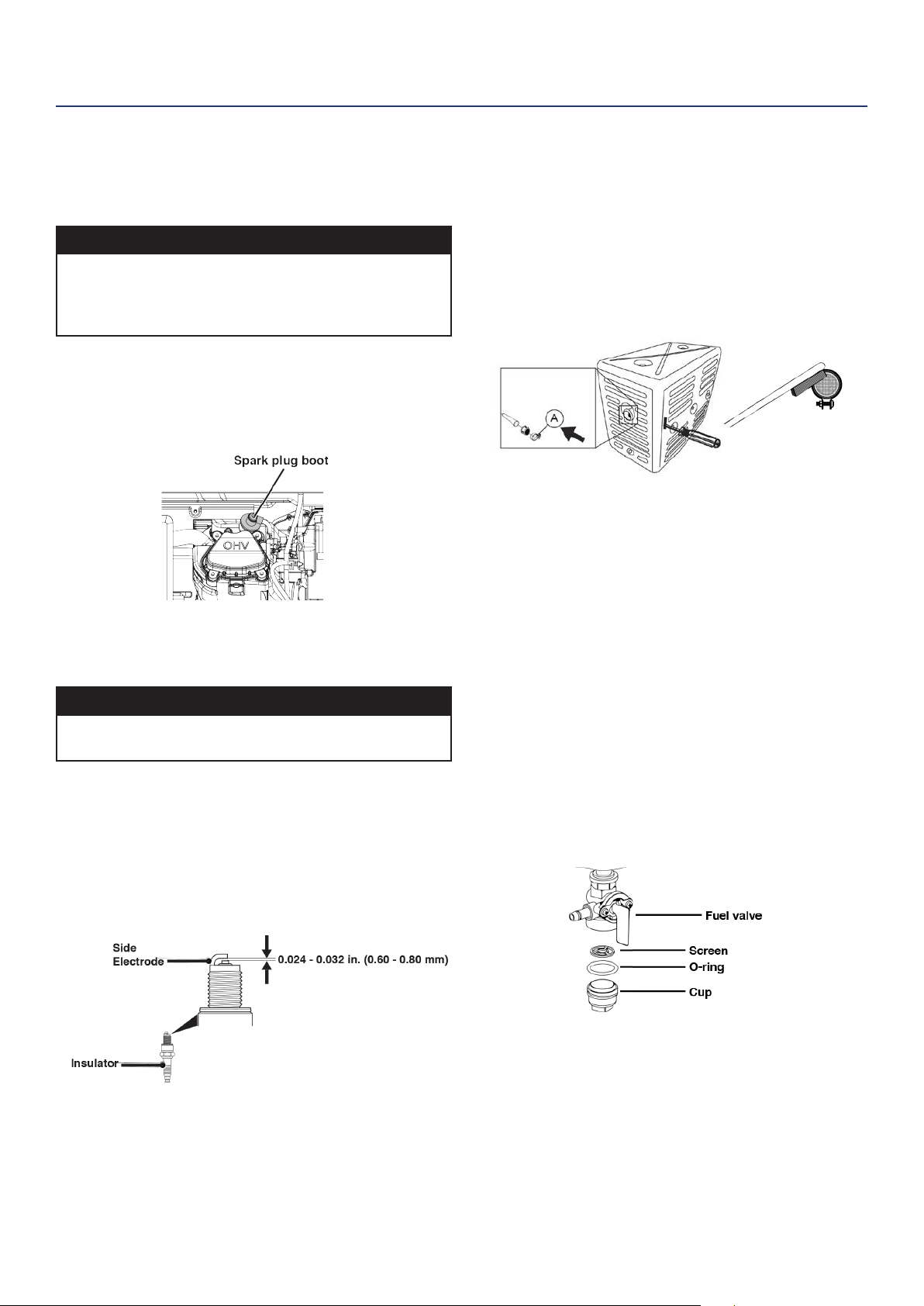

SPARK PLUG MAINTENANCE
.............................................21
SPARK ARRESTOR SERVICE
.............................................. 21
BATTERY MAINTENANCE
.................................................... 22
BATTERY REPLACEMENT
...................................................22
STORAGE
VALVE CLEARANCE .............................................................23
TROUBLESHOOTING
TROUBLESHOOTING ...........................................................24
TROUBLESHOOTING
...........................................................24
EXPLODED VIEWS AND PARTS LISTS
ENGINE EXPLODED VIEW ................................................... 25
ENGINE PARTS LIST
............................................................26

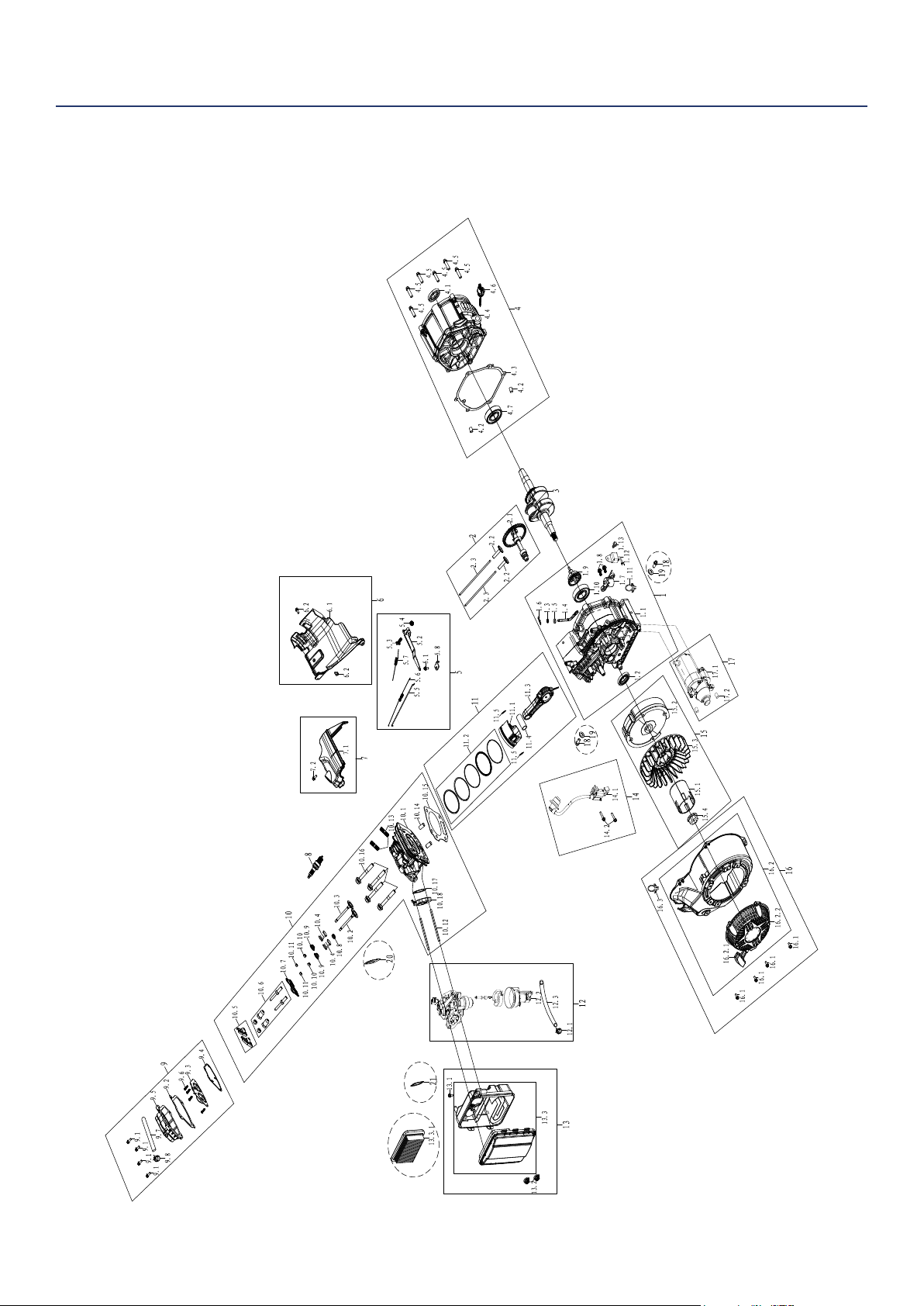

GENERATOR EXPLODED VIEW
..........................................28
GENERATOR PARTS LIST
....................................................29
SCHEMATICS
SCHEMATICS ........................................................................31
INTRODUCTION
Westinghouse Outdoor Power Equipment, LLC | 3
INTRODUCTION
SPECIFICATIONS
Specications
Running Watts: 5300
Peak Watts: 6600
Rated Power @1.0 Power
Factor:
5.3 kW
Peak Power: 6.6 kVA
Rated Voltage: 120V/240V
Rated frequency: 60 Hz @ 3600 RPM
Phase: Single phase
Total Harmonic
Distortion:
≤ 23%
Engine Displacement: 274 cc
Starting Type: Electric Push Button
Fuel Capacity: 4.7 Gallons (18 Liters)
Fuel Type:
Unleaded gasoline
87–93 octane*
Oil Capacity: 0.74 Quart (0.7 Liter)
Oil Type: SAE 10W-30
Battery: 12V 1.2 AH Lithium Ion
Spark Plug: 97108 (F7TC)
Spark Plug Gap:
0.024 – 0.032 in.
(0.60 – 0.80 mm)
Valve Intake
Clearance:
0.0031 – 0.0047 in.
(0.08 – 0.12 mm)
Valve Exhaust
Clearance:
0.0051 – 0.0067 in.
(0.13 – 0.17 mm)
AC Grounding System: Neutral oating
Voltage Regulator: AVR
Alternator Type: Brushed
Maximum Ambient
Temperature:
104°F (40°C)
Certications:
• EPA
• CARB
*Ethanol content of 10% or less. DO NOT use E15 or E85.
UPDATES
The latest User Manual for your Westinghouse
generator can be found under our support tab. https://
westinghouseoutdoorpower.com/pages/manuals
Or scan the following QR code with your smartphone
camera to be directed to the link.
NOTICE
This product is designed and rated for continuous
operation at ambient temperatures up to 104°F (40°C).
If needed, this product can be operated at temperatures
ranging from 5°F (15°C)–122°F (50°C) for short periods.
If the product is exposed to temperatures outside of this
range during storage, it should be brought back within
this range before operation. This product must ALWAYS
be operated outdoors in a well-ventilated area and far
away from doors, windows, and other vents.
Maximum wattage and current are subject to and
limited by such factors as fuel BTU content, ambient
temperature, altitude, engine conditions, etc. Maximum
power decreases about 3.5% for each 1,000 feet above
sea level, and will also decrease about 1% for each 10°F
(6°C) above 60°F (16°C) ambient temperature.
PRODUCT REGISTRATION
For trouble-free warranty coverage, it is important to
register your Westinghouse generator.
You can register by:
• Completing and mailing the product registration card
included in the carton.
• Registering your product online at:
https://westinghouseoutdoorpower.com/pages/
warranty-registration
• Scan the following QR code with your smartphone
camera to be directed to the mobile registration link.
• Sending the following product information to:
Westinghouse Outdoor Power
Warranty registration
777 Manor Park Drive
Columbus, OH 43228
For Your Records
Date of Purchase:
Model Number:
Serial Number:
Place of Purchase:
IMPORTANT: Keep your purchase receipt for trouble-free
warranty coverage.
4 | Westinghouse Outdoor Power Equipment, LLC
SAFETY
SAFETY
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION, and
NOTICE are used throughout this manual to highlight
important information. Make sure that the meanings of this
safety information is known to all who operate, perform
maintenance on, or are near the generator.
This safety alert symbol appears
with most safety statements. It
means attention, be alert, your
safety is involved! Read and
abide by the message that follows
the safety alerts symbol.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
Indicates a situation which can cause damage
to the generator, personal property, and/or the
environment, or cause the equipment to operate
improperly.
Note: Indicates a procedure, practice or condition
that should be followed for the generator to function
in the manner intended.

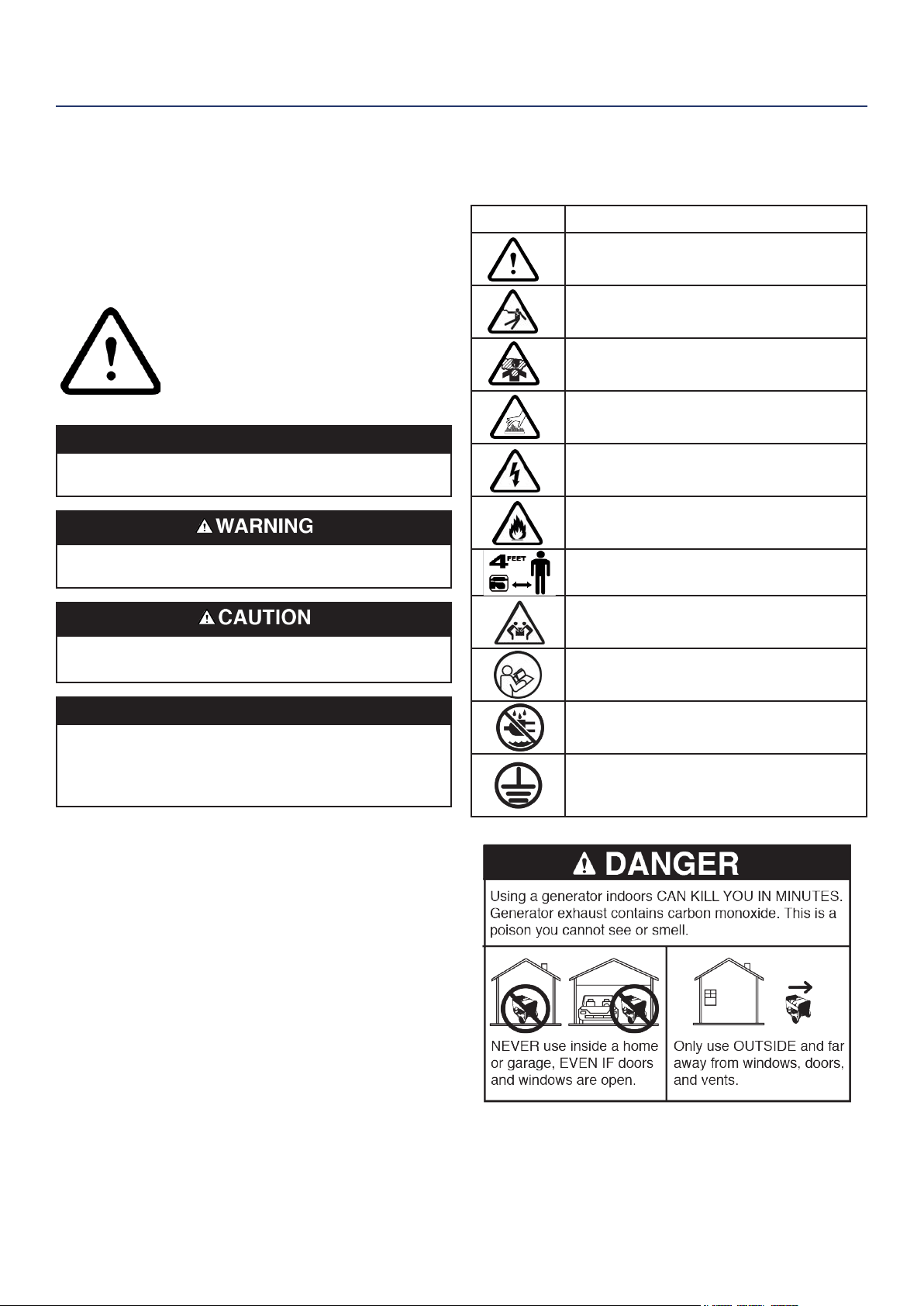

SAFETY SYMBOLS
Follow all safety information contained in this manual
and on the generator.
Symbol Description
Safety Alert Symbol
Electrocution Hazard
Asphyxiation Hazard
Burn Hazard. DO NOT touch hot surfaces.
Electrical Shock Hazard
Fire Hazard
Maintain Safe Distance
Lifting Hazard
Read Manufacturer’s Instructions
DO NOT Operate in Wet Conditions
Ground. Consult with electrician to
determine grounding requirements before
operation.
Westinghouse Outdoor Power Equipment, LLC | 5
SAFETY
NOTICE
Install battery-powered carbon monoxide detectors or
plug-in carbon monoxide detectors with battery back-up
in living areas.
Fire and electrocution hazard. DO NOT connect to
a building’s electrical system unless the generator
and transfer switch have been properly installed and
the electrical output has been veried by a qualied
electrician. The connection must isolate the generator
power from utility power and must comply with all
applicable laws and electrical codes.
Electrocution hazard. NEVER use the generator in
a location that is wet or damp. NEVER expose the
generator to rain, snow, water spray, or standing water
while in use. Protect the generator from all hazardous
weather conditions. Moisture or ice can cause a short
circuit or other malfunction in the electrical circuit.
GENERAL SAFETY PRECAUTIONS
• NEVER use the generator to power medical support
equipment.
• DO NOT operate the generator when you are tired or
under the inuence of drugs, alcohol, or medication.
• DO NOT use generator with electrical cords which are
worn, frayed, bare, or otherwise damaged.
• All electrical tools and appliances operated from this
generator must be properly grounded by use of a third
SAFETY INSTRUCTIONS
6 | Westinghouse Outdoor Power Equipment, LLC
SAFETY
wire or be double-insulated.
• When this generator is used to supply a building wiring
system the generator must be installed by a qualied
electrician and connected to a transfer switch as a
separately derived system in accordance with NFPA 70,
National Electrical Code.
• If you begin to feel sick, dizzy, or weak while using
the generator, move to fresh air IMMEDIATELY. See a
doctor, as you can have carbon monoxide poisoning.
• Only use OUTSIDE and far away from windows, doors,
and vents as recommended by the US Department
of Health and Human Services Centers for Disease
Control and Prevention. Your specic home and/or wind
conditions may require additional distance.
• While operating and storing, keep at least ve feet
of clearance on all sides of the generator, including
overhead. Allow the generator to cool a minimum of 30
minutes before storage. Heat created by the mufer and
exhaust gases could be hot enough to cause serious
burns and/or ignite combustible objects.
• DO NOT touch the mufer or engine. They are very
HOT and will cause severe burns. DO NOT put body
parts or any ammable or combustible materials in the
direct path of the exhaust.
• ALWAYS remove any tools or other service equipment
used during maintenance away from the generator
before operating.
• Avoid skin contact with engine oil or gasoline. Wear
protective clothing and equipment. Wash all exposed
skin with soap and water.
• A transfer switch must be installed by a licensed
electrician approved by the authority having jurisdiction.
The installation must comply with all applicable laws
and electrical codes.
FUEL SAFETY
• Store fuel in a container approved for gasoline.
• DO NOT smoke when lling the generator with gasoline.
• DO NOT allow the generator’s gas tank to overow
when lling.
• Shut down the engine and allow it to cool for two
minutes before adding gasoline or oil to the generator.
• NEVER remove the fuel cap when the generator is
running. Shut off the engine and allow the unit to cool
at least two minutes. Remove the fuel cap slowly to
release pressure, keep fuel from escaping around the
cap, and to avoid the heat from the mufer igniting fuel
vapors. Tighten the fuel cap securely after refueling.
• Wipe spilled fuel from the unit.
• NEVER attempt to burn off spilled fuel.
• NEVER overll the fuel tank. Leave room for fuel to
expand. Overlling the fuel tank can result in a sudden
overow of gasoline and result in spilled gasoline
coming in contact with HOT surfaces.
• Spilled fuel can ignite. If fuel is spilled on the generator,
wipe up any spills immediately. Dispose of rag properly.
Allow area of spilled fuel to dry before operating the
generator.
• Wear eye protection while refueling.
• NEVER use gasoline as a cleaning agent.
• Store any containers containing gasoline or in a well-
ventilated area, away from any combustibles or source
of ignition.
GASOLINE AND GASOLINE VAPOR (GAS)
Fire and explosion hazard. Gasoline and is highly
explosive and ammable and can cause severe burns
or death.
• In case of a gas re, DO NOT attempt to extinguish
the ame if the fuel tank valve is in the ON position.
Introducing an extinguisher to a generator with an open
fuel valve could create an explosion hazard.
• Gas has a distinctive odor, this will help detect potential
leaks quickly.
• Gas vapors can cause a re if ignited.
• Gasoline is a skin irritant and needs to be cleaned up
immediately if it comes in contact with the skin.
• Flammable gas under pressure can cause a re or
explosion if ignited.
WHEN STARTING THE GENERATOR:
• Make sure that the fuel cap, air lter, spark plug, fuel
lines, and exhaust system are properly in place.
• If you spill any gasoline on the tank, allow it to fully
evaporate before operating.
• Make sure the generator is on a at surface before
operating.
WHEN TRANSPORTING OR SERVICING THE
GENERATOR:
• Disconnect the spark boot to prevent accidental starting.
WHEN STORING THE GENERATOR:
• Store away from sparks, open ames, pilot lights, heat,
and other sources of ignition.
Westinghouse Outdoor Power Equipment, LLC | 7
SAFETY LABELS
SAFETY
8 | Westinghouse Outdoor Power Equipment, LLC
CO SENSOR
The CO Sensor monitors for the accumulation of
poisonous carbon monoxide gas around the generator
when the engine is running. If increasing levels of CO gas
are detected, the CO Sensor automatically shuts down the
engine.
The CO Sensor will also detect the accumulation of carbon
monoxide from other fuel burning sources used in the area
of operation. For example, if the exhaust of fuel burning
tools is pointed at a CO Sensor-equipped generator, a
shut-off may be initiated due to rising CO levels. This is not
an error. Hazardous carbon monoxide has been detected.
Move and redirect any additional fuel burning sources
to dissipate carbon monoxide away from personnel and
occupied buildings.
Note: Remote start-equipped generators must be restarted
with the START/STOP button on the control panel
after an automatic shut-down occurs.
Generators are intended to be used outdoors, far from
occupied buildings and the exhaust pointed away from
personnel and buildings. If misused and operated in a
location that results in the accumulation of CO, like in
a partially enclosed area, the CO Sensor shuts off the
engine, noties the user with a RED indicator light, and
directs the user to read the Action Label for steps to take.
The CO Sensor DOES NOT replace carbon monoxide
alarms. Install battery-powered carbon monoxide alarm(s)
in your home.
Automatic shutoff accompanied with a ashing RED
light in the CO Sensor portion of the control panel is an
indication that the generator was improperly located. If
you start to feel sick, dizzy, weak, or carbon monoxide
detectors in your home indicate an alarm, get to fresh
air immediately. Call emergency services. You may have
carbon monoxide poisoning.
CONTROL PANEL CO AUTO-SHUTOFF
CO SENSOR INDICATOR LIGHTS
Color Description
RED
Carbon monoxide accumulated around the
generator. After shut-off, the RED indicator
light in the CO Sensor area of the control
panel will ash to provide notication
that the generator was shut-off due to an
accumulating CO hazard. The RED light
will ash for at least ve minutes after a CO
shut-off.
Move the generator to an open, outdoor
area far away from occupied spaces with
exhaust pointed away. Once relocated to a
safe area, the generator can be restarted.
Introduce fresh air and ventilate the area
where the generator had shut down.
YELLOW
A CO sensor system fault occurred. When
a system fault occurs, the generator is
automatically shut down and the YELLOW
indicator light in the CO auto-shutoff area
of the control panel will ash to provide
notication that the a fault has occurred.
The YELLOW light will ash for at least ve
minutes after a fault. The generator can be
re-started, but may continue to shutoff. A
CO sensor fault can only be diagnosed and
repaired by an authorized Westinghouse
service center.
SAFETY
ACTION LABEL
Westinghouse Outdoor Power Equipment, LLC | 9
COMPONENTS
CONTROL PANEL COMPONENTS
1. Start/Run/Stop Switch: Push to Start position to start
or Stop position to shut the generator off.
2. Data Center: Toggle to show voltage, frequency,
total hour meter, and run/maintenance timer.
3. Main Circuit Breaker: The main circuit breaker
controls total output of all outlets to protect the
generator from overload or short circuit.
4. Voltage Selector Switch: Select 120 Volts or 240
Volts. Shut the generator OFF before switching
voltages.
5. 120/240 Volt AC, 30 Amp NEMA L14-30R Twist
Lock Receptacle: Receptacle can supply either
120V or 240V output.
6. 120 Volt AC, 30 Amp NEMA TT-30R Receptacle:
Receptacle can supply a maximum of 30 Amps.
7. 120 Volt AC, 20 Amp Duplex NEMA 5-20R
Receptacles: Receptacles can supply a maximum of
20 Amps.
8. 20 Amp AC Circuit Breaker: Circuit breaker limits
the current that can be delivered through the NEMA
5-20R receptacles to 20 Amps.
9. 30 Amp AC Circuit Breaker: Circuit breaker limits
the current that can be delivered through the TT-
30R receptacle to 30 Amps.
10. Ground Terminal: The ground terminal is used to
externally ground the generator.
11. CO Sensor indicator lights: The CO Sensor
monitors for the accumulation of poisonous carbon
monoxide gas. If increasing levels of CO gas are
detected, the CO Sensor automatically shuts down
the engine.
COMPONENTS
DATA CENTER
Run Time/Maintenance:
Displays current run time.
Resets to zero when shut
down. Maintenance
reminder displayed
when required.
Frequency (Hz):
Displays power output
frequency in Hertz.
Voltage:
Displays current voltage
output.
Lifetime Hours:
Displays the lifetime run
hours.
Mode Button
Push the Mode button to cycle through
the data display modes.
10 | Westinghouse Outdoor Power Equipment, LLC

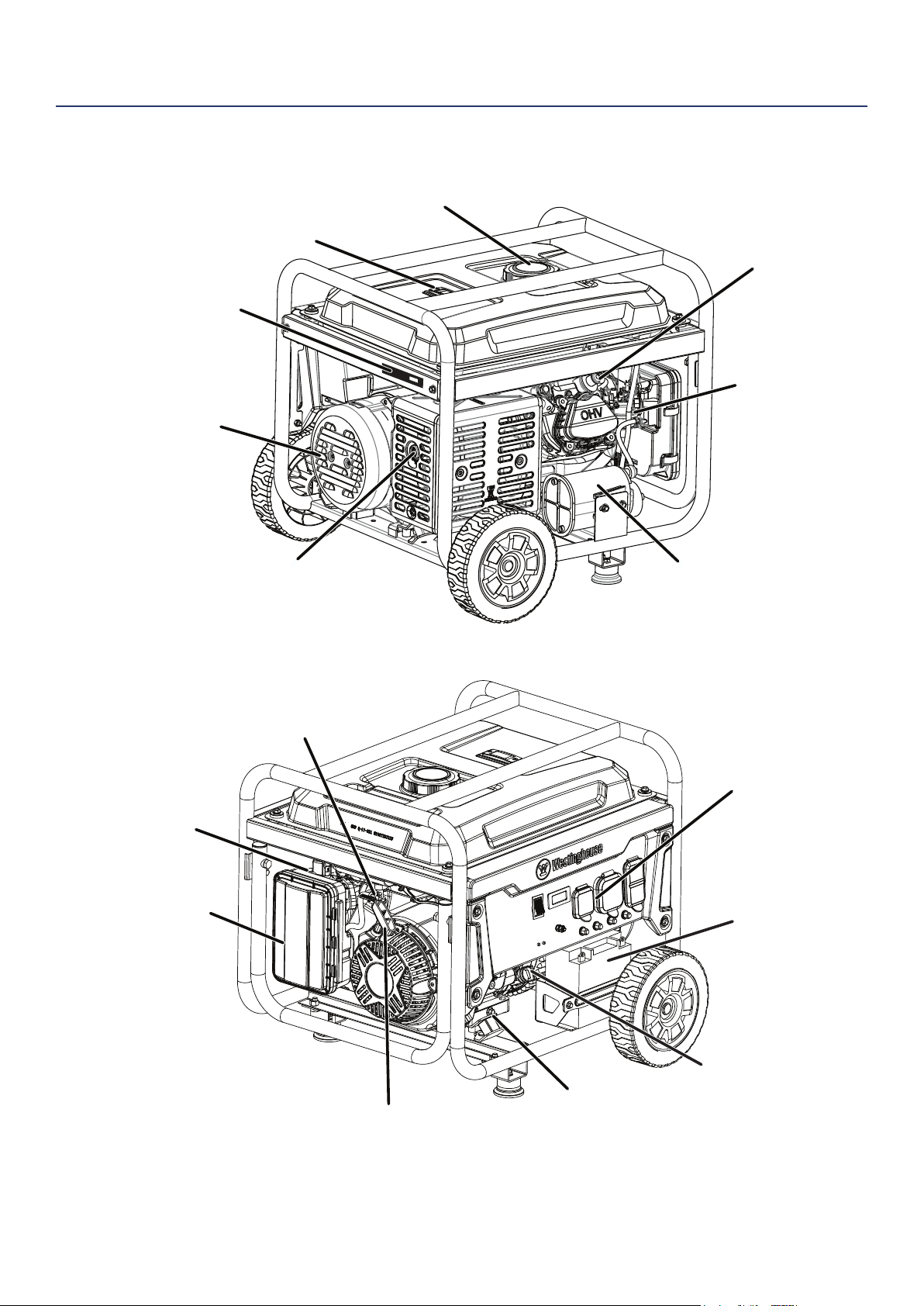

GENERATOR COMPONENTS
Oil drain
bolt
Oil dipstick/
filler neck
Fuel cap
Fuel gauge
Muffler/spark arrestor
Carbon canister
Carburetor
Alternator
cover
Control panel
Recoil
Starter
Air filter
Fuel tank
valve
Spark plug
Serial number
Choke lever
Battery
COMPONENTS
Westinghouse Outdoor Power Equipment, LLC | 11
ASSEMBLY
CARTON CONTENTS
Weight hazard. ALWAYS have assistance when lifting
the generator.
1. Carefully open the carton.
2. Remove and save the carton contents.
3. Remove and discard the packing tray.
4. Unfold the top of the plastic bag enclosing the generator.
5. Carefully cut the vertical corners of the carton to access
the generator.
6. Recycle or dispose of the packaging materials properly.
CARTON CONTENTS
• User manual
• Quick Start Guide
• Bottle of SAE 10W-30 oil
• Spark plug socket wrench
• Wrench
• Oil Funnel
• Wheel and mounting foot components:
Item Quantity
• Mounting foot 2
• Flange bolt, M8 4
• Wheel 2
• Axle pin 2
• Washer 2
• Cotter pin 2
If any parts are missing, contact our service team at
[email protected] or call 1-855-944-3571.

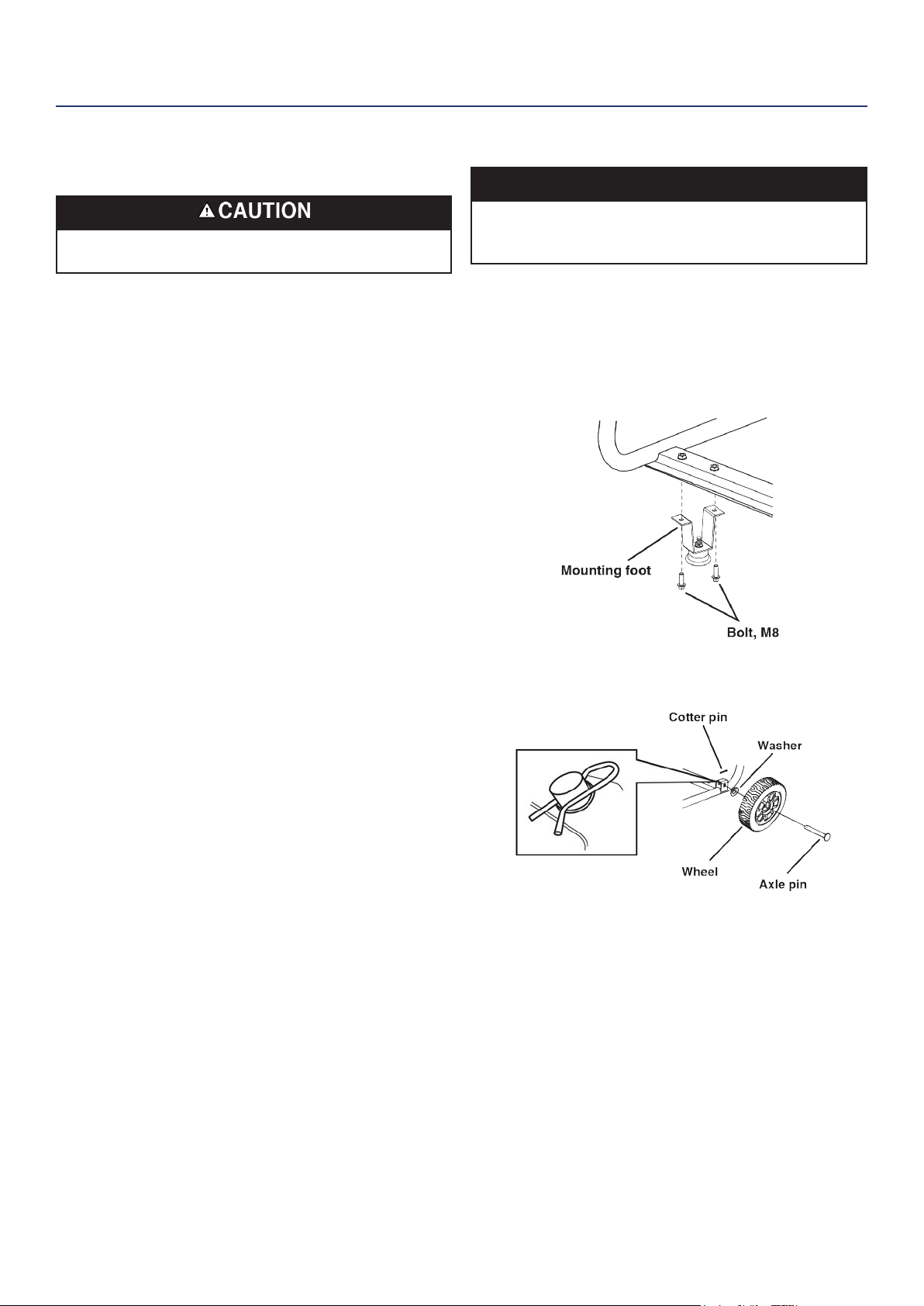

INSTALL FEET AND WHEELS
NOTICE
Assembling the generator will require lifting the unit on
one side. Install the mounting feet and wheel before
adding fuel or oil.
1. Place generator on a at surface.
2. Tip the generator on a piece of cardboard or other soft
material to protect the frame paint and prevent the
generator from sliding.
3. With the included wrench, install the mounting feet to
the frame as shown.
4. Install the wheels as shown.
Note: The wheels are only intended for hand transport.
The wheels are not suitable for towing the generator
either on or off-road.
ASSEMBLY
12 | Westinghouse Outdoor Power Equipment, LLC

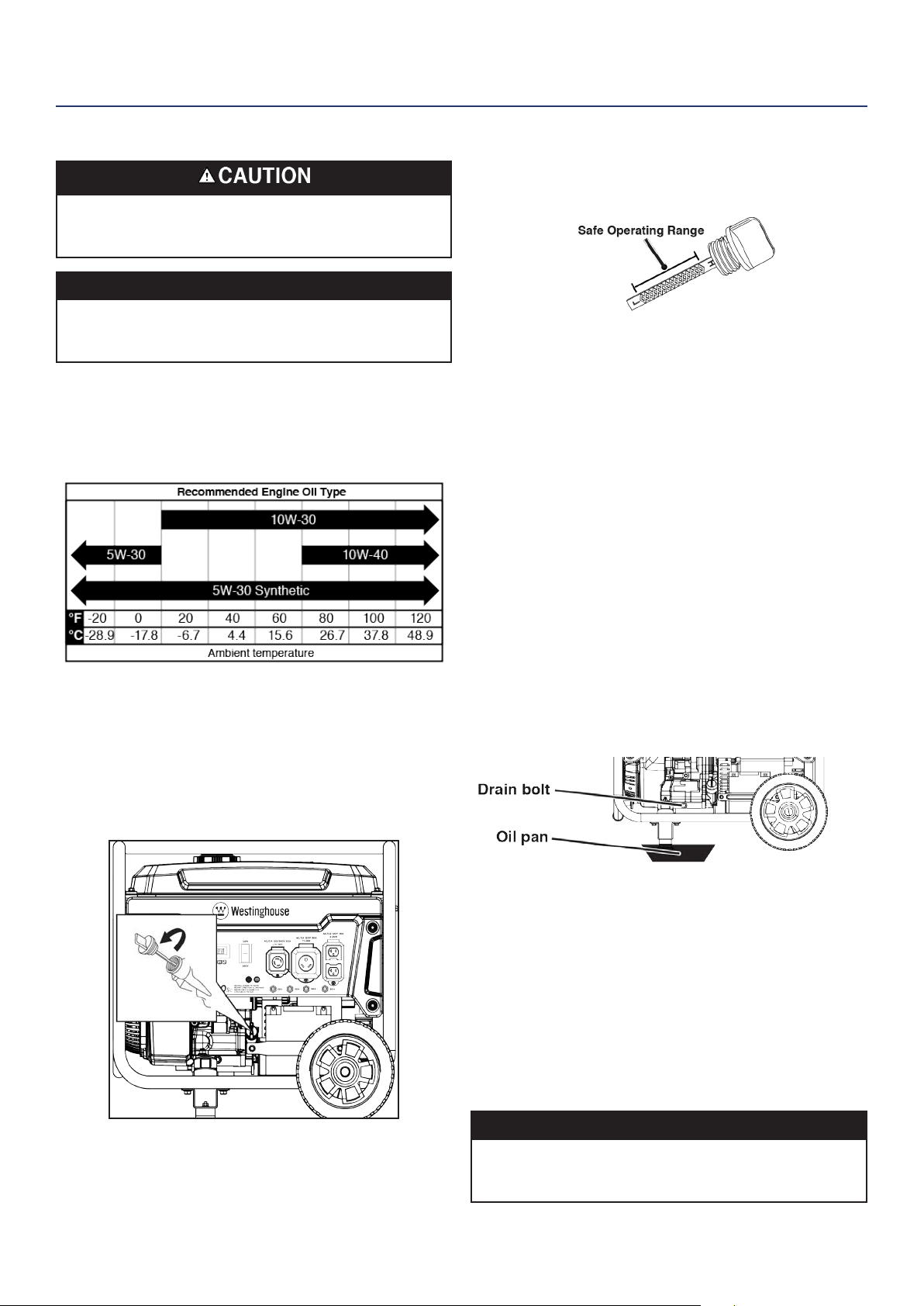

INITIAL OIL FILL
NOTICE
THIS GENERATOR HAS BEEN SHIPPED WITHOUT
OIL. DO NOT attempt to crank or start engine before
it has been properly serviced with recommended oil.
Failure to add engine oil before starting will result in
serious engine damage.
The included, recommended oil type for typical use is
10W-30 engine oil. If running the generator in extreme
temperatures, refer to the following chart.
1. On a level surface, remove the oil dipstick.
2. Using the supplied funnel and oil, add oil into oil ller
neck.
Note: As residual oil from the factory may remain in the
engine, add the oil incrementally near the end of the
bottle to prevent overlling the engine. See Engine
Oil Level Check in the Maintenance section.
3. Wipe the oil dipstick clean. Replace the oil dipstick and
hand-tighten.
FUEL
Fire and explosion hazard. NEVER use a gasoline
container, gasoline tank, or any other fuel item that is
broken, cut, torn or damaged.
Fire and explosion hazard. DO NOT overll fuel tank. Fill
only to the red ll ring located in the in-tank fuel screen
lter. Overlling may cause fuel to spill onto engine
causing a re or explosion hazard.
Fire and explosion hazard. NEVER refuel the generator
while the engine is running. ALWAYS turn the engine off
and allow the generator to cool for two minutes before
refueling.
NOTICE
DO NOT use E15 or E85 fuel in
this product. Engine or equipment
damage caused by stale fuel or
the use of unapproved fuels (such
as E15 or E85 ethanol blends) is
not covered by warranty. Only use
unleaded gasoline containing up to
10% ethanol.
FUEL REQUIREMENTS
• CLEAN, FRESH, unleaded gasoline, 87–93 octane.
• Up to 10% ethanol (gasohol) is acceptable (where
available; non-ethanol fuel is recommended).
• DO NOT use E85 or E15.
• DO NOT use a gas oil mix.
• DO NOT modify the engine to run on alternate fuels.
• DO NOT fuel indoors.
• DO NOT create a spark or ame while fueling.
USING FUEL STABILIZER
Adding a fuel stabilizer (not included) extends the usable
life of fuel and helps prevent deposits from forming that
can clog the fuel system. Follow the manufacturer’s
instructions for use.
ALWAYS mix the correct amount of fuel stabilizer to
gasoline in an approved gasoline container before fueling
the generator. Run the generator for ve minutes to allow
the stabilizer to treat the entire fuel system.
ASSEMBLY
Westinghouse Outdoor Power Equipment, LLC | 13

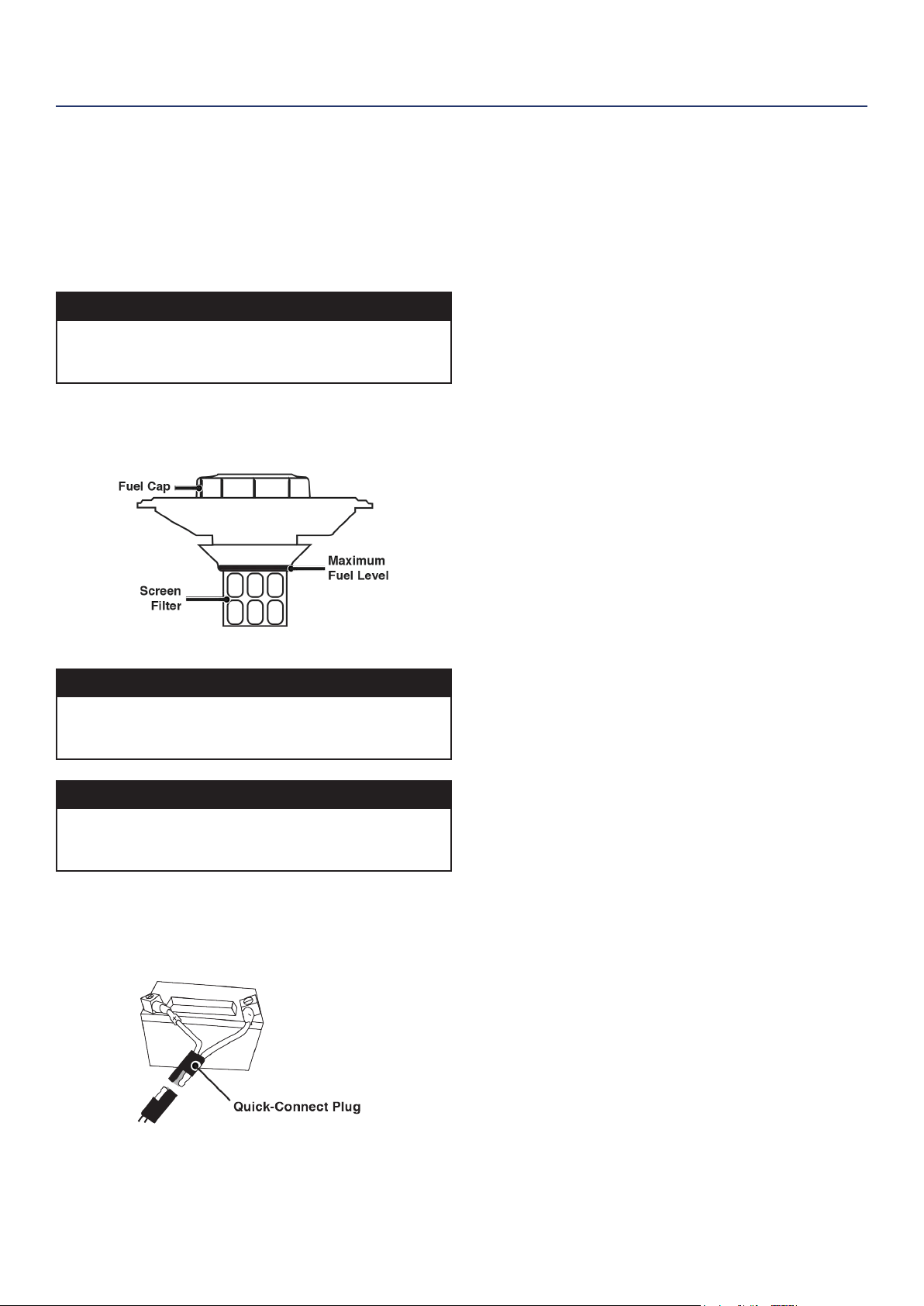

FILLING THE FUEL TANK
1. Turn the generator OFF and allow to cool for a minimum
of two minutes before fueling.
2. Place the generator on level ground in a well-ventilated
area.
3. Clean area around fuel cap and remove the cap slowly.
NOTICE
Only ll the tank from an approved gasoline container.
Make sure the gasoline container is internally clean and
in good condition to prevent fuel system contamination.
4. Slowly add the recommended fuel. DO NOT overll. Fill
only to the red maximum ll ring on the fuel screen lter
visible in the ller neck.
5. Install the fuel cap.
NOTICE
Fuel can damage paint and plastic. Use caution when
lling the fuel tank. Damage caused by spilled fuel is not
covered under warranty.
NOTICE
Clean the fuel screen lter of debris before and after
each fueling. Remove the fuel screen lter by slightly
compressing it while removing it from the fuel tank.
CONNECT THE BATTERY
A quick-connect battery plug is pre-installed on the battery.
Remove the cable tie securing the plugs then push rmly
to connect them.
Note: The generator is equipped with a battery charging
feature. Once the engine is running, a small charge
will slowly recharge the battery.
ASSEMBLY
14 | Westinghouse Outdoor Power Equipment, LLC
OPERATION
OPERATION
GENERATOR LOCATION
Read and understand all safety information before starting
the generator.
NEVER operate the generator inside any building, including
garages, basements, crawlspaces, sheds, enclosure, or
compartment, including the generator compartment of a
recreational vehicle.
Electrocution hazard. NEVER use the generator in
a location that is wet or damp. NEVER expose the
generator to rain, snow, water spray, or standing water
while in use. Protect the generator from all hazardous
weather conditions. Moisture or ice can cause a short
circuit or other malfunction in the electrical circuit. Using
a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution
Fire hazard. Only operate the generator on a solid, level
surface. Operating the generator on a surface with loose
material such as sand or grass clippings can cause debris
to be ingested by the generator that could block cooling
vents or the air intake system. Allow the generator to
cool for 30 minutes before transport or storage.
The generator should be on a at, level surface at all times
(Even while not in operation). The generator must have
at least 5 ft. (1.5 m) of clearance from all combustible
material.
DO NOT operate the generator in the back of a SUV,
camper, trailer, truck bed (regular, at, or otherwise), under
stairs, next to walls or buildings, or in any other location
that will not allow for adequate cooling of the generator
and/or the mufer. DO NOT contain generators during
operation.

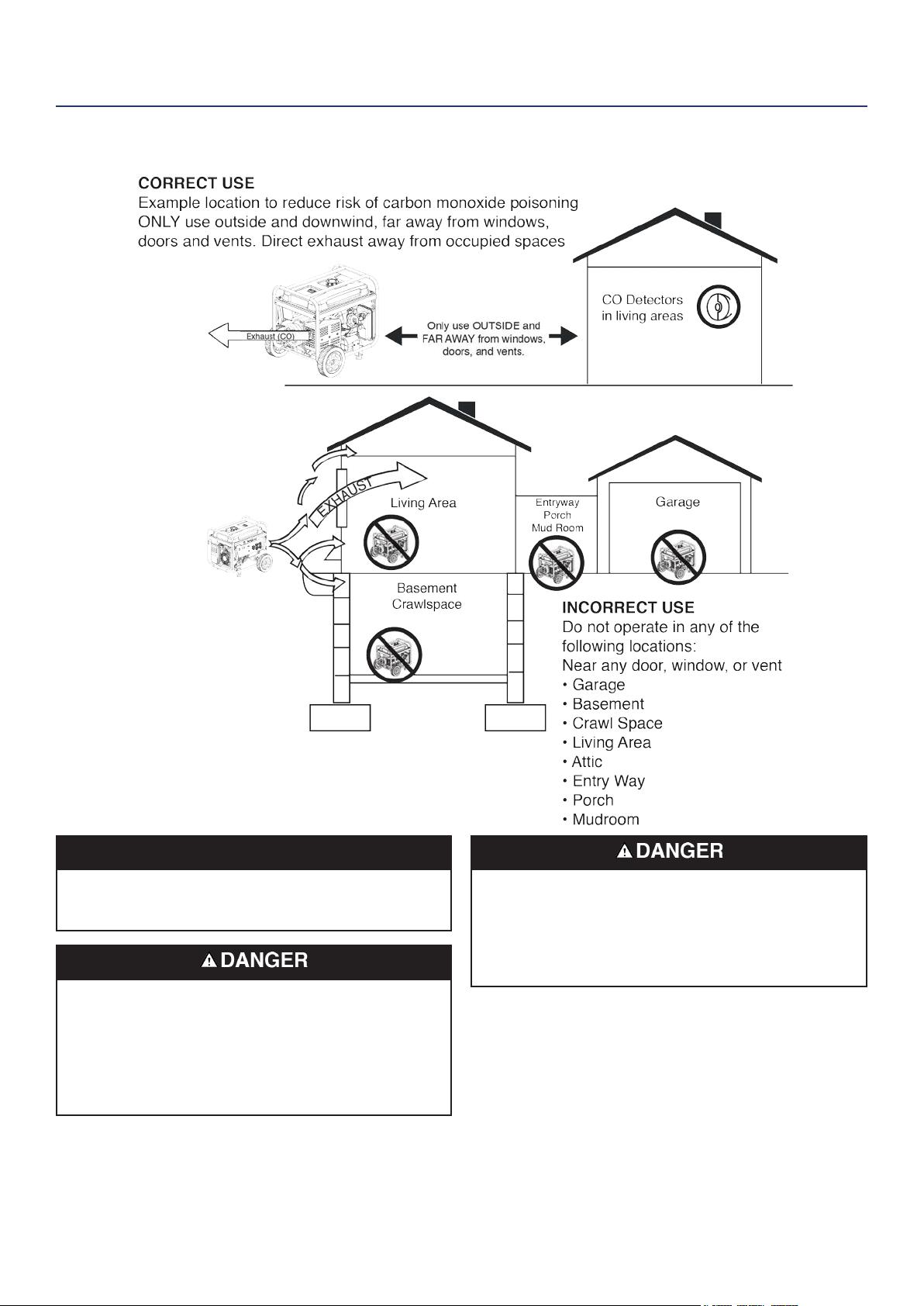

Asphyxiation hazard. Place the generator in a well-
ventilated area. DO NOT place the generator near vents
or intakes where exhaust fumes could be drawn into
occupied or conned spaces. Carefully consider wind
and air currents when positioning the generator.
GROUNDING
Shock hazard. Failure to properly ground the generator
can result in electric shock.
NOTICE
Only use grounded 3-prong extension cords, tools, and
appliances, or double-insulated tools and appliances.
The generator neutral is oating. The generator ground
terminal is connected to the frame of the generator, the
metal non-current-carrying parts of the generator, and
the ground terminals of each receptacle. The generator
(stator winding) is isolated from the frame and from the
AC receptacle ground pin. Electrical devices that require
a grounded receptacle pin connection may not function
properly.
If this generator will be used only with cord and plug
equipment connected to the receptacles mounted on the
generator, National Electric Code does not require that
the unit be grounded. However, other methods of using
the generator may require grounding to reduce the risk of
shock or electrocution.
Before using the ground terminal, consult a qualied
electrician, electrical inspector, or local agency having
jurisdiction for local codes or ordinances that apply to the
intended use of the generator.
HIGH ALTITUDE OPERATION
Engine power is reduced the higher you operate above sea
level. Output will be reduced approximately 3.5% for every
1000 feet of increased altitude from sea level.
High altitude adjustment is required for operation at
altitudes over 2,000 ft. (762 m). Operation without this
adjustment will cause decreased performance, increased
fuel consumption, and increased emissions.
NOTICE
DO NOT operate the generator at altitudes below 2,000 ft.
(762 m) with the high altitude kit installed. Engine damage
may occur.
High Altitude Carburetor Kit Part# 518965
Westinghouse Outdoor Power Equipment, LLC | 15
VOLTAGE SELECTOR SWITCH
The 120V/240V selector switch gives the user the ability to
double the amperage in the generator for more demanding
applications. The voltage selector switches the dual 120V
AC windings of the generator to produce 120V or 240V.
If a 240V appliance is connected to the 4-prong L14-30R
receptacle, the switch must be in the “240V” position. The
120V only outlets will not output power when the Voltage
Selector is in the 240V position.
Only change the Voltage Selector Switch with the
generator OFF. DO NOT switch the voltage while the
generator is running or powering appliances.
BEFORE STARTING THE GENERATOR
Verify that:
• The generator is placed in a safe, appropriate location.
• The generator is on a dry, at, and level surface.
• The engine is lled with oil.
• All loads are disconnected.
Fire and explosion hazard. DO NOT move or tip the
generator during operation.
STARTING THE ENGINE
1. Verify that fuel is in the gas tank.
2. Verify voltage selector switch is in the desired voltage
position
3. Turn the fuel selector switch on the control panel to
gasoline operation.
4. Turn the fuel tank valve to the ON position.
Note: If cold starting, move the choke lever to the ON
position.
5. Choose the starting method:
a. Electric Start: Push and hold the engine control
switch in the START position until the engine starts.
Once the engine starts, release the engine control
switch; the switch will automatically move into the
RUN position
START
RUN
STOP
Failure to release the engine control switch once the
engine starts could result in damage to the generator.
Never push the engine control switch to the START
position while the engine is running. This could damage
the generator.
Note: If the engine fails to start after 5 seconds, release
the engine control switch. Let the generator sit idle
for 15 seconds and then repeat electric start above.
If the cranking speed drops after each unsuccessful
attempt, then the battery may not be adequately
charged. Manually start the generator by following
steps below:
b. Recoil Start: Make sure the engine control switch is
in the RUN position. Firmly grasp and pull the recoil
handle slowly until you feel increased resistance.
At this point, apply a rapid pull while pulling up and
slightly away from the generator.
START
RUN
STOP
OPERATION
16 | Westinghouse Outdoor Power Equipment, LLC
6. After starting, allow the engine to run for several seconds
then move the Choke lever to the fully OFF position.
STOPPING THE ENGINE
1. Turn off and unplug all connected electrical loads.
IMPORTANT: NEVER start or stop the generator with
electrical devices connected.
2. Let the generator run with no load for several minutes to
stabilize internal temperatures of the engine.
3. Push the engine control switch to the Stop position.
START
RUN
STOP
Note: Alternately, if the generator is used infrequently, turn
the fuel tank valve to the OFF position to limit the
residual fuel remaining in the carburetor oat bowl.
The engine will stop when fuel in the carburetor and
fuel line is exhausted.
4. Turn the fuel tank valve to the OFF position.
FREQUENCY OF USE
If the generator will be used on an infrequent or intermittent
basis (more than one month before next use), refer to the
Storage section of this manual for information regarding
fuel deterioration.

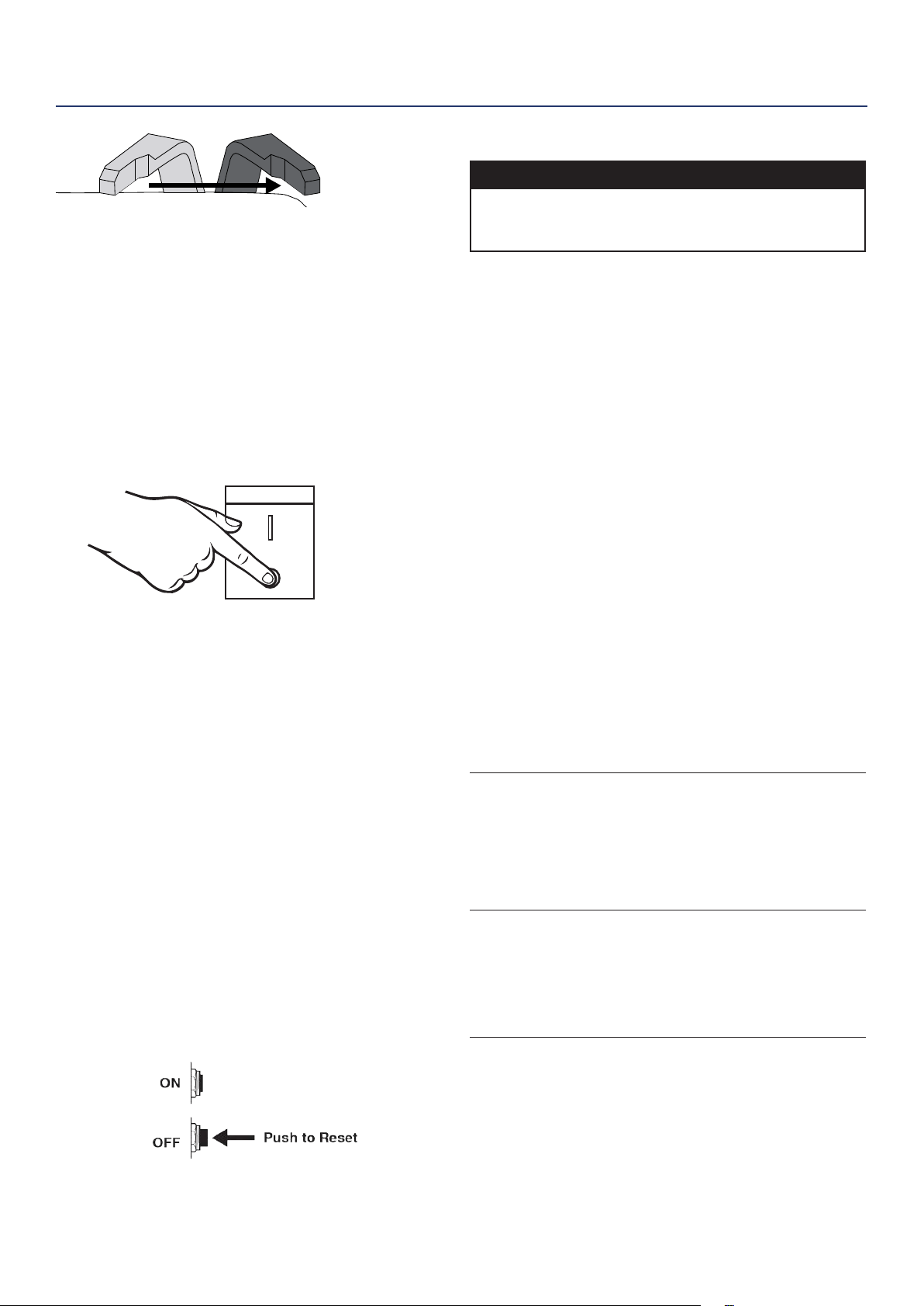

AC CIRCUIT BREAKERS
The circuit breakers will automatically switch OFF if there
is a short circuit or a signicant overload of the generator
at each receptacle.
If an AC circuit breaker switches OFF automatically,
check that the appliance is working correctly and it does
not exceed the rated load capacity of the circuit before
resetting the AC circuit breaker ON.
GENERATOR CAPACITY
NOTICE
DO NOT overload the generator’s capacity. Exceeding
the generator’s wattage/amperage capacity can damage
the generator and/or electrical devices connected to it.
Make sure the generator can supply enough continuous
(running) and surge (starting) watts for the items you will
power at the same time.
The total power requirements (Volts x Amps = Watts) of all
appliances connected must be considered. Appliance and
power tool manufacturers usually list rating information
near the model or serial number.
To determine power requirements:
1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This
is the amount of power the generator must produce
to keep the items running. See the wattage reference
chart.
3. Estimate how many surge (starting) watts you will need.
Surge wattage is the short burst of power needed to
start electric motor-driven tools or appliances such as a
circular saw or refrigerator. Because not all motors start
at the same time, total surge watts can be estimated by
adding only the item(s) with the highest additional surge
watts to the total rated watts from step 2.
EXAMPLE
Tool or Appliance
Running
Watts*
Starting
Watts*
RV Air Conditioner (11,000 BTU) 1010 1600
TV (Tube Type) 300 0
RV Refrigerator 180 600
Radio 200 0
Light (75 Watts) 300 0
Coffee Maker 600 0
2590 Total
Running
Watts*
1600
Highest
Starting
Watts*
Total Running Watts 2590
Highest Starting Watts + 1600
Total Starting Watts Needed 4190
*Wattages listed are approximate. Verify actual wattage.
OPERATION
Westinghouse Outdoor Power Equipment, LLC | 17
POWER MANAGEMENT
To prolong the life of the generator and attached devices,
use care when adding electrical loads to the generator.
There should be nothing connected to the generator
outlets before starting the engine. The correct and safe
way to manage generator power is to sequentially add
loads as follows:
1. With nothing connected to the generator, start the
engine as described in this manual.
2. Plug in and turn on the rst load, preferably the largest
load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Wattage Reference
Tool or Appliance
Estimated
Running Watts*
Estimated
Starting
Watts*
Incandescent Lights
(4 Quantity x 75 Watts)
300 0
TV (Tube Type) 300 0
Sump Pump (1/3 hp) 800 1300
Refrigerator or Freezer 700 2200
Well Pump (1/3 hp) 1000 2000
Furnace (1/2 hp) 800 2350
Radio 200 0
Drill (3/8”, 4 amps) 440 600
Circular Saw
(Heavy Duty, 7-1/4”)
1400 2300
Miter Saw (10”) 1800 1800
Table Saw (10”) 2000 2000
*Wattages listed are approximate. Verify actual wattage.
EXTENSION CORDS
Asphyxiation hazard. Extension cords running directly
into the home increase the risk of carbon monoxide
poisoning through any openings. If an extension cord
running directly into your home is used to power indoor
items, there is a risk of carbon monoxide poisoning to
people inside the home. ALWAYS use battery-powered
carbon monoxide detector (s) that meet current UL 2034
safety standards when running the generator. Regularly
check the detector (s) battery.
Asphyxiation hazard. When operating the generator with
extension cords, make sure the generator is located in
an open, outdoor area, far away from occupied spaces
with exhaust pointed away.
Fire and electrocution hazard. NEVER use worn or
damaged extension cords. Damaged or overloaded
extension cords could overheat, arc, and burn resulting
in death or serious injury.
Before connecting an AC appliance or power cord to the
generator:
• Use grounded 3-prong extension cords, tools, and
appliances, or double-insulated tools and appliances.
• Make sure the tool or appliance is in good working
order. Faulty appliances or power cords can create a
potential for electric shock.
• Make sure the electrical rating of the tool or appliance
does not exceed the rated power of the generator or the
receptacle being used.

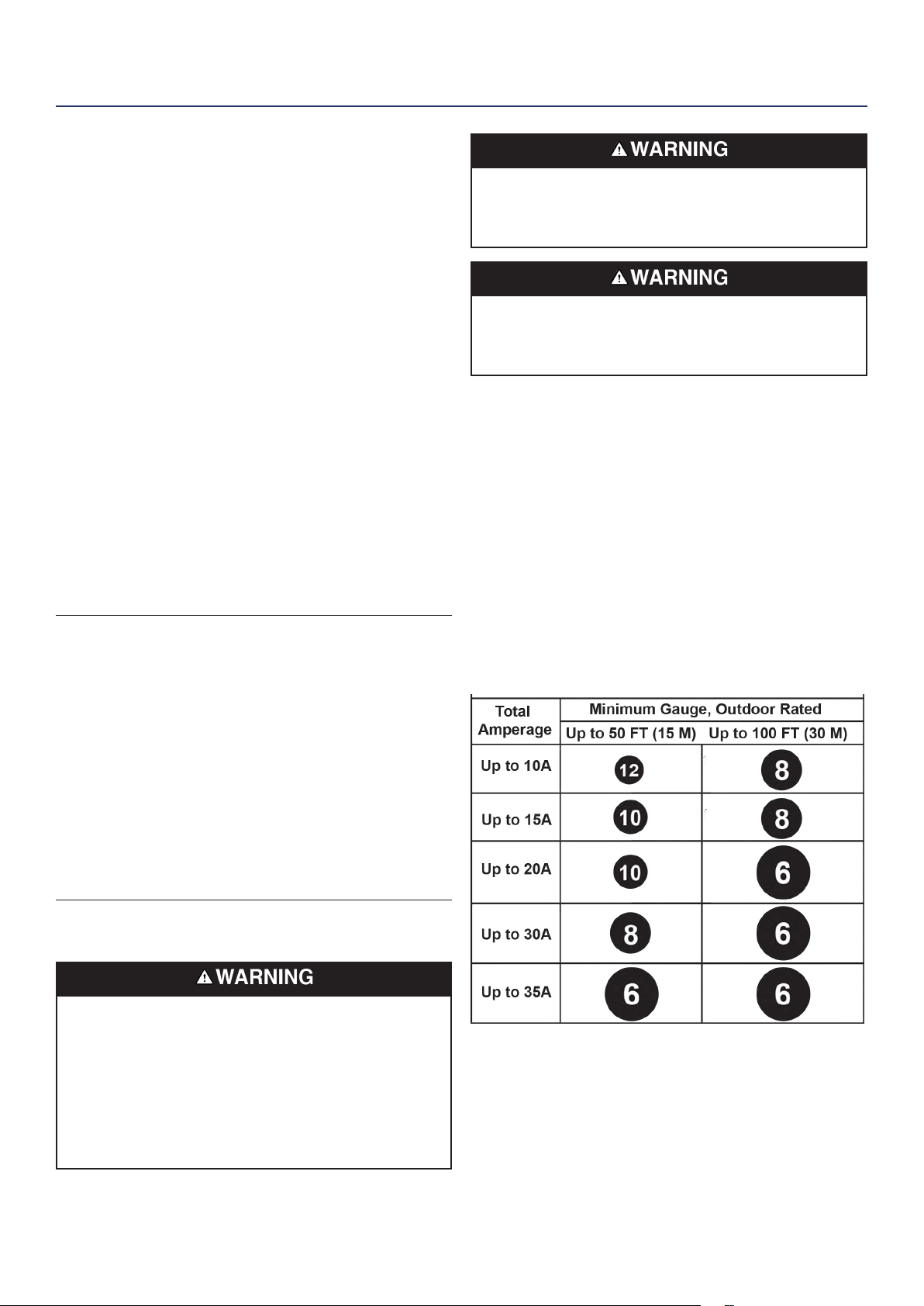

EXTENSION CORD SIZING
Only use grounded 3-prong extension cords marked for
outdoor use that are rated for the electrical load.
OPERATION
18 | Westinghouse Outdoor Power Equipment, LLC
TRANSPORTING
Weight hazard. ALWAYS have assistance when lifting
the generator.
• Allow the generator to cool a minimum of 30 minutes
before transporting.
• Replace all protective covers on the generator control
panel.
• Only use the generator’s xed frame to lift the unit or
attach any load restraints such as ropes or tie-down
straps. DO NOT attempt to lift or secure the generator
by holding onto any of its other components.
• Keep the unit level during transport to minimize the
possibility of fuel leakage or, if possible, drain the fuel
or run the engine until the fuel tank is empty before
transport.
Fire hazard. DO NOT up-end the generator or place it on
its side. Fuel or oil can leak and damage to the generator
may occur.
OPERATION
Westinghouse Outdoor Power Equipment, LLC | 19
MAINTENANCE
Accidental start-up. Disconnect the spark plug boot from
the spark plug when performing maintenance on the
generator.
MAINTENANCE SCHEDULE
Regular maintenance will improve performance and
extend the service life of the generator. Follow the hourly
or calendar intervals, whichever occurs rst. More frequent
service is required when operating in adverse conditions
as noted below.
Before Each Use
Check engine oil
After First 25 Hours or First Month
Change engine oil
After 50 Hours or Every 6 Months
Change engine oil
1
Clean air lter
2
After 100 Hours or Every 6 Months
Inspect/clean spark arrestor
Inspect/clean spark plug
Fuel valve maintenance
Inspect/adjust valve clearance
3
After 300 Hours or Every Year
Replace spark plug
Replace air lter
1
Change oil every month when operating under heavy
load or in high temperatures.
2
Clean more often under dirty or dusty conditions.
Replace air lter if it cannot be adequately cleaned.
3
Recommend service to be performed by authorized
Westinghouse service dealer.
MAINTENANCE REMINDERS
Maintenance reminder codes will be shown on the Data
Display based on unit Lifetime Hours. The maintenance
codes will be displayed until the unit is turned off. Refer to
the Maintenance section for specic procedures.
Maintenance Code Required Maintenance
P25 Change engine oil
P50 Change engine oil, clean air lter
P100
• Inspect/clean spark arrestor
• Inspect/clean spark plug
• Fuel valve maintenance
• Inspect/adjust valve clearance
MAINTENANCE REPLACEMENT PARTS
Description Part Number
Air lter 5941
Oil drain plug crush washer 94007
Spark arrestor 6790
Spark plug 97108 (F7TC)
12V 1.2 AH Lithium Ion battery 511085

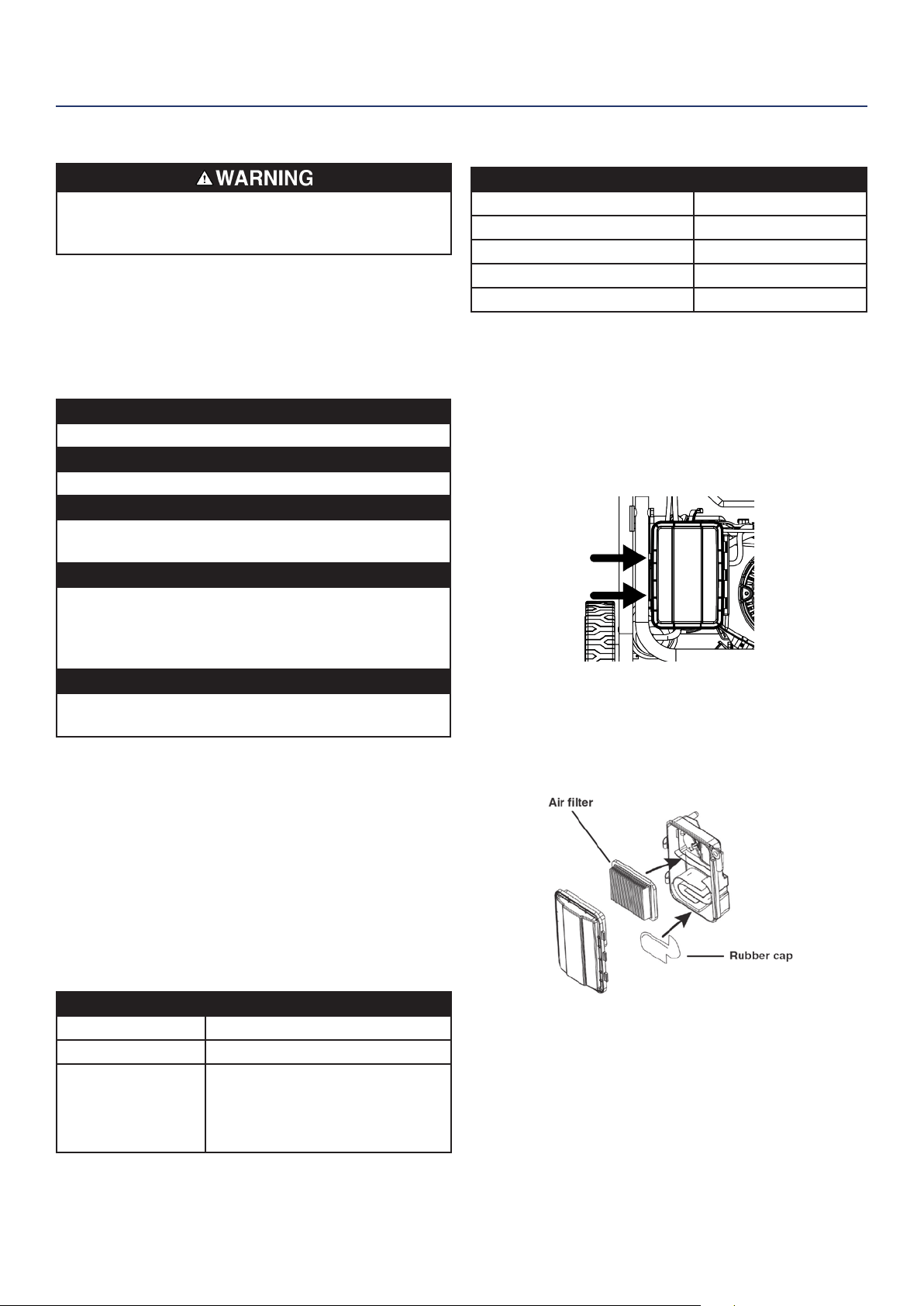

AIR FILTER MAINTENANCE
The air lter must be cleaned after every 50 hours of use or
six months (frequency should be increased if the generator
is operated in a dusty environment).
1. Place the generator on a level surface and allow the
engine to cool for several minutes.
2. Release the clips and remove the air lter cover.
3. Clean the air lter with compressed air. Replace if
damaged.
4. Make sure the air lter and rubber cap are correctly
installed. Install the air lter cover and secure it in place
with the cover clips.
MAINTENANCE
20 | Westinghouse Outdoor Power Equipment, LLC
MAINTENANCE

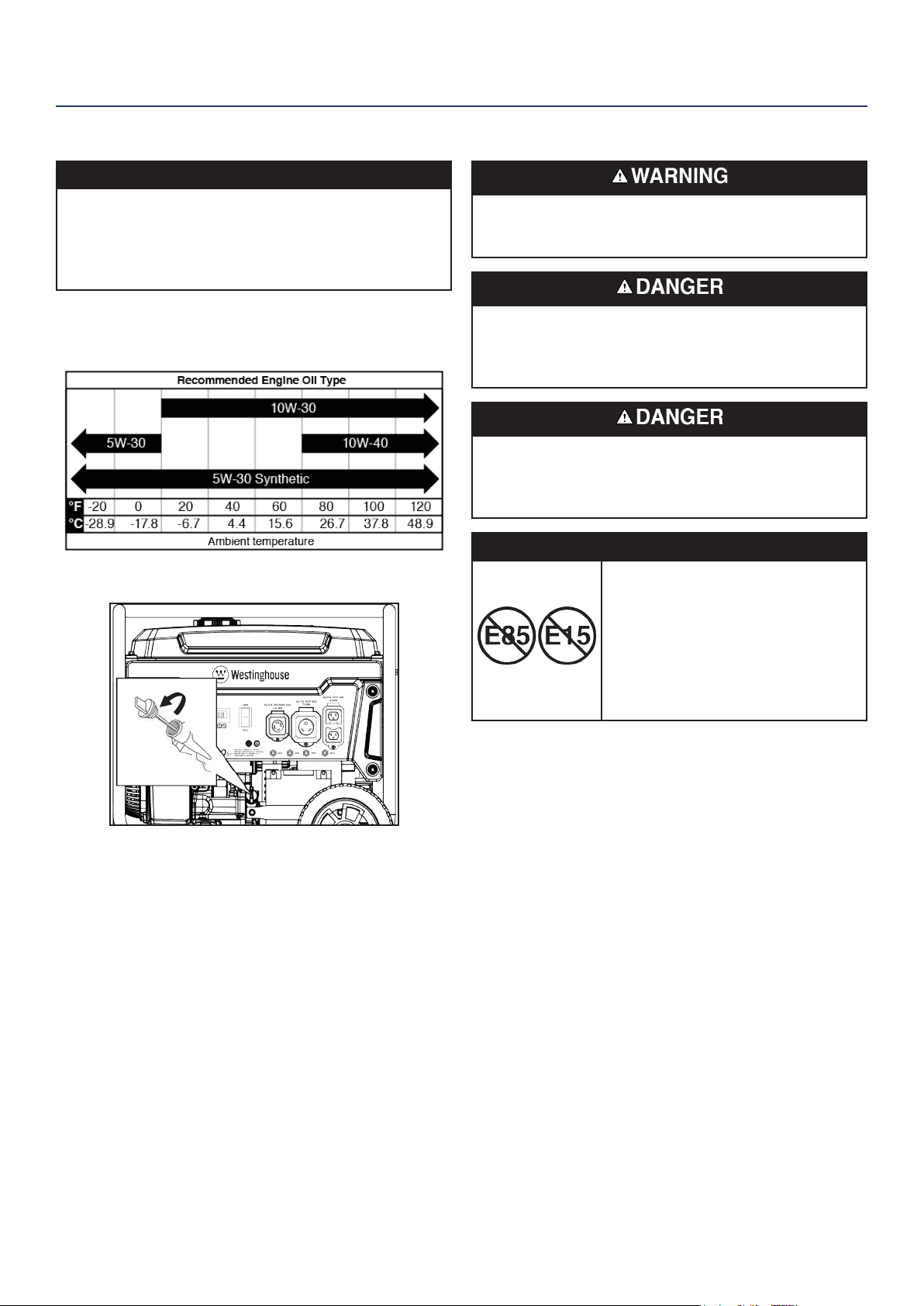

ENGINE OIL LEVEL CHECK
Avoid skin contact with engine oil. Wear protective
clothing and equipment. Wash all exposed skin with
soap and water.
NOTICE
ALWAYS use the specied engine oil. Failure to use the
specied engine oil can cause accelerated wear and/or
shorten the life of the engine.
When using the generator under dirty, dusty conditions or
in extremely hot weather, change the oil more frequently.
Ambient air temperature will affect engine oil performance.
Change the type of engine oil used based on weather
conditions.
Check the engine oil level before each use or every 8
hours of operation.
1. Place the generator on a level surface and allow the
engine to cool for several minutes.
2. With a damp rag, clean around the oil dipstick.
3. Remove the oil dipstick and wipe the dipstick clean.
4. Insert the dipstick into the oil ller neck without screwing
it in. Remove the dipstick and verify that the oil level
is within safe operating range between the low (L) and
high (H) marks on the dipstick.
5. If low, add recommended engine oil incrementally and
recheck until the level is between the L and H marks on
the dipstick. DO NOT overll. If over the H mark on the
dipstick, drain the oil to reduce the oil level to the full
mark.
6. Replace the oil dipstick and hand-tighten.
ENGINE OIL CHANGE
When using the generator under dirty, dusty conditions or
in extremely hot weather, change the oil more frequently.
Change the oil while the engine is still warm from operation.
1. Place the generator on a level surface and allow the
engine to cool for several minutes.
2. With a damp rag, clean around the oil dipstick. Remove
the dipstick and wipe clean.
3. Place an oil pan (or suitable container) under the oil
drain bolt.
4. Using a 10mm wrench, remove the oil drain bolt and
allow the oil the to drain.
5. Install the oil drain bolt and tighten securely.
Note: A new oil drain plug crush washer is recommended
at each oil change.
6. Slowly pour oil into the oil ller neck until oil the level
is between the L and H marks on the dipstick. Stop
frequently to check the oil level. DO NOT overll.
Maximum oil capacity: 0.74 Quart (0.7 Liter)
7. Install the oil dipstick and hand-tighten.
NOTICE
DO NOT pollute. Follow the guidelines of the EPA or other
governmental agencies for proper disposal of hazardous
materials. Consult local authorities or reclamation facility.
Westinghouse Outdoor Power Equipment, LLC | 21
MAINTENANCE
SPARK PLUG MAINTENANCE
Inspect and clean the spark plug after every 100 hours of
use or six months. Replace the spark plug after 300 hours
of use or every year.
NOTICE
ALWAYS use the Westinghouse OEM or compatible
non-resistor-type spark plug. Use of resistor-type spark
plug can result in rough idling, misre, or may prevent
the engine from starting.
1. Place the generator on a level surface and allow the
engine to cool.
2. Remove the spark plug boot by rmly pulling the spark
boot directly away from the engine.
3. Clean the area around the spark plug.
4. Remove the spark plug with the included spark plug
socket wrench.
NOTICE
NEVER apply any side load or move the spark plug
laterally when removing the spark plug.
5. Inspect the spark plug. Replace if electrodes are
pitted, burned, or the insulator is cracked. Only use a
recommended replacement plug.
6. Measure the spark plug electrode gap with a wire-type
feeler gauge. If necessary, correct the gap by carefully
bending the side electrode.
Spark plug gap: 0.024 – 0.032 in. (0.60 – 0.80 mm)
7. Carefully install the spark plug nger tight, then tighten
as additional 3/8 to 1/2 turn with the spark plug wrench.
8. Attach the spark plug boot.
SPARK ARRESTOR SERVICE
Allow the mufer to cool completely before servicing the
spark arrestor. Check and clean the spark arrestor after
every 100 hours of use or six months. Failure to clean the
spark arrestor will result in degraded engine performance.
1. Place the generator on a level surface.
2. Slide in screwdriver into side slot and remove screw
holding clamp (A) on spark arrestor. Pull out spark
arrestor assembly.
3. Carefully remove the carbon deposits from the spark
arrestor screen with a wire brush. The spark arrestor
must be free of breaks and tears. Replace the spark
arrestor if damaged.
4. Reinstall the spark arrestor.
FUEL VALVE MAINTENANCE
The fuel valve is equipped with a fuel sediment cup, screen,
and o-ring. The fuel valve does not require servicing if the
unit is properly maintained with fresh, clean fuel. If fuel-
related troubleshooting is required, perform fuel valve
maintenance.
1. Allow the generator to cool completely.
2. Turn the fuel valve to the OFF position.
3. Remove the sediment cup from the fuel valve. Remove
the o-ring and screen.
4. Wash the sediment cup, o-ring, and screen in a
nonammable solvent. Dry thoroughly.
5. Place the screen and o-ring into the fuel valve. Install
the sediment cup and tighten securely.
6. Turn the fuel valve to the ON position and check for
leaks. Replace the fuel valve if there is any leakage.
22 | Westinghouse Outdoor Power Equipment, LLC
BATTERY MAINTENANCE
The 12V 1.2 AH Lithium Ion battery shipped with the
generator has been fully charged. A battery may lose some
charge when not in use for prolonged periods of time.
Note: Once started, the generator will charge the battery
after 30 minutes of use.
BATTERY REPLACEMENT
Keep battery terminals covered at all times. The
generator is shipped with a lithium ion (Li-Ion) battery.
Exposed metal positive and negative terminals can
short-circuit when they come into contact with metal
objects, igniting the cell’s internal materials and forcibly
expelling burning contents, resulting in res, explosions,
serious injuries and even death.
1. Loosen and remove the bolts securing the battery hold-
down plate and remove the plate.
2. Disconnect the quick-connect plugs and remove the
battery from the unit.
3. Disconnect the quick-disconnect cable leads from the
battery.
4. On the replacement battery, connect the white (-) quick-
connect cable to the battery negative terminal. Slide the
rubber boot over the connection hardware.
5. Connect the red (+) quick-connect cable to the battery
positive terminal. Slide the rubber boot over the
connection hardware.
6. Install the battery into the generator. Reinstall the battery
hold-down plate and tighten the bolts.
7. Connect the quick-connect plug.
NOTICE
Dispose of the used battery properly according to the
guidelines established by your local or state government.
STORAGE
Proper storage preparation is required for trouble-free
operation and generator longevity.
NOTICE
Gasoline stored for as little as 30 days can deteriorate,
causing gum, varnish, and corrosive buildup in fuel lines,
fuel passages, and the engine. This corrosive buildup
restricts the ow of fuel, which can prevent the engine
from starting after a prolonged storage period. The use
of fuel stabilizer signicantly increases the storage life of
gasoline. Full-time use of fuel stabilizer is recommended.
Follow the manufacturer’s instructions for use.
STORAGE TIME RECOMMENDED PROCEDURE
Less than 1 month No service required.
2 to 6 months
Fill with fresh gasoline and add
gasoline stabilizer. Drain the
carburetor oat bowl.
6 months or longer
Drain the fuel tank and carburetor
oat bowl.
SHORT TERM STORAGE
• Allow the generator to cool a minimum of 30 minutes
before storage.
• Replace all protective covers on the generator control
panel.
• Wipe the generator with a moist cloth. Clean any debris
from the mufer cooling vents.
• Store the generator in a well-ventilated, dry location
away from sparks, open ames, pilot lights, heat, and
other sources of ignition such as areas with a spark-
producing electric motor or where power tools are
operated.
• DO NOT store the generator, or gasoline near furnaces,
water heaters, or any other appliances that produce
heat or have automatic ignitions.
• With the engine and exhaust system cool and all
surfaces dry, cover the generator to keep out dust. DO
NOT use a plastic sheet as a dust cover. Non-porous
materials trap moisture and promote rust and corrosion.
LONG TERM STORAGE
Even properly stabilized fuel can leave residue and cause
corrosion if left long term. If storing the generator for two to
six months, drain the oat bowl to prevent gum and varnish
buildup in the carburetor.
MAINTENANCE
Westinghouse Outdoor Power Equipment, LLC | 23

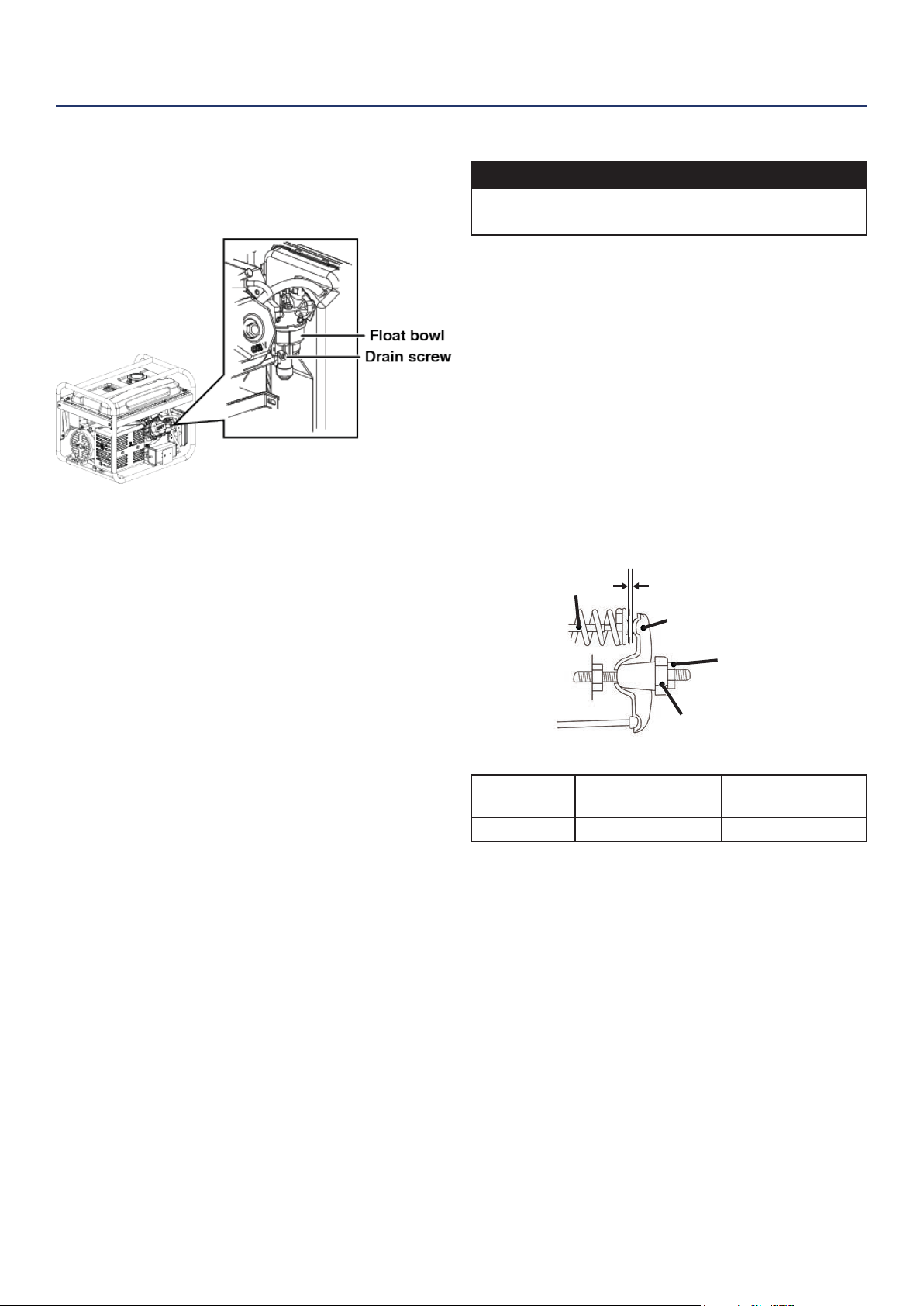

DRAINING THE FLOAT BOWL
1. Turn the fuel tank valve to the OFF position.
2. Locate the drain screw on the bottom of the carburetor
oat bowl.
3. Place an appropriate gasoline container under the drain
screw to catch the drained fuel.
4. Loosen the oat bowl drain screw and allow the fuel to
drain. Tighten the oat bowl drain screw.
DRAINING THE FUEL TANK
If storing the generator for longer than six months, drain
the fuel tank to prevent fuel separation, deterioration, and
deposits in the fuel system.
1. Unscrew the fuel tank cap. Remove the fuel screen lter
by slightly compressing it while removing it from the
tank.
2. Using a commercially available gasoline hand pump
(not included), siphon the gasoline from the fuel tank
into an approved gasoline container. DO NOT use an
electric pump.
3. Reinstall the fuel screen lter and the fuel tank cap.
4. Start the generator and allow it to run until the generator
engine stops.
5. Push the Run/Stop switch to the Stop position.
6. Remove the spark plug.
7. Put a teaspoon of engine oil into the cylinder and pull the
recoil handle until resistance is felt. At this position the
piston is coming up on its compression stroke and both
valves are closed. Storing the engine in this position will
help prevent internal corrosion. Return the recoil handle
gently.
8. Reinstall the spark plug. Leave the spark plug boot
disconnected to prevent accidental starting.
VALVE CLEARANCE
NOTICE
Checking and adjusting valve clearance must be done
when the engine is cold.
1. Remove the rocker arm cover and carefully remove
the gasket. If the gasket is torn or damaged, it must be
replaced.
2. Remove the spark plug so the engine can be rotated
more easily.
3. Rotate the engine to top dead center (TDC) by pulling
the recoil handle slowly. Looking through the spark plug
hole, the piston should be at the top (both valves are
closed).
4. Both the rocker arms should be loose at TDC on the
compression stroke. If they are not, rotate the engine
360°.
5. Insert a feeler gauge between the rocker arm and the
valve stem to measure valve clearance.
Pivot
Adjusting Nut
Valve Stem
Rocker Arm
Rocker Arm Pivot
Intake Valve Exhaust Valve
Valve
Clearance
0.0031 – 0.0047 in
(0.08 – 0.12 mm)
0.0051 – 0.0067 in
(0.13 – 0.17 mm)
Torque 8-12 N•m 8-12 N•m
6. If an adjustment is necessary, hold the rocker arm pivot
and loosen the pivot adjusting nut.
7. Turn the rocker arm pivot to obtain the specied
clearance. Hold the rocker arm pivot and re-tighten the
pivot adjusting nut to the specied torque.
Torque: 106 inch-pound (12 N•m)
8. Perform this procedure for the other valve.
9. Install the gasket, rocker arm cover, and spark plug.
MAINTENANCE
24 | Westinghouse Outdoor Power Equipment, LLC
TROUBLESHOOTING
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTION
Engine will not start
Battery switch in the OFF position. Turn battery switch to the ON position.
Out of fuel. Refuel.
Bad fuel, generator stored without treating
or draining gasoline, or refueled with bad
gasoline.
Drain the fuel tank. Refuel with fresh gasoline.
Dirty air lter. Clean the air lter.
Low engine oil level stopped generator.
If low oil LED illuminated, turn battery switch to the OFF
position. Add engine oil.
Spark plug wet with fuel (ooded engine).
Wait ve minutes. Turn battery switch to the OFF position.
Pull recoil handle rapidly several times. If the generator
does not start, remove spark plug and dry.
Spark plug faulty, fouled, or improperly gapped. Gap or replace the spark plug. Reinstall.
Fuel lter restricted, fuel system malfunction,
fuel pump failure, ignition malfunction, valves
stuck, etc.
Contact Westinghouse customer service toll-free at 1 (855)
944-3571.
Battery drained.
Use the recoil handle to start the generator.
Charge the battery.
Choke partially open or closed due to weak or
disconnected battery.
Manually set the choke. See Maintenance section.
CO sensor removed or modied Return to original conguration
CO sensor activated or system fault occurred
Relocate generator/ Contact Westinghouse customer
service toll free at 1 (855) 944-3571.
Engine starts, then shuts down
Out of fuel. Refuel.
Incorrect engine oil level. Check engine oil level.
Dirty air lter. Clean the air lter.
Contaminated fuel. Drain the fuel tank. Refuel with fresh gasoline.
Defective low oil level switch.
Contact Westinghouse customer service toll-free at 1 (855)
944-3571.
Engine lacks power
Air lter restricted. Clean or replace air lter.
Bad fuel, generator stored without treating
or draining gasoline, or refueled with bad
gasoline.
Drain the fuel tank. Refuel with fresh gasoline.
Fuel lter restricted, fuel system malfunction,
fuel pump failure, ignition malfunction, valves
stuck, etc.
Contact Westinghouse customer service toll-free at 1 (855)
944-3571.
Engine runs rough or bogs when
load applied
Dirty air lter. Clean the air lter.
Generator overloaded. Unplug some devices.
Faulty power tool or appliance.
Replace or repair tool or appliance. Stop and restart the
engine.
Fuel lter restricted, fuel system malfunction,
fuel pump failure, ignition malfunction, valves
stuck, etc.
Contact Westinghouse customer service toll-free at 1 (855)
944-3571.
No power at AC receptacles
AC circuit breaker/s tripped. Check AC loads and reset circuit breaker/s.
Faulty power tool or appliance.
Replace or repair tool or appliance. Stop and restart the
engine.
Faulty generator.
Contact Westinghouse customer service toll-free at 1 (855)
944-3571.
TROUBLESHOOTING
TROUBLESHOOTING
Westinghouse Outdoor Power Equipment, LLC | 25
EXPLODED VIEWS AND PARTS LISTS
ENGINE EXPLODED VIEW
EXPLODED VIEWS
26 | Westinghouse Outdoor Power Equipment, LLC
EXPLODED VIEWS
ENGINE PARTS LIST
NO. PART# DESCRIPTION
1 CRANKCASE ASSEMBLY
1.1 400202 CRANKCASE
1.2 93509 CRANKCASE OIL SEAL
1.3 93520 SWING ROD OIL SEAL
1.4 403901 SWINGING ROD
1.5 96804 SWINGING ROD GASKET
1.6 383902 RETAINING CLIP
1.7 245106 OIL SENSOR
1.8 91329 BOLT
1.9 404301
CENTRIFUGAL GOVERNOR GEAR
ASSEMBLY
1.10 93012 BEARING
1.11 240801 CABLE CLIP
1.12 245104 OIL PROTECTOR
1.13 91325 BOLT
2 50150010 CAMSHAFT ASSEMBLY
2.1 402002 CAMSHAFT
2.2 406101 VALVE LIFTER
2.3 401901 PUSH ROD
3 400301 CRANKSHAFT
4 CRANKCASE COVER ASSEMBLY
4.1 93509 CRANKCASE OIL SEAL
4.2 240904 CRANKCASE LOCATING PIN
4.3 96222 CRANKCASE GASKET
4.4 400101 CRANKCASE COVER
4.5 91347 BOLT
4.6 245601-295 DIPSTICK
4.7 93012 BEARING
5 SPEED CONTROL BRACKET ASSEMBLY
5.1 91329 BOLT
5.2 404001 SPEED REGULATING ARM
5.3 91822 BOLT
5.4 90016 NUT
5.5 402701 THROTTLE LEVER
5.6 404201 SPRING C
5.7 404101 SPRING B
5.8 407701 SPEED CONTROL BRACKET
6 50670001 LOWER GUARD KIT ASSEMBLY
6.1 407601 LOWER GUARD
6.2 91325 BOLT
7 WIND-LEAD-COVER ASSEMBLY
7.1 407501 WIND-LEAD-COVER
7.2 91325 BOLT
8 97108 SPARK PLUG
9 CYLINDER HEAD COVER ASSEMBLY
9.1 91329 BOLT
9.2 96225 CYLINDER HEAD COVER GASKET
NO. PART# DESCRIPTION
9.3 401102 CYLINDER HEAD INTERNAL COVER
9.4 96226 INTERNAL COVER GASKET
9.5 401101 CYLINDER HEAD COVER
9.6 92036 SCREW
9.7 95603 BREATHER TUBE
9.8 94435 BREATHER TUBE CLIP
10 CYLINDER HEAD ASSEMBLY
10.1 401002 CYLINDER HEAD
10.2 401701 INTAKE VALVE
10.3 405901 EXHAUST VALVE
10.4 406001 VALVE SPRING
10.5 402101 ROCKING ARM
10.6 91818 BOLT
10.7 402201 VALVE RETAINER ASSEMBLY
10.8 241806 VALVE SEAL
10.9 241817 VALVE SPRING RETAINER
10.10 329930 VALVE LOCK CLIP
10.11 241804 TOP CAP
10.12 91022 DOUBLE END BOLT M6
10.13 91007 DOUBLE END BOLT M6
10.14 260901 CYLINDER HEAD LOCATING PIN
10.15 96223 CYLINDER HEAD GASKET
10.16 91452 BOLT
10.17 96235 GASKET
10.18 402301 CARBURETOR CONNECTION BLOCK
11 PISTON & PISTON RING ASSEMBLY
11.1 401201 PISTON
11.2 401601 PISTON RING ASSEMBLY
11.3 401501 CONNECTING ROD ASSEMBLY
11.4 405501 PISTON PIN
11.5 241301 PISTON PIN RING
12 CARBURETOR ASSEMBLY
12.1 94403 FUEL HOSE CLIP
12.2 402801-295 CARBURETOR
12.3 95727L FUEL LINE
13 50030057 AIR FILTER ASSEMBLY
13.1 91329 BOLT
13.2 90016 NUT
13.3 402901 AIR FILTER ASSEMBLY
13.3.1 5941 FILTER ELEMENT
14 50100034 IGNITER KIT ASSEMBLY
14.1 97514 IGNITER
14.2 91331 BOLT
15 FLYWHEEL ASSEMBLY
15.1 244508 STARTER PULLEY
15.2 240413 FLYWHEEL
15.3 404601 IMPELLER
Westinghouse Outdoor Power Equipment, LLC | 27
EXPLODED VIEWS
ENGINE PARTS LIST CONTINUED
NO. PART# DESCRIPTION
15.4 90003 NUT
16 RECOIL STARTER ASSEMBLY
16.1 91325 BOLT
16.2
404707-
221A
RECOIL STARTER
16.2.1 5943 RECOIL HANDLE
16.2.2 5942-221 RECOIL COVER
16.3 260801 CABLE CLIP
17 STARTER MOTOR ASSEMBLY
17.1 97459 STARTING MOTOR
17.2 240910 LOCATING PIN
18 91816 BOLT
19 94007 OIL DRAIN BOLT WASHER
20 96224 GASKET
21 94324 STEEL WASHER
21 94324 STEEL WASHER
28 | Westinghouse Outdoor Power Equipment, LLC
EXPLODED VIEWS
GENERATOR EXPLODED VIEW
Westinghouse Outdoor Power Equipment, LLC | 29
EXPLODED VIEWS
GENERATOR PARTS LIST
NO. PART# DESCRIPTION
1 FRAME ASSEMBLY
1.1 774078-116 FRAME
1.2 531318 ISOLATION SUPPORT
1.3 90016 NUT M6
1.4 90018 NUT M8
1.5 91325 BOLT M6
1.6 91327 BOLT M6
1.7 544301 FRAME WIRE
1.8 96120 PAPER WASHER
1.9 530324-116 MOVABLE RECTANGLE PIPE
1.10 94002 TOOTH WASHER
2 BATTERY BRACKET ASSEMBLY
2.1 511085 12V 1.2 AH LITHIUM ION BATTERY
2.2 511086 BATTERY PULL ROD
2.3 501133 BATTERY HOLDER
2.4 512058 BATTERY WIRING ASSEMBLY
2.5 90016 NUT M6
3 FOOT BRACKET KIT ASSEMBLY
3.1 90023 NUT M6
3.2 91343 BOLT M8
3.3 525314-116 FOOT BRACKET
3.4 531115
FOOT BRACKET ISOLATION
SUPPORT
3.5 91333 BOLT M6
4 ENGINE ASSEMBLY
4.1 1148274120024 ENGINE
4.2 91322 BOLT M5
4.3 539602 CRANKCASE COVER SHIELD
5 HANDLE WELDING ASSEMBLY
5.1 527613 HANDLE PLUG
5.2 527611 HANDLE MOUNTING BOLT
5.3 526639-116 HANDLE
5.4 528609 HANDLE RUBBER SLEEVE
6 CARBON CANNISTER ASSEMBLY
6.1 95021
CARBON CANISTER AND AIR FILTER
CONNECTING PIPE
6.2 91327 BOLT M6
6.3 94402 FUEL LINE CLAMP
6.4 94408 FUEL LINE CLAMP
6.5 543601L CARBON CANISTER ASSEMBLY
6.6 95020
CARBON CANISTER AND FUEL TANK
CONNECTING PIPE
6.7 94423 FUEL LINE CLAMP
7 PANEL ASSEMBLY
7.1 91327 BOLT M6
7.2 714386 PANEL
7.2.1 6022 ENGINE SWITCH
7.2.2 6041 TIME ACCUMULATOR
NO. PART# DESCRIPTION
7.2.3 6434-22 BREAKER
7.2.4 6508 VOLTAGE SELECTION SWITCH
7.2.5 6386 GROUND TERMINAL ASSEMBLY
7.2.6 6385 L14-30R RECEPTACLE
7.2.7 6848 WATERPROOF CAP
7.2.8 6015 RV SOCKET
7.2.9 6849 WATERPROOF CAP
7.2.10 6441-30 THERMAL PROTECTOR
7.2.11 6441-20 THERMAL PROTECTOR
7.2.12 6032 L5-20R RECEPTACLE
7.2.13 6846 WATERPROOF CAP
7.3 96120 PAPER WASHER
7.4 599065 CO FLAMEOUT ACTUATOR
8 WHEEL KIT ASSEMBLY
8.1 94224 FLAT WASHER
8.2 523308 WHEEL
8.3 524320 AXLE
8.4 548302 COTTER PIN
9 FUEL TANK ASSEMBLY
9.1 700271L-116 FUEL TANK
9.1.1 518801 FUEL TANK FILTER
9.1.2 6785 FUEL GAUGE
9.2 519215 FUEL CAP
9.3 91307 BOLT M6
9.4 96801 FUEL TANK GASKET
9.5 94403 FUEL LINE CLAMP
9.6 518202 FUEL SWITCH
10 EXHAUST MUFFLER ASSEMBLY
10.1 90011 NUT M8
10.2 520308 MUFFLER MOUNTING BRACKET
10.3 91343 BOLT M8
10.4 96252 EXHAUST GASKET
10.5 94206 SPRING WASHER
10.6 705658 MUFFLER
10.6.1 6790 SPARK ARRESTER
11 ALTERNATOR ASSEMBLY
11.1 755537 ALTERNATOR
11.2 599019 CARBON BRUSH
11.3 6560 TERMINAL ASSEMBLY
11.4 532306 ALTERNATOR TAIL BRACKET
11.5 96813 GASKET
11.6 91721 BOLT M1
11.7 91619 BOLT M6
11.8 91322 BOLT M5
11.9 534301 AVR
11.10 533302-221 ALTERNATOR TAIL COVER
30 | Westinghouse Outdoor Power Equipment, LLC
GENERATOR PARTS LIST CONTINUED
EXPLODED VIEWS
NO. PART# DESCRIPTION
11.11 91323 BOLT M5
11.12 91513 BOLT M5
11.13 90009 NUT M5
11.14 532303-052 TAIL BRACKET FIXING PLATE
11.15 94204 SPRING WASHER
12 CO MODULE ASSEMBLY
12.1 599063 CO MODULE
12.2 92270 BOLT M4
13 99635 OIL BOTTLE
14 99010 SPARK PLUG WRENCH
15 500942 FUNNEL
16 99025 WRENCH
Westinghouse Outdoor Power Equipment, LLC | 31
SCHEMATICS
SCHEMATICS
SCHEMATICS
