USER MANUAL
WGen6000
Portable Generator
6000 Running Watts | Peak Watts
2 | Westinghouse Portable Power
DISCLAIMERS:
All information, illustrations and specications in this manual are based on the latest information available at
the time of publishing. The illustrations used in this manual are intended as representative reference views only.
Moreover, because of our continuous product improvement policy, we may modify information, illustrations and/or
specications to explain and/or exemplify a product, service or maintenance improvement. We reserve the right
to make any change at any time without notice. Some images may vary depending upon which model is shown.
ALL RIGHTS RESERVED:
No part of this publication may be reproduced or used in any form by any means – graphic, electronic or
mechanical, including photocopying, recording, taping or information storage and retrieval systems – without the
written permission of MWE Investments LLC.
DANGER
This manual contains important instructions for operating this generator. For your safety
and the safety of others, be sure to read this manual thoroughly before operating the
generator. Failure to properly follow all instructions and precautions can cause you and
others to be seriously hurt or killed.
California
Proposition 65 Warning
The engine exhaust from this product
contains chemicals known to the state
of California to cause cancer, birth
defects or other reproductive harm.
California
Proposition 65 Warning
Certain components in this product and its
related accessories contain chemicals
known to the state of California to cause
cancer, birth defects or other reproductive
harm. Wash hands after handling.
Model
Number
Running
Watts
Peak
Watts
Fuel
Tank
Size
(L/G)
Rated
Speed
(RPM)
Ignition
Type
Spark
plug
Engine
Disp (cc)
Stroke X
Bore
Oil
Capacity
(L) Oil Type
WGen6000 6000 7500 25/6.6 3600 TCI F7TC 420 66X90 1.10 10W30
NOTICE
Even with a carburetor modication, engine horsepower will decrease about 3.5% for each 300 meter (1,000 foot) increase in altitude.
The eect of altitude on horsepower will be greater if no carburetor modication is made. A decrease in engine horsepower will de-
crease the power output of the generator. Contact our service team to order altitude kits. See page 15 for altitude kit numbers.
TECHNICAL SPECIFICATIONS
HAVE QUESTIONS?
Email us at service@wpowereq.com
or call 1-855-944-3571
SAVE THESE INSTRUCTIONS
Important safety instructions are included in this manual.
Westinghouse Portable Power | 3
FOR YOUR RECORDS:
Date of Purchase:
Generator Model Number:
Purchased from Store/Dealer:
Generator Serial Number:
IMPORTANT: KEEP YOUR PURCHASE RECEIPT TO ENSURE TROUBLE-FREE WARRANTY
COVERAGE.
PRODUCT REGISTRATION
To ensure trouble-free warranty coverage, it is important you register your Westinghouse generator.
You can register your generator by either:
1. Filling in the product registration form below and mailing to:
Product Registration
MWE Investments LLC
777 Manor Park Drive
Columbus, Ohio 43228
2. Registering your product Online at www.westinghouseportablepower.com/register-your-product/
To register your generator you will need to locate the following information:
WESTINGHOUSE PRODUCT REGISTRATION FORM
PERSONAL INFORMATION GENERATOR INFORMATION
First Name: _______________________________________ Model Number: _____________________________________
Last Name: _______________________________________ Serial Number: ______________________________________
Street Address: ___________________________________ Date Purchased: ____________________________________
Street Address: ___________________________________ Purchased From: ____________________________________
City, State, ZIP: ____________________________________
Country: __________________________________________
Phone Number: ___________________________________
E-Mail: ___________________________________________
Made in China/ Fabriqu é en Chine
CSA Master Contract
Number :
Numéro de contrat
principa l de CS A
MWE Investments LLC
Columbus Ohio 43228 USA
Con u à columbus , Ohio,tats-Unis
MWE Investments LLC
Columbus Ohio 43228 Etats-Unis
Par t N0.
Numéro de
pièc e
Designed in Columbus , Ohio USA
4 | Westinghouse Portable Power
TABLE OF CONTENTS
TECHNICAL SPECIFICATIONS ..................2
PRODUCT REGISTRATION .....................3
For Your Records: ..........................3
Product Registration .......................3
Product Registration Form ...................3
SAFETY .....................................5
Safety Denitions ..........................5
Safety Symbol Denitions ...................5
General Safety Rules ........................6
Safety Labels and Decals ....................7
UNPACKING .................................9
What Comes in the Box ......................9
Wheel Kit Accessories Box ...................9
ASSEMBLY .................................10
Installing Wheels and Feet ....................10
Installing the Battery ........................11
FEATURES .................................12
Generator Features .........................12
Control Panel Features .....................14
OPERATION .................................15
Before Starting the Generator .................15
Altitude Kit Part Number .....................15
Power Cord ..............................16
Using Extension Cords ...................16
Using Westinghouse Power Cord ...........16
Transfer Switch Connections ..................17
Engine Fluids and Fuel .......................17
Adding Gasoline to the Fuel Tank ...........18
Starting the Generator ......................19
Stopping the Generator ......................20
Normal Operation .......................20
During an Emergency ....................20
MAINTENANCE ..............................20
Maintenance Schedule ......................21
Engine Oil Maintenance .....................22
Engine Oil Specication ...................22
Checking Engine Oil .....................22
Adding Engine Oil .......................22
Changing Engine Oil .....................23
Air Filter Maintenance .......................23
Cleaning the Air Filter ....................23
Spark Plug Maintenance .....................24
Testing GFCI Outlets ........................25
Cleaning the Generator ......................25
STORAGE ...................................26
TROUBLE SHOOTING .........................26
EXPLODED AND ENGINE VIEWS ................28
WGen6000 Exploded View ...................28
WGen6000 Engine View .....................30
SCHEMATICS ................................31
WGen6000 Schematic .......................31
Westinghouse Portable Power | 5
SAFETY DEFINITIONS
The words DANGER, WARNING, CAUTION and
NOTICE are used throughout this manual to highlight
important information. Be certain that the meanings of
these alerts are known to all who work on or near the
equipment.
This safety alert symbol appears
with most safety statements. It
means attention, become alert, your
safety is involved! Please read and
abide by the message that follows
the safety alerts symbol.
DANGER
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation which can cause damage
to the generator, personal property and/or the
environment, or cause the equipment to operate
improperly.
NOTE: Indicates a procedure, practice or condition
that should be followed in order for the
generator to function in the manner
intended.
SAFETY
SAFETY SYMBOL DEFINITIONS
6 | Westinghouse Portable Power
DANGER
Never use the generator in a location that is wet or damp. Never expose the generator to rain,
snow, water spray or standing water while in use. Protect the generator from all hazardous weather
conditions. Moisture or ice can cause a short circuit or other malfunction in the electrical circuit.
Never operate the generator in an enclosed area. Engine exhaust contains carbon monoxide. Only
operate the generator outside and away from windows, doors and vents.
WARNING
Voltage produced by the generator could result in death or serious injury.
• Never operate the generator in rain or a ood plain unless proper precautions are taken to avoid
being subject to rain or a ood.
• Never use worn or damaged extension cords.
• Always have a licensed electrician connect the generator to the utility circuit.
• Never touch an operating generator if the generator is wet or if you have wet hands.
• Never operate the generator in highly conductive areas such as around metal decking or steel
works.
• Always use grounded extension cords. Always use three-wire or double-insulated power tools.
• Never touch live terminals or bare wires while the generator is operating.
• Be sure the generator is properly grounded before operating.
WARNING
Gasoline and gasoline vapors are extremely ammable and explosive under certain conditions.
• Always refuel the generator outdoors, in a well-ventilated area.
• Never remove the fuel cap with the engine running.
• Never refuel the generator while the engine is running. Always turn engine o and allow the
generator to cool before refueling.
• Only ll fuel tank with gasoline.
• Keep sparks, open ames or any other forms of ignition (such as match, cigarette, static electric
source)away when refueling.
• Never overll the fuel tank. Leave room for fuel to expand. Overlling the fuel tank can result in a
sudden overow of gasoline and result in spilled gasoline coming in contact with HOT surfaces.
Spilled fuel can ignite. If fuel is spilled on the generator, wipe up any spills immediately. Dispose
of rag properly. Allow area of spilled fuel to dry before operating the generator.
• Wear eye protection while refueling.
• Never use gasoline as a cleaning agent.
• Store any containers containing gasoline in a well-ventilated area, away from any combustibles or
source of ignition.
• Check for fuel leaks after refueling. Never operate the engine if a fuel leak is discovered.
WARNING
Never operate the generator if powered items overheat,
electrical output drops, there is sparking, ames or smoke
coming from the generator, or if the receptacles are
damaged.
Never use the generator to power medical support
equipment.
Always remove any tools or other service equipment used
during maintenance from the generator before operating.
NOTICE
Never modify the generator.
Never operate the generator if it
vibrates at high levels, if engine
speed changes greatly or if the
engine misres often.
Always disconnect tools or
appliances from the
generator before starting.
GENERAL SAFETY RULES
SAFETY
Westinghouse Portable Power | 7
Made in China/
Fabriqu é en Chine
CSA Master Contract
Number :
Numéro de contrat
principa l de CSA
MWE Investments LLC
Columbus Ohio 43228 USA
Con u à columbus , Oh io,tats-Unis
MWE Investments LLC
Columbus Ohio 43228 Etats-Unis
Part N0.
Numéro de
pièce
Designed in Columbus , Ohio USA
SAFETY
SAFETY LABELS AND DECALS
4
1
1
3
4
2
Made in China/
Fabriqu é en Chine
MWE Investments LLC
Columbus Ohio 43228 USA
Con u à columbus , Oh io,tats-Unis
MWE Investments LLC
Columbus Ohio 43228 Etats-Unis
Par t N0.
Numéro de
pièc e
Designed in Columbus , Ohio USA
4
2
5
5
3
Made in China/
Fabriqu é en Chine
CSA Master Contract
Number :
Numéro de contrat
principa l de CS A
MWE Investments LLC
Columbus Ohio 43228 USA
Con u à columbus , Ohio,tats-Unis
MWE Investments LLC
Columbus Ohio 43228 Etats-Unis
Par t N0.
Numéro de
pièc e
Designed in Columbus , Ohio USA
8 | Westinghouse Portable Power
SAFETY
SAFETY LABELS AND DECALS
8
7
10
8
9
6
6
7
5
10
9
Westinghouse Portable Power | 9

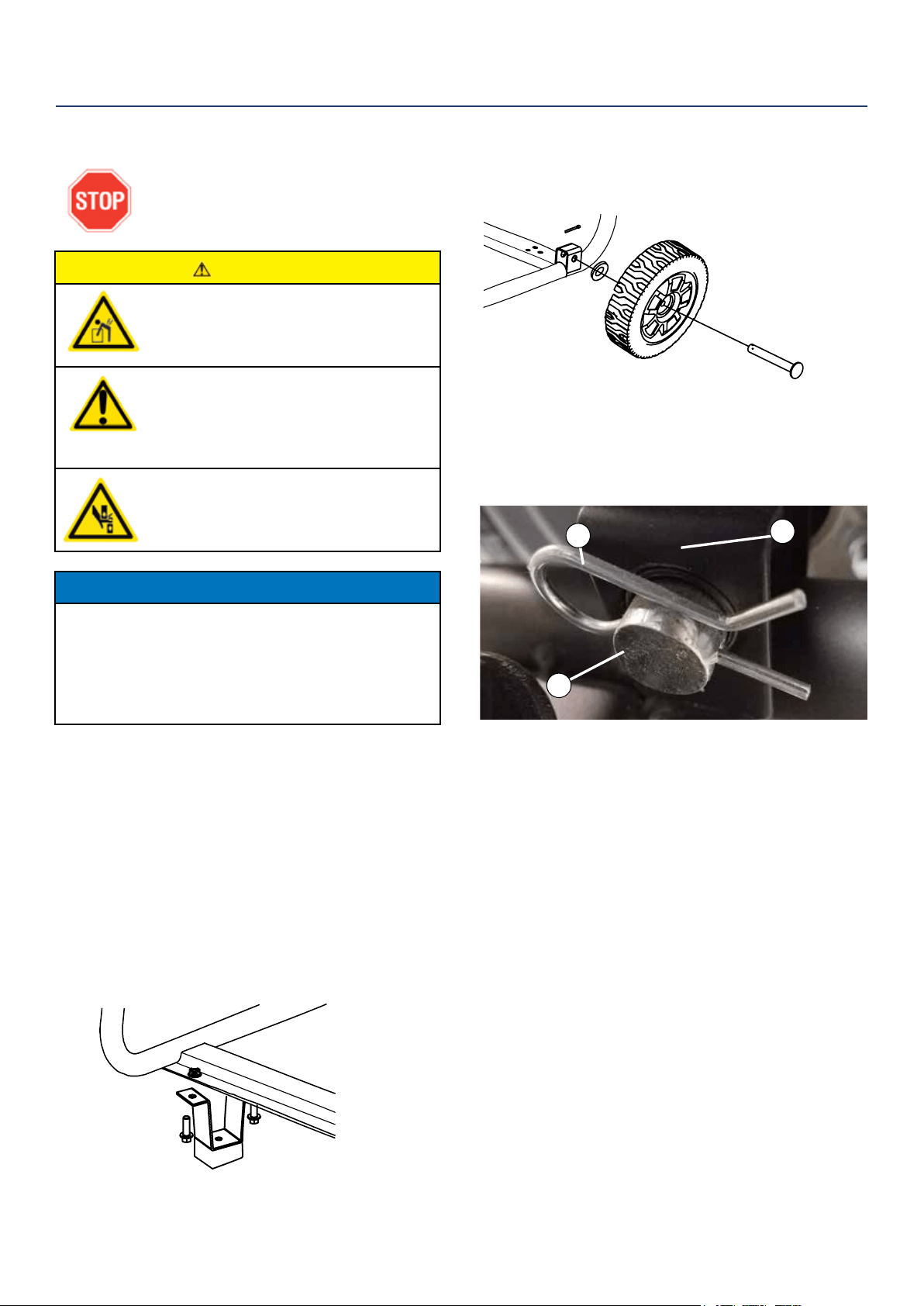

1. Washer (2 used)
2. Flange Bolt M8 x16mm (4 used)
3. Hairpin Cotter Pin (2 used)
4. Wheel Axle Pin (2)
CAUTION
Always have assistance when lifting
the generator. The generator is heavy;
lifting it could cause bodily harm.
Avoid cutting on or near staples
to prevent personal injury.
Tools required – box cutter or similar device.
1. Carefully cut the packing tape on top of the carton.
2. Fold back top aps to reveal the manual.
3. Remove the Wheel Kit Accessories cardboard box.
4. Carefully cut two sides of the carton to
remove the generator.
WHAT COMES IN THE BOX
Manual
Quick Start Guide/Maintenance Schedule
1.1 Liter Bottle of SAE 10W30 Oil (1)
Spark Plug Socket Wrench (1)
Wheel Kit Accessories Box
Funnel (1)
WHEEL KIT ACCESSORIES BOX
Open the Wheel Kit Accessories box and verify the
contents against the list right. If any parts are missing,
please locate an authorized Westinghouse Generator
dealer at service@wpowereq.com or call
1-855-944-3571.
UNPACKING
Figure 1 -Wheel and Feet Kit Hardware
1
2
3
4
10 | Westinghouse Portable Power
INSTALLING WHEELS AND FEET
BEFORE ASSEMBLING THE
GENERATOR, REVIEW THE SAFETY
SECTION STARTING ON PAGE 5.
CAUTION
Never lift the generator without
assistance. The generator is heavy
and lifting without assistance could
result in personal injury.
Never use the handles as a lifting point
to support the entire weight of the
generator. Only use the handles to move
the generator by lifting the handles and
using the wheels to move the generator.
Use caution when collapsing the
handles. Hands and ngers could get
caught and pinched.
NOTICE
Assembling the generator will require lifting the unit
on one side. Make sure all engine oil and fuel are
drained from the unit prior to assembling. Once
assembled, the wheel kit is not intended for on-
road use. The wheel kit is designed for use on this
generator only.
INSTALLING FEET TO FRAME
1. Place generator on a at surface.
2. Place a piece of cardboard or other soft material to
tip the generator onto, to protect the frame paint
and prevent the generator from sliding. Tip the
generator onto the side.
3. Install the mounting foot to the frame using M8
ange bolts.
1 - Mounting Feet
2 - Flange Bolts M8
INSTALLING WHEELS TO FRAME
1. Insert axle pin through washer and wheel.
2. Install the wheel with axle pin through the axle
bracket on the frame. The eye of the bolt should be
facing toward the inside of the generator.
2
1
3
Figure 3 - Assemble Wheel to Frame
3. Install the hairpin cotter through the axle pin to lock
it in place.
1 - Axle Bracket
2 - Hairpin Clip
3 - Axle Pin
4. Repeat previous steps on other wheel.
ASSEMBLY
Figure 2 -Wheel Assembly
Figure 1 - Assemble Mounting Feet to Frame
Westinghouse Portable Power | 11
4. Pull back the black boot and securely attach
the negative (-) battery cable (black boot) to the
negative (-) battery post as shown in Figure 5.
Replace the black boot so it protects the cable lug
and battery post.
1 - Positive (+) Battery Cable (Red)
2- Negative (-) Battery Cable (Black)
INSTALLING THE BATTERY
WARNING
To avoid electric shock:
• ALWAYS connect the positive (+)
battery cable (red boot) rst when
connecting battery cables.
• ALWAYS disconnect the negative (-)
battery cable (black boot) rst when
disconnecting battery cables.
• NEVER connect the negative (-)
battery cable (black boot) to the
positive (+) post on the battery.
• NEVER connect the positive (+)
battery cable (red boot) to the
negative (-) post on the battery.
• NEVER touch both battery posts
simultaneously.
• NEVER place a metal tool across
both battery posts.
• ALWAYS use insulated or
nonconducting tools when installing
the battery.
1. Secure the positive (+) battery cable (red boot)
tightly to the positive (+) battery post. Make sure
boot is over battery post.
2. Carefully remove the protective wrapping around
the lug of the negative (-) battery cable (black boot).
3. Locate negative (-) cable attached to alternator
cable, remove tie and route to the negative (-)
battery post. See gure 4 below for location of
negative (-) cable.
ASSEMBLY
Figure 4 - (1) Negative Cable
Attaching the Negative (-) Battery Wire
1
1
2
12 | Westinghouse Portable Power

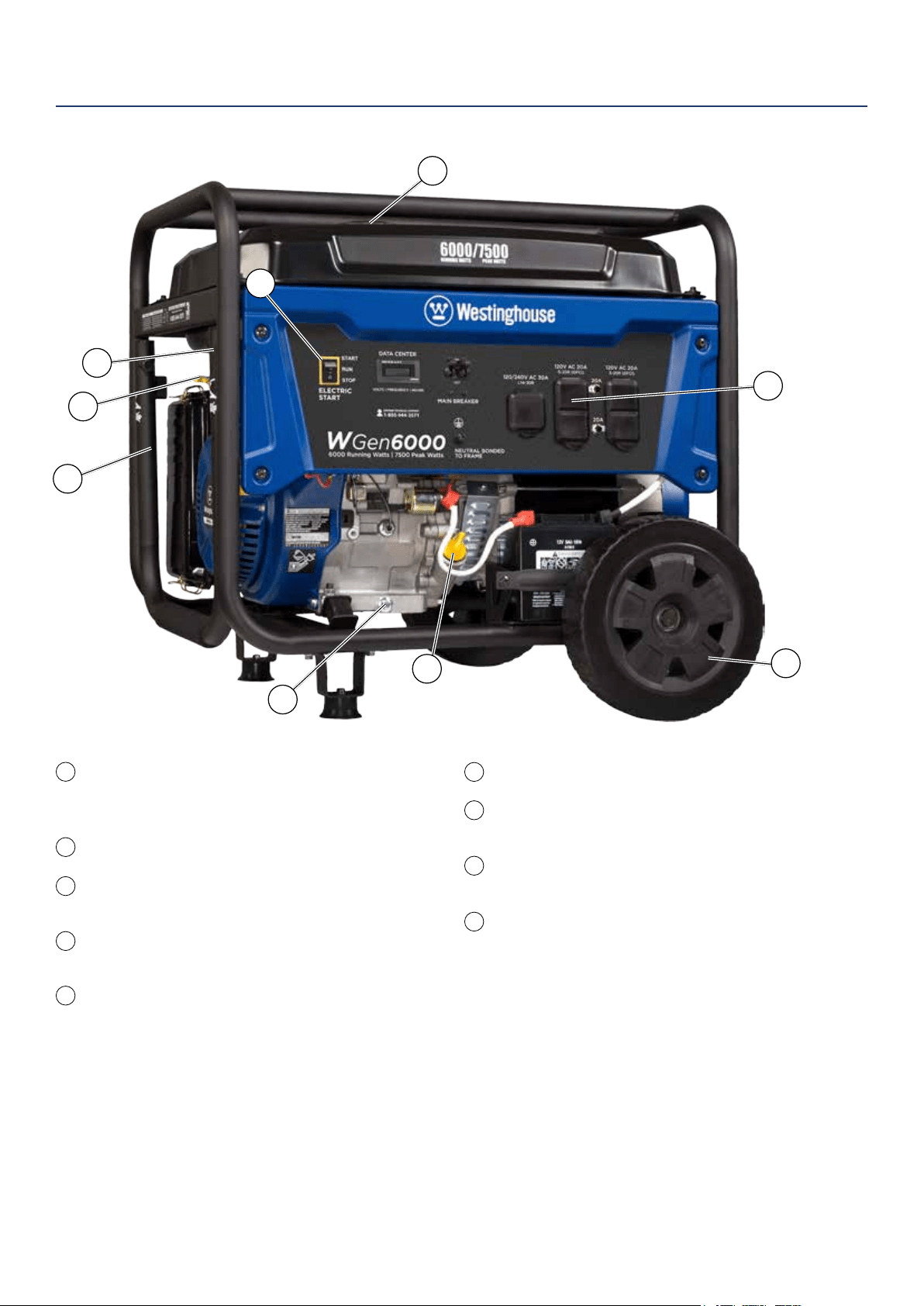

Electric Start Switch: Hold in Start position
for 1 second to start engine. Make sure to
manually open choke prior to starting.
Fuel Cap: Close until clicking sound is heard.
Control Panel: Contains the circuit breakers
and outlets.
Oil Fill Plug/Dipstick: Must be removed to add
and check oil.
Oil Drain Plug: Must be removed to drain
engine oil
FEATURES
Never Flat Wheels: For easy portability
Fuel Shut o Valve: Controls the ow of fuel
to the engine.
Manual Choke: Choke must be set manually by
adjusting choke lever.
Single Piece Handle: Includes rubber grip. Allows
you to easily push or pull unit with one hand.
1
5
6
7
8
9
2
3
4
1
3
5
4
9
8
7
6
2
Westinghouse Portable Power | 13

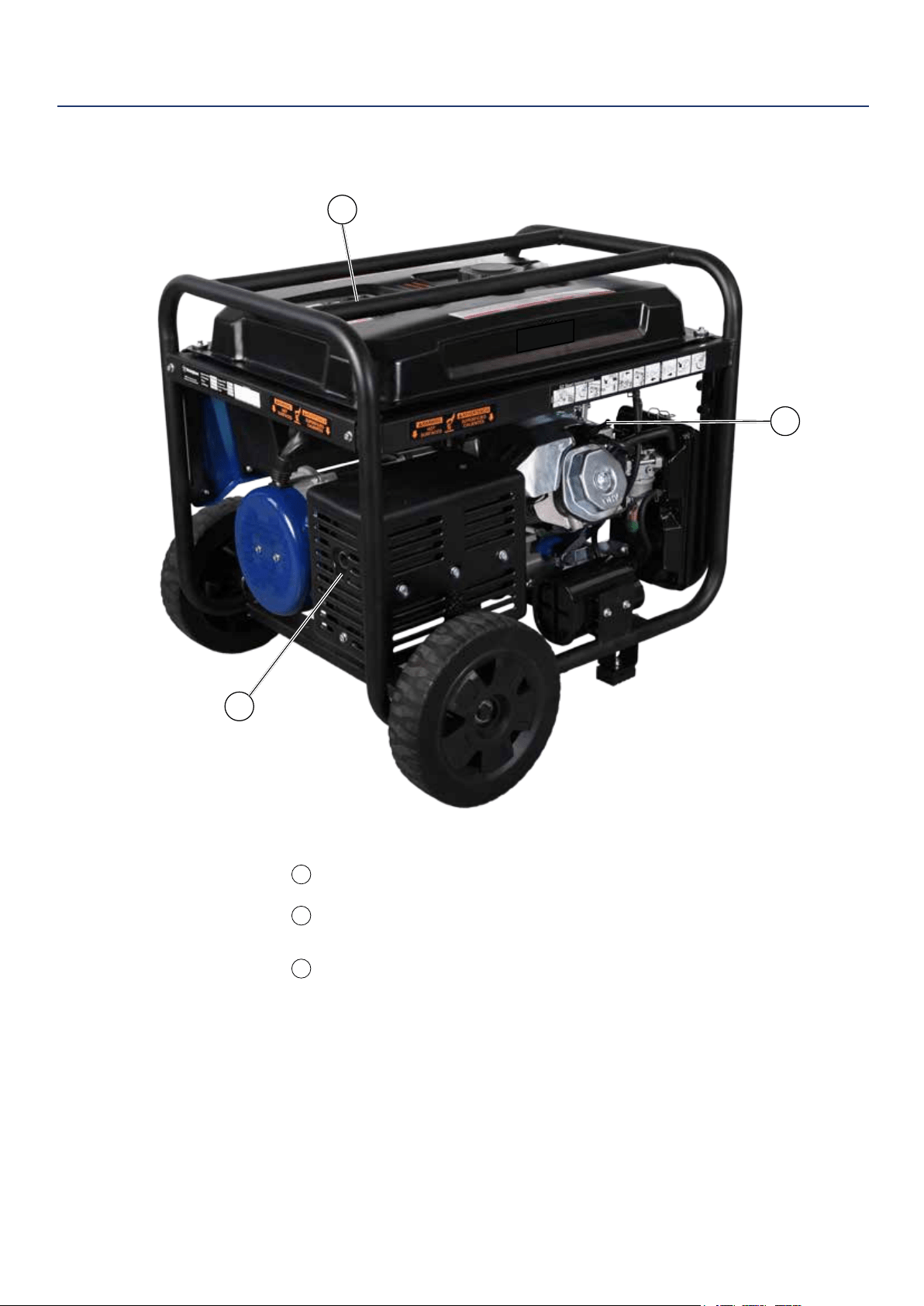

Fuel Gauge: Indicates fuel level.
Spark Plug Boot (Wire): Must be removed
when servicing the engine or the spark plug.
Muer and Spark Arrester: Avoid contact
until engine is cooled down. Spark arrestor
prevents sparks from exiting the muer. It must
be removed for servicing.
FEATURES
1
2
3
1
2
3
14 | Westinghouse Portable Power
START
RUN
STOP
NEUTRALŁ
BONDED TOŁ
FRAME
ELECTRICŁ
START
120-Volt, 20-Amp Duplex GFCI Outlets
(NEMA 5-20R): Each outlet is capable of carrying
a maximum of 20 amps on a single receptacle or
a combination of both receptacles.
20-Amp Circuit Breakers: Each circuit breaker
limits the current that can be delivered through
the 120-volt duplex outlets to 20amps.
Ground Terminal: The ground terminal is used to
ground the generator.
Electric Start Switch: Hold in Start until engine
starts. Make sure to manually choke prior to
starting.
VFT Meter: Displays voltage, frequency and hours
run under load.
Main Circuit Breaker: The main circuit breaker
controls total output of all outlets to protect the
generator.
120/240-Volt, 30-Amp Twist Lock Outlet
(NEMA L14-30R): Outlet can supply either
120V or 240V output.

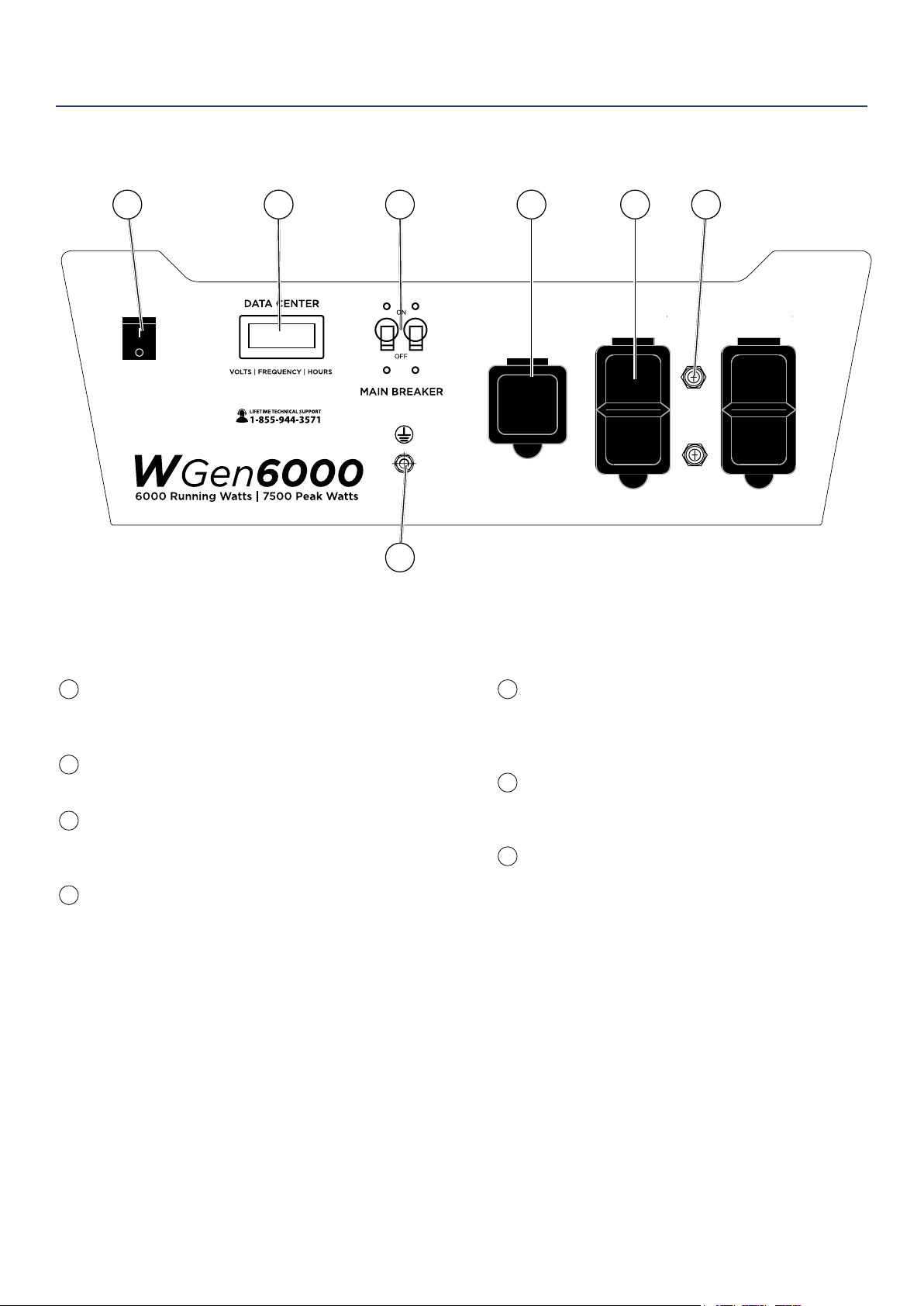

CONTROL PANEL FEATURES
1
6
7
2
3
4
5
1
7
FEATURES
120/240V AC 30AŁ
L14-30R
120V AC 20AŁ
5-20R (GFCI)
120V AC 20AŁ
5-20R (GFCI)
20A
20A
3 42 5 6
Westinghouse Portable Power | 15
Weather – Never operate your generator outdoors during
rain, snow or any combination of weather conditions that
could lead to moisture collecting on, in or around the
generator.
Dry Surface – Always operate the generator on a dry
surface free of any moisture.
No Connected Loads – Make sure the generator has no
connected loads before starting it. To ensure there are no
connected loads, unplug any electrical extension cords
that are plugged into the control panel receptacles.
NOTICE
Starting the generator with loads already applied to it could result
in damage to any appliance being powered o the generator during
the brief start-up period.
Grounding the Generator – The National Electric Code
(NEC), as well as many local electrical codes, may require
the generator to be connected to earth ground. The
most common application that requires a ground rod is
when you are using the generator as a separately derived
system to provide back up power to your house. Typically
this is when a transfer switch has a switched neutral.
As the generator application has many variables that
cannot be determined by the manufacturer of the
generator, a licensed electrician will need to determine if a
grounding rod is needed.
If a licensed electrician has determine the application
requires a ground rod, make sure it is connected to earth
ground by connecting the ground terminal on the control
panel to earth ground using copper wire (minimum 10
AWG). Consult a qualied electrician for local grounding
requirements.
Neutral Bonded: There is a permanent conduct or
between the generator (stator winding) and the frame.
WARNING
Be sure the generator is properly connected to
earth ground before operating. The generator
must be grounded to prevent electrical shock
due to faulty appliances.
High Altitude Operation
Engine power is reduced the higher you operate above
sea level. Output will be reduced approximately 3.5%
for every 1000ft of increased altitude from sea level.
This is a natural occurrence and cannot be adjusted by
engine. Increased exhaust emissions can also result
due to increased fuel mixture. Other issues include hard
starting, increased fuel consumption and spark plug
fouling. Contact our service team 1-855-944-3571 for
altitude part kits.
High Altitude Carburetor Kit Part Number: 140545
BEFORE STARTING THE GENERATOR
BEFORE STARTING THE GENERATOR,
REVIEW SAFETY SECTION STARTING
ON PAGE 5.
Location Selection – Before starting the generator,
avoid exhaust and location hazards by verifying:
• You have selected a location to operate the generator
that is outdoors and well ventilated.
• You have selected a location with a level and solid
surface on which to place the generator.
• You have selected a location that is at least 6 feet
(1.8 m) away from any building, other equipment or
combustible material.
• If the generator is located close to a building, make
sure it is not located near any windows, doors and/
or vents.
WARNING
Always operate the generator on a level surface.
Placing the generator on non level surfaces can
cause the generator to tip over, causing fuel and
oil to spill. Spilled fuel can ignite if it comes in
contact with an ignition source such as a very
hot surface.
NOTICE
Only operate the generator on a solid, level surface. Operating the
generator on a surface with loose material such as sand or grass
clippings can cause debris to be ingested by the generator that
could:
• Block cooling vents
• Block air intake system
OPERATION
16 | Westinghouse Portable Power
POWERCORD
Using Extension Cords
Westinghouse Portable Power assumes no responsibility for the content within this table. The use of this table is the
responsibility of the user only. This table is intended for reference only. The results produced by using this table are
not guaranteed to be correct or applicable in all situations as the type and construction of cords are highly variable.
Always check with local regulations and a licensed electrician prior to installing or connecting an electrical appliance
Using Westinghouse Power Cord
Use the extension cord chart to determine the size
of the conductor for extension cord applications.
Determine the distance of the generator to the
appliance on the top line of the chart. Then select the
rated amperage of the generator on the left side of the
chart. Where the two meet is the size of the conductor
required for the application.
The WCG25 power cord is connected to the generator
at the 120/240 plug. The opposite end of the power
cord is a fan tail receptacle with 2 green receptacles
and 2 red receptacles. Each receptacle is rated at
120 volts AC. To balance the load on the generator’s
alternator, use the red and green identiers on the fan
tail receptacle. To keep the load balanced, connect
the loads so that both color receptacles are used. An
example is one in red and one in green. Do not connect
2 in red and none in green, or 2 in green and none in
red. If only one color receptacle is used with multiple
loads, the alternator may experience an unbalanced
load, causing undue vibration to generator.
OPERATION
1
2
- WCG25 Extension Cord
Red Dots
Green Dots
Westinghouse Portable Power | 17
1
1
1
2
2
2
ADDING / CHECKING ENGINE
FLUIDS AND FUEL
BEFORE ADDING/CHECKING ENGINE
FLUIDS AND FUEL, REVIEW SAFETY
SECTION STARTING ON PAGE 5.
DANGER
Filling the fuel tank with gasoline while
the generator is running can cause
gasoline to leak and come in contact
with hot surfaces that can ignite the
gasoline.
Before starting the generator, always check the level of:
• Engine oil
• Gasoline in the fuel tank
Once the generator is started and the engine gets
warm, it is not safe to add gasoline to the fuel tank or
engine oil to the engine while the engine is running or
the engine and muer are hot.
CHECKING AND / OR ADDING ENGINE OIL
WARNING
Internal pressure can build in the
engine crankcase while the engine
is running. Removing the oil ll plug/
dipstick while the engine is hot can
cause extremely hot oil to spray out
of the crankcase and can severely
burn skin. Allow engine oil to cool for
several minutes before removing the
oil ll plug/dipstick.
The unit as shipped does not contain oil in the engine.
You must add engine oil before starting the generator
for the rst time. See Checking Engine Oil and Adding
Engine Oil on page 22 for instructions on checking
engine oil level and the procedure for adding engine oil.
NOTICE
The engine does not contain engine oil as shipped.
Attempting to start the engine can damage
engine components. The owner of the generator
is responsible to ensure the proper oil level is
maintained during the operation of the generator.
Failure to maintain the proper oil level can result in
engine damage.
TRANSFER SWITCH CONNECTIONS
The Westinghouse generator is wired with the neutral
bonded to ground. If you are connecting your generator
to a panel board transfer switch, a licensed electrician
will need to consider removing the bonded neutral to
ensure proper operation of household GFCI circuits.
This is done by rst removing the nut that holds the
bonded ground jumper wire (see “2” in Figure 5).
Once the nut is removed take the bonded jumper wire
o and re-secure the nut. Next remove the screw holding
the neutral ground wire (see “1” in Figure 5). Attach the
bonded jumper wire (2) to the neutral ground (1) and
tighten the screw.
If the bonded neutral is removed the generator must be
relabeled as oating neutral on the control panel.
If your generator is equipped with GFCI receptacles,
removing the bonded neutral may not allow proper
operation of the GFCI receptacles. Always keep the
jumper wire in case it is needed for future use when not
connected to a transfer switch.
OPERATION
Figure 5
REMOVE
MOVE WIRE HERE
Alternator Neutral Ground Wire (white/Green)
Alternator Bonded Jumper Wire (white/Green)
18 | Westinghouse Portable Power
ADDING GASOLINE TO THE FUEL TANK
WARNING
Never refuel the generator while the
engine is running.
Always turn the engine o and allow
the generator to cool before refueling.
Required Gasoline – Only use gasoline that meets the
following requirements:
• Unleaded gasoline only
• Gasoline with maximum 10% ethanol added
• Gasoline with an 87 octane rating or higher
Filling the Fuel Tank – Follow the steps below to ll the
fuel tank:
1. Shut o the generator.
2. Allow the generator to cool down so all surface
areas of the muer and engine are cool to the
touch.
3. Move the generator to a at surface.
4. Clean area around the fuel cap.
5. Remove the fuel cap by rotating counterclockwise.
6. Slowly add gasoline into the fuel tank. Be very
careful not to overll the tank. The gasoline level
should NOT be higher than the ller neck (see
Figure 6).
7. Install the fuel cap by rotating clockwise until
you hear a click, indicating the cap is completely
installed.
CAUTION
Avoid prolonged skin contact with
gasoline. Avoid prolonged breathing of
gasoline vapors.
BEFORE STARTING THE GENERATOR
BEFORE STARTING THE GENERATOR,
REVIEW SAFETY SECTION STARTING
ON PAGE 5.
Before attempting to start the generator,
verify the following:
• The engine is lled with engine oil. See Checking
Engine Oil on page 22.
• The generator is situated in a proper location
(Location Selection on page 15).
• The generator is on a dry surface (Weather and Dry
Surface on page 15).
• All loads are disconnected from the generator (No
Connected Loads on page 15).
• The generator is properly grounded the Generator
(page 15).
DANGER
Never use the generator in a location
that is wet or damp. Never expose the
generator to rain, snow, water spray or
standing water while in use. Protect
the generator from all hazardous
weather conditions. Moisture or ice
can cause a short circuit or other
malfunction in the electrical circuit.
Never operate the generator in an
enclosed area. Engine exhaust
contains carbon monoxide. Only
operate the generator outside and
away from windows, doors and vents.
NOTICE
The engine is equipped with a low oil shutdown
switch. If the oil level becomes low, the engine may
shut down and not start until the oil is lled to the
proper level. Poor oil quality may interfere with the
operation of the low oil shutdown switch.
The owner of the generator is responsible to ensure
the proper oil level is maintained during the operation
of the generator. Failure to maintain the proper oil
level can result in engine damage.
OPERATION
Figure 6 - Maximum Gasoline Fill Level
Westinghouse Portable Power | 19
STARTING THE GENERATOR
1. Move generator to a at surface outside in a well
ventilated area away from open doors/windows.
2. Check oil levels (see Adding Engine Oil page 22).
3. Verify the battery is installed and both battery
cables are attached to their corresponding polarity.
(See Installing the Battery on page 11)
4. Disconnect all electrical loads from the generator.
5. Make sure the circuit breakers are properly set (see
Figure 7 below).
6. Move the fuel shut o valve to the ON position (see
Figure 8 below).
ON
OFF
Figure 8 - Fuel Shut O - ON
7. Move the choke lever to the ON position (see
Figure 9 below).
Figure 9 - Choke Lever - ON
8. Electric Start: Push and hold the engine control
switch in the START position until the engine starts.
Once the engine starts, release the engine control
switch; the switch will automatically move into the
RUN position (see Figure 10 below).
NOTICE
Failure to release the engine control switch once the engine starts
could result in damage to the generator.
Never push the engine control switch to the START position while
the engine is running’ this could damage the generator.
9. As the engine starts and stabilizes, gradually move
the choke lever back to the OFF position (see
Figure 11 below).
Note: If the engine fails to start after 5 seconds,
release the engine control switch. Let the generator
sit idle for 15 seconds and then repeat step 8. If
the cranking speed drops after each unsuccessful
attempt, then the battery may not be adequately
charged. Manually start the generator by following
steps below:
Manual Start: perform steps 1-7. Make sure the engine
control switch is in the RUN position. Firmly grasp and
pull the recoil handle slowly until you feel increased
resistance. At this point, apply a rapid pull while pulling
up and slightly away from the generator (see Figure
12). After engine starts wait 5 seconds and then move
choke to OFF.
OPERATION
Figure 10 - Engine Control Switch - START
Figure 12 - Engine Control Switch - RUN
Recoil Handle - PULL
Figure 11 - Choke Lever - OFF
Figure 7 - Breakers - (1) Operating Position,
(2) Tripped Position, (3) Operating Position,
(4) Tripped Position
START
RUN
STOP
START
RUN
STOP
20 | Westinghouse Portable Power
STOPPING THE GENERATOR
Normal Operation
During normal operation, use the following steps to
stop your generator:
1. Remove any connected loads from the control
panel receptacles.
2. Allow the generator to run at “no load” to reduce
and stabilize engine and alternator temperatures.
3. Position the engine control switch to STOP or if you
plan to store the generator after use, turn the fuel
shuto valve to the OFF position and allow the fuel
to be consumed from the carburetor. (see gure 13)
During an Emergency
If there is an emergency and the generator must be
stopped quickly, position the engine control switch to
the STOP position immediately.
WARNING
Internal pressure can build in the
engine crankcase while the engine
is running. Removing the oil ll plug/
dipstick while the engine is hot can
cause extremely hot oil to spray out
of the crankcase and can severely
burn skin. Allow engine oil to cool for
several minutes before removing the
oil ll plug/dipstick.
Always perform maintenance in a well-
ventilated area. Gasoline fuel and fuel
vapors are extremely ammable and
can ignite under certain conditions.
WARNING
Avoid accidentally starting the
generator during maintenance by
removing the spark plug boot from
the spark plug. For electric start
generators, also disconnect the
battery cables from the battery
(disconnect the black negative (-)
cable rst) and place the cables away
from the battery posts to avoid arcing.
Allow hot components to cool to
the touch prior to performing any
maintenance procedure.
OPERATION
MAINTENANCE
Figure 13 - Move engine switch to STOP
BEFORE PERFORMING MAINTENANCE ON THE GENERATOR, REVIEW THE
SAFETY SECTION STARTING ON PAGE 5, AS WELL AS THE FOLLOWING
SAFETY MESSAGES.
START
RUN
STOP
Westinghouse Portable Power | 21
MAINTENANCE SCHEDULE
WARNING
Failure to perform periodic
maintenance or not following
maintenance procedures can cause
the generator to malfunction and
could result in death or serious injury.
NOTICE
Periodic maintenance intervals vary depending
on generator operating conditions. Operating the
generator under severe conditions, such as sustained
high-load, high-temperature, or unusually wet or
dusty environments, will require more frequent
periodic maintenance. The intervals listed in the
maintenance schedule should be treated only as a
general guideline.
MAINTENANCE
TABLE 1: MAINTENANCE SCHEDULE - OWNER PERFORMED
Maintenance Item
Before Every
Use
After First 20
Hours or First
Month of Use
After 50 Hours
of Use or Every
6 Months
After 100 Hour
of Use or Every
6 Months
After 300 Hours
of Use or Every
Year
Engine Oil
Check Level Change Change - -
Cooling Features
Check/Clean - - - -
Air Filter
Check - Clean* - Replace
Spark Plug
- - - Check/Clean Replace
Spark Arrestor
- - - Check/Clean -
*Service more frequently if operating in dry and dusty conditions
TABLE 2: MAINTENANCE SCHEDULE - AUTHORIZED WESTINGHOUSE
SERVICE DEALER PERFORMED
Maintenance Item
Before Every
Use
After First 20
Hours or First
Month of Use
After 50 Hours
of Use or Every
6 Months
After 100 Hour
of Use or Every
6 Months
After 300 Hours
of Use or Every
Year
Valve Clearance
- - - - Check/Adjust
Fuel Filter
- - - Check/Clean -
CAUTION
Avoid skin contact with engine
oil or gasoline. Prolonged
skin contact with engine oil
or gasoline can be harmful.
Frequent and prolonged
contact with engine oil may
cause skin cancer. Take
protective measures and
wear protective clothing and
equipment. Wash all exposed
skin with soap and water.
Following the maintenance schedule is important
to keep the generator in good operating condition.
The following is a summary of maintenance items by
periodic maintenance intervals.
22 | Westinghouse Portable Power
ENGINE OIL MAINTENANCE
Engine Oil Specication
1. Only use the engine oil specied in Figure 14.
2. Only use 4-stroke/cycle engine oil. NEVER USE
2-STROKE/CYCLE OIL. Synthetic oil is an
acceptable substitute for conventional oil.
Figure 14 - Recommended Oil
CHECKING ENGINE OIL
NOTICE
Always maintain proper engine oil level. Failure to
maintain proper engine oil level could result in severe
damage to the engine and/or shorten the life of the
engine. Always use the specied engine oil. Failure
to use the specied engine oil can cause accelerated
wear and/or shorten the life of the engine.
Engine oil level should be checked before every use.
1. Always operate or maintain the generator
on a at surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. With a damp rag, clean around the
oil ll plug/dipstick.
5. Remove oil ll plug/dipstick (see Figure 15 below).
Figure 15 - Oil Fill Plug/Dipstick
6. Check oil level: When checking the engine oil,
remove the oil ll plug/dipstick and wipe it clean.
Thread the oil ll plug/dipstick all the way back in
and then remove and check the oil level on the oil
ll plug/dipstick.
• Acceptable Oil Level – Oil is visible on the
crosshatches between the H and L lines on the oil
ll plug/dipstick (see Figure 16).
• Low Oil – Oil is below the L line on the oil ll
plug/ dipstick.
Figure 16 - Checking Oil Level
ADDING ENGINE OIL
1. Always operate or maintain the generator
on a at surface.
2. Stop engine if running.
3. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
4. Thoroughly clean around the oil ll plug/dipstick.
5. Remove oil ll plug/dipstick and wipe clean.
6. Select the proper engine oil as specied
in Figure 14.
7. Using the supplied funnel and tube, slowly add
engine oil to the engine. Stop frequently to check
the level to avoid overlling.
8. Continue to add oil until the oil is at the correct level
(see Figure 16).
MAINTENANCE
Westinghouse Portable Power | 23

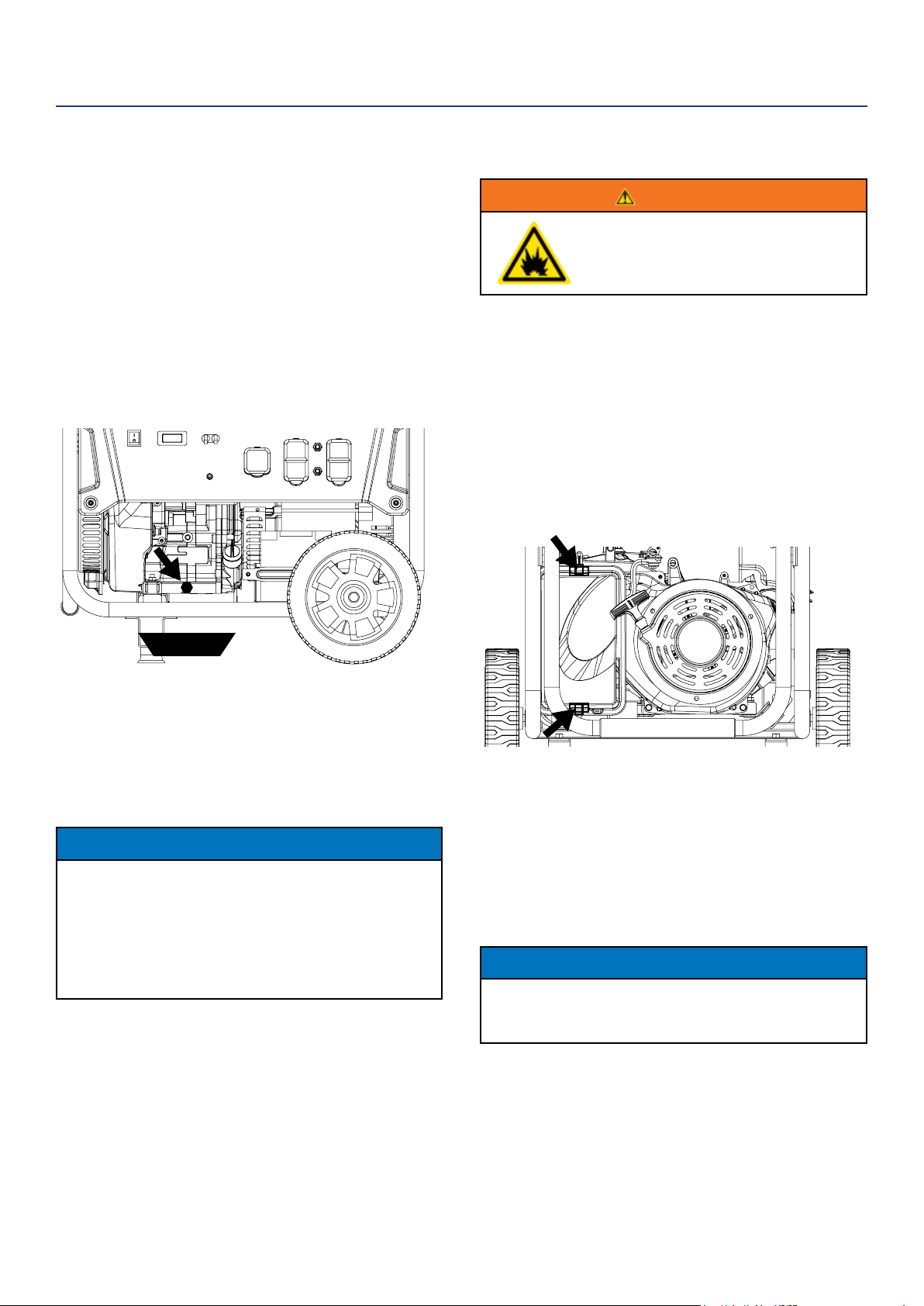

oil pan
CHANGING ENGINE OIL
1. Stop the engine.
2. Let engine sit and cool for several minutes (allow
crankcase pressure to equalize).
3. Place oil pan (or suitable container) under the oil
drain plug (see Figure 17).
4. With a damp rag, thoroughly clean around the oil
drain plug.
5. Remove the oil drain plug (see Figure 17). Once
removed, place the oil drain plug on a clean
surface.
Figure 17 - Oil Drain Plug
6. Allow oil to completely drain.
7. Replace oil drain plug.
8. Fill crankcase with oil following the steps outlined in
Adding Engine Oil on page 22.
NOTICE
Never dispose of used engine oil by dumping the
oil into a sewer, on the ground, or into ground
water or waterways. Always be environmentally
responsible. Follow the guidelines of the EPA or
other governmental agencies for proper disposal
of hazardous materials. Consult local authorities or
reclamation facility.
AIR FILTER MAINTENANCE
WARNING
Never use gasoline or other ammable
solvents to clean the air lter. Use only
household detergent soap to clean the
air lter.
Cleaning the Air Filter
The air lter must be cleaned after every 50 hours of
use or 3 months (frequency should be increased if
generator is operated in a dusty environment).
1. Turn o the generator and let it cool for several
minutes if running.
2. Move the generator to a at, level surface.
3. Unclip the clips on the top and bottom of the air
lter cover (Figure 18).
4. Remove the black coarse air lters.
5. Wash the foam air lter elements by submerging
the elements in a solution of household detergent
soap and warm water. Slowly squeeze the foam to
thoroughly clean.
NOTICE
NEVER twist or tear the foam air lter element
during cleaning or drying. Only apply slow but rm
squeezing action.
6. Rinse in clean water by submerging the air lter
elements in fresh water and applying a slow
squeezing action
MAINTENANCE
Figure 18 - Clips on air lter
24 | Westinghouse Portable Power
Cleaning the Air Filter - Continued from Page 23
NOTICE
Never dispose of soap cleaning solution used to clean the air lter
by dumping the solution into a sewer, on the ground, or into ground
water or waterways. Always be environmentally responsible.
Follow the guidelines of the EPA or other governmental agencies
for proper disposal of hazardous materials. Consult local
authorities or reclamation facility.
1. Dispose of used soap cleaning solution properly.
2. Dry the air lter elements by again applying a slow
rm squeezing action.
3. Once the air lters are dry, coat the air lters with
clean engine oil (see Figure 19 below).
Figure 19
4. Squeeze the lters to remove any excess oil.
5. Install the lters back into the unit. If there are two
lters make sure the gray (ne) air lter goes in
rst followed by the black (coarse) air lter on the
outside.
6. Install the air lter cover and secure the air lter assembly.
SPARK PLUG MAINTENANCE
The spark plug must be checked and cleaned after
every 100 hours of use or 6 months and must be
replaced after 300 hours of use or every year.
1. Stop the generator and let it cool for several
minutes if running.
2. Move the generator to a at, level surface.
3. Remove the spark plug boot by rmly pulling the
plastic spark plug boot handle directly away from
the engine (see Figure 20).
NOTICE
Never apply any side load or move the spark plug laterally when
removing the spark plug. Applying a side load or moving the spark
plug laterally may crack and damage the spark plug boot.
Figure 20 - Remove Spark Plug Boot
4. Clean area around the spark plug.
5. Using the 13/16” spark plug socket wrench
provided, remove the spark plug from the cylinder
head.
6. Place a clean rag over the opening created by the
removal of the spark plug to make sure no dirt can
get into the combustion chamber.
• Inspect the spark plug for:
• Cracked or chipped insulator
• Excessive wear
• Spark plug gap (the acceptable
limit of 0.027–0.032 in.
[0.70 – 0.80 mm]) (see Figure 21).
NOTICE
Use only recommended spark plugs when servicing. The
manufacturer is not responsible for engine damage when using
spark plugs not recommended by the manufacturer.
7. Install the spark plug by carefully following the
steps outlined below:
a. Carefully insert the spark plug back into the
cylinder head. Hand-thread the spark plug until
it bottoms out.
b. Using the 13/16” spark plug socket wrench
provided, turn the spark plug to ensure it is fully
seated.
c. Replace the spark plug boot, making sure the
boot fully engages the spark plug’s tip.
Recommended Spark Plug Replacement:
AC Delco: 4EXLS
Autolite: 52
Champion: N9YC
Bosch: W7DC
Torch: F7TC
MAINTENANCE
SPARK PLUG GAP
Figure 21
Westinghouse Portable Power | 25
3. The reset button should pop out and there will
be no power from the outlets. If the reset button
does not pop out, the GFCI outlet is not working
correctly and must be repaired before the generator
can be operated.
4. Press the reset button to restore power to the
outlet.
CLEANING THE GENERATOR
It is important to inspect and clean the generator before
every use.
Clean All Engine Air Inlet and Outlet Ports – Make
sure all engine air inlet and outlet ports are clean of any
dirt and debris to ensure the engine does not run hot.
Clean All Engine Cooling Fins – Use a damp rag and
a brush to loosen and remove all dirt on or around the
engine’s cooling ns.
Clean All Alternator Cooling Air Inlets and Exhaust
Ports – Make sure the cooling air inlets and exhaust
ports of the alternator are free of any debris and ob-
structions. Use a vacuum cleaner to remove dirt and
debris stuck in the cooling air inlets and exhaust ports.
General Cleaning of the Generator – Use a damp rag
to clean all remaining surfaces.
TESTING GFCI OUTLETS
1. Start the generator and allow it to warm up.
2. Press the test button on the GFCI outlet.
MAINTENANCE
Test Button
Reset Button
CHECKING AND ADJUSTING VALVE LASH
CAUTION
Checking and adjusting valve lash
must be done when the engine is cold.
1. Remove the rocker arm cover and carefully remove
the gasket. If the gasket is torn or damaged, it must
be replaced.
2. Remove the spark plug so the engine can be
rotated more easily.
3. Rotate the engine to top dead center (TDC) of the
compression stroke. Looking through the spark
plug hole, the piston should be at the top.
4. Both the rocker arms should be loose at TDC on
the compression stroke. If they are not, rotate the
engine 360°.
5. Insert a feeler gauge between the rocker arm and
the push rod and check for clearance (see Figure
23). See Table 2 for valve lash specications
Figure 23
(1) Push Rod, (2) Feeler Gauge Area
(3) Rocker Arm, (4) Jam Nut, (5) Adjusting Nut
(Table 2) Standard Valve Lash
Intake Valve Exhaust Valve
Valve Lash
0.0035 ± 0.0043 in
(0.09 ± 0.11 mm)
0.0043 ± 0.0051 in
(0.11 ± 0.13 mm)
Bolt Torque
8-12N.m 8-12N.m
6. If an adjustment is required, hold the adjusting nut
and loosen the jam nut.
1
2
3
4
5
26 | Westinghouse Portable Power
WARNING
Before attempting to service or troubleshoot the generator, the owner or service technician must rst read the owner’s
manual and understand and follow all safety instructions. Failure to follow all instructions may result in conditions that
can lead to voiding of the EPA certication or product warranty, serious personal injury, property damage or even death.
TROUBLESHOOTING
PROBLEM POTENTIAL CAUSE SOLUTION
Engine is running, but no
electrical output
1. Circuit breakers are tripped. 1. Reset the circuit breakers and check
for overload condition.
2. The power cord’s plug connector is not
fully engaged in the generator’s outlet.
2. Verify plug connector is rmly engaged
in the generator’s outlet. If using the
240V outlet, make sure plug connector
is rotated 1/4 turn in the clockwise
direction.
3. Faulty or defective power cord 3. Replace power cord.
4. Faulty or defective electrical appliance 4. Try connecting a known good
appliance to verify the generator is
producing electrical power.
5. GFCI outlet is tripped 5. Press the reset button on the GFCI
outlet (see page 25).
6. If trying 1-5 above does not solve
the problem, the cause might be the
generator has a fault.
6. Take the generator to your nearest
authorized service dealer.
STORING GENERATOR
WARNING
Never store a generator with fuel in the
tank indoors or in a poorly ventilated
area where the fumes can come in
contact with an ignition source such
as a: 1) pilot light of a stove, water
heater, clothes dryer or any other gas
appliance; or 2) spark from an electric
appliance.
NOTICE
Gasoline stored for as little as 60 days can go bad, causing gum,
varnish and corrosive buildup in fuel lines, fuel passages and the
engine. This corrosive buildup restricts the ow of fuel, preventing
an engine from starting after a prolonged storage period.
Proper care should be taken to prepare the generator
for any storage.
1. Make sure the Engine Switch is switched to STOP.
2. Disconnect the battery.
3. Clean the generator as outlined in Cleaning the
Generator.
STORAGE
4. Drain all gasoline from the fuel tank as best as
possible.
5. With the fuel shut o valve open, start the engine
and allow the generator to run until all the remaining
gasoline in the fuel lines and carburetor is
consumed and the engine shuts o.
6. Close the fuel shut o valve.
7. Change the oil (see Changing Engine Oil on page
22).
8. Remove the spark plug (see Spark Plug
Maintenance on page 24) and place about 1
tablespoon of oil in the spark plug opening. While
placing a clean rag over the spark plug opening,
slowly pull there coil handle to allow the engine to
turn over several times. This will distribute the oil
and protect the cylinder wall from corroding during
storage.
9. Replace the spark plug (see Spark Plug
Maintenance on page 24).
10. Move the generator to a clean, dry place for
storage.
Westinghouse Portable Power | 27
PROBLEM POTENTIAL CAUSE SOLUTION
Engine will not start or
remain running while
trying to start.
1. Fuel shuto valve is in the OFF
position.
1. Move the fuel shut o valve to the ON
position (see Figure 8 page 19).
2. Generator is out of gasoline. 2. Add gasoline to the generator (see
page 18).
3. Fuel ow is obstructed. 3. Inspect and clean fuel delivery
passages.
4. Unit is over choked. 4. Move the choke lever halfway between
the ON and OFF positions.
5. Starting battery may have insucient
charge
5. On electric start models only. Check
battery output and charge battery as
necessary.
6. Dirty air lter 6. Check and clean the air lter (see page
23).
7. Low oil level shut down switch is
preventing the unit from starting.
7. Check oil level and add oil if necessary
(see page 22).
8. Spark plug boot is not fully engaged
with the spark plug tip.
8. Firmly push down on the spark plug
boot to ensure the boot is fully engaged
9. Spark plug is faulty. 9. Remove and check the spark plug.
Replace if faulty (see page 23).
10. Dirty/plugged spark arrestor 10. Check and clean the spark arrestor.
11. Stale fuel 11. Drain fuel and replace with fresh fuel
(see page 18).
12. If trying 1-11 above does not solve
the problem, the cause might be the
generator has a fault.
12. Take the generator to your nearest
authorized service dealer.
TROUBLESHOOTING
Generator suddenly
stops running.
1. Generator is out of fuel. 1. Check fuel level (see page 18). Add
fuel if necessary.
2. The low oil shut down switch has
stopped the engine.
2. Check oil level and add oil if necessary
(see page 22).
3. Too much load 3. Restart the generator and reduce the
load.
4. If trying 1-3 above does not solve the
problem,the cause might be a fault in the
generator.
4. Take the generator to your nearest
authorized service dealer.
Engine runs
erratic; does not hold a
steady RPM.
1. Choke was left in the ON position. 1. Move choke to the OFF position
2. Dirty air lter 2. Clean the air lter (see pages 23).
3. Applied loads maybe cycling on and
o
3. As applied loads cycle, changes in
engine speed may occur; this is a normal
condition.
4. If trying 1-3 above does not solve
the problem, the cause might be a
fault in the generator
4. Take the generator to your nearest
authorized service dealer.
28 | Westinghouse Portable Power
WGEN6000 EXPLODED VIEW
Westinghouse Portable Power | 29
WGEN6000 EXPLODED VIEW PART NO.
No.
Part. Description
1
100601 Frame
2
100552 Damper
3
100553 Damper
4
100551 M10 Nut
5
180524 M8 Nut
6
150507 Fuel Hose
7
180563 Bracket
8
120505 M6X12
9
110504 Bracket
10
180591 Engine Assembly
11
130556 Control Panel
11.1
130502 Start Switch
11.2
130503 VFT Meter
11.3
130557 Circuit Breaker 2P23A
11.4
130505 L14-30 Receptacle
11.5
130506 R5-20 GFCI Receptacle
11.6
130533 Circuit Breaker 1P20A
12
180562 Dust Plate
13
100516 M8X16
14
120520 Alternator Assy
14.1
120503 Terminal Block
14.2
120502 Brush Assy
15
120504 Rear Bearing Carrier
16
100540 Washer
17
120522 M10X1.25X255
18
120521 M6X165
19
120537 M5X12
20
120547 AVR
21
120519 Alternator Cover
22
110501 Gasket
23
110502 Spring Washer
24
110517 Muer
25
150555 Fuel Tank
25.1
150506 Fuel Strainer
26
120536 M6X25
27
150501 M6 Washer
28
120543 Ground Strap
29
120508 M8 Washer
30
150505 Fuel Tank Cap
31
150502 Fuel Valve
32
100547 Washer
33
100548 M6 Nut
34
100530 Bracket
35
100512 Foot Bracket
36
100515 Rubber Pad
37
100518 M6X25
38
100510 Washer
39
100506 Wheel
40
100504 Axle Pin
41
100508 Cotter Pin
42
100527 Plug
43
100525 Handle Fastener
44
100521 Handle
45
100523 Handle Cover
46
120535 M5X204
47
120510 M5 Nut
48
120511 M5 Washer
49
120512 M5 Lock Washer
50
180561 Fan Guard
51
110503 M8X30
52
120518 M5X16
53
150516 Hose Clamp
54
100520 M8 Nut
55
100529 Rubber Pad
56
120516 Ground Strap
57
100585 Battery
58
100558 Clamp
59
100584 Positive Lead
60
100555 Negative Lead
30 | Westinghouse Portable Power
WGEN6000 ENGINE VIEW
No. Part. Description
1 180593 Ball Bearing
2 180504 Oil Seal
3 180507 Drain Plug
4 180508 Drain Plug Seal
5 180512 Crankcase Cover
6 170502 Harness Clamp
7 180514 Cylinder Head Assy
7.1 180523 M10X80 Stud
7.2 180526 Spark Plug
7.3 180528 Valve Cover Gasket
7.4 180527 Valve Cover
7.5 180529 Valve Cover Bolt
7.6 140503 M6 Stud
7.7 140504 Gasket
7.8 180523 M10X80 Stud
8 140551 Carburetor Assy
9 140519 Fuel Hose
10 180586 Low Oil Switch
11 180515 Govenor Arm
12 100548 M6 Nut
13 180511 Gasket
14 180513 Cylinder Head
Gasket
15 180520 Heat Shield
16 120505 M6X12
17 180521 Exhaust Pipe
18 180524 M8 Nut
19 180503 Flywheel Assy
20 180502 Engine Cooling Fan
21 180501 Starter Cup
22 180500 Crankshaft Nut
23 180505 Ignition Coil Assy
24 100518 M6X25
25 140502 Spacer
26 140501 Gasket
27 140550 Gasket
28 180516 Govenor Linkage
29 180517 Throttle Spring
30 170500 Recoil Assy
31 180519 Heat Shield
32 160500 Air Cleaner Assy
33 180533 Vent Hose
34 140506 Fitting
35 180518 Govenor Spring
36 180509 Amplier
37 180585 Dipstick
38 180510 Grommet
39 180522 Gasket
40 110502 M8 Lock Washer
41 180506 Charge Coil
42 170517 Starter
43 170504 Wire Clamp
44 170506 Wire Clamp
Westinghouse Portable Power | 31
WGEN6000 SCHEMATIC
WH7500v SCHEMATIC
32 | Westinghouse Portable Power
Version 10.9.17KD
