CROSS LINE LASER
MODEL:GK011G/R
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:GK011G/R
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CROSS LINE LASER
- 2 -
Warning-To reduce the risk of injury, users must read instructions
manual carefully.
Warning- Be sure to wear eye protectors when using this product.
This symbol, placed before a safety comment, indicates a kind of
precaution, warning, or danger. Ignoring this warning may lead to an
accident. To reduce the risk of injury, fire, or electrocution, please follow
the recommendation below.
FCC statement:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1)This device may not cause
harmful interference, and (2)this device must accept any interference
received, including interference that may cause undesired operation.
Contents
• Safety
• Product Overview
• Operation Modes & LED Indications
• Applications
• User Guide, Maintenance and Care
• Specifications
• Warranty
Safety
WARNING:
• Read the Safety Instructions and User Manual thoroughly before using this
product. All users must fully understand and adhere to these instructions.
CAUTION:
- 3 -
• While the product operates, avoid exposing your eyes to the emitting laser beam
(red light source). Exposure to a laser beam for an extended time may be
hazardous to your eyes.
CAUTION:
• Glasses may be supplied in some of the laser tool kits. However, these are NOT
certified safety glasses. These glasses are ONLY used to enhance the beam's
visibility in brighter environments or at greater distances from a laser source.
WARNING:
• The following label/print samples are placed on the product to inform of the laser
class for your convenience and safety.
• Do not stare directly into the beam or view with optical instruments, or set up the
laser at eye level.
• Do not disassemble the laser tool. There are no user serviceable parts inside.
• Do not modify the laser in any way. Modifying the tool may result in hazardous
Laser Radiation Exposure.
• Do not operate the laser around children or allow children to operate the laser.
Serious eye injury may result.
An exposure to the beam of a Class 2 laser is considered safe for a maximum of
0.25 seconds. Eyelid reflexes will normally provide adequate protection.

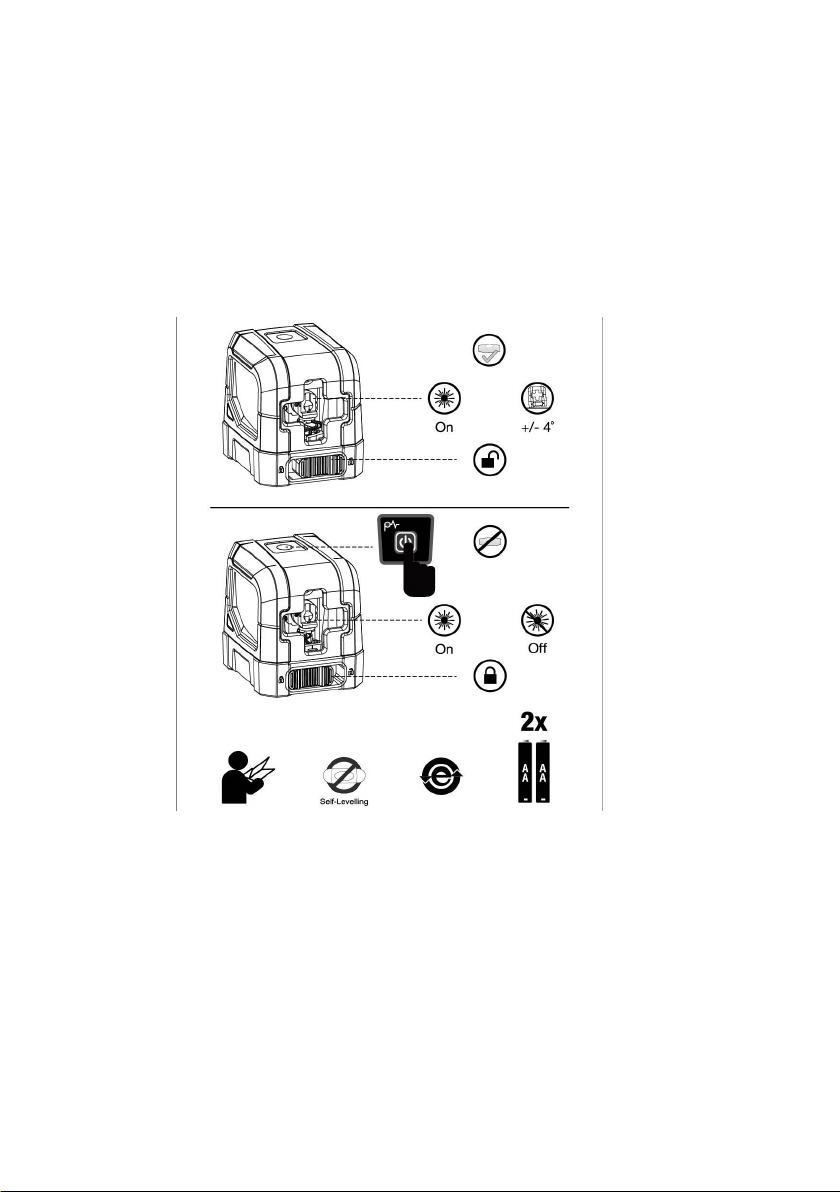

Operation Modes
General Notes:
• Press or slide locking switch to turn laser tool ON; short press to turn laser tool
OFF when the laser tool is locked with a pendulum.
• Press repeatedly to cycle through the available modes.
Self-leveling Mode
- is enabled when the laser tool is switched to the unlocked position.
- 4 -
- has laser beam(s) blink fast at 2 Hz when tool is out of self-leveling range.
- allows proper use of tool’s full time pulse mode with laser detector.
Manual Mode
- is enabled when the pendulum lock is locked to position to position the laser tool
at various angles to project non-level straight lines or points.
- disables self-leveling operations; Accuracy of the beam(s) is not guaranteed to
be level, and laser beam(s) will blink about every 5 seconds.
User Guide, Maintenance and Care
• The laser tool is sealed and calibrated at the plant to the accuracies specified.
• It’s recommended to carry out a accuracy check before its first use and periodic
checks during future use especially for precise layouts.
• When not in use please power OFF the tool and place the pendulum lock in
its locked position.
• In Manual Mode, self leveling is OFF. The accuracy of the beam is not ensured to
be level.
- 5 -
• Do not short any battery terminals, charge alkaline batteries, or dispose of
batteries in a fire.
• Do not mix old and new batteries. Replace all of them at the same time with
new batteries of the same brand and type.
• Keep batteries out of reach of children.
• Remove batteries if the tool will not be used for several months.
• Do not store the laser tool in direct sunlight or expose it to high temperatures.
The housing and some internal parts are made of plastics and may deform at high
temperatures.
• Exterior plastic parts may be cleaned with a damp cloth. Although these parts
are solvent resistant, NEVER use solvents. Use a soft, dry cloth to remove
moisture from the tool before storage.
• Store the tool in its case when not in use. If storing for extended time, remove
batteries before storage to prevent possible damage.
• Do not dispose of this product with household waste.
• Always dispose of batteries per local code.
• Please recycle in line with local provisions for collecting and disposing of
electrical and electronic waste under the WEEE Directive.
Specifications
Laser Class: Class 2 (IEC/EN60825-1/2007)
Laser Wavelength: 635±5nm
Leveling Accuracy: ±4.5mm/15m
Horizontal/Vertical Accuracy: ±4.5mm/15m
Leveling/Compensation Range: 4°±1°
Up Plumb Accuracy: N/A
Down Plumb Accuracy: N/A
Working Distance (Dot): N/A
Working Distance (Line): 20m
Operating Time: 10 Hours
Power Source: 2×˝AA˝ (LR6)
IP Rating: IP54
- 6 -
Operation Temperature Range: -10℃– ＋50℃
Storage Temperature Range: -25℃ – ＋70℃
Warranty
We are confident of the quality of our products and offer outstanding guarantee for
professional users of the products. This statement is in addition to and in no way
prejudices your contractual rights as a professional user or your statutory rights as
a private non-professional user. We warrant our laser level(s) against faults in
materials and/or workmanship for one year from date
of purchase provided that:
• Proof of purchase is produced.
• Unauthorized persons have not attempted service/repairs;
• The product has been subject to fair wear and tear;
• The product has not been misused;
Defective products will be repaired or replaced, free of charge or at our discretion,
if sent together with proof of purchase to our authorized distributor(s).
This Warranty does not cover faults caused by accidental damage, unfair wear
and tear, and use other than following the manufacturers’ instructions
or repair or alteration of this product not authorized by us.
Repair or replacement under this Warranty does not affect the expiry date of
the Warranty.
To the extent permitted by law, we shall not be liable under this Warranty for
indirect or consequential loss resulting from faults in this product. This
Warranty may not be varied without our authorization. Calibration and care are
not covered by warranty.
NOTE:
• The customer is responsible for the correct use and care of the tool.
Moreover, the customer is completely responsible for periodically checking the
accuracy of the laser, and therefore for the calibration of the tool.
Made In China
