Dryer
User Manual
BDP83HW
BDP83HW/271017.1521
EN
Please read this user manual first!
Dear Customer,
Thank you for prefering a Beko Euromed product. We hope that your product which has been
manufactured with high quality and technology will give you the best results. We advise you
to read through this manual and the other accompanying documentation carefully before
using your product and keep it for future reference. If you transfer the product to someone
else, give its manual as well. Pay attention to all details and warnings specified in the user
manual and follow the instructions given therein.
Use this user manual for the model indicated on the cover page.
Read the instructions.
Explanation of symbols
Throughout this user manual the following symbols are used:
C
Important information or useful hints about usage.
A
Warning for hazardous situations with regard to life and property.
B
Warning against electric shock.
Warning against hot surfaces.
Warning against fire hazard.
Warning against scalding hazard.
Packaging materials of the product are manufactured from recyclable materials in
accordance with our National Environment Regulations.
Do not dispose of the packaging wastes with the domestic waste or other wastes, discard
them to the dedicated collection points designated by the local authorities.
This product was manufactured using the latest technology in environmentally friendly conditions.
3 / EN
Dryer / User Manual
1 Important instructions for
safety and environment
Ths secton contans safety nstructons that wll help
protect from rsk of personal njury or property damage.
Falure to follow these nstructons shall vod any warranty.
1.1 General safety
• The dryer can be used by chldren at and above 8
years old and by persons whose physcal, sensory or
mental capabltes were not fully developed or who
lack experence and knowledge provded that they are
supervsed or traned on the safe usage of the product
and the rsks t brngs out. Chldren should not play wth
the product. Cleanng and mantenance works should not
be performed by chldren unless they are supervsed by
someone.
• Chldren of less than 3 years should be kept away unless
contnously supervsed.
• Adjustable feet should not be removed. The gap between
the dryer and the floor should not be reduced wth
materals such as carpet, wood and tape. Ths wll cause
problems wth the dryer.
• Always have the nstallaton and reparng procedures
carred out by the Authorzed Servce. Manufacturer
shall not be held lable for damages that may arse from
procedures carred out by unauthorzed persons.
• Never wash the dryer by sprayng or pourng water onto t!
There s the rsk of electrc shock!
For the products wth a steam functon:
• Use only dstlled water or water condensed n the water
tank of the machne n steam programs. Do not use mans
water or addtves. When usng condensed water n the
water tank, t should be fltered and cleared of fbres.
• Do not open the door when steam programs are runnng.
Hot water may be expelled.
• Before puttng laundry n a steam program, stans on t
should be removed.
4 / EN
Dryer / User Manual
Important instructions for safety and
environment
• You may only put laundry that s not drty or staned
but permeated wth unpleasant odour n steam (odour
removal) program.
• Do not use any dry cleanng sets or addtonal materals n
a steam program or n any program.
1.1.1 Electrcal safety
A
Electrcal safety nstructons should be followed
whle electrcal connecton s made durng the
nstallaton.
A
The applance must not be suppled through an
external swtchng devce, such as a tmer,or
connected to a crcut that s regularly swtched on
and off by utlty.
• Connect the dryer to a grounded outlet protected by a
fuse at the value specfed on the type label. Have the
groundng nstallaton performed by a qualfed electrcan.
Our company shall not be lable for any damages that
wll arse when the dryer s used wthout groundng n
accordance wth the local regulatons.
• The voltage and allowed fuse protecton s stated on the
type label plate.
• The voltage specfed on the type label must be equal to
your mans voltage.
• Unplug the dryer when t s not n use.
• Unplug the dryer from the mans durng nstallaton,
mantenance, cleanng and repar works.
• Do not touch the plug wth wet hands! Never unplug by
pullng on the cable, always pull out by grabbng the plug.
• Do not use extenson cords, mult-plugs or adaptors to
connect the dryer to power supply n order to decrease the
rsk of fre and electrc shock.
• Power cable plug must be easly accessble after
nstallaton.
B
Damaged mans cable should be changed notfyng
the Authorzed Servce.
5 / EN
Dryer / User Manual
Important instructions for safety and
environment
B
If the dryer s faulty, t must not be operated unless
t s repared by an authorzed servce agent! There s
the rsk of electrc shock!
1.1.2 Product safety
Superheatng of the clothes nsde of the dryer can
occur f you cancel the programme or n the event
of a power falure whlst the dryer s runnng, ths
concentraton of heat can cause self-combuston and
fre so always actvate the ventlaton programme
to cool down or quckly remove all laundry from the
dryer n order to hang them up and dsspate the
heat.
Ponts to be taken nto consderaton for fre
hazard:
Below specfed laundry or tems must not be dred n
the dryer consderng fre hazard.
• Unwashed laundry tems
• Items soled wth ol, acetone, alcohol, fuel ol,
kerosene, stan removers, turpentne, paraffn or
paraffn removers must be washed n hot water
wth plenty of detergent before beng dred n the
dryer.
For ths reason especally the tems contanng the
above specfed stans must be washed very well, to
do ths use adequate detergent and choose a hgh
washng temperature.
6 / EN
Dryer / User Manual
Important instructions for safety and
environment
Below specfed laundry or tems must not be
dred n the dryer due to the fre hazard:
• Garments or pllows bolstered wth rubber foam
(latex foam), shower bonnets, water resstant
textles, materals wth rubber renforcement and
rubber foam pads.
• Clothng cleaned wth ndustral chemcals.
Items such as lghter, match, cons, metal parts,
needle etc. may damage the drum set or may lead to
functonal problems. Therefore check all the laundry
that you wll load nto your dryer.
Never stop your dryer before the programme
completes. If you must do ths, remove all laundry
quckly and lay them out to dsspate the heat.
Clothes that are washed nadequately may gnte on
ther own and even may gnte after dryng ends.
Ol-affected tems can gnte spontaneously,
especally when exposed to heat sources such as n
a tumble dryer. The tems become warm, causng an
oxdaton reacton n the ol. Oxdaton creates heat.
If the heat cannot escape, the tems can become hot
enough to catch fre. Plng, stackng or storng ol-
affected tems can prevent heat from escapng and
so create a fre hazard.
If t s unavodable that fabrcs that contan vegetable
or cookng ol or have been contamnated by har care
products be placed n a tumble dryer they should frst
be washed n hot water wth extra detergent - ths
wll reduce, but not elmnate, the hazard.
• You must provde enough ventlaton n order to prevent
gases extng from devces operatng wth other types of
fuels ncludng the naked flame from accumulatng n the
room due to the back fre effect.
7 / EN
Dryer / User Manual
Important instructions for safety and
environment
A
Underwear that contans metal renforcements
should not be dred n the dryer. Dryer may be
damaged f metal renforcements come loose and
break off durng dryng.
C
Use softeners and smlar products n accordance
wth the nstructons of ther manufacturers.
C
Always clean the lnt flter before or after each
loadng. Never operate the dryer wthout the lnt
flter nstalled.
• Never attempt to repar the dryer by yourself. Do not
perform any repar or replacement procedures on the
product even f you know or have the ablty to perform
the requred procedure unless t s clearly suggested n the
operatng nstructons or the publshed servce manual.
Otherwse, you wll be puttng your lfe and others’ lves n
danger.
• There must not be a lockable, sldng or hnged door that
may block the openng of the loadng door n the place
where your dryer s to be nstalled.
• Install your dryer at places sutable for home use.
(Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the
nsde of the dryer before operatng t.
• Do not lean on the loadng door of your dryer when t s
open, otherwse t may fall over.
• The lnt must not be allowed to accumulate around the
tumble dryer
• The tumble dryer s not to be used f ndustral chemcals
have been used for cleanng.
• Fabrc softeners, or smlar products.should be used as
specfed by the fabrc softener nstructons.
• Exhaust ar must not be dscharged nto a flue whch s
used for exhaustng fumes from applances burnng gas or
other fuels.
8 / EN
Dryer / User Manual
Important instructions for safety and
environment
• The fnal step of the dryng cycle (cool-down cycle) occurs
wthout applyng heat to ensure that the tems are left at a
temperature that wll not damage them.
1.2 Mountng over a washng machne
• A fxng devce should be used between the two machnes
when nstallng the dryer above a washng machne. The
fttng devce must be nstalled by the authorzed servce
agent.
• Total weght of the washng machne and the dryer -wth
full load- when they are placed on top of each other
reaches to approx. 180 klograms. Place the products on a
sold floor that has suffcent load carryng capacty!
A
Washng machne cannot be placed on the dryer.
Pay attenton to the above warnngs durng the
nstallaton on your washng machne.
Installation Table for Washing Machine and Dryer
Dryer
Depth
Washing Machine Depth
62 cm 60 cm 54 cm 50 cm 49 cm 45 cm 40 cm
54 cm
Can be nstalled
Can be
nstalled
Cannot be
nstalled
60 cm
Can be nstalled
Cannot be
nstalled
9 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.3 Intended use
• Dryer has been desgned for domestc use. It s not sutable
for commercal use and t must not be used out of ts
ntended use.
• Use the dryer only for dryng laundry that are marked
accordngly.
• The manufacturer waves any responsblty arsen from
ncorrect usage or transportaton.
• The servce lfe of the dryer that you purchased s 10 years.
Durng ths perod, orgnal spare parts wll be avalable to
operate the dryer properly.
1.4 Chld safety
• Packagng materals are dangerous for the chldren. Keep
packagng materals away from chldren.
• Electrcal products are dangerous for the chldren. Keep
chldren away from the product when t s operatng. Do
not let them tamper wth the dryer. Use the chld-proof
lock n order to prevent the chldren to tamper wth the
dryer.
C
Chld-proof lock s on the control panel.
(See Chld lock)
• Keep loadng door closed even when the dryer s not n
use.
10 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.5 Complance wth the WEEE regulaton
and dsposng of the waste product
Ths product comples wth EU WEEE Drectve
(2012/19/EU). Ths product bears a classfcaton
symbol for waste electrcal and electronc equpment
(WEEE).
Ths product has been manufactured wth hgh
qualty parts and materals whch can be reused
and are sutable for recyclng. Do not dspose of the waste
product wth normal domestc and other wastes at the end
of ts servce lfe. Take t to the collecton center for the
recyclng of electrcal and electronc equpment. Please
consult your local authortes to learn about these collecton
centers.
1.6 Complance wth RoHS Drectve:
The product you have purchased comples wth EU RoHS
Drectve (2011/65/EU). It does not contan harmful and
prohbted materals specfed n the Drectve.
1.7 Package nformaton
Packagng materals of the product are manufactured
from recyclable materals n accordance wth our Natonal
Envronment Regulatons. Do not dspose of the packagng
materals together wth the domestc or other wastes. Take
them to the packagng materal collecton ponts desgnated
by the local authortes.
11 / EN
Dryer / User Manual
Important instructions for safety and
environment
1.8 Techncal Specfcatons
* Mn. heght: Heght wth adjustable feet are closed.
Max. heght: Heght wth adjustable feet are opened
maxmum.
** Dry laundry weght before washng.
*** Type label s located behnd the loadng door.
EN
Height (min. / max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 60,9 cm
Capacity (max.) 8 kg**
Net weight (plastic front door
usage)
48,5 kg
Net weight (glass front door
usage)
51 kg
Voltage
See type label***Rated power input
Model code
C
Techncal specfcatons of the dryer are subject to
specfcaton wthout notce to mprove the qualty of
the product.
C
Fgures n ths manual are schematc and may not
match the product exactly.
C
Values stated on markers on the dryer or n the other
publshed documentaton accompanyng wth the
dryer are obtaned n laboratory n accordance wth
the relevant standards. Dependng on operatonal and
envronmental condtons of the dryer, these values
may vary.
12 / EN
Dryer / User Manual
2 Your Dryer
2.1 Overview
11
10
1
2
3
4
5
6
7
8
9

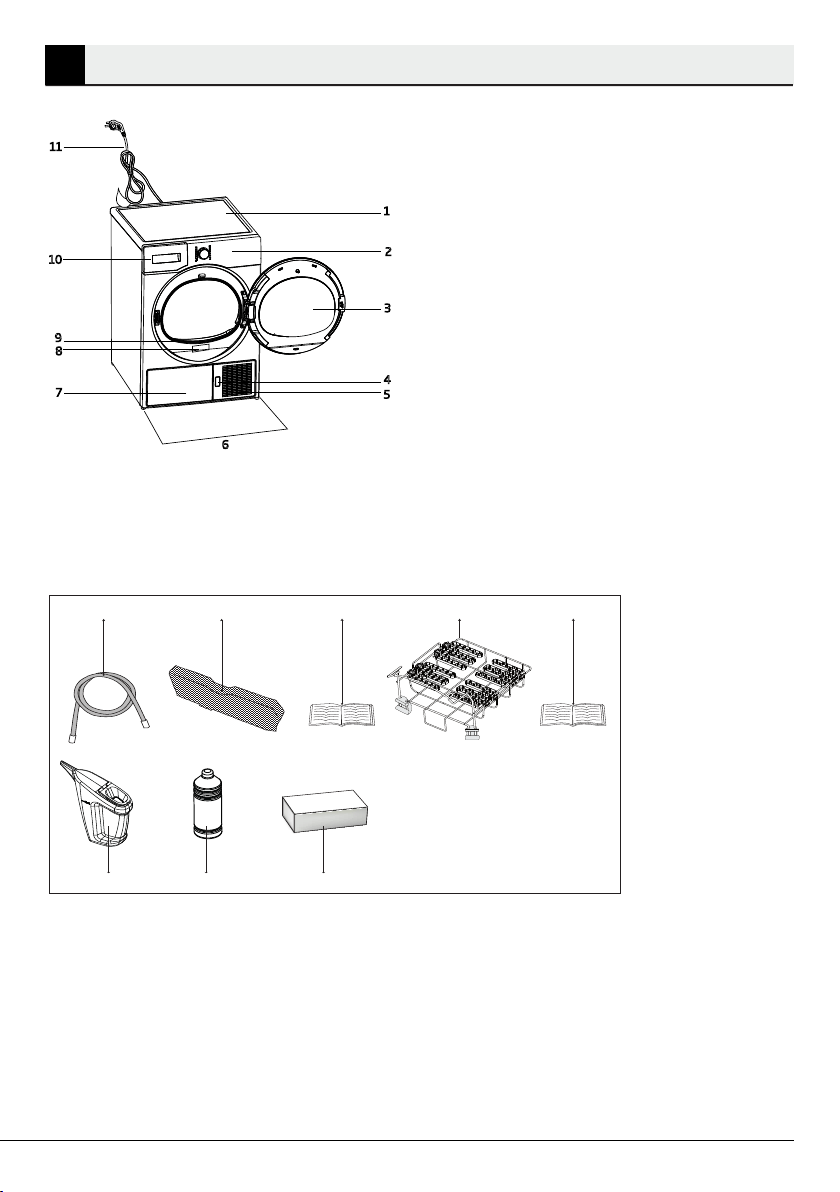

1. Top panel
2. Control panel
3. Loading door
4. Kick plate opening button
5. Ventilation grids
6. Adjustable legs
7. Kick plate
8. Type label
9. Lint filter
10. Water tank drawer
11. Power cord
2.2 Package Contents
1
2 3
5
6
4
7 8
1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*
6. Water Filling Container*
7. Pure Water*
8. Fragrance Capsules Group*
*It can be supplied with your machine depending on its model.
13 / EN
Dryer / User Manual
3 Installaton
Before the calling the nearest Authorized
Service for the installation of the dryer,
ensure that electrical installation and water
drain is appropriate referring to the user’s
manual. If they are not suitable, contact a
qualified electrician and technician to make
necessary arrangements.
C
Preparation of the dryer's location
as well as the electrical and
waste water installations is under
customer's responsibility.
A
Prior to installation, visually check
if the dryer has any defects on
it. If the drier is damaged, do
not have it installed. Damaged
products cause risks for your
safety.
A
Let your dryer wait for 12 hours
before starting to use it.
3.1 Appropriate installation
location
Install the dryer on a stable and level surface.
Dryer is heavy. Do not move it by yourself.
• Operate your dryer in a well ventilated,
dust-free environment.
• The gap between the dryer and the
surface should not be reduced by the
materials such as carpet, wood and tape.
• Do not cover the ventilation grills of the
dryer.
• There must not be a lockable, sliding or
hinged door that may block the opening
of the loading door in the place where
your dryer is to be installed.
• Once the dryer is installed, it should stay
at the same place where its connections
have been made. When installing the
dryer, make sure that its rear wall does
not touch anywhere (tap, socket, etc.).
• Place the dryer at least 1 cm away from
the edges of other furniture.
• Your dryer can be operated at
temperatures between +5°C and +35°C.
If the operating conditions fall outside
of this range, operation of the dryer
will be adversely affected and it can get
damaged.
• The rear surface of the tumble dryer
shall be placed against a wall.
B
Do not place the dryer on the
power cable.
3.2 Removing the
transportation safety
assembly
A
Remove the transportation safety
assembly before using the dryer
for the first time.
3.3 Connecting to the drain
You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining
the water collected in the water tank.

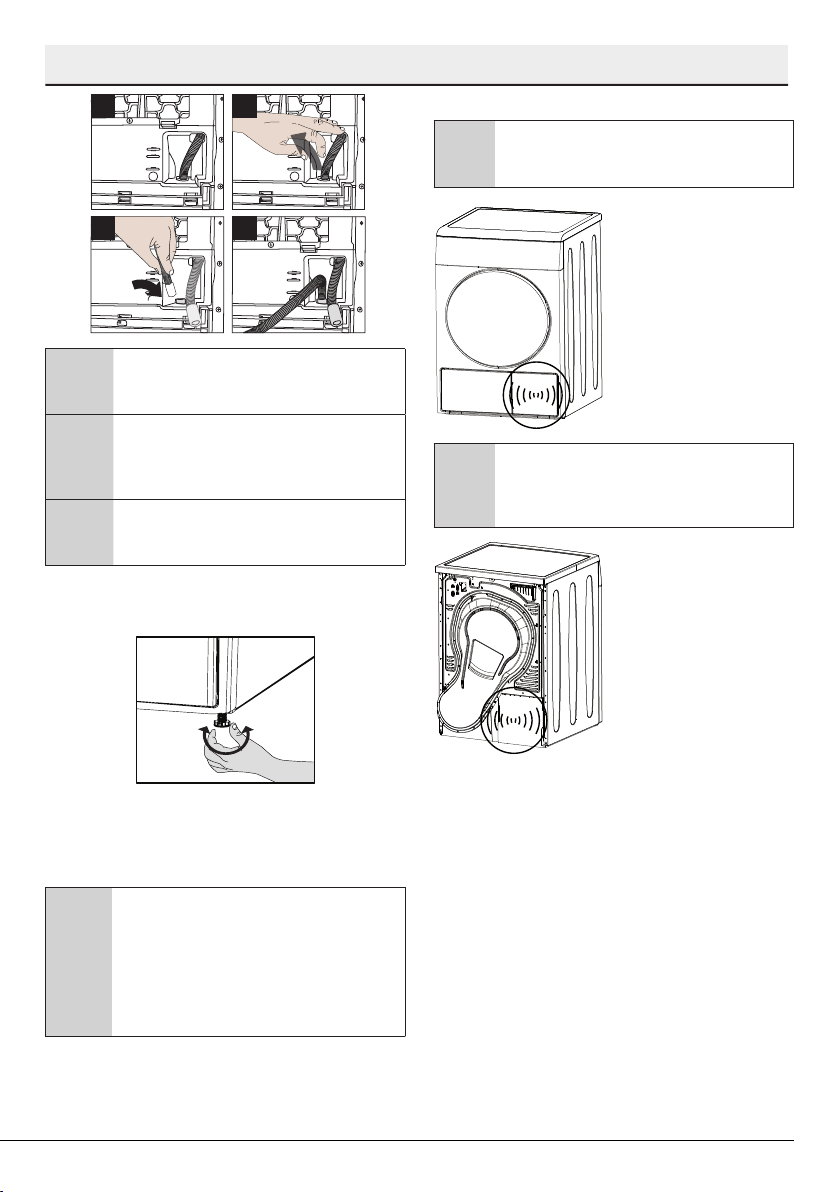

Connecting the water drain hose
1-2 Pull hose at the behnd of the dryer
by hand n order to dsconnect t from
where t s connected. Do not use any
tools to remove the hose.
3 Connect one end of the dran hose
suppled wth the dryer to the
connecton pont from where you
removed the hose of the product n
prevous step.
4 Connect the other end of the dran hose
drectly to the wastewater dran or to
the washbasn.
14 / EN
Dryer / User Manual
Installation
1
3 4
2
C
Water drain hose should be
attached to a height of maximum
80 cm.
C
Make sure that the water drain
hose is not stepped on and it is not
folded between the drain and the
machine.
C
If there is an accessories pack
supplied with your product, please
see the detailed description.
3.4 Adjusting the feet
• Turn the feet to left or right until the
dryer stands level and firmly.
3.5 Transportation of the dryer
Drain all water that has remained in the dryer.
If direct water drain connection is made, then
remove the hose connections.
A
We recommend carrying the
dryer in upright position. If it is
not possible to carry the machine
in the upright position, we
recommend carrying it by tilting
towards the right side when
looked from the front.
3.6 Warnings about sounds
C
It is normal to hear a metallic noise
from the compressor sometimes
during operation.
C
Water collected during operation is
pumped to water tank. It is normal
to hear pumping noise during this
process.
3.7 Changing the illumination
lamp
In case an illumination lamp is used in your
laundry dryer.To change the Bulb/LED used
for illumination of your tumble dryer, call your
Authorized Service.The lamp(s) used in this
appliance is not suitable for household room
illumination. The intended purpose of this
lamp is to assist the user to place laundry
in the tumble dryer in a comfortable way.
The lamps used in this appliance have to
withstand extreme physical conditions such
as vibrations and temperatures above 50 °C
15 / EN
Dryer / User Manual
4 Preparaton
4.1 Laundry suitable for drying
in the dryer
Always obey the instructions given on the
garment tags. Dry only the laundry having a
label stating that they are suitable for drying
in a dryer and make sure that you select the
appropriate programme.

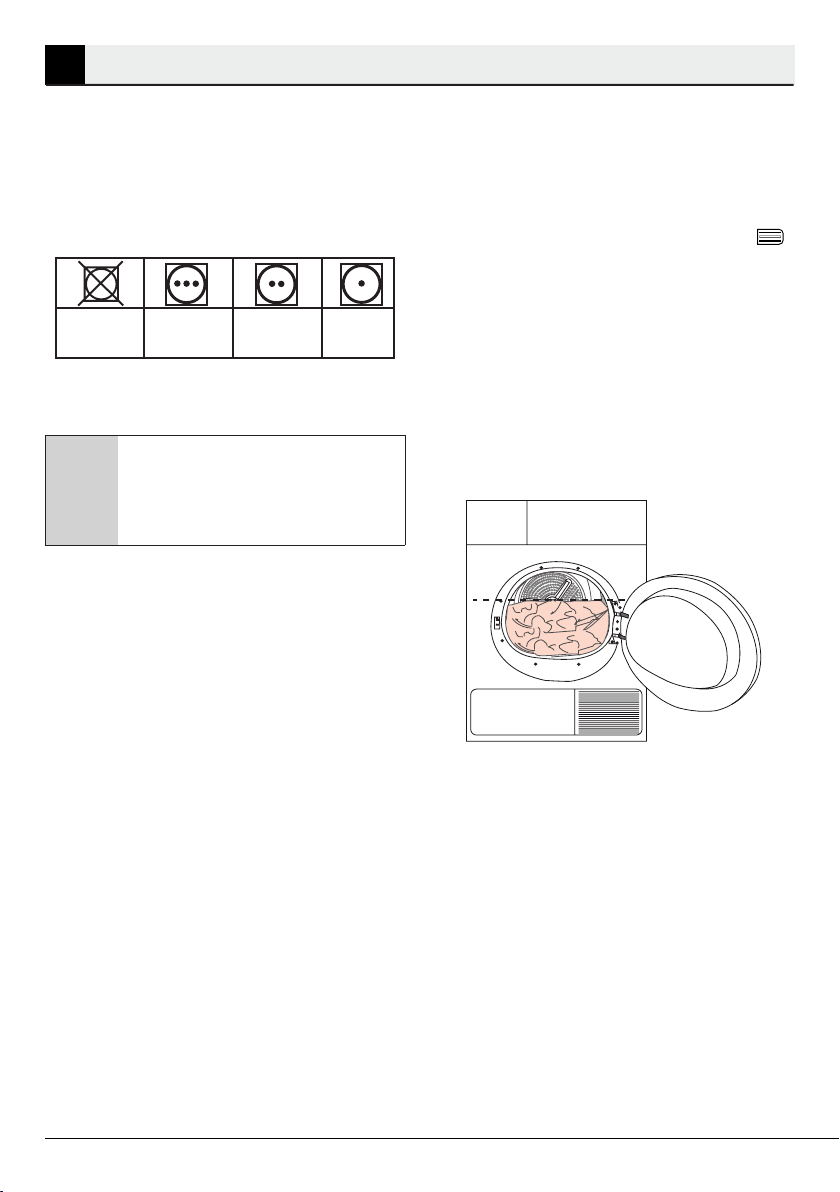

Do not dry with
dryer
At high
temperature
At medium
temperature
At low
temperature
4.2 Laundry not suitable for
drying in the dryer
C
Delicate embroidered fabrics,
woollen, silk garments, delicate
and valuable fabrics, airtight
items and tulle curtains are not
suitable for machine drying.
4.3 Preparing laundry for
drying
• Laundry may be tangled with each other
after washing. Separate the laundry
items before placing them into the dryer.
• Dry garments having metal accessories
such as zippers, inside out.
• Fasten the zippers, hooks and buckles
and button sheets.
4.4 Things to be done for
energy saving
• Spin your laundry at the highest speed
possible when washing them. Thus, the
drying time is shortened and energy
consumption is reduced.
• Sort out the laundry depending on their
type and thickness. Dry the same type
of laundry together. For example thin
kitchen towels and tableclothes dries
earlier than thick bathroom towels.
• Follow the instructions in the user
manual for programme selection.
• Do not open the loading door of the
machine during drying unless necessary.
If you must open the loading door, do not
keep it open for a long time.
• Do not add wet laundry while the dryer is
in operation
• For models with a condenser unit: clean
the condenser once in a month or after
every 30 operations regularly. .
• For models with heat pump unit: clean
the filter drawer periodically when there
is a visible accumulation of fluff or when
the filter drawer cleaning indicator «
» lights up.
• For models with flue unit: comply with
the flue connection instructions and
clean the flue.
• During the drying process, air the
room well where your tumble dryer is
operating.
4.5 Correct load capacity
Follow the instructions in the “Programme
selection and consumption table”. Do not
load more than the capacity values stated in
the table.
16 / EN
Dryer / User Manual
Preparation
Following weights are given as examples.
Laundry
Approximate
weights (g)*
Cotton quilt covers
(double)
1500
Cotton quilt covers
(single)
1000
Bed sheets (double) 500
Bed sheets (single) 350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10
pieces)
100
T-Shirts 125
*Dry laundry weight before washing.
17 / EN
Dryer / User Manual
5 Operatng the product
5.1 Control panel
1. Programme Selection knob
2. Dryness Level Adjustment button
3. Audio Warning Level button
4. Display
5. On /Off/Cancel button
6. Start/Pause button
7. End Time button
8. Favourite button
9. Rapidry / Timer Programmes Selection button
10. Anti-creasing button
Remaining time indicator*
Filter drawer cleaning warning symbol
Filter cleaning warning symbol
Smart grid symbol
Child lock warning symbol
Water tank warning symbol
End time symbol
Start / Pause symbol
Steam tank warning symbol
Dryness level
*Time that appears on display indicates the
remaining time until the end of the programme
and changes according to the dampness level
of the laundry and model of the dryer.
Programme progress bar
Audio warning smbol
5.2 Display symbols
1 32 4 5 6
78910
18 / EN
Dryer / User Manual
Operating the product
5.3 Preparing the machine
1. Plug in your machine.
2. Place the laundry in the machine.
3. Press the On/Off/Cancel button for 1
second (long).
4. When your machine is operated for the
first time, it starts with the declaration
programme (wardrobe dryness for
cottons.)
C
Pressing the On/Off/Cancel
button does not mean that the
programme has started. Press
Start / Pause button to start the
program.
5.4 Programme selection
1. Decide the appropriate programme from
the table below which includes drying
levels.
2. Select the desired programme with the
Programme Selection knob.
Extra Dry
Only the cotton laundry is
dried at normal temperature.
Thick and multi layered laundry
(towels, linens, jeans and etc.)
are dried in a way that they do
not require ironing before being
placed in the wardrobe.
Cupboard
Dry
Normal laundry (tablecloths,
underwear and etc.) are dried in
a way that they do not require
ironing before being placed in
the wardrobe.
Iron Dry
Normal laundry (shirts, dresses
and etc.) are dried ready to be
ironed.
C
For further programme details,
see "Programme selection and
consumption table"..
5.5 Main programmes
Depending on the fabric type, the following
main programmes are available.
• Cottons
Dry durable laundry with this programme.
Dries at normal temperature. It is
recommended to use for your cotton items
(bed sheets, quilt covers, towels, bathrobes,
etc.).
• Synthetcs
Dry less durable laundry with this
programme. Recommended for synthetics.
5.6 Additional programmes
For special cases, following additional
programmes are available in the machine.
C
Additional programs may differ
according to the features of your
machine.
C
To obtain better results from
your dryer, your laundry must be
washed at suitable programmes
and spun at the recommended
spin speeds in the washing
machine..
• Beddng
Dry fiber quilts with ‘machine-dryable’ label
only. Make sure you are loading the quilt in
the correct way to avoid damages on the
machine and the quilt. Take out the quilt
cover before loading the quilt in the machine.
Fold the quilt in two before loading.
- Do not load more than 1 double-size
fiber quilt (200x200 cm). Do not dry items
containing cotton such as quilts, pillows and
etc.
- Do not dry items other than quilts such as
carpets, rugs or mats. Permanent damage
may arise in your machine.
C
To obtain better results from
your dryer, your laundry must be
washed with suitable programmes
and spun at the recommended spin
speeds in the washing machine.
• Jeans
Use this programme to dry your jeans that
are spun at high speeds in the washing
machine.
• Mx
Use this programme to dry non-pigmenting
synthetic and cotton laundry items together.
• Nght
In this programme the level of noise emitted
to the environment will be the lowest.
Volume level will be fifty percent lower with
respect to the ‘wardrobe dry for cottons’
programme.
19 / EN
Dryer / User Manual
Operating the product
• WoolProtect
Use this programme to dry woolen garments
such as jumpers that are washed according to
the instructions.
It is recomended that garments would be
removed at the end of the programme.
The wool drying cycle of this
machine has been approved by
The Woolmark Company for the
drying of machine washable
wool products provided that the
products are washed and dried
according to the instructions
on the garment label and those
issued by the manufacturer of
this machine.(M1606).
• BabyProtect
Ths programme s used for baby clothes that
bear machne dryable approval on ts label.
• Shrts 30’
Use this programme to make 2 shirts ready
for ironing in 30 minutes.
C
There may be a little moisture
on the shirts at the end of the
programme. We recommend
you not to leave the shirts in the
dryer.
• Sport
Use to dry laundry made from synthetic,
cotton or mixed fabrics.
• Delcates
You can dry your highly delicate laundry
(silk blouses, fine underwear, etc.) that
are suitable for drying or laundry which
is advised to be hand-washed at a lower
temperature.
C
It is recommended to use a cloth
bag to avoid certain delicate
garments and laundry from
getting creased or damaged. Take
your laundry immediately out of
the dryer and hang them after
the programme ends in order to
prevent them being creased.
• Freshen Up
Only ventilation is performed for 10 minutes
without blowing hot air. You can air the
clothes that have been kept at closed
environments for a long time and deodorize
unpleasant odors thanks to this programme.
• Tmer programmes
You can select one of the 10 min., 20 min., 30
min., 40 min., 50 min., 60 min., 80 min., 100
min.,120 min., 140 min. and 160 min. timer
programmes to achieve the desired final
drying level at low temperatures.
In order to select any drying time, you need
to press the timer selection “ “key.
C
With this programme, the
machine dries for the time
selected regardless of the
dryness level.
20 / EN
Dryer / User Manual
Operating the product
5.7 Programme selection and consumption table
* : Energy Label standard program (EN 61121:2012) “All the filters must be cleaned prior to test series.” All
values given in the table have been fixed according to EN 61121:2012 Standard. These values may deviate
from the values in the table according to the laundry type, laundry spin speed, environmental conditions
and voltage fluctuations.
EN
Programs
Capacity
(kg)
Spin speed
in washing
machine (rpm)
Approximate
amount of
remaining
humidity
Energy consumption
value kWh
RapiDry
(minutes)
Cottons / Coloreds
A
Extra dry 8 1000 % 60 165 130
A
Cupboard dry 8 / 4 1000 % 60 152 / 95 115
A
Iron dry 8 1000 % 60 124 95
Jeans 4 1200 % 50 117 85
Sport 4 1000 % 60 105 70
Shirts 30’ 0,5 1200 % 60 30 23
Babyprotect
3 1000 % 60 95 71
Mix 4 1000 % 60 110 75
Bedding 2,5 1000 % 40 120 -
Night (silent) 8 1000 % 60 240 -
Delicates
2 600 % 40 50 -
WoolProtect 1,5 600 % 50 146 -
Synthetics
B
Cupboard dry 4 800 % 40 75 50
B
Iron dry 4 800 % 40 59 34
Energy consumption values
Programs
Capacity
(kg)
Energy consumption
value kWh per year
Energy rating star
Cottons Extra Dry
8 - 8
Contains fluorinated greenhouse gases covered by the Kyoto Protocol. Hermetically sealed.
R134a / 0,52 kg - GWP:1430 - 0,744 tCO2e
* : Energy Label standard program (AS/NZS 2442) “All the filters must be cleaned prior to test
series.”
All values given in the table have been fixed according to standard laboratory conditions.
These values may deviate from the table according to the laundry type, laundry spin speed,
environmental conditions and voltage fluctuations.
21 / EN
Dryer / User Manual
Operating the product
5.8 Auxiliary functions
Audio Warning
The machine will give an audio warning
when the programme comes to an end. Use
the Audio Warning Level button to adjust
the sound level.
C
You can change the sound level
either before the programme
starts or while the programme is
in progress.
Volume level low
Volume level high
Dryness level adjustment selection
Dryness level adjustment button is
used to adjust the required dryness level.
Programme duration can change depending
on the selection.
C
You can activate this function
only before the programme has
started.
Drying level damp
Drying level normal
Drying level extra
22 / EN
Dryer / User Manual
Operating the product
5.9 RapiDry
This application is available for all
programmes highlighted with dark colour on
the control panel.
For example in case of “wardrobe ready for
cotton” the usual programme duration is
2:32, the ExpressDy feature reduces the
required time to 1:55.
Favourite selection button
A programme with the set auxiliary function
is saved with Favourite selection button.
When the product is switched on and off,
features of the saved programme is displayed
by means of Favourite selection button.
1. Select the programme with the
programme button; select the auxiliary
functions such as Anti-creasing, Dryness
Level etc.
2. Press and hold the Favourite selection
button for about 3 seconds. Features of
set programme will be saved.
End time
With the End Time function, the end time
of the programme may be delayed up to 24
hours. The time on the display is the total of
normal drying time and end time.
Anti-creasing
Anti-creasing programme duration may
be changed with the Anti-creasing
selection button. You can use Anti-creasing
function to prevent laundry from creasing if
you will not take the laundry out after the
program has come to an end. This
programme rotates the laundry in every 240
second for selected time to prevent creasing.
Following images identify the level changes.
Anti-creasing 0 minute
Anti-creasing 30 minute
Anti-creasing 60 minute
Anti-creasing 120 minute
C
Press Anti-creasing button to
activate this function.
C
Anti-creasing symbol will illuminate
at the end of the programme if
Anti-creasing function is activated.
23 / EN
Dryer / User Manual
Operating the product
• Open the loading door and put the
laundry in.
• Select the drying program.
Press End Time button to set the desired
time delay.
• Press Start/Pause button. Time Delaying
starts countdown and the time delaying
symbol lights up on the display. The “:” in
the middle of the displayed delay time
will flash.
• Additional laundry may be loaded / taken
out during the End Time period. At the
end of the End Time countdown process,
End Time symbol disappears, drying
process starts and the programme
duration is displayed.
C
If loading door is opened and
closed during the End Time
duration, the programme will
switch to pause mode. End Time
function should be resumed with
pressing Start/Pause button.
Changing the End time
If you want to change the time during
countdown:
• End Time is deactivated when the dryer
is switched off and on with On/Off/
Cancel button. Restart the dryer and
repeat the End Time procedure for the
desired time.
• When your dryer is operated for the
first time, it starts with the declaration
programme (wardrobe dryness for
cottons).
Canceling End time function
If you want to cancel the End Time
countdown and start the programme
immediately:
• End Time is deactivated when the dryer
is switched off and on with On/Off/
Cancel button.
• Press Start/Pause button to start
the programme you have previously
selected.
5.10 Warning symbols
C
Warning symbols may differ
according to the model of your
machine.
Lint filter cleaning
When the programme is completed, a
warning symbol will appear continously
indicating that the filter needs to be cleaned.
C
For detailed information, see 6
Maintenance and cleaning.
C
If the filter cleaning symbol
flashes continuously, see 7
Troubleshooting.
Draining the water tank
When the programme is completed, a
warning symbol will appear continously
to remind that the water tank needs to be
drained.
C
For detailed information, see 6
Maintenance and cleaning.
If the water tank becomes full while the
programme is running, the warning symbol
will start to flash and the dryer will pause.
Drain the water in the water tank and
press Start / Pause button to resume the
programme. The warning symbol turns off
and the programme resumes operating.
24 / EN
Dryer / User Manual
Operating the product
Cleaning the filter drawer
Warning symbol flashes to remind that the
filter drawer needs to be cleaned.
C
For detailed information, see 6
Maintenance and cleaning.
Loading door open
This warning symbol Pause appears and
programme progress symbol flashes when
the loading door of the dryer is open.
5.11 Starting the programme
Press the Start/Pause button to start the
program.
Start symbol will light up to indicate that
the programme has started and “:” symbol in
the middle of the remaining time will keep
flashing. Drying and programme progress bar
will be displayed alternately.
5.12.Progress of programme
5.13 Child Lock
Machine is equipped with a Child Lock
which prevents interfering with the current
programme flow by pressing any button.
To activate the Child Lock:
• Press and hold Childproof Lock button
for 3 seconds.
• Child Lock symbol will appear on the
display when the Child Lock is activated.
• All buttons except the On/Off/Cancel
and Child Lock button on the control
panel are deactivated when the Child
Lock is active.
• Display symbols will not change even
if the position of Programme Selection
knob is changed while the child lock
button is active.
• When the programme selection knob is
turned and function buttons are pressed
Child Lock warning will be displayed.
• To start a new programme after the
current programme is over or to interrupt
the current programme, the Child Lock
should be deactivated.
To deactivate the childproof lock:
• Press and hold Child Lock button for 3
seconds.
• Child Lock is deactivated when the dryer
is switched off and on with On/Off/
Cancel button.
5.14 Changing the programme
after it has started
• After the dryer starts operation, you can
change the selected programme and dry
your laundry in a different programme.
• Press and hold Start / Pause button for 1
seconds to pause the programme.
• Select desired programme by turning the
Programme Selection knob.
• Press the Start/Pause button to start
the program.
25 / EN
Dryer / User Manual
Operating the product
Adding / removing laundry while the
dryer is in operation
• In order to add or take out laundry after
the drying programme has started:
• Press the Start/Pause button to switch
the dryer to Pause mode. Drying process
will pause.
• While in Pause mode, open the loading
door, add or take out laundry and close
the loading door.
• Press the Start/Pause button to resume
the program.
C
Any laundry added after the
drying process has started may
cause the clothes that are already
dried in the machine intermingle
with wet clothes and the result
will be wet laundry after the
drying process is over.
C
You may repeat laundry adding
or removing process as many
times as you desire during
drying. However, this process will
increase the programme time and
energy consumption since the
drying process will be interrupted
repeatedly. Therefore, it is
recommended to add laundry
before the drying programme has
started.
C
If you select a new programme by
turning the Programme Selection
knob while your drier is in Pause
mode, then the current program
is aborted and new programme
information is displayed.
Do not touch the inner surface of
the drum when adding or taking
out laundry while a programme is
running. Drum surface and dryer
air within is hot.
5.15 Canceling the programme
To cancel the programme after the dryer is
started:
• Press and hold Start / Pause button for
1 seconds to pause the programme and
turn the programme selection knob.
• Press and hold On / Off / Cancel Button
for 3 seconds and the programme will be
cancelled.
A
As the dried laundry will be
excessively hot when you cancel
the programme while the dryer
is running, activate the Refresh
programme to cool them down.
5.16 End of programme
When the programme comes to an end
Lint filter cleaning and Water tank warning
symbols light up in the programme follow-up
indicator. To turn off the dryer press On / Off
/ Cancel button.
C
2-hour Anti-creasing program will
be activated if the laundry is not
taken out after the program has
come to an end.
C
Clean the lint filter after each
drying. See 6.1 Cleaning lint
filter and loading door inner
surface.
C
Drain the water tank after each
drying cycle. See 6.3 Draining
the water tank.
26 / EN
Dryer / User Manual
6 Mantenance and cleanng
6.1Loading Door Inner Surface
The hair and fibres that are separated from
the laundry during drying process is collected
by the Fibre Filter.
C
Fibres are formed during wearing
.and washing clothes
A
After each drying cycle, clean the
fibre filter and the inner surface
.of the loading door
C
You can clean the filter slot with a
.vacuum cleaner

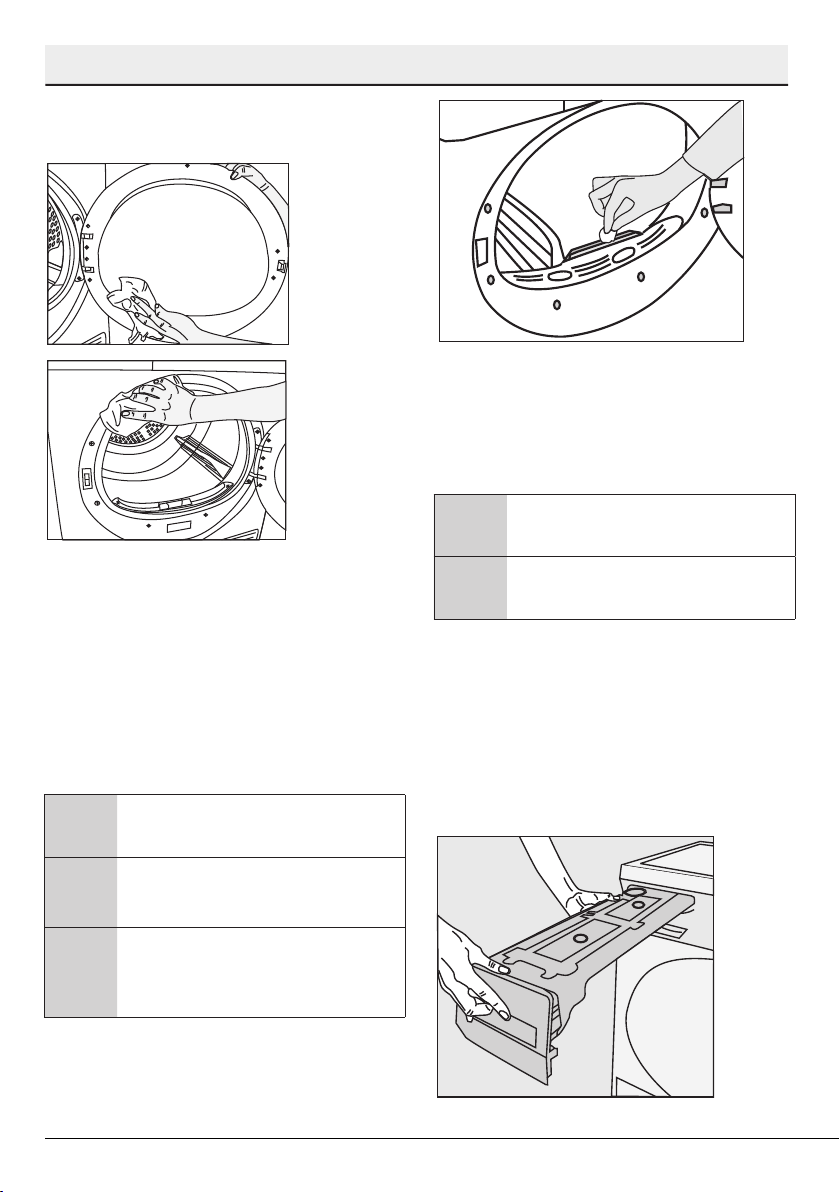

To clean the fibre filter:
• Open the loadng door.
• Hold the frst part (nner flter) of the two
part fbre flter and remove t by pullng t
upwards.
• Collect the har, fbres and cotton balls
wth hand or wth a soft cloth.
• Remove the second part (outer flter) by
pullng t upwards.
C
Ensure that hair, fibre and cotton
balls do not fall into the slot
.where the filters are installed
• Open both fbre flters (nner and outer
flters) remove the har, fbre, cotton balls
wth your damp hand or a vacuum cleaner
or a cloth.
• Clean both flters under water runnng n
reverse drecton of fbre accumulaton
or wth a soft brush. Dry the flter before
placng t back.
• Insert the fbre flters on one another and
place t back n ts place.
27 / EN
Dryer / User Manual
Maintenance and cleaning
• Clean the loadng door nteror and ts
washer wth a soft damp cloth.
6.2 Cleaning the sensor
There are dampness sensors in the dryer
that detect whether the laundry is dry or not.
To clean the sensors:
• Open the loading door of the dryer.
• Allow the machine to cool down if it is
still hot due to the drying process.
• Wipe the metal surfaces of the sensor
with a soft cloth, dampened with vinegar
and dry them.
C
Clean metal surfaces of the
sensors 4 times a year.
C
Do not use metal tools when
cleaning metal surfaces of the
sensors.
A
Never use solvents, cleaning
agents or similar substances for
cleaning due to the risk of fire and
explosion!
6.3 Draining the water tank
Dampness of the laundry is removed and
condensed during drying process and the
water that arise accumulates in the water
tank. Drain the water tank after each drying
cycle.
A
Condensed water is not drinkable!
A
Never remove the water tank
when the program is running!
If you forget to drain the water tank, the
machine will stop during the subsequent
drying cycles when the water tank is full and
the Water Tank warning symbol will flash.
If this is the case, drain the water tank and
press Start / Pause button to resume the
drying cycle.
To drain the water tank:
Pull the drawer and remove the water tank
carefully.
28 / EN
Dryer / User Manual
Maintenance and cleaning
• Drain the water in the tank.
• If there is lint accumulation in the funnel
of the water tank, clean it under running
water.
• Place the water tank into its seat.
C
If the direct water draining is used
as an option, there is no need to
empty the water tank.
6.4 Cleaning the evaporator
The hair and fibres that are not caught by the
fibre filter goes to the fins of the evaporator
behind the toe board and accumulates here.
If the evaporator” ” icon is flashing or in 6
month periods, clean the evaporator.
Open the toe board by pressing on it.
• To open the ar routng door, move the
release latch.
• Clean the fbres on the evaporator wth a
damp cloth / vacuum cleaner wth a brush
by movng upwards and downwards.
• After the cleanng process s completed,
place the ar router door to ts place, move
the latches to close t and close the toe
board.
A
You can clean by hand, provided
you wear protective gloves. Do
not try to clean with bare hands.
Evaporator fins may damage
.your hands
A
Cleaning by left to right
movements may damage the
evaporator fins. This may lead
.to drying issues
29 / EN
Dryer / User Manual
7 Troubleshootng
Drying operation takes too long.
• Fbre flter (nteror and exteror flter) pores may be clogged. >>> Wash the fbre flters
wth warm water and dry.
• Evaporator front sde may be clogged. >>> Clean the front sde of the evaporator.
• The ventlaton grlls n front of the machne may be closed. >>> Remove any object n
front of the ventlaton grlls that blocks ar.
• Ventlaton may be nadequate because the are the machne s nstalled n s too small.
>>> Open the door or wndows to prevent the room temperature from rsng very hgh.
• A lme layer may have accumulated on the humdty sensor. >>> Clean the humdty
sensor.
• Excessve amount of laundry mght be loaded. >>> Do not load the dryng machne
excessvely.
• Laundry mght not have been wrung adequately. >>> Perform a hgher speed wrngng
on the washng machne.
Clothes come out damp after drying.
C
Laundry that comes out at the end of the drying process feels more humid than it
actually is.
• A program not sutable for the laundry type may have been used.>>> Check the
mantenance labels on the clothes and select a program sutable for the clothes’ type or
use tme programs as extra.
• Fbre flter (nteror and exteror flter) pores may be clogged. >>> Wash the flters wth
warm water and dry.
• Evaporator front sde may be clogged. >>> Clean the front sde of the evaporator.
• Excessve amount of laundry mght be loaded. >>> Do not load the dryng machne
excessvely.
• Laundry mght not have been wrung adequately. >>> Perform a hgher speed wrngng
on the washng machne.
Drying machine does not turn on or program cannot be started. Drying machine does not
run after it is configured.
• Power plug mght be unplugged. >>> Make sure the power cord s plugged n.
• Loadng door mght be open. >>> Ensure that the loadng door s properly closed.
• A program mght not be set or Start / Pause /Cancel button mght not be pressed. >>>
Check that the program s set and t s not n Pause poston..
• Chld lock may be actvated. >>> Turn off the chld lock.
Program terminated prematurely for no reason.
• Loadng door mght be closed completely. >>> Ensure that the loadng door s properly
closed.
• There mght be a power outage. >>> Press the Start / Pause / Cancel button to start the
program.
• Water tank may be full. >>> Empty the water tank.
Clothes have shrunk, hardened or spoiled.
• A program not sutable wth the laundry type mght have been used. >>> Check the
mantenance labels on the clothes and select a program sutable for the clothes.
30 / EN
Dryer / User Manual
Troubleshooting
Water drips from the loading door.
• Fbres mght have gathered on the nner sdes of the loadng door and the loadng door
gasket. >>> Clean the nner surfaces of the loadng door and the loadng door gasket
surfaces.
Loading door opens by itself.
• Loadng door mght be closed completely. >>> Push the loadng door untl the closng
sound s heard.
Water tank warning symbol is on/flashing.
• Water tank may be full. >>> Empty the water tank.
• Water dscharge hose mght have collapsed. >>> If the product s connected drectly to
the water dran check the water dscharge hose.
The lighting inside the drying machine does not turn on. (In models with lamp)
• The dryng machne mght not have been turned on usng On/Off button. >>> Check that
the dryng machne s turned on.
• Lamp mght be malfunctonng. >>> Contact Authorzed Servce to replace the lamp.
Anti-crease icon is lit.
• Ant-Crease mode that prevents the laundry n the drer to crease may be actvated. >>>
Turn the drer off and remove the laundry.
Fibre filter cleaning icon is lit.
• Fbre flter (nteror and exteror flter) may be unclean. >>> Wash the flters wth warm
water and dry..
• A layer may be formed on the fbre flter pores that leads to cloggng. >>> Wash the
flters wth warm water and dry.
• Fbre flters may not be nserted. >>> Insert the nteror and exteror flters to ther
places.
An audible warning is heard from the machine
• Fbre flters may not be nserted. >>> Insert the nteror and exteror flters to ther
places.
Evaporator warning icon is flashing.
• Evaporator front sde may be clogged wth fbres. >>> Clean the front sde of the
evaporator.
• Fbre flters may not be nserted. >>> Insert the nteror and exteror flters to ther
places.
The lighting inside the drying machine turns on. (In models with lamp)
• If the dryng machne s plugged to the power outlet, the On/Off button s pressed and
the door s open; the lght turns on. >>> Unplug the dryng machne or brng the On/Off
button to Off poston.
A
If the problem persists after following the instructions in this section, contact your
vendor or an Authorized Service. Never try to repair your product yourself.
