NETBELLSETTINGINSTRUCTION
1
TheNetbellisveryeasytouse.Afterwiringyourbells/buzzerstotheNetbellcontroller,poweringiton,connectingtheNetbellto
yournetwork,youwillneedtofinditsIPaddresstoaccesstheNetbellwebpagebyusingourDiscoverprogramorothermethods
listingbelow.
FINDTHEIPADDRESSONYOURNETWORK
TheNetbellisDHCPenabled,whenaNetbellSERVERunitisfirstinstalledonyournetwork,itautomaticallyobtainsawebaddress
fromyourrouterviaDHCPifyourrouterissetuptoassignone.Ifyourrouterisnotsetthisway,itissuggestedthatyouturnthat
featureonsoyoucanoperatetheNetbellSERVERandassignittheIPaddressofyourchoosing.Thereareseveralwaystofindthe
NetbellIPaddressonyournetwork.
1.UseingDiscoverProgramtolocatetheIPaddress
DiscoverisourspecialdesignedprogramthatwillautomaticallylocateyourNetbellSERVER.TheDiscoverisaJavaprogram,Java
runtimeneedstobeloadedtousethisfeature.Javacanbefoundhere:http://java.com/en/download/index.jsp).
TodownloadtheDiscoverprogram,pleasegoto:https://www.linortek.com/downloads/supportprogramming/
UseofChrome&Firefoxbrowsersisrecommended.IfyouprefertouseInternetExplorebrowser,pleasenotethatwhenyou
downloadtheDiscoverprogram,InternetExploresavesthisprogram_asaZipfilebydefault.InordertousetheDiscoverer,you
needtoselectSaveasandrenamethefileas“LinortekDiscoverer.jar”whenyoudownloadwithInternetExplorebrowser.
WhendownloadingtheDiscoverprogram,sometimesyouwillseeapopupwarningmessagedependingonyourbrowsersecurity
settings,askingifyouwanttokeepordiscardthisfile,pleaseclicktheKeepbuttonasthisisaJavaprogram,itwon'tharmyour
computer.
OnceDiscovererlocatesyourdevice,itwilldisplay:
1.IPAddress
2.HostName
3.MACAddress
4.OtherInfo:
a).BlueLED(ifon)
b).ProductName
c).ServerSoftwareRevision

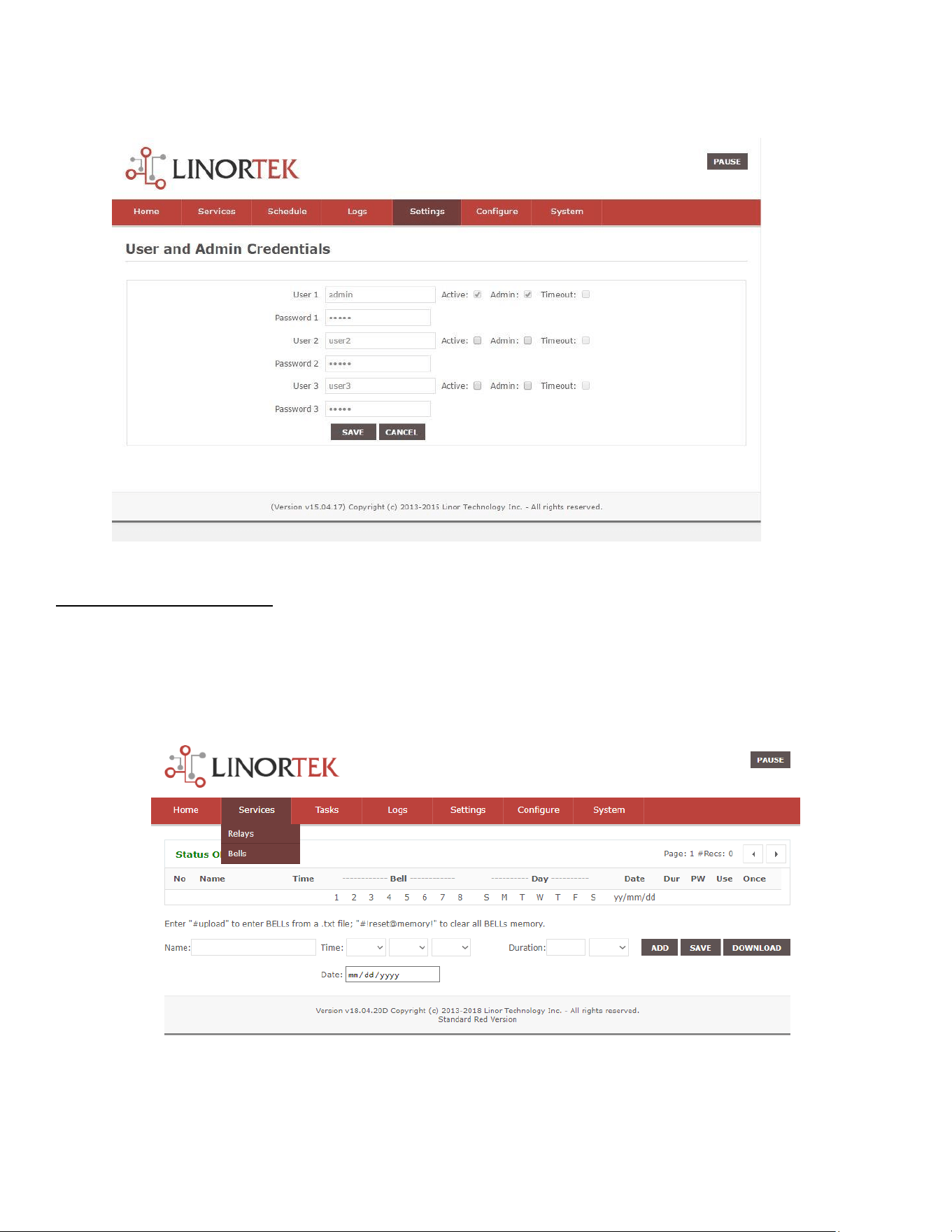

ClickthedeviceyouwanttouseshownontheDiscoverprogram,launchtheSERVERwebpagesinbrowser.ClickLoginbuttonon
thehomepage.Defaultusername/passwordis:admin/admin.Youmaychangetheseasyoudesireordisablethisfeatureinthe
settingsmenu.
2.UsingcmdcommandonyourPCtopingtheIPaddress
Ifyoucan'tmaketheDiscoverprogramtowork,youcanpingtheSERVERtogetitsIPaddressonyournetwork.Hereishow:
1.Tobringuptherundialog,presstheWindowskey+R.
2.OropentheStartmenuonyourPCandtypeincmdonsearchbar,selectcmdprogram.
3.TypepingserverandpressEnter.
Ifthepingissuccessful,youshouldreceiverepliesfromtheaddressthatyouaretryingtoping.Openyourbrowserandtypeinthe
IPaddressdisplayedonthepingwindow.
3.ConnectdirectlytoyourPCtousethedefaultIPaddress
IfyoustillhavetroublefindingtheIPaddress,youcanconnecttheSERVERdirectlytoyourcomputerEthernetport,TURNOFFthe
WiFi,openthebrowser,typeinSERVER'sdefaultIPaddress169.254.1.1toaccessthewebpagetosetupyourdevice.Oncelogging
inthepage,youcansetastaticIPaddressbygoingtoConfigureNetworkConfigpage.
