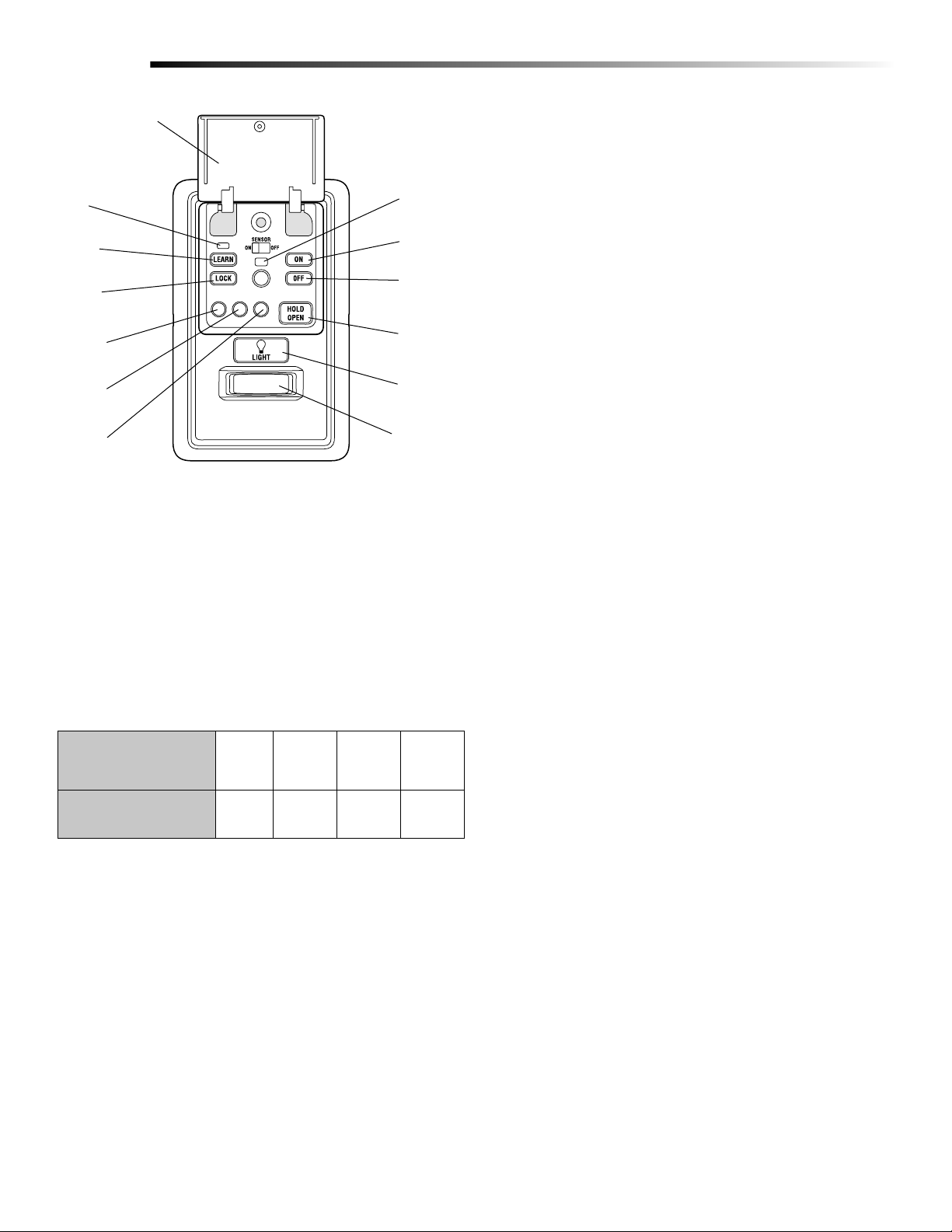

MyQ
®
CONTROL PANEL
MODEL 888LM
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• Connect ONLY to 7-28 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing
garage door:
• Install door control within sight of garage door, out of reach of
children at a minimum height of 5 feet (1.5 m), and away from ALL
moving parts of door.
• NEVER permit children to operate or play with door control push
buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly
adjusted, and there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER
permit anyone to cross path of closing garage door.
• DO NOT install this door control on garage door opener systems
controlling one-piece or swing doors.
To provide an adequate visual alert, the garage door opener light
bulb(s) MUST be a minimum of 40 Watt (or equivalent).
The MyQ
®
Control Panel is intended to be installed with Security+™
Garage Door Openers manufactured between 1998 and present. The
MyQ
®
Control Panel is NOT compatible with Security+ 2.0™ Garage Door
Openers. DO NOT install this door control on garage door opener
systems controlling one-piece or swing doors.
APPLICATION
The MyQ
®
Control Panel offers a quick and convenient way to add
Security+ 2.0™ and MyQ
®
technology to your existing garage door
opener. MyQ
®
technology uses a 900MHz signal to provide two-way
communication between the garage door opener and MyQ
®
enabled
accessories. When programmed to the Liftmaster
®
Internet Gateway you
can monitor and control your garage door from any internet enabled
computer or smartphone. You may program up to 12 Security+ 2.0™
remote controls, 2 Security+ 2.0™ keyless entries and a combination of
16 MyQ
®
accessories to the MyQ
®
control panel.
COMPATIBLE ACCESSORIES
Security+ 2.0™ Accessories: MyQ
®
Accessories:
Model 891LM
1- Button Remote Control
Model 823LM
Remote Light Switch
Model 893LM
3-Button Remote Control
Model 825LM
Remote Light Control
Model 890MAX
3-Button Mini MAX Remote Control
Model 828LM
LiftMaster
®
Internet Gateway
Model 893MAX
3-Button MAX Remote Control
Model 829LM
Garage Door and Gate Monitor
Model 895MAX
3-Button Premium MAX Remote
Control
Model 877LM
Wireless Keyless Entry
Model 877MAX
Wireless MAX Keyless Entry
OVERVIEW
Install the MyQ
®
Control Panel in place of the existing door control. Due
to power consumption the MyQ
®
Control Panel cannot be used in
conjunction with another wired door control connected to your garage
door opener. If an additional door control is needed, the wireless door
control model 885LM can be programmed to the MyQ
®
Control Panel.

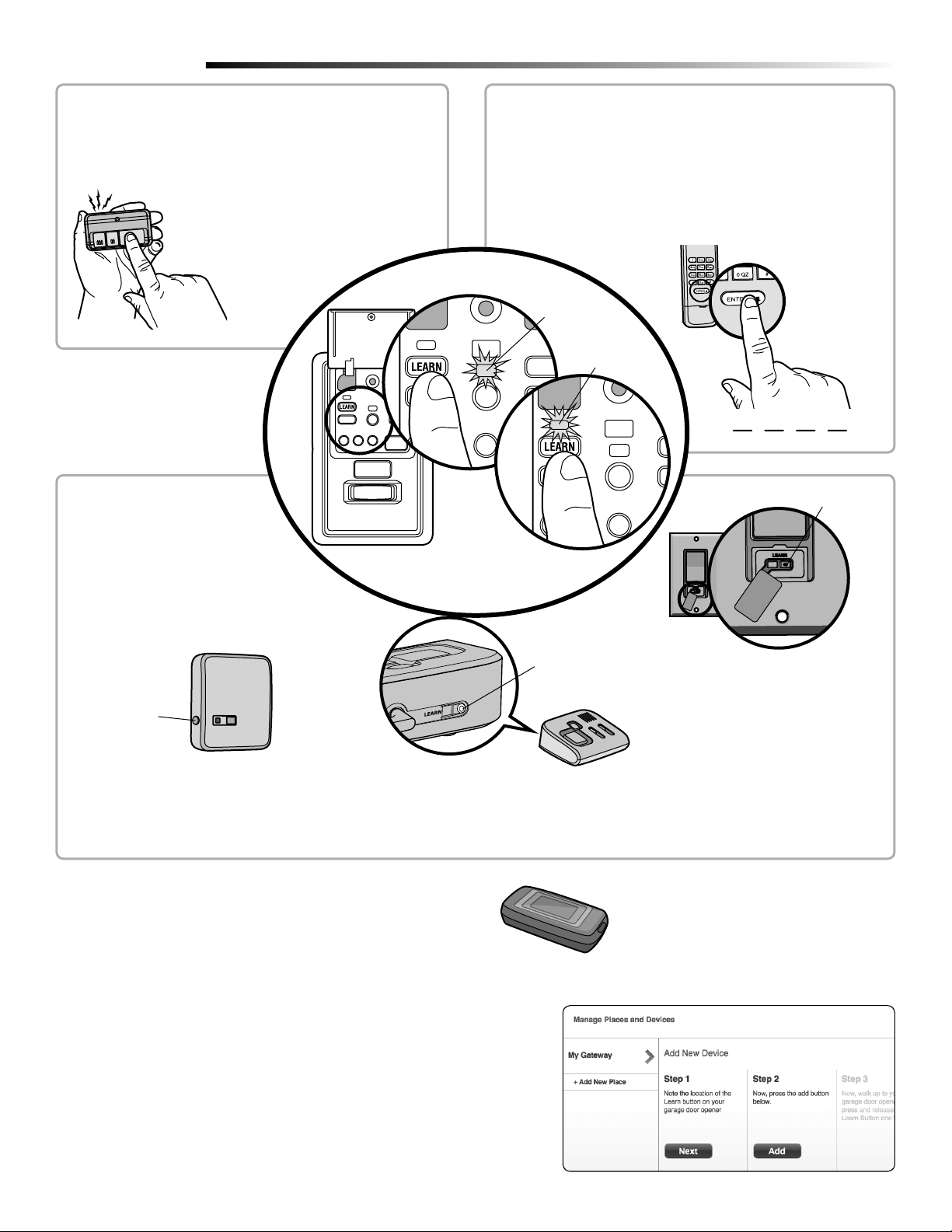

To program the 885LM to the MyQ
®
Control Panel, follow the remote
control programming steps. When in battery back-up mode, any feature
using unattended operation such as Timer-to-Close, closure from a
garage door and gate monitor or remote operation utilizing the
LiftMaster
®
Internet Gateway will be disabled.
1. Disconnect all electrical and battery power (if applicable) to the
garage door opener.
2. Remove the existing door control from the wall.
3. Note the polarity of the wires connected to the existing door
control.
• Label the wire connected to the RED terminal.
• Label the wire connected to the WHITE terminal.
Disconnect the wires from the existing door control.

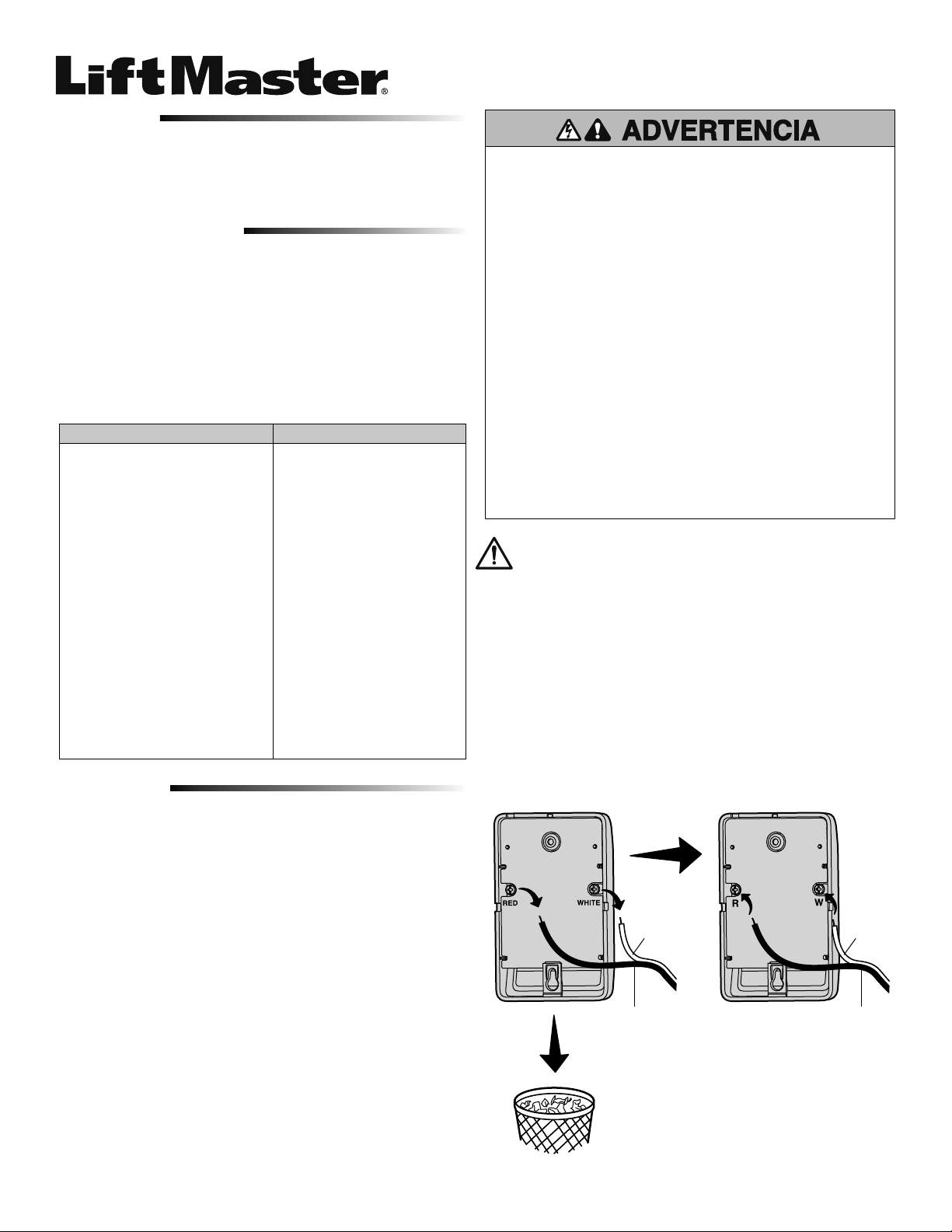

INSTALLATION
Existing Door Control
Discard, donate
or recycle
Wire from
RED terminal
Connect
RED wire to
R terminal
Wire from
WHITE
terminal
Connect
WHITE
wire to W
terminal
MyQ
®
Control Panel
4. Connect the wires to the new MyQ
®
Control Panel. Make sure the
polarity is correct.
• Red wire to the R terminal.
• White wire to the W terminal.
5. Mount the MyQ
®
Control Panel to the wall.
6. Reconnect power. The yellow command LED and the red learn LED
will blink quickly for up to 5 minutes as the control panel
recharges. When the control panel is operational, the yellow
command LED will glow steadily.
7. To test the control panel, press the push bar to activate the garage
door opener.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer or
birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
