User manual
DLP
®
Projector
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Laser Radiation Safety Information ........................................................................................... 5
Cleaning the Lens...................................................................................................................... 6
3D Safety Information ................................................................................................................ 6
Copyright ................................................................................................................................... 7
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 7
FCC ........................................................................................................................................... 8
Declaration of Conformity for EU countries ............................................................................... 8
WEEE ........................................................................................................................................ 8
INTRODUCTION ................................................................................ 9
Package Overview..................................................................................................................... 9
Standard accessories ................................................................................................................ 9
Optional accessories ................................................................................................................. 9
Product Overview ..................................................................................................................... 10
Connections.............................................................................................................................. 11
Keypad ..................................................................................................................................... 12
Remote control ......................................................................................................................... 13
SETUP AND INSTALLATION ........................................................... 14
Installing the projector .............................................................................................................. 14
Connecting sources to the projector ......................................................................................... 16
Adjusting the projector image ................................................................................................... 17
Remote setup ........................................................................................................................... 18
USING THE PROJECTOR ............................................................... 20
Powering on / o the projector .................................................................................................. 20
Selecting an input source ......................................................................................................... 23
Home screen overview ............................................................................................................. 24
System date and time ............................................................................................................... 24
Projector settings menu (OSD)................................................................................................. 25
OSD Menu tree......................................................................................................................... 26
Display menu ............................................................................................................................ 32
Audio menu .............................................................................................................................. 38
Setup menu .............................................................................................................................. 39
Info menu.................................................................................................................................. 42
System settings menu .............................................................................................................. 43
Selecting an input source ......................................................................................................... 50
Selecting an app ....................................................................................................................... 51
Supported multimedia formats.................................................................................................. 55
English
3
Viewing the status bar .............................................................................................................. 59
Alexa / Google Assistant .......................................................................................................... 59
ADDITIONAL INFORMATION .......................................................... 60
Compatible resolutions ............................................................................................................. 60
Image size and projection distance .......................................................................................... 65
Projector dimensions and ceiling mount installation ................................................................. 66
IR remote codes ....................................................................................................................... 67
Troubleshooting ........................................................................................................................ 68
Warning indicators .................................................................................................................... 69
Specications ........................................................................................................................... 72
Optoma global oces ............................................................................................................... 73
English
4
SAFETY

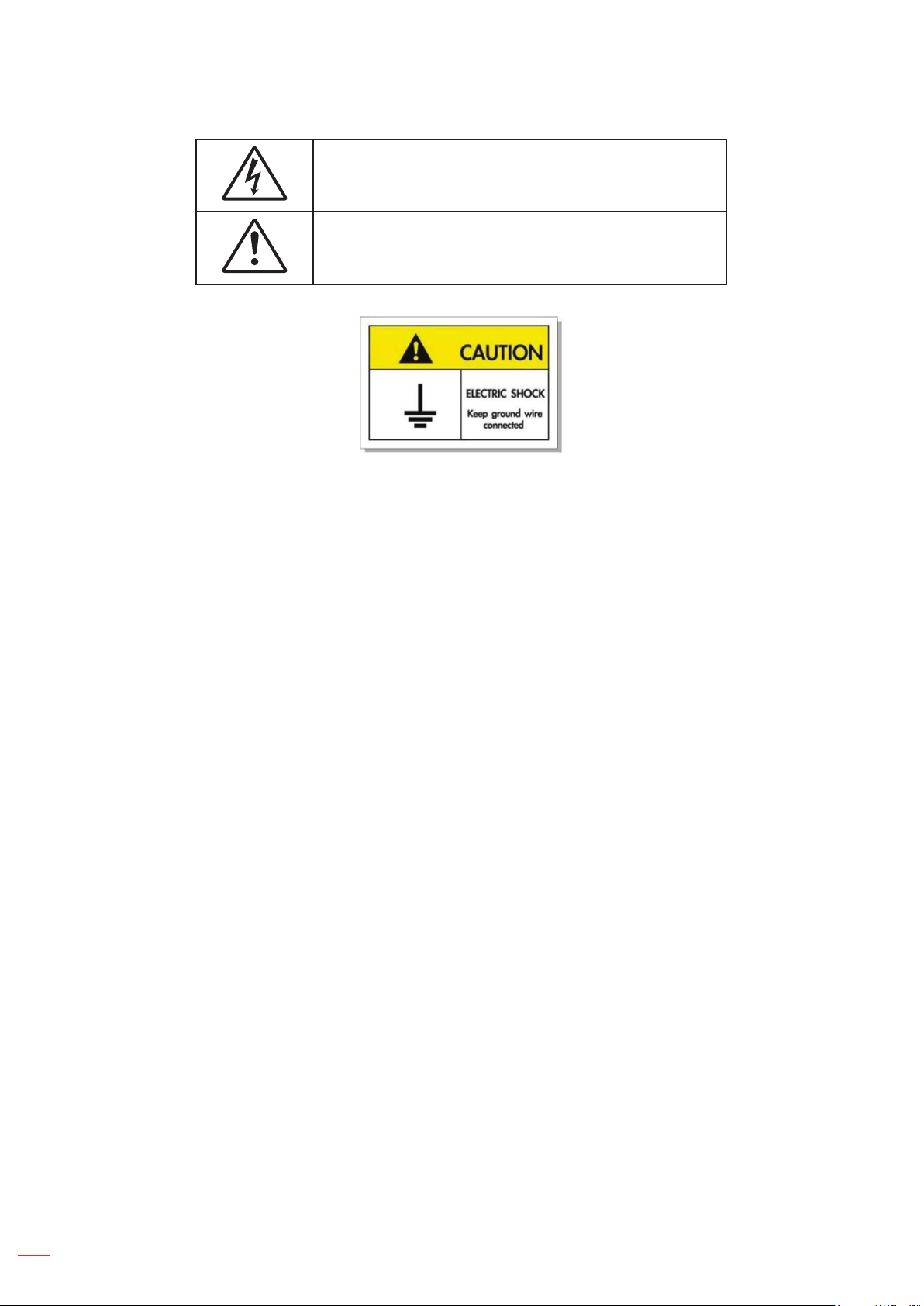

The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
Important Safety Instruction

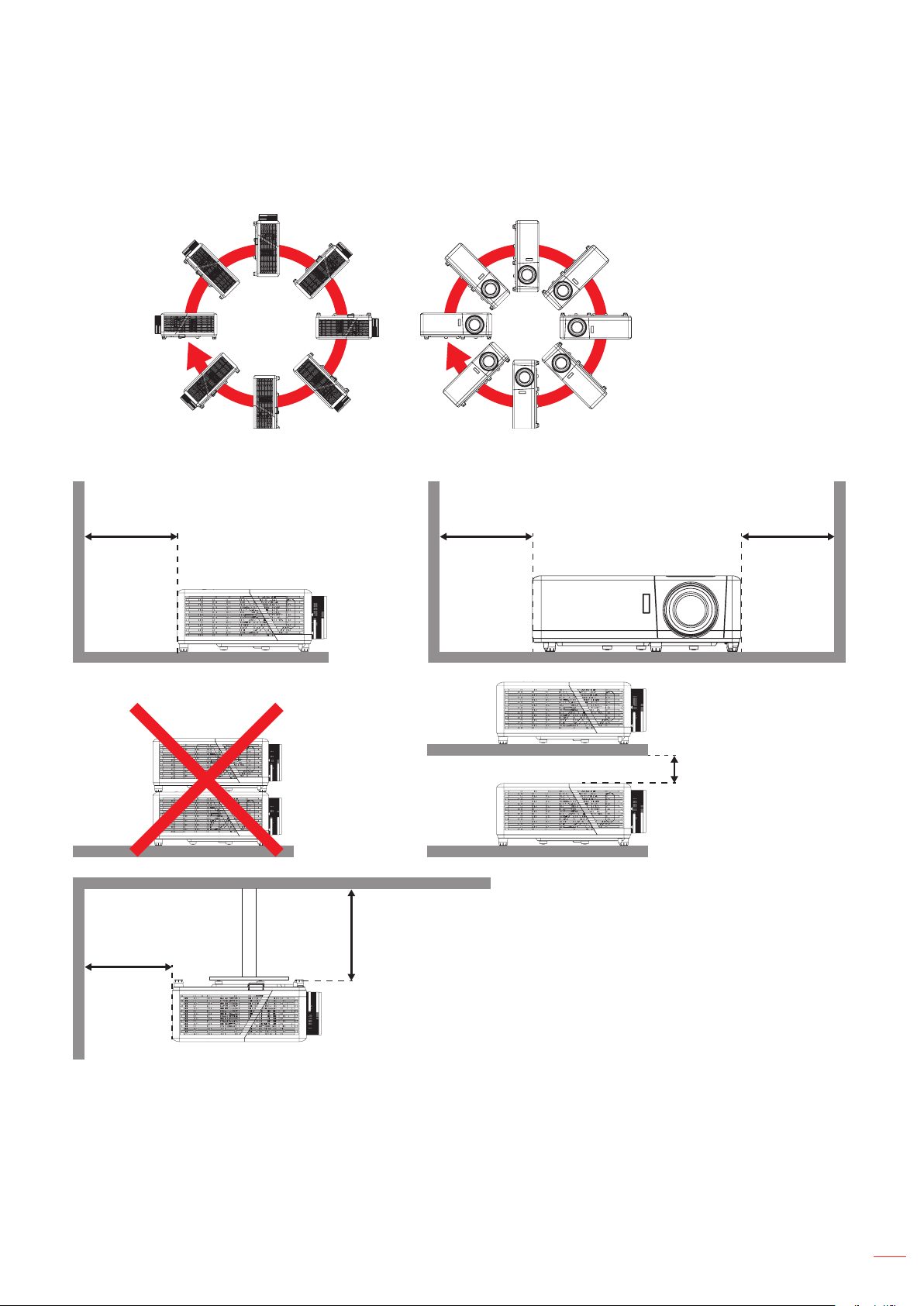

Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coee table, sofa, bed, etc. Do not put the projector in
an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out
parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but
not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and could melt, cause burns or start a re.
English
5
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by appropriate service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
When switching the projector o, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
Turn o and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can
adversely aect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may aect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

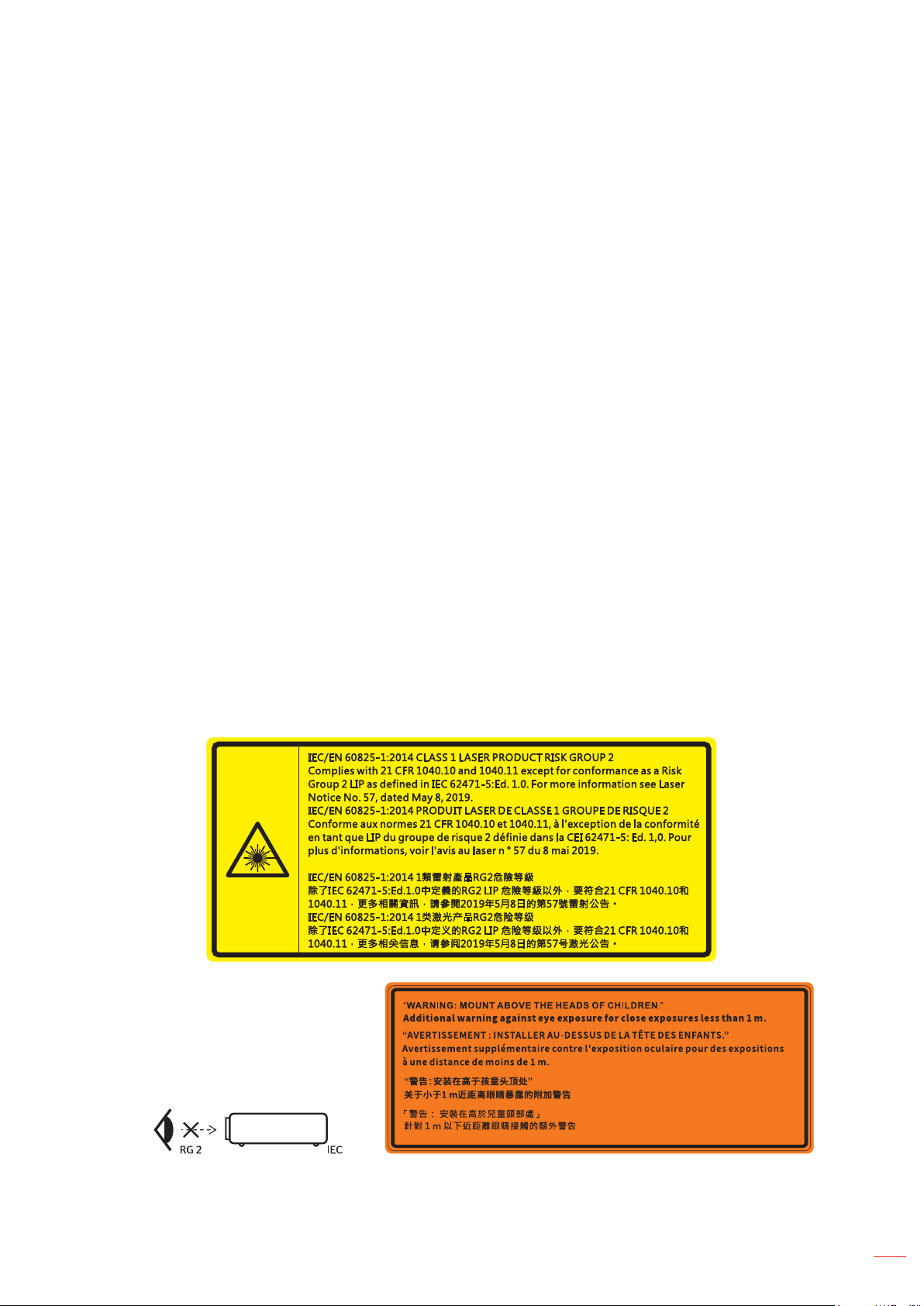

Laser Radiation Safety Information
This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector)
as dened in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
This projector is class 1 laser product of IEC/EN 60825-1:2014 and risk group 2 with the requirements
of IEC 62471-5:2015.
English
6
Additional instructions to supervise children, no staring, and not use optical aids.
Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
When turning on the projector, make sure no one within projection range is looking at the lens.
Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being
projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a re or injury to the eyes.
Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.
Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
Without following the control, adjustment or operation procedure may cause damage by the exposure of
laser radiation
Cleaning the Lens
Before cleaning the lens, be sure to turn o the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel o.
Warning: Do not wipe or tap the lens with a hard object.
3D Safety Information
Please follow all warnings and precautions as recommended before you or your child use the 3D function.
Warning
Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be
closely supervised when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
Some viewers may experience an epileptic seizure or stroke when exposed to certain ashing images
or lights contained in certain Projector pictures or video games. If you suer from, or have a family
history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
Even those without a personal or family history of epilepsy or stroke may have an undiagnosed
condition that can cause photosensitive epileptic seizures.
Pregnant women, the elderly, suerers of serious medical conditions, those who are sleep deprived or
under the inuence of alcohol should avoid utilizing the unit’s 3D functionality.
If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a
medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements
English
7
such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions;
(9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults
to experience these symptoms. Parents should monitor their children and ask whether they are
experiencing these symptoms.
Watching 3D projection may also cause motion sickness, perceptual after eects, disorientation, eye
strain and decreased postural stability. It is recommended that users take frequent breaks to lessen
the potential of these eects. If your eyes show signs of fatigue or dryness or if you have any of the
above symptoms, immediately discontinue use of this device and do not resume using it for at least
thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for an extended period of time may
damage your eyesight. The ideal viewing distance should be at least three times the screen height. It
is recommended that the viewer’s eyes are level with the screen.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause a
headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
Do not use the 3D glasses for any other purpose than for watching 3D projection.
Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles,
etc.) may be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your
3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run
into, knocked down, broken or fallen over.
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2021
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing,
LLC.
All other product names used in this manual are the properties of their respective owners and are
Acknowledged.
English
8
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device o and on is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC
RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
English
9
INTRODUCTION
Thank you for purchasing an Optoma 4K UHD projector. For full list of features please visit the product page on our
website, where you will also nd additional information and documentation such as voice control setup and FAQs.

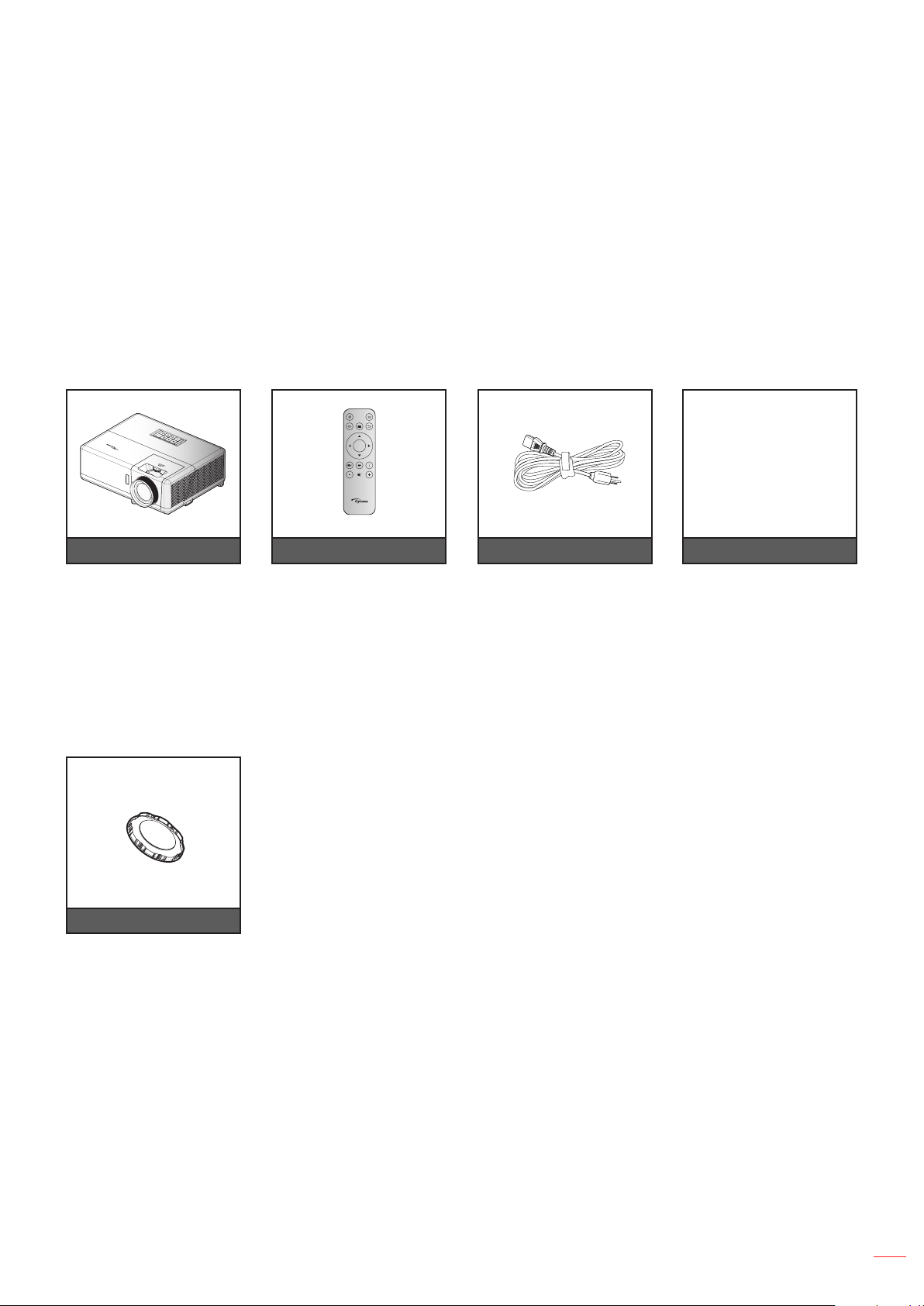

Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Optional accessories
Note: Accessories vary depending on model, specication and region. Some optional accessories may be
available to purchase in select regions. Please visit our website to see more details regarding the
accessories included.
IR remote control Power leadProjector Documentation
Warranty Card*
Quick start user manual
Note:
The actual remote control may vary depending on the region.
The remote control is shipped with battery.
* For warranty Information, please visit https://www.optoma.com/support/download.
Lens cap
Enter
English
10
INTRODUCTION

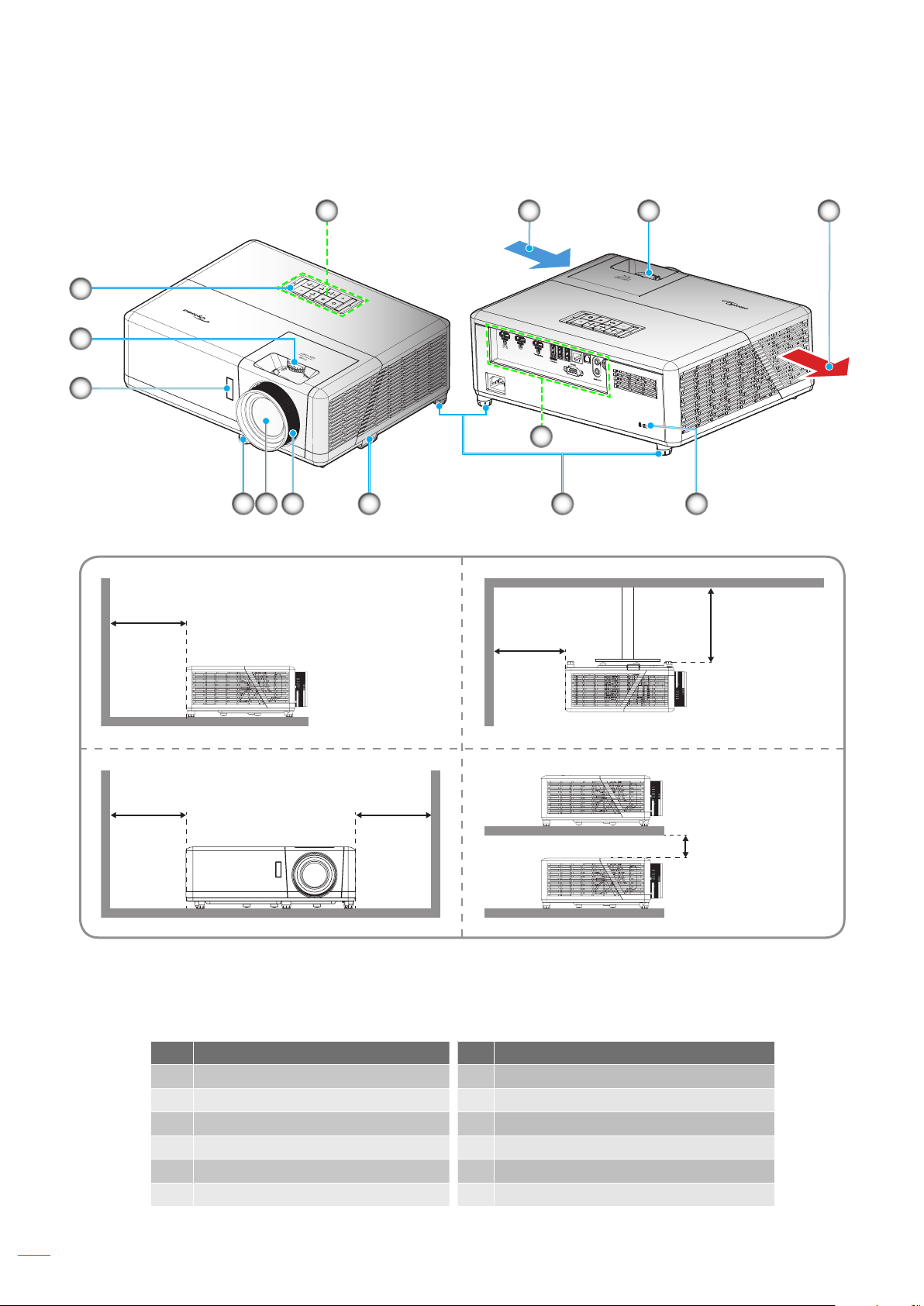

Product Overview
21 43
7
9
6 5
10
8
11
12
6
11
Minimum
100mm
Minimum
100mm
Minimum
100mm
Minimum
300mm
Minimum
300mm
Minimum 100mm
Note:
Do not block projector intake and exhaust vents.
When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. Keypad 7. Input / Output
2. Ventilation (inlet) 8. Security Bar
3. Zoom Lever 9. Focus Ring
4. Ventilation (outlet) 10. Lens
5. Kensington™ Lock Port 11. IR Receiver (front and top)
6. Tilt-Adjustment Feet 12. Lens Shift Dial
English
11
INTRODUCTION
Connections
1 2 5 6 743
810111213 9
No Item No Item
1.
HDMI 1 Connector
(eARC/ARC out; low latency mode)
8. Kensington
TM
Lock Port
2.
HDMI 2 Connector
(eARC audio format through the
HDMI-1 connector)
9. Audio Out Connector
3.
HDMI 3 Connector
(pass ARC audio format through
the HDMI-1 connector; PureMotion
support)
10. S/PDIF Connector
(only 2ch PCM supported;
Dolby Digital (5.1))
4.
USB Power OUT (5V 1.5A)
Connector (for service)
11. RS-232 Connector
5.
RJ-45 Connector 12. USB Port
(WiFi dongle/Media Player)
6. 12V Trigger
(DC output; Volts: 12V,
Amps: 0.5A Max)
13. Power Socket
7. 3D SYNC
English
12
INTRODUCTION
Keypad
10
21 3 5 6
9 78
4
No Item No Item
1. Light Source LED 6. Temp LED
2.
Power and Power LED
7.
Re-Sync
3. Menu 8. Four Directional Select Keys
4. Keystone Correction 9. Source
5. Enter 10. Information
Note: The keypad does not control the home screen. Please use the remote control to navigate.
English
13
INTRODUCTION

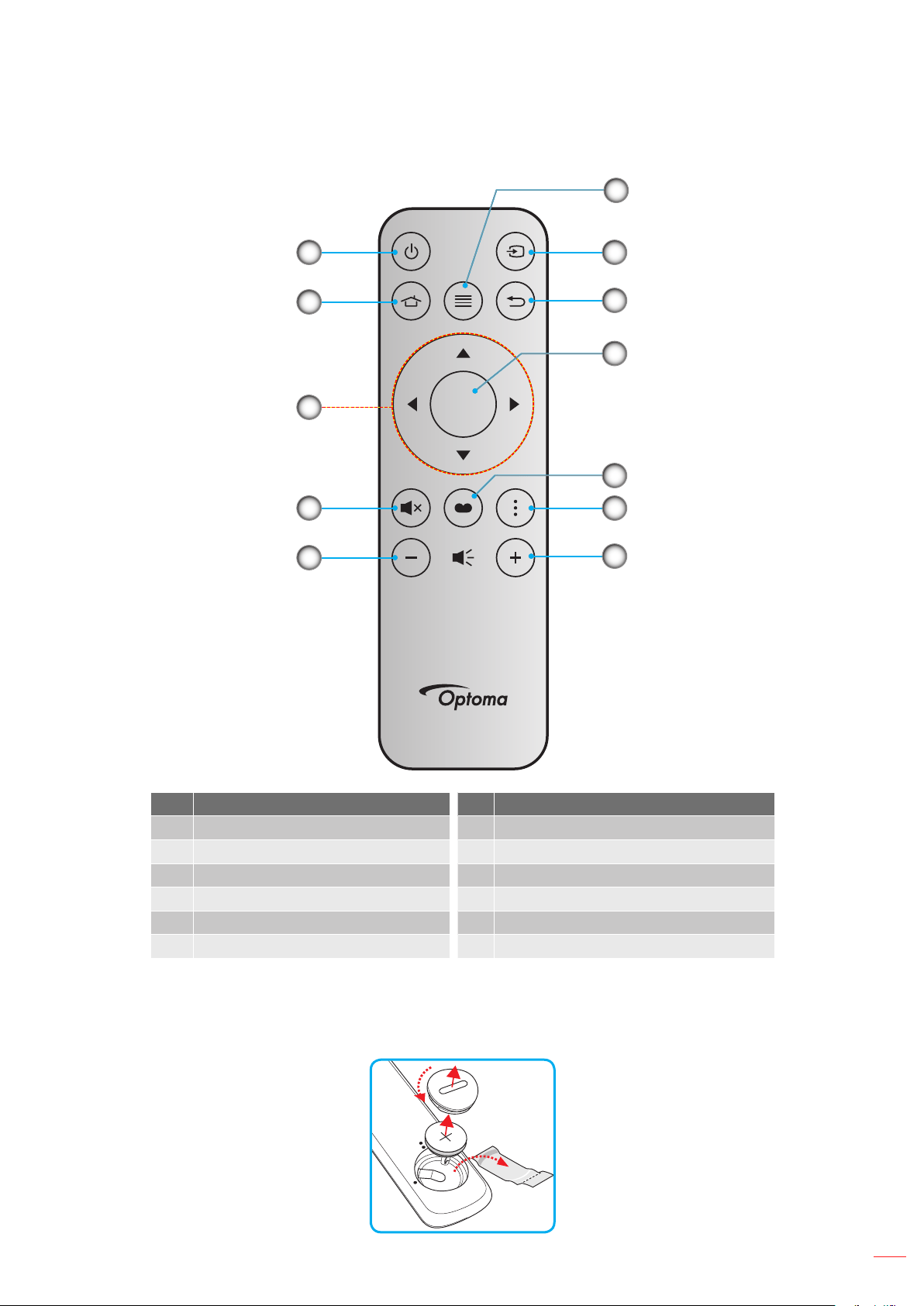

Remote control
Enter
1
2
4
5
3
6
7
8
9
11
12
10
No Item No Item
1. Power On / O 7. Source
2. Home 8. Return
3. Four Directional Select Keys 9. Enter
4. Mute 10. Display Mode
5. Volume - 11. APP menu
6. Menu 12. Volume +
Note:
Some keys may have no function for models that do not support these features.
Before using the remote control for the rst time, remove the transparent insulation tape. See page
18 for battery installation.
3
V
O
L
T
S
CR2032
English
14
SETUP AND INSTALLATION

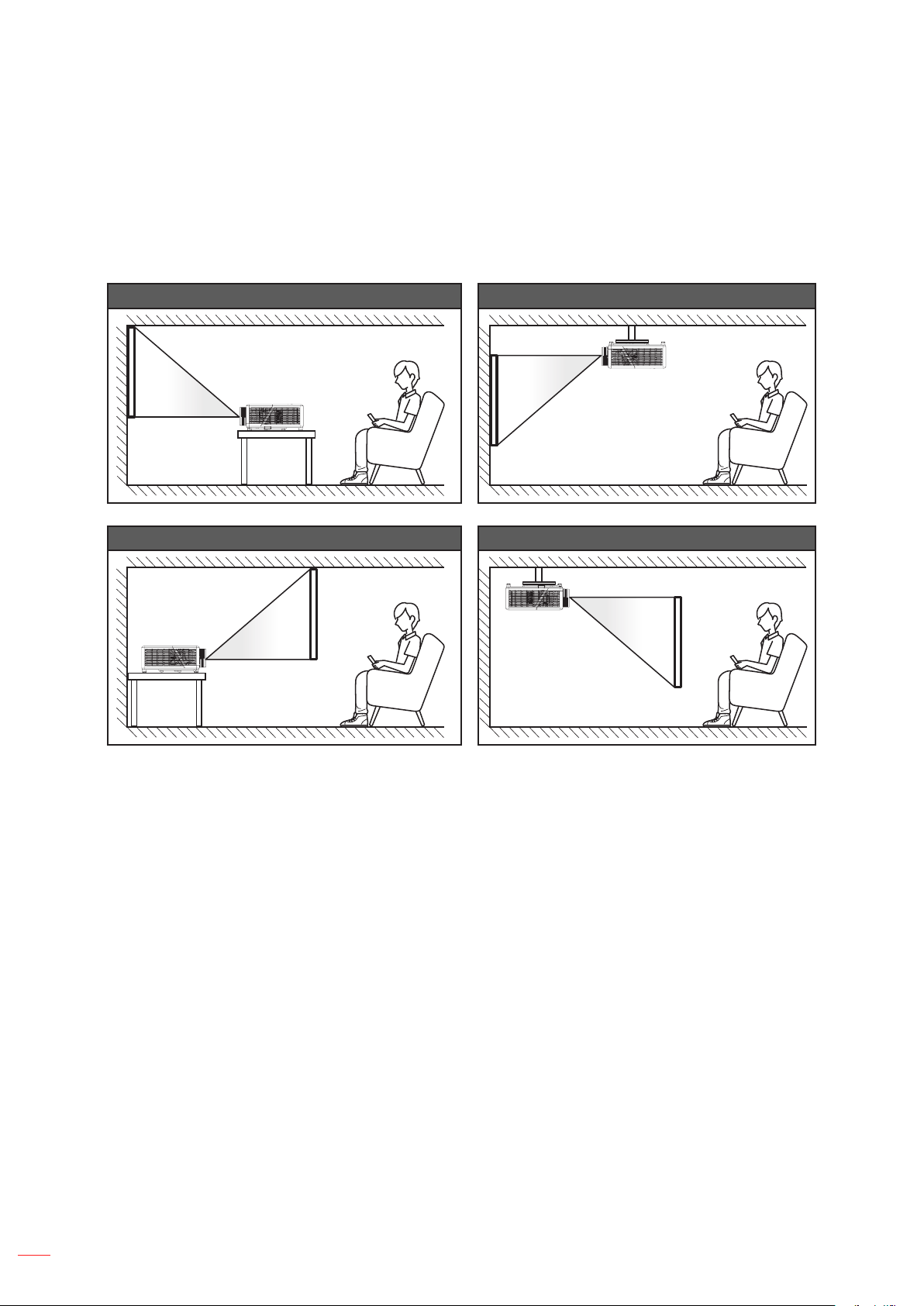

Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.

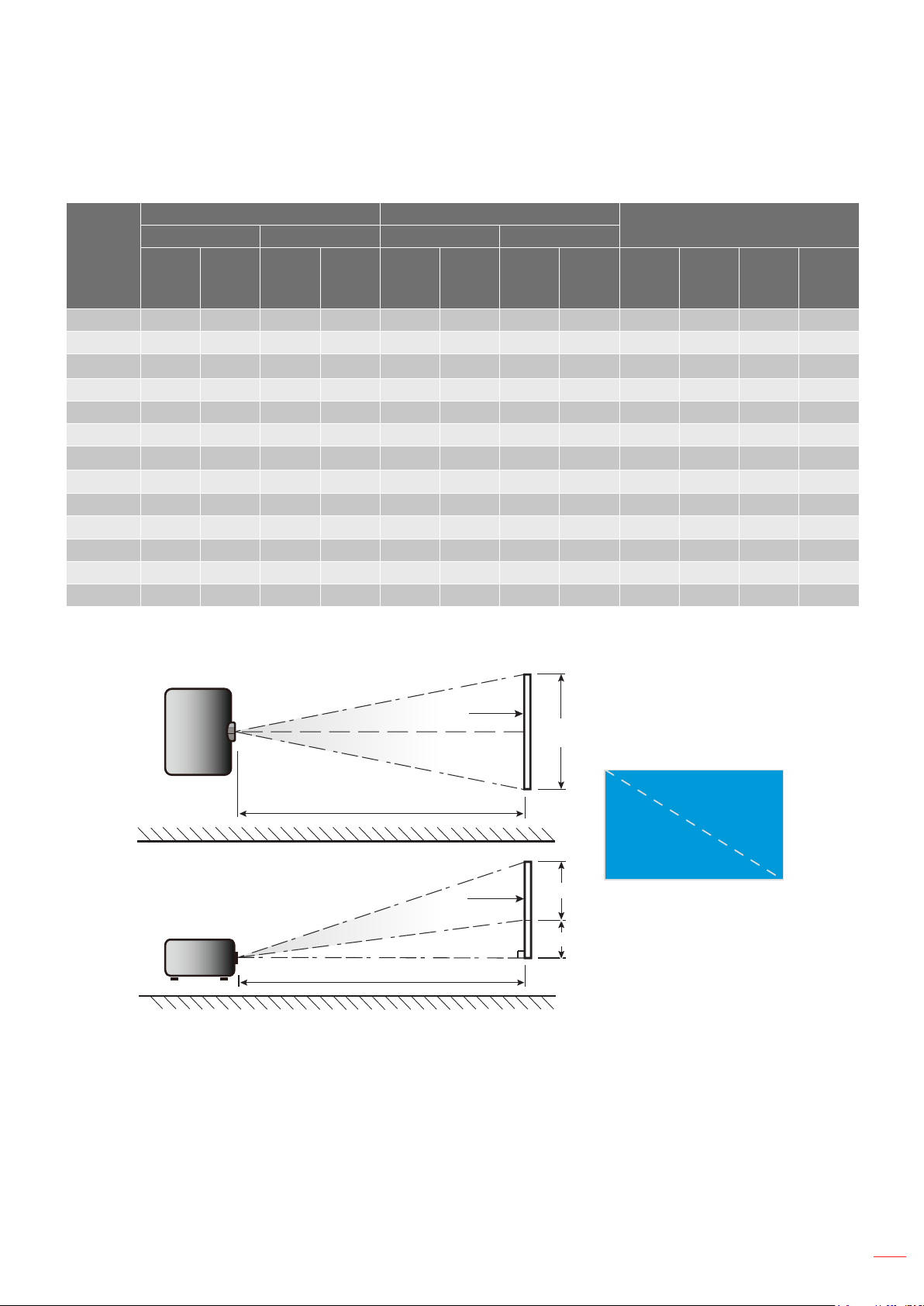

How to determine projector location for a given screen size, please refer to distance table on
page 65.
How to determine screen size for a given distance, please refer to distance table on page 65.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the
warranty and may shorten the lifetime of the projector. For none standard installation advise please contact
Optoma.
English
15
SETUP AND INSTALLATION
Projector installation notice
360° free orientation operation
Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
16
SETUP AND INSTALLATION

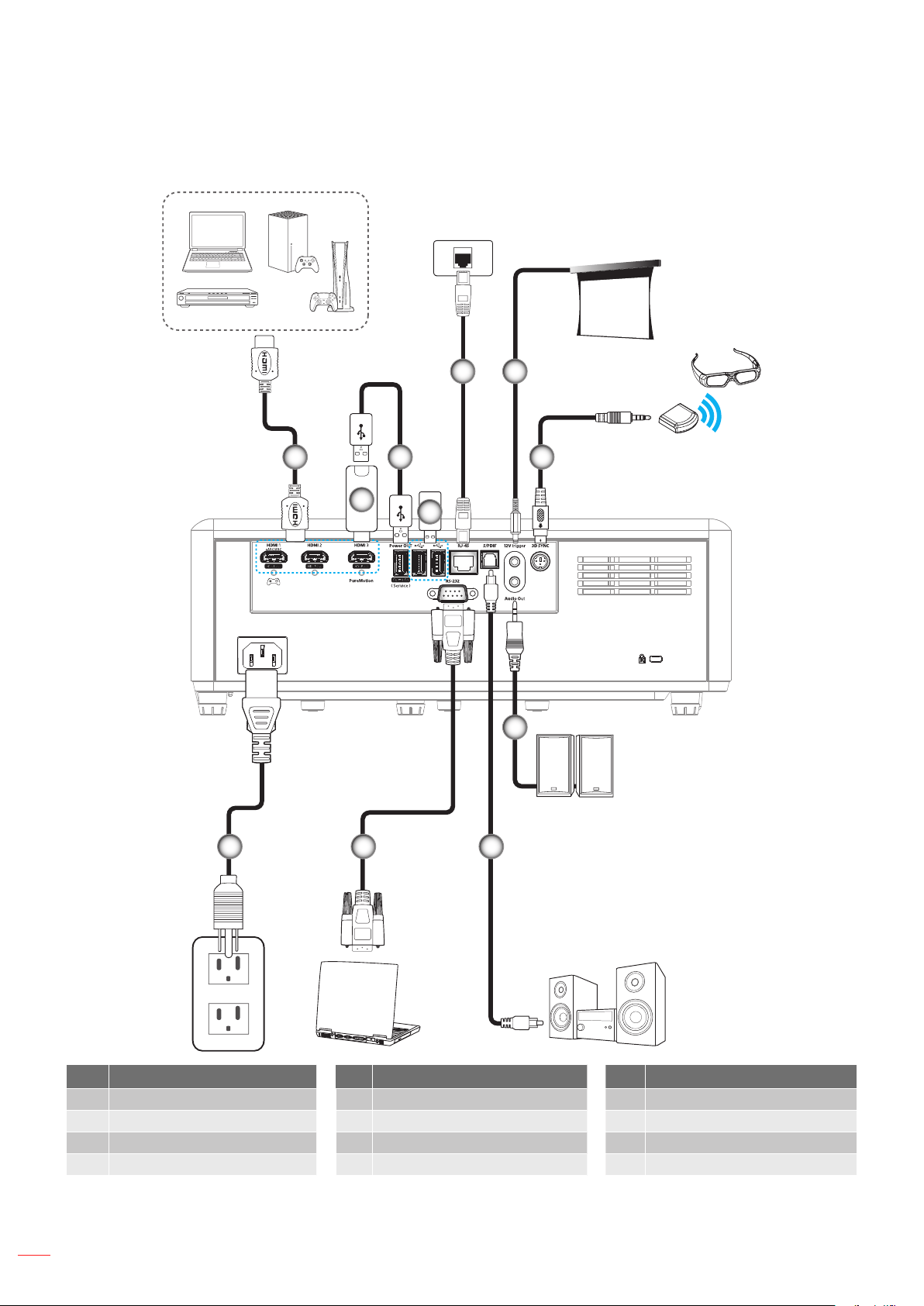

Connecting sources to the projector
1
8
2
3
4
5 6
1011
7
9
No Item No Item No Item
1. HDMI Cable 5. RJ-45 Cable 9. S/PDIF Out Cable
2. HDMI Dongle 6. 12V DC Jack 10. RS-232 Cable
3. USB Power Cable 7. 3D Emitter Cable 11. Power Cord
4. USB Disk Drive 8. Audio Out Cable
Note: To ensure the best image quality and avoid connection errors, we recommend the use of Premium HDMI
cables. For the cable lengths longer than 20-25 feet, we strongly recommend using Active Fiber HDMI cables.
English
17
SETUP AND INSTALLATION

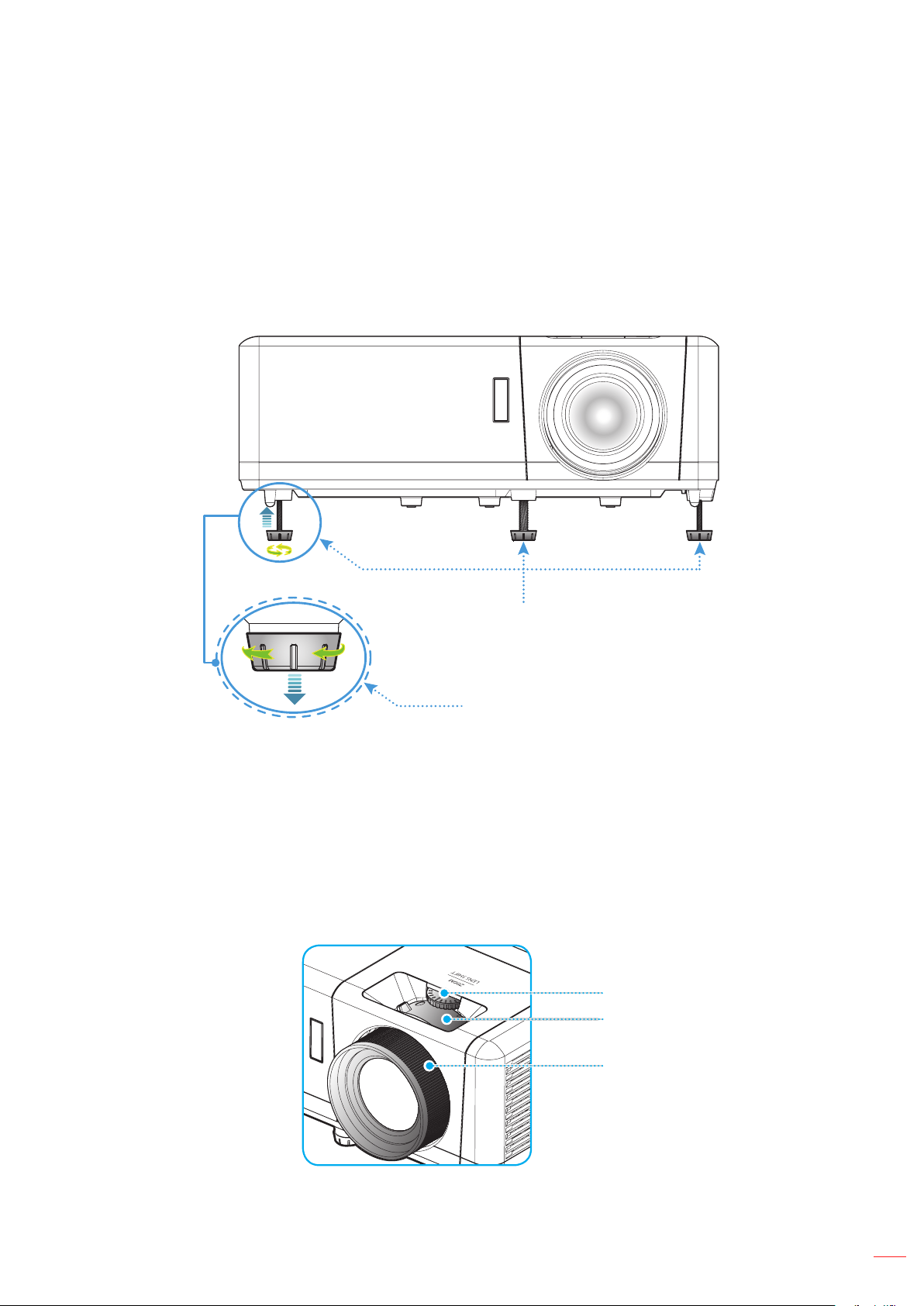

Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
To adjust the image size and position, do the following:
a. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
b. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.
Lens Shift
Zoom Lever
Focus Ring
Note: The projector will focus at a distance of 1.2m to 8.1m.
English
18
SETUP AND INSTALLATION
Remote setup

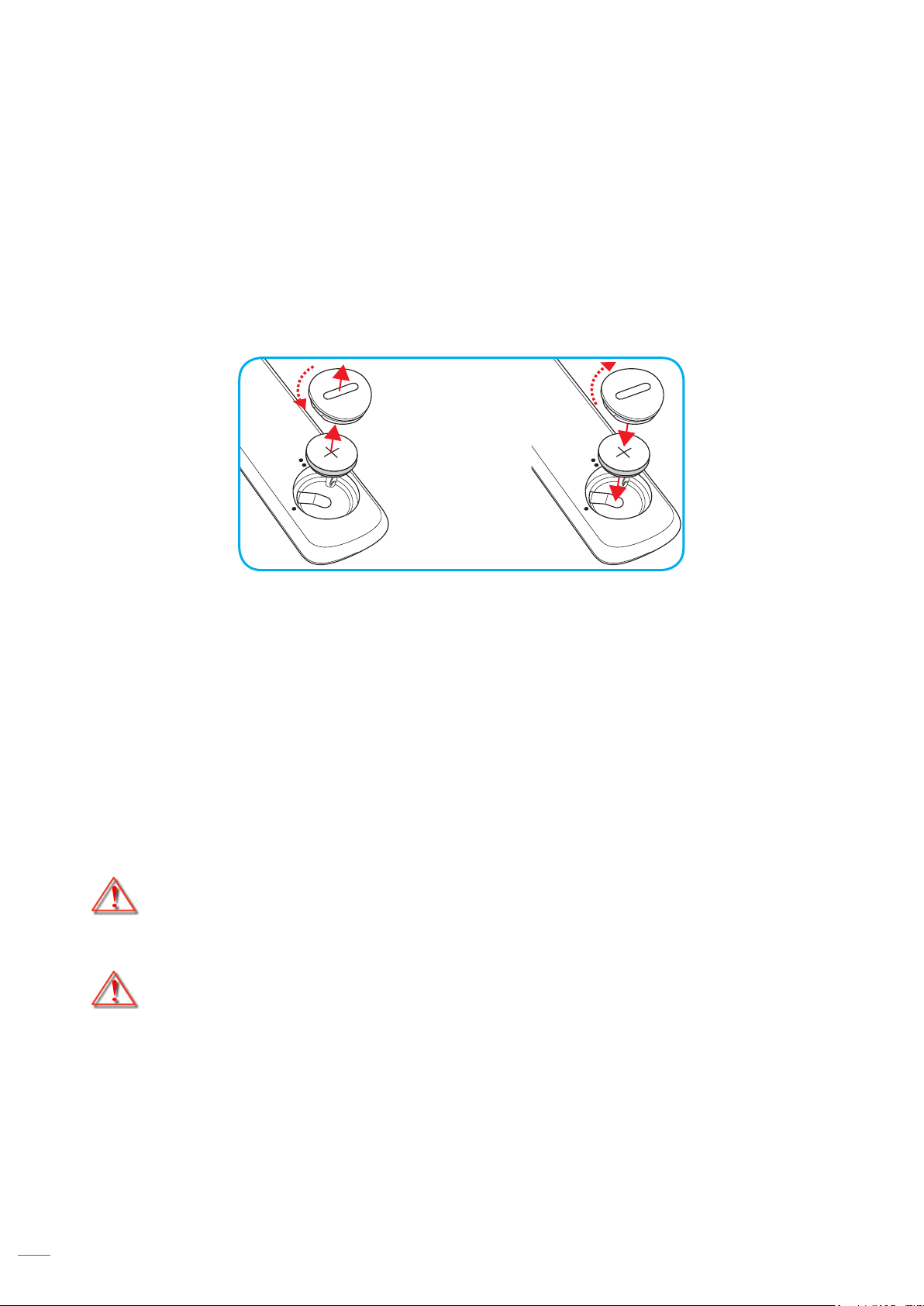

Installing / replacing the battery
1. Use a coin to turn the battery cover counterclockwise until the cover opens.
2. Install new battery into the compartment.
Remove the old battery and install new one (CR2032). Ensure that the side with a “+” is facing up.
3. Put the cover back. Then use a coin to turn the battery cover clockwise to lock it in place.
3
V
O
L
T
S
CR2032
3
V
O
L
T
S
CR2032
CAUTION:
To ensure safe operation, please observe the following precautions:
Use CR2032 type battery.
Avoid contact with water or liquid.
Do not expose the remote control to moisture or heat.
Do not drop the remote control.
If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
Risk of an explosion if battery is replaced by an incorrect type.
Dispose of used battery according to the instructions.
Warning: Do not ingest battery, Chemical Burn Hazard.
This product contains a coin / button cell battery. If the coin / button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Warning: Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it
away from children.If you think batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
English
19
SETUP AND INSTALLATION

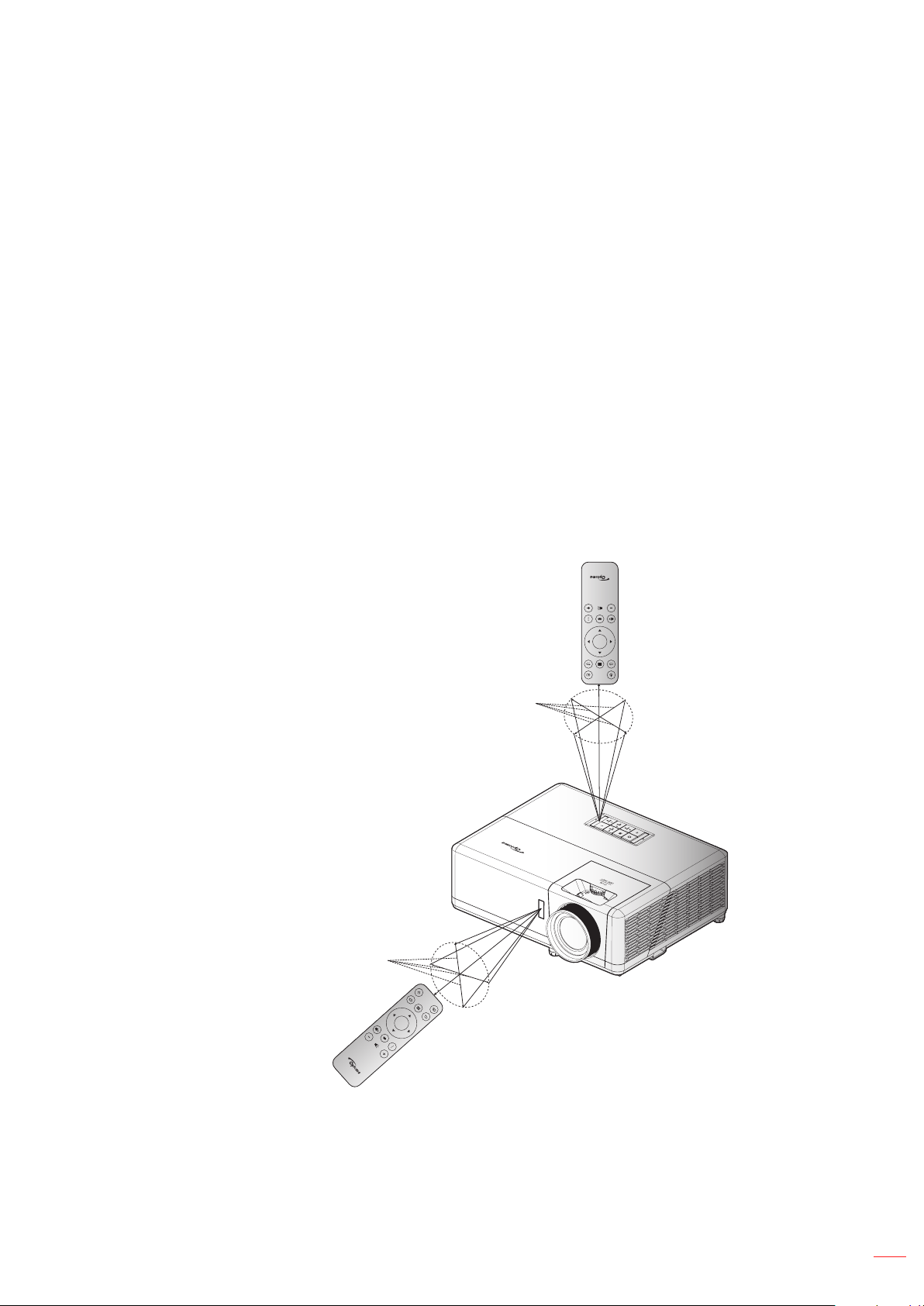

Eective range
Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an
angle within 30° (horizontally) or 20° (vertically) perpendicular to the projector’s IR remote control sensor to function
correctly. The distance between the remote control and the sensor should not be longer than 7 meters (~22 feet).
Note: When pointing the remote control directly (0 degrees angle) on the IR sensor, the distance between the
remote control and the sensor should not be longer than 10 meters (~32 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 meters or the remote
controller might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineective.
When you aim at the screen, the eective distance is less than 7 meters from the remote control to the
screen and reecting the IR beams back to the projector. However, the eective range might change
according to screens.
Enter
Enter
Approx. ±15° (horizontally)
or ±10° (vertically)
Approx. ±15° (horizontally)
or ±10° (vertically)
English
20
USING THE PROJECTOR
Powering on / o the projector
Enter
or
Enter

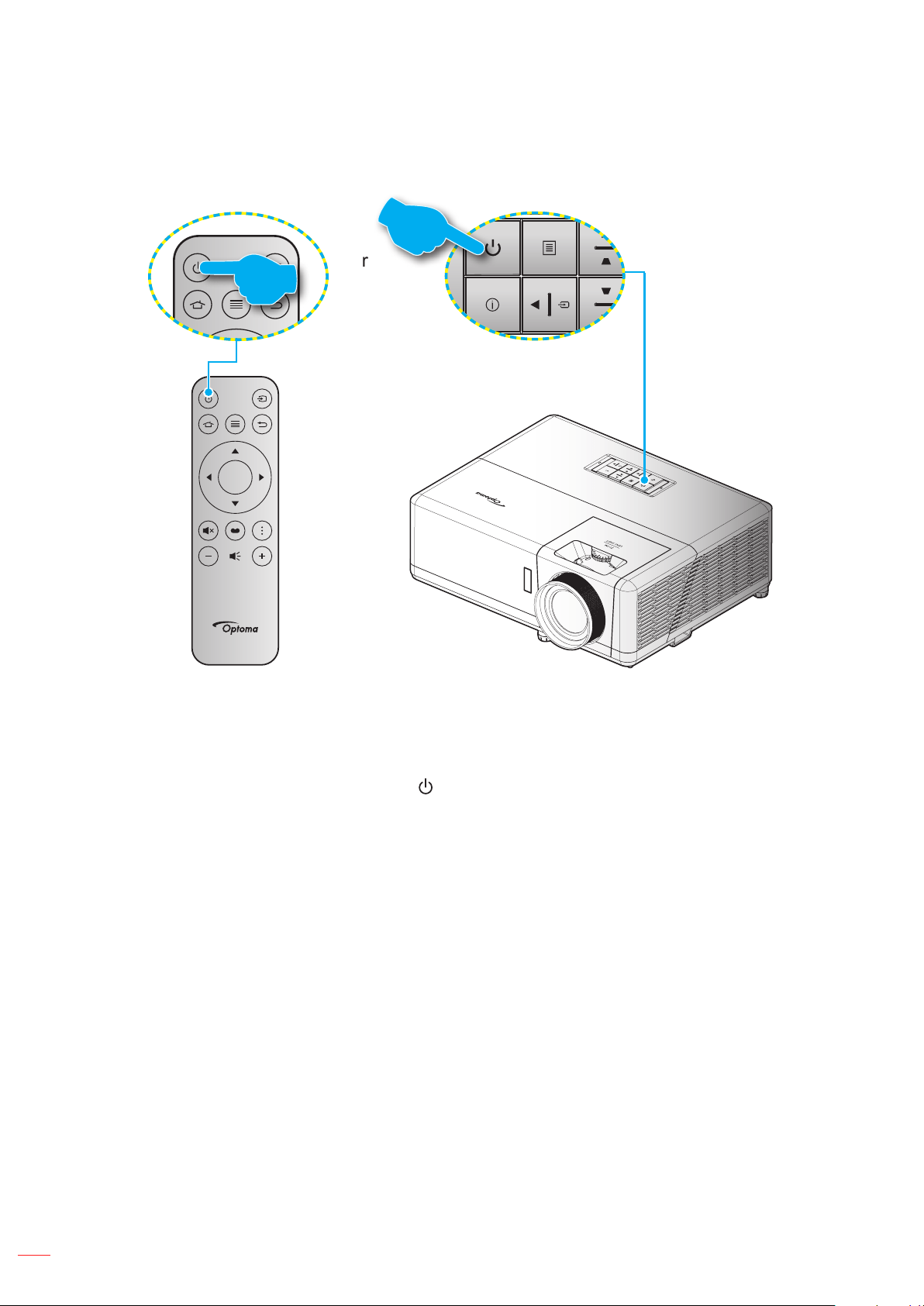

Powering on
1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will
turn red.
2. Turn on the projector by pressing the “ ” button on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing
blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
English
21
USING THE PROJECTOR

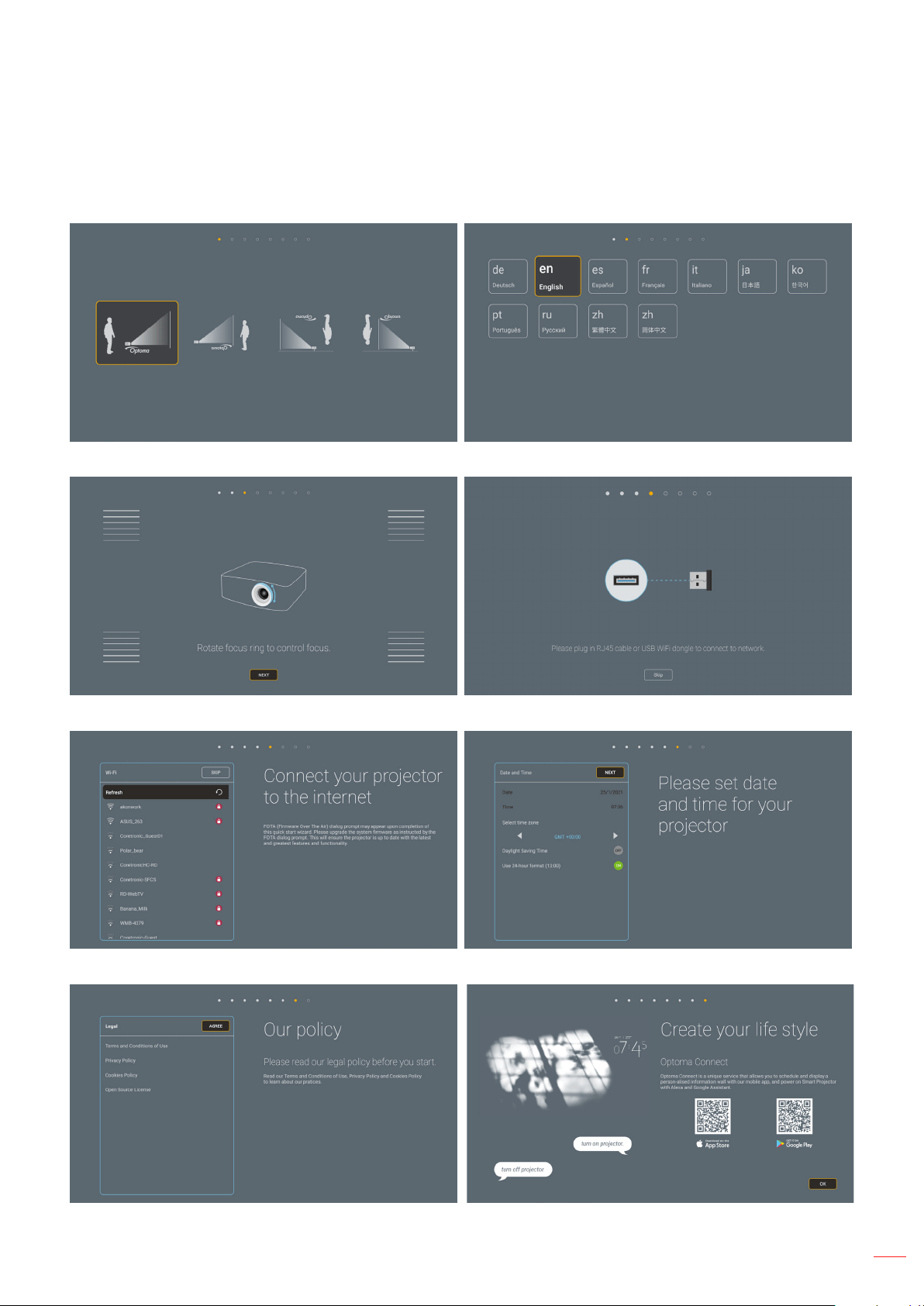

The rst time the projector is turned on, you will be prompted to do the initial setup including selecting the projection
orientation, preferred language, conguring network settings, and more. Once the Setup Complete! screen
appears, it indicates the projector is ready to use.
[Projection screen] [Language screen]
[Focus adjustment screen] [Wi-Fi dongle installation screen]
[Network screen] [Date and time screen]
[Regulation screen] [Optoma Connect screen]
English
22
USING THE PROJECTOR
Powering o
1. Turn o the projector by pressing the “ ” button on the projector keypad or the remote control.
2. The following message will be displayed:
Power O
Power O?
Press power key again.
3. Press the “ ” button again to conrm, otherwise the message will disappear after 15 seconds. When
you press the “ ” button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/
Standby LED will ash blue. When the On/Standby LED turns solid red, this indicates the projector has
entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle
has nished and the projector has entered standby mode. When the projector is in standby mode,
simply press the “ ” button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power o procedure.
English
23
USING THE PROJECTOR

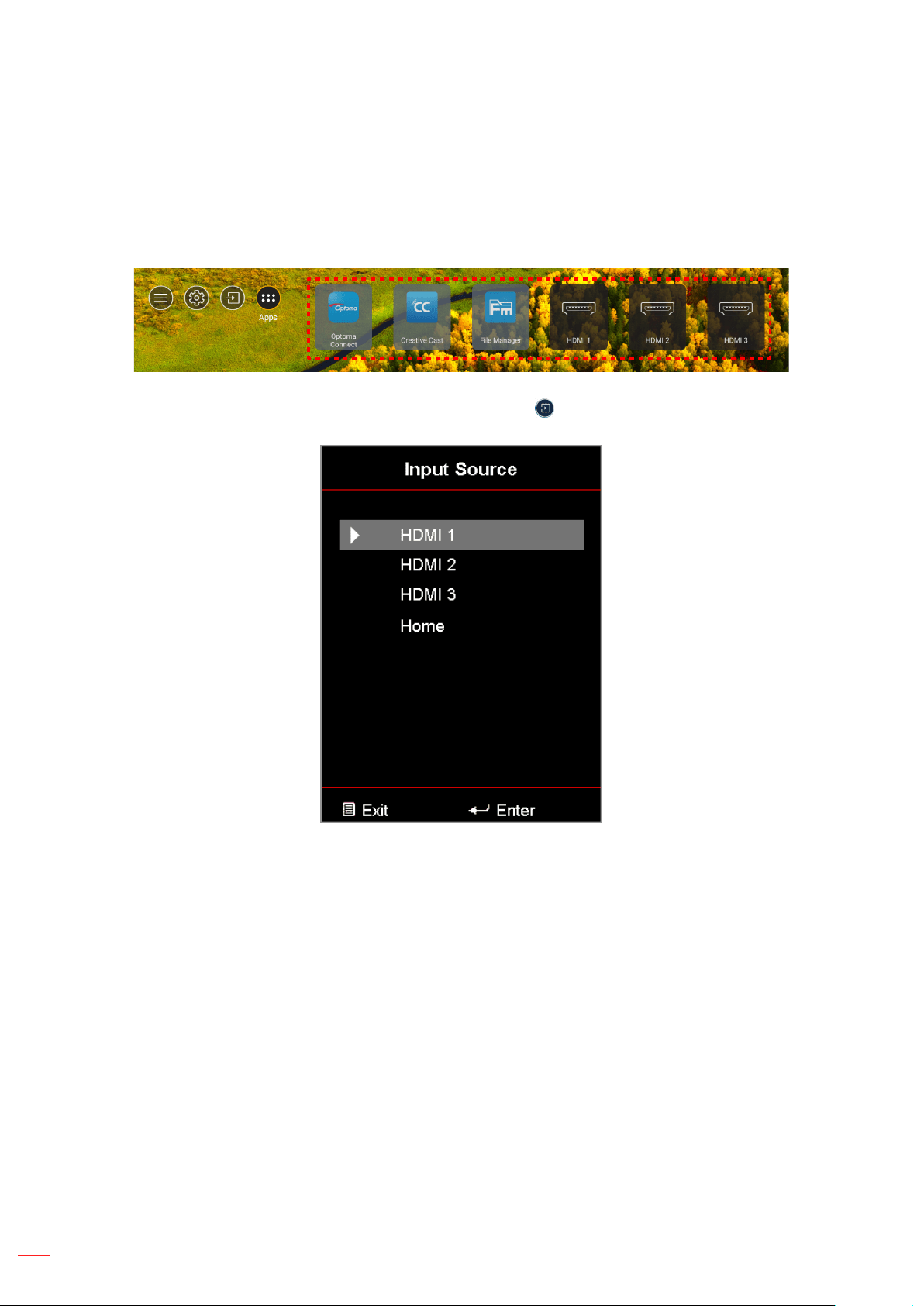

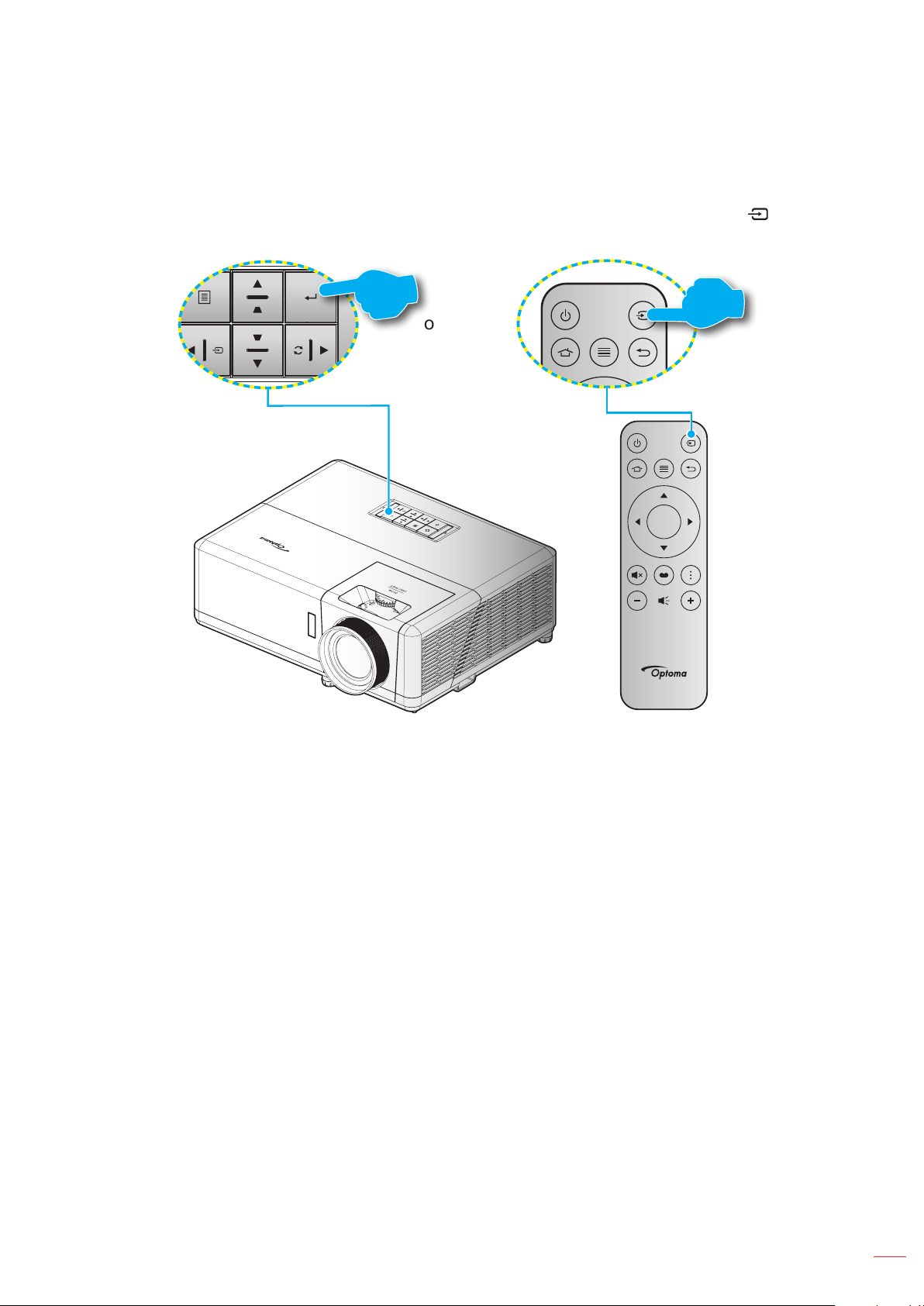

Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the “ ” button on
the projector keypad or the remote control to select the desired input.
Enter
Enter
or
English
24
USING THE PROJECTOR

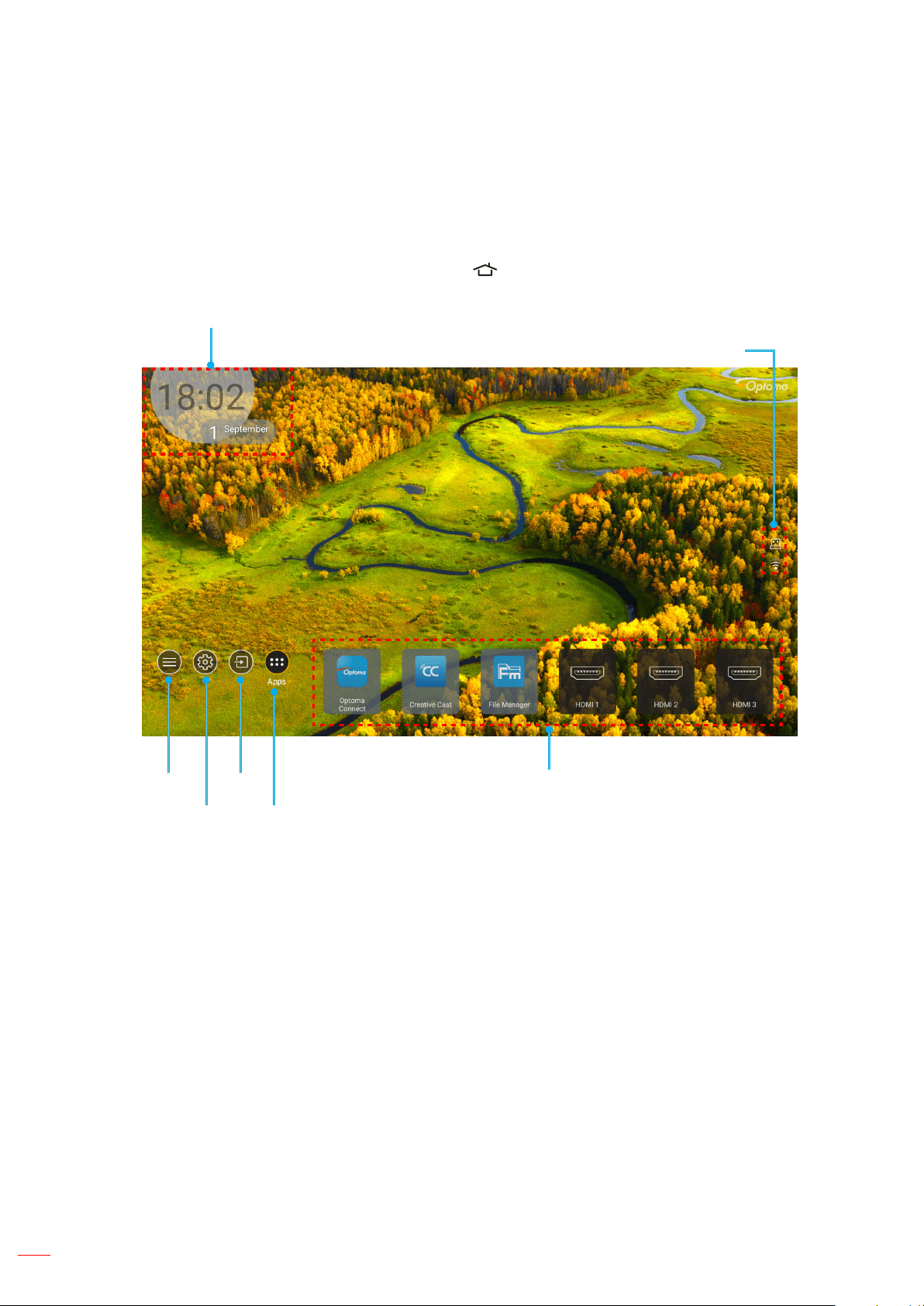

Home screen overview
The Home screen is displayed every time you start the projector. It contains system date and time, system status,
icons to access OSD menu, projector settings menu, apps, input sources, and more.
To navigate the Home screen, simply use the buttons on the remote control.
You can return to the Home screen at any time by pressing “ ” on the remote control, regardless of your position in
the user interface.
System Date and Time
Shortcuts

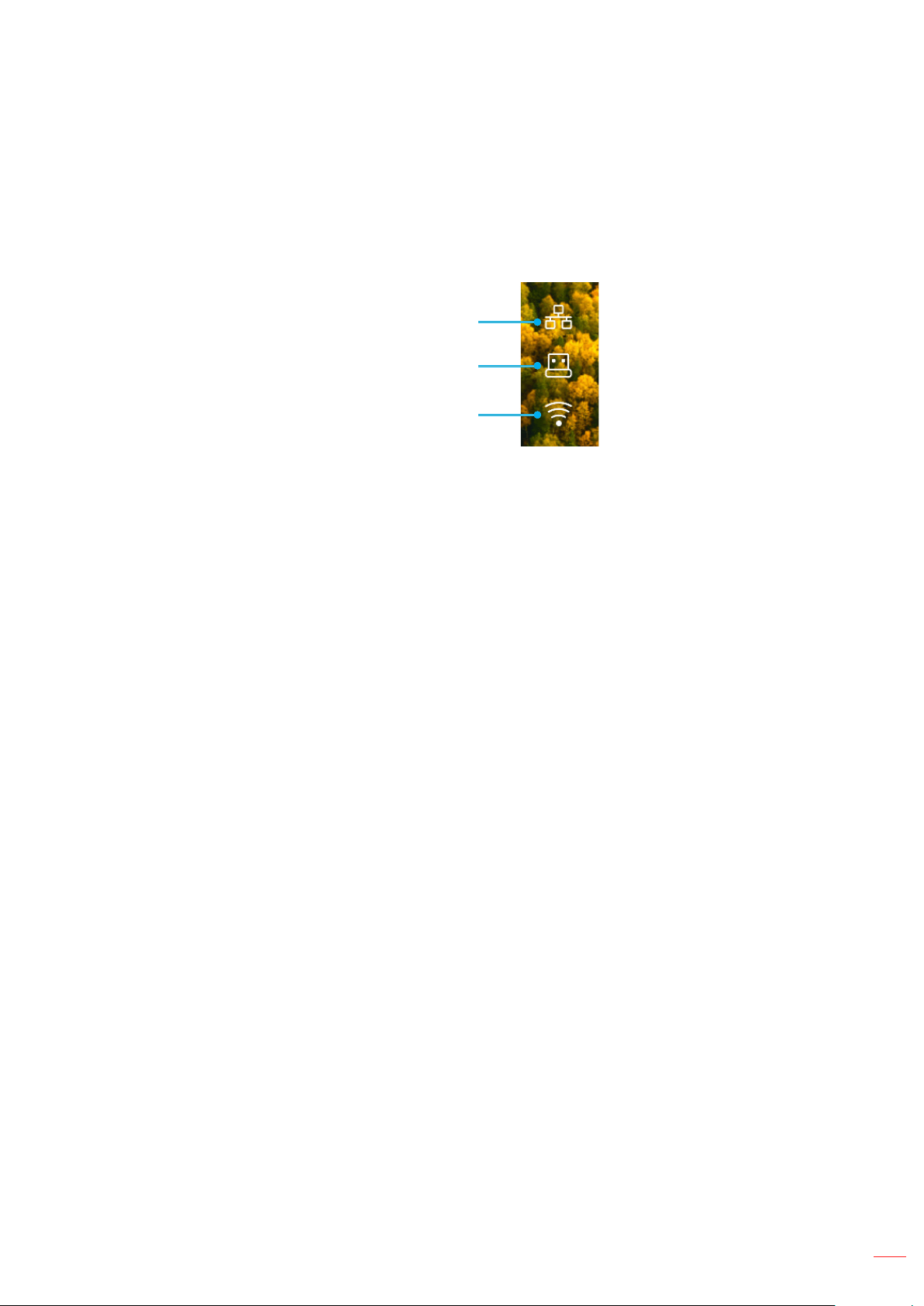

Status Bar
OSD Menu
System
Settings
Input
Sources
Apps
Note: The selected menu or item is highlighted in orange color, for example “Apps” on the image above.
System date and time
Date and time is displayed on the Home screen if the projector is connected to the network.The default setting is
10:00am, 2019/01/01. AM/PM will appear only if the 24-hour format is o.
To modify date and time parameters, select the respective eld on the screen. The Date and Time settings page
opens automatically. Then perform the modications.
English
25
USING THE PROJECTOR

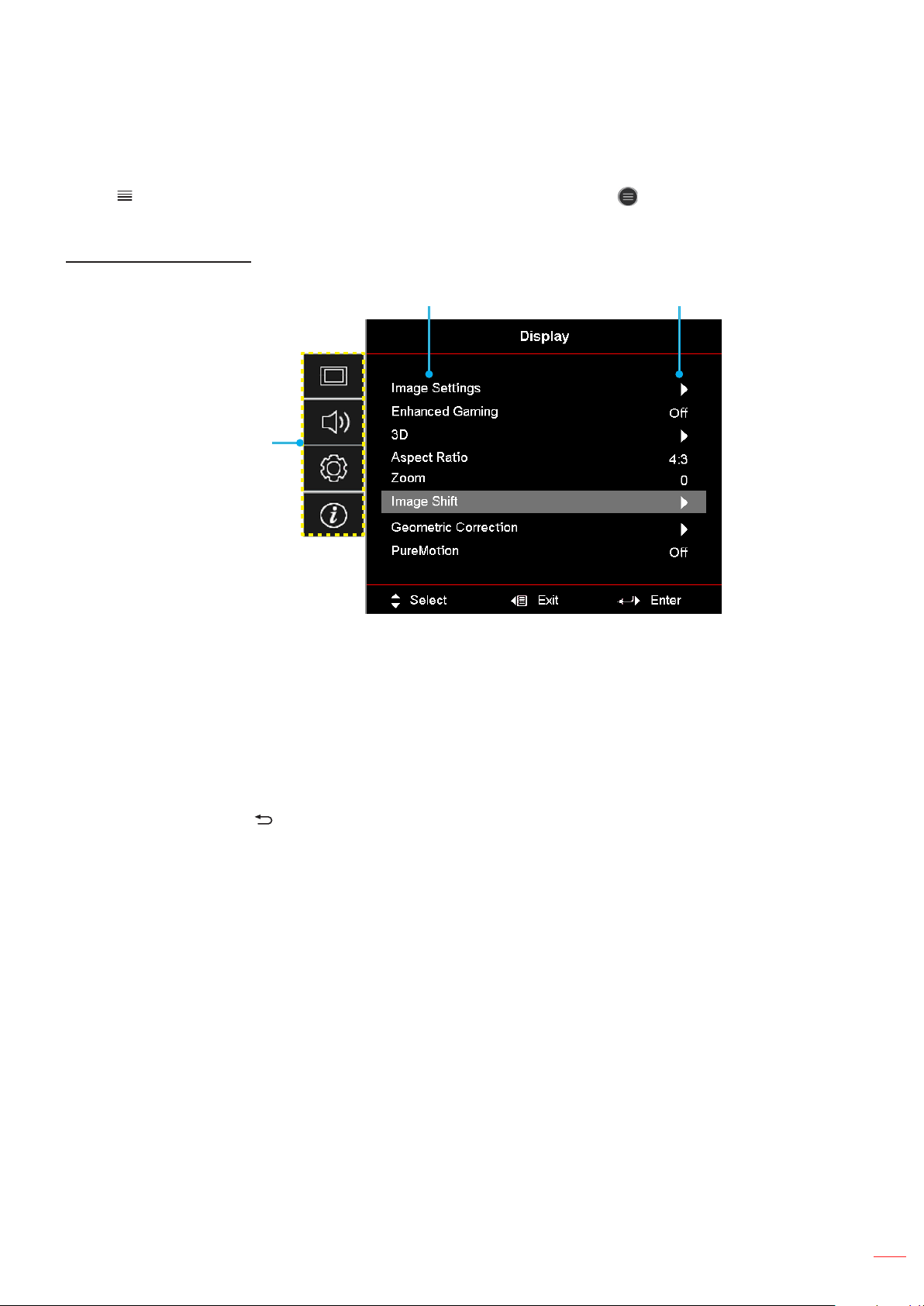

Projector settings menu (OSD)
Press “ ” on the remote control or on the Home screen, select the OSD menu “ ” to review projector information
or manage various settings related to the image, display, 3D, audio, and setup.

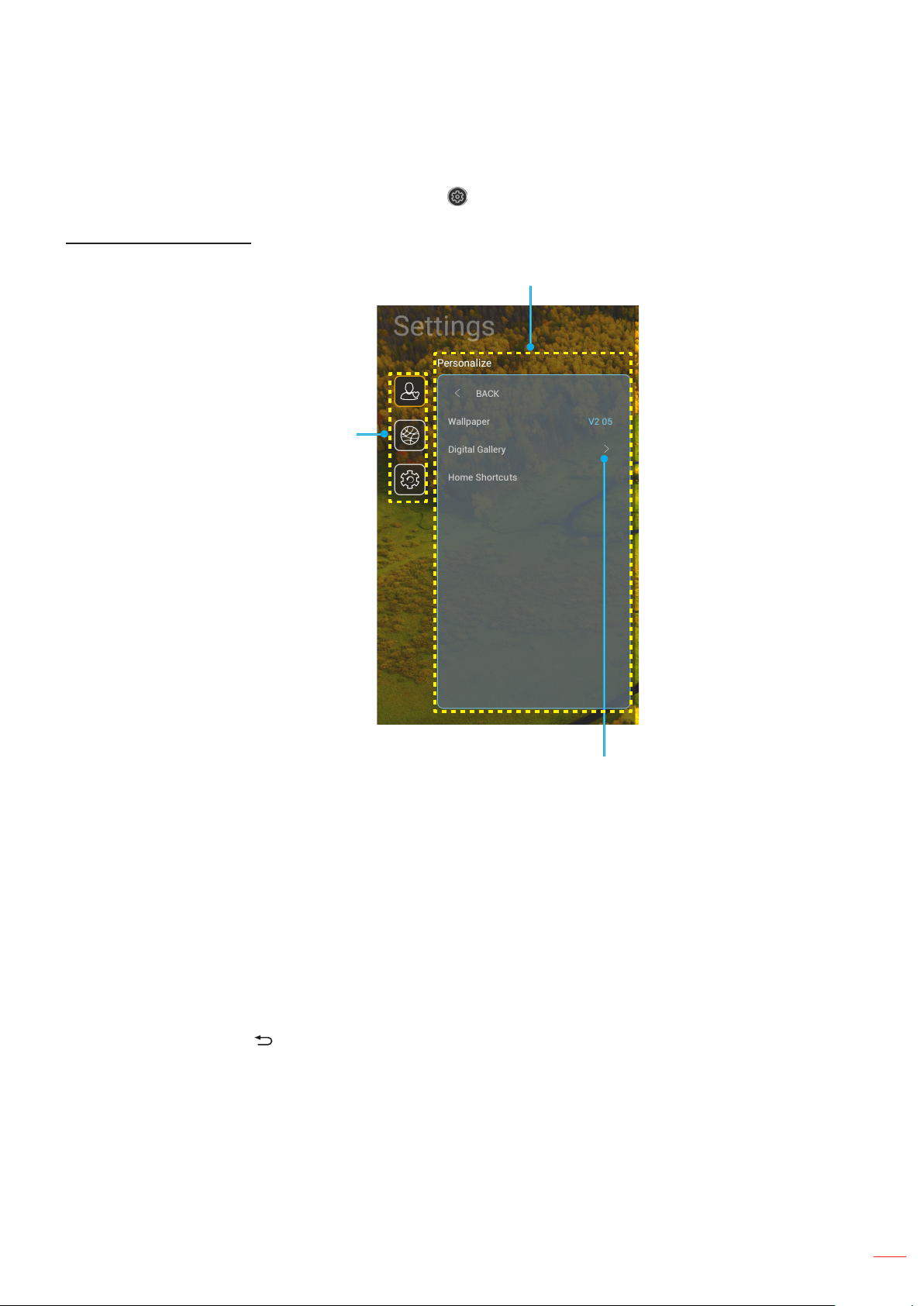

General menu navigation
Main Menu
Sub Menu
Settings
1. When OSD is displayed, use the up and down navigation buttons to select any item in the main menu.
While making a selection on a particular page, press “OK” to enter submenu.
2. Press the “Left” and “Right” button to select the desired menu item. Then press “OK” to open its sub
menu.
3. Press the “Up” and “Down” button to select the desired item in the sub menu.
4. Press the “OK” button to enable or disable a setting or press the “Left” and “Right” button to adjust a
value.
5. Select the next item to be adjusted in the sub menu and modify as described above.
6. To exit, press “ ” (repeatedly if necessary). The OSD menu will close and the projector will
automatically save the new settings.
English
26
USING THE PROJECTOR
OSD Menu tree
Note: The OSD menu tree items and features are subject to models and region. Optoma reserve the right to add
or remove items to improve product performance without notice.
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Display Mode [Video] Mode
Cinema
HDR
HLG
HDR SIM.
Game
Reference
Bright
User
3D
ISF Day
ISF Night
ISF 3D
Wall Color
O (Default)
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Dynamic Range
HDR / HLG
O
Auto [Default]
HDR Picture
Mode
Bright
Standard [Default]
Film
Detail
HLG Picture
Mode
Bright
Standard [Default]
Film
Detail
HDR Brightness 0 ~ 10
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Gamma
Film
Video
Graphics
Standard(2.2)
1.8
2.0
2.4
3D
Color Settings
BrilliantColor™ 1 ~ 10
Color
Temperature
Warm
Standard
Cool
Cold
Color Matching
Color
Red
Green
Blue
Cyan
Yellow
Magenta
White(*)
Hue / R(*) -50 ~ 50 [Default: 0]
Saturation / G(*) -50 ~ 50 [Default: 0]
Gain / B(*) -50 ~ 50 [Default: 0]
Reset
Cancel [Default]
Yes
Exit
RGB Gain/Bias
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias -50 ~ 50
Green Bias -50 ~ 50
Blue Bias -50 ~ 50
Reset
Cancel [Default]
Yes
Exit
Color Space
(Not HDMI Input)
Auto [Default]
RGB
YUV
Color Space
(HDMI Input)
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
English
28
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Image Settings
Brightness
Mode
DynamicBlack
Eco.
Constant Power
Power =100%/95%/90%/85%/80%/
75%/70%/65%/60%/55%/50%
Constant Luminance
Power=85%/80%/75%/70%
Reset
Enhanced
Gaming
O
On
3D
3D Mode
O [Default]
On
3D Sync Invert
On
O [Default]
Aspect Ratio
4:3
16:9
21:9
32:9
V-Stretch (except SVGA XGA model)
Full screen
Auto
Zoom -5 ~ 25 [Default: 0]
Image Shift
H
-100 ~ 100 [Default: 0]
V
-100 ~ 100 [Default: 0]
Geometric
Correction
Four Corner
H Keystone -30 ~ 30 [Default: 0]
V Keystone -30 ~ 30 [Default: 0]
Auto Keystone
O
On [Default]
3x3 Warp
Reset
PureMotion PureMotion
O
1
2
3 [Default]
Audio
Audio Mode
Speaker / Audio Out [Default]
SPDIF / eARC
Mute
O [Default]
On
Volume 0 ~ 10 [Default: 5]
Audio
Digital Output
Format
Bitstream
PCM
Auto [Default]
Audio Delay
Internal speaker
delay
-50 ~ +50 [Default: 0]
English
29
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Projection
Front [Default]
Rear
Ceiling-top
Rear-top
Power Settings
Direct Power On
O [Default]
On
Signal Power
On
O [Default]
On
Auto Power O
(min.)
0 ~ 180 (5 min increments)
[Default: 20]
Sleep Timer
(min.)
0 ~ 990 (30 min increments)
[Default: 0]
Always On
No [Default]
Yes
Power Mode
(Standby)
Active (SmartHome)
Eco [Default]
USB Power
(Standby)
O [Default]
On
Security
Security
O
On
Security Timer
Month
Day
Hour
Change
Password
[Default: 1234]
HDMI Link
Settings
HDMI Link
O [Default]
On
Inclusive of TV
No [Default]
Yes
Power On Link
Mutual [Default]
PJ --> Device
Device --> PJ
Power O Link
O [Default]
On
Test Pattern
Green Grid
Magenta Grid
White Grid
White
O
Remote
Settings
IR Function
On [Default]
O
Projector ID 00 ~ 99
English
30
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
12V Trigger
On
O [Default]
Options
Language
English [Default]
Deutsch
Français
Italiano
Español
Português
簡体中文
繁體中文
日本語
한국어
Русский
Menu Settings
Menu Location
Top Left
Top Right
Center [Default]
Bottom Left
Bottom Right
Menu Timer
O
5sec
10sec [Default]
Auto Source
O [Default]
On
Input Source
HDMI1
HDMI2
HDMI3
Home
Input Name
HDMI1 Default [Default] / Custom
HDMI2 Default [Default] / Custom
HDMI3 Default [Default] / Custom
Home Default [Default] / Custom
High Altitude
O [Default]
On
Display Mode
Lock
O [Default]
On
Keypad Lock
O [Default]
On
Information Hide
O [Default]
On
Logo
Default [Default]
Neutral
English
31
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Options
Background
Color
None [Default for Video/Pro-AV)
Blue [Default for Data model)
Red
Green
Gray
Logo
Reset
Reset OSD
Cancel [Default]
Yes
Reset to Default
Cancel [Default]
Yes
Android Reset
Cancel [Default]
Yes
Info
Regulatory
Serial Number
Source
Resolution 00x00
Refresh Rate 0.00Hz
Display Mode
Projector ID 00~99
Brightness
Mode
FW Version
System
Android
MCU
MAC Address
English
32
USING THE PROJECTOR
Display menu
Image settings menu
Display Mode
There are several predened display modes that you can choose from to suit your viewing preference. Each mode
has been ne-tuned by our expert colour team to ensure superior colour performance for wide range of content.
Cinema: Provides the best balance of detail and colors for watching movies.
HDR: Delivers color that is highly accurate, exceeding the color performance of the other display
modes. This mode decodes and displays High Dynamic Range (HDR) content for the deepest blacks,
brightest whites, and vivid cinematic color using REC.2020 color gamut.
Note: This mode will be automatically enabled if HDR is set to Auto (and HDR content is sent to
projector – 4K UHD Blu-ray, 1080p/4K UHD HDR games, 4K UHD streaming video). While HDR
mode is active, all other display modes will be greyed out.
HLG: Delivers color that is highly accurate, exceeding the color performance of the other display
modes. This mode decodes and displays Hybrid Log content (HLG) content for the deepest blacks,
brightest whites, and vivid cinematic color using REC.2020 color gamut.
Note:
This mode will be automatically enabled if HDR is set to Auto (and HLG content is sent to
projector). While HLG mode is active, all other display modes will be greyed out.
Only HDMI1 and HDMI2 support HLG.
HDR SIM.: Enhances non-HDR content with simulated High Dynamic Range (HDR). Choose this
mode to enhance gamma, contrast, and color saturation for non-HDR content (720p and 1080p
Broadcast/Cable TV, 1080p Blu-ray, non-HDR Games, etc).
Note: This mode can ONLY be used with non-HDR content.
Game: Optimises your projector for maximum contrast and vivid colours allowing you to see shadow
detail when playing video game.
Note: This display mode cannot be used when viewing HDR video content or playing HDR games.
To enable low input lag, please ensure the PC or console is connected to HDMI1 and enable
Enhanced Game Mode.
Reference: This mode reproduces colours as close as possible the image the way the movie director
intended. Color, color temperature, brightness, contrast and gamma settings are all congured to
Rec.709 color gamut. Select this mode for the most accurate colour reproduction when watching
movies.
Bright: This mode is suitable for environments where extra-high brightness is required, such as using
the projector in well-lit rooms.
User: Memorizes user dened setting, tailor your own display mode settings.
3D: Optimized settings for watching 3D content.
Note: To experience the 3D eect, you will need to have compatible DLP Link 3D glasses. See 3D
section for more information.
ISF Day: Save professionally calibrated picture settings optimized for day time viewing.
ISF Night: Save professionally calibrated picture settings optimized for night time viewing.
ISF 3D: Save professionally calibrated picture settings optimized for 3D viewing.
Note:
ISF modes need to be professionally calibrated. To unlock and access ISF modes, you will need to
enter the following code using the remote or keypad: Power > Up > Down > Up > Up.
ISF modes are available only in Video mode.
If HDR or HLG are enabled, Cinema, Game, Reference, and Bright options are grayed out.
English
33
USING THE PROJECTOR
Wall Color
Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode
has been ne-tuned by our expert colour team to ensure superior color performance. There are several predened
modes that you can choose from to suit the colour of your wall. Select between o, blackboard, light yellow, light
green, light blue, pink, and gray.
Note: For accurate color reproduction, we recommend using a screen.
Dynamic Range
Congure the High Dynamic Range (HDR) setting and its eect when displaying video from 4K Blu-ray players and
streaming devices.
HDR/HLG
O: Turn o HDR or HLG processing. When set to O, the projector will NOT decode HDR or HLG
content.
Auto: Auto detect HDR signal.
HDR Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching and highest level
of detail.
HLG Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching and highest level
of detail.
HDR Brightness
Adjust the brightness level of HDR.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of dierence between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
Film: For home theater.
Video: For video or TV source.
English
34
USING THE PROJECTOR
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4 / 2.6: For specic PC / Photo source. 2.4 and 2.6 can also be used for video content and
games to enable deeper contrast.
3D: To experience the 3D eect, you need to have 3D glasses. Make sure your PC/portable device
has a 120 Hz signal output quad buered graphics card and a 3D Player installed.
Note: These options are only available if the 3D mode function is disabled. In 3D mode, user can only select “3D”
for Gamma setting.
Color Settings
Congure the color settings.
BrilliantColor
TM
: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from Warm, Standard, Cool, and Cold.
Color Matching: Select the following options:
± Color: Adjust the red (R), green (G), blue (B), cyan (C), yellow (Y), magenta (M), and white (W)
level of the image.
± Hue: Adjust the color balance of red and green.
± Saturation: Adjust a video image from black and white to fully saturated color.
± Gain: Adjust the image brightness.
± Reset: Return the factory default settings for color matching.
± Exit: Exit the “Color Matching” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (HDMI Input 1 only): Select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
Color Space (HDMI2/Home/Component only): Select an appropriate color matrix type from the
following: Auto, RGB(0-255), and RGB(16-235).
Note: Color Space function is not supported if the source is HDMI3.
Brightness Mode
Manually choose the power percentage for brightness mode and adjust the brightness mode settings.
DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast
performance.
Eco.: Choose “Eco.” to dim the projector laser diode which will lower power consumption and extend
the laser diode life.
Constant Power: Choose the power percentage for brightness mode.
Constant Luminance: Constant Luminance varies the strength of LD luminance such that the
brightness maintains consistent with time.
Reset
Return the factory default settings for color settings.
English
35
USING THE PROJECTOR
Enhanced Gaming menu
Enable this feature to reduce response times (input latency) during gaming to 4.5ms* for HDMI Port 1. All geometry
settings (example: Keystone, Warping) will be disabled when Enhanced Gaming Mode is enabled. For more
information is below.
Note:
Only support to HDMI1.
*4.5ms is only support for 1080p 240Hz signals via Gaming PC.
The input lag by signals is described in the following table:
The values in the table can vary slightly.
Source Timing Enhanced Gaming Output Output Resolution Input Lag
1080p60 On 1080p60 1080p 17ms
1080p120 On 1080p120 1080p 8.6ms
1080p240 On 1080p240 1080p 4.4ms
4K60 On 4K60 4K 16.9ms
1080p60 O 1080p60 1080p 33.8ms
1080p120 O 1080p120 1080p 17ms
1080p240 O 1080p240 1080p 8.6ms
4K60 O 4K60 4K 33.7ms
Please note that if “Enhanced Gaming” mode is enabled, the 3D, Aspect Ratio, Zoom, Image Shift,
and Geometric Correction functions are disabled auotomatically. These functions and serttings will be
restored when “Enhanced Gaming Mode” is disabled.
3D menu
3D Mode
Use this option to enable/disable the 3D mode function.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Aspect Ratio menu
Select the aspect ratio of the displayed image between the following options:
4:3: This format is for 4:3 input sources.
16:9/21:9/32:9: These formats are for 16:9/21:9/32:9 input sources, like HDTV and DVD enhanced for
Wide screen TV.
V-Stretch: This mode stretches a 2.35:1 image vertically removing the black bars.
Full Screen: Use this special 2.0:1 aspect ratio to display both 16:9 and 2.35:1 aspect ratio movies
without black bars at the top and bottom of the screen.
Auto: Automatically selects the appropriate display format.
Note:
Detailed informations about V-Stretch mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will
not look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3
mode to view the DVD. If the content is not 4:3, there will be black bars around the image in
16:9 display. For this type of content, you can use V-Stretch mode to ll the image on the 16:9
display.
± If you use an external anamorphic lens, this V-Stretch mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light
source power and vertical resolution are fully utilized.
English
36
USING THE PROJECTOR
To use the Full Screen format, do the following:
a) Set the screen aspect ratio to 2.0:1.
b) Select “Full Screen” format.
c) Align the projector image correctly on the screen.
4K UHD scaling table:
16 : 9 screen 480i/p 576i/p 720p 1080i/p 2160p
4x3 Scale to 2880 x 2160.
16x9 Scale to 3840 x 2160.
LBX Get the central 3840 x 1620 image, and then scale to 3840 x 2160 for display.
Native mode 1:1 mapping centered.
No scaling will be made; the displayed resolution depends on the input source.
Auto -If source is 4:3, the screen type will be scaled to 2880 x 2160.
-If source is 16:9, the screen type will be scaled to 3840 x 2160.
-If source is 15:9, the screen type will be scaled to 3600 x 2160.
-If source is 16:10, the screen type will be scaled to 3456 x 2160.
Auto mapping rule:
Input resolution Auto/Scale
H-resolution V-resolution 3840 2160
4:3
800 600 2880 2160
1024 768 2880 2160
1280 1024 2880 2160
1400 1050 2880 2160
1600 1200 2880 2160
Wide Laptop
1280 720 3840 2160
1280 768 3600 2160
1280 800 3456 2160
SDTV
720 576 2700 2160
720 480 3240 2160
HDTV
1280 720 3840 2160
1920 1080 3840 2160
English
37
USING THE PROJECTOR
Zoom menu
Use to reduce or magnify an image on the projection screen.
Note: Zoom settings are retained on power cycle of the projector.
Image Shift menu
Adjust the projected image position horizontally (H) or vertically (V).
Note: The image size will reduce slightly when adjusting the horizontal and vertical keystone.
Geometric Correction menu
Four Corner: This setting allows the projected image to be adjusted from each corner to make a
square image when the projection surface is not level.
Note: While adjusting the Four Corner, the Zoom, Aspect Ratio, and Image Shift menus are disabled.
To enable Zoom, Aspect Ratio, and Image Shift, reset the Four Corner settings to the factory
defaults.
H Keystone: Adjust image distortion horizontally and make a squarer image. Horizontal keystone is
used to correct a keystoned image shape in which the left and right borders of the image are unequal
in length. This is intended for use with horizontally on-axis applications.
V Keystone: Adjust image distortion vertically and make a squarer image. Vertical keystone is used to
correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is
intended when for use with vertically on-axis applications.
Auto Keystone: Automatically adjust image distortion caused by tilting the projector.
3x3 Warp: Adjust the image distortion by 9 points correction.
Reset: Return the factory default settings for geometric connection.
Note: When using Enhanced Game Mode, 4 Corner, Horizontal Keystone, Vertical Keystone, and 3x3 warping
will be disabled as the settings impact input lag. If you plan to use Enhanced Game Mode for low input lag,
we strongly recommend setting up the projector without the use for 4 Corner, Horizontal Keystone, Vertical
Keystone, and 3x3 warping.
PureMotion menu
Using sophisticated frame-interpolation technology, PureMotion eliminates motion blurring or image judder, even in
high-speed action sequences. Select between O, 1, 2, 3 for the varying levels on motion smoothing.
Note: PureMotion is supported only if the source is HDMI3.
English
38
USING THE PROJECTOR
Audio menu
Audio Mode
Select the appropriate audio mode.
Note:
The selected audio mode applies to all sources:
The projector detects automatically Speaker / Audio Out mode.
eARC function is supported only if the source is HDMI1 (IT6807).
If the current input audio format is not PCM, systel will resync after audio mode has changed.
Mute
Use this option to temporarily turn o the sound.
O: Choose “O” to turn mute o.
On: Choose “On” to turn mute on.
Note: Mute function aects both internal and external speaker volume.
Volume
Adjust the volume level.
Digital Output Format
Select the appropriate digital output format.
Note:
Digital output format can be selected only if the audio mode is set to SPDIF / eARC:
Digital audio mode is supported only if the source is HDMI3 (848).
Audio Delay
Select the internal speaker audio delay.
Note:
Digital output format can be selected only if the audio mode is set to SPDIF / eARC:
Digital audio mode is supported only if the source is HDMI3 (848).
English
39
USING THE PROJECTOR
Setup menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Power Settings
Congure power settings.
Direct Power On: Choose “On” to activate Direct Power mode. The projector will automatically power
on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the
remote control.
Signal Power O: Choose “On” to activate Signal Power mode. The projector will automatically power
on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the
remote control.
Note:
This function is applicable with VGA and HDMI sources.
Signal Power On can only be used for one HDMI port at a time. Signal Power On will not work
if there is more than one source device connected to the projector. If more than one source
device will be used with Signal Power On, please use a HDMI Switch.
Auto Power O (min): Sets the countdown timer interval. The countdown timer will start, when there
is no signal being sent to the projector. The projector will automatically power o when the countdown
has nished (in minutes).
Sleep Timer (min.): Congure the sleep timer.
Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or
without a signal being sent to the projector. The projector will automatically power o when the
countdown has nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered o.
Always On: Check to set the sleep timer always on.
Power Mode (Standby): Set the power mode setting.
Active (SmartHome): Choose “Active (SmartHome)” to return to normal standby.
Eco: Choose “Eco.” to save power dissipation further < 0.5W.
USB Power (Standby): Enable or disable the USB power function when the projector is in standby
mode.
Security
Congure security settings.
Security: Enable this function to prompt for a password before using the projector.
O: Choose “O” to be able to switch on the projector without password verication.
On: Choose “On” to use security verication when the turning on the projector.
Note: The default password is 1234.
Security Timer: Can be select the time (Month/Day/Hour) function to set the number of hours the
projector can be used. Once this time has elapsed you will be requested to enter your password again.
Change Password: Use to set or modify the password that is prompted when turning the projector on.
English
40
USING THE PROJECTOR

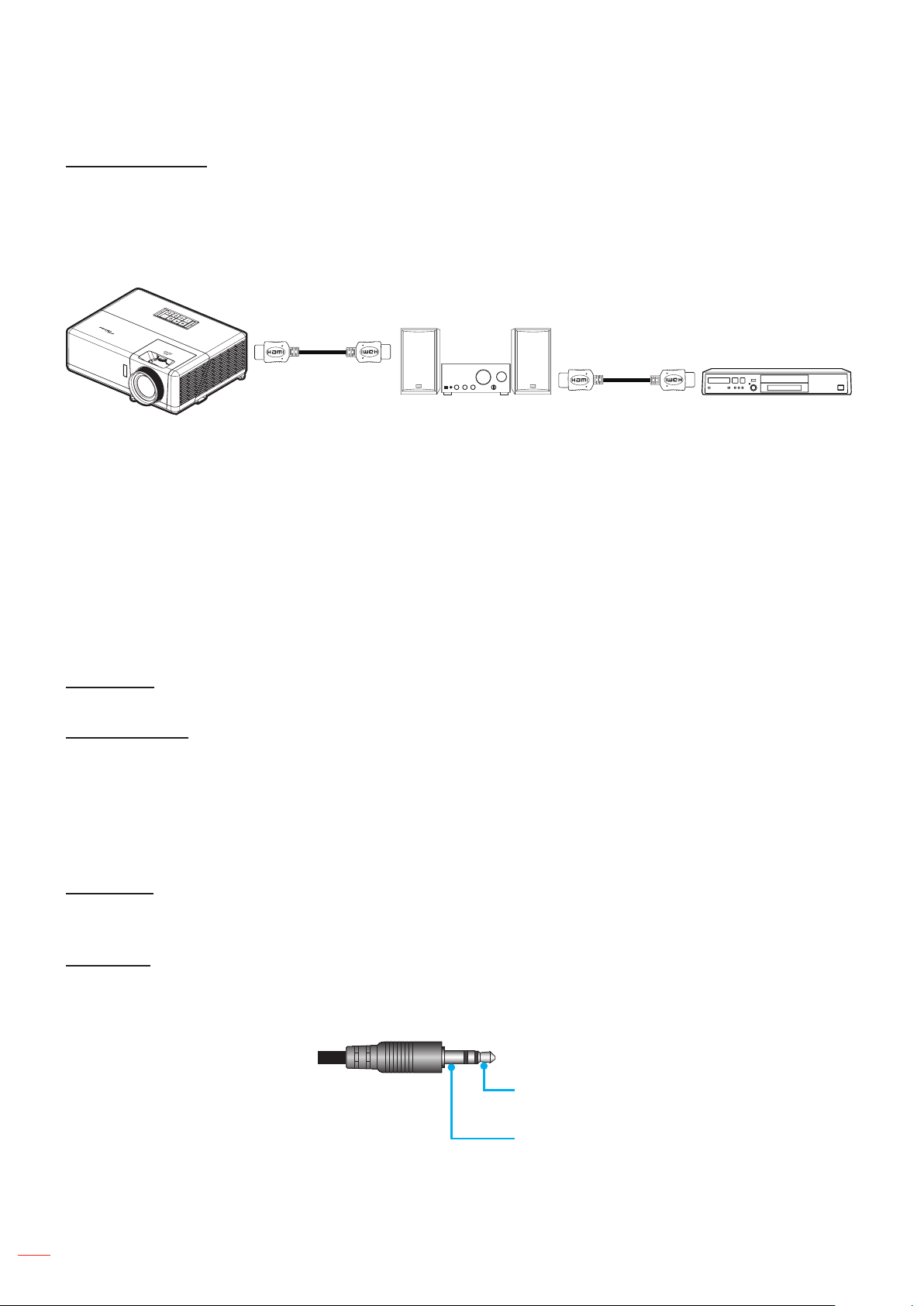

HDMI Link Settings
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power o status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power o via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
HDMI
DVD Player
HDMI Link: Enable/disable the HDMI Link function.
Inclusive of TV: If the settings is set to “Yes” then the power on and power o link options are
available.
Power On Link: CEC power on command.
Mutual: Both projector and CEC device will be turned on simultaneously.
PJ Device: The CEC device will be turned on only after the projector is switched on.
Device PJ: The projector will be switched on only after the CEC device is turned on.
Power O Link: Enable this function to let both HDMI Link and projector to be automatically turned o
at the same time.
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (o).
Remote Settings
IR Function: Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from top and front IR
receivers.
O: Choose “O”, the projector can’t be operated by the remote control. By selecting “O”, you
will be able to use the Keypad keys.
Projector ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.
12V Trigger
Use this function to enable or disable the trigger.
Note: 3.5mm mini jack that outputs 12V 500mA (max.) for relay system control.
+12V
GND
On: Choose “On” to enable the trigger.
O: Choose “O” to disable the trigger.
English
41
USING THE PROJECTOR
Options
Congure the projector options.
Language: Select the multilingual OSD menu between English, German, French, Italian, Spanish,
Portuguese, Simplied Chinese, Traditional Chinese, Japanese, Korean, and Russian.
Menu Settings: Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source: Choose this option to let the projector automatically nd an available input source.
Input Source: Select the input source between HDMI1, HDMI2, HDMI3, and Home.
Input Name: Use to rename the input function for easier identication. The available options include
HDMI1, HDMI2, HDMI3, and Home.
High Altitude: When “On” is selected, the fans will spin faster. This feature is useful in high altitude
areas where the air is thin.
Display Mode Lock: Choose “On” or “O” to lock or unlock adjusting display mode settings.
Keypad Lock: When the keypad lock function is “On”, the Keypad will be locked. However, the
projector can be operated by the remote control. By selecting “O”, you will be able to reuse the
Keypad.
Information Hide: Enable this function to hide the information message.
O: Choose “O” to show the “searching” message.
On: Choose “On” to hide the info message.
Logo: Use this function to set the desired startup screen. If changes are made, they will take eect the
next time the projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Background: Use this function to display a blue, red, green, gray color, logo, or none when no signal
is available.
Reset
Reset the projector.
Reset OSD: Return the factory default settings for OSD menu settings.
Reset to Default: Return the factory default settings for all settings.
Android Reset: Return the factory default settings for for Android settings.
English
42
USING THE PROJECTOR
Info menu
View the projector information as listed below:
Regulatory
Serial Number
Source
Resolution
Refresh Rate
Display Mode
Projector ID
Brightness Mode
FW Version
MAC Address
English
43
USING THE PROJECTOR
System settings menu
On the Home screen, select the system settings menu “ ” to congure various system settings.
General menu navigation
Main Menu
Settings
Sub Menu
1. When system settings menu is displayed, use the up and down navigation buttons to select any item
in the main menu. While making a selection on a particular page, press the “OK” or the “Right” button
on the remote control to enter the submenu.
2. Press the “Left” and “Right” button to select the desired menu item. Then press “OK” to open its sub
menu.
3. Press the “Up” and “Down” button to select the desired item in the sub menu.
4. Press the “OK” or “Right” button to access the selected sub menu item settings.
5. Press the “Up”, “Down”, “Left”, or “Right” button to select the setting or press the “Left” and “Right”
button to adjust the value (if necessary).
6. Press “OK” to conrm the setting.
7. Select the next item to be adjusted in the sub menu and modify as described above.
8. To exit, press “ ” (repeatedly if necessary). The settings menu will close and the projector will
automatically save the new settings.
English
44
USING THE PROJECTOR
System settings menu tree
Level 1 Level 2 Level 3 Level 4 Value
Personalize
Wallpaper Optoma style…
Home Shortcut
Short cut 1 APP/ Input Source
Short cut 2 APP/ Input Source
Short cut 3 APP/ Input Source
Short cut 4 APP/ Input Source
Short cut 5 APP/ Input Source
Short cut 6 APP/ Input Source
Screensaver
Screensaver
O
On
Start after
3mins
5mins
10mins
15mins
Network Wireless
Wi-Fi
O
On [Default]
Available Networks SSID
(When WiFi On)
Enter password for [Wi-
Fi name]
(When entering
password)
[Pop up dialog]
- Title: Enter password for [Wi-Fi
name]
- Subtitle: Password
- Input: (Input text)
- Checkbox: Show password
- Button: “Cancel”/ “OK”
Internet Connection
IP Address
MAC Address
Signal Strength
Proxy Settings
None
Manual
[Pop up dialog]
Title: Enter a valid hostname.
Subtitle: Proxy hostname
Input hint: proxy.example@com
Button: “Cancel”/ “OK”
IP Settings
DHCP
Static
[Pop up dialog]
Title: Enter a valid IP address.
Subtitle: IP address
Input hint: 192.168.1.128
Button: “Cancel”/ “OK”
Cancel
Forget
[Pop up dialog]
Hint: [Wi-Fi name]
Title: Forget network
Content: Your device will no longer
join this Wi-Fi network.
Button: “Cancel”/ “OK”
English
45
USING THE PROJECTOR
Level 1 Level 2 Level 3 Level 4 Value
Network
Wireless Other Options
Connect via WPS
Connect via WPS (Enter
PIN)
Add New Network
[Pop up dialog]
Title: Enter the name for Wi-Fi
network
Input: (Input text)
Button: “Cancel”/ “OK”
[Pop up dialog]
Content: Type of security
Button: None, WEP, WPA/WPA2
PSK, 802.1xEAP
Portable Hotspot
Portable
Wi-Fi
Hotspot
O
On
Network
name
[Pop up dialog]
Title: Rename network
Input: (Input text)
Button: “Cancel”/”OK”
Security
[Pop up dialog]
Title: Type of security
Button: None, WPA2
PSK
Password
[Pop up dialog]
Title: Change password
Input: (Input text)
Description: The
password must have at
least 8 characters.
Checkbox: Show
password
Button: “Cancel”/”OK”
Ethernet
Network Status (read only)
MAC Address (read only)
Proxy Settings
None
Manual
Proxy hostname
Port
bypass proxy domains
IP Settings
DHCP
Static
IP address
Gateway
Network Prex Length
DNS1
DNS2
Reset
English
46
USING THE PROJECTOR
Level 1 Level 2 Level 3 Level 4 Value
System
Keyboard
Date and Time
Settings
Select time zone
-12:00, -11:00, -10:00, -09:30,
-09:00, -08:00, -07:00, -06:00,
-05:00, -04:00, -03:30, -03:00,
-02:00, -01:00, 00:00, +01:00,
+02:00, +03:00, +03:30, +04:00,
+04:30, +05:00, +05:30, +05:45,
+06:00, +06:30, +07:00, +08:00,
+08:30, +8:45, +09:00, +09:30,
+10:00, +10:30, +11:00, +12:00,
+12:45, +13:00, +14:00
Daylight Saving Time
On
O [Default]
Use 24-hour format
On
O [Default]
System Update
Internal Storage
Legal
Terms and Conditions of
Use
Privacy Policy
Cookies Policy
Open Source License
Control LAN Control Smart Home
O [Default]
On
Note:
Functions vary depending on model denition.
Disabling Smart Home will disable the ability to power on the projector using Alexa Smart Home or
Google Action “power on” command (Example: Alexa, turn on projector).
English
47
USING THE PROJECTOR
Personalize menu
Home Shortcut
Review Home screen shortcuts of all opened apps in each input source. The items cannot repeat except for
“Automatic” option which means the system will remember up to six latest apps that have been opened and then
will replace app shortcuts so that the latest app will be the rst app in the apps list while other apps in the list are
shifted by one position.
Screensaver
Blanks the screen when the projector has been idle for a long time.
Screensaver: Choose “On” to enable the Screensaver function.
Start after: Set the wait time before activating the Screensaver function.
English
48
USING THE PROJECTOR

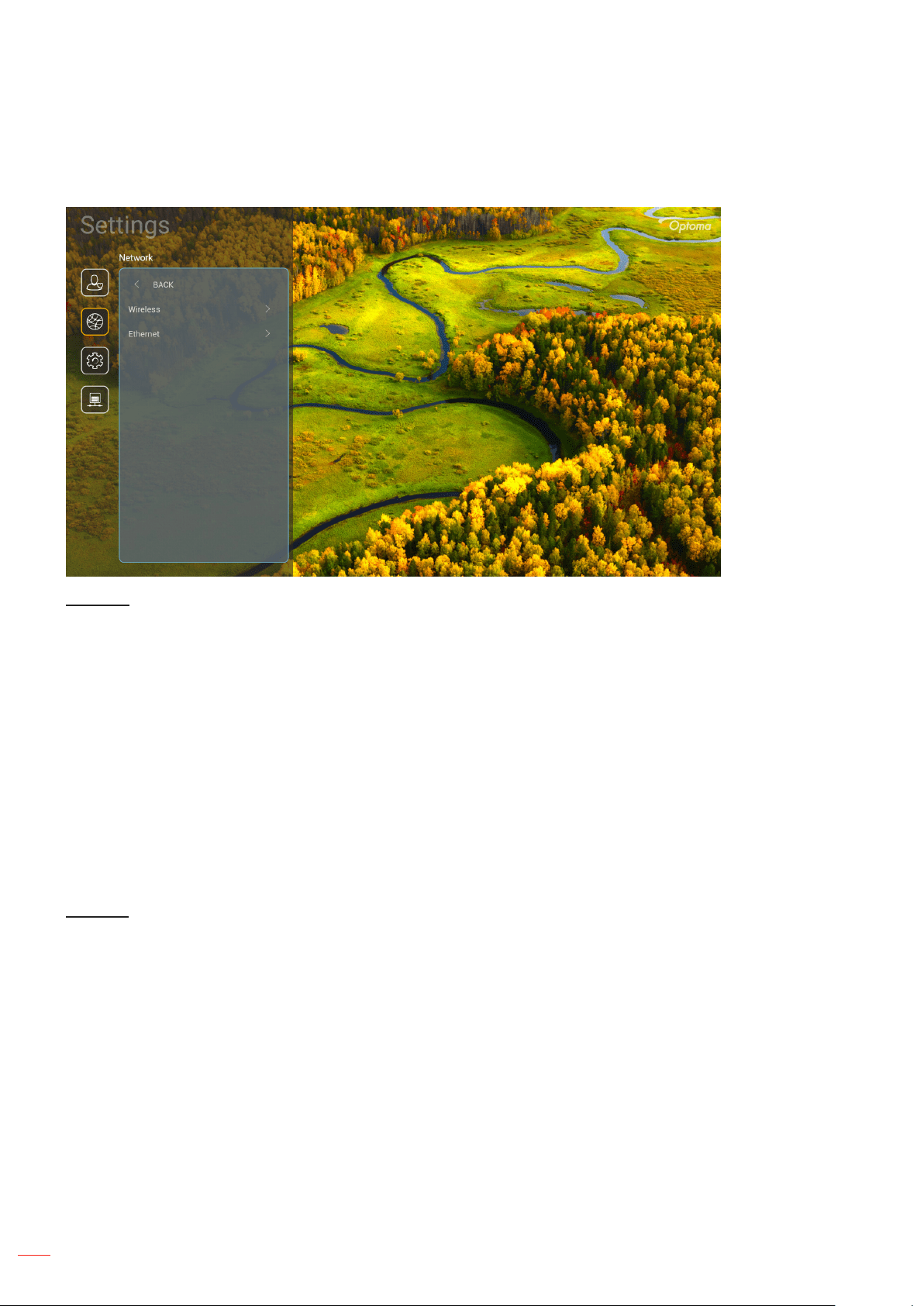

Network menu
Wireless
Congure wireless network settings.
Wi-Fi: Set the Wi-Fi option to “On” to enable wireless network feature.
Available Network SSID: Select your desired wireless access point and enter or congure the
necessary connection parameters (if required), for example password, proxy settings, and IP address.
For information, you can review the signal strength.
Choose “Cancel” to return to the Network menu without saving settings. Choose “Forget” to delete the
wireless network prole.
Note: Whenever you need to input symbols, the system will automatically pop-up an onscreen
keyboard.
Other Options: Congure advanced wireless network settings, such as “Connect via WPS”, “Connect
via WPS (Enter PIN)”, “Add New Network” (manually enter network name), and “Portable Hotspot”
(congure the projector to behave as a wireless access point for other devices).
Ethernet
Congure wired network settings.
Note: Make sure you have connected the projector to local area network (LAN). Please refer to page 16.
Network Status: Display the network connection status (read-only).
MAC Address: Display the MAC address (read-only).
Proxy Settings: Provide proxy hostname, connection port and bypass proxy domains information
manually if requested.
IP Settings: Enable DHCP if you want the projector to obtain IP address and other connection
parameters automatically from your network. Disable DHCP if you want to assign IP address,
gateway, network prex length, and DNS parameters manually.
Reset: Return the factory default settings for network settings.
English
49
USING THE PROJECTOR

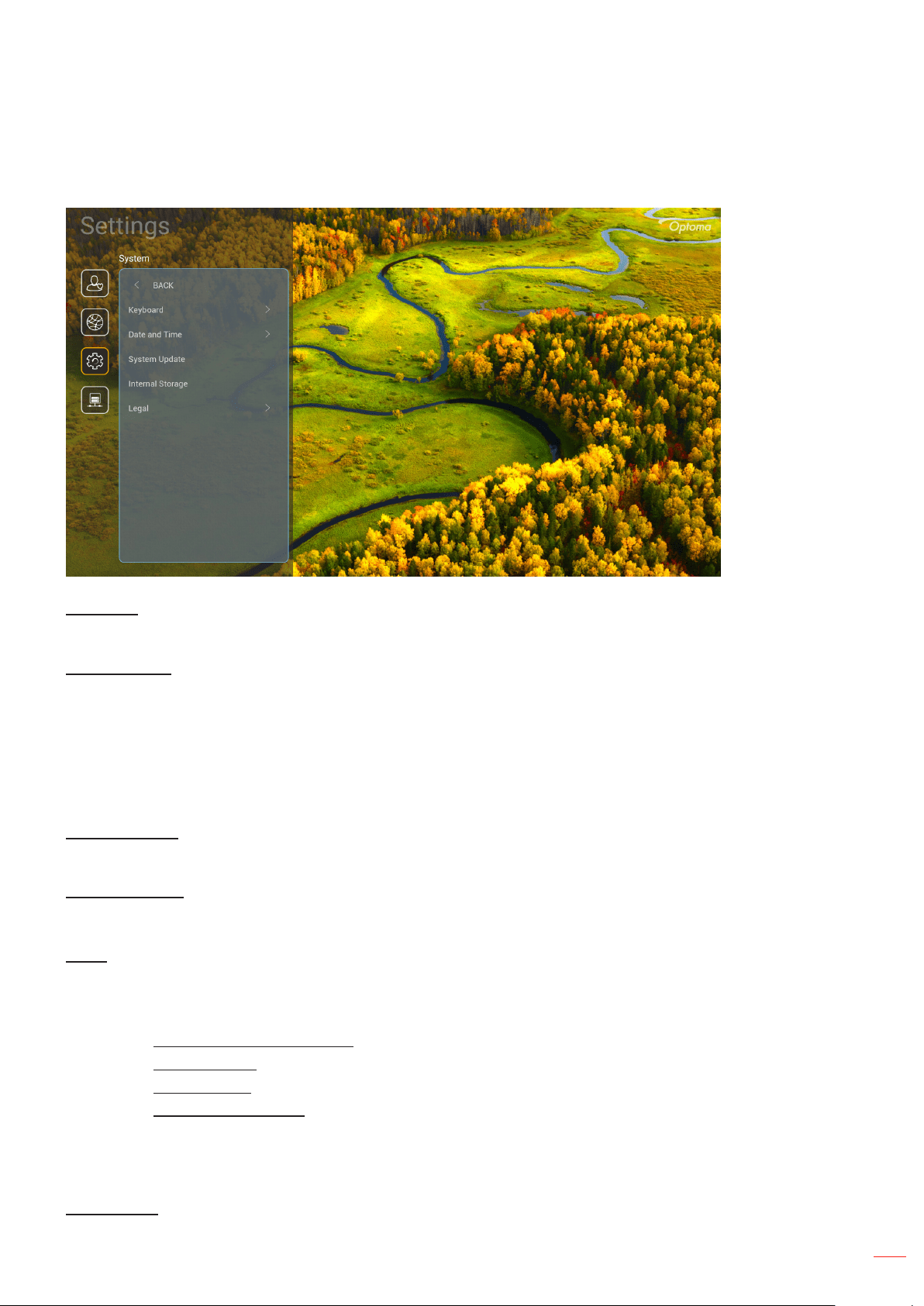

System menu
Keyboard
Select the keyboard language.
Date and Time
Congure date and time settings.
Select time zone: Select the time zone in your location.
Daylight Saving Time: Set to “On” if daylight saving time is observed in your region.
Use 24-hour format: Set to “On” to display time in 24-hour format. Set to “O” to display time in 12-
hour format (AM/PM).
System Update
System will look for updates automatically every time the projector is connected to the Internet (OTA).
Internal Storage
View the remaining internal storage space.
Legal
Review legal documents including “Terms and Conditions of Use”, “Privacy Policy”, and “Cookies Policy”.
Note: You can review legal documents online as well. Please refer to the following web addresses:
Terms and Conditions of Use: https://www.optoma.com/terms-conditions/ .
Cookies Policy: https://www.optoma.com/cookies-policy/ .
Privacy Policy: https://www.optoma.com/software-privacy-policy/ .
Open Source License
Control menu
LAN Control
SmartHome: Set to “O” to turn o all control via “IoT”, including “InfoWall”.
English
50
USING THE PROJECTOR

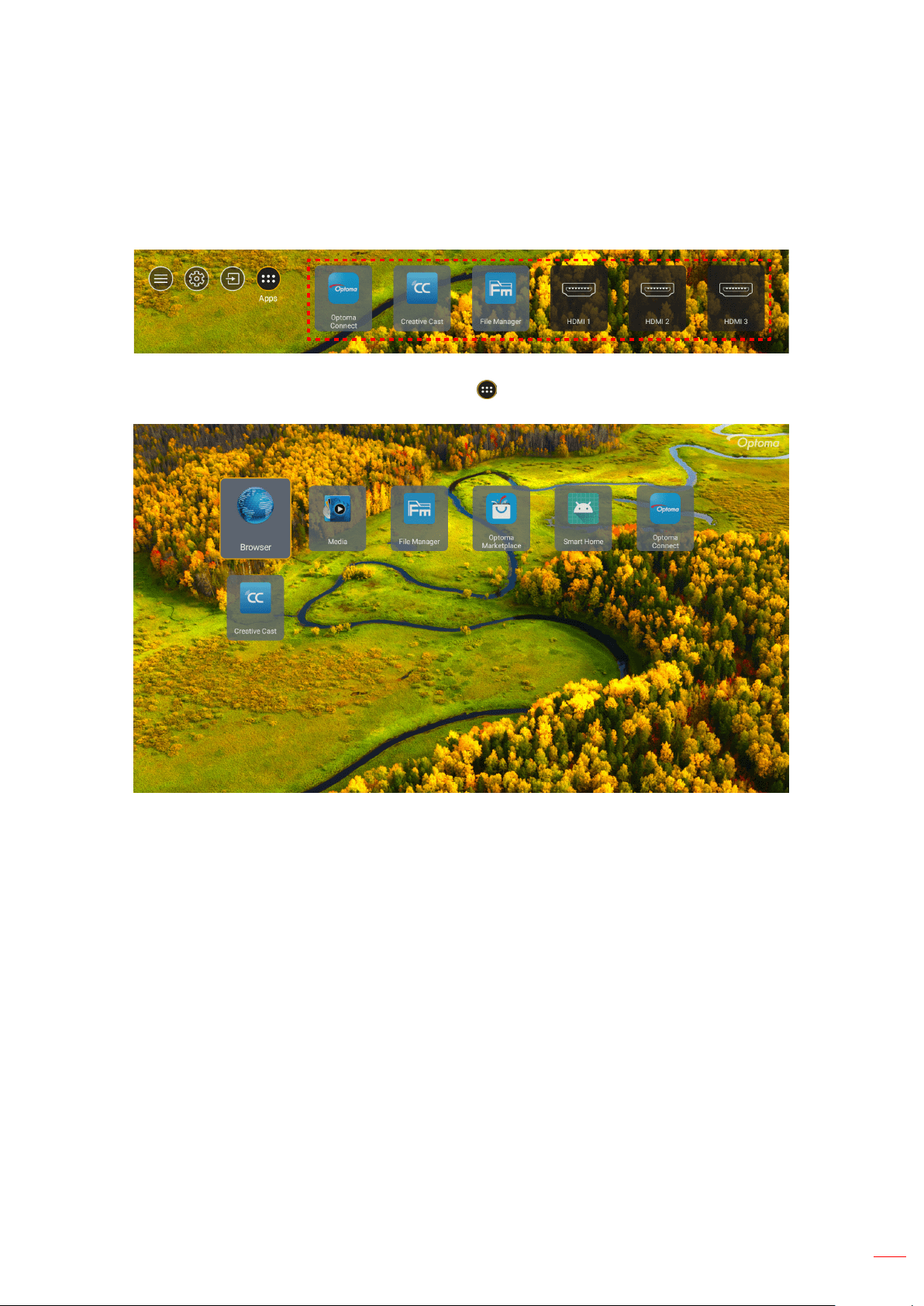

Selecting an input source
You can select any input source directly on the Home screen using an input shortcut.
Note: You can personalize shortcut settings in “System Settings menu Personalize Home Shortcut”. You
can also modify the shortcut order on the Home screen.
If the desired input source is not visible on the Home screen, select “ ” to view all input options. Then select your
input source or select “Home” to return to the Home screen.
English
51
USING THE PROJECTOR
Selecting an app
You can select any app directly on the Home screen using an app shortcut.
Note: You can personalize shortcut settings in “System Settings menu Personalize Home Shortcut”.
If the desired app is not visible on the Home screen, select “ ” to view all installed apps. Then select your desired
app.
English
52
USING THE PROJECTOR

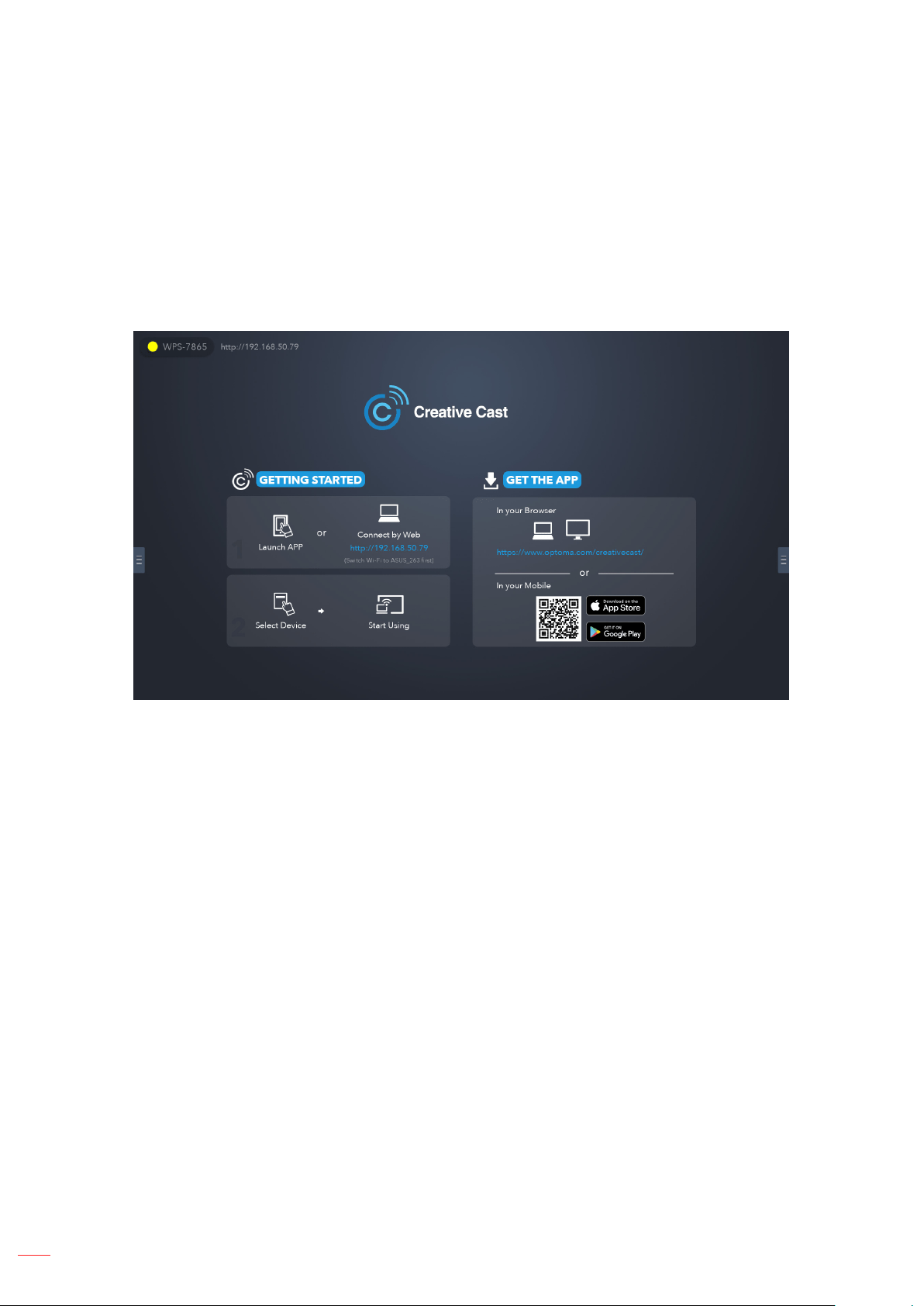

Creative Cast
To get the App, you can do either of the following:
if you are using the mobile device, scan the QR code on the screen.
if you are using the computer, simply go to the link.
Then install the Creative Cast app in your computer or mobile device.
Before you get started, make sure to connect your computer or mobile device to the same Wi-Fi as the projector.
Then follow the on-screen instructions to operate the App.
Note: For initial activation of the iOS screen mirroring function, please ensure the projector is connected to the
internet, then launch the Creative Cast app. You are only required to perform this initial step once and after
the initial connection is established, the Creative Cast app does not need to be open for future use of the
iOS screen mirroring function.
English
53
USING THE PROJECTOR

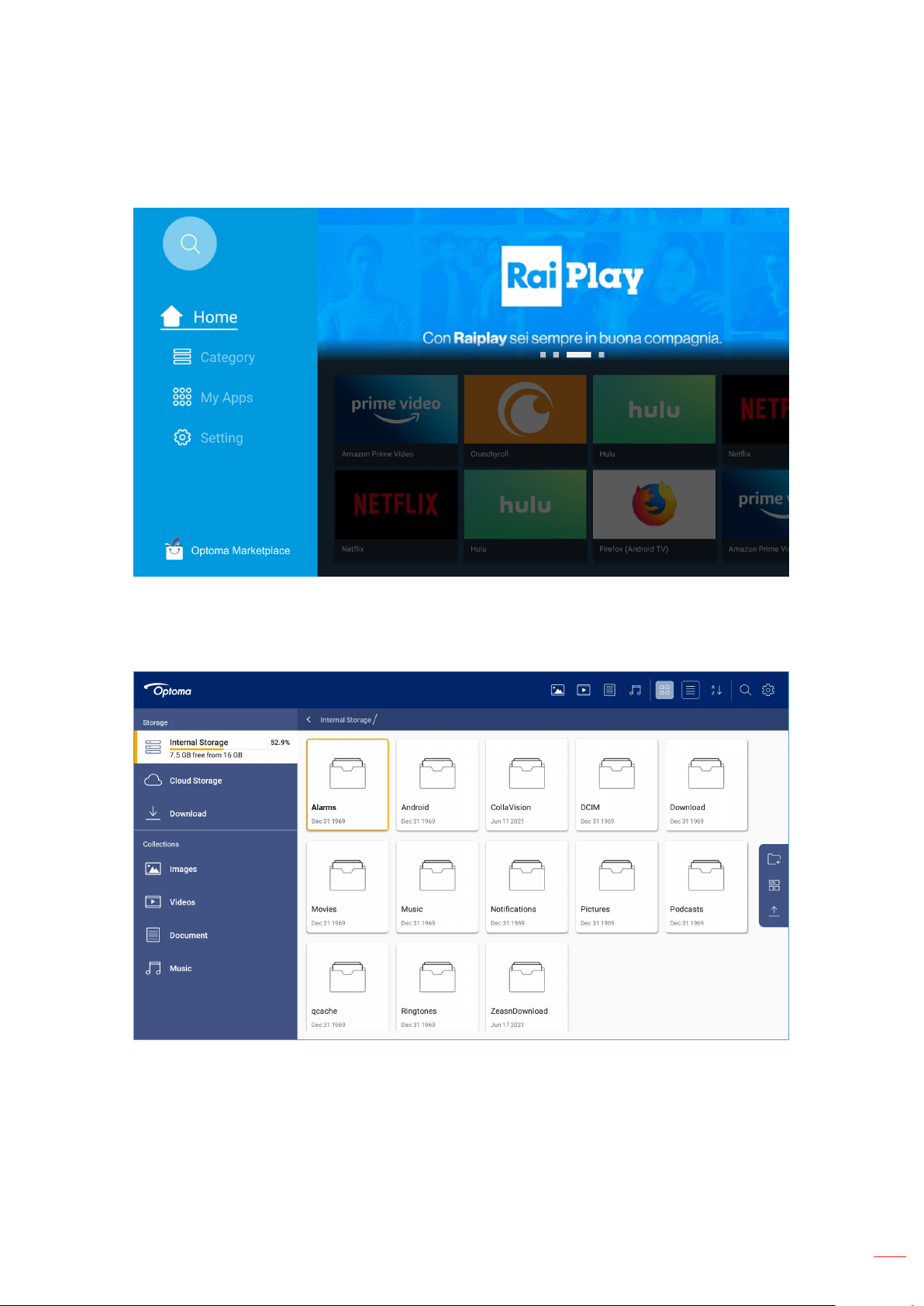

Optoma Marketplace
With the Optoma Marketplace app, you can search and install any App.
File Manager
With the File Manager app, you can manage the les stored in the internal storage, external storage, and cloud
storage.
English
54
USING THE PROJECTOR

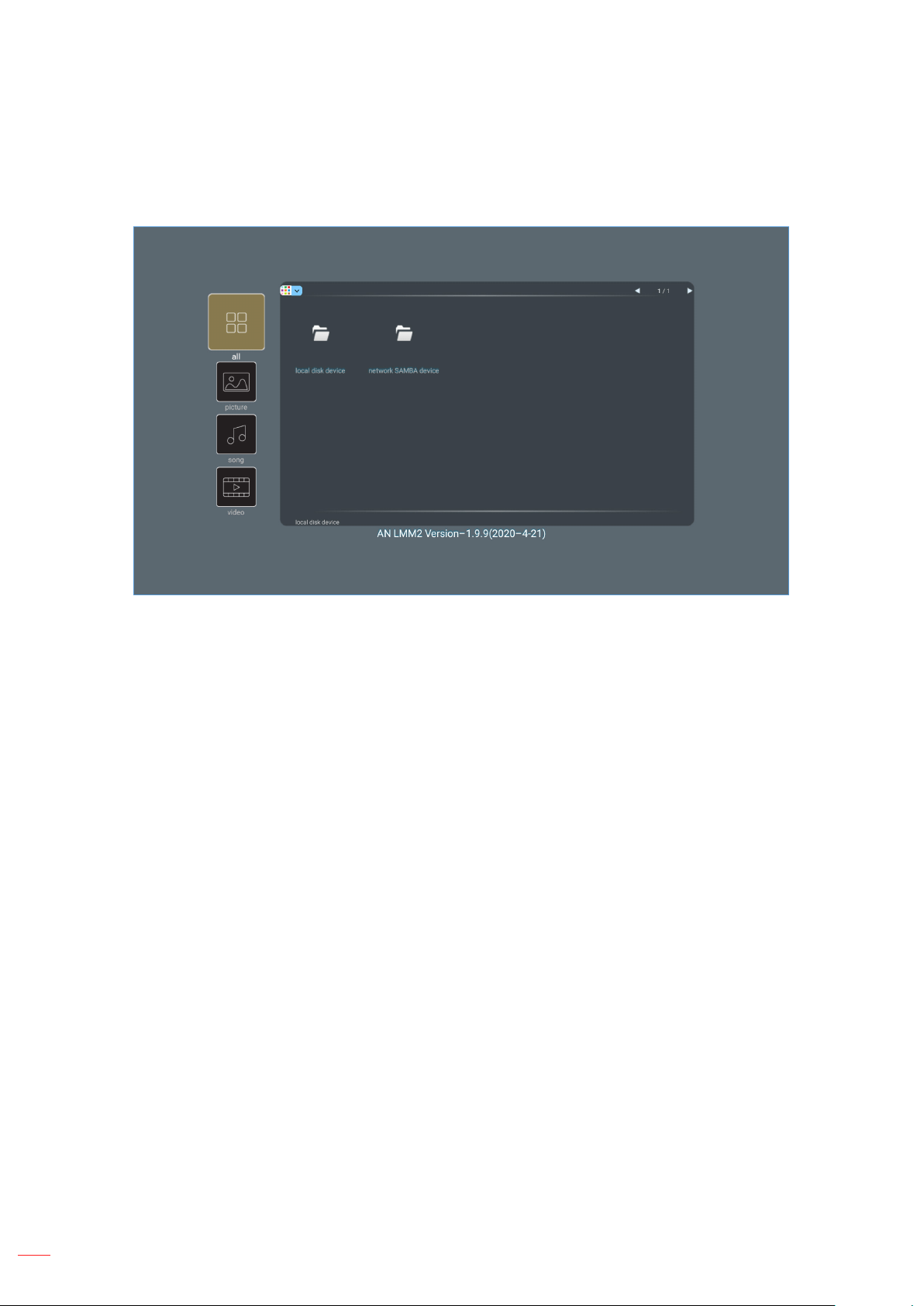

Media
With the Media app, you can play the multimedia les by connecting a USB storage with multimedia content to the
projector. Then open the multimedia player app and select the desired les to play.
English
55
USING THE PROJECTOR
Supported multimedia formats
If you want to play multimedia les, connect a USB storage with multimedia content to the projector. Then open the
multimedia player app and select the desired les to play.
The projector supports the following multimedia formats:
Media Category Decoder Supported File Formats
Video
H.263
MOV
3GP
AVI
MKV
H.264
FLV
MP4
MOV
3GP
MPEG transport stream (.ts / .trp /.tp )
ASF
WMV
AVI
MKV
HEVC/H.265
MP4
MOV
MPEG transport stream (.ts / .trp /.tp )
MKV
MPEG1/2
MPEG program stream (.DAT /.VOB / .MPG / .MPEG )
MPEG transport stream (.ts / .trp /.tp )
MP4
AVI
MKV
MPEG4
MP4
MOV
3GP
AVI
MKV
Motion JPEG
AVI
MP4
MOV
AVS MP4
VC1 WMV
English
56
USING THE PROJECTOR
Media Category Decoder Supported File Formats
Audio
MPEG1/2 Layer2
AVI
Matroska (MKV, MKA)
MP4
MOV
MPEG transport stream (.ts / .trp /.tp )
MPEG program stream (.DAT /.VOB / .MPG / .MPEG )
MPEG1/2/2.5
Layer3
MP3
Matroska (MKV, MKA)
MP4
MPEG1/2/2.5
Layer3
MOV
MPEG transport stream (.ts / .trp /.tp )
MPEG program stream (.DAT /.VOB / .MPG / .MPEG )
AC3
AC3
Matroska (MKV, MKA)
MOV
MPEG transport stream (.ts / .trp /.tp )
MPEG program stream (.DAT /.VOB / .MPG / .MPEG )
EAC3 MP4
AAC, HEAAC
AAC
MP4
MOV
M4A
MPEG transport stream (.ts / .trp /.tp )
LPCM
WAV
AVI
Matroska (MKV, MKA)
IMA-ADPCM
MS-ADPM
WAV
AVI
Matroska (MKV, MKA)
MP4
FLAC Matroska (MKV, MKA)
Photo BMP 15360 X 8640 (The limitaion of max resolution depends on DRAM size)
Note:
All multimedia les listed above.
Dolby output from video les is not supported.
Image Type (Ext name) Sub Type Maximum Pixels
Jpeg / Jpg
Baseline 8000 x 8000
Progressive 6000 x 4000
PNG
Non-interlace 6000 x 4000
Interlace 6000 x 4000
BMP 6000 x 4000
English
57
USING THE PROJECTOR
Doc
Document Format Support Version and Format Pages/Lines Limitation Size Limitation
PDF PDF 1.0 ~ 1.7 and above Up to 1500 pages (One File) Up to 100MB
Word
Kingsoft Writer Document (*.wps)
Since WPS Projector does not
load the MS/Word les all at
one time, there is no obvious
limitation on the number of
pages and rows of les.
Up to 150MB
Kingsoft Writer Template (*.wpt)
Microsoft Word 97/2000/XP/2003 Document (*.doc)
Microsoft Word 97/2000/XP/2003 Template (*.dot)
RTF Files (*.rtf)
Text Files (*.txt, *.log, *.lrc, *.c, *.cpp, *.h, *.asm, *.s,
*.java, *.asp, *.prg, *.bat, *.bas, *.cmd)
Web Page Files (*.html, *.htm)
Single Web Page Files (*.mht, *.mhtml)
Microsoft Word 2007/2010 Document (*.docx)
Microsoft Word 2007/2010 Template (*.dotx)
Microsoft Word 2007/2010 Macro-Enabled
Document (*.docm)
Microsoft Word 2007/2010 Macro-Enabled
Template (*.dotm)
XML Files (*.xml)
OpenDocument Text
Works 6-9Document (*.wtf)
Works 6.0&7.0 (*.wps)
Excel
Kingsoft Spreadsheets Files (*.et)
Row Limit: up to 65,535
Column Limit: up to 256
Sheet: up to 200
Up to 30MB
Kingsoft Spreadsheets Template (*.ett)
Microsoft Excel 97/2000/XP/2003 Workbook (*.xls)
Microsoft Excel 97/2000/XP/2003 Template (*.xlt)
Text Files (*.csv)
Web Pages (*.htm, *.html)
XML Files (*.xml)
Microsoft Excel 2007/2010 Files (*.xlsx, *.xlsm)
Microsoft Excel 2007/2010 Template (*.xltx)
Microsoft Excel 2007/2010 Binary Workbook (*.xlsb)
PowerPoint
Kingsoft Presentation Files (*.dps)
Up to 1500 pages (One File) Up to 30MB
Kingsoft Presentation Templates (*.dpt)
Microsoft PowerPoint 97/2000/XP/2003
Presentations (*.ppt, *.pps)
Microsoft PowerPoint 97/2000/XP/2003
Presentation Templates (*.pot)
Microsoft PowerPoint 2007/2010 Presentations
(*.pptx, *.ppsx)
Microsoft PowerPoint 2007/2010 Presentations
Template (*.potx)
Note:
Decoding may take a while for large les with complex contents.
Objects embedded in les cannot be activated or viewed.
English
58
USING THE PROJECTOR
For Microsoft Word
– No support for advanced settings, such as drawing plug-in or table background settings.
– Contents outside the dened borders in Microsoft Word will not be displayed.
– Not support Bold Text in Simplied Chinese font.
For Microsoft PowerPoint
– Slide eects not supported.
– Password-protected sheets are not protected.
– Powerpoint animation is not supported.
For Microsoft Excel
– Worksheets are displayed individually and sequentially when the workbook has multiple worksheets.
– Page layout and numbering may be changed during decoding.
English
59
USING THE PROJECTOR
Viewing the status bar
By default, the Status Bar on the Home screen contains icons indicating connection status regarding wired network,
USB, and wireless network. You can select any of the icons to open the associated menu. Selecting wired or
wireless status icon results in opening the network conguration menu, while selecting the USB status icon results
in opening the browser and displaying the content of the connected USB device.
Wired Network Status
USB Connection Status
Wireless Network Status
Alexa / Google Assistant
This projector supports the Voice control feature such as Alexa / Google Assistant.
User can search keyword by “Optoma connect & alexa” & “Optoma connect & google assistant” to get Alexa and
Google setup guide on the website by clicking the following link:
Optoma Connect app - Alexa setup tutorial
Optoma Connect app - Google setup tutorial
English
60
ADDITIONAL INFORMATION
Compatible resolutions
Video compatibility
Signal Resolution
SDTV 480i/p, 576i/p
HDTV 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60Hz)
UHD 2160p (24/50/60Hz)
Video timing in details:
Signal Resolution Refresh Rate (Hz) Notes
SDTV (480i) 640 x 480 60
For Component
SDTV (480p) 640 x 480 60
SDTV (576i) 720 x 576 50
SDTV (576p) 720 x 576 50
HDTV (720p) 1280 x 720 50/60
HDTV (1080i) 1920 x 1080 50/60
HDTV (1080p) 1920 x 1080 24/50/60/240
WQHD(1440p) 2560x1440 120
UHD (2160p) 3840 x 2160 24/50/60 For 4K UHD
Computer compatibility
VESA standards (Computer Signal (Analog RGB compatibility)):
Signal Resolution Refresh Rate (Hz) Notes for Mac
SVGA 800 x 600 56/60/72 Mac 60/72
XGA 1024 x 768 60/70/75 Mac 60/70/75
HDTV(720p) 1280 x 720 50/60 Mac 60
WXGA 1280 x 768 60/75 Mac 60/75
WXGA 1280 x 800 60 Mac 60
WXGA 1366 x 768 60 Mac 60
WXGA+ 1440 x 900 60 Mac 60
SXGA 1280 x 1024 60/75 Mac 60/75
UXGA 1600 x 1200 60
HDTV(1080p) 1920 x 1080 24/50/60 Mac 60
WUXGA 1920 x 1200 (*) 60 Mac 60
Note: (*)1920 x 1200 @60Hz only supports RB(reduced blanking).
English
61
ADDITIONAL INFORMATION
Timing table for PC:
Signal Resolution
Frequency H. Refresh Rate
(KHz) (Hz) Video Digital Note
SVGA 800 x 600 35.2 56.3 N/A √ 56Hz
SVGA 800 x 600 37.9 60.3 N/A √ 60Hz
SVGA 800 x 600 46.9 75 N/A √ N/A
SVGA 800 x 600 48.1 72.2 N/A √ 72Hz
SVGA 800 x 600 53.7 85.1 N/A √ 85Hz
SVGA 832 x 624 75 N/A √ N/A
XGA 1024 x 768 48.4 60 N/A √ N/A
XGA 1024 x 768 56.5 70.1 N/A √ 70Hz
XGA 1024 x 768 60 75 N/A √ N/A
XGA 1024 x 768 68.7 85 N/A √ N/A
XGA 1024 x 768 120 N/A N/A N/A
SXGA 1152 x 864 75 N/A √ N/A
HD720 1280 x 720 50 N/A √ N/A
HD720 1280 x 720 60 N/A √ N/A
HD720 1280 x 720 92.62 120 N/A N/A N/A
WXGA 1280 x 768 47.4 60 N/A √ N/A
WXGA 1280 x 768 75 N/A √ N/A
WXGA 1280 x 768 85 N/A √ N/A
WXGA-800 1280 x 800 60 N/A √ N/A
SXGA 1280 x 1024 64 60 N/A √ N/A
SXGA 1280 x 1024 80 75 N/A √ N/A
SXGA 1280 x 1024 91.1 85 N/A √ N/A
SXGA+ 1400 x 1050 60 N/A N/A N/A
UXGA 1600 x1200 75 60 N/A √ N/A
HD1080 1920 x 1080 24 N/A √ N/A
HD1080 1920 x 1080 50 N/A √ N/A
HD1080 1920 x 1080 60 N/A √ N/A
WUXGA 1920 x 1200 60 N/A √ RB
HDTV 1920 x 1080i 50 √ √ N/A
HDTV 1920 x 1080i 60 √ √ N/A
HDTV 1920 x 1080p 24 √ √ N/A
HDTV 1920 x 1080p 50 √ √ N/A
HDTV 1920 x 1080p 60 √ √ N/A
HDTV 1280 x 720 45 60 √ N/A N/A
HDTV 1280 x 720p 50 √ √ N/A
HDTV 1280 x 720p 60 √ √ N/A
SDTV 720 x 576 31.3 50 √ N/A N/A
SDTV 720 x 576i 50 N/A √ N/A
SDTV 720 x 576p 50 N/A √ N/A
SDTV 720 x 480 31.5 60 √ N/A N/A
SDTV 720 x 480i 60 N/A √ N/A
SDTV 720 x 480p 60 N/A √ N/A
Note: “√“ means the resolution is supportred, “N/A” means the resolution is not supported.
English
62
ADDITIONAL INFORMATION
Computer Compatibility for MAC
Resolution Hz
Macbook
Compatibility
Macbook Pro
(Intel) Compatibility
Power Mac G5
Compatibility
Power Mac G4
Compatibility
Digital Digital Digital Digital
800x600 60 √ √ N/A √
800x600 72 √ √ N/A √
800x600 75 √ √ N/A √
800x600 85 √ N/A N/A √
1024x768 60 √ √ N/A √
1024x768 70 √ √ N/A √
1024x768 75 √ √ N/A √
1024x768 85 √ √ N/A √
1280x720 60 √ √ N/A √
1280x768 60 √ √ N/A N/A
1280x768 75 N/A N/A N/A √
1280x768 85 N/A N/A N/A N/A
1280x800 60 N/A N/A N/A √
1280x1024 60 √ N/A N/A √
1280x1024 75 √ N/A N/A √
1920x1080 60 √ N/A N/A √
1920x1200 (*) 60 √ N/A N/A √
3840 x 2160 60 N/A N/A N/A N/A
Note:
(*) 1920 x 1200 @ 60Hz only supports RB (reduced blanking).
“√“ means the resolution is supportred, “N/A” means the resolution is not supported.
Input signal for HDMI
Signal Resolution Refresh Rate (Hz) Notes for Mac
SVGA 800 x 600 6072/85/120 Mac 60/72/85
XGA 1024 x 768 60/70/75/85/120 Mac 60/70/75/85
SDTV(480I) 640 x 480 60
SDTV(480P) 640 x 480 60
SDTV(576I) 720 x 576 50
SDTV(576P) 720 x 576 50
HDTV(720p) 1280 x 720 50/60 Mac 60
WXGA 1280 x 768 60/75/85 Mac 75
WXGA 1280 x 800 60/120 Mac 60
WXGA(*2) 1366 x 768 60
WXGA+ 1440 x 900 60/120(RB) Mac 60
SXGA 1280 x 1024 60/75/85 Mac 60/75
SXGA+ 1400 x 1050 60/85
UXGA 1600 x 1200 60/65/70/75/85
HDTV(1080I) 1920 x X1080 50/60
HDTV(1080p) 1920 x 1080 24/30/50/60/120/240 Mac 60
WUXGA 1920 x 1200(*1) 60 Mac 60RB
WQHD 2560 x 1440 60RB/120
English
63
ADDITIONAL INFORMATION
Signal Resolution Refresh Rate (Hz) Notes for Mac
UHD(2160p) 3840 x 2160 24/30/50/60 Mac 24/30
UHD(2160p) 4096 x 2160 24/30/50/60 Mac 24
Note:
(*1) 1920 x 1200 @ 60Hz only supports RB(reduced blanking).
(*2) Windows 10 standard timing.
Extended Display Identication Data (EDID) tables
Digital signal (HDMI 2.0)
Digital Native resolution: 3840 x 2160 @ 60Hz
B0/Established
Timing
B0/Standard Timing B0/Standard Timing B1/Video Mode B1/Detail Timing
800 x 600 @ 56Hz 1280 x 720 @ 60Hz 3840 x 2160 @ 60Hz
(default)
1920 x 1080p @ 120Hz
16:9
2560 x 1440 @ 120Hz
800 x 600 @ 72Hz 1280 x 800 @ 60Hz 720 x 480p @ 60Hz 4:3 1920 x 1080 @ 240Hz
800 x 600 @ 75Hz 1280 x 1024 @ 60Hz 1920 x 1080i @ 60Hz 16:9
832 x 624 @ 75Hz 1920 x 1200 @ 60Hz 1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 60Hz 800x600 @ 120Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 70Hz 1024x768 @ 120Hz 1920 x 1080p @ 50Hz 16:9
1024 x 768 @ 75Hz 1280x800 @ 120Hz 1920 x 1080p @ 24Hz 16:9
1280 x 1024 @ 75Hz
3840 x 2160 @ 24Hz 16:9
1152 x 870@ 75Hz 3840 x 2160 @ 25Hz 16:9
3840 x 2160 @ 30Hz 16:9
3840 x 2160 @ 50Hz 16:9
3840 x 2160 @ 60Hz 16:9
4096 x 2160 @ 24Hz
4096 x 2160 @ 25Hz
4096 x 2160 @ 30Hz
4096 x 2160 @ 50Hz
4096 x 2160 @ 60Hz
720 x 480p @ 60Hz 16:9
1280x720p @ 60Hz 16:9
1280 x 720p @ 50Hz 16:9
Note: Support 1920 x 1080 @ 50Hz
English
64
ADDITIONAL INFORMATION
3D Timing
For Blu-ray 3D (HDMI 1.4a):
2D Support Frame Rate Timing Format
59/60 Hz option: 1920 x 1080p @ 23.98 / 24Hz Frame packing (HDMI1/HDMI2)
1280 x 720p @ 59.94 / 60Hz Frame packing (HDMI1/HDMI2)
1920 x 1080p @ 23.98 / 24Hz Top-and-Bottom (HDMI2/VGA)
1280 x 720p @ 59.94 / 60Hz Top-and-Bottom (HDMI2/VGA)
1920 x 1080p @ 23.98 / 24Hz Side-by-Side (HDMI2/VGA)
1280 x 720p @ 59.94 / 60Hz Side-by-Side (HDMI2/VGA)
50 Hz option: 1920 x 1080p @ 23.98 / 24Hz Frame packing (HDMI1/HDMI2)
1280 x 720p @ 50Hz Frame packing (HDMI1/HDMI2)
1920 x 1080p @ 23.98 / 24Hz Top-and-Bottom (HDMI2/VGA)
1280 x 720p @ 50Hz Top-and-Bottom (HDMI2/VGA)
1920 x 1080p @ 23.98 / 24Hz Side-by-Side (HDMI2/VGA)
1280 x 720p @ 50Hz Side-by-Side (HDMI2/VGA)
For PC:
Input Timing Format
HDMI1 1920 x 1080 @ 120Hz Frame Sequential
1280 x 800 @ 120Hz Frame Sequential
1024 x 768 @ 120Hz Frame Sequential
800 x 600 @ 120Hz Frame Sequential
HDMI2
1920 x 1080 @ 60Hz Frame Sequential
1280 x 800 @ 120Hz Frame Sequential
1280 x 720 @ 120Hz Frame Sequential
1024 x 768 @ 120Hz Frame Sequential
English
65
ADDITIONAL INFORMATION
Image size and projection distance
Diagonal
length
(inch)
size of
16:9
Screen
Screen Size W x H Projection Distance (D)
Oset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele
(m)
(min.)
(feet)
(min.)
(m)
(max.)
(feet)
(max.)
30 0.66 0.37 26.15 14.71 - 1.06 - 3.46 0.02 0.06 0.06 0.18
40 0.89 0.50 34.86 19.61 1.07 1.41 3.51 4.62 0.02 0.08 0.07 0.25
60 1.33 0.75 52.29 29.42 1.61 2.11 5.27 6.93 0.04 0.12 0.11 0.37
70 1.55 0.87 61.01 34.32 1.88 2.46 6.15 8.08 0.04 0.14 0.13 0.43
80 1.77 1.00 69.73 39.22 2.14 2.82 7.03 9.23 0.05 0.16 0.15 0.49
90 1.99 1.12 78.44 44.12 2.41 3.17 7.91 10.39 0.06 0.18 0.17 0.55
100 2.21 1.25 87.16 49.03 2.68 3.52 8.78 11.54 0.06 0.20 0.19 0.61
120 2.66 1.49 104.59 58.83 3.21 4.22 10.54 13.85 0.07 0.25 0.22 0.74
150 3.32 1.87 130.74 73.54 4.02 5.28 13.18 17.31 0.09 0.31 0.28 0.92
180 3.98 2.24 156.88 88.25 4.82 6.34 15.81 20.78 0.11 0.37 0.34 1.10
200 4.43 2.49 174.32 98.05 5.36 7.04 17.57 23.08 0.12 0.41 0.37 1.23
250 5.53 3.11 217.89 122.57 6.70 8.80 21.96 28.85 - - - -
301 6.65 3.74 262.00 147.37 8.05 - 26.40 - - - - -
Note: These values are not exact and can vary slightly.
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
English
66
ADDITIONAL INFORMATION

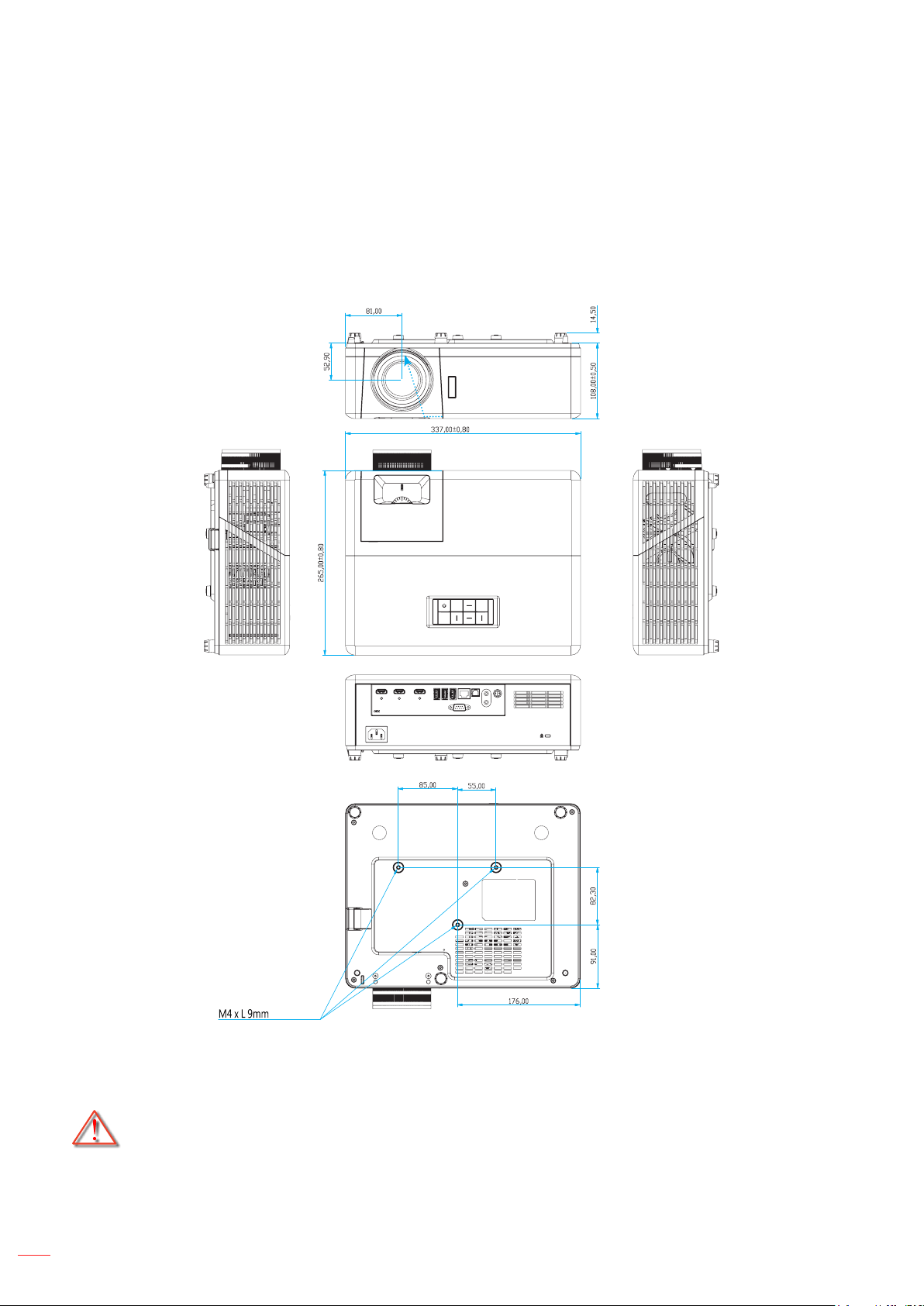

Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
Screw type: M4 for three point mounting
Minimum screw length: 10mm
Lens
Unit: mm
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
67
ADDITIONAL INFORMATION

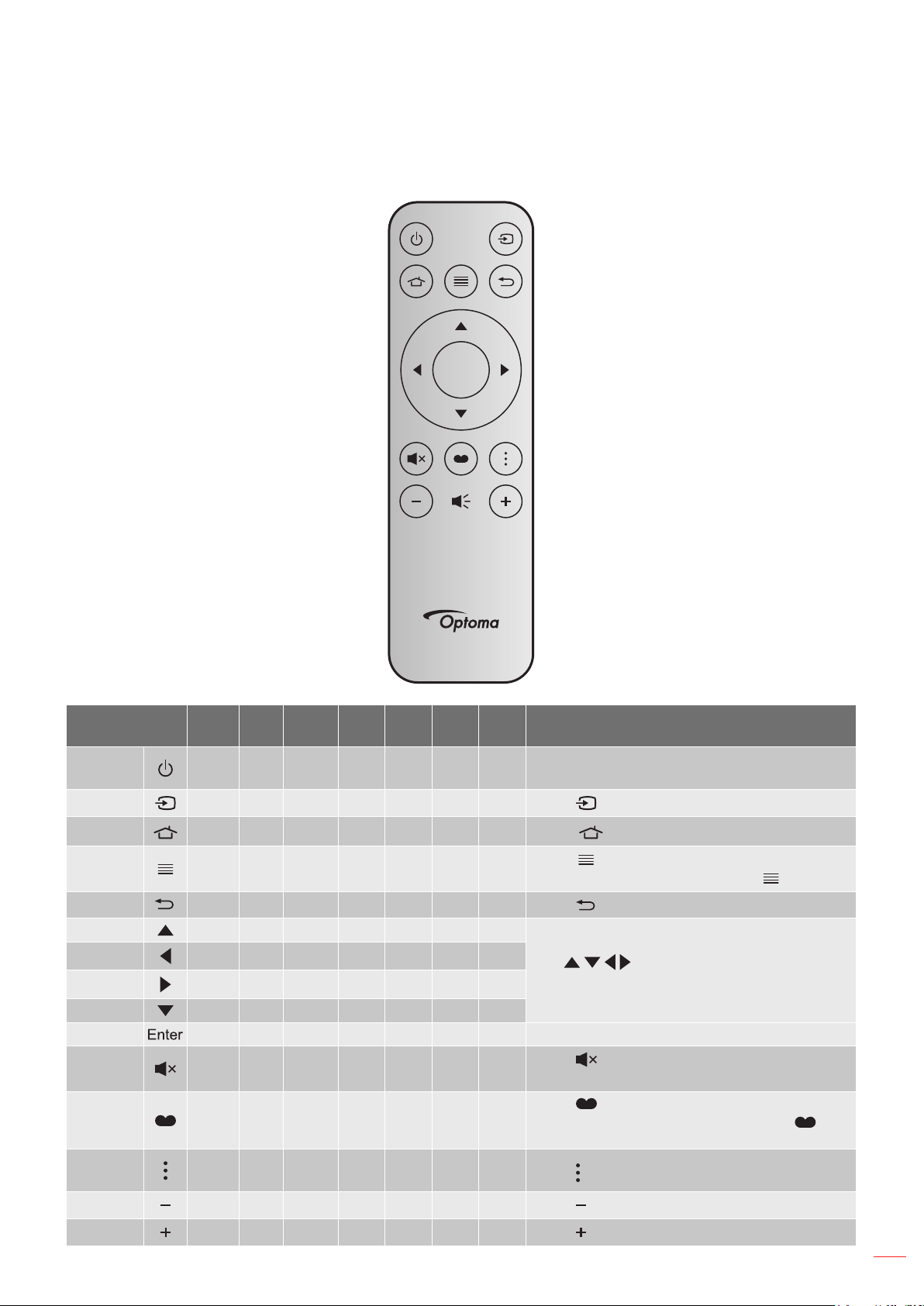

IR remote codes
Enter
Key
Key
num
MTX.
Format Data0 Data1 Data2 Data3
Description
Power
on / o
K12 04 F1 32 CD 71 8E
Refer to the “Powering on / o the projector”
on page 20.
Source K3 11 F1 32 CD 18 E7
Press to select an input signal.
Home K13 03 F1 32 CD 92 6D
Press to return to the Home screen.
Menu K8 17 F1 32 CD 0E F1
Press to launch the on-screen display
(OSD) menu. To exit OSD, press again.
Return K4 10 F1 32 CD 86 79
Press to return to the previous page.
Up K7 18 F2 32 CD 11 EE
Use to select items or make
adjustments to your selection.
Left K14 02 F2 32 CD 10 EF
Right K5 09 F2 32 CD 12 ED
Down K2 19 F2 32 CD 14 EB
Enter K9 16 F1 32 CD 0F F0 Conrm your item selection.
Mute K15 01 F1 32 CD 52 AD
Press to turn o/on the projector built-in
speaker.
Display
Mode
K10 15 F1 32 CD 91 6E
Press to display the Display Mode menu.
To exit the Display Mode menu, press
again.
APP
menu
K6 08 F1 32 CD 25 DA
Press to open the APP menu.
Volume - K11 12 F2 32 CD 0C F3
Press to decrease the volume.
Volume + K1 05 F2 32 CD 09 F6
Press to increase the volume.
English
68
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Adjust the Focus Ring on the projector lens. Please see page 17.
Make sure the projection screen is between the required distance from the projector. (Please refer to
page 65).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Adjust the zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the dierent settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
Select "Setup-->Projection" from the OSD and adjust the projection direction.
Blurry double image
Make sure “Display Mode” is not 3D to avoid normal 2D image appear blurry double image.
English
69
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
If possible, turn o the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±15° (horizontally) or ±10° (vertically)
to the IR receivers on the projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
7 m (~22 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
"Light Source" LED indicator is lit red and if "On/Standby" indicator ashes red.
"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes red. This indicates the projector
has overheated. Under normal conditions, the project can be switched back on.
"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
English
70
ADDITIONAL INFORMATION
LED lightning messages
Message
On/Standby LED Temp LED Light Source LED
(Red) (Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec o / 0.5 sec on)
Power on and light source
lighting
Steady light
Power o (Cooling)
Flashing
(0.5 sec o / 0.5
sec on). Back to red
steady light when
cooling fan turns o.
Error (Light source failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
Standby State
(Burn in mode)
Flashing
Burn in (Warming) Flashing
Burn in (Cooling) Flashing
Burn in (Light source
lighting)
Flashing
(3 sec on / 1 sec o)
Burn in (Light source o)
Flashing
(1 sec on / 3 sec o)
Power o:
Power O
Power O?
Press power key again.
Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
71
ADDITIONAL INFORMATION
Fan failed:
Warning
FAN LOCKED
The projector will switch o automatically
Please contact a service center for repair.
Out of display range:
HDMI
Out Of Range
Power down warning:
Power Down
Power Down Timer Active
Power down in sec.
English
72
ADDITIONAL INFORMATION
Specications
Optical Description
Technology
Texas Instrument DMD, 0.47”(dimension)/ 4K UHD HSSI DMD X1,
S451 (Packing typing), with 4-Way XPR actuator
Output resolution 4K UHD 3840 x 2160 @ 60Hz
Maximum input
resolution
4096 x 2160 @ 60Hz
Lens
Throw ratio: 1.21~1.59
F-stop: 1.94~2.23
Focal length: 12.81~16.74mm
Zoom range: 1.3x
Oset 105%~115%, vertical only
Image size 34.1”~302.4”, optimized wide 82”
Projection distance 1.2m ~ 8.1m
I/Os
HDMI V2.0 / HDCP2.2 (x3)
USB2.0 (For FW upgrade) USB-A for 5V PWR 1.5A
Audio Out 3.5mm
USB2.0 USB-A for USB disk driver and WiFi dongle (x3)
RS-232 male (9-pin D-SUB)
RJ-45 (Support IoT, Internet, and OTA functions)
S/PDIF (Supports PCM 2-channel, Dolby Digital (5.1))
12V Trigger (3.5mm jack)
3D Sync
Colour 1073.4 Million color
Scan rate
Horizontal scan rate: 31.0~135.0 KHz
Vertical scan rate: 24~120 Hz
Speaker Yes, 8W
Power consumption
Brightness Mode: 100%
240W (typical) ±15% @ 110VAC
230W (typical) ±15% @ 220VAC
Eco Mode: 80%
185W (typical) ±15% @ 110VAC
175W (typical) ±15% @ 220VAC
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current 3.5A
Installation orientations Front, Rear, Ceiling-top, Rear-top
Dimensions
(W x D x H)
Without feet: 337 x 265 x 108 mm (13.26 x 10.43 x 4.25 inches)
With feet: 337 x 265 x 119.3 mm (13.26 x 10.43 x 4.69 inches)
Weight < 5.0 kg (<11.02 lbs)
Environmental Operating in 0~40°C , 80% humidity (non-condensing)
Note: All specications are subject to change without notice.
