User manual
DLP
®
Projector
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Cleaning the Lens...................................................................................................................... 5
3D Safety Information ................................................................................................................ 6
Copyright ................................................................................................................................... 6
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 7
FCC ........................................................................................................................................... 7
Declaration of Conformity for EU countries ............................................................................... 8
WEEE ........................................................................................................................................ 8
INTRODUCTION .................................................................................. 9
Package Overview..................................................................................................................... 9
Standard accessories ................................................................................................................ 9
Optional accessories ................................................................................................................. 9
Product Overview ..................................................................................................................... 10
Connections.............................................................................................................................. 11
Keypad ..................................................................................................................................... 12
Remote control ......................................................................................................................... 13
SETUP AND INSTALLATION ............................................................. 14
Installing the projector .............................................................................................................. 14
Connecting sources to the projector ......................................................................................... 15
Adjusting the projector image ................................................................................................... 16
Remote setup ........................................................................................................................... 17
USING THE PROJECTOR .................................................................. 19
Powering on / off the projector.................................................................................................. 19
Selecting an input source ......................................................................................................... 21
Menu navigation and features .................................................................................................. 22
OSD Menu tree......................................................................................................................... 23
Display menu ............................................................................................................................ 30
Audio menu .............................................................................................................................. 35
Setup menu .............................................................................................................................. 35
Info menu.................................................................................................................................. 38
MAINTENANCE .................................................................................. 40
Replacing the lamp (Maintenance personnel only) .................................................................. 40
Installing and cleaning the dust lter ........................................................................................ 42
English
3
ADDITIONAL INFORMATION ............................................................ 43
Compatible resolutions ............................................................................................................. 43
Image size and projection distance .......................................................................................... 47
Projector dimensions and ceiling mount installation ................................................................. 48
IR remote codes ....................................................................................................................... 49
Troubleshooting ........................................................................................................................ 51
Warning indicators .................................................................................................................... 52
Specications ........................................................................................................................... 55
Optoma global ofces ............................................................................................................... 56
English
4
SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
Important Safety Instruction
To prolong the effective life of the lamp, make sure to keep the lamp on for at least 60 seconds and
avoid performing force shutdown.
RG2
Do not stare into the beam, RG2.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in
an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out
parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the projector in places where ammable gases or explosives gases may be present in the
atmosphere. The lamp inside the projector becomes very hot during operation and the gases may ignite
and result in a re.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but
not limited to):
± Unit has been dropped.
English
5
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and could melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by appropriate service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
When replacing the lamp, please allow the unit to cool down. Follow instructions as described on pages
40-41.
This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows
warning messages.
Reset the "Lamp Reset" function from the on-screen display "Lamp Settings" menu after replacing the
lamp module.
When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show on
the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has
been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on
pages 40-41.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.

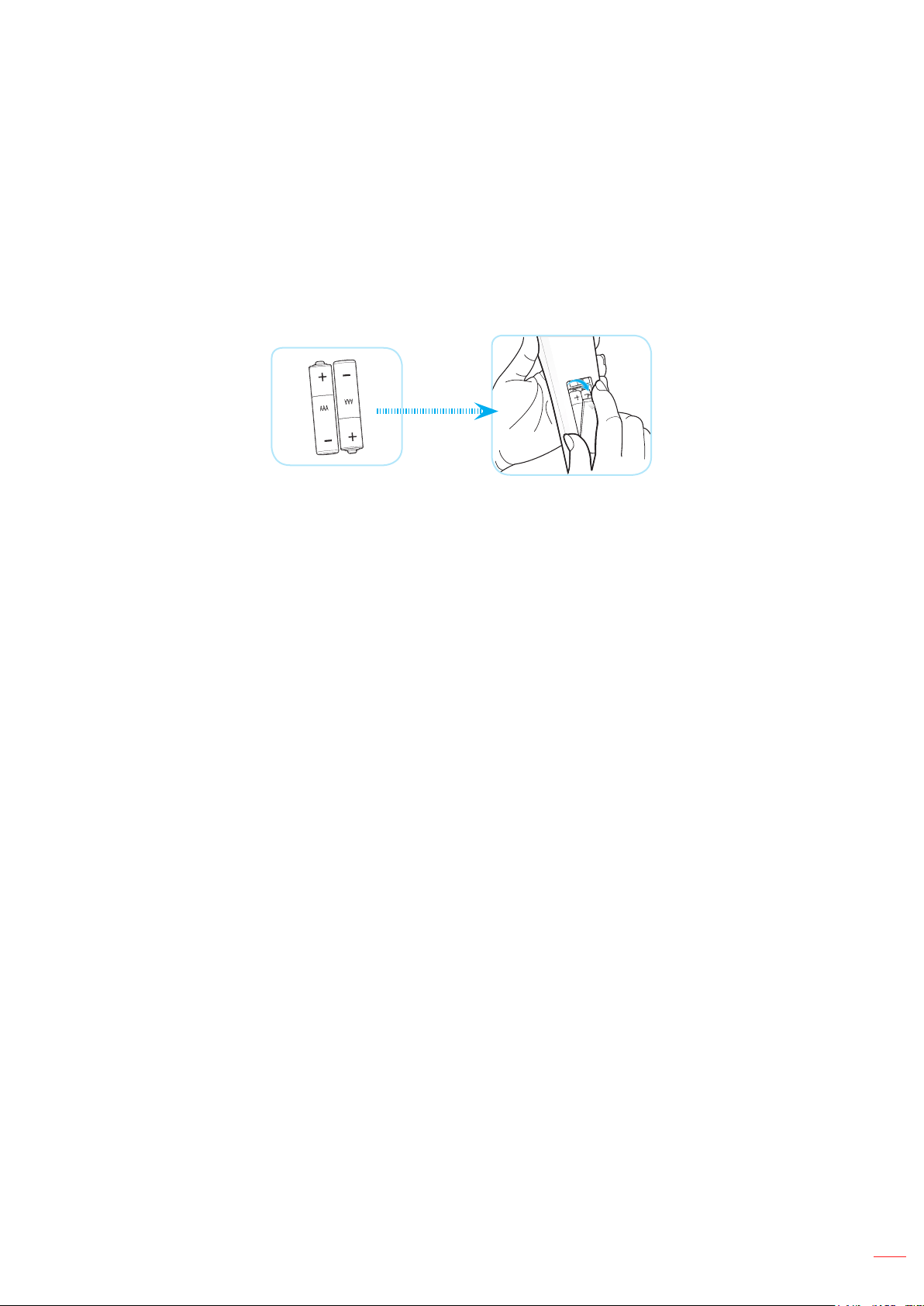

Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can
adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Cleaning the Lens
Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
English
6
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel off.
Warning: Do not wipe or tap the lens with a hard object.
3D Safety Information
Please follow all warnings and precautions as recommended before you or your child use the 3D function.
Warning
Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be
closely supervised when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
Some viewers may experience an epileptic seizure or stroke when exposed to certain ashing images
or lights contained in certain Projector pictures or video games. If you suffer from, or have a family
history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
Even those without a personal or family history of epilepsy or stroke may have an undiagnosed
condition that can cause photosensitive epileptic seizures.
Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or
under the inuence of alcohol should avoid utilizing the unit’s 3D functionality.
If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a
medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements
such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions;
(9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults
to experience these symptoms. Parents should monitor their children and ask whether they are
experiencing these symptoms.
Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye
strain and decreased postural stability. It is recommended that users take frequent breaks to lessen
the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the
above symptoms, immediately discontinue use of this device and do not resume using it for at least
thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for an extended period of time may
damage your eyesight. The ideal viewing distance should be at least three times the screen height. It
is recommended that the viewer’s eyes are level with the screen.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause a
headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
Do not use the 3D glasses for any other purpose than for watching 3D projection.
Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles,
etc.) may be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your
3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run
into, knocked down, broken or fallen over.
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2019
English
7
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing,
LLC.
All other product names used in this manual are the properties of their respective owners and are
Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
English
8
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC
RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
English
9
INTRODUCTION
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Optional accessories
Note: Optional accessories vary depending on model, specication and region.
Remote control Power leadProjector Documentation
Warranty Card*
Basic User Manual
Note:
The actual remote control may vary depending on the region.
The remote control is shipped with the batteries.
* For European warranty Information, please visit www.optoma.com.
Lens cap
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
English
10
INTRODUCTION
Product Overview
21
12
13
9
4 6 75
11 10
8
9
3
Minimum
100mm
Minimum
100mm
Minimum
100mm
Minimum
300mm
Minimum
300mm
Minimum 100mm
Note:
Do not block projector intake and exhaust vents.
When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. Lamp Cover 8. Ventilation (outlet)
2. Focus Ring 9. Tilt-Adjustment Feet
3. IR Receiver (front and top) 10. Security Bar
4. Ventilation (inlet) 11. Kensington™ Lock Port
5. Keypad 12. Input / Output
6. Lens Shift Dial 13. Lens
7. Zoom Lever
English
11
INTRODUCTION
Connections
1 2 3 4 5 6 7 8 9 10
111213
No Item No Item
1. USB Connector (Service Only) 8. 12V Out Connector
2. RS-232 Connector 9. Audio In Connector
3. VGA In Connector 10. Audio Out Connector
4. HDMI 2.0 Connector 11. Security Bar
5. HDMI 1.4 Connector 12. Kensington
TM
Lock Port
6.
USB Power OUT (5V 1.5A)
Connector
13. Power Socket
7. S/PDIF Connector
English
12
INTRODUCTION
Keypad
1 2 3
4
5
6
7
8
9
10
11
12
No Item No Item
1. On/Standby LED 7. IR Receiver
2. Lamp LED 8. Four Directional Select Keys
3. Temp LED 9. Menu
4. Information 10. Source
5. Enter 11. Power
6. Re-Sync 12. Keystone Correction
English
13
INTRODUCTION
Remote control
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
1
2
4
5
6
7
8
13
14
15
16
20
21
23
24
27
9
22
17
18
19
3
10
11
12
25
26
No Item No Item
1. Power On 15. User 3
2. User 2 16. Contrast
3. User 1 17. Display Mode
4. Brightness 18. Aspect Ratio
5. Keystone 19. 3D Mode
6. Mute 20. Sleep Timer
7. DB (Dynamic Black) 21. Volume +
8. Source 22. Re-Sync
9. Enter 23. Four Directional Select Keys
10. Menu 24. Volume -
11. HDMI1 (HDMI 1.4) 25. HDMI2 (HDMI 2.0)
12. VGA1 26. YPbPr (not supported)
13. VGA2 (not supported) 27. Video (not supported)
14. Power Off
Note: Some keys may have no function for models that do not support these features.
English
14
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size, please refer to distance table on
page 47.
How to determine screen size for a given distance, please refer to distance table on page 47.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
offset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate
the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard
installation advise please contact Optoma.
English
15
SETUP AND INSTALLATION
Connecting sources to the projector
MOLEX
MOLEX
1
8
2
3
4
5
6
10
11
12
7
9
13
No Item No Item No Item
1. USB Cable 6. USB Power Cable 11. HDMI Cable
2. RS-232 Cable 7. 12V DC Jack 12. MHL Cable
3. RCA Component Cable 8. Audio In Cable 13. Power Cord
4. VGA In Cable 9. Audio Out Cable
5. HDMI Dongle 10. S/PDIF Out Cable
Note: To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or
Premium Certied HDMI cables up to 5 meters.
English
16
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom, lens shift, and focus
To adjust the image size and position, do the following:
a. To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
b. To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the
position of the projected image vertically.
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.
Lens Shift
Zoom Lever
Focus Ring
Note: The projector will focus at a distance of 1.2m to 8.1m.
English
17
SETUP AND INSTALLATION
Remote setup
Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
English
18
SETUP AND INSTALLATION
Effective range
Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an
angle within 30° perpendicular to the projector’s IR remote control sensors to function correctly. The distance
between the remote control and the sensor should not be longer than 7 meters (~22 feet).
Note: When pointing the remote control directly (0 degrees angle) on the IR sensor, the distance between the
remote control and the sensor should not be longer than 10 meters (~32 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 meters or the remote
controller might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 7 meters from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change
according to screens.
ON
OFF
Menu
VGA1
HDMI1
User2
Cont rast
Aspe ct ra tio
DB
Volu me
Sour ce
Re-s ync
User1
Brig htnes s
Keys tone
Mute
User3
Mode
3D
Slee p Tim er
Volu me
HDMI2
VGA2
Video
YPbPr
ON
OFF
Menu
VGA1
HDMI1
User2
Cont rast
Aspe ct ra tio
DB
Volu me
Sour ce
Re-s ync
User1
Brig htnes s
Keys tone
Mute
User3
Mode
3D
Slee p Tim er
Volu me
HDMI2
VGA2
Video
YPbPr
Approx. ±15°
Approx. ±15°
English
19
USING THE PROJECTOR
Powering on / off the projector
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
or
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will
turn red.
2. Turn on the projector by pressing the “ ” button on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing
blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
English
20
USING THE PROJECTOR
Powering off
1. Turn off the projector by pressing the “ ” button on the projector keypad or the “ ” button on the
remote control.
2. The following message will be displayed:
Power Off
Power Off?
Press power key again.
3. Press the “ ”/“ ” button again to conrm, otherwise the message will disappear after 15 seconds.
When you press the “ ”/“ ” button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/
Standby LED will ash blue. When the On/Standby LED turns solid red, this indicates the projector has
entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle
has nished and the projector has entered standby mode. When the projector is in standby mode,
simply press the “ ” button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.
English
21
USING THE PROJECTOR
Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the “ ” button on
the projector keypad or the Source button on the remote control to select the desired input.
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
or
English
22
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press on the remote control or the projector keypad.
2. When OSD is displayed, use pq keys to select any item in the main menu. While making a selection
on a particular page, press on the remote control or the projector keypad to enter sub menu.
3. Use pq keys to select the desired item in the sub menu and then press to view further settings.
Adjust the settings by using tu keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press to conrm, and the screen will return to the main menu.
6. To exit, press again. The OSD menu will close and the projector will automatically save the new
settings.
Sub Menu
Main Menu
Settings
Navigation guide
Display
Image Settings
Enhanced Gaming
3D
Aspect Ratio
Edge Mask
Digital Zoom
Select
Exit
Enter
Image Shift
Keystone
Off
English
23
USING THE PROJECTOR
OSD Menu tree
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Display Mode
Cinema
HDR
HLG
HDR SIM.
Game
Reference
Bright
User
3D
ISF Day
ISF Night
ISF 3D
Wall Color
Off [Default]
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Dynamic Range
HDR/HLG
Off
Auto [Default]
HDR Picture
Mode
Bright
Standard [Default]
Film
Detail
HLG Picture
Mode
Bright
Standard [Default]
Film
Detail
HDR Demo
Mode
Off [Default]
On
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
Gamma
Film
Video
Graphics
Standard(2.2)
1.8
2.0
2.4
3D
English
24
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings Color Settings
BrilliantColor
TM
1 ~ 10
Color
Temperature
D55
D65
D75
D83
D93
Native
Color Gamut
Native
HDTV
Presentation
Cinema
Game
CMS
Color
R [Default]
G
B
C
Y
M
W
x offset -50 ~ 50 [Default: 0]
y offset -50 ~ 50 [Default: 0]
Brightness -50 ~ 50 [Default: 0]
Reset
Cancel [Default]
Yes
Exit
RGB Gain/Bias
Red Gain -100 ~ 100
Green Gain -100 ~ 100
Blue Gain -100 ~ 100
Red Bias 0 ~ 100
Green Bias 0 ~ 100
Blue Bias 0 ~ 100
Reset
Cancel [Default]
Yes
Exit
Color Space
[Not HDMI Input]
Auto [Default]
RGB
YUV
Color Space
[HDMI Input]
Auto
RGB(0~255)
RGB(16~235)
YUV
English
25
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Image Settings
Signal
Automatic
Off
On [Default]
Frequency
-50 ~ 50 (depends on signal)
[Default: 0]
Phase
0 ~ 31 (depends on signal)
[Default: 0]
H. Position
-50 ~ 50 (depends on signal)
[Default: 0]
V. Position
-50 ~ 50 (depends on signal)
[Default: 0]
Exit
UltraDetail
Off
1
2
3
Dynamic Black
Off
On
Brightness Mode
Bright
Eco.
Reset
Enhanced
Gaming
Off [Default]
On
3D
3D Mode
Off [Default]
On
3D Sync Invert
Off [Default]
On
3D Format
Auto [Default]
SBS
Top and Bottom
Frame Sequential
Frame Packing
3D-2D
3D [Default]
L
R
Aspect Ratio
4:3
16:9
LBX
Superwide
Native
Auto
Edge Mask 0 ~ 10 [Default: 0]
Digital Zoom -5 ~ 25 [Default: 0]
Image Shift
H
-100 ~ 100 [Default: 0]
V
-100 ~ 100 [Default: 0]
Keystone -40 ~ 40 [Default: 0]
English
26
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Audio
Internal
Speaker
Off
On [Default]
Mute
Off [Default]
On
Volume 0 ~ 10 [Default: 5]
Setup
Projection
Front [Default]
Rear
Ceiling-top
Rear-top
Lamp Settings
Lamp Reminder
Off
On [Default]
Lamp Reset
Cancel [Default]
Yes
Filter Settings
Filter Usage
Hours
(read only)
Optional Filter
Installed
Yes
No
Filter Reminder
Off
300hr
500hr [Default]
800hr
1000hr
Filter Reset
Cancel [Default]
Yes
Power Settings
Direct Power On
Off [Default]
On
Auto Power Off
(min.)
0 ~ 180 (5 min increments)
[Default: 20]
Sleep Timer
(min.)
0 ~ 990 (30 min increments)
[Default: 0]
Always On
No [Default]
Yes
Security
Security
Off
On
Security Timer
Month
Day
Hour
Change
Password
Test Pattern
Green Grid
Magenta Grid
White Grid
White
Off
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Remote
Settings
[depends on
remote]
IR Function
On
Front
Top
Off
User1
Test Pattern
CMS
Color Temp
Gamma
Auto Source
Projection
Lamp Settings
Digital Zoom
MHL
Dynamic Range [Default]
Dynamic Black
User2
Test Pattern
CMS
Color Temp
Gamma
Auto Source
Projection
Lamp Settings
Digital Zoom
MHL [Default]
Dynamic Range
Dynamic Black
User3
Test Pattern
CMS
Color Temp
Gamma
Auto Source
Projection
Lamp Settings
Digital Zoom
MHL
Dynamic Range
Dynamic Black [Default]
Projector ID 00 ~ 99
12V Trigger 12V Trigger
On
Off
English
28
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Options Language
English [Default]
Deutsch
Français
Italiano
Español
Português
簡体中文
日本語
한국어
Русский
Options
Menu Settings
Menu Location
Top Left
Top Right
Center [Default]
Bottom Left
Bottom Right
Menu Timer
Off
5sec
10sec [Default]
Auto Source
Off [Default]
On
Input Source
HDMI 1.4
HDMI 2.0
VGA
High Altitude
Off [Default]
On
Display Mode
Lock
Off [Default]
On
Keypad Lock
Off [Default]
On
Information Hide
Off [Default]
On
Logo
Default [Default]
Neutral
Background
Color
None [Default]
Blue
Red
Green
Gray
HDMI 1.4 EQ 1 ~ 7 [Default: 4]
HDMI 2.0 EQ 1 ~ 7 [Default: 4]
Reset
Reset OSD
Cancel [Default]
Yes
Reset to Default
Cancel [Default]
Yes
English
29
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Info
Regulatory
Serial Number
Source
Resolution 00x00
Refresh Rate 0.00Hz
Display Mode
Light Source
Hours
Projector ID 00 ~ 99
Color Depth
Color Format
Filter Usage
Hours
Brightness
Mode
FW Version
System
MCU
English
30
USING THE PROJECTOR
Display menu
Image settings menu
Display Mode
There are many factory presets optimized for various types of images.
Cinema: Provides the best colors for watching movies.
HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest
whites, and vivid cinematic color using REC.2020 color gamut. This mode will be automatically
enabled if HDR is set to ON (and HDR Content is sent to projector – 4K UHD Blu-ray, 1080p/4K UHD
HDR Games, 4K UHD Streaming Video). While HDR mode is active, other display modes (Cinema,
Reference, etc.) cannot be selected as HDR delivers color that is highly accurate, exceeding the color
performance of the other display modes.
HLG: For HDR movies with Hybrid Log content.
HDR SIM.: Enhances non-HDR content with simulated High Dynamic Range (HDR). Choose this
mode to enhance gamma, contrast, and color saturation for non-HDR content (720p and 1080p
Broadcast/Cable TV, 1080p Blu-ray, non-HDR Games, etc). This mode can ONLY be used with non-
HDR content.
Game: Select this mode to increase the brightness and response time level for enjoying video games.
Reference: This mode is intended to reproduce as close as possible the image the way the movie
director intended. Color, color temperature, brightness, contrast and gamma settings are all congured
to standard reference levels. Select this mode to watch a video.
Bright: Maximum brightness from PC input.
User: Memorize user’s settings.
3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.
ISF Day: Optimize the image with the ISF Day mode to be perfectly calibrated and high picture quality.
ISF Night: Optimize the image with the ISF Night mode to be perfectly calibrated and high picture
quality.
ISF 3D: Optimize the image with the ISF 3D mode to be perfectly calibrated and high picture quality.
Note: For access and calibration of ISF daytime and night viewing modes, please contact your local dealer.
Wall Color
Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard,
light yellow, light green, light blue, pink, and gray.
Dynamic Range
Congure the High Dynamic Range (HDR) setting and its effect when displaying video from 4K Blu-ray players and
streaming devices.
Note: HDMI 1.4 and VGA do not support Dynamic Range.
HDR/HLG
Off: Turn off HDR or HLG processing. When set to Off, the projector will NOT decode HDR or HLG
content.
Auto: Auto detect HDR signal.
HDR Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
English
31
USING THE PROJECTOR
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching.
HLG Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching.
HDR Demo Mode
This feature enables you to see the difference in the image quality between the raw unprocessed image
and the image processed as processed by the HDR.
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
Film: For home theater.
Video: For video or TV source.
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4: For specic PC / Photo source.
3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.
Note: These options are only available if the 3D mode function is disabled. In 3D mode, user can only select “3D”
for Gamma setting.
Color Settings
Congure the color settings.
BrilliantColor
TM
: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from D55, D65, D75, D83, D93, or Native.
Color Gamut: Select an appropriate color gamut from Native, HDTV, Presentation, Cinema, or Game.
CMS (Color Management System): Select one of the colors (R/G/B/C/M/Y) to adjust its x/y offset and
brightness.
± Color: Select between red (R), green (G), blue (B), cyan (C), yellow (Y), magenta (M), and white
(W) color.
English
32
USING THE PROJECTOR
± x offset: Adjust the x offset value of the selected color.
± y offset: Adjust the y offset value of the selected color.
± Brightness: Adjust the brightness value of the selected color.
± Reset: Return the factory default settings for color adjustments.
± Exit: Exit the “CMS” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (non-HDMI input only): Select an appropriate color matrix type from the following:
AUTO, RGB, or YUV.
Color Space (HDMI input only): Select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
Signal
Adjust the signal options.
Automatic: Congure automatically the signal (the frequency and phase items are grayed out). If
automatic is disabled, the frequency and phase items will appear for tuning and saving the settings.
Frequency: Change the display data frequency to match the frequency of your computer’s graphic
card. Use this function only if the image appears to icker vertically.
Phase: Synchronize the signal timing of the display with the graphic card. If the image appears to be
unstable or ickers, use this function to correct it.
H. Position: Adjust the horizontal positioning of the image.
V. Position: Adjust the vertical positioning of the image.
Exit: Exit the “Signal” menu.
Note: This menu is only available if the input source is RGB/Component.
UltraDetail
Adjust the edges of the projected image in order to provide more perceived details.
Dynamic Black
Use to automatically adjust the picture brightness to give optimum contrast performance.
Brightness Mode
Adjust the brightness mode settings.
Bright: Choose “Bright” to increase the brightness.
Eco: Choose “Eco” to dim the projector lamp which will lower power consumption and extend the lamp
life.
Reset
Return the factory default settings for color settings.
English
33
USING THE PROJECTOR
Enhanced gaming menu
Enable this feature to reduce response times (input latency) during gaming to 15.7ms*.
Note:
*Only for 1080p 240Hz signals.
The input lag by signals is described in the following table:
The values in the table can vary slightly.
4K 60Hz 1440P 60Hz 1080P 60Hz 1080P 120Hz 1080P 240Hz
25.8ms 25.8ms 23.8ms 18.2ms 15.7ms
3D menu
3D Mode
Use this option to enable/disable the 3D mode function.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
3D Format
Use this option to select the appropriate 3D format content.
Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
SBS: Display 3D signal in “Side-by-Side” format.
Top and Bottom: Display 3D signal in “Top and Bottom” format.
Frame Sequential: Display 3D signal in “Frame Sequential” format.
Frame Packing: Display 3D signal in “Frame Packing” format.
3D-2D
Use this option to specify how the 3D content should appear on the screen.
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
Aspect ratio menu
Select the aspect ratio of the displayed image between the following options:
4:3: This format is for 4:3 input sources.
16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1
aspect ratio in full resolution.
Superwide: Use this special 2.0:1 aspect ratio to display both 16:9 and 2.35:1 aspect ratio movies
without black bars at the top and bottom of the screen.
Native: This format displays the original image without any scaling.
Auto: Automatically selects the appropriate display format.
English
34
USING THE PROJECTOR
Note:
Detailed informations about LBX mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image
will not look right when displaying image in 16:9 mode. In this situation, please try to use the
4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image
in 16:9 display. For this type of content, you can use LBX mode to ll the image on the 16:9
display.
± If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp
power and vertical resolution are fully utilized.
To use the superwide format, do the following:
a) Set the screen aspect ratio to 2.0:1.
b) Select “Superwide” format.
c) Align the projector image correctly on the screen.
4K UHD scaling table:
16 : 9 screen 480i/p 576i/p 720p 1080i/p 2160p
4x3 Scale to 2880 x 2160.
16x9 Scale to 3840 x 2160.
LBX Get the central 3840 x 1620 image, and then scale to 3840 x 2160 for display.
Native mode 1:1 mapping centered.
No scaling will be made; the displayed resolution depends on input source.
Auto -If source is 4:3, the screen type will be scaled to 2880 x 2160.
-If source is 16:9, the screen type will be scaled to 3840 x 2160.
-If source is 15:9, the screen type will be scaled to 3600 x 2160.
-If source is 16:10, the screen type will be scaled to 3456 x 2160.
Auto mapping rule:
Input resolution Auto/Scale
H-resolution V-resolution 3840 2160
4:3
640 480 2880 2160
800 600 2880 2160
1024 768 2880 2160
1280 1024 2880 2160
1400 1050 2880 2160
1600 1200 2880 2160
Wide Laptop
1280 720 3840 2160
1280 768 3600 2160
1280 800 3456 2160
SDTV
720 576 2700 2160
720 480 3240 2160
HDTV
1280 720 3840 2160
1920 1080 3840 2160
English
35
USING THE PROJECTOR
Edge mask menu
Use this function to remove the video encoding noise on the edge of video source.
Digital zoom menu
Use to reduce or magnify an image on the projection screen.
Image shift menu
Adjust the projected image position horizontally (H) or vertically (V).
Note: The image size will reduce slightly when adjusting the horizontal and vertical keystone.
Keystone menu
Adjust the image distortion caused by tilting the projector.
Audio menu
Internal Speaker
Use this option to turn on or off the internal speaker.
Off: Choose “Off” to turn off the internal speaker.
On: Choose “On” to turn on the internal speaker.
Mute
Use this option to temporarily turn off the sound.
Off: Choose “Off” to turn mute off.
On: Choose “On” to turn mute on.
Note: “Mute” function affects both internal and external speaker volume.
Volume
Adjust the volume level.
Setup menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Lamp settings menu
Lamp Reminder
Choose this function to show or to hide the warning message when the changing lamp message is displayed. The
message will appear 30 hours before suggested replacement of lamp.
Lamp Reset
Resets the lamp hour counter after replacing the lamp.
Filter settings menu
Filter Usage Hours
Display the lter time.
English
36
USING THE PROJECTOR
Optional Filter Installed
Set the warning message setting.
Yes: Display warning message after 500 hours of use.
Note: “Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter
Installed” is “Yes”.
No: Turn off warning message.
Filter Reminder
Choose this function to show or hide the warning message when the changing lter message is displayed. The
available options include 300hr, 500hr, 800hr, and 1000hr.
Filter Reset
Reset the dust lter counter after replacing or cleaning the dust lter.
Power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.
Auto Power Off (min.)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power off when the countdown has nished (in minutes).
Sleep Timer (min.)
Congure the sleep timer.
Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or without
a signal being sent to the projector. The projector will automatically power off when the countdown has
nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered off.
Always On: Check to set the sleep timer always on.
Security menu
Security
Enable this function to prompt for a password before using the projector.
Off: Choose “Off” to be able to switch on the projector without password verication.
On: Choose “On” to use security verication when the turning on the projector.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Test pattern menu
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (off).
English
37
USING THE PROJECTOR
Remote settings menu
IR Function
Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from top and front IR receivers.
Front: Choose “Front”, the projector can be operated by the remote control from the front IR receiver.
Top: Choose “Top”, the projector can be operated by the remote control from the top IR receiver.
Off: Choose “Off”, the projector can’t be operated by the remote control. By selecting “Off”, you will be
able to use the Keypad keys.
User1/ User2/ User3
Assign the default function for User1, User2, or User3 between Test Pattern, CMS, Color Temp, Gamma, Auto
Source, Projection, Lamp Settings, Digital Zoom, MHL, Dynamic Range, or Dynamic Black.
Projector ID menu
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.
12V trigger menu
Use this function to enable or disable the trigger.
Note: 3.5mm mini jack that outputs 12V 500mA (max.) for relay system control.
+12V
GND
On: Choose “On” to enable the trigger.
Off: Choose “Off” to disable the trigger.
Options menu
Language
Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese,
Simplied Chinese, Japanese, Korean, and Russian.
Menu Settings
Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source
Choose this option to let the projector automatically nd an available input source.
Input Source
Select the input source between HDMI 1.4, HDMI 2.0, and VGA.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Display Mode Lock
Choose “On” or “Off” to lock or unlock adjusting display mode settings.
English
38
USING THE PROJECTOR
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “Off”, you will be able to reuse the Keypad.
Information Hide
Enable this function to hide the information message.
Off: Choose “Off” to show the “searching” message.
On: Choose “On” to hide the info message.
Logo
Use this function to set the desired startup screen. If changes are made, they will take effect the next time the
projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Background Color
Use this function to display a blue, red, green, gray color, or none when no signal is available.
HDMI 1.4 EQ
Set the HDMI port EQ value for HDMI1.4.
HDMI 2.0 EQ
Set the HDMI port EQ value for HDMI 2.0.
Note:
HDMI EQ analyses the signal data and eliminates distortion due to signal loss when using long HDMI
cables. The HDMI receiver also includes a timing adjustment circuit that removes timing jitter, restoring
the HDMI signal to optimal transmission levels.
3840x2160@60Hz suggests using the HDMI cable under 5 meters/16 feet. If the HDMI cable is over 5
meters/16 feet, we strongly recommend using an Active Fiber HDMI Cable or Signal Booster/Repeater.
3840x2160@30Hz/25Hz/24Hz suggests using the HDMI cable under 15 meters/ 50 feet. If the HDMI
cable runs under 15 meters/50 feet, most copper cables are acceptable. If exceeding 15 meters/50
feet or having signal sync issues, we strongly recommend using an Active Fiber HDMI Cable or Signal
Booster/Repeater.
To ensure the best image quality and avoid connection errors, we recommend the use of High Speed
or Premium Certied HDMI cables up to 5 meters.
Reset menu
Reset OSD
Return the factory default settings for OSD menu settings.
Reset to Default
Return the factory default settings for all settings.
Info menu
View the projector information as listed below:
Regulatory
Serial Number
Source
English
39
USING THE PROJECTOR
Resolution
Refresh Rate
Display Mode
Light Source Hours
Projector ID
Color Depth
Color Format
Filter Usage Hours
Brightness Mode
FW Version
English
40
MAINTENANCE
Replacing the lamp (Maintenance personnel only)
The projector automatically detects the lifespan of the light bulb and when the light bulb is at its end, a warning
message will appear on the screen.
When this message appears, please contact your local dealer or service center to replace the light bulb as soon as
possible. Before replacing the light bulb, make sure to turn off the projector, unplug the power cord, and make sure
the projector has cooled off for at least 30 minutes and the light bulb has completely cooled off.
Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is
recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used
to prevent any loose parts from falling out of projector.
Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!
Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The
bulb may shatter and cause injury if it is dropped.
English
41
MAINTENANCE
Replacing the lamp (continued)
2
1
6
3
4
5
Procedure:
1. Switch off the power to the projector by pressing the “ ” button on the projector keypad or the “ ”
button on the remote control.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Remove the screw securing the top cover. 1
5. Remove the lamp cover. 2
6. Remove the screw on the lamp module. 3
7. Lift up the lamp handle. 4
8. Remove the lamp cord. 5
9. Remove the lamp module carefully. 6
10. To replace the lamp module, reverse the previous steps.
11. Turn on the projector and reset the lamp timer.
12. Lamp Reset: (i) Press "Menu" (ii) Select "Setup" (iii) Select "Lamp Settings"
(iv) Select "Lamp
Reset"
(v) Select "Yes".
Note:
The projector cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean
the lamp module if it was accidentally touched.
English
42
MAINTENANCE
Installing and cleaning the dust lter
Installing the dust lter
1
2
Note:
Dust lters are only required/supplied in the selected regions with excessive dust.
Dust lters are not required in the North American region.
Cleaning the dust lter
We recommend you to clean the dust lter every three months. Clean it more often if the projector is used in a
dusty environment.
Procedure:
1. Switch off the power to the projector by pressing the “ ” button on the projector keypad or the “ ”
button on the remote control.
2. Disconnect the power cord.
3. Pull the dust lter compartment to the side to remove it out from the right side of the projector. 1
4. Carefully remove the air lter. Then clean or replace the dust lter. 2
5. To install the dust lter, reverse the previous steps.
1
2
English
43
ADDITIONAL INFORMATION
Compatible resolutions
Video compatibility
Signal Resolution
SDTV 480i/p, 576i/p
HDTV 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60Hz)
UHD 2160p (24/50/60Hz)
Detailed video timing
Signal Resolution Refresh Rate (Hz) Notes
SDTV (480i) 640 x 480 60
For Component
SDTV (480p) 640 x 480 60
SDTV (576i) 720 x 576 50
SDTV (576p) 720 x 576 50
HDTV (720p) 1280 x 720 50/60
HDTV (1080i) 1920 x 1080 50/60
HDTV (1080p) 1920 x 1080 24/50/60
UHD (2160p) 3840 x 2160 24/50/60 For 4K UHD
Computer compatibility (PC)
Signal Resolution
Frequency H Refresh Rate
(KHz) (Hz) Video Digital Analog Note
VGA
720 x 400 31.5 70 √ √
720 x 400 37.9 85 √ √
720 x 576 50 √ √
640 x 480 31.5 60 √ √
640 x 480 67 √ √
640 x 480 37.9 72.8 √ √ 72Hz
640 x 480 37.5 75 √ √
640 x 480 43.3 85 √ √
SVGA
800 x 600 35.2 56.3 √ √ 56Hz
800 x 600 37.9 60.3 √ √ 60Hz
800 x 600 46.9 75 √ √
800 x 600 48.1 72.2 √ √ 72Hz
800 x 600 53.7 85.1 √ √ 85Hz
832 x 624 75 √ √
XGA
1024 x 768 48.4 60 √ √
1024 x 768 56.5 70.1 √ √ 70Hz
1024 x 768 60 75 √ √
1024 x 768 68.7 85 √ √
1024 x 768 120 N/A √
1152 x 864 75 √ √
HD720
1280 x 720 50 √ √
1280 x 720 60 √ √
1280 x 720 92.62 120 N/A √
English
44
ADDITIONAL INFORMATION
Signal Resolution
Frequency H Refresh Rate
(KHz) (Hz) Video Digital Analog Note
WXGA
1280 x 768 47.4 60 √ √
1280 x 768 75 √ √
1280 x 768 85 √ √
WXGA-800 1280 x 800 60 √ √
SXGA
1280 x 1024 64 60 √ √
1280 x 1024 80 75 √ √
1280 x 1024 91.1 85 √ √
SXGA+ 1400 x 1050 60 N/A √
UXGA 1600 x1200 75 60 √ √
HD1080
1920 x 1080 24 √ √
1920 x 1080 50 √ √
1920 x 1080 60 √ √
WUXGA
(*1)
1920 x 1200 60 √ √
HDTV 1920 x 1080i 50 N/A √ √
1920 x 1080i 60 N/A √ √
1920 x 1080p 24 N/A √ √
1920 x 1080p 50 N/A √ √
1920 x 1080p 60 N/A √ √
1280 x 720 45 60 √ N/A N/A
1280 x 720p 50 N/A √ √
1280 x 720p 60 N/A √ √
SDTV 720 x 576 31.3 50 √ N/A N/A
720 x 576i 50 N/A √ √
720 x 576p 50 N/A √ √
720 x 480 31.5 60 √ N/A N/A
720 x 480i 60 N/A √ √
720 x 480p 60 N/A √ √
Note:
“√“ means the resolution is supportred, “N/A” means the resolution is not supported.
(*1) 1920 x 1200 @ 60Hz only support RB (reduced blanking).
Computer compatibility (Mac)
Resolution
Macbook
Compatibility
Macbook Pro (Intel)
Compatibility
Power Mac G5
Compatibility
Power Mac G4
Compatibility
Hz Digital Analog Digital Analog Digital Analog Digital Analog
800 x 600 60 √ √ √ √ N/A N/A √ N/A
800 x 600 72 √ √ √ √ N/A √ √ √
800 x 600 75 √ √ √ √ N/A √ √ √
800 x 600 85 √ √ N/A √ N/A √ √ √
1024 x 768 60 √ √ √ √ N/A √ √ √
1024 x 768 70 √ √ √ √ N/A √ √ √
1024 x 768 75 √ √ √ √ N/A √ √ √
1024 x 768 85 √ √ √ √ N/A √ √ √
1280 x 720 60 √ √ √ √ N/A √ √ √
1280 x 768 60 √ √ √ √ N/A N/A N/A √
English
45
ADDITIONAL INFORMATION
Resolution
Macbook
Compatibility
Macbook Pro (Intel)
Compatibility
Power Mac G5
Compatibility
Power Mac G4
Compatibility
Hz Digital Analog Digital Analog Digital Analog Digital Analog
1280 x 768 75 N/A √ N/A √ N/A √ √ √
1280 x 768 85 N/A √ N/A √ N/A N/A N/A √
1280 x 800 60 N/A √ N/A √ N/A √ √ √
1280 x 1024 60 √ N/A N/A √ N/A √ √ √
1280 x 1024 75 √ N/A N/A √ N/A √ √ N/A
1920 x 1080 60 √ N/A N/A √ N/A √ √ √
1920 x 1200
(*1)
60 √ N/A N/A √ N/A √ √ √
3840 x 2160 60
Note:
“√“ means the resolution is supportred, “N/A” means the resolution is not supported.
(*1) 1920 x 1200 @ 60Hz only support RB (reduced blanking).
HDMI compatibility
Signal Resolution Refresh Rate (Hz) Notes for Mac
VGA 640 x 480 60 Mac 60/72/85
SVGA 800 x 600 6072/85/120 Mac 60/72/85
XGA 1024 x 768 60/70/75/85/120 Mac 60/70/75/85
SDTV(480i) 640 x 480 60
SDTV(480p) 640 x 480 60
SDTV(576i) 720 x 576 50
SDTV(576p) 720 x 576 50
HDTV(720p) 1280 x 720 50/60 Mac 60
WXGA
1280 x 768 60/75/85 Mac 75
1280 x 800 60/120 Mac 60
WXGA 1366 x 768 60
WXGA+ 1440 x 900 60/120 (RB) Mac 60
SXGA 1280 x 1024 60/75/85 Mac 60/75
SXGA+ 1400 x 1050 60/85
UXGA 1600 x 1200 60/65/70/75/85
HDTV(1080i) 1920 x 1080 50/60
HDTV(1080p) 1920 x 1080 24/30/50/60/120 Mac 60
WUXGA
1920 x 1200
(*1)
60 Mac 60RB
WQHD 2560 x 1440 60RB
UHD(2160p) 3840 x 2160 24/30/50/60 Mac 24/30
4096 x 2160 24/30/50/60 Mac 24
Note:
“√“ means the resolution is supportred, “N/A” means the resolution is not supported.
(*1) 1920 x 1200 @ 60Hz only support RB (reduced blanking).
English
46
ADDITIONAL INFORMATION
3D Timing for HDMI1.4a 3D Supported
For Blu-ray 3D
2D Support Frame Rate Timing Format
59/60Hz option: 1920 x 1080p @ 23.98 / 24Hz Frame packing
1280 x 720p @ 59.94 / 60Hz Frame packing
1920 x 1080i @ 59.94 / 60Hz Side-by-Side (Half)
1920 x 1080p @ 23.98 / 24Hz Top-and-Bottom
1280 x 720p @ 59.94 / 60Hz Top-and-Bottom
50Hz option: 1920 x 1080p @ 23.98 / 24Hz Frame packing
1280 x 720p @ 50Hz Frame packing
1920 x 1080i @ 50Hz Side-by-Side (Half)
1920 x 1080p @ 23.98 / 24Hz Top-and-Bottom
1280 x 720p @ 50Hz Top-and-Bottom
PC 3D Timing
Timing Format
HDMI: 1920 x 1080 @ 120Hz Frame Sequential
1280 x 800 @ 120Hz
1024 x 768 @ 120Hz
800 x 600 @ 120Hz
640 x 480 @ 120Hz
VGA 1280 x 800 @ 120Hz Frame Sequential
1024 x 768 @ 120Hz
800 x 600 @ 120Hz
640 x 480 @ 120Hz
English
47
ADDITIONAL INFORMATION
Image size and projection distance
Diagonal length (inch) size
of 16:9 Screen
Screen Size W x H Projection Distance (D)
Offset (HD)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (inch)
30 0.66 0.37 25.97 14.61 - 1.05 - 3.44 0.02 0.84
40 0.89 0.50 34.86 19.61 1.07 1.41 3.51 4.62 0.03 1.08
60 1.33 0.75 52.29 29.42 1.61 2.11 5.27 6.93 0.04 1.56
70 1.55 0.87 61.01 34.32 1.88 2.46 6.15 8.08 0.05 1.92
80 1.77 1.00 69.73 39.22 2.14 2.82 7.03 9.23 0.05 2.16
90 1.99 1.12 78.44 44.12 2.41 3.17 7.91 10.39 0.06 2.40
100 2.21 1.25 87.16 49.03 2.68 3.52 8.78 11.54 0.07 2.64
120 2.66 1.49 104.59 58.83 3.21 4.22 10.54 13.85 0.08 3.24
150 3.32 1.87 130.74 73.54 4.02 5.28 13.18 17.31 0.10 4.08
180 3.98 2.24 156.88 88.25 4.82 6.34 15.81 20.78 0.12 4.80
200 4.43 2.49 174.32 98.05 5.36 7.04 17.57 23.08 0.14 5.40
250 5.53 3.11 217.89 122.57 6.70 8.80 21.96 28.85 0.17 6.72
300.6 6.65 3.74 262.00 147.37 8.05 - 26.40 - 0.21 8.16
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
English
48
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
Screw type: M4 for two point mounting or M6 for one point mounting
Minimum screw length: 10mm
Lens
Unit: mm
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
49
ADDITIONAL INFORMATION
IR remote codes
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
Key
NEC
format
Customer code Key code
Description
Byte 1 Byte 2 Byte 3 Byte 4
Power on Format 1 32 CD 02 FD Press to turn on the projector.
Power off Format 1 32 CD 2E D1 Press to turn off the projector.
User1 Format 1 32 CD 36 C9
User dened keys.User2 Format 1 32 CD 65 9a
User3 Format 1 32 CD 66 99
Brightness Format 1 32 CD 41 BE Adjust the brightness of the image.
Contrast Format 1 32 CD 42 BD
Control the degree of difference between
the lightest and darkest parts of the
picture.
Display
mode
Format 1 32 CD 05 FA
Select a display mode for optimized
settings for different applications.
Keystone Format 1 32 CD 07 F8
Press to adjust image distortion caused
by tilting the projector.
Aspect
ratio
Format 1 32 CD 64 9B
Press to change aspect ratio of a
displayed image.
3D Format 1 32 CD 89 76
Press to enable/disable the 3D mode
function.
English
50
ADDITIONAL INFORMATION
Key
NEC
format
Customer code Key code
Description
Byte 1 Byte 2 Byte 3 Byte 4
Mute Format 1 32 CD 52 aD Momentarily turns off / on the audio.
DB
(Dynamic
Black)
Format 1 32 CD 44 BB
Automatically adjusts the picture
brightness to give optimum contrast
performance.
Sleep timer Format 1 32 CD 63 9C Sets the countdown timer interval.
Volume + Format 2 32 CD 11 EE Adjust to increase volume.
▲ Format 2 32 CD 11 EE
Use ▲, ◄, ►, or ▼ to select items or
make adjustments to your selection.
◄ Format 2 32 CD 10 EF
► Format 2 32 CD 12 ED
▼ Format 2 32 CD 14 EB
Source Format 2 32 CD 10 EF Press “Source” to select an input signal.
Enter key Format 1 32 CD 0F F0 Conrm your item selection.
Re-sync Format 2 32 CD 12 ED
Automatically synchronizes the projector
to the input source.
Volume - Format 2 32 CD 14 EB Adjust to decrease volume.
Menu Format 1 32 CD 0E F1
Display or exit the on-screen display
menus for projector.
HDMI1
(HDMI 1.4)
Format 1 32 CD 16 E9
Press “HDMI1” to choose source from
HDMI 1 connector.
HDMI2
(HDMI 2.0)
Format 1 32 CD 30 CF
Press “HDMI2” to choose source from
HDMI 2 connector.
VGA1 Format 1 32 CD 1B E4
Press “VGA1” to choose source from
VGA connector.
VGA2 Format 1 32 CD 1E E1 No function
Video Format 1 32 CD 1C E3 No function
YPbPr Format 1 32 CD 17 E8 No function
English
51
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp"
section on pages 40-41.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Adjust the Focus Ring on the projector lens. Please see page 16.
Make sure the projection screen is between the required distance from the projector. (Please refer to
page 47).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play the LBX format DVD title, please change the format as LBX in projector OSD.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Adjust the zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the different settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
Select "Setup-->Projection" from the OSD and adjust the projection direction.
Blurry double image
Make sure “Display Mode” is not 3D to avoid normal 2D image appear blurry double image.
English
52
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this
happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp,
follow the procedures in the "Replacing the Lamp" section on pages 40-41.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±15° to the IR receivers on the
projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
7 m (~22 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
"LAMP" LED indicator is lit red and if "On/Standby" indicator ashes red.
"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes red. This indicates the projector
has overheated. Under normal conditions, the project can be switched back on.
"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
English
53
ADDITIONAL INFORMATION
LED lightning messages
Message
On/Standby LED Temp LED Lamp LED
(Red) (Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec off / 0.5 sec
on)
Power on and Lamp lighting Steady light
Power off (Cooling)
Flashing
(0.5 sec off / 0.5
sec on). Back to red
steady light when
cooling fan turns off.
Error (Lamp failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
Standby State
(Burn in mode)
Flashing
Burn in (Warming) Flashing
Burn in (Cooling) Flashing
Burn in (Lamp lighting)
Flashing
(3 sec on / 1 sec off)
Burn in (Lamp off)
Flashing
(1 sec on / 3 sec off)
Power off:
Power Off
Power Off?
Press power key again.
Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
54
ADDITIONAL INFORMATION
Lamp warning:
Warning
Lamp Warning
Lamp life exceeded.
Fan failed:
Warning
FAN LOCKED
The projector will switch off automatically
Please contact a service center for repair.
Out of display range:
HDMI
Out Of Range
Power down warning:
Power Down
Power Down Timer Active
Power down in sec.
English
55
ADDITIONAL INFORMATION
Specications
Optical Description
Maximum resolution
- Graphic up to 2160p @ 60Hz
- Maximum Resolution: HDMI 1.4: 1980 x 1200 @ 60Hz (RB)
HDMI 2.0: 2160p @ 60Hz
Native resolution (w/o actuator) 1920 x 1080
Lens Manual zoom and manual focus
Image size (diagonal) 34.1” ~ 302.4”, optimized@wide
Projection distance 1.2 ~ 8.1m, [email protected]
Lens offset tolerance
value
105% ~ 115%, tolerance +/-5%
Electrical Description
Inputs
- HDMI V1.4
- HDMI V2.0 / HDCP2.2 / MHL 2.1
- VGA IN
- Audio In 3.5mm
- USB-A (for 5V PWR 1.5A / MStar rmware upgrade)
- USB 2.0 (for rmware upgrade)
- RS232C male (9-pin D-SUB)
Outputs
- Audio Out 3.5mm
- SPDIF Out (2 Channel Stereo PCM)
- 12V Trigger (3.5mm jack)
Color reproduction 1073.4 Million color
Scan rate
Horizontal scan rate: 31.0 ~ 135.0 KHz
Vertical scan rate: 24 ~ 120 Hz
Built-in speaker 10W built-in speaker
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current 3.5A
Mechanical Description
Installation orientation Front, rear, ceiling-top, rear-top
Dimensions
(W x D x H) (w/o lens)
- 315 x 270 x 115mm (without feet)
- 315 x 270 x 118mm (with feet)
Weight 3.9 ±0.5 kg
Environmental conditions Operating in 5 ~ 40°C , 10% to 85% humidity (non-condensing)
Note: All specications are subject to change without notice.
English
56
ADDITIONAL INFORMATION
Optoma global ofces
For service or support, please contact your local ofce.
USA
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Canada
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Latin America
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Europe
Unit 1, Network 41, Bourne End Mills,
Hemel Hempstead, Herts,
HP1 2UJ, United Kingdom +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522 Rivas VaciaMadrid, +34 91 670 08 32
Spain
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670
D40549 Düsseldorf, +49 (0) 211 506 66799
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
PO.BOX 9515
3038 Drammen
Norway
Korea
WOOMI TECH.CO.,LTD. +82+2+34430004
4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005
Seoul,135-815, KOREA
korea.optoma.com
Japan
東京都足立区綾瀬3-25-18
株式会社オーエス [email protected]
コンタクトセンター:0120-380-495 www.os-worldwide.com
Taiwan
12F., No.213, Sec. 3, Beixin Rd., +886-2-8911-8600
Xindian Dist., New Taipei City 231, +886-2-8911-6550
Taiwan, R.O.C. [email protected]
www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, +852-2396-8968
Cheung Sha Wan, +852-2370-1222
Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376
Changning District +86-21-62947375
Shanghai, 200052, China www.optoma.com.cn
www.optoma.com
