User manual
DLP
®
Projector
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Cleaning the Lens...................................................................................................................... 5
3D Safety Information ................................................................................................................ 6
Copyright ................................................................................................................................... 7
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 7
FCC ........................................................................................................................................... 7
Declaration of Conformity for EU countries ............................................................................... 8
WEEE ........................................................................................................................................ 8
INTRODUCTION .................................................................................. 9
Package Overview..................................................................................................................... 9
Standard accessories ................................................................................................................ 9
Optional accessories ................................................................................................................. 9

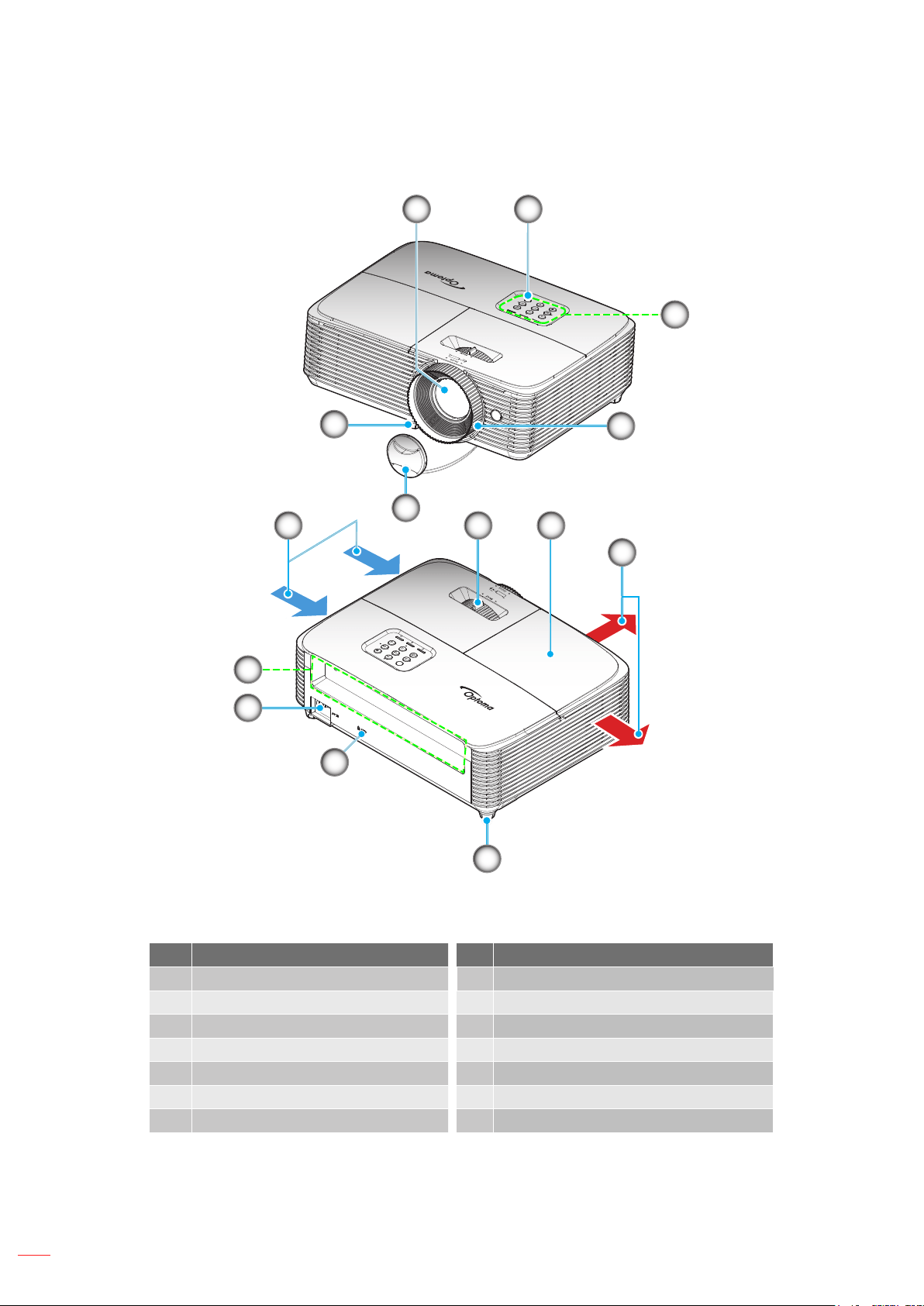

Product Overview ..................................................................................................................... 10

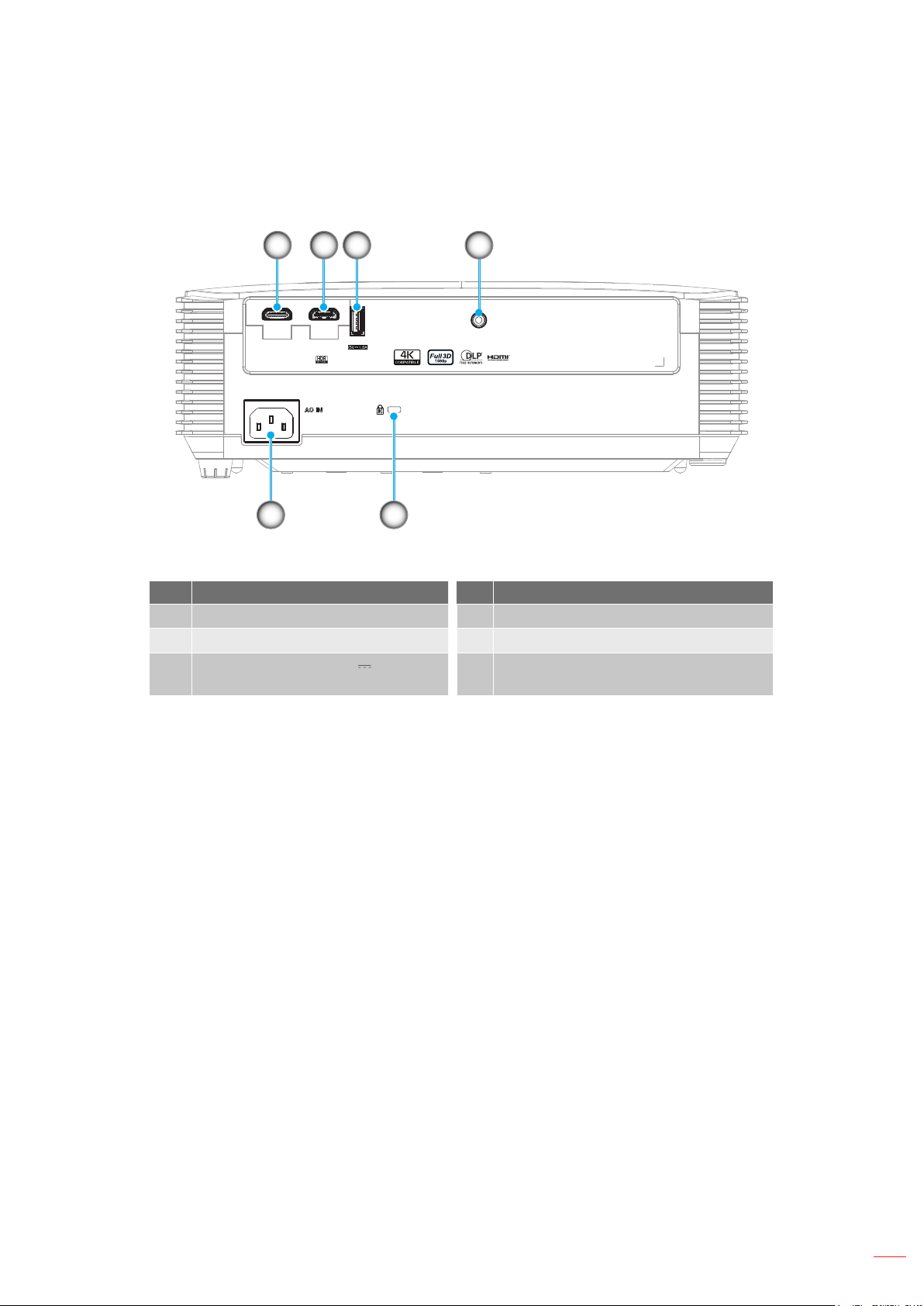

Connections.............................................................................................................................. 11

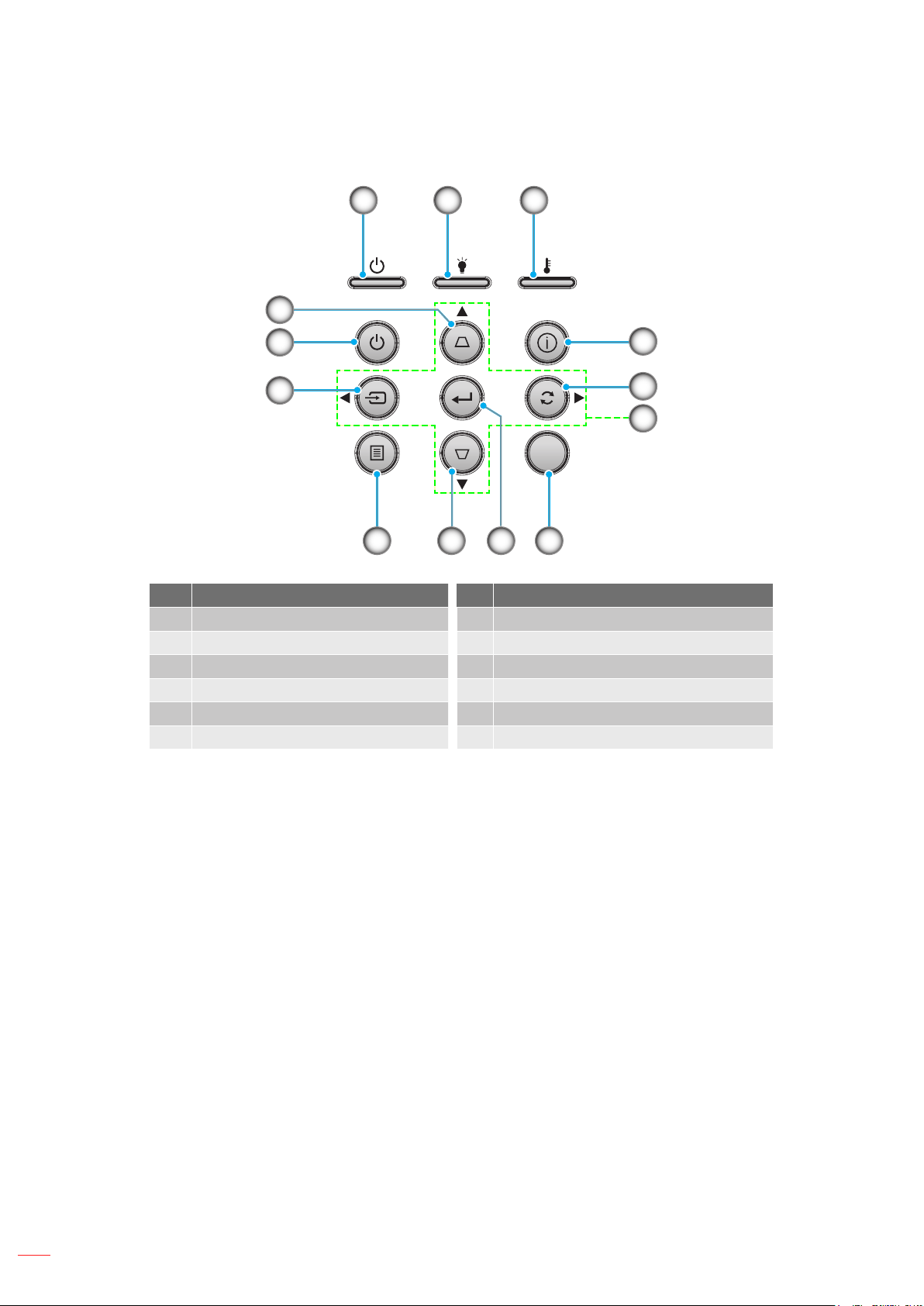

Keypad ..................................................................................................................................... 12

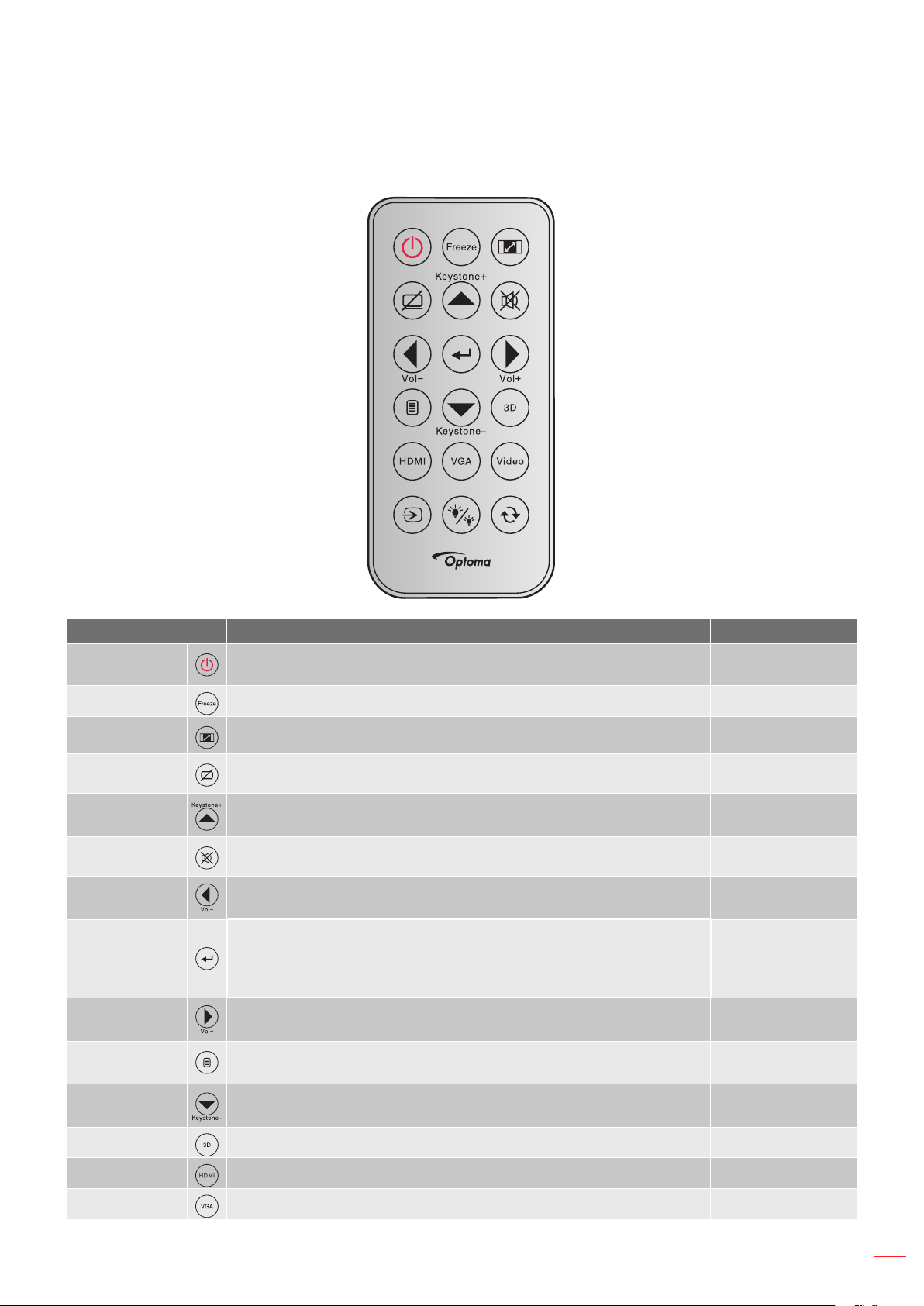

Remote control 1 ...................................................................................................................... 13

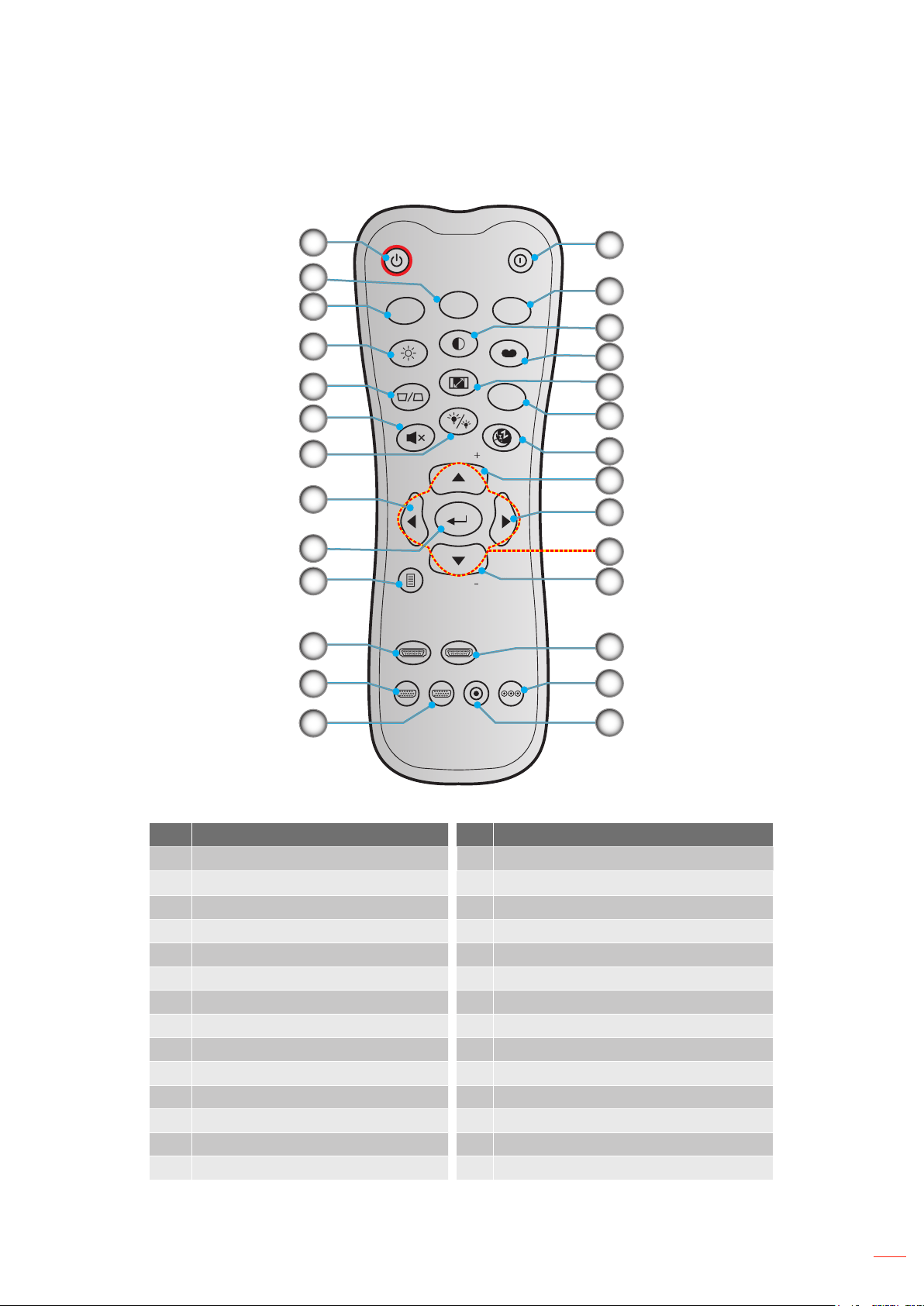

Remote control 2 ...................................................................................................................... 14
SETUP AND INSTALLATION ............................................................. 15
Installing the projector .............................................................................................................. 15

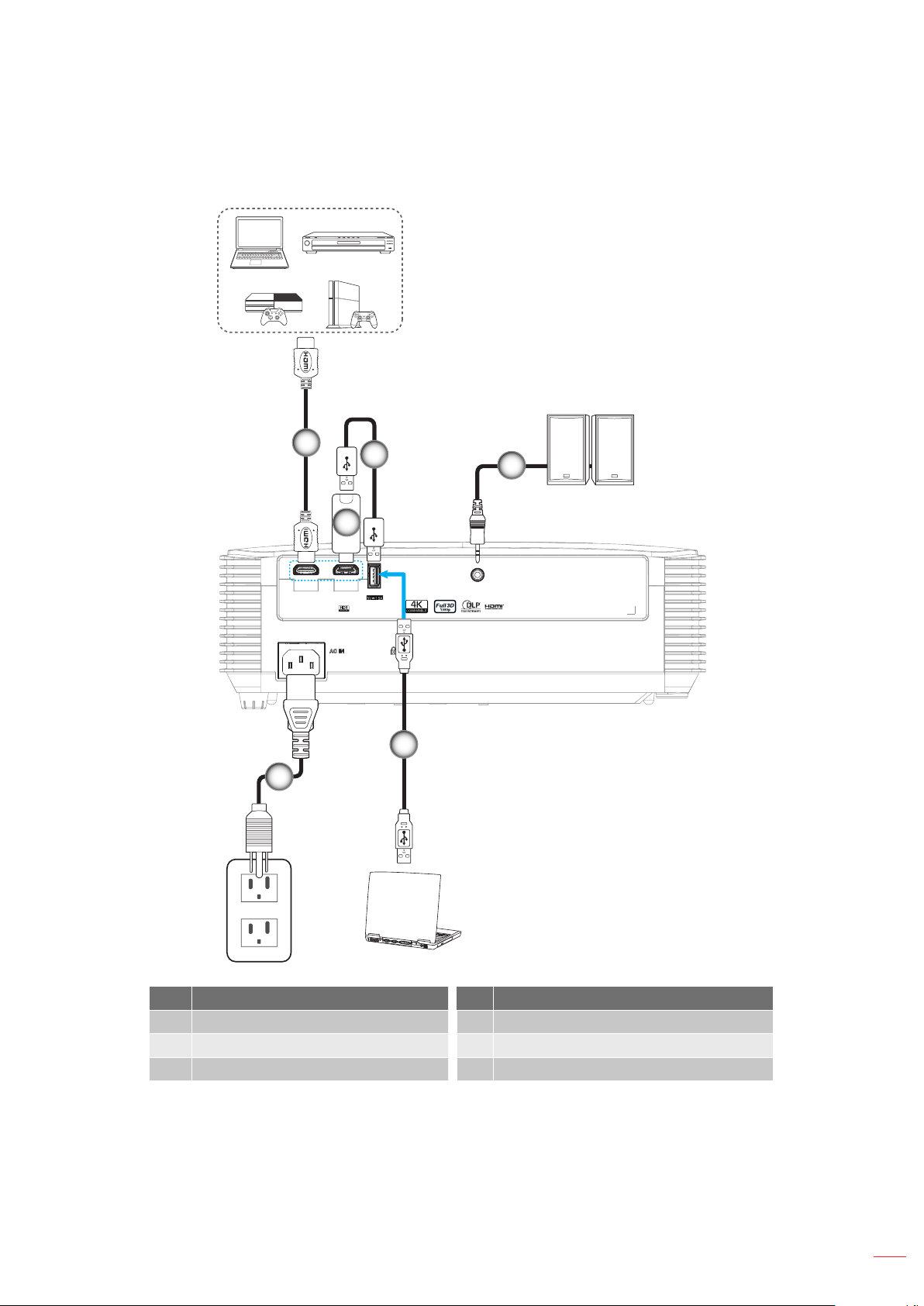

Connecting sources to the projector ......................................................................................... 17
Adjusting the projector image ................................................................................................... 18
USING THE PROJECTOR .................................................................. 22
Powering on / off the projector.................................................................................................. 22

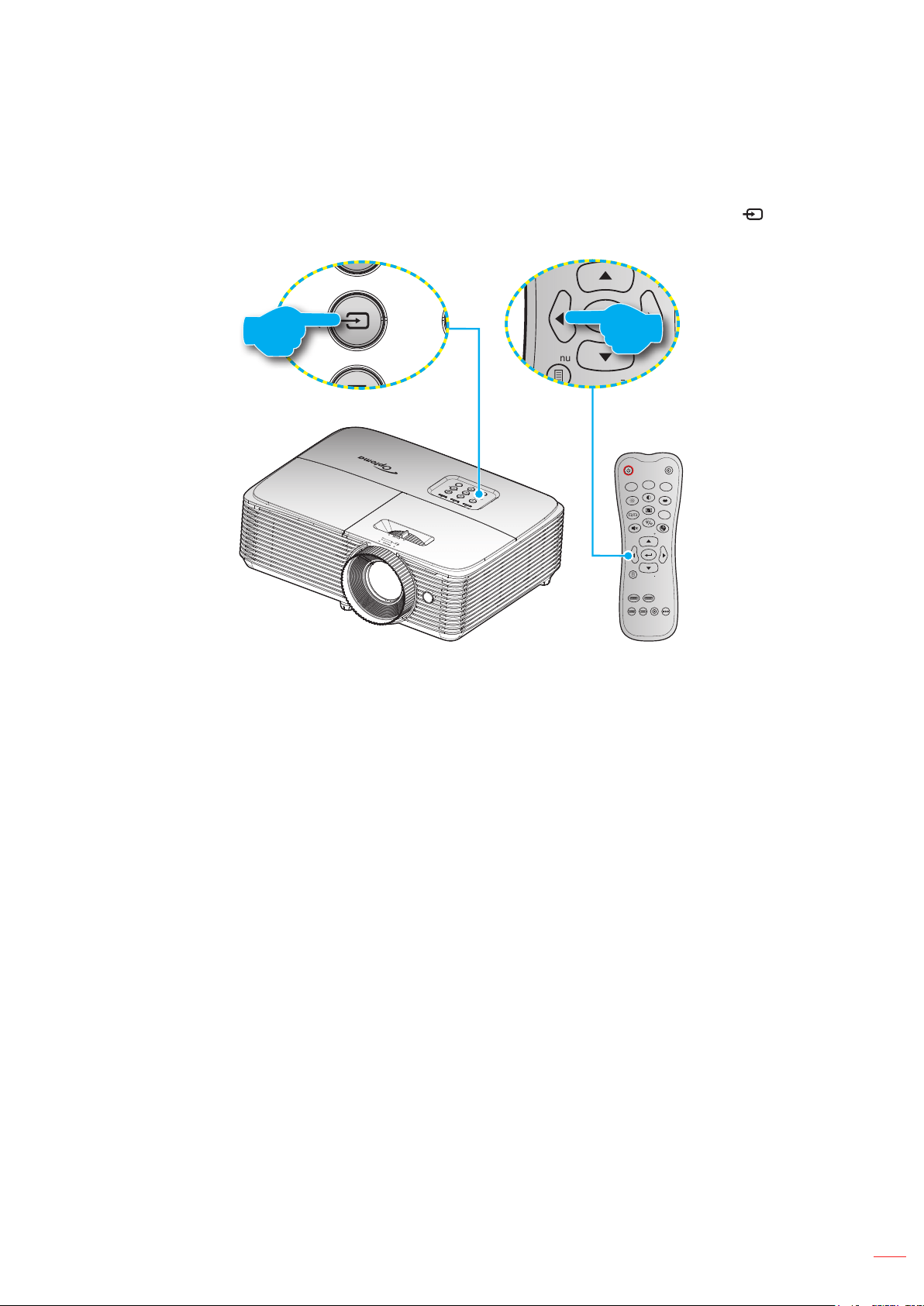

Selecting an input source ......................................................................................................... 23
Menu navigation and features .................................................................................................. 24
OSD Menu tree......................................................................................................................... 25
Display image settings menu.................................................................................................... 32
Display enhanced gaming menu .............................................................................................. 34
Display 3D menu ...................................................................................................................... 34
Display aspect ratio menu ........................................................................................................ 35
Display edge mask menu ......................................................................................................... 36
Display zoom menu .................................................................................................................. 36
Display image shift menu ......................................................................................................... 36
Display keystone menu ............................................................................................................ 36
Audio mute menu ..................................................................................................................... 37
Audio volume menu .................................................................................................................. 37
Setup projection menu.............................................................................................................. 37
Setup lamp settings menu ........................................................................................................ 37
English
3
Setup lter settings menu ......................................................................................................... 37
Setup power settings menu ...................................................................................................... 38
Setup security menu ................................................................................................................. 39

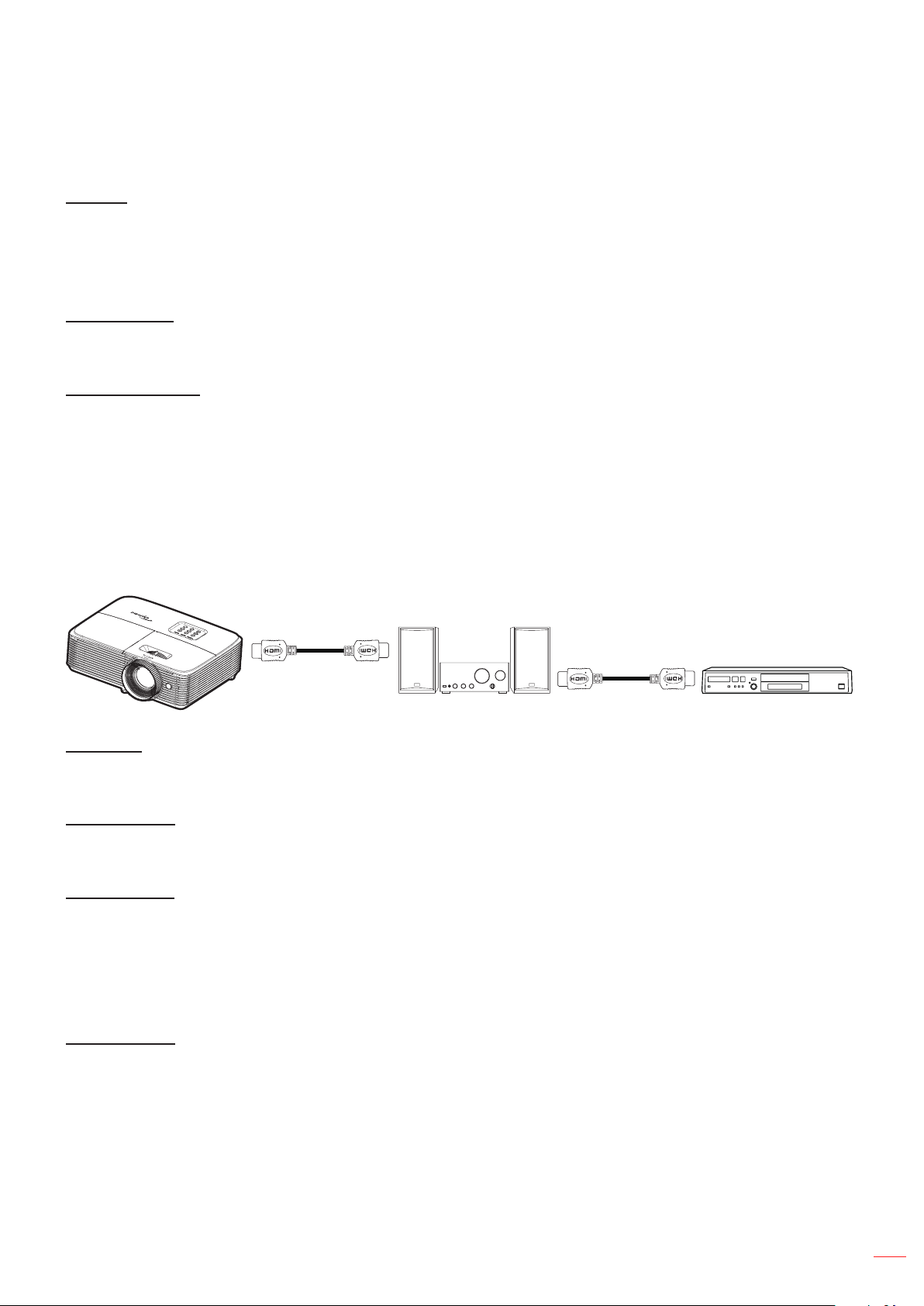

Setup HDMI link settings menu ................................................................................................ 39
Setup test pattern menu ........................................................................................................... 40
Setup remote settings menu..................................................................................................... 40
Setup options menu.................................................................................................................. 40
Setup reset menu ..................................................................................................................... 41
Info menu.................................................................................................................................. 41
MAINTENANCE .................................................................................. 42
Replacing the lamp (Maintenance personnel only) .................................................................. 42
ADDITIONAL INFORMATION ............................................................ 43
Compatible resolutions ............................................................................................................. 43
Image size and projection distance .......................................................................................... 45

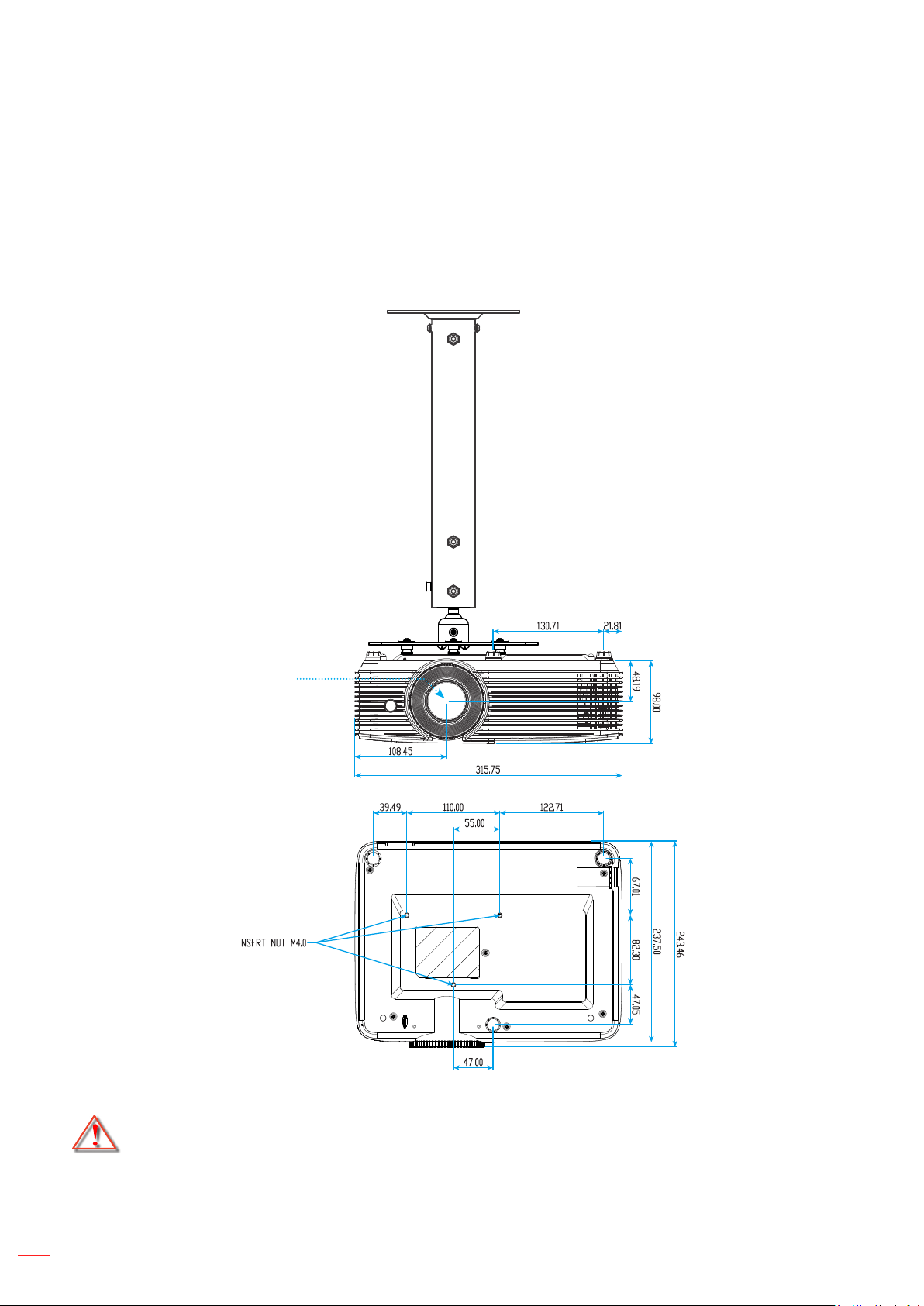

Projector dimensions and ceiling mount installation ................................................................. 46
IR remote control 1 codes ........................................................................................................ 47
IR remote control 2 codes ........................................................................................................ 49
Troubleshooting ........................................................................................................................ 51
Warning indicators .................................................................................................................... 53
Specications ........................................................................................................................... 55
Optoma global ofces ............................................................................................................... 56
English
4
SAFETY
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user's guide.
Important Safety Instruction
Do not stare into the beam, RG2.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation.
As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the
projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the projector in places where ammable gases or explosives gases may be present in the
atmosphere. The lamp inside the projector becomes very hot during operation and the gases may
ignite and result in a re.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and could melt, cause burns or start a re.
English
5
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by appropriate service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
When replacing the lamp, please allow the unit to cool down.
This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows
warning messages.
Reset the "Lamp Reset" function from the on-screen display "Setup lamp settings" menu after
replacing the lamp module.
When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show
on the screen. Please contact your local reseller or service center to change the lamp as soon as
possible.
Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been
replaced.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.
Cleaning the Lens
Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel off.
Warning: Do not wipe or tap the lens with a hard object.
English
6
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
3D Safety Information
Please follow all warnings and precautions as recommended before you or your child use the 3D function.
Warning
Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be
closely supervised when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
Some viewers may experience an epileptic seizure or stroke when exposed to certain ashing images
or lights contained in certain Projector pictures or video games. If you suffer from, or have a family
history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
Even those without a personal or family history of epilepsy or stroke may have an undiagnosed
condition that can cause photosensitive epileptic seizures.
Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or
under the inuence of alcohol should avoid utilizing the unit’s 3D functionality.
If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a
medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements
such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions;
(9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults
to experience these symptoms. Parents should monitor their children and ask whether they are
experiencing these symptoms.
Watching 3D projection may also cause motion sickness, perceptual after effects, disorientation, eye
strain and decreased postural stability. It is recommended that users take frequent breaks to lessen
the potential of these effects. If your eyes show signs of fatigue or dryness or if you have any of the
above symptoms, immediately discontinue use of this device and do not resume using it for at least
thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for an extended period of time may
damage your eyesight. The ideal viewing distance should be at least three times the screen height. It
is recommended that the viewer’s eyes are level with the screen.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause a
headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
Do not use the 3D glasses for any other purpose than for watching 3D projection.
Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles,
etc.) may be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your
3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run
into, knocked down, broken or fallen over.
English
7
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2019
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing,
LLC.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are
Acknowledged.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
English
8
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2014/30/EU (including amendments)
Low Voltage Directive 2014/35/EU
RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
English
9
INTRODUCTION
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
Carry bag
Optional accessories
Note: Optional accessories vary depending on model, specication and region.
Projector Power lead
Documentation
Warranty Card *
Quick Start User Manual
HDMI cable
Note:
The remote control is shipped with the battery.
* For European warranty information please visit www.optomaeurope.com.
Remote control
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
Lens cap
English
10
INTRODUCTION
Product Overview
1 2
3
7 8 9
11
12
13
4
6
10
6
5
Note: Keep a minimum distance of 20 cm between the “inlet” and “outlet” labels.
No Item No Item
1. Lens 8. Zoom Lever
2. IR Receiver 9. Lamp Cover
3. Keypad 10. Ventilation (outlet)
4. Focus Ring 11. Kensington
TM
Lock Port
5. Lens Cap 12. Power Socket
6. Tilt-Adjustment Feet 13. Input / Output
7. Ventilation (inlet)
English
11
INTRODUCTION
Connections
USB POWER OUT
2 v2.0
HDMI
HDCP v2.2
4K 60HZ compatible
1 v1.4
HDMI
HDCP v2.2
4K 30HZ compatible
AUDIO OUT
1 3 4
6 5
2
No Item No Item
1. HDMI 1 Connector 4. AUDIO OUT Connector
2. HDMI 2 Connector 5. Kensington
TM
Lock Port
3.
USB POWER OUT (5V 1.5A) /
Service / Mouse Connector
6. Power Socket
Note:
Remote mouse requires special remote control.
To ensure the best image quality and avoid connection errors, we recommend the use of High Speed
or Premium Certied HDMI cables up to 5 meters.
* HDM2 supports 4K 60HZ and HDR
* HDMI1 supports 4K 30HZ, not support HDR
English
12
INTRODUCTION
Keypad
1 2 3
4
5
6
78910
11
12
9
No Item No Item
1. On/Standby LED 7. IR Receiver
2. Lamp LED 8. Enter
3. Temp LED 9. Keystone Correction
4. Information 10. Menu
5. Re-Sync 11. Source
6. Four Directional Select Keys 12 Power
English
13
INTRODUCTION
Remote control 1
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
1
3
2
4
5
6
7
8
11
12
13
14
15
16
17
18
19
20
21
23
22
24
25
27
26
9
10
No Item No Item
1. Power On 15. User 3
2.
User 2 16. Contrast
3. User 1 17. Display Mode
4. Brightness 18. Aspect Ratio
5. Keystone 19. 3D Menu On / Off
6. Mute 20. Sleep Timer
7. DB (Dynamic Black) 21. Volume +
8. Source 22. Re-Sync
9. Enter 23. Four Directional Select Keys
10. Menu 24. Volume -
11. HDMI1 25. HDMI2
12. VGA1 (not supported) 26. YPbPr (not supported)
13. VGA2 (not supported) 27. Video (not supported)
14. Power Off
Note:
The actual remote control may vary depending on the region.
Some keys may have no function for models that do not support these features.
English
14
INTRODUCTION
Remote control 2
1
3
2
4
5
6
7
8
2
9
11
12
13
10
4
14
15
16
17
18
No Item No Item
1. Power On / Off 10. IR LED Indicator
2. Keystone + / - 11. Freeze
3. AV Mute 12. Aspect Ratio
4. Volume - / + 13. Mute
5. Enter 14. Four Directional Select Keys
6. Menu 15. 3D
7. HDMI 16. Video (not supported)
8. VGA (not supported) 17. Resync
9. Source 18. Brightness Mode
Note:
The actual remote control may vary depending on the region.
Some keys may have no function for models that do not support these features.
Before using the remote control for the rst time, remove the transparent insulation tape. See page
20 for battery installation.
3
V
O
L
T
S
CR2025
English
15
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size, please refer to distance table on page
45.
How to determine screen size for a given distance, please refer to distance table on page 45.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
offset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should
be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate
the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard
installation advise please contact Optoma.
English
16
SETUP AND INSTALLATION
Projector installation notice
Place the projector in a horizontal position.
The tilt angle of the projector should not exceed 15 degrees, nor should the projector be installed
in any way other than the desktop and ceiling mount, otherwise lamp life could decrease dramatically,
and may lead to other unpredictable damages.
15°
-15°
Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
17
SETUP AND INSTALLATION
Connecting sources to the projector
USB POWER OUT
2 v2.0
HDMI
HDCP v2.2
4K 60HZ compatible
1 v1.4
HDMI
HDCP v2.2
4K 30HZ compatible
AUDIO OUT
MOLEX
MOLEX
1
2
3
4
5
6
No Item No Item
1. HDMI Cable 4. Audio Out Cable
2. HDMI Dongle 5. USB Cable
3. USB Power Cable 6. Power Cord
English
18
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom and focus
To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and
legible.
Focus Ring
Zoom Lever
Note: The projector will focus at a distance of 1m to 9.8m.
English
19
SETUP AND INSTALLATION

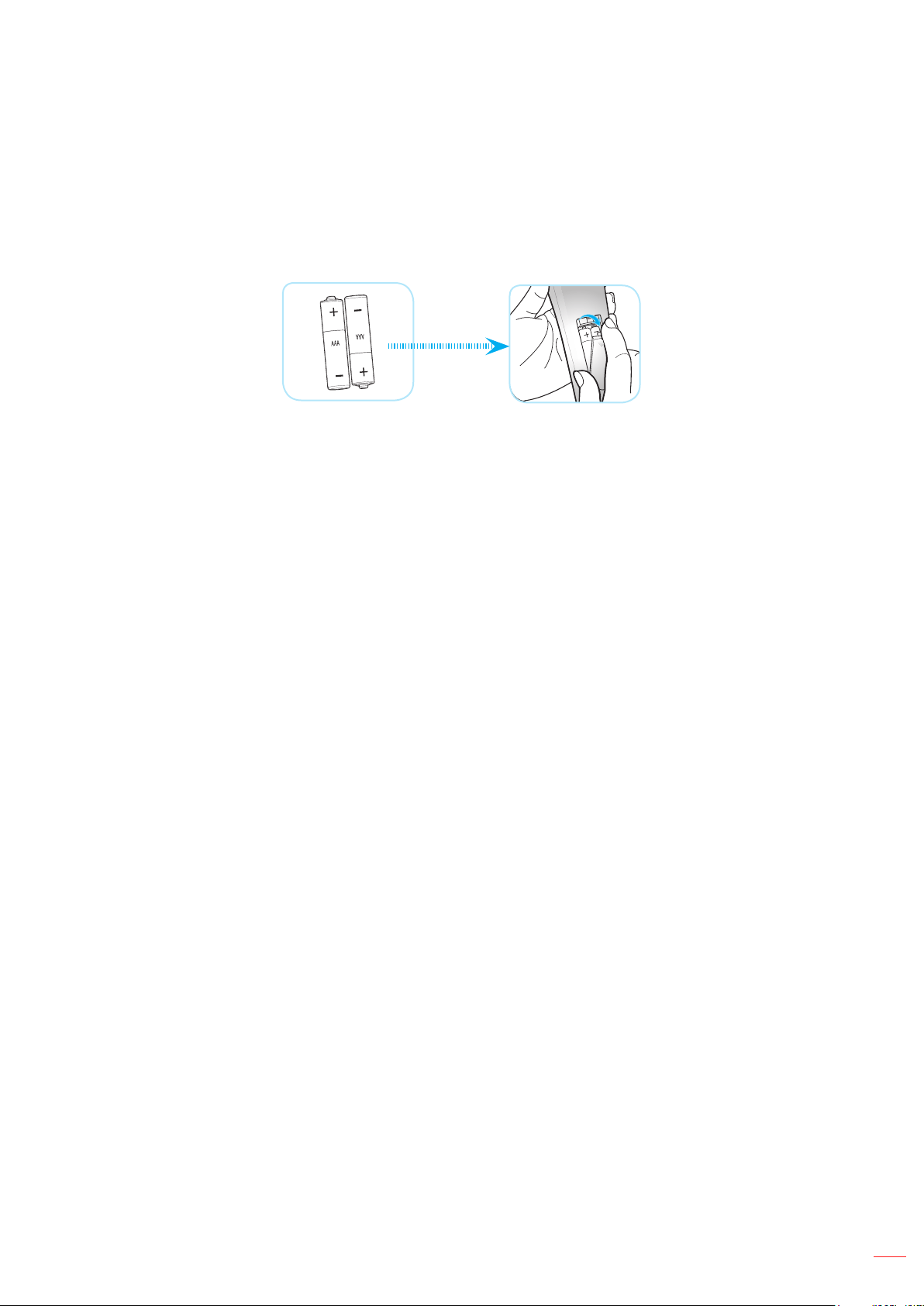

Installing / replacing the batteries (for remote control 1)
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
English
20
SETUP AND INSTALLATION
Installing / replacing the battery (for remote control 2)
1. Press rmly and slide the battery cover off.
M
n
O
2
-
L
i
C
E
L
L
3
V
O
L
T
S
J
A
P
A
N
H
CR2025
2. Install new battery into the compartment. Remove the old battery and
install new one (CR2025). Ensure that the side with a “+” is facing
up.
3
V
O
L
T
S
CR2025
3. Put the cover back.
M
3
V
O
L
T
S
CR2025
CAUTION: To ensure safe operation, please observe the following precautions:
Use CR2025 type battery.
Avoid contact with water or liquid.
Do not expose the remote control to moisture or heat.
Do not drop the remote control.
If the battery has leaked in the remote control, carefully wipe the case clean and install new battery.
Risk of an explosion if battery is replaced by an incorrect type.
Dispose of used battery according to the instructions.
English
21
SETUP AND INSTALLATION
Effective range
Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an
angle within 30 degrees perpendicular to the projector’s top IR remote control sensor to function correctly. The
distance between the remote control and the sensor should not be longer than 6 meters (~ 20 feet).
Note: When pointing the remote control directly (0 degrees angle) on the IR sensor, the distance between the
remote control and the sensor should not be longer than 8 meters (~ 26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 meters or the remote
controller might become malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 6 meters from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change
according to screens.
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
Approx. ± 15°
English
22
USING THE PROJECTOR
Powering on / off the projector
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
or
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will
turn red.
2. Turn on the projector by pressing the " " either on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing
blue and then steady blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language and
projection orientation.
Powering off
1. Turn off the projector by pressing the " " either on the projector keypad or the remote control.
2. The following message will be displayed:
Power Off
Power Off?
Press power key again.
3. Press the " " again to conrm, otherwise the message will disappear after 10 seconds. When you
press the " " button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/
Standby LED will ash blue. When the On/Standby LED turns solid red, this indicates the projector has
entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle
has nished and the projector has entered standby mode. When the projector is in standby mode,
simply press the " " button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power off procedure.
English
23
USING THE PROJECTOR
Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the button on
the projector keypad or the Source button on the remote control to select the desired input.
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
or
English
24
USING THE PROJECTOR
Menu navigation and features
The projector has multilingual on-screen display menus that allow you to make image adjustments and change a
variety of settings. The projector will automatically detect the source.
1. To open the OSD menu, press on the remote control or the projector keyboard.
2. When OSD is displayed, use keys to select any item in the main menu. While making a selection
on a particular page, press or key to enter sub menu.
3. Use keys to select the desired item in the sub menu and then press or key to view further
settings. Adjust the settings by using keys.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press the or to conrm, and the screen will return to the main menu.
6. To exit, press the or again. The OSD menu will close and the projector will automatically save
the new settings.
Sub Menu
Main Menu
Settings
Navigation guide
Display
Image Settings
Enhanced Gaming
3D
Aspect Ratio
Edge Mask
Zoom
Image Shift
Keystone
Select Exit Enter
Off
English
25
USING THE PROJECTOR
OSD Menu tree
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Display Mode
Cinema
Vivid
Game
Reference
Bright
HDR
User
3D
ISF Day (valid while ISF Mode is
On or Unlock)
ISF Night (valid while ISF Mode is
On or Unlock)
ISF 3D (valid while ISF Mode is
On or Unlock)
Dynamic Range
HDR
Off
Auto [Default]
HDR Picture
Mode
Bright
Standard [Default]
Film
Details
Wall Color
Off [Default]
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Brightness -50~50
Contrast -50~50
Sharpness 1~15
Color -50~50
Tint -50~50
Gamma
Film
Video
Graphics
Standard(2.2)
1.8
2.0
2.4
HDR
Color Settings BrilliantColor
TM
1~10
English
26
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Image Settings
Color Settings
Color
Temperature
Warm
Standard
Cool
Cold
Color Matching
Color
R [Default]
G
B
C
Y
M
W
Hue / R -50~50
Saturation / G -50~50
Gain / B -50~50
Reset
Cancel [Default]
Yes
Exit
RGB Gain/Bias
Red Gain -50~50
Green Gain -50~50
Blue Gain -50~50
Red Bias -50~50
Green Bias -50~50
Blue Bias -50~50
Reset
Cancel [Default]
Yes
Exit
Color Space
[HDMI Input]
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
Dynamic Black
Off
On
Brightness
Mode
Bright
Eco.
Reset
Enhanced
Gaming
Off [Default]
On
3D
3D Mode
Off [Default]
On
3D Tech.
DLP-Link [Default]
3D Sync
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
3D
3D->2D
3D [Default]
L
R
3D Format
Auto [Default]
SBS
Top and Bottom
Frame Sequential
3D Sync Invert
On
Off [Default]
Reset
Cancel [Default]
Yes
Aspect Ratio
4:3
16:9
LBX
Native
Auto
Edge Mask 0~10 [Default: 0]
Zoom -5~25 [Default: 0]
Image shift
H
-50~50 [Default: 0]
V
-50~50 [Default: 0]
Keystone -40~40 [Default: 0]
Audio
Mute
Off [Default]
On
Volume 0-10 [Default: 5]
Setup
Projection
Front [Default]
Rear
Ceiling-top
Rear-top
Lamp Settings
Lamp Reminder
Off
On [Default]
Lamp Reset
Cancel [Default]
Yes
Filter Settings
Optional Filter
Installed
Yes
No
Filter Usage
Hours
(Read only)
Filter Reminder
Off
300hr
500hr [Default]
800hr
1000hr
English
28
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Filter Settings Filter Reset
Cancel [Default]
Yes
Power Settings
Direct Power On
Off [Default]
On
Signal Power On
Off [Default]
On
Auto Power Off
(min)
0~180 (5 min increments)
[Default: 20]
Sleep Timer
(min)
0~990 (30 min increments)
[Default: 0]
Always On
No [Default]
Yes
Quick Resume
Off [Default]
On
USB Power
Off
On
Auto [Default]
Security
Security
Off
On
Security Timer
Month
Day
Hour
Change
Password
HDMI Link
Settings
HDMI Link
Off
On
Inclusive of TV
No
Yes
Power On Link
Mutual
PJ --> Device
Device --> PJ
Power Off Link
Off
On
Test Pattern
Green Grid
Magenta Grid
White Grid
White
Off
Remote
Settings
[depends on
remote]
IR Function
On
Off
User1
Test Pattern
Brightness
Contrast
Sleep Timer [Default]
English
29
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Remote
Settings
[depends on
remote]
User1
Color Matching
Color Temperature
Gamma
Projection
Lamp Settings
Zoom
Freeze
User2
Test Pattern
Brightness
Contrast
Sleep Timer
Color Matching [Default]
Color Temperature
Gamma
Projection
Lamp Settings
Zoom
Freeze
User3
Test Pattern
Brightness
Contrast
Sleep Timer
Color Matching
Color Temperature [Default]
Gamma
Projection
Lamp Settings
Zoom
Freeze
Options Language
English [Default]
Deutsch
Français
Italiano
Español
Português
Polski
Nederlands
Svenska
Norsk/Dansk
Suomi
ελληνικά
繁體中文
简体中文
English
30
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup Options
Language
日本語
한국어
Русский
Magyar
Čeština
ไทย
Türkçe
Tiếng Việt
Bahasa Indonesia
Română
Slovenčina
Menu Settings
Menu Location
Top left
Top right
Center [Default]
Bottom left
Bottom right
Menu Timer
Off
5sec
10sec [Default]
Auto Source
Off [Default]
On
Input Source
HDMI1
HDMI2
Input Name
HDMI1
Default [Default]
Custom
HDMI2
Default [Default]
Custom
High Altitude
Off [Default]
On
Display Mode
Lock
Off [Default]
On
Keypad Lock
Off [Default]
On
Information Hide
Off [Default]
On
Logo
Default [Default]
Neutral
English
31
USING THE PROJECTOR
Main
Menu
Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Options
Background
Color
None [Default]
Blue
Red
Green
Grey
Logo
Reset
Reset OSD
Cancel [Default]
Yes
Reset to Default
Cancel [Default]
Yes
Info
Regulatory
Serial Number
Source
Resolution xxxx
Refresh Rate xxHz
Display Mode
Lamp Hours
Bright 0 hr
Eco. 0 hr
Dynamic 0 hr
Total
Filter Hours
Brightness
Mode
FW Version
System
MCU
Note: Functions vary depending on model denition.
English
32
USING THE PROJECTOR
Display menu
Display image settings menu
Display Mode
There are many factory presets optimized for various types of images.
Cinema: Provides the best colors for watching movies.
Vivid: In this mode, the color saturation and brightness are well-balanced. Choose this mode for
playing games.
Game: Select this mode to increase the brightness and response time level for enjoying video games.
Reference: Provides the most accurate natural looking colors close to Rec. 709, the standard for High
Denition TV(HDTV).
Bright: Maximum brightness from PC input.
HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest
whites, and vivid cinematic color using REC.2020 color gamut. This mode will be automatically
enabled if HDR is set to ON (and HDR Content is sent to projector – 4K UHD Blu-ray, 1080p/4K UHD
HDR Games, 4K UHD Streaming Video). While HDR mode is active, other display modes (Cinema,
Reference, etc.) cannot be selected as HDR delivers color that is highly accurate, exceeding the color
performance of the other display modes.
User: Memorize user’s settings.
3D: To experience the 3D effect, you need to have 3D glasses. Make sure your PC/portable device
has a 120 Hz signal output quad buffered graphics card and a 3D Player installed.
ISF Day: Optimize the image with the ISF Day mode to be perfectly calibrated and high picture quality.
ISF Night: Optimize the image with the ISF Night mode to be perfectly calibrated and high picture
quality.
ISF 3D: Optimize the image with the ISF 3D mode to be perfectly calibrated and high picture quality.
Note: For access and calibration of ISF daytime and night viewing modes, please contact your local dealer.
Dynamic Range
Congure the High Dynamic Range (HDR) setting and its effect when displaying video from 4K Blu-ray players and
streaming devices.
HDR
Off: Turn off HDR Processing. When set to Off, the projector will NOT decode HDR content.
Auto: Auto detect HDR signal.
HDR Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Details: The signal comes from OETF conversion to achieve the best color matching.
Wall Color
Use this function to obtain an optimized screen image according to the wall color. Select between off, blackboard,
light yellow, light green, light blue, pink, and gray.
English
33
USING THE PROJECTOR
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
Film: For home theater.
Video: For video or TV source.
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4: For specic PC / Photo source.
HDR: For HDR source.
Note: If the Display Mode setting is set to HDR, user can only select HDR for Gamma setting.
Color Settings
Congure the color settings.
BrilliantColor
TM
: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.
Color Matching: Select the following options:
± Color: Adjust the red (R), green (G), black (B), cyan (C), yellow (Y), magenta (M), and white (W)
level of the image.
± Hue / R(red)*: Adjust the color balance of red and green.
Note: *If the Color setting is set to white (W), you can adjust the red color setting.
± Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.
Note: *If the Color setting is set to white (W), you can adjust the green color setting.
± Gain / B(blue)*: Adjust the image brightness.
Note: *If the Color setting is set to white (W), you can adjust the blue color setting.
± Reset: Return the factory default settings for color matching.
± Exit: Exit the “Color Matching” menu.
English
34
USING THE PROJECTOR
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (HDMI input): select an appropriate color matrix type from the following: Auto,
RGB(0-255), RGB(16-235), and YUV.
Dynamic Black
Use to automatically adjust the picture brightness to give optimum contrast performance.
Brightness Mode
Adjust the brightness mode settings for lamp-based projectors.
Bright: Choose “Bright” to increase the brightness.
Eco.: Choose “Eco.” to dim the projector lamp which will lower power consumption and extend the
lamp life.
Reset
Return the factory default settings for color settings.
Display enhanced gaming menu
Enhanced Gaming
Enable this feature to reduce response times (input latency) during gaming to 16ms.
Note: This function only works for 1080P@60Hz/1080P@120Hz signals.
Display 3D menu
3D Mode
Use this option to disable or enable the 3D function.
Off: Select “Off” to turn off 3D mode.
On: Select “On” to turn on 3D mode.
3D Tech
Use this option to select 3D technology.
DLP-Link: Select to use optimized settings for DLP 3D Glasses.
3D Sync: Select to use optimized settings for IR, RF or polarized 3D Glasses.
3D → 2D
Use this option to specify how the 3D content should appear on the screen.
3D: Display 3D signal.
L (Left): Display the left frame of 3D content.
R (Right): Display the right frame of 3D content.
English
35
USING THE PROJECTOR
3D Format
Use this option to select the appropriate 3D format content.
Auto: When a 3D identication signal is detected, the 3D format is selected automatically.
SBS: Display 3D signal in “Side-by-Side” format.
Top and Bottom: Display 3D signal in “Top and Bottom” format.
Frame Sequential: Display 3D signal in “Frame Sequential” format.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Reset
Return the factory default setting for 3D settings.
Cancel: Select to cancel Reset.
Yes: Select to return the factory default settings for 3D.
Display aspect ratio menu
Aspect Ratio
Select the aspect ratio of the displayed image between the following options:
4:3: This format is for 4:3 input sources.
16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.
LBX: This format is for non-16x9, letterbox source and if you use external 16x9 lens to display 2.35:1
aspect ratio in full resolution.
Native: This format displays the original image without any scaling.
Auto: Automatically selects the appropriate display format.
Note:
It is considered normal that black bars appear around the image with a resolution of 1080p in each
aspect mode.
The black bars and border will change in size depending on the aspect ratio.
Black bars
1080p active area
1080p 1920x1080 pixels
English
36
USING THE PROJECTOR
Note:
Detailed informations about LBX mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image
will not look right when displaying image in 16:9 mode. In this situation, please try to use the
4:3 mode to view the DVD. If the content is not 4:3, there will be black bars around the image
in 16:9 display. For this type of content, you can use LBX mode to ll the image on the 16:9
display.
± If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp
power and vertical resolution are fully utilized.
To use the superwide format, do the following:
a) Set the screen aspect ratio to 2.0:1.
b) Align the projector image correctly on the screen.
1080P scaling table:
16:9 screen 480i/p 576i/p 1080i/p 720p PC
4x3 Scale to 1440x1080.
16x9 Scale to 1920x1080.
LBX Scale to 1920x1440, then get the central 1920x1080 image to display.
Native mode -1:1 mapping centered.
-No scaling will be made; the image is displayed with the resolution based on input source.
Display edge mask menu
Edge Mask
Use this function to remove the video encoding noise on the edge of video source.
Display zoom menu
Zoom
Use to reduce or magnify an image on the projection screen.
Display image shift menu
Image Shift
Adjust the projected image position horizontally (H) or vertically (V).
Display keystone menu
Keystone
Adjust the image distortion caused by tilting the projector.
English
37
USING THE PROJECTOR
Audio menu
Audio mute menu
Mute
Use this option to temporarily turn off the sound.
On: Choose the “On” to turn mute on.
Off: Choose the “Off” to turn mute off.
Note:
“Mute” function affects both internal and external speaker volume.
When an external speaker is connected, the internal speaker is automatically muted.
Audio volume menu
Volume
Adjust the audio volume level.
Setup menu
Setup projection menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Setup lamp settings menu
Lamp Reminder
Choose this function to show or to hide the warning message when the changing lamp message is displayed. The
message will appear 30 hours before suggested replacement of lamp.
Lamp Reset
Resets the lamp hour counter after replacing the lamp.
Setup lter settings menu
Optional Filter Installed
Set the warning message setting.
Yes: Display warning message after 500 hours of use.
Note: “Filter Usage Hours / Filter Reminder / Filter Reset” will only appear when “Optional Filter
Installed” is “Yes”.
No: Turn off warning message.
Filter Usage Hours
Display the lter time.
English
38
USING THE PROJECTOR
Filter Reminder
Choose this function to show or hide the warning message when the changing lter message is displayed. The
available options include Off, 300hr, 500hr, 800hr, and 1000hr.
Filter Reset
Reset the dust lter counter after replacing or cleaning the dust lter.
Setup power settings menu
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied,
without pressing the “Power” key on the projector keypad or on the remote control.
Signal Power On
Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected,
without pressing the “Power” key on the projector Keypad or on the remote control.
Note: If the “Signal Power On” option is turned “On”, the power consumption of the projector in standby mode will
be over 3W.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the
projector. The projector will automatically power off when the countdown has nished (in minutes).
Sleep Timer (min)
Congure the sleep timer.
Sleep Timer (min): Sets the countdown timer interval. The countdown timer will start, with or without
a signal being sent to the projector. The projector will automatically power off when the countdown has
nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered off.
Always On: Check to set the sleep timer always on.
Quick Resume
Set the quick resume setting.
On: If the projector is accidentally turned off, this feature allows the projector to be instantly powered
on again, if selected within a period of 100 seconds.
Off: The fan will start cooling the system after 10 seconds when user turns off the projector.
USB Power
Set the USB power settings.
On: The projector is always powered on by a USB power source.
Off: The USB Power function is off.
Auto: The projector is automatically powered on by a USB power source.
English
39
USING THE PROJECTOR
Setup security menu
Security
Enable this function to prompt for a password before using the projector.
On: Choose “On” to use security verication when the turning on the projector.
Off: Choose “Off” to be able to switch on the projector without password verication.
Security Timer
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this
time has elapsed you will be requested to enter your password again.
Change Password
Use to set or modify the password that is prompted when turning the projector on.
Setup HDMI link settings menu
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power off status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
DVD Player
HDMI
HDMI Link
Enable/disable the HDMI Link function. The inclusive TV, power on link, and power off link options will only
available if the setting is set to “On”.
Inclusive of TV
Set to “Yes” if you prefer both TV and projector to be automatically turned off at the same time. To prevent both
devices to be turned off at the same time, set the setting to “No”.
Power On Link
CEC power on command.
Mutual: Both projector and CEC device will be turned on simultaneously.
PJ -> Device: The CEC device will be turned on only after the projector is switched on.
Device -> PJ: The projector will be switched on only after the CEC device is turned on.
Power Off Link
Enable this function to let both HDMI Link and projector to be automatically turned off at the same time.
English
40
USING THE PROJECTOR
Setup test pattern menu
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).
Setup remote settings menu
IR Function
Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from top IR receiver.
Off: Choose “Off”, the projector can’t be operated by the remote control. By selecting “Off”, you will be
able to use the Keypad keys.
User1/ User2/ User3
Assign the default function for User1, User2, or User3 between Test Pattern, Brightness, Contrast, Sleep Timer,
Color Matching, Color Temperature, Gamma, Projection, Lamp Settings, Zoom, and Freeze.
Setup options menu
Language
Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Polish, Dutch,
Swedish, Norwegian/Danish, Finnish, Greek, traditional Chinese, simplied Chinese, Japanese, Korean, Russian,
Hungarian, Czechoslovak, Arabic, Thai, Turkish, Farsi, Vietnamese, Indonesian, Romanian, and Slovakian.
Menu Settings
Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source
If you set this option “On” and press the button on the projector keypad or Source button on the remote control
then the next available input source is selected automatically. Set “Off” to disable auto source function.
Input Source
Select the input source between HDMI1 and HDMI2.
Input Name
Use to rename the input function for easier identication.
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Display Mode Lock
Choose “On” or “Off” to lock or unlock adjusting display mode settings.
Keypad Lock
When the keypad lock function is “On”, the Keypad will be locked. However, the projector can be operated by the
remote control. By selecting “Off”, you will be able to reuse the Keypad.
English
41
USING THE PROJECTOR
Information Hide
Enable this function to hide the information message.
Off: Choose “Off” to show the “searching” message.
On: Choose “On” to hide the info message.
Logo
Use this function to set the desired startup screen. If changes are made, they will take effect the next time the
projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Background Color
Use this function to display a blue, red, green, grey color, none, or logo screen when no signal is available.
Note: If the background color is set to “None”, then the background color is black.
Setup reset menu
Reset OSD
Return the factory default settings for OSD menu settings.
Reset to Default
Return the factory default settings for Setup menu settings.
Info menu
Info menu
View the projector information as listed below:
Regulatory
Serial Number
Source
Resolution
Refresh Rate
Display Mode
Lamp Hours
Filter Hours
Brightness Mode
FW Version
English
42
MAINTENANCE
Replacing the lamp (Maintenance personnel only)
The projector automatically detects the lifespan of the light bulb and when the light bulb is at its end, a warning
message will appear on the screen.
Warning
Lamp Warning
Lamp life exceeded.
When this message appears, please contact your local dealer or service center to replace the light bulb as soon as
possible. Before replacing the light bulb, make sure to turn off the projector, unplug the power cord, and make sure
the projector has cooled off for at least 30 minutes and the light bulb has completely cooled off.
Warning: If ceiling mounted, please use caution when opening the lamp access panel. It is
recommended to wear safety glasses if changing the bulb when ceiling mounted. Caution must be used
to prevent any loose parts from falling out of projector.
Warning: Lamp compartment is hot! Allow it to cool down before changing lamp!
Warning: To reduce the risk of personal injury, do not drop the lamp module or touch the lamp bulb. The
bulb may shatter and cause injury if it is dropped.
English
43
ADDITIONAL INFORMATION
Compatible resolutions
Digital compatibility
HDMI1.4 for HDMI 1
B0/Established
Timing
B0/Standard
Timing
B0/Detail Timing B1/Video Mode B1/Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz Native timing: 640 x 480p @ 60Hz 4:3 1280 x 720p @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz 720(1440) x 480i @ 60Hz 16:9 1366 x 768 @ 60Hz
640 x 480 @ 67Hz 1280 x1024 @ 60Hz 720 x 480p @ 60Hz 16:9 1920 x 1080p @ 120Hz
640 x 480 @ 72Hz 1400 x 1050 @ 60Hz 720(1440) x 576i @ 50Hz 16:9 3840 x 2160 @ 30Hz
640 x 480 @ 75Hz 1600 x 1200 @ 60Hz 720 x 576p @ 50Hz 16:9
800 x 600 @ 56Hz 1440 x 900 @ 60Hz 1280 x 720p @ 50Hz 16:9
800 x 600 @ 60Hz 1280 x 720 @ 120Hz 1280 x 720p @ 60Hz 16:9
800 x 600 @ 72Hz 1024 x 768 @ 120Hz 1920 x 1080i @ 50Hz 16:9
800 x 600 @ 75Hz 1920 x 1080i @ 60Hz 16:9
832 x 624 @ 75Hz 1920 x 1080p @ 50Hz 16:9
1024 x 768 @ 60Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 24Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 30Hz 16:9
1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz
HDMI2.0 For HDMI 2
B0/Established
Timing
B0/Standard
Timing
B0/Detail Timing B1/Video Mode B1/Detail Timing
720 x 400 @ 70Hz 1280 x 720 @ 60Hz Native timing: 640 x 480p @ 60Hz 4:3 3840 x 2160 @ 60Hz
640 x 480 @ 60Hz 1280 x 800 @ 60Hz 1080P: 1920 x 1080 @ 60Hz 720(1440) x 480i @ 60Hz 16:9 1920 x 1080p @ 120Hz
640 x 480 @ 67Hz 1280 x1024 @ 60Hz 720 x 480p @ 60Hz 16:9
640 x 480 @ 72Hz 1400 x 1050 @ 60Hz 720(1440) x 576i @ 50Hz 16:9
640 x 480 @ 75Hz 1600 x 1200 @ 60Hz 720 x 576p @ 50Hz 16:9
800 x 600 @ 56Hz 1440 x 900 @ 60Hz 1280 x 720p @ 50Hz 16:9
800 x 600 @ 60Hz 1280 x 720 @ 120Hz 1280 x 720p @ 60Hz 16:9
800 x 600 @ 72Hz 1024 x 768 @ 120Hz 1920 x 1080i @ 50Hz 16:9
800 x 600 @ 75Hz 1920 x 1080i @ 60Hz 16:9
832 x 624 @ 75Hz 1920 x 1080p @ 50Hz 16:9
1024 x 768 @ 60Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 70Hz 1920 x 1080p @ 24Hz 16:9
1024 x 768 @ 75Hz 1920 x 1080p @ 30Hz 16:9
1280 x 1024 @ 75Hz
1152 x 870 @ 75Hz
English
44
ADDITIONAL INFORMATION
True 3D video compatibility
Input resolution
HDMI 1.4a
3D Input
Input timing
1280 x 720P @ 50Hz Top - and - Bottom
1280 x 720P @ 60Hz Top - and - Bottom
1280 x 720P @ 50Hz Frame packing
1280 x 720P @ 60Hz Frame packing
1920 x 1080i @ 50Hz Side- by-Side (Half)
1920 x 1080i @ 60Hz Side- by-Side (Half)
1920 x 1080P @ 24Hz Top - and- Bottom
1920 x 1080P @ 24Hz Frame packing
HDMI 1.3
1920 x 1080i @ 50Hz
Side-by-Side(Half) SBS mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
1920 x 1080i @ 50Hz
Top-and-Bottom TAB mode is on
1920 x 1080i @ 60Hz
1280 x 720P @ 50Hz
1280 x 720P @ 60Hz
480i 1024 x 768 @ 120Hz
HQFS 3D format is Frame sequential
1280 x 720 @ 120Hz
Note:
If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.
Support NVIDIA 3DTV Play if there is no patent fee from Optoma.
1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will
run in 120Hz.
English
45
ADDITIONAL INFORMATION
Image size and projection distance
Desired
Distance
(m)
Screen size Top Screen size Top
(Min zoom) (Max zoom)
Diagonal (inch) W (cm) x H (cm)
From base to top
of image (cm)
Diagonal (inch) W (cm) x H (cm
From base to top
of image (cm)
1 27.88 62 x 35 40 31 68 x 38 44
2 56 123 x 69 81 61 136 x 77 89
2.5 70 154 x 87 101 77 170 x 96 111
3 84 185 x 104 121 92 204 x 115 133
3.5 98 216 x 122 141 108 238 x 134 155
4 112 247 x 139 161 123 272 x 153 178
5 139 309 x 174 201 154 340 x 191 222
6 167 370 x 208 242 184 408 x 230 266
7 195 432 x 243 282 215 476 x 268 311
8 223 494 x 278 322 246 544 x 306 355
9 251 556 x 313 363 277 612 x 344 399
9.8 273 605 x 340 395 301.14 667 x 375 435
Note: Zoom ratio is 1.1x.
Desired image size Distance (m) Top (cm)
Diagonal (inch) W (cm) x H (cm) Max zoom Min zoom
From base to top of
27.88 62 x 35 -- 1.0 40
40 89 x 50 1.3 1.4 58
50 111 x 62 1.6 1.8 72
60 133 x 75 2.0 2.2 87
70 155 x 87 2.3 2.5 101
80 177 x 100 2.6 2.9 116
90 199 x 112 2.9 3.2 130
100 221 x 125 3.3 3.6 144
120 266 x 149 3.9 4.3 173
150 332 x 187 4.9 5.4 217
200 443 x 249 6.5 7.2 289
250 553 x 311 8.1 9.0 361
280 620 x 349 9.1 10.0 404
301 666 x 375 9.8 -- 435
Note: Zoom ratio is 1.1x.
H
Hd
H
5.2 cm
W
D
English
46
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
Screw type: M4*3
Minimum screw length: 10mm
Unit: mm
Lens
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
47
ADDITIONAL INFORMATION
IR remote control 1 codes
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source
Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
Key
Custom code
Data
code
Printing-key
denition
Description
Byte 1 Byte 2 Byte 3
Power on 32 CD 02 ON Press to turn on the projector.
Power off 32 CD 2E OFF Press to turn off the projector.
User 1 32 CD 36 User1
User dened keys. Please see page 40 to
setup.
User 2 32 CD 65 User2
User 3 32 CD 66 User3
Brightness 32 CD 41 Brightness Adjust the brightness of the image.
Contrast 32 CD 42 Contrast
Control the degree of difference between the
lightest and darkest parts of the picture.
Display mode 32 CD 05 Mode
Select a display mode for optimized settings
for different applications. Please see page
32.
Keystone 32 CD 07 Keystone
Adjust image distortion caused by tilting the
projector.
Aspect ratio 32 CD 64 Aspect ratio
Press to change aspect ratio of a displayed
image.
English
48
ADDITIONAL INFORMATION
Key
Custom code
Data
code
Printing-key
denition
Description
Byte 1 Byte 2 Byte 3
3D 32 CD 89 3D
Manually select a 3D mode that matches your
3D content.
Mute 32 CD 52 Mute Mute audio.
DB 3 2 CD 44 Lamp Mode Open Brightness Mode menu.
Sleep Timer 32 CD 63 Sleep Timer Open Sleep Timer menu.
Volume + 32 CD 09 Volume + Adjust to increase volume.
Four direction
keys
32 CD 11 ▲
Use ▲, ◄, ►, or ▼ to select items or make
adjustments to your selection.
32 CD 10 ◄
32 CD 12 ►
32 CD 14 ▼
Source 32 CD 18 Source Press “Source” to select an input signal.
Enter key 32 CD 0F Conrm your item selection.
Re-sync 32 CD 04 Re-sync
Automatically synchronizes the projector to
the input source.
Volume - 32 CD 0C Volume - Adjust to decrease volume.
Menu 3 2 CD 0E Menu
Display or exit the on-screen display menus
for projector.
HDMI 1 32 CD 16 HDMI1
Press “HDMI1” to choose source from
HDMI 1 connector.
HDMI 2 32 CD 30 HDMI2
Press “HDMI2” to choose source from
HDMI 2 connector.
VGA 1 32 CD 1B VGA1 No function
VGA 2 32 CD 1E VGA2 No function
Video 32 CD 1C Video No function
YPbPr 32 CD 17 YPbPr No function
English
49
ADDITIONAL INFORMATION
IR remote control 2 codes
Key legend Description Key code
Power Press to turn on / off the projector. 81
Freeze Press to freeze the projector image. 8B
Aspect Press to change aspect ratio of a displayed image. 98
AV mute Press to turn off/ on projector built-in speaker 8A
Keystone+/up
Press to adjust image distortion caused by tilting the projector.
Press to navigate up.
C6
Mute Press to momentarily turn off / on the audio. 92
Left/Vol-
Press to adjust to decrease the volume.
Press to navigate left.
C8
Enter Conrm your item selection.
-C5 (for OSD)
-CA (for emulation
of USB mouse via
USB)
Right/Vol+
Press to adjust to increase the volume.
Press to navigate right.
C9
Menu Press to display or exit the on-screen display menus for projector. 88
Down/Keystone-
Press to adjust image distortion caused by tilting the projector.
Press to navigate down.
C7
3D Press to manually select a 3D mode that matches your 3D content. 93
HDMI Press to choose HDMI source. 86
VGA No function 8E
English
50
ADDITIONAL INFORMATION
Key legend Description Key code
Video No function CE
Source Press to select an input signal. C3
Brightness mode
Press to automatically adjust the picture brightness to give an optimum
contrast performance.
87
ReSync Automatically synchronize the projector to the input source. C4
English
51
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Check if the projection lamp has been securely installed. Please refer to the "Replacing the Lamp"
section.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance from the projector. (Please refer to
page 45).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play the LBX format DVD title, please change the format as LBX in projector OSD.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Adjust the Zoom Lever on the top of the projector.
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the different settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Use "Display-->Keystone" from the OSD to make an adjustment.
Image is reversed
Select "Setup-->Projection" from the OSD and adjust the projection direction.
Blurry double image
Press "3D" button and switch to "Auto" to avoid normal 2D image is blurry double image.
English
52
ADDITIONAL INFORMATION
Two images, side-by-side format
Press "3D" button and switch to "SBS" for input signal is HDMI 1.3 2D 1080i side-by-side.
Image does not display in 3D
Check if the battery of 3D glasses is drained.
Check if the 3D glasses is turned on.
When the input signal is HDMI 1.3 2D (1080i side-by-side half), press "3D" button and switch to "SBS".
Other problems
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may make a loud popping sound. If this
happens, the projector will not turn on until the lamp module has been replaced.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±15° to the IR receiver on the
projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
6 m (20 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
English
53
ADDITIONAL INFORMATION
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
"LAMP" LED indicator is lit red and if "On/Standby" indicator ashes red.
"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes red. This indicates the projector
has overheated. Under normal conditions, the project can be switched back on.
"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
LED lightning messages
Message
On/Standby LED On/Standby LED
Temp LED
Lamp LED
(Red) (Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec off /
0.5 sec on)
Power on & Lamp
lighting
Steady light
Power off (Cooling)
Flashing
(0.5 sec off /
0.5 sec on). Back
to red steady light
when cooling fan
turns off.
Quick Resume (100
secs)
Flashing
(0.25 sec off /
0.25 sec on)
Error (Lamp fail) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over Temp) Flashing Steady light
Power off:
Power Off
Power Off?
Press power key again.
Lamp warning:
Warning
Lamp Warning
Lamp life exceeded.
English
54
ADDITIONAL INFORMATION
Temperature warning:
Warning
TEMPERATURE TOO HIGH
Please:
1. Make sure air in and outlets are not blocked.
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
Fan failed:
Warning
FAN LOCKED
The projector will switch off automatically
Please contact a service center for repair.
Out of display range:
HDMI
Out Of Range
Power down warning:
Warning
Power Down Timer Active
Power down in
Sec.
Security timer alarm:
Warning
Security Timer Alarm
Time out in
Sec.
English
55
ADDITIONAL INFORMATION
Specications
Optical Description
Native resolution 1080p
Lens Manual zoom and manual focus
Image size (diagonal) 28”~301” (optimized@60”)
Projection distance 1m to 9.8m ([email protected])
Electrical Description
Inputs
- HDMI 1.4a
- HDMI 2.0
Color reproduction 1073.4 Million color
Scan rate
- Horizontal scan rate: 15.375~91.146 KHz
- Vertical scan rate: 24 ~ 85 Hz (120Hz for 3D feature projector)
Built-in speaker Yes, 3W
Power requirement 100 - 240V AC 50/60Hz
Input current 2.9A
Mechanical Description
Installation orientation Front, Rear, Ceiling - Top, Rear - Top
Dimensions
- 316 mm (W) x 243.5 mm (D) x 106 mm (H) (without feet)
- 316 mm (W) x 243.5 mm (D) x 108.5 mm (H) (with feet)
Weight 2.8 ±0.5kg
Environmental conditions Operating in 5 ~ 40°C , 10% to 85% humidity (non-condensing)
Note: All specications are subject to change without notice.
English
56
ADDITIONAL INFORMATION
Optoma global ofces
For service or support, please contact your local ofce.
USA
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Canada
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Latin America
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Europe
Unit 1, Network 41, Bourne End Mills
Hemel Hempstead, Herts,
HP1 2UJ, United Kingdom +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522 Rivas VaciaMadrid, +34 91 670 08 32
Spain
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670
D40549 Düsseldorf, +49 (0) 211 506 66799
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
PO.BOX 9515
3038 Drammen
Norway
Korea
WOOMI TECH.CO.,LTD. +82+2+34430004
4F, Minu Bldg.33-14, Kangnam-Ku, +82+2+34430005
Seoul,135-815, KOREA
korea.optoma.com
Japan
東京都足立区綾瀬3-25-18
株式会社オーエス [email protected]
コンタクトセンター:0120-380-495 www.os-worldwide.com
Taiwan
12F., No.213, Sec. 3, Beixin Rd., +886-2-8911-8600
Xindian Dist., New Taipei City 231, +886-2-8911-6550
Taiwan, R.O.C. [email protected]
www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, +852-2396-8968
Cheung Sha Wan, +852-2370-1222
Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., +86-21-62947376
Changning District +86-21-62947375
Shanghai, 200052, China www.optoma.com.cn
www.optoma.com
