User manual
DLP
®
Projector
English
2
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
Important Safety Instruction....................................................................................................... 4
Laser Radiation Safety Information ........................................................................................... 5
Cleaning the Lens...................................................................................................................... 6
3D Safety Information ................................................................................................................ 6
Copyright ................................................................................................................................... 7
Disclaimer .................................................................................................................................. 7
Trademark Recognition ............................................................................................................. 7
FCC ........................................................................................................................................... 8
Declaration of Conformity for EU countries ............................................................................... 8
WEEE ........................................................................................................................................ 8
INTRODUCTION ................................................................................ 9

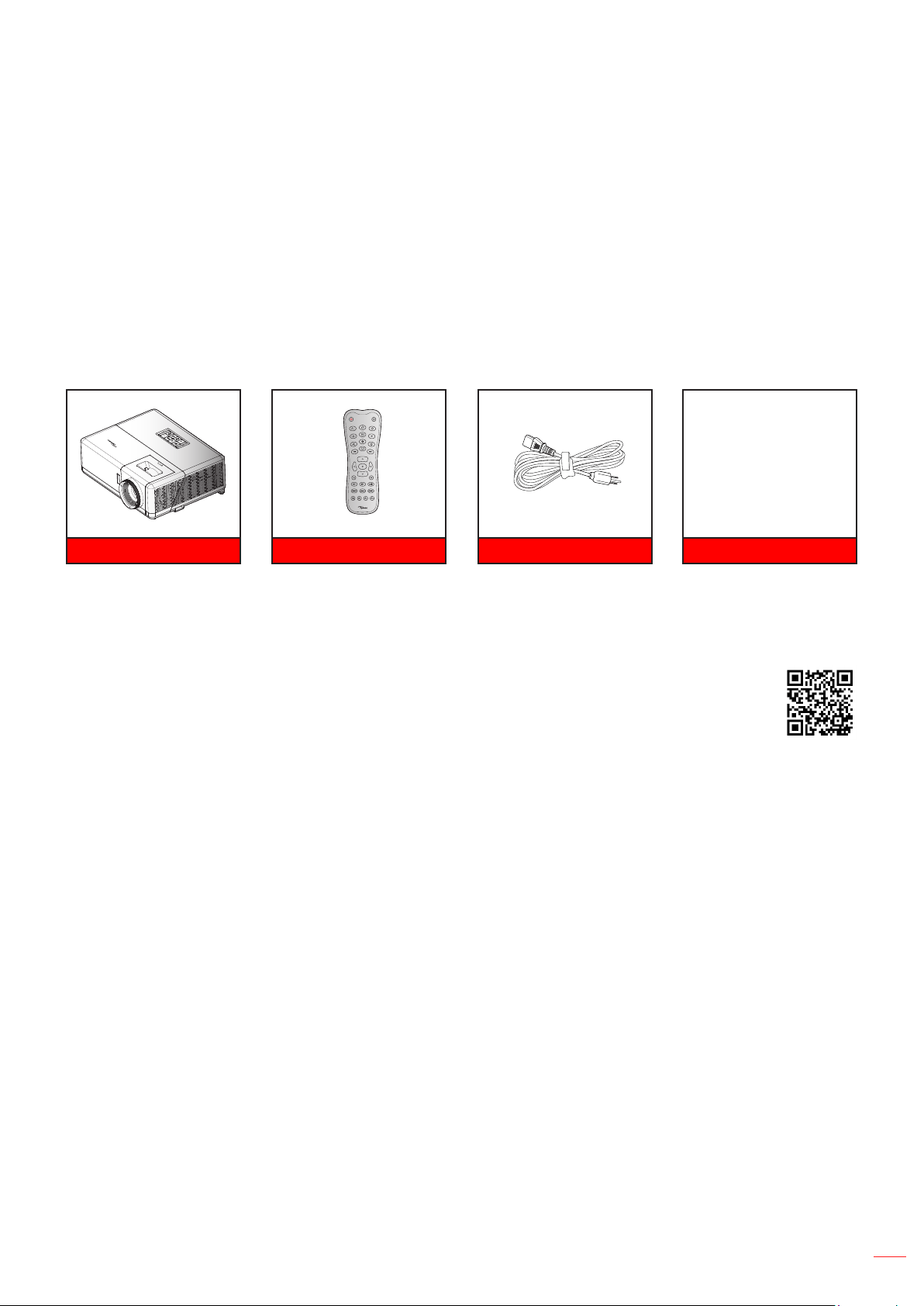

Package Overview..................................................................................................................... 9
Standard accessories ................................................................................................................ 9

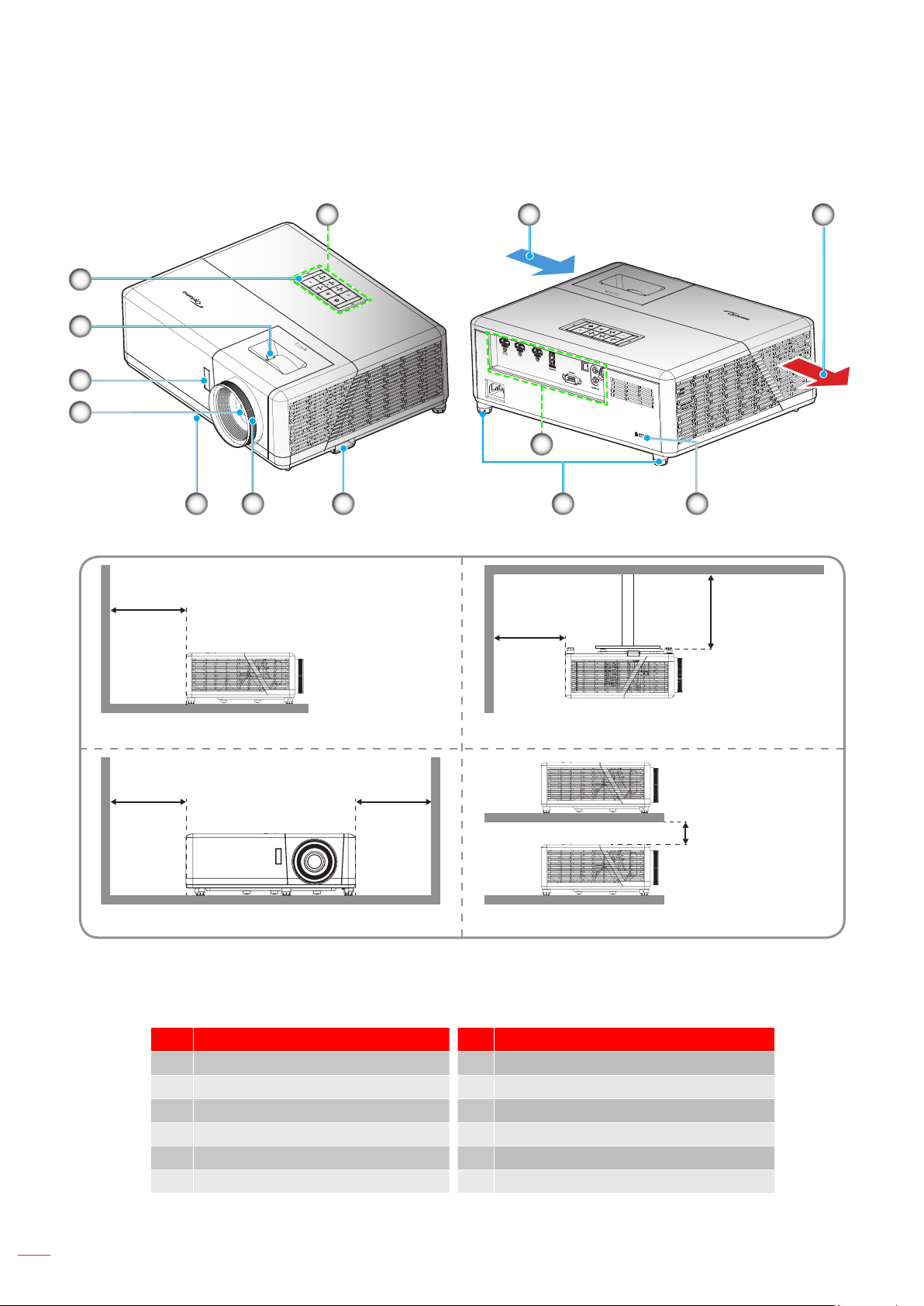

Product Overview ..................................................................................................................... 10

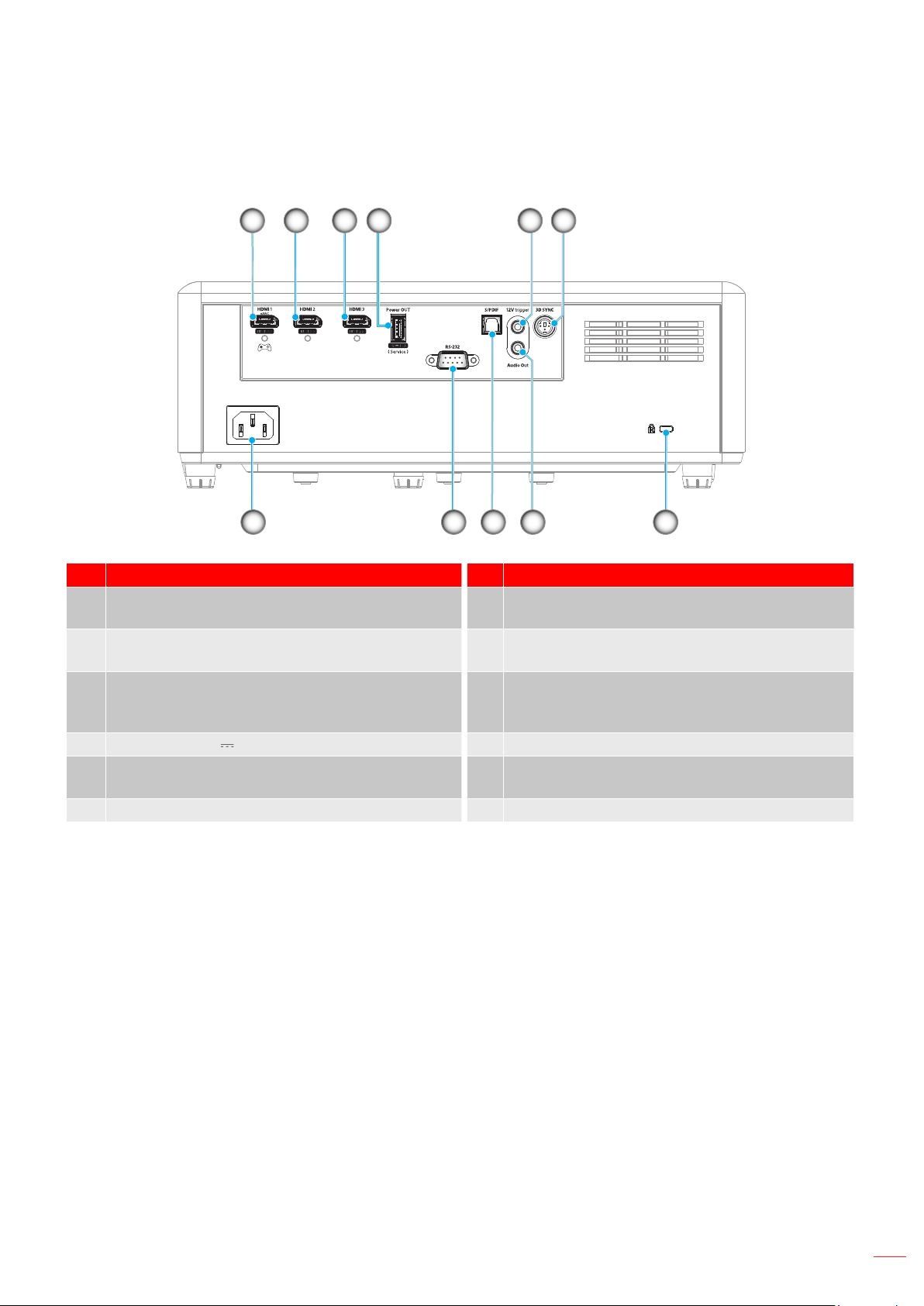

Connections.............................................................................................................................. 11

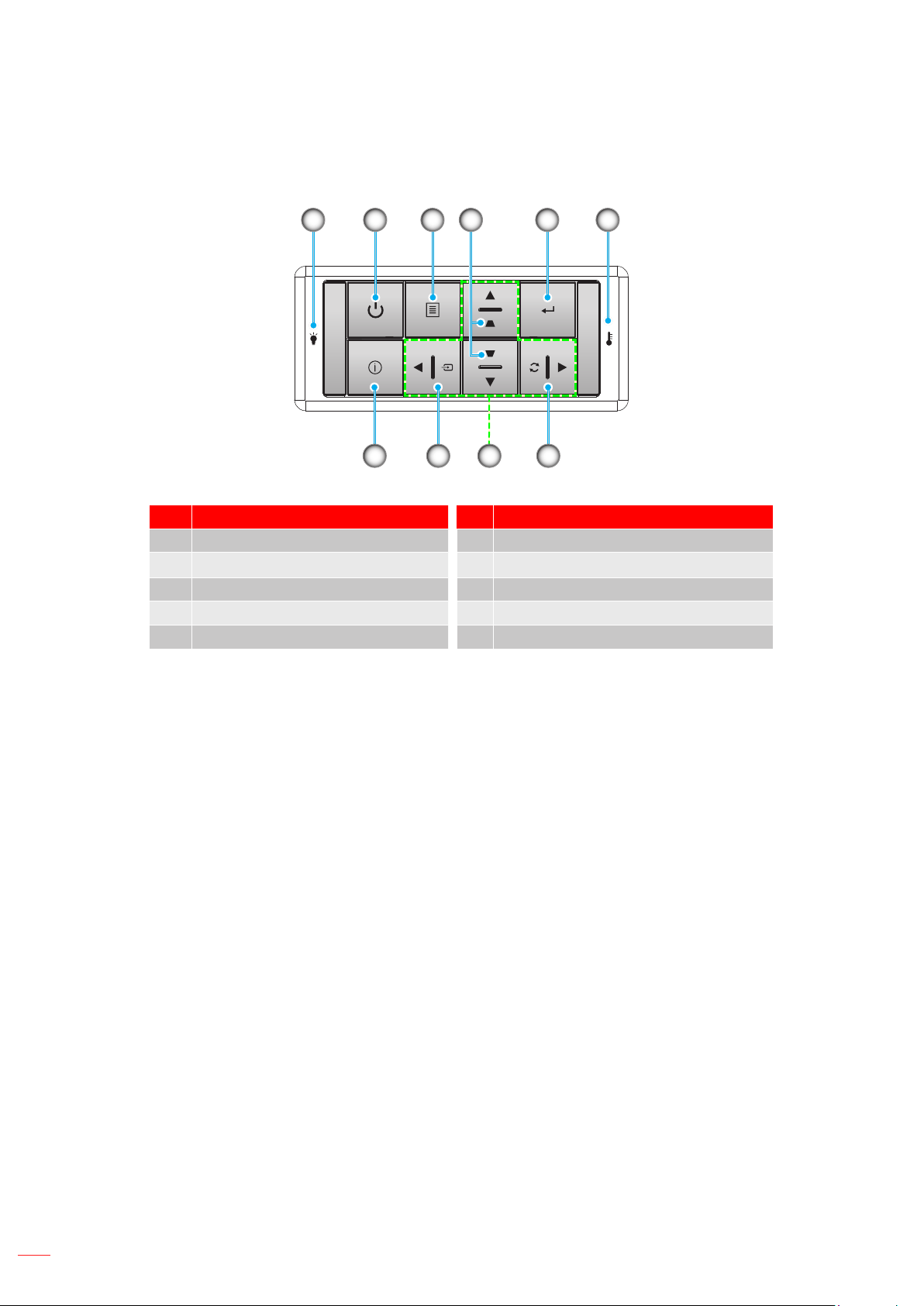

Keypad ..................................................................................................................................... 12

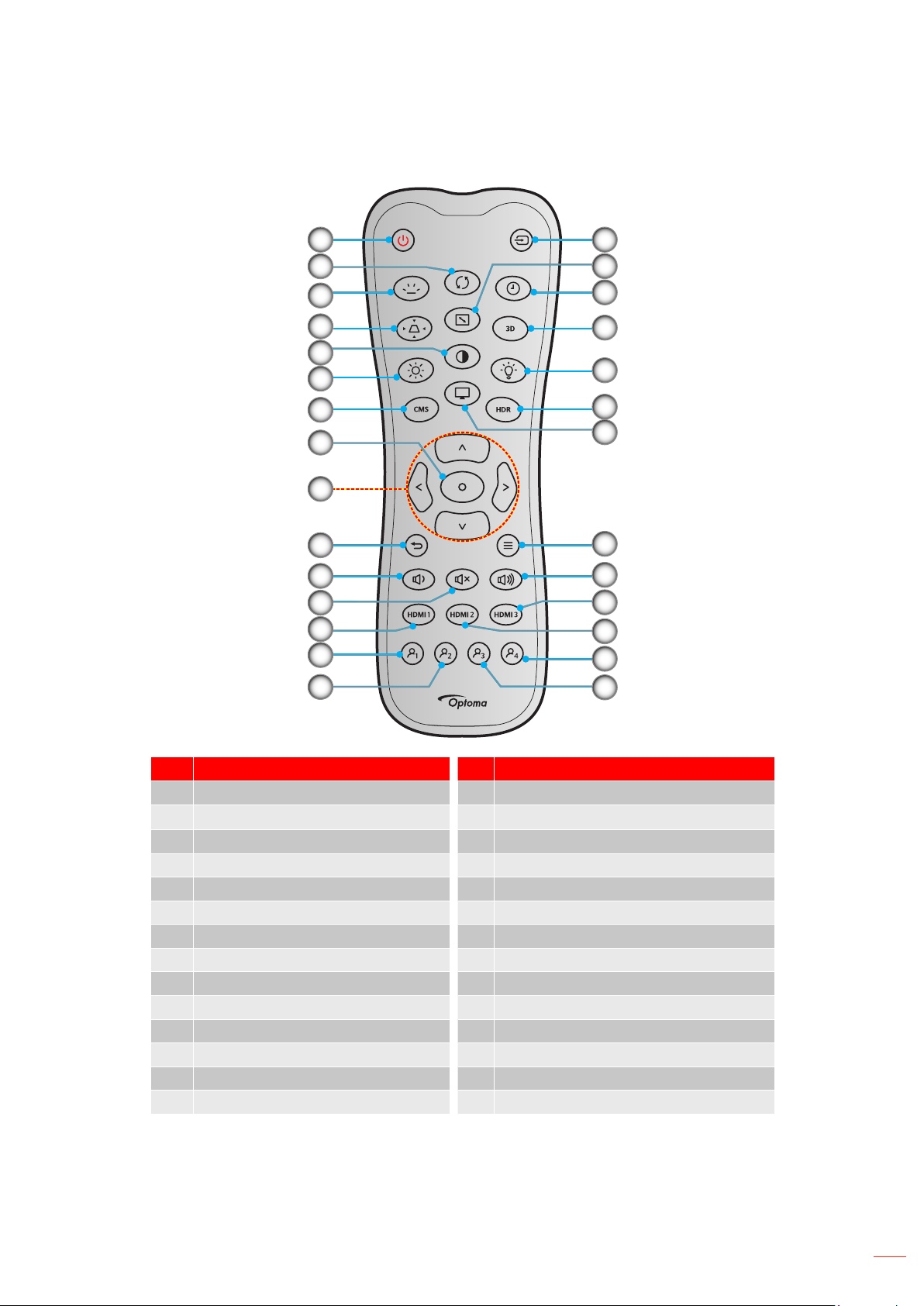

Remote control ......................................................................................................................... 13
SETUP AND INSTALLATION ........................................................... 14

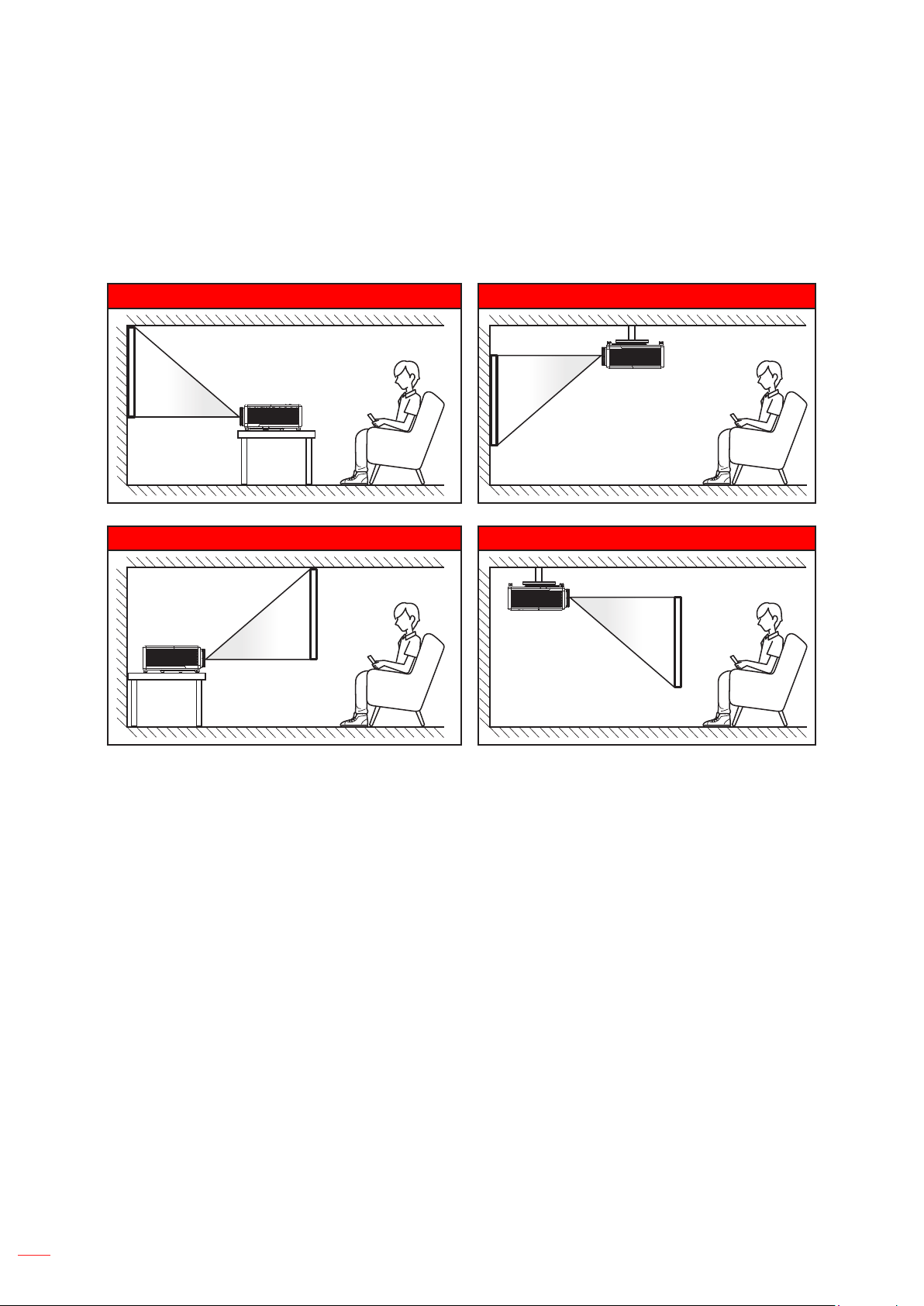

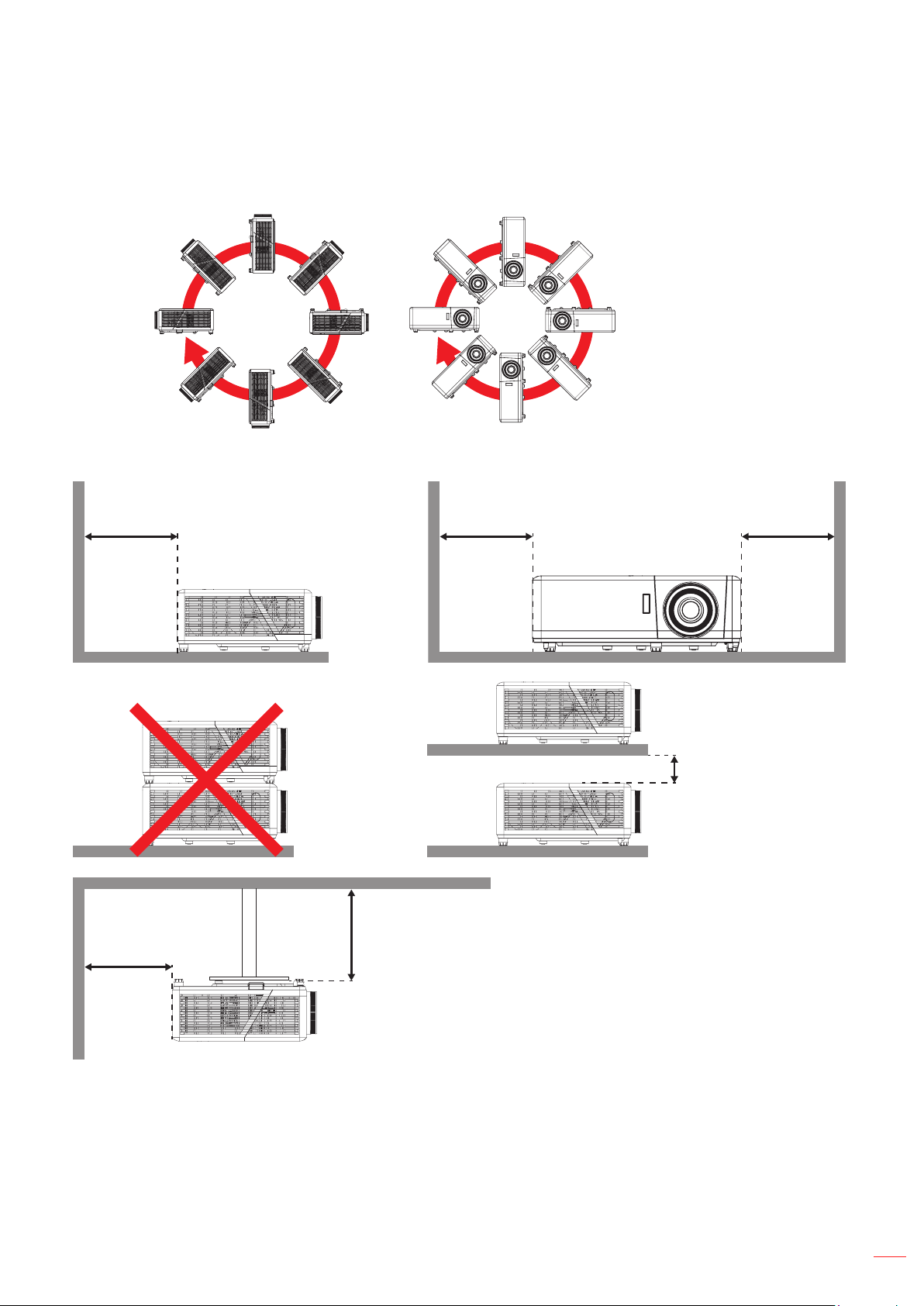

Installing the projector .............................................................................................................. 14

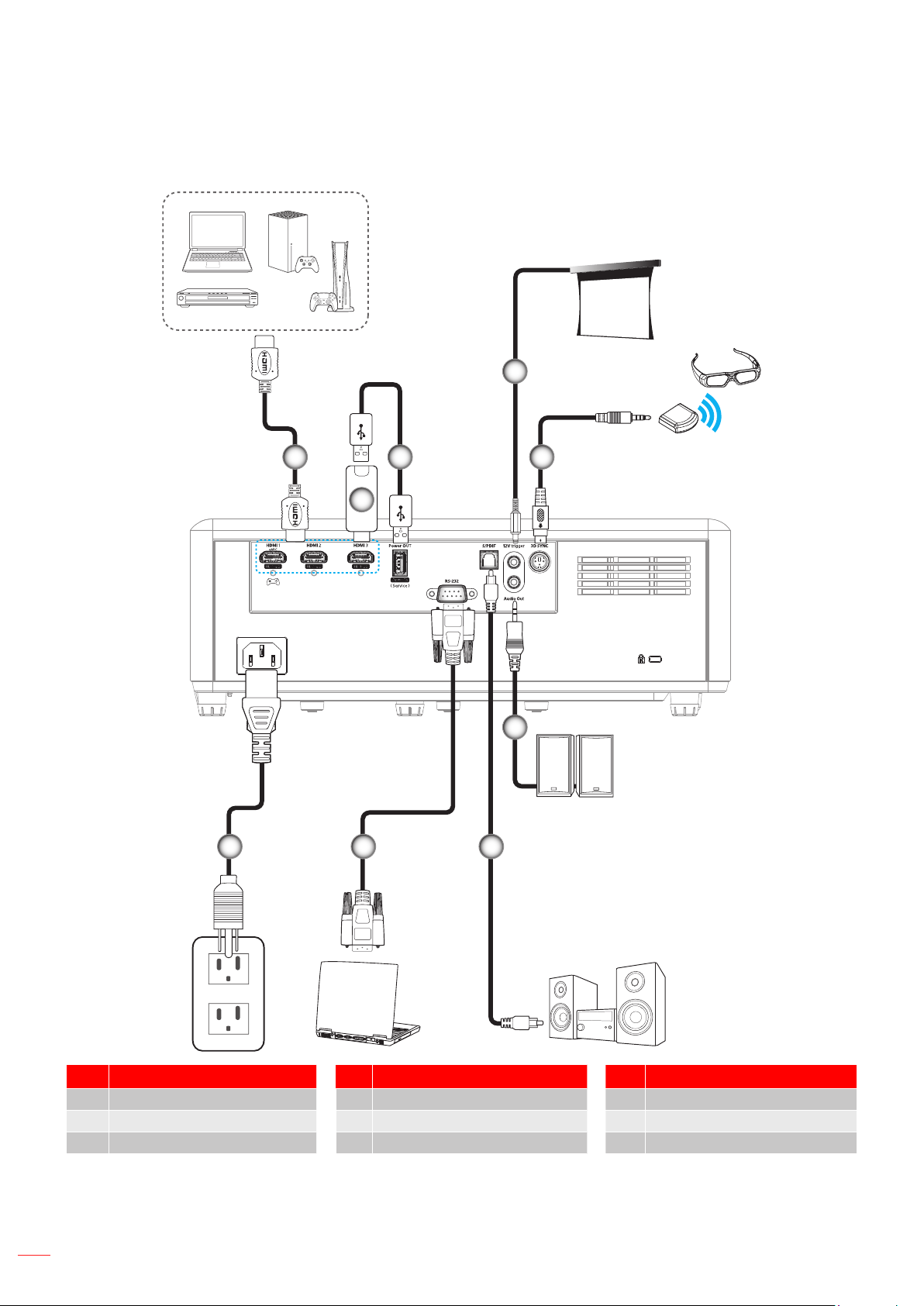

Connecting sources to the projector ......................................................................................... 16

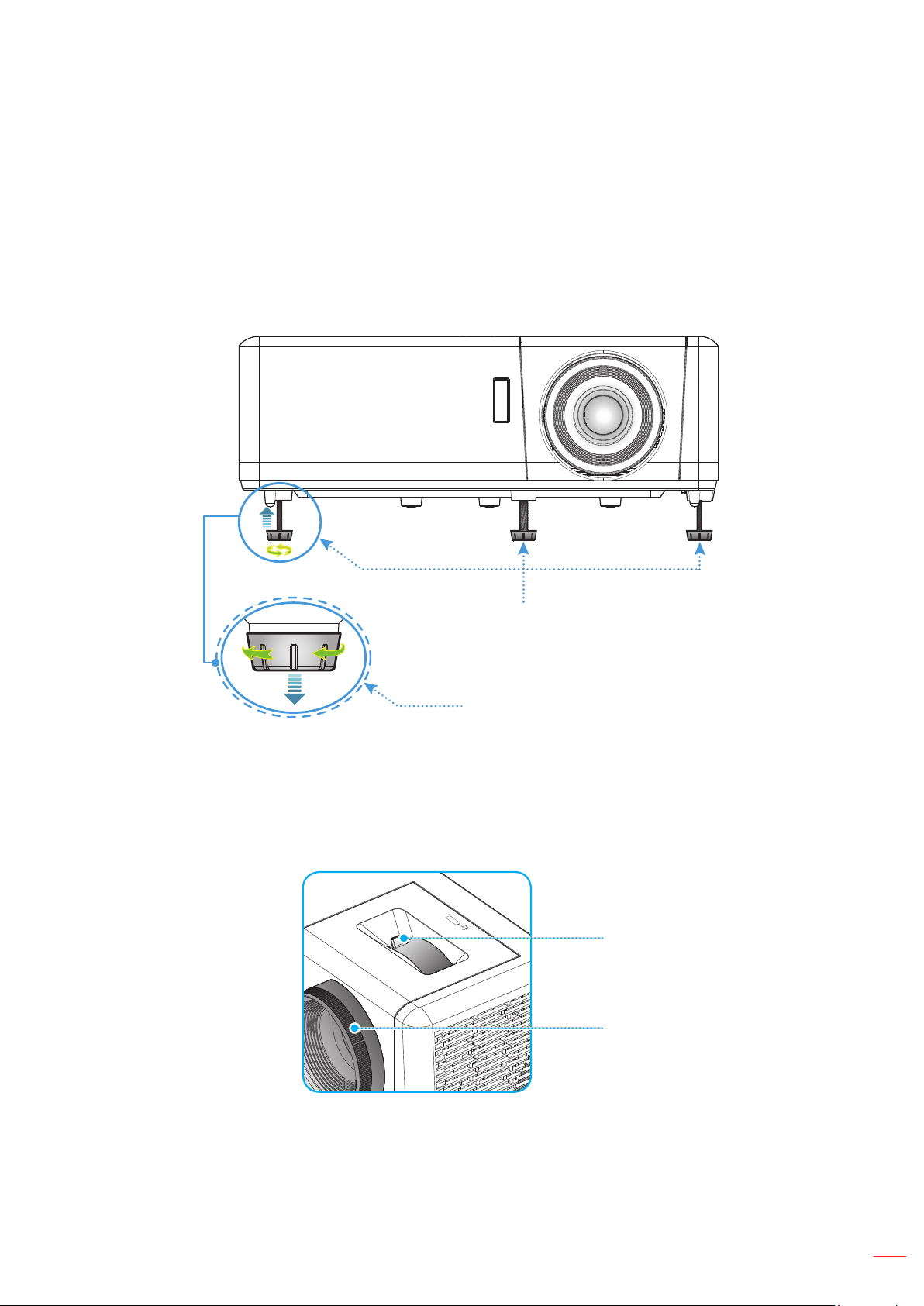

Adjusting the projector image ................................................................................................... 17

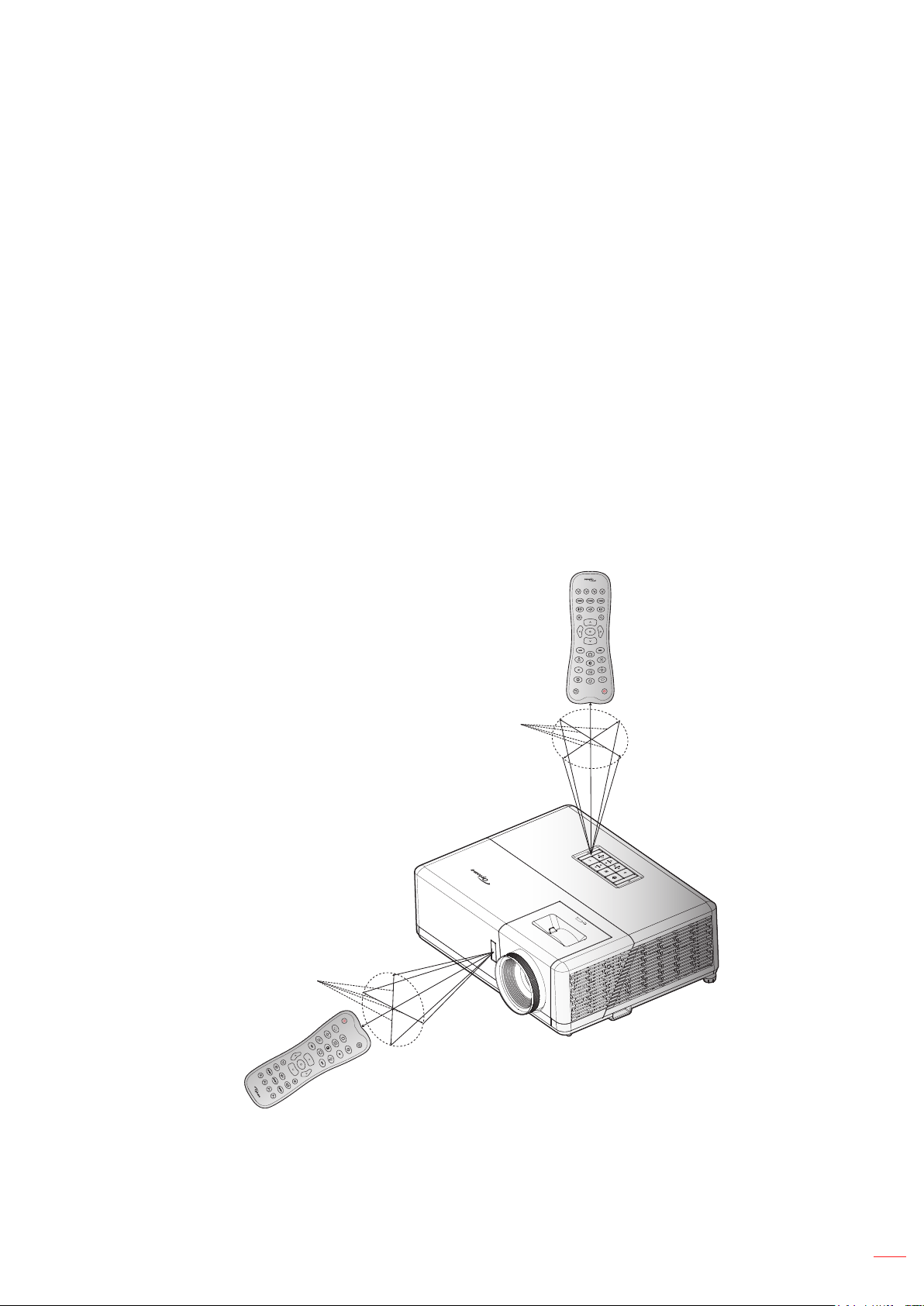

Remote setup ........................................................................................................................... 18
USING THE PROJECTOR ............................................................... 20

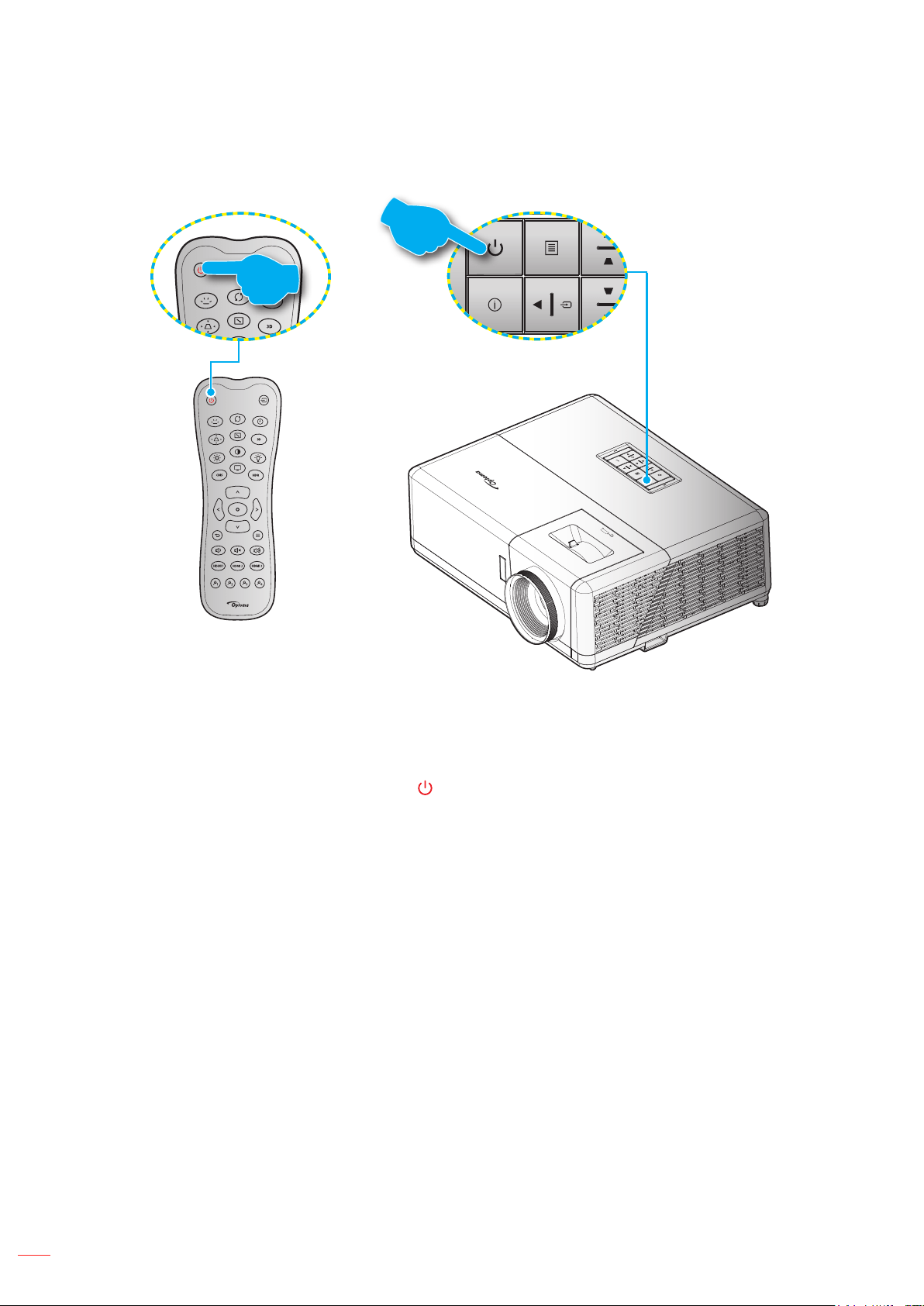

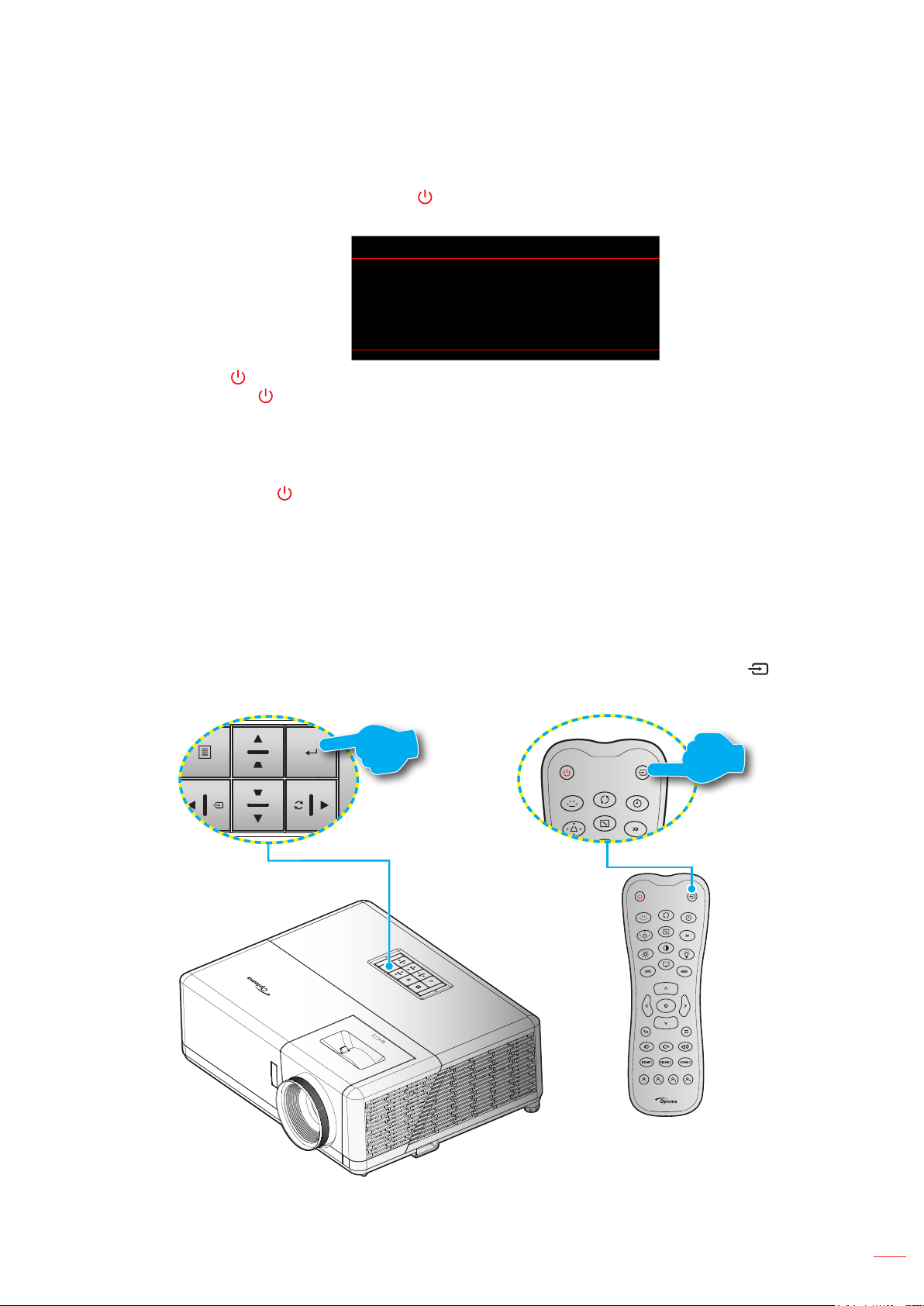

Powering on / o the projector .................................................................................................. 20
Selecting an input source ......................................................................................................... 21
Projector settings menu (OSD)................................................................................................. 22
OSD Menu tree......................................................................................................................... 23
Display menu ............................................................................................................................ 29
Audio menu .............................................................................................................................. 35
Setup menu .............................................................................................................................. 36
Info menu.................................................................................................................................. 39
ADDITIONAL INFORMATION .......................................................... 40
Compatible resolutions ............................................................................................................. 40

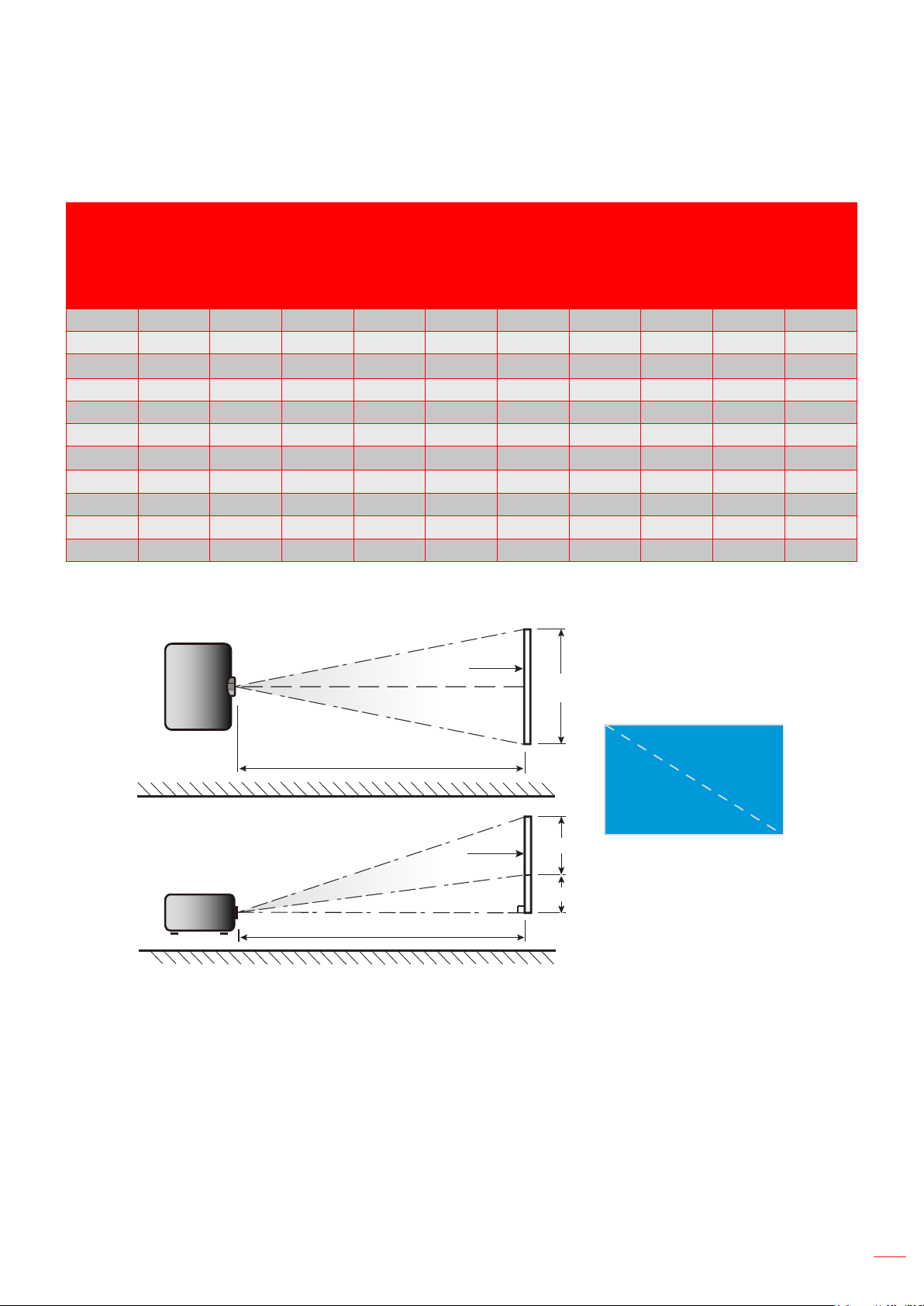

Image size and projection distance .......................................................................................... 45

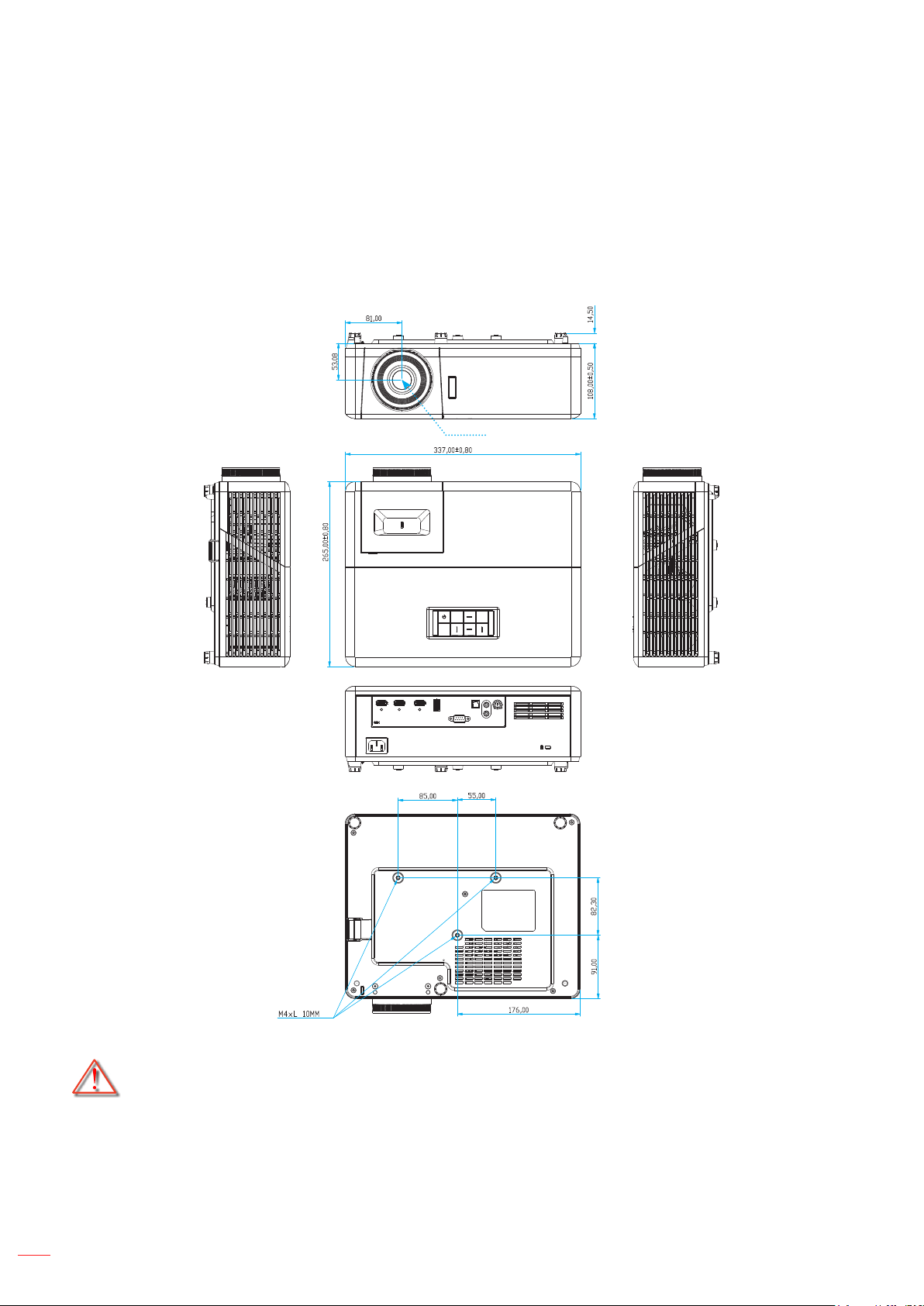

Projector dimensions and ceiling mount installation ................................................................. 46
English
3

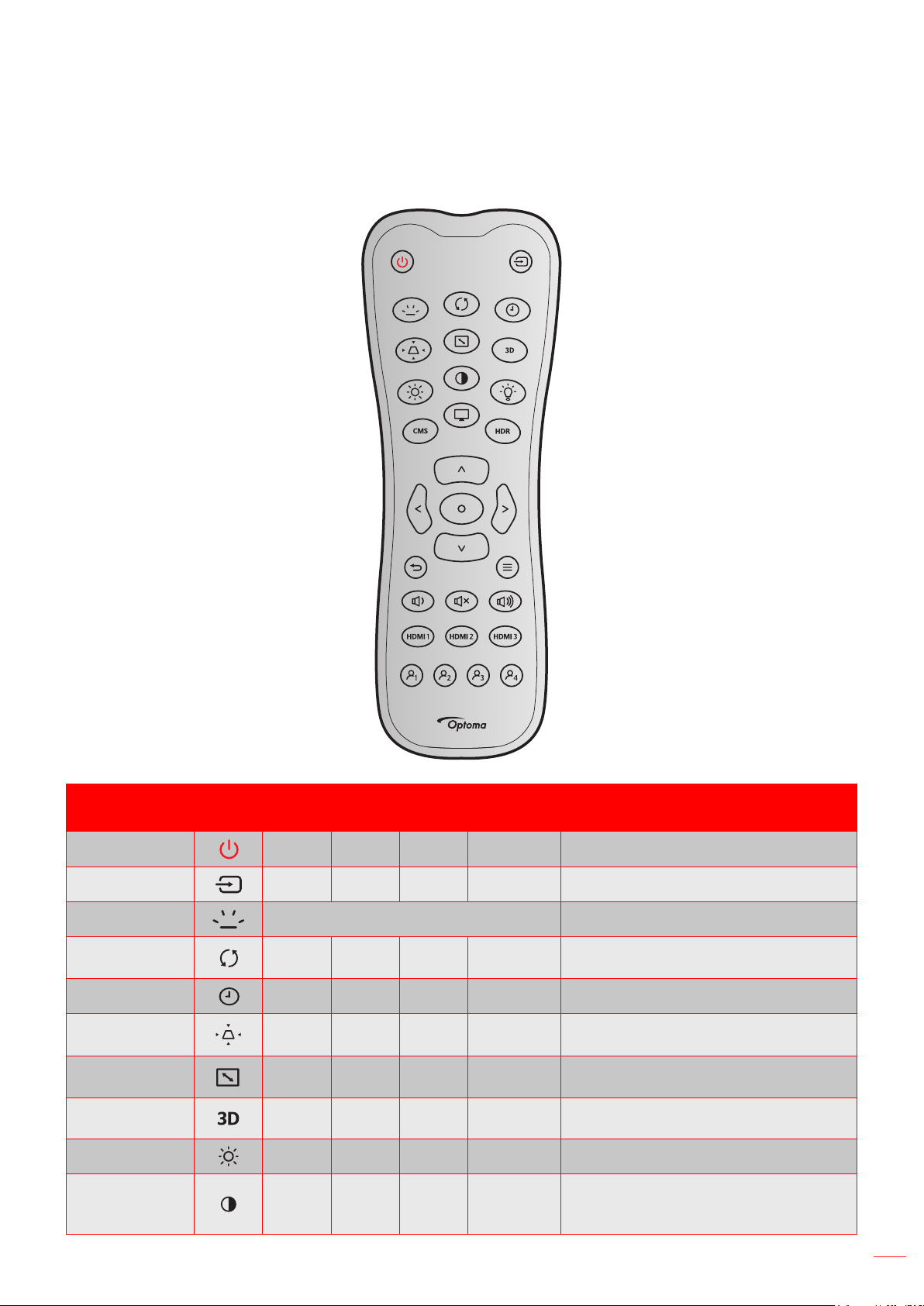

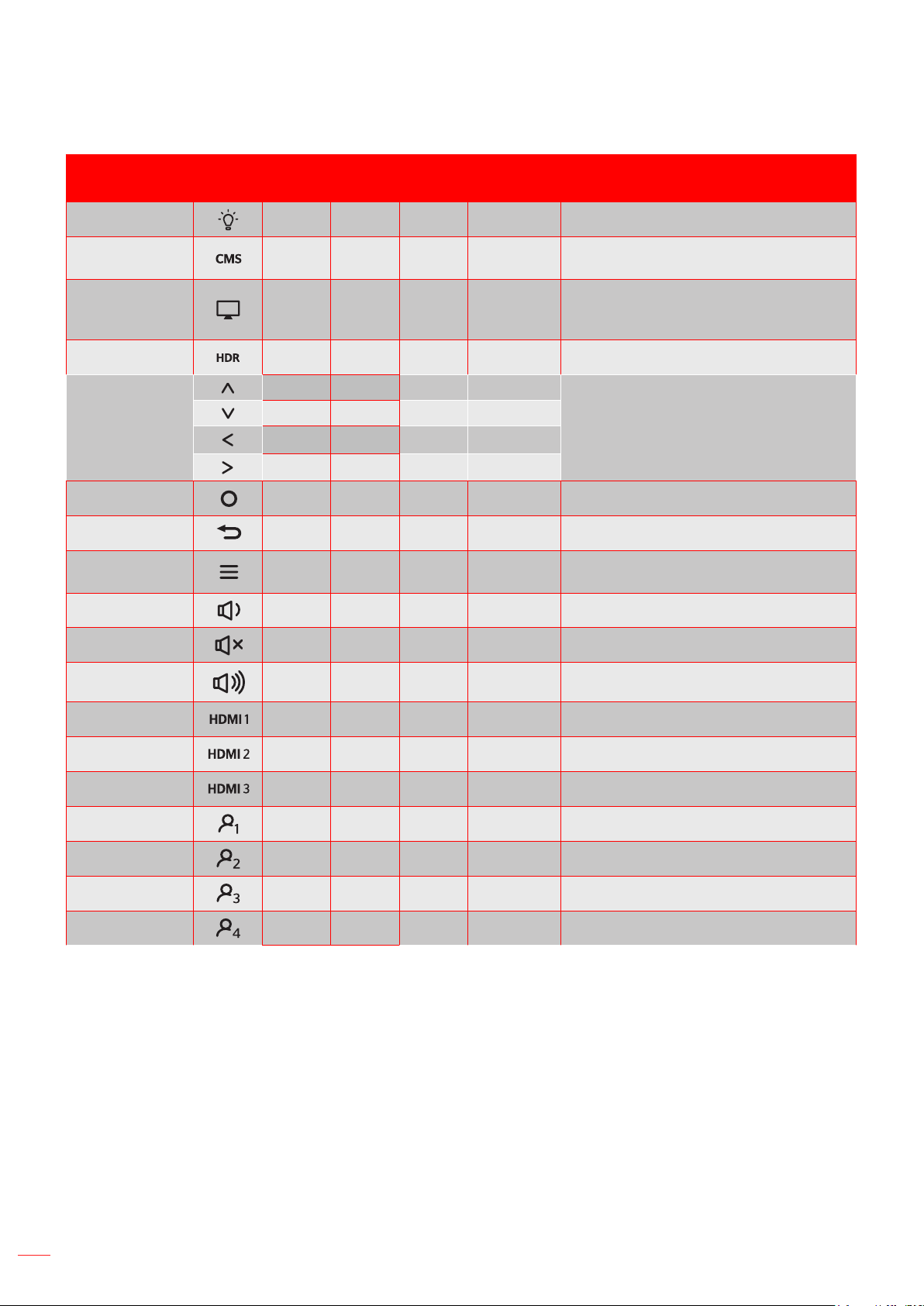

Remote control codes............................................................................................................... 47
Troubleshooting ........................................................................................................................ 49
Warning indicators .................................................................................................................... 50
Specications ........................................................................................................................... 53
Optoma global oces ............................................................................................................... 54
English
4
SAFETY

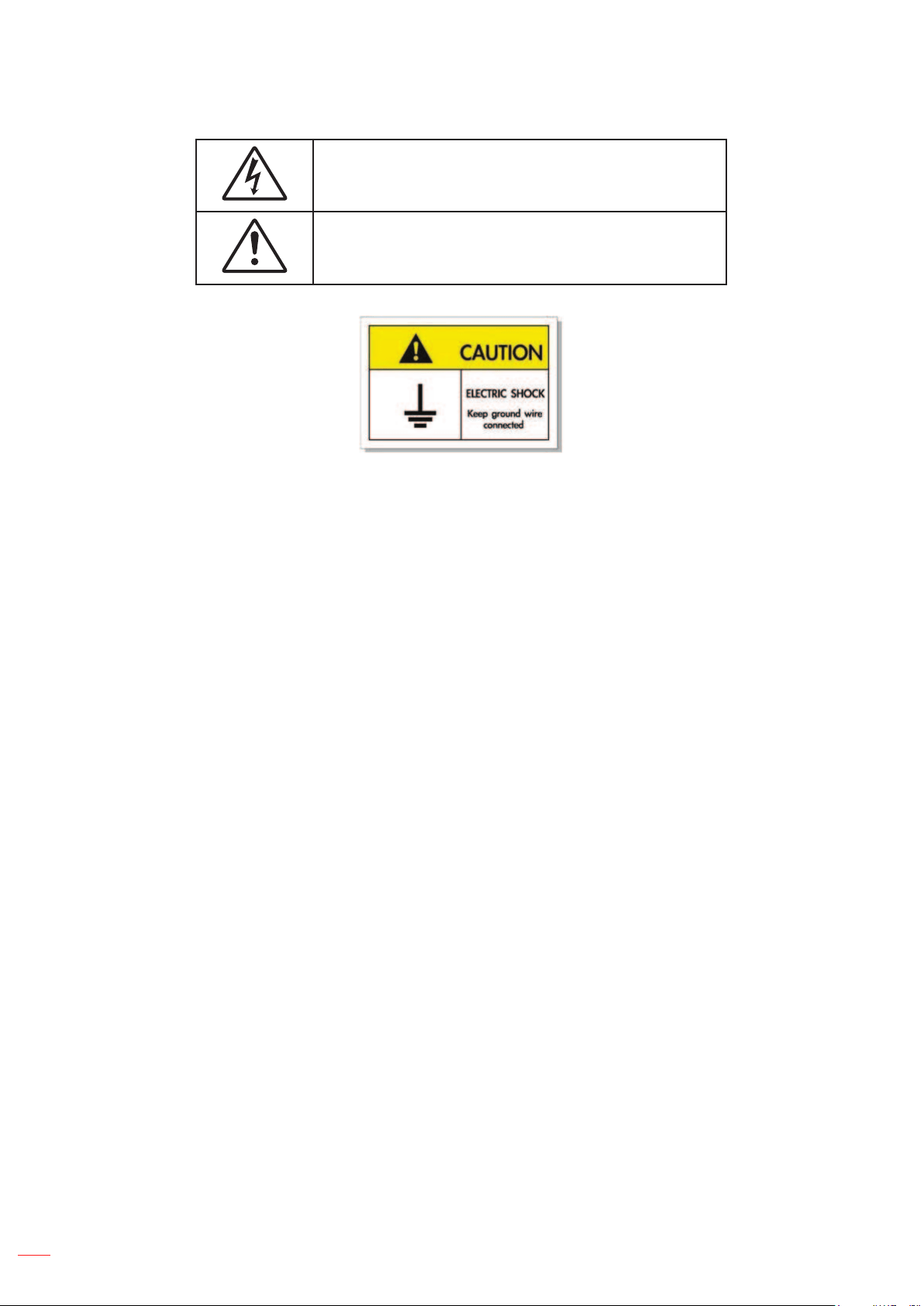

The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated "dangerous
voltage" within the product's enclosure that may be of sucient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
To avoid electric shock, the unit and its peripherals must be properly grounded (earthed).
Important Safety Instruction
Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coee table, sofa, bed, etc. Do not put the projector in
an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers
that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out
parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but
not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and could melt, cause burns or start a re.
English
5
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by appropriate service personnel.
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
When switching the projector o, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
Turn o and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands.

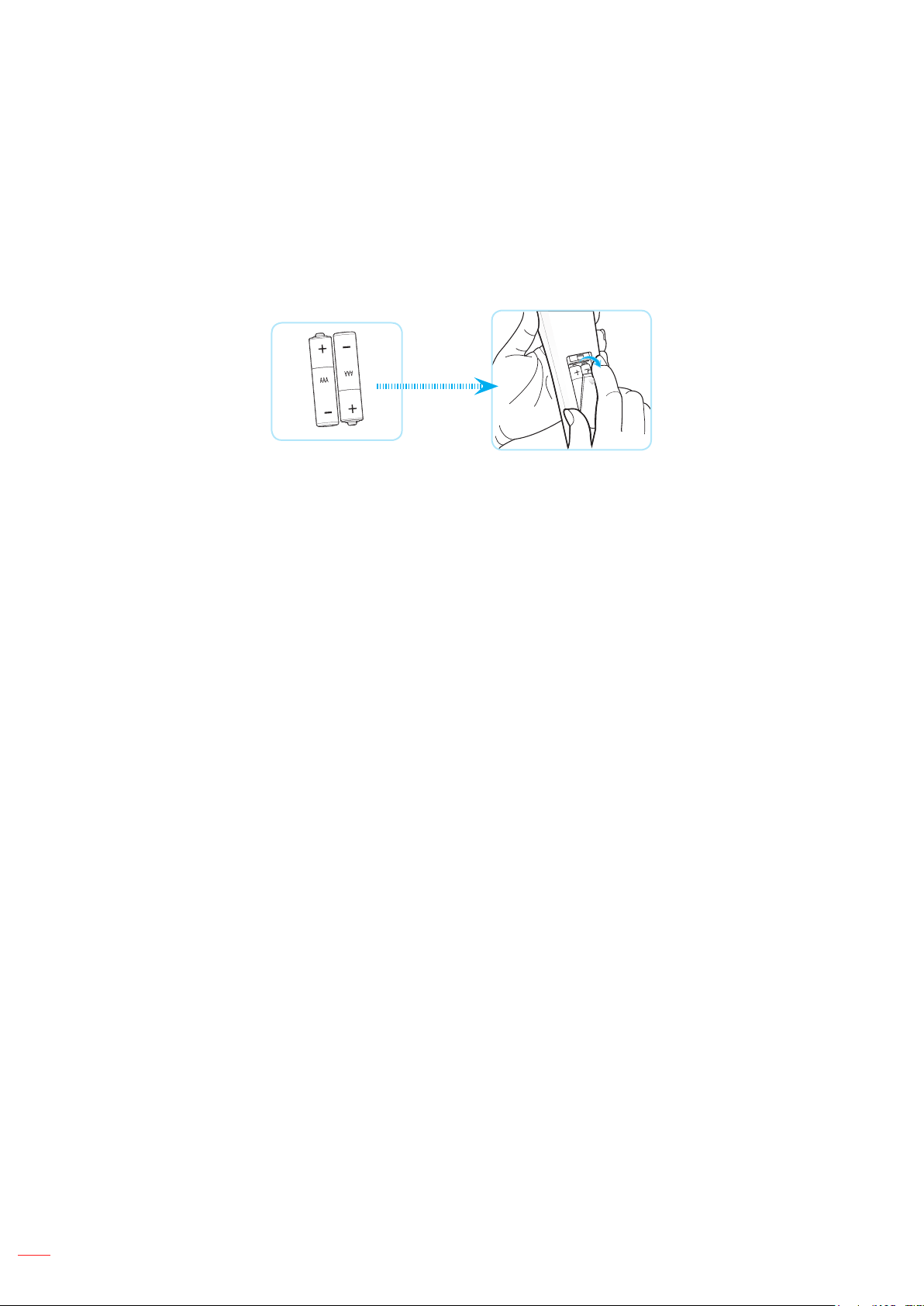

Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it can
adversely aect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may aect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

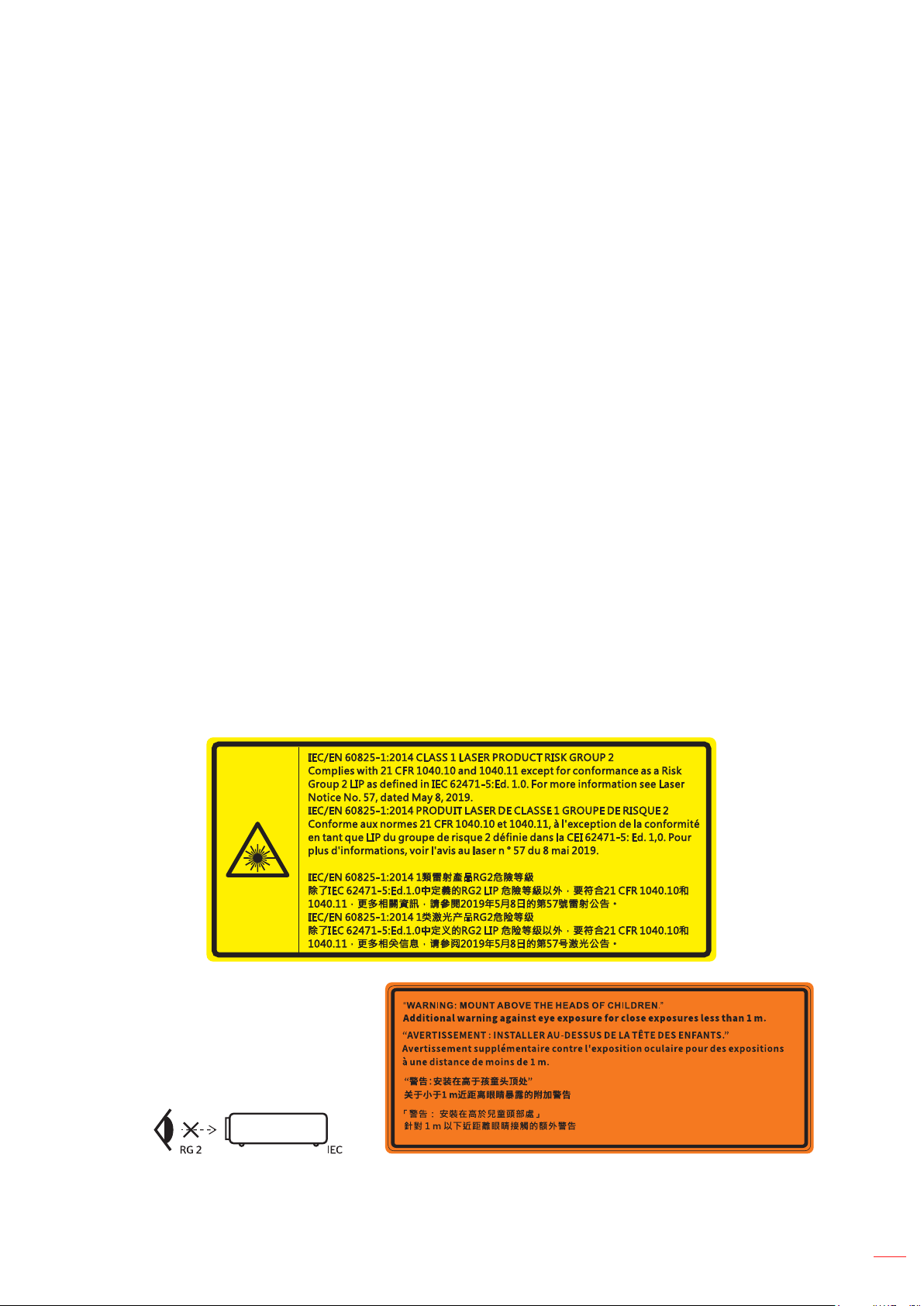

Laser Radiation Safety Information
This product is classied as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and
also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector)
as dened in IEC 62471:5:Ed. 1.0. For more information see Laser Notice No. 57, dated May 8, 2019.
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.
This projector is class 1 laser product of IEC/EN 60825-1:2014 and risk group 2 with the requirements
of IEC 62471-5:2015.
English
6
Additional instructions to supervise children, no staring, and not use optical aids.
Notice is given to supervise children and to never allow them to stare into the projector beam at any
distance from the projector.
Notice is given to use caution when using the remote control for starting the projector while in front of
the projection lens.
Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the
beam.
When turning on the projector, make sure no one within projection range is looking at the lens.
Keep any items (magnifying glass etc.) out of the light path of the projector. The light path being
projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light
coming out of the lens, can cause an unpredictable outcome such as a re or injury to the eyes.
Any operation or adjustment not specically instructed by the user’s guide creates the risk of
hazardous laser radiation exposure.
Do not open or disassemble the projector as this may cause damage by the exposure of laser
radiation.
Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
Without following the control, adjustment or operation procedure may cause damage by the exposure of
laser radiation
Cleaning the Lens
Before cleaning the lens, be sure to turn o the projector and unplug the power cord to allow it to
completely cool down.
Use a compressed air tank to remove the dust.
Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your ngers.
Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is
damaged due to the cleaning process, it is not covered by the warranty.
Warning: Do not use a spray containing ammable gases to remove dust or dirt from the lens. This
may cause a re due to excessive heat inside the projector.
Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface lm
to peel o.
Warning: Do not wipe or tap the lens with a hard object.
3D Safety Information
Please follow all warnings and precautions as recommended before you or your child use the 3D function.
Warning
Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be
closely supervised when viewing these images.
Photosensitive Seizure Warning and Other Health Risks
Some viewers may experience an epileptic seizure or stroke when exposed to certain ashing images
or lights contained in certain Projector pictures or video games. If you suer from, or have a family
history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.
Even those without a personal or family history of epilepsy or stroke may have an undiagnosed
condition that can cause photosensitive epileptic seizures.
Pregnant women, the elderly, suerers of serious medical conditions, those who are sleep deprived or
under the inuence of alcohol should avoid utilizing the unit’s 3D functionality.
If you experience any of the following symptoms, stop viewing 3D pictures immediately and consult a
medical specialist: (1) altered vision; (2) light-headedness; (3) dizziness; (4) involuntary movements
English
7
such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions;
(9) cramps; and/ or (10) disorientation. Children and teenagers may be more likely than adults
to experience these symptoms. Parents should monitor their children and ask whether they are
experiencing these symptoms.
Watching 3D projection may also cause motion sickness, perceptual after eects, disorientation, eye
strain and decreased postural stability. It is recommended that users take frequent breaks to lessen
the potential of these eects. If your eyes show signs of fatigue or dryness or if you have any of the
above symptoms, immediately discontinue use of this device and do not resume using it for at least
thirty minutes after the symptoms have subsided.
Watching 3D projection while sitting too close to the screen for an extended period of time may
damage your eyesight. The ideal viewing distance should be at least three times the screen height. It
is recommended that the viewer’s eyes are level with the screen.
Watching 3D projection while wearing 3D glasses for an extended period of time may cause a
headache or fatigue. If you experience a headache, fatigue or dizziness, stop viewing the 3D
projection and rest.
Do not use the 3D glasses for any other purpose than for watching 3D projection.
Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles,
etc.) may be physically harmful to you and may weaken your eyesight.
Viewing in 3D projection may cause disorientation for some viewers. Accordingly, DO NOT place your
3D PROJECTOR near open stairwells, cables, balconies, or other objects that can be tripped over, run
into, knocked down, broken or fallen over.
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright
laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced
without written consent of the author.
© Copyright 2022
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes no representations
or warranties with respect to the contents hereof and specically disclaims any implied warranties of
merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication
and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any
person of such revision or changes.
Trademark Recognition
Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending
applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
DLP
®
, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor
TM
is a
trademark of Texas Instruments.
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing,
LLC.
All other product names used in this manual are the properties of their respective owners and are
Acknowledged.
English
8
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15
of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can be determined by turning the device o and on is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC
regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is
granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC
RED 2014/53/EU (if product has RF function)
WEEE
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure
utmost protection of the global environment, please recycle it.
English
9
INTRODUCTION
Thank you for purchasing an Optoma 4K UHD projector. For full list of features please visit the product page on our
website, where you will also nd additional information and documentation such as voice control setup and FAQs.
Package Overview
Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items
under optional accessories may not be available depending on the model, specication and your region of
purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.
Standard accessories
IR remote control Power leadProjector Documentation
Warranty Card*
Quick start user manual
Note:
The actual remote control may vary depending on the region.
The remote control is shipped with batteries.
*For warranty Information, please visit https://www.optoma.com/support/download
For access to the setup information, user manual, warranty information, and product updates
– please scan the QR Code or visit the following URL:
https://www.optoma.com/support/download
English
10
INTRODUCTION
Product Overview
6
5 4
8
7
10
11
10
9
21 3
5
Minimum
100mm
Minimum
100mm
Minimum
100mm
Minimum
300mm
Minimum
300mm
Minimum 100mm
Note:
Do not block projector intake and exhaust vents.
When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake
and exhaust vents.
No Item No Item
1. Keypad 7. Security Bar
2. Ventilation (inlet) 8. Focus Ring
3. Ventilation (outlet) 9. Lens
4. Kensington™ Lock Port 10. IR Receiver (front and top)
5. Tilt-Adjustment Feet 11. Zoom Lever
6. Input / Output
English
11
INTRODUCTION
Connections
1 2 5 643
7
9
1011 8
No Item No Item
1.
HDMI 1 Connector
(eARC/ARC out; low latency mode)
7. Kensington
TM
Lock Port
2.
HDMI 2 Connector (pass eARC audio format
through the HDMI-1 connector)
8. Audio Out Connector
3.
HDMI 3 Connector (pass eARC audio format
through the HDMI-1 connector)
9. S/PDIF Connector
Analog Output: 2ch PCM Only
Digital Output: Dolby Digital 5.1 (AC3)
4. Power OUT (5V
1.5A) Connector (for service) 10. RS-232 Connector
5.
12V Trigger
(DC output; Volts: 12V, Amps: 0.5A Max)
11. Power Socket
6. 3D SYNC
English
12
INTRODUCTION
Keypad
10
21 3 5 6
9 78
4
No Item No Item
1. Light Source LED 6. Temp LED
2.
Power and Power LED
7.
Re-Sync
3. Menu 8. Four Directional Select Keys
4. Keystone Correction 9. Source
5. Enter 10. Information
English
13
INTRODUCTION
Remote control
16
17
18
19
20
21
22
24
23
25
26
28
27
3
2
4
5
6
7
8
12
13
14
9
10
1
11
15
No Item No Item
1. Power On 15. User2 (assignable)
2.
Re-sync 16. Source
3. Backlight 17. Aspect Ratio
4. Keystone 18. Sleep Timer
5. Contrast 19.
3D Menu On / O
6. Brightness 20. Lamp
7. CMS 21. HDR
8. Enter 22. Mode
9. Four Directional Select Keys 23. Menu
10. Return 24. Vol +
11. Vol - 25. HDMI3
12. Mute 26. HDMI2
13. HDMI1 27. User4 (assignable)
14. User1 (assignable) 28. User3 (assignable)
Note:
The actual remote control may vary depending on the region.
Some keys may have no function for models that do not support these features.
English
14
SETUP AND INSTALLATION
Installing the projector
Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration
the size and position of your screen, the location of a suitable power outlet, as well as the location and distance
between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
To determine projector location for a given screen size,
please refer to distance table on
page 45.
To determine screen size for a given distance, please refer to distance table on page 45.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
oset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table-top, ceiling mount or the following 360
°free orientation operation listed below. The projector should be horizontal and not tilted either forwards/
backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime
performance of the projector. For non-standard installation advice please contact Optoma.
English
15
SETUP AND INSTALLATION
Projector installation notice
360° free orientation operation
Allow at least 30 cm clearance around the exhaust vent.
Minimum 100mm
(3.94 inches)
Minimum 300mm
(11.81 inches)
Minimum 300mm
(11.81 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Minimum 100mm
(3.94 inches)
Ensure that the intake vents do not recycle hot air from the exhaust vent.
When operating the projector in an enclosed space, ensure that the surrounding air temperature within
the enclosure does not exceed operation temperature while the projector is running, and the air intake
and exhaust vents are unobstructed.
All enclosures should pass a certied thermal evaluation to ensure that the projector does not recycle
exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the
acceptable operation temperature range.
English
16
SETUP AND INSTALLATION
Connecting sources to the projector
1
6
2
3
4
89
5
7
No Item No Item No Item
1. HDMI Cable 4. 12V DC Jack 7. S/PDIF Out Cable
2. HDMI Dongle 5. 3D Emitter Cable 8. RS-232 Cable
3. USB Power Cable 6. Audio Out Cable 9. Power Cord
Note: To ensure the best image quality and avoid connection errors, we recommend the use of Premium HDMI
cables. For the cable lengths longer than 20-25 feet, we strongly recommend using Active Fiber HDMI cables.
English
17
SETUP AND INSTALLATION
Adjusting the projector image
Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Zoom and focus
To adjust the image size turn the zoom lever clockwise or counterclockwise to increase or decrease
the projected image size.
To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.
Zoom Lever
Focus Ring
Note: The projector will focus at a distance of 1.2m to 9.9m.
English
18
SETUP AND INSTALLATION
Remote setup
Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of dierent types. Dierent types of batteries have dierent characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as the are depleted. Chemicals that leak from batteries that come in contact
with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
English
19
SETUP AND INSTALLATION
Eective range
Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an
angle within 30° perpendicular to the projector’s top or front IR remote control sensor to function correctly. The
distance between the remote control and the sensor should not be longer than 6 meters (~19 feet).
Note: When pointing the remote control directly (0 degrees angle) on the IR sensor, the distance between the
remote control and the sensor should not be longer than 8 meters (~26 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined on directly by sunlight or
uorescent lamps.
Please keep the remote control at least 2 meters away from uorescent lamps or the remote control
may malfunction.
If the remote control is close to Inverter-Type uorescent lamps, it might become ineective
intermittently.
If the remote control and the projector are too close to each other, the remote control might not
function.
When you aim at the screen, the eective distance is less than 7 meters from the remote control to the
screen and reecting the IR beams back to the projector. However, the eective range might change
according to screens.
Approx. ±15°
Approx. ±15°
English
20
USING THE PROJECTOR
Powering on / o the projector
or
Powering on
1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will
turn red.
2. Turn on the projector by pressing the “
” button on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing
blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.
English
21
USING THE PROJECTOR
Powering o
1. Turn o the projector by pressing the “
” button on the projector keypad or the remote control.
2. The following message will be displayed:
Power O
Power O?
Press power key again.
3. Press the “ ” button again to conrm, otherwise the message will disappear after 15 seconds. When
you press the “ ” button for the second time, the projector will shut down.
4. The cooling fans will continue to operate for about 10 seconds for the cooling cycle and the On/
Standby LED will ash blue. When the On/Standby LED turns solid red, this indicates the projector has
entered standby mode. If you wish to turn the projector back on, you must wait until the cooling cycle
has nished and the projector has entered standby mode. When the projector is in standby mode,
simply press the “
” button again to turn on the projector.
5. Disconnect the power lead from the electrical outlet and the projector.
Note: It is not recommended that the projector is turned on immediately, right after a power o procedure.
Selecting an input source
Turn on the connected source that you want to display on the screen, such as computer, notebook, video player,
etc. The projector will automatically detect the source. If multiple sources are connected, press the “
” button on
the projector keypad or the remote control to select the desired input.
or
English
22
USING THE PROJECTOR
Projector settings menu (OSD)
Press “
” on the remote control, select the OSD menu “ ” to review projector information or manage various
settings related to the image, display, 3D, audio, and setup.
General menu navigation
Main Menu
Sub Menu Settings
Navigation guide
Display
Image Settings
Enhanced Gaming Off
3D
Aspect Ratio 4:3
Zoom 0
Image Shift
Geometric Correction
Select Exit Enter
1. When OSD is displayed, use the “Up“ and “Down” navigation buttons to select any item in the main
menu. After making a selection on a particular page, press “ ” on the keypad or “ ” on the remote
control to enter submenu.
2. Press the “Left” and “Right” button to select the desired menu item. Then press “
” on the keypad or
“ ” on the remote control to open its sub menu.
3. Press the “Up” and “Down” button to select the desired item in the sub menu.
4. Press “
” on the keypad or “ ” on the remote control to enable or disable a setting or press the “Left”
and “Right” button to adjust a value.
5. Select the next item to be adjusted in the sub menu and modify as described above.
6. To exit, press “
” (repeatedly if necessary). The OSD menu will close and the projector will
automatically save the new settings.
English
23
USING THE PROJECTOR
OSD Menu tree
Note: The OSD menu tree items and features are subject to models and region. Optoma reserves the right to add
or remove items to improve product performance without notice.
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Display Mode
[Data] Mode
Cinema
HDR
HLG
HDR SIM.
Game
Reference
Bright
User
3D
[Video] Mode
Cinema
Film
HDR
HLG
HDR SIM.
Game
Reference
Bright
User
3D
ISF Day
ISF Night
ISF 3D
Wall Color
O (Default)
Blackboard
Light Yellow
Light Green
Light Blue
Pink
Gray
Dynamic Range
HDR / HLG
O
Auto [Default]
HDR Picture
Mode
Bright
Standard [Default]
Film
Detail
HLG Picture
Mode
Bright
Standard [Default]
Film
Detail
HDR Brightness 0 ~ 10
English
24
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display Image Settings
Brightness -50 ~ 50
Contrast -50 ~ 50
Sharpness 1 ~ 15
Color -50 ~ 50
Tint -50 ~ 50
Gamma
Film
Video
Graphics
Standard(2.2)
1.8
2.0
2.4
Color Settings
BrilliantColor™ 1 ~ 10
Color
Temperature
Warm
Standard
Cool
Cold
Color Matching
Color
Red [Default]
Green
Blue
Cyan
Yellow
Magenta
White(*)
Hue / R(*) -50 ~ 50 [Default: 0]
Saturation / G(*) -50 ~ 50 [Default: 0]
Gain / B(*) -50 ~ 50 [Default: 0]
Reset
Cancel [Default]
Yes
Exit
RGB Gain/Bias
Red Gain -50 ~ 50
Green Gain -50 ~ 50
Blue Gain -50 ~ 50
Red Bias -50 ~ 50
Green Bias -50 ~ 50
Blue Bias -50 ~ 50
Reset
Cancel [Default]
Yes
Exit
Color Space
[Not HDMI Input]
Auto [Default]
RGB
YUV
[HDMI Input]
Auto [Default]
RGB(0~255)
RGB(16~235)
YUV
English
25
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Display
Image Settings
Brightness
Mode
DynamicBlack
Eco.
Constant Power
Power =100%/95%/90%/85%/80%/
75%/70%/65%/60%/55%/50%
Constant Luminance
Power=85%/80%/75%/70%
Reset
Enhanced
Gaming
O
On
3D
3D Mode
O [Default]
On
3D Sync Invert
On
O [Default]
Aspect Ratio
4:3
16:9
21:9
32:9
V-Stretch (except SVGA XGA model)
Full screen
Auto
Zoom -5 ~ 25 [Default: 0]
Image Shift
H
-100 ~ 100 [Default: 0]
V
-100 ~ 100 [Default: 0]
Geometric
Correction
Four Corner
H Keystone -30 ~ 30 [Default: 0]
V Keystone -30 ~ 30 [Default: 0]
Auto V Keystone
O
On [Default]
3x3 Warp
Reset
Audio
Audio Mode
Speaker / Audio Out [Default]
SPDIF / eARC
Mute
O [Default]
On
Volume 0 ~ 10 [Default: 5]
Setup Projection
Front
[Default]
Rear
Ceiling-top
Rear-top
English
26
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Power Settings
Direct Power On
O [Default]
On
Signal Power
On
O [Default]
On
Auto Power O
(min.)
0 ~ 180 (5 min increments)
[Default: 20]
Sleep Timer
(min.)
0 ~ 990 (30 min increments)
[Default: 0]
Always On
No [Default]
Yes
Power Mode
(Standby)
Active
Eco [Default]
USB Power
(Standby)
O [Default]
On
Security
Security
O
On
Security Timer
Month
Day
Hour
Change
Password
[Default: 1234]
HDMI Link
Settings
HDMI Link
O [Default]
On
Inclusive of TV
No [Default]
Yes
Power On Link
Mutual [Default]
PJ --> Device
Device --> PJ
Power O Link
O [Default]
On
Test Pattern
Green Grid
Magenta Grid
White Grid
White
O
Remote
Settings
IR Function
On [Default]
O
Projector ID 00 ~ 99
12V Trigger
On
O [Default]
English
27
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup Options
Language
English [Default]
Deutsch
Français
Italiano
Español
Português
繁體中文
簡体中文
日本語
한국어
Русский
Menu Settings
Menu Location
Top Left
Top Right
Center [Default]
Bottom Left
Bottom Right
Menu Timer
O
5sec
10sec [Default]
Auto Source
O [Default]
On
Input Source
HDMI1
HDMI2
HDMI3
Input Name
HDMI1 Default [Default] / Custom
HDMI2 Default [Default] / Custom
HDMI3 Default [Default] / Custom
High Altitude
O [Default]
On
Display Mode
Lock
O [Default]
On
Keypad Lock
O [Default]
On
Information Hide
O [Default]
On
Logo
Default [Default]
Neutral
English
28
USING THE PROJECTOR
Main
Menu
Sub Menu 1 Sub Menu 2 Sub Menu 3 Sub Menu 4 Values
Setup
Options
Background
Color
None [Default for Video/Pro-AV)
Blue [Default for Data model)
Red
Green
Gray
Reset
Reset OSD
Cancel [Default]
Yes
Reset to Default
Cancel [Default]
Yes
Info
Regulatory
Serial Number
Source
Resolution 00x00
Refresh Rate 0.00Hz
Display Mode
Projector ID 00~99
Brightness
Mode
FW Version
System
MCU
English
29
USING THE PROJECTOR
Display menu
Image settings menu
Display Mode
There are several predened display modes that you can choose from to suit your viewing preference. Each mode
has been ne-tuned by our expert color team to ensure superior color performance for wide range of content.
Cinema/Film: Provides the best balance of detail and colors for watching movies.
HDR: Delivers color that is highly accurate, exceeding the color performance of the other display
modes. This mode decodes and displays High Dynamic Range (HDR) content for the deepest blacks,
brightest whites, and vivid cinematic color using REC.2020 color gamut.
Note: This mode will be automatically enabled if HDR is set to Auto (and HDR content is sent to
projector – 4K UHD Blu-ray, 1080p/4K UHD HDR games, 4K UHD streaming video). While HDR
mode is active, all other display modes will be greyed out.
HLG: Delivers color that is highly accurate, exceeding the color performance of the other display
modes. This mode decodes and displays Hybrid Log Gamma (HLG) content for the deepest blacks,
brightest whites, and vivid cinematic color using REC.2020 color gamut.
Note:
This mode will be automatically enabled if HDR is set to Auto (and HLG content is sent to
projector). While HLG mode is active, all other display modes will be greyed out.
Only HDMI1 and HDMI2 support HLG.
HDR SIM.: Enhances non-HDR content with simulated High Dynamic Range (HDR). Choose this
mode to enhance gamma, contrast, and color saturation for non-HDR content (720p and 1080p
Broadcast/Cable TV, 1080p Blu-ray, non-HDR Games, etc).
Note: This mode can ONLY be used with non-HDR content.
Game: Optimises your projector for maximum contrast and vivid colors allowing you to see shadow
detail when playing video game.
Note: This display mode cannot be used when viewing HDR video content or playing HDR games.
To enable low input lag, please ensure the PC or console is connected to HDMI1 and enable
Enhanced Game Mode.
Reference: This mode reproduces image colors as close as possible to the way the movie director
intended. Color, color temperature, brightness, contrast and gamma settings are all congured to
Rec.709 color gamut. Select this mode for the most accurate color reproduction when watching
movies.
Bright: This mode is suitable for environments where extra-high brightness is required, such as using
the projector in well-lit rooms.
User: Memorizes user dened setting, tailor your own display mode settings.
3D: Optimized settings for watching 3D content.
Note: To experience the 3D eect, you will need to have compatible DLP Link 3D glasses. See 3D
section for more information.
ISF Day: Save professionally calibrated picture settings optimized for day time viewing.
ISF Night: Save professionally calibrated picture settings optimized for night time viewing.
ISF 3D: Save professionally calibrated picture settings optimized for 3D viewing.
Note:
ISF modes need to be professionally calibrated. To unlock and access ISF modes, you will need to
enter the following code using the remote or keypad: Power > Up > Down > Up > Up.
ISF modes are available only in Video mode.
If HDR or HLG are enabled, Cinema, Game, Reference, and Bright options are grayed out.
English
30
USING THE PROJECTOR
Wall Color
Designed to adjust the colors of the projected image when projecting on to a wall without a screen. Each mode
has been ne-tuned by our expert color team to ensure superior color performance. There are several predened
modes that you can choose from to suit the color of your wall. Select between o, blackboard, light yellow, light
green, light blue, pink, and gray.
Note: For accurate color reproduction, we recommend using a screen.
Dynamic Range
Congure the High Dynamic Range (HDR) setting and its eect when displaying video from 4K Blu-ray players and
streaming devices.
HDR/HLG
O: Turn o HDR or HLG processing. When set to O, the projector will NOT decode HDR or HLG
content.
Auto: Auto detect HDR signal.
HDR Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching and highest level
of detail.
HLG Picture Mode
Bright: Choose this mode for brighter more saturated colors.
Standard: Choose this mode for natural looking colors with a balance of warm and cool tones.
Film: Choose this mode for improved detail and image sharpness.
Detail: The signal comes from OETF conversion to achieve the best color matching and highest level
of detail.
HDR Brightness
Adjust the brightness of HDR Content. The impact of this setting varies based on content. Adjusting the
setting to near maximum or maximum can result in a loss of image detail (content dependant).
Brightness
Adjust the brightness of the image.
Contrast
The contrast controls the degree of dierence between the lightest and darkest parts of the picture.
Sharpness
Adjust the sharpness of the image.
Color
Adjust a video image from black and white to fully saturated color.
Tint
Adjust the color balance of red and green.
Gamma
Set up gamma curve type. After the initial setup and ne tuning is completed, utilize the Gamma Adjustment steps
to optimize your image output.
English
31
USING THE PROJECTOR
Film: For home theater.
Video: For video or TV source.
Graphics: For PC / Photo source.
Standard(2.2): For standardized setting.
1.8 / 2.0 / 2.4: For specic PC / Photo source. 2.4 can also be used for video content and games to
enable deeper contrast.
Note: These options are only available if the 3D mode function is disabled.
Color Settings
Congure the color settings.
BrilliantColor
TM
: This adjustable item utilizes a new color-processing algorithm and enhancements to
enable higher brightness while providing true, more vibrant colors in picture.
Color Temperature: Select a color temperature from Warm, Standard, Cool, and Cold.
Color Matching: Select the following options:
± Color: Adjust the red (R), green (G), blue (B), cyan (C), yellow (Y), magenta (M), and white (W)
level of the image.
± Hue: Adjust the color balance of red and green.
± Saturation: Adjust a video image from black and white to fully saturated color.
± Gain: Adjust the image brightness.
± Reset: Return the factory default settings for color matching.
± Exit: Exit the “Color Matching” menu.
RGB Gain/Bias: This settings allows to congure the brightness (gain) and contrast (bias) of an
image.
± Reset: Return the factory default settings for RGB gain/bias.
± Exit: Exit the “RGB Gain/Bias” menu.
Color Space (HDMI1 only): Select an appropriate color matrix type from the following: Auto, RGB(0-
255), RGB(16-235), and YUV.
Color Space (HDMI2/Component only): Select an appropriate color matrix type from the following:
Auto, RGB(0-255), and RGB(16-235).
Note: Color Space function is not supported if the source is HDMI3.
Brightness Mode
Manually choose the power percentage for brightness mode and adjust the brightness mode settings.
DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast
performance.
Eco.: Choose “Eco.” to dim the projector laser diode which will lower power consumption and extend
the laser diode life.
Constant Power: Choose the power percentage for brightness mode.
Constant Luminance: Constant Luminance varies the strength of LD luminance such that the
brightness maintains consistent with time.
Reset
Return the factory default settings for color settings.
English
32
USING THE PROJECTOR
Enhanced Gaming menu
Enable this feature to reduce response times (input latency) during gaming to 4.5ms for HDMI Port 1. All geometry
settings (example: Keystone, Warping) will be disabled when Enhanced Gaming Mode is enabled. Additional
information below.
Note:
Only supported on HDMI1.
4.5ms is only supported with 1080p 240Hz signals when using a High-Performance Gaming PC with
appropriate Video Card.
Signal input lag table is below (values can vary slightly): 4K120Hz Signal is NOT supported.
Source Timing Enhanced Gaming Output Timing Output Resolution Input Lag
1080p60 On 1080p240Hz 1080p 17ms
1080p120 On 1080p240Hz 1080p 8.6ms
1080p240 On 1080p240Hz 1080p 4ms
4K60 On 4K60 4K 16.9ms
1080p60 O 4K60 1080p 33.8ms
1080p120 O 4K60 1080p 17ms
1080p240 O 4K60 1080p 8.6ms
4K60 O 4K60 4K 33.7ms
Please note that when “Enhanced Gaming” mode is enabled – 3D Playback, Aspect Ratio, Zoom,
Image Shift, and Geometric Correction functions are disabled automatically. These functions and
settings will be restored when “Enhanced Gaming Mode” is disabled.
3D menu
3D Mode
Use this option to enable/disable the 3D mode function.
3D Sync Invert
Use this option to enable/disable the 3D sync invert function.
Aspect Ratio menu
Select the aspect ratio of the displayed image between the following options:
4:3:
This format is for 4:3 input sources.
16:9/21:9/32:9:
These formats are for 16:9/21:9/32:9 input sources, like HDTV and DVD enhanced for
Wide screen TV.
V-Stretch:
This mode stretches a 2.35:1 image vertically removing the black bars.
Full Screen:
Use this special 2.0:1 aspect ratio to display both 16:9 and 2.35:1 aspect ratio movies
without black bars at the top and bottom of the screen.
Auto: Automatically selects the appropriate display format.
Note:
Detailed informations about V-Stretch mode:
± Some Letter-Box Format DVDs are not enhanced for 16x9 TVs. In this situation, the image will not
look right when displaying image in 16:9 mode. In this situation, please try to use the 4:3 mode to
view the DVD. If the content is not 4:3, there will be black bars around the image in 16:9 display.
For this type of content, you can use V-Stretch mode to ll the image on the 16:9 display.
± If you use an external anamorphic lens, this V-Stretch mode also allows you to watch a 2.35:1
content (include Anamorphic DVD and HDTV lm source) that supports anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Light
source power and vertical resolution are fully utilized.
English
33
USING THE PROJECTOR
To use the Full Screen format, do the following:
a) Set the screen aspect ratio to 2.0:1.
b) Select “Full Screen” format.
c) Align the projector image correctly on the screen.
4K UHD scaling table:
16 : 9 screen 480i/p 576i/p 720p 1080i/p 2160p
4x3 Scale to 2880 x 2160.
16x9 Scale to 3840 x 2160.
21x9 Scale to 3840 x 1644
32x9 Scale to 3840 x 1080
V-Stretch Get the central 3840 x 1620 image, and then scale to 3840 x 2160 for display
Full screen
Scale to 5068 x 2852 (132% enlarged), then get the central 3840 x 2160 image to display
Note: Use this format to hide subtitles of the 2.35:1 source and ll 100% of UHD DMD.
Auto -If source is 4:3, auto resize to 2880 x 2160
-If source is 16:9 auto resize to 3840 x 2160
-If source is 15:9 auto resize to 3600 x 2160
-If source is 16:10 auto resize to 3456 x 2160
Auto mapping rule:
Input resolution Auto/Scale
H-resolution V-resolution 3840 2160
4:3
800 600 2880 2160
1024 768 2880 2160
1280 1024 2880 2160
1400 1050 2880 2160
1600 1200 2880 2160
Wide Laptop
1280 720 3840 2160
1280 768 3600 2160
1280 800 3456 2160
SDTV
720 576 2700 2160
720 480 3240 2160
HDTV
1280 720 3840 2160
1920 1080 3840 2160
English
34
USING THE PROJECTOR
Zoom menu
Use to reduce or magnify an image on the projection screen.
Note: Zoom settings are retained on power cycle of the projector.
Image Shift menu
Adjust the projected image position horizontally (H) or vertically (V).
Note: The image size will reduce slightly when adjusting the horizontal and vertical keystone.
Geometric Correction menu
Four Corner: This setting allows the projected image to be adjusted from each corner to make a
square image when the projection surface is not level.
Note: While adjusting the Four Corner, the Zoom, Aspect Ratio, and Image Shift menus are disabled.
To enable Zoom, Aspect Ratio, and Image Shift, reset the Four Corner settings to the factory
defaults.
H Keystone: Adjust image distortion horizontally and make a squarer image. Horizontal keystone is
used to correct a keystoned image shape in which the left and right borders of the image are unequal
in length. This is intended for use with horizontally on-axis applications.
V Keystone: Adjust image distortion vertically and make a squarer image. Vertical keystone is used to
correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is
intended when for use with vertically on-axis applications.
Auto V Keystone: Automatically correct vertical keystone error.
3x3 Warp: Use 3x3 (9 correction points) Warping to adjust the image to align with the border of the
projection surface (screen) or to eliminate image distortion (cause by an uneven surface).
Reset: Return the factory default settings for geometric connection.
Note: When using Enhanced Game Mode, 4 Corner, Horizontal Keystone, Vertical Keystone, and 3x3 warping
will be disabled as the settings impact input lag. If you plan to use Enhanced Game Mode for low input lag,
we strongly recommend setting up the projector without the use for 4 Corner, Horizontal Keystone, Vertical
Keystone, and 3x3 warping.
English
35
USING THE PROJECTOR
Audio menu
Audio Mode
Select the appropriate audio mode.
Audio Mode
Input Source
HDMI1/HDMI2/HDMI3
Speaker/Audio out PCM
SPDIF/eARC
SPDIF/ARC: PCM, Dolby Digital, DTS
eARC: PCM, Dolby Digital/+, DTS-HD
Note:
The selected audio mode applies to all sources:
The projector detects automatically Speaker / Audio Out mode.
eARC function is supported with both HDMI1.
If the current input audio format is not PCM, system will resync after audio mode has changed on the
source device.
If the audio output device does not support the input source audio format, then audio output will be
abnormal.
Mute
Use this option to temporarily turn o the sound.
O: Choose “O” to turn mute o.
On: Choose “On” to turn mute on.
Note: Mute function aects both internal and external speaker volume.
Volume
Adjust the volume level.
English
36
USING THE PROJECTOR
Setup menu
Projection
Select the preferred projection between front, rear, ceiling-top, and rear-top.
Power Settings
Congure power settings.
Direct Power On: Choose “On” to activate Direct Power mode. The projector will automatically power
on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the
remote control.
Signal Power O: Choose “On” to activate Signal Power mode. The projector will automatically power
on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the
remote control.
Note:
This function is applicable with VGA and HDMI sources.
Signal Power On can only be used for one HDMI port at a time. Signal Power On will not work
if there is more than one source device connected to the projector. If more than one source
device will be used with Signal Power On, please use a HDMI Switch.
Auto Power O (min): Sets the countdown timer interval. The countdown timer will start, when there
is no signal being sent to the projector. The projector will automatically power o when the countdown
has nished (in minutes).
Sleep Timer (min.): Congure the sleep timer.
Sleep Timer (min.): Sets the countdown timer interval. The countdown timer will start, with or
without a signal being sent to the projector. The projector will automatically power o when the
countdown has nished (in minutes).
Note: The Sleep Timer is reset every time when the projector is powered o.
Always On: Check to set the sleep timer always on.
Power Mode (Standby): Set the power mode setting.
Active: Choose “Active” to return to normal standby.
Eco: Choose “Eco.” to save power dissipation further < 0.5W.
USB Power (Standby): Enable or disable the USB power function when the projector is in standby
mode.
Security
Congure security settings.
Security: Enable this function to prompt for a password before using the projector.
O: Choose “O” to be able to switch on the projector without password verication.
On: Choose “On” to use security verication when the turning on the projector.
Note: The default password is 1234.
Security Timer: Can be select the time (Month/Day/Hour) function to set the number of hours the
projector can be used. Once this time has elapsed you will be requested to enter your password again.
Change Password: Use to set or modify the password that is prompted when turning the projector on.
English
37
USING THE PROJECTOR

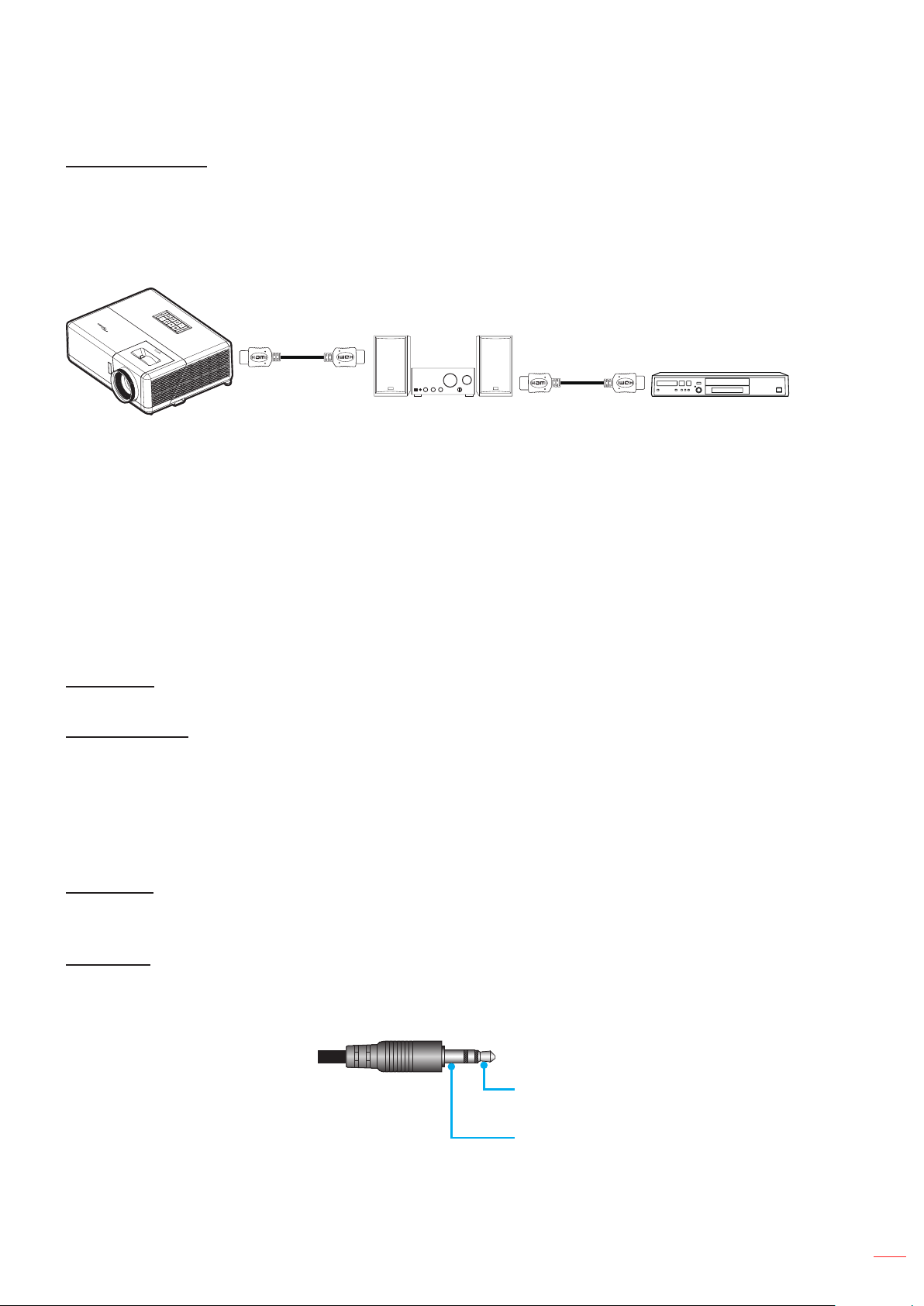

HDMI Link Settings
Note: When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them
on the same power on or power o status using the HDMI Link control feature in the projector’s OSD. This
lets one device or multiple devices in a group power on or power o via HDMI Link Feature in a typical
conguration, your DVD player may be connected to the projector through an amplier or home theater
system.
HDMI
Amplier
HDMI
DVD Player
HDMI Link: Enable/disable the HDMI Link function.
Inclusive of TV: If the settings is set to “Yes” then the power on and power o link options are
available.
Power On Link: CEC power on command.
Mutual: Both projector and CEC device will be turned on simultaneously.
PJ
Device: The CEC device will be turned on only after the projector is switched on.
Device
PJ: The projector will be switched on only after the CEC device is turned on.
Power O Link: Enable this function to let both HDMI Link and projector to be automatically turned o
at the same time.
Test Pattern
Select the test pattern from green grid, magenta grid, white grid, white, or disable this function (o).
Remote Settings
IR Function: Set the IR function setting.
On: Choose “On”, the projector can be operated by the remote control from top and front IR
receivers.
O: Choose “O”, the projector can’t be operated by the remote control. By selecting “O”, you
will be able to use the Keypad keys.
Projector ID
ID denition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.
12V Trigger
Use this function to enable or disable the trigger.
Note: 3.5mm mini jack that outputs 12V 500mA (max.) for relay system control.
+12V
GND
On: Choose “On” to enable the trigger.
O: Choose “O” to disable the trigger.
English
38
USING THE PROJECTOR
Options
Congure the projector options.
Language: Select the multilingual OSD menu between English, German, French, Italian, Spanish,
Portuguese, Traditional Chinese, Simplied Chinese, Japanese, Korean, and Russian.
Menu Settings: Set the menu location on the screen and congure menu timer settings.
Menu Location: Select the menu location on the display screen.
Menu Timer: Set the duration where the OSD menu stays visible on the screen.
Auto Source: Choose this option to let the projector automatically nd an available input source.
Input Source: Select the input source between HDMI1, HDMI2, and HDMI3.
Input Name: Use to rename the input function for easier identication. The available options include
HDMI1, HDMI2, and HDMI3.
High Altitude: When “On” is selected, the fans will spin faster. This feature is useful in high altitude
areas where the air is thin.
Display Mode Lock: Choose “On” or “O” to lock or unlock adjusting display mode settings.
Keypad Lock: When the keypad lock function is “On”, the Keypad will be locked. However, the
projector can be operated by the remote control. By selecting “O”, you will be able to reuse the
Keypad.
Information Hide: Enable this function to hide the information message.
O: Choose “O” to show the “searching” message.
On: Choose “On” to hide the info message.
Logo: Use this function to set the desired startup screen. If changes are made, they will take eect the
next time the projector is powered on.
Default: The default startup screen.
Neutral: Logo is not displayed on startup screen.
Background: Use this function to display a blue, red, green, gray color, logo, or none when no signal
is available.
Reset
Reset the projector.
Reset OSD: Return the OSD menu settings to factory default.
Reset to Default: Return all settings to factory default.
English
39
USING THE PROJECTOR
Info menu
View the projector information as listed below:
Regulatory
Serial Number
Source
Resolution
Refresh Rate
Display Mode
Projector ID
Brightness Mode
FW Version
English
40
ADDITIONAL INFORMATION
Compatible resolutions
Video compatibility
Signal Resolution
SDTV 480p
HDTV 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60Hz)
UHD 2160p (24/50/60Hz)
Video timing in details:
Signal Resolution Refresh Rate (Hz) Notes
SDTV(480p) 640 x 480 60
HDTV(720p) 1280 x 720 50/60
HDTV(1080I) 1920 x 1080 50/60
HDTV(1080p) 1920 x 1080 24/50/60
HDTV(1080p) 1920 x 1080 240
Only For HDMI1,HDMI2
WQHD(1440p) 2560 x 1440 120
UHD(2160p) 3840 x 2160 24/50/60 For 4K UHD
Computer compatibility
VESA standards (Computer Signal (Analog RGB compatibility)):
Signal Resolution Refresh Rate (Hz) Notes for Mac
SVGA 800 x 600 56/60/72 Mac 60/72
XGA 1024 x 768 60/70/75 Mac 60/70/75
HDTV(720p) 1280 x 720 50/60 Mac 60
WXGA 1280 x 768 60/75 Mac 60/75
WXGA 1280 x 800 60 Mac 60
WXGA 1366 x 768 60 Mac 60
WXGA+ 1440 x 900 60 Mac 60
SXGA 1280 x 1024 60/75 Mac 60/75
UXGA 1600 x 1200 60
HDTV(1080p) 1920 x 1080 24/50/60 Mac 60
WUXGA 1920 x 1200 (*) 60 Mac 60
Note: (*)1920 x 1200 @60Hz only supports RB(reduced blanking).
English
41
ADDITIONAL INFORMATION
Timing table for PC:
Signal Resolution
Frequency H. Refresh Rate
(KHz) (Hz) Video Digital Note
SVGA 800 x 600 35.2 56.3 N/A √ 56Hz
SVGA 800 x 600 37.9 60.3 N/A √ 60Hz
SVGA 800 x 600 46.9 75 N/A √ N/A
SVGA 800 x 600 48.1 72.2 N/A √ 72Hz
SVGA 800 x 600 53.7 85.1 N/A √ 85Hz
SVGA 832 x 624 N/A 75 N/A √ N/A
XGA 1024 x 768 48.4 60 N/A √ N/A
XGA 1024 x 768 56.5 70.1 N/A √ 70Hz
XGA 1024 x 768 60 75 N/A √ N/A
XGA 1024 x 768 68.7 85 N/A √ N/A
XGA 1024 x 768 N/A 120 N/A N/A N/A
SXGA 1152 x 864 N/A 75 N/A √ N/A
HD720 1280 x 720 N/A 50 N/A √ N/A
HD720 1280 x 720 N/A 60 N/A √ N/A
HD720 1280 x 720 92.62 120 N/A N/A N/A
WXGA 1280 x 768 47.4 60 N/A √ N/A
WXGA 1280 x 768 N/A 75 N/A √ N/A
WXGA 1280 x 768 N/A 85 N/A √ N/A
WXGA-800 1280 x 800 N/A 60 N/A √ N/A
SXGA 1280 x 1024 64 60 N/A √ N/A
SXGA 1280 x 1024 80 75 N/A √ N/A
SXGA 1280 x 1024 91.1 85 N/A √ N/A
SXGA+ 1400 x 1050 N/A 60 N/A N/A N/A
UXGA 1600 x1200 75 60 N/A √ N/A
HD1080 1920 x 1080 N/A 24 N/A √ N/A
HD1080 1920 x 1080 N/A 50 N/A √ N/A
HD1080 1920 x 1080 N/A 60 N/A √ N/A
WUXGA 1920 x 1200 N/A 60 N/A √ RB
HDTV 1920 x 1080i N/A 50 √ √ N/A
HDTV 1920 x 1080i N/A 60 √ √ N/A
HDTV 1920 x 1080p N/A 24 √ √ N/A
HDTV 1920 x 1080p N/A 50 √ √ N/A
HDTV 1920 x 1080p N/A 60 √ √ N/A
HDTV 1280 x 720 45 60 √ N/A N/A
HDTV 1280 x 720p N/A 50 √ √ N/A
HDTV 1280 x 720p N/A 60 √ √ N/A
SDTV 720 x 480p N/A 60 N/A √ N/A
Note: “√“ means the resolution is supportred, “N/A” means the resolution is not supported.
English
42
ADDITIONAL INFORMATION
Computer Compatibility for MAC
Resolution Hz
Macbook
Compatibility
Macbook Pro
(Intel) Compatibility
Power Mac G5
Compatibility
Power Mac G4
Compatibility
Digital Digital Digital Digital
800 x 600 60 √ √ N/A √
800 x 600 72 √ √ N/A √
800 x 600 75 √ √ N/A √
800 x 600 85 √ N/A N/A √
1024 x 768 60 √ √ N/A √
1024 x 768 70 √ √ N/A √
1024 x 768 75 √ √ N/A √
1024 x 768 85 √ √ N/A √
1280 x 720 60 √ √ N/A √
1280 x 768 60 √ √ N/A N/A
1280 x 768 75 N/A N/A N/A √
1280 x 768 85 N/A N/A N/A N/A
1280 x 800 60 N/A N/A N/A √
1280 x 1024 60 √ N/A N/A √
1280 x 1024 75 √ N/A N/A √
1920 x 1080 60 √ N/A N/A √
1920 x 1200 (*) 60 √ N/A N/A √
3840 x 2160 60 N/A N/A N/A N/A
Note:
(*) 1920 x 1200 @ 60Hz only supports RB (reduced blanking).
“√“ means the resolution is supportred, “N/A” means the resolution is not supported.
Input signal for HDMI
Signal Resolution Refresh Rate (Hz) Notes for Mac
SVGA 800 x 600 60/72/85/120 Mac 60/72/85
XGA 1024 x 768 60/70/75/85/120 Mac 60/70/75/85
SDTV(480P) 640 x 480 60
HDTV(720p) 1280 x 720 50/60 Mac 60
WXGA 1280 x 768 60/75/85 Mac 75
WXGA 1280 x 800 60/120 Mac 60
WXGA(*2) 1366 x 768 60
WXGA+ 1440 x 900 60/120(RB) Mac 60
SXGA 1280 x 1024 60/75/85 Mac 60/75
SXGA+ 1400 x 1050 60/85
UXGA 1600 x 1200 60/65/70/75/85
HDTV(1080I) 1920 x 1080 50/60
HDTV(1080p) 1920 x 1080 24/30/50/60/120 Mac 60
HDTV(1080p) 1920 x 1080 240(*3) Mac 60
WUXGA 1920 x 1200(*1) 60 Mac 60RB
WQHD 2560 x 1440 60RB/120
UHD(2160p) 3840 x 2160 24/30/50/60 Mac 24/30
UHD(2160p) 4096 x 2160 24/30/50/60 Mac 24
English
43
ADDITIONAL INFORMATION
Note:
(*1) 1920 x 1200 @ 60Hz only supports RB(reduced blanking).
(*2) Windows 10 standard timing.
(*3) Only supported with HDMI1 and HDMI2.
3D Supported Timing
HDMI1.4a 3D Timing for Blue-Ray 3D
Signal Timing Supported Port
720p (Frame Packing) 1280 x 720 @ 50Hz HDMI1, HDMI2, HDMI3
720p (Frame Packing) 1280 x 720 @ 60Hz HDMI1, HDMI2, HDMI3
1080p (Frame Packing) 1920 x 1080 @ 23.98/24Hz HDMI1, HDMI2, HDMI3
720p (Top and Bottom) 1280 x 720 @ 50Hz HDMI3
720p (Top and Bottom) 1280 x 720 @ 60Hz HDMI3
1080p (Top and Bottom) 1920 x 1080 @ 23.98/24Hz HDMI3
1080i(Side by Side(Half)) 1920 x 1080 @ 50(25)Hz HDMI3
1080i(Side by Side(Half)) 1920 x 1080 @ 60(30)Hz HDMI3
PC 3D Timing
Signal Timing Supported Port
Frame Sequential 800 x 600 @ 120Hz HDMI1, HDMI2, HDMI3
Frame Sequential 1024 x 768 @ 120Hz HDMI1, HDMI2, HDMI3
Frame Sequential 1280 x 800 @ 120Hz HDMI1, HDMI2, HDMI3
Frame Sequential 1920 x 1080 @ 120Hz HDMI1, HDMI2, HDMI3
Extended Display Identication Data (EDID) tables
Digital signal (HDMI 2.0)
Digital Native resolution: 3840 x 2160 @ 60Hz
B0/Established
Timing
B0/Standard Timing B0/Standard Timing B1/Video Mode B1/Detail Timing
800 x 600 @ 56Hz 1280 x 720 @ 60Hz 3840 x 2160 @
60Hz (default)
1920 x 1080p @ 120Hz 16:9 2560 x 1440 @ 120Hz
800 x 600 @ 72Hz 1280 x 800 @ 60Hz 720 x 480p @ 60Hz 4:3 1920 x 1080 @ 240Hz
800 x 600 @ 75Hz 1280 x 1024 @ 60Hz 1920 x 1080i @ 60Hz 16:9
832 x 624 @ 75Hz 1920 x 1200 @ 60Hz 1920 x 1080i @ 50Hz 16:9
1024 x 768 @ 60Hz 800 x 600 @ 120Hz 1920 x 1080p @ 60Hz 16:9
1024 x 768 @ 70Hz 1024 x 768 @ 120Hz 1920 x 1080p @ 50Hz 16:9
1024 x 768 @ 75Hz 1280 x 800 @ 120Hz 1920 x 1080p @ 24Hz 16:9
1280 x 1024 @ 75Hz
3840 x 2160 @ 24Hz 16:9
1152 x 870 @ 75Hz 3840 x 2160 @ 25Hz 16:9
3840 x 2160 @ 30Hz 16:9
3840 x 2160 @ 50Hz 16:9
3840 x 2160 @ 60Hz 16:9
4096 x 2160 @ 24Hz
4096 x 2160 @ 25Hz
4096 x 2160 @ 30Hz
4096 x 2160 @ 50Hz
English
44
ADDITIONAL INFORMATION
B0/Established
Timing
B0/Standard Timing B0/Standard Timing B1/Video Mode B1/Detail Timing
4096 x 2160 @ 60Hz
720 x 480p @ 60Hz 16:9
1280 x 720p @ 60Hz 16:9
1280 x 720p @ 50Hz 16:9
720 x 576p @ 60Hz 16:9
Note:
Support 1920 x 1080 @ 50Hz.
1920 x 1080 @ 240Hz is supported only with HDMI1 and HDMI2.
English
45
ADDITIONAL INFORMATION
Image size and projection distance
Diagonal
length
(inch)
size of
16:9
Screen
Screen Size W x H Projection Distance (D)
Oset (Hd)
(m) (inch) (m) (feet)
Width Height Width Height Wide Tele Wide Tele (m) (feet)
30 0.66 0.37 26.15 14.71 - 1.1 - 43.4 0.02 0.06
50 1.11 0.62 43.58 24.51 1.7 1.8 65.4 72.3 0.03 0.10
60 1.33 0.75 52.29 29.42 2.0 2.2 78.4 86.8 0.04 0.12
75 1.66 0.93 65.37 36.77 2.5 2.8 98.1 108.5 0.05 0.15
90 1.99 1.12 78.44 44.12 3.0 3.3 117.7 130.2 0.06 0.18
100 2.21 1.25 87.16 49.03 3.3 3.7 130.7 144.7 0.06 0.20
120 2.66 1.49 104.59 58.83 4.0 4.4 156.9 173.6 0.07 0.25
150 3.32 1.87 130.74 73.54 5.0 5.5 196.1 217.0 0.09 0.31
180 3.98 2.24 156.88 88.25 6.0 6.6 235.3 260.4 0.11 0.37
210 4.65 2.62 183.03 102.95 7.0 7.7 274.5 303.8 0.13 0.43
300 6.64 3.74 261.47 147.08 10.0 - 392.2 - 0.19 0.61
Note: These values are not exact and can vary slightly.
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
English
46
ADDITIONAL INFORMATION
Projector dimensions and ceiling mount installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to
the projector meet the following specications:
Screw type: M4 for three point mounting
Minimum screw length:
10mm
Lens
Unit: mm
Note: Please note that damage resulting from incorrect installation will void the warranty.
Warning:
If you buy a ceiling mount from another company, please be sure to use the correct screw size.
Screw size will vary depending on the thickness of the mounting plate.
Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
Avoid installing the projector near a heat source.
English
47
ADDITIONAL INFORMATION
Remote control codes
Key
Custom code Key Code
Description
Byte 1 Byte 2 Byte 3 Byte 3
Power on 32 CD 02 FD Press to turn on the projector.
Source 32 CD C3 3C Press “Source” to select an input signal.
Backlight
N/A Backlight toggle.
Re-sync
32 CD C4 3B
Automatically synchronizes the projector
to the input source.
Sleep Timer
32 CD 63 9C Set the sleep timer interval.
Keystone 32 CD 7 F8
Adjust image distortion caused by tilting
the projector.
Aspect Ratio
32 CD 64 9B
Press to change aspect ratio of a
displayed image.
3D
32 CD 89 76
Manually select a 3D mode that matches
your 3D content.
Brightness
32 CD 41 BE Adjust the brightness of the image.
Contrast 32 CD 42 BD
Control the degree of dierence between
the lightest and darkest parts of the
picture.
English
48
ADDITIONAL INFORMATION
Key
Custom code Key Code
Description
Byte 1 Byte 2 Byte 3 Byte 3
Lamp 32 CD 0A F5 Select the brightness mode.
CMS
32 CD 0B F4
Open the Optoma Color Management
System (CMS). (not supported)
Mode
32 CD 5 FA
Select a display mode for optimized
settings for dierent applications. Please
see page 27.
HDR 32 CD 0C F3 Congure the (HDR) settings.
Four direction
keys
32 CD 11 EE
Select items or make adjustments to
your selection.
32 CD 14 EB
32 CD 10 EF
32 CD 12 ED
Enter 32 CD 0F F0 Conrm your item selection.
Return
32 CD 0D F2 Move to the previous menu.
Menu
32 CD 0E F1
Display or exit the on-screen display
menus for projector.
Vol -
32 CD 8F 70 Adjust to decrease volume.
Mute
32 CD 52 AD Mute audio.
Vol +
32 CD 8C 73 Adjust to increase volume.
HDMI1
32 CD 16 E9 Select HDMI1 input source.
HDMI2
32 CD 30 CF Select HDMI2 input source.
HDMI3
32 CD 98 67 Select HDMI3 input source.
User1 32 CD 36 C9 Sleep timer.
User2 32 CD 65 9A CMS.
User3 32 CD 66 99 No function.
User4 32 CD 09 F6 No function.
English
49
ADDITIONAL INFORMATION
Troubleshooting
If you experience a problem with your projector, please refer to the following information. If a problem persists,
please contact your local reseller or service center.
Image problems
No image appears on-screen
Ensure all the cables and power connections are correctly and securely connected as described in the
"Installation" section.
Ensure the pins of connectors are not crooked or broken.
Ensure that the "Mute" feature is not turned on.
Image is out of focus
Adjust the Focus Ring on the projector lens. Please see page 17.
Make sure the projection screen is between the required distance from the projector.
(Please refer to page
45).
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16: 9 format
on projector side.
If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD.
Please setup the display format as 16:9 (wide) aspect ratio type on your DVD player.
Image is too small or too large
Adjust the zoom lever on the top of the projector.
Move the projector closer to or further from the screen.
Press "Menu" on the projector panel, go to "Display-->Aspect Ratio". Try the dierent settings.
Image has slanted sides:
If possible, reposition the projector so that it is centered on the screen and below the bottom of the
screen.
Image is reversed
Select "Setup-->Projection" from the OSD and adjust the projection direction.
Blurry double image
Make sure “Display Mode” is not 3D to avoid normal 2D image appear blurry double image.
English
50
ADDITIONAL INFORMATION
Other problems
The projector stops responding to all controls
If possible, turn o the projector, then unplug the power cord and wait at least 20 seconds before
reconnecting power.
Remote control problems
If the remote control does not work
Check the operating angle of the remote control is pointed within ±15° towards the top or front IR
receivers on the projector.
Make sure there are not any obstructions between the remote control and the projector. Move to within
6 m (~19 ft) of the projector.
Make sure batteries are inserted correctly.
Replace batteries if they are exhausted.
Warning indicators
When the warning indicators (see below) light up or ash, the projector will automatically shutdown:
"Light Source" LED indicator is lit red and if "On/Standby" indicator ashes red.
"TEMP" LED indicator is lit red and if "On/Standby" indicator ashes red. This indicates the projector
has overheated. Under normal conditions, the project can be switched back on.
"TEMP" LED indicator ashes red and if "On/Standby" indicator ashes red.
Unplug the power cord from the projector, wait for 30 seconds and try again. If the warning indicator light up or
ash, please contact your nearest service center for assistance.
English
51
ADDITIONAL INFORMATION
LED status lights
Message
On/Standby LED Temp LED Light Source LED
(Red) (Blue) (Red) (Red)
Standby state
(Input power cord)
Steady light
Power on (Warming)
Flashing
(0.5 sec o / 0.5 sec on)
Power on and light source
lighting
Steady light
Power o (Cooling)
Flashing
(0.5 sec o / 0.5
sec on). Back to red
steady light when
cooling fan turns o.
Error (Light source failure) Flashing Steady light
Error (Fan failure) Flashing Flashing
Error (Over temp.) Flashing Steady light
Standby State
(Burn in mode)
Flashing
Burn in (Warming) Flashing
Burn in (Cooling) Flashing
Burn in (Light source
lighting)
Flashing
(3 sec on / 1 sec o)
Burn in (Light source o)
Flashing
(1 sec on / 3 sec o)
Power o:
Power O
Power O?
Press power key again.
Temperature warning:
Warning
TEMPERATURE TOO HIGH
1. Make sure air in and outlets are not blocked.
Please:
2. Make sure the environment temperature is under 45 degree C.
If the problem persists in spite of the above.
Please contact a service center for repair.
English
52
ADDITIONAL INFORMATION
Fan failed:
Warning
FAN LOCKED
The projector will switch o automatically
Please contact a service center for repair.
Out of display range:
HDMI
Out Of Range
Power down warning:
Warning
60
Power Down Timer Active
Time out in
Sec.
English
53
ADDITIONAL INFORMATION
Specications
Optical Description
Technology Texas Instrument DMD, 0.47”/1080p UHD HSSI DMD X1, S451
Output resolution 1920 x 1080 (w/o actuator)
Maximum input
resolution
Graphic up to 2160p@60Hz
HDMI1 (2.0): 2160p@60Hz
HDMI2 (2.0): 2160p@60Hz
HDMI3 (2.0): 2160p@60Hz
Maximum Bandwidth:
HDMI 2.0: 600MHz
HDMI 1.4: 600MHz (RB)
Lens
Throw ratio: 1.5~1.66 (+/-3% tolerance)
F-stop: 1.98 (wide)~2.02 (tele)
Focal length: 15.84~17.44mm
Zoom ratio: 1.1x
Oset
105% (+/-5% tolerance)
Image size 33”~300”, optimized wide 80”
Projection distance 1.2m~9.9m
I/Os
HDMI V2.0 / HDCP2.2 (x3)
USB2.0 (for FW upgrade)
Audio Out 3.5mm
RS-232 male (9-pin D-SUB)
RJ-45 (Support IoT, Internet, and OTA functions)
S/PDIF (Supports PCM 2-channel, Dolby Digital (5.1))
12V Trigger (3.5mm jack)
3D Sync
Colour 1073.4 Million color
Scan rate
Horizontal scan rate: 31.0~135.0 KHz
Vertical scan rate: 24~120 Hz
Speaker Yes, 8W
Power consumption
Brightness Mode: 100%
Typical 240W ±15% @ 110VAC BTU: 819
Typical 230W ±15% @ 220VAC BTU: 785
Eco Mode: 80%
Typical 185W ±15% @ 110VAC BTU: 631
Typical 175W ±15% @ 220VAC BTU: 597
Power requirement 100 - 240V ±10%, AC 50/60Hz
Input current
3.0A
Installation orientations Front, Rear, Ceiling-top, Rear-top
Dimensions
(W x D x H)
Without feet: 337 x 265 x 108 mm (13.26 x 10.43 x 4.25 inches)
With fe
et: 337 x 265 x 119.3 mm (13.26 x 10.43 x 4.69 inches)
Weight 4.8 kg (10.58 lbs)
Environmental Operating in 0~40°C , 80% humidity (non-condensing)
Note: All specications are subject to change without notice.
English
54
ADDITIONAL INFORMATION
Optoma global oces
For service or support, please contact your local oce.
USA
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Canada
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Latin America
47697 Westinghouse Drive, 888-289-6786
Fremont, CA 94539, USA 510-897-8601
Europe
Unit 1, Network 41, Bourne End Mills
Hemel Hempstead, Herts,
HP1 2UJ, United Kingdom +44 (0) 1923 691 800
www.optoma.eu +44 (0) 1923 691 888
Benelux BV
Randstad 22-123 +31 (0) 36 820 0252
1316 BW Almere +31 (0) 36 548 9052
The Netherlands
www.optoma.nl
France
Bâtiment E +33 1 41 46 12 20
81-83 avenue Edouard Vaillant +33 1 41 46 94 35
Spain
C/ José Hierro,36 Of. 1C +34 91 499 06 06
28522 Rivas VaciaMadrid, +34 91 670 08 32
Spain
Deutschland
Wiesenstrasse 21 W +49 (0) 211 506 6670
D40549 Düsseldorf, +49 (0) 211 506 66799
Scandinavia
Lerpeveien 25 +47 32 98 89 90
3040 Drammen +47 32 98 89 99
PO.BOX 9515
3038 Drammen
Norway
China
Room 2001, 20F, Building 4,
+86-21-62947376
No.1398 Kaixuan Road, +86-21-62947375
Changning District, Shanghai www.optoma.com.cn
Korea
https://www.optoma.com/kr/
Japan
https://www.optoma.com/jp/
Taiwan
https://www.optoma.com/tw/
www.optoma.com
