DLP
®
Projector
User manual
Contents
2
English
Safety Instructions ..........................................................................................................4
Intended Use Statement ........................................................................................................ 5
Safety Information .................................................................................................................. 5
Safety Labels ......................................................................................................................... 7
Trademarks ............................................................................................................................ 8
Video and Audio Decoder Notices ........................................................................................ 8
Regulatory Notices ................................................................................................................ 9
CE Statement ....................................................................................................................... 10
WEEE Statement .................................................................................................................. 10
Introduction ....................................................................................................................11
Package Contents ............................................................................................................... 11
About Your Projector ............................................................................................................ 12

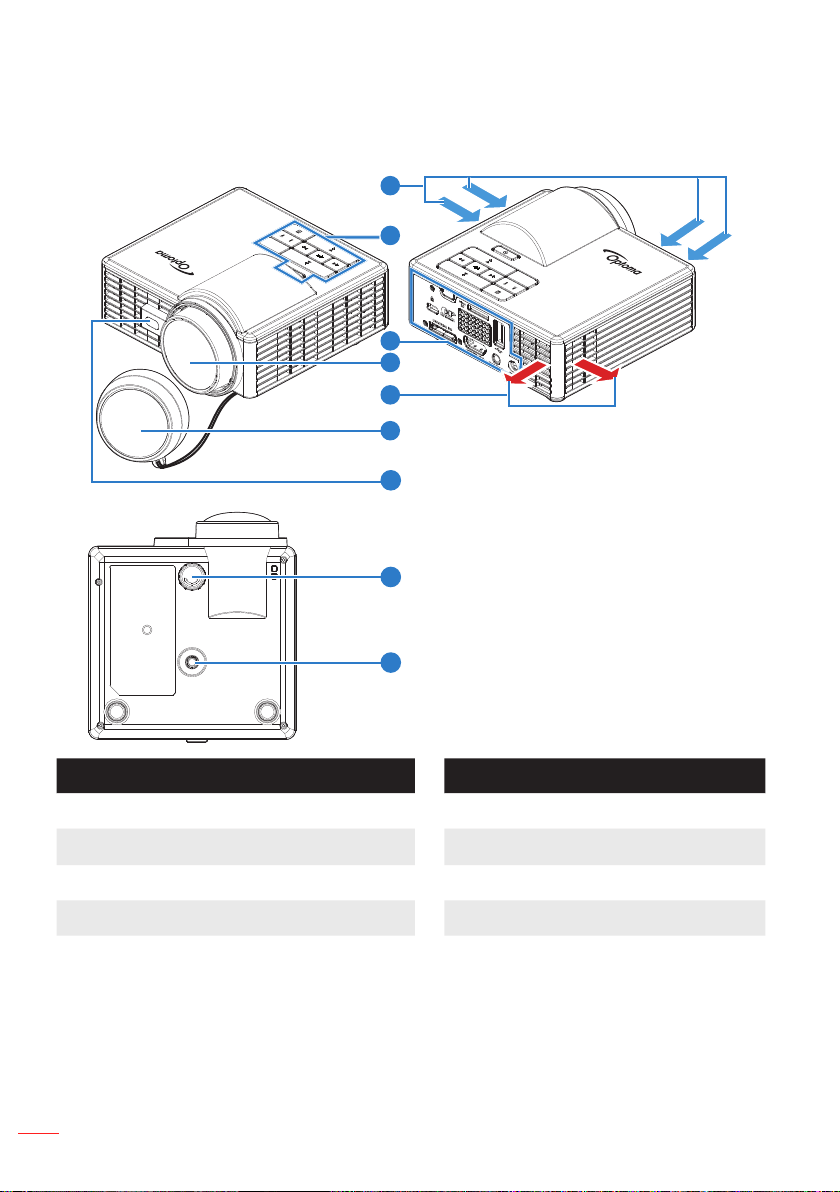

Main Unit ................................................................................................................. 12
Input / Output Connections ..................................................................................... 13

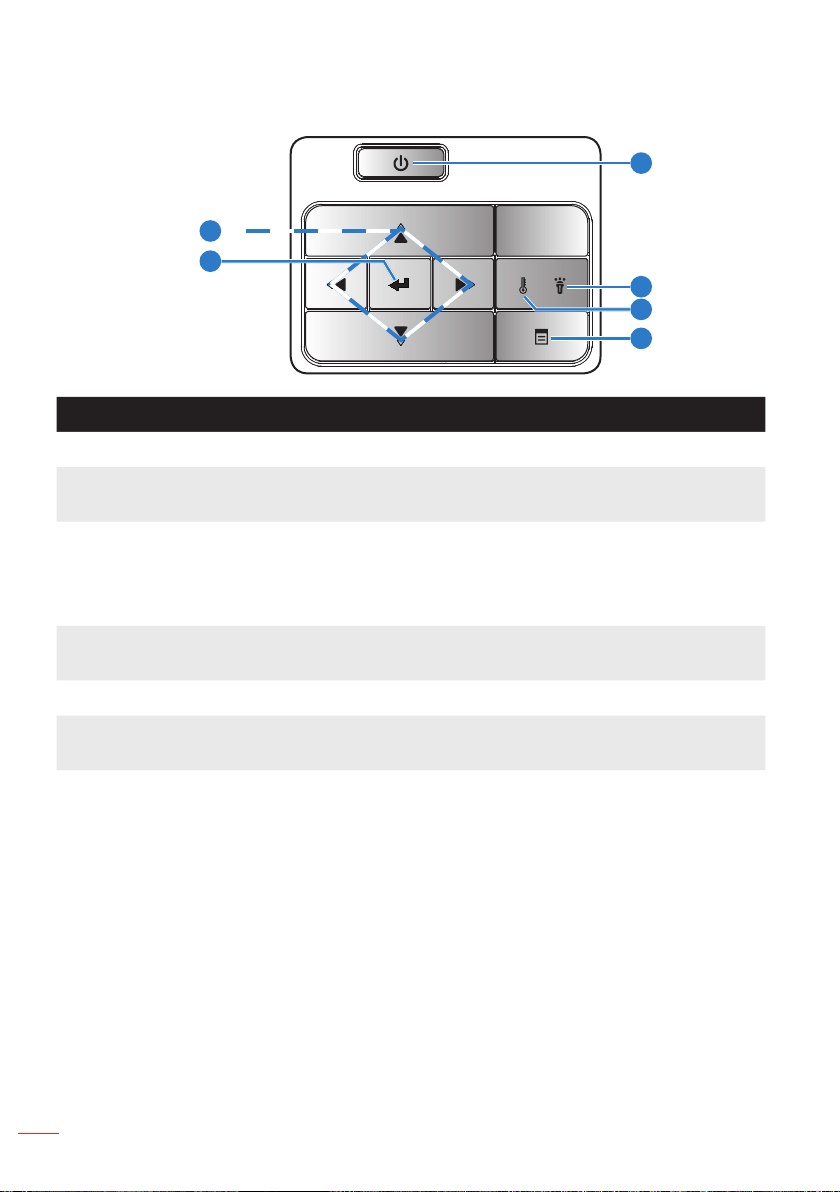

Control Panel ........................................................................................................... 14
Remote Control ....................................................................................................... 15

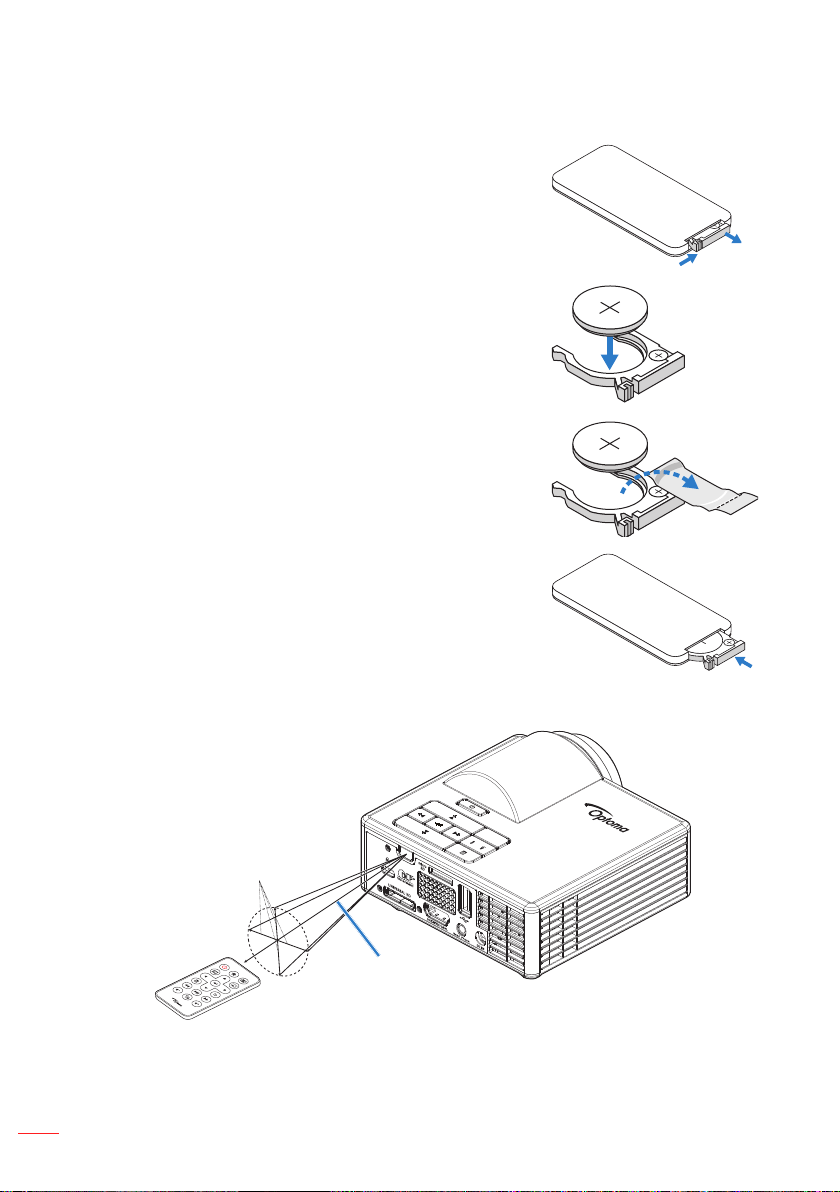

Installing the Remote Control Battery ...................................................................... 16
Operating Range with Remote Control ................................................................... 16
Installation ......................................................................................................................17

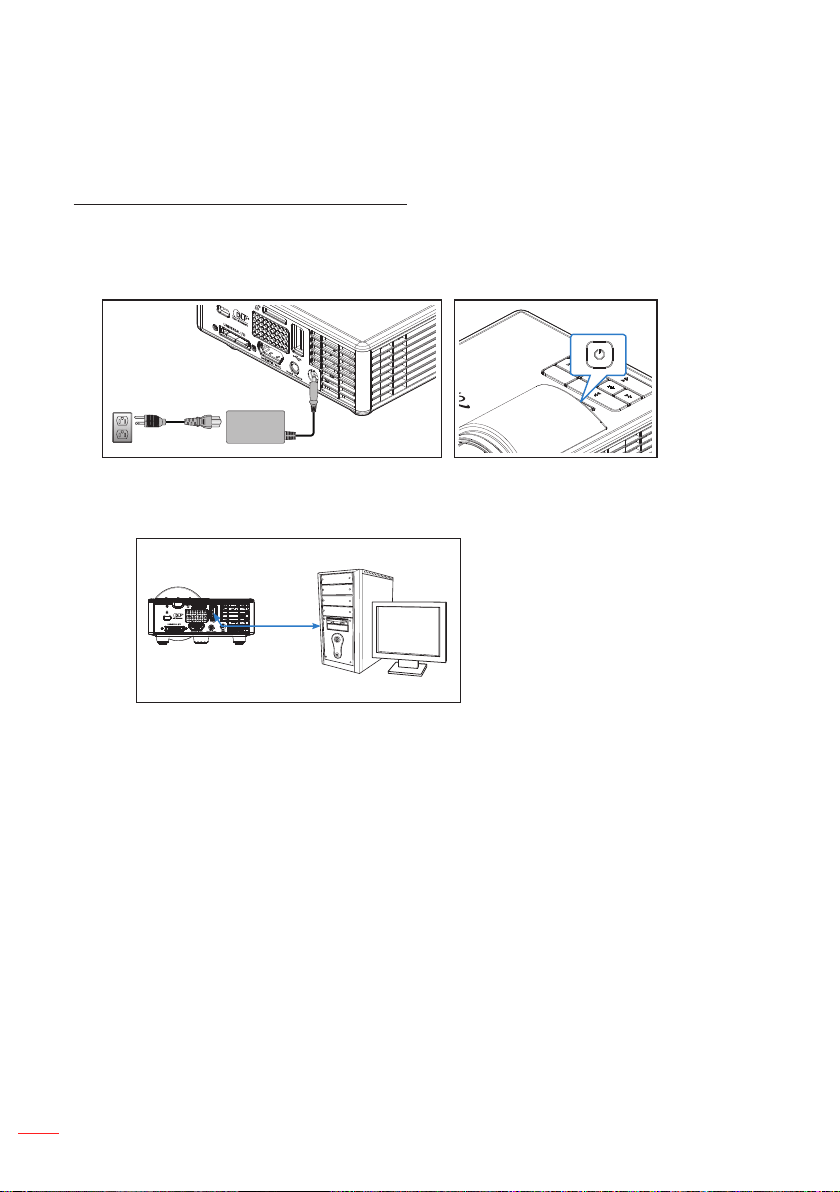

Connecting to a Computer .................................................................................................. 17

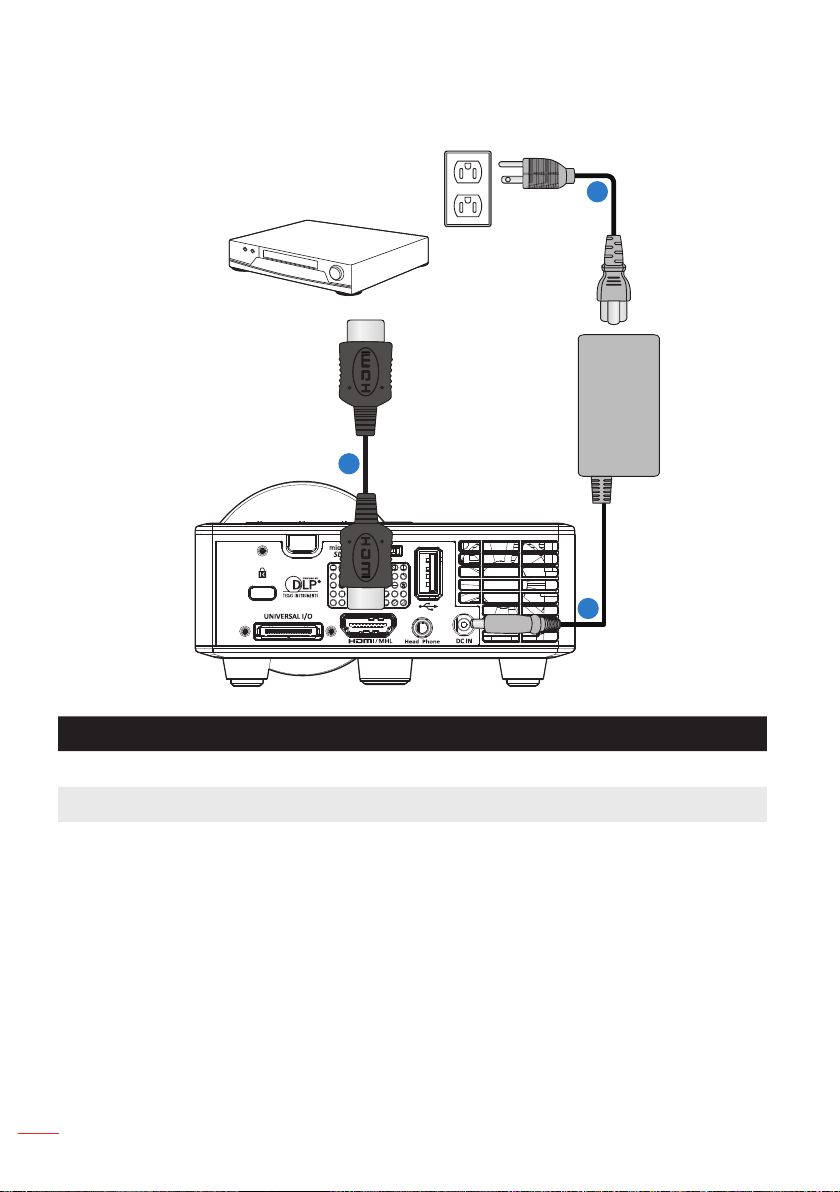

Connecting to a DVD Player ................................................................................................ 18

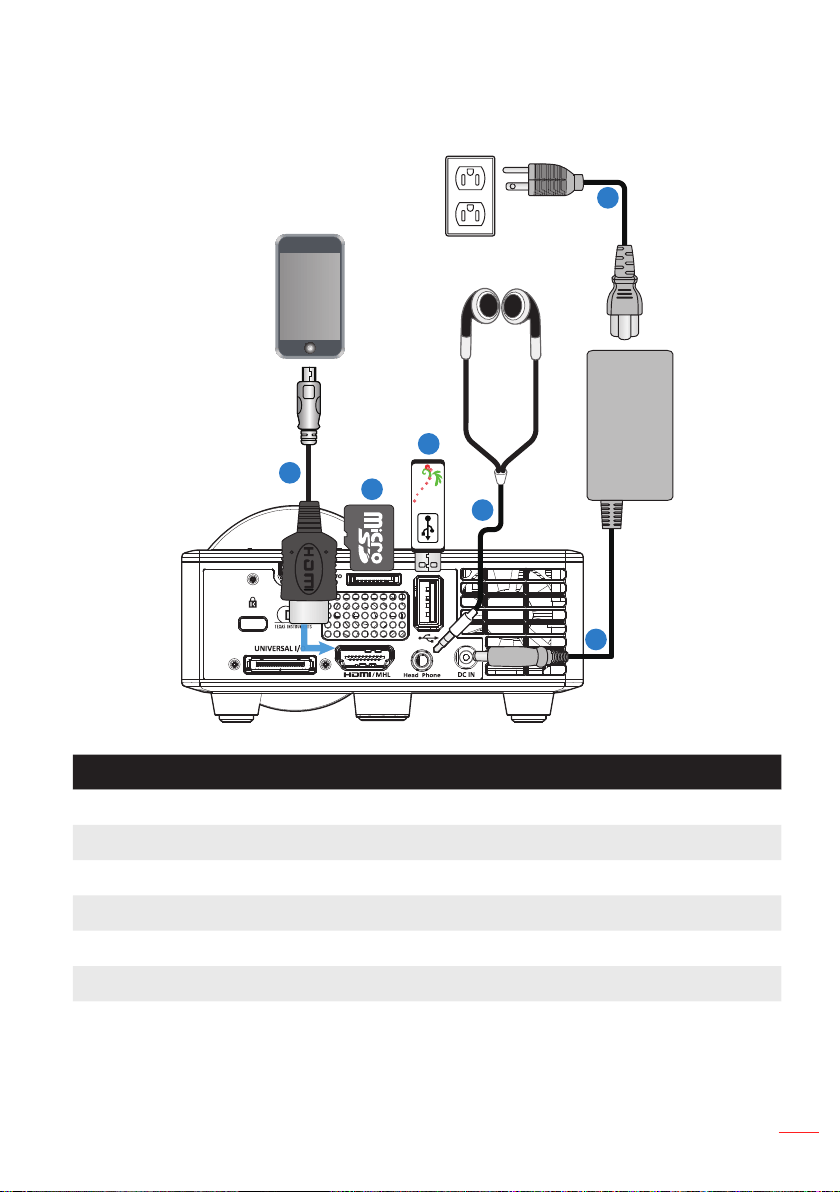

Connecting to Multi-Media ................................................................................................... 19

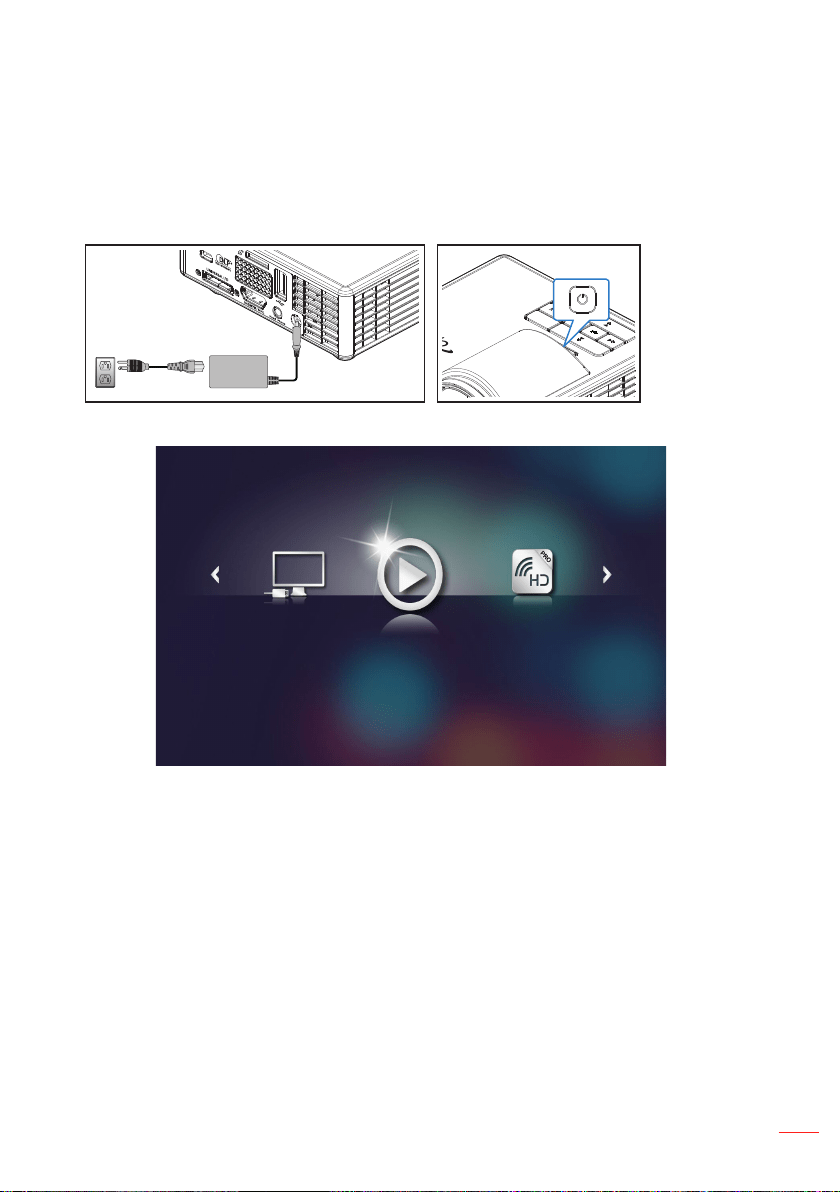

Turning On/Off the Projector ................................................................................................ 20

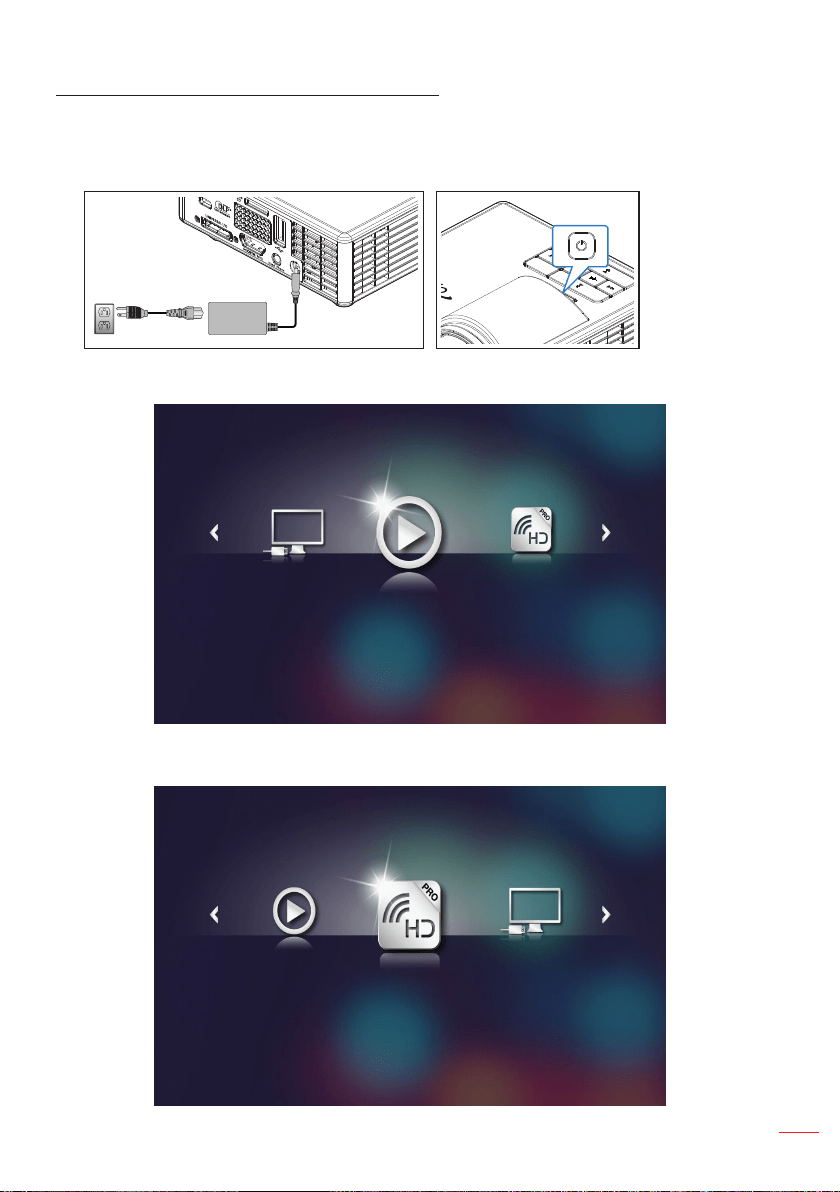

Turning Your Projector On ....................................................................................... 20
Turning Your Projector Off ....................................................................................... 20
Adjusting the Projected Image ............................................................................................ 21
Raising the Projector Height ................................................................................... 21
Lowering the Projector Height ................................................................................. 21

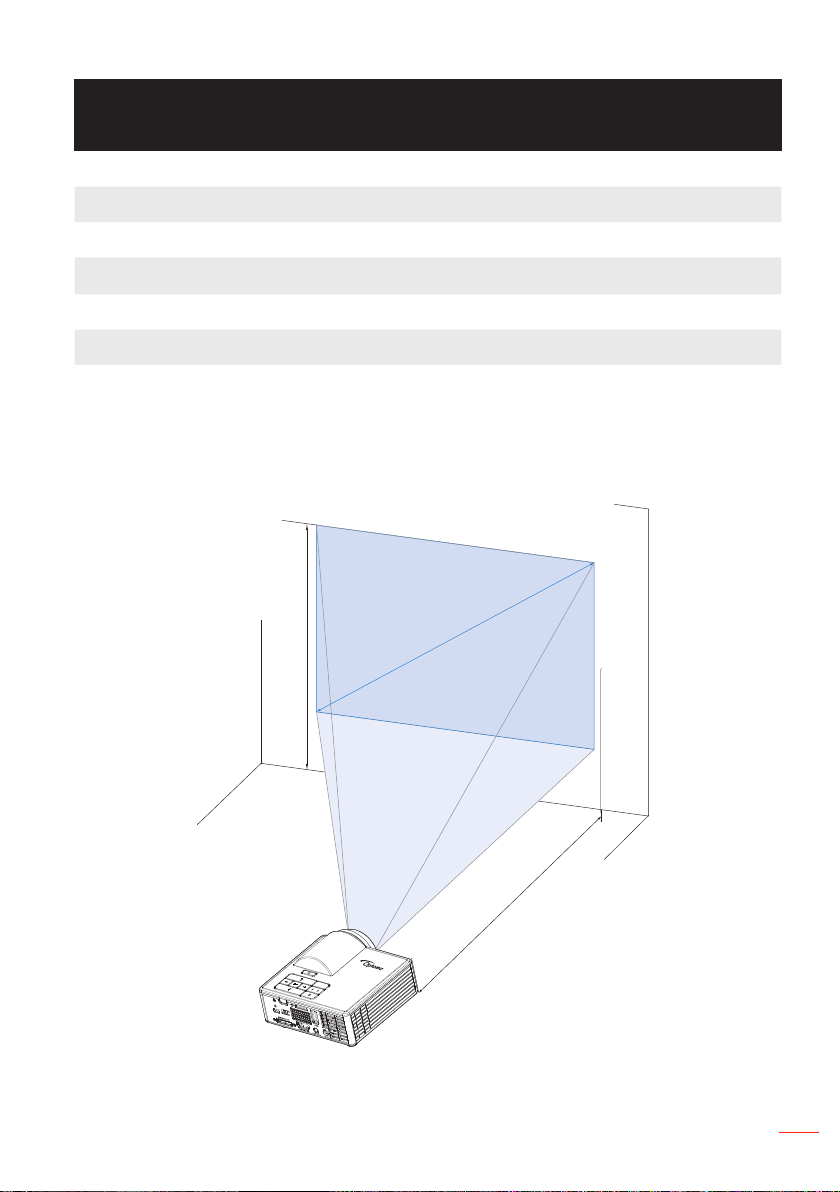

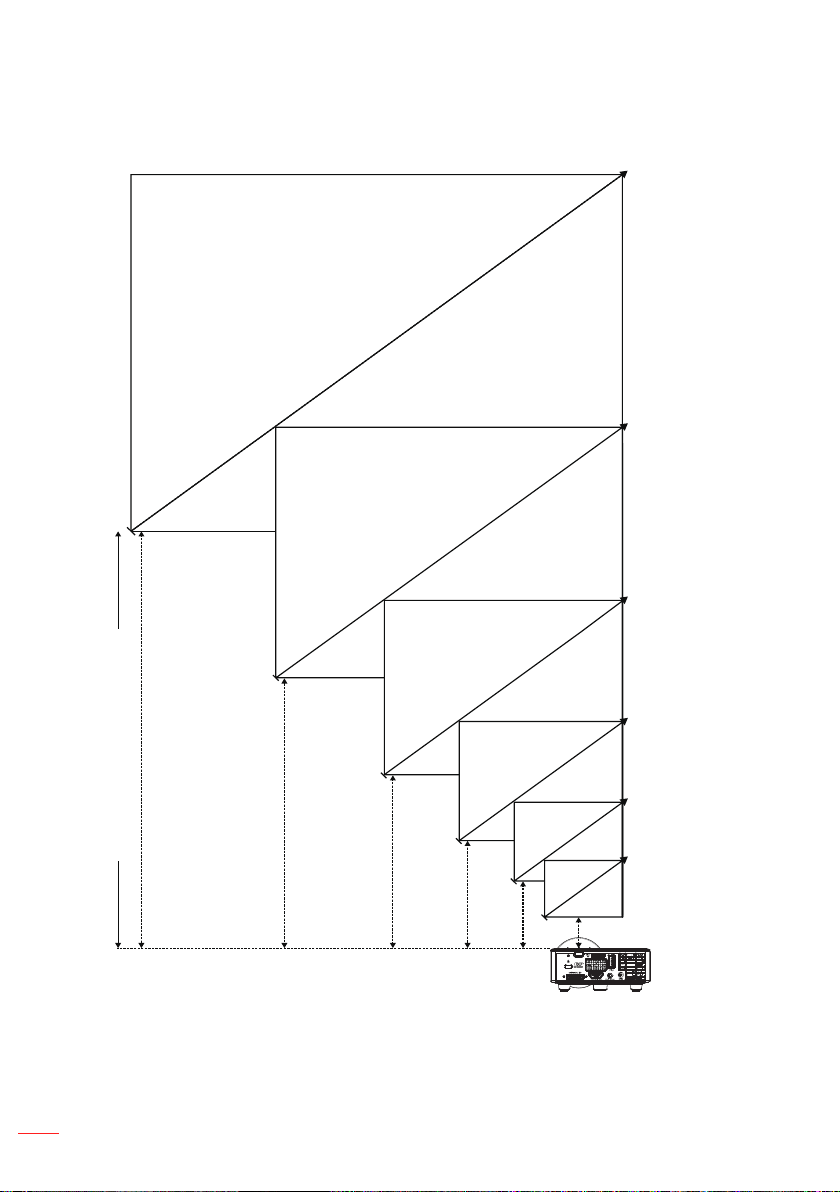

Adjusting Projection Image Size ............................................................................. 22
User Controls .................................................................................................................24
Using the On-Screen Display .............................................................................................. 24
Main Menu ........................................................................................................................... 24
Image ...................................................................................................................... 25
Display .................................................................................................................... 26
Setup ....................................................................................................................... 27
Advanced ................................................................................................................ 29
Multi-Media Introduction ...................................................................................................... 30
Photo Format ........................................................................................................... 30
Video Format ........................................................................................................... 30
Audio Format ........................................................................................................... 31
Office Viewer Format ............................................................................................... 31
How to set-up File Type for Multi-Media with USB .................................................. 33

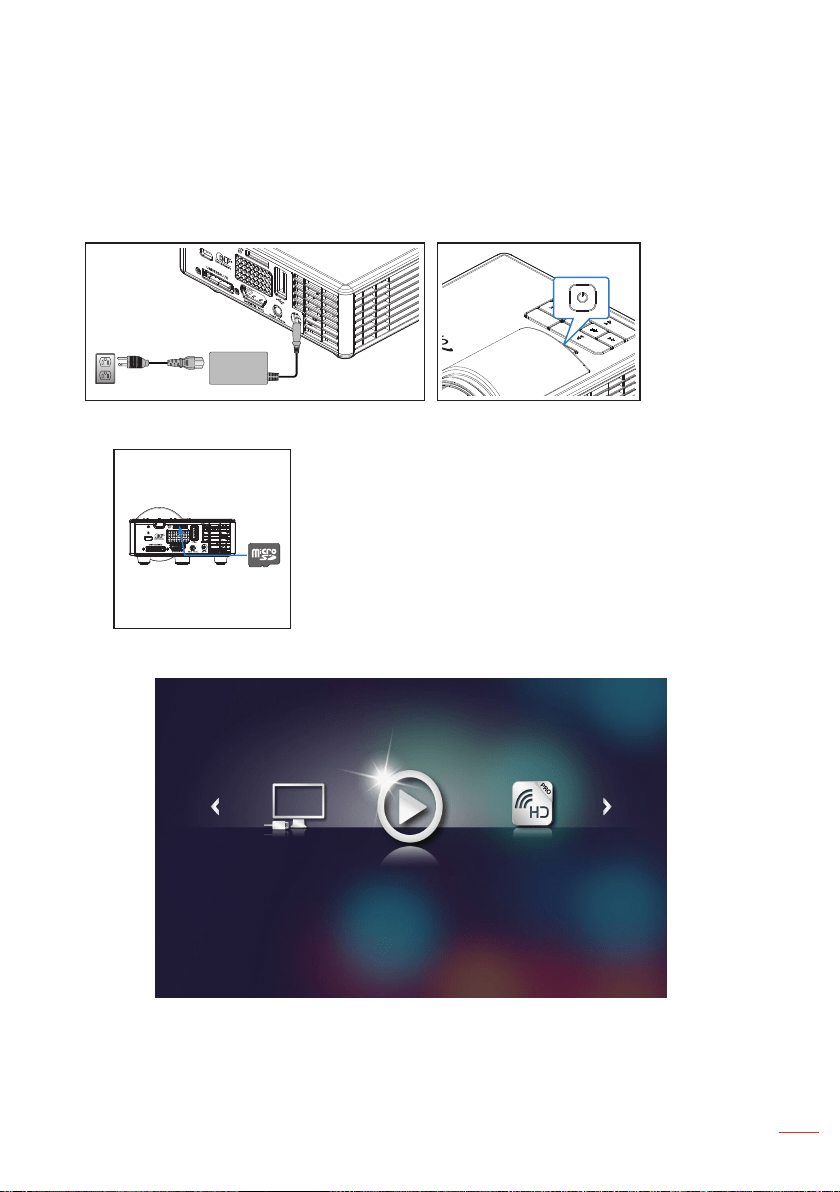

How to set-up File Type for Multi-Media with MicroSD ............................................ 35
How to set-up File Type for Multi-Media with Internal Memory ............................... 37

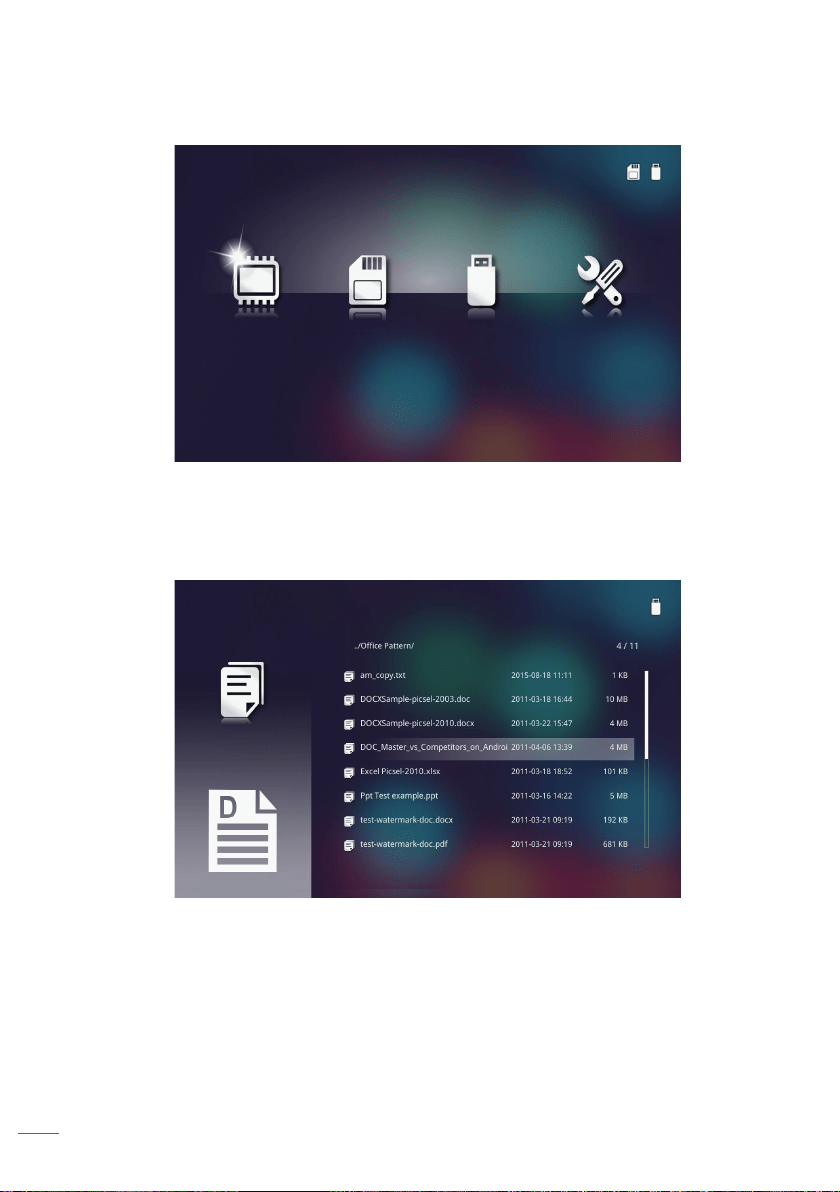

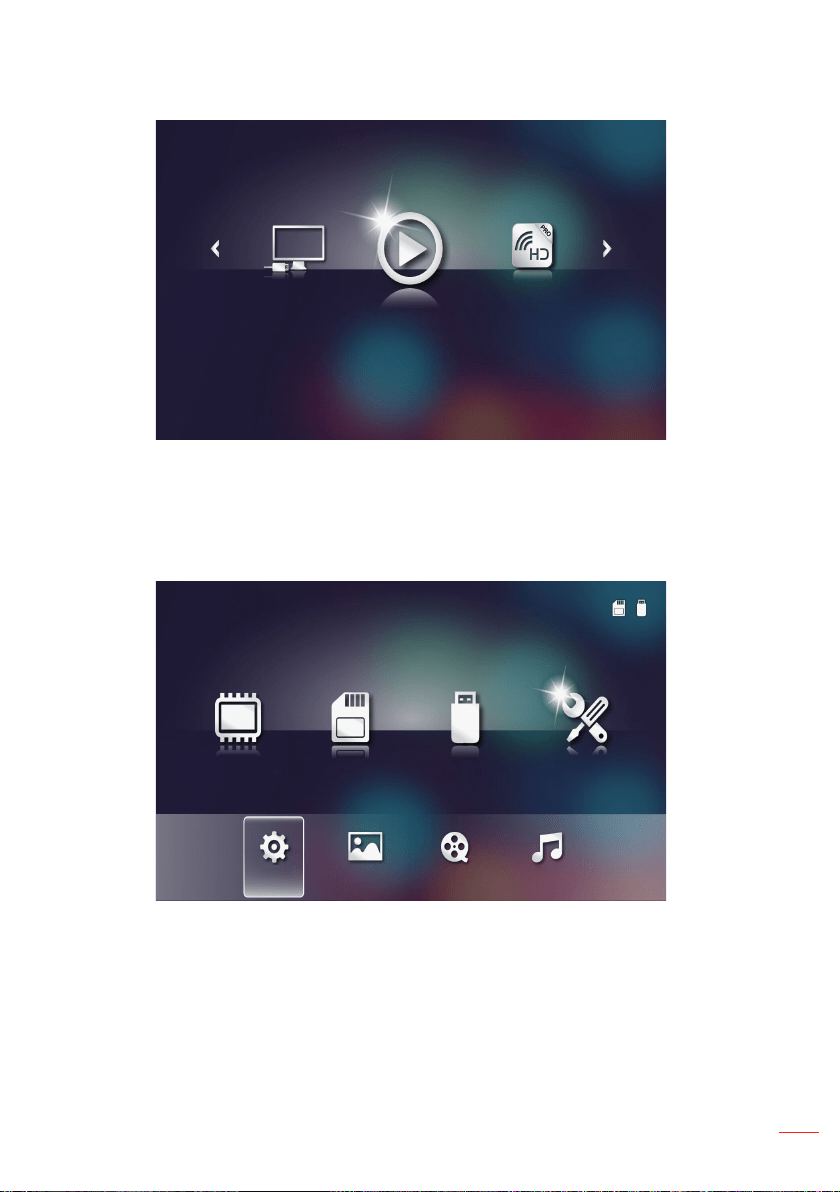

Multi-Media Main Menu ........................................................................................... 39
Multi-Media SETTINGS for System, USB, MicroSD, and Internal Memory ............. 39
System Settings ....................................................................................................... 40
Photo Settings ......................................................................................................... 41
Video Setup ............................................................................................................. 42
Music Setup ............................................................................................................ 43
Other Multi-Media Connections .............................................................................. 44
Project Files from the Built In Memory ..................................................................... 44

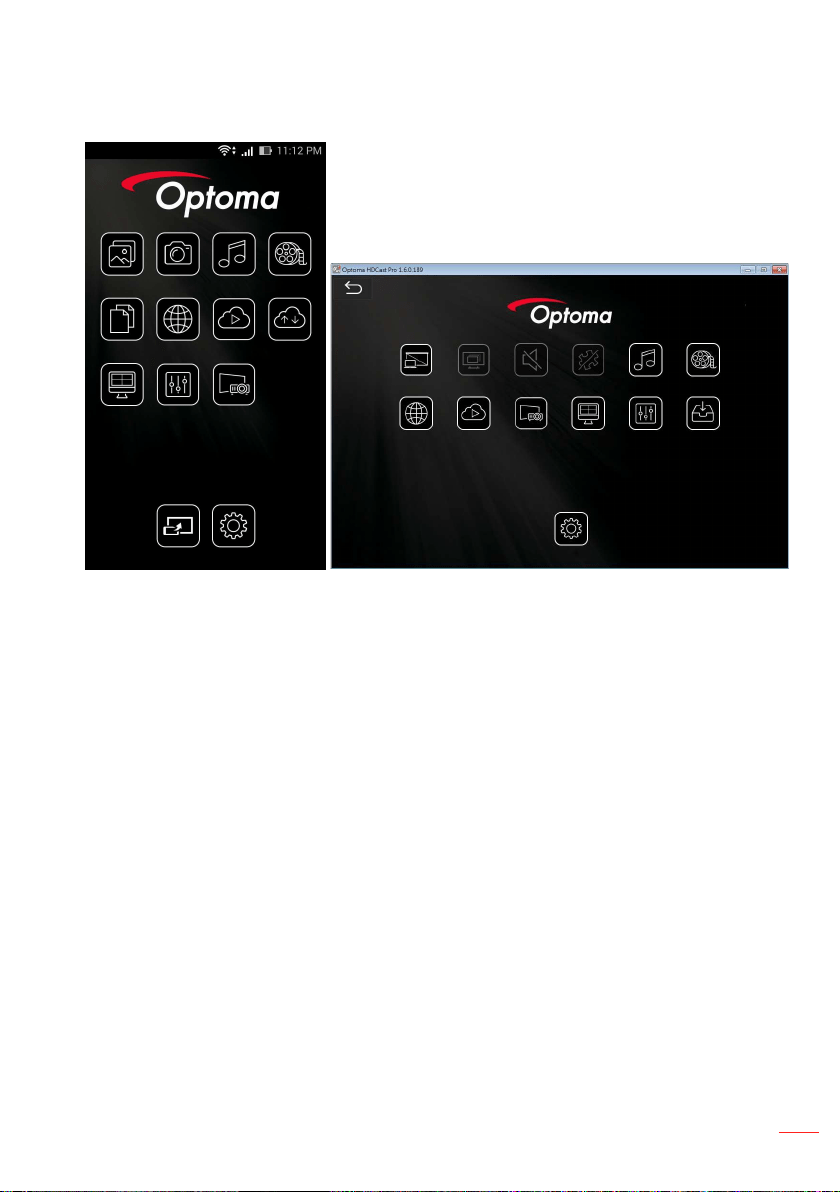

Mirroring the Screen of the Portable Device ........................................................... 47

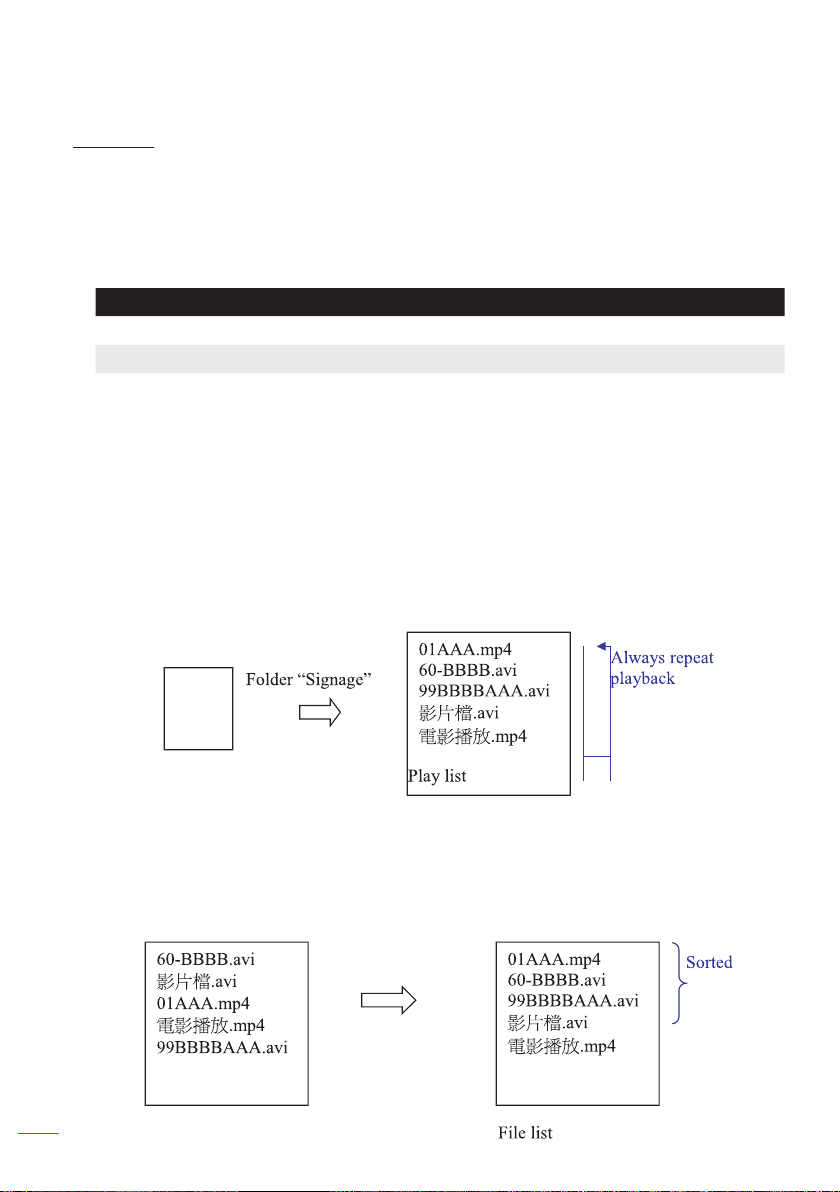

Auto Play Feature (Digital Signage Mode) .......................................................................... 50
Playback .................................................................................................................. 50
Error Message ......................................................................................................... 52
Power on/off ............................................................................................................ 52
Appendices ....................................................................................................................53
Troubleshooting ................................................................................................................... 53
Guiding Signals ....................................................................................................... 55
Compatibility Modes (HDMI/VGA) ....................................................................................... 56

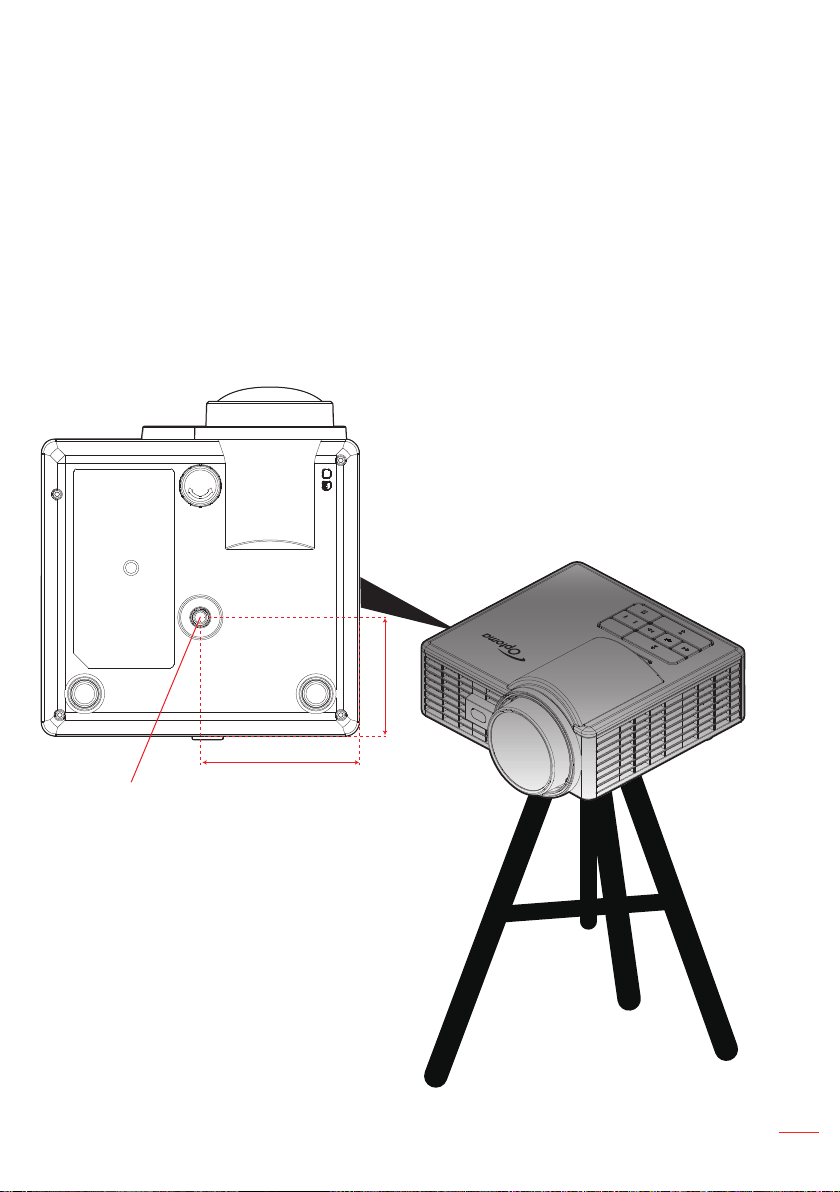

Tripod Mount the Projector ................................................................................................... 57
Specification ........................................................................................................................ 58
3
English
Safety Instructions
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE
ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equip-
ment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of the projector and to
protect from over heating, it is recommended to install the projector in a location that does not
block ventilation. As an example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts
air ow.
2. Do not use the projector near water or moisture. To reduce the risk of re and/or electric shock,
do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or any other apparatus such
as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to
dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and
short out parts that could result in re or electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
4
English
Intended Use Statement
y Operation temperature:
- For 0 - 2500 ft, 5 °C ~ 40 °C
- For 2500 - 5000 ft, 5 °C ~ 35 °C
- For 5000 - 10000 ft, 5 °C ~ 30 °C
y Maximum Humidity:
- Operating: 10%~80%RH (Max.), Non-condensing
- Storage: 5%~95% RH, Non-condensing
The ambient operating environment should be free of airborne smoke, grease, oil and
other contaminants that can affect the operation or performance of the projector.
Use of this product in adverse conditions will void the product warranty.
Safety Information
Please read, understand, and follow all safety information contained in these
instructions prior to the use of this projector. Retain these instructions for future
reference.
Explanation of Signal Word Consequences
Warning:
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury and/or property
damage.
Caution:
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury and/or property
damage.
Warning:
Hazardous voltage
5
English
6
English
Warning
To reduce the risk associated with hazardous voltage:
y Do not modify this product in any way.
y Do not attempt to service this projector.
y There are no user-serviceable parts. Service to be performed only by a Optoma
authorized service provider using Optoma approved system components.
y Do not use the wall power supply in a wet environment.
y Do not use with a damaged wall power supply. Replace damaged part prior to
use.
To reduce the risk associated with re and explosion:
y Do not immerse the projector in any liquid or allow either to get wet.
y Use only Optoma approved power supply.
To reduce the risks associated with choking:
y Keep all small parts like the remote control battery away from young children and
pets.
To reduce the risk associated with hazardous voltage, impact, tripping, and
intense visible light:
y Do not use this projector around unsupervised children.
Caution
To reduce the risks associated with hearing loss:
y Be sure to read earphone manufacturer's instructions with respect to volume
level.
y User is responsible to set a safe volume level.
To reduce the risk associated with explosion, and/or chemicals from a leaking
batteries:
y Use only with battery type CR2025.
y Orient the battery's plus (+) and minus (-) terminals of the batteries according to
the markings found on the remote control.
y Do not leave the battery in the remote for an extended period of time.
y Do not heat or expose the battery to fire.
y Do not disassemble, short, or recharge battery
y Do not carry batteries loose in your pocket or purse.
y Avoid eye and skin contact in the event that battery leaks.
y Do not recharge the battery near a heat source or in extremely hot conditions.
7
English
To reduce the risk associated with environmental contamination:
y Dispose of all system components in accordance with applicable government
regulations.
To reduce the risks associated with LED bright light:
y Do not stare directly into the projector lens.
To reduce the risks associated with tripping and falling:
y Position the charging cord and data cables so that they are not a tripping hazard.
Important Note: Do not expose the projector to direct sunlight in a closed space such as a vehicle.
SAVE THESE INSTRUCTIONS
Safety Labels
M
n
O
2
-
L
i
C
E
L
L
3
V
O
L
T
S
J
A
P
A
N
H
CR2025
Remote Control
Model No. IR28012
8
English
Trademarks
Optoma and the Optoma logo are trademarks of Optoma Company. Adobe and
the Adobe logo are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries. Microsoft, PowerPoint, and
Excel are registered trademarks of Microsoft Corporation. microSD and microSDHC are
trademarks of the SD Association.
All other trademarks or registered trademarks are property of their respective
companies.
Video and Audio Decoder Notices
MPEG-4 NOTICE
This product is licensed under the mpeg-4 visual patent portfolio license for the
personal and non-commercial use of a consumer for (i) encoding video in compliance
with the mpeg-4 visual standard ("mpeg-4 video") and/or (ii) decoding mpeg-4 video
that was encoded by a consumer engaged in a personal and noncommercial activity
and/or was obtained from a video provider licensed by mpeg la to provide mpeg-4
video. No license is granted or shall be implied for any other use. Additional information
including that relating to promotional, internal and commercial uses and licensing may
be obtained from mpeg la, llc. See
http://www.mpegla.com.
AVC VIDEO NOTICE
This product is licensed under the avc patent portfolio license for the personal and non-
commercial use of a consumer to (i) encode video in compliance with the avc standard
(“avc video”) and/or (ii) decode avc video that was encoded by a consumer engaged
in a personal and non-commercial activity and/or was obtained from a video provider
licensed to provide avc video. No license is granted or shall be implied for any other
use. Additional information may be obtained from mpeg la, l.L.C.
See
http://www.mpegla.com.
MPEG LAYER-3 NOTICE
Supply of this product does not convey a license nor imply any right to distribute MPEG
Layer-3 compliant content created with this product in revenue-generating broadcast
systems (terrestrial, satellite, cable and/or other distribution channels),streaming
applications (via Internet, intranets and/or other networks), other content distribution
systems (pay-audio or audio-ondemand applications and the like) or on physical media
(compact discs, digital versatile discs, semiconductor chips, hard drives, memory
cards and the like). An independent license for such use is required.
For details, please visit
http://mp3licensing.com.
9
English
Regulatory Notices
FCC STATEMENT - CLASS B
This equipment generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instruction manual may cause interference to
radio communications. It has been tested and found to comply with the limits for a Class
“B” computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are
designed to provide reasonable protection against such interference when operated in
a residential installation. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
y Reorient or relocate the receiving antenna.
y Increase the separation between the equipment and receiver.
y Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
y Consult the dealer or an experienced radio/TV technician for help.
NOTICE: This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Industry Canada regulatory information
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
The user is cautioned that this device should be used only as specified within this
manual to meet RF exposure requirements. Use of this device in a manner inconsistent
with this manual could lead to excessive RF exposure conditions.
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC
equipment provided that the following conditions are met. If the cables include a EMI
ferrite core, attach the ferrite core end of the cable to the projector. Use the cables
which are included with the projector or specified.
Note: Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Complies with IDA Standards DA103121
10
English
CE Statement
ElectroMagnectic Compatibility Statement: Meets 2004/108/EC Directive
Low Voltage Directive: Meets 2006-95-EC Directive.
WEEE Statement
The following information is only for EU-members States:
The mark shown to the right is in compliance with Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to
dispose the equipment as unsorted municipal waste, but use the return and collection
systems according to local law.
11
English
Introduction
Package Contents
Your projector comes with all the items shown below. Ensure that you have all
the items, and contact your local reseller or service center if anything is missing.
Projector Lens cap Power cable
AC adapter
Universal 24-pin to
VGA cable
Basic user manual
and documentation
Carrying case Remote control
Note: The remote control is shipped with battery.
12
English
Main Unit
8
9
2
6
4
1
3
5
7
#
Description # Description
1 Ventilation (inlet) 6 Lens cap
2 Control panel 7 Laser sensor for detecting auto focus
3 Input / Output connections 8 Tilt adjusting wheel
4 Lens 9 Screw hole for tripod
5 Ventilation (outlet)
Note:
- Do not block projector intake and exhaust vents.
- When operating the projector in an enclosed space, allow at least 15cm clearance around
the intake and exhaust vents.
About Your Projector
13
English

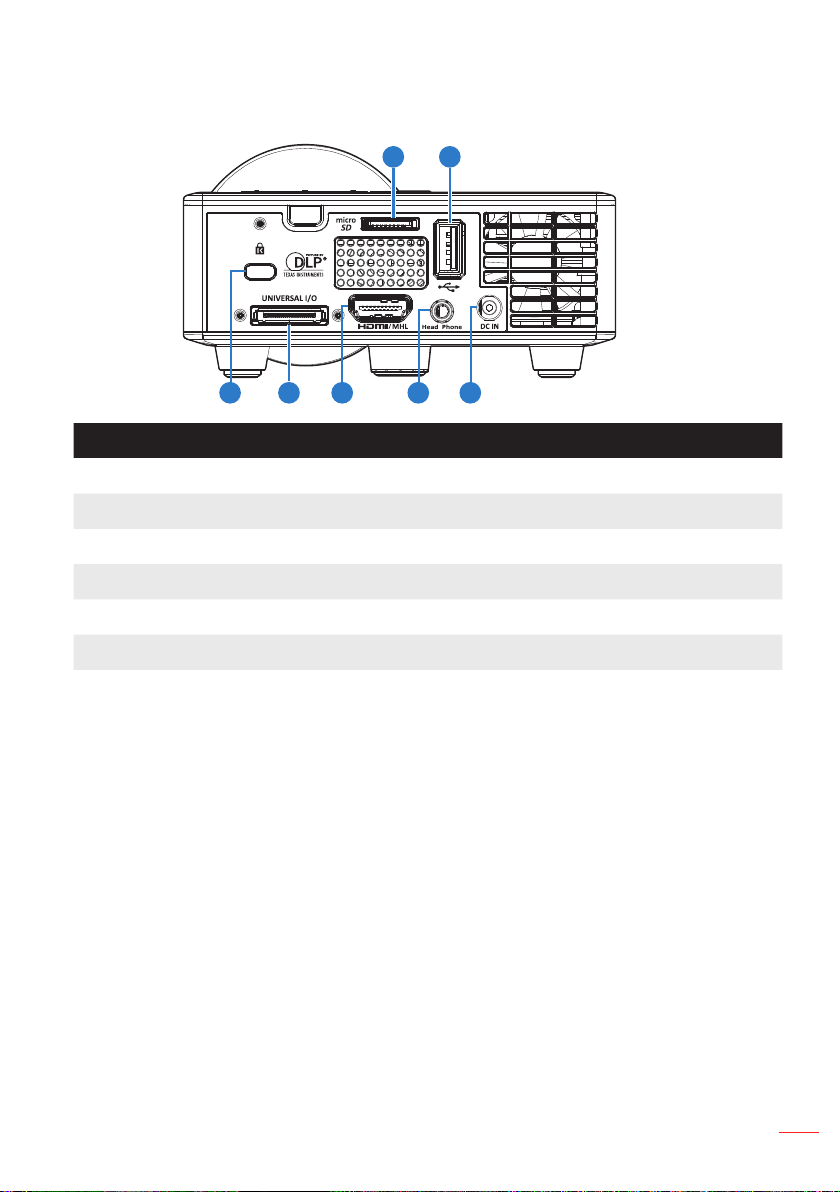

Input / Output Connections
# Description
1 MicroSD card slot
2 USB Type A connector
3 DC input connector
4 Head phone connector
5 HDMI / MHL connector
6 Universal I/O connector
7 Security cable slot
1 2
7 5 46 3
14
English
Control Panel
# Name Description
1 Power Turns the projector on or off.
2 Error LED Error LED is solid amber, one of the LED has failed. The projector will
automatically shut down.
3 Temp LED If the TEMP amber indicator is blinking, one of the following problems
could be occurring:
y Internal temperature of the projector is too high.
y The fans has failed.
4 Menu Press to activate the OSD. Use the directional keys and the Menu button
to navigate through the OSD.
5 Enter Press to confirm the selection item.
6 Four Directional
Select Keys
Press to navigate through the On-Screen Display (OSD) Menu items.
1
2
3
4
5
6
15
English
Remote Control
# Name Description
1
Power
Turns the projector on or off.
2
Home
Press to return to the home
page.
3
Mute
Press to mute/unmute audio
and/or video depending on
the chosen mute option in the
OSD menu (Main > Setup >
Advanced > Mute).
4
Enter
Press to confirm the selection.
5
Menu
Press to activate the OSD.
6
Rewind
Press to search backward.
7
Play/Pause
Press to play/pause media file.
8
Volume down
Press to decrease the volume.
9
LED mode
Allows you to select the display
mode.
10
Aspect ratio
Press to change aspect ratio of
a displayed image.
11
Media mode
Press to change Input Source
to Media.
12 Up/Down/Left/
Right
Press to navigate through the
On-Screen Display (OSD) Menu
items.
13
Back
Press to return to the previous
page.
14
Fast Forward
Press to search forward.
15
Volume up
Press to increase the volume.
Note: Home and Back buttons can be used only in Media
mode.
10
11
13
15
12
14
1
2
3
4
5
7
8
9
6
16
English
Installing the Remote Control Battery
1. Remove the battery holder by holding down the side
release firmly and pulling out the battery holder.
3
V
O
L
T
S
CR2025
3
V
O
L
T
S
CR2025
M
3
V
O
L
T
S
CR2025
2. Insert a CR2025 coin cell battery and align the polarity
correctly according to the marking in the battery holder.
3. Replace the battery holder.
Operating Range with Remote Control
±30°
3 m / 9.84 feet
Note: When you use the remote control for the rst time, there
is a plastic sheet between the battery and its contact. Remove
the sheet before use.
Note: Actual operating range may slightly differ from the diagram. Additionally, a weak battery
reduces or eliminates the operating range of the remote control.
17
English

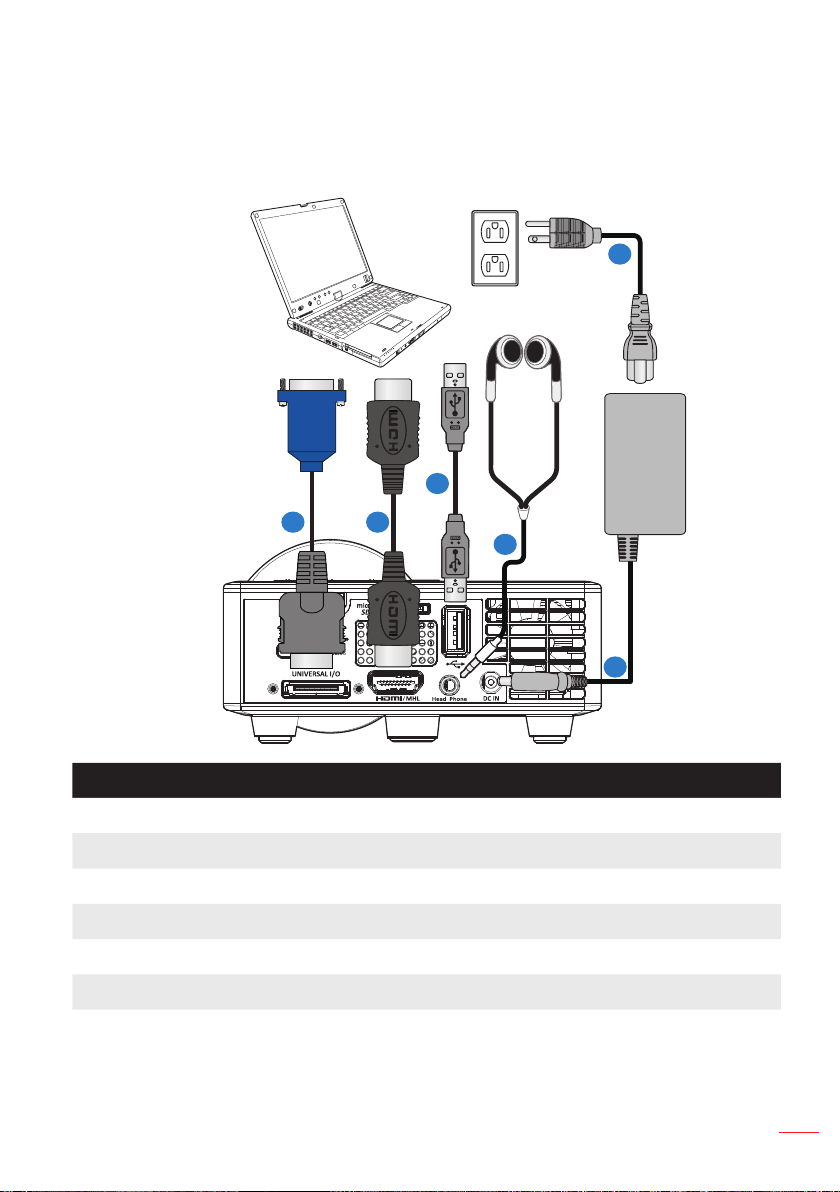

Connecting to a Computer
Installation
# Description
1 Power cord
2 AC adapter
3 Audio cable (*
1
)
4 USB-A to USB-A cable (*
2
)
5 HDMI cable (*
2
)
6 Universal 24-pin to VGA cable
Note:
- (*
1
)The projector supports only TRS-type audio cables (without microphone function); with
some headsets, due to the impedance difference, you might notice a slight difference in the
volume levels (lower volume).
- (*
2
)The accessory is not shipped with your projector.
1
3
4
56
2
18
English
Connecting to a DVD Player
# Description
1 Power cord
2 AC adapter
3 HDMI cable (*
2
)
Note: (*
2
)The accessory is not shipped with your projector.
2
1
3
19
English
Connecting to Multi-Media
# Description
1 Power cord
2 AC adapter
3 Audio cable(*
1
)
4 USB flash disk (*
2
)
5 MicroSD card (*
2
)
6 MHL cable (*
2
)
Note:
- (*
1
)The projector supports only TRS-type audio cables (without microphone function); with
some headsets, due to the impedance difference, you might notice a slight difference in the
volume levels (lower volume).
- (*
2
)The accessory is not shipped with your projector.
1
3
4
5
6
Smart Phone
2
20
English
Turning Your Projector On
Note: Turn on the projector before you turn on the source (computer, DVD player, etc.). The Power
button light blinks amber until pressed.
1. Connect the power cord with AC adapter and appropriate signal cables to the
projector.
2. Remove the lens cap.
3. Press the Power button.
4. Turn on your source (computer, DVD player, etc).
5. Connect your source to the projector using the appropriate cable.
6. The input source is determined by the last connected input source. (By default, the
input source of the projector is set to Multimedia). Change the input source of the
projector if necessary.
Turning Your Projector Off
Note: The “
Press Power Button to Turn Off Projector
” message will appear on the screen. The
message disappears after 5 seconds or you can press the Menu button to clear it.
1. Press the Power button. Follow the instruction displayed on screen to properly turn
off the projector.
2. Press the Power button again. The cooling fans continue to operate for 3~5
seconds.
3. Disconnect the power cord and AC adapter from the electrical outlet and the
projector.
Turning On/Off the Projector
21
English

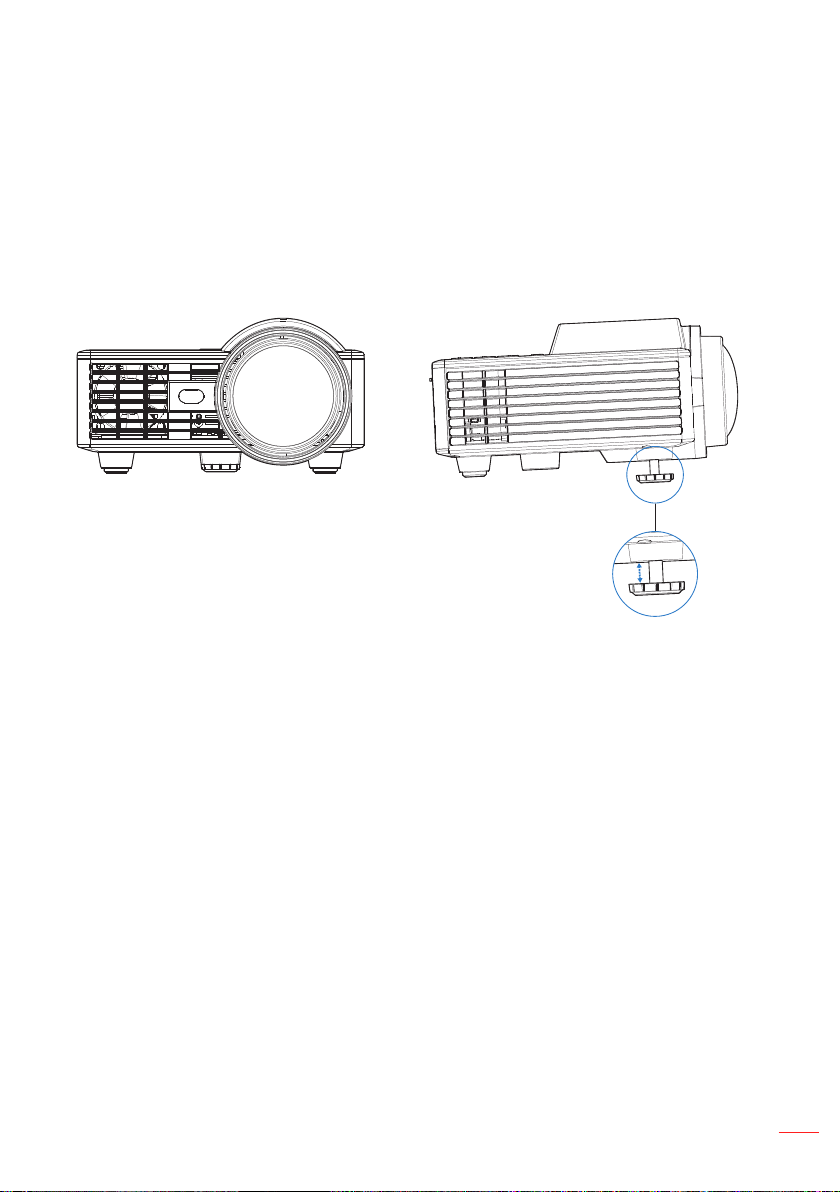

Raising the Projector Height
Raise the projector to the desired display angle, and use the front tilt adjustment wheel
to fine-tune the display angle.
Lowering the Projector Height
Lower the projector, and use the front tilt adjustment wheel to fine-tune the display
angle.
Front tilt adjustment wheel
(Angle of tilt: 0 to 3 degrees)
Important Note: To avoid damaging the projector, ensure that the adjustment wheels are fully
retracted before moving the projector or placing the projector in its carrying case.
Adjusting the Projected Image
22
English
Adjusting Projection Image Size
100” (254.0 cm)
90” (228.6 cm)
80” (203.2 cm)
70” (177.8 cm)
60” (152.4 cm))
50” (127.0 cm)
2.83’ (0.862 m)
3.39’ (1.034 m)
3.96’ (1.206 m)
4.52’ (1.379 m)
5.09’ (1.551 m)
5.65’ (1.723 m)
Projector to screen distance
23
English
Screen Size
Distance
Diagonal Width Height
50” (127.0 cm) 42.52” (108 cm) 26.38” (67 cm) 2.83’ (0.862 m)
60” (152.4 cm) 50.79” (129 cm) 31.89” (81 cm) 3.39’ (1.034 m)
70” (177.8 cm) 59.45” (151 cm) 37.01” (94 cm) 3.96’ (1.206 m)
80” (203.2 cm) 67.72” (172 cm) 42.52” (108 cm) 4.52’ (1.379 m)
90” (228.6 cm) 76.38” (194 cm) 47.64” (121 cm) 5.09’ (1.551 m)
100” (254.0 cm) 84.65” (215 cm) 53.15” (135 cm) 5.65’ (1.723 m)
Note: This graph is for user reference only.
60”
Distance: 1.034 m
24
English
Using the On-Screen Display
1. The projector has a multi-language On-Screen Display (OSD) Menu that can be
displayed with or without an input source.
2. Press the Menu button on the control panel or the remote control to enter the Main
Menu.
3. To select an option, press the
or buttons on your projector’s control panel or
remote control.
4. Use the
or buttons on the control panel or remote control to adjust the
settings.
5. To exit the OSD, press the Menu button directly on the control panel or the remote
control.
Main Menu
The Main menu allows you to select the input source, adjust the volume, select the
display mode, and configure the brightness, contrast, image, display, and setup
settings.
Input Source
Main
VGA
Volume
Display Mode
Brightness
Contrast
Display
Setup
PC
Select Exit Enter
Input Source:
Select your projector’s input source. The options are:
VGA
,
HDMI / MHL
, and
Media
.
Volume:
Adjust the volume.
Note: Audio output is not supported in VGA mode.
Display Mode:
Optimize the display image. The options are:
Bright
,
PC
,
Cinema/
iDevice*
,
Photo, and ECO
.
Note: *The iDevice option replaces the Cinema option if the input source is HDMI and the
iDevice option (Main > Setup > Advanced) is enabled.
Brightness: Adjust the brightness of the image.
Contrast: Adjust the display contrast.
User Controls
25
English
The Image menu allows you to modify various image settings, such as 3D related,
format, zoom, color temperature, color space, and others.
On
3D Sync. Invert
Format
Zoom
Color Temperature
Color Space
Frequency
Phase
Select Exit Enter
Off
Auto
Warm
Auto
3D
3D:
Turn the 3D function on or off.
3D Sync. Invert:
Turn the 3D sync. inverter option on or off.
Note:
- 3D/3D Sync. Invert cannot be changed when you select image settings.
- In 3D mode, the maximum supported input timing is 1024x768 @ 120Hz.
Format:
Select the format to adjust how the image appears. Options are:
y
Auto
: Maintain the aspect ratio of the image projector according to the input
source.
y
4:3
: The input source scales to fit the screen and projects a 4:3 image.
y
16:9
: The input source scales to fit the screen and projects a 16:9 image.
y
16:10
: The input source scales to fit the screen and projects a 16:10 image.
Zoom:
Zoom in or zoom out the image. Options are: 50%, 75%, 100%, 125%, 150%,
175%, or 200%.
Color Temperature:
Select the color temperature. Options are:
Warm
,
Medium,
and
Cold
.
Note: The Color Temperature function is not supported in Bright, Eco, and 3D modes.
Color Space:
Select an appropriate color matrix type. Options are:
Auto
,
RGB
, and
YUV
.
Note: The Color Space function is supported only in HDMI mode.
Frequency:
Change the display data clock frequency to match the frequency of your
computer’s graphics card. If you see a vertical flickering wave, use the Frequency
control to minimize the bars. This is a coarse adjustment.
Note: The Frequency can be adjusted only in VGA mode.
26
English
Phase:
Synchronize the signal timing of the display with the graphic card. If the
image appears to be unstable or flickers, use the Phase to correct it. This is a fine
adjustment.
Note: The Phase can be adjusted only in VGA mode.
Display
The Display menu allows you to modify the display settings, such as keystone,
projection, auto focus, and manual focus.
Display
On
Auto Keystone
Keystone
Projection
Select Exit Enter
Auto Focus
On
Manual Focus
Auto Keystone: Select On to
automatically adjust image distortion caused by tilting
the projector.
Note: The Auto Keystone function can be only used to adjust the image distortion vertically.
Keystone:
Adjust image distortion caused by tilting the projector (+/-40 degrees).
Note: If you adjust the keystone degree manually then the Auto Keystone function will be
automatically switched off.
Projection:
Select the projection mode, depending upon how the projector is
mounted.
y
Auto Keystone
: On
No reverse
Left/ Right reverse
y
Auto Keystone
: Off
No reverse
Left/ Right reverse
Up/ Down reverse
Up/ Down and Left/ Right reverse
Auto Focus:
Select
On to
automatically adjust the image focus.
Manual Focus:
Adjust the image focus manually when Auto Focus option is off.
27
English
Setup
The Setup menu allows you to choose the default OSD language, modify boot-up
source, set sleep timer, and other options.
Setup
English
Language
Boot-Up Source
Direct Power On
Select Exit Enter
Sleep Timer
Advanced
Reset
Ver.
Auto
Off
Auto
Language:
Set the language for the OSD. Options are: English, Germany, French,
Italian, Spanish, Portuguese, Polish, Dutch, Russian, Swedish, Greek, 中文 (繁), 中
文 (简), Janpanese, Korean, and Turkish.
Boot-Up Source:
Select the projector’s boot-up source. Options are:
Auto
,
VGA
,
HDMI / MHL
, and
Media
.
Note: If the Boot-Up Source is set to“Auto” then at each boot-up of the projector the input
source is always chosen the same as in previous session.
Direct Power On:
Choose
On
to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without pressing the
Power
button on the projector control panel or on the remote control.
Sleep Timer:
Set the countdown timer interval. The countdown timer will start, with
or without a signal being sent to the projector. The projector will automatically power
off when the countdown has finished. Options are:
Auto
,
Off
,
0:30
,
1:00
,
3:00
,
8:00
,
12:00
.
Note: If the Sleep Timer is set to“Auto” then the project will automatically power off after 15
minutes if no signal has been detected.
28
English
Reset:
Reset all settings to its factory default, including computer sources and video
source settings. After choosing this option, a confirmation message appears on the
screen. Select “Yes” to confirm or “No” to cancel reset.
Reset
No
Reset ?
Yes
Ver.: View
the current projector’s firmware version.
29
English
Advanced
The Advanced menu allows you to change settings for iDevice, Mute, Saturation, and
Hue.
Advanced
AV Mute
Mute
Saturation
Hue
Select Exit Enter
Off
iDevice
iDevice:
Select
On
to display the best color reproduction when projecting images
from iDevice (iPhone/ iPad/ iPod) through Lightning HDMI adapter.
Note: If you want to project images from iDevice, connect the device to the projector through
the Lightning HDMI adapter, set input source to HDMI, enable iDevice option (Main >
Setup > Advanced), and set iDevice as display mode (Main > Display Mode).
Mute: Select the Mute mode. Options are: AV Mute (mute both audio and video),
Audio (mute audio only), and Video (mute video only).
Note: The function of the Mute button ( ) on the remote control depends on the selected
“Mute” option in the OSD menu.
Saturation: Adjust the saturation of the image.
Note: Saturation can be only adjusted in HDMI mode with supported video timings 1080p/i,
720p, and 480p/i.
Hue: Adjust the hue of the image.
Note: Hue can be only adjusted in HDMI mode with supported video timings 1080p/i, 720p, and
480p/i.
30
English
Multi-Media Introduction
Multi-media format supported:
Photo Format
Image Type
(Ext Name)
Sub Type Encode Type Max Size
Jpeg / Jpg Baseline YUV420 4000x4000=16,000,000 pixel
YUV422
YUV440
YUV444
Progressive YUV420 4000x4000=16,000,000 pixel
YUV422
YUV440
YUV444
BMP 4000x4000=16,000,000 pixel
Video Format
File Format Video Format Decode Max
res.
Max Bit Rate
(bps)
Audio Format Prole
MPG,MPEG MPEG1 1920x1080
30fps
30M bps MPEG1 L1-3
AVI, MOV,
MP4, MKV
H.264 1920x1080
30fps
30M bps MPEG1 L1-3
HE-ACC v1
AC3
BP/MP/HP
AVI, MOV,
MP4,
MPEG4 1920x1080
30fps
30M bps HE-ACC v1 SP/ASP
AVI, MOV,
MP4,
Xivd 1920x1080
30fps
30M bps MPEG1 L1-3
HE-ACC v1
HD
AVI MJPEG 8192x8192
30fps
30Mbps MPEG1 L1-3
HE-ACC v1
Baseline
WMV VC-1 1920x1080
30fps
30M bps WMA8/9(V1/
v2)
SP/MP/AP
31
English
Audio Format
Music Type (Ext Name) Sample Rate (KHz) Bit Rate (Kbps)
MP3 8-48 8-320
WMA 22-48 5-320
ADPCM-WAV(WAV) 8-48 32-384
PCM-WAV(WAV) 8-48 128-1536
AAC 8-48 8-256
Ofce Viewer Format
File Format Support Version Page/Lines Limitation Size Limitation
Adobe PDF PDF 1.0, 1.1, 1.2, 1.3, 1.4 Up to 1000 pages (One File) Up to 75MB
MS Word British Word 95, Because office viewer does not
load all pages of MS/Word file
at the same time, there are not
abvious limitations of page and
line.
Up to 100MB
Word 97, 2000, 2002, 2003
Word 2007(.docx),
Word2010(.docx),
MS Excel British Excel 5,95 Row Limit: up to 595 Up to 15MB
Excel 97, 2000, 2002, 2003 Column Limit: up to 256
Excel 2007(.xlsx),
Excel 2010(.xlsx)
Sheet: up to 100
Office XP Excel
Note: Any of the three limitations
above can not appear on one
excel le simultaneously.
32
English
File Format Support Version Page/Lines Limitation Size Limitation
MS
PowerPoint
British PowerPoint 97 Up to 1000 pages (One File) Up to 19MB
PowerPoint 2000, 2002,
2003
PowerPoint 2007(.pptx)
PowerPoint 2010(.pptx)
Office XP PowerPoint
PowerPoint presentation
2003 and earlier (.ppx)
PowerPoint presentation
2007 and 2010 (.ppsx)
Note:
- Animations are not supported when viewing MS PowerPoint les.
- When projecting les, some documents may not be displayed the same as shown on the
screen of a PC.
33
English
How to set-up File Type for Multi-Media with USB
Note:
1. A USB ash disk must be plugged into the projector if you want to use the multimedia USB
function.
2. Please don’t connect USB port for camera since it would be exist compatibility problem.
Follow these steps to playback the Photo, Video, or Music files on your projector:
1. Connect the power cable with AC adapter and turn on the projector by pressing the
Power button.
2. Plug in a USB ash disk to your projector.

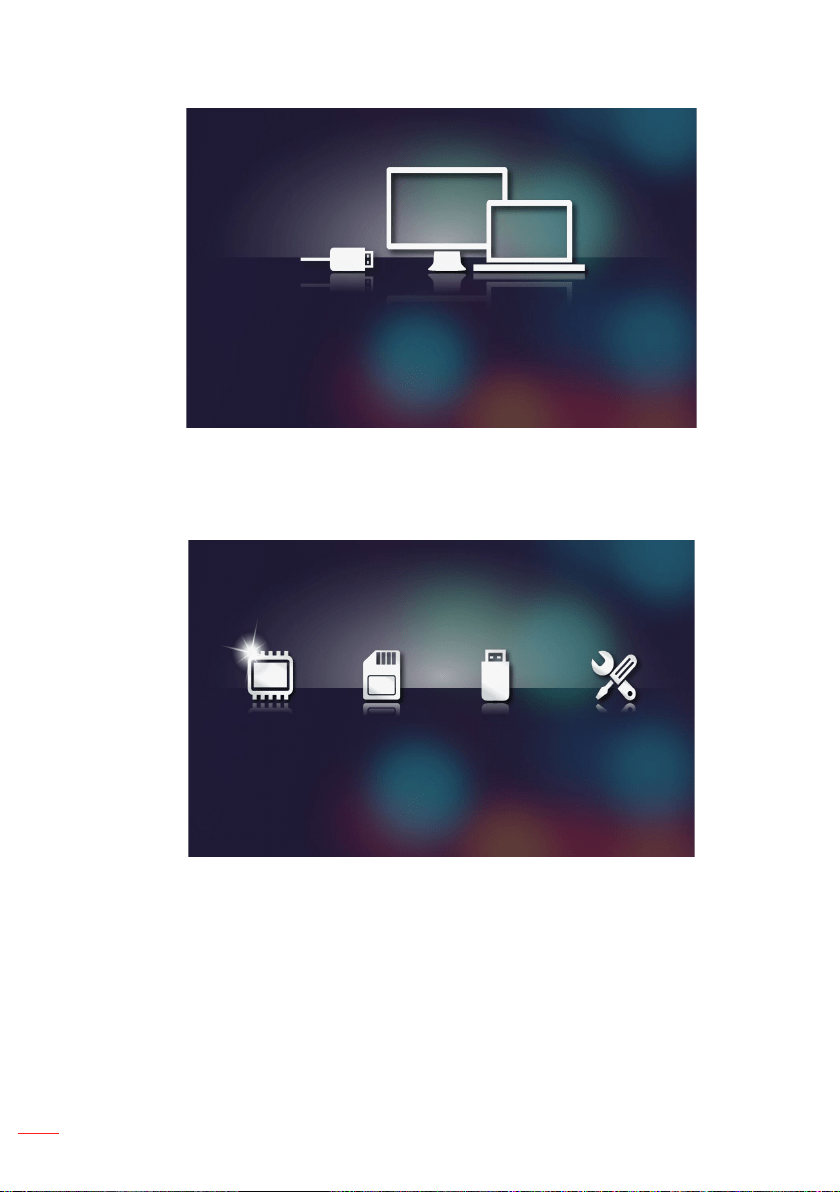

The Multi-Media menu opens.
HD Media
Note: To open the Main Menu, press the Menu button on the remote control or long press for 1
second the Menu button on the control panel of the projector.
34
English

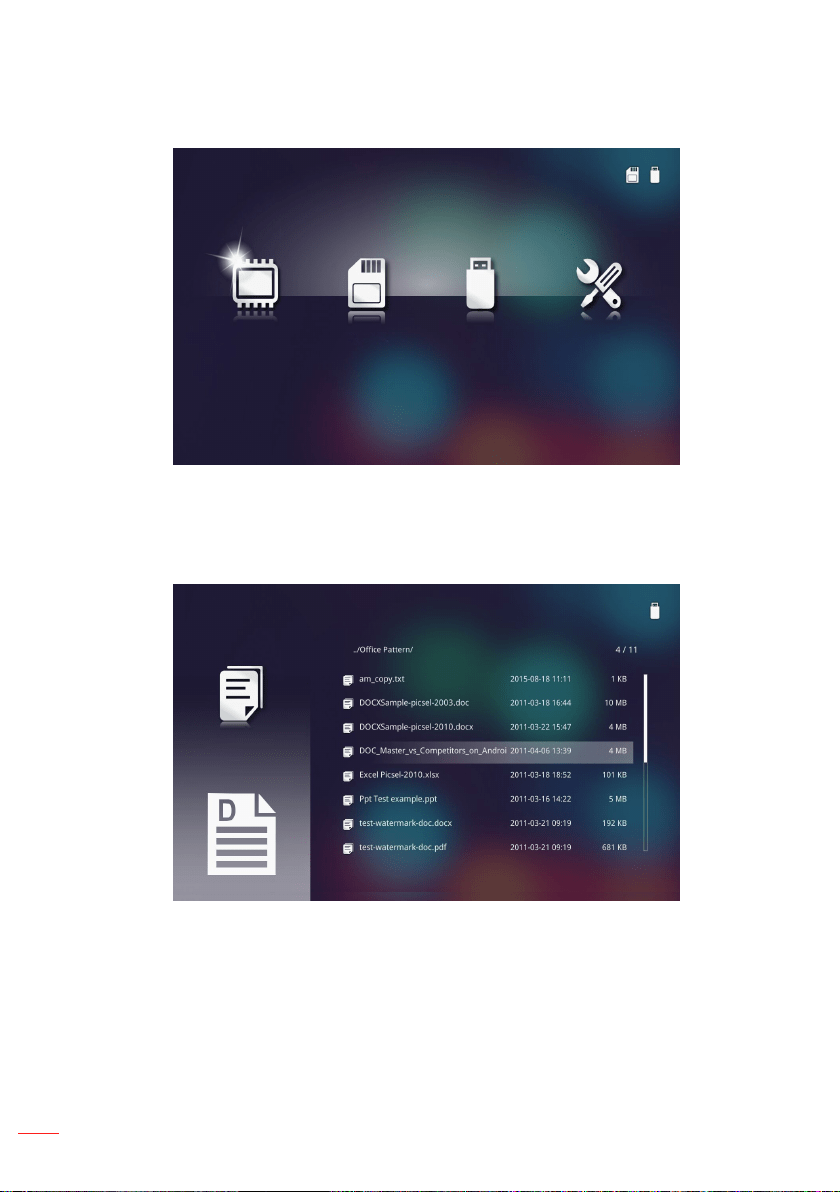

3. Select the HD Media menu.
The HD Media menu opens.
Internal Memory SD Card USB Settings
4. Access the USB menu and select the multimedia files: Photo, Video, or Music. Or
select the Settings option to change settings for Photo, Video, or Music.
5. Select the file you want to open.
Ofce viewer
Note: The maximum allowed le name length is 28 characters.
35
English
How to set-up File Type for Multi-Media with MicroSD
Note: A microSD card must be plugged into the projector if you want to use the multimedia microSD
function.
Follow these steps to playback the Photo, Video, or Music files on your projector:
1. Connect the power cable with AC adapter and turn on the projector by pressing the
Power button.
2. Plug in a MicroSD card to your projector.
The Multi-Media menu opens.
HD Media
Note: To open the Main Menu, press the Menu button on the remote control or long press for 1
second the Menu button on the control panel of the projector.
36
English
3. Select the HD Media menu.
The HD Media menu opens.
Internal Memory SD Card USB Settings
4. Access the SD Card menu and select the multimedia files: Photo, Video, or Music.
Or select the Settings option to change settings for Photo, Video, or Music.
5. Select the file you want to open.
Ofce viewer
Note: The maximum allowed le name length is 28 characters.
37
English
How to set-up File Type for Multi-Media with Internal Memory
Note: A microSD card must be plugged into the projector if you want to use the multimedia microSD
function.
Follow these steps to playback the Photo, Video, or Music files on your projector:
1. Connect the power cable with AC adapter and turn on the projector by pressing the
Power button.
The Multi-Media menu opens.
HD Media
Note: To open the Main Menu, press the Menu button on the remote control or long press for 1
second the Menu button on the control panel of the projector.
38
English
2. Select the HD Media menu.
The HD Media menu opens.
Internal Memory SD Card USB Settings
3. Access the Internal Memory menu and select the multimedia files: Photo, Video, or
Music. Or select the Settings option to change settings for Photo, Video, or Music.
4. Select the file you want to open.
Ofce viewer
Note: The maximum allowed le name length is 28 characters.
39
English
Multi-Media Main Menu
HD Media
Multi-Media SETTINGS for System, USB, MicroSD, and Internal Memory
The multi-media settings menu allows you to change settings for System,
Photo, Video, and Music.
System
Internal Memory SD Card USB Settings
Photo Video
Music
Note: Multi-media setup menu and set are the same for the USB, MicroSD, and Internal Memory.
40
English
System Settings
Access the system settings menu. The system settings menu provides the following
options:
System
Version
Update
USB
Version
View the current projector’s firmware.
Update
Update the projector firmware only from the
USB
stick.
C03.2015-10-14 18:13:12
41
English

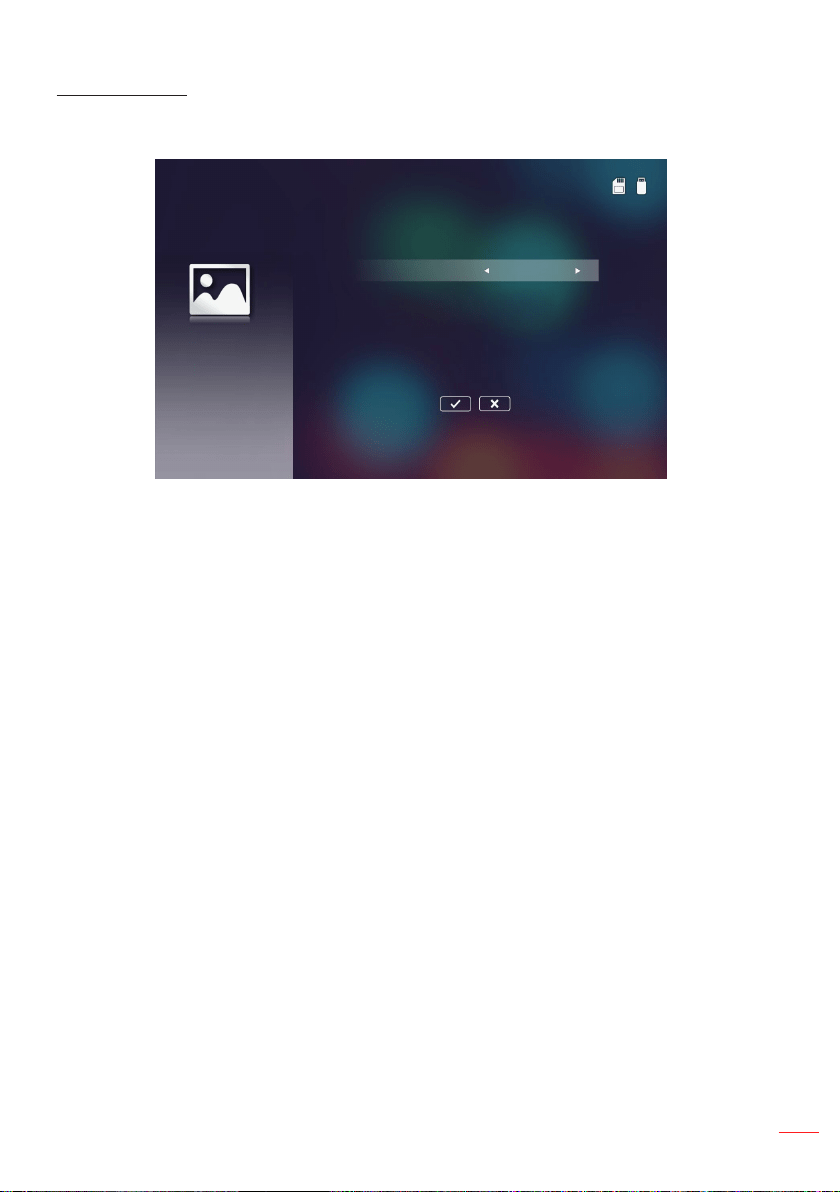

Photo Settings
Access the photo settings menu. The photo settings menu provides the following op-
tions:
Display Ratio
Slideshow Pattern
Slideshow Duration
Original
Random
10 sec
Display Ratio
Select the display ratio of the photo as
Original
or
Full Screen
.
Slideshow Pattern
Select what slideshow effect you want. Options are:
Random, Ring Diffusion,
Middle Enlarge, Expand Blink, Window Shades, Linear Interaction,
Cross Interleaved, Banding Alternate, Rectangle Enlarge.
Slideshow Duration
Select the slideshow duration. The image will automatically switch to the next photo
after the time out. Options are:
10 sec
,
30 sec, 1 min
.
Note: Slideshow Duration, and Slideshow Pattern function only support Slideshow mode.
42
English
Video Setup
Access the video settings menu. The video setting menu provides the following option:
Video
Display Ratio
Repeat Mode
Letter box
Sequence
Display Ratio
Select the display ratio of the Video.
y
Letter box
: If the video source does not fit a 16:10 screen then the video image
is stretched equally in the horizontal and vertical directions to fit the screen.
Therefore parts of the video are cropped at the top and bottom (left and right)
sides and appear as "black bars" around the video.
y
Cut screen
: Choose to display the video in its native resolution without scaling.
If the projected image exceeds the screen size then it will be cropped.
y
Full screen
: Regardless the native aspect ratio, the video image is stretched
non-linearly in the horizontal and vertical directions to exactly fit the 16:10 screen.
You will not see the "black bars" around the video image but the proportions of
the original content may be distorted.
y
Original screen
: Choose to display the video image in its native resolution
without scaling. If the video resolution is lower than 1280x800 then you will see
"black bars" around the edges of the video image. If the resolution is higher than
1280x800 then the video is displayed in 1280x800 resolution.
Repeat Mode
Select the video repeat mode. Options are:
Sequence
,
Single
,
Random
,
Once.
43
English
Music Setup
Access the music settings menu. The music settings menu provides the following op-
tion:
Music
Repeat Mode
Sequence
Repeat Mode
Select the music play mode. Options are:
Sequence
,
Single
,
Random
.
44
English
Other Multi-Media Connections
Using the multi-media menu, you can copy les directly to the projector or mirror
the screen of your portable device.
Project Files from the Built In Memory
Follow these steps to project files from your PC:
1. Connect the power cable with AC adapter and turn on the projector by pressing the
Power button.
2. To access files from the hard disk of your PC, plug in one end of a USB-A cable to
your PC and the other end of the USB cable to the projector.
45
English

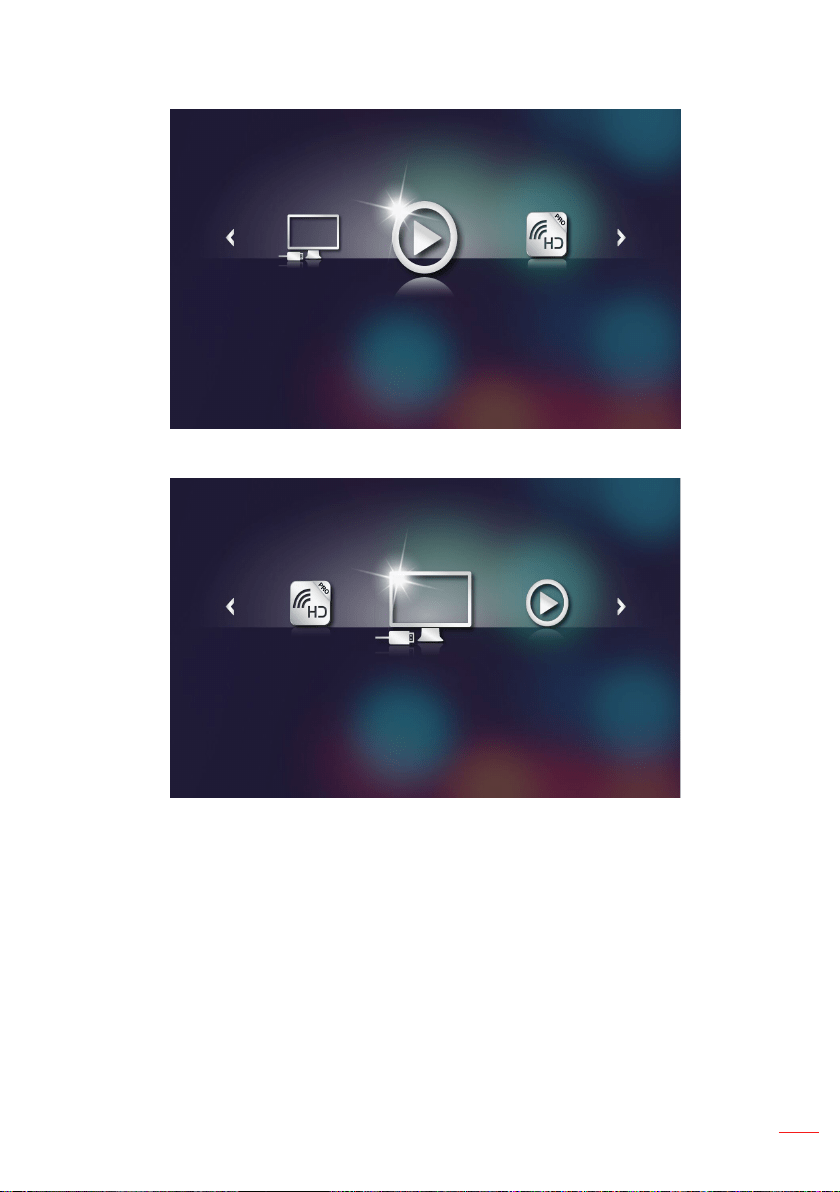

The Multi-Media menu opens.
HD Media
3. Select the Connect to PC menu.
Connect to PC
46
English
The Connect to PC menu opens.
4. You will see the projector’s internal memory on your PC. Then copy the files from
your PC into the projector’s internal memory.
5. Select the HD Media > Internal Memory menu and select the file you want to
project on the wall.
Internal Memory SD Card USB Settings
Tip: In Windows 10 and Mac OS 10.9, you can also save les from your PC directly to the
projector’s internal memory or to the micro SD card that has been inserted into the
projector.
47
English
Mirroring the Screen of the Portable Device
Follow these steps to mirror the screen of your portable device:
1. Connect the power cable with AC adapter and turn on the projector by pressing the
Power button.
The Multi-Media menu opens.
HD Media
2. Select the HDCast Pro menu.
HDCast Pro
48
English

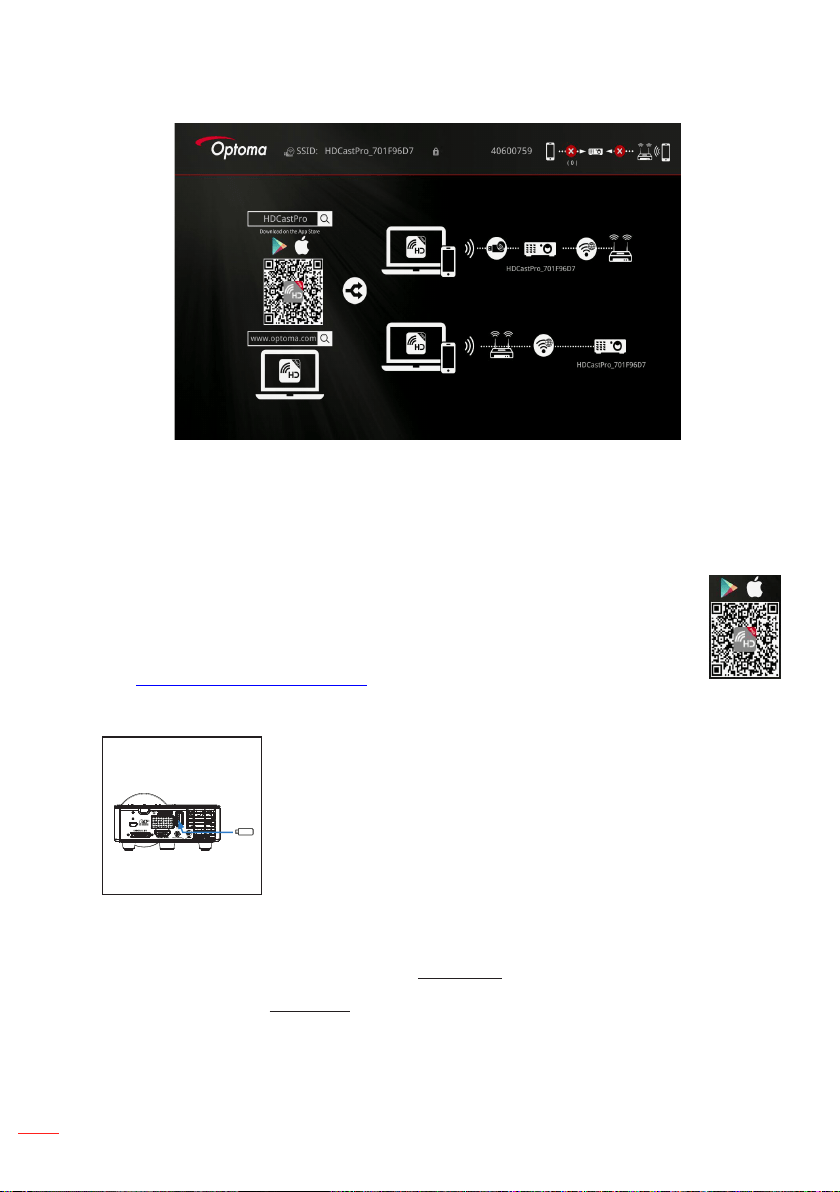

The HDCast Pro menu opens.
Password:
3. Do one of the following:
•Depending on the operating system of your mobile device, open the App Store
(iOS) or Google Play (Android) and install the HDCast Pro app on your mobile
device.
•Scan the QR code on the HDCast Pro menu with your mobile device
and then follow
the on-screen instructions to install the HDCast Pro
app.
If you are using a laptop, download HDCast Pro app from
www.optoma.com/hdcastpro website.
4. Plug in a Wi-Fi dongle to your projector.
5. Connect your portable device via Wi-Fi to the projector. An example connection
parameters are as follows:
•SSID of the projector: HDCastPro_701F96D7
•Wi-Fi password: 40600759
Note: The projector SSID and Wi-Fi password varies depending on the connected Wi-Fi dongle.
6. Open HDCast Pro app on your portable device.
49
English
The following screen opens.
Android
Windows
Photo Camera Music Video
Document Web Cloud Video Cloud Storage
Split Screen Preference AirView
HDMirror Setting
Mirror Off Quality Audio Compatible Music Video
Web Cloud Video Air View Split Screen Preference Update
Setting
7. Select HDMirror (Android) from the menu to start mirroring the screen of your por-
table device.
50
English
Auto Play Feature (Digital Signage Mode)
Playback
1. Content
Full screen playback video files. No Image and ticker.
2. Video/Audio Codec
The supported file formats are listed below:
Ext. lename Video Codec
*1
Audio Codec
*1
Note
*1
.AVI XVID MPEG1,2-audio layer (mpga)
.MPG, .AVI MPEG2(mpgv) MPEG1,2-audio layer (mpga)
.MKV, .MOV, MP4,
.AVI
H.264(avc1)
1. AAC(mp4a)
2. MPEG1,2-audio layer (mpga)
*1
Get codec information from MediaInfo ver.0.7.41
(http://mediainfo.sourceforge.net/zh-tw/Download/Windows) or VLC ver.1.1.8.
3. Playback behavior
In the microSD card “Signage” folder, play the les repeatedly in the order in which
they are currently sorted. The system will ignore any sub-folder in “Signage” folder.
microSD
card
4. The order of le list
The play list collects all video les in the microSD card “Signage” folder. (The play list
does not real le in storage. It is program in code)
If the rst 2 characters of lename are 00~99, the program will sort these les (sort
from small number to big number) and put them into head of le list. For example,
Storage (microSD card)
51
English
Note:
- If the rst 2 characters of lename are 00~99, the play sequence will start from 00,01,02
until 99.
- If there are two les named “00”, the play order will start from the Media le stored in the
microSD card (but the reboot sequence is unchanged). If it is difcult to dene the playback
sequence, please change the lename (other than “00”).
- If the rst two characters of the le name are not numbers (other characters), no sorting is
performed. The order of the les will start from the Media le stored in the microSD card. If
it is difcult to dene the play sequence, please change the lename that begins with the
number 00~99.
- In addition, if the microSD card has a combination les of music, photos, and videos, the
playback method is as follows:
1. If there is a video in the le, Signage will only play the video le.
2. If there are photos in the le, Signage will only play photo les.
3. If there are photos and music in the le, Signage will play photo les and play music in
the background.
The play sequence is also depending on the le sorting method.
5. Auto-disable playback info
Due to avoid redundant information for signage application, the system will auto-
disable “playback info window” (pause/start/next/previous/progress bar…) during
signage mode.
6. Error handling
If the system gets an un-supported video le in le list, the system will skip this le.
7. Remote and keypad handling
During “signage mode”, touchpad and “Up”, “Down”, “Left”, “Right”, “Enter” keys of the
remote control are NOT working. Other keys of the remote control are working.
52
English

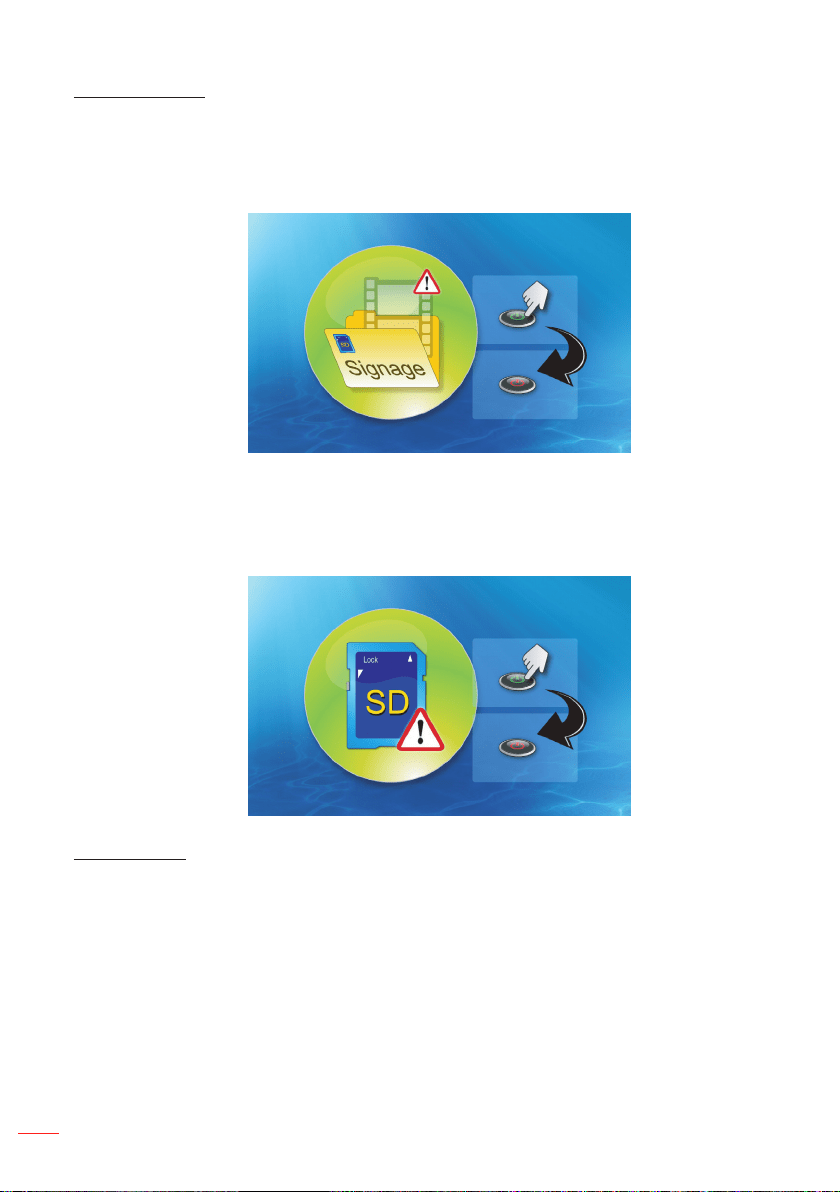

Error Message
1. No video le
If the microSD card inserted, but no any video le in “Signage” folder, the system will
show a message window to notify the end user.
An example of message window:
2. MicroSD card is removed
If the microSD card is removed during playback, the system will show a message
window to notify the end user.
An example of message window:
Power on/off
1. Direct power-on
When this setting is enabled, the system will change to power on mode directly
(“power off mode” directs to “power on mode”; skip “stand-by mode”) by AC plug-in.
2. Off timer
The system has one parameter for this setting that from 0 to 995 and each step is 5.
“0” means disable this feature and “995” means auto power-off after 995 minutes.
53
English
Appendices
Troubleshooting
If you experience problems with your projector, see the following
troubleshooting tips. If the problem persists, contact your local reseller or
service center.
Problem Possible Solution
No image appears on the
screen
y Ensure that the projector is turned on.
y Ensure that you have chosen the correct input source on the
OSD Main > Input Source menu.
y Ensure the external graphics port is enabled. If images are
not displayed properly, please upgrade the video driver of
your computer.
y Ensure that all the cables are securely connected.
y Ensure that the pins of the connectors are not bent or broken.
Partial, scrolling or
incorrectly displayed image
y If you experience difficulty in changing resolutions, or if your
monitor freezes, restart all the equipment and the projector.
y If images are not displayed properly, please upgrade the
video driver of your computer.
The screen does not display
your presentation
y If you are using a portable computer, press the toggle output
settings. Example: [Fn]+[F4].
Image is unstable or
ickering
y Adjust the phase in the OSD Main > Image > Phase menu (in
PC Mode only).
Image has vertical ickering
bar
y Adjust the frequency in the OSD Main > Image > Frequency
menu (in PC Mode only).
Image is out of focus
1. Adjust the focus ring on the projector lens.
2. Ensure that the projection screen is within the required dis-
tance from the projector (2.82 ft [86 cm] to 5.64 ft [172 cm]).
The image is stretched
when displaying a 16:9 DVD
y The projector automatically detects the input signal format.
It will maintain the aspect ratio of the projected image
according to input signal format with an Original setting.
y If the image is still stretched, adjust the format in the Main >
Image > Format menu in the OSD.
LED warning indicator
(LED) is solid amber
y A projector LED has failed and the projector will automatically
shut down. If the problem persists, contact Optoma.
54
English
Problem Possible Solution
TEMP warning indicator
(LED) is blinking amber
y The projector has overheated. The display automatically
shuts down. Turn the display on again after the projector
cools down. If the problem persists, contact Optoma.
y If the projector fan fails, the projector will automatically shut
down. Clear the projector mode by pressing and holding the
Power button for 10 seconds. Please wait for about 5 minutes
and try to power up again. If the problem persists, contact
Optoma.
The remote control is not
operating smoothly or
works only within a limited
range
y The battery may be low. Check if the LED indication from the
remote is too dim. If so, replace with a new CR2025 battery.
55
English
Guiding Signals
Projector
Status
Description
Power
(Blue / Amber)
TEMP
Warning
(Amber)
LED
Warning
(Amber)
Standby
mode
Projector in Standby mode. Ready to
power on.
Amber OFF OFF
Power on Projector in Normal mode, ready to
display an image.
Blue OFF OFF
Projector
overheated
Air vents might be blocked or ambient
temperature may be above 35 ºC.
The projector automatically shuts
down. Ensure that the air vents are
not blocked and that the ambient
temperature is within operational
range. If the problem persists, contact
us.
Amber flashing
and Blue ON
Amber
Flashing
(Cycling
turn-off
1sec and
turn-on
3sec)
OFF
Fan
breakdown
One of the fans has failed. The
projector automatically shuts down. If
the problem persists, contact us.
Amber flashing
and Blue ON
Amber
Flashing
(Cycling
turn-off
0.5sec and
turn-on
2sec)
OFF
LED failure LED shutdown. OFF OFF Amber
Note: If there is a fan failure, the TEMP LED will blink amber (2 sec on / 0.5 sec off).
-If the projector fan fails, the projector will automatically shut down. Reset the projector
mode by pressing and holding the Power button for 10 seconds. Please wait for about
5 minutes and try to power up again.
56
English
Compatibility Modes (HDMI/VGA)
Signal Mode Resolution Refresh Rate (Hz)
HDMI, VGA(via
Universal port)
VGA 640 x 480 60/75
SVGA 800 x 600 60/75/120(*)
XGA 1024 x 768 60/75/120(*)
SXGA 1280 x 1024 60/75
WXGA 1280 x 768 60/75
WXGA 1280 x 800 60
WXGA 1366 x 768 60
WXGA+ 1440 x 900 60/75
SXGA+ 1400 x 1050 60
WSXGA+ 1680 x 1050 60
HDMI, YPbPr(via
Universal port)
480i 720 x 480 30
480p 720 x 480 60
576i 720 x 576 25
576p 720 x 576 50
720p 1280 x 720 50/60
1080i 1920 x 1080 25/30
1080p 1920 x 1080 24/50/60
Note: (*)3D timing for TI DLP 3D.
57
English
Tripod Mount the Projector
Screw a standard tripod into the screw hole on the projector.
Note: Please note that damage resulting from incorrect installation will void the warranty.
Unit: mm
Insert Nut 1/4” - 20 UNC
(Screw hole for tripod)
42.0
56.25
58
English
Specication
Optical Description
Maximum resolution WXGA (1280x800)
Lighting source RGB LED (LED life=20,000hrs)
Lens Manual focus
Image size (diagonal) 50" ~ 100", optimize at 60”
Projection distance 0.86m~1.72mm, optimize at 1.033m
Electrical Description
Inputs - Universal VGA in x1 (need to use special cable),
- HDMI/MHL in x1,
- USB-A x 1, Micro SD x 1
Outputs Headphone out x1
Color reproduction 16.7 Million color
Scan rate - Horizontal scan rate: 15.375 ~ 91.146 KHz
- Vertical scan rate: 24 ~ 120 Hz (120Hz for 3D featured)
Built-in speaker Yes, 1.5W (Amplifier)
Power requirement AC Adapter, Input 100 - 240V ±10%, AC 50/60Hz, Output 19V DC (to
projector), Standby Mode < = 0.5W
Input current AC in 1.7A (DC in 3,42A)
Multimedia Description
FW based Linux similar OS
USB-A portion - For firmware upgrade (USB 1.1 support)
- Supports Host mode for USB storage disk (USB 2.0 support
up to 64GB).
- Supports WiFi dongle
- Supports 5V/0.5A power for 3C device
Micro-SD slot - Supports Micro SD & SDHC card (up to 64GB)
- SDXC & UHS-I card types are not supported
Mechanical Description
Installation orientation Desktop/Front, Desktop/Rear
Dimensions 112.5 x 105 x 40.5mm (w/o lens ring and rubber foot)
Weight 0.46 kg
Environmental
conditions
Operating: 5 ~ 40°C in Bright mode and ECO mode, 10% to 85%
humidity (non-condensing)
Note: All specications are subject to change without notice.
www.optoma.com
