ENGLISH
P (2x)
B
A
C
B
Close the door and test the latch in the strike.
If small bolt of latch enters strike hole,
reposition strike.
Close door and test lever operation. If latch
is loose in the strike, adjust strike tang.

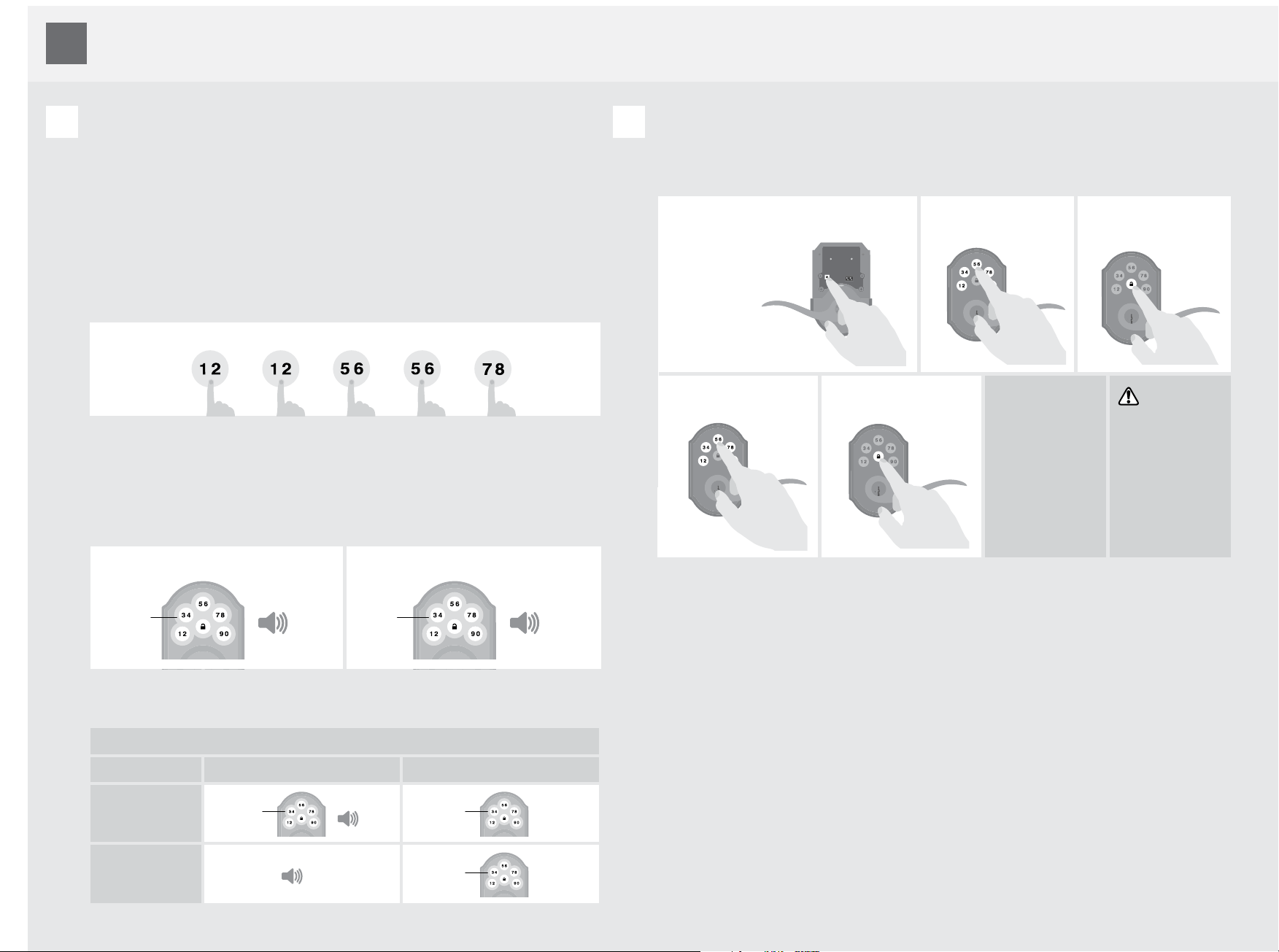

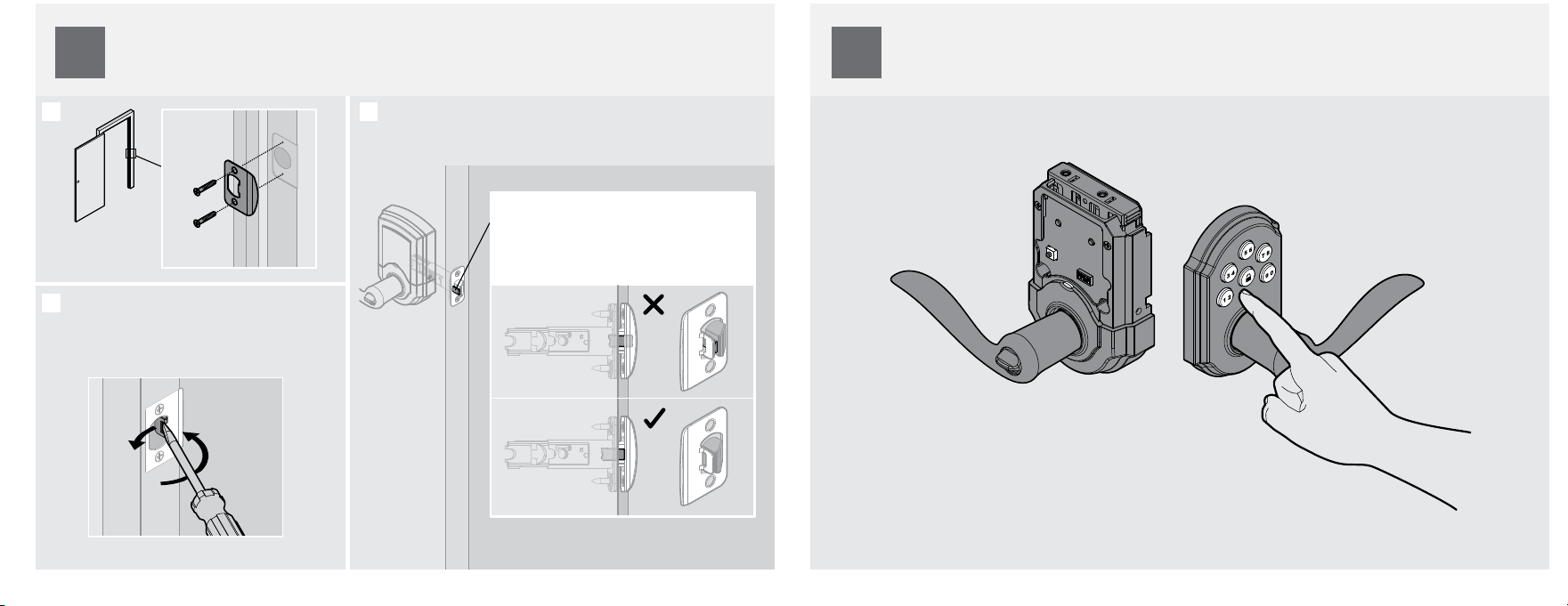

Install strike Program the lock

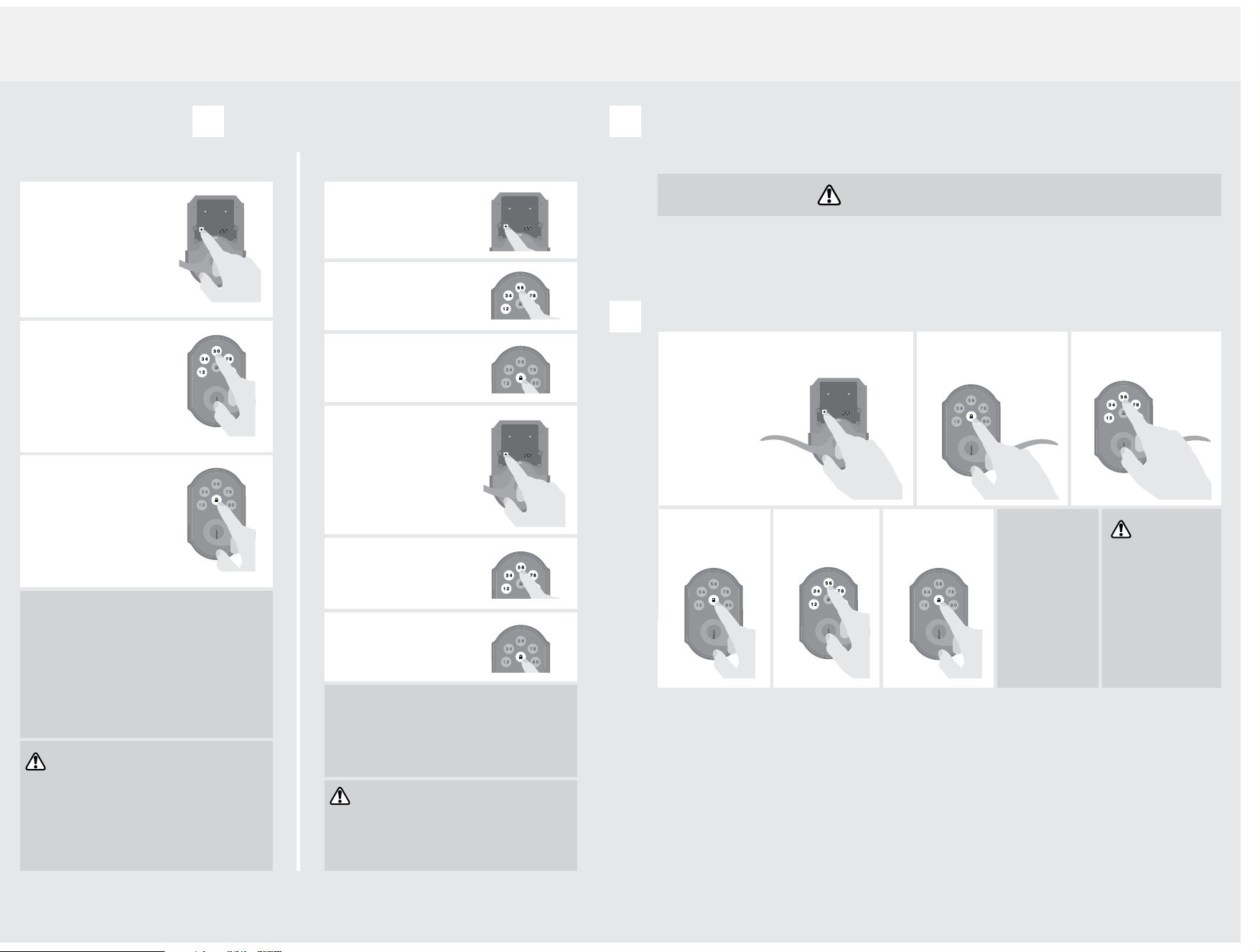

Programming instructions
are located on the reverse
side of this document.
A B C
R (2x)
Q
J
E

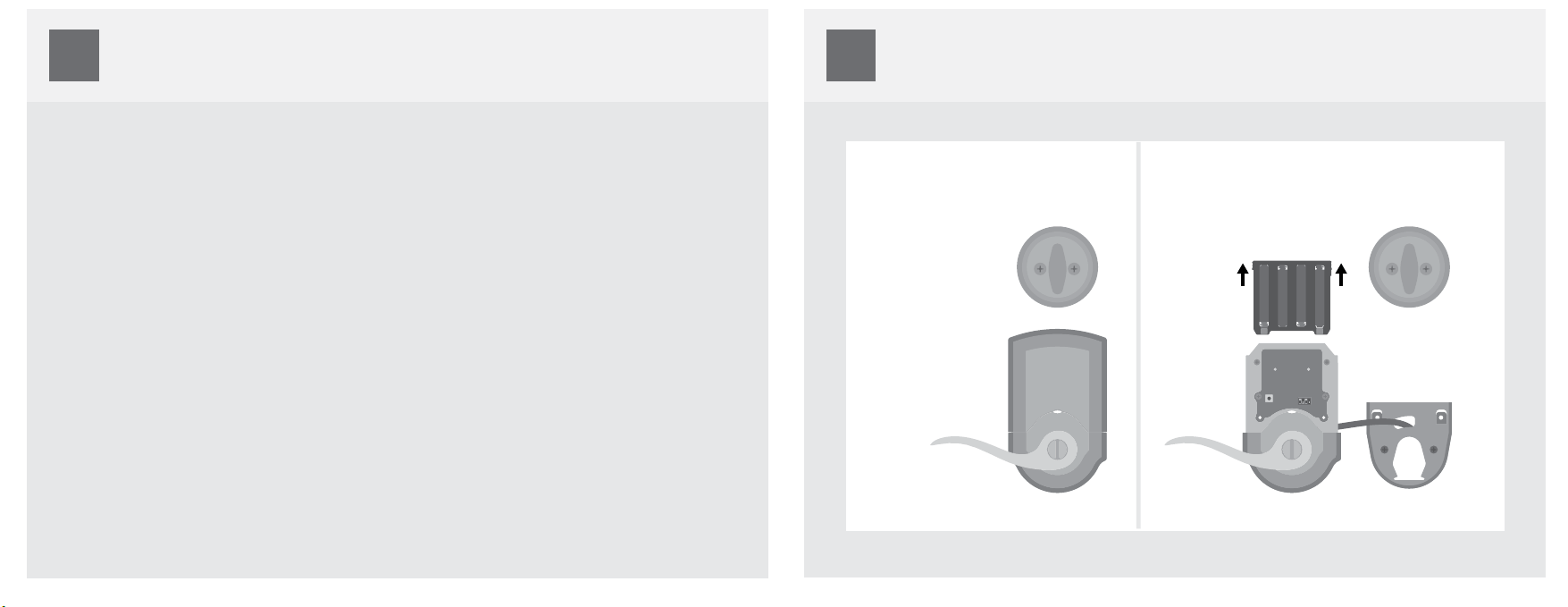

Install battery cover and re-key the lock
If needed, re-key the lock to
work with your existing key.
See the supplied SmartKey
Re-key instructions for more
information.

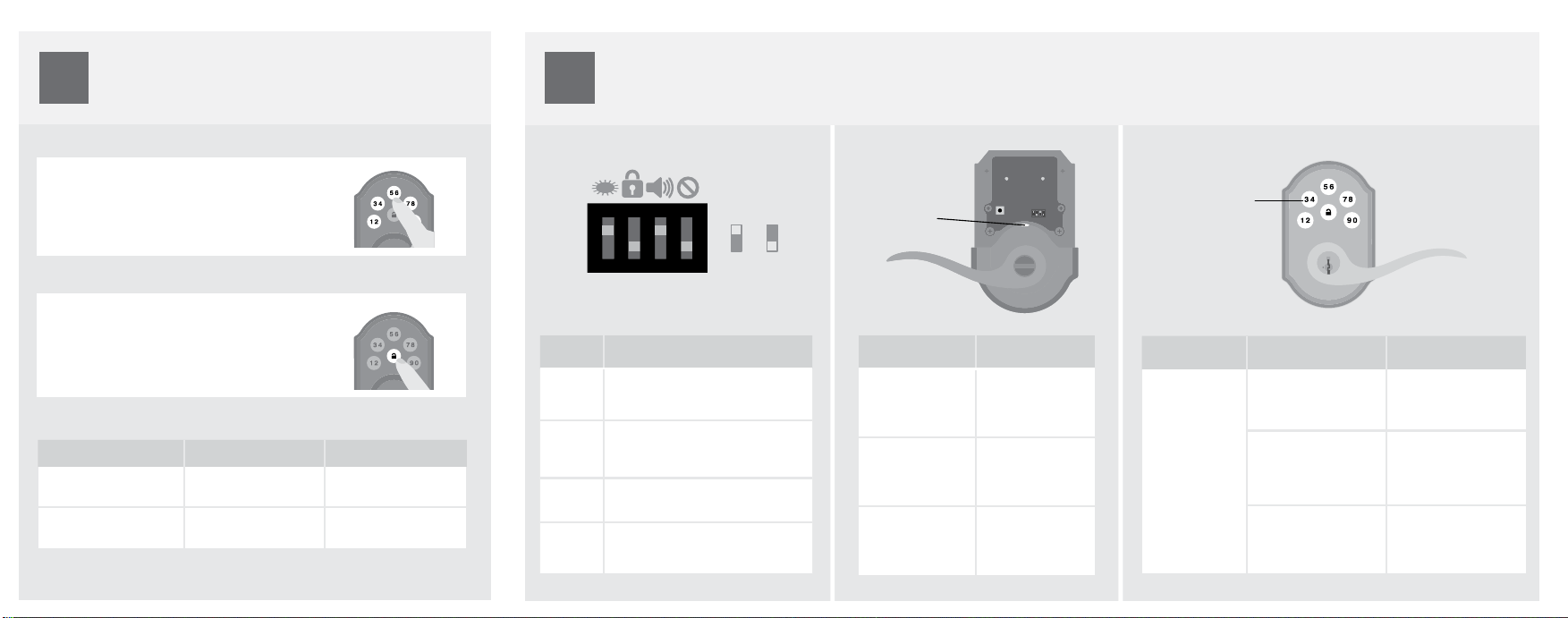

Keep “Q” in a safe place, as you
will need it to access the back
panel for additional programming.
A B C D
L / M
L / M
Q Q

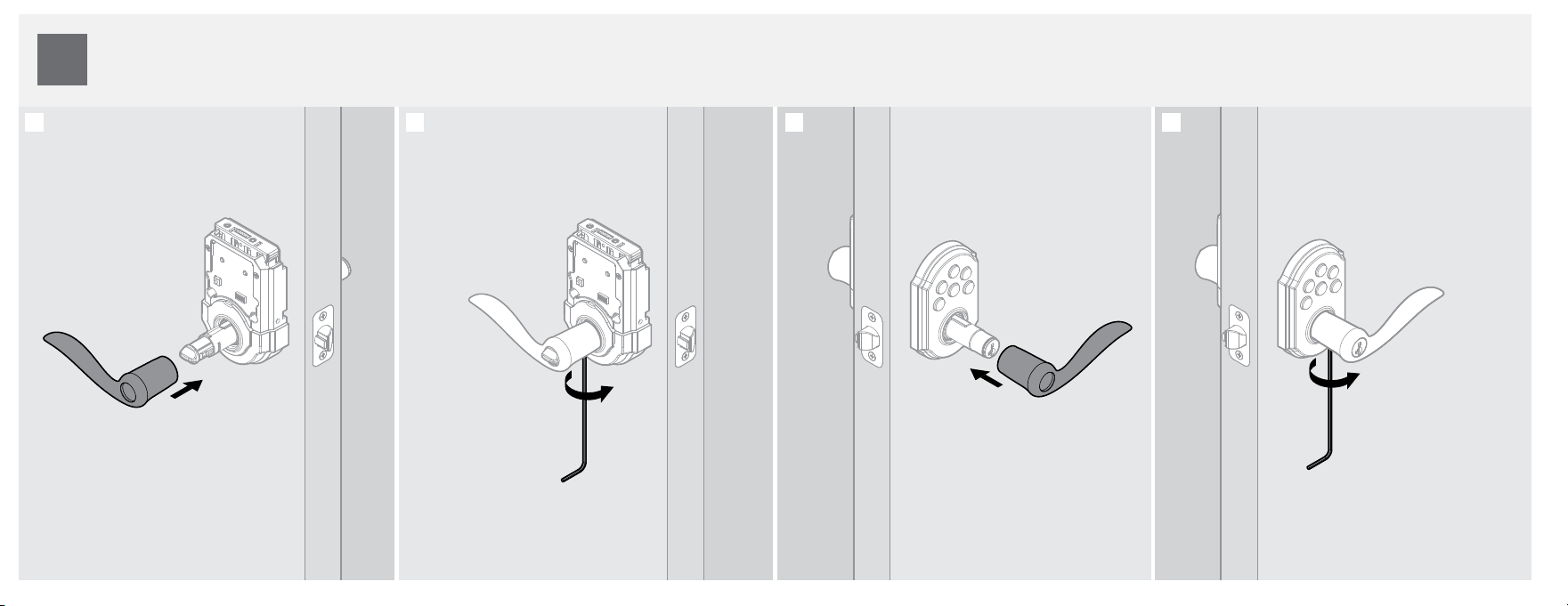

Install levers
Lever handle faces
away from latch.
Lever handle faces
away from latch.
Tighten the
pre-installed
set screw.
Tighten the
pre-installed
set screw.
8
9 10 11
C
F
S (2x)
A B
C
Install keypad and mounting plate
Cable goes over latch
Keep parallel to
edge of door
Tighten
screws evenly
K
Install spindle
Rounded edge
faces latch
Latch
N (2x)
A B
C
For doors with chiseled edge For doors without chiseled edge
Angle
Jamb
Correctly orient latch Correctly orient latch
Angle
Jamb
wood block
A2
A

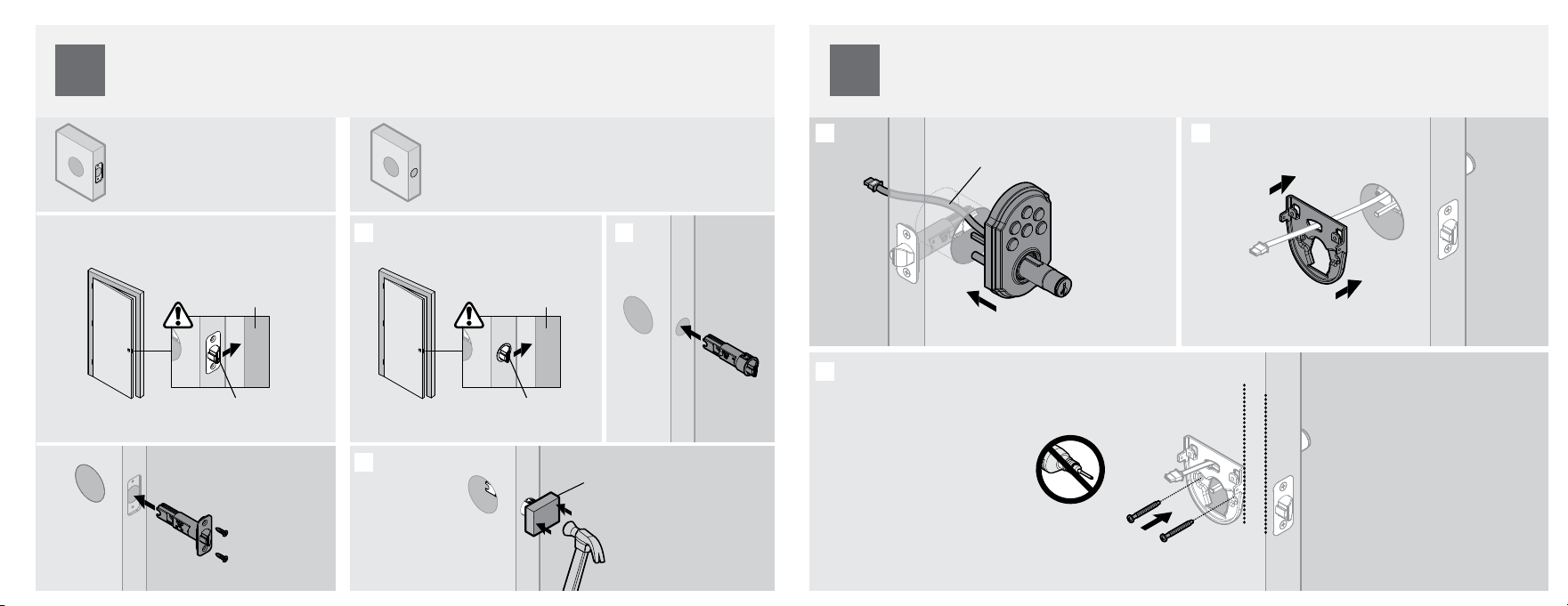

Install latch
A B
A/A2
Hold the latch in front of the
door hole, with the latch face
ush against the door edge.
If the latch holes are
centered in the door hole, no
adjustment is required.
Proceed to step 3.
If the latch holes are NOT
centered, adjust latch. See
“Latch Adjustment.”

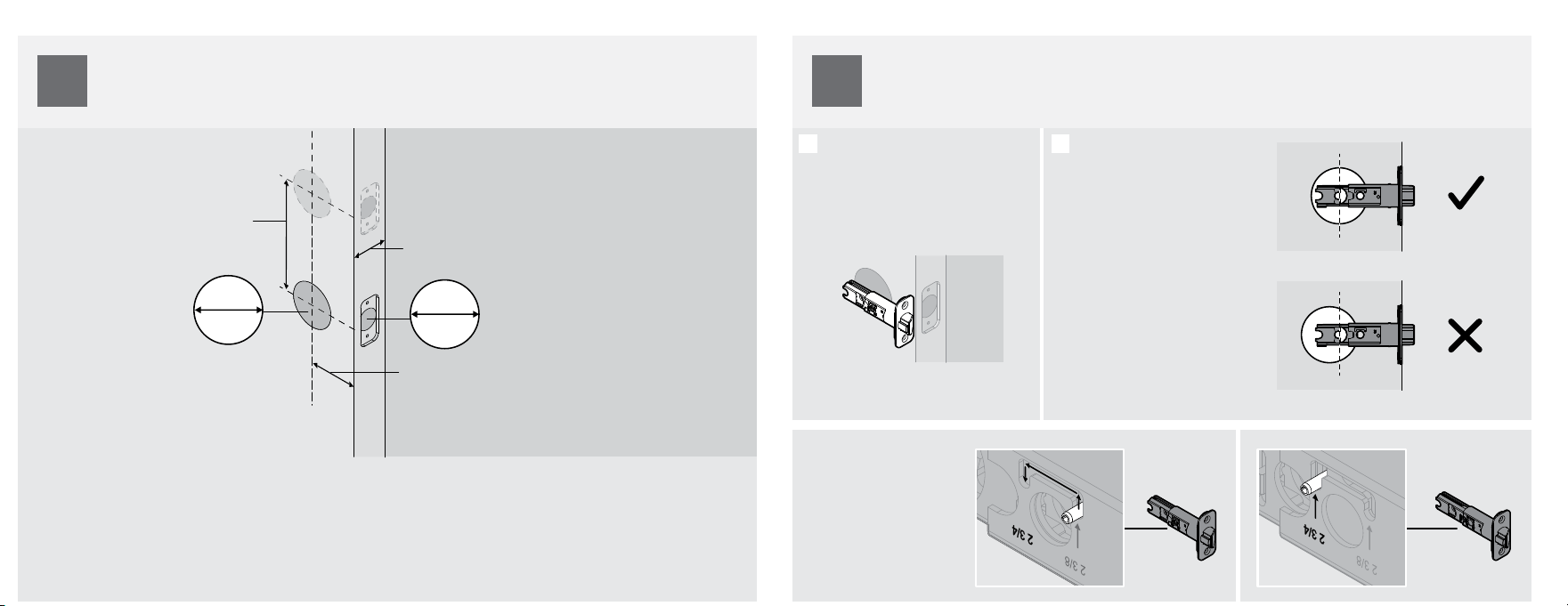

Latch Adjustment
(only if needed)
Adjust the backset of latch (if needed)
A/A2
1-3/8" — 1-3/4"
35 mm — 44 mm
1"
25 mm
2-1/8"
54 mm
Check dimensions
2-3/8" (60 mm)
or
2-3/4" (70 mm)
See note
below*
*If you are installing this lever below an existing lock or you plan to install a lock above this lever,
make sure that the distance between holes is at least 6-1/2" (165 mm).
A B C
4xAA
J
H H
G G

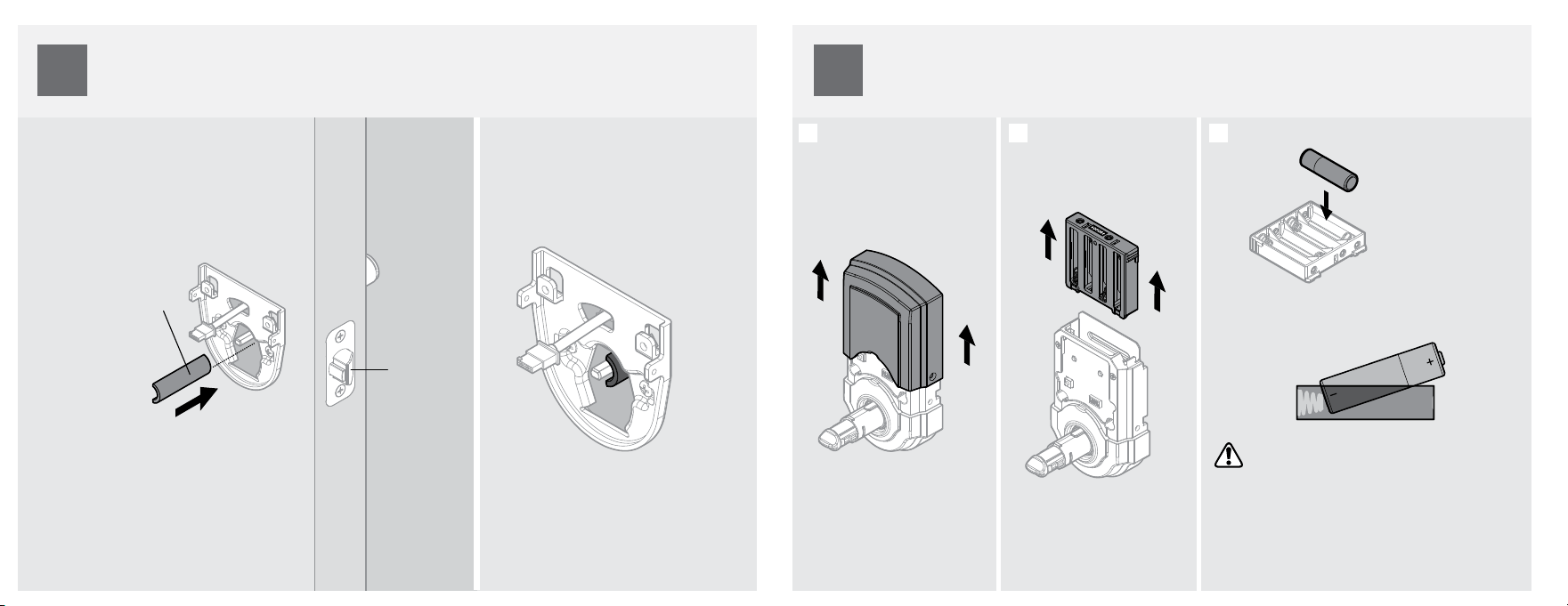

Disassemble interior assembly and load battery pack
Do not install
battery pack
into interior
assembly yet.
Ensure correct polarity. For best results,
use new non-rechargeable Alkaline
batteries only.
A B
A2
C
G
H
K
L
M
N P
Q
R
S
T
J
F
D
E
If needed, please contact
Kwikset to order a drive-in
latch for your lock.
Latch and Strike Exterior Assembly Interior Assembly Levers and screws

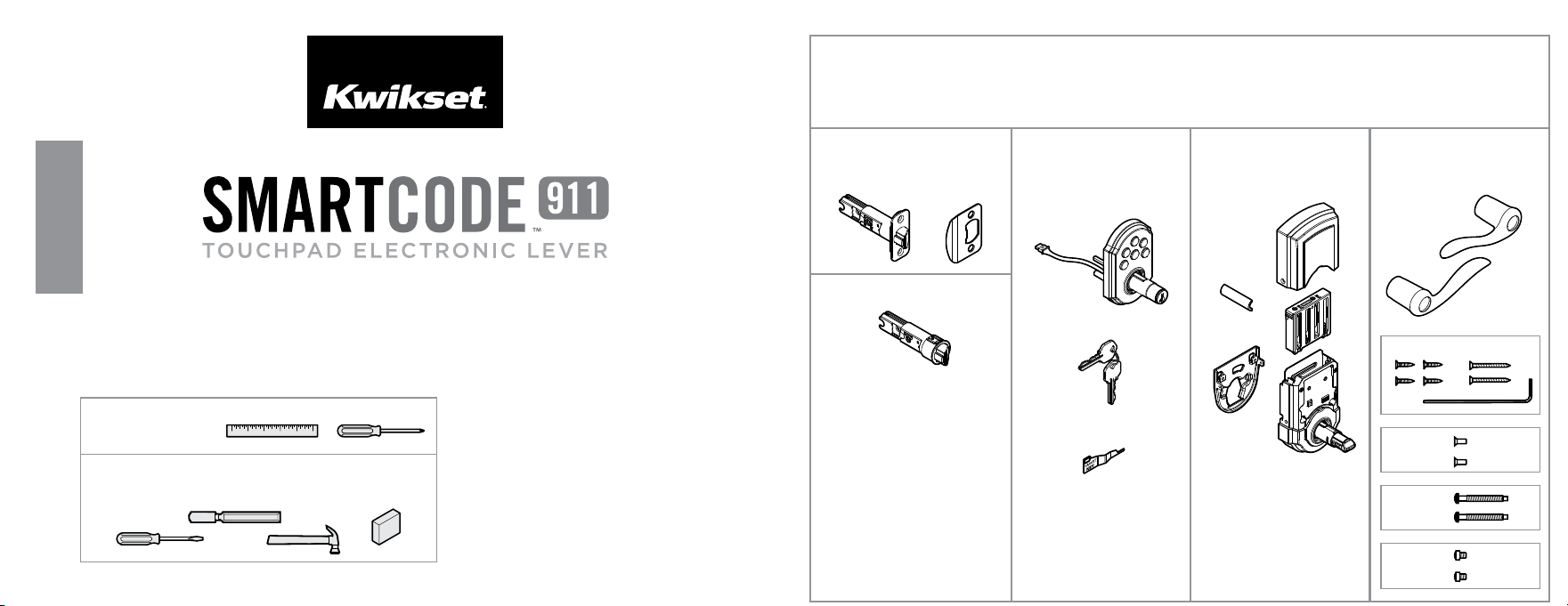

Parts in the Box
Kwikset
1-800-327-5625
www.kwikset.com
1-3/4" (44 mm)
1-3/8" (35 mm)
2-3/8" (60 mm)
2-3/4" (70 mm)
Template
If your door requires drilling, cut out the template and place it on the exterior side of the door. Complete door
drilling instructions are available on the SmartCode lever page of www.kwikset.com.
Fold
Edge
Backset
Face
Centerline
A B C D
T (2x)
H
G
G

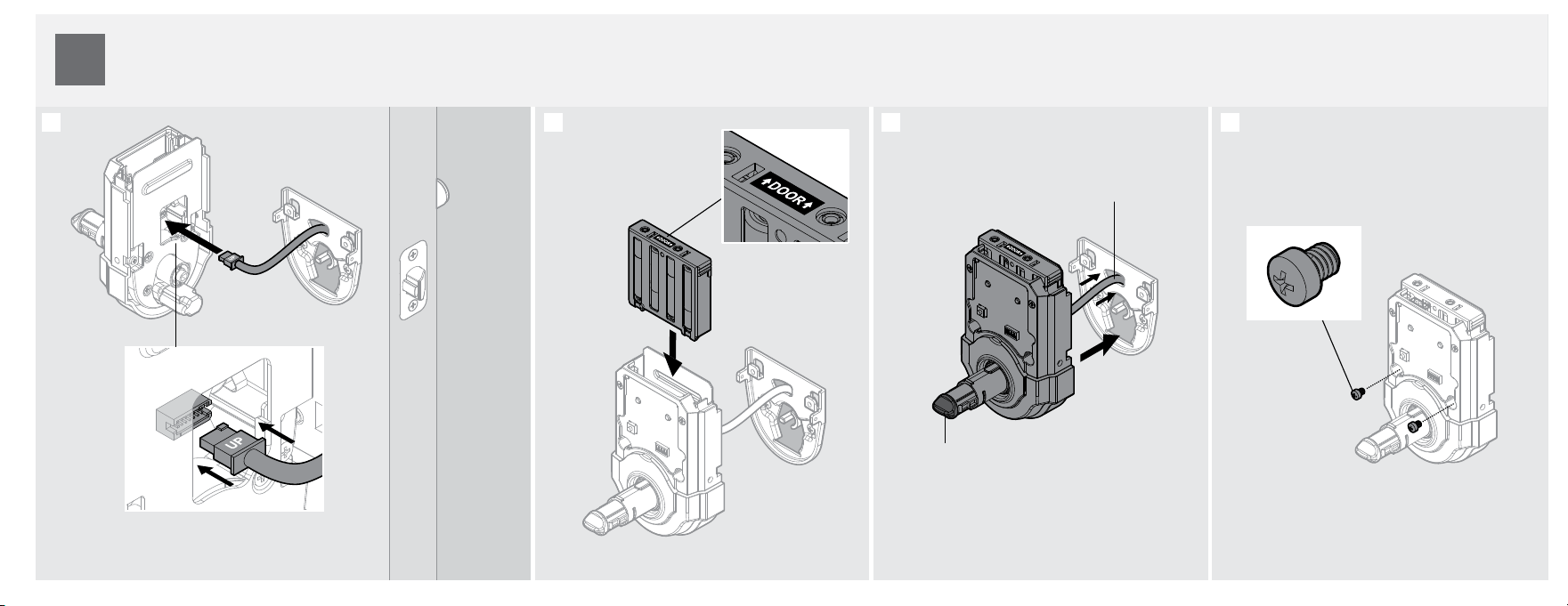

Install interior assembly
Ensure tight cable connection.
Turnbutton may need to
be turned to install “G.”
Push excess cable back into the
door as you install “G.”
Installation Guide

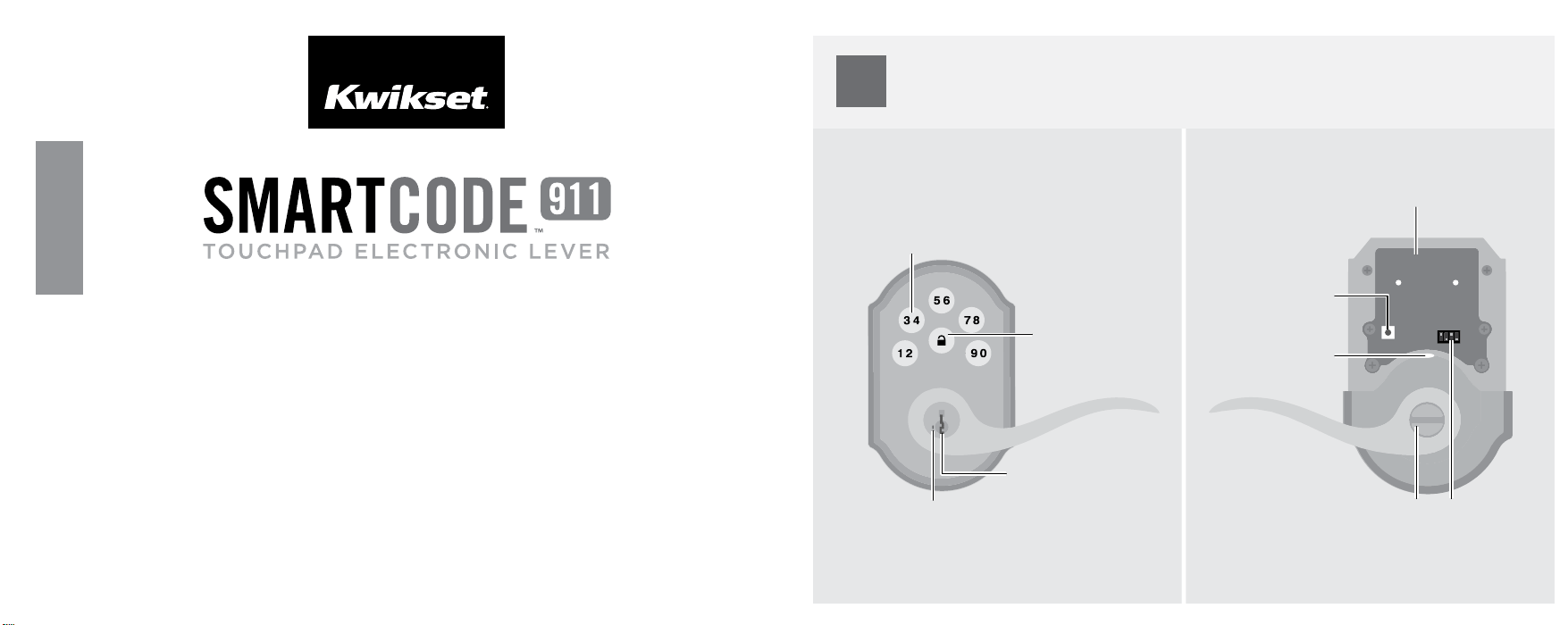

Use and programming
instructions are located on the
reverse side of this document.
Required Tools
Additional Tools (depending on application)
3 4 5 6
7
1 2
49492 / 03
