A
A
N (2x)
M (2x)
A
A
B
B
B
C
B
61037 / 01
ZigBee

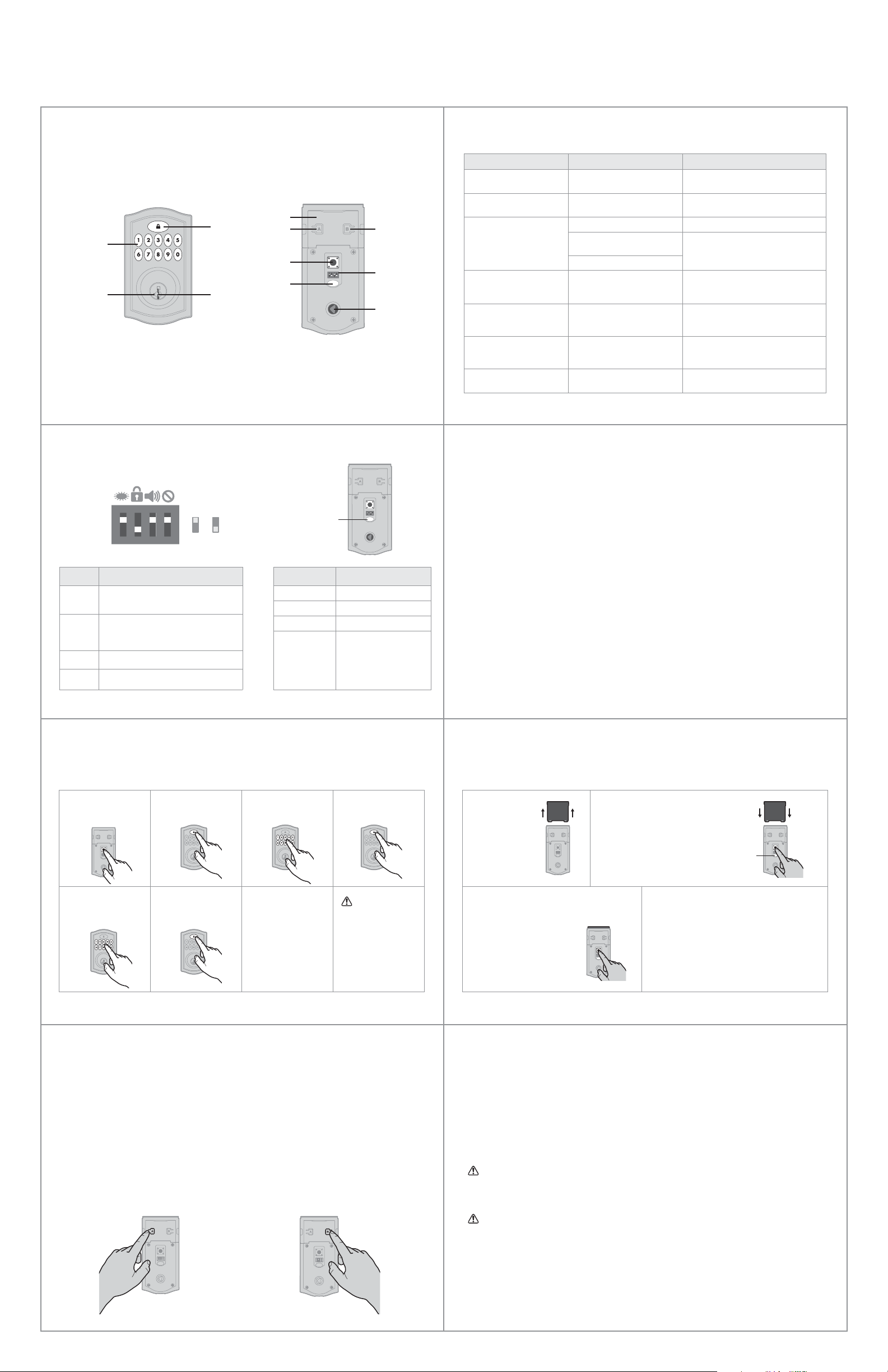

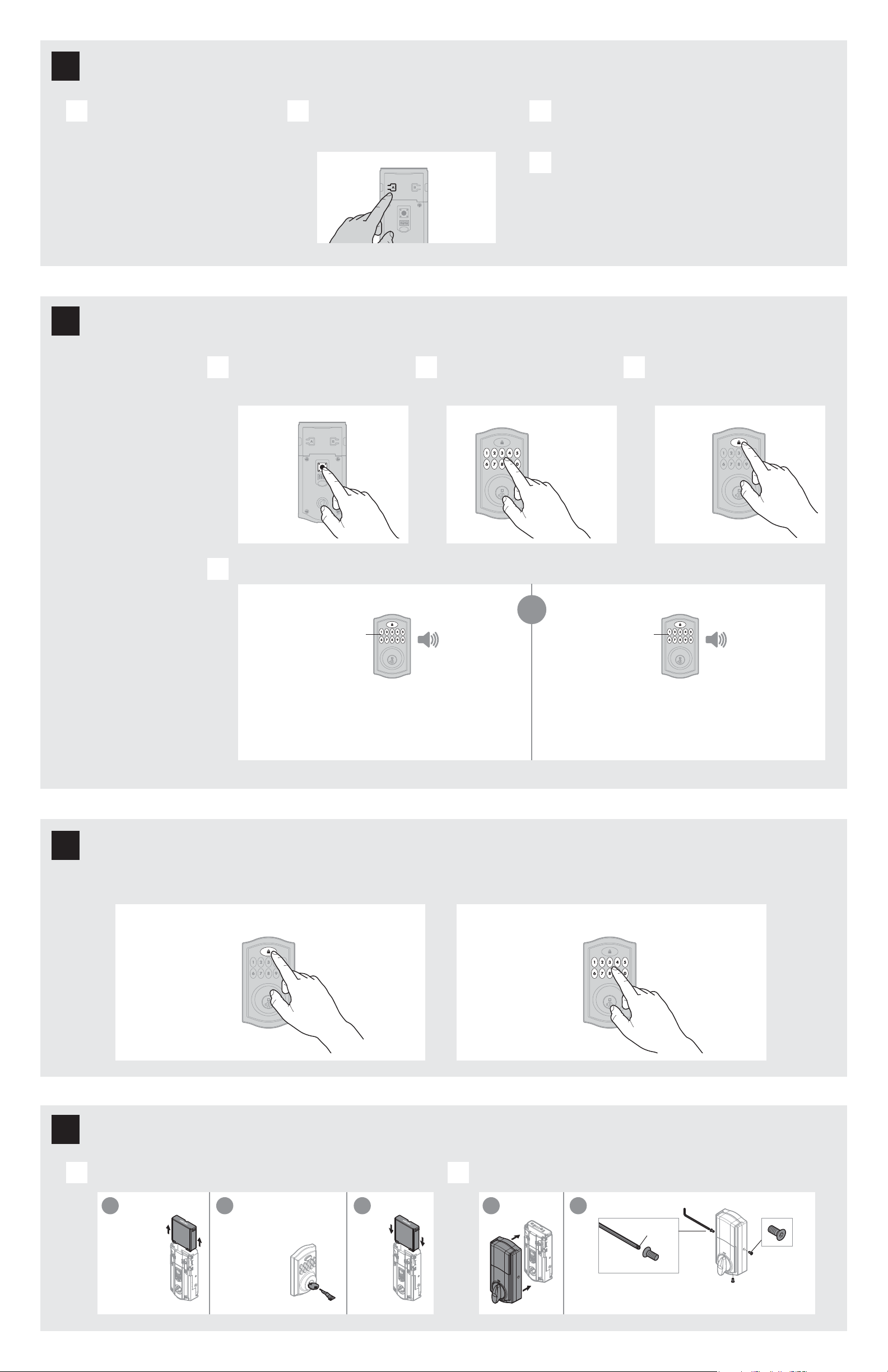

Installation and User Guide
Kwikset
1-866-863-6584
www.kwikset.com
Parts in the box
Latch
Strike
“B” is not included. If needed,
please contact Kwikset to order
a drive-in latch for your lock.
Adapter
Ring
Keys
Exterior
Keypad
Mounting
Plate
Fasteners
SmartKey
Tool
Batteries
Allen
Wrench
Interior
Assembly
If drilling a new door, use the supplied template and the complete
door drilling instructions available at www.kwikset.com/doorprep.
Note: Additional door preparation may be
required for doors with 11/2" (38 mm) holes.
Consult the deadbolt drilling instructions at
www.kwikset.com/doorprep.
or
backset
Measure to conirm that the hole in
the door is either 21/8" (54 mm) or
11/2" (38 mm).
Measure to conirm that the backset is
either 23/8" or 23/4" (60 or 70 mm).
23/8" or 23/4"
60 or 70 mm
13/8" – 2"
35 – 51 mm
Measure to conirm that the hole in
the door edge is 1" (25 mm).
Measure to conirm that the door is
between 13/8" and 2" (35 mm and
51 mm) thick.
A
A B
C
D
E
B C D
Is the door edge chiseled?
Are the latch holes centered in the door hole?
Which latch are you installing?
Install strike on the door frame.
Hold the latch in front of the door hole, with the latch
face lush against the door edge.
21/8"
54 mm
11/2"
38 mm
1"
25 mm
YES
YES
NO
NO
Use latch “A”. If the
latch bolt is not already
extended, extend the
latch bolt as shown.
No adjustment is required.
Proceed to next step.
Rotate latch face as
shown to extend latch.
wood
block
door frame
Use latch “B” (not
included). If the latch
bolt is not already
extended, extend the
latch bolt as shown.
Latch “A” Latch “B”
ENGLISH
Required tools
Ruler
Hammer Wood block
Phillips head screwdriver
Additional Tools (depending on application)
A
B
E J
KL
M
P Q R
N
F
ST
G
C
D
H
or
chiseled
not
chiseled
or
or
1
Prepare the door and check dimensions
2
Install the latch and strike
