EnglishSENIXTOOLS.COM
Instruction Manual
Model: LSPG-L1
18” PUSH LAWN MOWER
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• WARRANTY
CAUTION: Before using this tool, please read this manual completely,
and follow all operating safety measures.
YAT USA INC. 10506 Bryton Corporate Center Dr, #500 Huntersville, NC 28078
For customer support, please call 1-800-261-3981 or email us at [email protected]
EN - 2
SENIXTOOLS.COM
SAFETY &
INTERNATIONAL
SYMBOLS

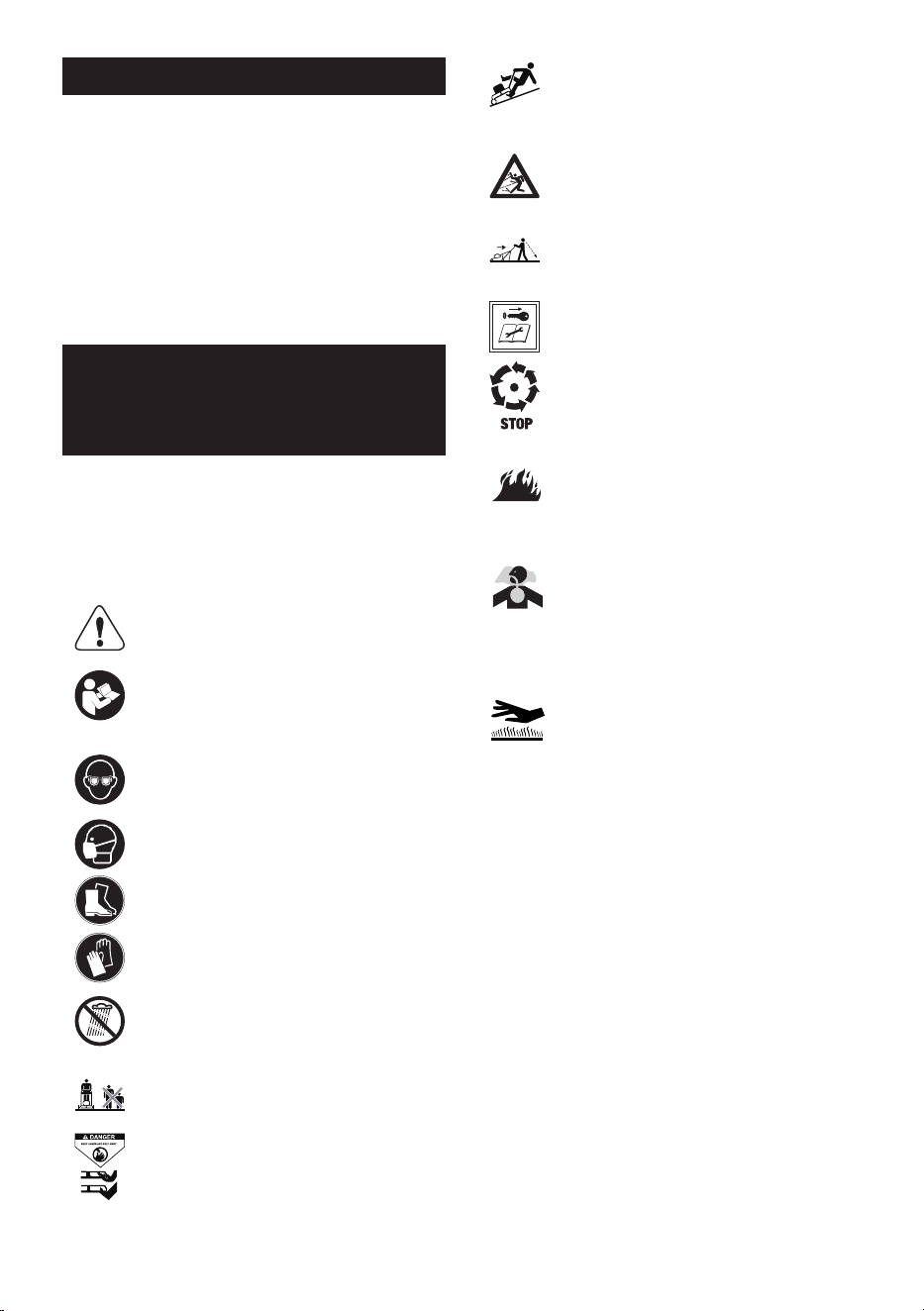

Explanation of Safety & international symbols
describes safety and international symbols and
pictographs that may appear on this product.
Read the operator’s manual for complete
safety, assembly, operating and maintenance
and repair information.
Caution / Warning.
WARNING - To reduce the risk of
injury, user must read instruction
manual.
Wear eye protection.
Wear a dust mask.
Wear safety footwear.
Wear protective gloves.
Do not expose the product to rain or
wet conditions.
Keep bystanders and children a safe
distance away.
DANGER! Rotating blades. Keep
hands and feet away.
Slip on slope hazard – Use extra
caution when mowing on slopes to
prevent slip and fall accidents.
Thrown objects and rotating blade
can cause severe injury.
Look behind when backing up with
the lawn mower.
WARNING – Remove the disabling
device before maintenance.
Blades continue to rotate after
machine isswitched off.
GASOLINE IS FLAMMABLE. Allow the
engine to cool at least two minutes
before refueling.
CARBON MONOXIDE. Never run
an engine indoors or in a poorly
ventilated area. Engine exhaust
contains carbon monoxide, an
odorless and deadly gas.
HOT SURFACE. Engine parts,
especially the muffler, become
extremely hot during operation.
Allow engine and muffler to cool
before touching.
TABLE OF CONTENTS
SAFETY & INTERNATIONAL SYMBOLS ................2
SAFETY INSTRUCTIONS .......................................... 3
SLOPE GAUGE ..............................................................7
KNOW YOUR UNIT ...................................................... 8
SPECIFICATIONS* ...................................................... 9
ASSEMBLY .................................................................... 9
OPERATION ...................................................................11
MAINTENANCE ...........................................................12
TROUBLESHOOTING ................................................ 15
WARRANTY ..................................................................16
3 - EN
SENIXTOOLS.COM
SAFETY INSTRUCTIONS
SAFETY WARNINGS
WARNING!
This symbol points out important safety
instructions which, if not followed, could
endanger the personal safety and/or property
of yourself and others. Read and follow all
instructions in this manual before attempting
to operate this machine. Failure to comply
with these instructions may result in personal
injury.
DANGER!
This machine was built to be operated
according to the safe operation practices
in this manual. As with any type of power
equipment, carelessness or error on the
part of the operator can result in serious
injury. This machine is capable of amputating
ngers, hands, toes and feet and throwing
debris. Failure to observe the following safety
instructions could result in serious injury or
death.
WARNING!
Your Responsibility—Restrict the use of
this power machine to persons who read,
understand and follow the warnings and
instructions in this manual and on the
machine.
SAVE THESE
INSTRUCTIONS!
GENERAL OPERATION
Read this operator’s manual carefully in
its entirety before attempting to assemble
this machine. Read, understand, and follow
all instructions on the machine and in the
manuals before operation. Keep this manual
in a safe place for reference and ordering
replacement parts
• Be completely familiar with the controls
and the proper use of this machine before
operating it.
• This machine is a precision piece of power
equipment, not a plaything. Therefore,
exercise extreme caution at all times. This
machine has been designed to perform
one job: to mow grass. Do not use it for any
other purpose.
• Never allow children to operate this
machine.
• Only responsible individuals who are
familiar with these rules of safe operation
should be allowed to use this machine.
• Thoroughly inspect the area where the
equipment is to be used. Remove all
stones, sticks, wire, bones, toys and other
foreign objects, which could be tripped
over or picked up and thrown by the
blade. Thrown objects can cause serious
personal injury.
• Plan your mowing pattern to avoid
discharge of material toward roads,
sidewalks, bystanders and the like. Also,
avoid discharging material against a
wall or obstruction, which may cause
discharged material to ricochet back
toward the operator.
• To help avoid blade contact or a thrown
object injury, stay in operator zone behind
handles and keep children, bystanders,
helpers and pets at least 75 feet from
mower while it is in operation. Stop
machine if anyone enters area.
• Always wear safety glasses or safety
goggles during operation and while
performing an adjustment or repair to
protect your eyes. Thrown objects which
ricochet can cause serious injury to the
eyes.
• Wear sturdy, rough-soled work shoes,
lose-fitting slacks, shirts and hearing
protection. Shirts and pants that cover
the arms and legs and steel-toed shoes
are recommended. Never operate this
machine in bare feet, sandals, slippery or
light-weight (e.g. canvas) shoes.
• Do not put hands or feet near rotating
parts or under the cutting deck. Contact
with blade can amputate fingers, hands,
toes and feet. Keep clear of the discharge
opening at all times.
• A missing or damaged discharge cover
can cause blade contact or thrown object
injuries.
• Many injuries occur as a result of the
mower being pulled over the foot during
a fall caused by slipping or tripping. Do
not hold on to the mower if you are falling:
release the handle immediately.
• Never pull the mower back toward you
EN - 4
SENIXTOOLS.COM
while you are walking. If you must back the
mower away from a wall or obstruction
first look down and behind to avoid tripping
and then follow these steps:
a. Step back from mower to fully
extend your arms forward.
b. Be sure you are well balanced with
sure footing.
c. Pull the mower back slowly, no more
than half way toward you.
d. Repeat these steps as needed.
• Do not operate the mower while under the
influence of alcohol or drugs.
• Do not engage the self-propelled
mechanism on machines so equipped
while starting engine.
• The blade control handle is a safety
device. Never attempt to bypass its
operation. Doing so makes the safety
device inoperative and may result in
personal injury through contact with the
rotating blade. The blade control handle
must operate easily in both directions and
automatically return to the disengaged
position when released.
• Never operate the mower in wet grass.
Always be sure of your footing. A slip
and fall can cause serious personal
injury. If you feel you are losing your
footing, release the blade control handle
immediately and the blade will stop
rotating within three seconds.
• Mow only in daylight or good artificial light.
Walk, never run.
• Stop the blade when crossing gravel
drives, walks or roads.
• If the equipment should start to vibrate
abnormally, stop the engine and check
immediately for the cause. Vibration is
generally a warning of trouble.
• Shut the engine off and wait until the blade
comes to a complete stop before removing
the grass catcher or unclogging the chute.
The cutting blade continues to rotate for
a few seconds after the blade control is
released.
• Never place any part of the body in the
blade area until you are sure the blade has
stopped rotating.
• Never operate mower without proper trail
shield, discharge cover, grass catcher,
blade control handle or other safety
protective devices in place and working.
Never operate mower with damaged
safety devices. Failure to do so can result
in personal injury. Check frequently for
signs of wear or deterioration and replace
as needed.
• Muffler and engine become hot and can
cause a burn. Do not touch.
• Never attempt to make a wheel or cutting
height adjustment while the engine is
running.
• Only use parts and accessories made
for this machine by the manufacturer as
listed in the parts pages of this Operator’s
Manual. Failure to do so can result in
personal injury.
• When starting engine, pull cord slowly
until resistance is felt, then pull rapidly.
Rapid retraction of starter cord (kickback)
will pull hand and arm toward engine
faster than you can let go. Broken bones,
fractures, bruises or sprains could result.
• If situations occur which are not covered
in this manual, use care and good
judgement.

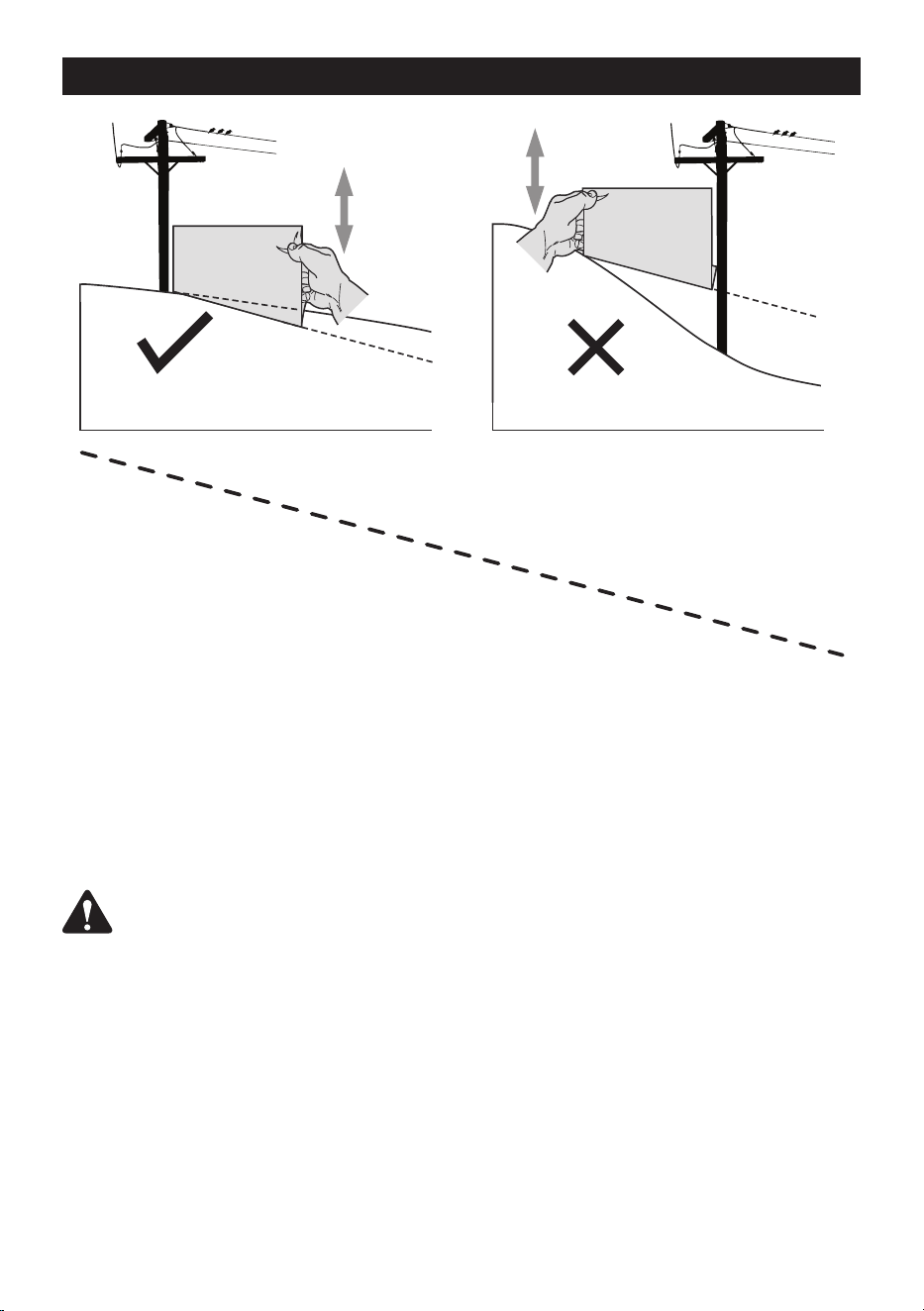

SLOPE OPERATION
Slopes are a major factor related to slip and
fall accidents, which can result in severe injury.
Operation on slopes requires extra caution. If
you feel uneasy on a slope, do not mow it. For
your safety, use the Slope Guide included as
part of this manual to measure slopes before
operating this machine on a sloped or hilly
area. If the slope is greater than 15 degrees, do
not mow it.
Do:
• Mow across the face of slopes; never up
and down. Exercise extreme caution when
changing direction on slopes.
• Watch for holes, ruts, rocks, hidden
objects, or bumps which can cause you to
slip or trip. Tall grass can hide obstacles.
Uneven terrain could overturn the
machine, or cause operator to lose their
balance or footing.
• Always be sure of your footing. A slip
and fall can cause serious personal
injury. If you feel you are losing your
balance, release the blade control handle
immediately and the blade will stop
rotating within three (3) seconds.
• Use extra care while operating
machine with a grass catcher or other
attachment(s). They can affect the
stability of the machine.
Do Not:
• Do not start and stop on slopes. Avoid
making sudden changes in speed or
direction. Make turns slowly and gradually.
5 - EN
SENIXTOOLS.COM
• Do not mow near drop-offs, ditches or
embankments, because you could lose
your footing or balance.
• Do not mow slopes greater than 15
degrees as shown on the slope guide.
• Do not mow on wet grass. Unstable footing
could cause slipping.
HAULING
Use full width ramps for loading and unloading
a machine for transport.
BEWARE OF CHILDREN
Tragic accidents can occur if the operator is
not alert to the presence of children. Children
are often attracted to the mower and the
mowing activity. They do not understand the
dangers. Never assume that children will
remain where you last saw them.
• Keep children out of the mowing area and
under watchful care of a responsible adult
other than the operator.
• Be alert and turn mower off if a child
enters the area.
• Before and while moving backwards, look
behind and down for small children.
• Use extreme care when approaching blind
corners, doorways, shrubs, trees, or other
objects that may obscure your vision of a
child who may run into the mower.
• Keep children away from hot or running
engines. They can suffer burns from a hot
muffler.
• Never allow children under 14 years of
age to operate this machine. Children 14
and over should read and understand the
instructions and safe operation practices
in this manual and on the machine and be
trained and supervised by an adult.
SERVICE
SAFE HANDLING OF
GASOLINE
To avoid personal injury or property damage
use extreme care in handling gasoline.
Gasoline is extremely ammable and the
vapors are explosive. Serious personal injury
can occur when gasoline is spilled on yourself
or your clothes which can ignite. Wash your
skin and change clothes immediately.
• Use only an approved gasoline container.
• Never fill containers inside a vehicle or on
a truck or trailer bed with a plastic liner.
Always place containers on the ground
away from your vehicle before filling.
• Remove gas-powered equipment from
the truck or trailer and refuel it on the
ground. If this is not possible, then refuel
such equipment on a trailer with a portable
container, rather than from a gasoline
dispenser nozzle.
• Keep the nozzle in contact with the rim of
the fuel tank or container opening at all
times until fueling is complete. Do not use
a nozzle lock-open device.
• Extinguish all cigarettes, cigars, pipes and
other sources of ignition.
• Never fuel machine indoors because
flammable vapors will accumulate in the
area.
• Never remove gas cap or add fuel while
engine is hot or running. Allow engine to
cool at least two minutes before refueling.
• Never over-fill fuel tank. To allow for
expansion of the fuel, do not fill above the
bottom of the fuel tank neck.
• Replace gasoline cap and tighten securely.
• If gasoline is spilled, wipe it off the engine
and equipment. Move machine to another
area. Wait 5 minutes before starting
engine.
• Never store the machine or fuel container
near an open flame, spark or pilot light as
on a water heater, space heater, furnace,
clothes dryer or other gas appliances.
• To reduce fire hazard, keep machine free
of grass, leaves, or other debris build-up.
Clean up oil or fuel spillage and remove
any fuel-soaked debris.
• Allow machine to cool at least 5 minutes
before storing.
GENERAL SERVICE
Never run an engine indoors or in a poorly
ventilated area. Engine exhaust contains
carbon monoxide, an odorless and deadly gas.
• Before cleaning, repairing, or inspecting,
make certain the blade and all moving
parts have stopped. Disconnect the spark
plug wire and ground against the engine to
prevent unintended starting.
• Check the blade and engine mounting
bolts at frequent intervals for proper
tightness. Also, visually inspect blade for
damage (e.g., bent, cracked, worn).
• Replace blade with the original equipment
manufacture’s (O.E.M.) blade only, listed
in the Parts pages of this manual. Use
EN - 6
SENIXTOOLS.COM
of parts which do not meet the original
equipment specifications may lead to
improper performance and compromise
safety!
• Mower blades are sharp and can cut. Wrap
the blade or wear gloves, and use extra
caution when servicing them.
• Keep all nuts, bolts, and screws tight to
be sure the equipment is in safe working
condition.
• Never tamper with safety devices. Check
their proper operation regularly.
• After striking a foreign object, stop the
engine, disconnect the spark plug wire and
ground against the engine. Thoroughly
inspect the mower for any damage. Repair
the damage before starting and operating
the mower.
• Never attempt to make a wheel or cutting
height adjustment while the engine is
running.
• Discharge cover, and trail shield are
subject to wear and damage which could
expose moving parts or allow objects
to be thrown. For safety protection,
frequently check components and replace
immediately with original equipment
manufacturer’s (O.E.M.) parts only. Use
of parts which do not meet the original
equipment specifications may lead to
improper performance and compromise
safety!
• Do not change the engine’s governor
setting or over-speed the engine. The
governor controls the maximum safe
operating speed of the engine.
• Check fuel line, tank, cap, and fittings
frequently for cracks or leaks. Replace if
necessary.
• Do not crank engine with spark plug
removed.
• Maintain or replace safety and instruction
labels, as necessary.
• Observe proper disposal laws and
regulations. Improper disposal of fluids
and materials can harm the environment.
• According to the Consumer Products
Safety Commission (CPSC) and the U.S.
Environmental Protection Agency (EPA),
this product has an Average Useful Life of
seven (7) years, or 140 hours of operation.
At the end of the Average Useful Life have
the machine inspected annually to ensure
that all mechanical and safety systems are
working properly and not worn excessively.
Failure to do so can result in accidents,
injuries or death.
DO NOT MODIFY ENGINE
To avoid serious injury or death, do not
modify engine in any way. Tampering with the
governor setting can lead to a runaway engine
and cause it to operate at unsafe speeds.
Never tamper with factory setting of engine
governor.
7 - EN
SENIXTOOLS.COM
SLOPE GAUGE
USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!
To check the slope, proceed as follows:
1. Remove this page and fold along the dashed line.
2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.)
3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ).
4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).
5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2
above).
WARNING!
Slopes are a major factor related to tip-over and roll-over accidents which can result in severe
injury or death. Do not operate machine on slopes in excess of 15 degrees. All slopes require extra
caution. Always mow across the face of slopes, never mow up and down slopes.
15° dashed line
15° Slope
15° Slope
TOO STEEP
OK
Figure 2Figure 1
EN - 8
SENIXTOOLS.COM

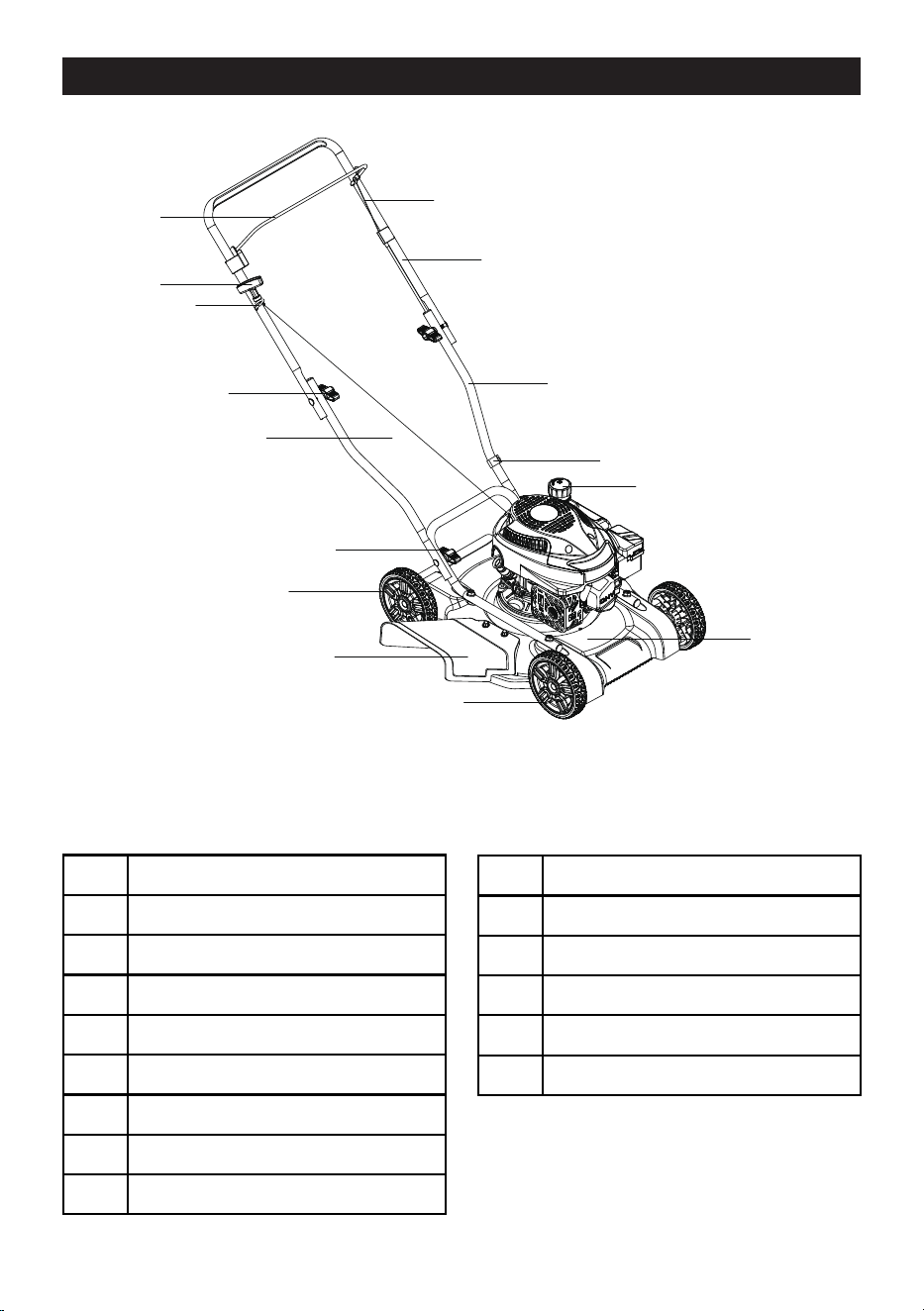

KNOW YOUR UNIT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
APPLICATIONS
Model: LSPG-L1
As a Pus Gas Lawn Mower:
Cutting grass use.
1 Blade Control
2 Starter Rope Handle
3 Rope Guide
4 Star Knob
5 Starter Rope
6 Star Knob
7 Rear Wheel
8 Side Discharge Cover
9 Front Wheel
10 Mower Deck
11 Fuel Tank Cap
12 Cable Clamp
13 Lower Handle
14 Upper Handle
15 Control Cable
9 - EN
SENIXTOOLS.COM

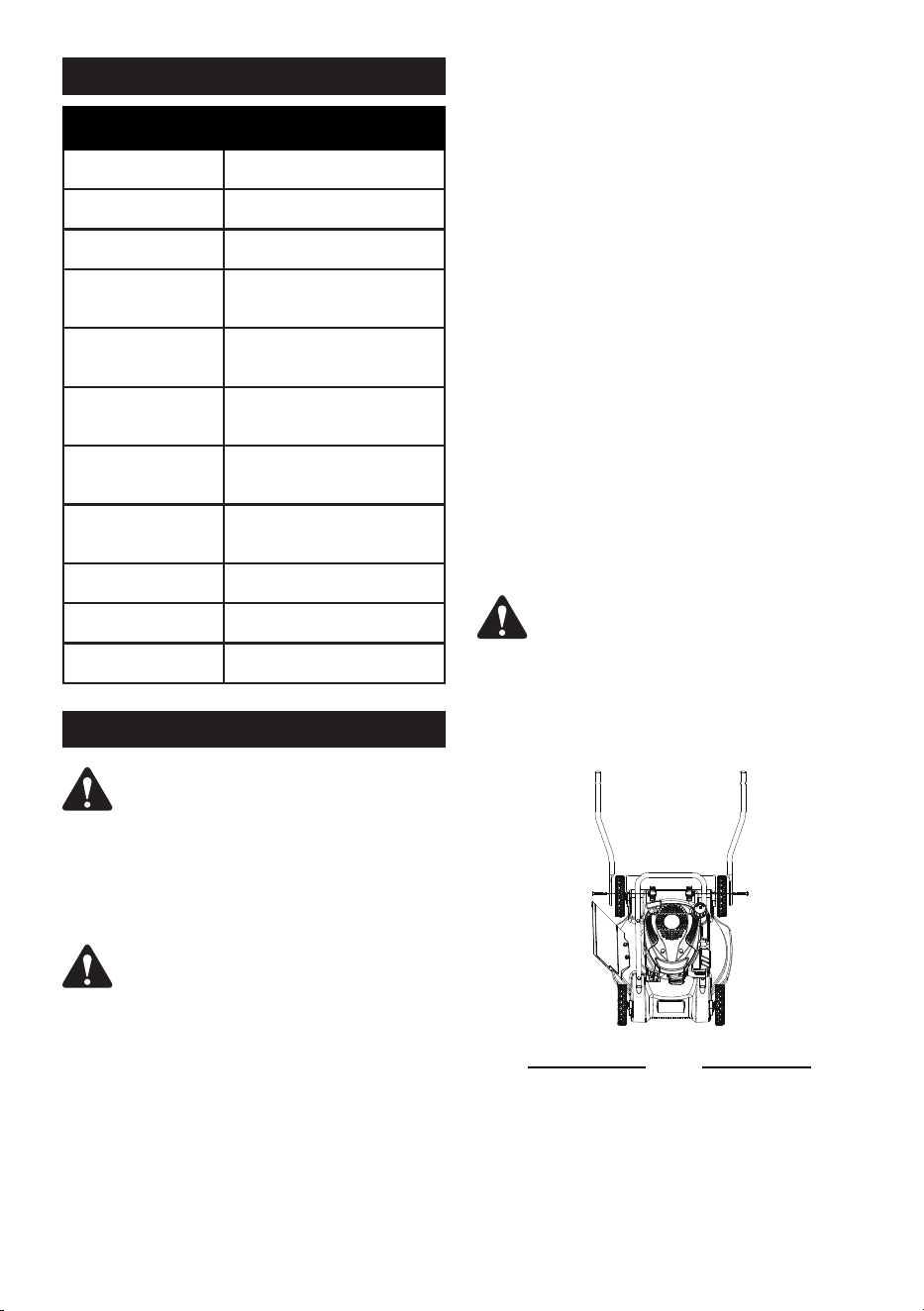

SPECIFICATIONS*
Model LSPG-L1
Engine Oil SAE 10W-30
Fuel Unleaded Gasoline
Engine RATO RV145-S
Engine
Displacement
144 cc
Walk Behind
Mower Type
Push
Mowing
Function
Side discharge
Cutting
Capacity
20”
Cutting Height
Options
1.2” / 2.16” / 3.15”
(3 cm / 5.5 cm / 8 cm)
Deck Type Heavy-Duty Composite
Wheel Size 7”
Product Weight 38 lbs
ASSEMBLY
WARNING!
This unit is shipped without gasoline or oil
in the engine. Make sure to service engine
with gasoline and oil as instructed in the
Engine Manual before starting or running the
machine.
NOTE:
Reference to right and left hand side of the
Lawn Mower is observed from the operating
position.
OPENING CARTON
1. Cut each corner of the carton vertically
from top to bottom.
2. Remove all loose parts.
3. Remove loose packing material.
REMOVING UNIT FROM
CARTON
1. Lift unit from the rear to detach it from
underlying carton material and slide unit
out of carton.
2. Check carton thoroughly for any other
loose parts.
ASSEMBLY PARTS IN
CARTON
• Star Knob/Bolt for mounting lower handle
(Qty. 2)
• Star Knob/Bolt for mounting upper handle
(Qty. 2)
• Axle Bolt for mounting wheels (Qty. 4)
• Side Discharge Cover
• Side Discharge Bolt/Nut (Qty. 2)
• Bottle of oil
• User Manual / Engine Manual

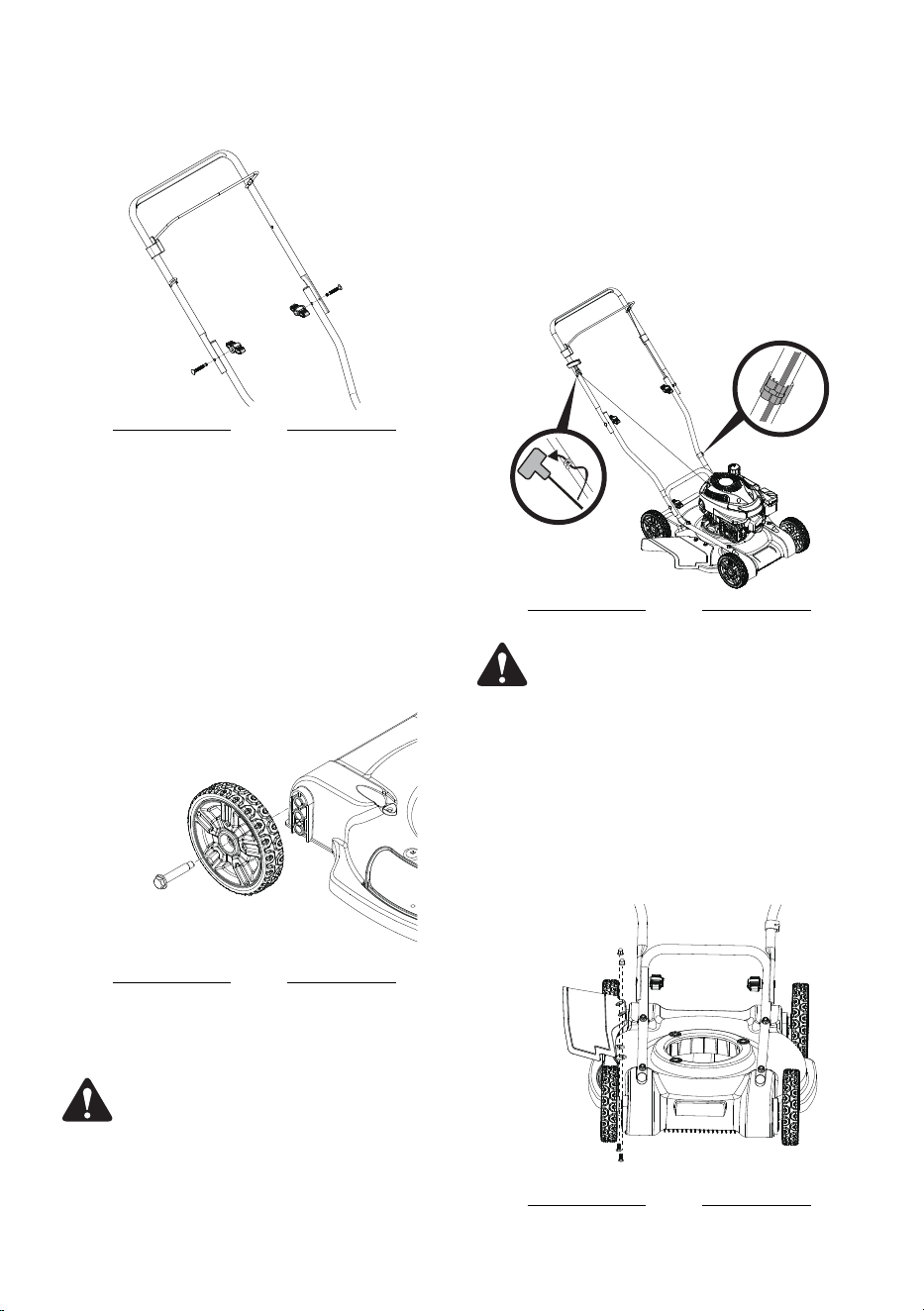

ATTACH HANDLE
WARNING!
Position the handle assembly before rear
wheel installation.
1. Fix the lower handle on mower deck by
bolts and knobs (Figure 2).
Fig. 2
EN - 10
SENIXTOOLS.COM
2. Connect the upper handle to the lower
handle by bolts and knobs (Figure 3).
Fig. 3
ATTACHING FOUR WHEELS
Cutting height of three mounting holes: Top
hole: 1.20 inch; Middle hole: 2.16 inch; Bottom
hole: 3.15 inch. Available cutting height is from
1.35 inch to 3.15 inch which is only related to
wheel mounting holes. Select desired holes for
wheel mounting.
1. Align the wheel with wheel mounting holes
and attach the wheel to the mower.
2. Screw each wheel with axle bolt (Figure 4).
Fig. 4
3. Make sure four wheels are firmly locked
and at a same cutting height.
WARNING!
To avoid unbalance, never choose dierent
height holes for four wheels.
POSITION STARTER ROPE
AND CABLE
1. Hold the blade control against the upper
handle. Slowly pull starter rope handle
from engine and slip starter rope into the
rope guide (Figure 5).
2. Use the cable clamp to secure the control
cable to the lower handle (Figure 5).
Fig. 5
WARNING!
To reduce wear and allow for proper operation,
make sure to leave some slack in the upper
portion of the cable.
ATTACH SIDE DISCHARGE
COVER
Use the supplied nuts, bolts, and a wrench
to assemble the side discharge cover to the
mower deck (Figure 6).
Fig. 6
11 - EN
SENIXTOOLS.COM

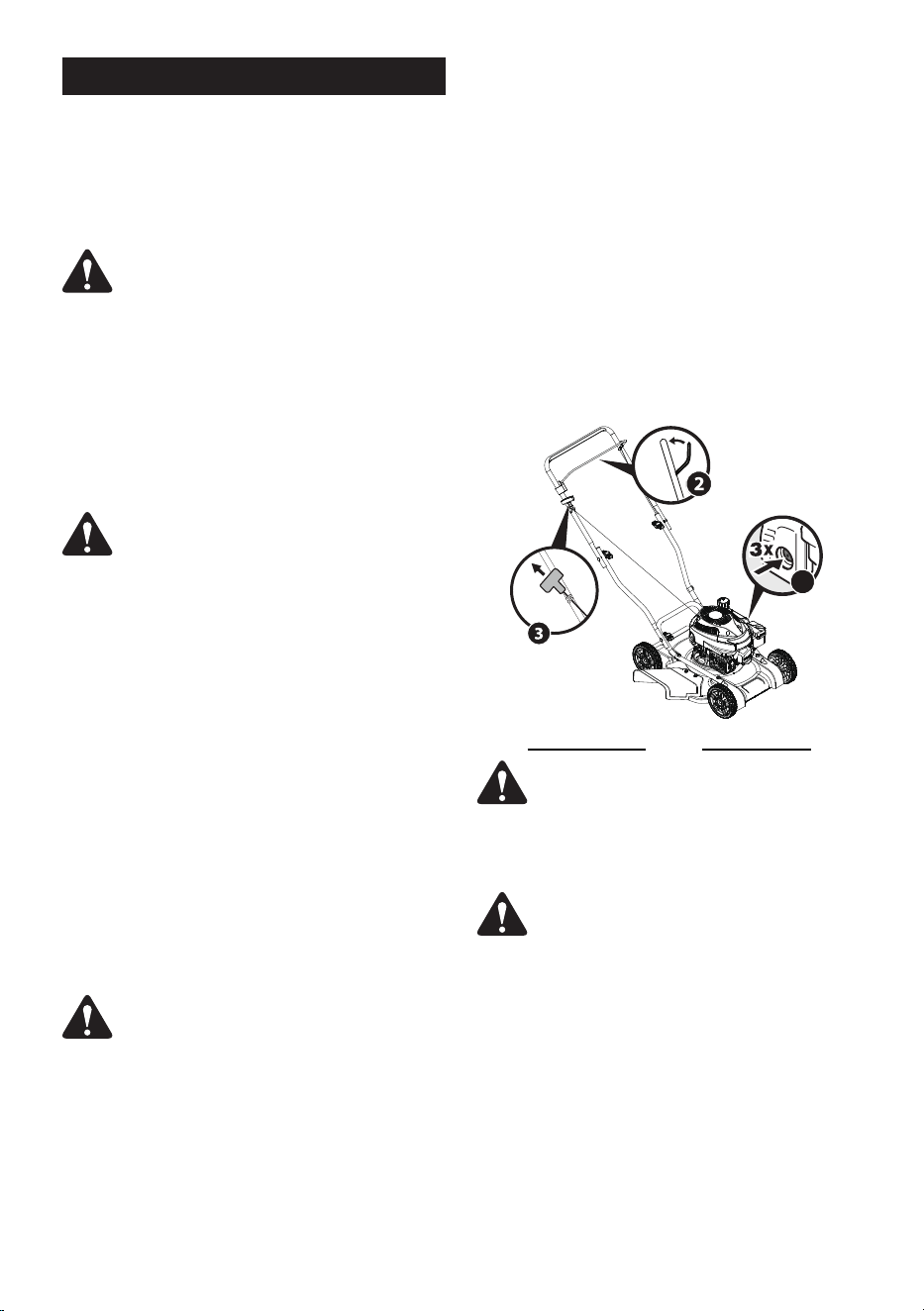

OPERATION
BLADE CONTROL
The blade control is attached to the upper
handle of the mower. Depress and hold it
against the upper handle to start the mower.
Release to stop the engine and blade.
WARNING!
This blade control is a safety device. Never
attempt to bypass its operation.
SIDE DISCHARGE COVER
The side discharge cover needs to be attached
when side discharging. Follow instructions
in the assembly section to use the side
discharge cover.
WARNING!
Keep hands and feet away from the chute area
on cutting deck. Refer to warning label on the
unit.
RECOIL STARTER
Pull the recoil starter rope to drive the recoil
starter until the engine starts. Recoil starter
rope can be clamped into the rope guide on
the right upper handle for facilitating the
pulling operation. Stand behind the unit, hold
the blade control, then pull the recoil starter
rope to start the unit.
PRIMER
The primer is located on the left side of the
engine. The primer is used to pump fuel into
the carburetor and aid in starting the engine.
WARNING!
Make sure no one other than the operator is
standing near the lawn mower while starting
engine or operating mower. Never run engine
indoors or in enclosed, poorly ventilated areas.
Engine exhaust contains carbon monoxide,
an odorless and deadly gas. Keep hands, feet,
hair and loose clothing away from any moving
parts on engine and lawn mower.
FUEL AND OIL
See the engine Operator’s Manual for fuel and
oil instructions.
TO START ENGINE
1. Push the primer three times. Do not prime
to restart a warm engine.
2. Standing behind the mower, pull the blade
control back against the upper handle.
3. While holding the blade control against
the upper handle, Keep a firm grip on the
starter handle and pull rope out with a
rapid, continuous, full arm stroke. Repeat
until engine starts. Let the rope rewind
each time slowly (Figure 7).
1
Fig. 7
WARNING!
If you push the primer too many times,
excessive fuel will ood the engine and it will
be dicult to start.
WARNING!
Keep a rm grip on the starter cord handle
to prevent rapid retraction of starter cord
(kickback). Rapid retraction can pull hand and
arm toward engine faster than you can let go,
and result in broken bones, fractures, bruises
or sprains.
TO STOP ENGINE
1. Release the blade control to stop the
engine and blade.
EN - 12
SENIXTOOLS.COM
WARNING!
Wait for the blade to stop completely before
performing any work on the mower.
USING YOUR LAWN MOWER
Be sure lawn is clear of stones, sticks,
wire, or other objects which could damage
lawn mower or engine. Such objects could
be accidently thrown by the mower in any
direction and cause serious personal injury to
the operator and others.
For a healthy lawn,always cut o one-third or
less of the total length of the grass.
When cutting heavy grass, reduce walking
speed to allow for more eective cutting and a
proper discharge of the clippings.
Do not cut wet grass. It will stick to underside
of the deck and prevent proper mulching of
grass clippings.
New or thick grass may require a narrower cut
or a higher cutting height.
WARNING!
The operation of any lawn mower can result
in foreign objects being thrown into the eyes,
which can damage your eyes severely. Always
wear safety glasses while operating the
mower, or while performing any adjustments
or repairs on it.
WARNING!
If you strike a foreign object, stop the engine.
Disconnect the spark plug wire, thoroughly
inspect mower for any damage, and repair
damage before restarting and operating.
Extensive vibration of mower during operation
is an indication of damage. The unit should be
promptly inspected and repaired. Refer to the
Engine Manual.
MAINTENANCE
WARNING!
Before performing any type of maintenance/
service, disengage all controls and stop the
engine. Wait until all moving parts have come
to a complete stop. Disconnect spark plug wire
and ground it against the engine to prevent
unintended starting.
Follow the maintenance schedule given below.
This chart describes service guidelines only.
Use the Service Log column to keep track of
completed maintenance tasks. See the Engine
Operator’s Manual for fuel, oil, air lter and
spark plug instructions.
Interval Item Service
Each use
1. Engine oil level
2. Air lter
1. Check and
rell
2. Check
1st month
or 10 hours
of operation
1. Engine oil 1. Change
Thereafter,
every 3
months or
30 hours of
operation
1. Engine oil
2. Air lter
1. Change
2. Clean
Every 6
months or
50 hours of
operation
1. Air lter
2. Spark plug
1. Change
2. Clean and
adjust*
Every year
or 100
hours of
operation
1. Valve clearence
1. Check and
adjust*
Service more often when used in dusty areas.
* These items should be serviced by company
authorized dealer, unless you have the proper
tools and mechanically procient.
WARNING!
Always stop engine, disconnect spark plug
wire, and ground against engine before
performing any type of maintenance on your
machine.
GENERAL
RECOMMENDATIONS
• Always observe safety rules when
performing any maintenance.
• The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence. To receive
full value from warranty, operator must
13 - EN
SENIXTOOLS.COM
maintain the equipment as instructed
here.
• Changing of engine-governed speed will
void engine warranty.
• All adjustments should be checked at least
once each season.
• Periodically check all fasteners and make
sure these are tight.
CLEAN
• Clean grass, chaff or accumulated debris
from engine Keep linkage, spring, and
controls clean.
• Keep area around and behind muffler free
of any combustible debris.
• Make sure the output shaft never be
blocked by grass clippings.
• Keeping air vents unobstructed.
• Engine parts should be kept clean to
reduce the risk of overheating and ignition
of accumulated debris.
WARNING!
Do not use water to clean engine parts. Water
could contaminate fuel system. Do not use a
pressure washer or garden hose as well. Brush
or dry cloth is recommended for cleaning.
TRANSPORTATION
• Empty residual fuel into an approved
container beforehand.
• Secure the tool and protect from any
heavy impact or strong vibrations which
may occur during transportation in
vehicles.
• Enclosed vehicle is not recommended for
transportation.
WARNING!
Do not incline the engine so as to avoid fuel’s
spill in transporting
.
Spilled fuel or fuel vapor
may ignite to cause fire.
BLADE CARE
WARNING!
When removing the cutting blade for
replacement, protect your hands with a pair
of heavy gloves or use a heavy rag to hold the
blade. Do not repair or alter blade.
Periodically inspect the blade adapter for
cracks, especially if you strike a foreign object.
Replace when necessary. Follow the steps
below for blade service (Figure 8).

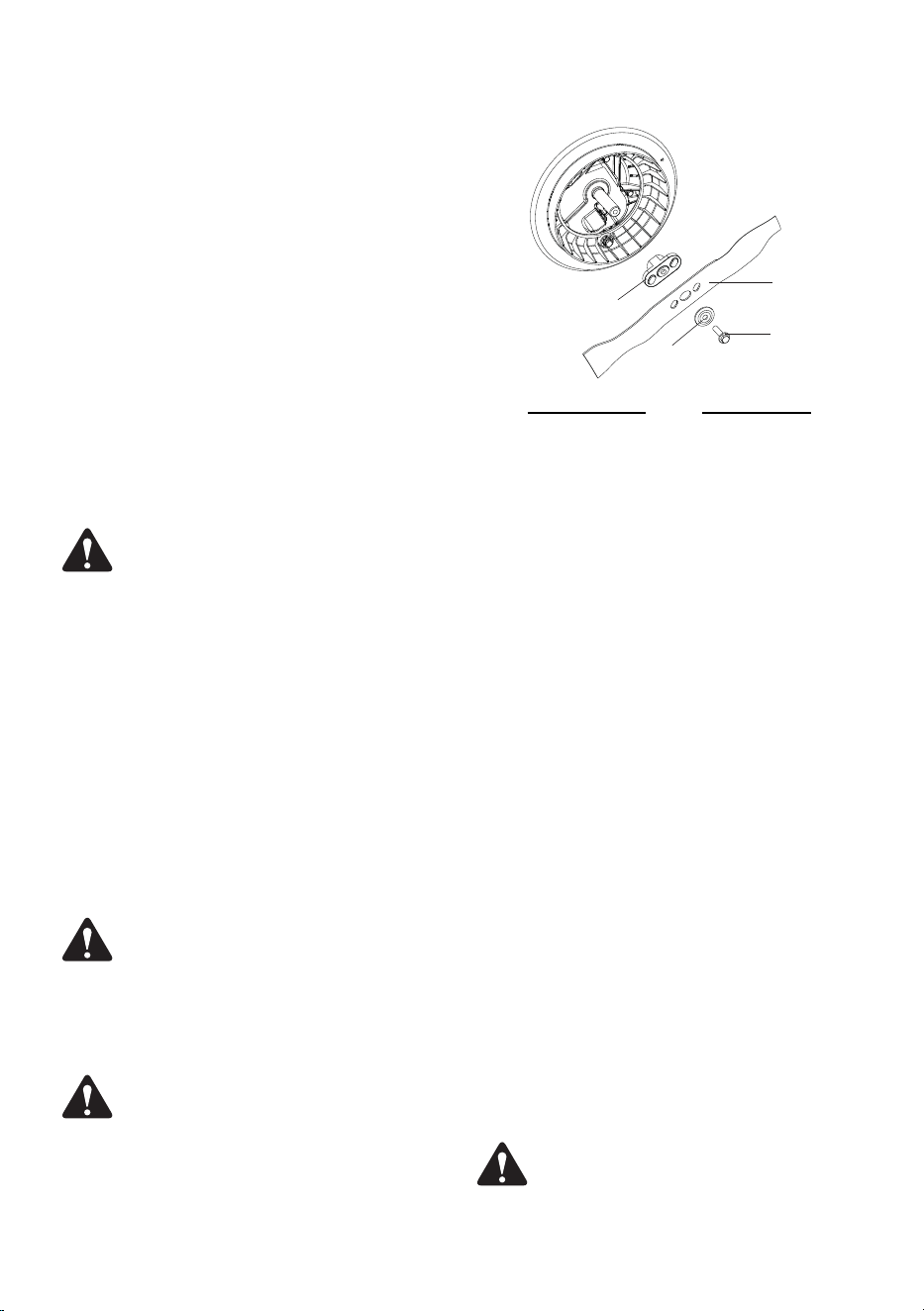

Fig. 8
1. Disconnect spark plug boot from spark
plug. Turn mower on its side making sure
that the air filter and the carburetor are
facing up.
2. Remove the bolt and the blade bell support
which hold the blade and the blade adapter
to the engine crankshaft.
3. Remove blade and adapter from the
crankshaft.
4. Remove blade from the adapter for testing
balance . Balance the blade on a round
shaft screwdriver to check. Remove metal
from the heavy side until it balances
evenly. When sharpening the blade, follow
the original angle of grind. Grind each
cutting edge equally to keep the blade
balanced.
5. Lubricate the engine crankshaft and the
inner surface of the blade adapter with
light oil. Slide the blade adapter onto the
engine crankshaft. Place the blade on the
adapter such that the side of the blade
marked “Bottom” (or with part number)
faces the ground when the mower is in
the operating position. Make sure that the
blade is aligned and seated on the blade
adapter flanges.
6. Place blade bell support on the blade. Align
notches on the blade bell support with
small holes in blade.
7. Replace hex bolt and tighten hex bolt to
torque: 29.5-33.2 ft-lb (40-45 Nm) max.
WARNING!
An unbalanced blade will cause excessive
vibration when rotating at high speeds. It may
Blade
Bolt
Blade Adapter
Blade Bell
Support
EN - 14
SENIXTOOLS.COM
cause damage to mower and could break
causing personal injury.
STORAGE
WARNING!
Never store lawn mower with fuel in tank
indoors or in poorly ventilated areas where
fuel fumes may reach an open ame, spark,
or pilot light as on a furnace, water heater,
clothes dryer, or gas appliance.
PREPARING THE ENGINE
For engines stored over 30 days:
• To prevent gum from forming in fuel
system or on carburetor parts, run engine
until it stops from lack of fuel or use
gasoline mixed with gas additive. If you
use a gas additive, run the engine for
several minutes to circulate the additive
through the carburetor—after which the
engine and fuel can be stored longer than
30 days.
• While engine is still warm, change the oil.
• Clean engine of surface debris.
PREPARING THE LAWN
MOWER
• Clean and lubricate mower thoroughly as
described in the lubrication instructions.
• Do not use a pressure washer or garden
hose to clean your unit.
• Coat mower’s cutting blade with chassis
grease to prevent rusting.
• Refer to Preparing the Engine for correct
engine storage instructions.
• Store mower in a dry, clean area. Do not
store next to corrosive materials, such as
fertilizer.
• When storing any type of power equipment
in a poorly ventilated or metal storage
shed, care should be taken to rust-proof
the equipment. Using a light oil or silicone,
coat the equipment, especially cables and
all moving parts of your lawn mower before
storage.
15 - EN
SENIXTOOLS.COM
TROUBLESHOOTING
WARNING!
Disconnect the spark plug wire and ground it against the engine to prevent unintended starting.
Before performing any type of maintenance/service, disengage all controls and stop the engine.
Wait until all moving parts have come to a complete stop. Always wear safety glasses during
operation or while performing any adjustments or repairs.
This section addresses minor service issues. Refer to your RATO engine manual for details.
Problem Cause Remedy
Engine Fails to start
1. Blade control disengaged.
2. Spark plug boot
disconnected.
3. Fuel tank empty or stale
fuel.
4. Engine not primed (If
equipped with primer).
5. Faulty spark plug.
6. Engine ooded.
7. Blocked fuel line.
1. Engage blade control.
2. Connect wire to spark boot.
3. Fill tank with clean, fresh gasoline.
4. Prime engine as instructed in the
Operation section.
5. Clean, adjust gap, or replace.
6. Wait a few minutes to restart.
7. Contact your service dealer to clean
the fuel line cleaned.
Engine runs erratic
1. Spark plug boot loose.
2. Stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel
system.
5. Dirty air cleaner.
6. Blocked fuel line.
1. Connect and tighten spark plug boot.
2. Fill tank with clean, fresh gasoline.
3. Clear vent.
4. Run engine until it stops from lack of
fuel. Rell with fresh fuel.
5. Refer to Air Cleaner in Engine
Maintenance section.
6. Contact your service dealer to clean
the fuel line cleaned.
Engine overheats
1. Engine oil level low.
2. Air ow restricted.
1. Fill crankcase with proper oil.
2. Clean area around and on top of
engine.
Occasional skips
(hesitates)
1. Spark plug gap too close. 1. Adjust gap by a qualied specialist.
Idles poorly
1. Spark plug fouled, faulty,
or gap too wide.
2. Dirty air cleaner.
1. Reset gap or replace spark plug.
2. Refer to Air Cleaner in Engine
Maintenance section.
Excessive vibration
1. Cutting blade loose or
unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance
blade.
2. Replace blade.
EnglishSENIXTOOLS.COM
WARRANTY
SENIX TOOLS LIMITED WARRANTY
FOR TWO YEARS from the date of original purchase this lawnmower product, except for the RATO engine
(see below), is warranted against defects in material or construction.
WITH PROOF OF ORIGINAL PURCHASE a defective product will receive free repair. If the product cannot be
repaired it will be replaced free of charge.
For details to obtain warranty coverage, visit senixtools.com, email senix.support@yatusa.com or call
1-800-261-3981.
• This warranty does not cover repairs necessary due to product accident or abuse, or failure to operate or
maintain the product according to all supplied instructions.
• This warranty does not cover expendable items that can wear out from normal use within the warranty
period, including but not limited to blades, grass collection bags, spark plugs and filters.
• This warranty does not apply to damage resulting from repairs to the product made or attempted by other
than SENIX authorized agents.
• This warranty does not apply to repairs necessary due to improper fuel mixture, contaminated or stale fuel.
• This warranty does not cover the cost of mailing or transporting the product to receive warranty coverage.
• The warranty is void if the product has been used for commercial, professional, or rental service purposes.
• The warranty applies to the original retail purchaser and is not transferable.
• Proof of purchase is required to obtain warranty coverage.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental
or consequential damages, so these limitations may not apply to you. This warranty gives you specic legal rights
and you may have other rights which vary in certain states or provinces.
RATO ENGINE LIMITED WARRANTY. Refer to the RATO Engine Manual for engine warranty and engine parts
related issues.
60-DAY MONEY-BACK GUARANTEE. If for any reason within 60 days from the date of original purchase you are
not completely satised with the performance of this SENIX product, you can return it with the original sales receipt
for a full refund.
Latin America: This warranty does not apply to products sold in Latin America. For products sold in Latin America,
see the country-specic warranty information contained in the packaging, call the retailer from which it was
purchased, or visit the website for warranty information.
Free warning label replacement: If your warning labels become illegible or are missing, call 1-800-261-3981 for a
free replacement.
REGISTER ONLINE - senixtools.com/pages/product-registration
Thank you for your purchase! Register your product now for:
Warranty Service: Registering your product will help you obtain more ecient warranty service in case of a problem
with your product.
Confirmation of Ownership: In case of an insurance loss, such as re, ood, or theft, your ownership registration
will serve as proof of purchase.
For your safety: Registering your product will allow us to contact you in the unlikely event a safety notication is
required under the Federal Consumer Safety Act.
YAT USA INC. 10506 Bryton Corporate Center Dr, #500 Huntersville, NC 28078
For customer support, please call 1-800-261-3981 or email us at senix.support@yatusa.com
WARRANTY
