全自动*地面清洁机器人
使用说明书
P50
*全自动：指自动洗拖布和自动集尘功能，且与前代本品牌扫地机器人产品相比，全自动综合效果更优异。
*本说明书图示仅供参考，实际外观请以实物为准。
The illustrations in this manual are for reference only. Please refer to the actual product.
V50 Ultra
Complete
Robot Vacuum and Mop with
Auto-Empty and Mop Self-Cleaning
User Manual
Contents
User Manual
Посібник користувача
EN
UA
1
33
1
EN
Usage Restrictions
Safety Information
·
This product should not be used by children younger than 8 years old nor
persons with physical, sensory, intellectual deficiencies, or limited experience
or knowledge without the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
performed by children without supervision.
·
The appliance is only to be used with the power supply unit provided with the
appliance.
·
This appliance contains batteries that are only replaceable by skilled persons.
·
Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it is
operating.
·
Do not install, charge or use the appliance in the bathrooms or around the
pools.
·
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
·
Ensure that the appliance operates correctly in a proper environment.
Otherwise, do not use the appliance.
·
If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
To avoid electric shock, re or injury caused by improper use of the appliance, please read the user manual carefully before
using the appliance and keep it for future reference.
2
EN
Usage Restrictions
Safety Information
·
Do not use the robot in an area suspended above ground level without a
protective barrier.
·
Do not place the robot upside down. Do not use the LDS cover, robot cover, or
bumper as a handle for the robot.
·
Use the robot in environments with an ambient temperature above 0°C and
below 40°C. Make sure there is no liquid or sticky substance on the floor.
·
To prevent damage or harm from dragging, clear any loose objects from the
floor, and remove cables or power cords on the cleaning path before operating
the appliance.
·
Remove fragile or small items from the floor to prevent the robot from bumping
into and damaging them.
·
Keep hair, fingers, and other body parts away from the suction opening of the
robot.
·
Keep the cleaning tool out of reach of children.
·
Do not operate the appliance in a room where an infant or child is sleeping.
·
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
·
Only clean water and the officially-approved cleaning solution can be added
to the clean water tank. Do not add any other liquid such as alcohol or
disinfectant. The ratio of the cleaning solution to clean water can be checked
on the cleaning solution bottle. Keep the cleaning solution out of reach of
children.
3
EN
Safety Information
Batteries and
Charging
·
Do not use any third-party battery or base station. The robot can only be used
with the model RCVE0202 base station.
·
Do not attempt to disassemble, repair, or modify the battery or the base station
on your own.
·
Do not place the base station near a heat source.
·
Do not use a wet cloth or wet hands to wipe or clean the base station's
charging contacts.
·
Do not use the robot to clean any burning objects. Do not use the robot to pick
up flammable or combustible liquids, corrosive gases, or undiluted acids or
solvents.
·
Do not vacuum hard or sharp objects. Do not use the appliance to pick up
objects such as stones, large pieces of paper or any item that may clog the
appliance.
·
Plug must be removed from the socket-outlet before cleaning or maintaining
the appliance.
·
Do not wipe the robot or the base station with a wet cloth or rinse them with
any liquid. After cleaning washable parts, fully dry the parts before reinstalling
and using them.
·
Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage that arise from improper use of
this product.
Usage Restrictions
4
EN
·
The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/
A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact
with it during use.
CLASS 1 LASER PRODUCT
CONSUMER LASER PRODUCT
EN 50689:2021
Batteries and
Charging
Laser Safety
Information
Safety Information
Hereby, XingKuang Innovation Technology (Suzhou) Co., Ltd. declares that the radio equipment type RLV72LE-1 is in compliance with Directive
2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: https://www.mova.tech
For detailed e-manual, please go to https://www.mova.tech/pages/user-manuals-and-faqs
·
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
·
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
·
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
·
If the robot will not be used for an extended period of time, fully charge it, then
turn it off and store it in a cool, dry place. Recharge the robot at least once
every 3 months to avoid over-discharging the battery.
For indoor use only
Read operator's manual
5
EN
5ml
10ml
15ml
20ml
Other Accessories
Product Overview
Package Contents
Robot
Base Station
Power Cord Base Station Ramp
Extension Plate
User Manual Auto Solution
Dispenser Module
- Dual Compartment
(pre-installed)
Dust Bag × 2
(1 pre-installed)
Mop Pad × 2
(pre-installed)
Mop Pad
Holder × 2
Washboard Filter
(pre-installed)
Pet Odor Solution
× 1
Extra Accessories Kit
Cleaning Solution × 1Mop Pad × 12Main Brushes × 1 Dust Bag × 3Side Brush × 2
Dust Box's Filter × 3
6
EN
Robot
Product Overview
Button Status Indicator
·
Solid White: Cleaning or cleanup completed
·
Breathing White: Charging (not low battery)
·
Solid Orange: Standby at low battery or paused at low
battery
·
Breathing Orange: Charging (low battery)
·
Blinking Orange: Error
Dock Button
·
Press to send the robot back to the base station
·
Press and hold for 3 seconds to disable Child Lock
Power / Clean Button
·
Press and hold for 3 seconds to turn on or off
·
Press to start cleaning after the robot is turned on
Note:
·
Press any button on the robot to pause while the robot is cleaning or
returning to charge.
·
Child Lock can be enabled/disabled through the MOVAhome App.
7
EN
Robot and Sensors
Product Overview
Microphones
VersaLift Sensor
Bumper Window
Bumper
3D Dual-Line Laser Sensors
AI HD Camera
AI IR Camera
LED Auxiliary Light
Note: The VersaLift sensor will be lowered when the robot is in standby mode, charging on the base station, or cleaning low-clearance areas. In the case of
cleaning low-clearance areas, do not move the robot as it may aect its positioning.
Cover
Charging Contacts
Connectors
Automatic Water Relling Inlet
Reset Button/Wi-Fi Indicator
·
Press and hold for 3
seconds to restore to
factory settings
Edge Sensor
Auto-Empty Vent
8
EN
Robot and Sensors
Product Overview
Cli Sensors
Main Wheel
Clearance Leg
Main Brushes
Omnidirectional Wheel
Brush Guard
Main Wheel
Caster Wheel
Clearance Leg
Mop Pad Holder Mounting Holes
Side Brush Extension Assembly
Carpet Sensor
MopExtend Assembly
Brush Guard Clips
Dust Box
Filter
Auto-Empty Vent
Dust Box Clip
Filter Clip
Mop Assembly
Mop Pad
Attachment Area
Mop Pad Holder Mop Pad
9
EN
Scale Inhibitor
Washboard
Washboard Filter
Ramp Extension Plate
Cover
Used Water Tank
Clean Water Tank
Water Tank Clip
Water Tank Clip
Float Ball
Water Pipe
Dust Tank Cover
Filter
Floater
Base Station Used Water Tank
Clean Water Tank
Product Overview
10
EN
Filter
Auto Solution Dispenser Module -
Dual Compartment
Compartment B ( 200 mL):
Pet Odor Solution
Compartment A ( 400 mL):
Cleaning Solution
Dust Bag Slot
Auto-Empty Vents
Signaling Area
Charging Contacts
Automatic Water
Adding Outlet
Status Indicator
·
Solid White: The base station
is connected to power
·
Solid Orange: The base
station has an error
·
Solid Blue: UV light is
working
Power Cord Storage Slot
Power Port
Base Station
Product Overview
Note: The dual compartment can be replaced with a single compartment to
add more cleaning solution. If needed, please purchase separately.
11
EN

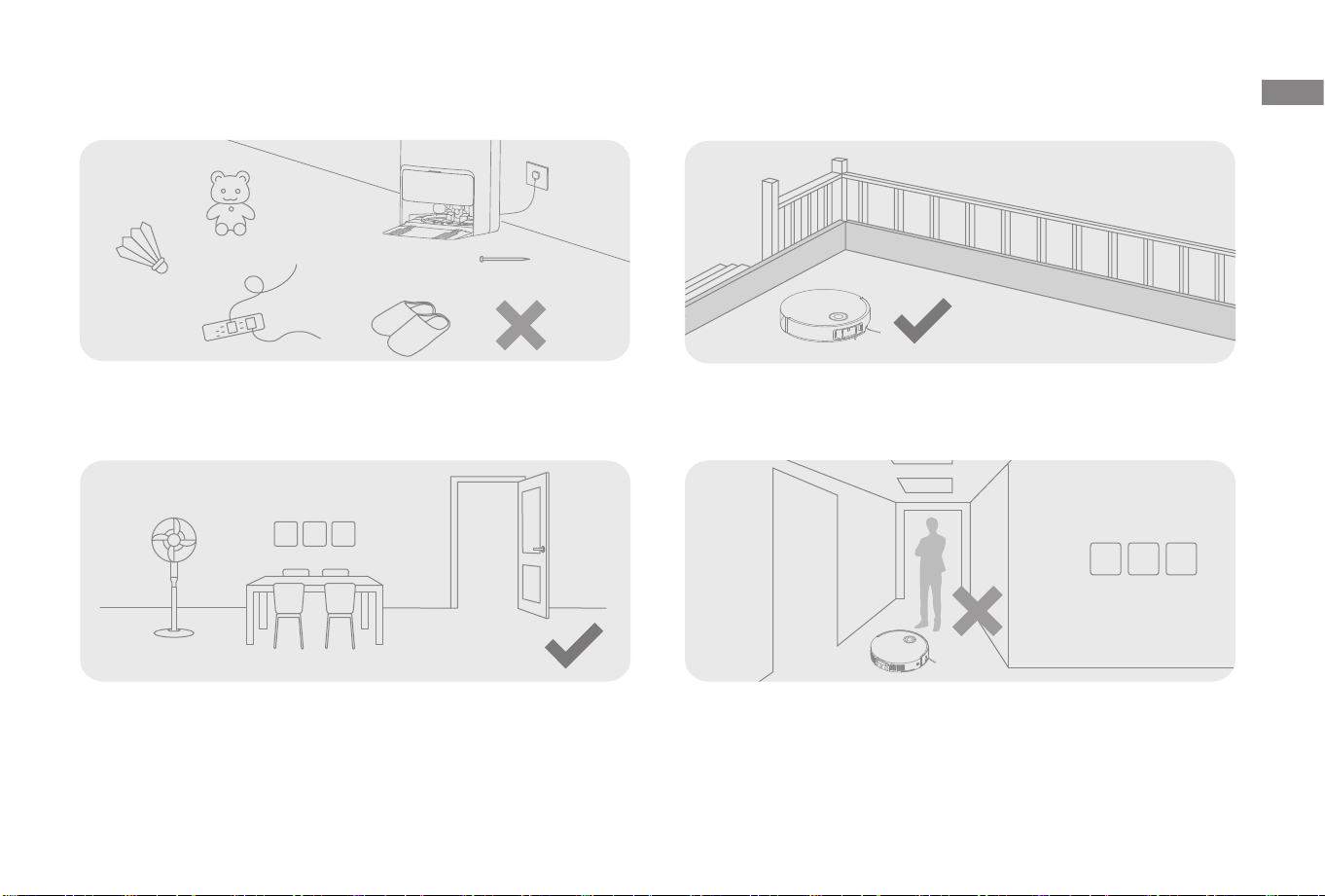

Preparing Your Home
Before cleaning, please move away unstable, fragile, valuable or dangerous
items, and clean up cables, cloths, toys, hard objects and sharp objects on
the ground to avoid being entangled, scratched or knocked over by the robot
and causing losses.
Open the door of the room to be cleaned, and put the furniture in its proper
place to leave more space.
To prevent the robot from missing areas that need to be cleaned, do not
stand in front of the robot, threshold, hallway, or narrow places.
Before cleaning, place a physical barrier at the edge of the stairs to ensure
the secure and smooth operations of the robot.
Note:
·
When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.
·
The LED auxiliary light will provide auxiliary lighting in dimly lit environments.
·
Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be
scratched.
12
EN
＞1.5 m
＞5 cm
＞5 cm

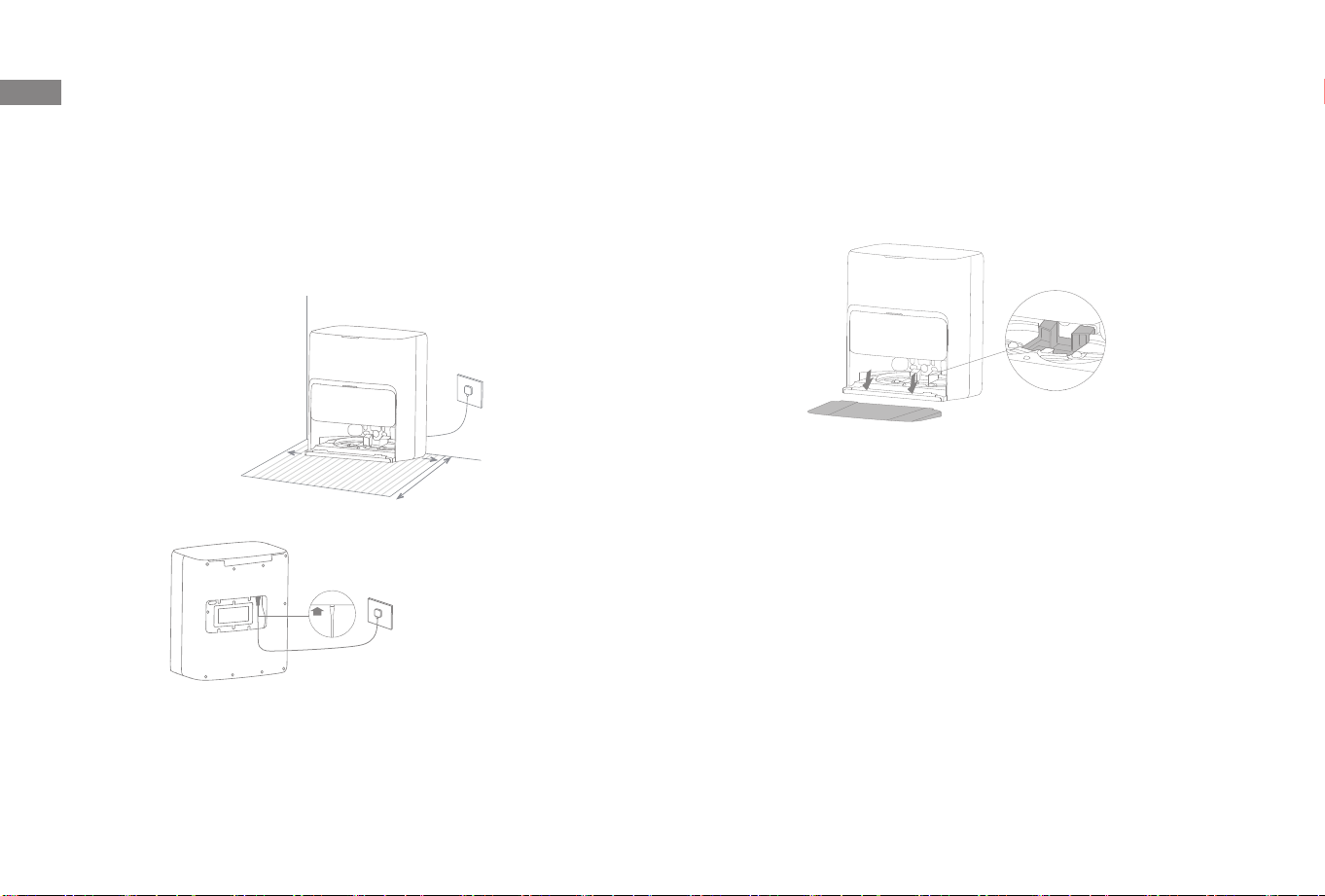

1. Place the Base Station and Connect to an Electrical Outlet
Place the base station in a location that is as open as possible with
a good Wi-Fi signal. Leave enough space as shown in the gure and
remove any objects in the shaded area. Insert the power cord into the
base station and plug it into the socket.
Before Use
Note:
·
Make sure that no objects might block the signaling area.
·
To prevent water stains from wetting wood floors or carpets, placing the
base station on tile floors or marble floors is recommended.
Firmly insert the power cord upwards
until the indicator turns on.
2. Install the Ramp Extension Plate
Note: Ensure the washboard filter is installed into place.
Washboard Filter
13
EN

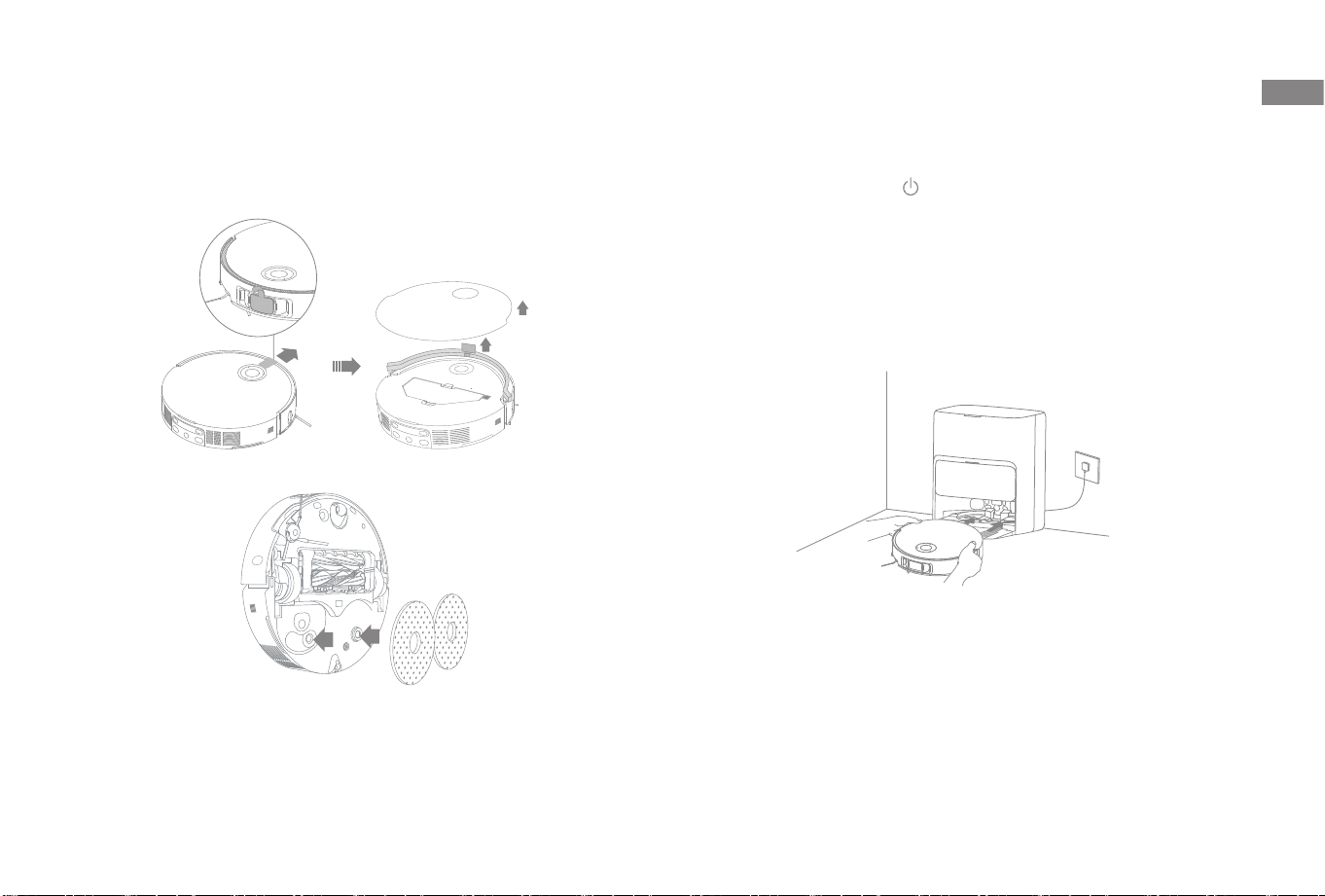

4. Connect the Robot to the Base Station
Press and hold the button on the robot for 3 seconds to turn it on.
Place the robot onto the base station with the mop assembly facing
toward the washboard. Then you will hear a voice notication when
the robot successfully connects to the base station. After the robot
is fully charged, the status indicators on the robot and the base
station will remain lit for 10 minutes and then dim.
Before Use
Note: It is recommended to fully charge the robot before its first use. When
the robot cannot be turned on after the battery is depleted, manually connect
the robot with the station to charge it.
3. Remove Robot Protections and Install the Mop Assembly
➁
➀
➂
14
EN
Before Use

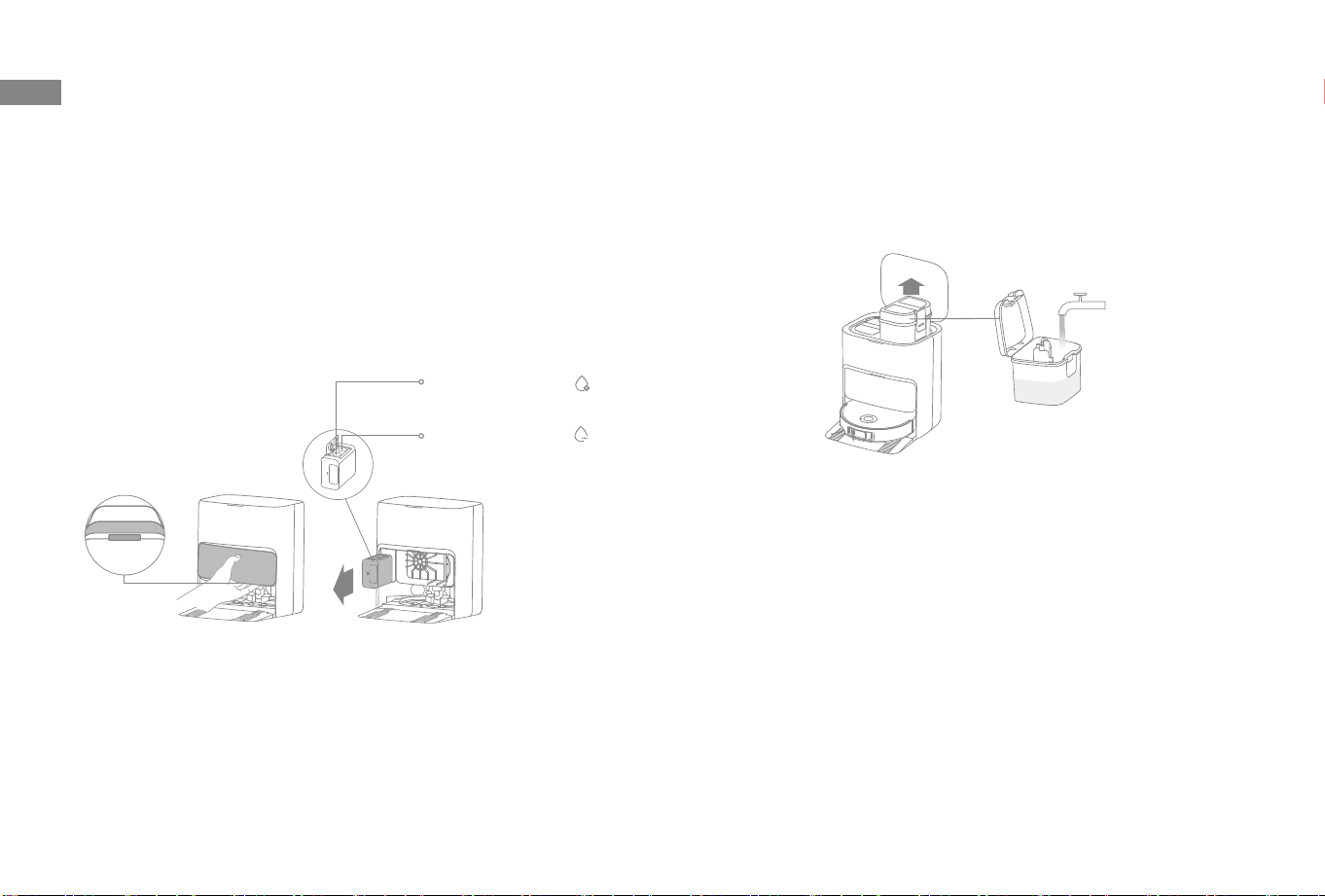

5. Add MOVA Cleaning and Pet Odor Solution
Note:
·
Do not confuse cleaning solution with pet odor solution, as it may cause
machine malfunction.
·
The auto solution dispenser module can be filled up for use. Do not add any
liquids that are not officially-approved to prevent malfunction.
·
Install the auto solution dispenser module until it clicks into place.
6. Add Water to the Clean Water Tank
Take out the clean water tank from the base station and ll up the
tank with clean water. Then install it back into the base station.
Note: Do not add hot water into the water tank, as this may cause the tank to
become deformed.
① Remove the dust tank cover and pull out the auto solution
dispenser module.
② Open the upper lids of the module and add cleaning solution
and pet odor solution into specialized compartment, as shown in
the gure.
③ Close the lids, put the module back into the base station, and
then reinstall the dust tank cover.
Compartment B ( 200 mL):
Pet Odor Solution
Compartment A ( 400 mL):
Cleaning Solution
15
EN
QR Code
QR Code
2. Add Device
Connecting with the MOVAhome App
1. Download the MOVAhome App
Wi-Fi Indicator
·
Blinking slowly:
To be connected
·
Blinking quickly:
Connecting
·
On: Connected
Note:
·
Only 2.4 GHz Wi-Fi is supported.
·
Due to upgrades in the app software, the actual operations may differ
from the directions in this manual. Please follow the instructions based on
the current app version.

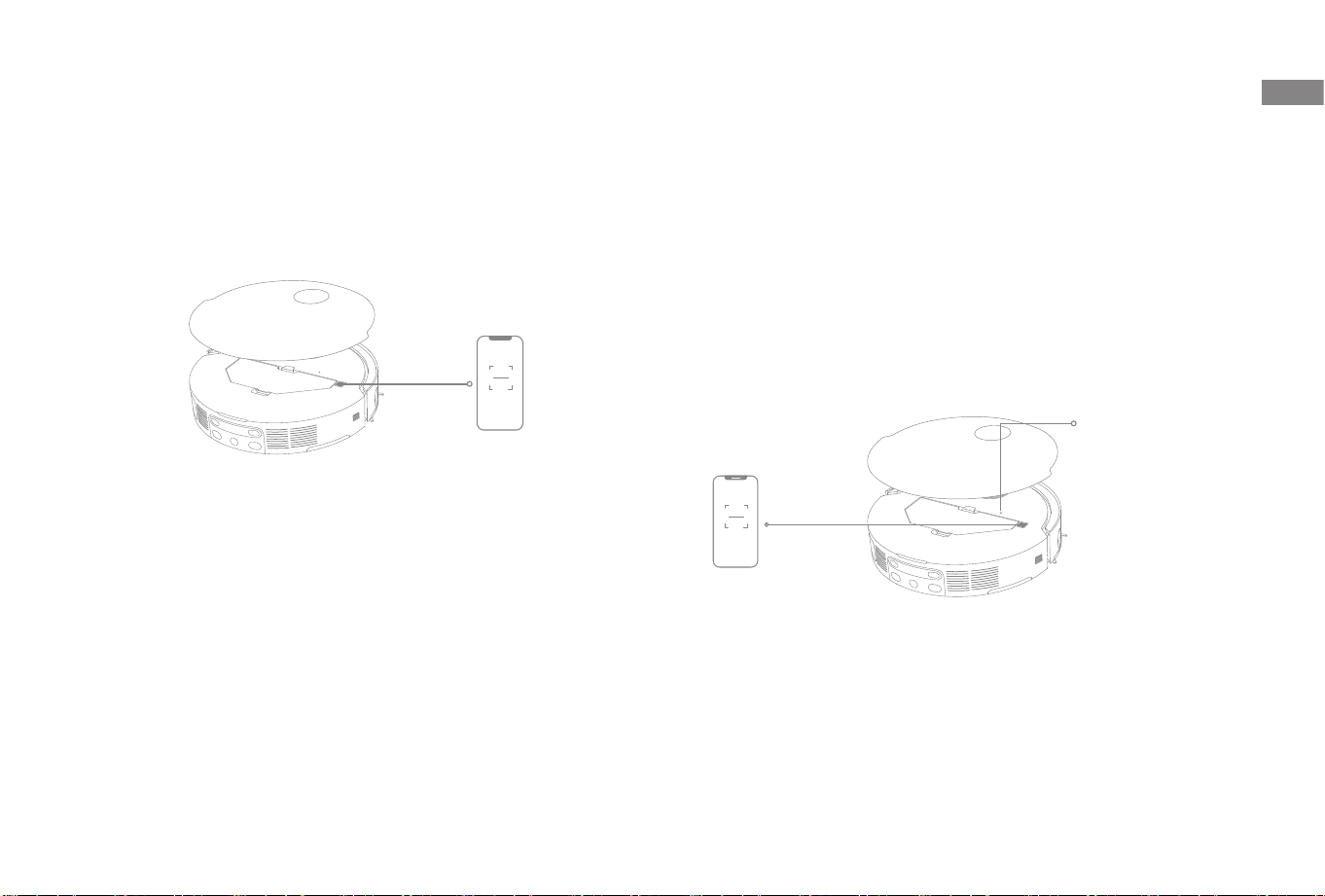

Scan the QR code on the robot or search "MOVAhome" in the app
store to download and install the app.
Open the MOVAhome App, tap "Scan QR code to connect", and scan the
same QR code on the robot again to add the device. Please follow the
prompts to nish the Wi-Fi connection.
Note: To reset Wi-Fi, repeat step 2 and then follow the prompts to nish the
Wi-Fi connection.
16
EN
How to Use
If the battery is too low, the robot will automatically return to the
base station to charge. After charging to the appropriate battery
level, it will resume unnished cleaning tasks.
Note: To use this function, please enable it in the app.
Turn On/O
Fast Mapping
Do Not Disturb (DND) Mode
Robot Restarting
Auto Resume Cleaning
Pause/Sleep
Press and hold the button for 3 seconds to turn on the robot. The
power indicator will remain lit. Or, place the robot onto the base
station by aligning the charging contacts of the robot with those of
the base station, and then the robot will turn on automatically and
begin charging. To turn o the robot, move the robot away from the
base station and press and hold the button for 3 seconds.
When the robot is set to the Do Not Disturb (DND) mode, the robot
will be prevented from resuming cleaning. The DND mode is
disabled by default at the factory. You can use the app to enable
the DND mode or modify the DND period. The DND period is 22:00-
8:00 by default.
Note:
·
The scheduled cleaning tasks will be performed as usual during the DND
period.
·
The robot will resume cleanup where it left off after the DND period expires.
If the robot stops responding or cannot be turned o, press and
hold the button for 10 seconds to forcefully turn it o. Then,
press and hold the button for 3 seconds to turn the robot on.
After conguring the network for the rst time, follow the
instructions in the app to quickly create a map. The robot will start
mapping without cleaning. When the robot returns to the base
station, the mapping process has been completed and the map will
be saved automatically.
When the robot is running, press any button to pause it.
If the robot is paused for more than 10 minutes, it automatically
enters sleep mode. All indicators on the robot will turn off. Press
any button on the robot, or use the app to wake up the robot.
Note: If the robot is paused and placed onto the base station, the current
cleaning process will end.
17
EN
Note:
·
To ensure the robot easily returns to the base station after cleaning, it is
recommended to make the robot start from the base station.
·
The mop pads will be cleaned before the robot starts mopping, please wait
patiently.
·
Do not move the base station, the clean water tank, the used water tank, or
the washboard filter during operation.
·
Hot water cleaning can be enabled in the app for mop pad cleaning, which
applies to all modes. To prevent scalding, do not touch the water outlet
when the function is on.
Note: Congure the auto solution dispenser module via app for dierent
solution uses.
How to Use
Note: After installing the mop assembly, the robot will operate in "Vacuum
and Mop" mode by default during its rst use.
1. Start cleaning
Press the button on the robot, or use the app to make the robot
start from the base station. Then the robot will plan the optimal
cleaning route and perform the cleaning task based on the created
map.
Vacuum and Mop
2. Auto mop washing
When cleaning, the robot will automatically return to the base
station to wash mop pads based on the mop pad cleaning
frequency specied in the app. The base station will automatically
rell the robot's water tank and the robot will resume cleanup.
Compartment B ( 200 mL):
Pet Odor Solution
Compartment A ( 400 mL):
Cleaning Solution
18
EN
Enable the vacuuming function in the app, and the robot will
automatically remove the mop assembly on the base station and
start vacuuming.
Enable the mopping after vacuuming function in the app, and the
robot will automatically remove the mop assembly on the base
station to vacuum the oor. After vacuuming is completed, the
robot will return to the base station to install the mop assembly
and the base station will automatically empty the dust box. And
then, the robot will start mopping after the main brushes and side
brush are raised.
Enable the mopping function in the app, and the robot will
automatically check if the mop assembly is installed on the base
station. If not, the robot will install the mop assembly and start
mopping after the main brushes and side brush are raised.
Vacuum Only
Mop after Vacuuming
Mop Only
How to Use
4. Clean the used water tank
After the robot has completed its task, please clean the used water
tank to prevent any odor.
Note:
·
If the auto-empty function is turned off in the app, the base station will not
automatically empty the dust box.
·
The base station will empty the dust box according to the setting in the app.
3. Automatically empty the dust box and wash and dry the
mop pads
After the robot finishes a cleaning task and returns to the base
station to charge, the base station will automatically empty the dust
box and then wash and dry the mop pads.
19
EN
Routine Maintenance
Parts
To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine
maintenance.
Part Maintenance Frequency Replacement Period
Used water tank After each use
/
Clean water tank
Once every 2 weeks
Main brushes Every 6 to 12 months
Dust box's lter
Every 3 to 6 months
Side brush
Mop pad holders /
Washboard lter Once every 1 to 2 months
/
Base station's
signaling area
Once every month
Charging contacts
Auto-empty vents
Omnidirectional wheel
Caster wheel
Edge sensor
VersaLift sensor
3D dual-line laser
sensors
Part Maintenance Frequency
Replacement
Period
Carpet sensor
Once every month
/
Cli sensors
Bumper window
Bumper
Robot's automatic
water relling inlet
Bottom of the robot
Dust box
Clean it as neededMain wheels
Clearance legs
Dust bag
/
Every 2 to 4 months
Mop pads Every 1 to 3 months
Scale inhibitor
Every 18 to 36
months
Note: The frequency of maintenance and replacement depends on actual
usage. If an exception occurs due to special circumstances, prompt
maintenance or replacement is recommended.
20
EN
2. Rinse the washboard filter with clean water, wipe it clean, and
then reinstall it in the washboard.
Routine Maintenance
Washboard Filter
1. Take out the robot and remove the washboard lter after the mop
pad cleaning is complete.
3. Use the app or press the button to return the robot to the base
station, or manually put the robot back.
21
EN
Routine Maintenance
Dust Bag
1. Remove the dust tank cover and discard the dust bag. 3. Install a new dust bag.
4. Reinstall the dust tank cover.2. Remove the dust and debris from the lter with a dry cloth.
Note: Pulling outwards on the handle will seal the bag to prevent the dust
and debris from accidentally falling out.
22
EN
Used Water Tank
Routine Maintenance
2. Rinse the used water tank with clean water, and use a proper
cleaning tool to clean the inner wall of the used water tank.
1. Remove the used water tank, open its cover and pour out the
used water.
Note:
The oat ball in the used water tank is a movable part. Do not apply
too much force when cleaning it to avoid damaging it.
23
EN
3. With the screen-printed arrows facing upwards, insert the main
brush holder into the slots downwards in an inclined way.
4. Align the front end of the brush guard with the slot, insert it
downwards in an inclined way, and then press it into place.
1
2
Main Brushes
2. Pull out the brushes as shown in the gure. Use a proper cleaning
tool to remove any hair tangled in the brush. After cleaning, push
the brushes rmly into the main brush holder until they click into
place.
1. Press the brush guard clips inwards to remove the brush guard,
and then lift the brushes out of the robot.
Note: Be careful while pulling out the main brushes to prevent injury.
Click
Routine Maintenance
24
EN
Side Brush
Unscrew the side brush with a screwdriver, clean the hair from the
brush, and then screw it back on.
Routine Maintenance
Mop Pad Holders
Remove and clean the mop pad holders.
Omnidirectional Wheel
Note:
·
Use a tool such as a small screwdriver to separate the axle and tire of the
omnidirectional wheel. Do not use excessive force.
·
Rinse the omnidirectional wheel under the running water and put it back
after drying it completely.
25
EN
24h
1. Remove the robot cover and press the dust box clip to remove the
dust box.
2. Remove the dust box lter, and then empty the dust box.
Dust Box and Filter
Routine Maintenance
3. Gently tap the basket of the lter to remove the dirt.
4. Rinse the dust box and lter with water and dry them completely
before reinstalling.
Note: Do not attempt to clean the filter with a brush, a finger or sharp objects
to prevent damage.
Note:
·
Rinse the dust box and filter with clean water only. Do not use any detergent.
·
Use the dust box and filter only when they are completely dry.
26
EN
Routine Maintenance
Robot Sensors
Wipe the robot sensors by using a soft and dry cloth, as shown in
the below gure:
Edge Sensor
Bumper Window
3D Dual-Line Laser
Sensors
Bumper
VersaLift Sensor
Note: A wet cloth can damage sensitive elements within the robot and the
base station. Please use a dry cloth for cleaning.
Carpet Sensor
Cli Sensors
Charging Contacts and Signaling Area
Clean the charging contacts and the signaling area with a soft and
dry cloth.
27
EN
Mop Pads
Remove the mop pads from the mop pad holders to replace them.
The robot contains a high-performance lithium-ion battery pack.
Make sure that the battery remains well-charged for daily use to
maintain optimal battery performance. If the robot is not used for
an extended period of time, turn it o and put it away. To prevent
damage from over-discharging, charge the robot at least once
every three months.
Battery
Routine Maintenance
Clean the auto-empty vents of the robot and the base station with a
soft and dry cloth.
Auto-Empty Vents
28
EN
Problem Solution
The robot will not turn on.
The battery is low. Recharge the robot on the base and try again.
The temperature of the battery is too low or too high. It is recommended to use the robot in environments with an
ambient temperature above 0 °C (32 °F) and below 40° C (104° F).
The robot will not charge.
The base station is not connected to power, please make sure both ends of its power cord are correctly plugged in.
The contact between the charging contacts on the base station and the robot is poor, please clean the charging contacts.
Check whether there is any foreign object at the connectors of the robot and remove the foreign object if any.
The robot fails to connect
to Wi-Fi.
The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network is correct.
The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi connection.
The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.
The robot may not be ready to be congured. Please exit and re-enter the app, and then try again as instructed.
The robot cannot nd and
return to the base station.
The base station is disconnected from power or moved when the robot is not on it. Please connect the base station to the
power supply or place the robot onto the base station to charge.
There are too many obstructions around the base station. Place the base station in a more open area.
Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the robot is too far
from the base station, it might not be able to automatically return on its own, in which case you will need to manually
place the robot onto the base station.
Wipe the signaling area on the base station to remove dust or debris.
Troubleshooting
29
EN
Problem Solution
The robot gets stuck in
front of the base station
and cannot return to it.
Check whether there is enough space on both sides or in front of the base station to prevent the robot from being blocked.
The route for returning to charge is blocked, e.g. the door is closed.
The robot may slip if the oor in front of the base station is overly wet. If so, clean the excess water before trying again.
It is recommended to move the base station to a dierent place and try again.
Make sure the ramp extension plate is installed properly.
The robot will not turn
o.
The robot cannot be turned o when it is charging. It is recommended to move the robot from the base station, and then
press and hold the button for 3 seconds to turn it o.
If the robot cannot be turned o by performing step 1, press and hold the button for 10 seconds to forcibly turn o the
robot. If the problem persists, please contact after-sales service.
The charging speed is
slow.
It takes about 4.5 hours to fully charge the robot when its battery is low.
If you operate the robot at temperatures outside of the specied range, the charging speed will automatically slow down
to extend the battery life.
The charging contacts on both the robot and the base station may be dirty, please wipe them with a dry cloth.
The noise increases while
the robot is operating.
Check whether the dust box lter is clogged. If so, clean it or replace it.
A hard object may be caught in the main brushes or the dust box. Check and remove any hard object.
The main brushes or the side brush may become tangled. Check and remove any foreign objects.
Switch the suction mode to Standard or Quiet.
The robot moves without
following the set route.
Objects such as power cords and slippers should be organized before using the robot.
Working on wet slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places before using the
robot.
Wipe the bumper window and 3D dual-line laser sensors on the robot with a clean, soft cloth to keep them clean and
unobstructed.
Troubleshooting
30
EN
Troubleshooting
Problem Solution
The robot misses the
rooms to be cleaned.
Make sure that the doors of the rooms to be cleaned are open.
The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work abnormally.
Please try drying the oor before using the robot.
The robot will not resume
cleaning after charging.
Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming cleaning.
The robot will not resume cleaning after you manually place the robot on the base station or send the robot to charge via
the app or the button .
The station cannot
automatically empty the
dust box.
Check whether the dust bag in the dust tank is full.
If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the base station, or
the dust box. If any, clean the blocked part in time.
The water level in the
washboard is abnormal.
Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it if so. If the problem
persists, please contact the after-sales service team.
Gently press down on the used water tank to make sure it is installed correctly.
Remove the washboard lter and check whether the sewage drain outlet is blocked and clean it.
Check the cleaning solution. Do not add any liquid other than the ocially-approved cleaning solution.
The mop pad holder is
raised abnormally.
Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the robot. If the
problem persists, please contact the after-sales service team.
There is water under
the clean water tank or
around the seal.
When taking out the clean water tank, some water in the pipe may be left under the tank or around the seal. This is
normal. Please wipe with a dry cloth.
For more support, contact us via https://www.mova.tech
31
EN
Model RCVE0202
Rated Input 220-240 V 50-60 Hz
Rated Output 20 V 2 A
Rated Power (during dust
emptying)
700 W
Rated Power (during hot
water cleaning)
1160 W
Rated Power (during
charging and drying)
95 W
Specications
Model RLV72LE-1
Charging Time Approx. 4.5 hours
Rated Voltage 14.4 V
Rated Power 75 W
Operation Frequency 2400-2483.5 MHz
Maximum Output Power ＜ 20 dBm
Robot Base Station
Note:
·
Rated Power (during hot water cleaning) is determined by
the power value during the representative period (water
temperature 25℃).
·
Rated Power (during charging and drying) is determined by
the power value during full load period.
Under normal use of condition, this equipment should be kept a
separation distance of at least 20 cm between the antenna and the
body of the user.
32
EN
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should
not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing
over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment,
appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. Please contact the installer or local authorities for more information
about the location as well as terms and conditions of such collection points.
WEEE Information
Battery Disposal and Removal
CAUTION:
Removal Guide:
The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the
battery is removed by qualied technicians and discarded at an appropriate recycling facility.
– the battery must be removed from the appliance before it is scrapped;
– the appliance must be disconnected from the supply mains when removing the battery;
– the battery is to be disposed of safely.
Before removing the battery, disconnect the power and run out the battery as much as possible.
Unneeded batteries should be discarded at an appropriate recycling facility.
Do not expose to high temperature environment to avoid risks of explosion.
Under abusive conditions, liquid may be ejected from the battery. If contact occurs, ush with water and seek medical help.
1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.
33
UA
Обмеження щодо
використання
Інформація щодо безпеки
·
Щоб забезпечити безпечне користування пристроєм і уникати можливих
ризиків, дітям віком до 8 років, особам похилого віку й особам з
фізичними, сенсорними чи розумовими вадами, а також особам, які
не мають достатніх знань чи досвіду, заборонено користуватися цим
пристроєм без нагляду одного з батьків чи опікуна. Дітям без нагляду
заборонено здійснювати очищення та поточне обслуговування.
·
Пристрій можна використовувати тільки разом із блоком живлення, який
входить до комплекту.
·
Цей пристрій містить акумулятори, виймати які можуть лише кваліфіковані
особи.
·
Звільніть ділянку, яку потрібно прибрати. Діти не повинні гратися з
пристроєм. Подбайте, щоб під час роботи апарата діти й домашні тварини
перебували на безпечній відстані від нього.
·
Не встановлюйте, не заряджайте та не користуйтеся пристроєм у ванних
чи поряд із басейнами.
·
Цей виріб призначений тільки для прибирання підлоги в домашніх
умовах. Не користуйтеся ним надворі, на будь-яких інших поверхнях, крім
підлоги, а також у комерційних чи промислових умовах.
·
Переконайтеся в тому, що апарат правильно функціонує в належних
умовах. Якщо це не так, не користуйтесь пристроєм.
Щоб уникнути ураження електричним струмом, виникнення пожежі чи травми внаслідок неналежного користування
пристроєм, уважно прочитайте посібник користувача, перш ніж починати користуватися пристроєм, і збережіть його
для подальшого використання.
