FX600z Platinum
Flex ATX SERIES
Cybenetics Platinum 600W Fully Modular FlexATX Power Supply
Standard FlexATX form factor
Built-in 300W 12V-2x6 connector with a 300W 12V-2x6 connector cable included
Delivers 600W continuous power output at 50°C, rated for 24/7 continuous operation.
Japanese primary capacitor
Class-leading +12V single rail
PCIe 8-pin and 6-pin connector support
SPECIFICATION
SilverStone Flax ATX Series
FX600z Platinum
SST-FX600-PM
Switching Power Supply
Cybenetics Platinum efficiency certified.
600W
01
1.1 AC input requirements
The input voltage, current, and frequency requirements for continuous operation are
stated below.
Table 1 AC Input Line Requirements
Power factor correction (PF)>0.9 at full load.
1.2 Inrush current regulation
The power supply must meet inrush requirements for any rated AC voltage, during turn
on at any phase of AC voltage, during a single cycle AC dropout condition, during
repetitive ON/OFF cycling of AC, and over the specified temperature range (Top).
The peak inrush current shall be less than the ratings of its critical components
(including input fuse, bulk rectifiers, and surge limiting device).
1.0 AC INPUT:
This specification describes the requirements of 600W with full range voltage,
switching power supply with FLEX-ATX 1.43 form-factor and,+5V standby voltage,
remote on/off .
Parameter Min Nom Max Unit
Vin 90
100-240
264 VACrms
Vin Frequency 47
60----50
63 Hz
Iin(600W)
8.0----- 4.0

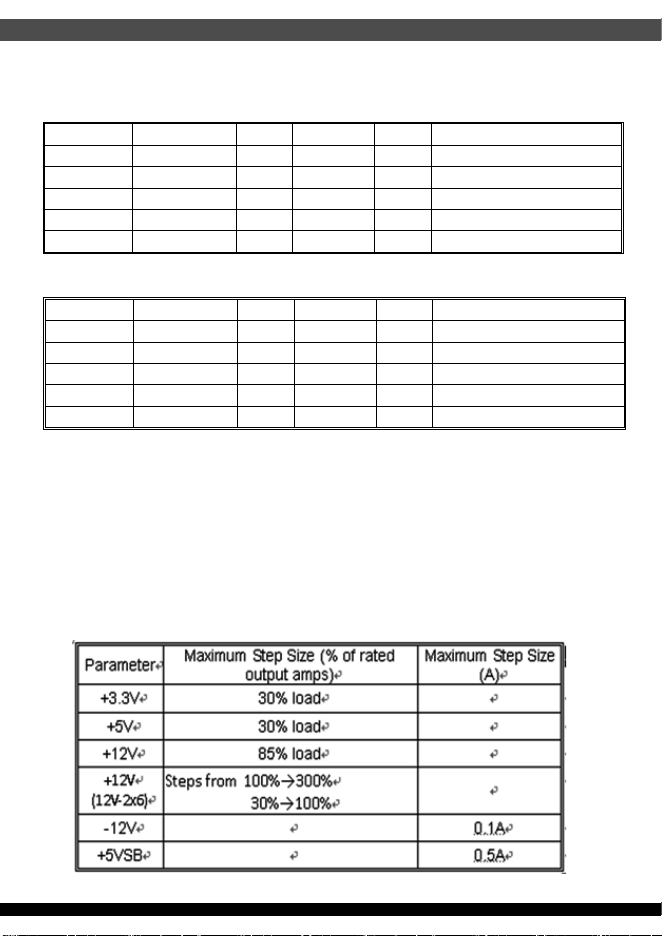

2.3 Output Ripple
Summarizes the expected output transient step sizes for each output.
The +3.3V&+5V transient load slew rate is = 1.0 A/μs.
The +12V transient load slew rate is = 5.0 A/μs.
Notes:
2.1 DC voltage regulation
2.2 600W Load range
( 1 ) The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.
( 2 ) The +12V maximum load shall not exceed 600W.
( 3 ) The maximum continuous average DC outputs power shall not exceed 600W.
( 4 ) The 12V-2x6 Max load shall not exceed 25A(300W).
02
2.0 DC OUTPUT :
Parameter Min Nom. Max Peak Unit
+3.3V 0.1 -
15
Amps
+5V 0.2 -
15
Amps
+12V 0.5 -
50
Amps
-12V 0A -
0.3
Amps
+5VSb 0A -
2.5
Amps
Parameter Range Min
Nom.
Max Unit
±5% +3.14
+3.3
+3.47 Volts
±5% +4.75
+5.0
+5.25 Volts
±5% +11.4
+12.0
+12.6 Volts
±10% -10.8
-12.0
-13.2 Volts
±5% +4.75
+5.0
+5.25 Volts
+3.3V
+5V
+12V
-12V
+5VSb
03
Figure 1. Ripple voltage test circuit
2.4.1 Ripple regulation
2.4.3 Ripple voltage test circuit
2.5 Overshoot
2.4 Output Ripple
2.4.2 Definition
Parameter Ripple& Noise Unit
+3.3V
50
mVp-p
+5V
50
mVp-p
+12V
120
mVp-p
-12V
120
mVp-p
+5VSb
50
mVp-p
The ripple voltage of the outputs shall be measured at the pins of the output connector
when terminated in the load impedance specified in figure1.Ripple and noise are measured
at the connectors with a 0.1uF ceramic capacitor and a 10uF electrolytic capacitor to
simulate
system loading. Ripple shall be measured under any condition of line voltage, output load,
line
frequency, operation temperature.
Any overshoot at turn on or turn off shall be less 10% of the nominal
voltage value, all outputs shall be within the regulation limit of section
2.0 before issuing the power good signal of section 5.0.
2.7 Remote on/off control
When the logic level "PS-ON" is low, the DC outputs are to be enabled.
When the logic level is high or open collector, the DC outputs are to be disabled.

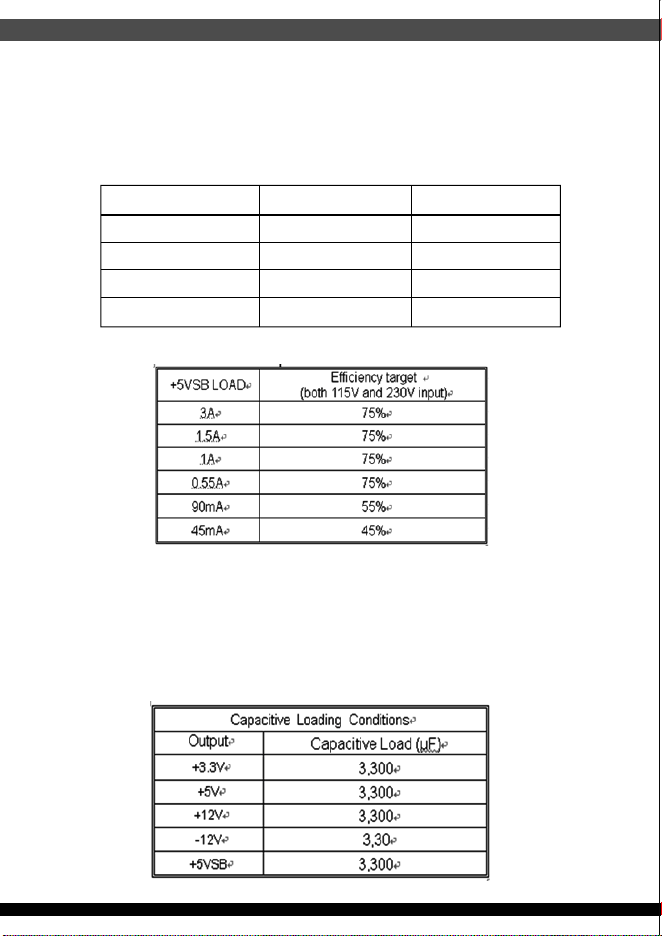

2.6 Efficiency
2.6.1 At 115Vac
2.6.2 ERP 5VSB Efficiency
In an under voltage fault occurs, the supply will latch all DC outputs into a shutdown
state when +12V,+5V & +3.3V outputs under 85% of it's maximum value.
Load
2%
20%
50%
100%
Efficiency
60%
90%
92%
89%
Power Factor
--
--
>0.9
--
2.8 Capacitance Loading
The power supply shall be stable and meet all requirements with the following
capacitive loading ranges.
04
05
3.3 Over-power protection
3.1 Over current protection
3.2 Over Temperature Protection
The power supply shall have current limit to prevent the +3.3V,+5V,and +12V
outputs from exceeding the values shown in the following Table. If the current limits
are exceded the power supply shall shutdown and latch off.
3.0 PROTECTION
Voltage
+12V
+5V
+3.3V
Over Current
55A minimum
18A minimum
18A minimum
Output
+12V VDC
+5VDC
+3.3VDC
Minimum
13
5.5
3.6
Nominal
15
6
4
Maximum
17
7
5
Unit
Volts
Volts
Volts
The power supply will be protected against over temperature conditions caused by
loss of fan cooling or excessive ambient temperature. In an OTP condition the PSU
will shutdown. When the power supply temperature drops to within specified limits,
the power supply shall restore power automatically. The OTP must have built in
hysteresis such that the power supply will not oscillate on and off due to circuit
temperature recovering condition.
The power supply will be shutdown and latch off when
output power within 120~160% of rated DC output.
Note: Assurance machine can work at low voltage,full load won't damage machine.
3.4 Under voltage protection.
In an under voltage fault occurs, the supply will latch all DC outputs into a shutdown
state when +12V,+5V & +3.3V outputs under 85% of it's maximum value.
3.5 Over voltage protection
The over voltage sense circuitry and reference shall reside in packages that are
separate and distinct from the regulator control circuity and reference. No single point
fault shall be able to cause a sustained over voltage condition on any or all outputs.The
supply shall provide latch-mode over voltage protection as defined in Table.
06
3.6 Short circuit protection
3.7 No load operation

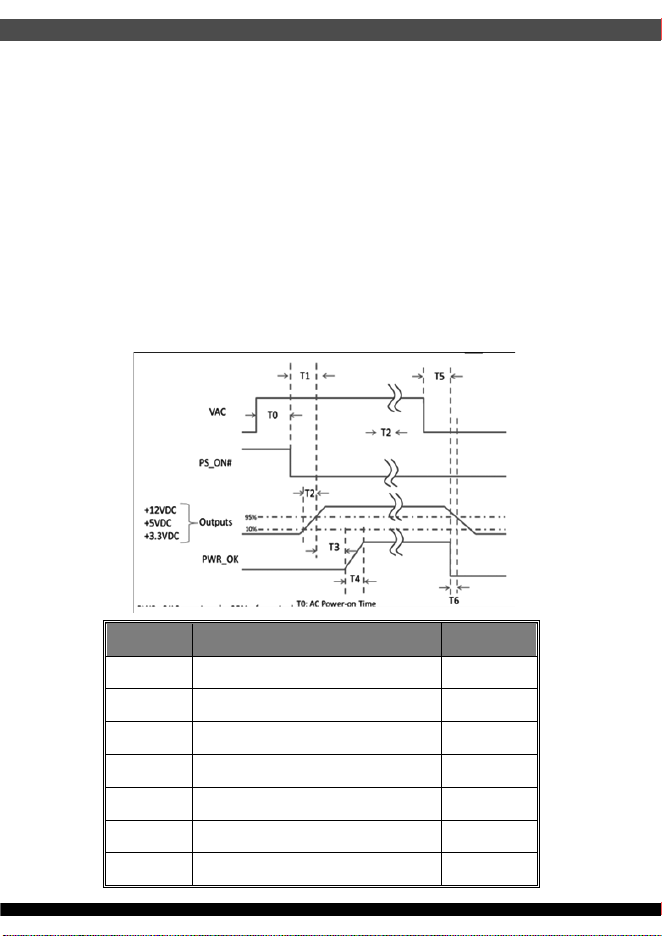

4.0 TIMING
Paramete
r
Description Required
T0 AC power on Ɵme <2s
T1 Power-on Ɵme < 150ms
T2 Rise Ɵme 0.2 – 20 ms
T3 PWR_OK delay 100 – 150ms
T4 PWR_OK rise Ɵme < 10 ms
T5 hold-up Ɵme at 75% Load >16ms
T6 PWR_OK inacƟve to DC loss delay > 1 ms
An output short circuit is defined as any output impedance of less than 0.1 ohms.The
power supply shall shut down and latch off for shorting the +3.3 VDC,+5 VDC,or+12-
VDC rails to return or any other rail. Shorts between main output rails and +5VSB
shall not cause any damage to the power supply.
The power supply shall either shut down and latch off or fold back for shorting the
negative rails.+5VSB must be capable of being shorted indefinitely,but when the short
is removed,the power supply shall recover automatically or by cycling PS_ON#.The
power supply shall be capable of withstanding a continuous short-circuit to the output
without damage or overstress to the unit
No damage or hazardous condition should occur with all the DC output connectors
disconnected from the load.The power supply may latch into the shutdown state.
07

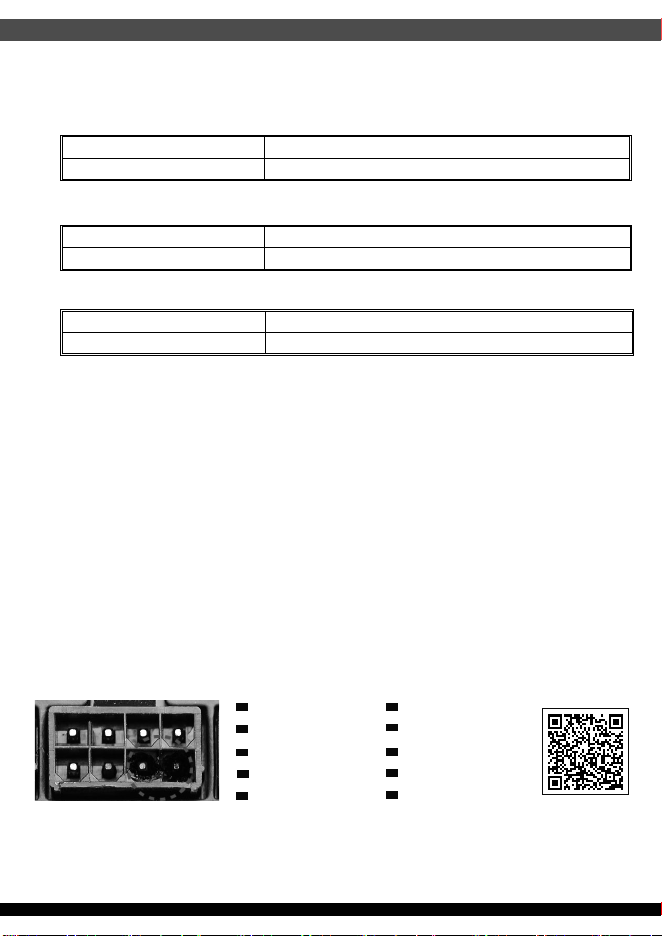

5.1 Operation
5.0 ENVIRONMENT
Temperature
0 to 50
o
C
Relative Humidity to 85%,on-condensing
5.2 Shipping and Storage
The power supply designed to meet IEC 62368
7.1 ELECTROSTATIC DISCHARGE (ESD) – IEC 61000-4-2(EN 61000-4-2).
7.2 RADIATED SUSCEPTIBILTY – IEC 61000-4-3(EN 61000-4-3).
5.3 Altitude
6.0 SAFETY
7.0 ELECTROMAGNETIC COMPATIBILITY (EMC)
The demonstrated MTBF shall be 100,000 hours of continuous operation at 25ഒ
IXOOORDGDQG9$&LQSXW7KH07%)RIWKHSRZHUVXSSO\VKDOOEHFDOFXODWHGLQ
DFFRUGDQFHZLWK0,/+'%.)7KH'&)$1LVQRWLQFOXGHG
8.0 MTBF
9.0. POWER SUPPLY CONNECTOR OVERUSE DEFINITION
Temperature -20 to 70
o
C
Relative Humidity to 95%,non-condensing
Operating 2000m
Storage 3000m
Definition einer Überlastung des
Netzanschlusses
DE
Définition de l'utilisation excessive du
connecteur d'alimentation électrique
FR
Definizione di uso eccessivo del connettore
di alimentazione
IT
Definición de uso excesivo del conector de
la Fuente de alimentación
ES
Определение чрезмерной нагрузки на
коннектор блока питания
RU
電力供給コネクタの使用限度超過に関する説明
JP
⬉⑤կᑨ఼༈䖛ᑺՓ⫼ᅮН
CN
䳏⑤կឝ఼丁䘢ᑺՓ⫼ᅮ㕽
TW
ขีดจำกัดการรองรับการใช้งานของขั้วต่อจากพาวเวอร์ซัพพลาย
TH
전원 공급 커넥터 과용 정의
KR
08
⚎њֱ䅋Փ⫼㗙ঞ䰆☿ⱘⳂⱘˈᅝ㺱ℸѸᓣ䳏⑤կឝ఼ᰖˈᖙ䷜ᅝ㺱ᮐヺড়ϟ߫䷙㽕∖ⱘ←Ёˈ
ϺϨᅝ㺱ཹᕠˈᠡৃϞ䳏⑤DŽ
←ᴤ䊾䷜⚎䰆☿←DŽᴤ䋼乏Ў䰆☿DŽ
←ⱘϞᮍঞو䙞П೧ᔶ䭟ᄨˈ᳔ܻᕥϡৃᮐPPDŽ
←ⱘϞᮍঞو䙞П䭋ṱൟ䭟ᄨˈᇡ㾦㎮䎱䲶ϡৃᮐPP˗㢹ᇀᑺᇣᮐPPˈࠛ䭋ᑺϡফ䰤ࠊDŽ
←ᑩ䚼ϡৃ᳝䭟ᄨDŽᑩ䚼ϡৃ᳝ᓔᄨDŽ
ⳈᕥϡᮐPP
ᇡ㾦㎮ϡᮐPP
ᇀᑺᇣᮐPPࠛ䭋ᑺϡ䰤
Openings that do not exceed 1mm in width regardless of length
Openings that do not exceed 5mm in any dimension
ᴀ⫶ક䔌ߎ᳝䱾㛑䞣ˈ⚎䙓ܡ᪡ᰖⱐ⫳䱾ˈ䷜ᮐ㺱ܹ㋏㍅″←Ϻᇛ᠔᳝䀁٭ᅝ㺱ཹ⭊ᕠᠡৃ䭟ଳ䳏⑤DŽ
ᴀ⫶કП䳏⑤䔌ߎ䴲ቀ䳏䰤ࠊൟ䳏⑤ˈ䂟䗷Փ⫼䰆☿←П䙞ˈҹ䙓ܡ☿♑䱾ⱐ⫳DŽ
%60,52+6䊛㿞
KWWSZZZVLOYHUVWRQHWHNFRPGRZQORDGV36856'SGI
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Please refer to SilverStone website for latest specifications updates.
The equipment a Class | Switching Power Supply intended to use
for information technology equipment or Audio and Video equipment.
※付属の電源コードは当該製品専用です。他の機器に使用しないでください。
Model (safety certification) : : SST-FX0600MCPT-A
Product Number : SST-FX600-PM
G11254790
