HOTO 20V Cordless High Pressure Washer

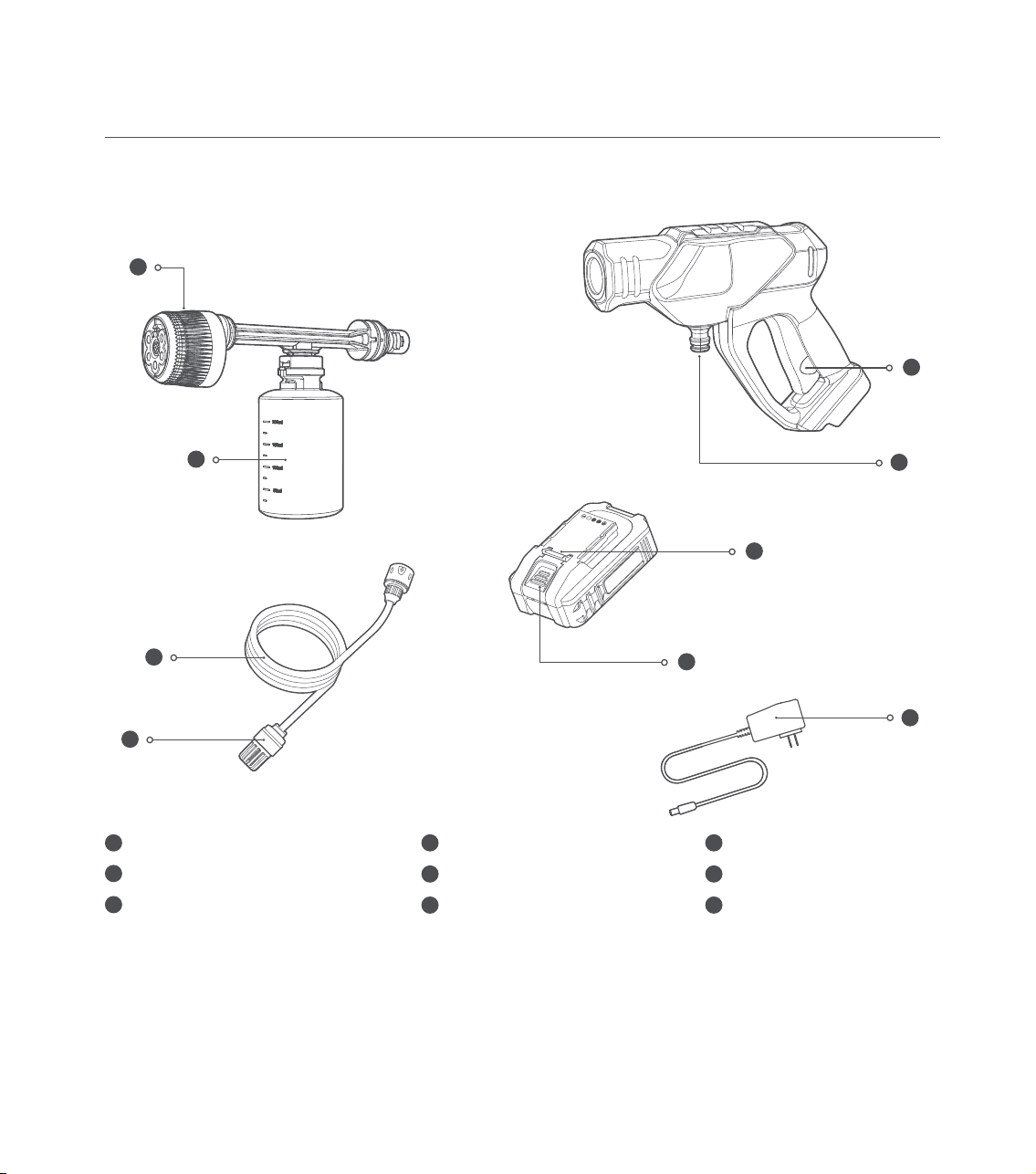

01 Product Overview
Please read this manual carefully before use, and retain it for future reference.
Multifunctional Jet Nozzle
1
1
2
Foam Tank
3
Transparent Water
Inlet Hose
4
Self-priming Water Filter
5
20V Charger
6
Baery Pack
Release Buon
7
Baery Pack Charging Hole
8
Inlet Hose Connector
9
Safety Lock
2
3
4
5
9
7
6
8
1
a) This appliance can be used by persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance.
b) The instructions shall state that the liquid or steam must not be directed towards equipment containing
electrical components, such as the interior of ovens.

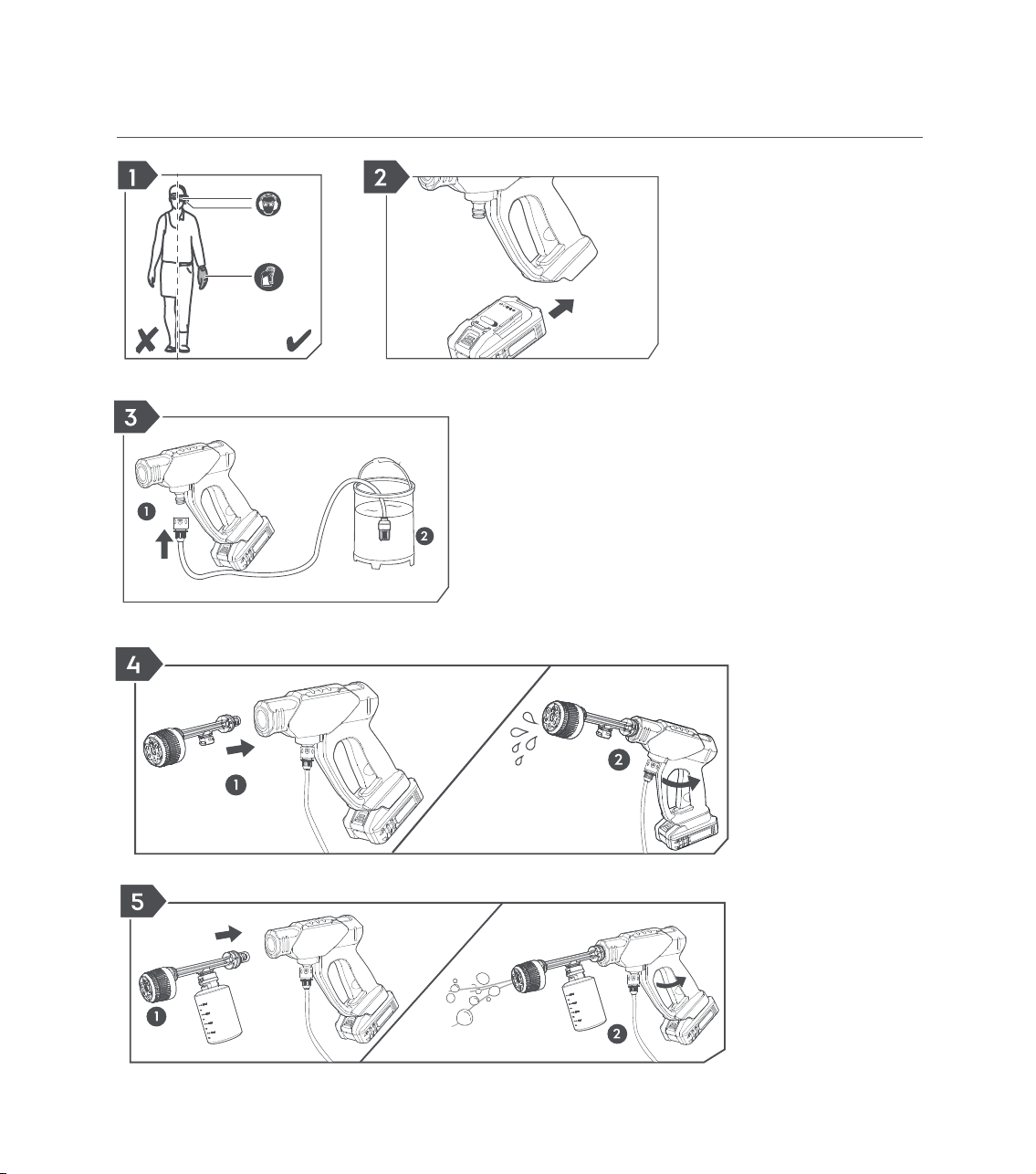

02 Operating Procedures
2. Insert the 20V baery pack into
the baery holder on the device.
1. Please wear goggles, earmuffs, a
protective suit, and non-slip shoes
when operating.
3. Connect the quick connector of the inlet hose to the inlet
hose connector.
Put the self-priming filter into the water aer connection. Make
sure the filter is fully immersed in the water.
4. Connect the multifunctional jet nozzle to the device.
Unlock the Safety Lock, pull the trigger to turn on the device.
5. Connect the foam tank to the quick connector of the device.
Pull the trigger to spray the foam.
2

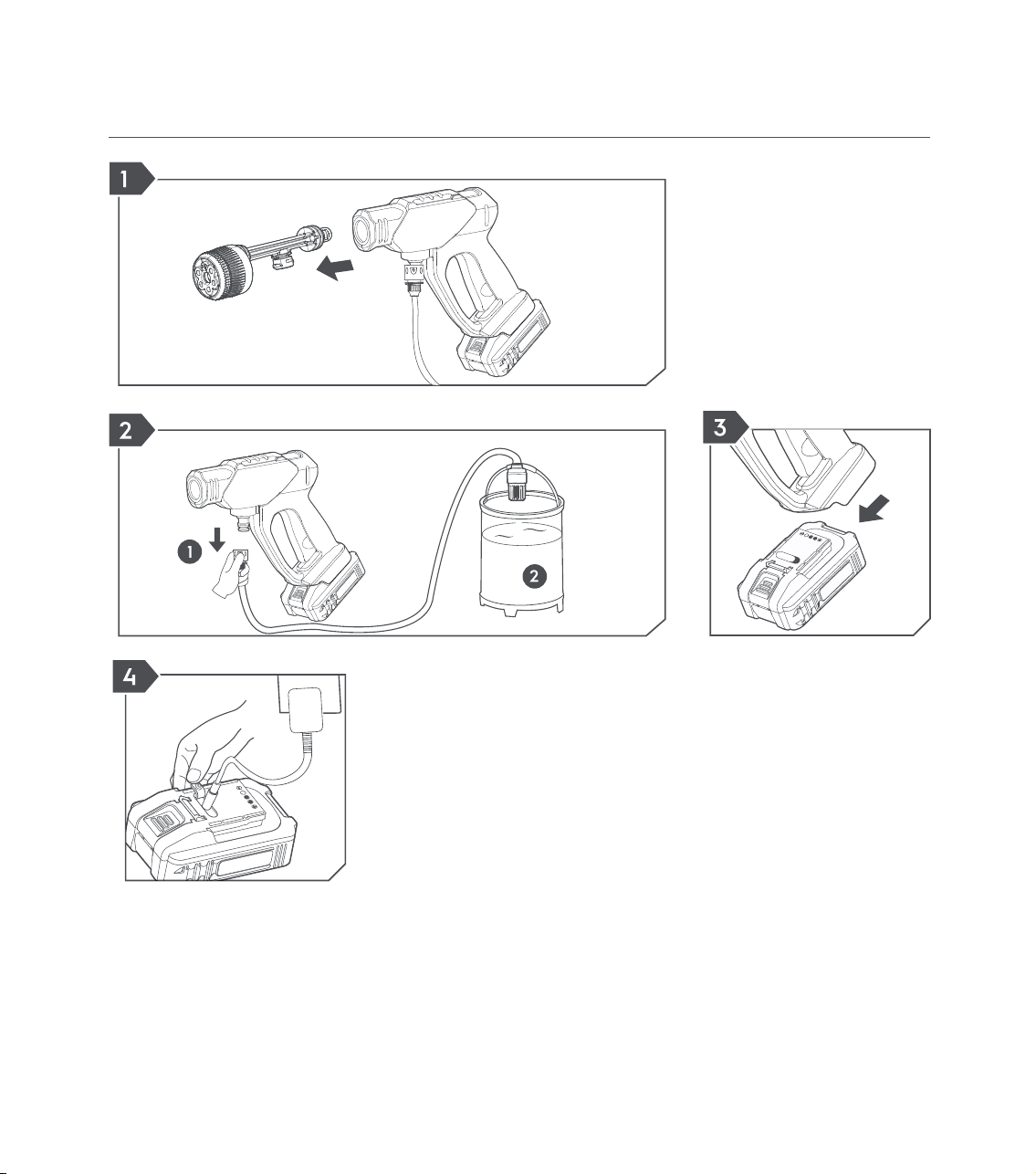

03 Aer Use
1. Disconnect the multifunctional jet nozzle.
Please use the original charger!
2. Pull down the quick connector of the hose.
Take the self-priming filter out of the water.
3. Press the baery pack release buon and take out the baery pack.
4. Unplug the waterproof plug on the baery pack charging hole and insert
the charger for charging. When the red charging light is on, it indicates
normal charging. When the red light turns green, it indicates the completion
of charging.
3
Longer service life for the device

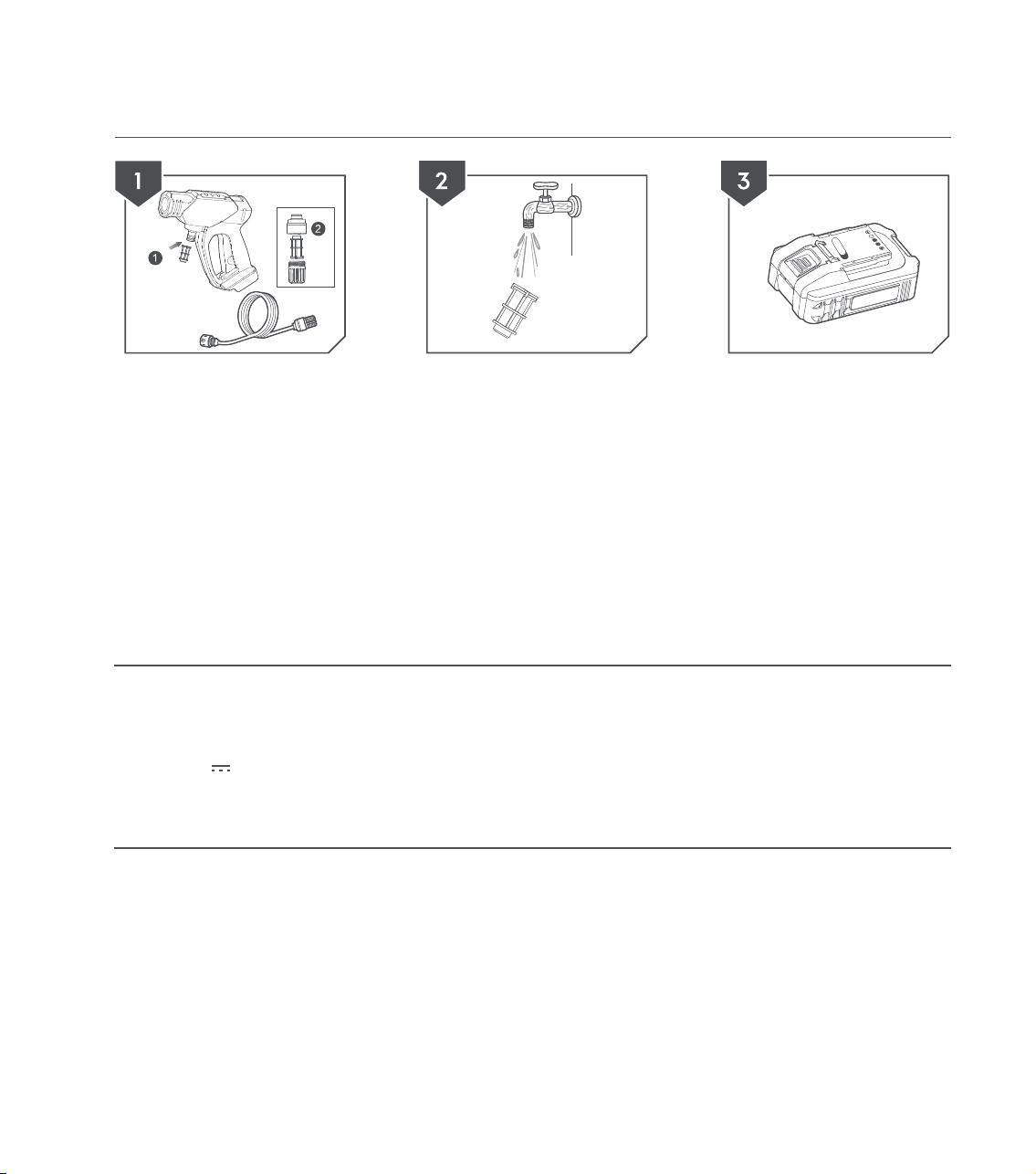

04 Maintenance
05 Technical Specifications
1. Take off the filter net at the inlet hose connector.
Screw off the self-priming filter and take out the filter net.
2. Rinse the filter nets with clean water in time (It is recommended that the filter nets be cleaned once every 3 to 5
times of use according to the local water supply).
3. Please pay aention to the baery level and charge in time when the baery level is low. Frequent loss of power
may lead to the sleep state of the baery pack.
4
Name: HOTO 20V Cordless High Pressure Washer
Model: QWXCJ001
Baery Type: Lithium-ion baery pack
Voltage: 22V MAX
Water Pressure: 14±2bar
Flow Rate: 144 L/h
Feed temperature: 0-40°C
Operating time: Approx. 20min
Weight: Approx. 2.25kg
Applicable to car washing
Applicable to deep cleaning such as window washing
Applicable to plants watering or light cleaning

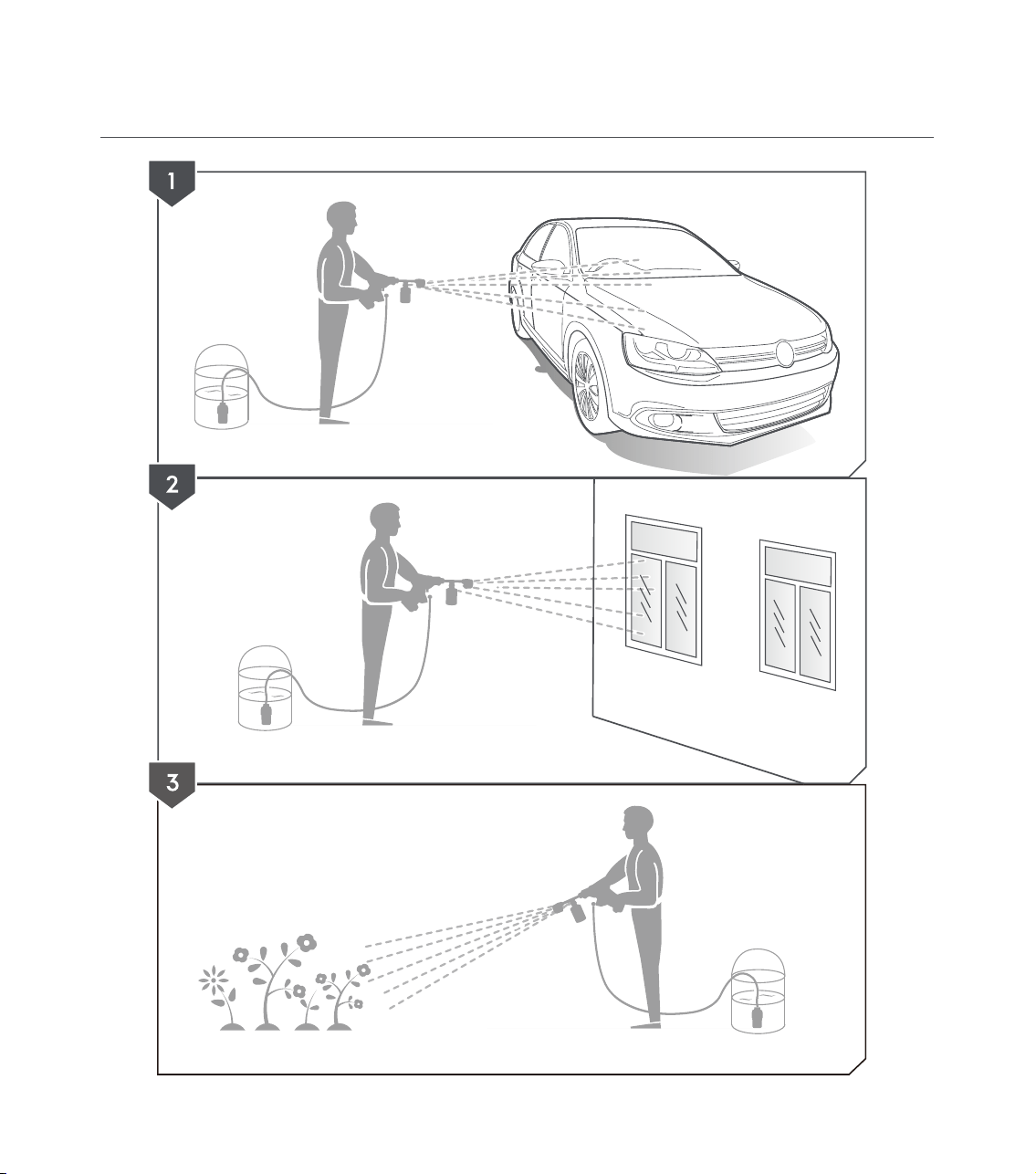

05 Application Scenarios
5
06 Product Safety
6
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock,
fire and/or serious injury.
a) Do not dismantle, open or shred baery
pack.
b) Do not expose baery pack to heat or
fire. Avoid storage in direct sunlight.
c) Do not short-circuit a baery pack. Do not
store baery packs haphazardly in a box
or drawer where they may short-circuit
each other or be short-circuited by other
metal objects. When baery pack is not in
use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a
connection from one terminal to another.
Shorting the baery terminals together
may cause burns or fire.
d) Do not remove baery pack from its
original packaging until required for use.
e) Do not subject baery pack to mechanical
shock.
f) In the event of baery leaking, do not allow
the liquid to come in contact with the skin
or eyes. If contact has been made, wash the
affected area with copious amounts of
water and seek medical advice.
g) Observe the plus (+) and minus (–) marks
on the baery back and equipment and
ensure correct use.
h) Do not use any baery pack which is not
designed for use with the equipment.
i) Keep baery pack out of the reach of
children.
j) Seek medical advice immediately if a cell
or baery has been swallowed.
k) Always purchase the baery pack
recommended by the device manufacturer
for the equipment.
l) Keep baery pack clean and dry.
m) Wipe the baery pack terminals with a
clean dry cloth if they become dirty.
SAFETY WARNINGS FOR BATTERY
PACK
Save all warnings and instructions for future
reference.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING: This product can expose you to
chemicals including lead, phthalate or
bisphenol A which are known to the State of
California to cause cancer, birth defects or
other reproductive harm. Wash your hands
aer use. For more information go to
www.P65Warnings.ca.gov.
WARNING: When using this product basic
precautions should always be followed,
including the following:
1. Read all the instructions before using the
product.
2. To reduce the risk of injury, close
supervision is necessary when a product is
used near children.
3. Know how to stop the product and bleed
pressures quickly. Be thoroughly familiar
with the controls.
4. Stay alert – watch what you are doing.
5. Do not operate the product when fatigued
or under the influence of alcohol or drugs.
6. Keep operating area clear of all persons
7. Do not overreach or stand on unstable
support. Keep good footing and balance at
all times.
8. Follow the maintenance instructions
specified in the manual.
9. WARNING – Risk of injection or injury–
do not direct discharge stream at persons.
10. Do not spray electrical apparatus and
wiring.
7
n) Baery pack need to be charged before
use. Always use the correct charger and
refer to the manufacturer’s instructions or
equipment manual for proper charging
instructions.
o) Do not leave baery pack on prolonged
charge when not in use.
p) Aer extended periods of storage, it may
be necessary to charge and discharge
the baery pack several times to obtain
maximum performance.
q) Baery pack gives its best performance
when it is operated at normal room
temperature (20 °C ± 5 °C).
r) When disposing of baery packs, keep
baery packs of different electrochemical
systems separate from each other.
s) Recharge only with the charger specified
by HOTO Do not use any charger other
than that specifically provided for use
with the equipment. A charger that is
suitable for one type of baery pack may
create a risk of fire when used with
another baery pack.
t) Retain the original product literature for
future reference.
u) Use only the baery pack in the applica
tion for which it was intended.
v) Remove the baery pack from the
equipment when not in use.
w) Dispose of properly.
07 Operating Handheld
Lithium Car Washer
8
Help you quickly understand the
installation details
The inlet filter nets must always be in place to filter
out sand, lime, and other impurities in that they will
damage the pump valve.
Installation of Accessories
Before delivery, the product is equipped with filter
nets at the inlet hose connector and one end of the
water inlet hose.
The maximum feed pressure and temperature of the
inlet are 0.7MPa/7bar and 40°C respectively.
- Check whether the filter is installed inside the inlet
hose and is not blocked.
- Connect the hose to the water tap using the quick
connector and then open the water tap.
Connect to pressurized water supply
Before connecting the hose to the device, let the
water flow through the hose to prevent sand and dirt
from entering the device.
- Turn off the water tap and connect the hose to the
inlet using the quick connector.
Connect the multifunctional jet nozzle to the quick
outlet connector on the device.
Installation of Components
Screw tightly the foam tank to the device.
Pour detergent into the foam tank. The detergent can
be used to rinse off the dirt.
Connect to a low-pressure water supply
Water Connection
The device can operate under the self-priming mode,
which means it can be connected to a water container,
etc. When drawing water from mains of undrinkable
water, the backflow preventer is not required.
When connecting to a low-pressure water supply for
operating, please use an external filter to make sure
impurities will not be sucked in.
To meet these requirements, it is recommended to
use the original water inlet components.
Use the new hose parts that come with the device;
the old hose parts are non-reusable.
Make sure that the filter net is installed at the proper
place of the inlet and that the inlet hose is connected
to it tightly.
Turn on the device and pull the trigger.
Wait until the nozzle discharges a steady stream of
water.
08 troubleshooting
9
Issue
The lithium baery
pack indicator
flashes
Insufficient baery power. Charge the baery in time.
Turn on aer it cools down.
Reinsert the charger into the charging hole
and make sure it is properly connected.
Charge using the original adapter.
Check whether the power supply is energized
and make sure the charger is properly connect-
ed to it (the power indicator flashes or not).
Charge the baery in time.
Reinsert the baery pack into the baery
holder and make sure it is properly connected.
Insufficient baery power.
Automatic overheating
protection.
The baery is not properly
connected to the charger.
The charger is not connected
to the power supply.
Unmatched charger.
The filter is clogged causing
poor water inflow.
Clean the filter net on the water filter and
the inlet filter net.
The hose connector is not
properly connected to the
inlet.
Connect the inlet hose connector to the
inlet properly.
The self-priming water filter is
not fully immersed in the
water.
Fully immerse the water filter in the water.
Install or replace the seal ring.The inlet seal ring falls off or is
damaged.
Small water output. Refer to the solution for small water output.
Properly install the nozzle on the device.The nozzle is not properly
installed.
The inlet hose is folded. Straighten out or replace the water inlet hose.
Use clean water.
Clean the jets inside the nozzle.
Impure water supply.
The nozzle is clogged.
The baery pack is not
properly installed.
No power aer
turning on
Unexpected halt
The baery pack
cannot be charged
Small water output
Fail to pump water
Long waiting time
for water output
Leaking water
outlet
Possible Causes Solution
Federal Communications Commission Supplier’sDeclaration of Conformity
This supplier’s declaration of conformity is hereby for We declare that the above mentioned device has been tested and found in
compliance with CFR 47 Part 15 Regulation.
Product: HOTO 20V Cordless High Pressure Washer
Number(s): QWXCJ001
Brand/Trade: HOTO
We declare that the above mentioned device has been tested and found in compliance with CFR 47 Part 15 Regulation.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
09 Regulatory Compliance Information
10
Europe — EU declaration of conformity
We, Shanghai HOTO Technology Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives
andEuropean Norms, and amendments.
Manufacturer: Shanghai HOTO Technology Co., Ltd.
Address: Building 45, No. 50 Moganshan Road,Shanghai, China
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particu-
lar installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one
or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Representative of Responsible Party for SDoC
Company: Shanghai HOTO Technology Co., Ltd.
Address: Building 45, No.50 Moganshan Road, Shanghai, China
Country: China
Telephone No: 400-021-8696
EU Declaration of Conformity
We
Shanghai HOTO Technology Co., Ltd.
Declare that the product:
HOTO 20V Cordless High Pressure Washer/
QWXCJ001
Complies with the essential health and safety
requirements of the
following directives:
2014/30/EU Electromagnetic Compatibility
directive References to the
following harmonized standard were made:
EN55014-1: 2021
EN55014-2: 2021
EN IEC 61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A2:2021
2011/65/EU+ (EU) 2015/863 Restrictions of the
Use of Certain Hazardous
Substances in Electrical and Electronic
Equipment
Authorised signatory and technical file
holder:
Shanghai HOTO Technology Co., Ltd.
Building 45, No.50 Moganshan Road,
Shanghai, China.
Disposal and recycling information
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive
2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect
human health and the environment by handing over your waste equipment to a designated collection
point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities.
Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please
contact the installer or local authorities for more information about the location as well as terms and conditions of such collection
points.
DECLARATION OF CONFORMITY
