Thank you for using
HOTO Golf Laser Rangefinder .
Read this manual carefully before use,
and retain it for future reference.

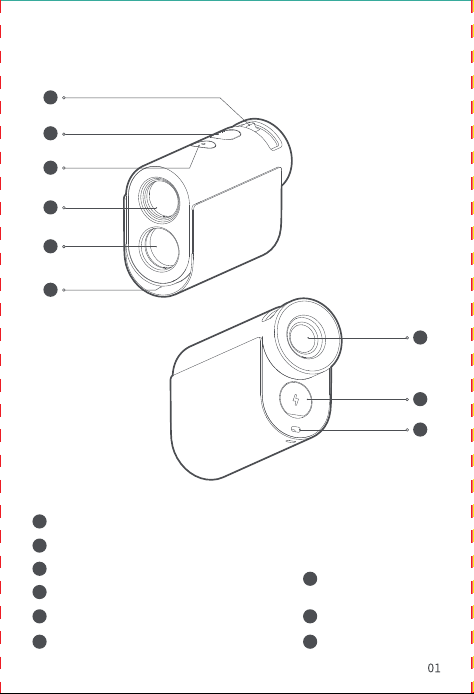

Power/Measure button
Mode switch/Set button
Focusing knob
1
2
3
Laser emission object glass
4
Laser receiving object glass
5
Golf mode indicator
6
Observation eyepiece
/Viewfinder
7
Charging port
8
Lanyard hole
9
1
2
3
4
5
6
7
8
9
01 Product Introduction
02
02 Interface Introduction
5
1
2
3
4
6
Straight-line distance mode
Golf compensation mode
Flagpole lock-in mode
Cross sight
1） indicates flagpole unlocked
2） indicates flagpole locked
1） flashes when the finder is finding and measuring the target
2） stops flashing when the finder has found and measured the
target
1） indicates uphill
2） indicates downhill
1） Straight-line distance mode: It shows the actual distance
2） Flagpole mode: It shows the flagpole distance
3） Gold compensation flagpole mode: It shows the compensation
distance
4） Golf compensation measurement mode: It shows the compensation
distance
Uphill or downhill in golf compensation mode
03
7
8
9
10
11
Battery level
Setting mode
Vibrate mode
Unit of measurement [m: meter/Y: yard]
1） Straight-line distance mode: It shows the actual distance
2） Flagpole mode: It shows the height and the angle
3） Gold compensation flagpole mode: It shows the compensation
distance
4） Golf compensation measurement mode: It shows the
compensation distance
04
03 Instructions for Use

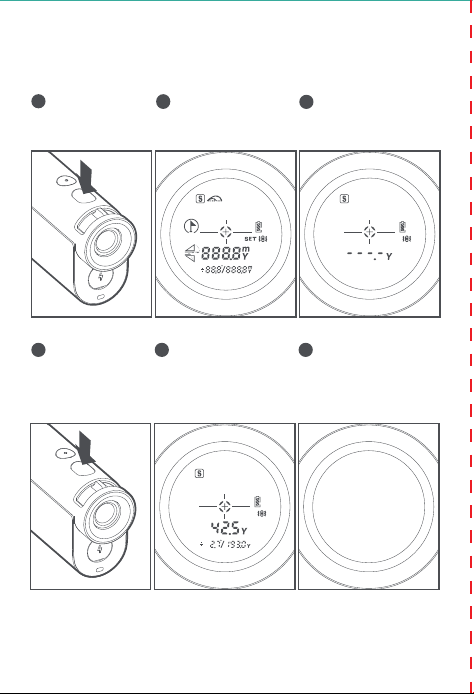

Power on/off and measure
Short press the
Power/measure
button to power the
product on
1
Press again the
Power/measure
button to measure
4
The eyepiece interface
will show the
measurement result.
Long press the Measure
button to measure the
real-time distance
5
If the meter is let rest for
10 seconds or longer, it will
power off automatically
6
The eyepiece will show the
entire interface after the
product is powered on
2
The interface will then
automatically change to
the "to measure" state
3
05
Focus by turning the knob
Focus by turning the knob
1
Turn the knob according to what is shown in the
viewfinder to find the appropriate definition
2

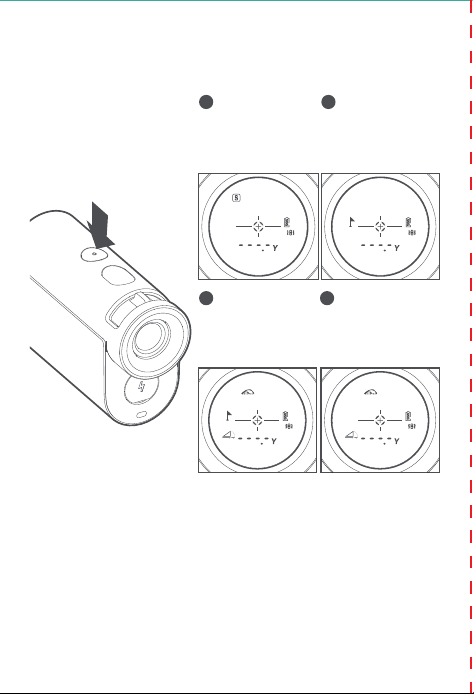

Select the mode
Short press the Mode switch/set
button to switch between four
modes
Straight-line distance
mode: Measure the
straight-line distance
between the user and
the target of
measurement
1
Gold compensation
flagpole mode: Lock
and measure the golf
trajectory
compensation
distance
3
Gold compensation
measurement mode:
Measure the golf
trajectory
compensation
distance
4
Flagpole mode: Lock
and measure the
distance to the
nearest target
2
06
07

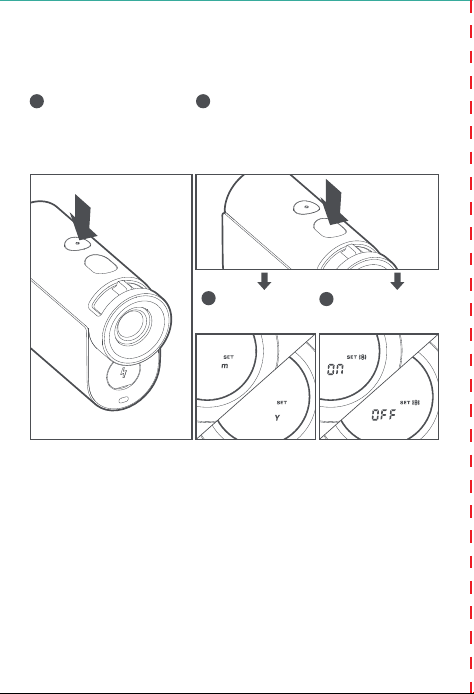

Set functions
Long press the Mode/set
button for 2 seconds to enter
the setting mode
Short press the Mode/set
button to switch between the
two settings
Note:
1. When the vibrate mode is turned on, the meter vibrates once
when measuring the distance, and vibrates twice when locking
the flagpole.
2. When the vibrate mode is turned off, the meter will not vibrate
when measuring the distance, and will still vibrate twice when
locking the flagpole.
1
Short press the Power/measure button in the
setting mode to change the unit or turn on/off
the vibrate mode
2
Set the unit: Switch
between m and Y
3
Set the vibrate mode:
Turn on or off the
vibrate mode
3
2 seconds
08
Measure the straight-line distance
Measure the distance, height and angle of the target
1. Single measurement: Short press the Power/measure button to measure once the
distance
2. Continuous measurement: Long press the Power/measure button to scan the
distance and show instantly the distance of the scanned target
45°
135yd
209yd
09

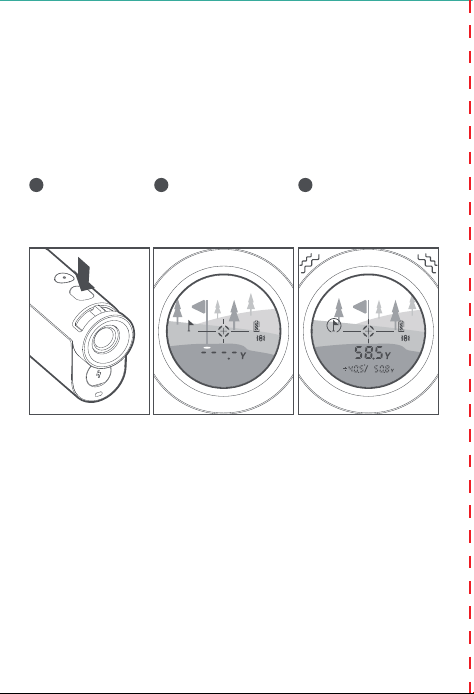

Flagpole lock-in mode
When measuring overlapped targets, long press the Measure button to show the
distance to the nearest target
E.g., if you cannot tell for sure if the flag or the trees behind it is the target of distance
measurement, the lock function can lock the nearest target, i.e., the flag, for distance
measurement
Long press the
Power/measure
button to power the
product on and
measure
1
Aim at the flagpole
2
The product will vibrate
twice after completing
the measurement
3
Long press
10

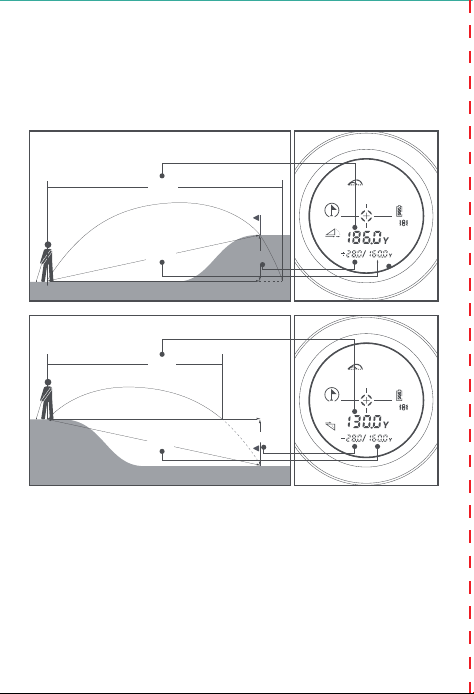

Golf compensation flagpole mode
Long press the Power/measure button to show the golf flagpole compensation
distance and the actual distance and height.
Measure downhill
28yd
160yd
130yd
Measure uphill
28yd
160yd
186yd
11

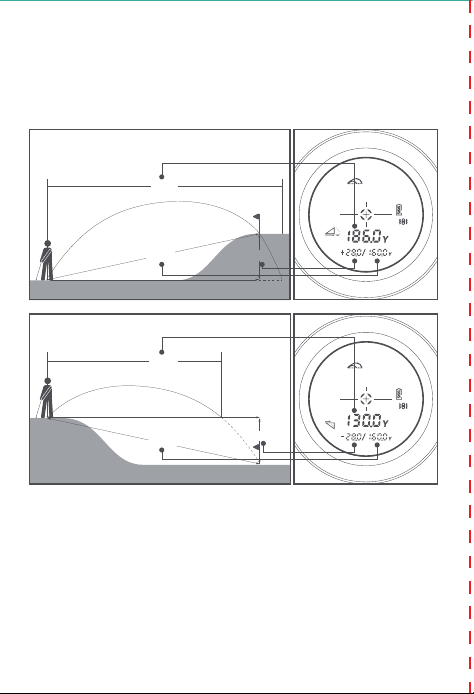

Golf compensation measurement mode
Long press the Power/measure button to show the golf measurement compensation
distance and the actual distance and height
Measure downhill
28yd
160yd
130yd
Measure uphill
28yd
160yd
186yd
12
Note: When the product is in golf flagpole/measurement mode, the lamp under the laser
receiving object glass will be on
Golf compensation
flagpole mode
Golf compensation
measurement mode
13
The golf distance meter emits an invisible infrared pulse laser that does no
harm to eyes, which is then reflected back from the selected target into the
optical receiver. By measuring the time it takes each pulse laser to travel
between the distance meter to the target, the system uses an advanced
precision charging circuit to calculate the distance being measured in real
time. The product's maximum range of measurement depends on the target's
reflectivity, color, surface finish, size and actual shape.
Safety warning
The following factors ensure the optimal
range and precision of measurement:
Clear weather
Targets with shiny appearance
Targets with highly reflective
surfaces
Zero impurities in the air
Black targets
Snowy, rainy or foggy weather
Small or micro targets
Targets to be measured through
glass
Moving targets
Strong light interference/sharp
sunlight
Targets with obviously diffuse
surfaces
The following factors ensure the optimal
range and precision of measurement:
14
04 Safety Regulations
Before using the product, please carefully read the safety regulations and
instructions for use. Your failure to follow the instructions for use provided
in this manual may cause the product to be damaged, the measurement
precision to be affected, or personal injury to the user or others.
Do not disassemble or repair the product by yourself in any way. Illegal
modification or change of the performance of the laser emitter of the
product is strictly prohibited. Please properly keep the product. Keep the
product out of the reach of children, and also prevent it from being used
by relevant persons.
Do not expose your own or other people's eyes or other body parts to the
laser emitter of the product. Do not expose the highly reflective surface of
any object to the laser emitter.
The electromagnetic radiation of the product may interfere with other
equipment or devices. Do not use the product near aircraft or medical
equipment. Do not use the product in inflammable or explosive
environments.
Used batteries removed from the product cannot be discarded together
with household garbage. So as the product if it is obsolete. Please discard
used batteries and the obsolete product according to relevant national or
local laws and regulations.
In case of product quality problems or any questions about the use of the
product, please contact local distributors or Shanghai Qiwai Culture
Technology Co., Ltd. in time. We will respond immediately.
Warning!
Before using the product for the first time, please carefully read the
safety regulations and instructions for use.
15
All products bearing this symbol are waste electrical and electronic
equipment (WEEE as in directive 2012/19/EU) which should not be mixed
with unsorted household waste. Instead, you should protect human
health and the environment by handing over your waste equipment to a
designated collection point for the recycling of waste electrical and electronic
equipment, appointed by the government or local authorities. Correct disposal
and recycling will help prevent potential negative consequences to the
environment and human health. Please contact the installer or local authorities
for more information about the location as well as terms and conditions of
such collection points.
We Shanghai HOTO Technology Co., Ltd., hereby, declares that this
equipment is in compliance with the applicable Directives and
Euro
pean Norms, and amendments.
Product: HOTO Golf Laser Rangefinder
Model Number(s): KE1000
Brand/Trade: HOTO
Federal Communications Commission Supplier’s Declaration of
Conformity
Thank you for buying HOTO Golf Laser Rangefinder!
Laser radiation
Do not look straight at the light
beams
Class 1 laser product
Maximum laser radiation output
＜1 mW
Wave length: 905 nm
IEC 60825-1:2014;EN 60825-1:2014
Invisible laser radiation
We declare that the above mentioned device has been tested and found in
compliance with CFR 47 Part 15 Regulation.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
16
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Representative of Responsible Party for SDoC
Company: Shanghai HOTO Technology Co., Ltd.
Address: Building 45, No.50 Moganshan Road, Putuo District, Shanghai, China
Country: China
Telephone No.: 400-021-8696
17
05 Faults and Troubleshoot
Maintenance
Do not keep the product in a high-temperature and high-humidity
environment for a long time. If you do not use the product for a long time,
please keep it in an environment with room temperature and normal
humidity, and charge the product once every six months.
Please keep the product surface clean. Wipe surface dust with a wet and
soft cloth. Do not clean the product with corrosive cleaner. Wipe the laser
window and the focusing lens in the way you wipe the surfaces of optical
devices.
During use, the main display place may pop up the following messages
Message
Low battery level
Measurement
failure
Blurred lens
There is dirt or stain on
the lens
Gently wipe the lens
with a lens wiper only
1. The measurement is
beyond the specified
range
2. It's a snowy, rainy or
foggy day
3. The target has an
obviously diffuse surface
4. The target is small or
micro
5. There is strong light
interference/sharp sunlight
The battery voltage is low Charge the product
Use the product
following the
instructions for use
Cause Solution
18
06 Product Parameters
Service hotline: 400-021-8696
Manufacturer: Shanghai HOTO Technology Co., Ltd.
Address: Building 45, 50 Moganshan Road, Putuo District, Shanghai City
Entrusted manufacturer: Dongguan Senwei Electronics Co., Ltd.
Address: 58 Tuanjie Road, Humen Township, Dongguan City, Guangdong
Province
Field of View: 7°±5%
Model: KE1000
Unit: Y (yard)，m (meter)
Item Dimensions: 100.5×68×40.5 mm
Net Weight: Approx. 190g
Response Time of Measurement: ＜0.5s
(＜131yd/120m 64 ms; ≥131yd/120m
460 ms)
Telescope Magnification: 6×±5%
Objective Aperture: 19 mm
Exit Pupil Aperture: 16 mm
Measuring Range: 5.5 to 1200yd / 5 to
1000m,±(1.0 m+D×0.3%)*
*Note:
The maximum range of measurement is based on light-color buildings. The
weather and the size, appearance and shape of the target may affect the
maximum range of measurement. The weather, the reflection condition of the
target and strong light interference may affect the precision. Please refer to
the details.
Working Hours: 20,000 measurements
(fully charged)
Operating Temperature: 0°C to 45°C
Height Measurement: Available
Hill Measurement: Available
Laser Wave Length: 905 nm
Laser Class: Class 1
Range of Diopter Regulation:
±6 diopter
Charging Parameters: 5V 0.5A
Type-C interface
Battery Type: 3.7 V 730 mAh Li-ion
19
DECLARATION OF CON FORMITY
EU Declaration of Conformity
We
Shanghai HOTO Technology Co., Ltd.
Declare that the product:
HOTO Golf Laser Rangefinder / KE1000
Complies with the essential health and safety requirements of the following
directives:
2014/30/EU Electromagnetic Compatibility directive
References to the following harmonized standard were made:
EN 61010-1:2010+A1:2019
EN 60825-1: 2014 + A11: 2021
EN IEC 61326-1: 2021
EN IEC 61000-3-2: 2019 + A1: 2021
EN 61000-3-3: 2013 + A2: 2021
20011/65/EU+ (EU) 2015/863 Restrictions of the Use of Certain Hazardous
Substances in Electrical and Electronic Equipment
Authorised signatory and technical file holder:
Shanghai HOTO Technology Co., Ltd.
Building 45, No.50 Moganshan Road Shanghai, China.
