BG-EXH-70WP-W
HDBaseT Wall Plate Transmitter & HDBaseT to HDMI Receiver
User Manual
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Surge protection device recommended 4
Caution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Connection Diagram 9
Connection Examples 10
Troubleshooting 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shocks, lightning strikes, etc. Use of surge protection systems is
highly recommended to protect and extend the life of your equipment.

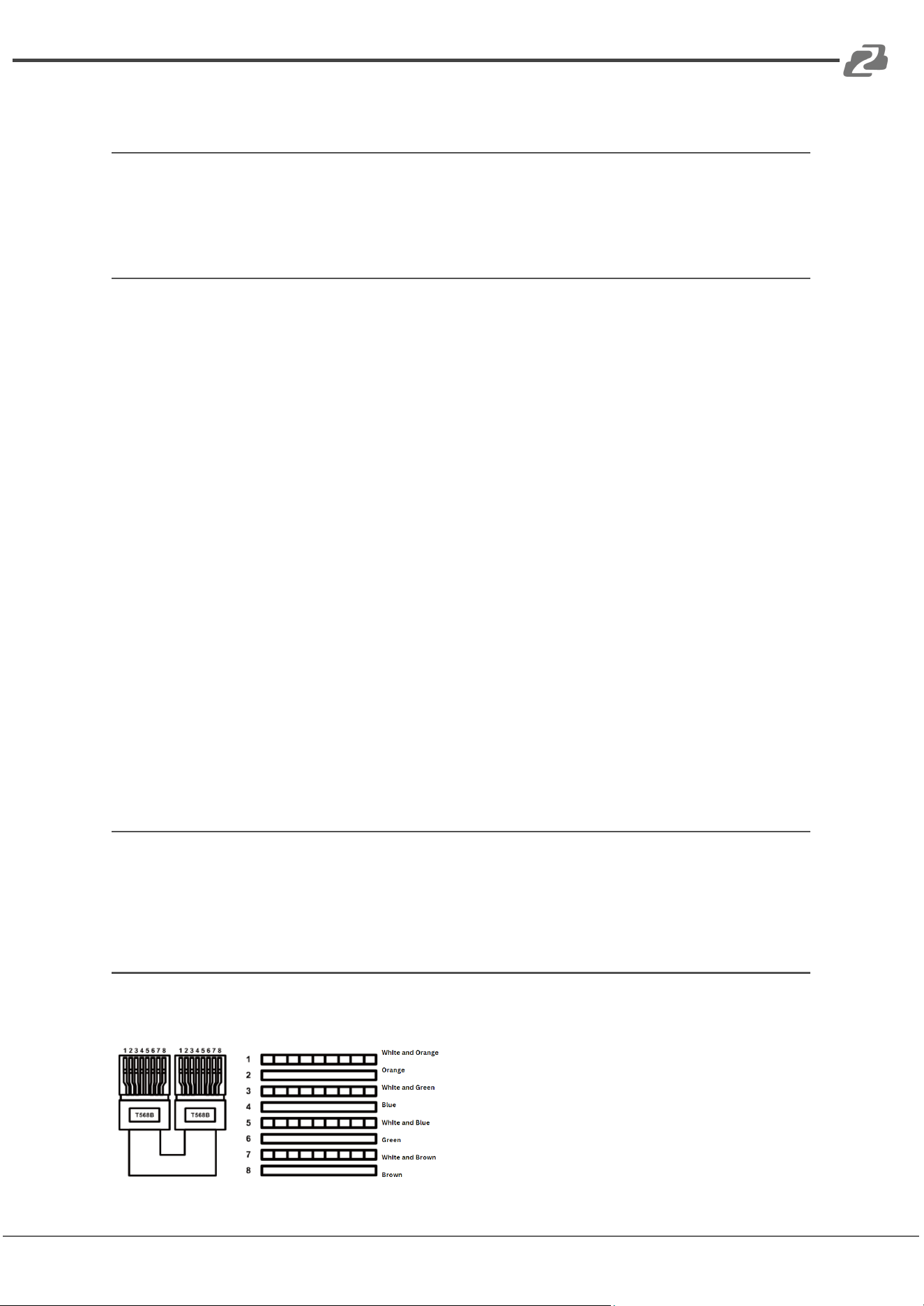

Caution
The product requires the use of UTP connectors. Please connect in the direct
interconnection method and do not cross-connect.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Introduction
Introducing the BG-EXH-70WP-W HDBaseT Wall Plate Kit, featuring a sophisticated
HDBaseT Wall-plate Transmitter and an HDBaseT to HDMI Receiver, designed to
elevate your AV experience with seamless signal transmission and exceptional
performance.
The transmitter boasts HDMI 2.0b compliance and HDCP 2.2 compatibility,
ensuring seamless connectivity and support for high-definition content. With
support for resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz,
it delivers stunning visual clarity and fidelity, making it perfect for a wide range of
applications.
Features
● HDMI 2.0b 18Gbps, HDCP 2.2 compliant
● Supports resolutions up to 4K2K@60Hz (4:4:4), 4K2K@30Hz, and 1080p@120Hz
● Capable of transmitting up to 7.1 channels of HD audio
● Utilizes HDBaseT™ technology over a single CAT 6/6a/7 cable, extending up to
230ft/70m
● Features one HDMI input and fits a 1-Gang US Decora Wall Plate
● Supports two-way IR and RS-232 communication
● Incorporates POC (Power Over Cable) function: Either the transmitter (TX) or receiver
(RX) is powered by a 24V1A power supply, eliminating the need for power from the
DC jack for the other device. POC power consumption is less than 10W.
● Transfers bidirectional infrared control signals alongside the HDMI signal (See
description 1).
● Transfers bidirectional RS-232 control signals alongside the HDMI signal (See
description 2).
Packing List
● 1× 18Gbps HDMI Wall Plate Transmitter
● 1x HDBaseT to HDMI receiver
● 2× Phoenix connectors (3 pins)
● 2× Phoenix connectors (2 pins)
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 1.4 and HDCP 2.2
Video Bandwidth
18Gbps
Video Resolution
Up to 4K2K@50/60Hz (YUV4:4:4), 4K2K@30Hz,
1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby
Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby
Atmos, DTS:X
Optical Audio Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS
2/5.1CH
ESD Protection
Human body model—±8kV (Air-gap discharge) &
±4kV(Contact discharge)
Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
1x IR INPUT [Phoenix jack]
1x RS-232 [Phoenix jack]
Outputs:1x HDBaseT OUT [RJ45]
1x IR OUTPUT [Phoenix jack] 1x RS-232 [Phoenix jack]
Receiver
Input: 1x HDBaseT IN [RJ45, 8-pin female]
Output: 1x HDMI OUT [Type A, 19-pin female]
Controls: 1x IR in, 1x IR out, 1x RS-232 serial port
Mechanical
Housing
Plastic-Front Panel, Metal-Rear Case
Color
White-Front Panel, Black-Rear Case
Dimensions (W x D x H)
Wall plate:
4.1in x 1.8in x 1.2in [103.5mm x 46mm x 30mm]
Receiver:
4.6in x 2.6in x 0.71in [117mm x 66mm x 18mm]
Weight
Wall plate: 5.75 oz [163g], Receiver: 7.1 oz [201g]
Power Supply
Input: AC100 - 240V 50/60Hz, Output: DC 24V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption
9W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Operation Controls and Functions

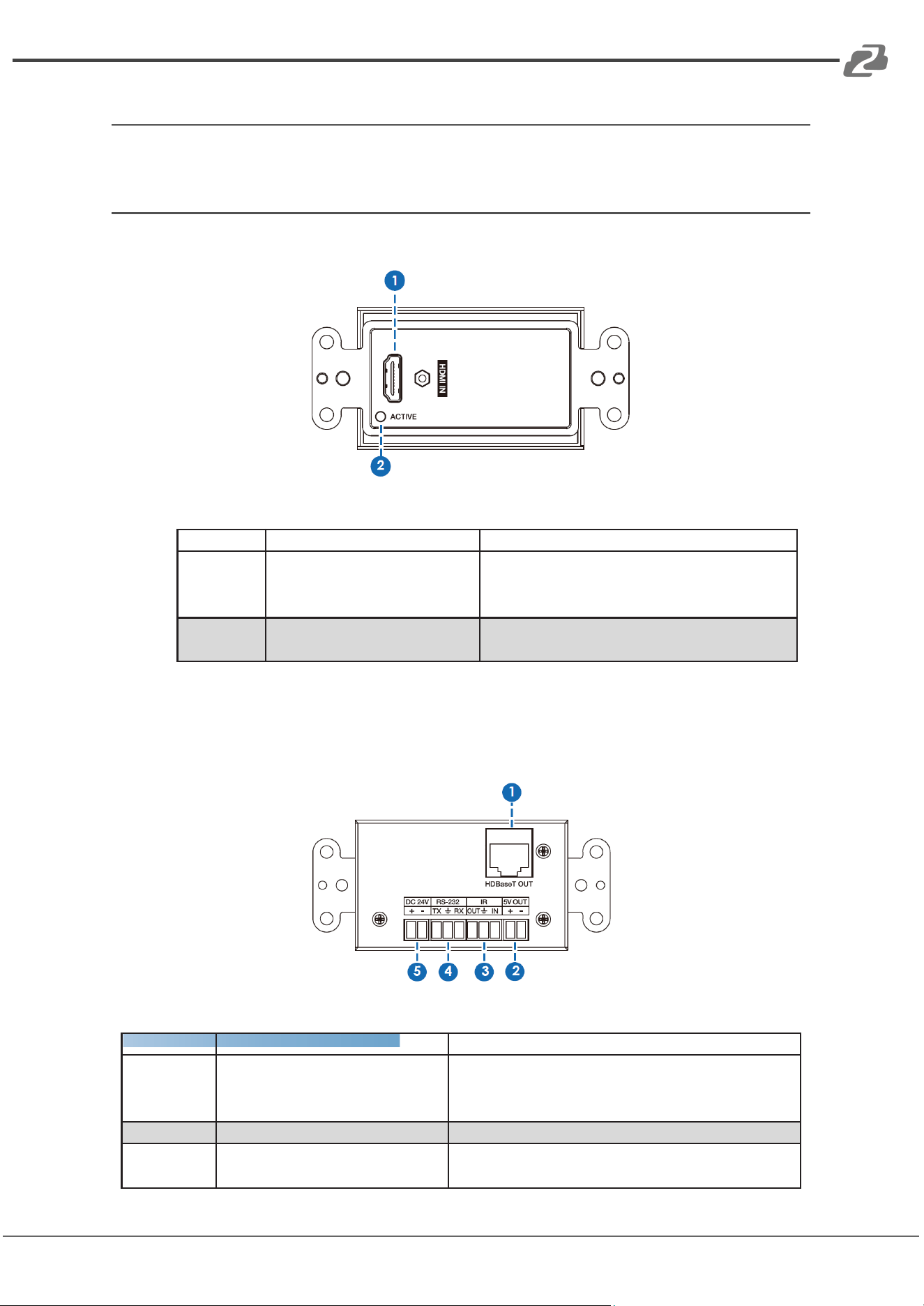

Front and Rear Panel
Transmitter Front Panel
Transmitter Rear Panel
No.
Name
Function Description
1
HDBaseT OUT
HDBaseT output port, connected to the
HDBaseT IN port
of Receiver with a CAT6/6a/7 cable.
2
5V OUT
Supply 5V power for external IR receiver.
3
IR IN/OUT
Use the phoenix jack for connect IR input or
output.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
No.
Name
Function Description
1
HDMI IN port
HDMI signal input port, connected to
HDMI source device, such as Blu-ray or
PS4 player.
2
ACTIVE LED
When there is signal input, the green LED
lights on.
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
4
RS-232
RS-232 serial port, connected to PC or
control system
for RS-232 control commands transmission.
5
DC 24V
Use the phoenix jack for connect power
supply.

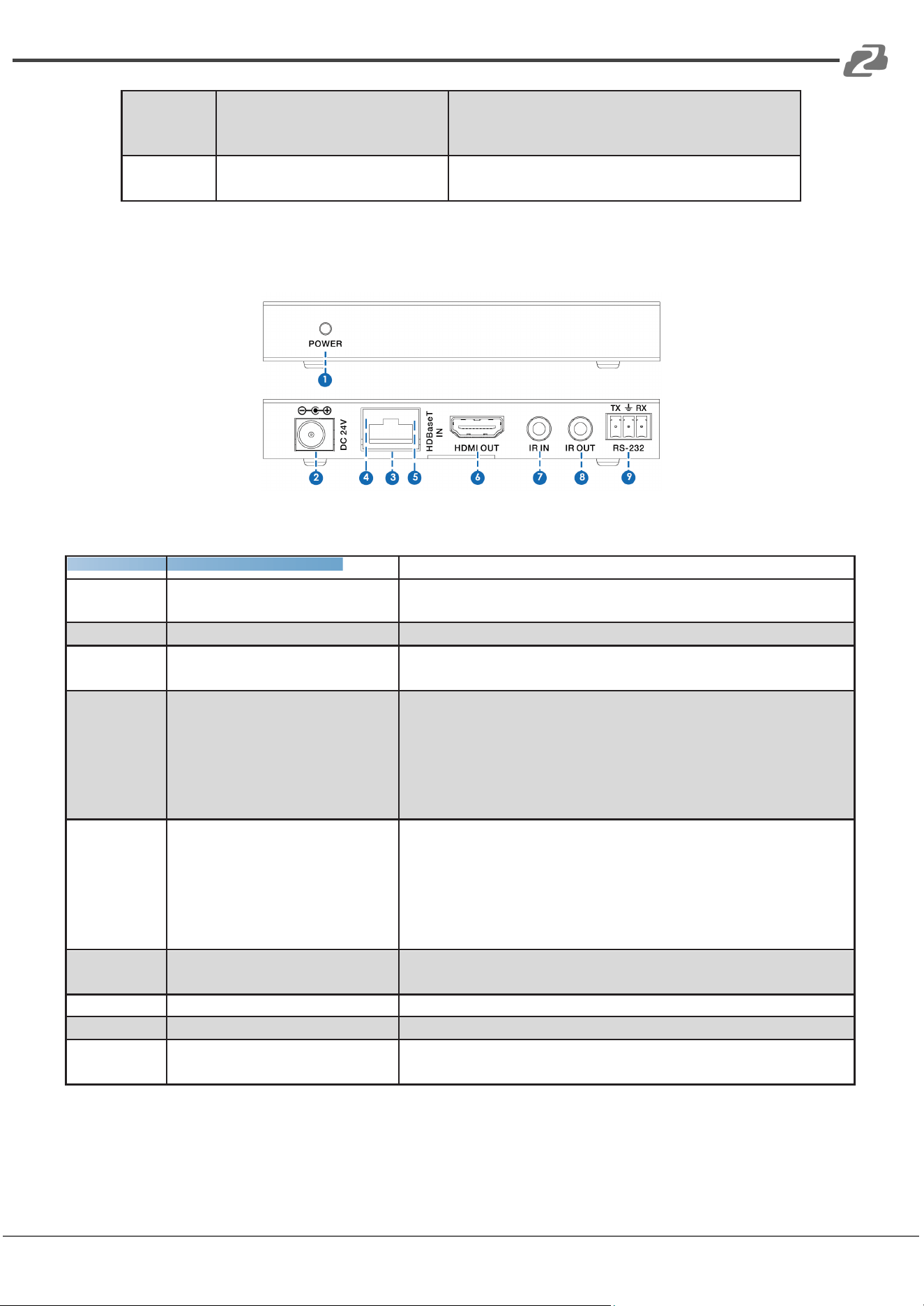

Receiver Panel
No.
Name
Function Description
1
POWER LED
When the product is powered on, the POWER LED will
light on.
2
DC 24V port
DC 24V power supply input port.
3
HDBaseT IN port
HDBaseT input port, connected to the HDBaseT OUT port
of Transmitter with a CAT6/6a/7 cable.
4
Link Signal Indicator (Green)
● Light on: Transmitter and Receiver are in good
● connection status.
● Light flashing: Transmitter and Receiver are in poor
● connection status.
● Light off: Transmitter and Receiver are not
connected.
5
Data Signal Indicator (Yellow)
● Light on: There is HDMI signal transmission with
HDCP
● encryption.
● Light flashing: There is HDMI signal transmission
● without HDCP encryption.
● Light off: There is no HDMI signal transmission.
6
HDMI OUT
port
HDMI signal output port, connected to HDMI display
device, such as TV or monitor.
7
IR IN
IR signal input port, connected with IR Receiver cable.
8
IR OUT
IR signal output port, connected with IR Blaster cable.
9
RS-232
RS-232 serial port, connected to PC or control system
for RS-232 control commands transmission.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL

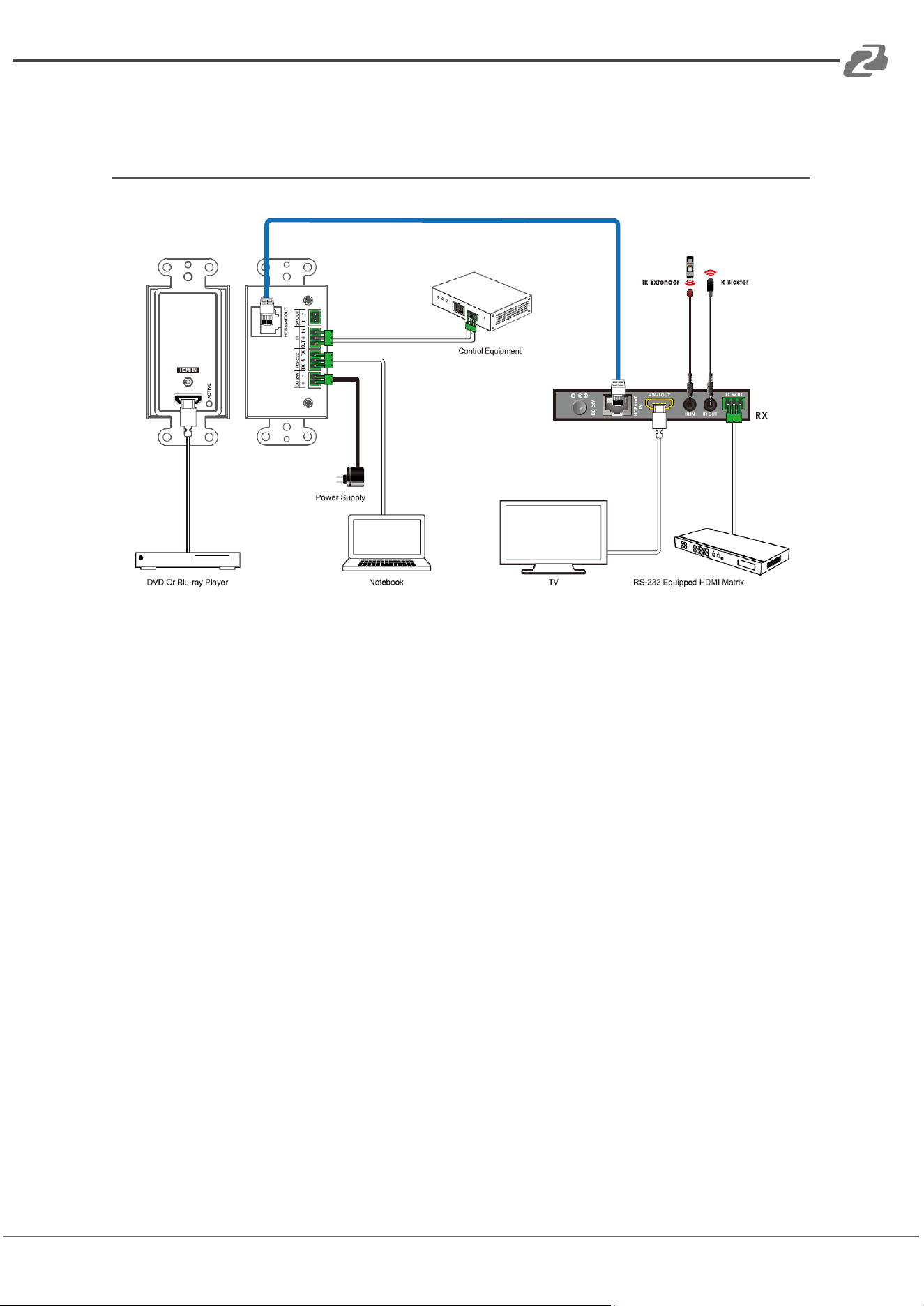

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL

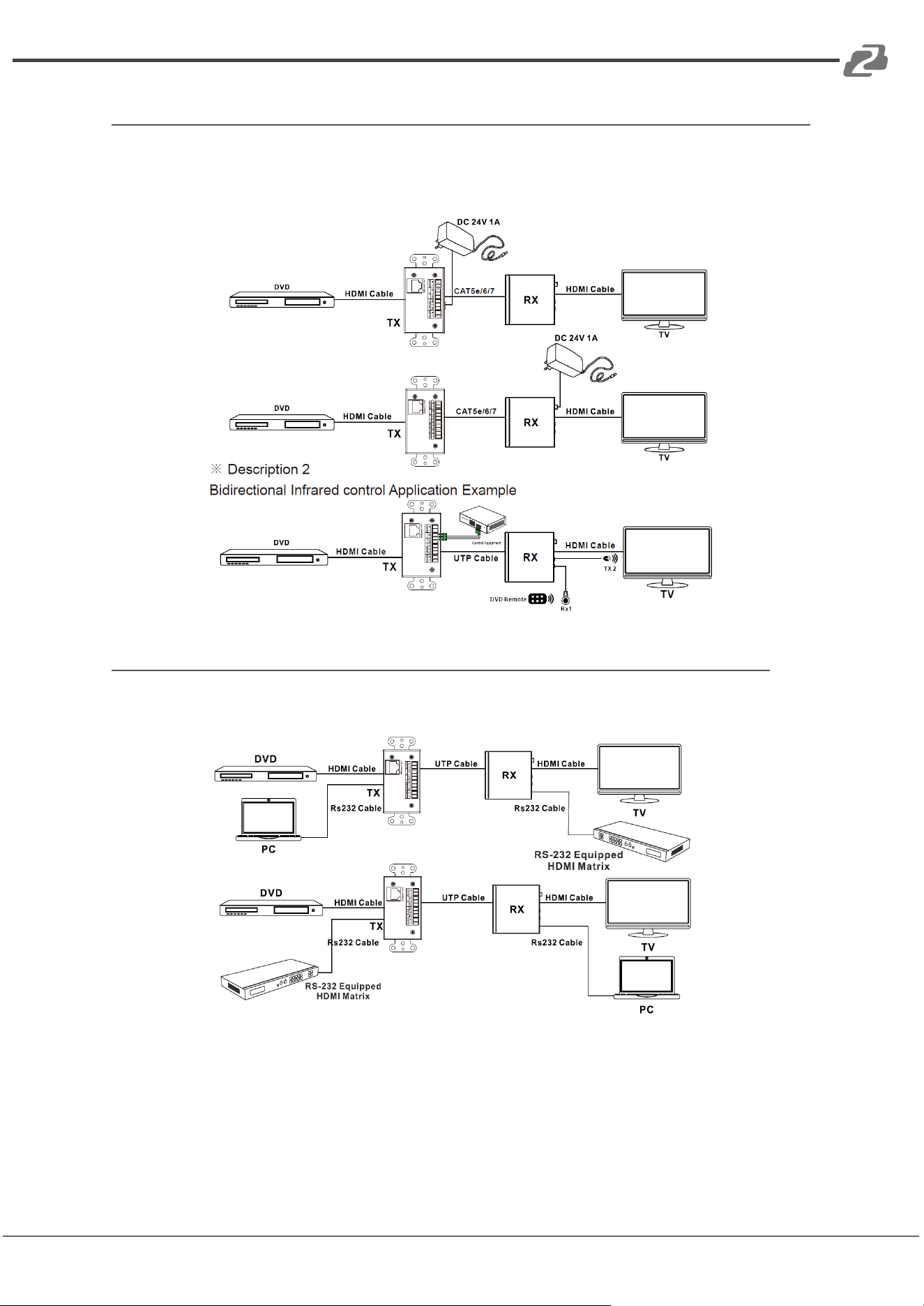

Connection Examples
※ Description 1
POC (Power over Cable) Application Example
※ Description 3
Bidirectional RS-232 control Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Electrical Issues
See page 4
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXH-70WP-W PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
