BG-EXHD-70UWP-W
18Gbps HDBaseT 230ft Wall Plate Kit with MDP/HDMI & KVM
Function Wall Plate Transmitter & HDBaseT to HDMI Receiver
User Manual
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Surge protection device recommended 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Product Dimensions 7
Operation Controls and Functions 8
Connection Diagram 10
Troubleshooting 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shocks, lightning strikes, etc. Use of surge protection systems is
highly recommended to protect and extend the life of your equipment.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Introduction
Introducing the BG-EXHD-70UWP-W, an innovative 18Gbps HDBaseT Wall Plate Kit
designed for seamless connectivity and high-performance transmission in
professional AV setups. This kit includes a Wall Plate Transmitter and an HDBaseT
to HDMI Receiver, offering unparalleled versatility and reliability in signal distribution.
Designed to fit seamlessly into Decora-style wall plate openings, this kit features a
sleek US one-gang enclosure. The Wall Plate Transmitter serves as a 2x1 switcher
and HDBaseT transmitter, supporting HDMI and DisplayPort (DP) inputs while also
integrating USB 2.0 KVM functionality.
Features
● Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards
● Supports a video bandwidth of 18Gbps
● Capable of displaying video resolutions up to 4K/UHD@60Hz 4:4:4
● HDBaseT output extends video transmission distance up to 230ft / 70m for 1080P or
131ft / 40m for 4K via a single CAT6/6a/7 cable
● Supports HDR10 and HDR10+ formats
● Audio formats supported include Dolby Atmos, TrueHD, Digital+, DTS X, HD Master
Audio, HD High-Resolution Audio, and 5.1; PCM 2-8Ch
● Features HDMI and MDP input support
● Designed with a US one-gang enclosure for Decora-style wall plate openings
● Input signal selection supports both automatic and manual modes
● USB2.0 extension available with Receiver
● Supports POE function (only from Receiver to Transmitter)
Packing List
● 1× 18Gbps HDBaseT 70M with MDP/HDMI &
KVM Function Wall Plate Transmitter
● 1× HDBaseT to HDMI receiver
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0b, DisplayPort 1.2a
HDCP Compliance
HDCP 2.2
Video Bandwidth
18 Gbps
Video Resolution
4096×2160@24/25/30/50/60Hz, 3840×2160@24/25
/30/50/60Hz, 2048x1080p, [email protected]/24/25/
29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz,
720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth
8/10/12-bit
HDR
HDR10, HDR10+
HDMI Audio Formats
Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master
Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
Transmission Distance
Max distance (1080p) : 230ft / 70m over CAT6/6a/7
Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7
ESD Protection
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Transmitter
Inputs: 1 x HDMI Type A [19-pin female] 2 x USB-B
1 x miniDP [20-pin female]
Output: 1 x HDBaseT Out [RJ45, 8-pin female]
Control: 1x Micro USB [Update port]
Receiver
Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT
IN [RJ45, 8-pin female]
Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO
OUT [Phoenix jack]
Controls: 2x USB [USB A TYPE]
1x FW [Micro USB, Update port]
Mechanical
Housing
Metal Enclosure
Color
White
Dimensions (W x D x H)
Wall plate:
1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm]
Faceplate:
2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]
Receiver:
7.9in x 3.9in x 0.91in [200mm x 98mm x 23mm]
Weight
Wall plate: 0.43 lbs [196g], Receiver: 1.1 lbs [511g]
Power Supply
POE (only from Receiver to Transmitter)
Power Consumption
Wall plate: 9W (Max), Receiver: 11W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL

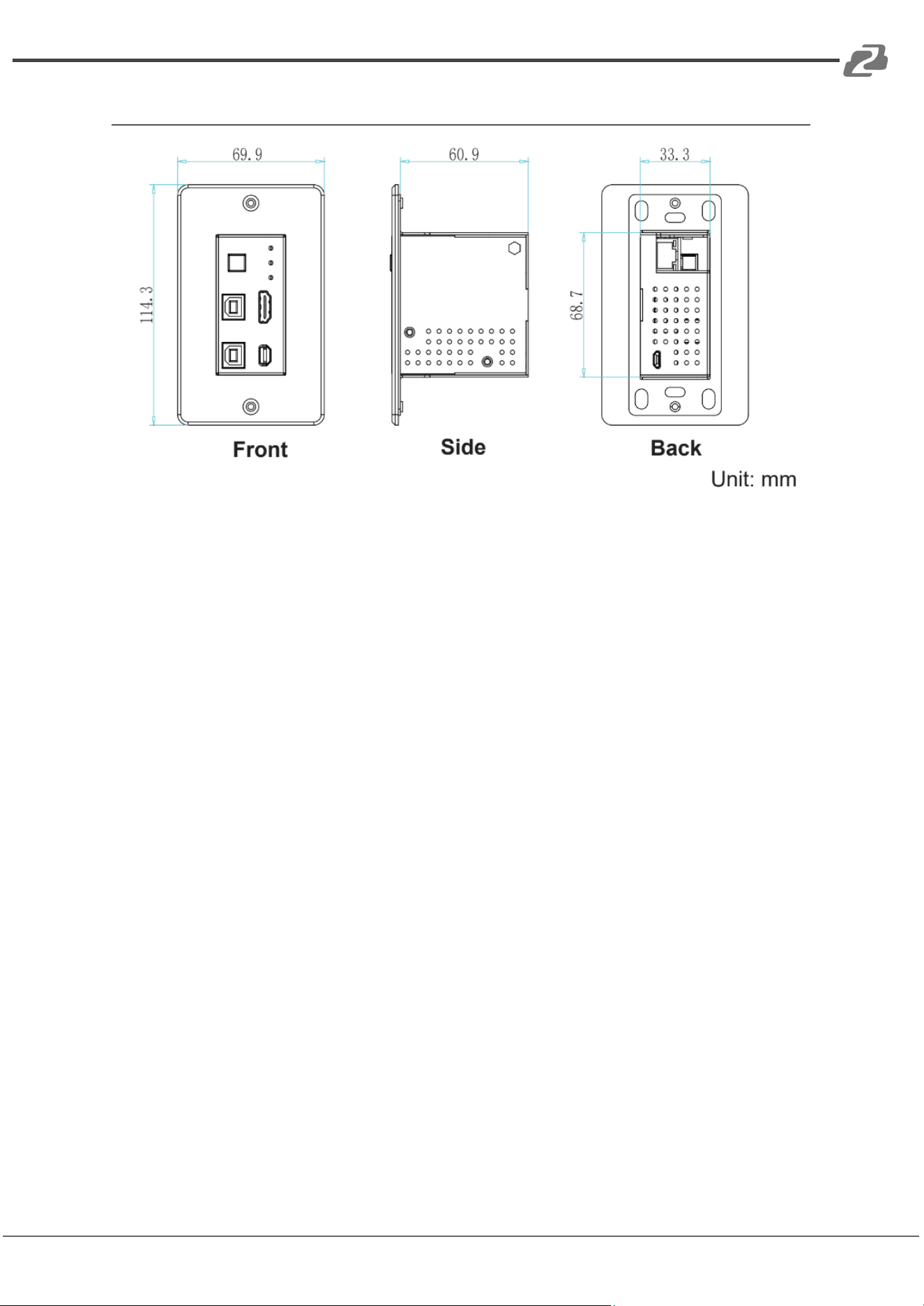

Product Dimensions
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel

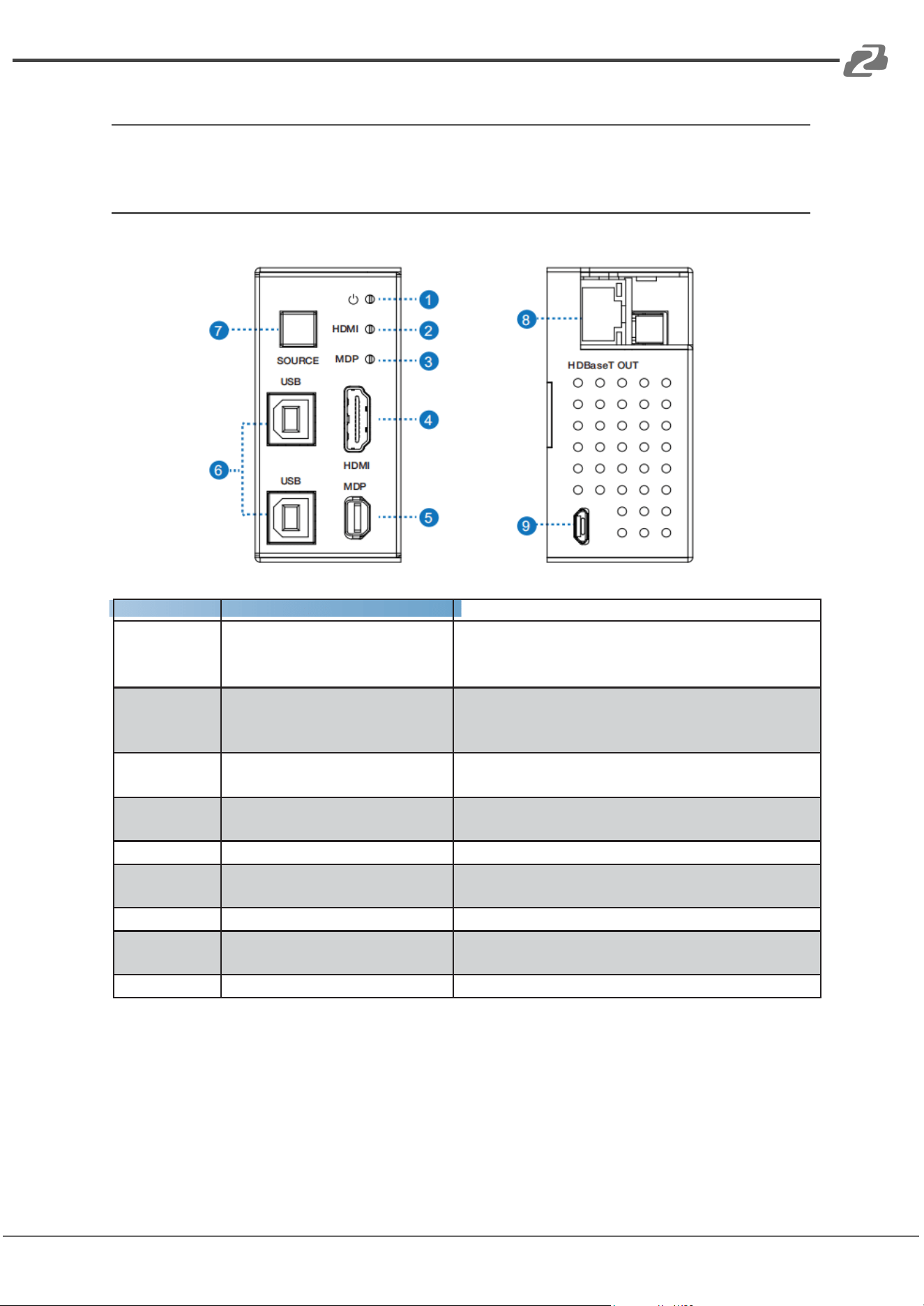

Transmitter Panel
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
No.
Name
Function Description
1
Power LED
The power LED indicator will illuminate in green
when the product is powered on, and red when
the product is on standby.
2
HDMI LED
When the HDMI input port is active and the
HDMI signal is detected, the green LED will be
on.
3
MDP LED
When the MDP input port is active and MDP
signal is detected, the green LED will be on.
4
HDMI port
HDMI input port, connect to HDMI source
device.
5
MDP port
MDP signal input port.
6
USB-B port
Connect to the computer’s USB port. Used for
KVM function.
7
SOURCE button
Used to switch HDMI / MDP input signal.
8
HDBaseT OUT
Connect to the HDBaseT IN port of Receiver
with a CAT6/6a/7 cable.
9
Micro-USB
Firmware update port.
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL

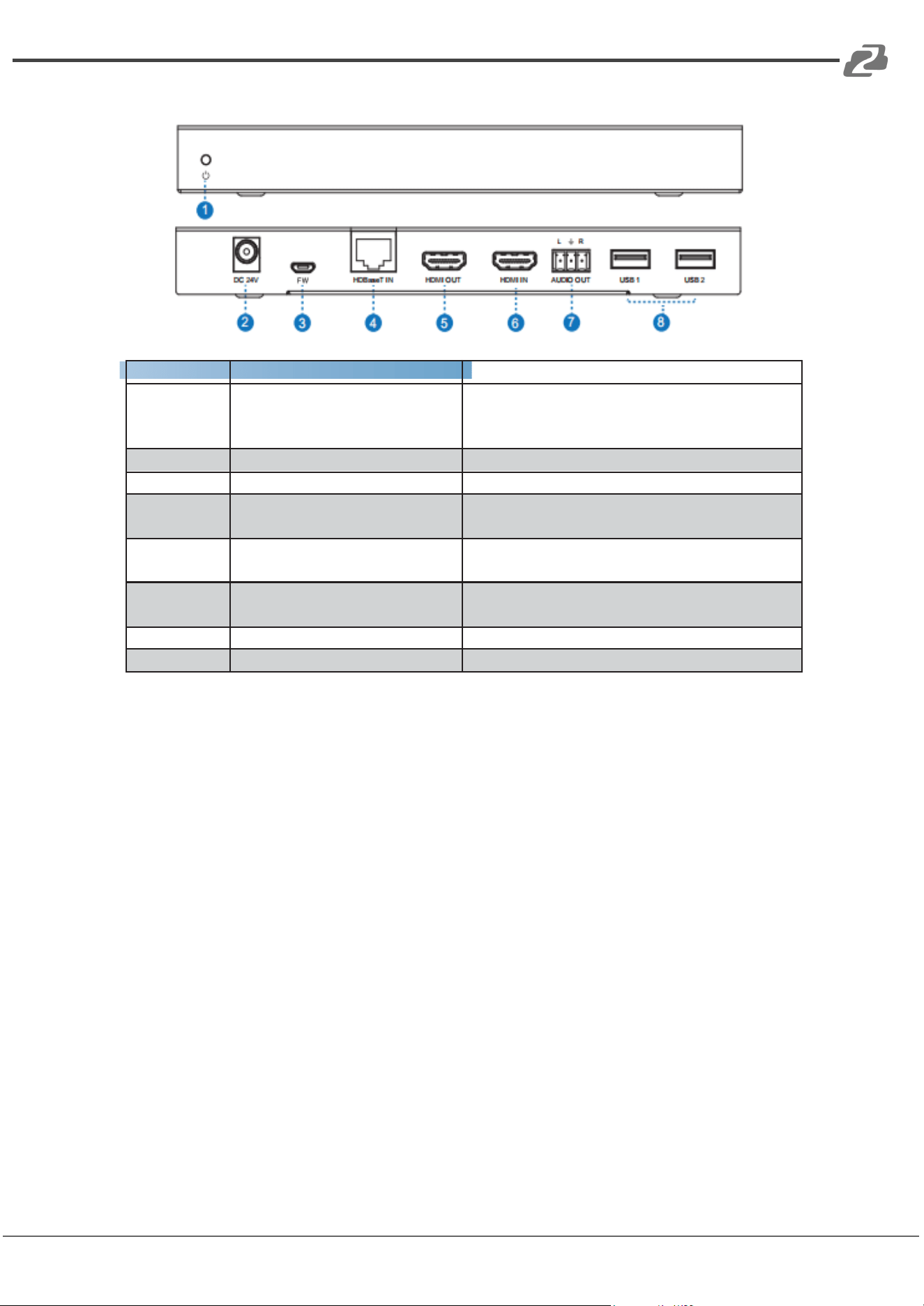

Receiver Panel
Note:
This transmitter supports automatic/manual mode for source signal input. In manual
switching mode, press the SOURCE button to select HDMI/DP input source, and the
USB-B port will follow the SOURCE switch.
In automatic switching mode, the last connected or the currently connected source signal
will be selected automatically, and the USB-B port will follow the corresponding HDMI/DP
input; When both HDMI and MDP ports are not connected to active signal, it will switch to
the source signal of the Receiver.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
No.
Name
Function Description
1
Power LED
When the product is powered on, the red
LED
indicator will be on.
2
DC 24V
DC 24V power supply port.
3
FW
Firmware update port.
4
HDBaseT IN
Connect to the HDBaseT OUT port of
Transmitter with a CAT6/6a/7 cable.
5
HDMI OUT
HDMI output port, connect to HDMI display
device.
6
HDMI IN
HDMI input port, connect to HDMI source
device.
7
AUDIO OUT
Analog audio output port.
8
USB port
Two USB ports for KVM function.
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL

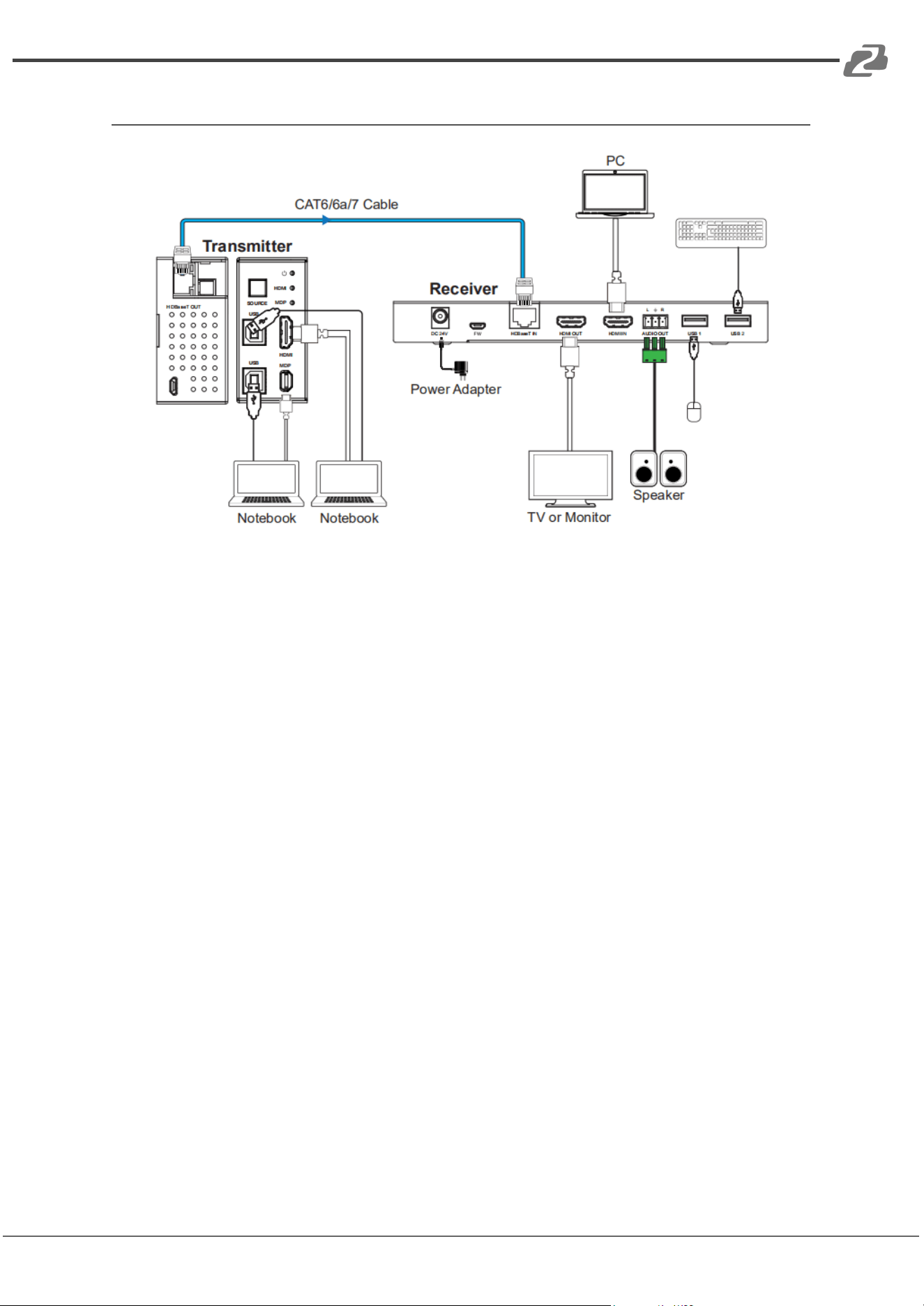

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXHD-70UWP-W PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
