BG-8K-DA18
1x8 8K UHD HDMI 2.1 Splitter with 48Gbps Bandwidth,
HDR/VRR/ALLM Support, Per-Port Downscaling, HDR-to-SDR
Conversion, and EDID Management
User Manual
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Specifications 7
Operation Controls and Functions 9
Auto Downscaling & Format Conversion 10
Connection Diagram 12
Troubleshooting 13
Tech Support 14
Limited Product Warranty Terms 14
Mission Statement 14
Copyright 14
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Introduction
The BG-8K-DA18 is a high-performance 1x8 HDMI splitter that distributes a single
HDMI source to up to eight displays simultaneously, delivering uncompromised
video and audio quality. Supporting resolutions up to 8K@60Hz (4:2:0 12-bit) and
4K@120Hz (4:4:4 12-bit), it is fully compliant with HDMI 2.1 and HDCP 2.3
standards for seamless compatibility with devices like the Xbox Series X and
PlayStation 5. The splitter supports both FRL (48Gbps) and TMDS (18Gbps)
bandwidths, along with key HDMI 2.1 features including VRR, ALLM, QMS, QFT,
and SBTM for a dynamic and responsive viewing experience. HDR formats such as
HDR10, HDR10+, Dolby Vision, and HLG are also fully supported.
Designed for flexibility, each output offers auto downscaling and HDR-to-SDR
conversion, making it easy to mix new and legacy displays. The BG-8K-DA18
ensures rich, immersive audio with support for LPCM 7.1, Dolby TrueHD, Dolby
Atmos, and DTS-HD Master Audio. Advanced EDID management and built-in cable
equalization streamline installation and maintain optimal signal performance in
demanding AV environments.
Features
● Ultra-High Resolutions: Supports up to 8K@60Hz (4:2:0, 12-bit) and 4K@120Hz
(4:4:4, 12-bit) per HDMI 2.1 specifications.
● Gaming and Motion Enhancements: Supports VRR, ALLM, QMS, QFT, and SBTM
for smoother visuals and reduced latency.
● HDR Format Compatibility: Pass-through support for HDR, HDR10, HDR10+,
Dolby Vision, and HLG.
● Advanced Audio Support: Compatible with LPCM 7.1CH, Dolby TrueHD, Dolby
Atmos, and DTS-HD Master Audio formats.
● Per-Port Downscaling: Automatically downscales resolution on each output to
match connected displays.
● HDR to SDR Conversion: Automatically converts HDR content to SDR on each
output for non-HDR displays.
● HDCP 2.3 Compliant: Ensures secure content transmission across all connected
devices.
● High-Bandwidth Support: Handles up to 48Gbps FRL and 18Gbps TMDS video
bandwidth.
● Comprehensive EDID Management: Enables precise control over display
communication and compatibility.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Packing List
● 1 × 48Gbps 1x8 Splitter
● 1 × 12V/2.5A Multinational Locking Power
Supply
● 2 × Mounting Ear
● 4 × Machine Screw (KM3*6)
● 1 × User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3, HDCP 1.4
Video Bandwidth
48Gbps FRL and 18Gbps TMDS
Video Resolution
Up to 8K@60Hz 4:2:0 12-bit, 4K@120Hz 4:4:4 12-bit
Color Depth
8/10/12-bit
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats
HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD,
Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD
Master Audio, DSD
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact
discharge)
Connection
Input
1 × IN [HDMI Type A, 19-pin female]
Output
8 × OUT [HDMI Type A, 19-pin female]
Control
1 × SERVICE [USB Type C, Update port]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
9.8in × 4.1in × 1.2in / 250mm [W] × 104mm [D] × 30mm [H]
Weight
1.6 lbs [743g]
Power Supply
DC 12V/2.5A
Power Consumption
12.2W (Max)
Operation Temperature
32°F ~ 104°F / 0°C ~ 40°C
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Storage Temperature
-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity
20~90% RH (Non-condensing)
Recommended HDMI Cable
Video Resolution
8K
HDMI Cable Length
(HDMI IN / OUT)
3m/10ft (Ultra HDMI 2.1)
Note: The use of “Premium High Speed HDMI” cable is highly recommended.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
BZBGEAR BG-8K-DA18 PRODUCT MANUAL

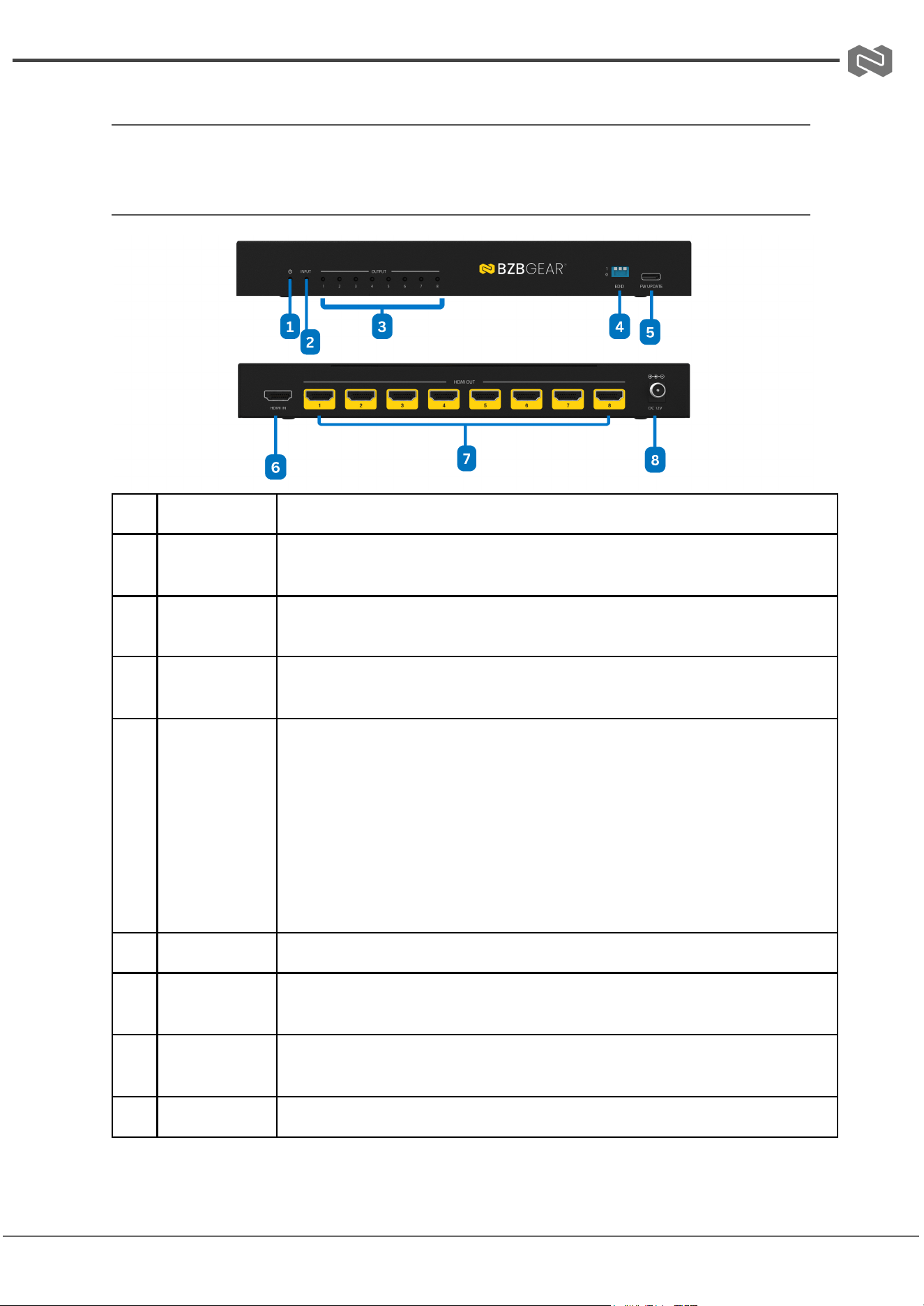

Operation Controls and Functions
Front and Rear Panel
No.
Name
Function Description
1
POWER LED
When the device is powered on, the red LED will be on.
2
IN LED
When the HDMI IN port connects to an active source device, the green LED
will be on.
3
OUT LED
(1~8)
When the HDMI OUT 1/2/3/4/5/6/7/8 port connects to a display device and
outputs signal, the corresponding green LED will be on.
4
EDID DIP
switch
Use the DIP switch to set EDID:
- [DIP]=111: Copy OUT port sink EDID (Factory default)
- [DIP]=110: 4K60(4:4:4), 2.0CH
- [DIP]=101: FRL12G_8K_HDR, 2.0CH
- [DIP]=100: FRL12G_8K_HDR, 5.1CH
- [DIP]=011: FRL12G_8K_HDR, 7.1CH
- [DIP]=010: FRL10G_8K_HDR, 2.0CH
- [DIP]=001: FRL10G_8K_HDR, 5.1CH
- [DIP]=000: FRL10G_8K_HDR, 7.1CH
5
SERVICE
Firmware update port.
6
IN port
HDMI signal input port, connecting to an HDMI source device such as DVD
player or PS5 with an HDMI cable.
7
OUT port (1~8)
HDMI signal output ports, connecting to HDMI display devices such as TVs or
monitors with HDMI cables.
8
DC 12V
12V/2.5A power input port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Auto Downscaling & Format Conversion

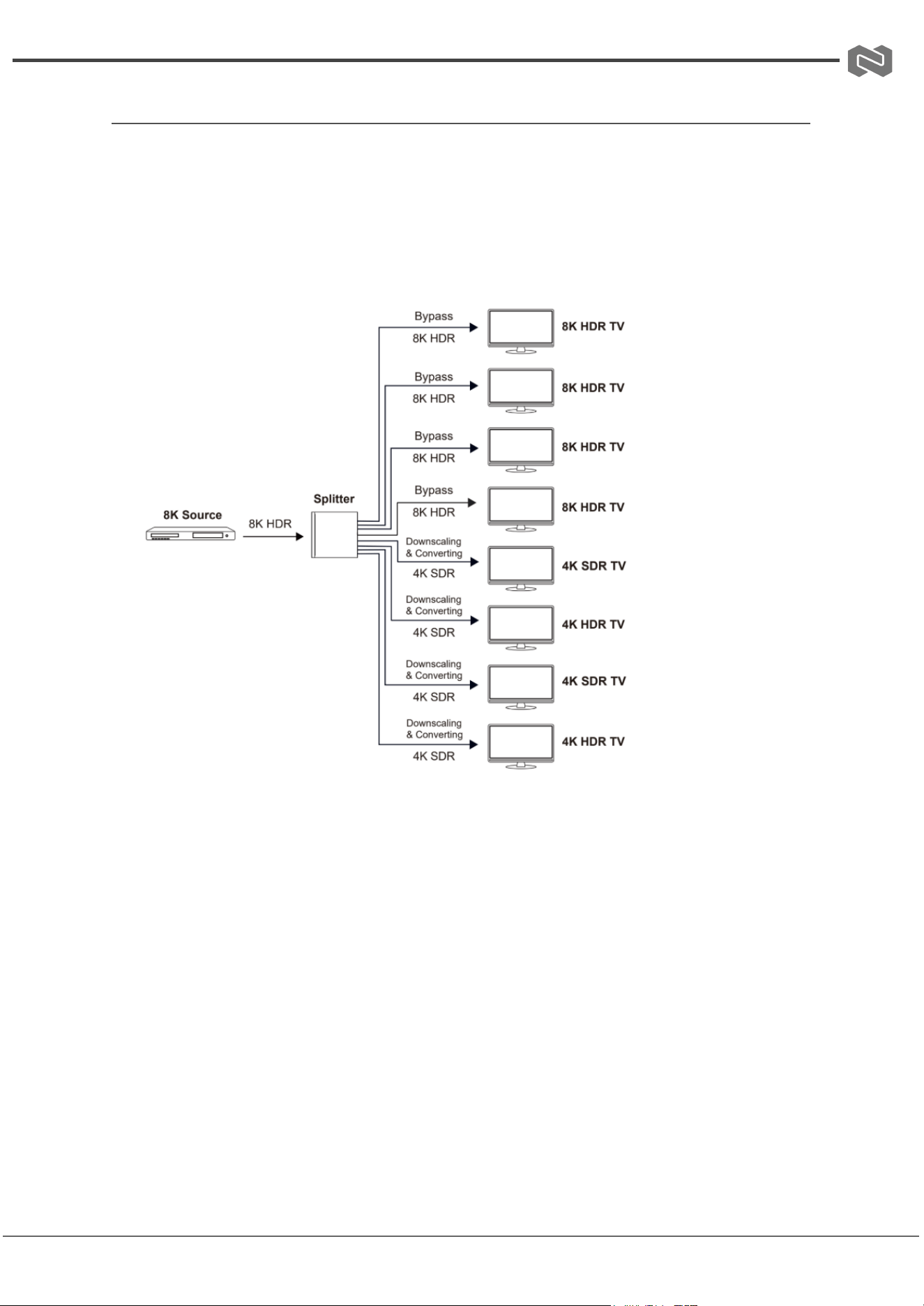

The 48Gbps 1x8 HDMI splitter features automatic downscaling and format conversion on all
outputs, ensuring optimal compatibility with connected display devices. It intelligently reads
the EDID information from each display and determines the appropriate output signal. Before
applying downscaling, the splitter compares the EDID data from all connected displays and
selects the lowest supported resolution as the output baseline. This ensures that every
display receives a compatible signal without manual configuration. For example:
In the example above, since 4K is lower than the resolution of the input source, the splitter
will automatically downscale the signal and output it at the minimum supported resolution
of 4K SDR.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Note: If the source signal is downscaled and converted to 1080p DVI based on the EDID of
connected display devices, the output will not include audio, as DVI does not carry sound.

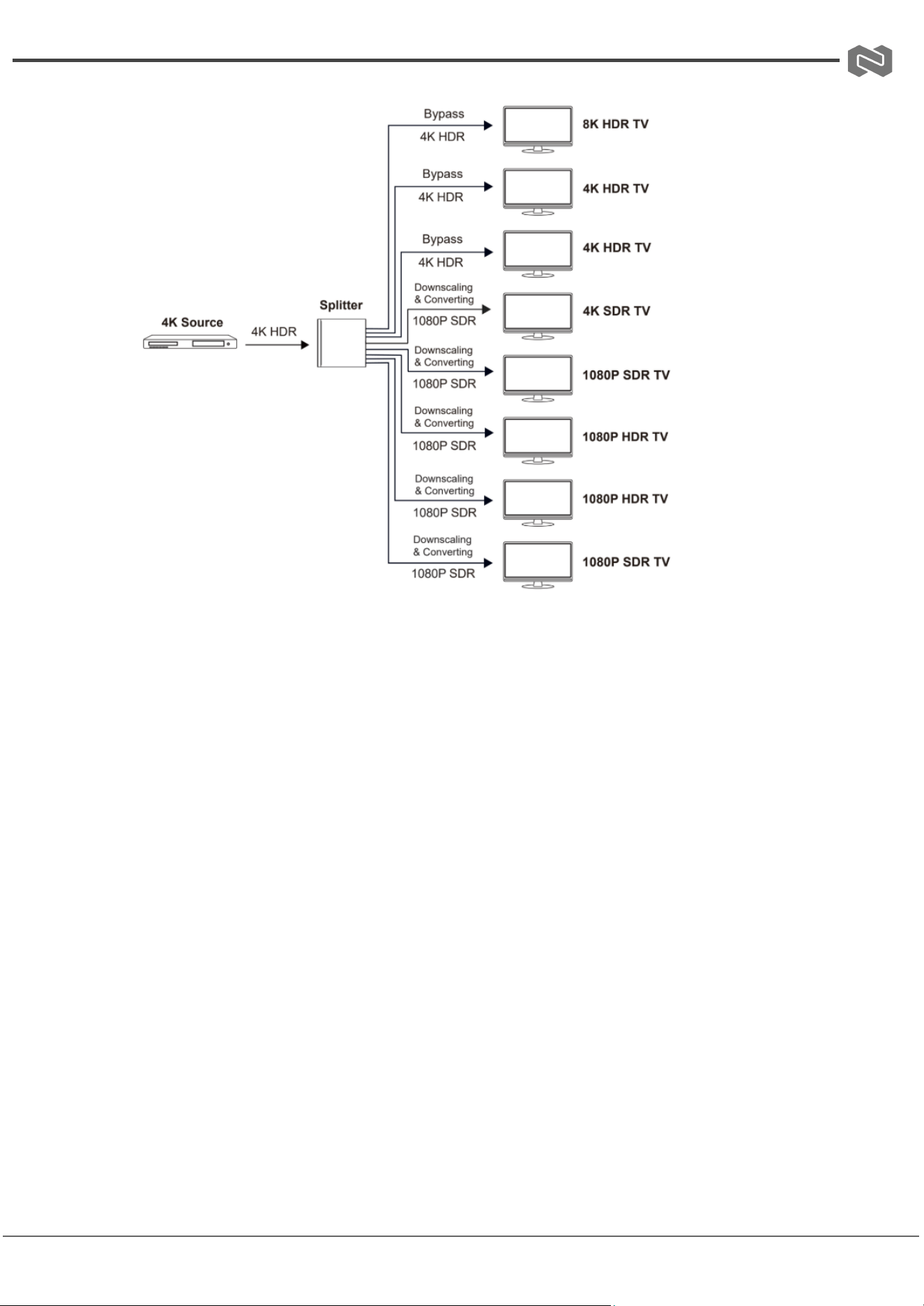

In the example above, since 1080p is lower than the input resolution, the splitter will
automatically downscale the signal and output it at the minimum supported resolution of
1080p SDR.
Limitations of Downscaling:
Downscaling will not function under the following conditions:
1. The input source is using the 8K DSC (Display Stream Compression) format.
2. The input resolution is not supported by the splitter.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-8K-DA18 PRODUCT MANUAL

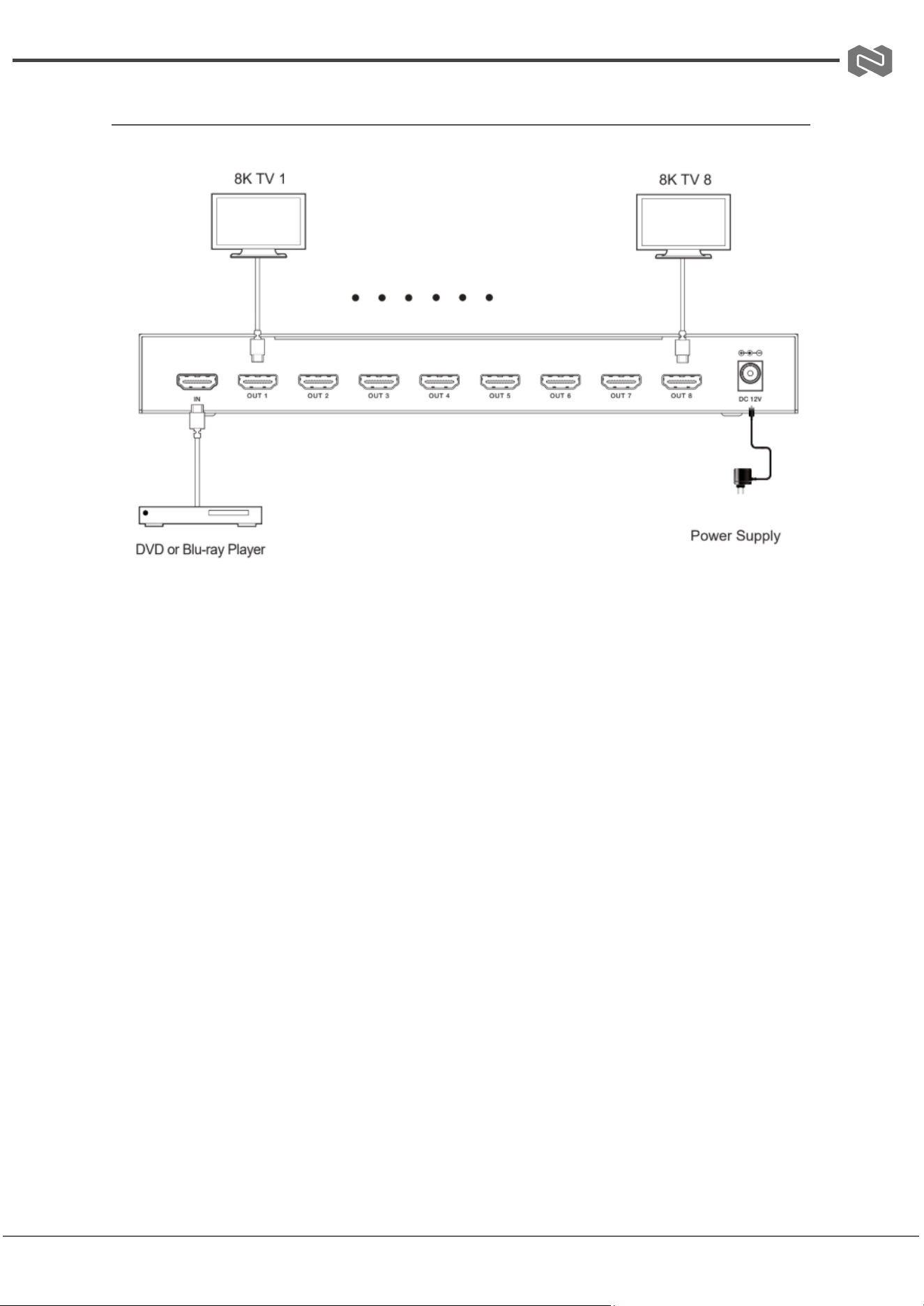

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 12
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 13
BZBGEAR BG-8K-DA18 PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
