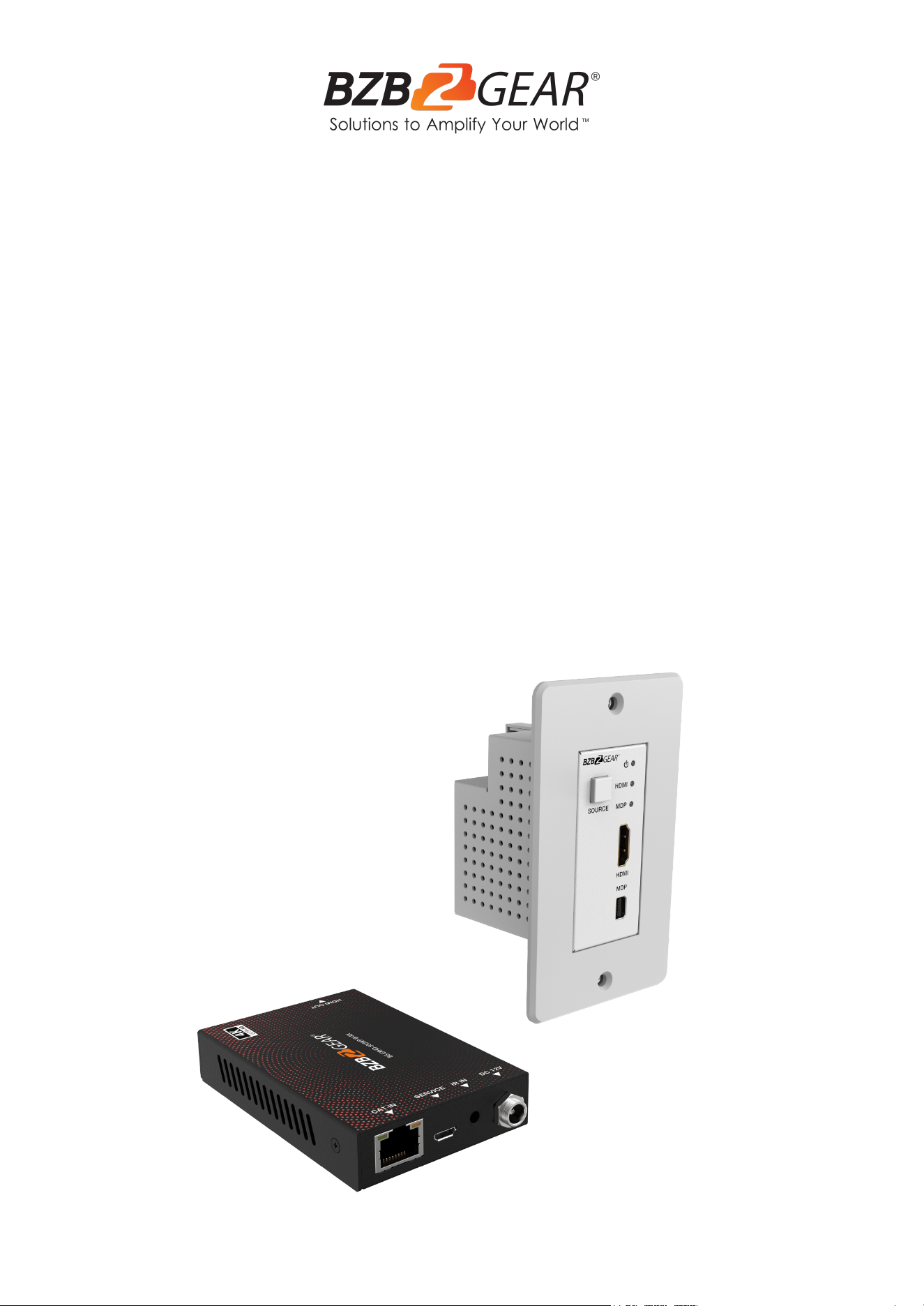

BG-EXHD-50UWP-W
18Gbps CAT 164ft Wall Plate Kit with MDP/HDMI Wall Plate
Transmitter & CAT6 to HDMI Receiver
User Manual
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 2
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Surge protection device recommended 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Product Dimensions 7
Operation Controls and Functions 8
Receiver Panel 9
Connection Diagram 10
Troubleshooting 11
Tech Support 12
Limited Product Warranty Terms 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 3
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
● The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
● Do not expose the product to rain or moisture.
● To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
● Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
● This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
● Installation and use of this product must strictly comply with local electrical safety
standards.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shocks, lightning strikes, etc. Use of surge protection systems is
highly recommended to protect and extend the life of your equipment.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 4
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
Introduction
Introducing the BG-EXHD-50UWP-W 18Gbps CAT 164ft Wall Plate Kit, a solution
engineered to enhance your audiovisual experience to new heights. This all-encompassing
kit features a sophisticated MDP/HDMI Wall Plate Transmitter paired with a CAT6 to HDMI
Receiver, meticulously crafted to deliver unrivaled performance and effortless integration.
Experience seamless connectivity and pristine image quality with the advanced MDP/HDMI
Wall Plate Transmitter.
Extend your viewing experience with the CAT6 to HDMI Receiver, delivering high-definition
content to your display device with uncompromising clarity and reliability. With support for
resolutions up to 4K/UHD@60Hz 4:4:4 and a transmission distance of up to 164ft / 50m,
this receiver offers unparalleled flexibility in installation.
Features
● Compliant with HDMI 2.0b, HDCP 2.2, and DisplayPort 1.2a standards
● Supports a video bandwidth of 18Gbps
● Capable of displaying video resolutions up to 4K/UHD@60Hz with a 4:4:4 color
sampling ratio
● CAT6 output extends video transmission distances up to 164ft / 50m for 4K@24 or
115ft / 35m for 4K@60 444 using a single CAT5e/6 cable
● Supports 3D and HDR video formats but does not support CEC control
● HDMI audio formats supported include LPCM, Dolby Digital/Plus/EX, Dolby TrueHD,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD
● Features HDMI and MDP input compatibility
● Housed in a US one-gang enclosure suitable for Decora-style wall plate openings
● Input signal selection can be set to automatic or manual mode
● Supports Power Over Cable (POC) functionality (only from Receiver to Transmitter)
Packing List
● 1× 18Gbps CAT 50M with MDP/HDMI Wall
Plate Transmitter
● 1× CAT6 to HDMI Receiver
● 1× User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 5
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
DP Compliance
Display Port 1.2a
Video Bandwidth
DP: 5.4 Gbps
HDMI: 18 Gbps
Video Resolution
480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Color Space
RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth
8/10/12-bit (1080P@60Hz)
8-bit (4K@60Hz)
HDR
Support
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD
Master Audio, DSD
Transmission Distance
Max distance (4K@24) : 164ft / 50m over CAT5e/6
Max distance (4K@60) : 115ft / 35m over CAT5e/6
ESD Protection
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
Connection
Transmitter
Inputs: 1 x HDMI Type A [19-pin female] 1 x mini DP
[20-pin female]
Output: 1 x CAT6 OUT [RJ45, 8-pin female]
Control: 1 x FW [Micro USB, Update port]
Receiver
Input: 1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI OUT [Type A, 19-pin female]
Controls: 1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro USB, Update port]
Mechanical
Housing
Metal Enclosure
Color
White
Dimensions (W x D x H)
Wall plate:
1.31in x 2.6in x 2.7in [33.3mm x 65.7mm x 68.7mm]
Faceplate:
2.8in x 0.12in x 4.5in [69.9mm x 3mm x 114.3mm]
Receiver:
3.5in x 2.4in x 0.71in [88mm x 61mm x 18mm]
Weight
Wall plate: 0.39 lbs [175g], Receiver: 0.34 lbs [155g]
Power Supply
POC (only from Receiver to Transmitter)
Power Consumption
Wall plate: 2.2W (Max), Receiver: 3.72W (Max)
Operating
Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 6
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL

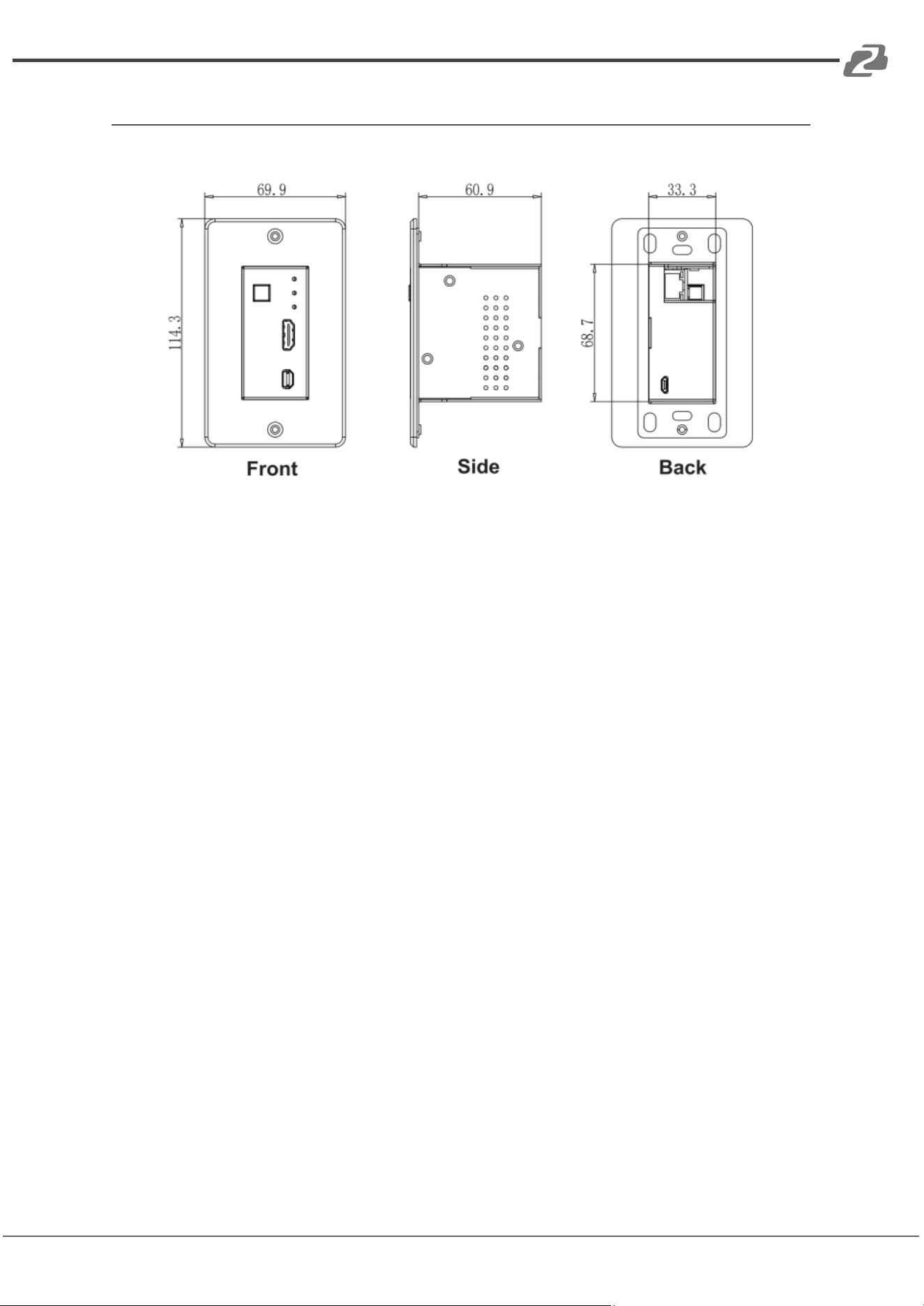

Product Dimensions
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 7
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL

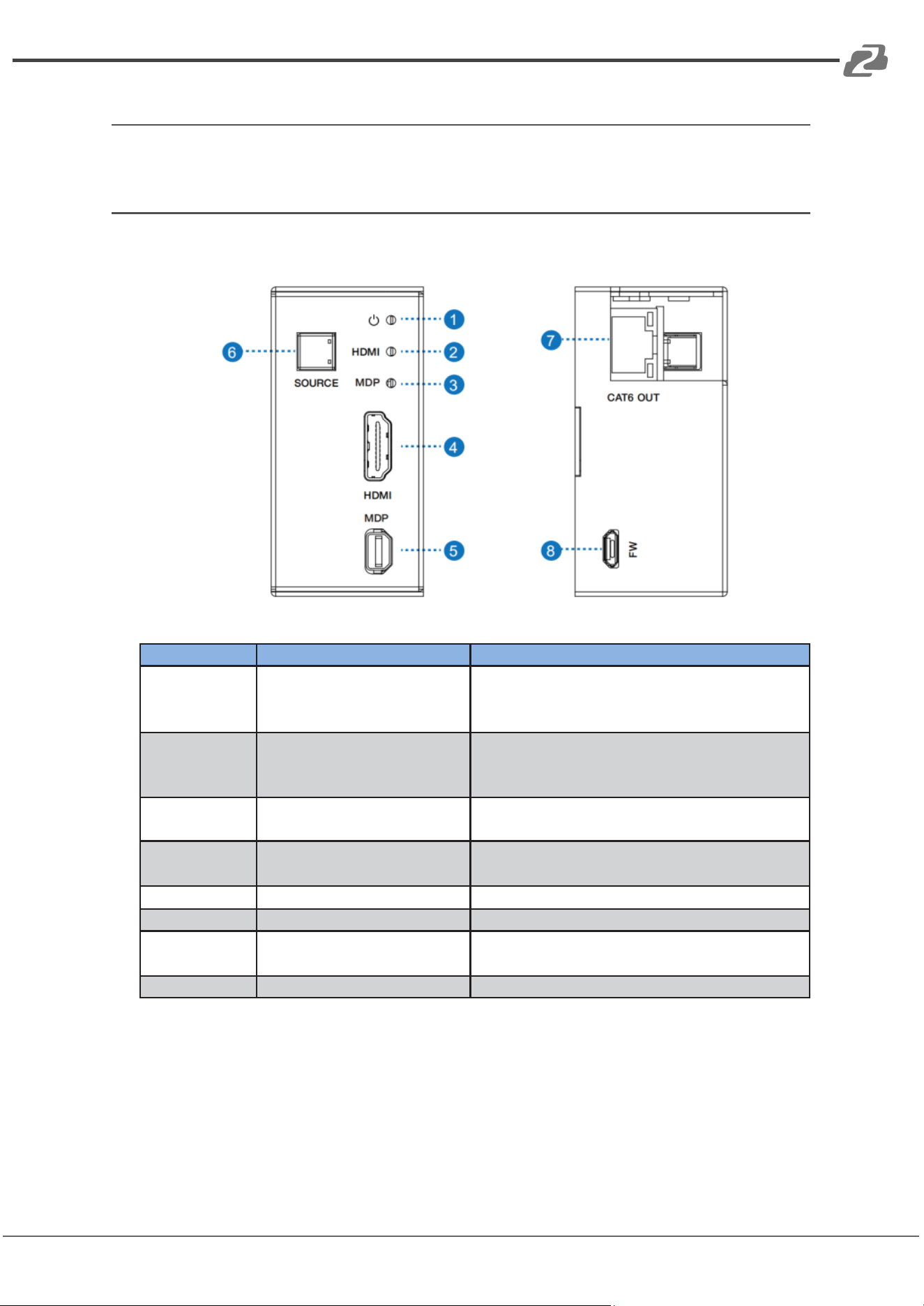

Operation Controls and Functions
Front and Rear Panel
Transmitter Panel
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 8
No.
Name
Function Description
1
Power LED
The power LED indicator will illuminate in
green when the product is powered on, and
red when the product is on standby.
2
HDMI LED
When the HDMI input port is active and the
HDMI signal is detected, the green LED will
be on.
3
MDP LED
When the MDP input port is active and MDP
signal is detected, the green LED will be on.
4
HDMI port
HDMI input port, connect to HDMI source
device.
5
MDP port
MDP signal input port.
6
SOURCE button
Used to switch HDMI / MDP input signal.
7
CAT6 OUT
Connect to the CAT IN port of Receiver with
a CAT5e/6 cable.
8
FW port
Firmware update port.
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL

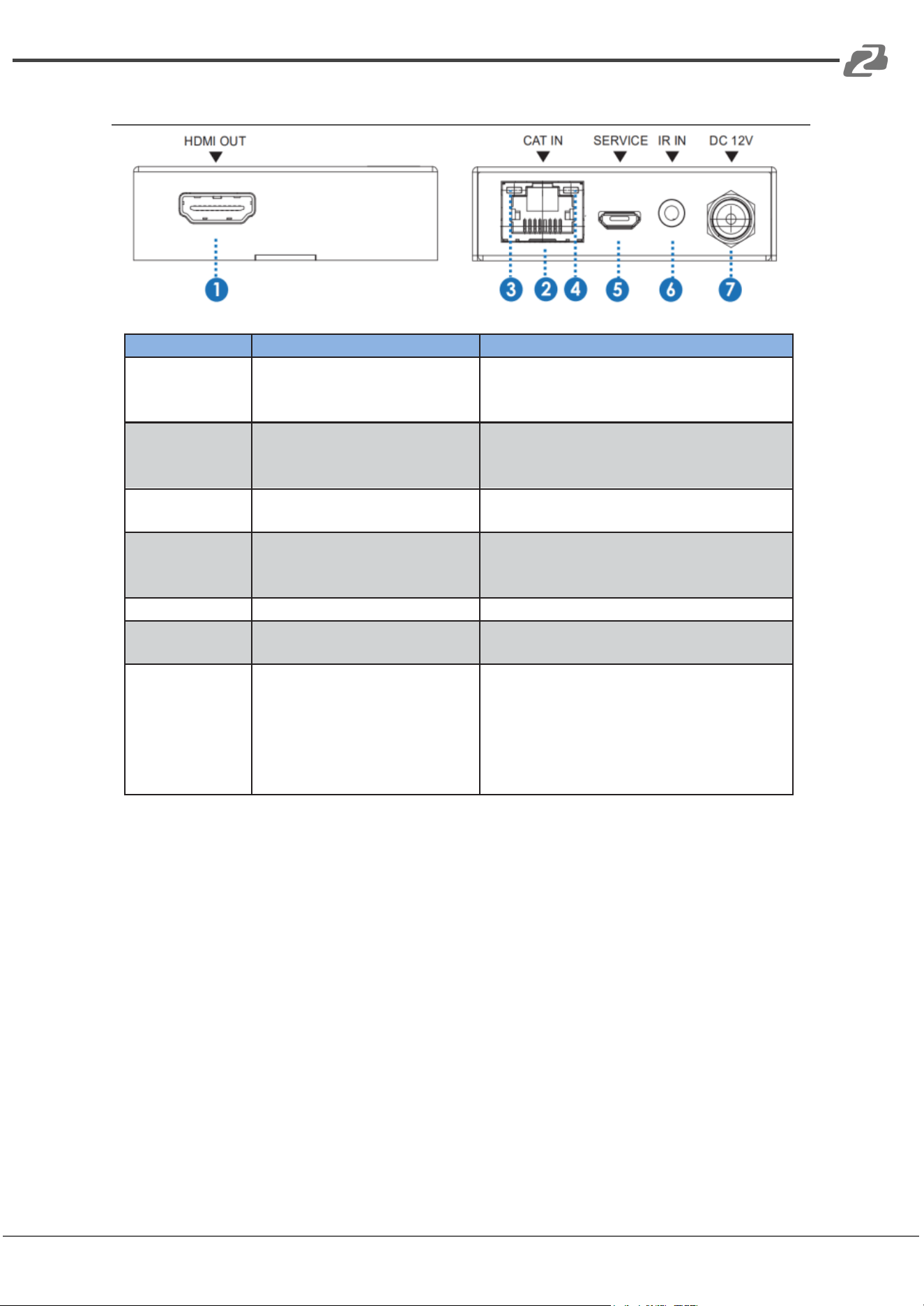

Receiver Panel
Note:
This transmitter supports automatic/manual mode for source signal input. In manual
switching mode, press the SOURCE button to select HDMI/DP input source.
In automatic switching mode, the last connected or the currently connected source signal
will be selected automatically; When both HDMI and MDP ports are connected to active
signal, HDMI signal input is preferred.
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 9
No.
Name
Function Description
1
HDMI OUT
HDMI output port, connect to HDMI
display device such as TV or Projector
with an HDMI cable.
2
CAT IN
Connect to the CAT6 OUT port on the
transmitter
with a CAT cable.
3
Power Indicator Lamp
(Green)
When the receiver is powered on, the
power indicator lamp will be on.
4
Data signal
Indicator Lamp (Orange)
When there is signal transmission
between the transmitter and the receiver,
the lamp will be on.
5
SERVICE port
Used for firmware update.
6
IR IN
IR signal input port. Connect to the IR
Receiver cable.
7
DC 12V
Plug DC 12V/1A power supply into the
unit and connect the adapter to an AC
outlet.
(Note: The CAT receiver provides power
for the
transmitter via a CAT cable. )
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL

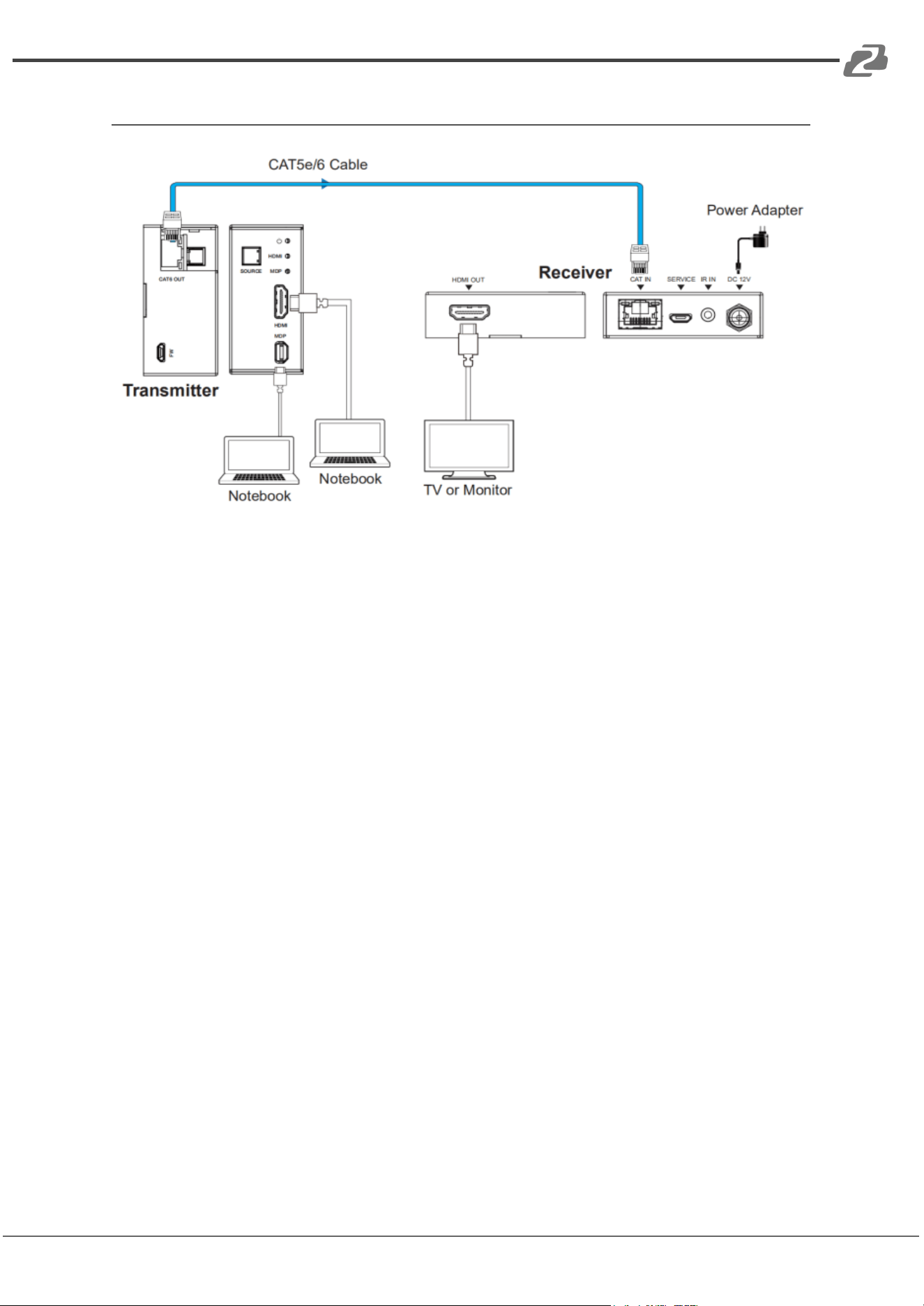

Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 10
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
Troubleshooting
Problems
Causes
Solutions
No Power / All LED off
Power supply not connected,
connected fully, or wrong power
supply.
Check if the power supply is
connected correctly and the
output voltage value is within
recommended specifications.
No sound or sound issues
The HDMI connection is faulty,
the audio format is not
supported by the displays, or
the source player is set to
another port for audio output
Check if the HDMI cables are
connected correctly.
Check if the audio format is
supported by the display and
that a user has not changed the
supported audio format on the
player`s audio output. Ensure
output settings from the HDMI
source device as set correctly.
No picture or picture flickers
The HDMI cable may be faulty
or the category cable quality is
faulty.
Check if the HDMI
and category cable connections
are correct and undamaged.
Change to another good
working HDMI cable or category
cable (CAT6 or better cable is
recommended).
Address: 830 National Drive #140, Sacramento, CA 95834, USA · Tel: +1(888)499-9906 · Email: support@bzbgear.com 11
BZBGEAR BG-EXHD-50UWP PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
support@bzbgear.com
Live Chat
bzbgear.com
Limited Product Warranty Terms
Pro Line: 5-year warranty from the date of purchase for AV/Broadcasting products bought
on or after August 1, 2024.
Essential Line: 3-year warranty from the date of purchase for AV/Broadcasting products
bought on or after August 1, 2024.
Cables: Lifetime Limited Product Warranty.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email support@bzbgear.com.
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
