1 Get started .............................................................................................................................................................................1

2 Connect your printer ............................................................................................................................................................17

Load original ....................................................................................................................................................................30

Change the paper settings from the embedded web server (EWS)................................................................................32

Paper basics.....................................................................................................................................................................32

4 Print......................................................................................................................................................................................35

Copy from the printer ......................................................................................................................................................38

Copy an identication (ID) card (some printer models) ..................................................................................................38

Scan using the HP Smart app (iOS, Android, Windows 10, and macOS) .........................................................................40

Scan using the HP printer software.................................................................................................................................40

Scan using Webscan ........................................................................................................................................................42

Update the printer ...........................................................................................................................................................46

7 Manage ink and printheads .................................................................................................................................................48

8 Solve a problem ...................................................................................................................................................................56

This topic describes the printer control panel features.

This topic describes the error codes on the printer display.

If the Number Counter icon on the printer display changes to a letter E and a number, the printer is in an error

state. The letter E and the number work as error codes.

To enter Wi-Fi Protected Setup (WPS) Push Button mode

● Press and hold the Wi-Fi button for at least 3 seconds.

NOTE: For the other tasks listed in the following table, be sure to place the printer in support mode before

using any button combinations.

To enter the printer support mode

● Press and hold the Information button for at least 5 seconds.

To exit the printer support mode

● Press the Cancel button .

1.

2. See the following instructions to print the desired report.

1. Open EWS. See To access and use EWS.

2. Search for a setting. Or click the desired function or tab, and then select a setting from the left menu.

3. Make the necessary changes.

1. Open the HP Smart app on your computer or mobile device. See Use the HP Smart app to print, scan, and

manage.

2. Select your printer, and then click or tap Printer Settings.

3. Select the desired option and make the necessary changes.

You can use the HP printer software to change the printer settings, check estimated ink levels, order printing

1. Visit To install HP printer software and open the software to download the software and install on your

computer.

2. Open the software.

● Windows 10: From the computer desktop, click Start, select HP from the app list, and then select the

icon with the printer name.

● Windows 7: From the computer desktop, click Start, select All Programs, click HP, click the folder for

the printer, and then select the icon with the printer name.

The HP Smart app can help you perform many dierent printer tasks, including the following:

● Set up and connect your printer.

NOTE:

● Do not load paper while the printer is printing.

● If there is other paper in the input tray, remove the paper before loading a dierent paper type or size.

● When prompted after loading paper, change the paper settings on the printer control panel to match the

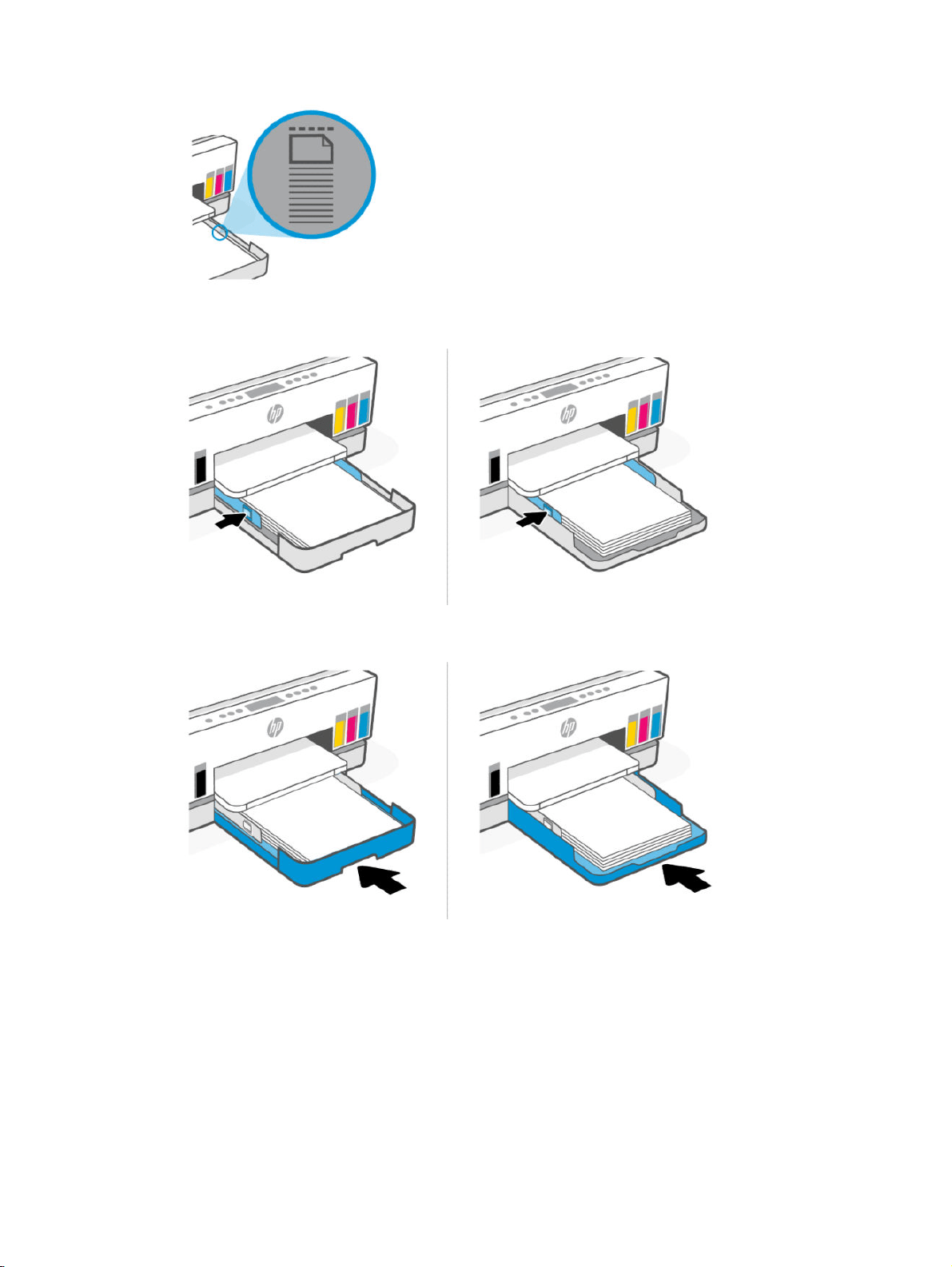

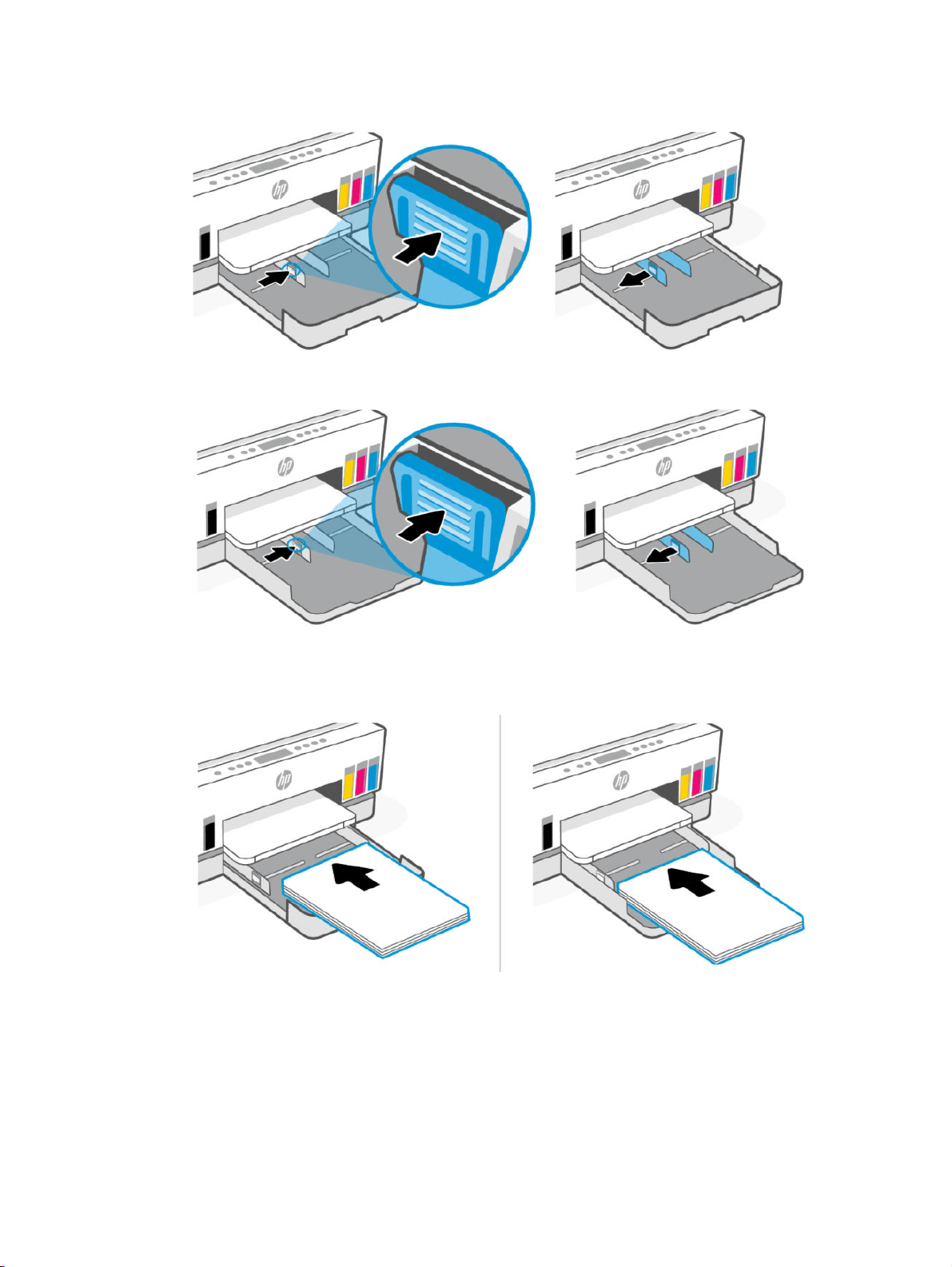

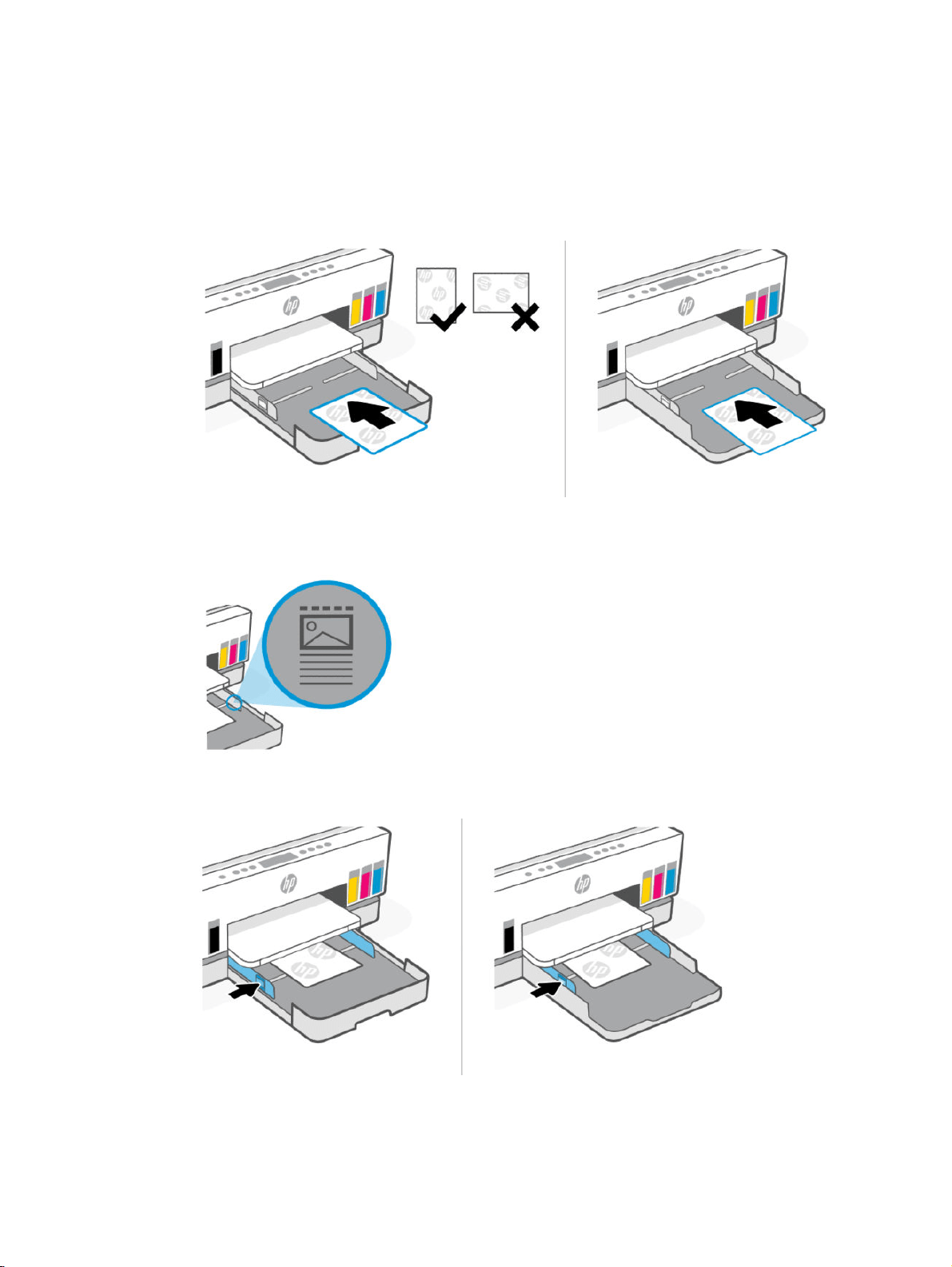

3. Insert the paper in portrait orientation and with the side to be printed facing down.

Make sure the stack of paper is aligned with the appropriate paper size lines in the tray. Also, make sure

the stack of paper does not exceed the stack-height marking in the tray.

4. Adjust the paper-width guides until they touch the edges of the stack of paper.

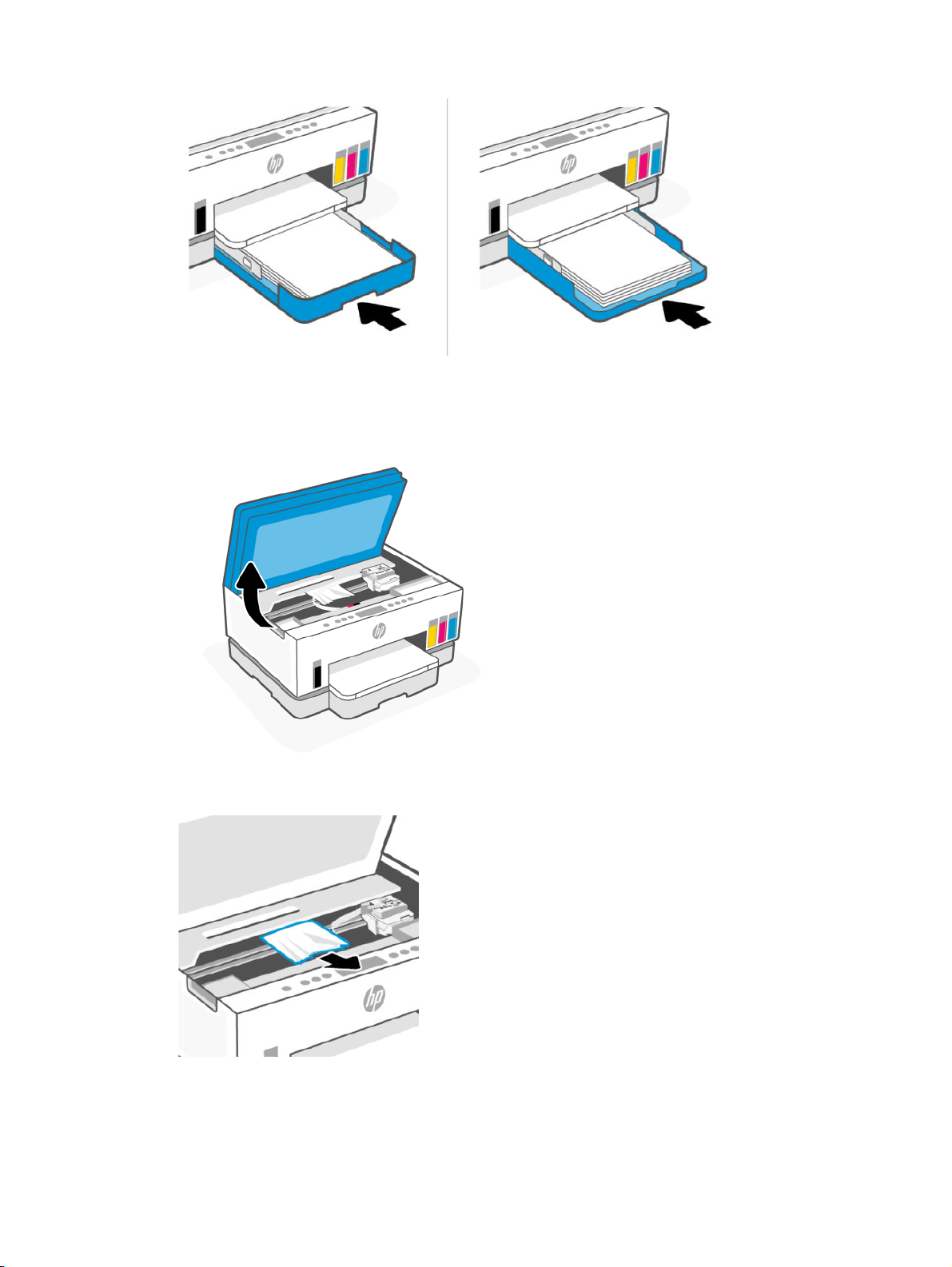

5. Close the input tray.

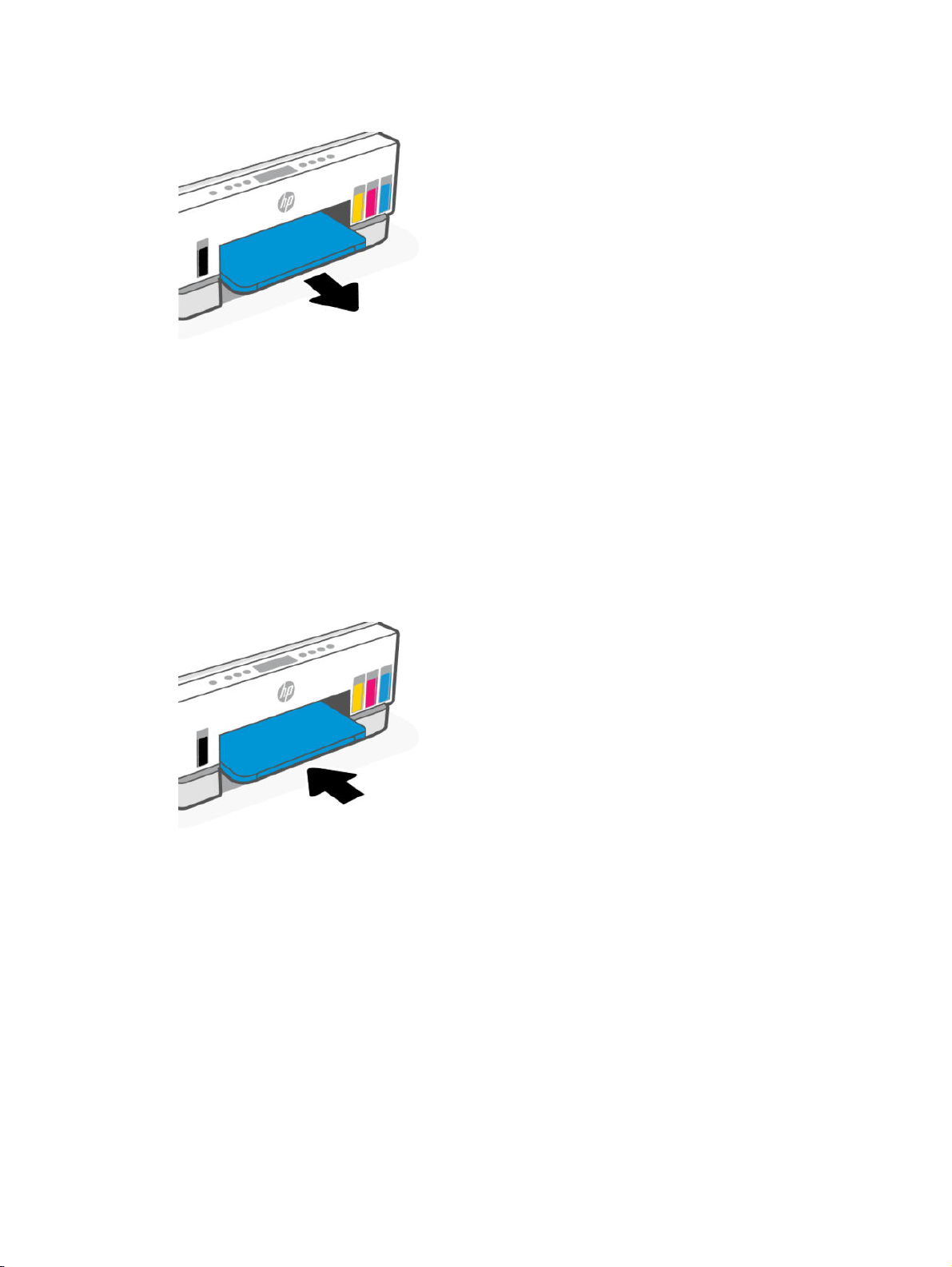

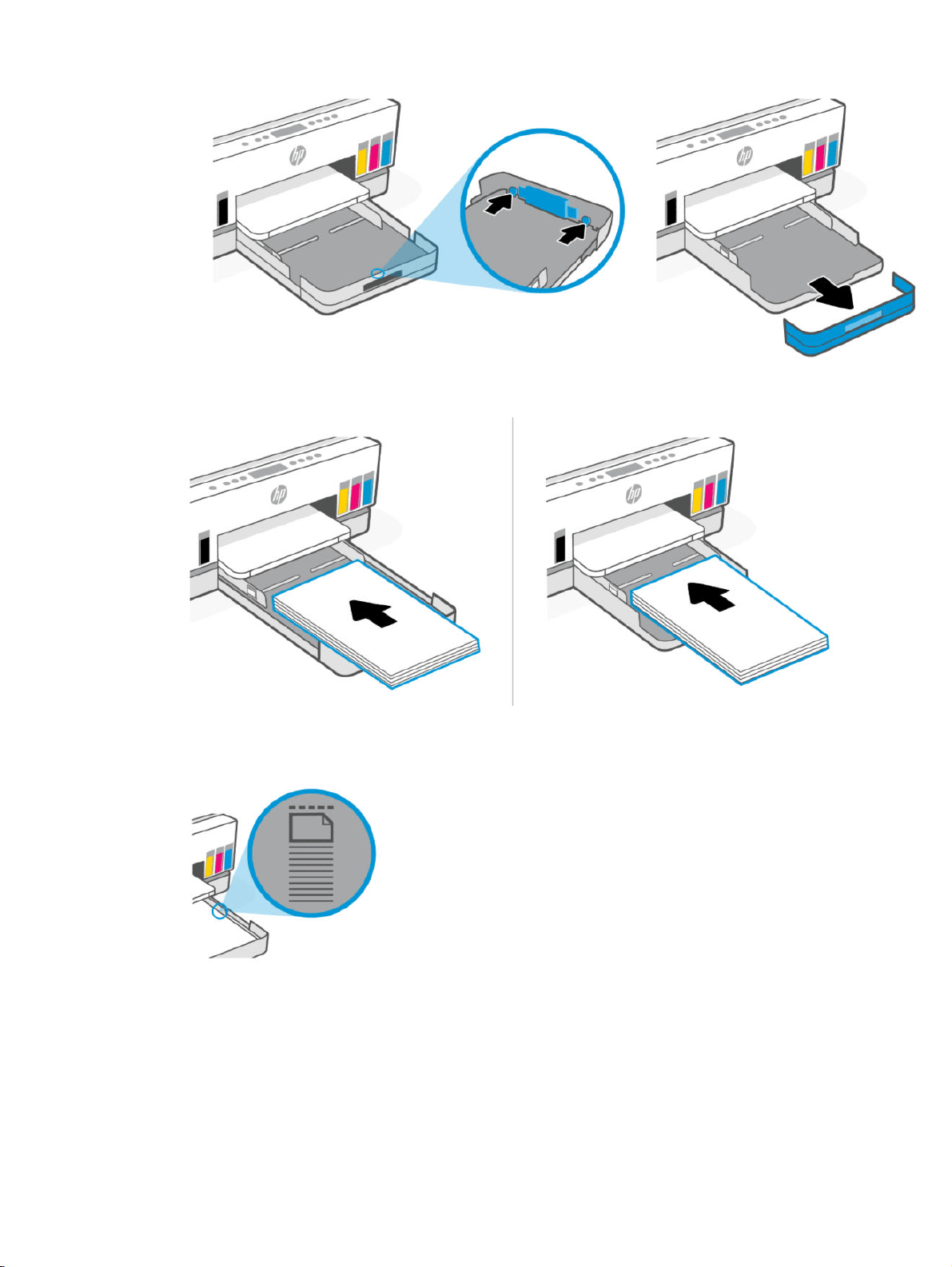

1. Open the input tray.

2. Press and hold the button on the paper-width guide, and then slide the guides to the edges of the tray.

3. Extend the input tray.

NOTE: Printer models with an open input tray do not require the input tray to be extended.

6. Close the input tray.

NOTE: When you reinsert the tray, the extended part is expected to remain outside the printer.

7. Pull out the output tray extender.

1. Open the input tray.

2. Press and hold the button on the paper-width guide, and then slide the guides to the edges of the tray.

3. Insert the envelope in portrait orientation and with the side to be printed facing down.

4. Adjust the paper-width guides until they touch the edges of the stack of paper.

5. Close the input tray.

6. Pull out the output tray extender.

1. Open the input tray.

2. Press and hold the button on the paper-width guide, and then slide the guides to the edges of the tray.

3. Insert the cards or photo paper in portrait orientation and with the side to be printed facing down.

Make sure the stack of paper is aligned with the appropriate paper size lines in the tray. Also, make sure

the stack of paper does not exceed the stack-height marking in the tray.

4. Adjust the paper-width guides until they touch the edges of the stack of paper.

5. Close the input tray.

6. Pull out the output tray extender.

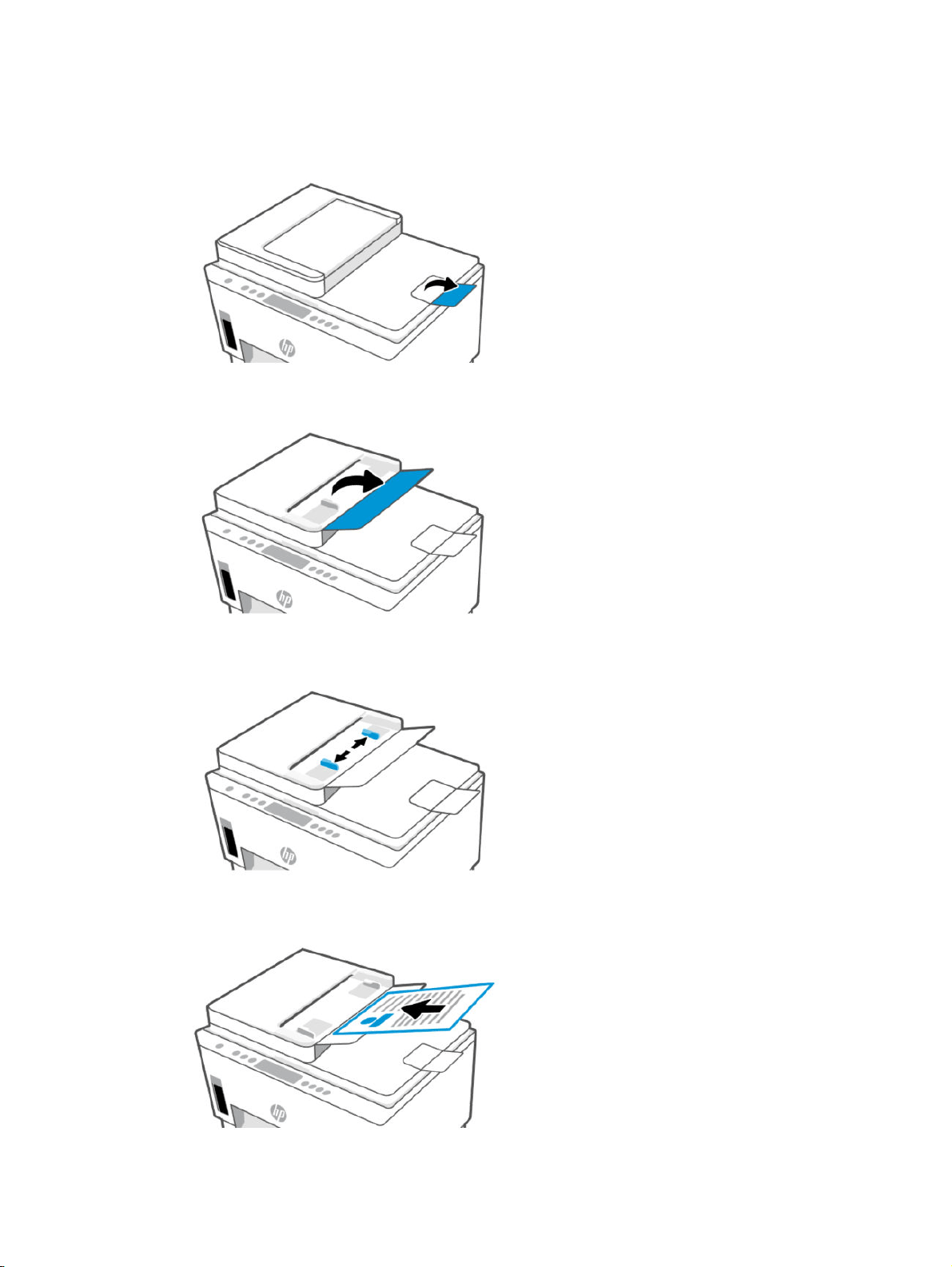

This topic describes how to load an original into the printer.

1. Open the document feeder output tray extender.

3. Slide the paper-width guides outwards.

4. Load original print-side up in the document feeder.

when copying.

NOTE:

● Click the More link at the top right corner of the Scan dialog to review and modify settings for any

scan. See Change scan settings (Windows).

● If Show Viewer After Scan is selected, you can make adjustments to the scanned image in the

preview screen.

You can modify any of the scan settings either for a singular use or save the changes to use permanently.

These settings include options such as page size and orientation, scan resolution, contrast, and the folder

location for saved scans.

each section. The right column allows you to change the settings in the highlighted section.

4. Click each section at the left of the detailed settings pane to review the settings in that section.

You can review and change most settings using drop-down menus.

Some settings allow greater exibility by displaying a new pane. These are indicated by a + (plus sign) at

the right of the setting. You must either click OK to accept or click Cancel to cancel any changes on this

pane to return to the detailed settings pane.

5. When you have nished changing settings, do one of the following:

● Click Scan. You are prompted to save or reject the changes to the shortcut after the scan is nished.

● Click the save icon to the right of the shortcut, and then click Scan.

3. Click Create New Scan Shortcut.

Webscan is a feature of the EWS that lets you scan photos and documents from your printer to your device

using a web browser.

NOTE: For your security, some settings in the EWS are password-protected. Enter the password if

prompted. This is the password you have set in the EWS or the default PIN on a label in the ink access area.

Scanning using Webscan oers basic scan options. For additional scan options or functionality, scan from the

HP printer software.

1. Place the original print-side up in the document feeder or print-side down on the scanner glass (aligned

2. Open EWS. For more information, see To access and use EWS.

3. Click the Scan tab.

4. From the left menu, click Webscan.

5. Select the desired options, and then click Start Scan.

Use the following tips to copy and scan successfully:

1. Make sure your mobile device or computer are connected to a network. Launch the HP Smart app and

sign into or create your HP account.

2. Select the Mobile Fax tile.

If you do not see the Mobile Fax tile, enable it as follows:

● On a mobile device: Tap Personalize Tiles, tap the Mobile Fax toggle to enable the tile, and then go

back to the Home screen.

● On a Windows 10 device: Click the Settings , select Personalize Tiles, and click the Mobile Fax toggle

to enable the tile. Then, go back to the Home screen.

● On a Mac device: From the menu bar, select HP Smart >Personalize Tiles. Set the Mobile Fax option

Send the fax when ready.

Your fax will be securely delivered and you can track the status in the HP Smart app.

● View printer status information

● Check the information and status of the printing supplies

● Receive notication of printer and supplies events

● View and change the network and the printer settings

You can open EWS using one of the following:

● HP Smart app

● HP printer software

● For your security, some settings in the printer home page or EWS are password-protected.

– When accessing the EWS for the rst time, enter the PIN if prompted. This personal identication

number (PIN) is available from a label in the printer.

Open the ink access door or cartridge access door to locate the label.

– Once you have access to EWS, you can change the password from EWS.

● Depending on how the printer is connected, some features in EWS might not be available.

● EWS is not accessible beyond the network rewall.

1. Open the HP Smart app on your computer or mobile device. See Use the HP Smart app to print, scan, and

1. Make sure your device and the printer are connected using Wi-Fi Direct. See Print while connected to

same Wi-Fi network.

2. Open a web browser, type the following IP address or hostname of the printer in the address bar, and

then click or tap Enter.

IP Address: 192.168.223.1

1. From the computer desktop, click Start, select All Programs, click HP, click the folder for the printer,

select the icon with the printer's name, and then open HP Printer Assistant.

NOTE: Windows 7 Service Pack 1 (SP1) is required to install HP printer software.

2. In the HP Printer Assistant, select Print tab.

2. Click the Network tab to obtain network information. Change settings as needed.

To rename the printer on a network so that it can be uniquely identied, use the embedded web server (EWS).

1. Open EWS. See To access and use EWS.

2. Click the Network tab.

3. From the left menu, click General.

4. Click Network Identication.

5. Make the necessary changes, and then click Apply.

Assign an administrator password for access to the printer and EWS so that unauthorized users cannot change

the printer settings.

1. Open EWS. See To access and use EWS.

2. Click the Settings tab.

3. From the left menu, click Security.

4. Click Password Settings.

5. Make the necessary changes, and then click Apply.
