TRIM PLATES AND HOOD
MODELS: CAPXSTK, CAPXSTKPL, AND CAPXSHOOD
INTRODUCTION
The CAPXSTK and CAPXSTKPL are available to conceal the replacement of
an existing telephone entry system or buzzer with a CAPXS. The CAPXSTK
is a standard trim plate, and the CAPXSTKPL provides a postal lock
provision for buildings that require the integration of a postal lock.
CAPXSTKPL INSTALLATION
CARTON INVENTORY
Trim Panel, Postal Lock Cover, (4) #10 Phillips Screw and Hex Nut, (4)
#8T20 Torx Screw
ADDITIONAL ITEMS YOU MAY NEED
Silicone Sealant, Phillips Screwdriver, T20 Screw Driver/Bit, Mounting
Hardware per CAPXS Installation manual, Postal Lock Device (provided by
USPS)

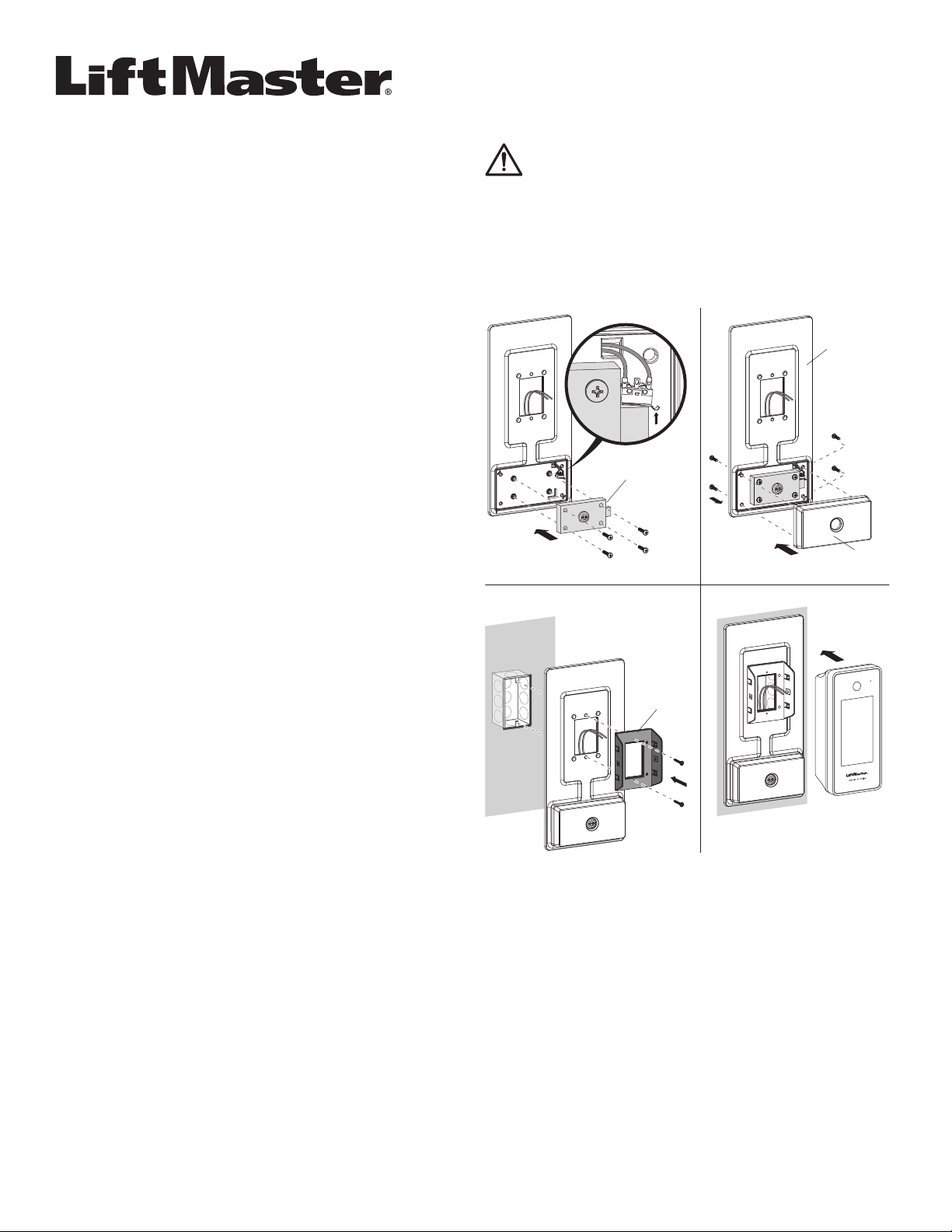

POSTAL LOCK INSTALLATION
1. Fasten Postal Lock to Trim Panel using #10 Phillips screws and hex
nuts provided. (See Figure 1)
2. Verify switch is depressed while in the locked position. Adjust as
needed. (See inset of Figure 1)
3. Position Cover over Postal Lock. Make sure that sealing gasket is
properly seated. (See Figure 2)
4. Secure the Cover over the Postal Lock from the rear using #8 T20
Screws.
5. Make sure Postal Lock Switch wires are routed through the wire egress
opening. (See inset of Figure 1)
6. Fasten to the gang box or wall through the Mounting Bracket and Trim
Panel using the hardware specified in the CAPXS Installation Manual.
(See Figure 3)
7. Silicone Sealant can be used on the rear edge of the trim panel or along
the mating edge after installation.
8. Follow CAPXS manual to finish the installation. (See Figure 4)
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm. For
more information go to www.P65Warnings.ca.gov.

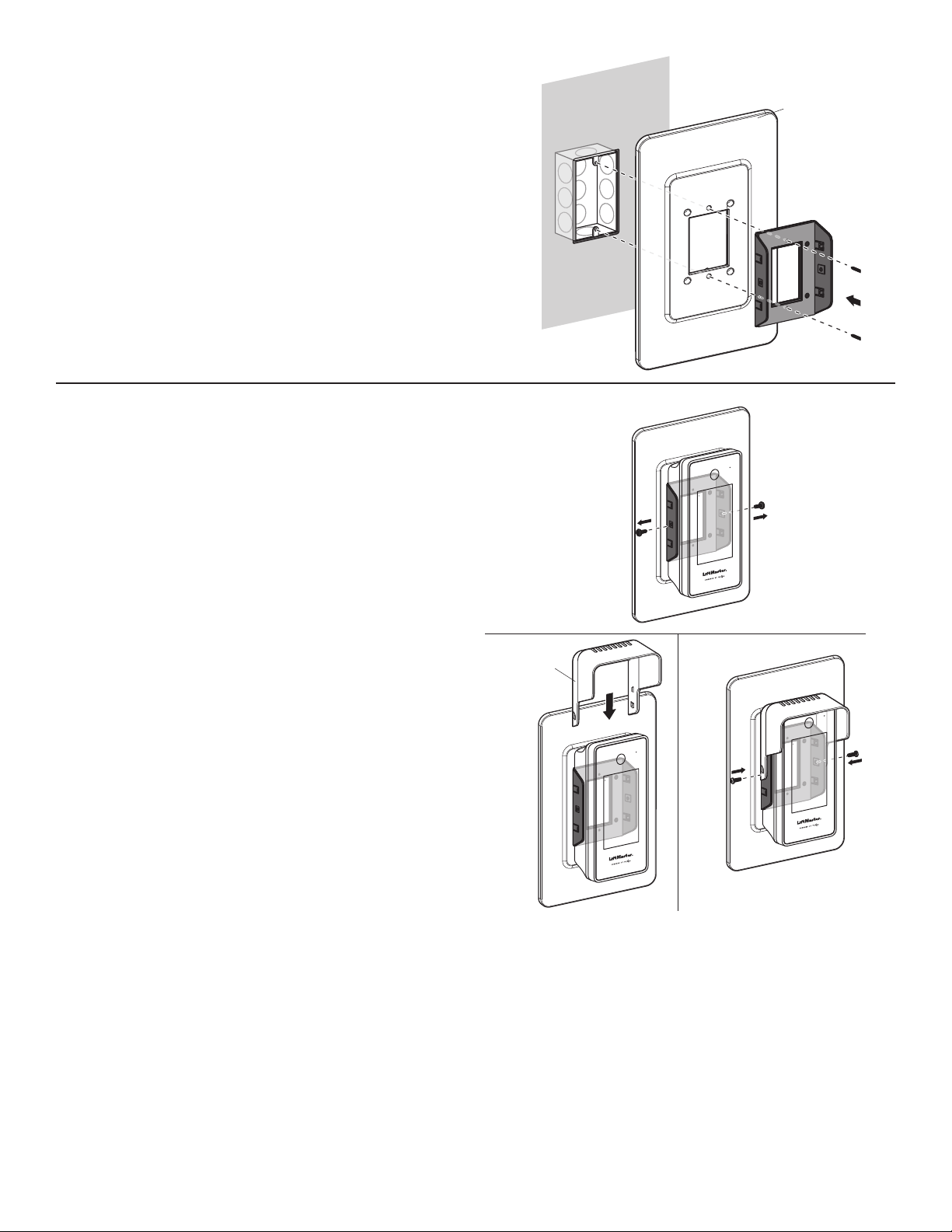

Figure 1
Figure 3
Figure 2
Figure 4
CAPXSTKPL
Postal Lock
(not provided)
Cover
CAPXS
Bracket
