MODEL: T513009
CORDLESS 3 IN 1 VACUUM CLEANER
USER MANUAL
2

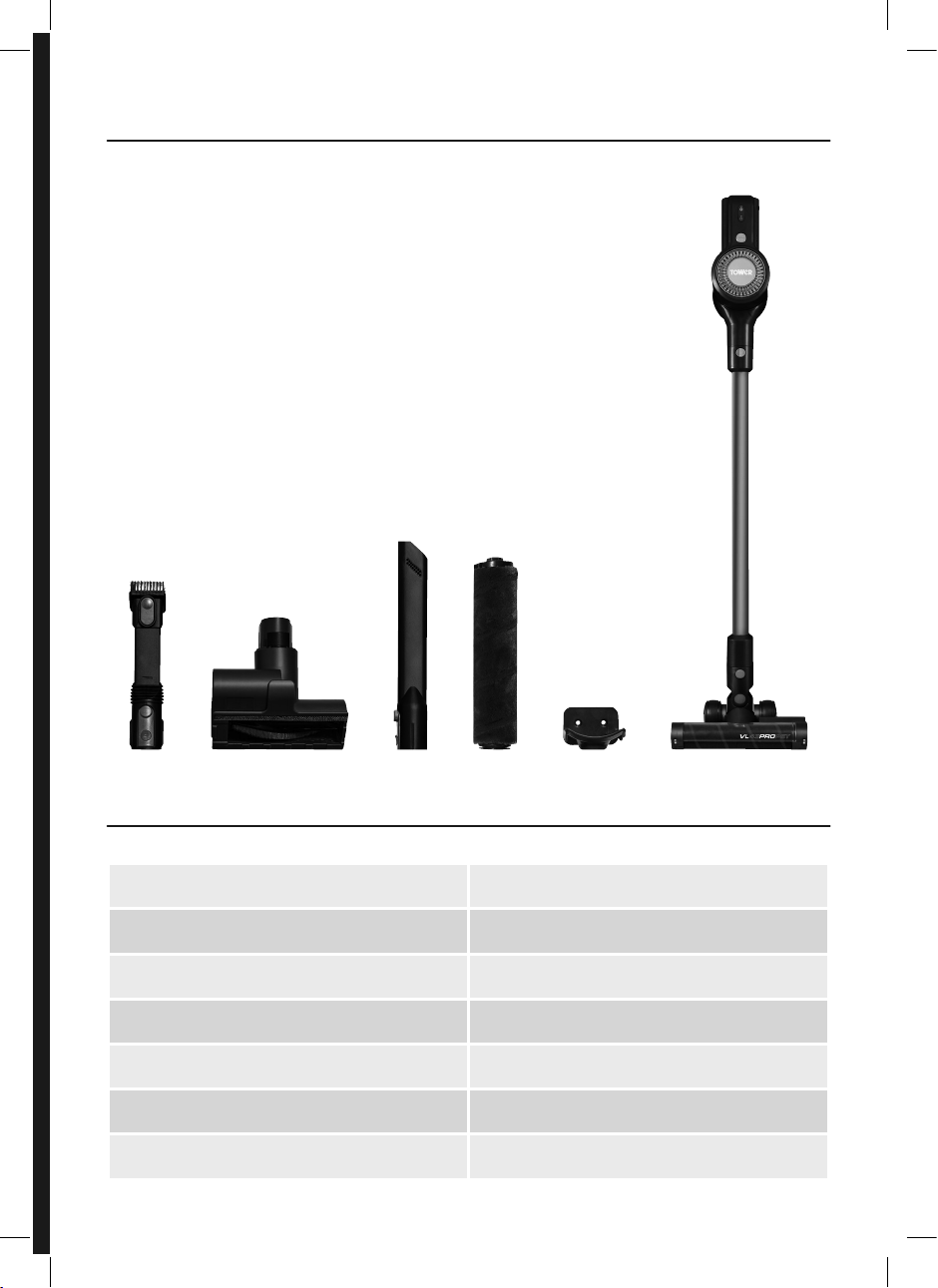

THIS BOX CONTAINS
3
SPECIFICATIONS
3
IMPORTANT SAFETY INFORMATION
4
• Key safety points 4
• General safety 4
• Whilst using the vacuum 5
• Power adapters 5
STRUCTURE OF YOUR APPLIANCE 6
• Features & functions 6
BEFORE FIRST USE
7
• Setting up 7
• Charging the unit 7
• Turning the appliance ON/OFF and speed selection 7
• Using the extension pole 7
• Using the accessories 8
• Installing the wall mount 8
CLEANING AND CARE 9
TROUBLESHOOTING
10
DISPOSAL OF THE UNIT 11
CUSTOMER SUPPORT 11
TABLE OF CONTENTS
3
THIS BOX CONTAINS
SPECIFICATIONS
RATED VOLTAGE AC 100 - 240V
FREQUENCY 50/60Hz
POWER CONSUMPTION 150W
CHARGING TIME Approx 4. Hours
RUN TIME Approx 35. Minutes on lowest setting
DIMENSIONS (MM) H: 1080 x W: 240 x D: 113mm
WEIGHT 1.3Kg
Instruction manual
3-in-1 vacuum cleaner
Battery pack
AC adaptor
Filter
Brush tool
Turbo pet tool
Crevice tool
Riveted brush bar & Foam brush bar
Wall mounting kit
4
Please read these safety NOTES carefully
BEFORE using your Tower appliance.
These warnings have been provided in the
interest of safety. Basic safety precautions
should always be followed including the
following:
KEY SAFETY POINTS
This product is tted with a thermal
cut-out, which will activate if the motor
overheats due to blocked air inlets. If the
appliance cuts out, allow it to cool for 1
hour, then empty the dust container and
clean all of the lters.
• DO NOT use the appliance without the
dust container lter in place.
• Use extra care when cleaning on stairs.
GENERAL SAFETY
• DO NOT immerse cords, plugs, kettle
base, kettle or any part of the appliance
in water or any other liquid.
• Close supervision is necessary when any
appliance is used by or near children.
• Children should not play with the
appliance.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• Cleaning and user maintenance should
not be undertaken by children without
supervision.
• Take care when any appliance is used
near pets.
• If the supply cord or appliance is
damaged, stop using the appliance
immediately and seek advice from the
manufacturer, its service agent or a
similarly qualied person.
• Switch off and unplug before tting
or removing tools/ attachments, once
charged and before cleaning.
• The use of accessory attachments is
not recommended by the appliance
manufacturer apart from those supplied
with this product.
• CAUTION: Ensure that the vacuum is
switched off before removing
it from its base.
• This appliance is for household use only.
• DO NOT use the appliance outdoors.
• DO NOT use this appliance for anything
other than its intended use.
• This appliance is intended to be used
in household and similar applications
such as: Staff kitchen areas in shops,
ofces and other working environments;
by clients in hotels, motels and other
residential type environments; farm
houses; bed and breakfast type
environments.
It is important that this instruction
manual is retained for future reference.
If the appliance is given to someone
else, it should always be accompanied
by these operating instructions, as they
form an integral part of the appliance.
IMPORTANT SAFETY INFORMATION
5
WHILST USING THE VACUUM
• Not suitable for carpets with long bres
as the bristles will damage the bres.
• Keep the vacuum cleaner moving over
the carpet surface at all times to avoid
damaging the carpet bres.
• DO NOT handle the appliance or plug
with wet hands.
• Keep hair, loose clothing, fingers and all
body parts away from moving parts.
• DO NOT pick up anything that is
burning or smoking such as cigarettes,
matches or hot ashes.
• DO NOT vacuum any large, sharp, or
broken objects, such as pieces of glass.
• DO NOT vacuum water or any other
liquid.
POWER ADAPTERS
WARNING! NEVER attempt to open any
part of the power adaptor or plug as you
risk getting an electric shock.
Only use the power adapter that is
supplied with your product.
You must always connect the power
adapter to the product before connecting
to the mains power supply.
The power adapter must be used indoors
only, and must not be subjected to damp
conditions.
The power adapter does not have any user
serviceable parts.
If in doubt, consult a qualied electrician
who will be pleased to do this for you.
If you need to remove the plug, disconnect
it from the mains and then cut it off of the
mains lead and immediately dispose of it
in a safe manner. Never attempt to reuse
the plug or insert it into a socket outlet, as
there is a danger of an electric shock.
6

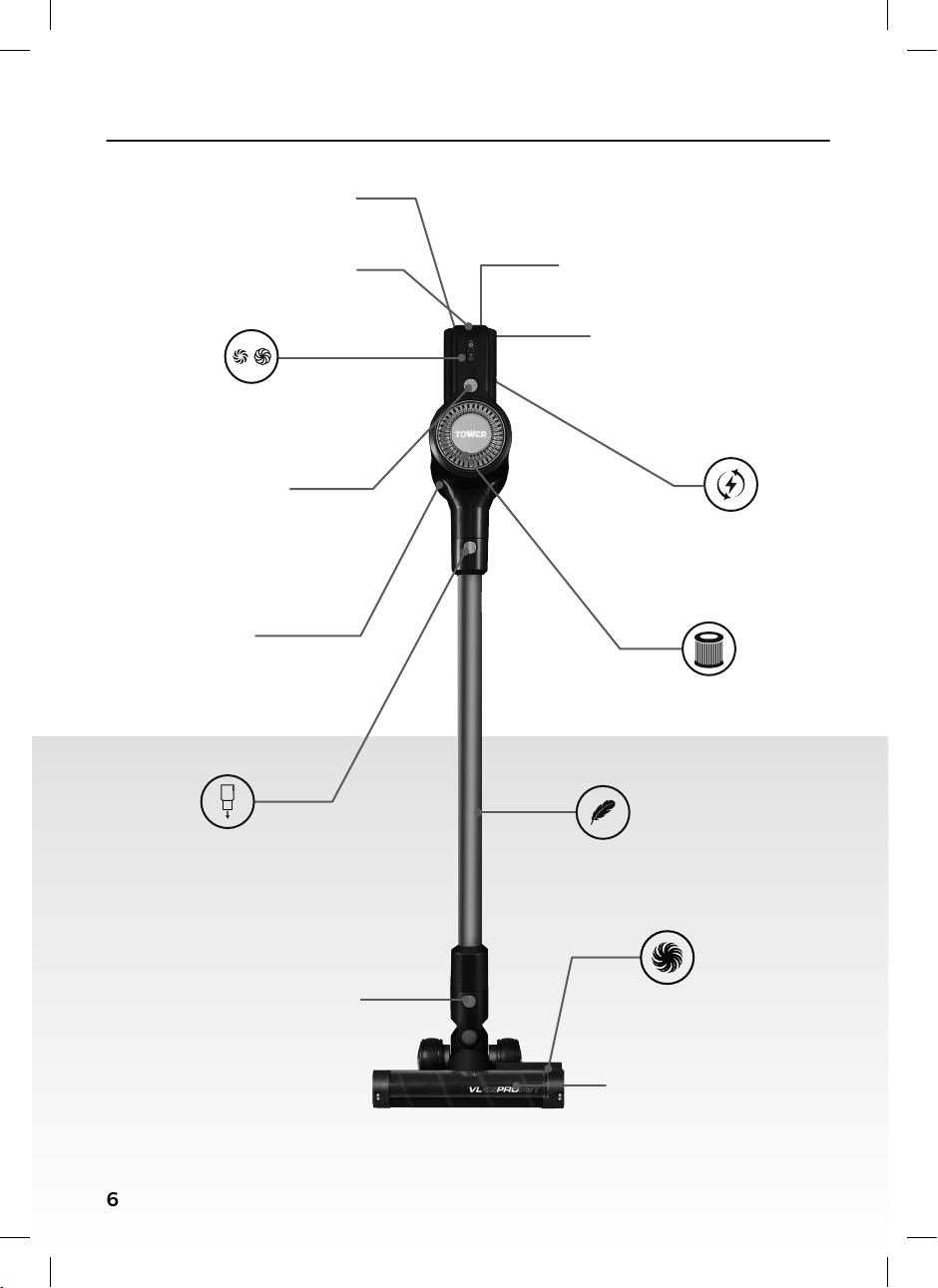

STRUCTURE OF YOUR APPLIANCE
Rechargeable
22.2V Li-Ion
Batteries
Battery Pack
Battery Release
Switch
Charging Port
Detachable
Handheld
2 Speed
Settings
Anti-Allergy
HEPA 13 Filtration
Lightweight
Tube
Floor Head
Release Button
Dust Tank
Power ON/OFF
Filter
Release Button
All Floor
Brush Bar
Anti-Tangle
Floor Head
7
SETTING UP
1. Remove your appliance from the
packaging.
2. Check that there is no visible damage to
the body.
3. Check that all listed parts are present.
4. Remove any stickers or labels from
the appliance. DO NOT remove any
warnings.
5. Dispose of the packaging in a
responsible manner.
6. Charge the rechargeable battery.
CHARGING THE UNIT
1. This unit can be charged directly from
the mains using the included mains
adaptor.
2. Connect the adaptor’s jack to the unit’s
charging port and plug the other end
into an active mains socket, ensuring
the socket switch is turned to the ON
position.
3. During charging the 3 LED indicators
illuminate incrementally. The unit is
fully charged when all the lights are
illuminated.
4. To disconnect the battery from the unit,
press the battery release switch and
slide the battery up and away from the
unit.
5. To replace the battery, slide it back in to
place until there is an audible click.
TURNING THE APPLIANCE
ON/OFF AND SPEED SELECTION
1. Once the appliance is fully charged,
press the On/Off/Speed Selection
button located on the handle to turn the
unit on. The unit will operate at the low
speed setting.
2. Press the ON/OFF/Speed Selection
button again while the unit is in
operation to select the turbo speed
setting.
3. Press the ON/OFF/Speed Selection
button again while operating at the
turbo speed setting to turn the unit off.
USING THE EXTENSION POLE
1. To connect the pole to the vacuum
cleaner, push it into the corresponding
slot on the main body of the unit until it
locks into place.
2. To remove the extension pole and use
the vacuum cleaner as a handheld
cleaner, press the extension pole release
button on the main body of the unit and
pull the pole away.
CONNECTING AN ACCESSORY TO
THE EXTENSION POLE
Attach the accessory to the end of the
extension pole. Ensure the accessory clicks
in to place and is rmly connected before
turning on the appliance, to prevent it from
falling off whilst in use.
CONNECTING AN ACCESSORY TO
THE HANDHELD UNIT
Attach the accessory to the slot at the front
of the main body of the unit until it clicks
into place.
REMOVING ACCESSORIES
To remove an accessory, press the release
button on the accessory tool and pull it
away from the extension pole or main unit.
BEFORE FIRST USE
8
USING THE ACCESSORIES
This vacuum cleaner comes with a 2 in
1 Brush and Crevice tool and a Crevice
Nozzle for vacuuming corners and cleaning
delicate surfaces.
NOTE: Keep the brush free of bres, hairs,
and other objects that could impede
proper functioning. Always remove these
types of objects when the brush picks
them up.

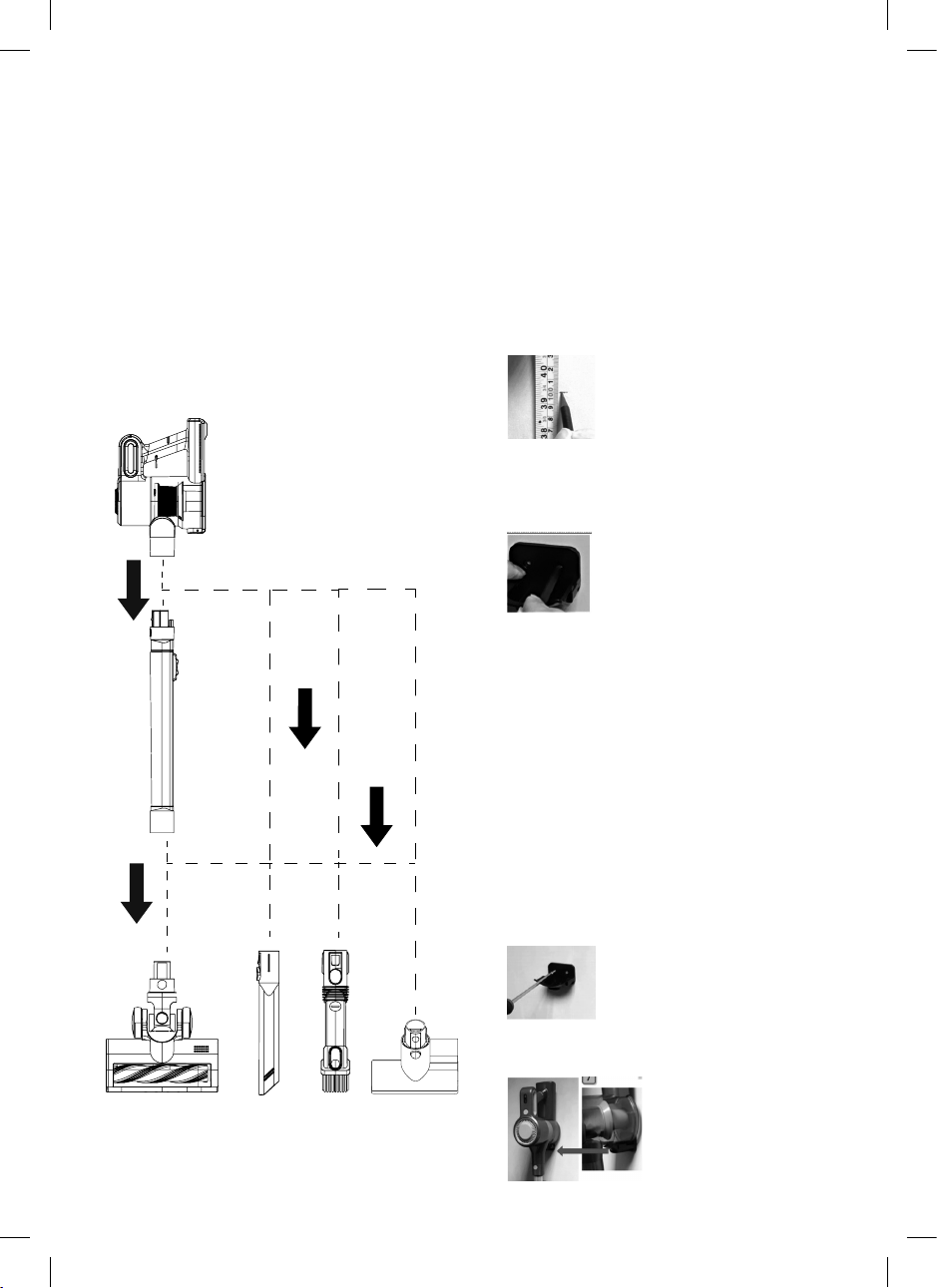

INSTALLING THE WALL MOUNT
1. To wall-mount the appliance, begin by
afxing the included wall mount to the
wall. To do this, begin by choosing an
adequate position and height, roughly
one metre above the ground, and mark
it on the wall with a pencil, as shown in
Figure 1.
2. Hold the wall bracket level to the
marking and mark the position of the
two screw holes through the bracket, as
shown in Figure 2.
3. Remove the wall bracket from the
wall and drill two holes over the pencil
markings with a 6mm masonry drill (not
included).
4. Once the two holes have been
appropriately drilled, insert one of the
included wall plugs into each hole.
Ensure each wall plug is rmly secured
into place before proceeding.
5. When both wall plugs have been
securely tted, place the wall bracket
over them and use the included screws
to afx it to the wall, as shown on Figure
3. Ensure the wall bracket is rmly
secured into place before proceeding.
6. Your appliance can now be wall-
mounted, as shown in Figure 4.
9
EMPTYING THE DUST TANK
Hold the unit over a bin and press the
dust tank quick release button. Empty the
contents of the dust tank. Once empty,
push the cover back into place until there
is an audible click.
CLEANING THE FILTER
1. Press the lter release button to open
the lter housing.
2. Remove the lter from the dust tank.
3. Tap it lightly against a dustbin or sink to
remove dust particles.
4. Wash the lter regularly to ensure
maximum suction performance. Allow
to dry thoroughly for at least 24 hours
before replacing it into the unit.
CLEANING THE UNIT BODY
1. Before cleaning the unit body, ensure
the unit is disconnected from the mains
supply and not in operation.
2. Use a damp cloth to clean the unit
body. Never use any abrasive cleaning
materials or solvents, as these could
cause damage to the surface of the unit.
WARNING! DO NOT allow any liquids into
the unit, as this could cause damage to
the electrical components and cause it to
malfunction.
CLEANING AND CARE
CLEANING THE FLOOR HEAD
BRUSH BAR
Remove uff, hairs and other dirt from the
brush regularly.
CLEARING BLOCKAGES
If the dust tank is overlled, the lter is
clogged up, or the vacuum picks up a
larger piece of debris, the vacuum may
become clogged.
Should this occur, carry out the following
steps to unclog the vacuum:
1. Check the dust tank and empty it if
necessary.
2. Check the lter for any debris and rinse
it under running water if necessary, as
detailed in the sections above.
3. Detach any attachments from the unit
and check for blockages.
STORING THE APPLIANCE
1. Store the appliance in a cool, dry place,
preferably inside its original packaging,
and out of the reach of children.
10
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
The vacuum will not
work.
The battery is low.
Ensure the vacuum cleaner is
fully charged.
Blockage to the dust tank
or lter.
Check that there are no
blockages to the dust tank
or lter and remove as
necessary.
The motor protective
thermostat
has kicked in.
Allow the unit to cool for 1
hour, then empty the dust
tank and clean all of the
lters.
The vacuum will not
pick-up or the suction
power is weak.
The dust container is
full or the lter needs
cleaning.
Empty the dust container and
clean the lter.
Potential blockages in the
dust tank or lter.
Check for blockages and clean
the lter and dust tank.
Dust is escaping from
the vacuum.
The lter may installed
incorrectly.
Ensure the lter is correctly
installed inside the unit.
dust container may be
full.
Empty the dust container and
reassemble the lter system.
There is a strange
noise coming from the
vacuum.
The airow may be
restricted or blocked.
Check for blockages and clean
the lter and pole.
TROUBLESHOOTING
11
Appliances bearing the symbol shown
here may not be disposed of in domestic
rubbish. You are required to dispose of old
electrical and electronic appliances like
this separately.
Please visit www.recycle-more.co.uk
or www.recyclenow.co.uk for access
to information about the recycling of
electrical items.
Please visit www.weeeireland.ie for access
to information about the recycling of
electrical items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must
be recycled, rather than taken to landll.
Please arrange to take this appliance to
your local Civic Amenity site for recycling,
once it has reached the end of its life.
DISPOSAL OF THE UNIT
If you have any questions or concerns about your new product,
please contact our helpful Customer Support Team:
Spare part replacements and accessories are available to purchase via:
+44 (0) 333 220 6066
www.towerhousewares.co.uk
Please have your Model No. available. This can be found on the front
cover of this instruction manual and on the appliance’s rating label.
SPARE PARTS / CUSTOMER SUPPORT
12
We hope you enjoy your appliance for many years...
This product is guaranteed for 12 months
from the date of original purchase.
If any defect arises due to faulty
materials of workmanship, the faulty
products must be returned to the place
of purchase.
Refund or replacement is at the
discretion of the retailer.
THE FOLLOWING CONDITIONS APPLY:
The product must be returned to the
retailer with proof of purchase or a
receipt.
The product must be installed and used
in accordance with the instructions
contained in this instruction guide.
It must be used only for domestic
purposes.
It does not cover wear and tear, damage,
misuse or consumable parts.
Tower has limited liability for incidental
or consequential loss or damage.
This guarantee is valid in the UK and
Eire only.
The standard one year guarantee is only
extended to the maximum available
for each particular product upon
registration of the product within
28 days of purchase. If you do not register
the product with us within the 28 day
period, your product is guaranteed for
1 year only.
To validate your extended warranty,
please visit www.towerhousewares.
co.uk and register with us online.
Please note that length of extended
warranty offered is dependent on
product type and that each qualifying
product needs to be registered
individually in order to extend its
warranty past the standard 1 year.
Extended warranty is only valid with
proof of purchase or receipt.
Your warranty becomes void should you
decide to use non Tower spare parts.
Spare parts can be purchased from
www.towerhousewares.co.uk
Or call our Customer Support Team on:
+44 (0) 333 220 6066
YEAR
GUARANTEE
3
