SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY
T513005/T513005BLG
XEC20 PLUS
Corded
3 in 1 Vacuum Cleaner
2
This box contains:
Instruction Manual
Vacuum Cleaner
Crevice and Brush Tool
2-in-1 Floorhead
Wall Mount
1. Outlet HEPA filter
2. ON/OFF switch
3. Electrical cable
4. Inlet HEPA filter
5. Dust tank release button
6. Connecting tube
7. 2-in-1 floorhead
Specifications:
3
4
5
6
1
2
7
Technical Data:
Model: T513005/ T513005BLG
Input: 220-240V~
Frequency: 50-60Hz
Product Power: 600W
3
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish.
You are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the
recycling of electrical items.
Please visit www.weeeireland.ie for access to information about the recycling of
electrical items purchased in Ireland.
The WEEE directive, introduced in August 2006, states that all electrical items must be
recycled, rather than taken to landfill.
Please arrange to take this appliance to your local Civic Amenity site for recycling,
once it has reached the end of its life.
Wiring Safety for UK Use Only
IMPORTANT
As the colours in the mains lead of this
appliance may not correspond with the
coloured markings identifying the terminals in
your plug, please proceed as follows:
The wires in the mains lead are coloured in
accordance with the following code:
Blue neutral [N] Brown live [L]
Plug Fitting Details (Where Applicable).
The wire coloured blue is the neutral and must
be connected to the terminal marked [N] or
coloured black.
The wire coloured brown is the live wire and
must be connected to the terminal marked [L]
or coloured red.
On no account must either the brown or the
blue wire be connected to the [EARTH] terminal
.
Always ensure that the cord grip is fastened
correctly.
The plug must be fitted with a fuse of the same
rating already fitted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualified electrician who
will be pleased to do this for you.
Non-Rewireable Mains Plug.
If your appliance is supplied with a non-
rewireable plug fitted to the mains lead and
should the fuse need replacing, you must use
an ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualified electrician who
will be pleased to do this for you.
If you need to remove the plug – disconnect
it from the mains – and then cut it off of the
mains lead and immediately dispose of it in a
safe manner. Never attempt to reuse the plug or
insert it into a socket outlet as there is a danger
of an electric shock.
Fuse
Neutral
(Blue)
Live
(Brown)
WARNING:
This appliance is double insulated.
Do not connect any wire to the earth
terminal.
4
Please read these notes carefully BEFORE using your
Tower appliance
Important Safety Information:
• Check that the voltage
of the main circuit
corresponds with the
rating of the appliance
before operating.
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and
seek advice from the
manufacturer, its service
agent or a similarly
qualified person.
• DO NOT let the cord
hang over the edge of a
table or counter or let it
come into contact with
any hot surfaces.
• DO NOT place the
appliance near a heat
source.
• •The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those
supplied with this
product.
• DO NOT pull the plug
out by the cord as this
may damage the plug
and/or the cable.
• Switch off and
unplug before fitting
or removing tools/
attachments, once
charged and before
cleaning.
• Close supervision is
necessary when any
appliance is used by or
near children.
• Children should not play
with the appliance.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction
concerning use of the
appliance in a safe way
and understand the
hazards involved.
• Cleaning and user
maintenance should
not be undertaken
by children without
supervision.
• Take care when any
appliance is used near
pets.
• Not suitable for carpets
with long fibres as the
bristles will damage the
fibres.
5
• Keep the vacuum
cleaner moving over
the carpet surface
at all times to avoid
damaging the carpet
fibres.
• DO NOT use this
product for anything
other than its intended
use.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or
any other liquid.
• This appliance is for
household use only.
• DO NOT use the
appliance outdoors.
• DO NOT handle the
appliance or plug with
wet hands.
• Keep hair, loose
clothing, fingers and all
body parts away from
moving parts.
• DO NOT use to pick up
hazardous or abrasive
liquids (solvents,
corrosive products,
detergents, etc),
flammable liquids such
as alcohol, gasoline or
use in an area where
they might be present.
• DO NOT use the
appliance without the
dust container filter in
place.
• DO NOT pick up
anything that is burning
or smoking such as
cigarettes, matches or
hot ashes.
• DO NOT vacuum any
large, sharp, or broken
objects, such as pieces
of glass.
• DO NOT vacuum water
or any other liquid.
• Use extra care when
cleaning on stairs.
• Use only manufacturer’s
recommended
accessories.
• This product is fitted
with a thermal cut-out,
which will activate if the
motor overheats due
to blocked air inlets. If
the appliance cuts out,
allow it to cool for 1 hour,
then empty the dust
container and clean all
of the filters.
• In the unlikely event
the appliance develops
a fault, stop using
it immediately and
seek advice from the
Customer Support
Team:
+44 (0) 333 220 6066
6
Before First Use:
Read all instructions and safety information carefully before first use. Please retain this information
for future reference.
1. Remove the product from the box.
2. Remove any packaging from the product. Check for any visible signs of damage to the
appliance or adaptor.
3. Please retain all packaging until you have checked and counted all the parts and the contents
against the parts list.
4. Dispose of the packaging in a responsible manner.
Wall-Mounting the Appliance:
This unit can be wall-mounted when not in use.
CAUTION! When drilling holes in the wall, take extreme care not to damage any concealed cables
or pipes on the wall, as this could cause a hazard. If in doubt, seek out a qualified handyman to carry
out the procedure.

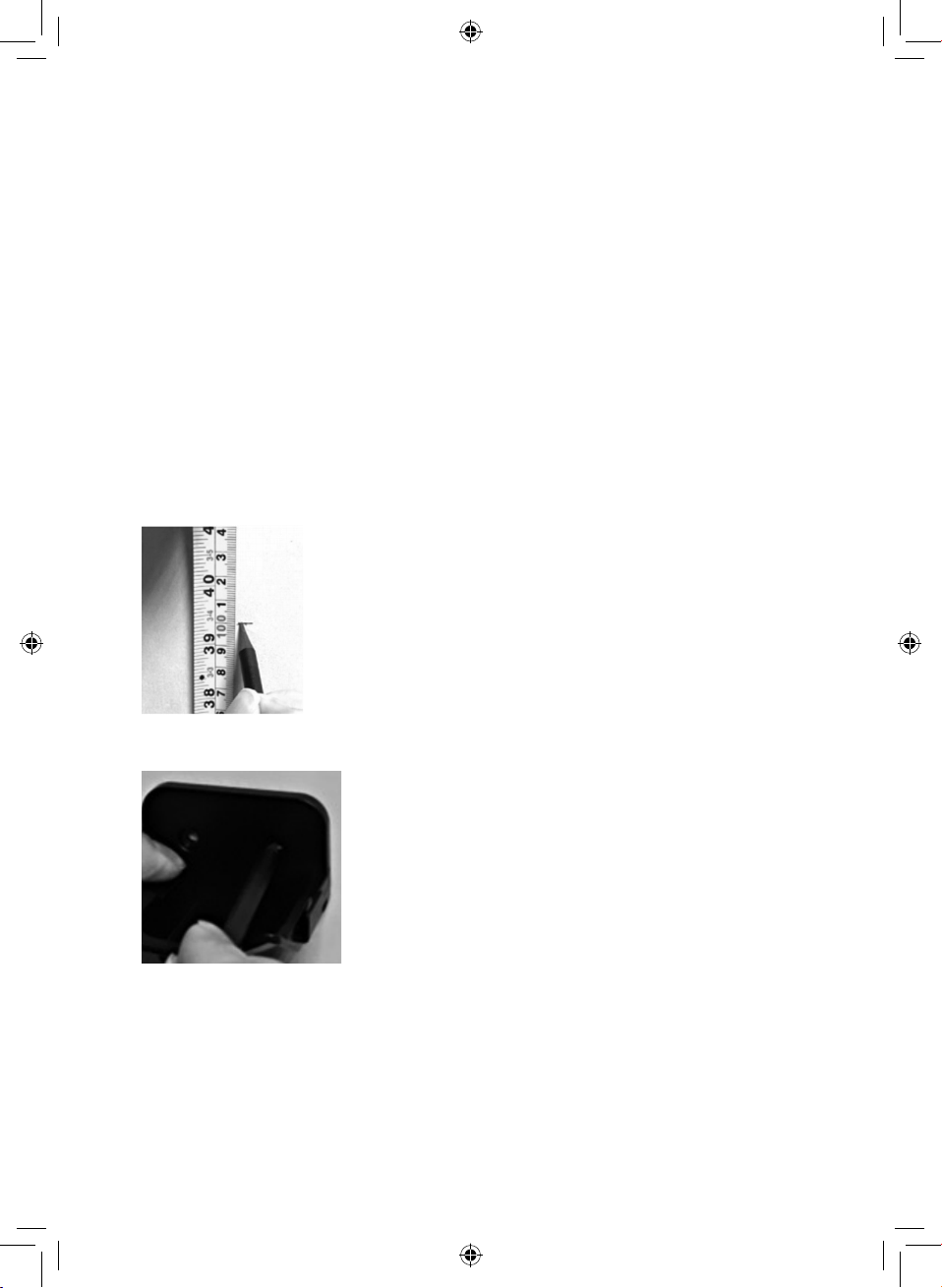

1. To wall-mount the appliance, begin by affixing the included wall mount to the wall. To do this,
begin by choosing an adequate position and height, roughly one metre above the ground, and
mark it on the wall with a pencil, as shown in Figure 1.
2. Hold the wall bracket level to the marking and mark the position of the two screw holes
through the bracket, as shown in Figure 2.
3. Remove the wall bracket from the wall and drill two holes over the pencil markings with a
6mm masonry drill (not included).
4. Once the two holes have been appropriately drilled, insert one of the included wall plugs into
each hole. Ensure each wall plug is firmly secured into place before proceeding.
7

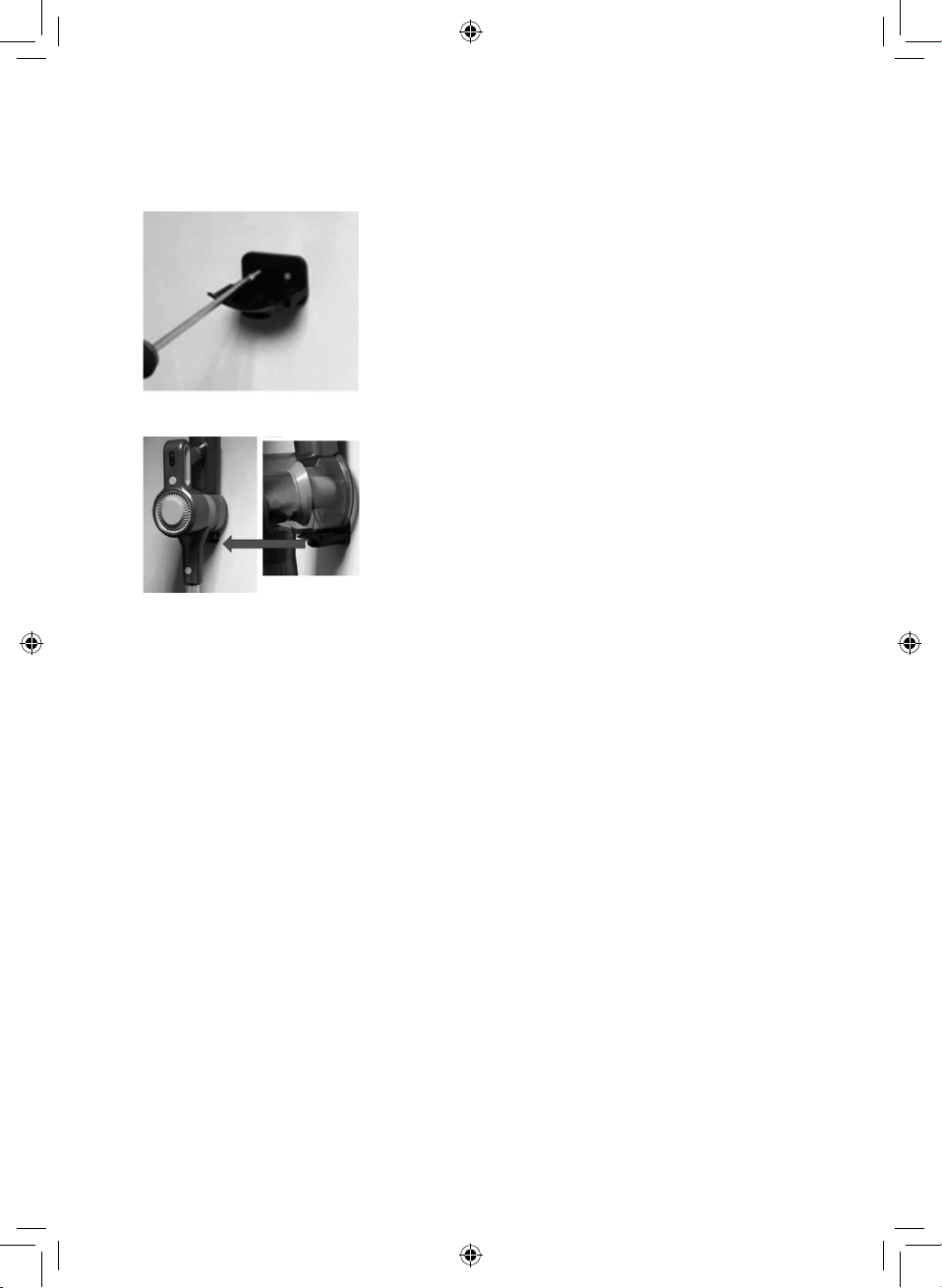

5. When both wall plugs have been securely fitted, place the wall bracket over them and use the
included screws to affix it to the wall, as shown on Figure 3. Ensure the wall bracket is firmly
secured into place before proceeding.
6. Your appliance can now be wall-mounted, as shown in Figure 4.
Turning the Appliance ON/OFF:
1. To use the appliance, begin by plugging it into a suitable mains outlet.
2. Once the appliance is plugged into the mains, press the ON/OFF button located on the handle
to turn the unit on.
3. Press this button again while the unit is in operation to turn it off.
Using the Floorhead:
This unit comes complete with a 2-in-1 floorhead, suitable for a wide variety of floors and surfaces.
• To connect the floorhead to the vacuum cleaner, push it into the corresponding slot on the
main body of the unit until it locks into place. Ensure the floorhead is securely attached to the
unit before attempting to use the vacuum cleaner.
Once the floorhead is securely attached to the unit, select the correct brush bar for the floor type, as
detailed below:
• Soft brush for smooth, hard surfaces such as wood, ceramic, tiles and marble;
• Hard brush for soft surfaces such as carpets and rugs.
To Change The Brush Bar:
• Slide the brush selector switch on the floorhead to change the brush bar at any time.
Note: Use only on short-haired carpet. It should NOT be used on long-haired carpets as the fibres
will damage the system.
To remove the floorhead and use the vacuum cleaner as a handheld cleaner, simply pull it out of
its slot and away from the main body of the unit. Ensure the unit is turned off before attempting to
detach the extension pole.
8
Using the Accessories:
This vacuum cleaner comes complete with a Crevice and Brush tool, for vacuuming corners and
cleaning delicate surfaces.
To use this accessory, simply attach it to the slot at the front of the main body of the unit until it
clicks into place. To remove the accessory, simply pull it out of its slot and away from the main body
of the unit.
Note: Keep the brush free of fibres, hairs, and other objects that could impede proper functioning.
Always remove these types of objects when the brush picks them up.
Troubleshooting
Problem Possible Solution
The vacuum will not
work
Ensure the vacuum cleaner is plugged into a mains outlet.
Check that there are no blockages to the dust tank or filter and remove
as necessary.
This appliance is equipped with a motor protective thermostat. If for
some reason it overheats, the thermostat will automatically turn the
suction motor off. Should this occur, allow it to cool for 1 hour, then
empty the dust container and clean all of the filters.
Vacuum will not
pick-up or suction
power is weak
The dust container may be full, or the filter may require cleaning. Empty
the dust container and clean the filter.
There may be blockages in the filter or dust tank. Check for blockages
and clean the filter and dust tank.
An attachment may have been installed which does not belong to
the vacuum cleaner. Make sure that all the attachments belong to
the model of vacuum cleaner that you are using. The use of accessory
attachments other than those supplied by the manufacturer is not
recommended.
Dust is escaping from
the vacuum
The filter may be installed incorrectly, or the dust container may be full.
Empty the dust container and reassemble the filter system.
There is a strange
noise coming from
the vacuum.
The airflow may be restricted or blocked. Check for blockages and clean
the filter and pole.
If the problem persists, contact the Customer Support team.
9
Cleaning & Care
Note: Ensure the appliance is turned off and unplugged from the mains before emptying the dust
tank.
Emptying the Dust Tank:
Hold the unit over a bin and press the dust tank release button. Empty the contents of the dust
tank. Once empty, push the cover back into place until there is an audible click.
Cleaning the Filter:
1. Press the filter release button to open the filter housing.
2. Remove the filter from the dust tank.
3. Tap it lightly against a dustbin or sink to remove particles.
4. Wash the filter regularly to ensure maximum suction performance. Allow to dry thoroughly
before replacing it into the unit.
Cleaning the Unit Body:
1. Before cleaning the unit body, ensure the unit is disconnected from the mains supply and not
in operation.
2. Use a damp cloth to clean the unit body. Never use any abrasive cleaning materials or solvents,
as these could cause damage to the surface of the unit.
WARNING! DO NOT allow any liquids into the unit, as this could cause damage to the electrical
components and cause it to malfunction.
Cleaning the Interchangeable floor head brush bar:
Remove the brush bar.
Remove fluff, hairs and other dirt from the brush.
Refit the brush bar.
Clearing Blockages:
If the dust tank is overfilled, the filter is clogged up, or the vacuum picks up a larger piece of debris,
the vacuum may become clogged.
Should this occur, carry out the following steps to unclog the vacuum:
1. Check the dust tank and empty it if necessary.
2. Check the filter for any debris and rinse it under running water if necessary, as detailed in the
sections above.
3. Detach any attachments from the unit and check for blockages.
Storing the Appliance:
1. Store the appliance in a cool, dry place, preferably inside its original packaging, and out of the
reach of children.
10
Notes
11
Notes
0821.V1
thank you!
We hope you enjoy your appliance for many years
This product is guaranteed for 12 months from the date of original purchase.
If any defect arises due to faulty materials of workmanship, the faulty products must be returned to
the place of purchase.
Refund or replacement is at the discretion of the retailer.
The Following Conditions Apply:
The product must be returned to the retailer with proof of purchase or a receipt.
The product must be installed and used in accordance with the instructions contained in this
instruction guide.
It must be used only for domestic purposes.
It does not cover wear and tear, damage, misuse or consumable parts.
Tower has limited liability for incidental or consequential loss or damage.
This guarantee is valid in the UK and Eire only.
The standard one year guarantee is only extended to the maximum available for each particular
product upon registration of the product within 28 days of purchase. If you do not register the
product with us within the 28 day period, your product is guaranteed for 1 year only.
To validate your extended warranty, please visit
www.towerhousewares.co.uk and register with us online.
Please note that length of extended warranty offered is dependent on product type and that each
qualifying product needs to be registered individually in order to extend its warranty past the
standard 1 year.
Extended warranty is only valid with proof of purchase or receipt.
Your warranty becomes void should you decide to use non Tower spare parts.
Spare parts can be purchased from
www.towerhousewares.co.uk
Should you have a problem with your appliance, or need any spare parts,
please call our Customer Support Team on:
+44 (0) 333 220 6066
