T513001
SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY
2
This box contains:
Instruction Manual
3 in 1 Vacuum Cleaner
2 in 1 Brush
Charging Base
Wall Mount
2 interchangeable floor head brush
bars
1. Speed control
2. Handle / Power ON/OFF
3. Dust tank release button
4. Pole release button
5. Pivot release button
6. Accessory release button
7. Floor head
Specifications:
2
3
4
5
6
7
1
Technical Data:
Description: F1PRO 29.6V Cordless 3-in-1 Vacuum Cleaner
Model: T513001
Adaptor Rating
Input: 100-240V AC, 50/60Hz
Output: 35.0V 500mA
Product rating: DC 29.6V 140W
Motorised floor head: DC 29.6V 10W
Description: F1PRO 29.6V Cordless 3-in-1 Vacuum Cleaner
Model: T113003
Adaptor Rating
Input: 100-240V AC, 50/60Hz
Output: 35.0V 500mA
Product rating: DC 29.6V 140W
Motorised floor head: DC 29.6V 10W
3
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish.
You are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the
recycling of electrical items.
Please visit www.weeeireland.ie for access to information about the recycling of
electrical items purchased in Ireland.
The WEEE directive, introduced in August 2006, states that all electrical items must be
recycled, rather than taken to landfill.
Please arrange to take this appliance to your local Civic Amenity site for recycling,
once it has reached the end of its life.
(Power adapters only)
Never open the power adapter, you risk getting an electric shock.
Only use the power adapter that is supplied with your product.
You must always connect the power adapter to the product before connecting to the mains power
supply.
The power adapter must be used indoors only, and must not be subjected to damp conditions.
The power adapter does not have any user serviceable parts.
If in doubt, consult a qualified electrician who will be pleased to do this for you.
If you need to remove the plug – disconnect it from the mains – and then cut it off of the mains lead
and immediately dispose of it in a safe manner. Never attempt to reuse the plug or insert it into a
socket outlet as there is a danger of an electric shock.
WARNING:
Do not attempt to open any part of the power adaptor or plug.
4
Please read these notes carefully BEFORE using your
Tower appliance
Important Safety Information:
• Check that the voltage
of the main circuit
corresponds with the
rating of the appliance
before operating.
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and
seek advice from the
manufacturer, its service
agent or a similarly
qualified person.
• DO NOT let the cord
hang over the edge of a
table or counter or let it
come into contact with
any hot surfaces.
• DO NOT carry the
appliance by the power
cord.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those
supplied with this
product. DO NOT use
extension cords with the
appliance.
• DO NOT pull the plug
out by the cord as this
may damage the plug
and/or the cable.
• Switch off at the wall
socket then remove the
plug from the socket
when not in use or
before cleaning.
• Switch off and
unplug before fitting
or removing tools/
attachments, after use
and before cleaning.
• Close supervision is
necessary when any
appliance is used by or
near children.
• Children should not play
with the appliance.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction
concerning use of the
appliance in a safe way
and understand the
hazards involved.
• Cleaning and user
maintenance should
not be undertaken
by children without
supervision.
5
• Take care when any
appliance is used near
pets.
• Not suitable for carpets
with long fibres as the
bristles will damage the
fibres.
• Keep the vacuum
cleaner moving over
the carpet surface
at all times to avoid
damaging the carpet
fibres.
• DO NOT use this
product for anything
other than its intended
use.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or
any other liquid.
• This appliance is for
household use only.
• DO NOT use the
appliance outdoors.
• Keep hair, loose
clothing, fingers and all
body parts away from
moving parts.
• DO NOT use to pick up
flammable liquids such
as gasoline or use in an
area where they might
be present.
• DO NOT use the
appliance without the
dust container filter in
place.
• DO NOT pick up
anything that is burning
or smoking such as
cigarettes, matches or
hot ashes.
• Use extra care when
cleaning on stairs.
• Use only manufacturer’s
recommended
accessories.
• DO NOT pull cord, use
cord as a handle, close
a door on cord, or pull
cord around sharp
edges or corners.
• DO NOT run vacuum
cleaner over the cord.
Keep cord away from
heated surfaces.
• This product is fitted
with a thermal cut-out,
which will activate if the
motor overheats due
to blocked air inlets. If
the appliance cuts out,
allow it to cool for 1 hour,
then empty the dust
container and clean all
of the filters.
• In the unlikely event
the appliance develops
a fault, stop using
it immediately and
seek advice from the
Customer Support
Team:
+44 (0) 333 220 6066
6
Before First Use:
Read all instructions and safety information carefully before first use. Please retain this information
for future reference.
1. Remove the product f rom the box.
2. Remove any packaging f rom the product.
3. Please retain all packaging until you have checked and counted all the parts and the contents
against the parts list.
4. Charge the rechargeable battery
5. Dispose of the packaging in a responsible manner.
Installing the Charging Base:
6. To install the charging base, begin by inserting the pin end of the DC adaptor into the slot of
the charging base, as shown in Fig. 1.
7. Once this pin has been inserted, place the base against a wall and use two screws to fix it into
place, as shown in Fig. 2.
8. Your charging base is now ready for use.
Charging the Unit:
1. The vacuum will not be charged when unpacked and so must be charged before first use.
Before charging, ensure that the appliance is switched off.
2. While in use, the unit’s battery level is represented by three LED indicators located on the main
body. These indicators will light up when the vacuum is charged, and will progressively go
out one by one as the vacuum loses charge. When the battery power is fully drained, the last
of these indicators will flash for about 30 seconds to a minute, and the unit will stop working.
When this occurs, it is recommended that you charge your vacuum cleaner immediately.
3. To charge the vacuum cleaner, place the unit on the charging base, ensuring it is firmly
secured into place. Then, connect the charger mains plug to a suitable mains outlet, as shown
in Fig. 3. A blue LED indicator will light up and flash to indicate the unit is charging.
4. The vacuum is fully charged when all three of the LED indicators on the main body of the unit
are illuminated. This usually takes between 4 and 5 hours.
5. Once the vacuum is fully charged, release it from the base by pushing the release button on
the base and pulling the unit loose, as shown in Fig. 4.

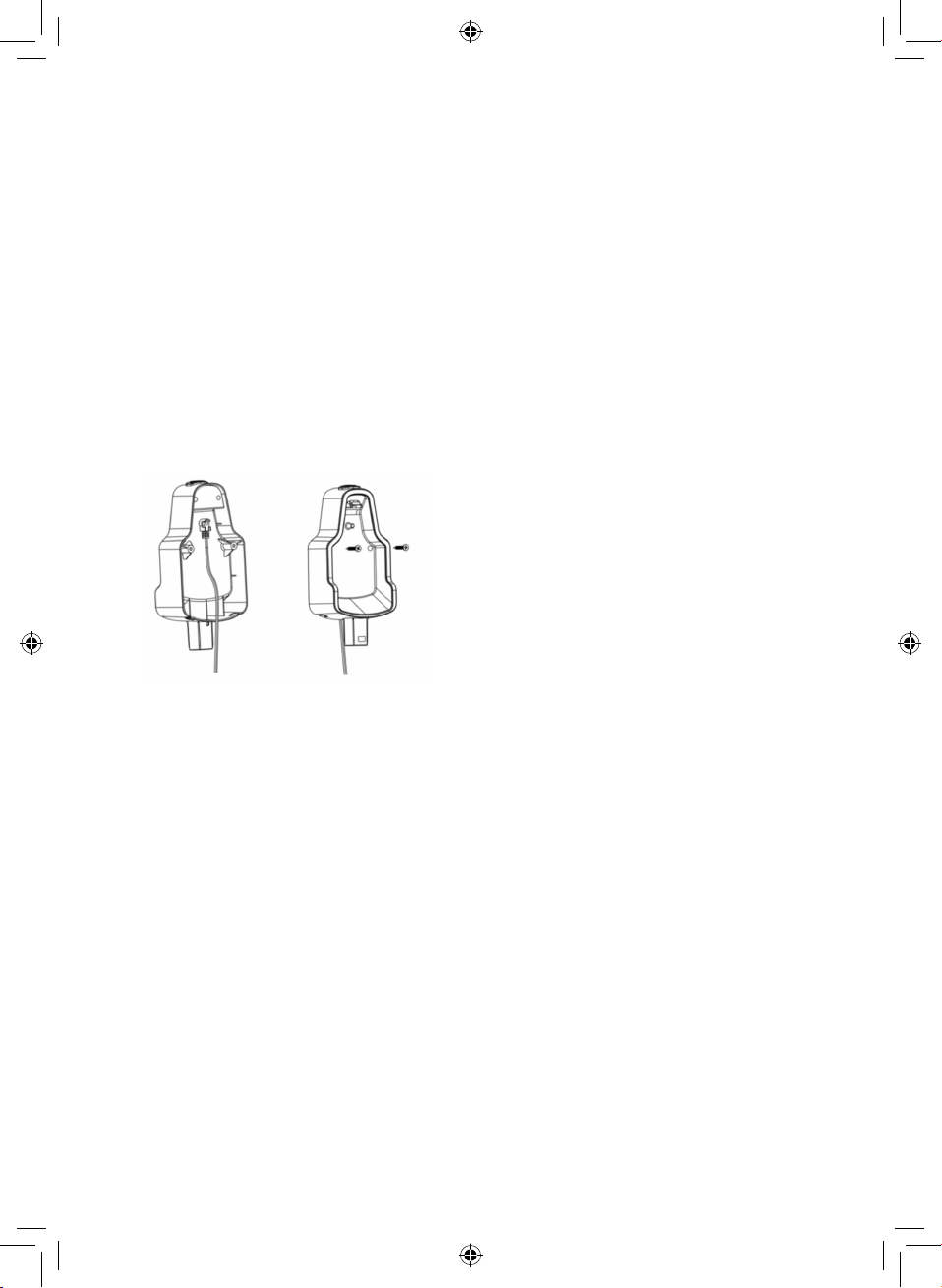

Fig. 1 Fig. 2
7
Assembly:
1. Carefully unpack the vacuum cleaner. Ensure that all parts are included before discarding the
packaging.
2. Insert the vacuum cleaner handle into the vacuum pole, ensuring the two locking pins are
correctly aligned. Push the two parts together until you hear them click into place.
3. Connect the vacuum pole to the power brush, ensuring the two locking pins are correctly
aligned. Push the two parts together until you hear them click into place.
4. To detach the handle, push the button at the top of the pole and pull the upper part firmly
away from the lower portion of the vacuum cleaner.
Note: Keep the brushes free of fibres, hairs, and other objects that could impede proper
functioning. Always remove these types of objects when the brush picks them up.
Using the Stick Vacuum Cleaner:
Use the stick vacuum cleaner on smooth surfaces such as wood, ceramic, tiles and marble or on
short-haired carpet. It should NOT be used on long-haired carpets as the fibres will damage the
system.
When using the stick, always make sure the dust compartment is attached to the handheld
vacuum cleaner.
1. Select the correct interchangeable brush bar for the floor head:
Soft brush for hard surfaces.
Hard brush for soft surfaces such as carpets and rugs.
To change the brush bar lift the lever at the edge of the underside of the floor head. Lift out the
brush bar and replace with the required brush bar. Push the lever back down to secure into
place.
2. Connect the handheld vacuum cleaner to the stick, ensuring it clicks into place.
3. Press and hold the On/Off button on the stick for at least 3 seconds to switch on the appliance.
The LED indicators on the body of the unit will light up to indicate it is turned on.
4. Press the speed control button (labelled ‘MAX’) at the top of the unit to alternate between high
and low speed, as required.
5. After use, short-press the On/Off button to switch off the appliance.
Note: Use the handheld vacuum cleaner without the stick to vacuum small and hard-to-reach
areas, such as tables, furniture or car seats.

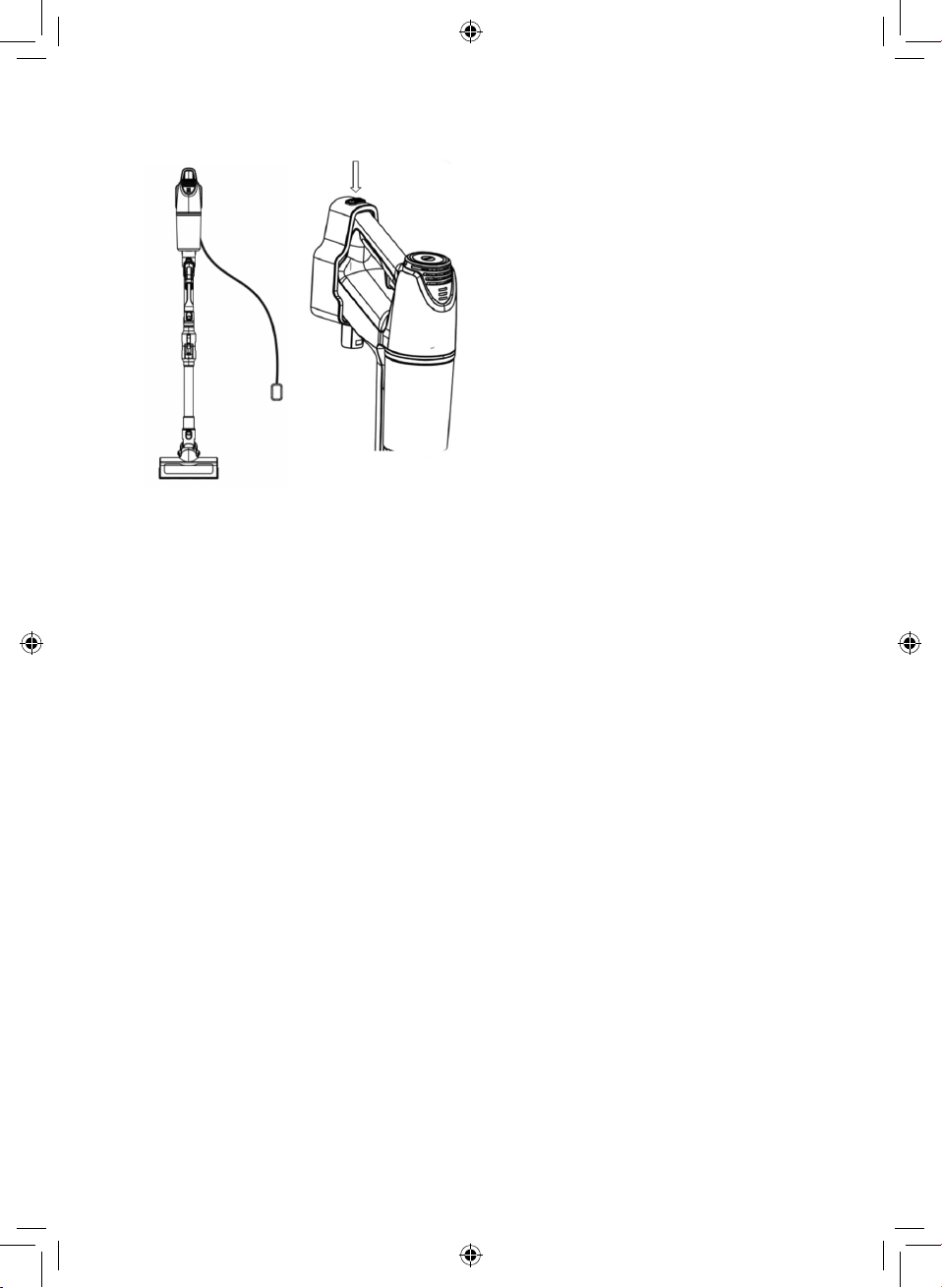

Fig. 3 Fig. 4
8
6. If the handheld vacuum cleaner is placed in the stick, press the On/Off button on the stick to
switch off the appliance before you remove the handheld vacuum cleaner.
7. Press the handheld stick release button, located at the top of the vacuum pole, and remove
the handheld vacuum cleaner from the stick.
8. Press and hold the On/Off button on the stick for at least 3 seconds to switch on the appliance.
The LED indicators on the body of the unit will light up to indicate it is turned on.
9. Press the speed control button (labelled ‘MAX’) at the top of the unit to alternate between high
and low speed, as required.
10. After use, short-press the on/off button to switch off the appliance.
Connecting the Accessories:
1. The handheld vacuum cleaner comes complete with a 2-in-1 bristle brush and crevice tool,
ideal for vacuuming corners, narrow gaps, upholstery and delicate surfaces.
2. To attach this accessory to the vacuum cleaner, push it into the main body of the unit until it
clicks into place.
3. To remove this accessory, push the accessory release button, located at the bottom of the
vacuum pole, and pull the accessory firmly away from it until it detaches.
Note: Keep the brushes free of fibres, hairs, and other objects that could impede proper
functioning. Always remove them when it occurs.
Using the Foldable Hose:
1. This vacuum cleaner features a foldable hose inside the pole, for easy storage. To release the
pole and fold the vacuum cleaner, press the ‘T’-shaped button on the handle of the unit.
2. Before next use, push the pole back to an upright position until it clicks into place. Your
vacuum cleaner is now ready for normal use.
Troubleshooting
Problem Possible Solution
The vacuum will not
work
The vacuum may have run out of charge. Charge fully.
This vacuum cleaner is equipped with a motor protective thermostat.
If for some reason your vacuum overheats, the thermostat will
automatically turn the suction motor off. Should this occur, allow it to
cool for 1 hour, then empty the dust container and clean all of the filters.
Vacuum will not pick-
up or suction power
is weak
The dust container may be full, or the filters may require cleaning.
Empty the dust container and clean the filters.
Check to make sure the Brush roller is clear of fibres.
Dust is escaping from
the vacuum
The filter may not be installed correctly, or the dust container may be
full. Empty the dust container and reassemble the filter system.
Cleaning & Care
Emptying the Dust Tank:
3. To empty the dust tank, begin by pulling the release button on the bottom of the tank to
separate it from the main unit.
4. Pull the inlet filter out of the dust tank and shake the tank’s contents into a dustbin
5. Once you have emptied the dust tank, fit the filter back into place and affix the dust tank back
onto the body of the unit until it clicks into place. Use the recessed area at the edge of the tank
as a guide for how to position the tank when re-fitting it into place.
9
Cleaning the Unit Body:
1. Before cleaning the unit body, ensure the unit is disconnected from the mains supply and not
in operation.
2. Use a damp cloth to clean the unit body. Never use any abrasive cleaning materials or solvents,
as these could cause damage to the surface of the unit.
WARNING! DO NOT allow any liquids into the unit, as this could cause damage to the electrical
components and cause it to malfunction.
Cleaning the roller brush:
1. Lift the lever on the edge of the underside of the floor head and pull out the brush bar.
2. Remove fluff, hairs and other dirt from the brush, then fit it back into place.
3. Push the lever back down to lock the brush bar in place.
Storing the Appliance:
1. When not using the vacuum for extended periods of time, store the unit in a cool, dry place,
preferably inside its original packaging.
10
Notes
11
Notes
0621.V1
thank you!
We hope you enjoy your appliance for many years
This product is guaranteed for 12 months from the date of original purchase.
If any defect arises due to faulty materials of workmanship, the faulty products must be returned to
the place of purchase.
Refund or replacement is at the discretion of the retailer.
The Following Conditions Apply:
The product must be returned to the retailer with proof of purchase or a receipt.
The product must be installed and used in accordance with the instructions contained in this
instruction guide.
It must be used only for domestic purposes.
It does not cover wear and tear, damage, misuse or consumable parts.
Tower has limited liability for incidental or consequential loss or damage.
This guarantee is valid in the UK and Eire only.
The standard one year guarantee is only extended to the maximum available for each particular
product upon registration of the product within 28 days of purchase. If you do not register the
product with us within the 28 day period, your product is guaranteed for 1 year only.
To validate your extended warranty, please visit
www.towerhousewares.co.uk and register with us online.
Please note that length of extended warranty offered is dependent on product type and that each
qualifying product needs to be registered individually in order to extend its warranty past the
standard 1 year.
Extended warranty is only valid with proof of purchase or receipt.
Your warranty becomes void should you decide to use non Tower spare parts.
Spare parts can be purchased from
www.towerhousewares.co.uk
Should you have a problem with your appliance, or need any spare parts,
please call our Customer Support Team on:
+44 (0) 333 220 6066
