20” Indoor/Outdoor Ceiling Fan
SKU Number: 355-3310
Model Number: CF35002
Questions, problems, missing parts?
Please email us at [email protected],
or call us at 1-888-722-5089.
S

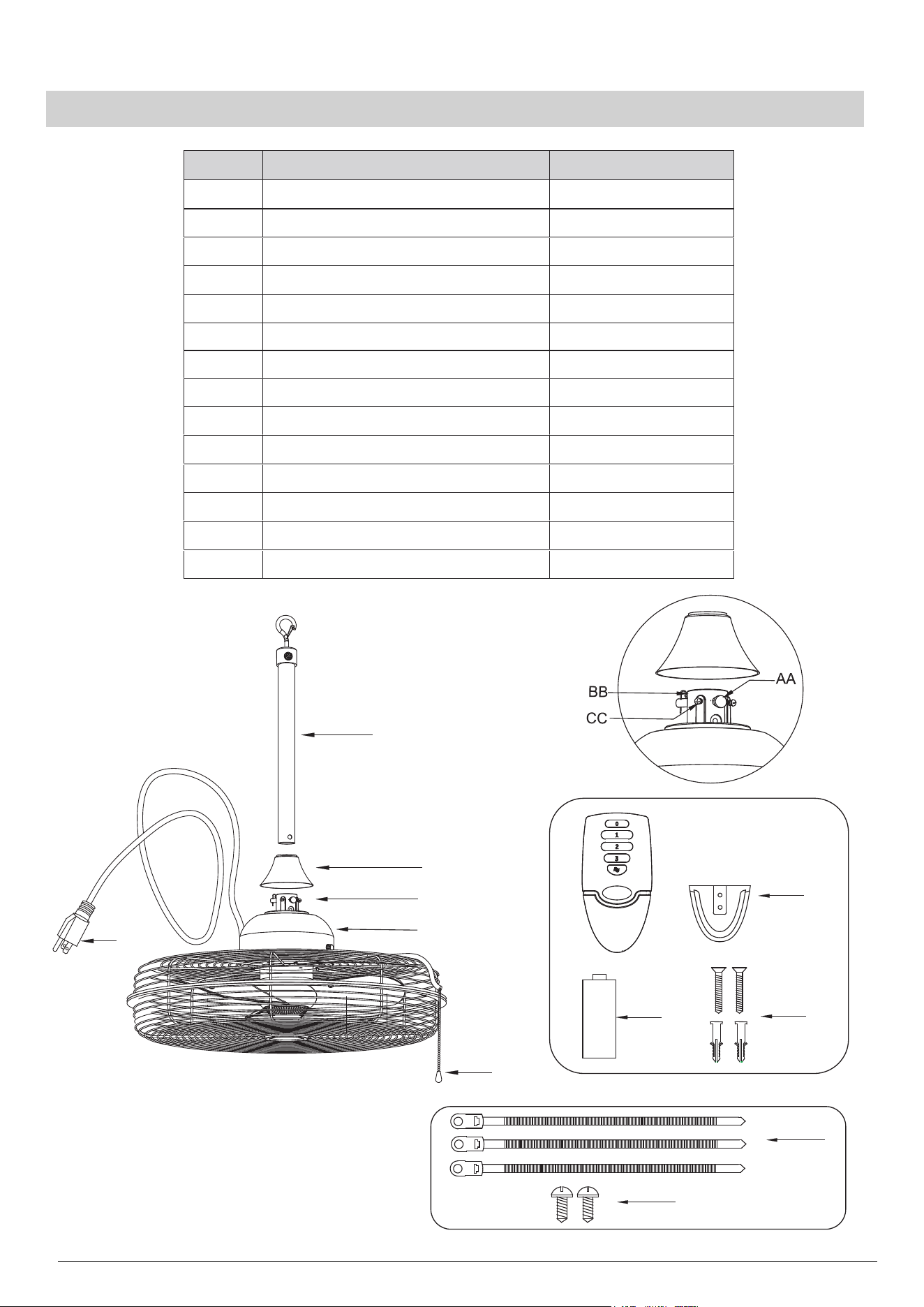

Package Contents
I
A
B
D
C
J
Part Description Quantity
A Hanger Bracket Assembly
Motor Body
Coupling
Lock Pin
Coupling Screw
Cross Pin
1
B 1
C 1
D 1
AA 1
BB 1
CC 2
E
F
G
1
1
Transmitter & Holder
Plastic Anchor & Wall Screw
23A 12V Battery
2
H
3
Cable Tie
Coupling Cover
I
J
K
2
Wall Screw
Pull Chain(Preassembled)
Power Cord(Preassembled)
H
K
F
G
E
1
2
WARNING:
Items in this section are not assembled to the product by the manufacturer and require installation.
Use of a product that may have been improperly assembled could result in serious personal injury.
To reduce risk of fire, electric shock, or injury to persons, unplug or disconnect the appliance from the power
supply before the fan installation, cleaning, or servicing.
To reduce the risk of personal injury, do not insert foreign objects inside the cage of the fan.
Do not damage or deform the cage of the fan.
Power cord will not support the weight of a fixture; pulling power cord will result in the fixture falling, with
the possibility of personal injury and the danger of electrical shock or fire.
Planning Installation

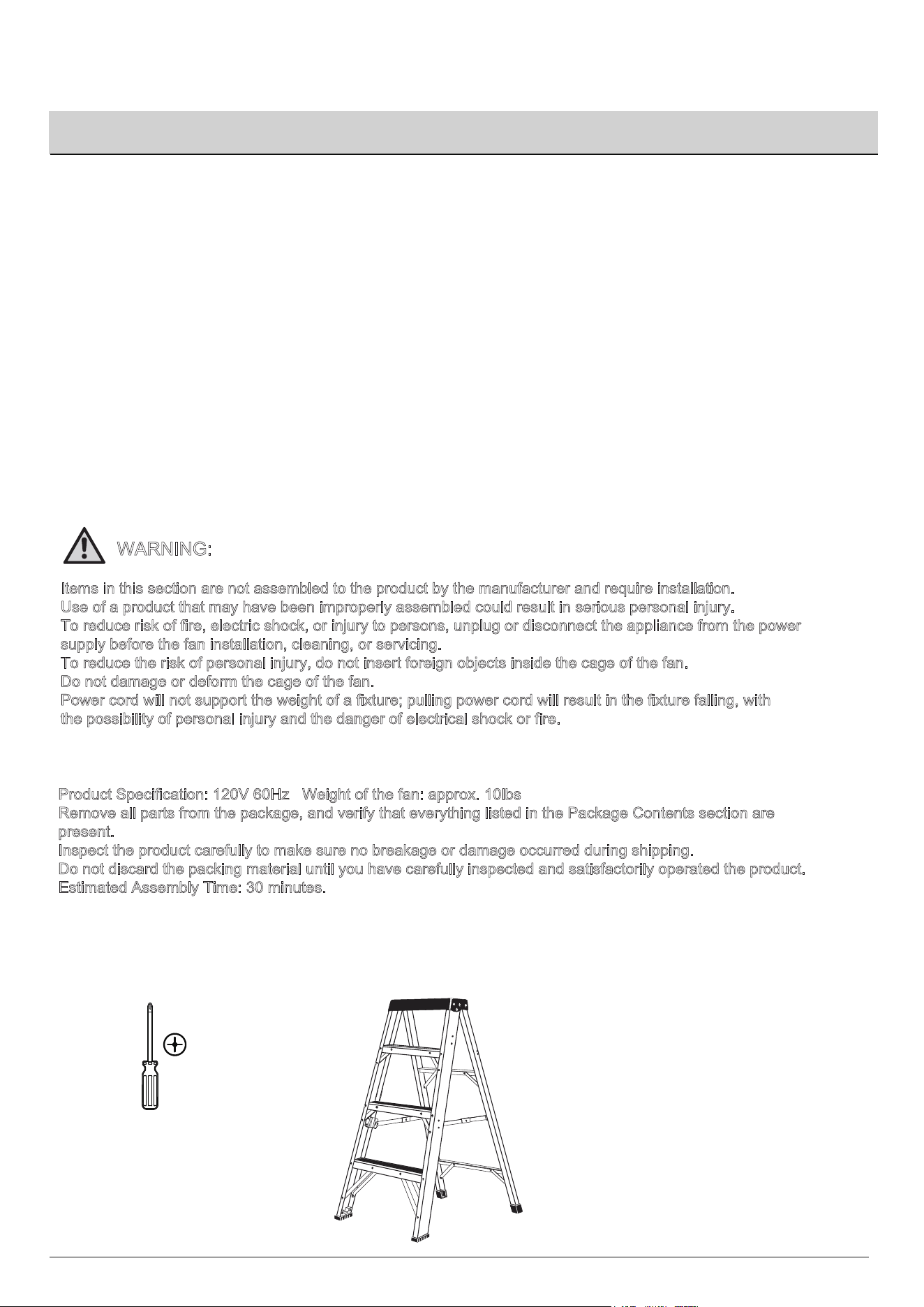

Tools Required (not included)
Product Specification: 120V 60Hz Weight of the fan: approx. 10lbs
Remove all parts from the package, and verify that everything listed in the Package Contents section are
present.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
Estimated Assembly Time: 30 minutes.
Phillips
Screwdriver
Step
Ladder
Pre-installation
This fan is applicable for gazebos or pagodas where a reliable mounting bracket is provided.
Ensure the hanging structure can support a minimum weight of 65 lbs. lf you are not sure the hanging structure can
support the weight, do not attempt to install this fan as it may fall and cause damage to the fan or personal injury.
Contact a qualified, licensed electrician for information regarding proper mounting methods in your area.
Do not use water or a damp cloth to clean the fan.
To reduce the risk of fire, electric shock, or injury to people, disconnect the electric supply circuit to the fan before
installing, cleaning and servicing the item.
Unplug or disconnect the appliance from the power supply before servicing.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
Use only on GFCl-protected receptacles.
Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for
examination and/or repair.
Do not run cord under carpet. Do not cover cord with throw rugs, runners, or similar coverings.
Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
Do not strain the power cord.
Read And Save These Instructions
Assembly Instructions
IMPORTANT: Risk of electrical shock, turn off circuit breaker and wall switch before assembly.
To avoid damage to the wire and plug, do not over-pull.

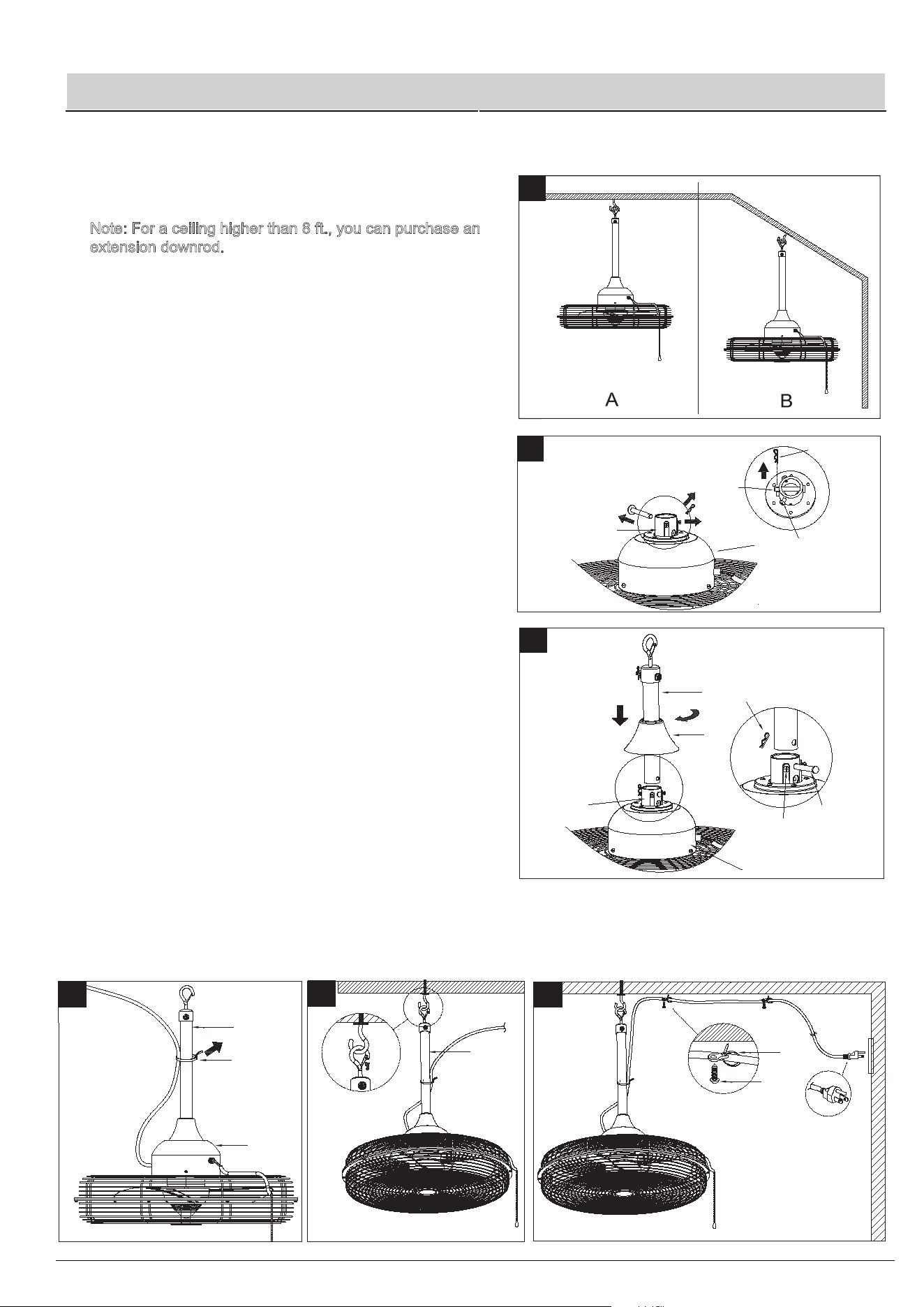

1. Choose the desired mounting method:
A. Standard Mounting:
Note: For a ceiling higher than 8 ft., you can purchase an
extension downrod.
B.Angle Mounting: Angle mounting is used for vaulted or
angled ceilings.
Note: The preferred mounting methods are to gazebos or
pagodas. However, other mounting methods are also
supported. For example, the fan can be mounted on
drywall, provided the surface supports a minimum weight
of 65 lbs.
2. Remove the lock pin (BB) and cross pin (AA) from the
coupling (D) on the motor body (C). Loosen the coupling
screws (CC) on the motor body (C).
3. Insert hanger bracket assembly (A) through the coupling
cover (B) into coupling (D). Make sure to align the hole in
hanger bracket assembly (A) with the hole in coupling (D).
Install cross pin (AA) through coupling (D) and hanger bracket
assembly (A). Insert lock pin (BB) into cross pin (AA) until it
snaps into place. Tighten coupling screws (CC) and slide
the coupling cover (B) onto the motor body (C).
4. Secure the power cord from motor body (C) to the hanger
bracket assembly (A) with cable tie (H).
5. For ceiling-mount installations, attach a standard mounting
bracket (not included) to a ceiling or outdoor gazebo/pagoda
per the bracket instructions. Then, attach the fan assembly
to the mounting bracket from the spring clip on hanger
bracket assembly (A).
6. First tie the cable tie (H) to the power cord, and then use wall
screws (K) to fix the cable tie (H) to the wall or ceiling.Plug
the power cord into a grounded 3-prong outlet. Once
power is restored to the house, the fan is ready for use.
1
2
3
BB
CC
AA
C
BB
AA
CC
A
B
D
C
D
3
4
5
A
H
C
A
6
K
H
4

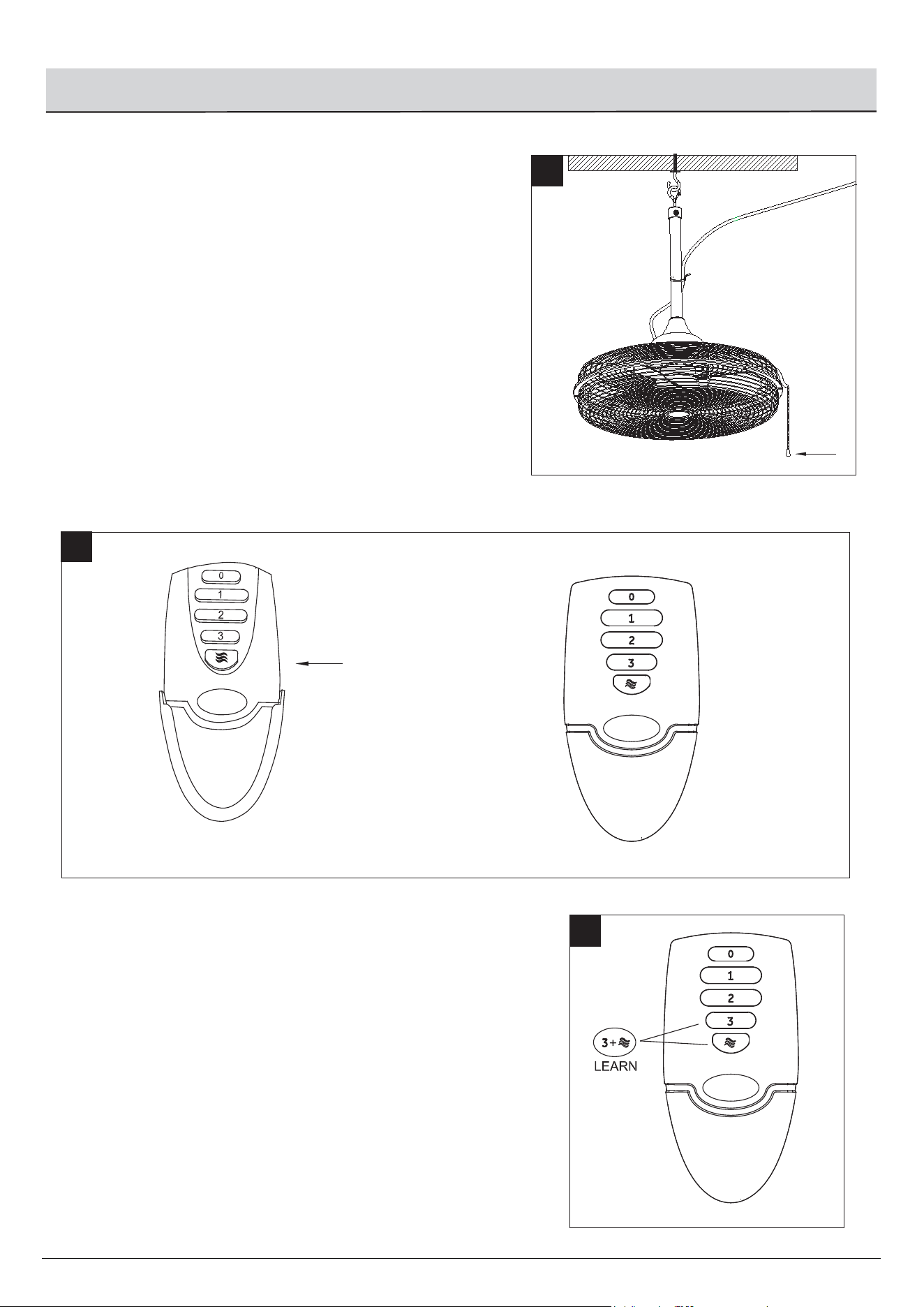

Operating Instructions
1. Pull Chain
There are four settings for the long pull chain switch (I). Turn the
fan on or off as well as select a preferred speed by pulling the long
chain switch (I) at the bottom of the fan.
1st time pulling- Turn on the fan/Low Speed
2nd time pulling- Middle Speed
3rd time pulling- High Speed
4th time pulling- Turn off the fan.
2. Remote controller
Setting the Airflow Speed
3. Code Matching
Press 3+≈ on the transmitter for 5 seconds to match the code on
receiver (already installed in the fan body). If it does not work, please
turn off the circuit breaker or wall switch and try again. After matching,
both transmitter and receiver will remember the last code match.
I
FAN OFF
Low Speed
Middle Speed
High Speed
Natural Wind
E
1
2
3
Problem Possible Cause Corrective Action
1. Fan does not move
1. Power is off or fuse is blown.
2. Bad wire connection.
1. Turn power on or check fuse.
2. Turn power off. Check all connections.
2. Noisy operation
1. Blades are loose
2. Blade is cracked.
1. Replace blades.
3. Excessive wobbling
Troubleshooting
4. Remote control
does not work
1. Power surge may have
cleared memory and
transmitter needs to be
re-coded to the receiver.
2. Battery in transmitter needs
to be replaced.
3. Interference from another
remote control.
Limited Lifetime Warranty
Ceiling Fan Warranty
This Limited Lifetime Warranty includes motor and motor-related parts only, which will be replaced
or repaired as determined by Patriot Lighting during the period in which this warranty is in effect,
as further defined below.
5
1. Turn off the power, then turn it on quickly
(within 10 seconds of turning the power
on) hold the 3 +
≈ keys for 5 seconds to
match code. (see page 4)
2. Insert new battery in battery
compartment of the transmitter.
3. If there are several fans in proximity,
turn power off to other fans and re-code
the remote (see Corrective Action 1
above).
1. Turn off power. Loosen the screws on
the fan housing and the front guard of
the fan blades, then tighten the blades.
2. Turn off power. Tighten the mounting
bracket to make sure it is securely
mounted.
3. Lower or move fan to another place.
Extension downrod may be required.
1. Blades are loose.
2. Fan not securely mounted.
3. Fan too close to vaulted
ceiling.
6
The limited lifetime warranty covers this ceiling fan, for residential use by the original purchaser,
against defects in material or workmanship as follows:
If your Patriot Lighting Ceiling Fan motor fails at anytime during the lifetime of the original
purchaser due to defects in material or workmanship, we will provide a replacement part free of
charge.
If your fan blades, pull chain switch, reverses witch, or any accessory, except glass globes and
light bulbs, fails at any time within one year after the original date of purchase due to a defect in
material and workmanship, we will repairor, if we choose, replace the defective blades, switch,
or accessory free of charge, with the exception of take down/reinstallation services.
If the original purchaser ceases to own the fan, this warranty and any implied warranty, including
but not limited to any implied warranty of merchantability or fitness for a particular purpose,
become void.
This warranty and any implied warranty, including but not limited to any implied warranty of
merchantability or fitness for a particular purpose, do not cover glass globes, light bulbs, or
finish on any metal portions of the fan.
This warranty is in lieu of express warranties. The duration of any implied warranty of
merchantability or fitness for a particular purpose, with respect to any Patriot Lighting Ceiling
Fan motor, blades, switch, or accessories, is expressly limited to the period of the express
warranty set forth above for such motor, blades, switch, or accessories.
This warranty excludes defects, malfunctions, or failures of any Patriot Lighting Fan that are
caused by repairs by persons not authorized by us, use of parts or accessories not authorized
by us, mishandling, improper installation, modifications or damage to the fan while in your
possession, or unreasonable use, including failure to provide necessary maintenance.
To obtain service, contact the service department. You will be responsible for all insurance and
freightor other transportation charges to our factory or service center. A copy of sales receipt is
required in order to obtain service. We will return your fan freight prepaid. Your fan should be
properly packed to avoid damage in transit, for we will not be responsible for any such damages.
In no event shall Patriot Lighting Fan be liable for consequential or incidental damages.
Some states do not allow the exclusion or limitation of consequential or incidental damages, in
which case the above limitation or exclusion may not apply.
This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
